1. Mohammad Shaker
mohammadshaker.com
@ZGTRShaker
2015
OpenGL Graphics
L04-Lighting

2. What we’ve learnt so far..

3. RULE
TOSEEA3DSCENEYOUSHOULDSETUP:
CAMERA(Singleton,forallobjects)
PROJECTION(Singleton,forallobjects)
WORLDMATRIX(Foreachobjectseparately)

4. Lighting

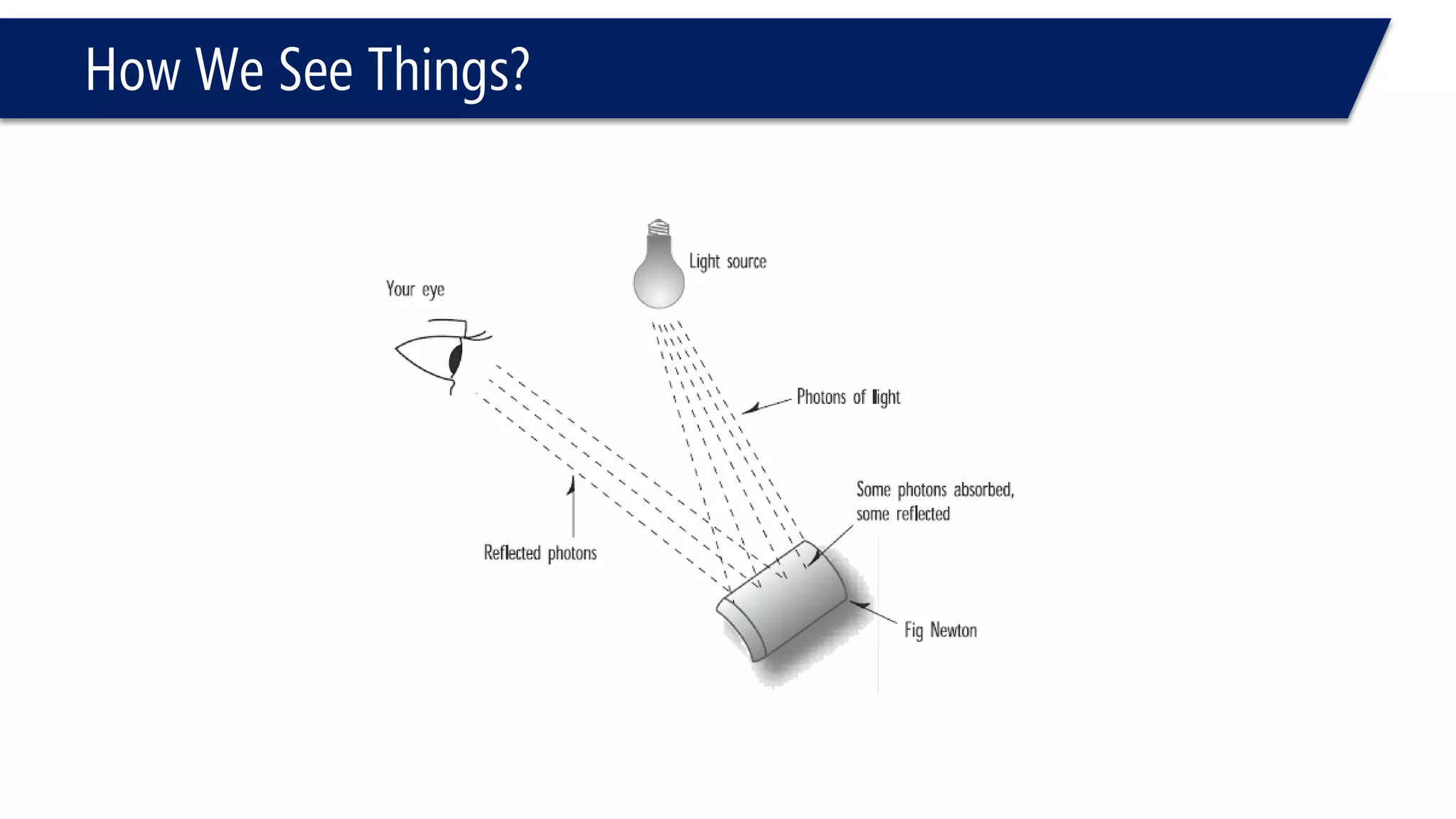

5. How We See Things?

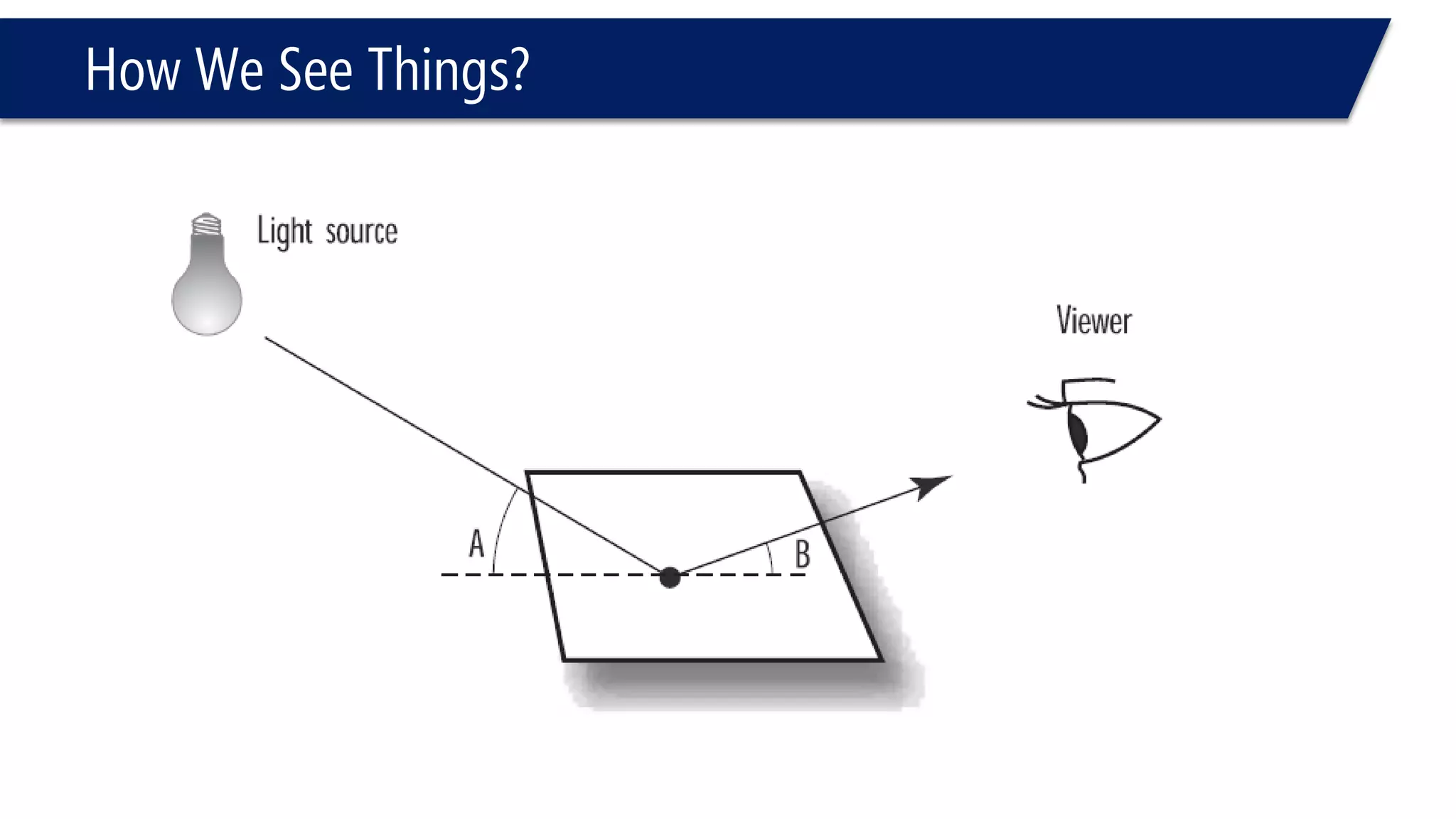

6. How We See Things?

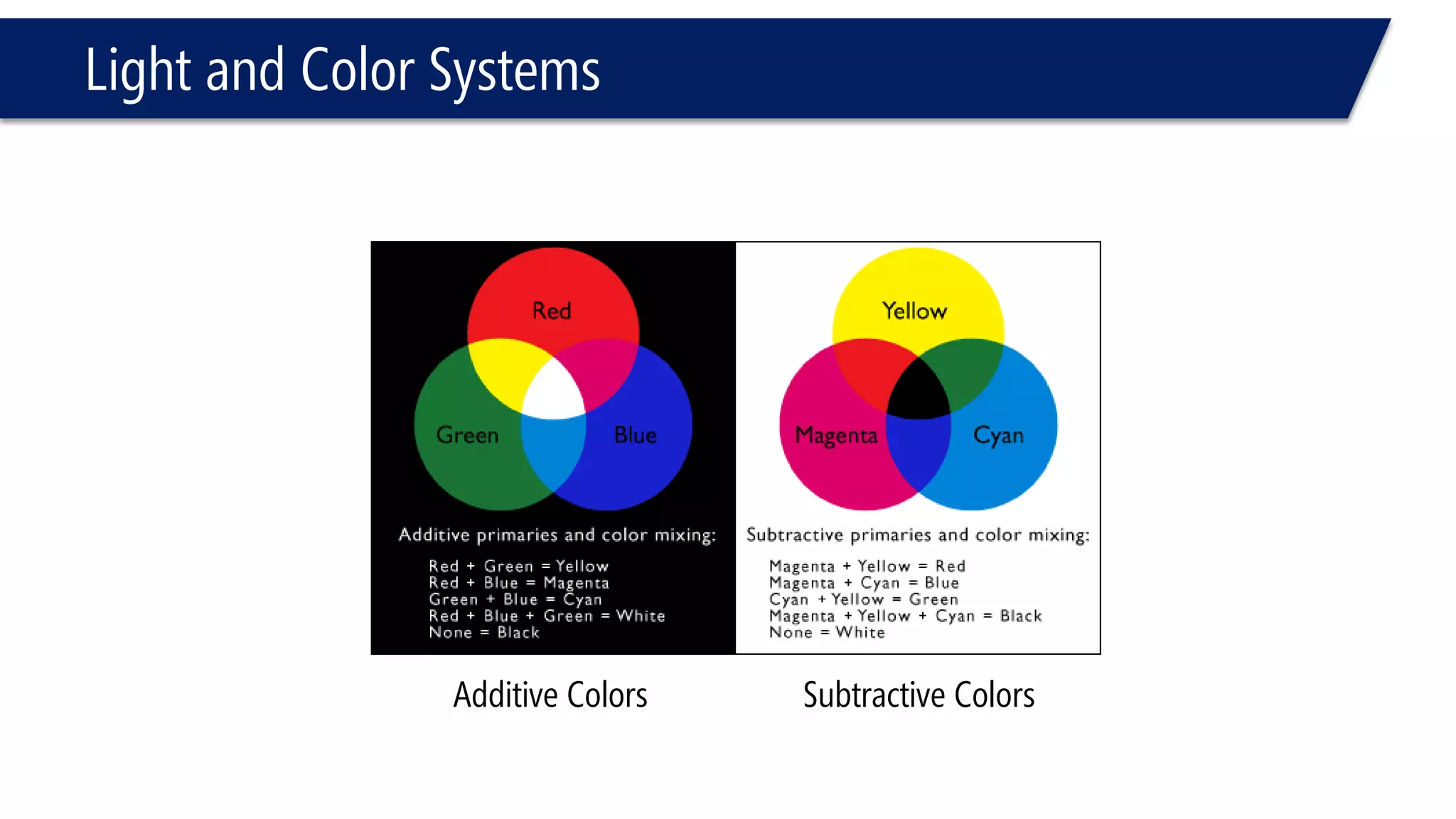

7. Light and Color Systems
Additive Colors Subtractive Colors

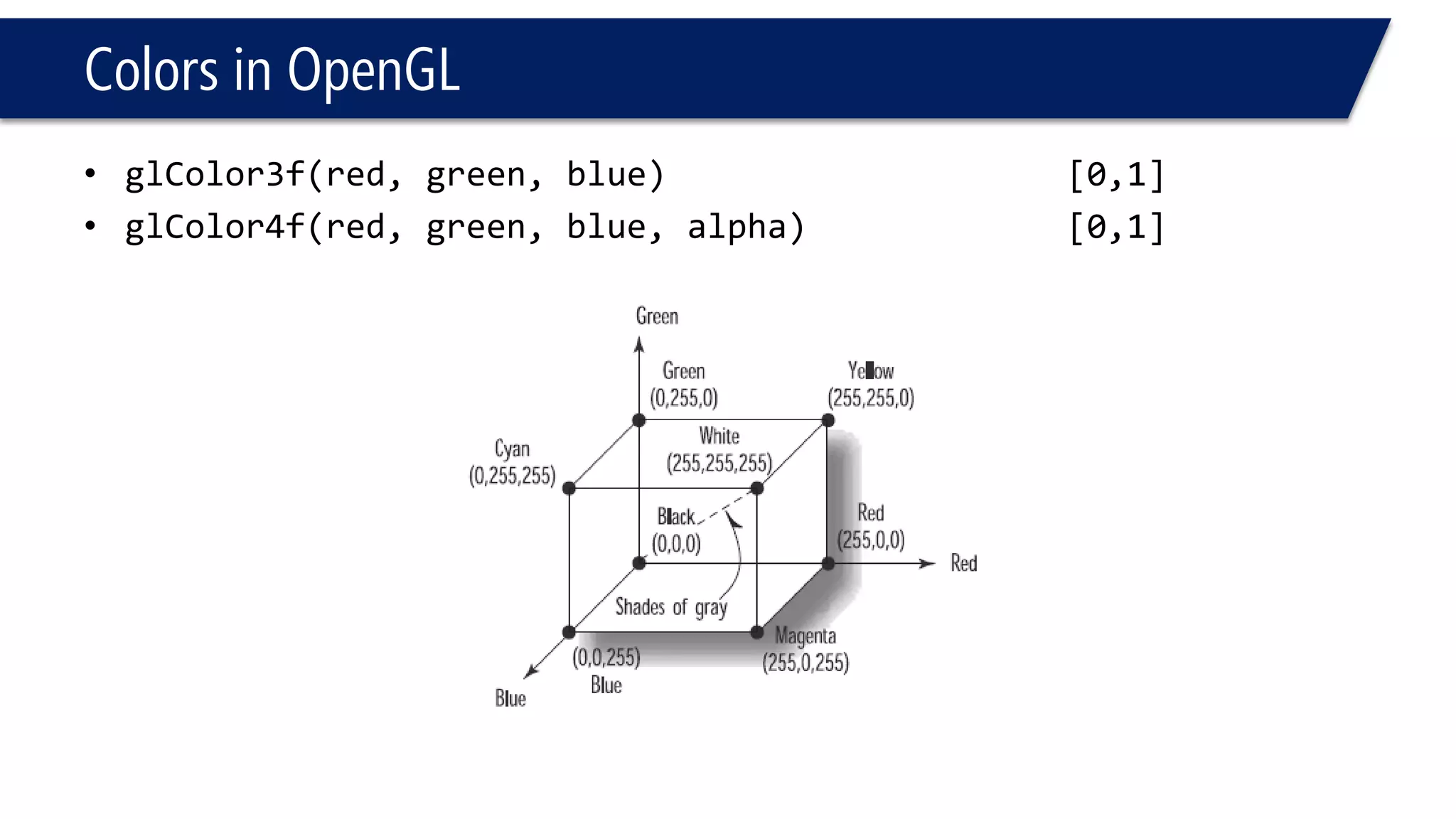

8. Colors in OpenGL
• glColor3f(red, green, blue) [0,1]
• glColor4f(red, green, blue, alpha) [0,1]

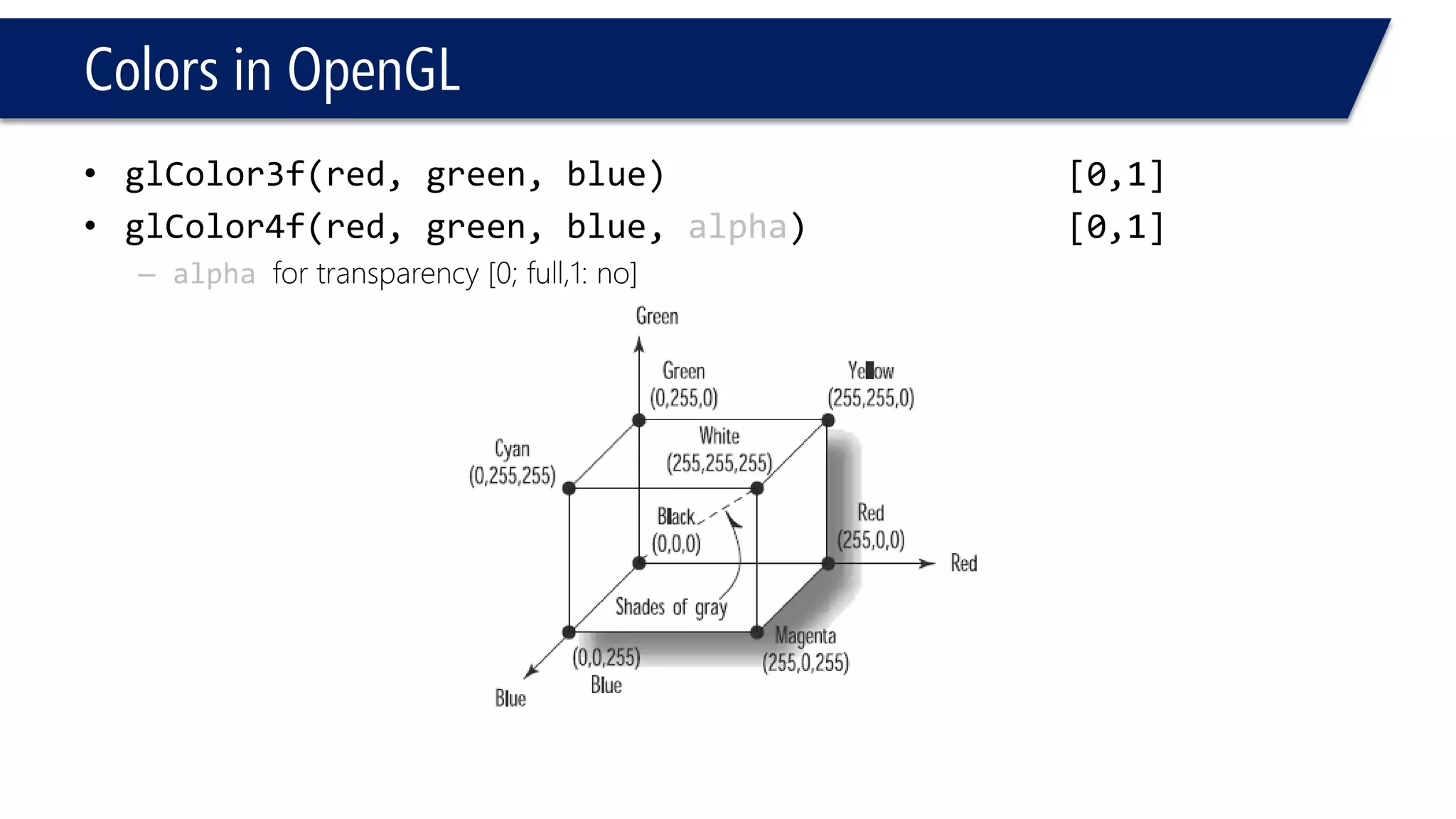

9. Colors in OpenGL
• glColor3f(red, green, blue) [0,1]
• glColor4f(red, green, blue, alpha) [0,1]
– alpha for transparency [0; full,1: no]

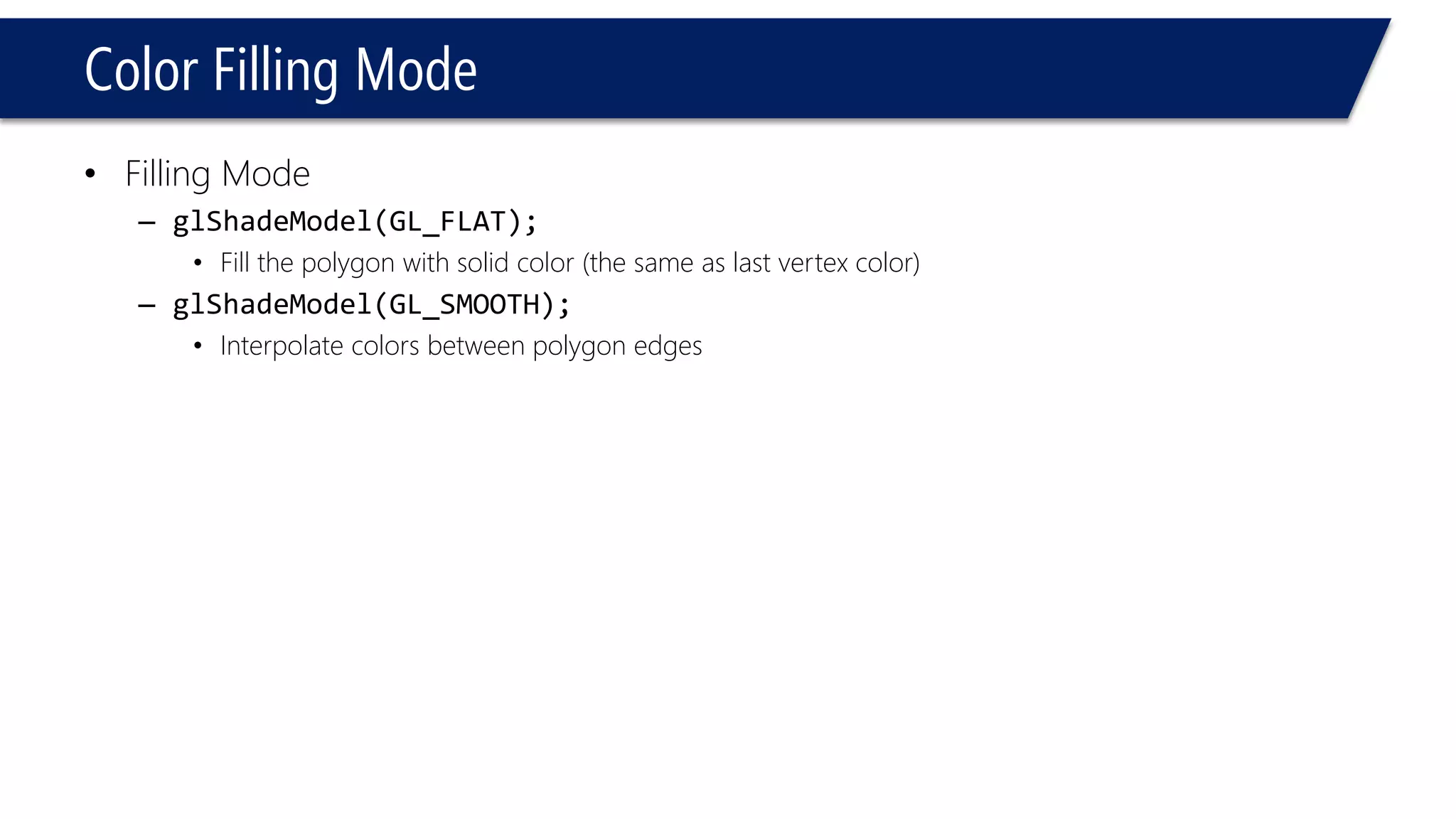

10. Color Filling Mode
• Filling Mode
– glShadeModel(GL_FLAT);
• Fill the polygon with solid color (the same as last vertex color)
– glShadeModel(GL_SMOOTH);
• Interpolate colors between polygon edges

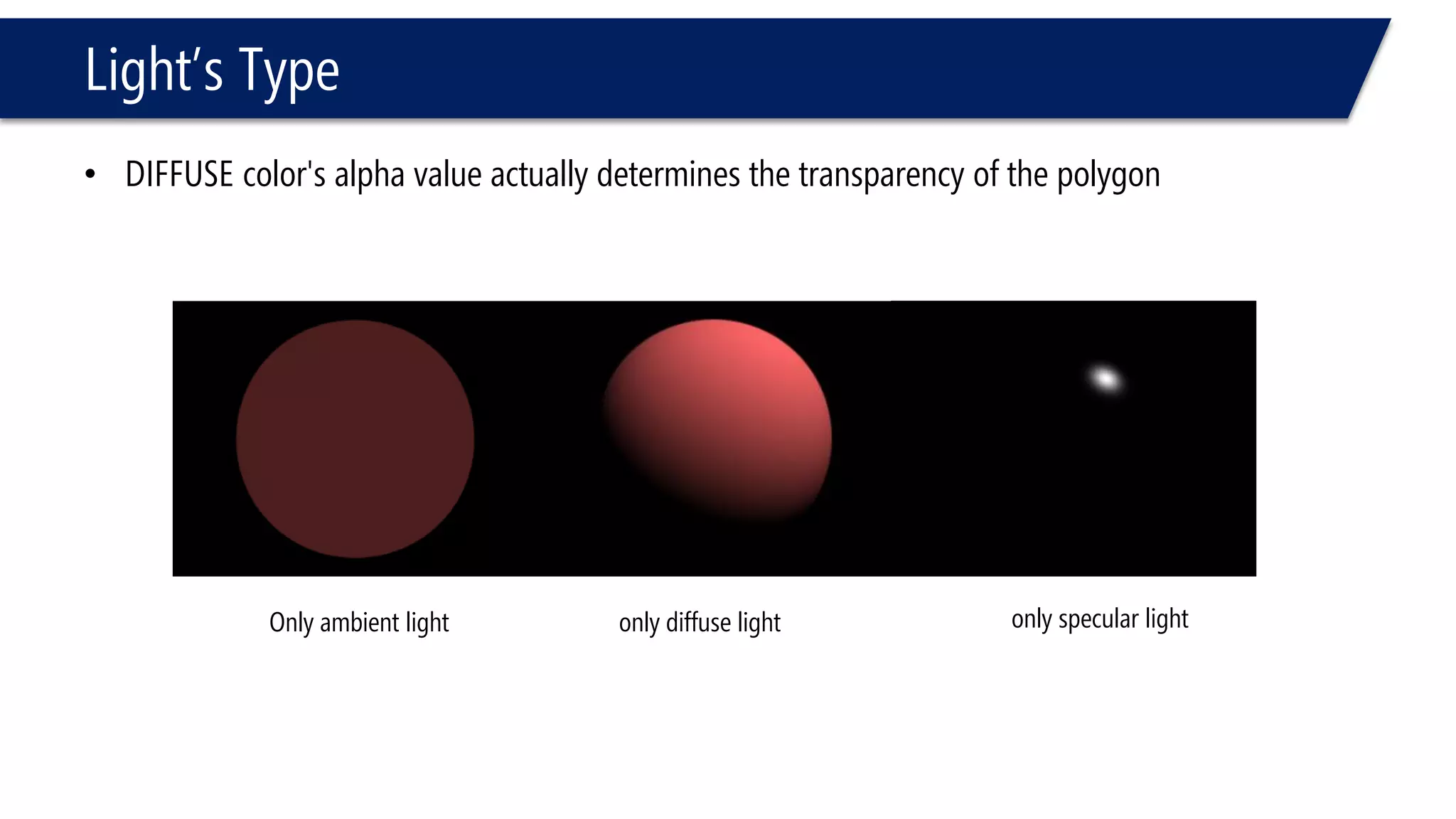

11. Light’s Type
• DIFFUSE color's alpha value actually determines the transparency of the polygon
Only ambient light only specular lightonly diffuse light

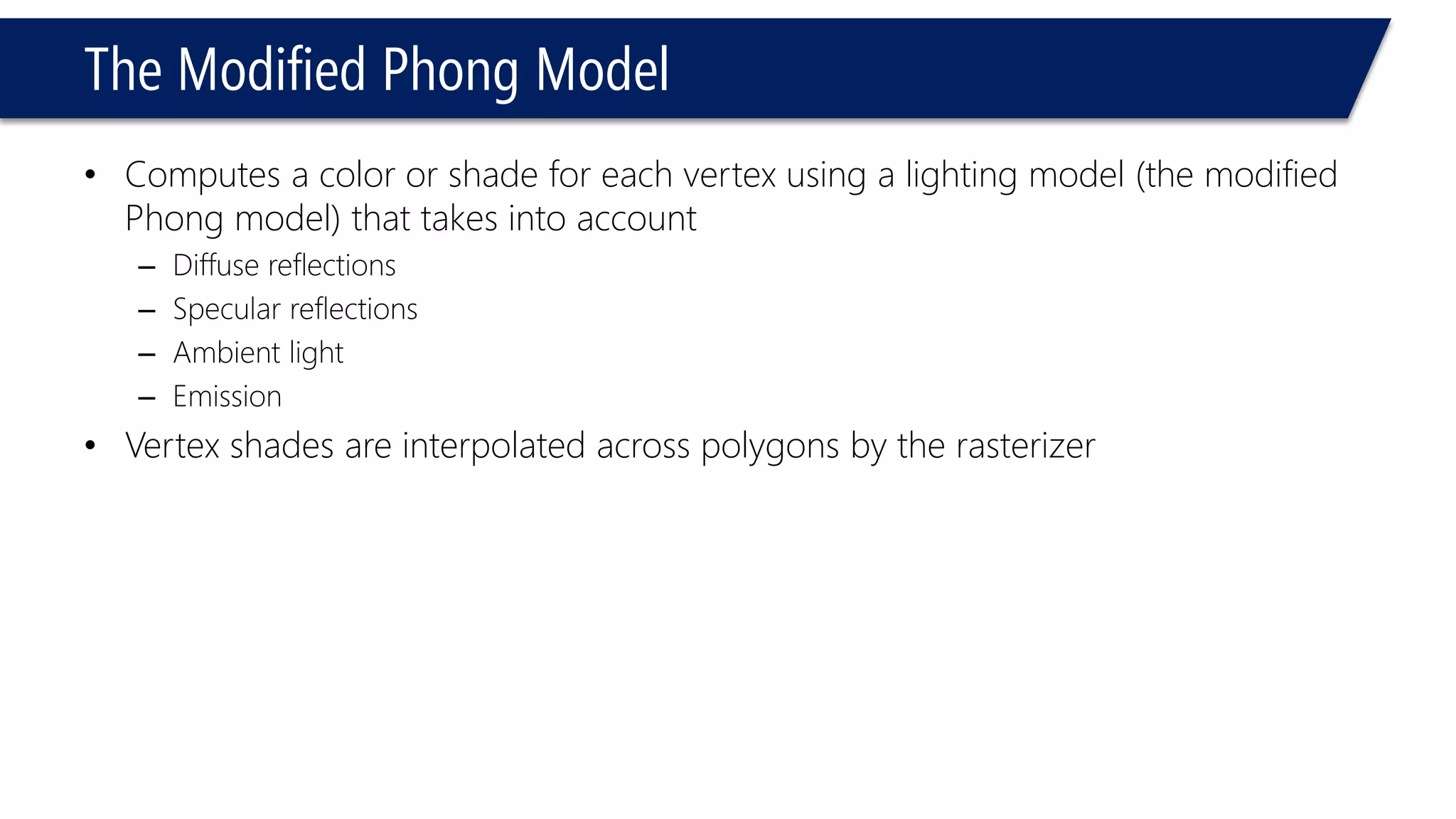

12. The Modified Phong Model
• Computes a color or shade for each vertex using a lighting model (the modified
Phong model) that takes into account
– Diffuse reflections
– Specular reflections
– Ambient light
– Emission
• Vertex shades are interpolated across polygons by the rasterizer

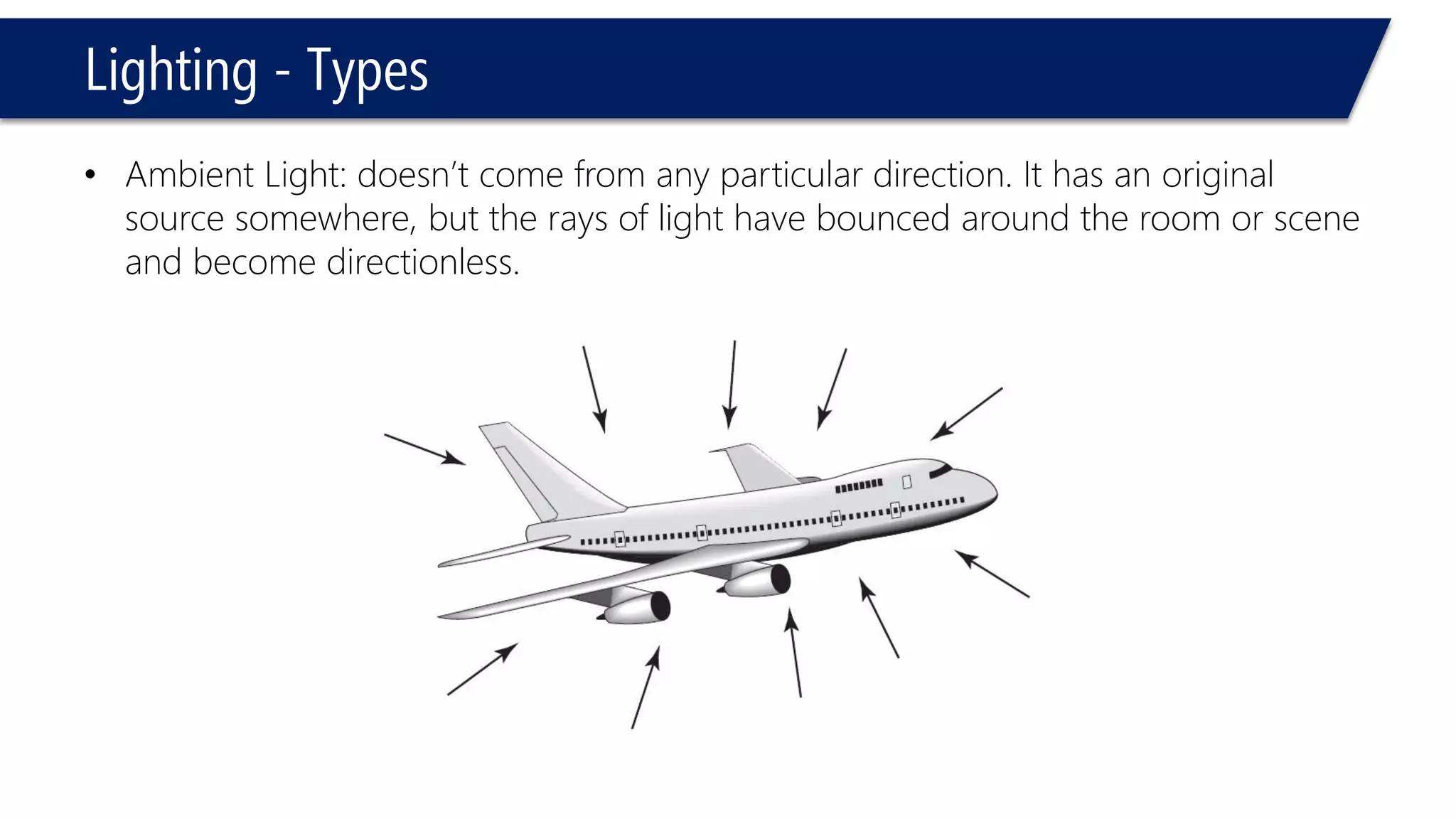

13. Lighting - Types
• Ambient Light: doesn’t come from any particular direction. It has an original
source somewhere, but the rays of light have bounced around the room or scene
and become directionless.

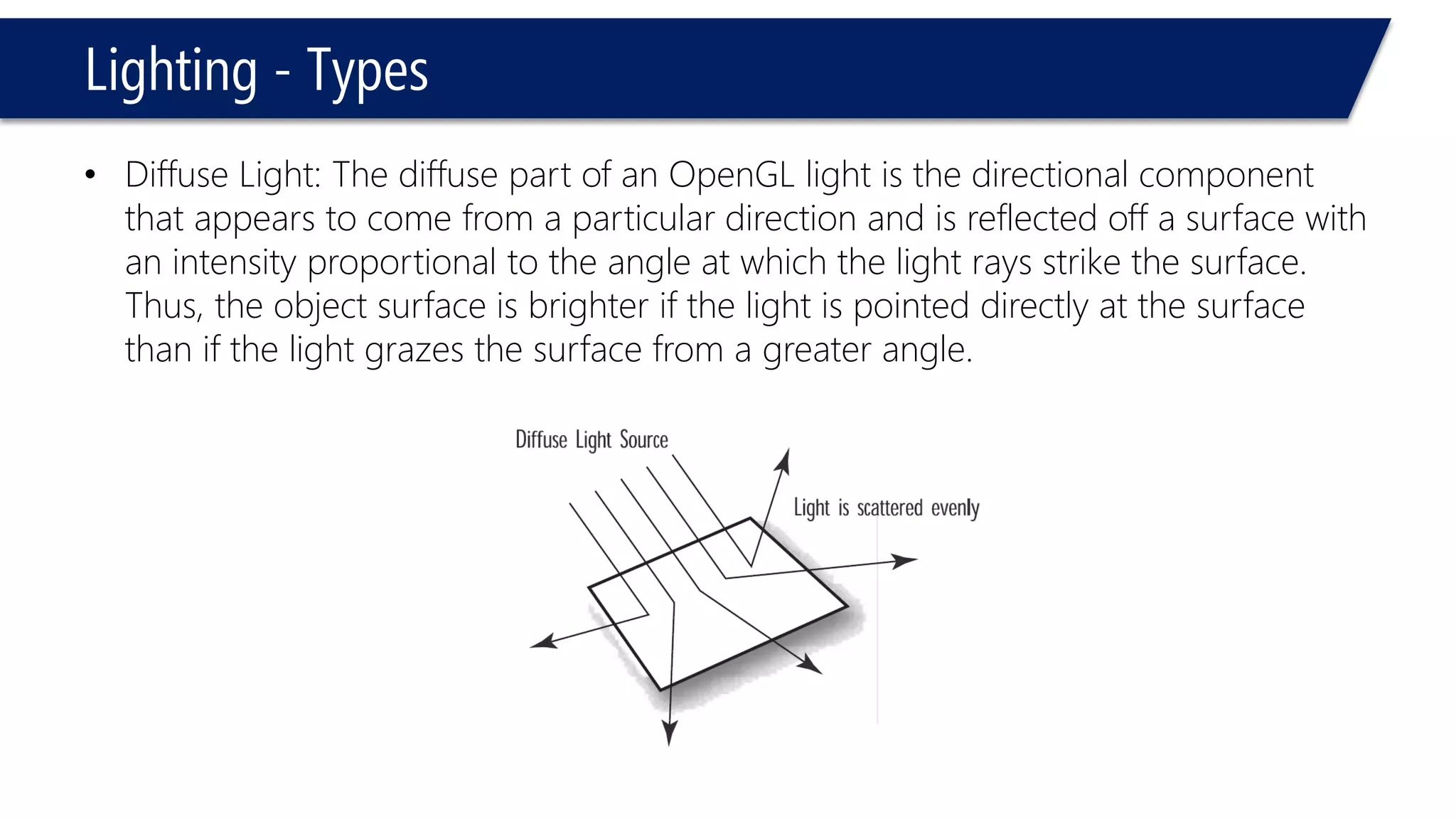

14. Lighting - Types
• Diffuse Light: The diffuse part of an OpenGL light is the directional component
that appears to come from a particular direction and is reflected off a surface with
an intensity proportional to the angle at which the light rays strike the surface.
Thus, the object surface is brighter if the light is pointed directly at the surface
than if the light grazes the surface from a greater angle.

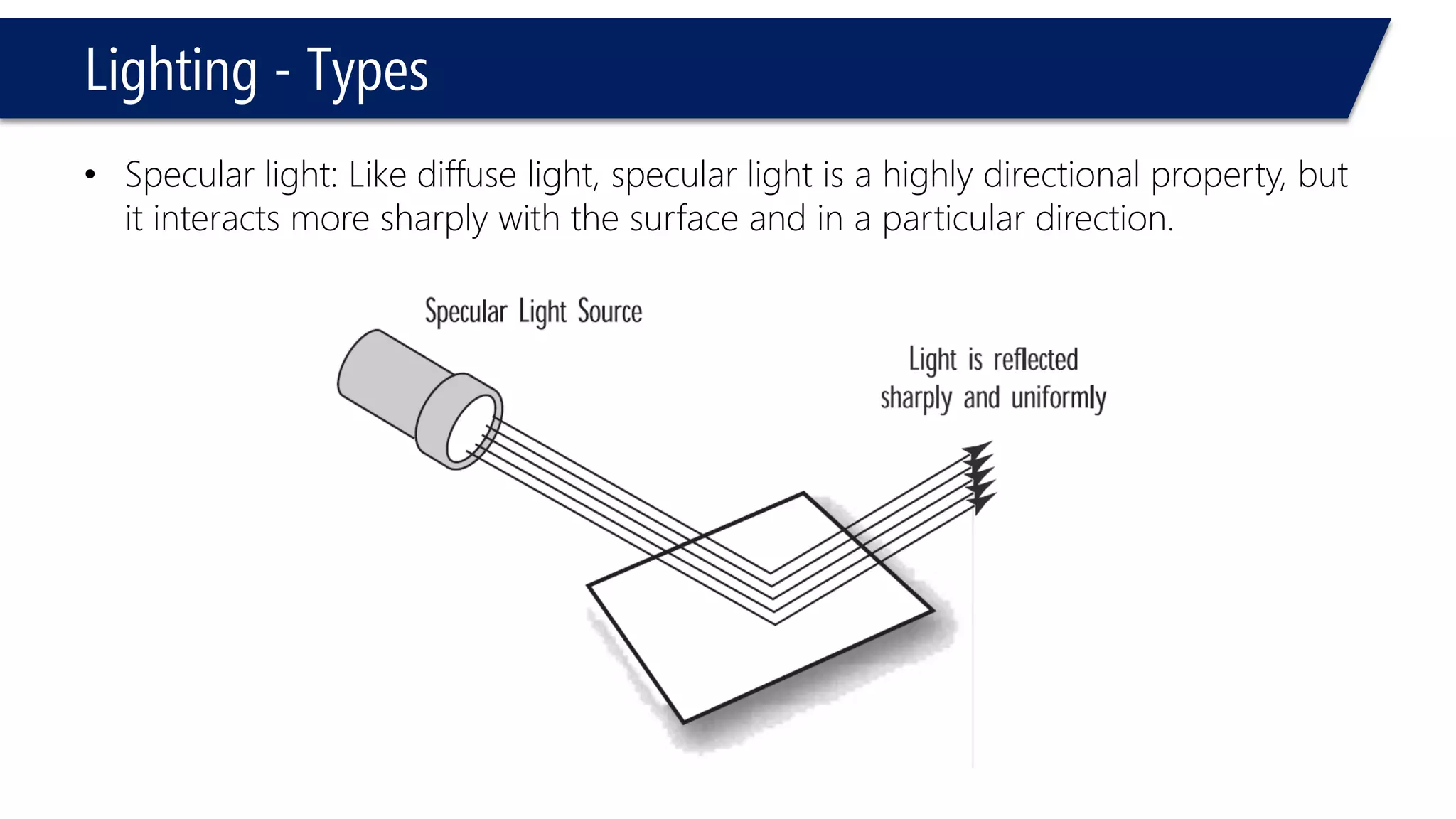

15. Lighting - Types
• Specular light: Like diffuse light, specular light is a highly directional property, but
it interacts more sharply with the surface and in a particular direction.

16. The Modified Phong Model
• The model is a balance between simple computation and physical realism
• The model uses
– Light positions and intensities
– Surface orientation (normals)
– Material properties (reflectivity)
– Viewer location
• Computed for each source and each color component

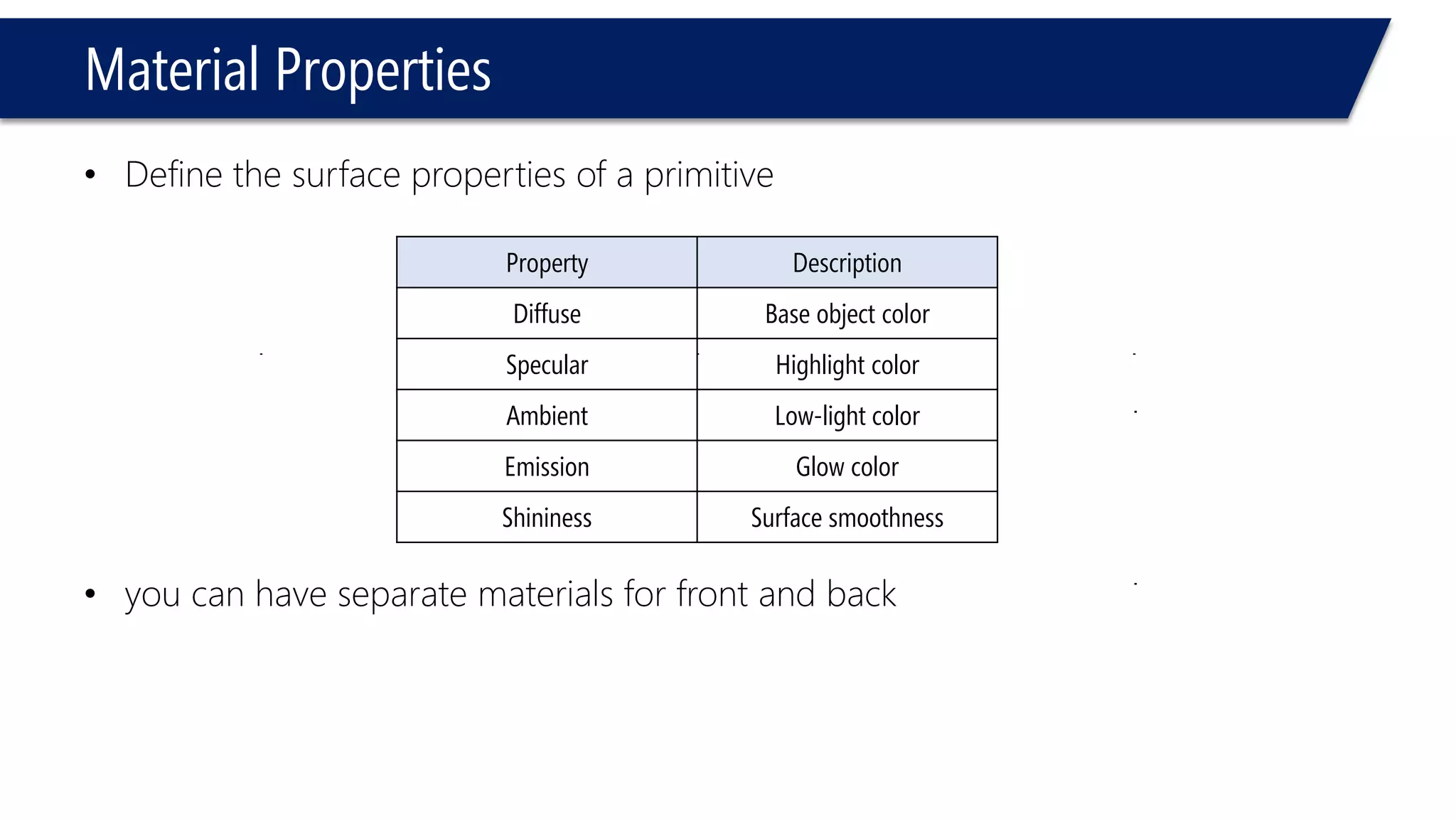

17. Material Properties
• Define the surface properties of a primitive
• you can have separate materials for front and back
Property Description
Diffuse Base object color
Specular Highlight color
Ambient Low-light color
Emission Glow color
Shininess Surface smoothness

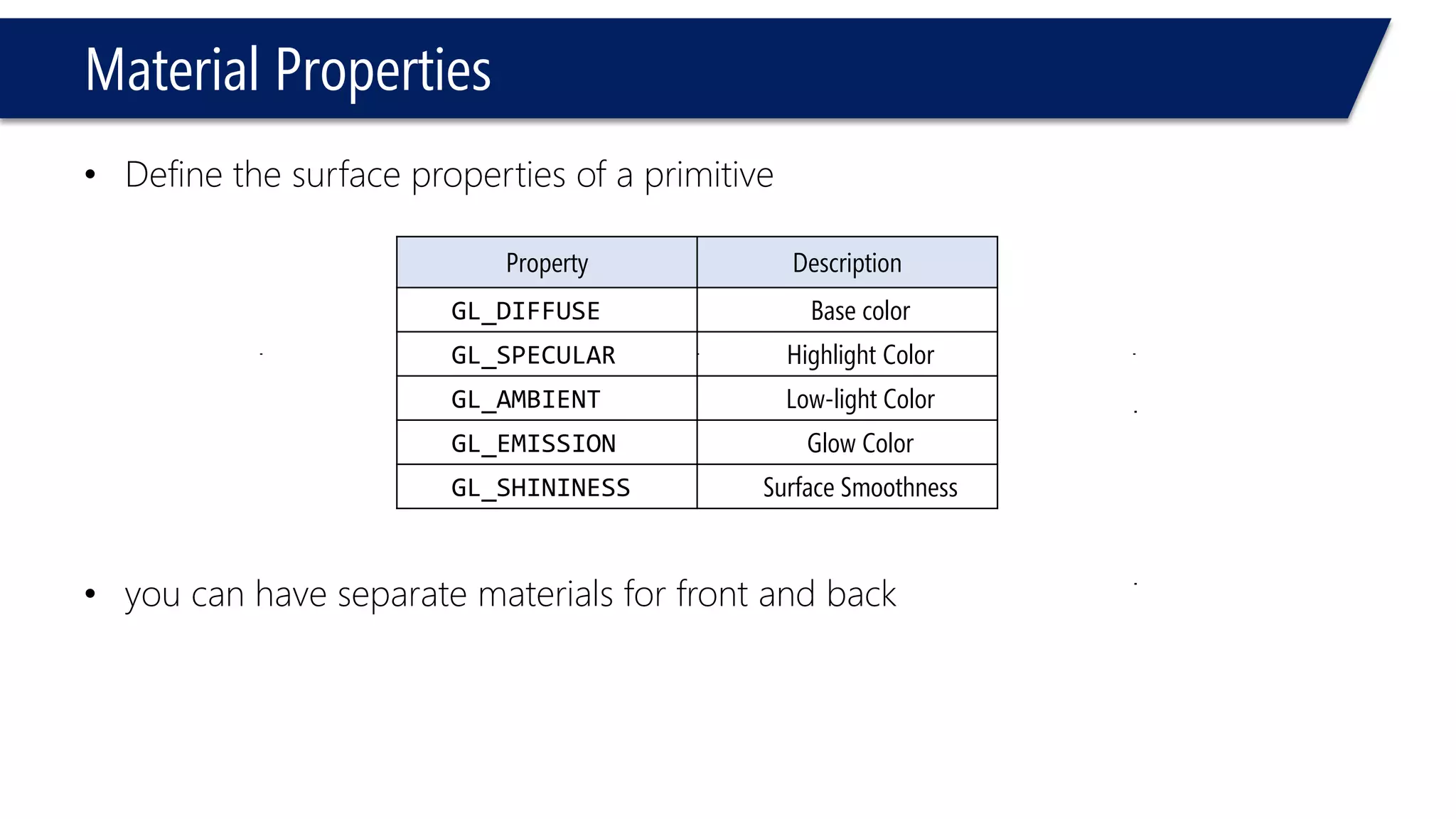

18. Material Properties
• Define the surface properties of a primitive
• you can have separate materials for front and back
Property Description
GL_DIFFUSE Base color
GL_SPECULAR Highlight Color
GL_AMBIENT Low-light Color
GL_EMISSION Glow Color
GL_SHININESS Surface Smoothness

19. Color Theory

20. Color Theory

21. Lighting in OpenGL

22. Lighting in OpenGL
Light Source and Object Material

23. Lighting in OpenGL
Light Source and Object Material

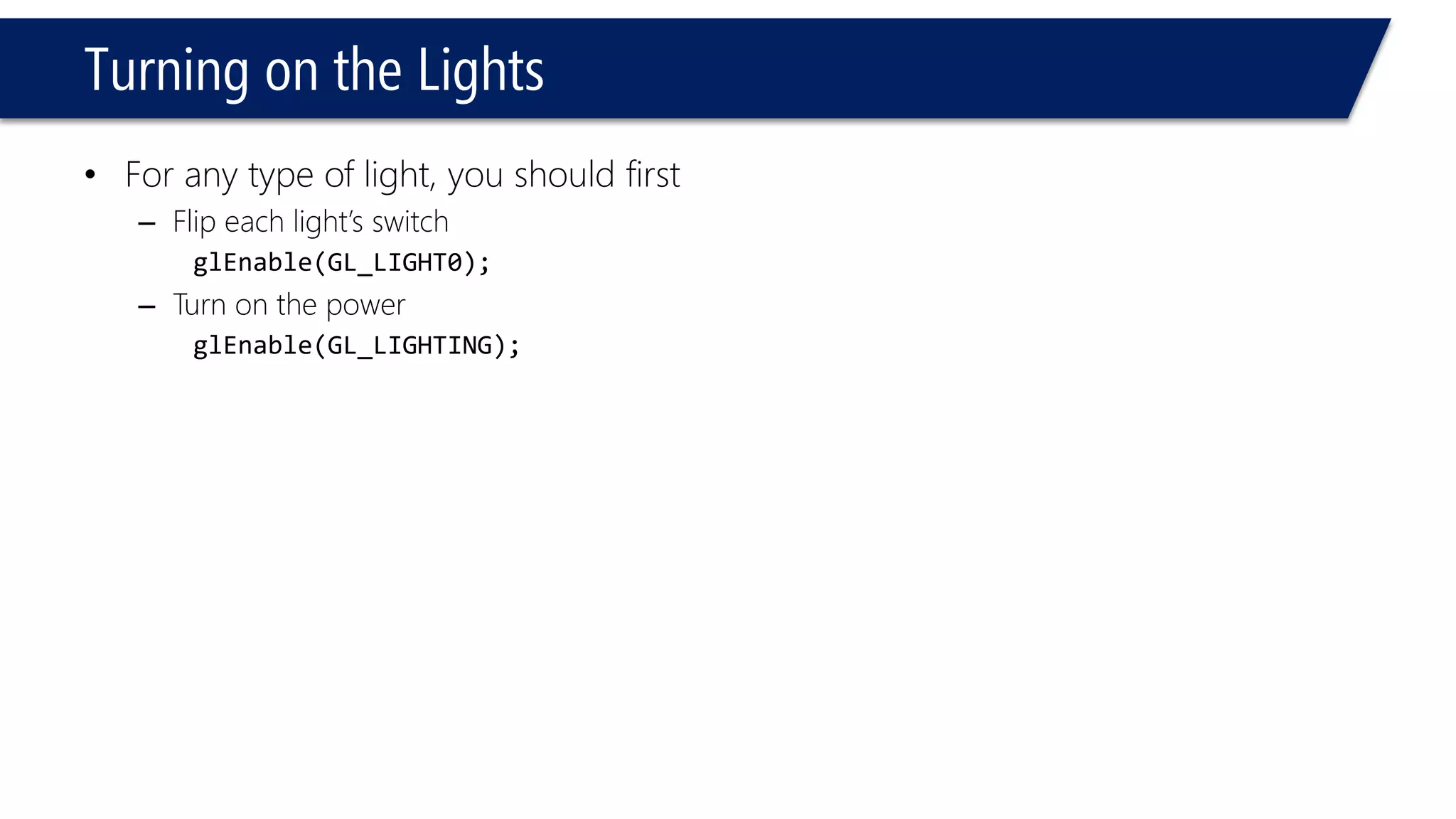

24. Turning on the Lights
• For any type of light, you should first
– Flip each light’s switch
glEnable(GL_LIGHT0);
– Turn on the power
glEnable(GL_LIGHTING);

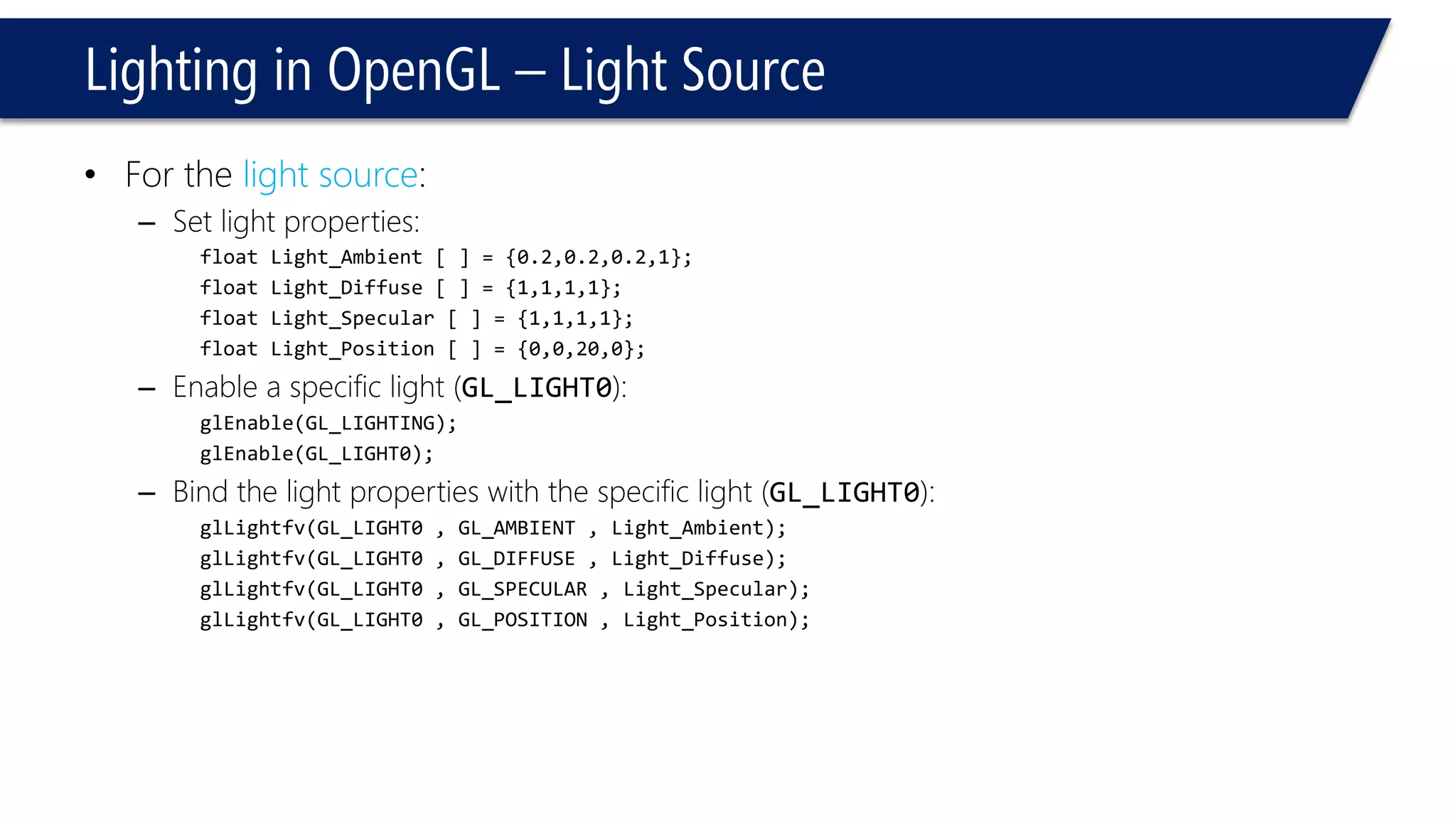

25. Lighting in OpenGL – Light Source
• For the light source:
– Set light properties:
float Light_Ambient [ ] = {0.2,0.2,0.2,1};
float Light_Diffuse [ ] = {1,1,1,1};
float Light_Specular [ ] = {1,1,1,1};
float Light_Position [ ] = {0,0,20,0};
– Enable a specific light (GL_LIGHT0):
glEnable(GL_LIGHTING);
glEnable(GL_LIGHT0);
– Bind the light properties with the specific light (GL_LIGHT0):
glLightfv(GL_LIGHT0 , GL_AMBIENT , Light_Ambient);
glLightfv(GL_LIGHT0 , GL_DIFFUSE , Light_Diffuse);
glLightfv(GL_LIGHT0 , GL_SPECULAR , Light_Specular);
glLightfv(GL_LIGHT0 , GL_POSITION , Light_Position);

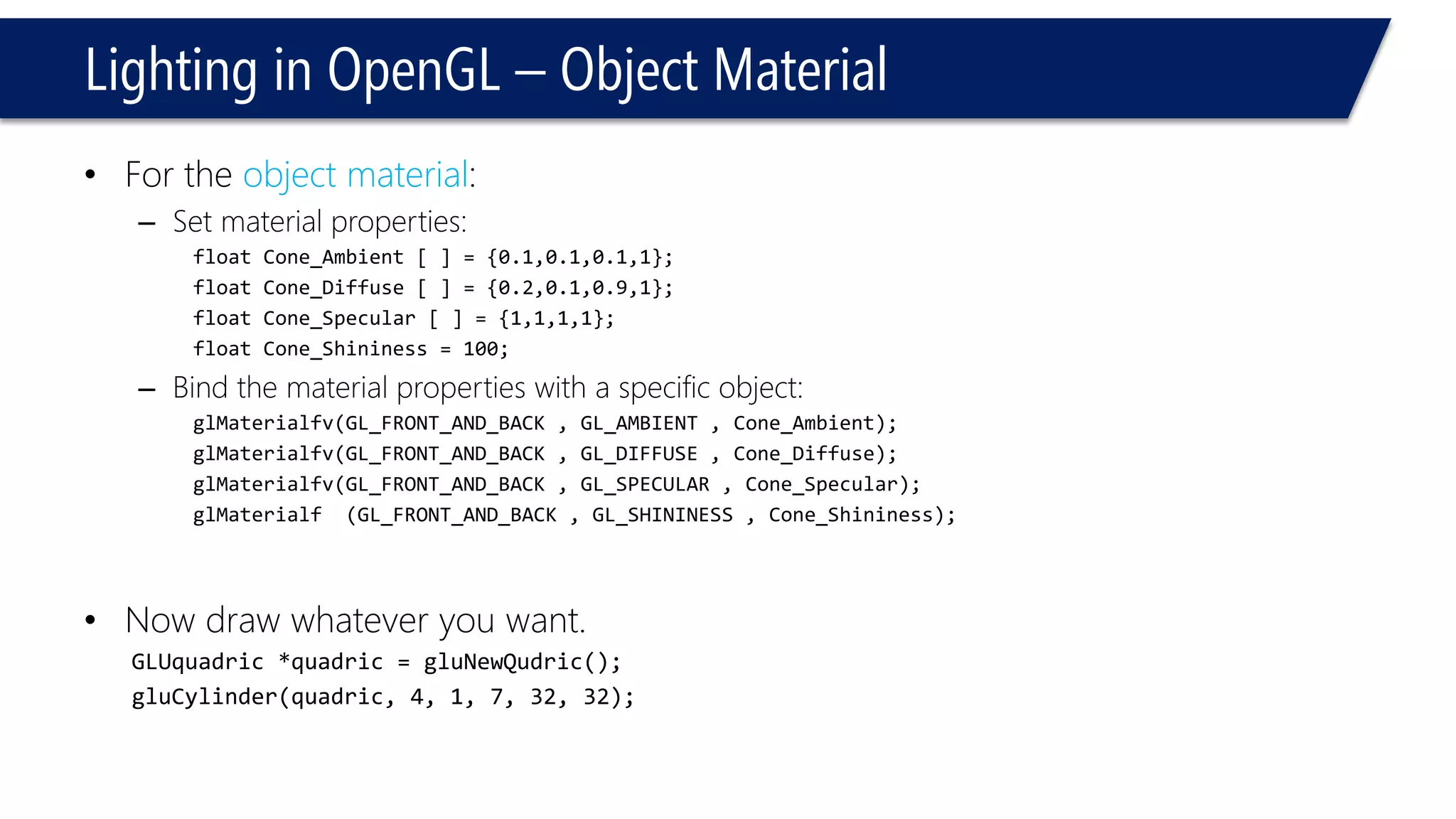

26. Lighting in OpenGL – Object Material
• For the object material:
– Set material properties:
float Cone_Ambient [ ] = {0.1,0.1,0.1,1};
float Cone_Diffuse [ ] = {0.2,0.1,0.9,1};
float Cone_Specular [ ] = {1,1,1,1};
float Cone_Shininess = 100;
– Bind the material properties with a specific object:
glMaterialfv(GL_FRONT_AND_BACK , GL_AMBIENT , Cone_Ambient);
glMaterialfv(GL_FRONT_AND_BACK , GL_DIFFUSE , Cone_Diffuse);
glMaterialfv(GL_FRONT_AND_BACK , GL_SPECULAR , Cone_Specular);
glMaterialf (GL_FRONT_AND_BACK , GL_SHININESS , Cone_Shininess);
• Now draw whatever you want.
GLUquadric *quadric = gluNewQudric();
gluCylinder(quadric, 4, 1, 7, 32, 32);

27. Lighting Example
Complete Code

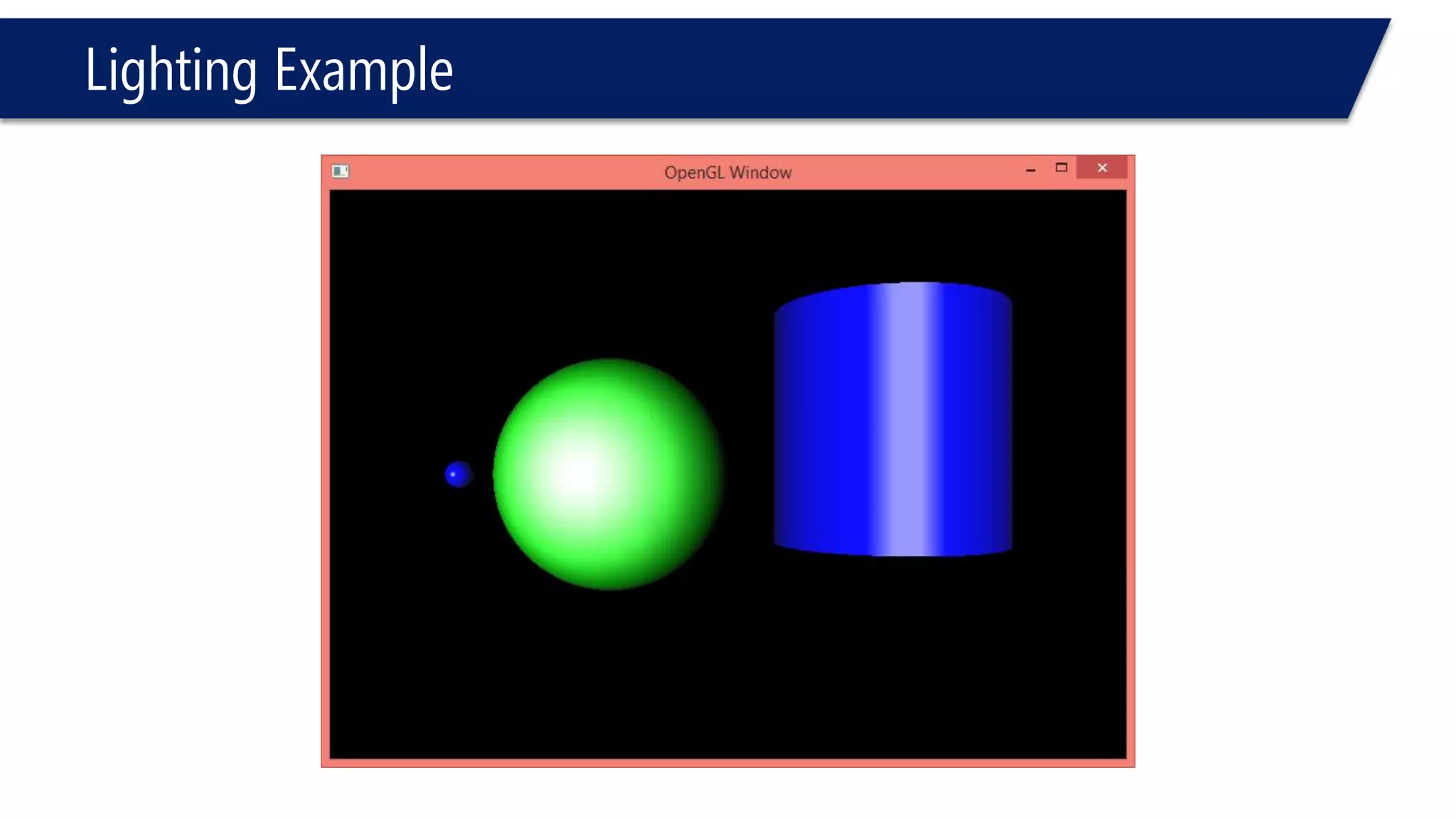

28. Lighting Example

29. SpotLight Lighting Example
Complete Code

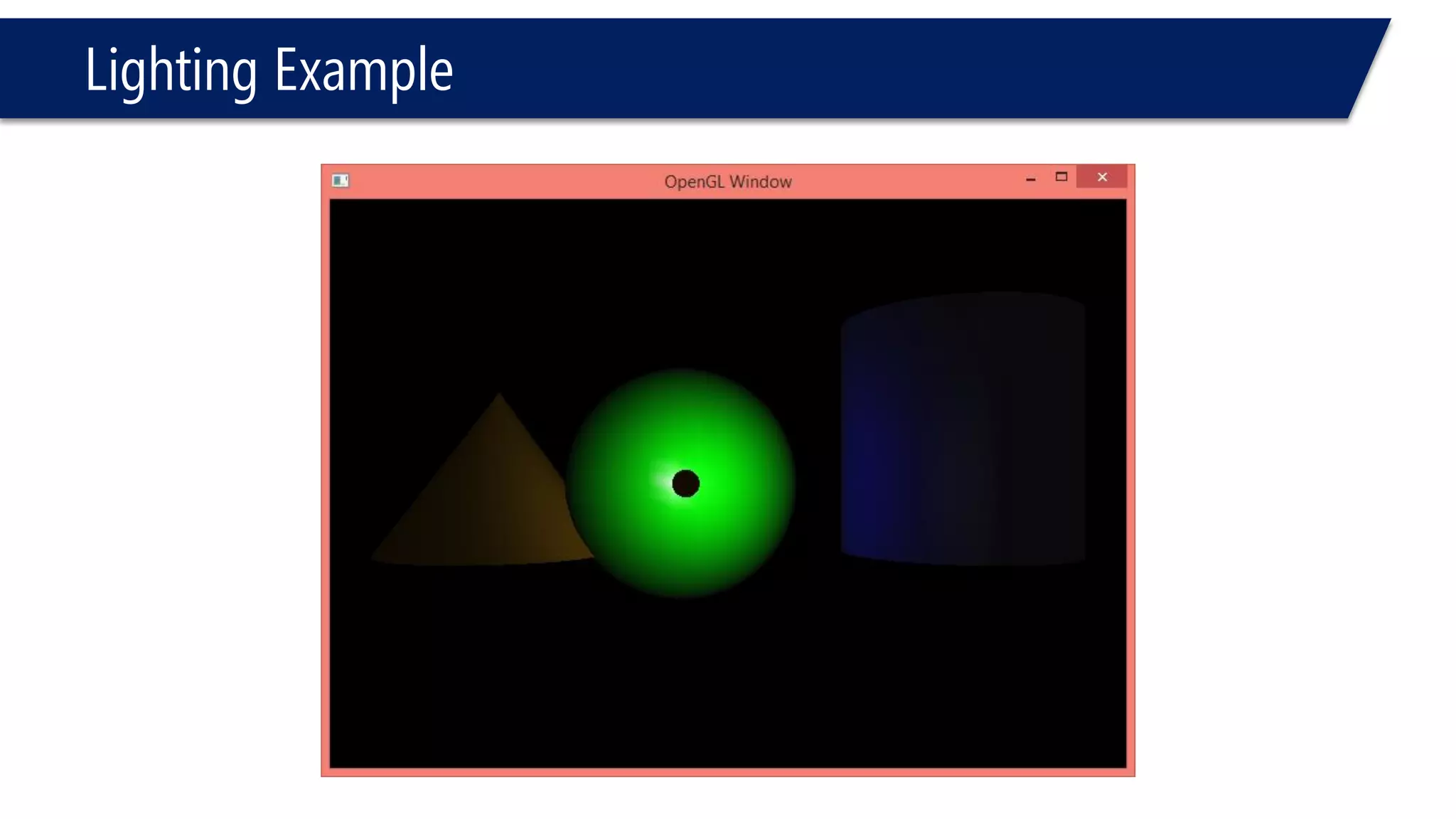

30. Lighting Example

31. Normals for Lighting

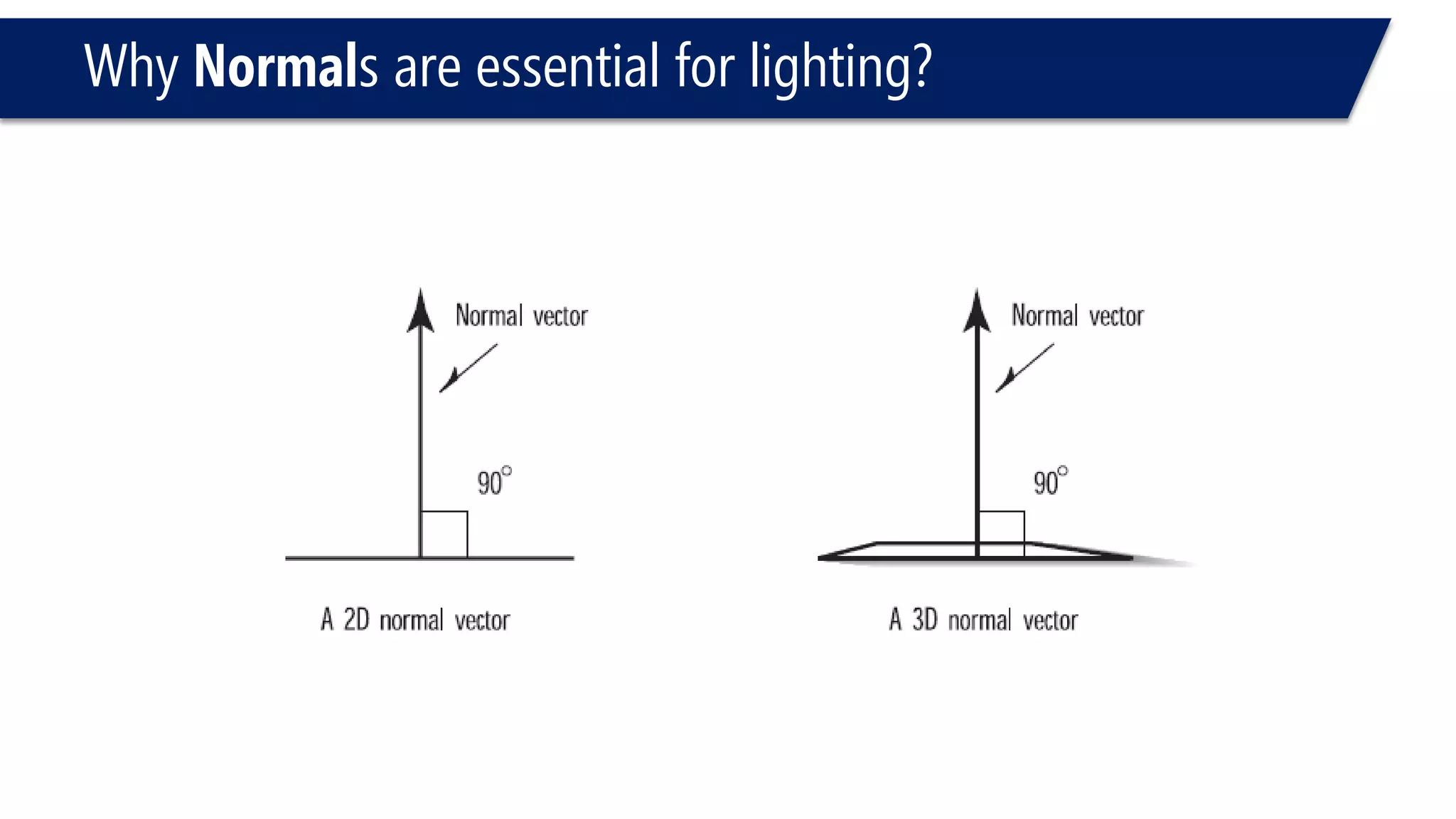

32. Why Normals are essential for lighting?

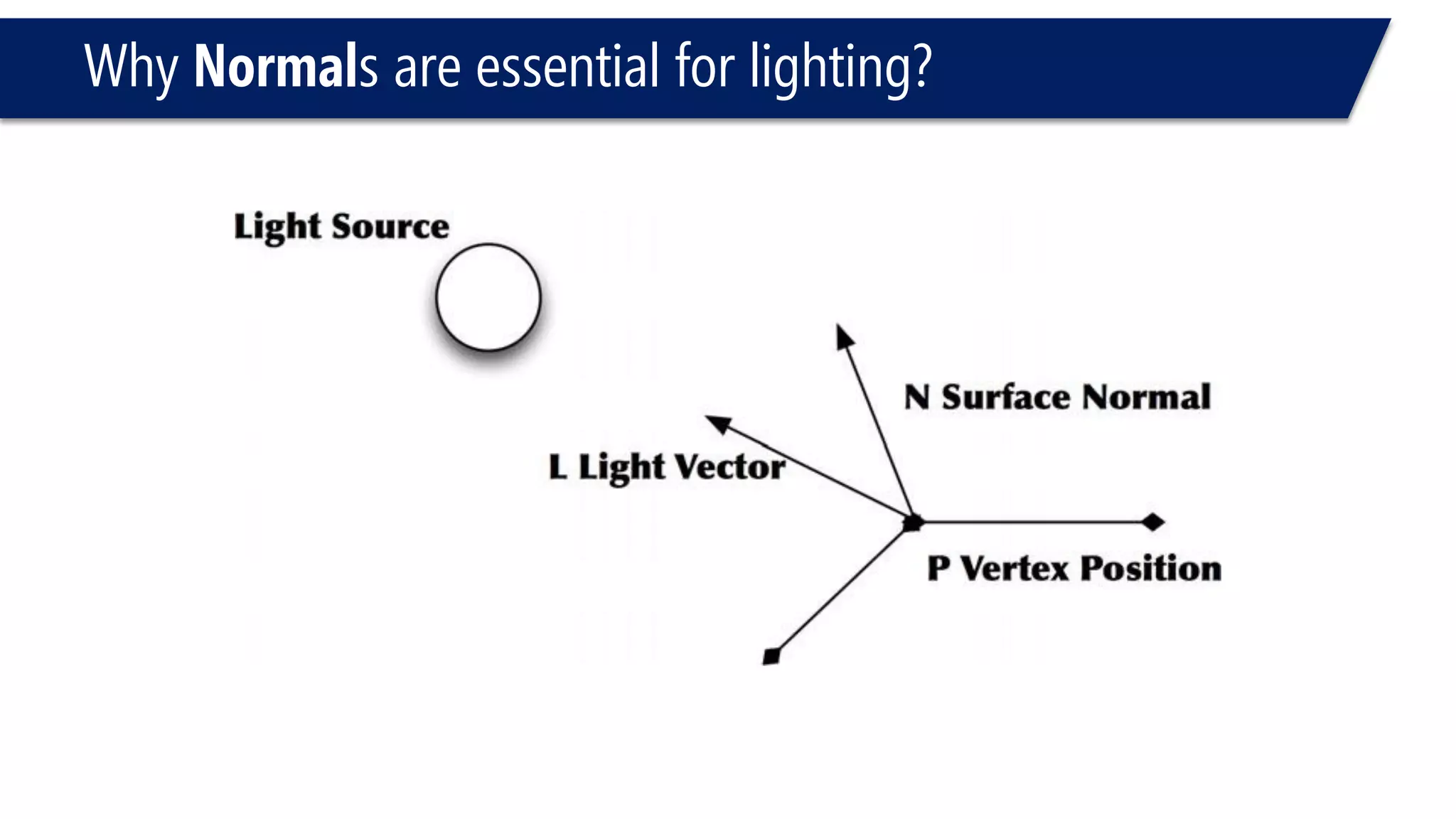

33. Why Normals are essential for lighting?

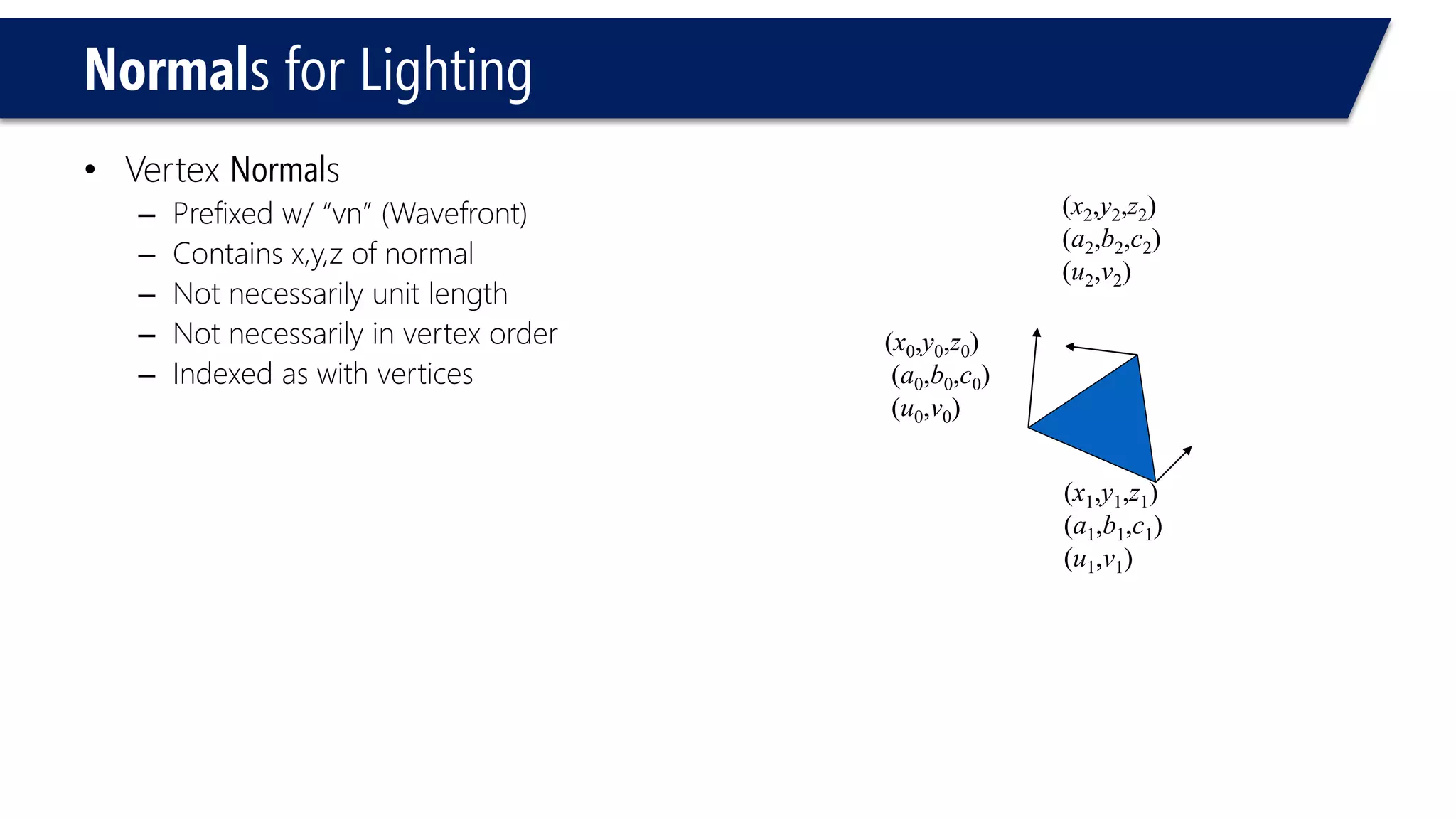

34. Normals for Lighting
• Vertex Normals
– Prefixed w/ “vn” (Wavefront)
– Contains x,y,z of normal
– Not necessarily unit length
– Not necessarily in vertex order
– Indexed as with vertices
(x0,y0,z0)
(a0,b0,c0)
(u0,v0)
(x1,y1,z1)
(a1,b1,c1)
(u1,v1)
(x2,y2,z2)
(a2,b2,c2)
(u2,v2)

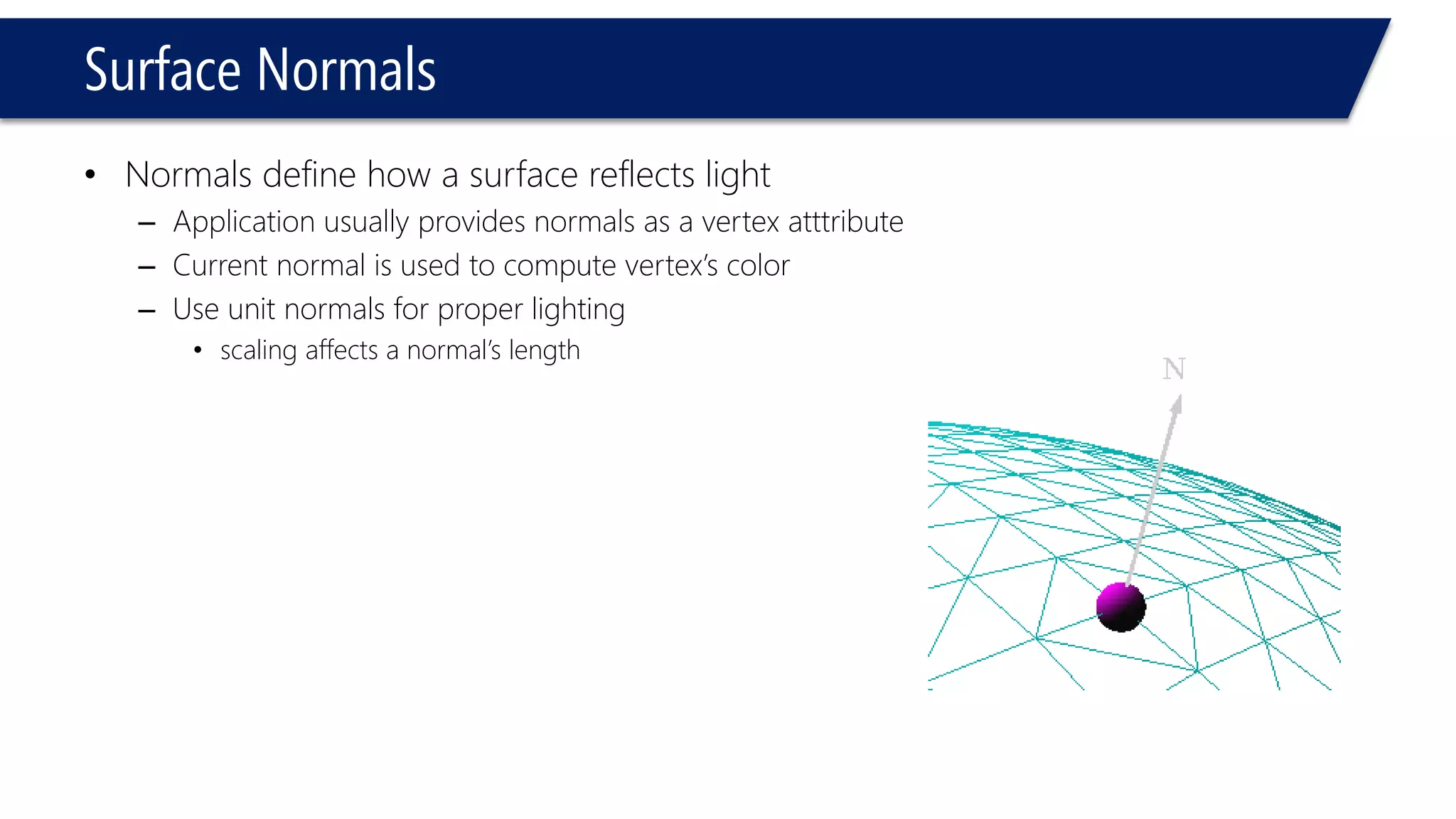

35. Surface Normals
• Normals define how a surface reflects light
– Application usually provides normals as a vertex atttribute
– Current normal is used to compute vertex’s color
– Use unit normals for proper lighting
• scaling affects a normal’s length

36. Vector Normalization

37. Vector Normalization
Why to?

38. Advanced Lighting, Spotlight

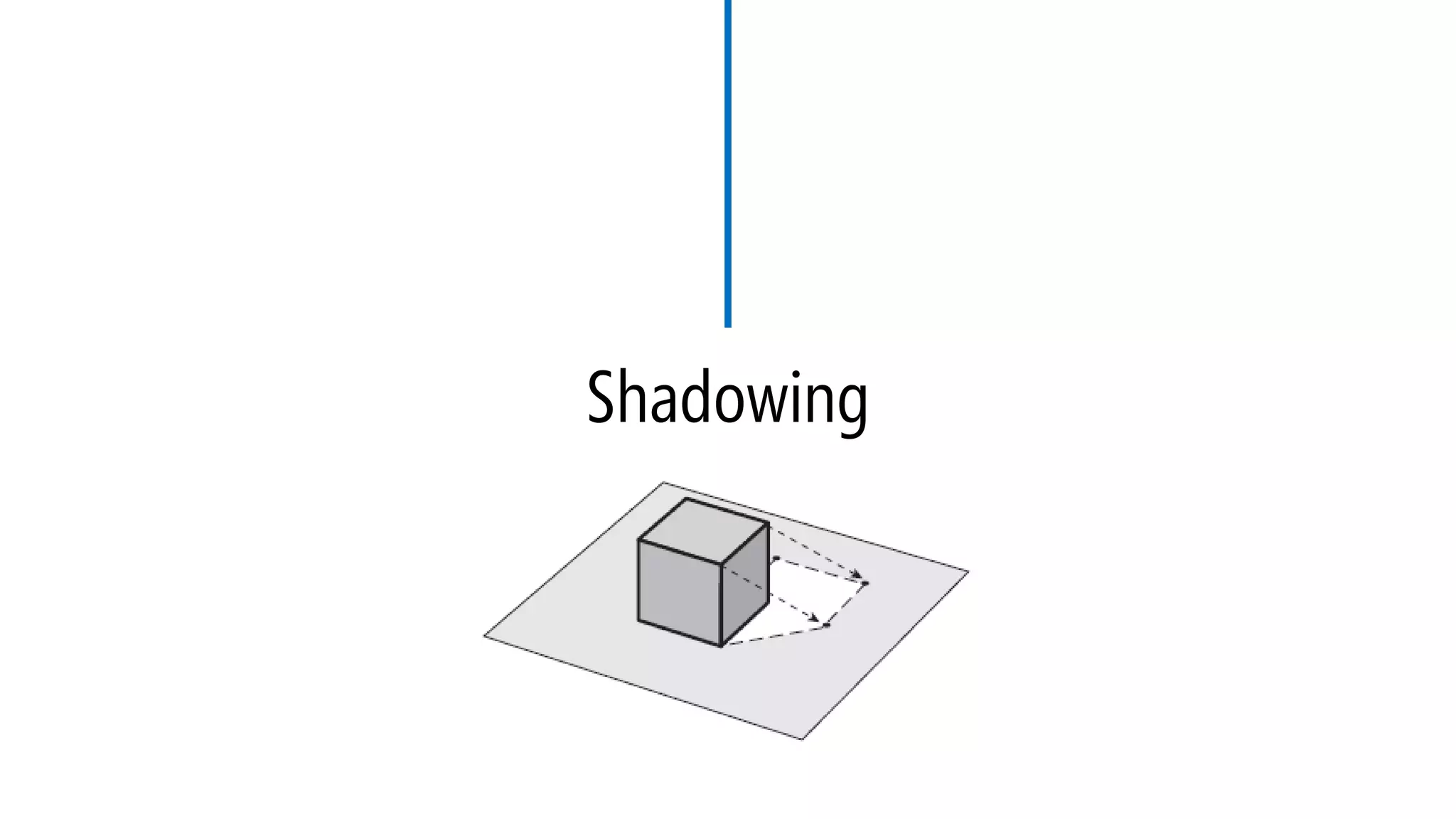

39. Shadowing

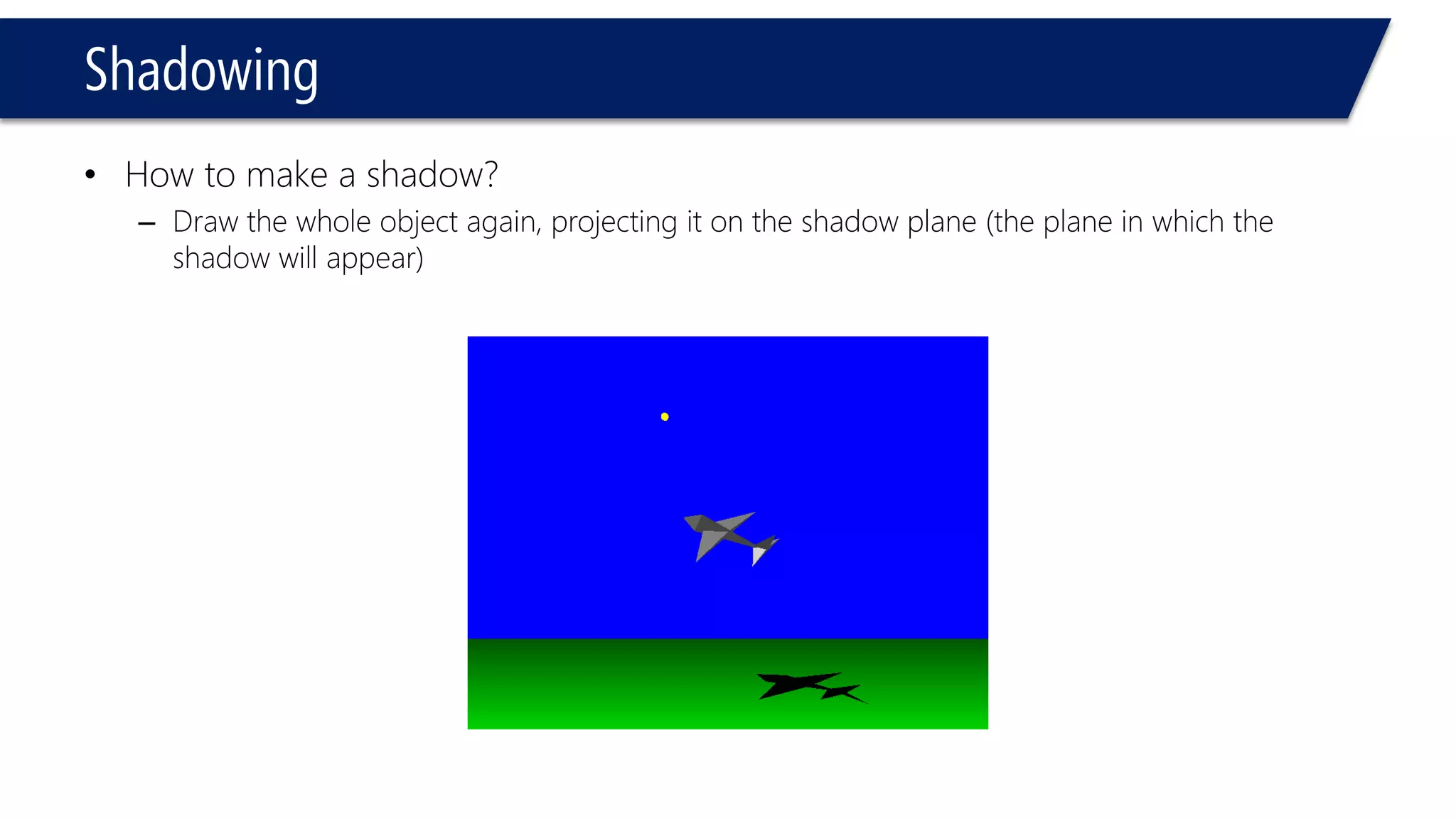

40. Shadowing
• How to make a shadow?
– Draw the whole object again, projecting it on the shadow plane (the plane in which the
shadow will appear)

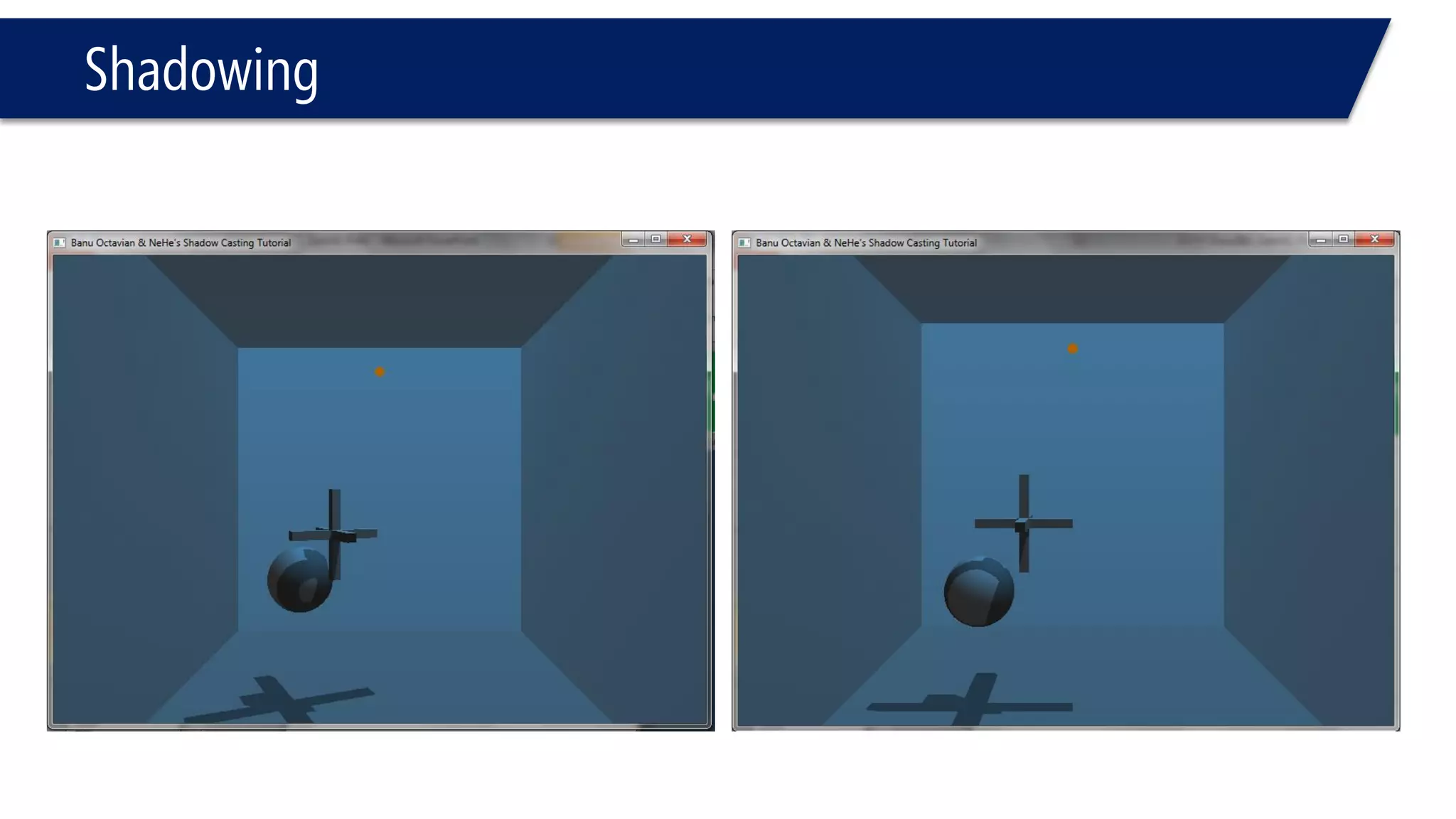

41. Shadowing
