my awesome super cool team
(by joe mogannam, ben levinsky, blair bickel)
CS 385 : TextonBoost - Parking Lots
Introduction
TextonBoost is an approach to multi-class classification that attempts to segment photographs into
various classes. This model seeks to use texture-layout filters, or features based on textons.
Classification and feature selection is achieved using boosting to give an efficent classifier which can be
applied to a large number of classes.
The aim of our project was to apply TextonBoost to determine where there are occupied and vacant
spaces in a parking lot.
Initially, the codebase worked on 24 classes, but we had to sift through the codebase and instead add
two new categories, occupied and unoccupied.
Our team leveraged two datasets to train our model for this purpose. The PKLot and UIUC datasets, each housing many images that show cars
and parking spaces in different poses and/or lighting conditions.
When using the UIUC dataset, the images had varying results, but when using the PKLot dataset with default parameters, We were able to
determine where some occupied spots were with relatively little difficulty.
Approach/Algorithm
A simplified explanation of TextonBoost is:
Learn a boosting classifier based on relative texture locations for each class. The classification is then refined by combining various weak classifiers
and then combining them to construct a classifier that has a higher accuracy than any of the individual classifiers would produce on their own.
Pre-existing Algorithm
Given an image and for each pixel:
Texture-Layout features are calculated1.
A boosting classifier gives the probability of the pixel belonging to each class2.
The model combines the boosting output with shape, location, color and edge information3.
Pixel receives final label.4.
Image receives final label.5.
Extensions to existing TextonBoost framework
The original algorithm used a filter bank with 3 Gaussians, 4 Laplacian of Gaussians and 4 first order derivatives of Gaussians. In addition to
these filters, we augmented the filter bank to also use dense SIFT. Dense SIFT differs from regular SIFT in that dense SIFT assumes every pixel
is a point of interest. We also modified the approach of the framework to only care about 3 classes, void, car, unoccupied.
When working with the data set UIUC, the algorithm needed to be altered to account for gray scale images. To process a gray scale image they
first need to converted to a 3 dimensional image matrix to simulate an RGB image matrix. Than the code needs to be altered, so that Hue and
Saturation are not used when textonizing images. Removing Hue and Saturation results in decreasing the number of features per pixel from 17
to 11.
Tweaking the Parameters
The pixel feature descriptors that were aggregated from applying the various filters are clustered using k-means. We varied the value of k for
k-means clustering to determine the optimal number of clusters for our model.
Additionally, to balance the trade-off between too much noise in the image from image textonization, keeping enough information for accuracy
and speed of training, the image in testing and the training set are sampled with a filter. We also varied the size of the filter used in the various
filter banks that already existed in the framework.
When using the UIUC data set, the number of features decreases from 17 to 11. So the parameter numFeatures in the file imgTextonization.m
must be changed to 11. This parameter change will account for less features used, and result in a smaller code book generated.
CS 385 Final Project file:///Users/joemogannam/Desktop/FINALCS385Project/385 final p...
1 of 6 3/28/17, 12:42 AM

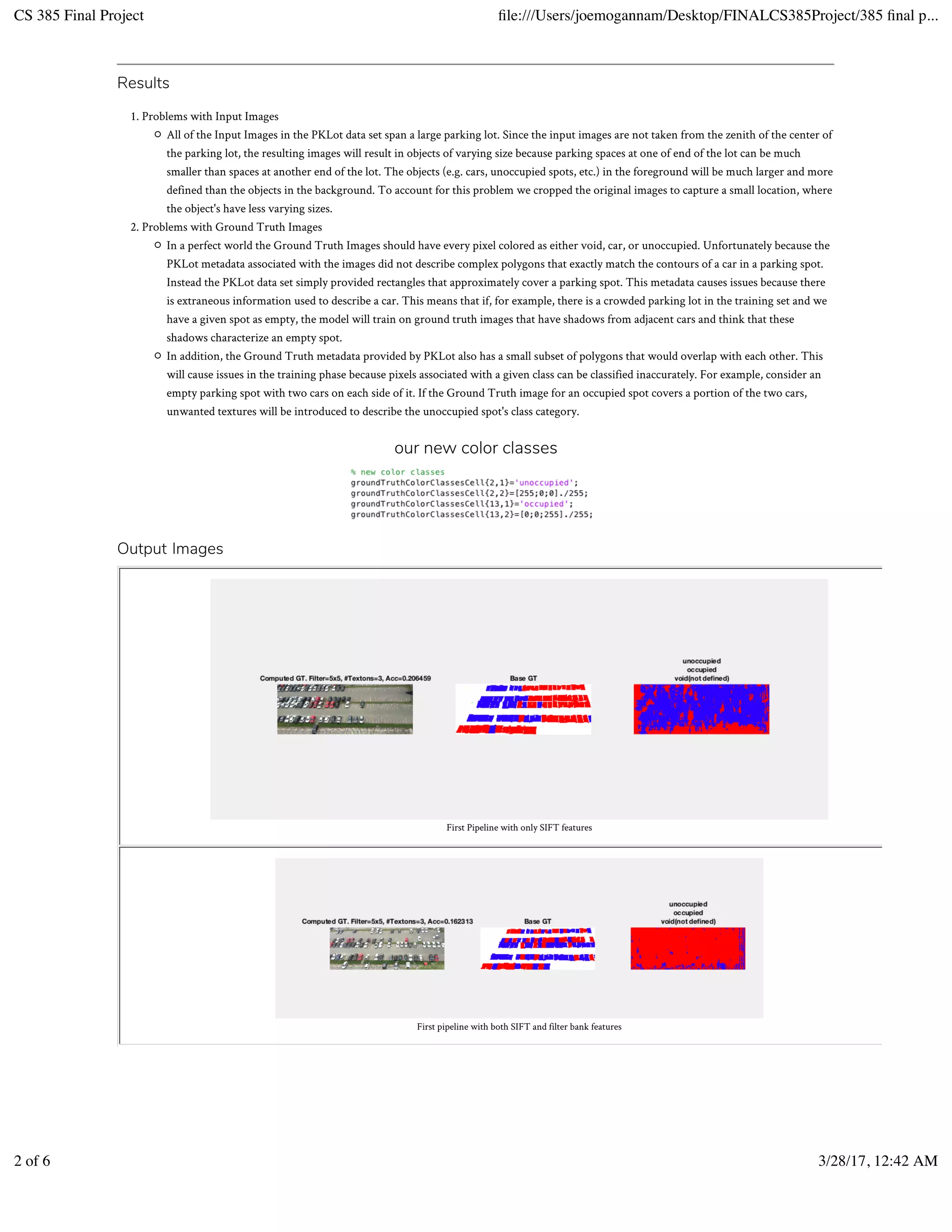

2. Results
Problems with Input Images1.
All of the Input Images in the PKLot data set span a large parking lot. Since the input images are not taken from the zenith of the center of
the parking lot, the resulting images will result in objects of varying size because parking spaces at one of end of the lot can be much
smaller than spaces at another end of the lot. The objects (e.g. cars, unoccupied spots, etc.) in the foreground will be much larger and more
defined than the objects in the background. To account for this problem we cropped the original images to capture a small location, where
the object's have less varying sizes.
Problems with Ground Truth Images2.
In a perfect world the Ground Truth Images should have every pixel colored as either void, car, or unoccupied. Unfortunately because the
PKLot metadata associated with the images did not describe complex polygons that exactly match the contours of a car in a parking spot.
Instead the PKLot data set simply provided rectangles that approximately cover a parking spot. This metadata causes issues because there
is extraneous information used to describe a car. This means that if, for example, there is a crowded parking lot in the training set and we
have a given spot as empty, the model will train on ground truth images that have shadows from adjacent cars and think that these
shadows characterize an empty spot.
In addition, the Ground Truth metadata provided by PKLot also has a small subset of polygons that would overlap with each other. This
will cause issues in the training phase because pixels associated with a given class can be classified inaccurately. For example, consider an
empty parking spot with two cars on each side of it. If the Ground Truth image for an occupied spot covers a portion of the two cars,
unwanted textures will be introduced to describe the unoccupied spot's class category.
our new color classes
Output Images
First Pipeline with only SIFT features
First pipeline with both SIFT and filter bank features
CS 385 Final Project file:///Users/joemogannam/Desktop/FINALCS385Project/385 final p...
2 of 6 3/28/17, 12:42 AM

3. UIUC dataset with only filter bank features
UIUC dataset with only SIFT features
PKLot dataset trained with segmented images with only SIFT features
PKLot dataset trained with segmented images with only filter bank features
UIUC dataset trained with segmented images with both filter bank and SIFT features and 5 clusters in k-means clustering
UIUC dataset trained with segmented images with both filter bank and SIFT features and 10 clusters in k-means clustering
Some figures
CS 385 Final Project file:///Users/joemogannam/Desktop/FINALCS385Project/385 final p...
3 of 6 3/28/17, 12:42 AM

4. Graph plotting False Negative vs. True Positive in varying outputs for unoccupied parking spots
Graph plotting False Negative vs. True Positive in varying outputs for unoccupied parking spots
RPC curve for unoccupied classification when varying number of clusters
Legend:
Point 10: Number of Clusters = 10.
CS 385 Final Project file:///Users/joemogannam/Desktop/FINALCS385Project/385 final p...
4 of 6 3/28/17, 12:42 AM

5. Point 3: Number of Clusters = 3.
Point 5: Number of Clusters = 5.
Point 20: Number of Clusters = 20.
RPC curve for occupied classification when varying number of clusters
Legend:
Point 10: Number of Clusters = 10.
Point 3: Number of Clusters = 3.
Point 5: Number of Clusters = 5.
Point 20: Number of Clusters = 20.
Discussion and Conclusions
In hindsight, TextonBoost was limited by our data set, the code base, and the similarity of the classes.
The codebase seemed to use k-means clustering at an odd time. We posited that k-means clustering should be used on all of the data at one
time. Instead, the codebase seemed to use k-means clustering on each image independent of the other images.
Understanding all the various pieces that made the code run, from textonization to training of the model, all involved multiple files and
assumed the user of the framework had an intimate understanding of the approach.
Introducing dense SIFT was a challenge because the filter-bank used initially on each pixel worked on all pixels. Unfortunately, dense SIFT
cannot operate on pixels too close to a boundary. Our team overcame this challenge by adjusting the size that the filter-bank dealt with to the
same dimensions as the dense-SIFT portion of the image.
Trying to find a good data set was difficult. While testing the functionality of our code we came across many problems caused by input images.
With the PKLot data set one of the most obvious problems we noticed was that objects' size varied based on location within the image. In order
to get input images with objects of relatively similar size we cropped a small area out of the original images in the PKLot data set. Cropping the
original images also had the benefit of speeding up the code because there would be less pixels to train on.
We also tried cropping individual objects of interest out of the PKLot data set images. Cropping individual images provided an additional data
set, where we could train on either cars or empty parking spots. The difference between these segmented images and the original images with
an entire parking lot in view is that the original images included other objects like grass, roads, & people that could interfere with training. The
result of these segmented images provided input images with less noise.
References
MSRC framework from Microsoft
Research paper from Microsoft
TextonBoost framework in Matlab documentation
