Novec

GIELLE

Clean agent
Fire System
Fm 200
Novec 1230 Fluid

Mail: info@gielle.it - Website: www.gielle.it

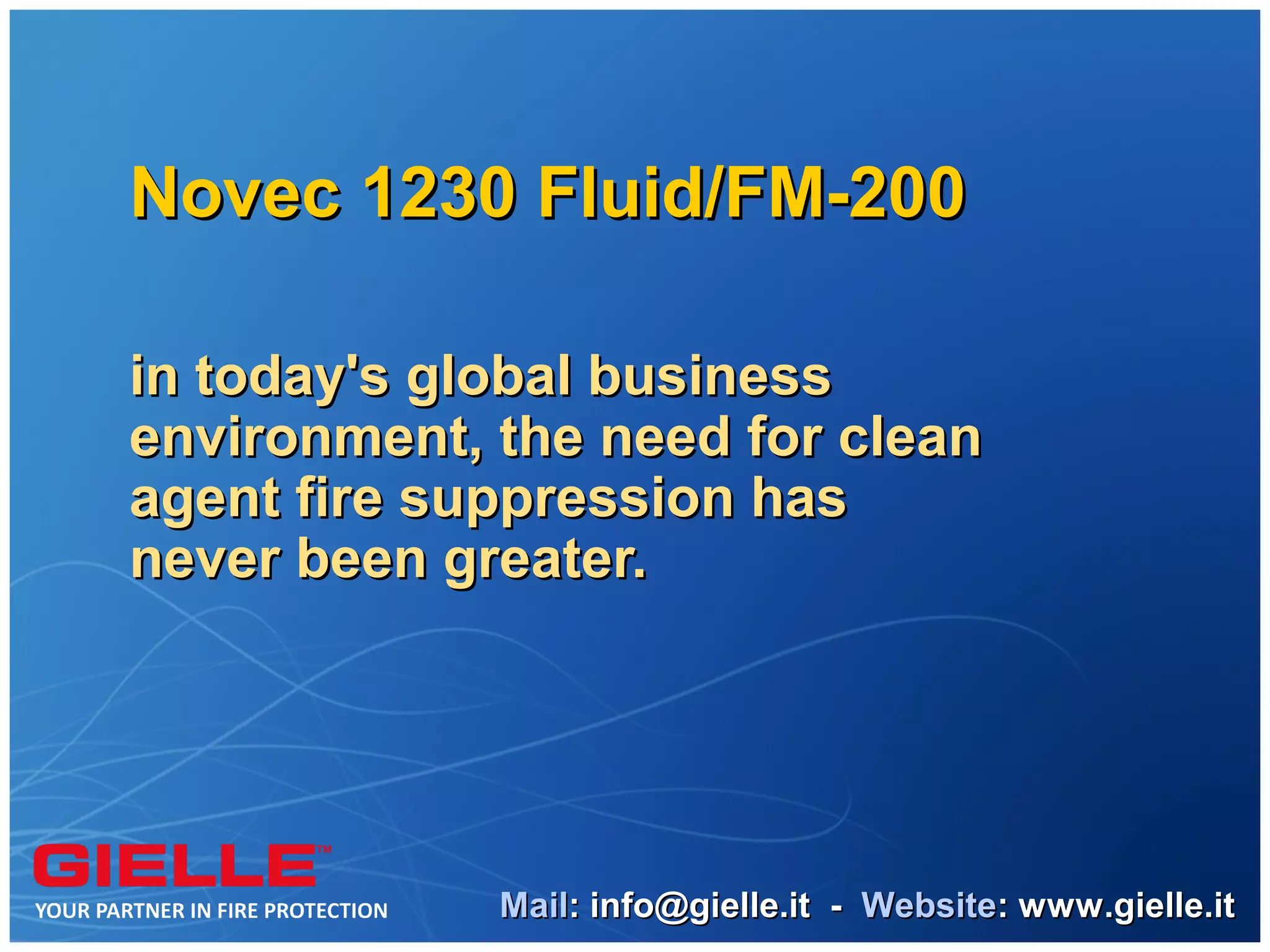

Novec 1230 Fluid/FM-200

in today's global business
environment, the need for clean
agent fire suppression has
never been greater.

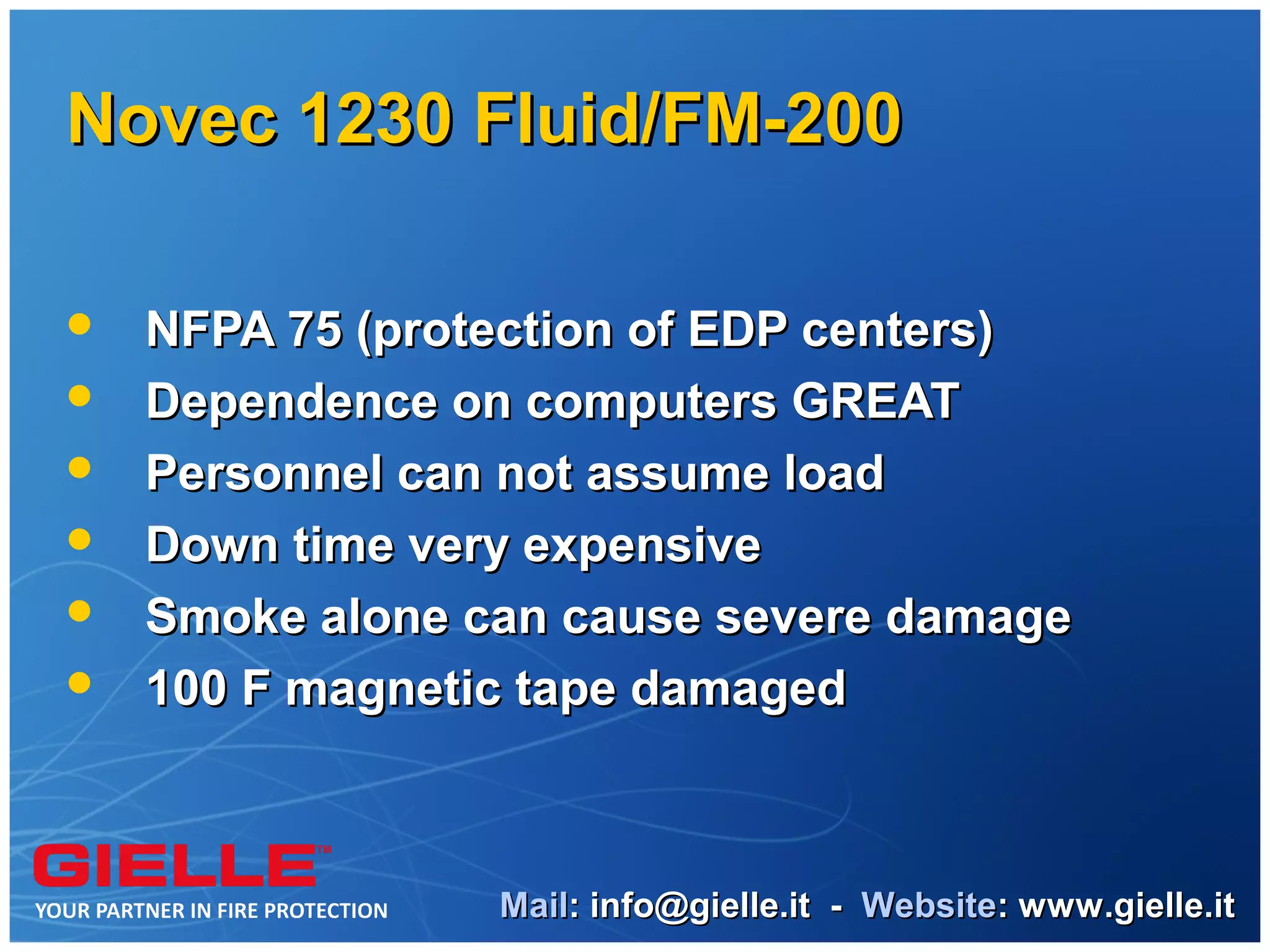

 NFPA 75 (protection of EDP centers)
 Dependence on computers GREAT
 Personnel can not assume load
 Down time very expensive
 Smoke alone can cause severe damage
 100 F magnetic tape damaged

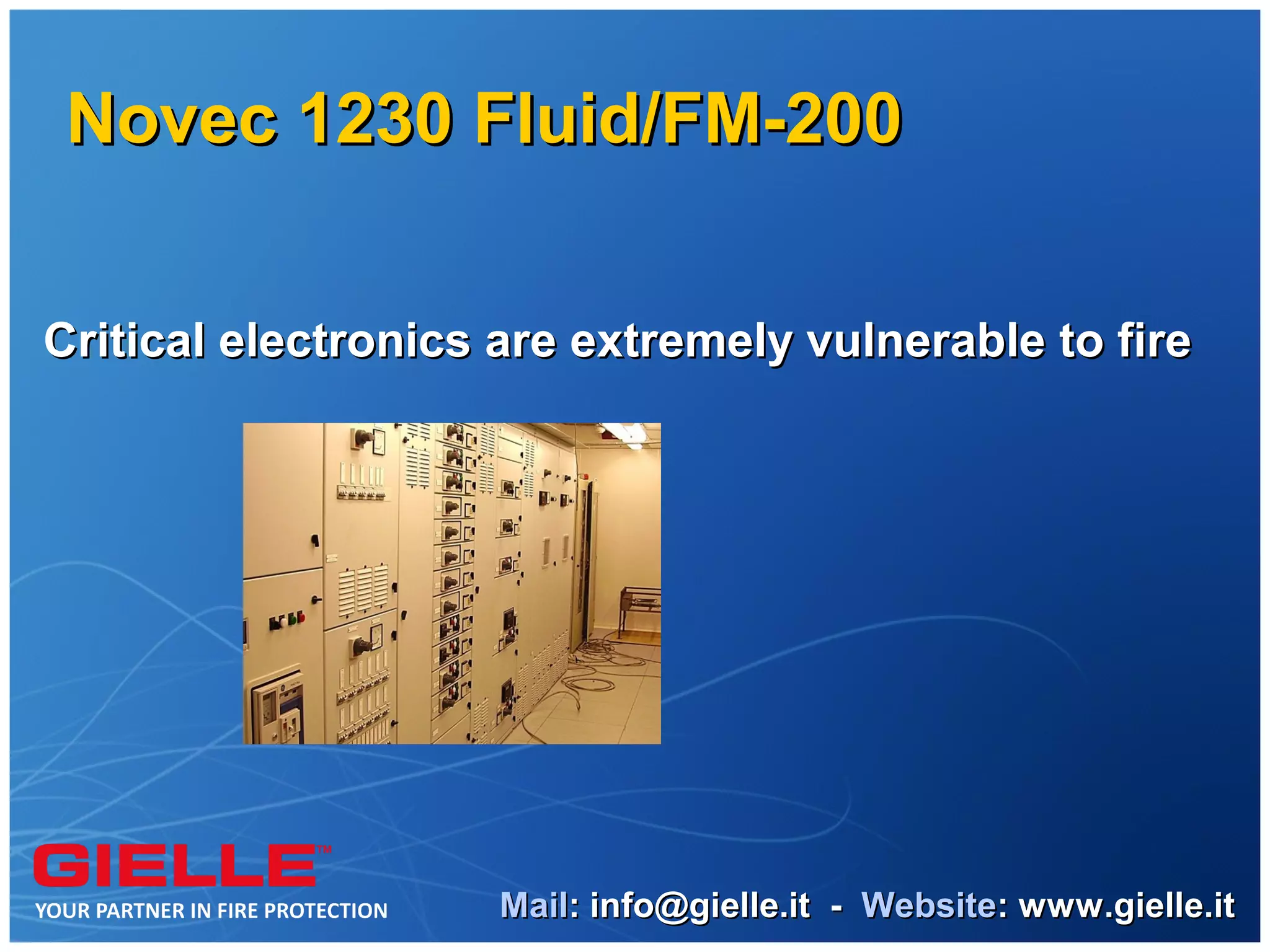

Critical electronics are extremely vulnerable to fire

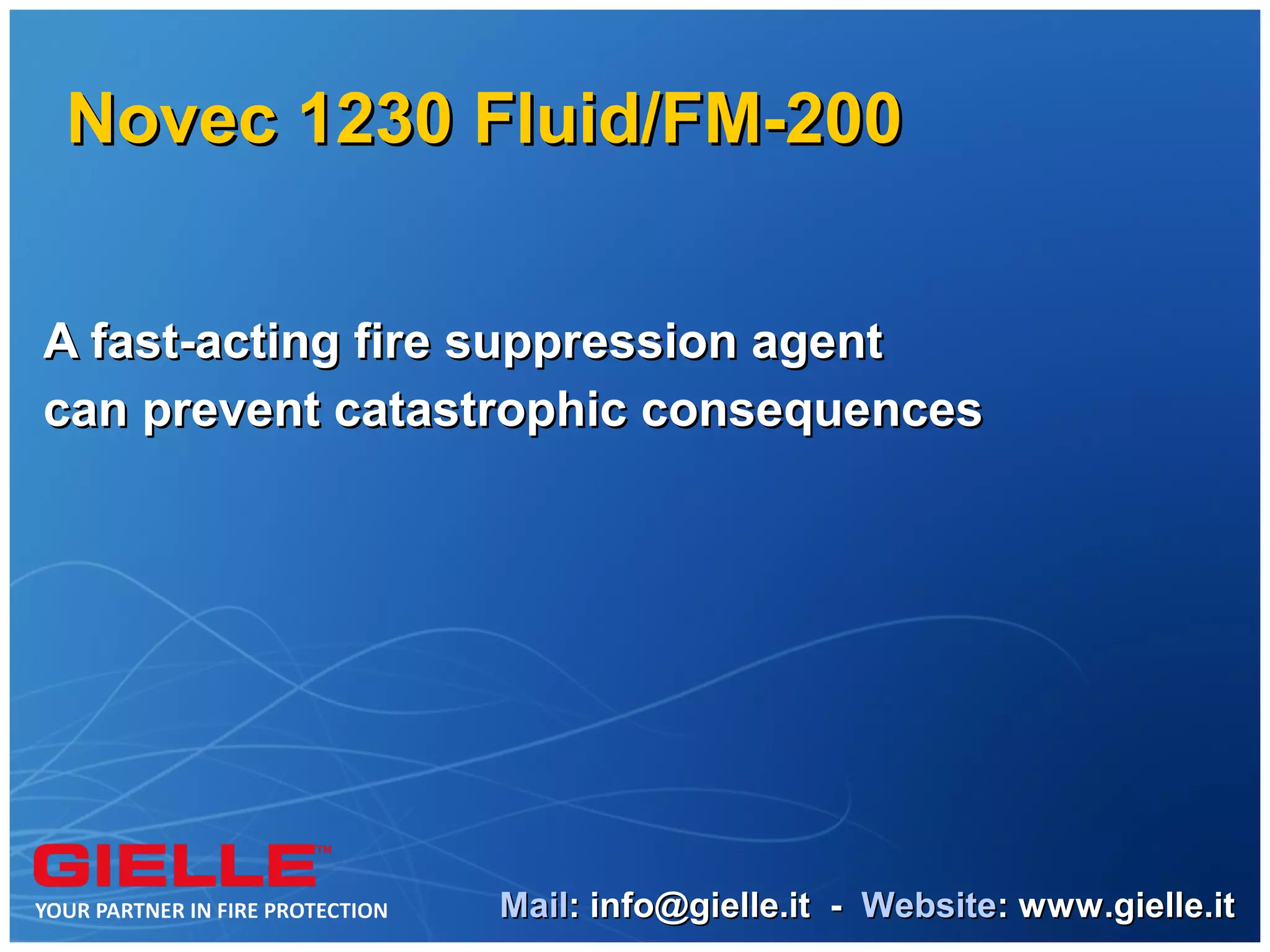

A fast-acting fire suppression agent
can prevent catastrophic consequences

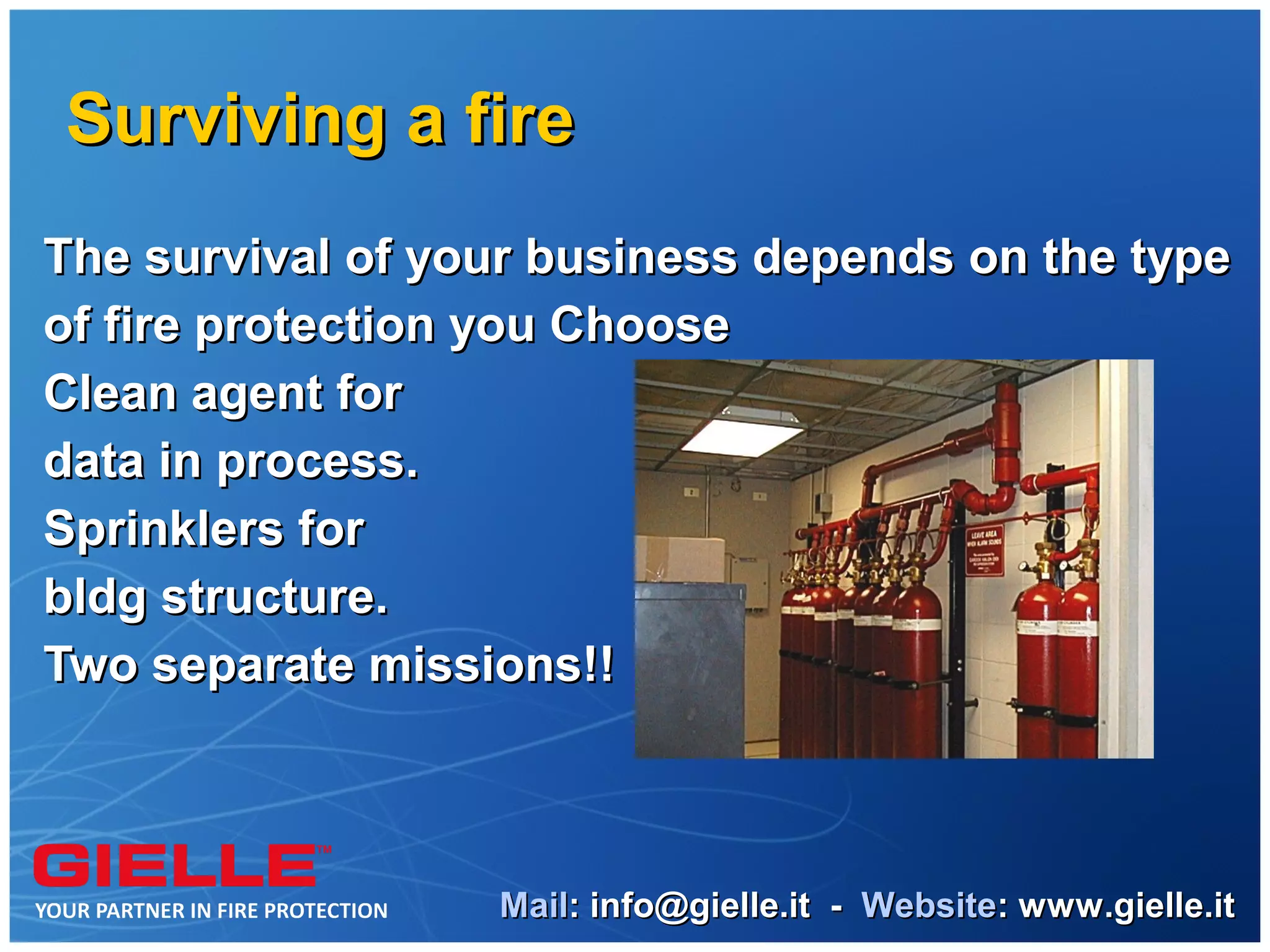

Surviving a fire
The survival of your business depends on the type
of fire protection you Choose
Clean agent for
data in process.
Sprinklers for
bldg structure.
Two separate missions!!

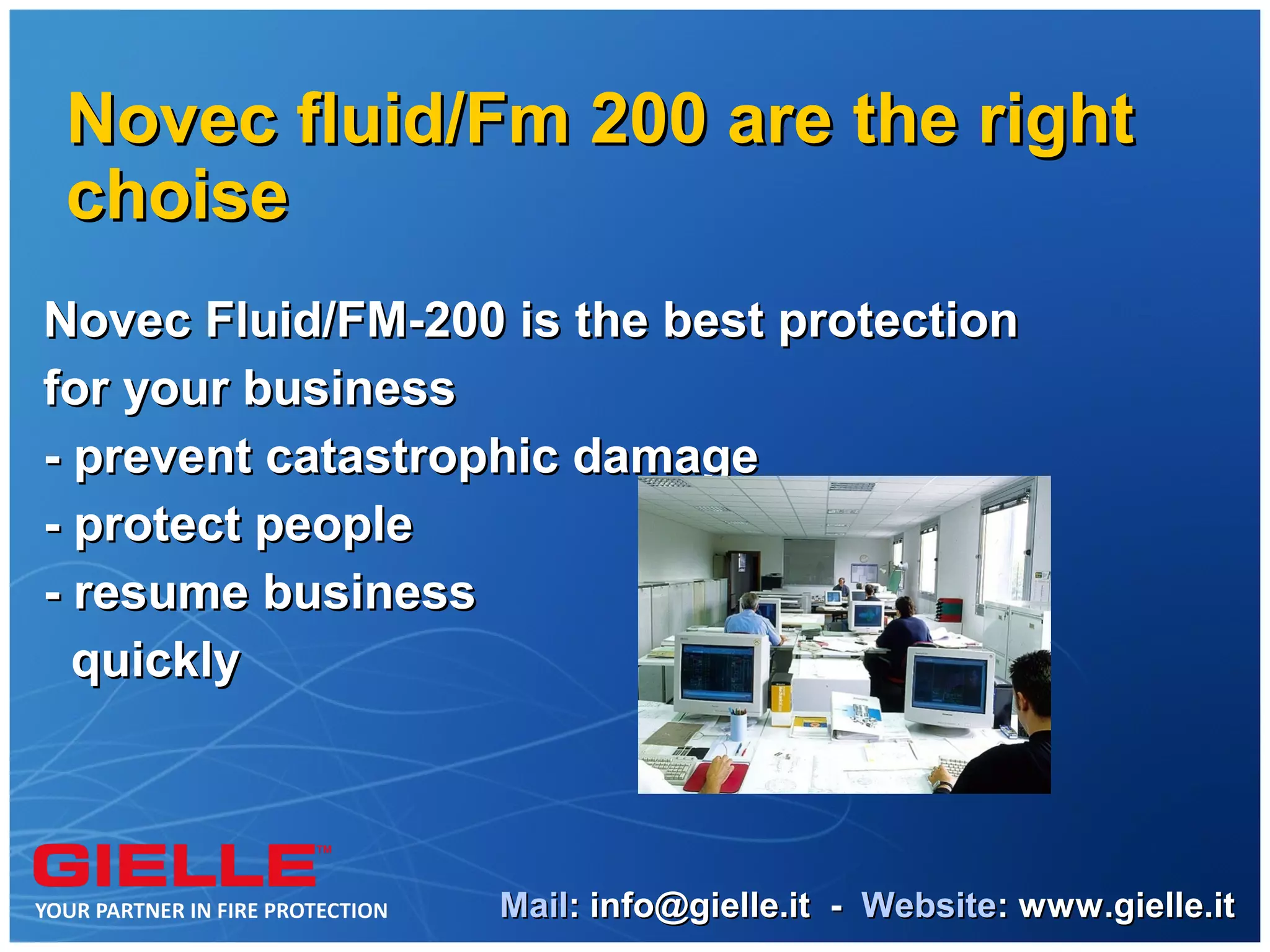

Novec fluid/Fm 200 are the right
choise
Novec Fluid/FM-200 is the best protection
for your business
- prevent catastrophic damage
- protect people
- resume business
quickly

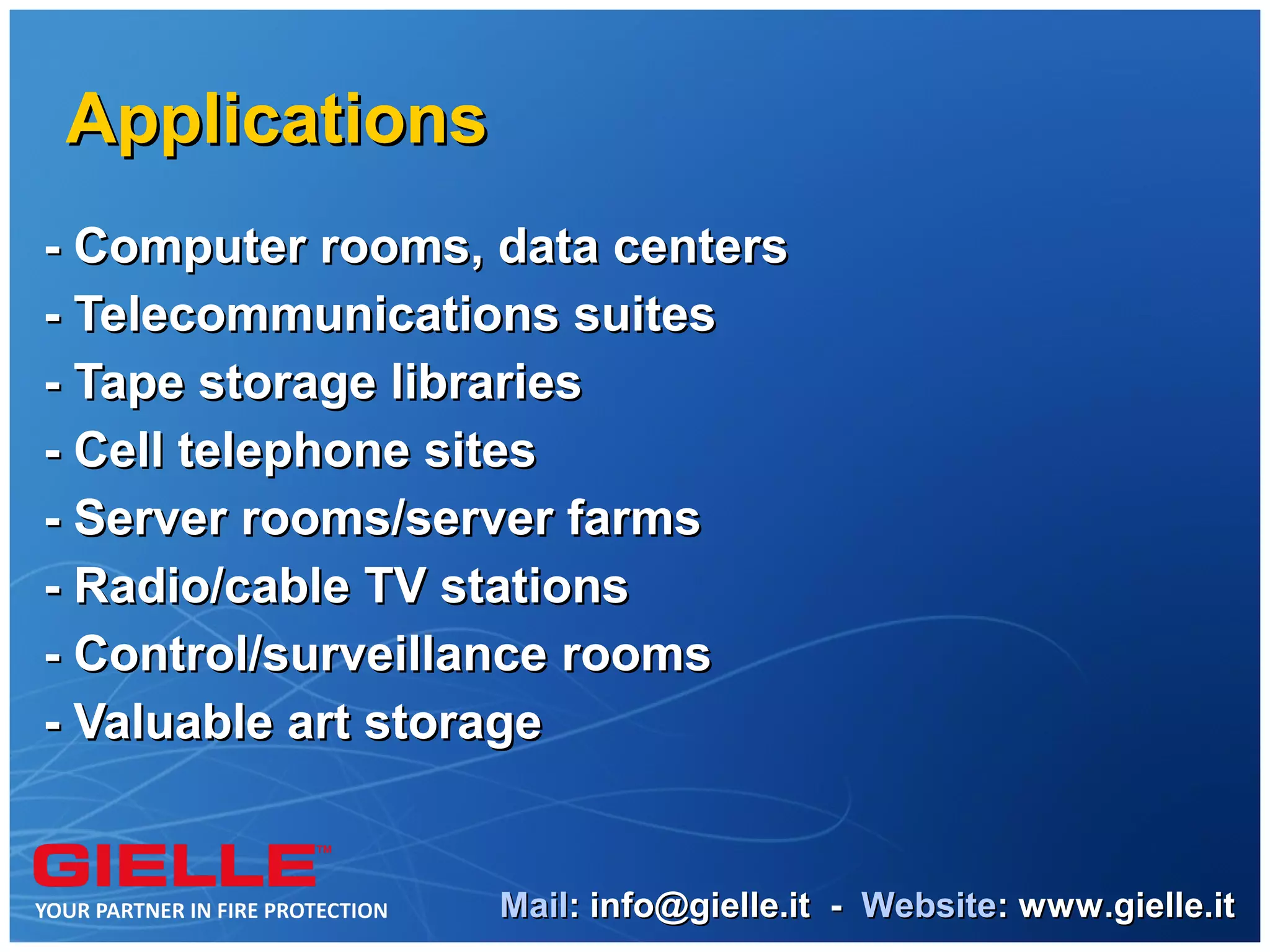

Applications
- Computer rooms, data centers
- Telecommunications suites
- Tape storage libraries
- Cell telephone sites
- Server rooms/server farms
- Radio/cable TV stations
- Control/surveillance rooms
- Valuable art storage

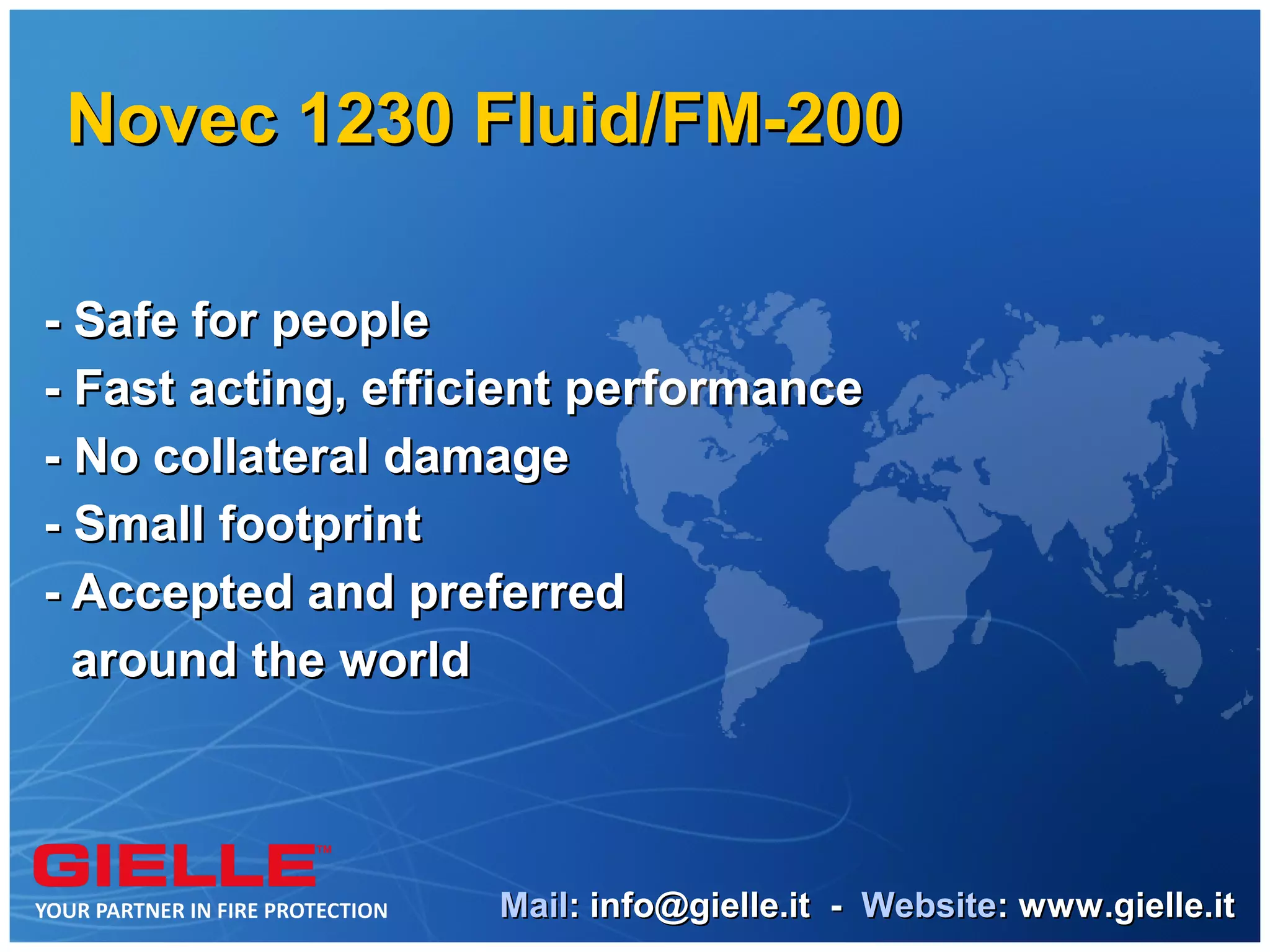

- Safe for people
- Fast acting, efficient performance
- No collateral damage
- Small footprint
- Accepted and preferred
around the world

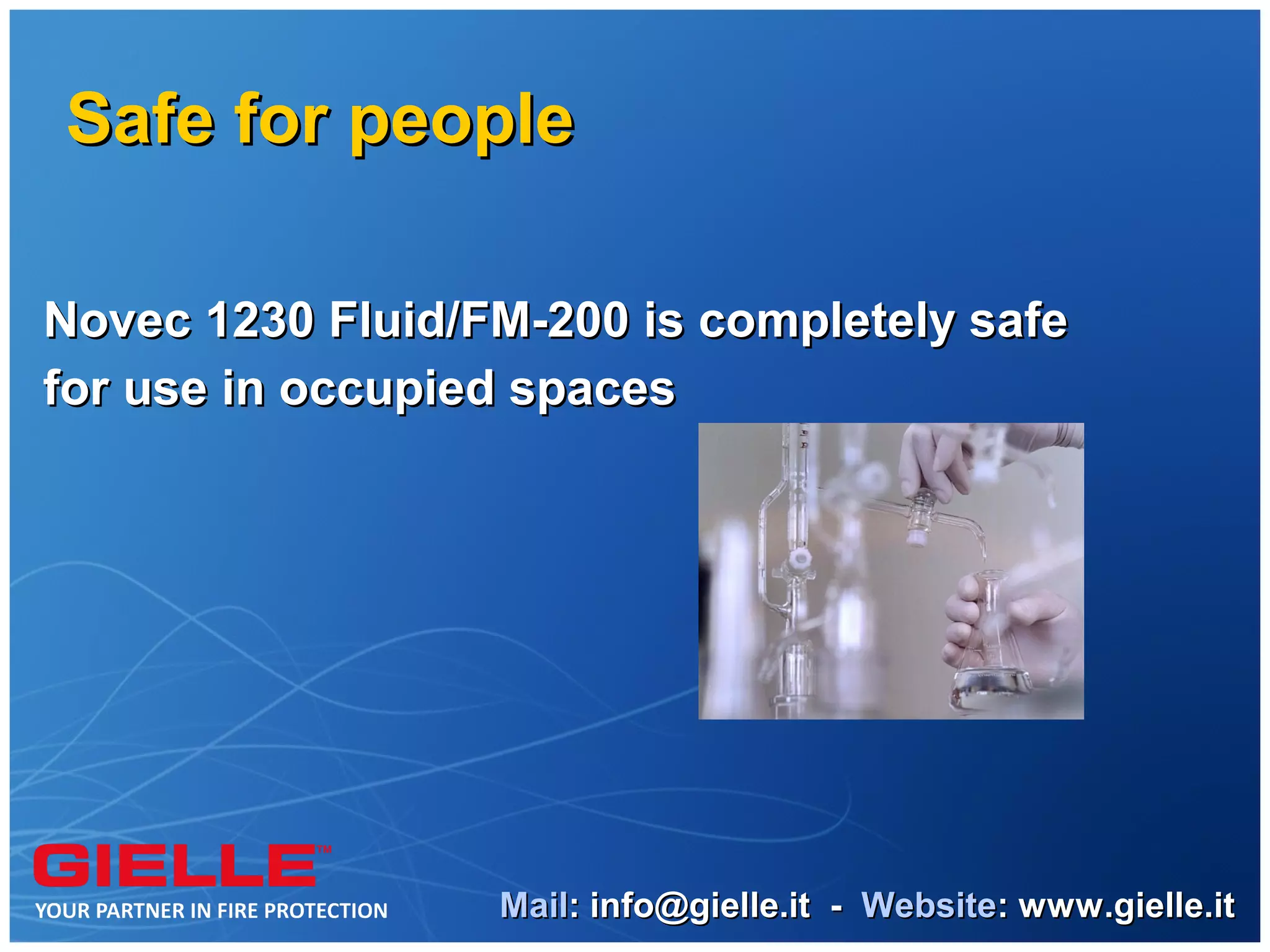

Safe for people

Novec 1230 Fluid/FM-200 is completely safe
for use in occupied spaces

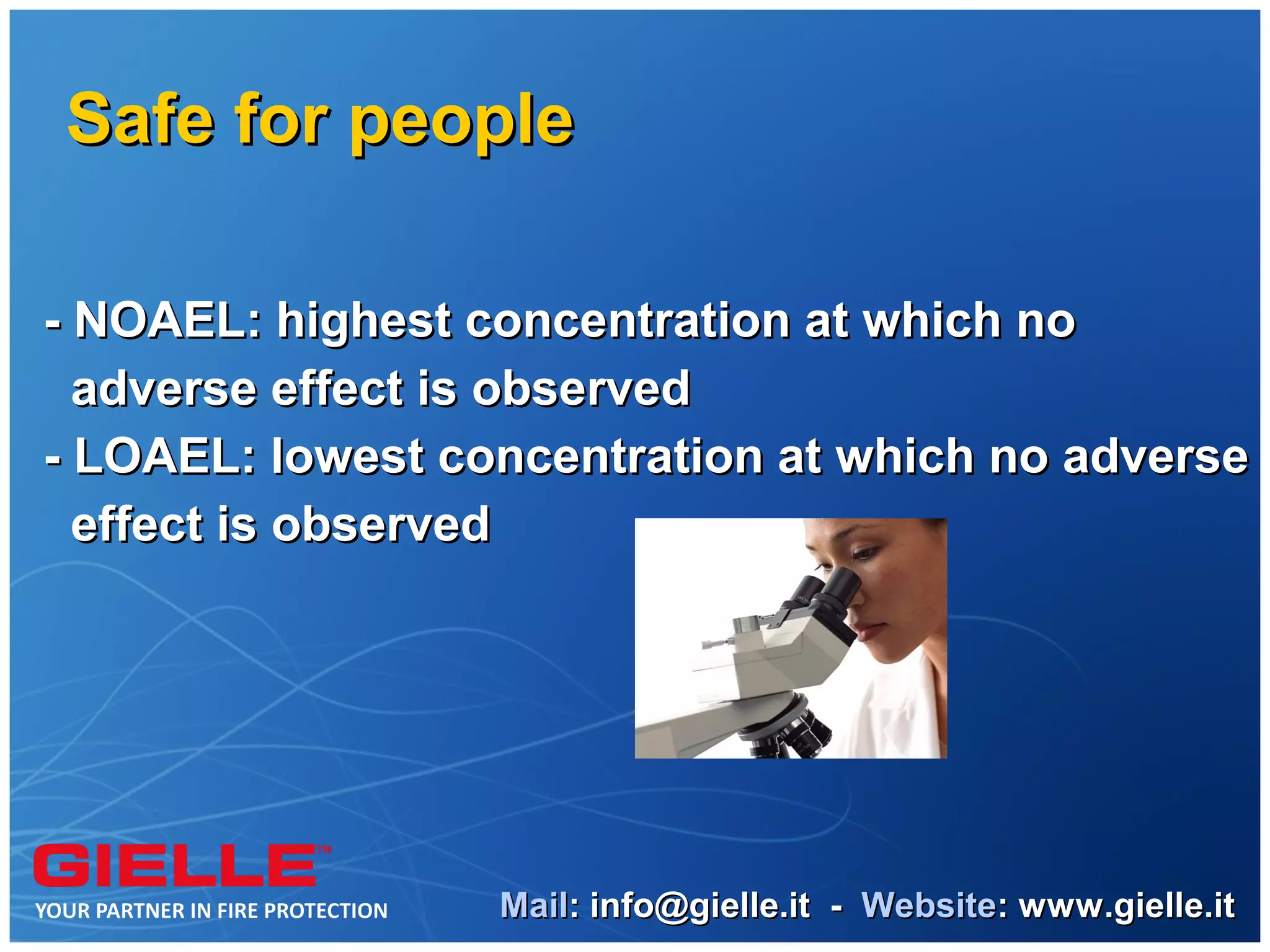

Safe for people

- NOAEL: highest concentration at which no
adverse effect is observed
- LOAEL: lowest concentration at which no adverse
effect is observed

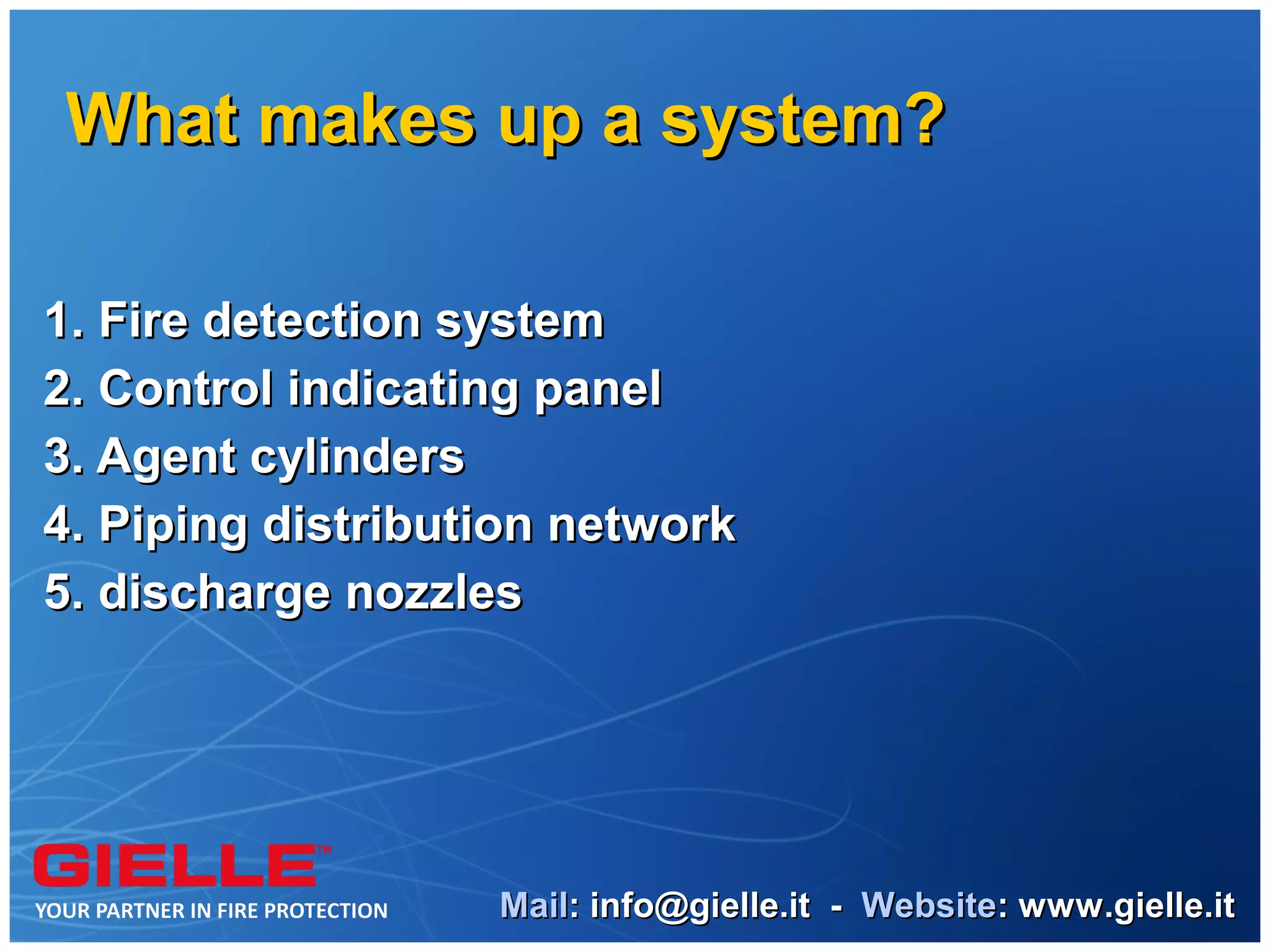

What makes up a system?

1. Fire detection system
2. Control indicating panel
3. Agent cylinders
4. Piping distribution network
5. discharge nozzles

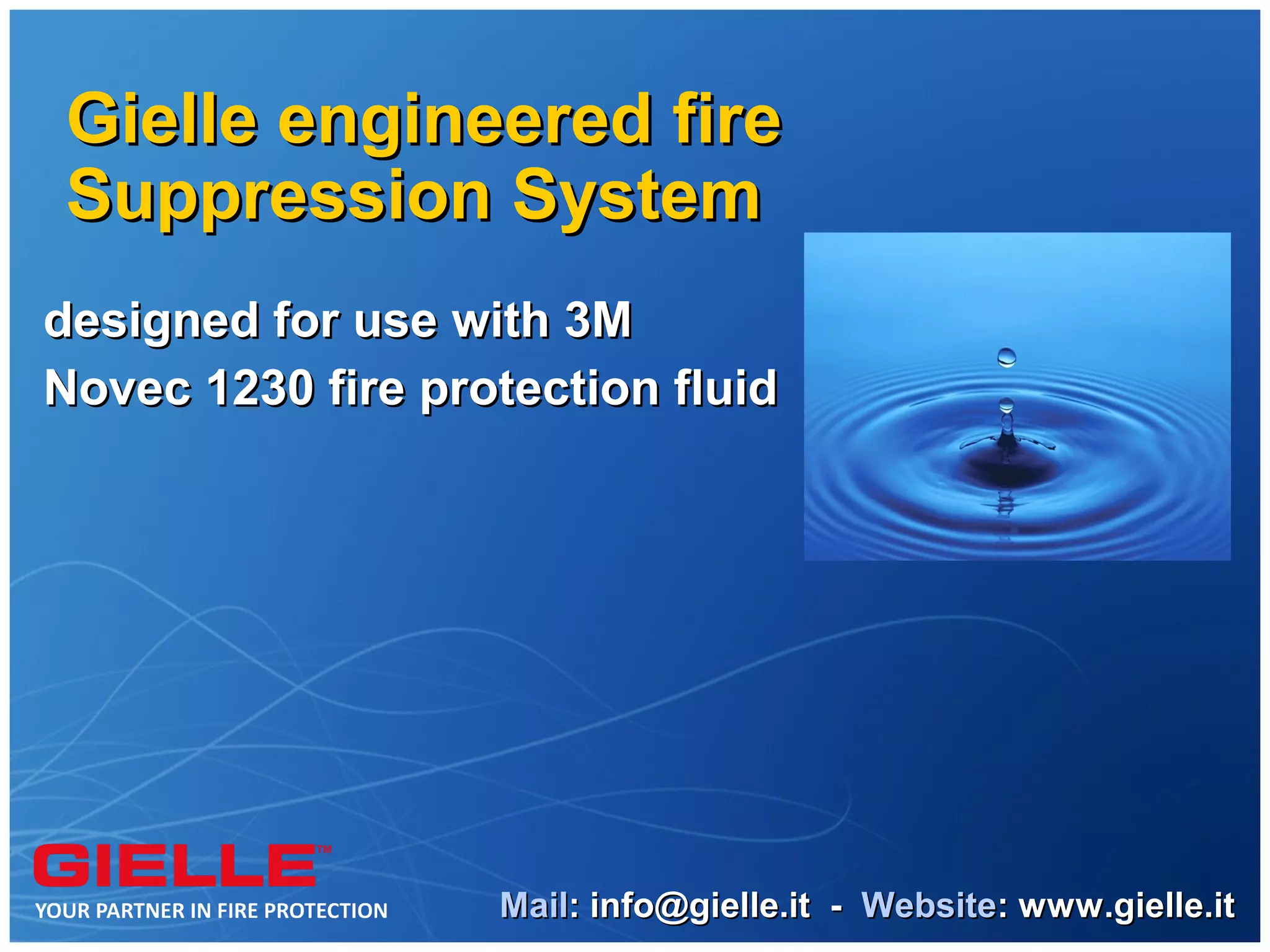

Gielle engineered fire
Suppression System
designed for use with 3M
Novec 1230 fire protection fluid

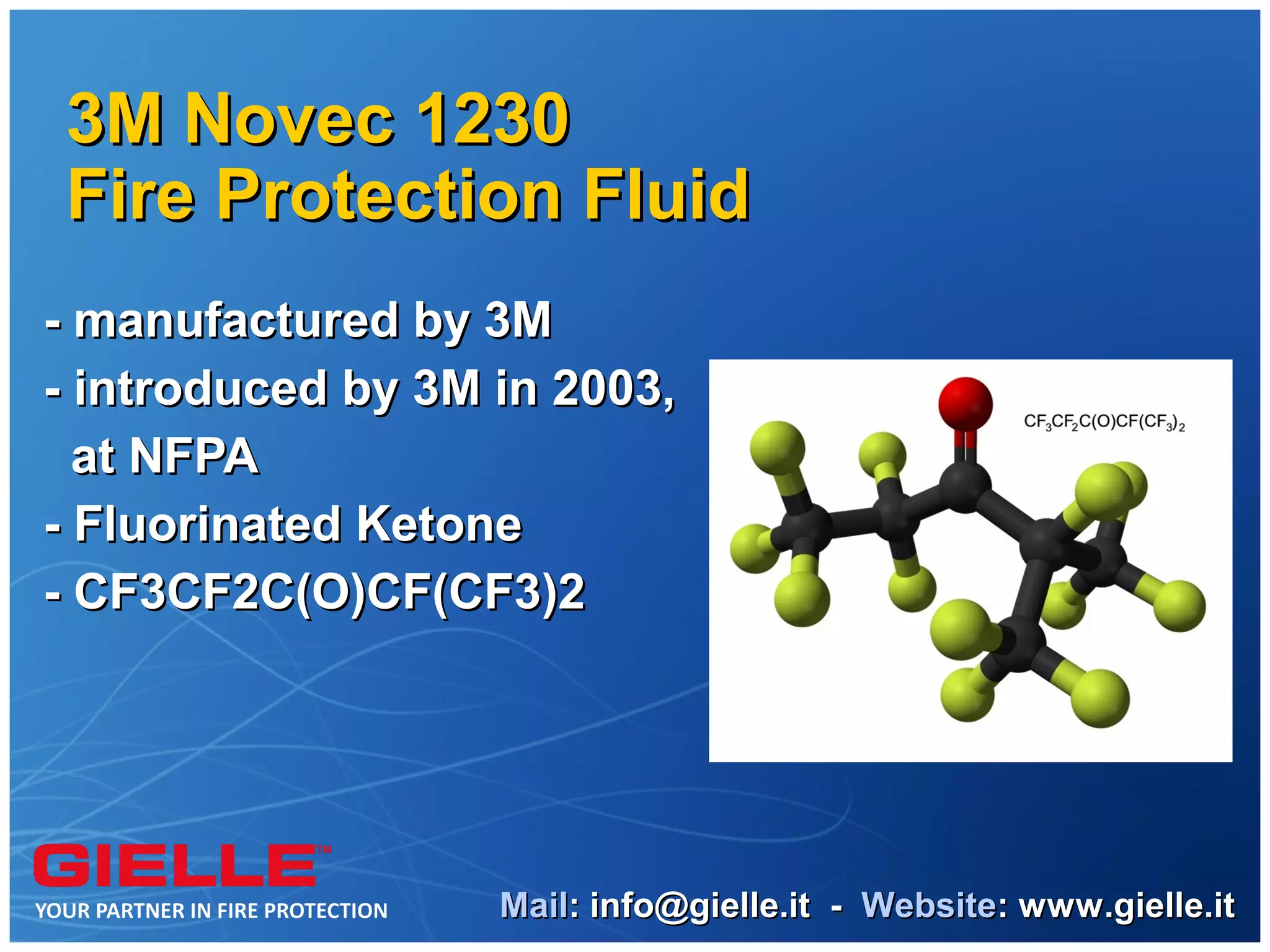

3M Novec 1230
Fire Protection Fluid
- manufactured by 3M
- introduced by 3M in 2003,
at NFPA
- Fluorinated Ketone
- CF3CF2C(O)CF(CF3)2

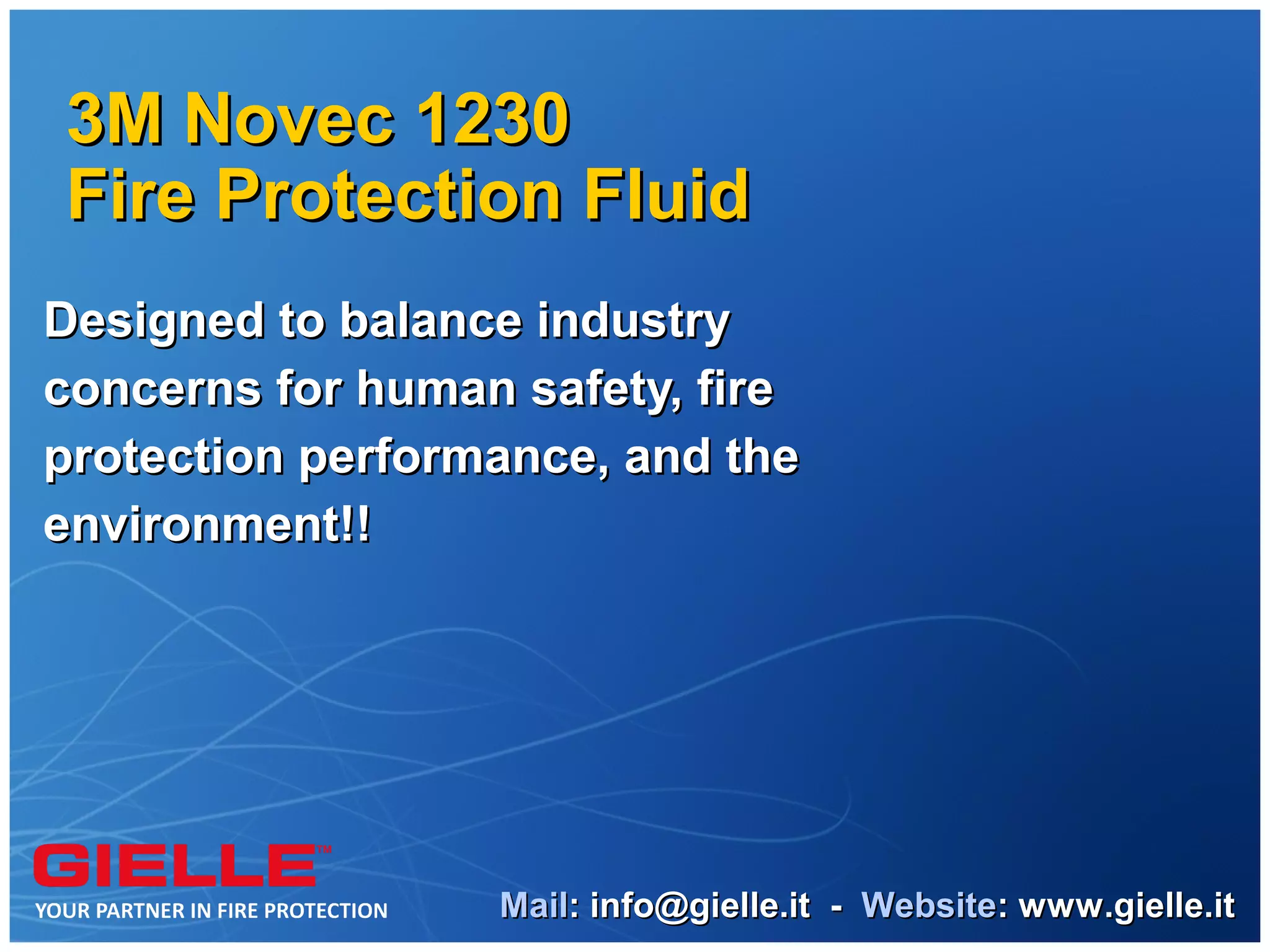

3M Novec 1230
Designed to balance industry
concerns for human safety, fire
protection performance, and the
environment!!

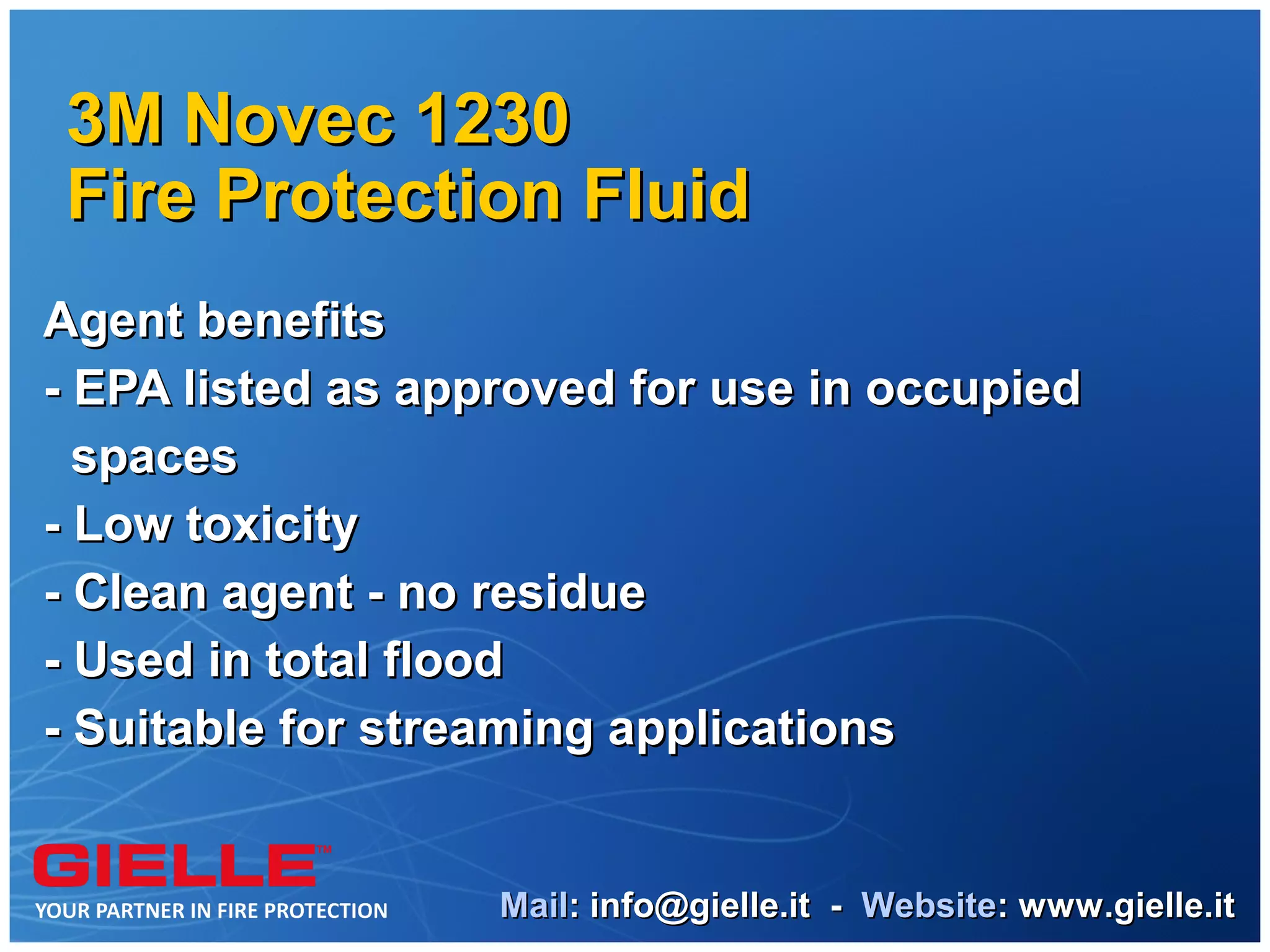

3M Novec 1230
Agent benefits
- EPA listed as approved for use in occupied
spaces
- Low toxicity
- Clean agent - no residue
- Used in total flood
- Suitable for streaming applications

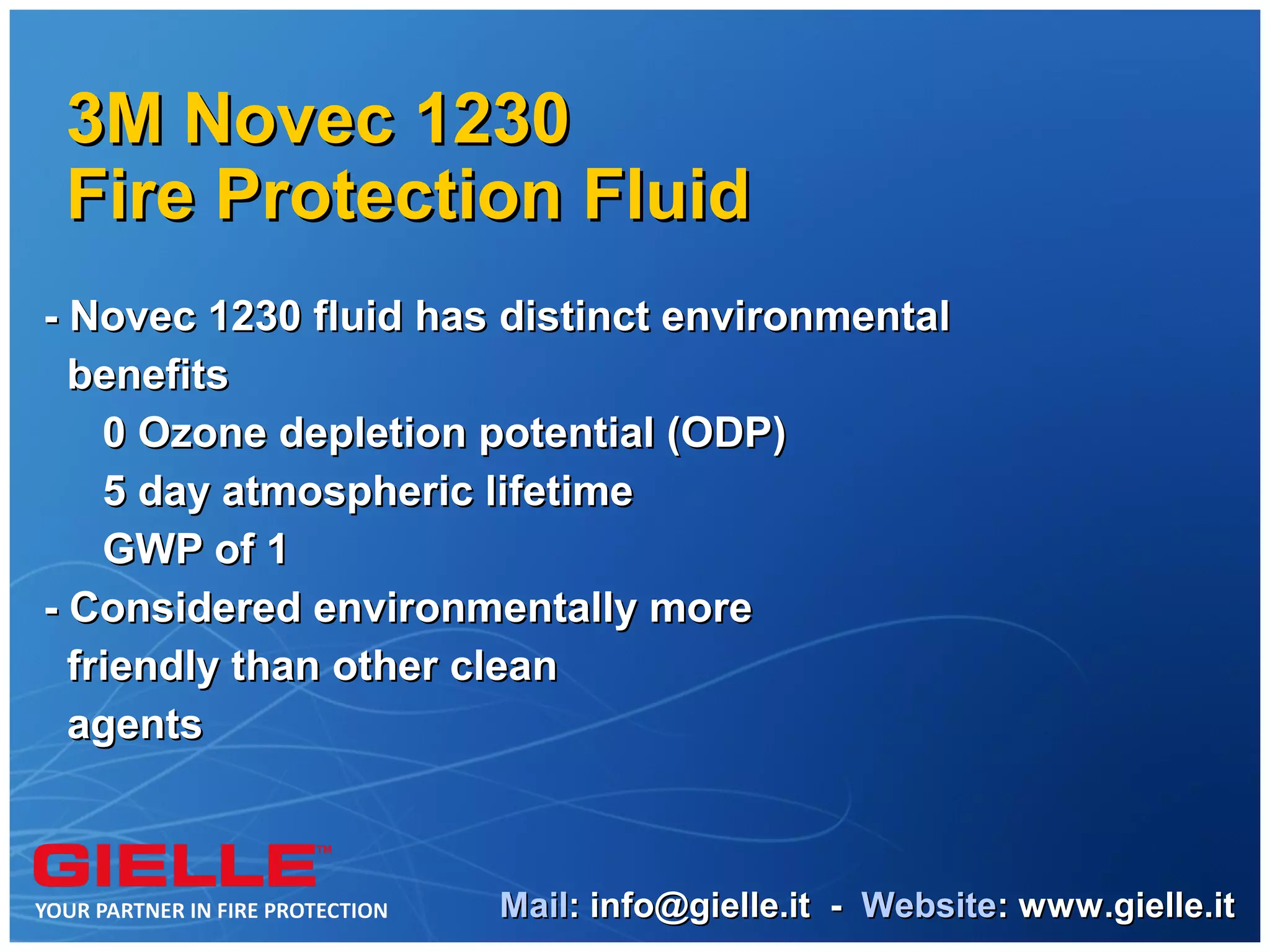

3M Novec 1230
- Novec 1230 fluid has distinct environmental
benefits
0 Ozone depletion potential (ODP)
5 day atmospheric lifetime
GWP of 1
- Considered environmentally more
friendly than other clean
agents

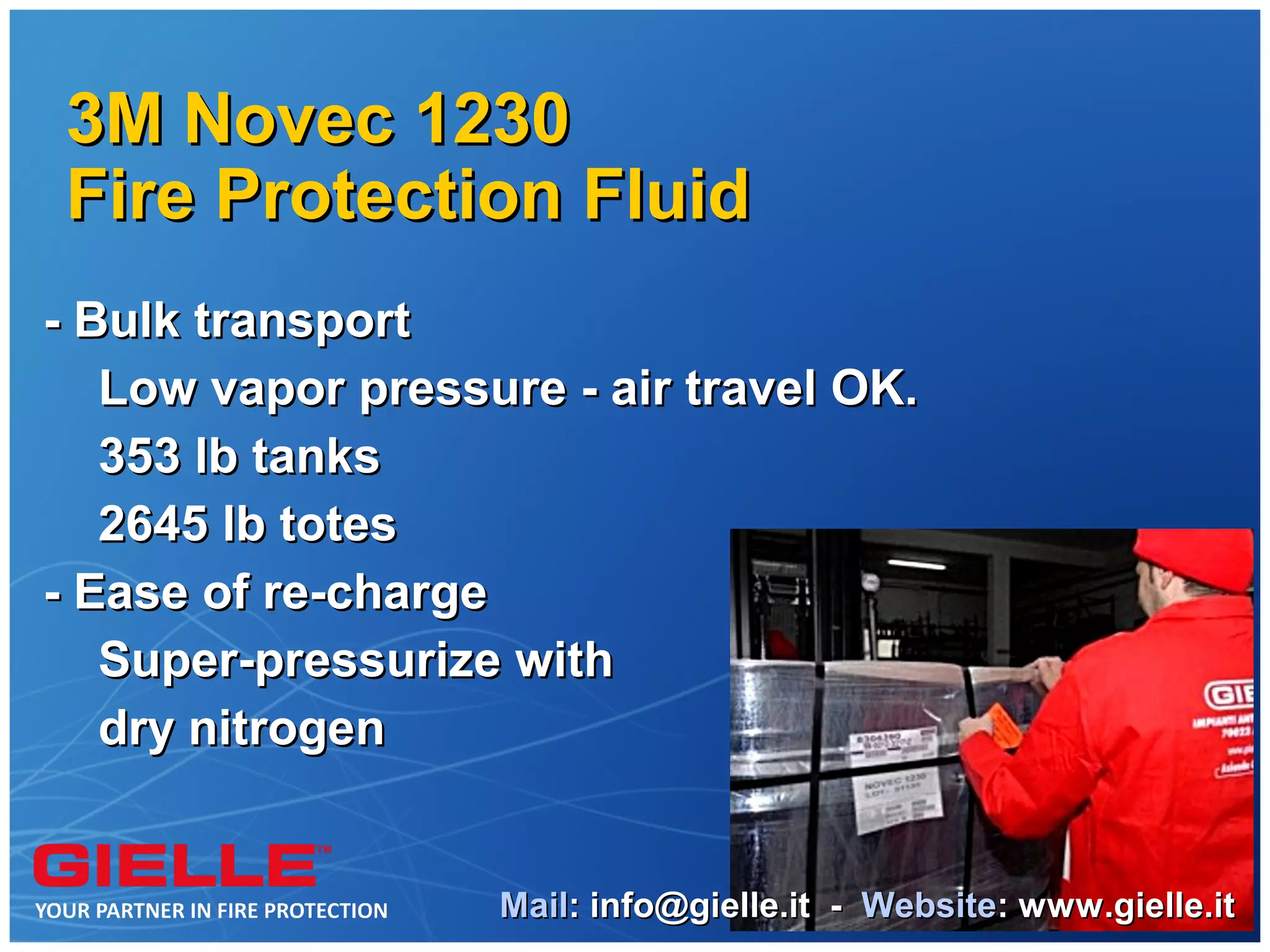

3M Novec 1230
- Bulk transport
Low vapor pressure - air travel OK.
353 lb tanks
2645 lb totes
- Ease of re-charge
Super-pressurize with
dry nitrogen

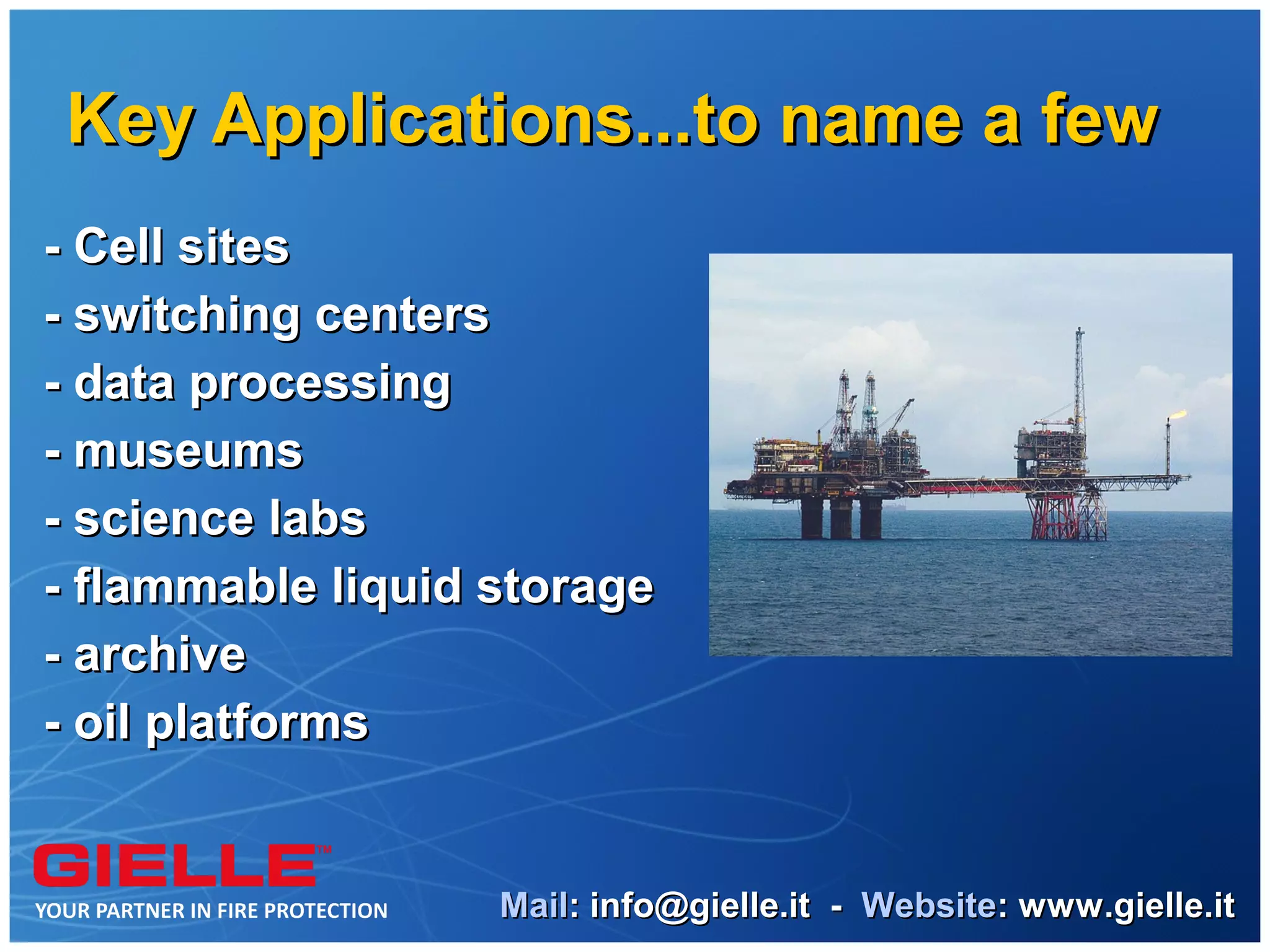

Key Applications...to name a few
- Cell sites
- switching centers
- data processing
- museums
- science labs
- flammable liquid storage
- archive
- oil platforms

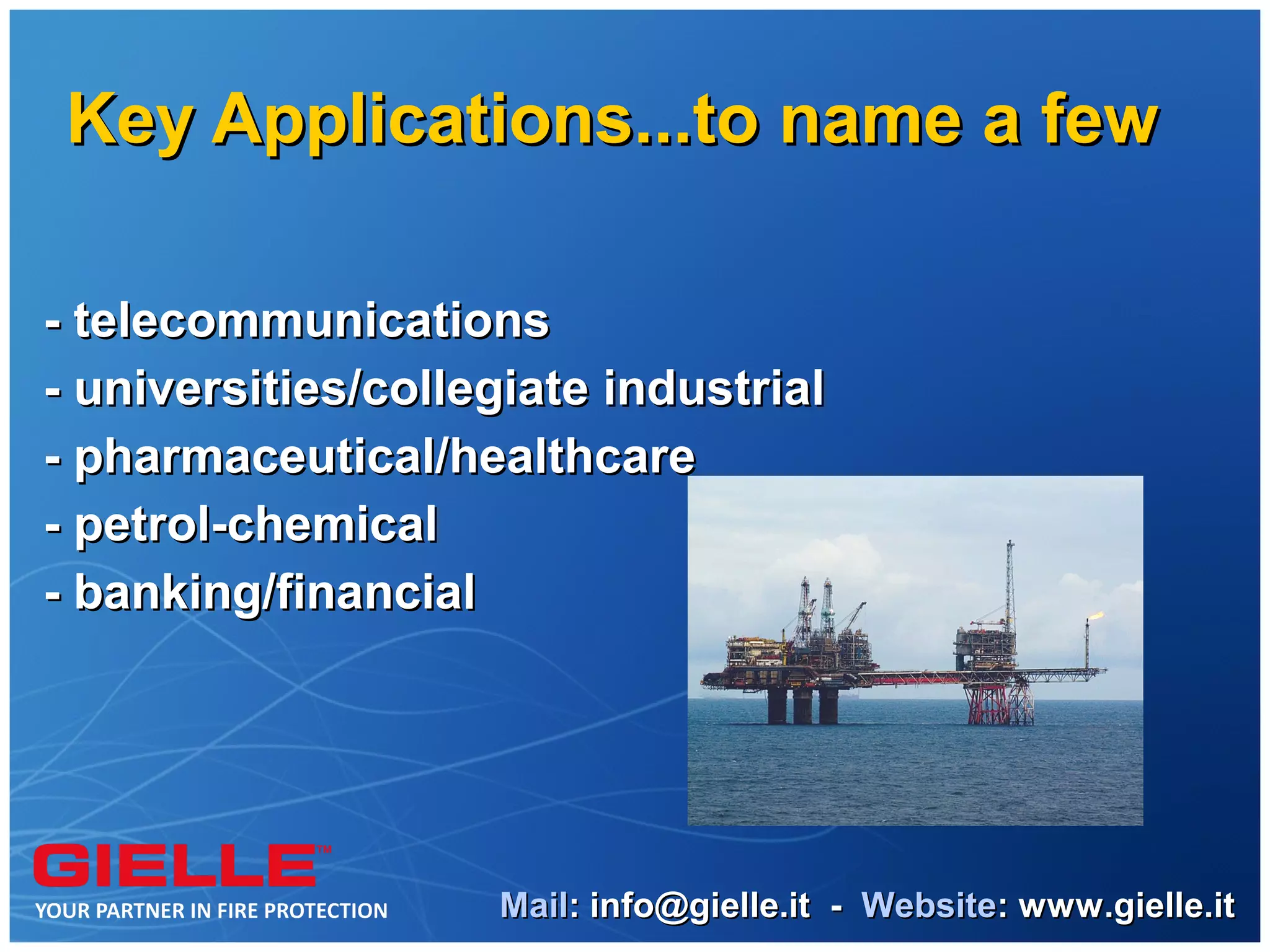

Key Applications...to name a few

- telecommunications
- universities/collegiate industrial
- pharmaceutical/healthcare
- petrol-chemical
- banking/financial


Technical design features

designed for use with 3M Novec
1230 fire protection Fluid

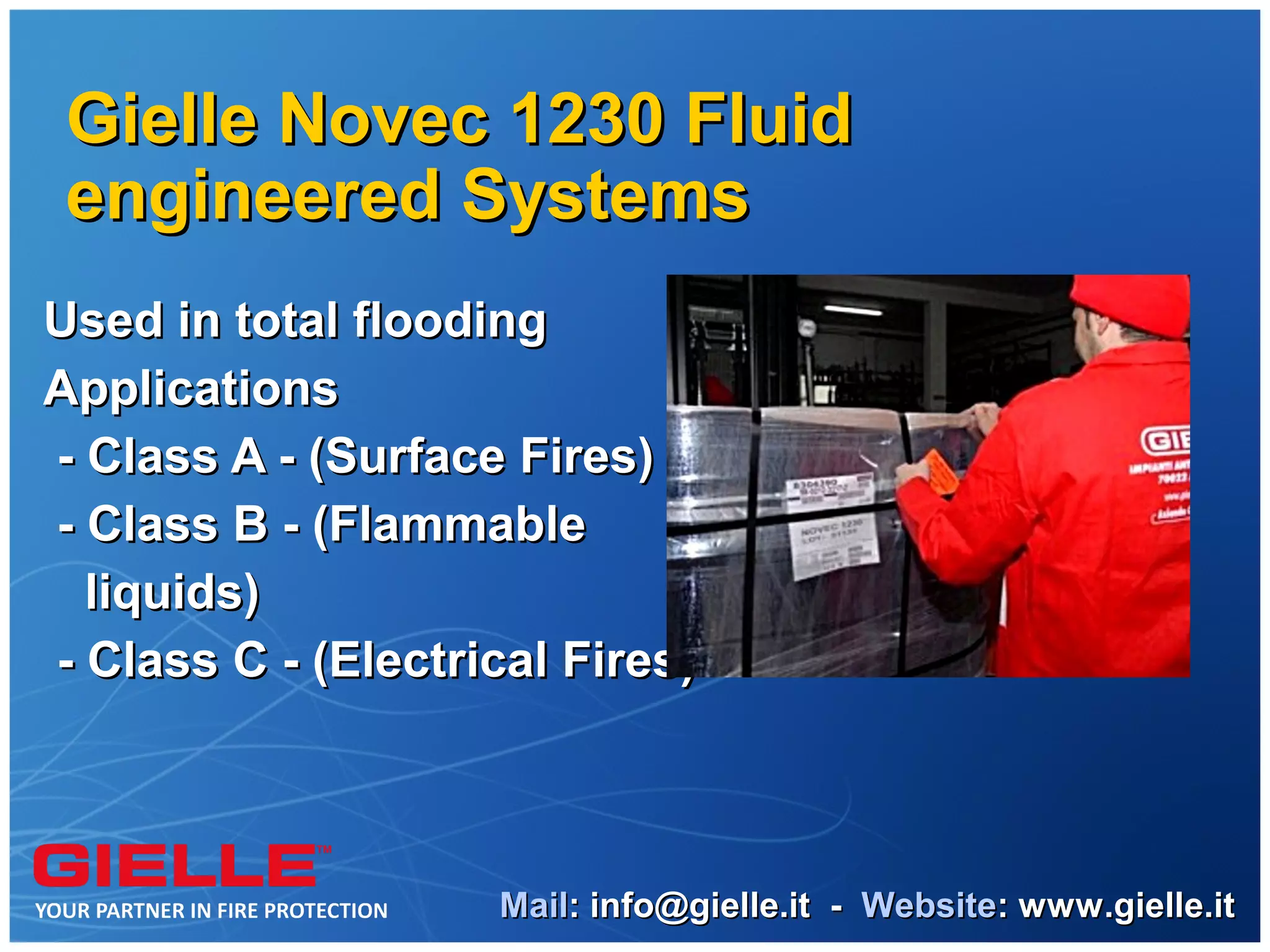

Gielle Novec 1230 Fluid
engineered Systems
Used in total flooding
Applications
- Class A - (Surface Fires)
- Class B - (Flammable
liquids)
- Class C - (Electrical Fires)


engineered Systems
- Vertical mount only
- 10, 20, 40, 70 and 125lb
1-1/2 lnch Valve
- 200 and 350
2 lnch Valve
- 600 and 900lb
3 lnch Valve


engineered Systems
Design Gudelines:
- Class A Design Concentration 4.2%
- Class B Design Concentration 5.6% and greater

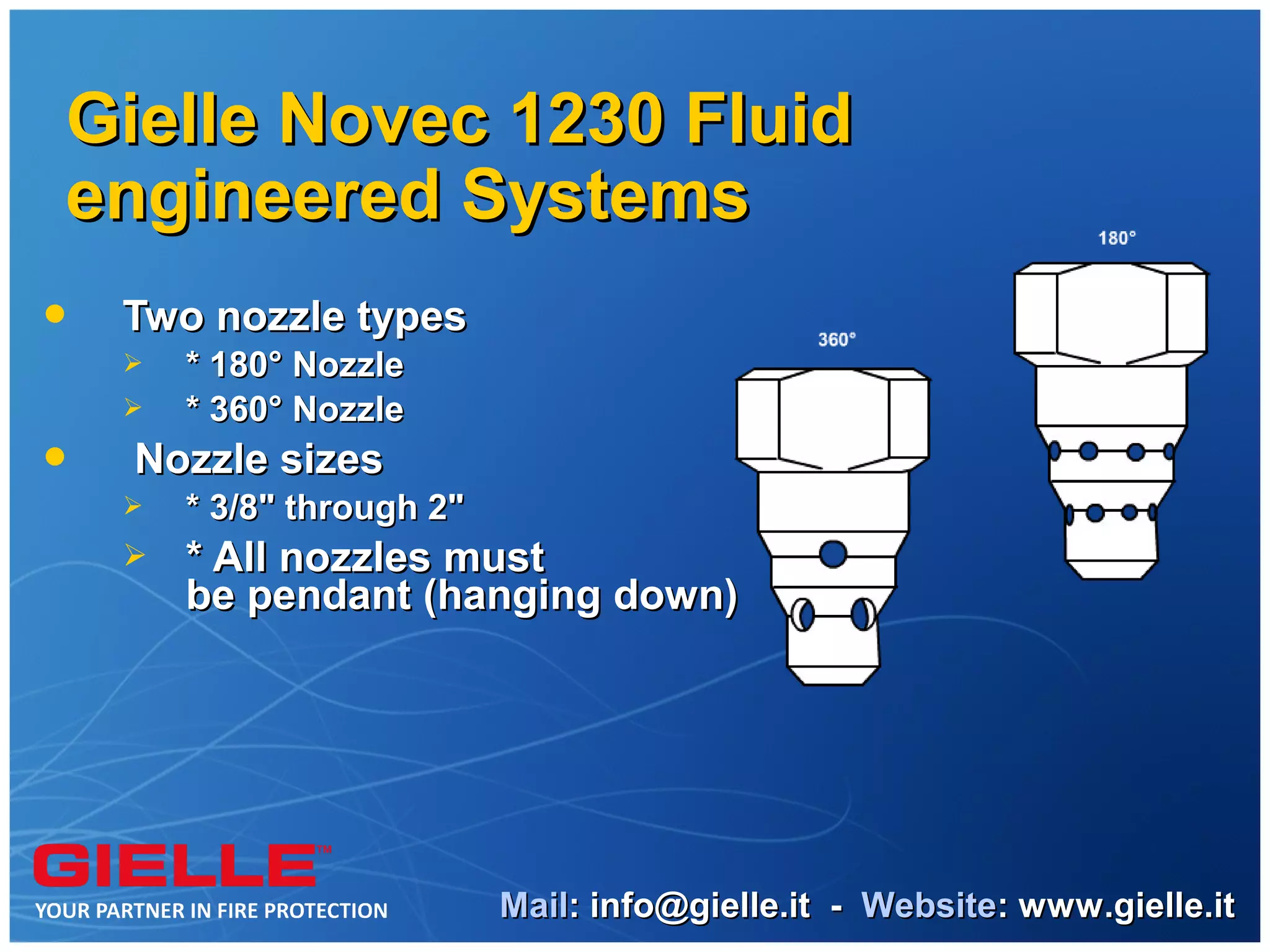

engineered Systems
 Two nozzle types
 * 180° Nozzle
 * 360° Nozzle
 Nozzle sizes
 * 3/8" through 2"
 * All nozzles must
be pendant (hanging down)

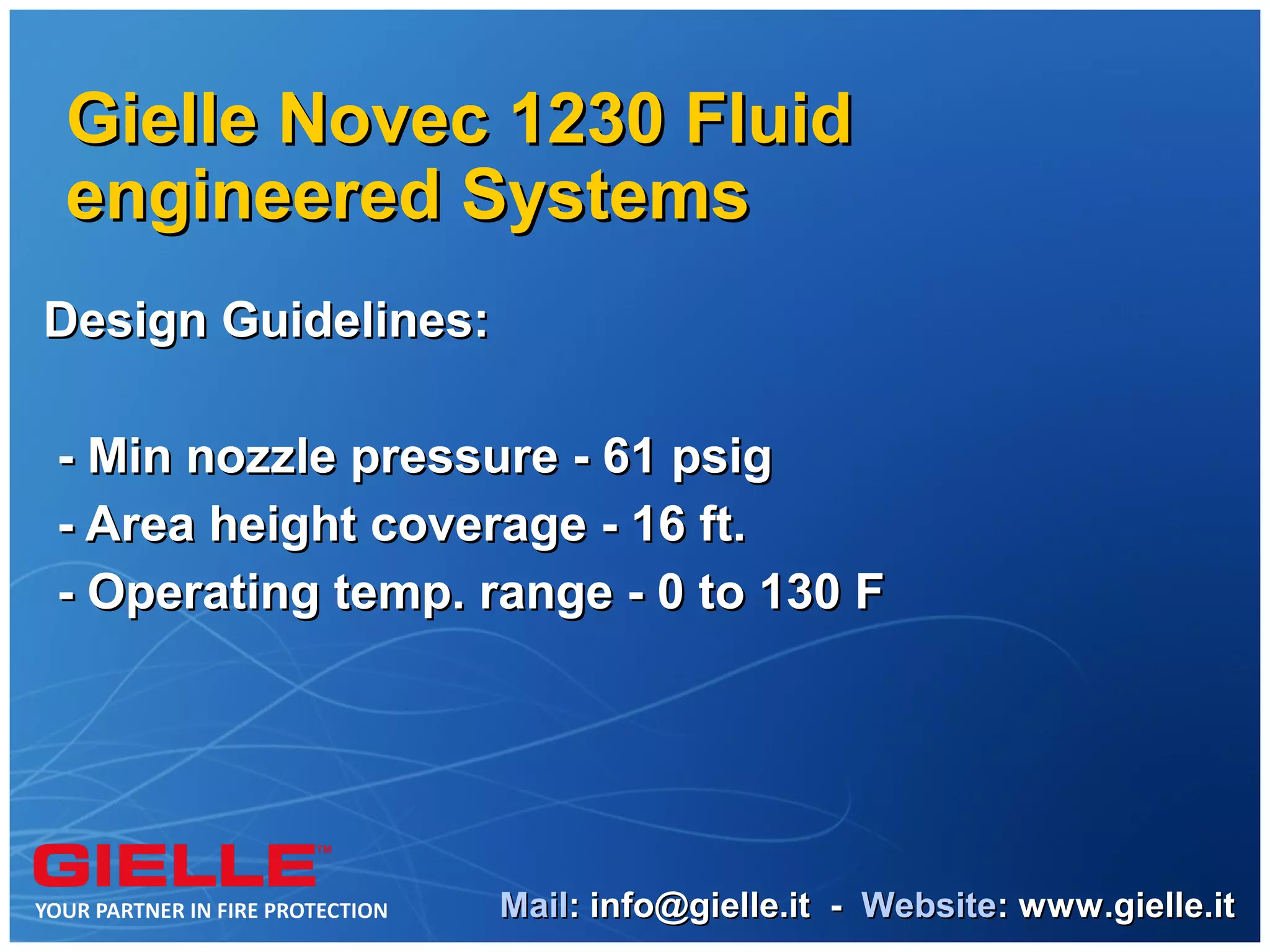

engineered Systems
Design Guidelines:

- Min nozzle pressure - 61 psig
- Area height coverage - 16 ft.
- Operating temp. range - 0 to 130 F

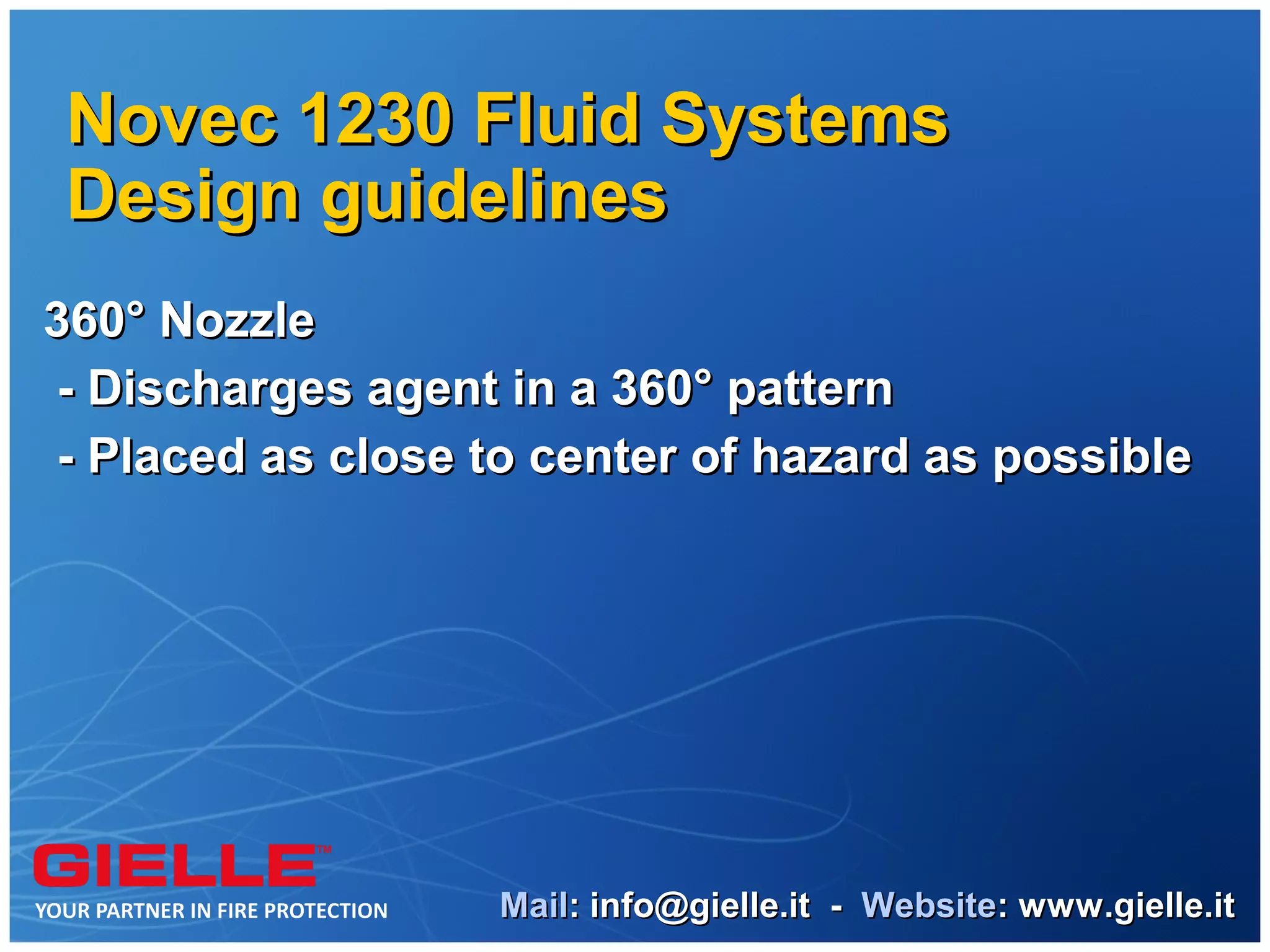

Novec 1230 Fluid Systems
Design guidelines
360° Nozzle
- Discharges agent in a 360° pattern
- Placed as close to center of hazard as possible


Design guidelines
Back-to-back 180° Nozzles
- 1 ft. to 2 ft. apart
- Must face away from each other
- Nozzles discharge equal quantities

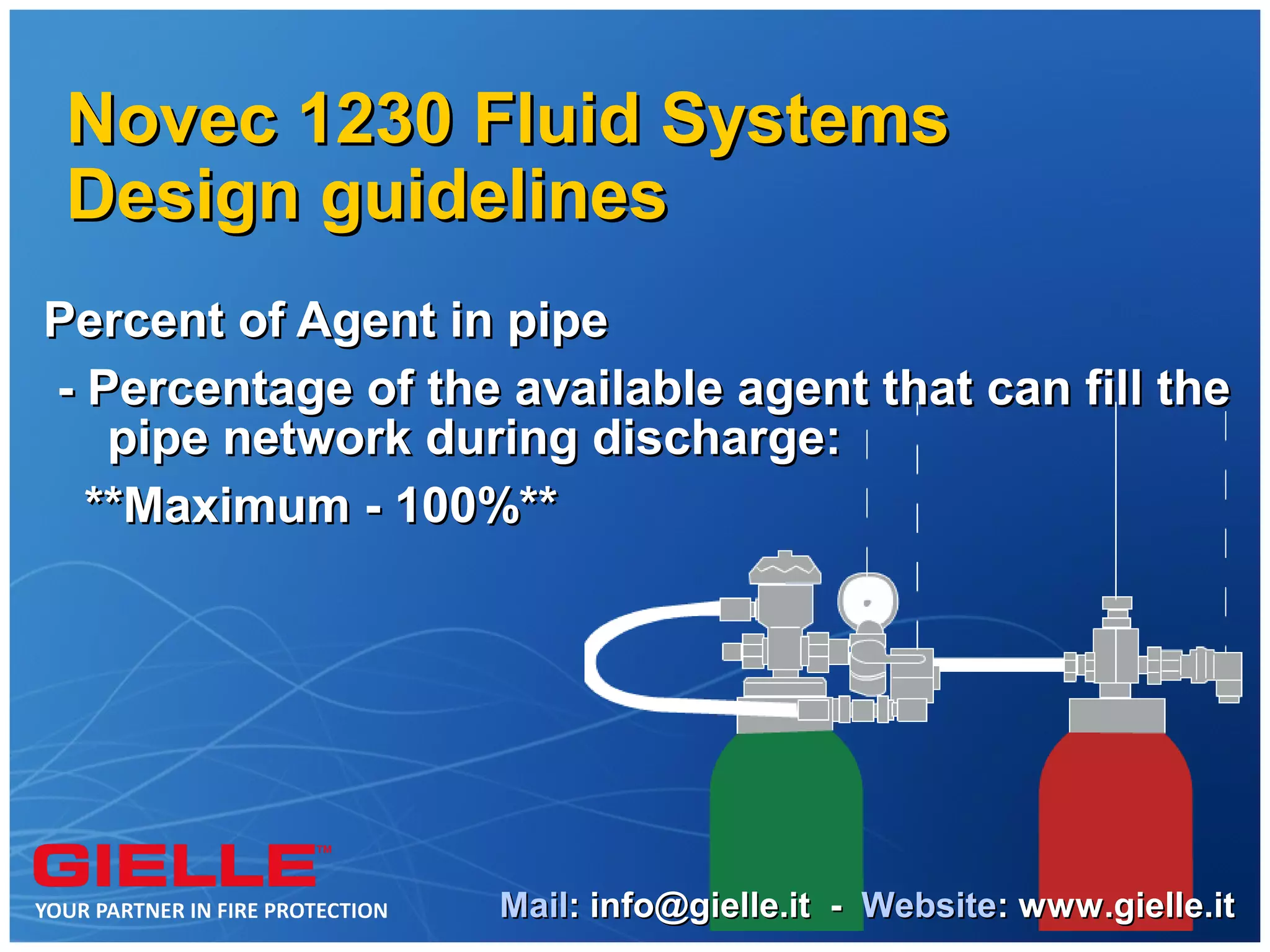

Design guidelines
Percent of Agent in pipe
- Percentage of the available agent that can fill the
pipe network during discharge:
**Maximum - 100%**

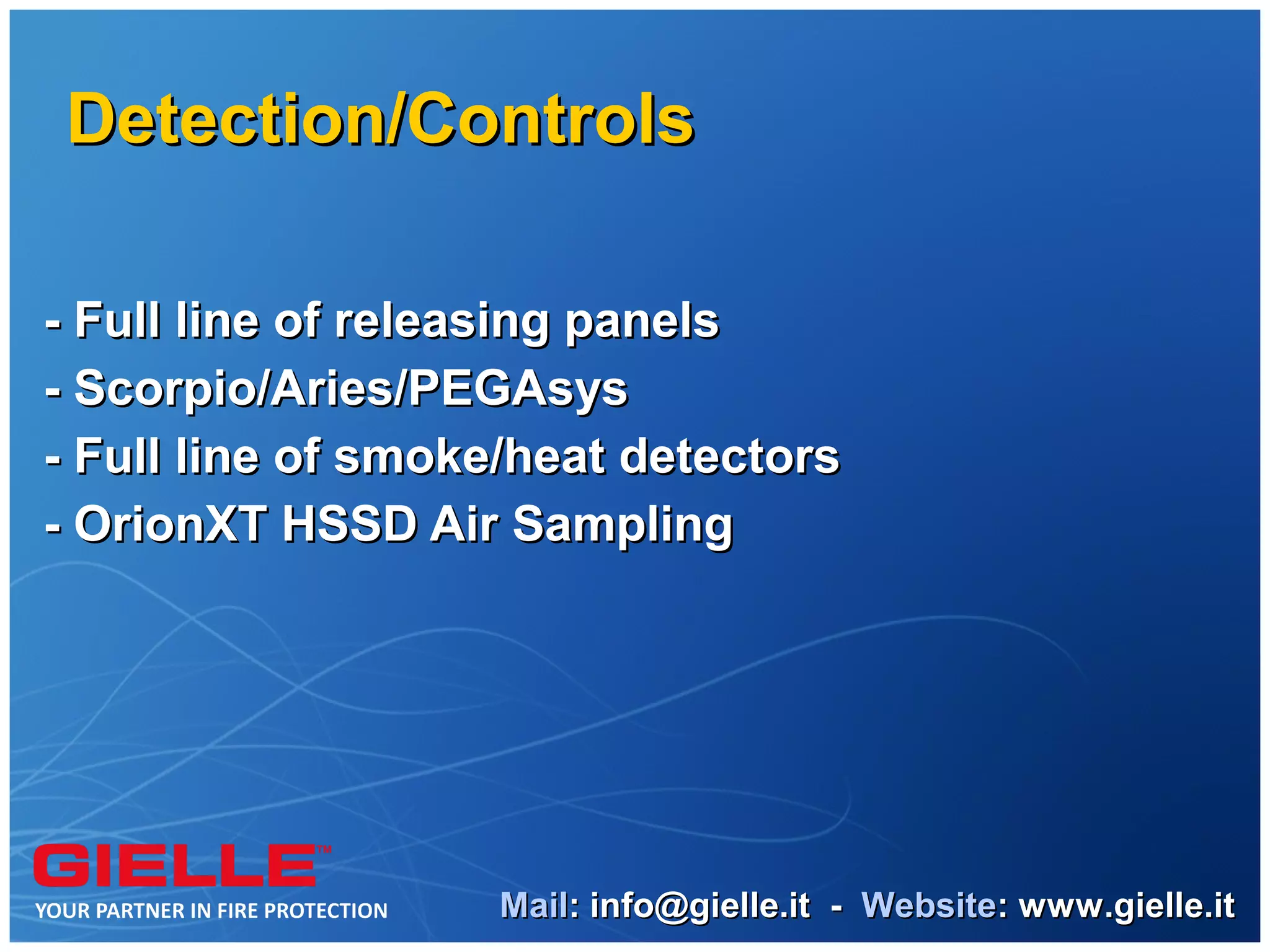

Detection/Controls

- Full line of releasing panels
- Scorpio/Aries/PEGAsys
- Full line of smoke/heat detectors
- OrionXT HSSD Air Sampling

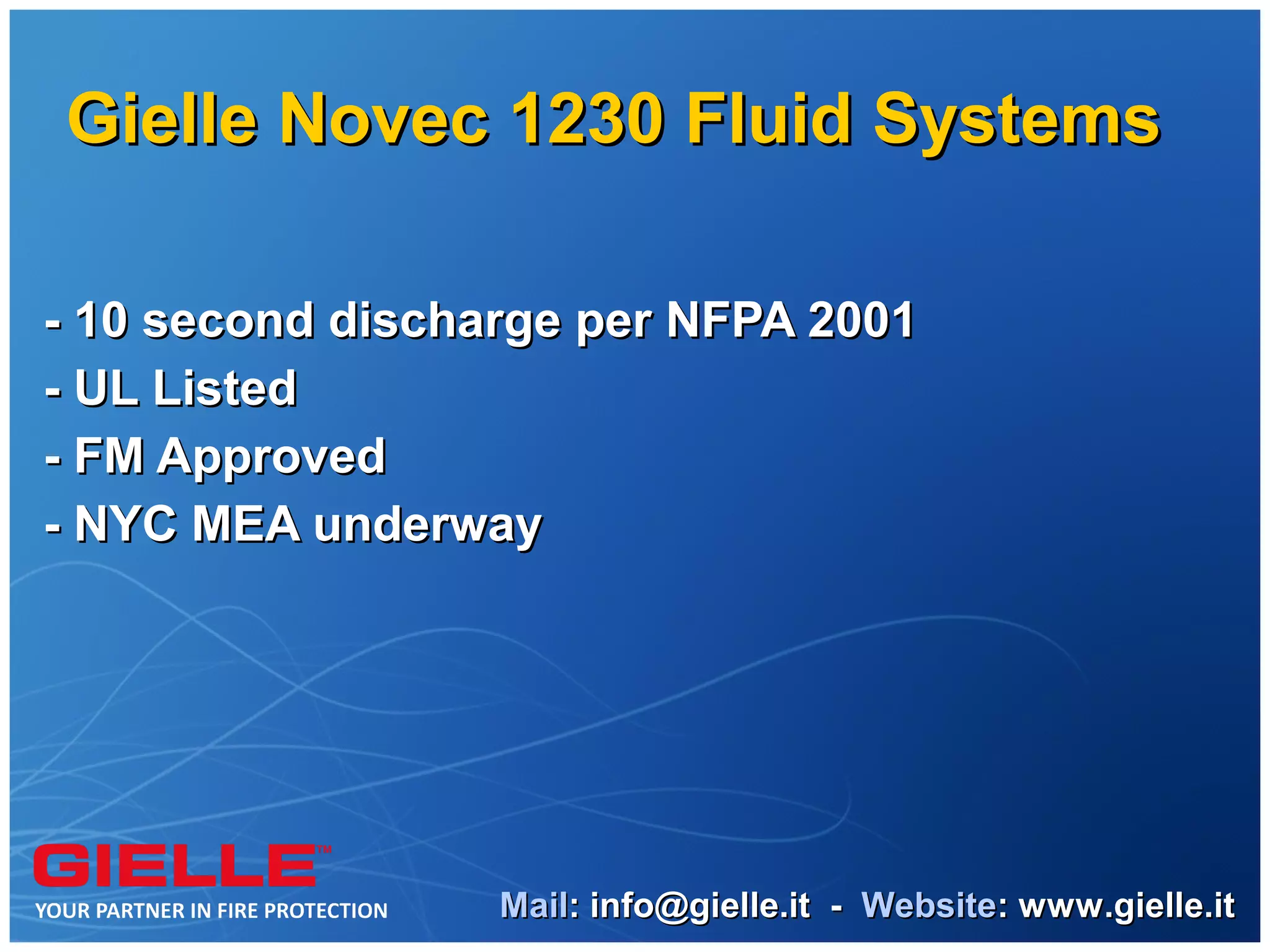

Gielle Novec 1230 Fluid Systems

- 10 second discharge per NFPA 2001
- UL Listed
- FM Approved
- NYC MEA underway

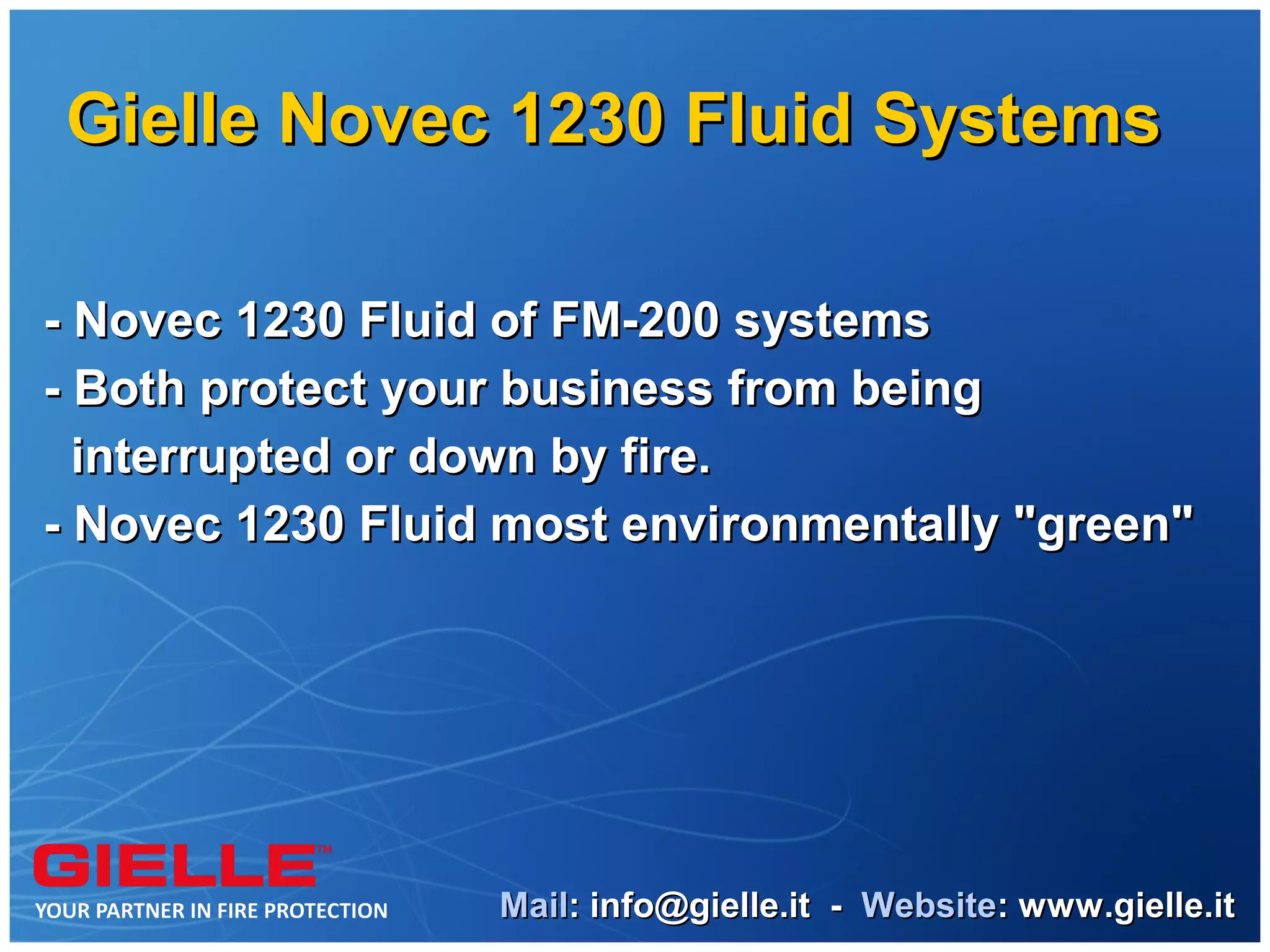

Gielle Novec 1230 Fluid Systems

- Novec 1230 Fluid of FM-200 systems
- Both protect your business from being
interrupted or down by fire.
- Novec 1230 Fluid most environmentally "green"


For more information/pricing

- Data sheets here or at my table.
- Color brochures on website:

www.giellemarine.com


Gielle Fire Systems

Providing solutions and
maintaining an industry edge
for its customers

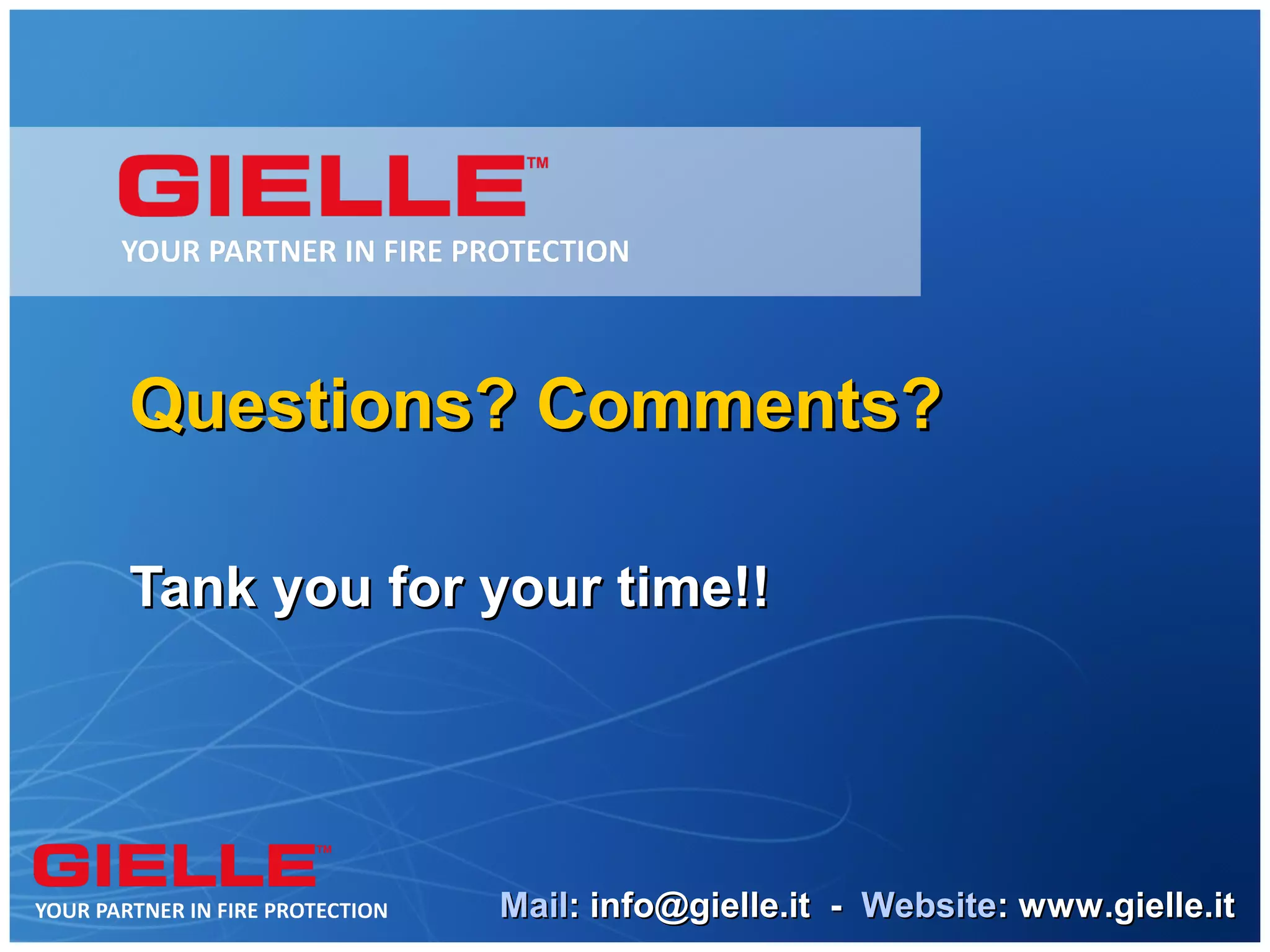

Questions? Comments?

Tank you for your time!!
