This document describes a hand gesture recognition system based on local linear embedding. It begins with an introduction explaining the need for more natural human-computer interfaces and overviewing common vision-based and glove-based methods. It then describes the specific Chinese sign language alphabet used as objects for recognition. Next, it details the preprocessing steps of detecting skin regions and isolating hand gesture regions from video input. It introduces local linear embedding for dimensionality reduction before recognizing gestures. Experimental results showed over 90% recognition rates on training and testing datasets. The system provides robust, real-time hand gesture recognition capabilities.

1. A Hand Gesture Recognition System
Based on Local Linear Embedding
Presented by Chang Liu
2006. 3

2. Outline
 Introduction
 CSL and Pre-processing
 Locally Linear Embedding
 Experiments
 Conclusion

3. Introduction
 Interaction with computers are not
comfortable experience
 Computers should communicate with
people with body language.
 Hand gesture recognition becomes
important
 Interactive human-machine interface and
virtual environment

4. Introduction
 Two common technologies for hand
gesture recognition
 glove-based method

Using special glove-based device to extract
hand posture

Annoying
 vision-based method

3D hand/arm modeling

Appearance modeling

5. Introduction
 3D hand/arm modeling
 Highly computational complexity
 Using many approximation process
 Appearance modeling
 Low computational complexity
 Real-time processing

6. Introduction
 Overview of algorithm proposed in the
paper
 Vision-based method to be used for the
problem of CSL real-time recognition
 Input: 2D video sequences
 two major steps

Hand gesture region detection

Hand gesture recognition

7. CSL and Pre-processing
 Sign Language
 Rely on the hearing society
 Two main elements:

Low and simple level signed alphabet, mimics
the letters of the native spoken language

Higher level signed language, using actions to
mimic the meaning or description of the sign

8. CSL and Pre-processing
 CSL is the abbreviation for Chinese
Sign Language
 30 letters in CSL alphabet  Objects
in recognition

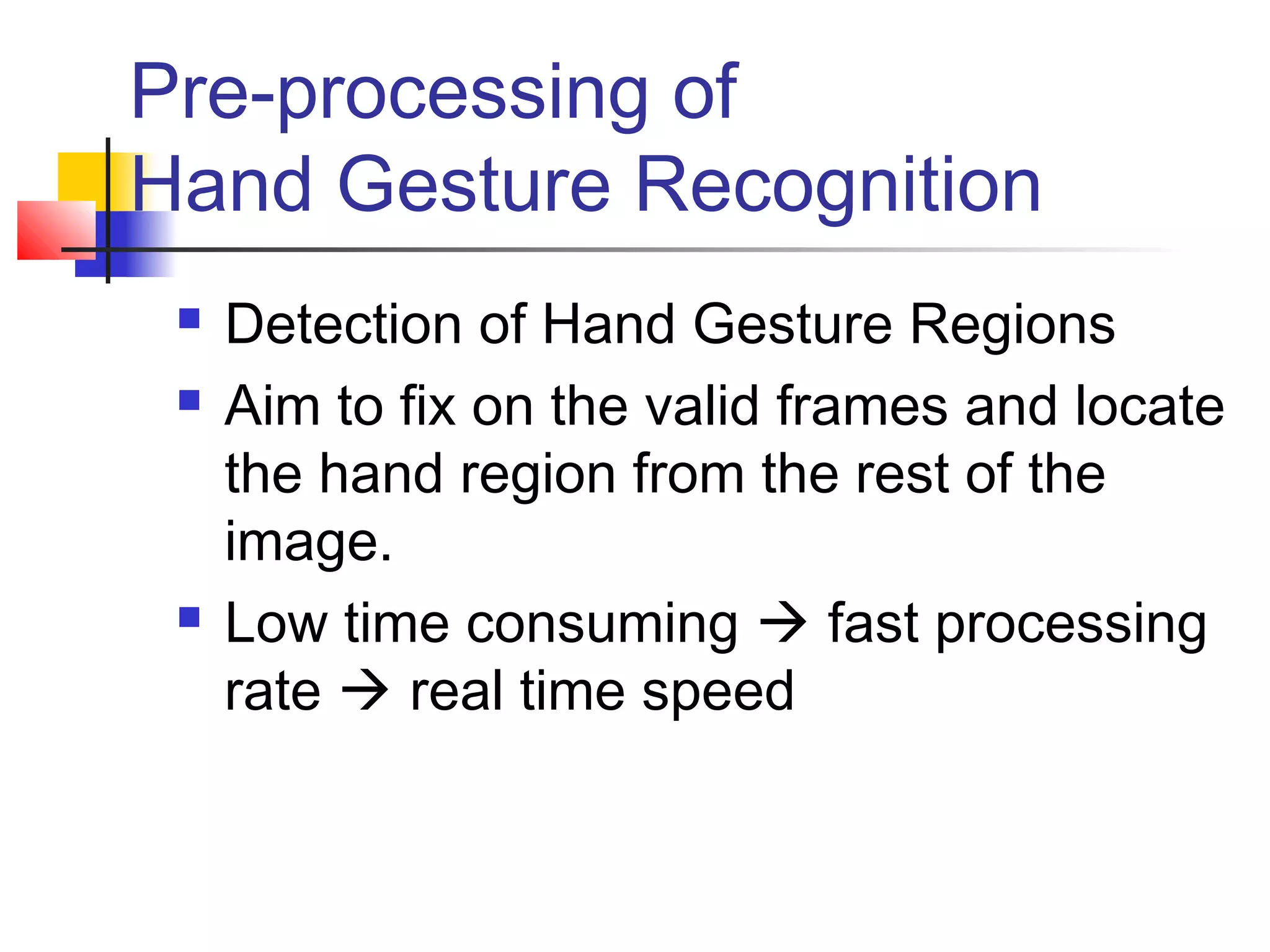

9. Pre-processing of
Hand Gesture Recognition
 Detection of Hand Gesture Regions
 Aim to fix on the valid frames and locate
the hand region from the rest of the
image.
 Low time consuming  fast processing
rate  real time speed

10. Pre-processing of
Hand Gesture Recognition
 Detect skin region from the rest of the
image by using color.
 Each color has three components
 hue, saturation, and value
 chroma consists of hue and saturation is
separated from value
 Under different condition, chroma is
invariant.

11. Pre-processing of
Hand Gesture Recognition
 Color is represented in RGB space,
also in YUV and YIQ space.
 In YUV space
 saturation  displacement
 hue -> amplitude
 In YIQ space
 The color saturation cue I is combined with
Θto reinforce the segmentation effect
22
|||| VUC +=
)/(tan 1
UV−
=θ

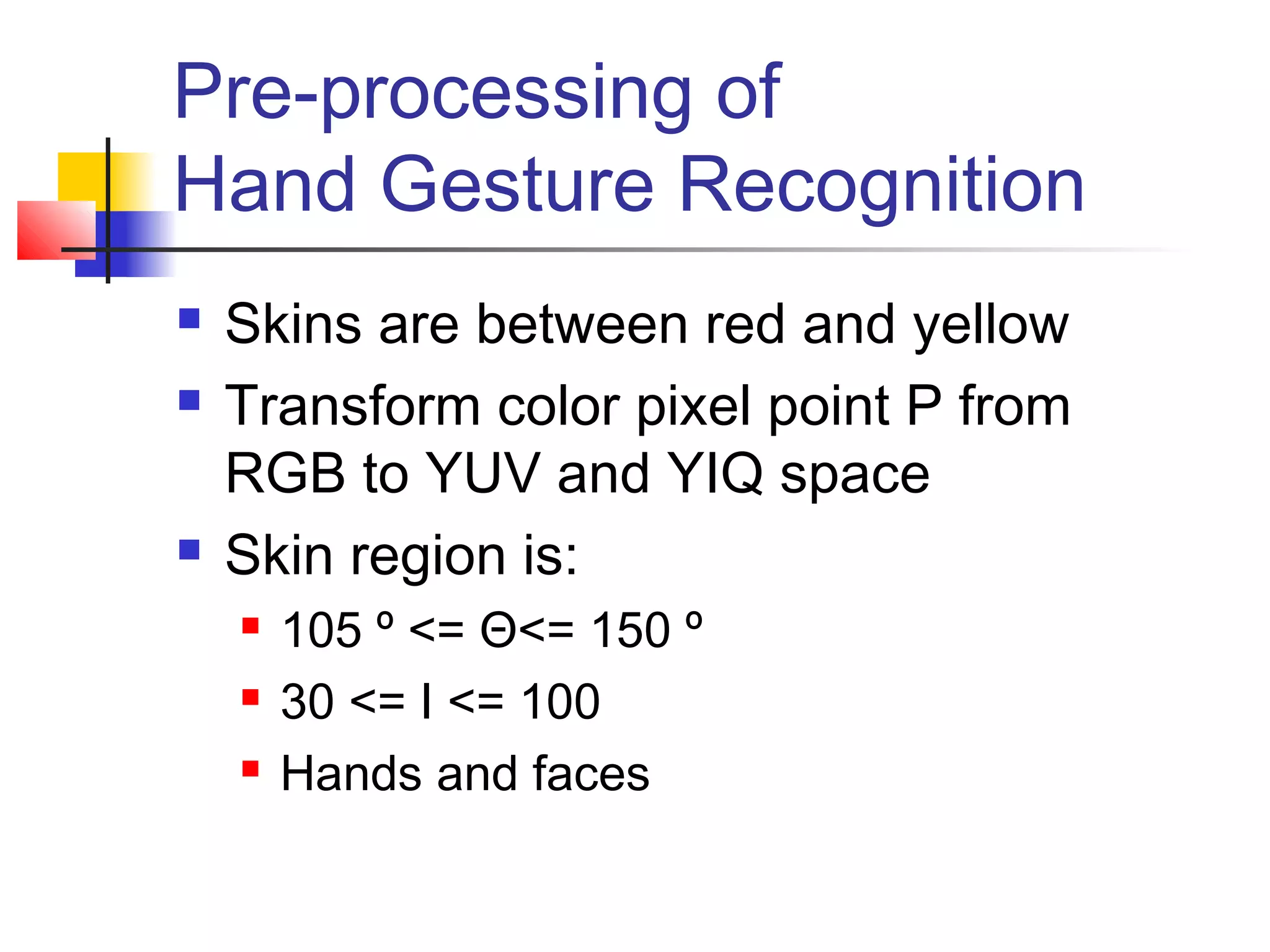

12. Pre-processing of
Hand Gesture Recognition
 Skins are between red and yellow
 Transform color pixel point P from
RGB to YUV and YIQ space
 Skin region is:
 105 º <= Θ<= 150 º
 30 <= I <= 100
 Hands and faces

13. Pre-processing of
Hand Gesture Recognition

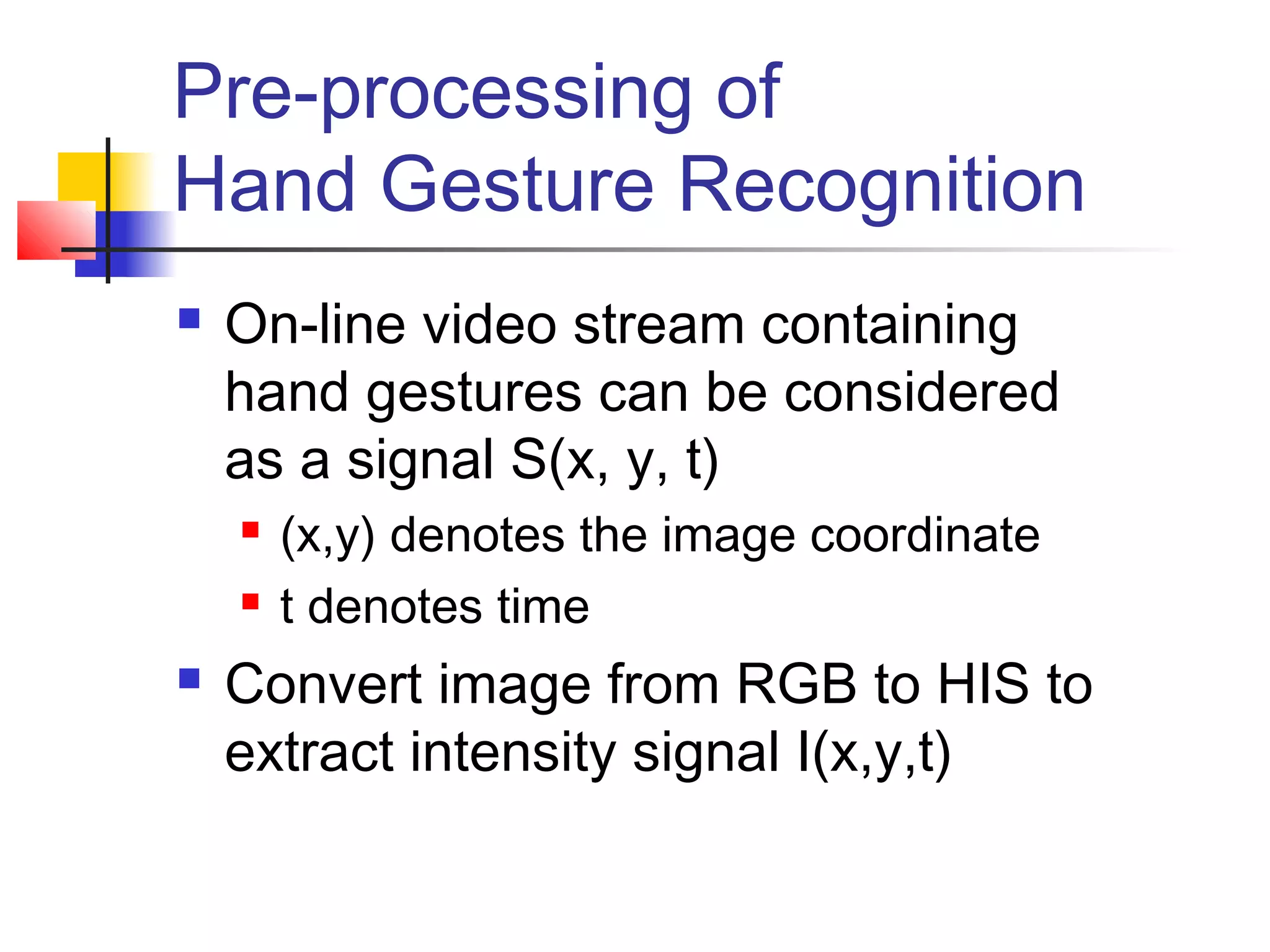

14. Pre-processing of
Hand Gesture Recognition
 On-line video stream containing
hand gestures can be considered
as a signal S(x, y, t)
 (x,y) denotes the image coordinate
 t denotes time
 Convert image from RGB to HIS to
extract intensity signal I(x,y,t)

15. Pre-processing of
Hand Gesture Recognition
 Based on the representation by YUV
and YIQ, skin pixels can be detected
and form a binary image sequence
M’(x,y,t) – region mask
 Another binary image sequence
M’’(x,y,t) which reflects the motion
information is produced between every
consecutive pair of intensity images –
motion mask

16. Pre-processing of
Hand Gesture Recognition
 M(x,y,t) delineating the moving skin
region by using logical AND between
the corresponding region mask and
motion mask sequence

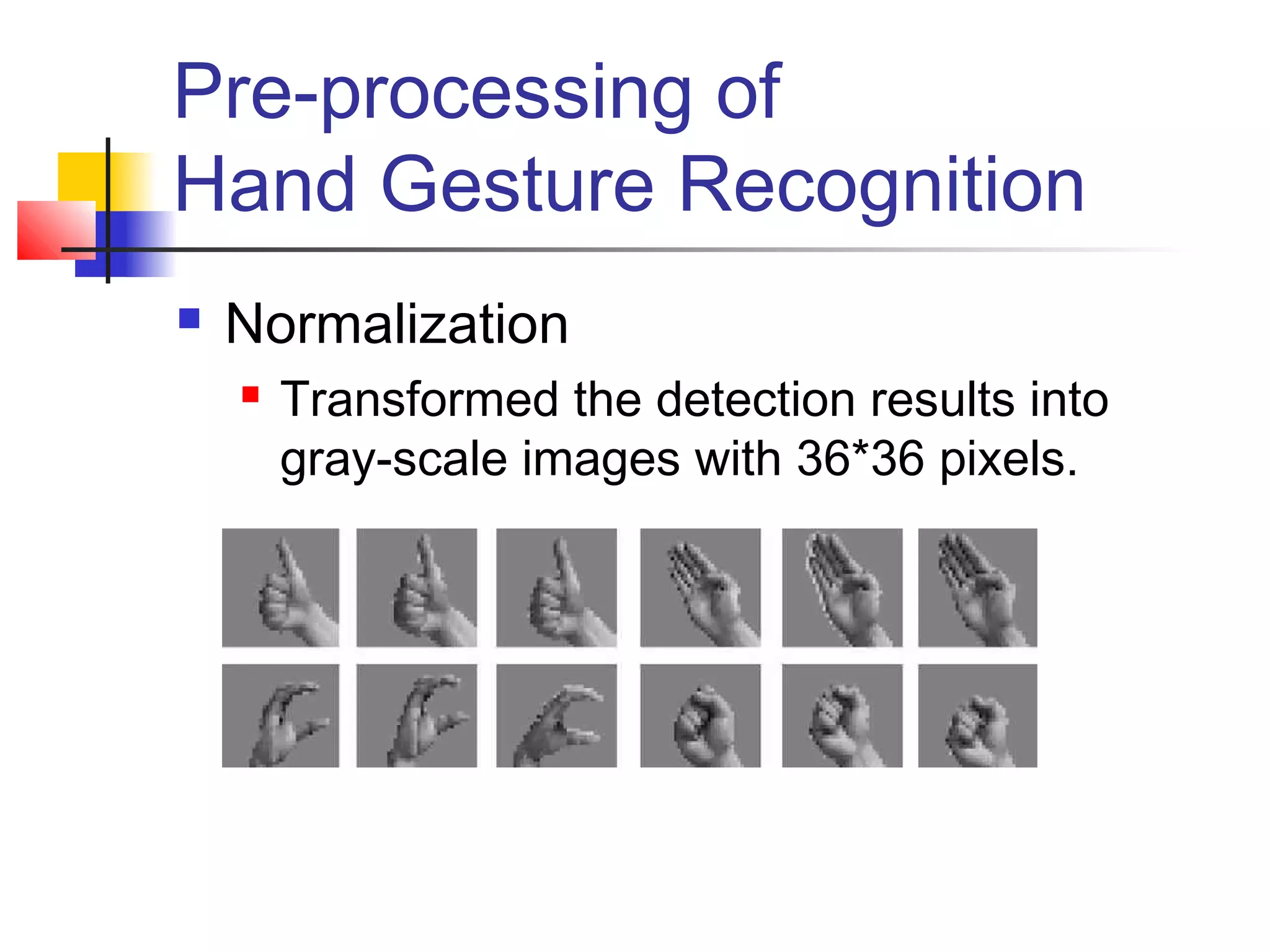

17. Pre-processing of
Hand Gesture Recognition
 Normalization
 Transformed the detection results into
gray-scale images with 36*36 pixels.

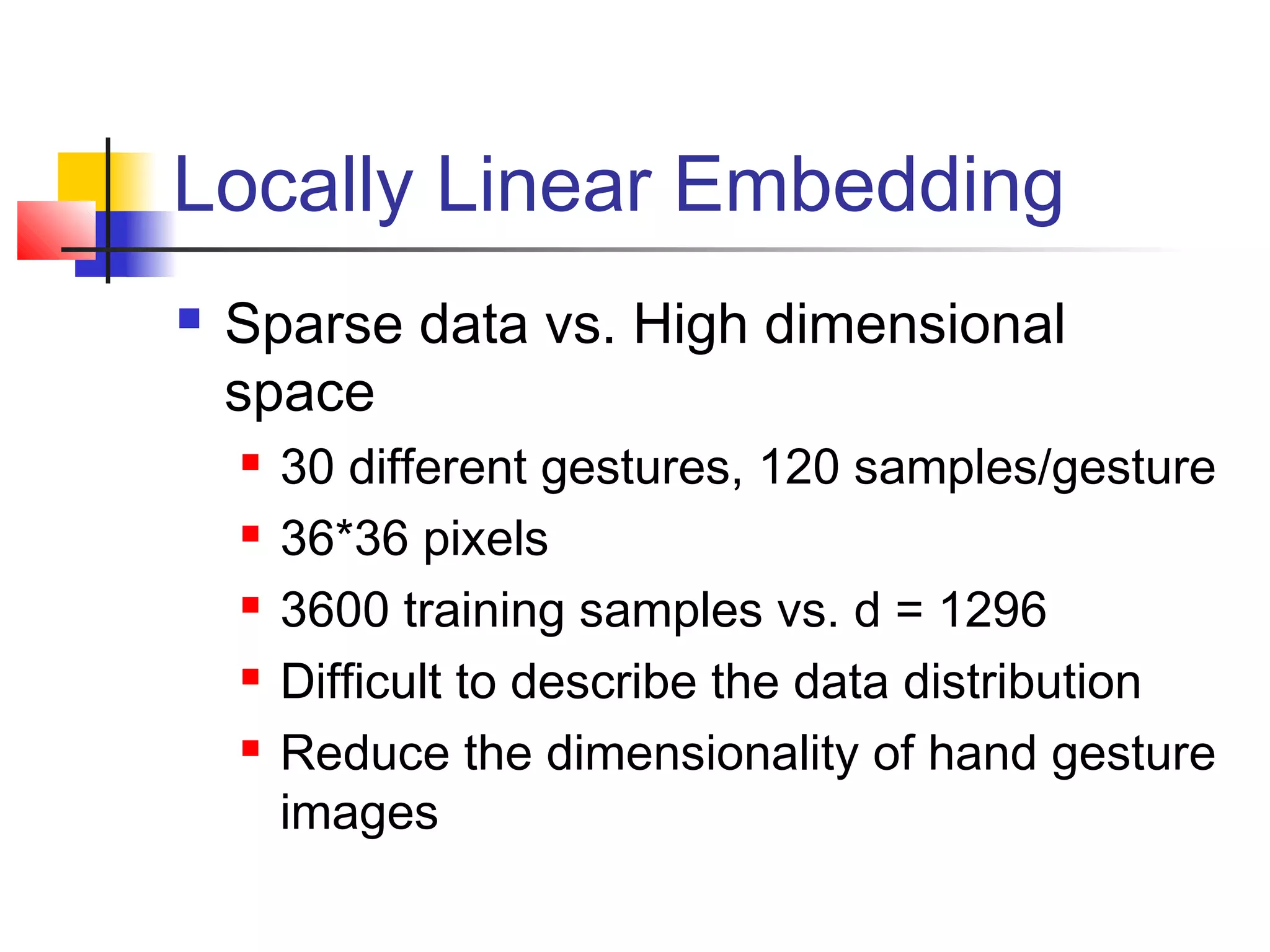

18. Locally Linear Embedding
 Sparse data vs. High dimensional
space
 30 different gestures, 120 samples/gesture
 36*36 pixels
 3600 training samples vs. d = 1296
 Difficult to describe the data distribution
 Reduce the dimensionality of hand gesture
images

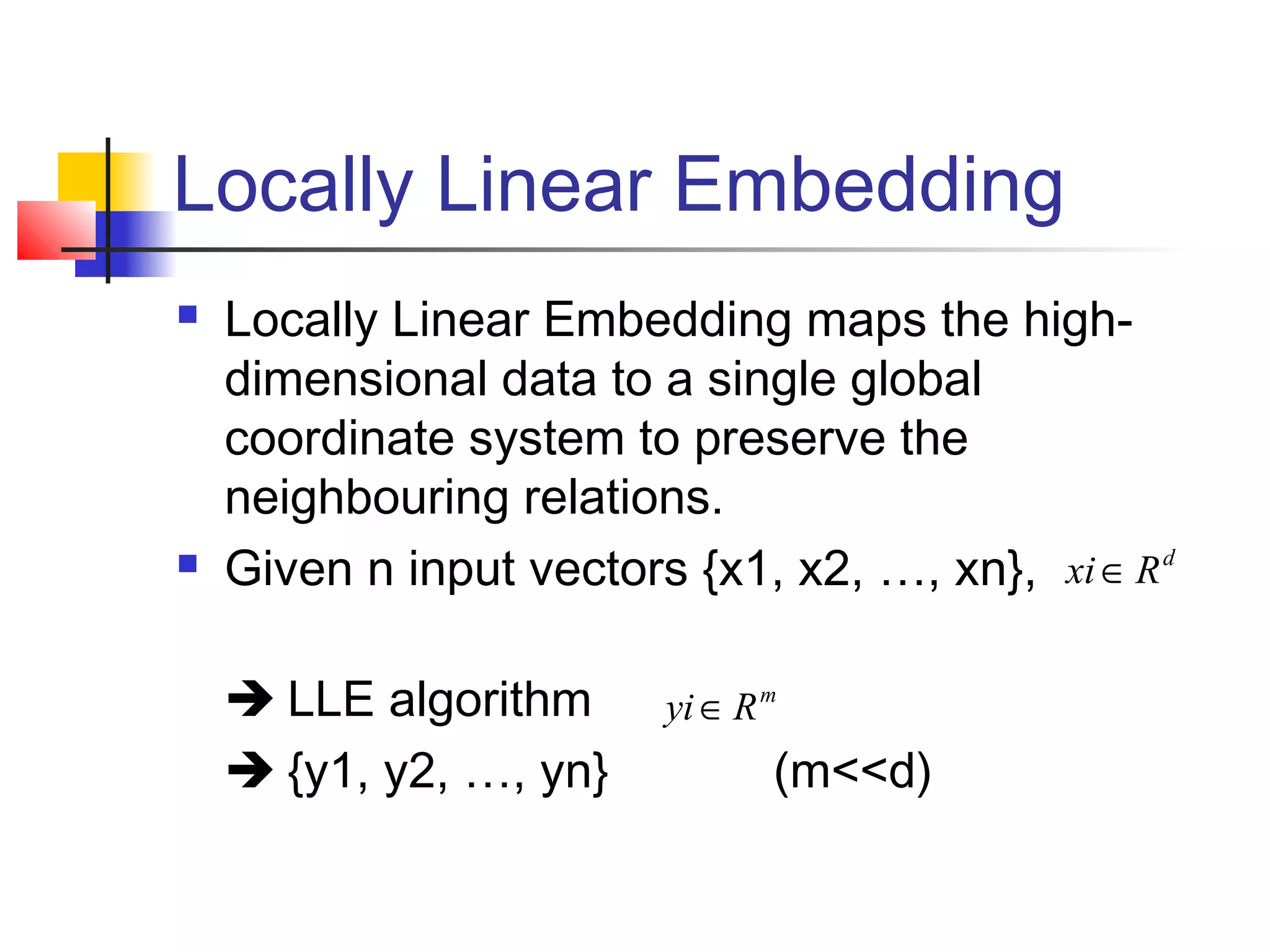

19. Locally Linear Embedding
 Locally Linear Embedding maps the high-
dimensional data to a single global
coordinate system to preserve the
neighbouring relations.
 Given n input vectors {x1, x2, …, xn},
 LLE algorithm
 {y1, y2, …, yn} (m<<d)
m
Ryi∈
d
Rxi∈

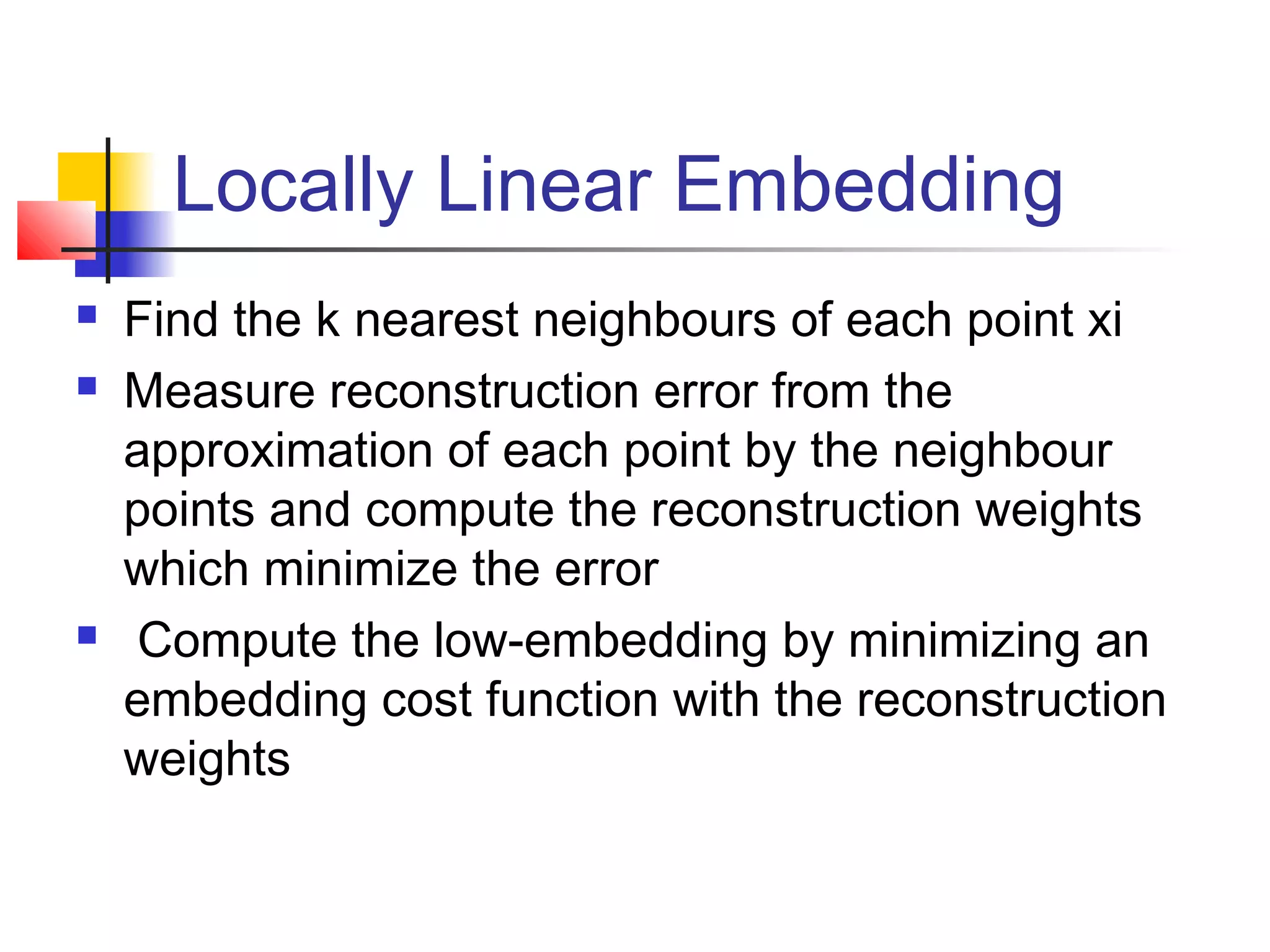

20. Locally Linear Embedding
 Find the k nearest neighbours of each point xi
 Measure reconstruction error from the
approximation of each point by the neighbour
points and compute the reconstruction weights
which minimize the error
 Compute the low-embedding by minimizing an
embedding cost function with the reconstruction
weights

21. Experiments
 4125 images including all 30 hand
gestures
 60% for training , 40% for testing
 For each image:
 320*240 image, 24b color depth
 Taken from camera with different distance
and orientation
 Sampled at 25 frames/s

22. Experiment Results
Data # of
Samples
Recognized
Samples
Recognition
Rate (%)
Training 2475 2309 93.3
Testing 1650 1495 90.6
Total 4125 3804 92.2

23. Conclusion
 Robust against similar postures in
different light conditions and
backgrounds
 Fast detection process, allows the real
time video application with low cost
sensors, such as PC and USB camera

24. Thank You!
Questions?
