1. SHREEJEE INSTITUTE OF
TECHNOLOGY AND MANAGEMENT
Nanotechnology
• Guided By:- Mr.Prakash
Singh Panwar
• By:- Rajpal Singh
Chouhan
• EC BRANCH 1ST YEAR

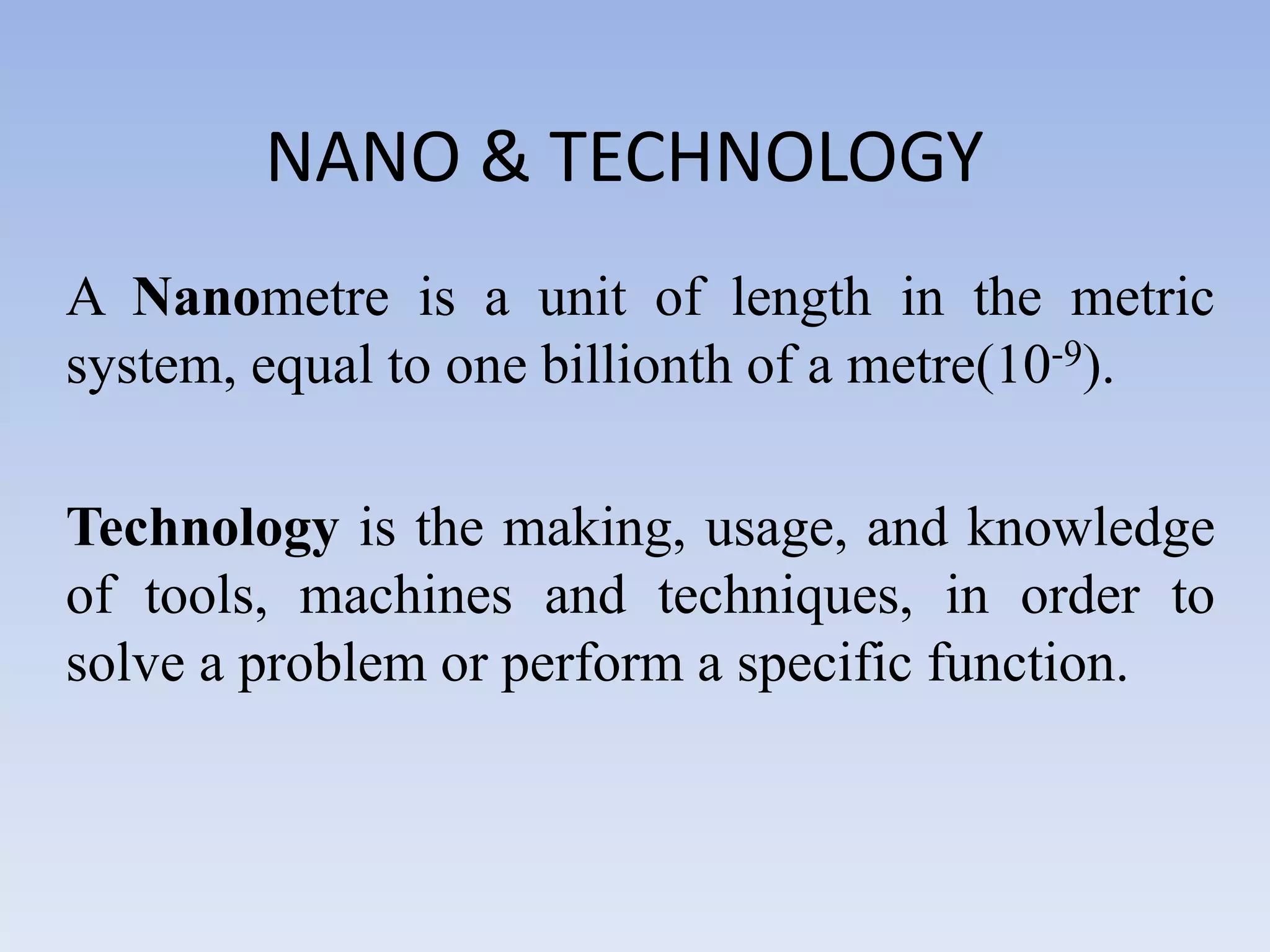

2. NANO & TECHNOLOGY
A Nanometre is a unit of length in the metric
system, equal to one billionth of a metre(10-9).
Technology is the making, usage, and knowledge
of tools, machines and techniques, in order to
solve a problem or perform a specific function.

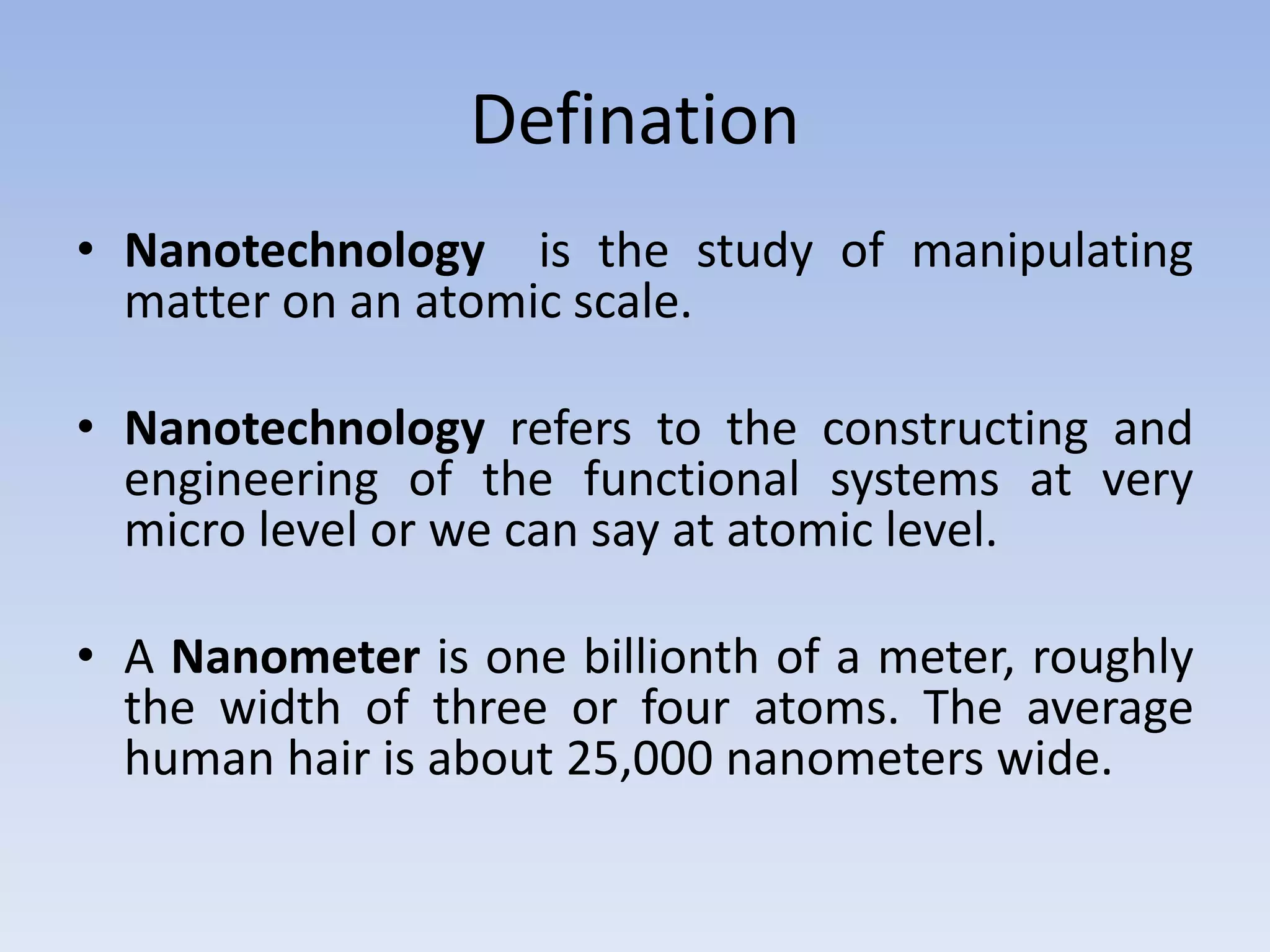

3. Defination
• Nanotechnology is the study of manipulating
matter on an atomic scale.
• Nanotechnology refers to the constructing and
engineering of the functional systems at very
micro level or we can say at atomic level.
• A Nanometer is one billionth of a meter, roughly
the width of three or four atoms. The average
human hair is about 25,000 nanometers wide.

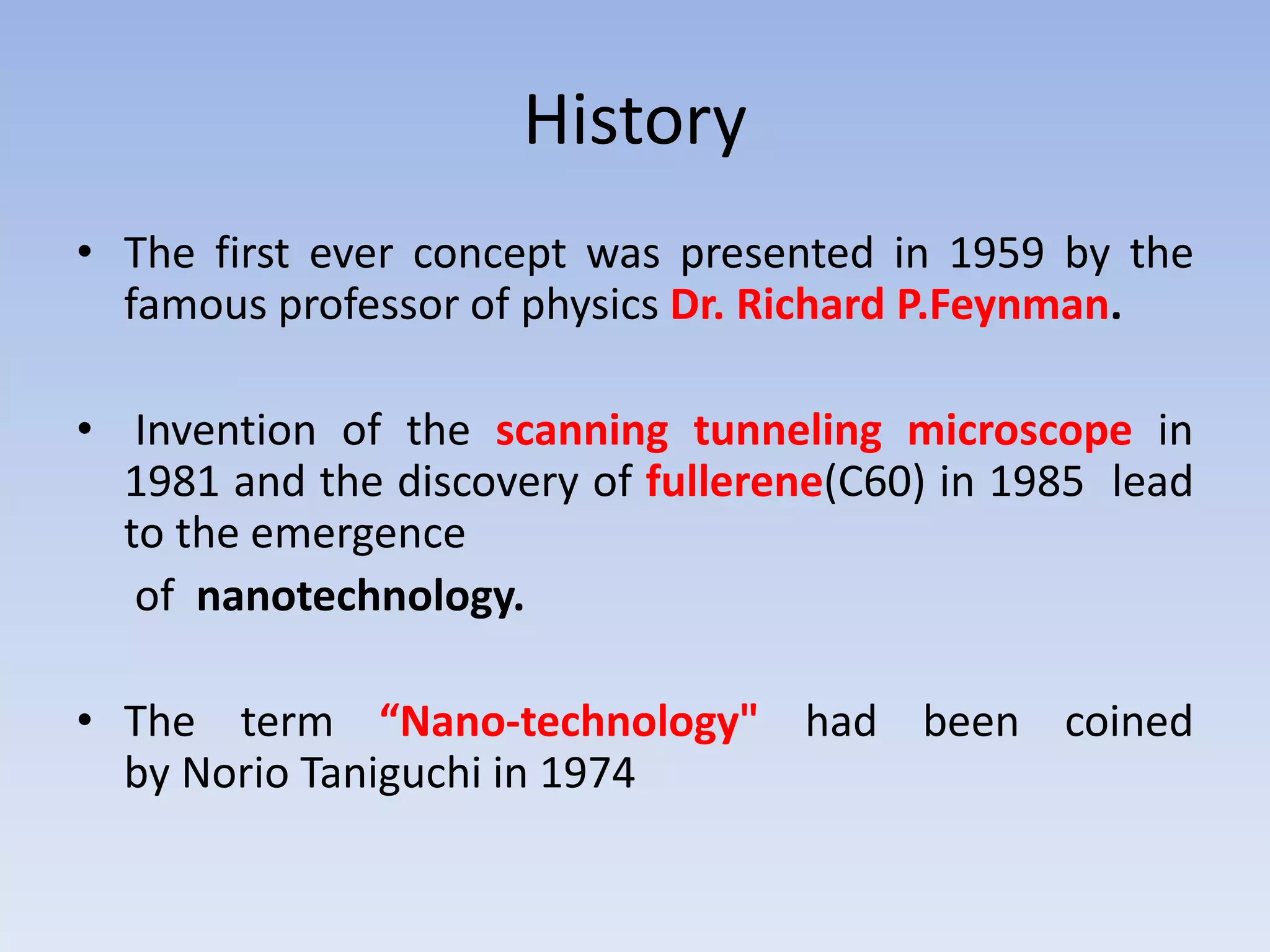

4. History
• The first ever concept was presented in 1959 by the
famous professor of physics Dr. Richard P.Feynman.
• Invention of the scanning tunneling microscope in
1981 and the discovery of fullerene(C60) in 1985 lead
to the emergence
of nanotechnology.
• The term “Nano-technology" had been coined
by Norio Taniguchi in 1974

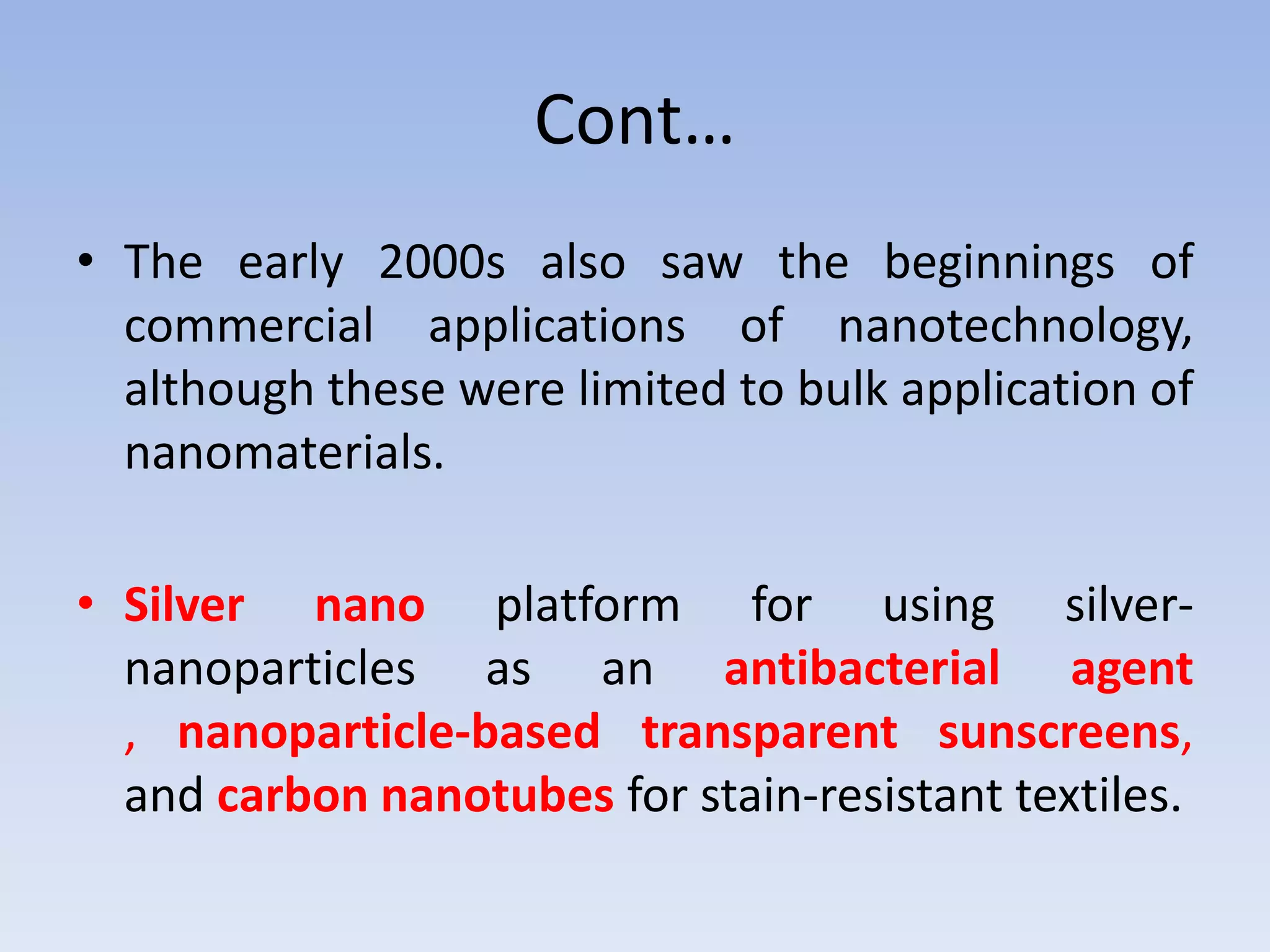

5. Cont…
• The early 2000s also saw the beginnings of
commercial applications of nanotechnology,
although these were limited to bulk application of
nanomaterials.
• Silver nano platform for using silver-
nanoparticles as an antibacterial agent
, nanoparticle-based transparent sunscreens,
and carbon nanotubes for stain-resistant textiles.

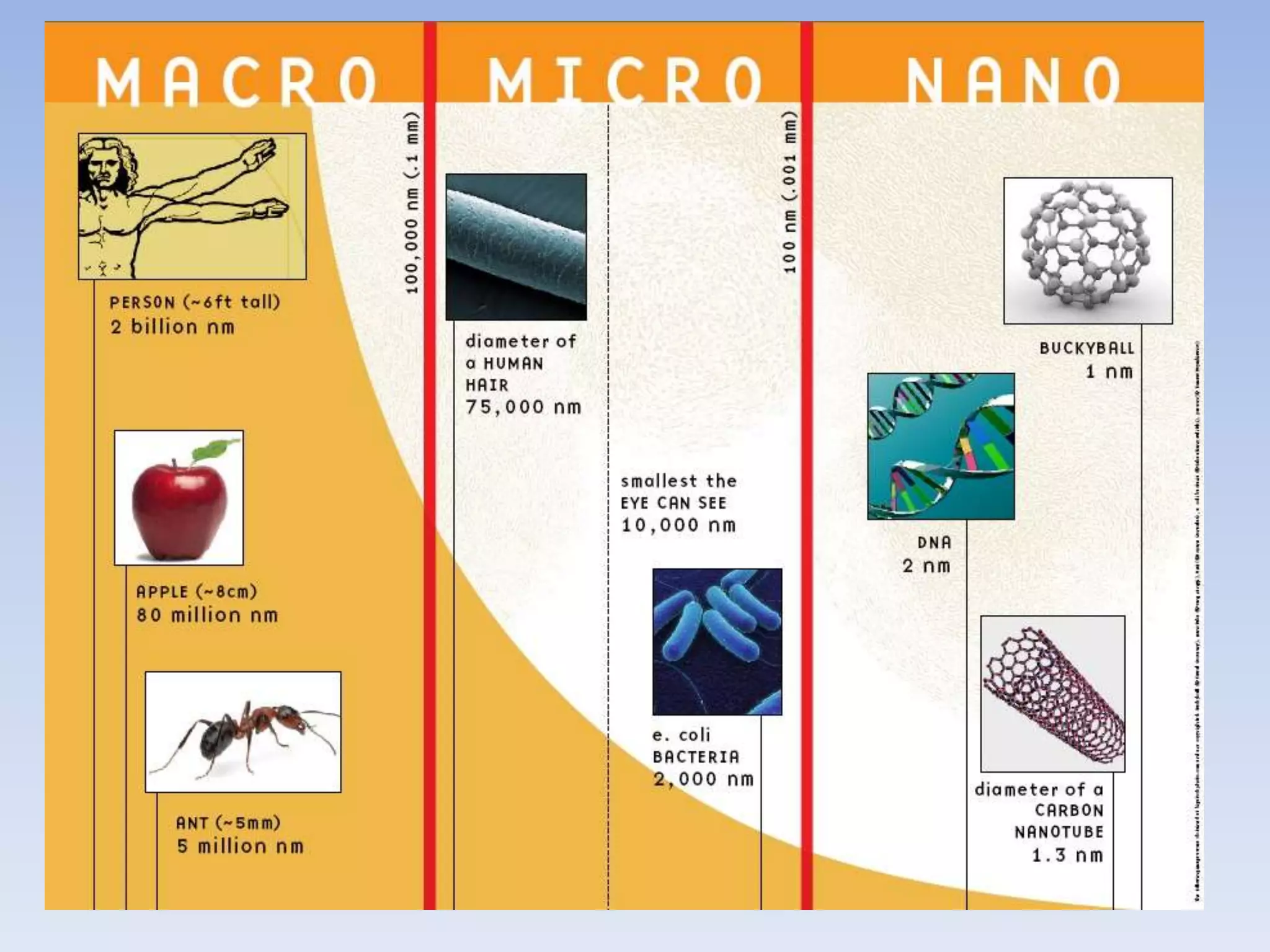

6. a

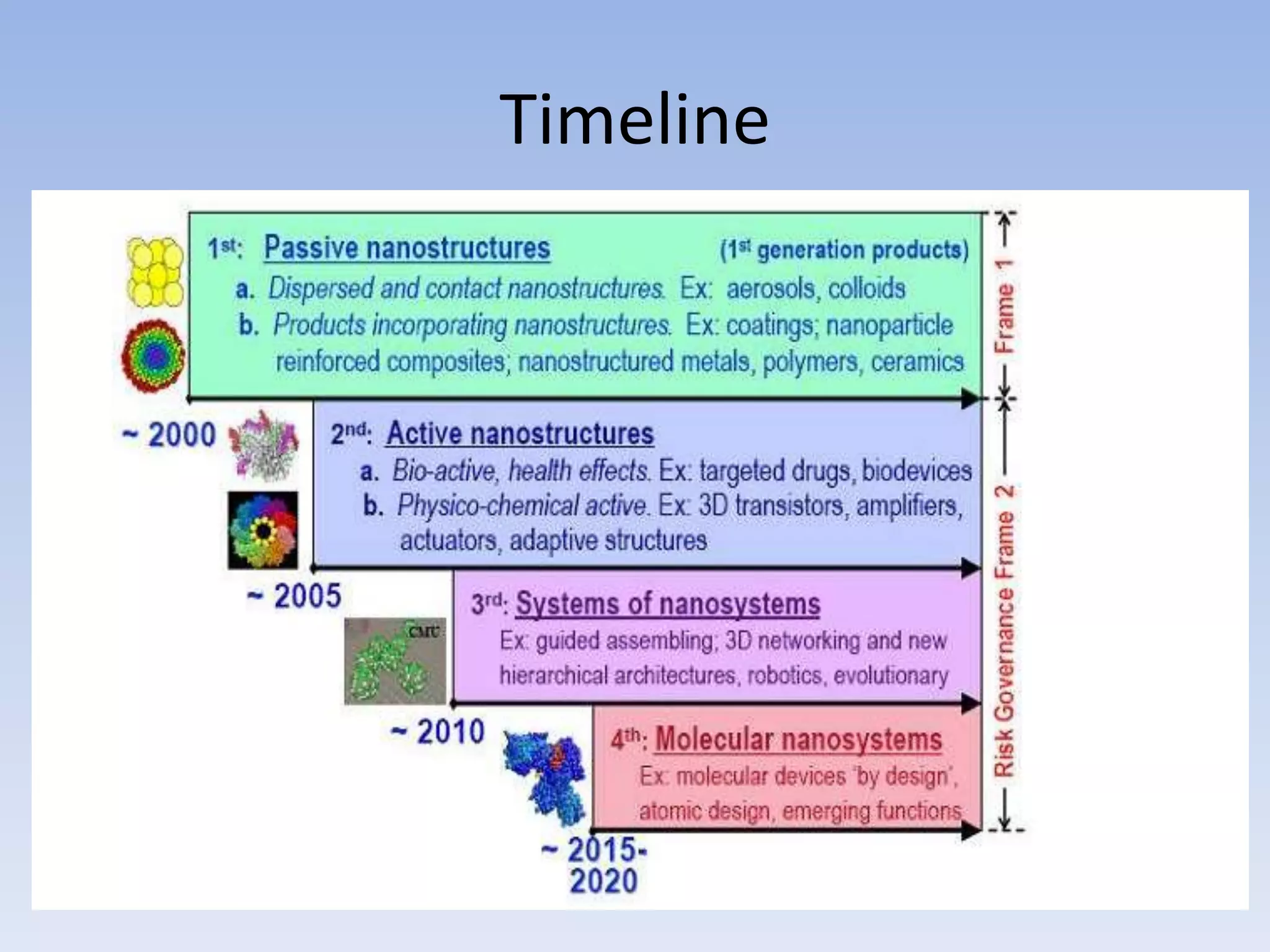

7. Timeline

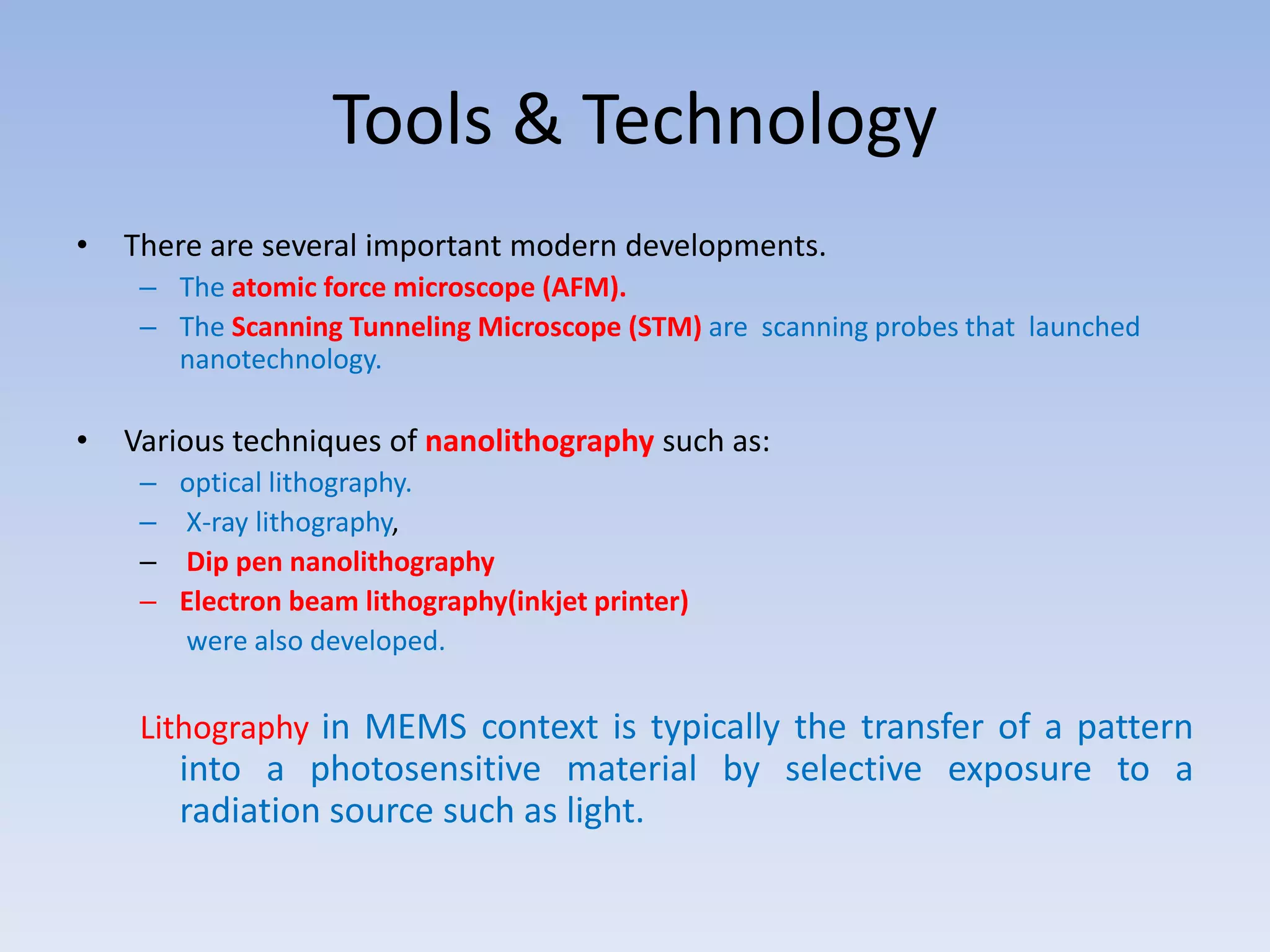

8. Tools & Technology
• There are several important modern developments.
– The atomic force microscope (AFM).
– The Scanning Tunneling Microscope (STM) are scanning probes that launched
nanotechnology.
• Various techniques of nanolithography such as:
– optical lithography.
– X-ray lithography,
– Dip pen nanolithography
– Electron beam lithography(inkjet printer)
were also developed.
Lithography in MEMS context is typically the transfer of a pattern
into a photosensitive material by selective exposure to a
radiation source such as light.

9. a

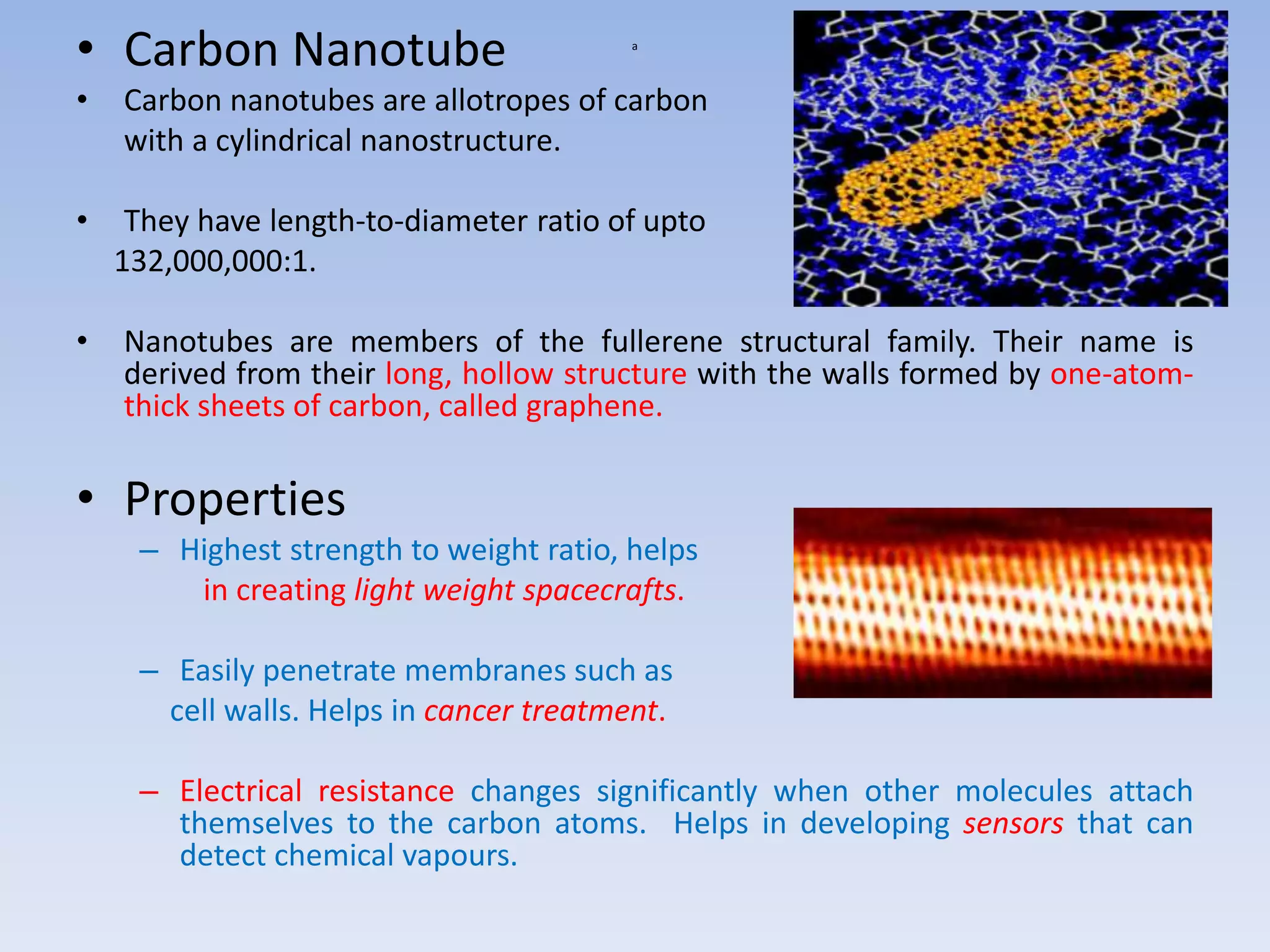

• Carbon Nanotube
• Carbon nanotubes are allotropes of carbon
with a cylindrical nanostructure.
• They have length-to-diameter ratio of upto
132,000,000:1.
• Nanotubes are members of the fullerene structural family. Their name is
derived from their long, hollow structure with the walls formed by one-atom-
thick sheets of carbon, called graphene.
• Properties
– Highest strength to weight ratio, helps
in creating light weight spacecrafts.
– Easily penetrate membranes such as
cell walls. Helps in cancer treatment.
– Electrical resistance changes significantly when other molecules attach
themselves to the carbon atoms. Helps in developing sensors that can
detect chemical vapours.

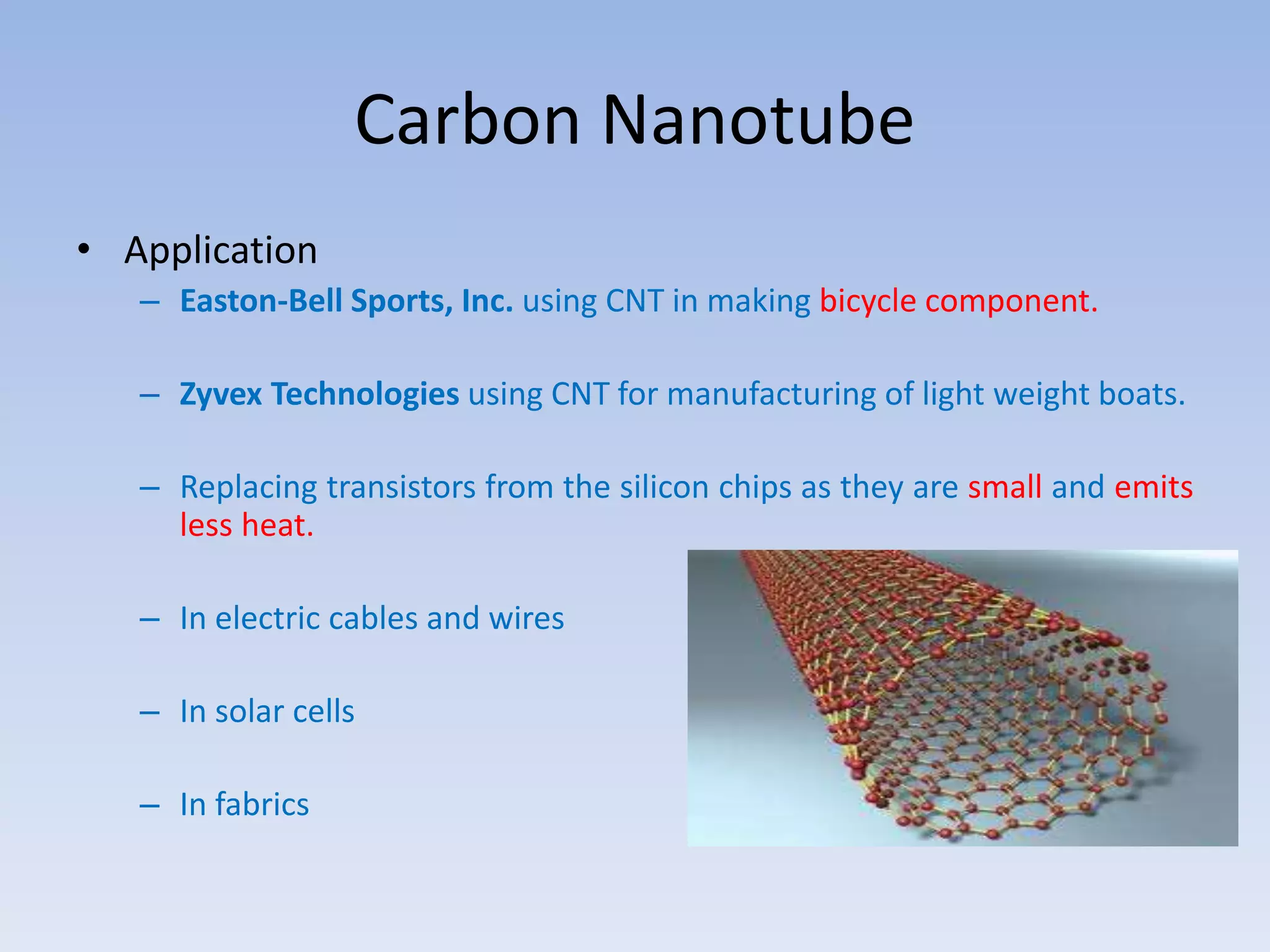

10. Carbon Nanotube
• Application
– Easton-Bell Sports, Inc. using CNT in making bicycle component.
– Zyvex Technologies using CNT for manufacturing of light weight boats.
– Replacing transistors from the silicon chips as they are small and emits
less heat.
– In electric cables and wires
– In solar cells
– In fabrics

11. a

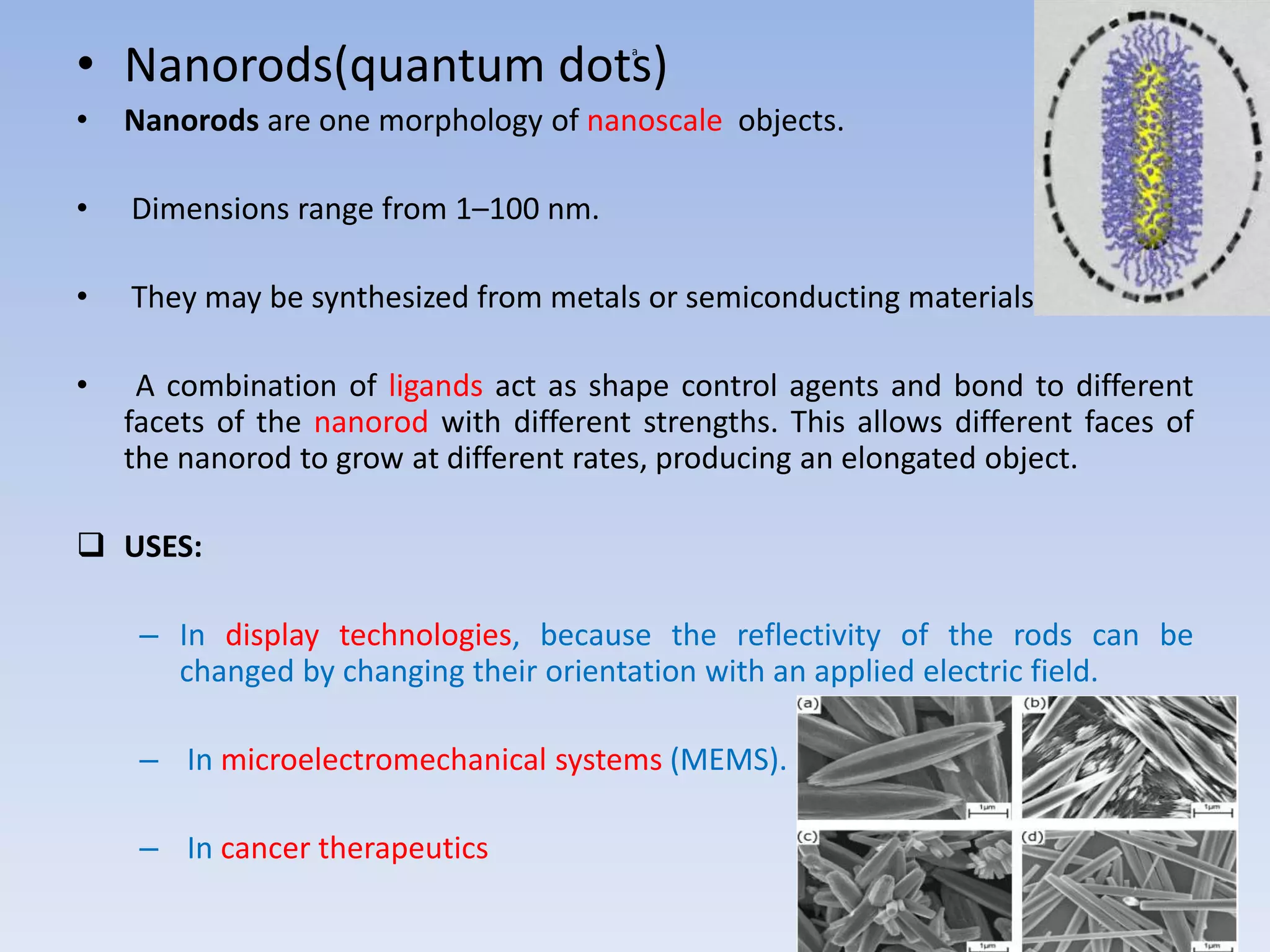

• Nanorods(quantum dots)
• Nanorods are one morphology of nanoscale objects.
• Dimensions range from 1–100 nm.
• They may be synthesized from metals or semiconducting materials.
• A combination of ligands act as shape control agents and bond to different
facets of the nanorod with different strengths. This allows different faces of
the nanorod to grow at different rates, producing an elongated object.
 USES:
– In display technologies, because the reflectivity of the rods can be
changed by changing their orientation with an applied electric field.
– In microelectromechanical systems (MEMS).
– In cancer therapeutics

12. a

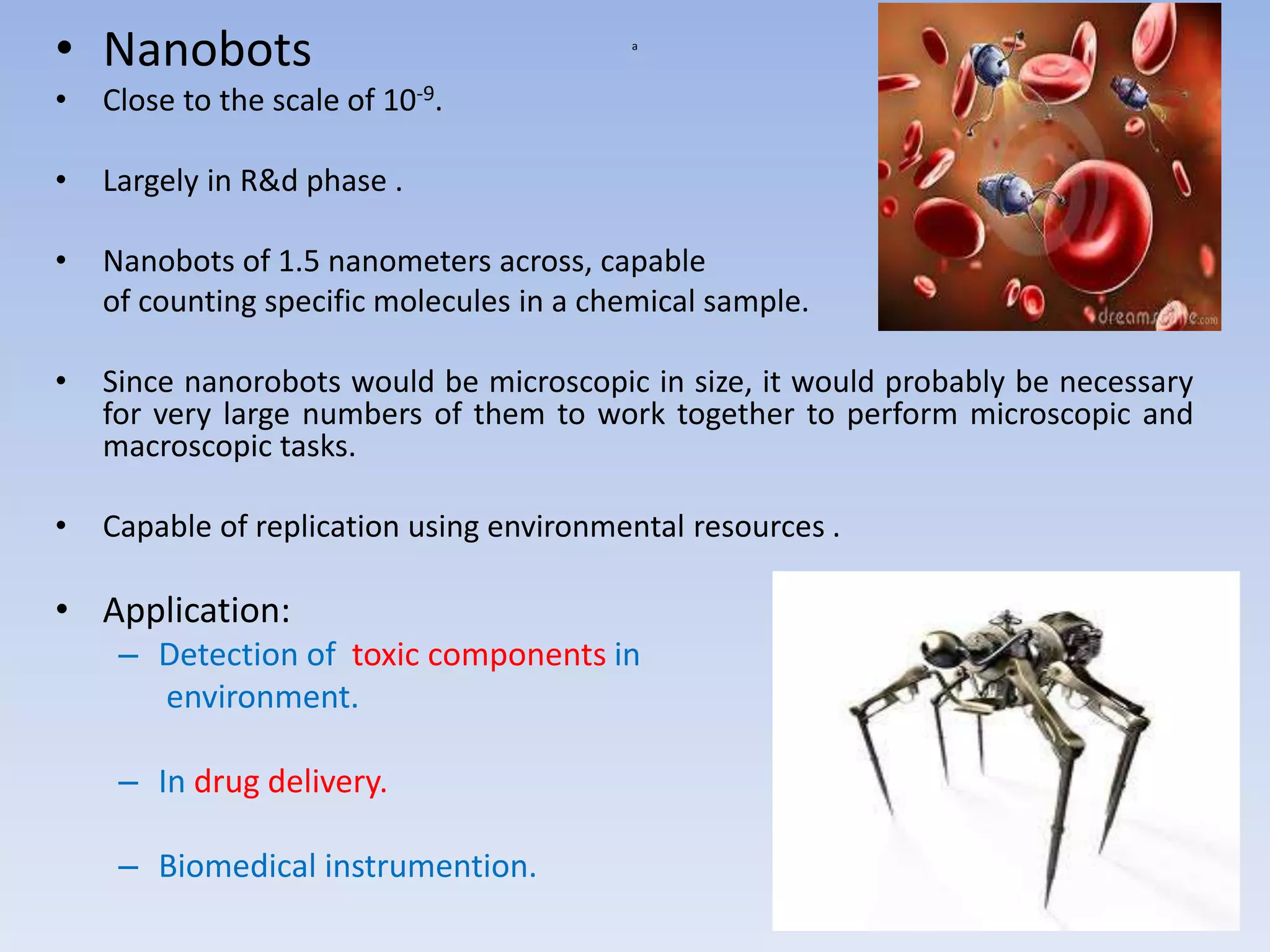

• Nanobots
• Close to the scale of 10-9.
• Largely in R&d phase .
• Nanobots of 1.5 nanometers across, capable
of counting specific molecules in a chemical sample.
• Since nanorobots would be microscopic in size, it would probably be necessary
for very large numbers of them to work together to perform microscopic and
macroscopic tasks.
• Capable of replication using environmental resources .
• Application:
– Detection of toxic components in
environment.
– In drug delivery.
– Biomedical instrumention.

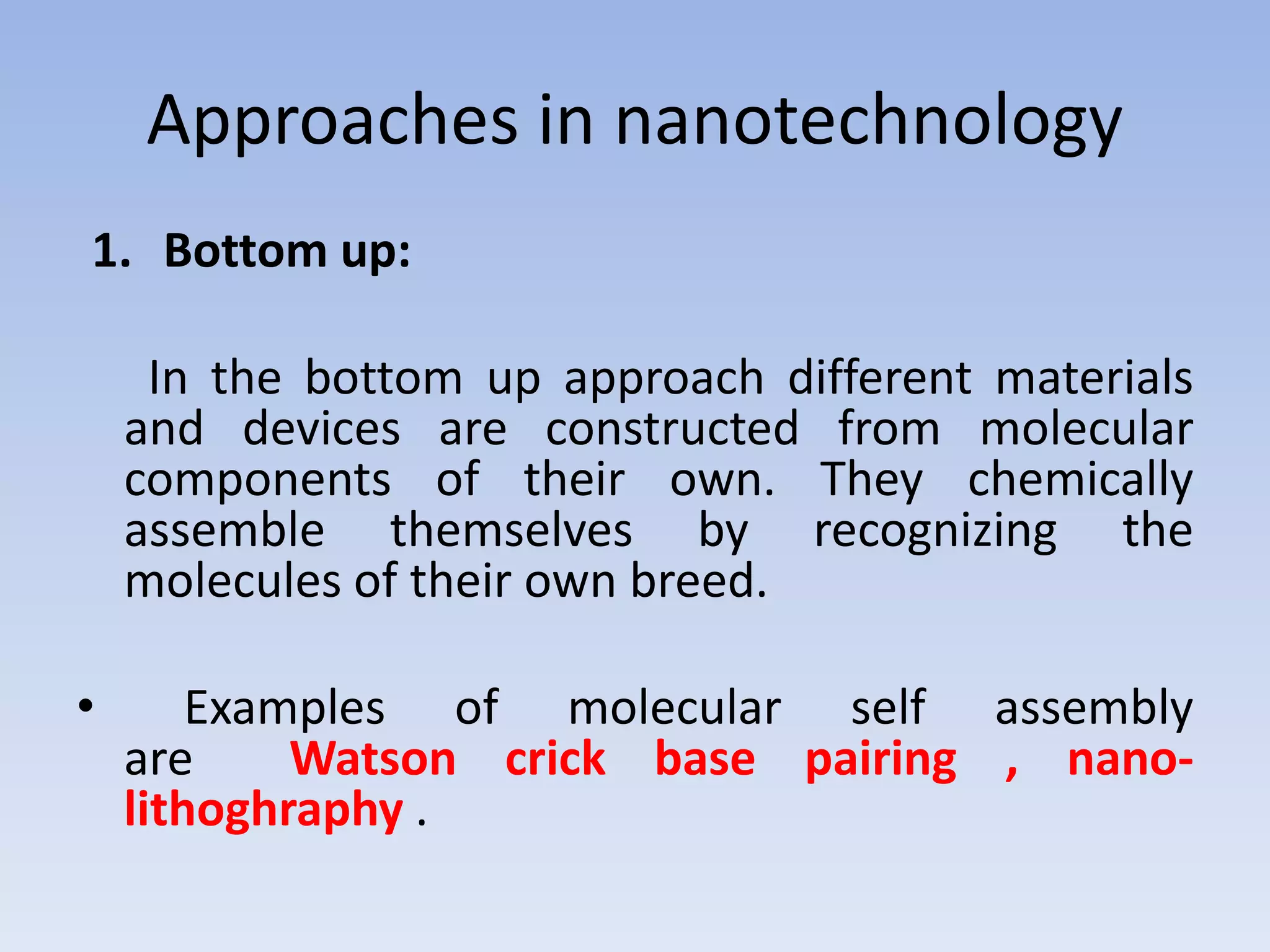

13. Approaches in nanotechnology
1. Bottom up:
In the bottom up approach different materials
and devices are constructed from molecular
components of their own. They chemically
assemble themselves by recognizing the
molecules of their own breed.
• Examples of molecular self assembly
are Watson crick base pairing , nano-
lithoghraphy .

14. Cont…
2. Top down:
In top down approach nano objects and materials are created by
larger entities without bouncing its atomic reactions usually top
down approach is practiced less as compared to the bottom up
approach.
• Solid-state techniques can also be used to create devices known
as nanoelectromechanical systems or NEMS, which are related
to microelctromechanical systems or MEMS.
• MEMS became practical once they could be fabricated using
modified semiconductor device fabrication technologies, normally
used to make electronics.

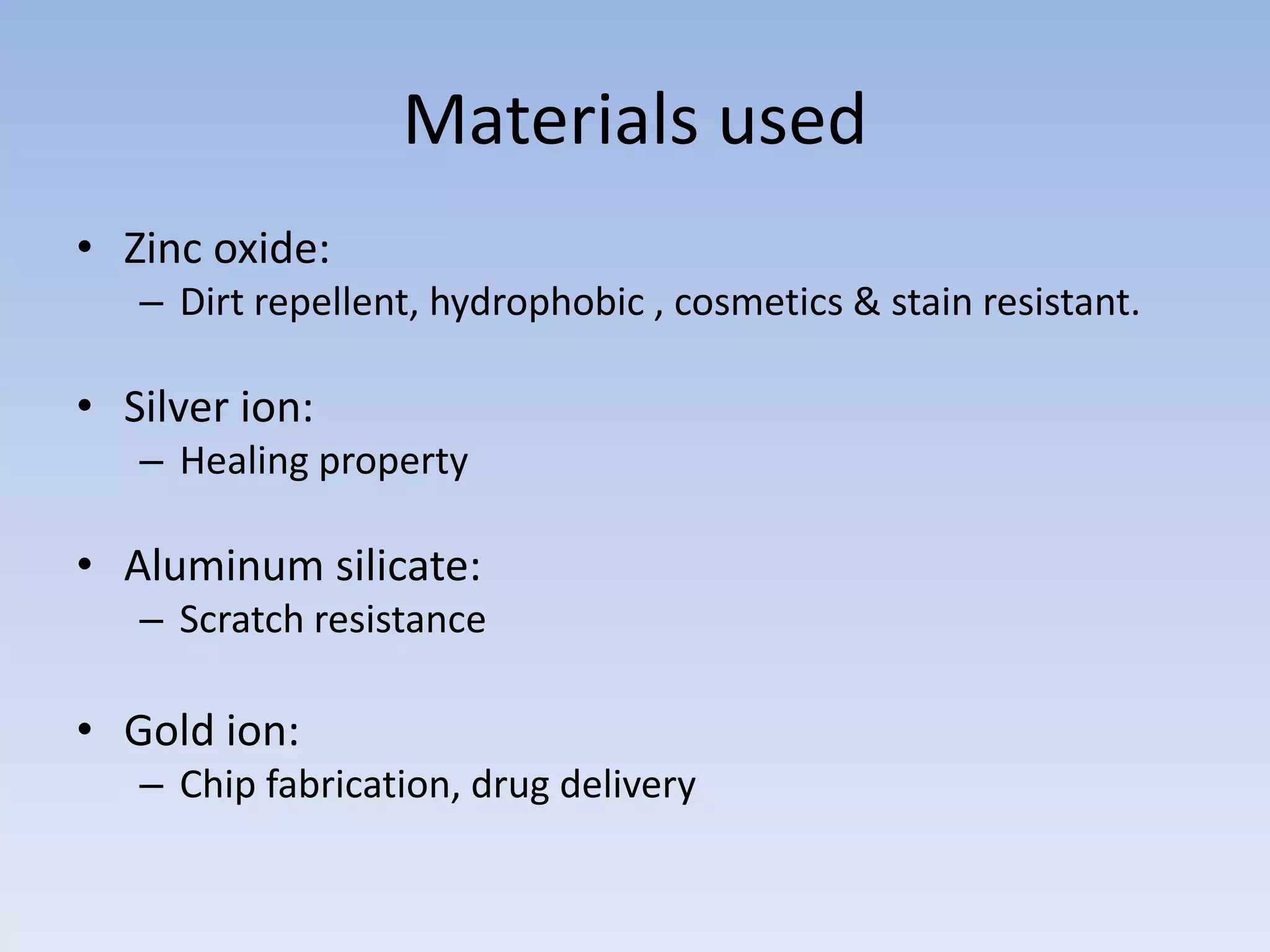

15. Materials used
• Zinc oxide:
– Dirt repellent, hydrophobic , cosmetics & stain resistant.
• Silver ion:
– Healing property
• Aluminum silicate:
– Scratch resistance
• Gold ion:
– Chip fabrication, drug delivery

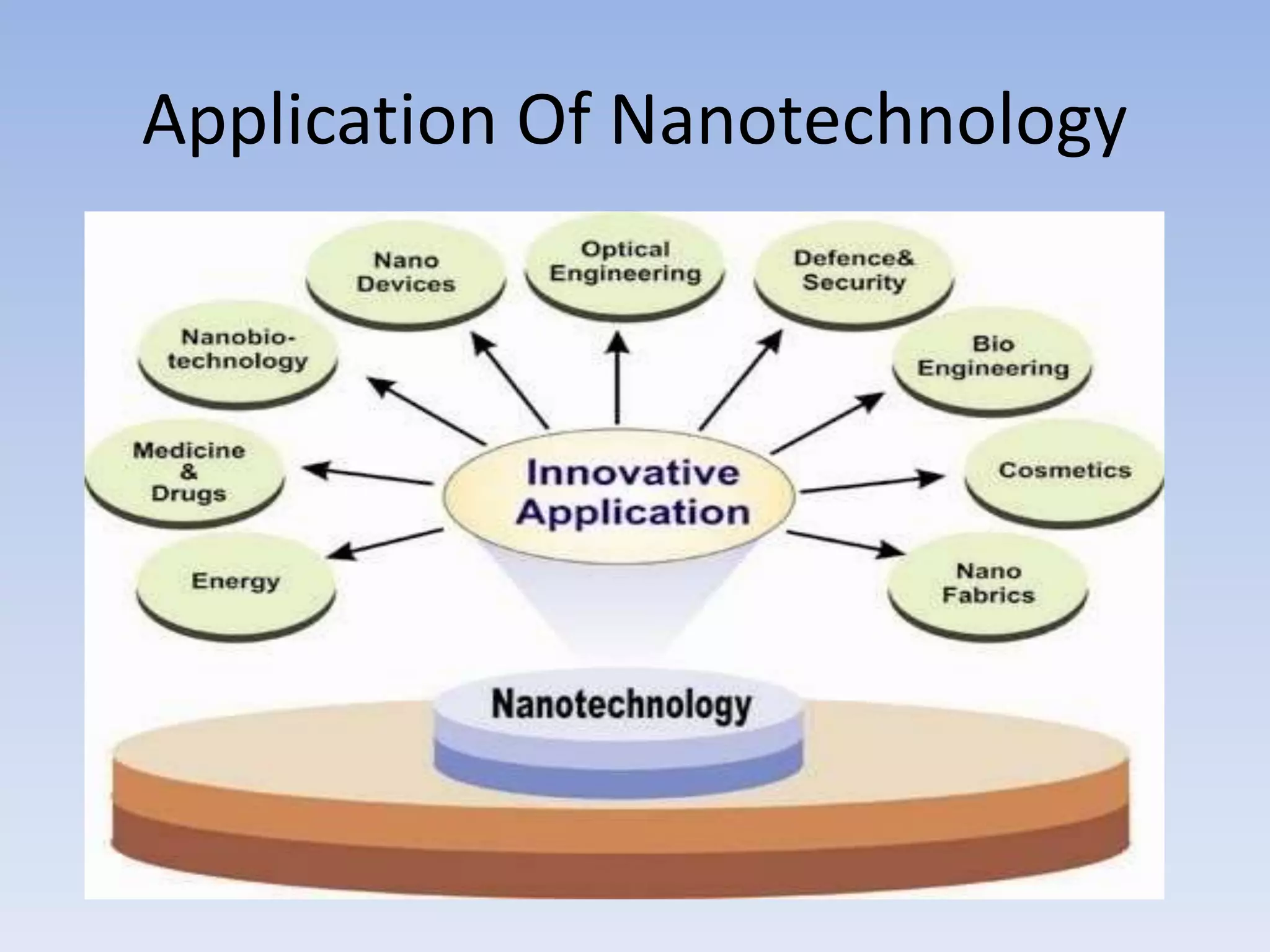

16. Application Of Nanotechnology

17. Nanotechnology in Drugs(Cancer)
• Provide new options for drug delivery and drug therapies.
• Enable drugs to be delivered to precisely the right location in the body and release
drug doses on
a predetermined schedule for optimal treatment.
• Attach the drug to a nanosized carrier.
• They become localized at the disease site, i.e cancer tumour.
• Then they release medicine that kills the tumour.
• Current treatment is through radiotherapy or chemotherapy.
• Nanobots can clear the blockage in arteries.

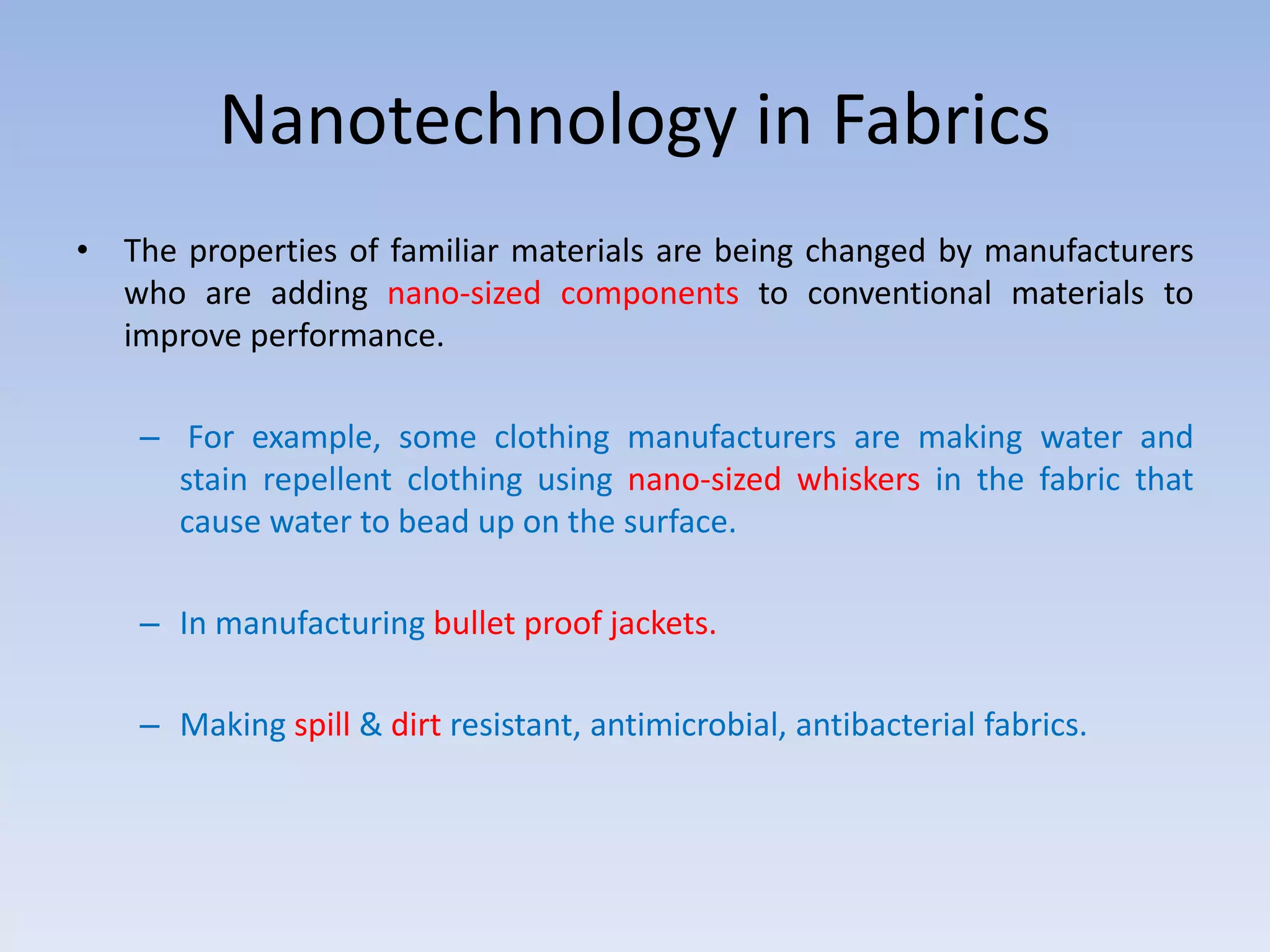

18. Nanotechnology in Fabrics
• The properties of familiar materials are being changed by manufacturers
who are adding nano-sized components to conventional materials to
improve performance.
– For example, some clothing manufacturers are making water and
stain repellent clothing using nano-sized whiskers in the fabric that
cause water to bead up on the surface.
– In manufacturing bullet proof jackets.
– Making spill & dirt resistant, antimicrobial, antibacterial fabrics.

19. Nanotechnology in Mobile
• Morph, a nanotechnology concept device
developed by Nokia Research Center (NRC) and
the University of Cambridge (UK).
• The Morph will be super hydrophobic making
it extremely dirt repellent.
• It will be able to charge itself from available light sources using
photovoltaic nanowire grass covering it's surface.
• Nanoscale electronics also allow stretching. Nokia envisage that a
nanoscale mesh of fibers will allow our mobile devices to be bent,
stretched and folded into any number of conceivable shapes.

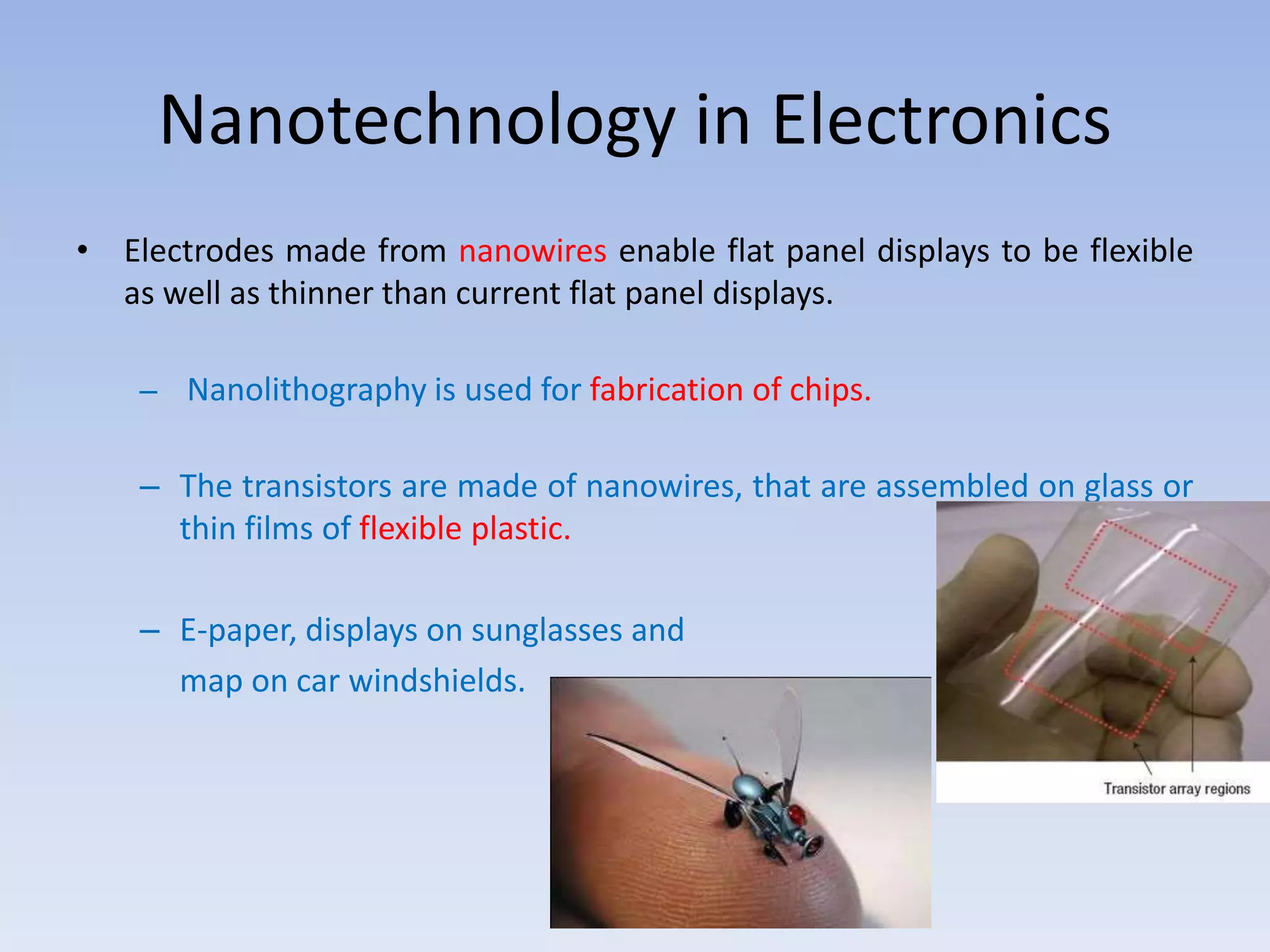

20. Nanotechnology in Electronics
• Electrodes made from nanowires enable flat panel displays to be flexible
as well as thinner than current flat panel displays.
– Nanolithography is used for fabrication of chips.
– The transistors are made of nanowires, that are assembled on glass or
thin films of flexible plastic.
– E-paper, displays on sunglasses and
map on car windshields.

21. Nanotechnology in computers
• The silicon transistors in your computer may be replaced by
transistors based on carbon nanotubes.
• A carbon nanotube is a molecule in form of a hollow cylinder
with a diameter of around a nanometer which consists of
pure carbon.
• Nanorods is a upcoming technology in the displays techniques
due to less consumption of electricity and less heat emission.
• Size of the microprocessors are reduced to greater extend.
• Researchers at North Carolina State University says that
growing arrays of magnetic nanoparticles, called nanodots.

22. a

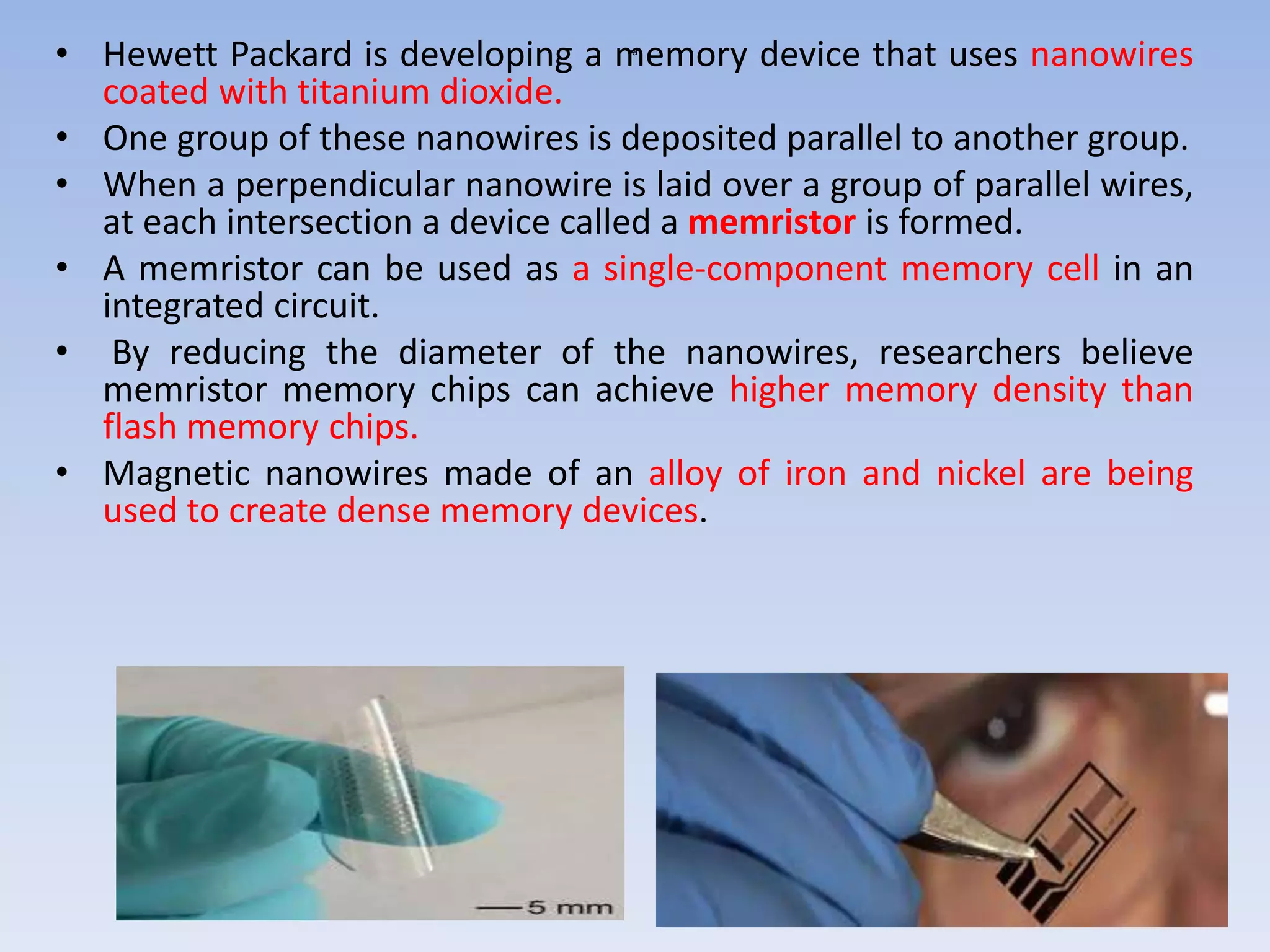

• Hewett Packard is developing a memory device that uses nanowires
coated with titanium dioxide.
• One group of these nanowires is deposited parallel to another group.
• When a perpendicular nanowire is laid over a group of parallel wires,
at each intersection a device called a memristor is formed.
• A memristor can be used as a single-component memory cell in an
integrated circuit.
• By reducing the diameter of the nanowires, researchers believe
memristor memory chips can achieve higher memory density than
flash memory chips.
• Magnetic nanowires made of an alloy of iron and nickel are being
used to create dense memory devices.

23. a
• Chips produced by Intel before “i” series processors were
between 65nm -45nm.
• Later with the help of nanotechnolgy 22nm chips were
made which itself is a milestone.
• Advantages of using carbon nanotubes:
– Faster and smaller- carbon nanotubes can be used to
produce smaller and faster components.
– This will also result in computers that consume less
energy.
– High speed and high capacity memory.
– Allows circuits to be more accurate on the atomic level.

24. Other uses
• Cutting tools made of nanocrystalline materials, such as tungsten carbide,
tantalum carbide and titanium carbide, are more wear and erosion-
resistant, and last longer than their conventional counterparts.
• Silver nanocrystals have been embedded in bandages to kill bacteria and
prevent infection.
• Nanoparticulate-based synthetic bone
– Formed by manipulating calcium and phosphate at the molecular level.
• Aerogels lightest known solid due to good insulating properties is used in
space suits and are proposed to use in space craft.

25. Nanotechnology in India
• IIT Mumbai is the premier organization in the field of nanotechnology.
• Research in the field of health, environment, medicines are still on.
• Starting in 2001 the Government of India launched the Nano Science and
Technology Initiative (NSTI).
• Then in 2007 the Nanoscience and Technology Mission 2007 was initiated
with an allocation of Rupees 1000 crores for a period of five years.
• The main objectives of the Nano Mission are:
- basic research promotion,
- infrastructure development for carrying out front-ranking research,
- development of nano technologies and their applications,
- human resource development and
- international collaborations.

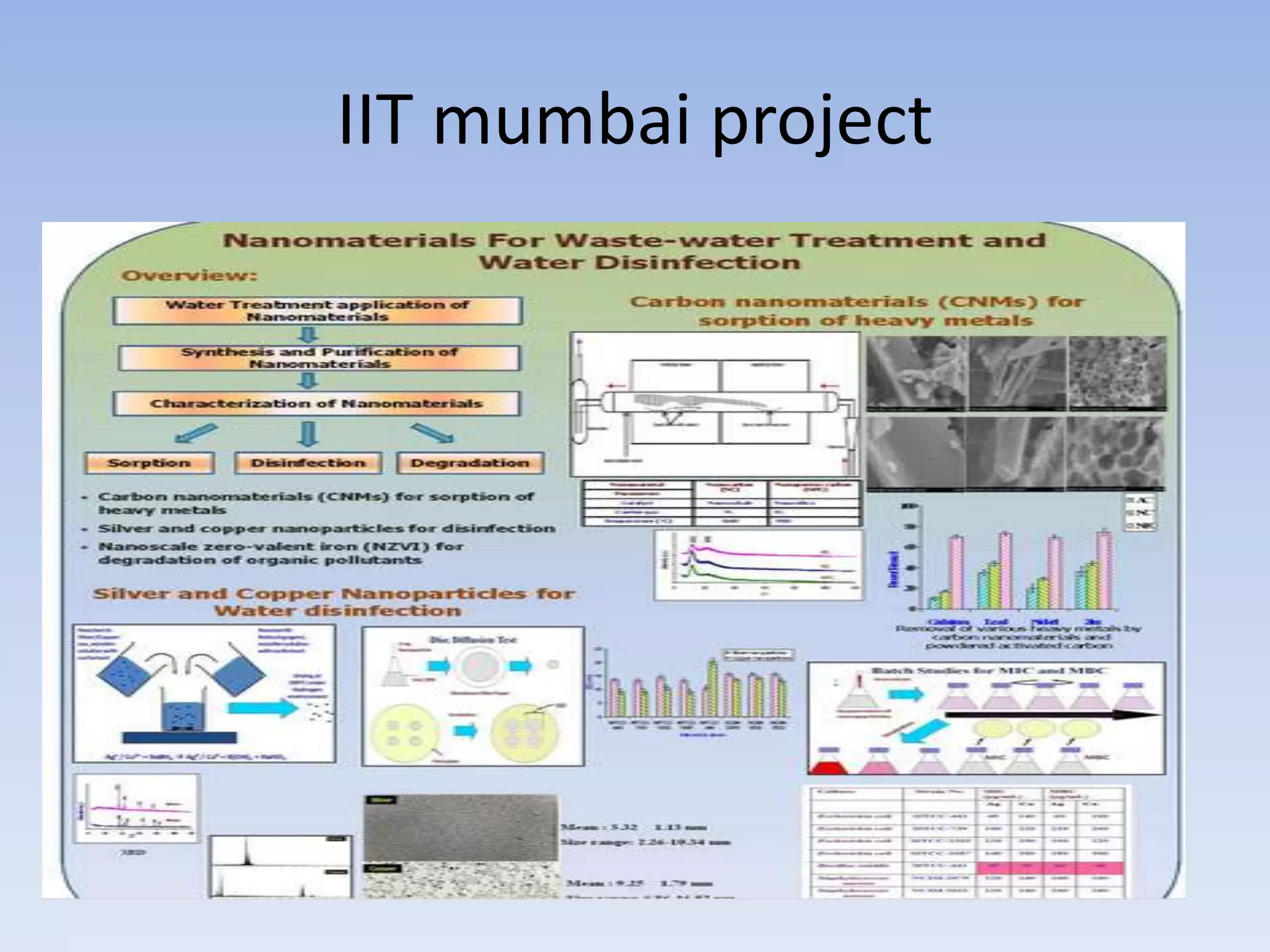

26. IIT mumbai project

27. Possibilities for the future
• Nanotechnology may make it possible to manufacture lighter, stronger,
and programmable materials that
– require less energy to produce than conventional material
– and that promise greater fuel efficiency in land transportation, ships,
aircraft, and space vehicles.
• The future of nanotechnology could very well include the use of
nanorobotics.
• These nanorobots have the potential to take on human tasks as well as
tasks that humans could never complete. The rebuilding of the depleted
ozone layer could potentially be able to be performed.

28. Pitfalls of nanotechnology
– Nano-particles can get into the body through the skin, lungs and
digestive system, thus creating free radicals that can cause cell
damage.
– Once nano-particles are in the bloodstream, they will be able to cross
the blood-brain barrier.
– The most dangerous Nano-application use for military purposes is the
Nano-bomb that contain engineered self multiplying deadly viruses
that can continue to wipe out a community, country or even a
civilization.
– Nanobots because of their replicating behavior can be big threat for
GRAY GOO.
