1. MULTIPLEXER AND
DEMULTIPLEXER

2. TABLE OF
CONTENTS
• Multiplexer (MUX)
• Types Of MUX
• Application Of MUX
• De-multiplexer
(DMUX)
• Types Of Dmux
• Application Of Dmux
• Relation Between
MUX And DMUX

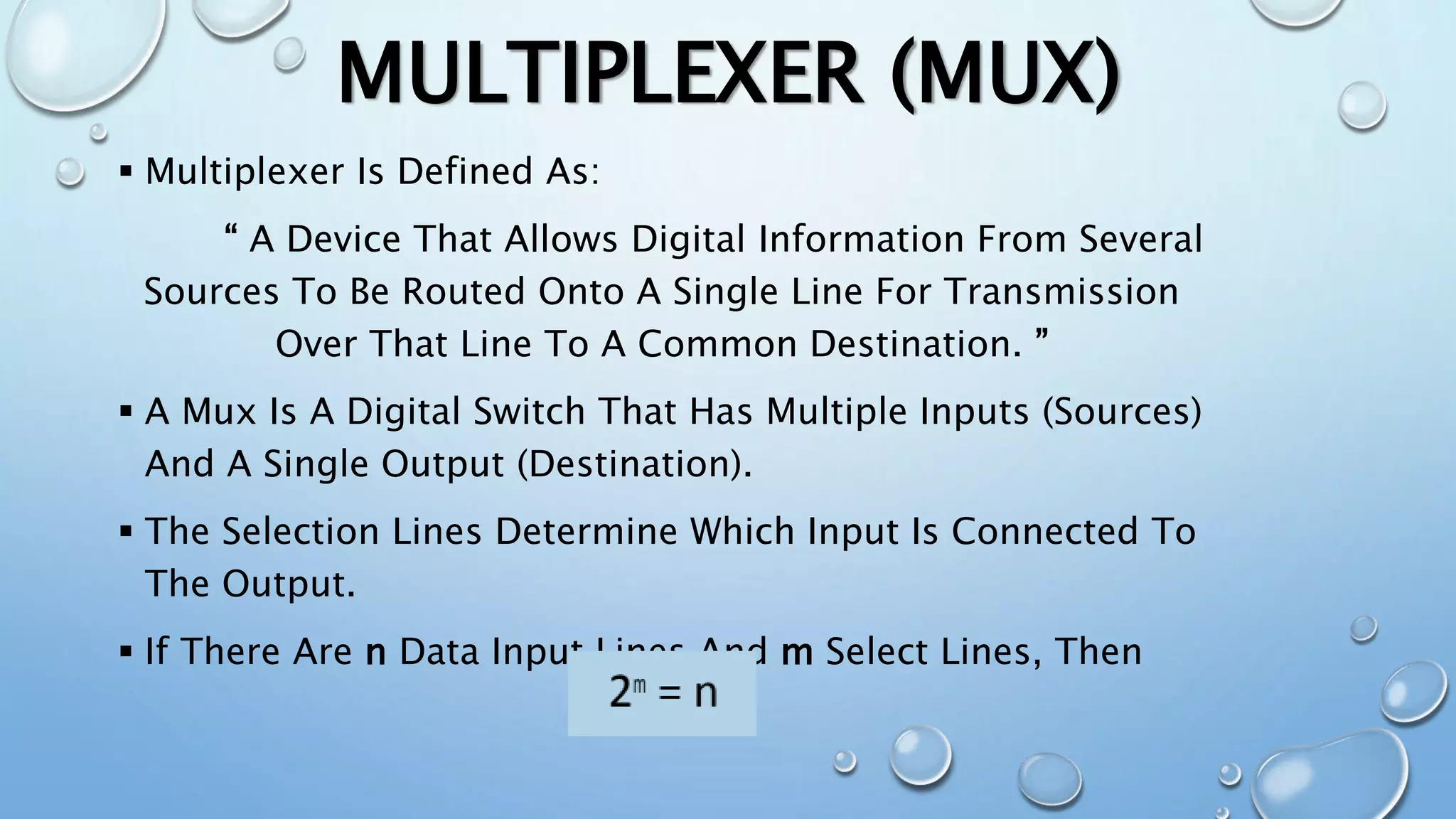

3. MULTIPLEXER (MUX)
 Multiplexer Is Defined As:
“ A Device That Allows Digital Information From Several
Sources To Be Routed Onto A Single Line For Transmission
Over That Line To A Common Destination. ”
 A Mux Is A Digital Switch That Has Multiple Inputs (Sources)
And A Single Output (Destination).
 The Selection Lines Determine Which Input Is Connected To
The Output.
 If There Are n Data Input Lines And m Select Lines, Then

4. TYPES OF MULTIPLEXER
Following are the Types of MUX:
 2-1 Multiplexer ( 1 Select Line )
 4-1 Multiplexer ( 2 Select Line )
 8-1 Multiplexer ( 3 Select Line )
 16-1 Multiplexer ( 4 Select Line )

5. 2x1 MULTIPLEXER

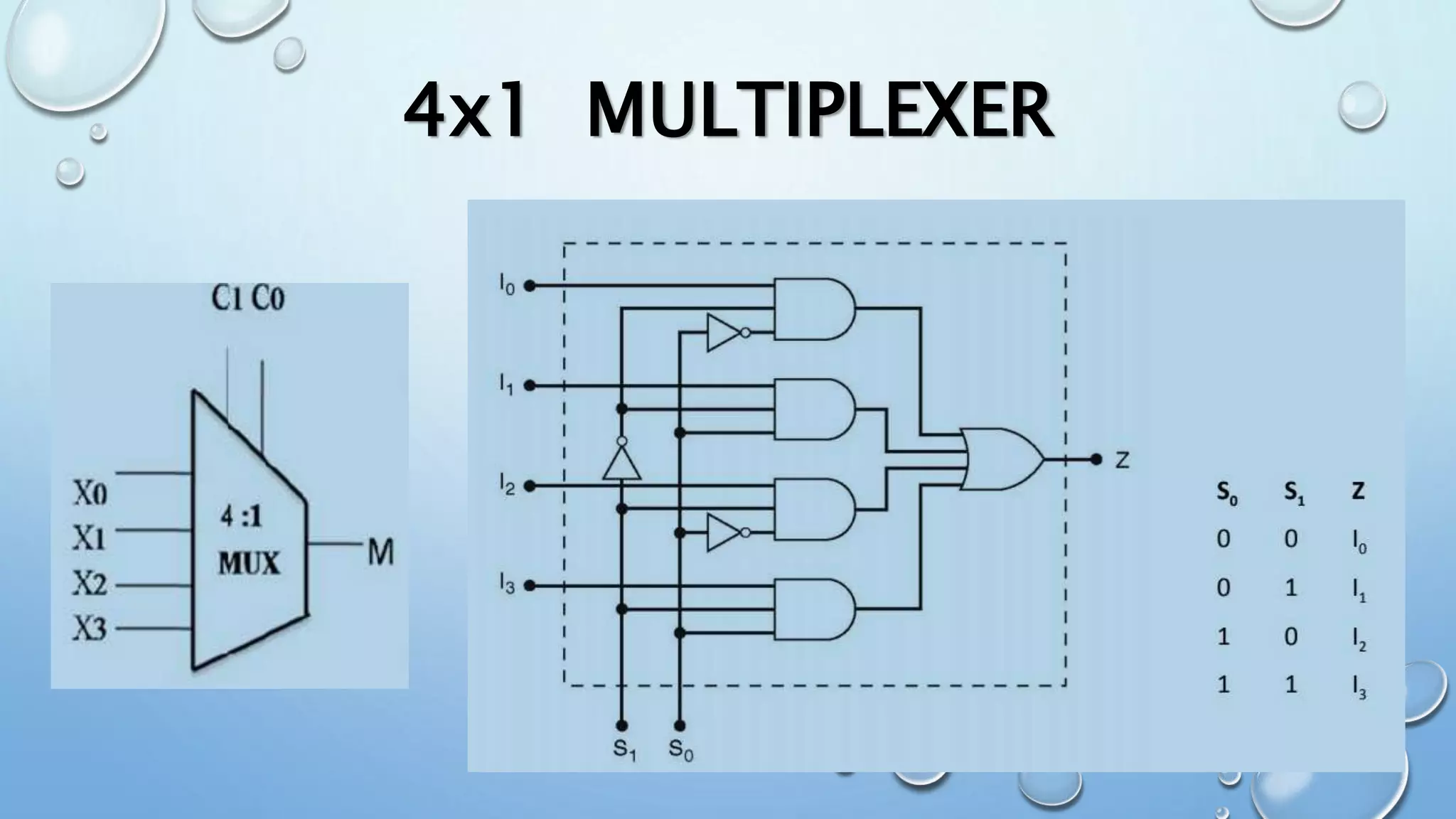

6. 4x1 MULTIPLEXER

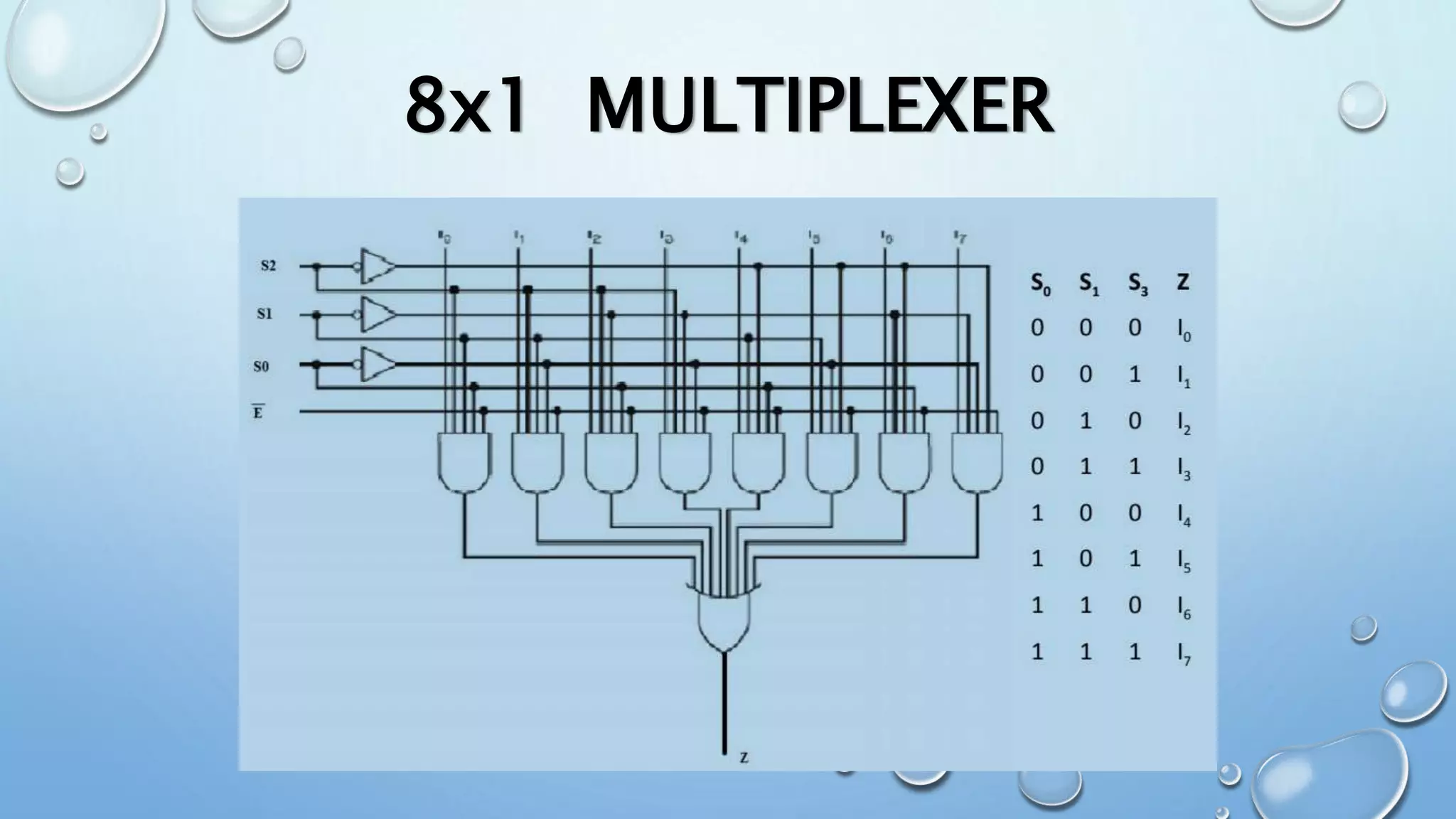

7. 8x1 MULTIPLEXER

8. APPLICATION OF MUX
Communication System:
 A Communication System Has A Great Impact By
Multiplexer.
 By Using A Multiplexer, The Efficiency Can Be
Increased.
Computer Memory:
 Multiplexers Are Used In Computer Memory.
 Reduces Copper Lines To Connect The Memory
To Other Parts Of The Computer.

9. APPLICATION OF MUX
Telephone network:
 In Telephone Networks, Multiple Audio
Signals Are Integrated.
Transmission From The
Computer Of A Satellite :
 Multiplexer Is Used To Transmit The Data
Signals.
 From Satellite To Ground.
 By Using GSM Satellite.

10. DE-MULTIPLEXER (DMUX)
 De-multiplexer Means One To Many.
 A Demultiplexer (DMUX) Basically Reverses The
Multiplexing Function.
“ Dmux Takes Data From One Line And Distributes
Them To A Given Number Of Output Lines. ”
 For This Reason, The Demultiplexers Is Also Known
As A Data Distributor.
 A De-multiplexer Is A Circuit With One Input And
Many Output.
 If There Are N Data Output Lines And M Select Lines,
Then

11. TYPES OF DE-MULTIPLEXER
Following are the Types of DMUX:
 1-2 Demultiplexer(1 Select Line)
 1-4 Demultiplexer(2 Select Lines)
 1-8 Demultiplexer(3 Select Lines)
 1-16 Demultiplexer (4 Select Lines)

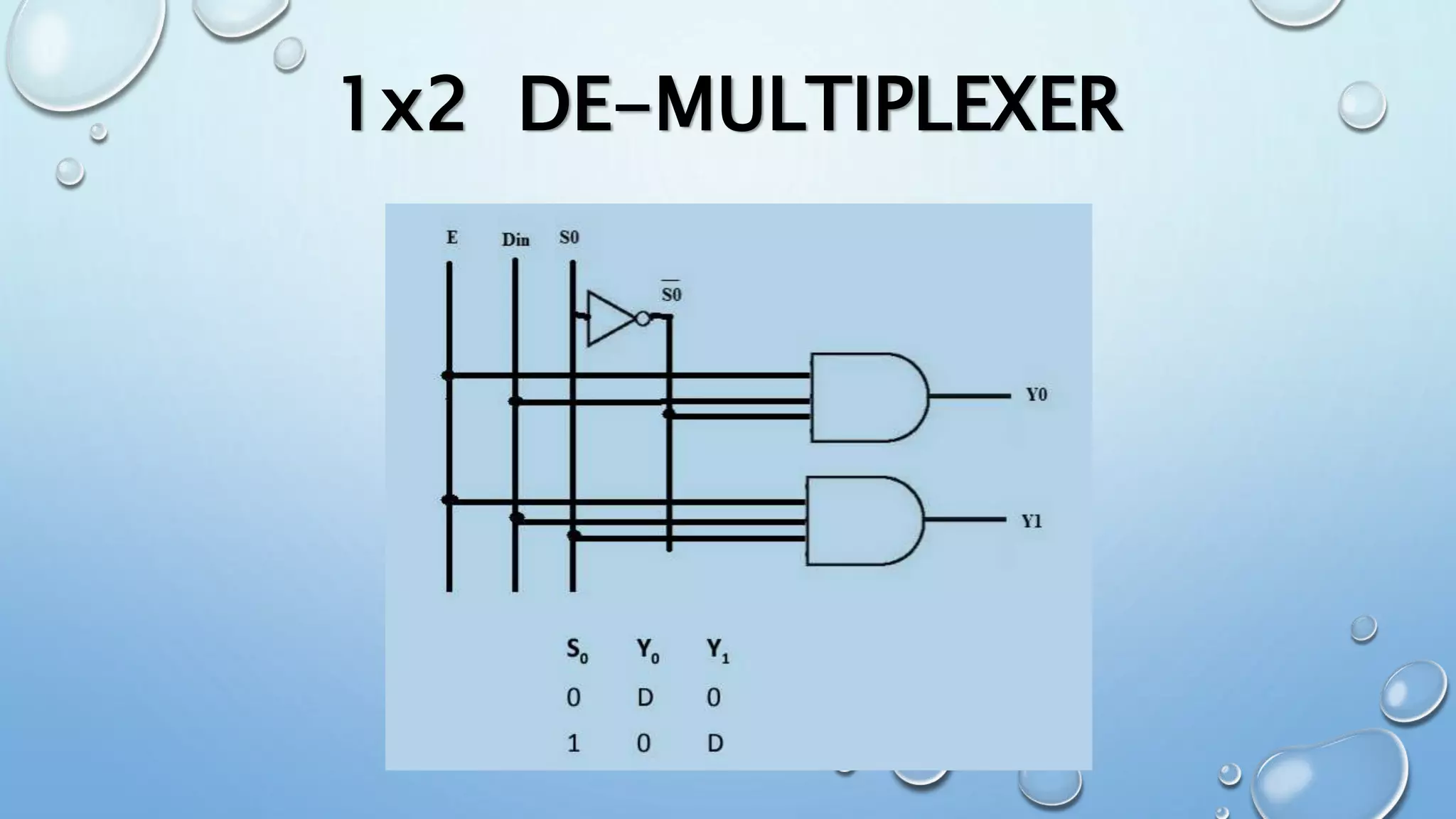

12. 1x2 DE-MULTIPLEXER

13. 1x4 DE-MULTIPLEXER

14. 1x8 DE-MULTIPLEXER

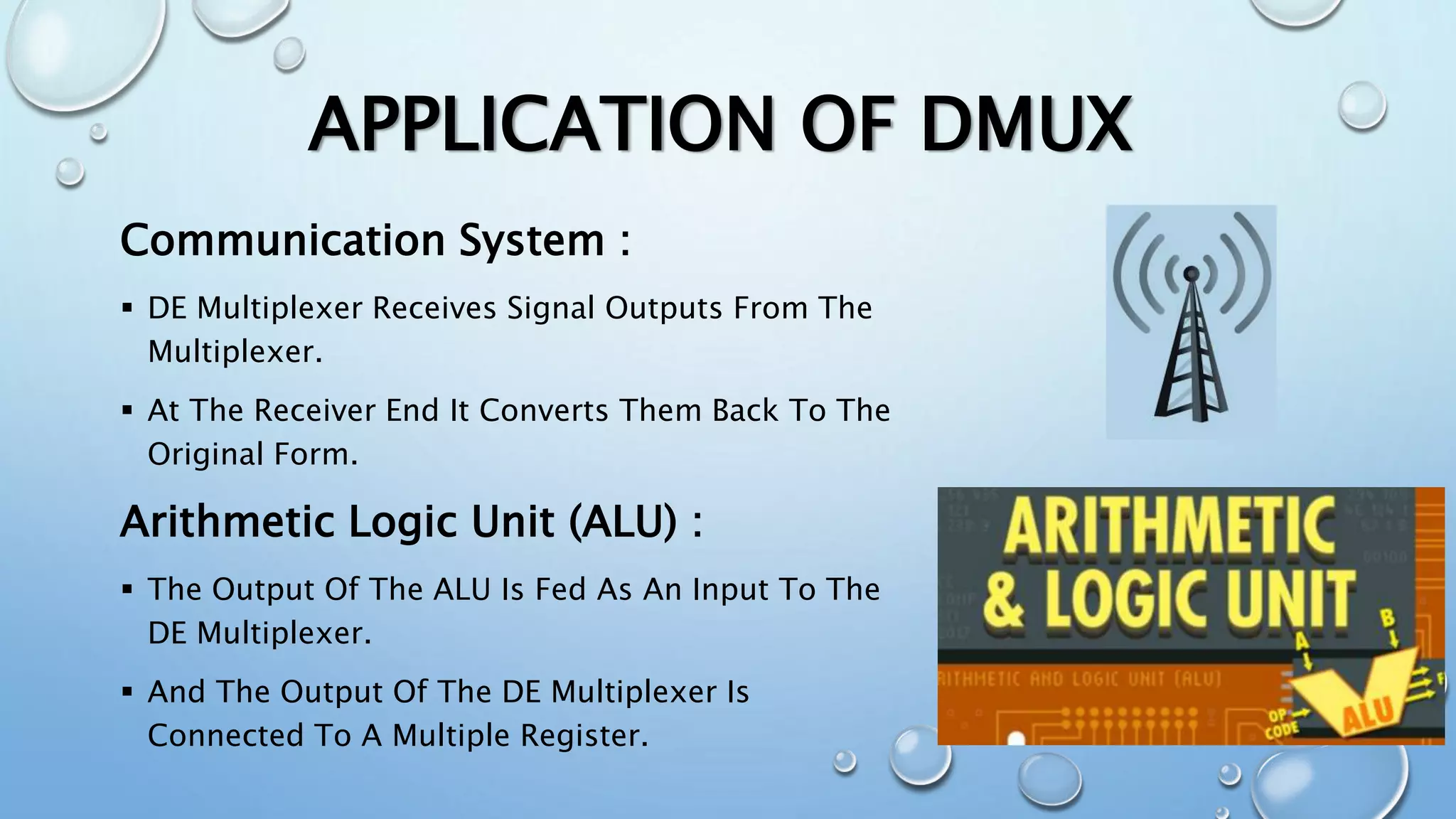

15. APPLICATION OF DMUX
Communication System :
 DE Multiplexer Receives Signal Outputs From The
Multiplexer.
 At The Receiver End It Converts Them Back To The
Original Form.
Arithmetic Logic Unit (ALU) :
 The Output Of The ALU Is Fed As An Input To The
DE Multiplexer.
 And The Output Of The DE Multiplexer Is
Connected To A Multiple Register.

16. APPLICATION OF DMUX
SERIES TO PARALLEL CONVERTER :
 THIS CONVERTER IS USED TO RECONSTRUCT PARALLEL DATA.
 SERIAL DATA IS GIVEN AS AN INPUT TO THE DE MULTIPLEXER AT A REGULAR
INTERVAL.
 A COUNTER IS ATTACHED TO DETECT THE DATA SIGNAL.

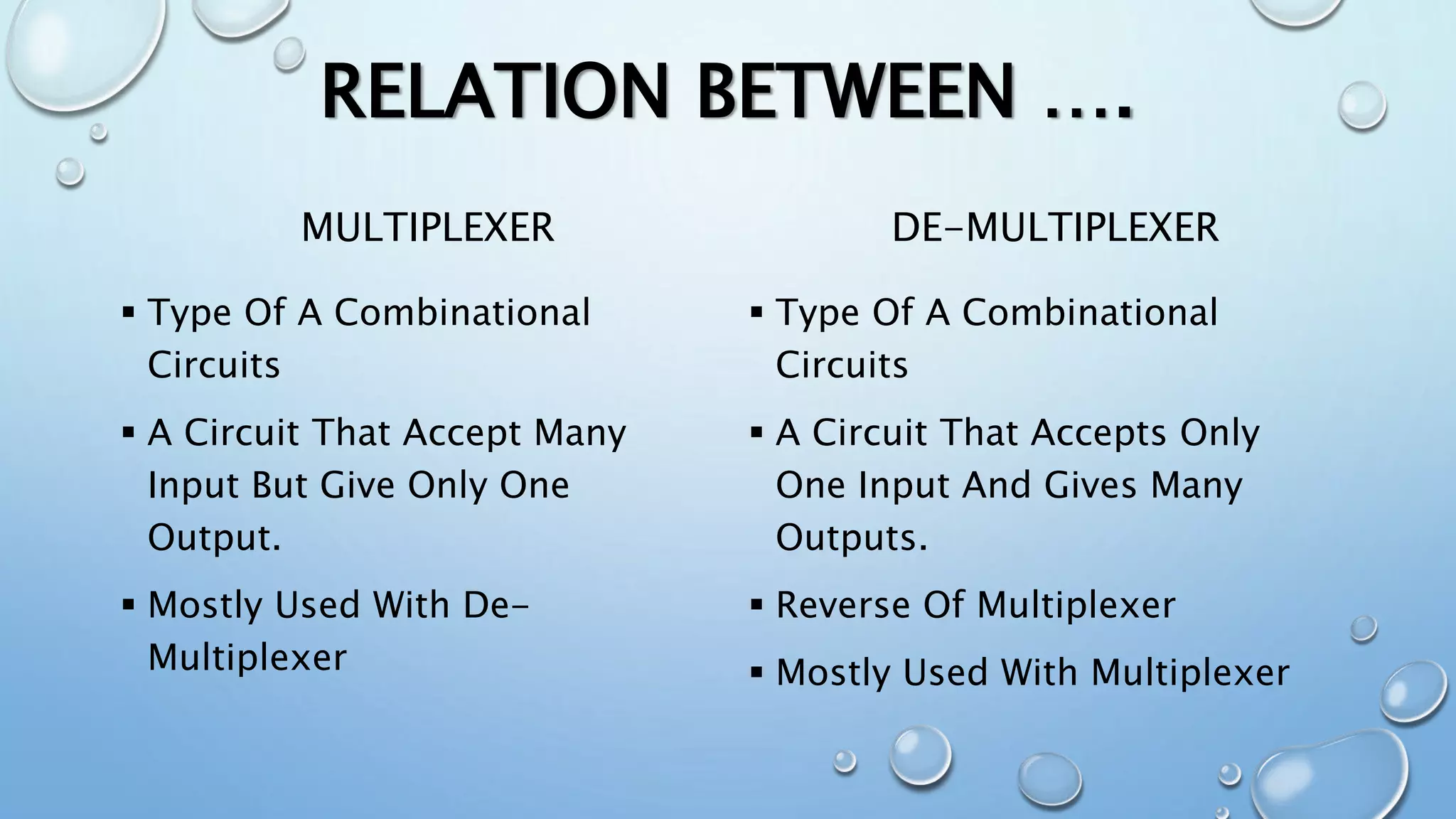

17. RELATION BETWEEN ….
MULTIPLEXER
 Type Of A Combinational
Circuits
 A Circuit That Accept Many
Input But Give Only One
Output.
 Mostly Used With De-
Multiplexer
DE-MULTIPLEXER
 Type Of A Combinational
Circuits
 A Circuit That Accepts Only
One Input And Gives Many
Outputs.
 Reverse Of Multiplexer
 Mostly Used With Multiplexer

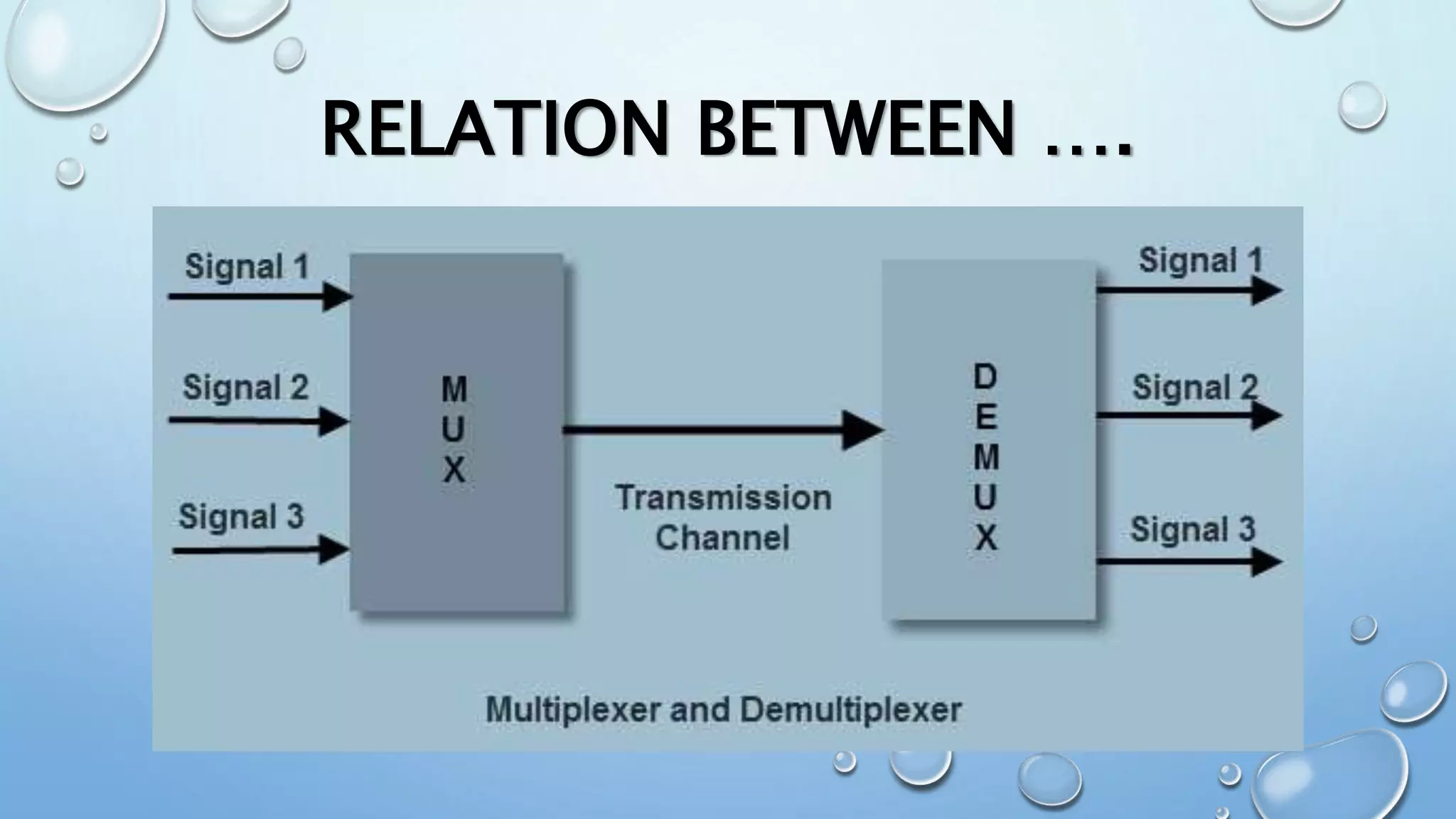

18. RELATION BETWEEN ….
