1. Multi-touch development in Flash and Flex

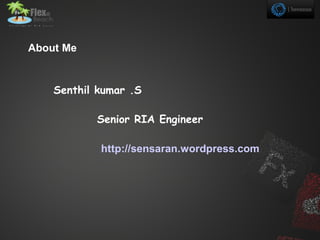

2. About Me
Senthil kumar .S
Senior RIA Engineer
http://sensaran.wordpress.com

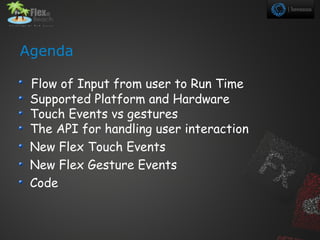

3. Agenda
Flow of Input from user to Run Time
Supported Platform and Hardware
Touch Events vs gestures
The API for handling user interaction
New Flex Touch Events
New Flex Gesture Events
Code

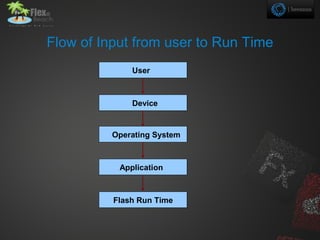

4. Flow of Input from user to Run Time
User
Device
Operating System
Application
Flash Run Time

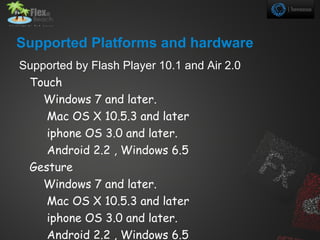

5. Supported Platforms and hardware
Supported by Flash Player 10.1 and Air 2.0
Touch
Windows 7 and later.
Mac OS X 10.5.3 and later
iphone OS 3.0 and later.
Android 2.2 , Windows 6.5
Gesture
Windows 7 and later.
Mac OS X 10.5.3 and later
iphone OS 3.0 and later.
Android 2.2 , Windows 6.5

6. What is New For MultiTouch?

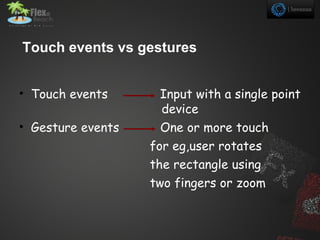

7. Touch events vs gestures
• Touch events Input with a single point
device
• Gesture events One or more touch
for eg,user rotates
the rectangle using
two fingers or zoom

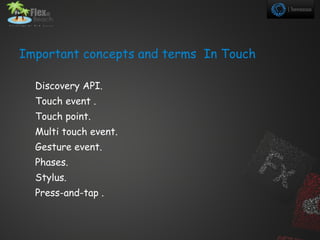

8. Important concepts and terms In Touch
Discovery API.
Touch event .
Touch point.
Multi touch event.
Gesture event.
Phases.
Stylus.
Press-and-tap .

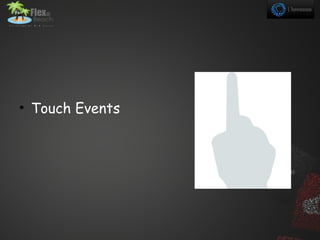

9. • Touch Events

10. TouchEvent class
• TouchEvent.TOUCH_BEGIN
• TouchEvent.TOUCH_END
• TouchEvent.TOUCH_MOVE
• TouchEvent.TOUCH_OUT
• TouchEvent.TOUCH_OVER
• TouchEvent.TOUCH_ROLL_OUT
• TouchEvent.TOUCH_ROLL_OVER
• TouchEvent.TOUCH_TAP

11. • Gesture Events

12. Gesture event types.
• TransformGestureEvent.GESTURE_PAN
• TransformGestureEvent.GESTURE_ROTATE
• TransformGestureEvent.GESTURE_SWIPE
• TransformGestureEvent.GESTURE_ZOOM

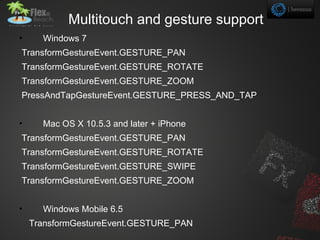

13. Multitouch and gesture support
• Windows 7
TransformGestureEvent.GESTURE_PAN
TransformGestureEvent.GESTURE_ROTATE
TransformGestureEvent.GESTURE_ZOOM
PressAndTapGestureEvent.GESTURE_PRESS_AND_TAP
• Mac OS X 10.5.3 and later + iPhone
TransformGestureEvent.GESTURE_PAN
TransformGestureEvent.GESTURE_ROTATE
TransformGestureEvent.GESTURE_SWIPE
TransformGestureEvent.GESTURE_ZOOM
• Windows Mobile 6.5
TransformGestureEvent.GESTURE_PAN

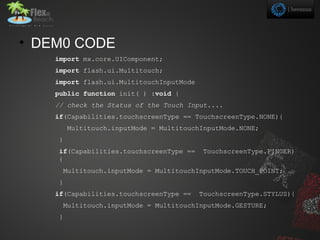

14. • DEM0 CODE
import mx.core.UIComponent;
import flash.ui.Multitouch;
import flash.ui.MultitouchInputMode
public function init( ) :void {
// check the Status of the Touch Input....
if(Capabilities.touchscreenType == TouchscreenType.NONE){
Multitouch.inputMode = MultitouchInputMode.NONE;
}
if(Capabilities.touchscreenType == TouchscreenType.FINGER)
{
Multitouch.inputMode = MultitouchInputMode.TOUCH_POINT;
}
if(Capabilities.touchscreenType == TouchscreenType.STYLUS){
Multitouch.inputMode = MultitouchInputMode.GESTURE;
}

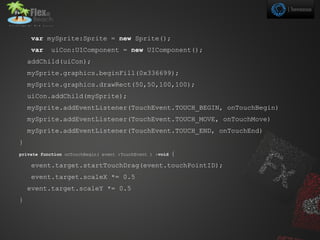

15. var mySprite:Sprite = new Sprite();
var uiCon:UIComponent = new UIComponent();
addChild(uiCon);
mySprite.graphics.beginFill(0x336699);
mySprite.graphics.drawRect(50,50,100,100);
uiCon.addChild(mySprite);
mySprite.addEventListener(TouchEvent.TOUCH_BEGIN, onTouchBegin)
mySprite.addEventListener(TouchEvent.TOUCH_MOVE, onTouchMove)
mySprite.addEventListener(TouchEvent.TOUCH_END, onTouchEnd)
}
private function onTouchBegin( event :TouchEvent ) :void {
event.target.startTouchDrag(event.touchPointID);
event.target.scaleX *= 0.5
event.target.scaleY *= 0.5
}

16. // Function will trigger when function Move
private function onTouchMove( event :TouchEvent ) :void {
event.target.alpha = 0.5
}
// Here the Touch End
private function onTouchEnd( event :TouchEvent ) :void
{
event.target.stopTouchDrag(event.touchPointID);
event.target.width = 240;
event.target.height = 240;
event.target.alpha = 1;
}
