Molding machines are used for mass production of molds and castings as they save labor, time, and ensure good compaction and tolerances with less skilled workers. Jolt squeeze machines repeatedly jolt sand filled in a drag pattern and then squeeze the mold together. They are commonly used for match plate patterns and provide both jolting and squeezing actions to compact the sand. Jolt machines use an 80mm pneumatic rise and sudden drop to achieve great density in sand packing.

1. you can
1.4 Jolt, sand slinger

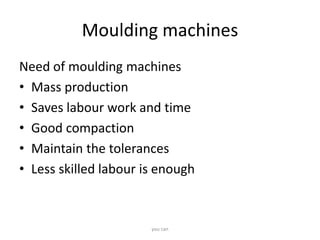

2. Moulding machines
Need of moulding machines
• Mass production
• Saves labour work and time
• Good compaction
• Maintain the tolerances
• Less skilled labour is enough
you can

3. you can

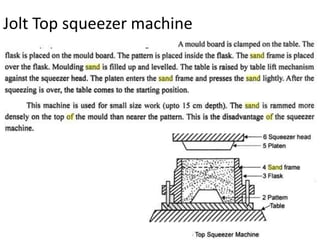

Jolt Top squeezer machine

4. you can

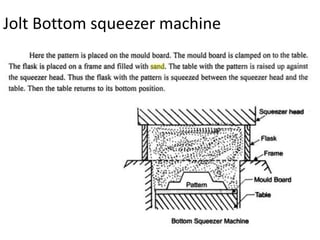

Jolt Bottom squeezer machine

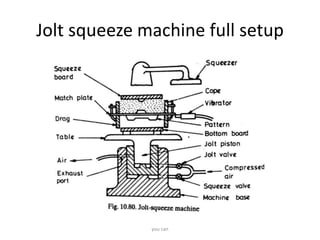

5. Jolt squeeze machine full setup
you can

6. Jolt squeeze machine
• Both jolt as well as squeeze
• Mostly used for match plate pattern.
• Sand is filled in drag and jolted repeatedly.
• Then roll over and parting agents are sprinkled
over cope.
• Then squeezes the mold.
you can

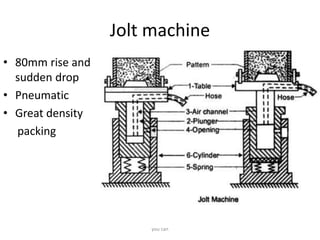

7. Jolt machine
• 80mm rise and
sudden drop
• Pneumatic
• Great density
packing
you can

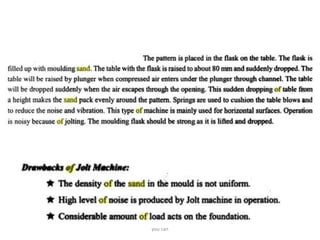

8. you can

9. Jolt squeeze machine
• Video : :MTunit 1
• 6 Foundry_Sand_Molding_Jolt Squeezer
machine
you can

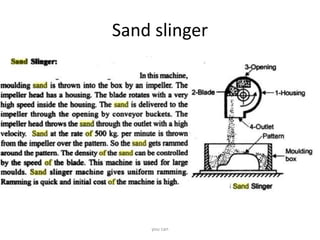

10. Sand slinger
you can
