1. Declarative,
Constraint-Based BPM
Marco Montali
Free University of Bozen-Bolzano
ack to Maja Pesic, Wil van der Aalst, Fabrizio Maggi, Giuseppe De Giacomo, Riccardo de Masellis
1

2. Disclaimer for this Talk
Process = Control-flow
(but the story is much more
interesting than that…)
2

3. BPM!
3

4. BPM?
4

5. Types of Processes
Not all business processes are the same
• Even within one organization, business processes
can be very different in terms of their essential
properties.
• Business processes can be characterized through
three dimensions:
• complexity
• predictability
• repetitiveness
5

6. Complexity
Degree of difficulty in collaboration, coordination,
and decision making
• Low complexity: exchanging personal email
messages and handling travel requests
• High complexity: handling medical treatments
6

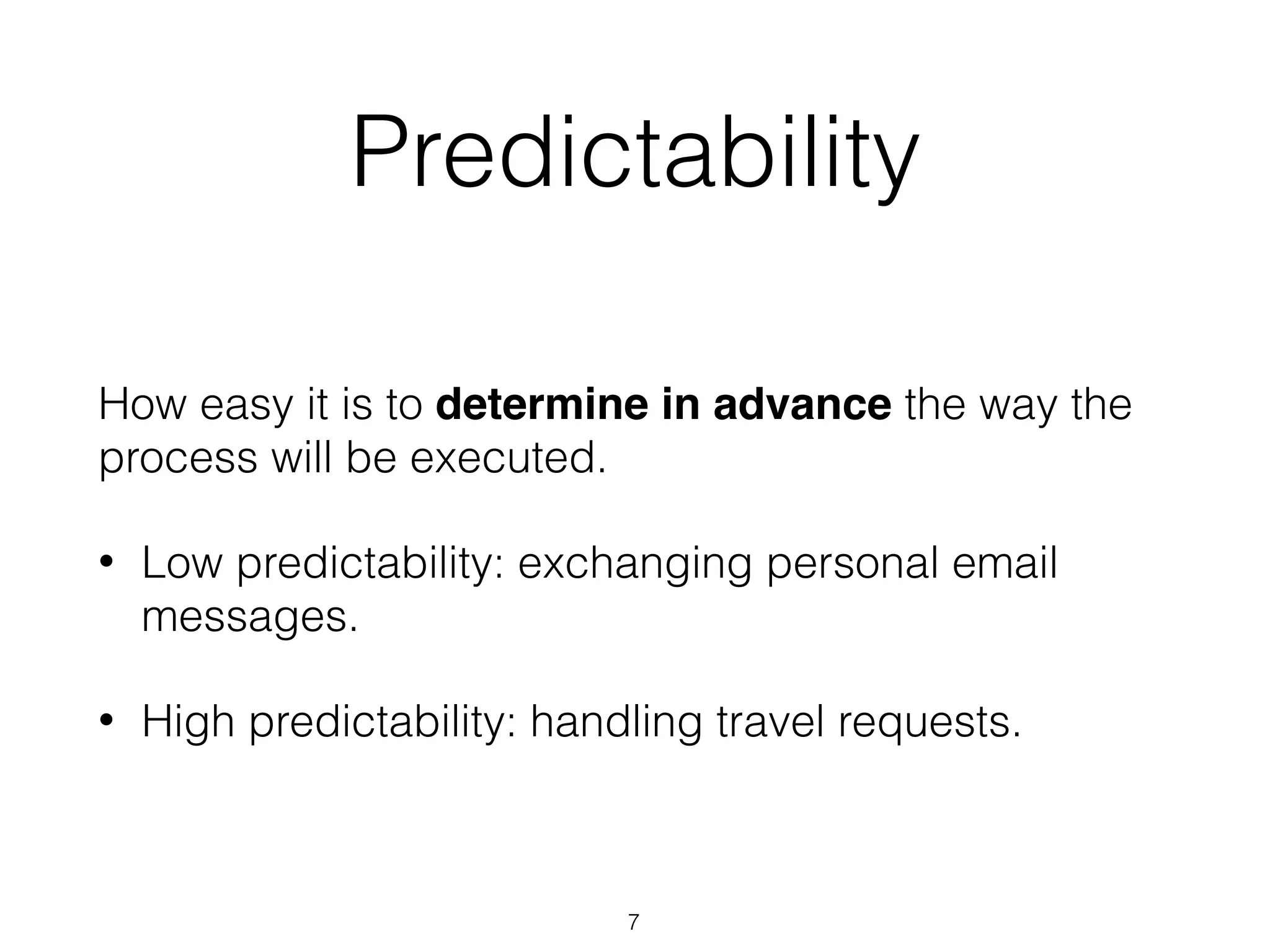

7. Predictability
How easy it is to determine in advance the way the
process will be executed.
• Low predictability: exchanging personal email
messages.
• High predictability: handling travel requests.
7

8. Repetitiveness
Frequency of process execution.
• A business process that is executed once per year
has a lower degree of repetitiveness than a
process executed twice a day.
• Low repetitiveness: disaster handling.
• High repetitiveness: exchanging personal email
messages.
8

9. Classifying Processes
Prepare coffee
Produce shoes
Register birth
Design shoes
Disaster recovery
Celebrate opening of A.Y.
Win slot machine
9

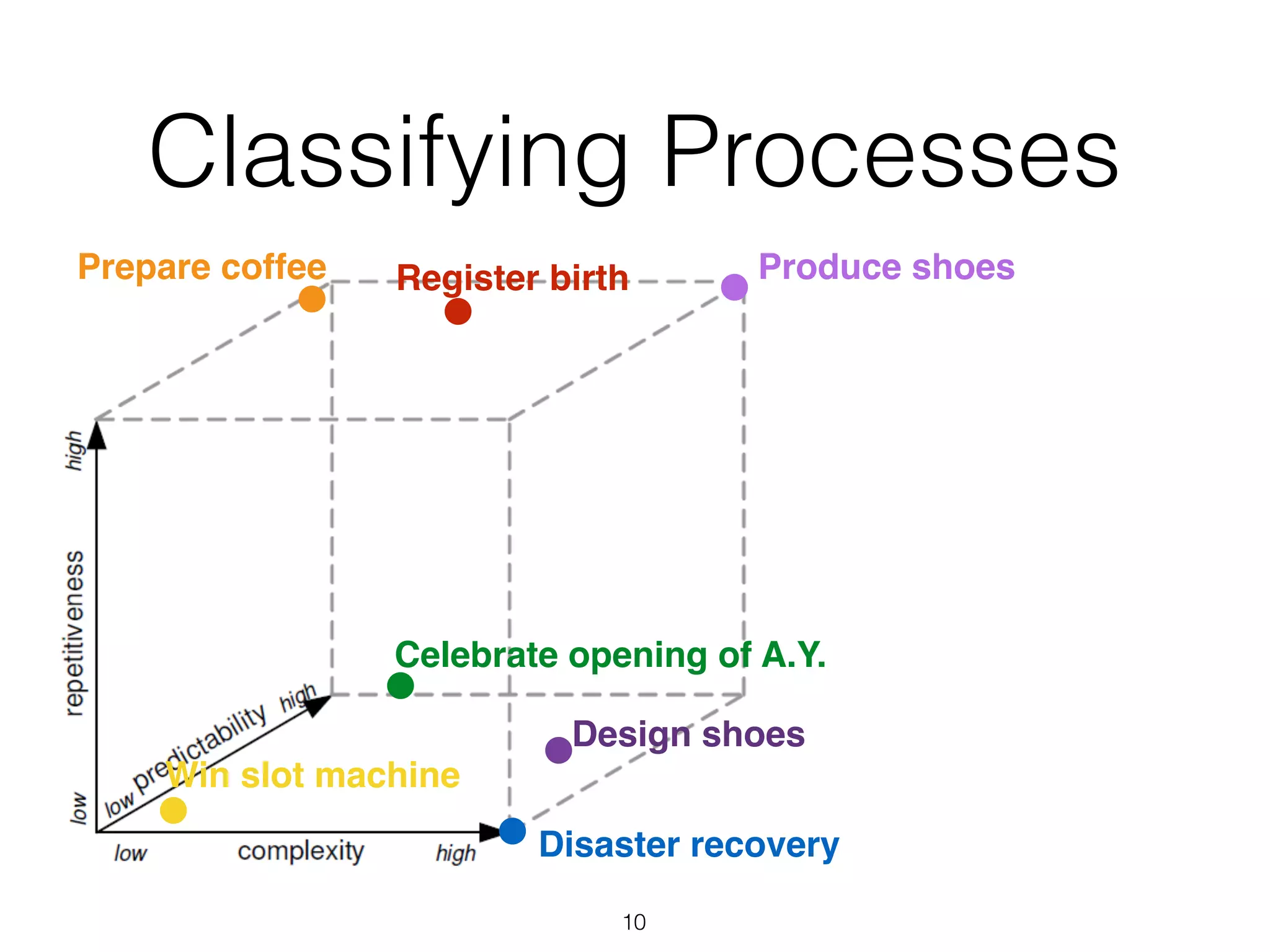

10. Classifying Processes
Prepare coffee Produce shoesRegister birth
Design shoes
Disaster recovery
Win slot machine
10
Celebrate opening of A.Y.

11. BPM Systems
BPM systems support collaboration,
coordination and decision making in business
processes.
• Groupware systems support human
collaboration and co-decision.
• Workflow management systems explicitly
control ordering, coordination and execution
of activities with little human intervention.
11

12. BPMS and Decision Making
12
• Ordering and coordination of
activities not automated.
• Users control the ordering and
coordination of activities “on the
fly” while executing the business
process.
• Humans merely influence
the execution of business
processes by entering
necessary data.

13. BPMS and
Types of Processes
13

14. Environment!
14

15. Influence of the Environment
The degree of turbulence of the environment
influences the predictability of business processes
and the nature of decision making.
15

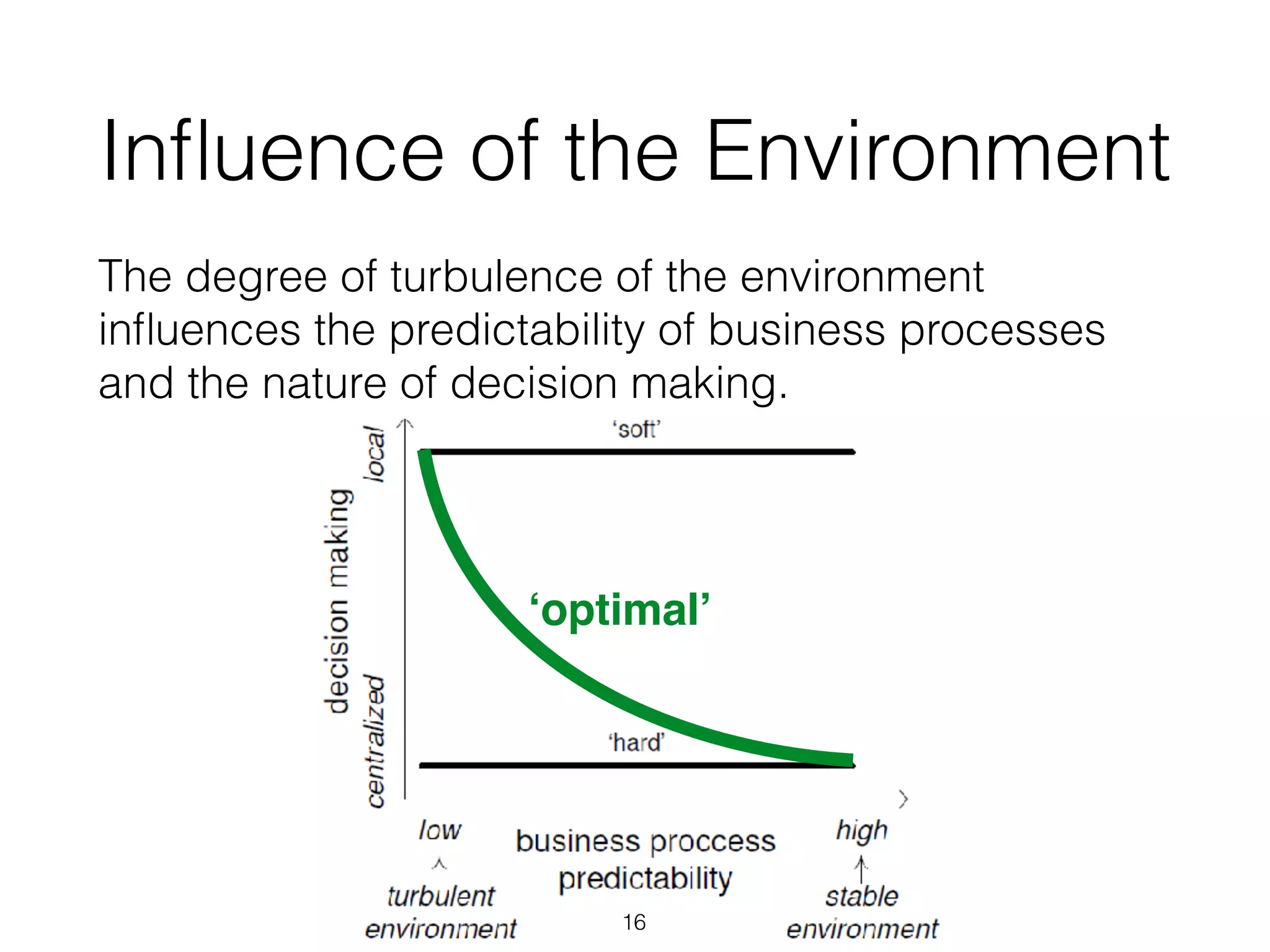

16. Influence of the Environment
The degree of turbulence of the environment
influences the predictability of business processes
and the nature of decision making.
‘optimal’
16

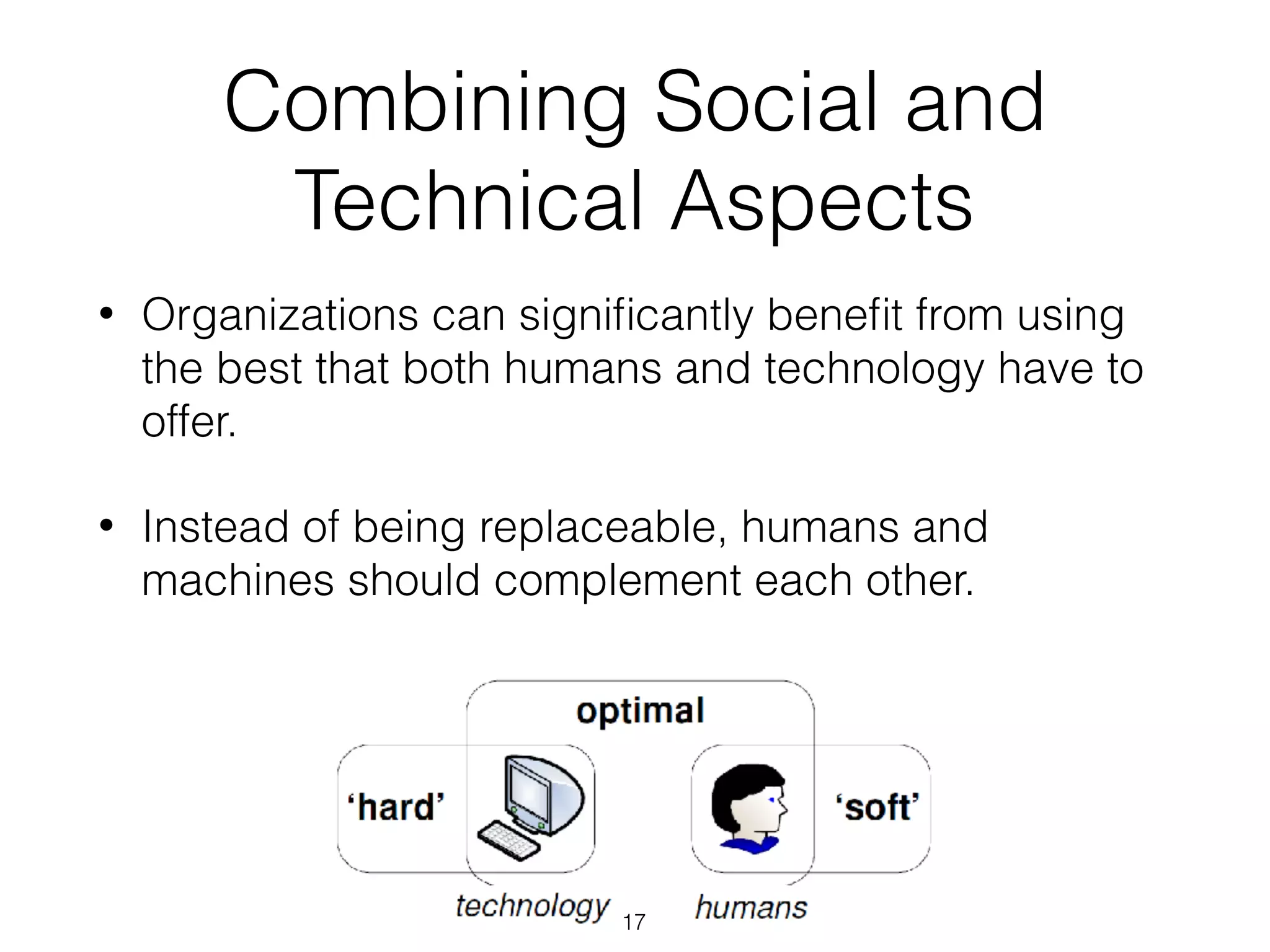

17. Combining Social and
Technical Aspects
• Organizations can significantly benefit from using
the best that both humans and technology have to
offer.
• Instead of being replaceable, humans and
machines should complement each other.
17

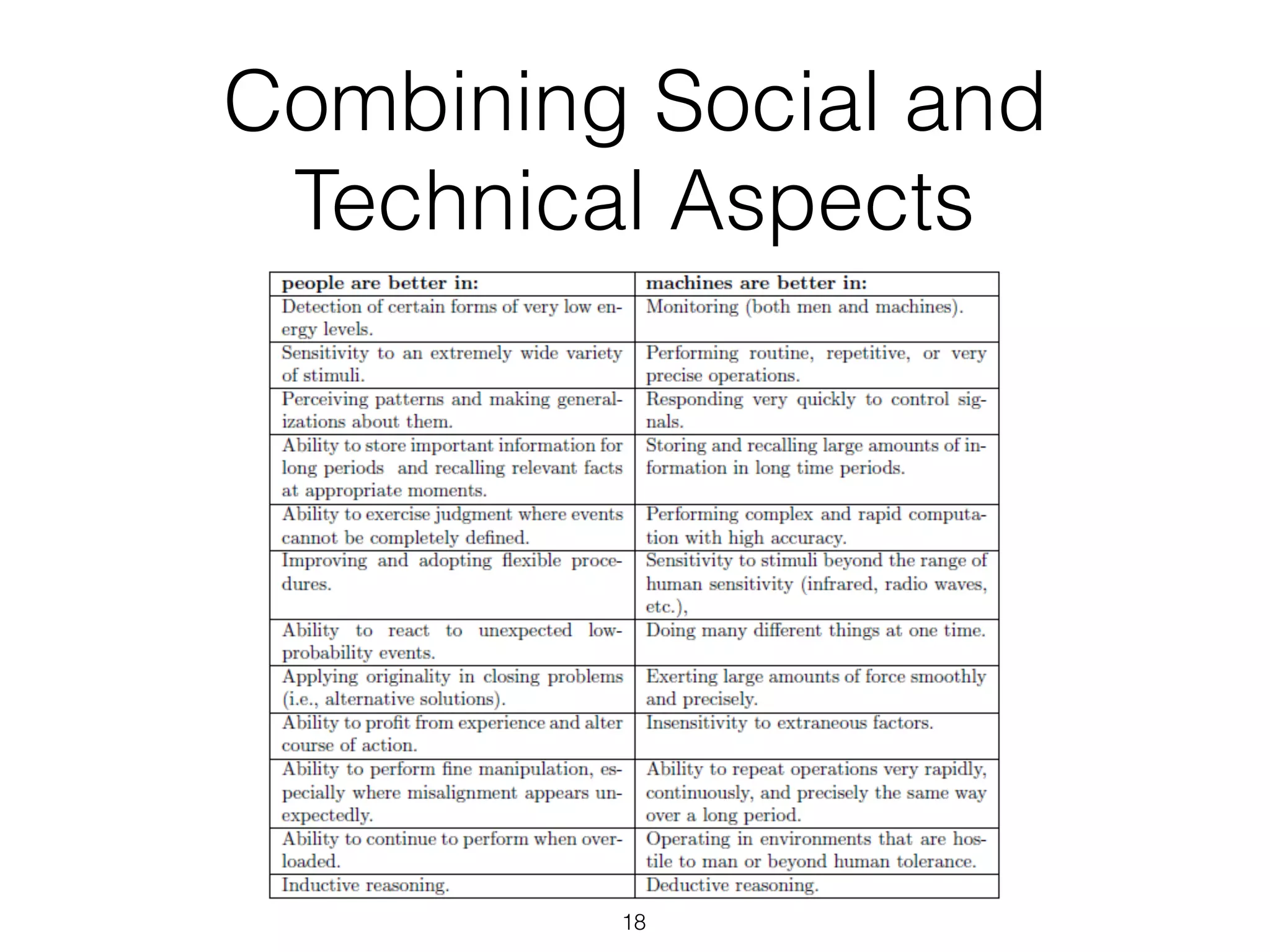

18. Combining Social and
Technical Aspects
18

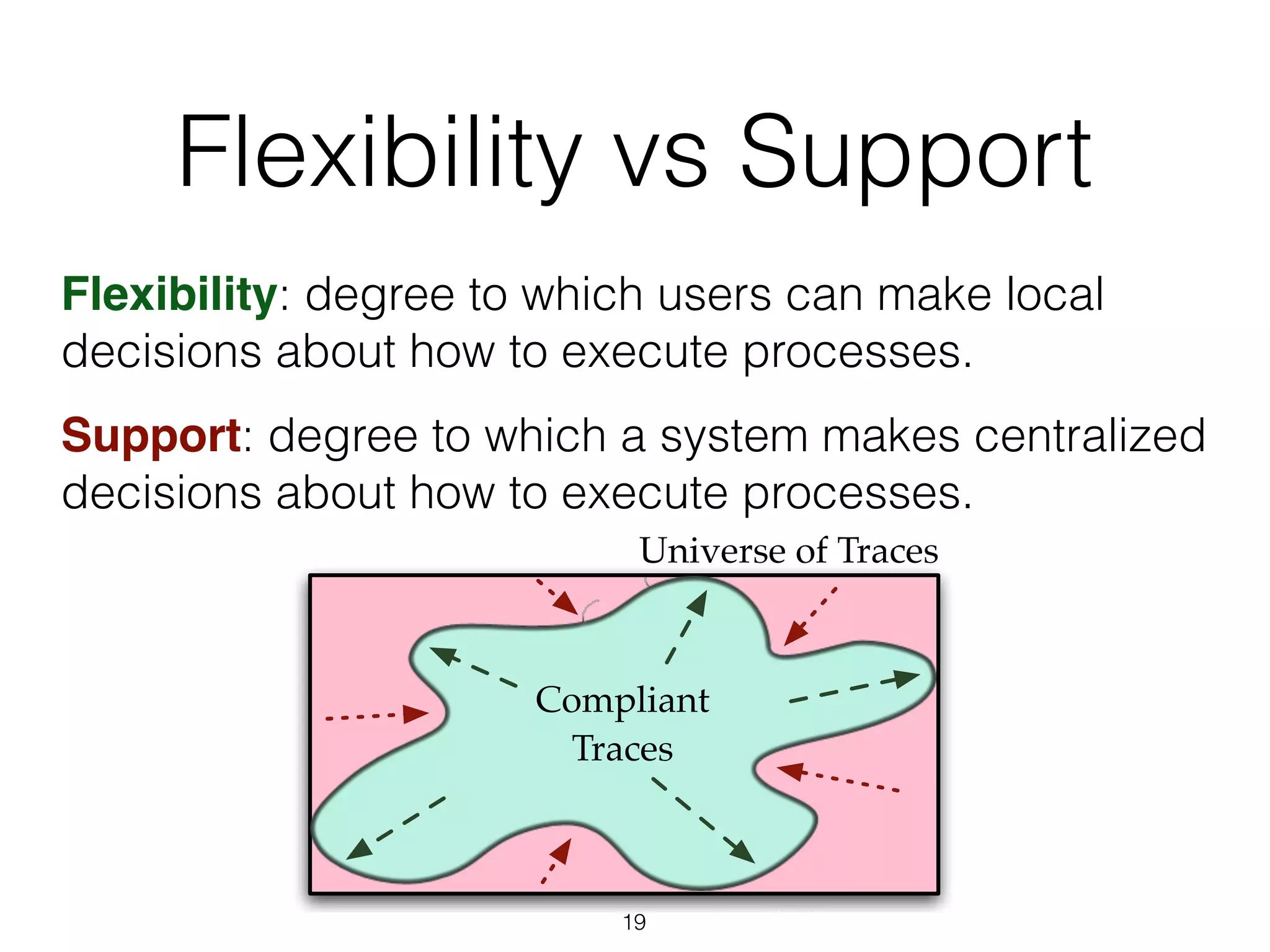

19. Flexibility vs Support
Flexibility: degree to which users can make local
decisions about how to execute processes.
Support: degree to which a system makes centralized
decisions about how to execute processes.
Universe of Traces
Compliant
Traces
Flexibility19

20. Trade-off?
20

21. The Issue of Flexibility
21

22. Ultimate Goal:
Balance Flexibility and Control
22

23. Trends in BPM
modeling
• Highly-variable BPs
• Metaphor: rules/constraints
Dec t i
lar
a
ev
Imperative modeling
• Traditional repetitive BPs
• Metaphor: flow-chart
23

24. Imperative Modeling
24

25. Organizational Boundaries
25

26. Imperative Modeling
Focus: howthings must be done
• Explicit description of the process control-flow
Closedmodeling
• All that is not explicitly modeled is forbidden
• Exceptions/uncommon behaviors have to be
explicitly enumerated at design time
26

27. BPMN
Receive
order
Check
availability
Article available?
Ship article
Financial
settlement
yes
Procurement
no
Payment
received
Inform
customer
Late deliveryUndeliverable
Customer
informed
Inform
customer
Article
removed
Remove
article from
catalogue
27

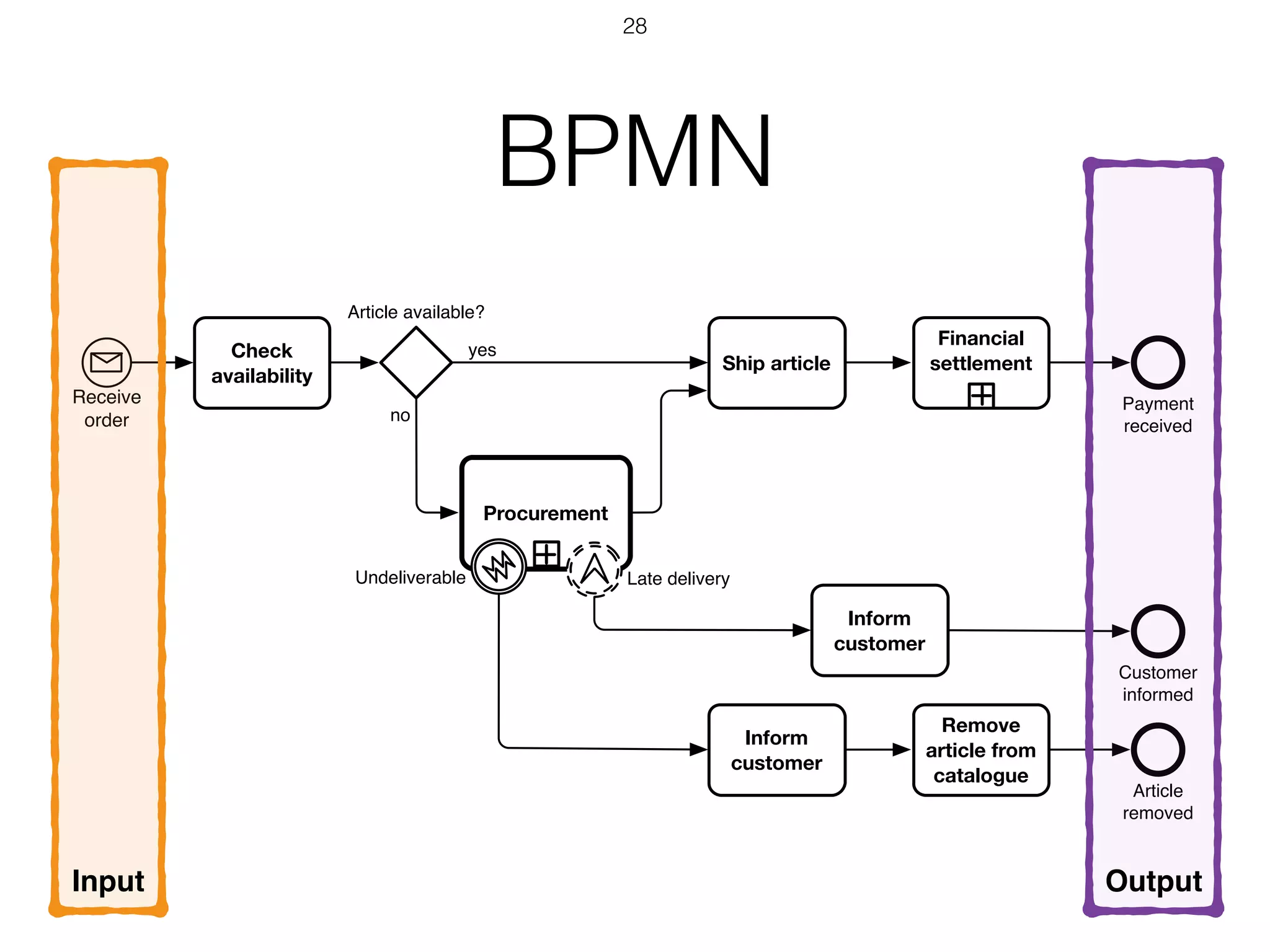

28. BPMN
Receive
order
Check
availability
Article available?
Ship article
Financial
settlement
yes
Procurement
no
Payment
received
Inform
customer
Late deliveryUndeliverable
Customer
informed
Inform
customer
Article
removed
Remove
article from
catalogue
Input Output
28

29. BPMN
Receive
order
Check
availability
Article available?
Ship article
Financial
settlement
yes
Procurement
no
Payment
received
Inform
customer
Late deliveryUndeliverable
Customer
informed
Inform
customer
Article
removed
Remove
article from
catalogue
Input Output
29

30. Organizational Boundaries
30

31. Example: Rigid Shopping
• Tasks: 𝚺 = {pick item, close order, pay}
• A customer starts the process by picking one
or more items. She then decides to quit or
close the order. In the latter case, she has to
pay for the order.
31

32. Questions
• Tasks: 𝚺 = {pick item, close order, pay}
• A customer starts the process by picking one or more
items. She then decides to quit or close the order. In the
latter case, she has to pay for the order.
• Which traces are accepted?
• <> (empty trace)
• <i,i,i>
• <i,i,i,c,p>
• <i,i,i,c,p,p>
• <i,i,i,p,c>
• <i,c,p,i,i,c,p>
32

33. Questions
• Tasks: 𝚺 = {pick item, close order, pay}
• A customer starts the process by picking one or more
items. She then decides to quit or close the order. In the
latter case, she has to pay for the order.
• Which traces are accepted?
• <> (empty trace)
• <i,i,i>
• <i,i,i,c,p>
• <i,i,i,c,p,p>
• <i,i,i,p,c>
• <i,c,p,i,i,c,p>
33

34. Questions
• Can you model this process in BPMN? How difficult
is it?
A customer starts the process by picking one or
more items. She then decides to quit or close
the order. In the latter case, she has to pay for
the order.
34

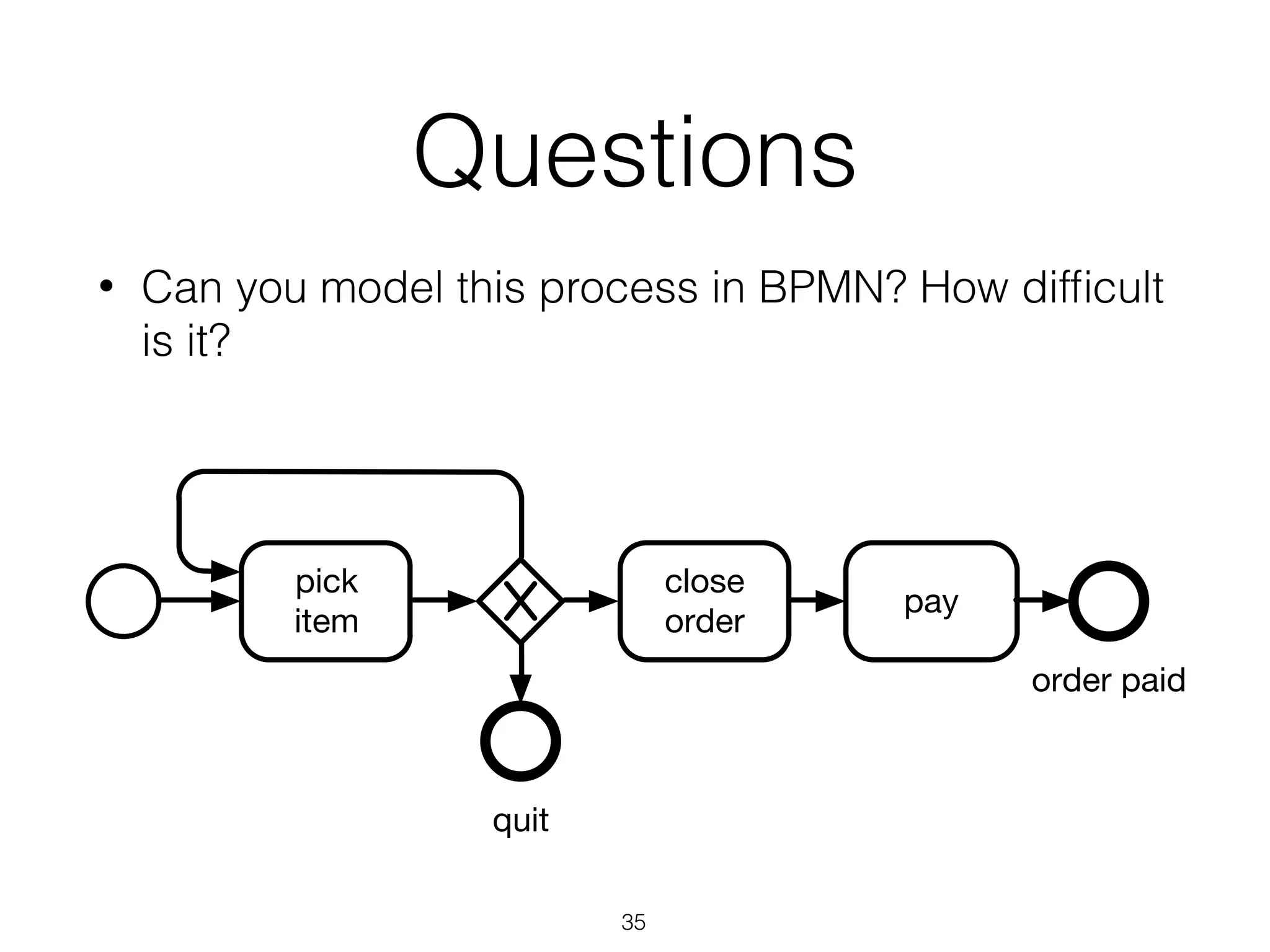

35. Questions
• Can you model this process in BPMN? How difficult
is it?
pick
item
close
order
pay
quit
order paid
35

36. Example: Flexible Shopping
• Tasks: 𝚺 = {pick item, close order, pay}
• A customer may pick items, close several orders,
and pay one or more orders at once.
• She may even close an empty order and pay for it,
or pay multiple times (but this will result in a no-op)
• Business constraint: whenever you close an
order, eventually you have to pay.
36

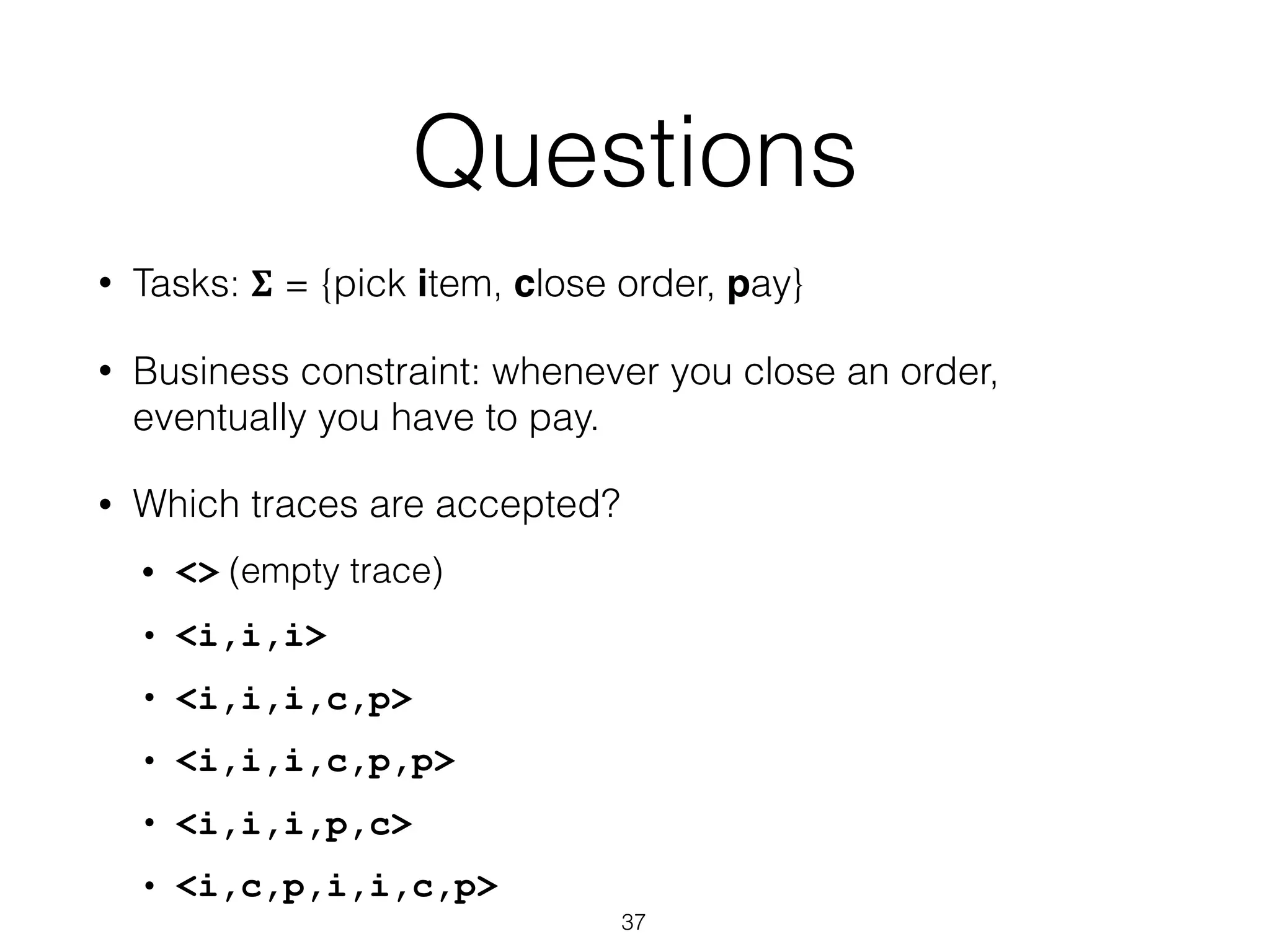

37. Questions
• Tasks: 𝚺 = {pick item, close order, pay}
• Business constraint: whenever you close an order,
eventually you have to pay.
• Which traces are accepted?
• <> (empty trace)
• <i,i,i>
• <i,i,i,c,p>
• <i,i,i,c,p,p>
• <i,i,i,p,c>
• <i,c,p,i,i,c,p>
37

38. Questions
• Tasks: 𝚺 = {pick item, close order, pay}
• Business constraint: whenever you close an order,
eventually you have to pay.
• Which traces are accepted?
• <> (empty trace)
• <i,i,i>
• <i,i,i,c,p>
• <i,i,i,c,p,p>
• <i,i,i,p,c>
• <i,c,p,i,i,c,p>
38

39. Questions
• Can you model this process in BPMN? How difficult
is it?
You may pick items, close and pay an order.
Whenever you close an order, eventually you have to pay.
39

40. Questions
• Can you model this process in BPMN? How difficult
is it?
40
pick
item
close
order
pay
quit
order paid

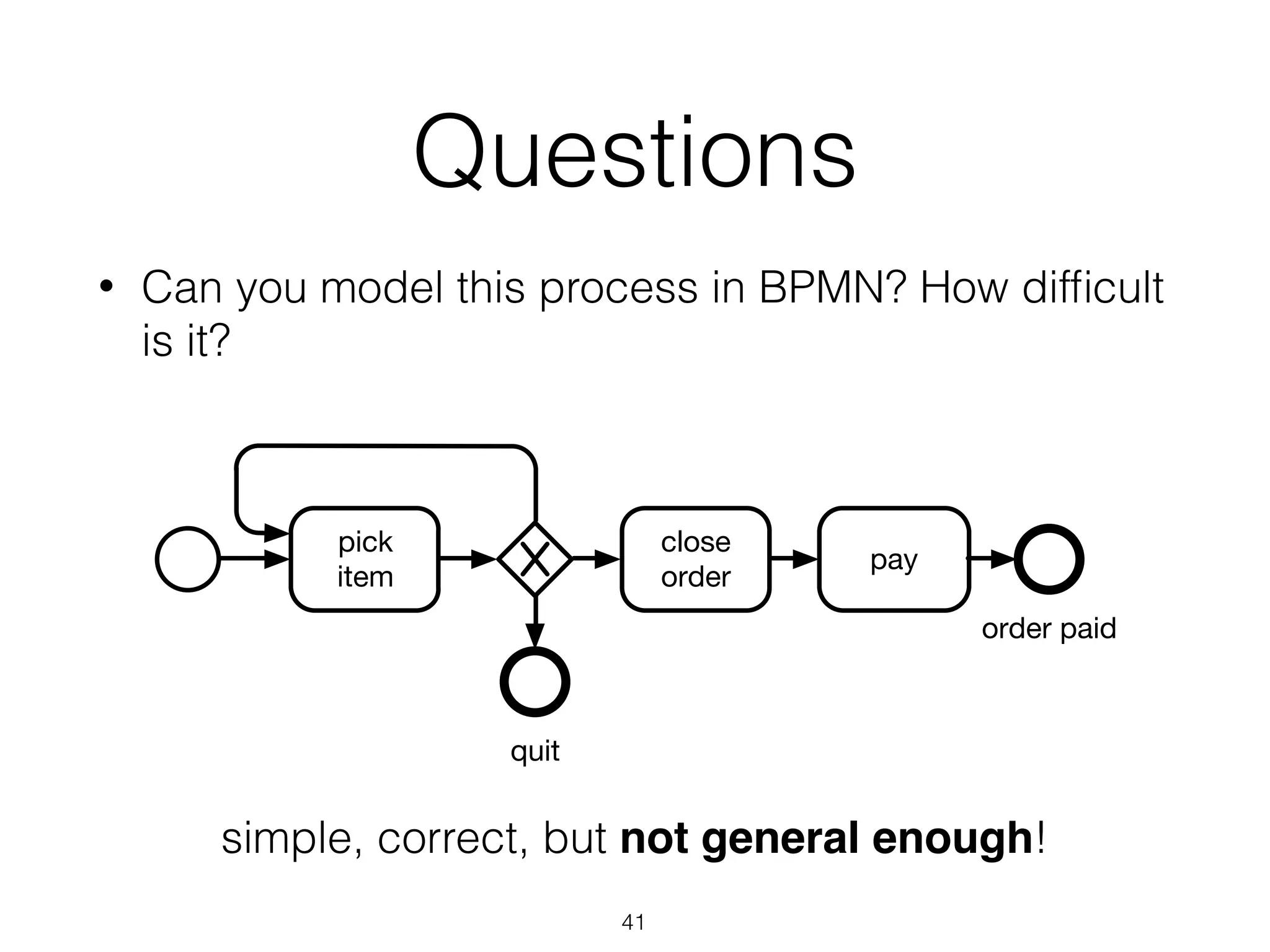

41. Questions
• Can you model this process in BPMN? How difficult
is it?
41
pick
item
close
order
pay
quit
order paid
simple, correct, but not general enough!

42. Questions
• Can you model this process in BPMN? How difficult
is it?
42
pick
item
close
order
pay
pick
item
pay

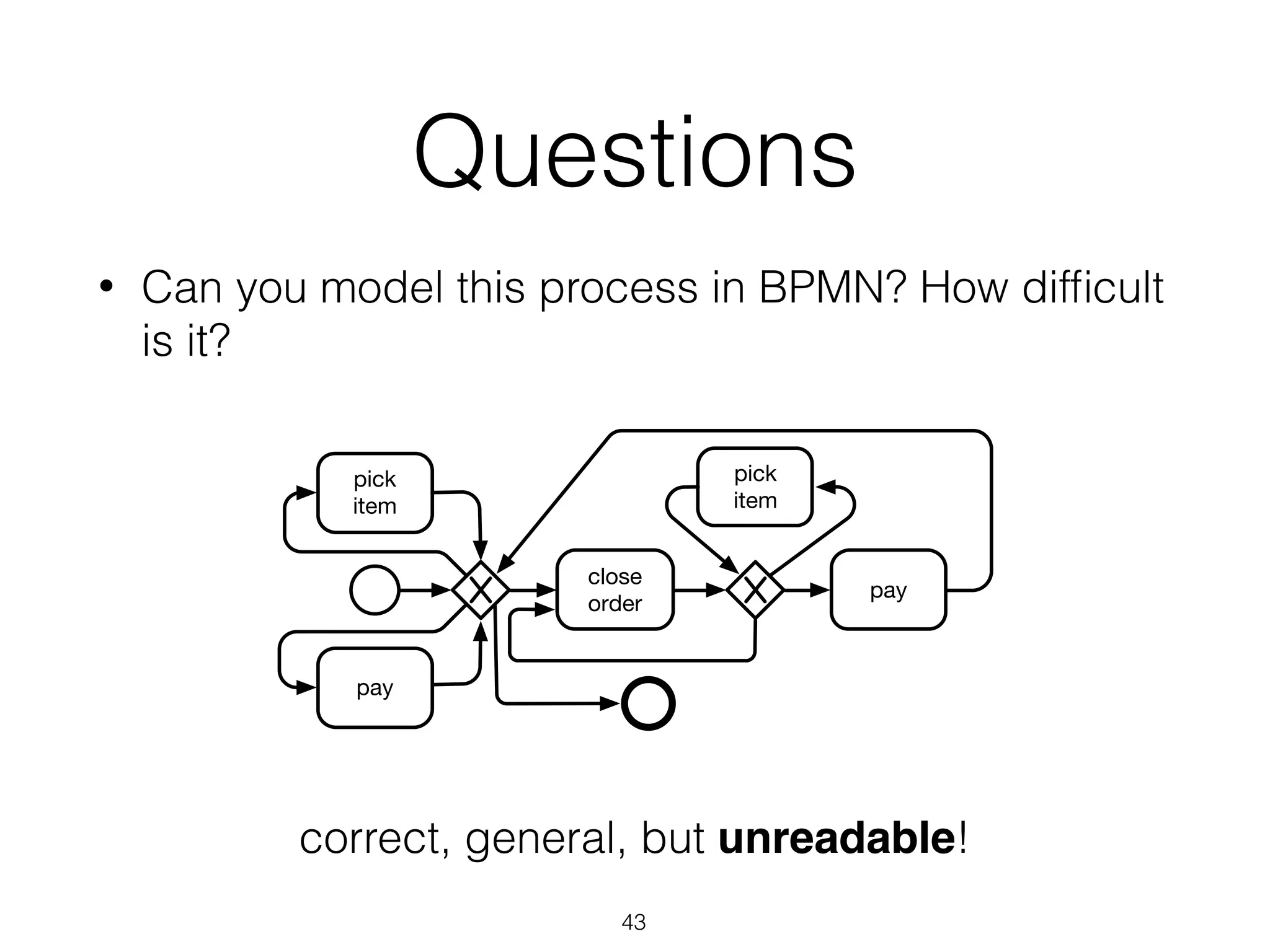

43. Questions
• Can you model this process in BPMN? How difficult
is it?
43
pick
item
close
order
pay
pick
item
pay
correct, general, but unreadable!

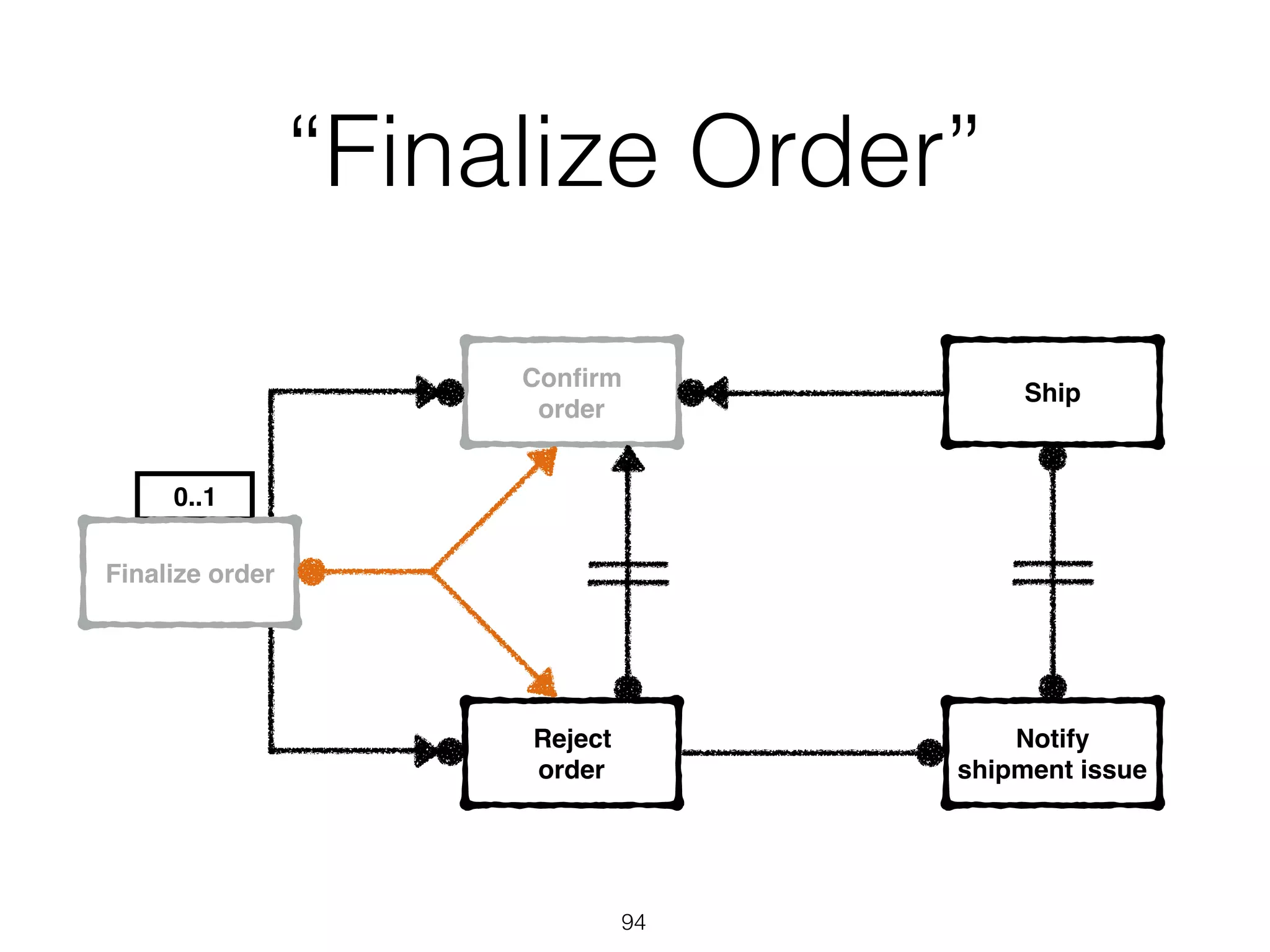

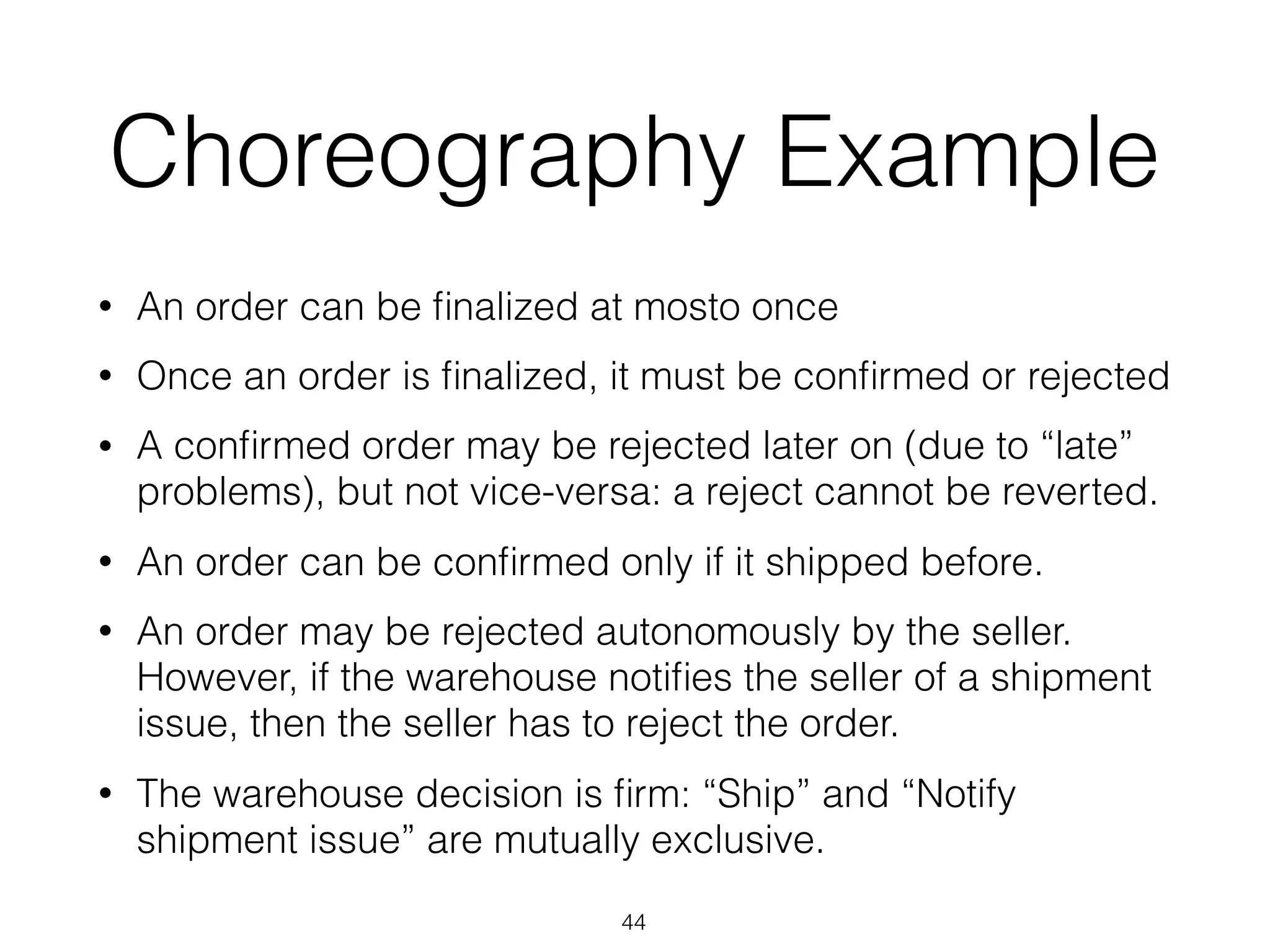

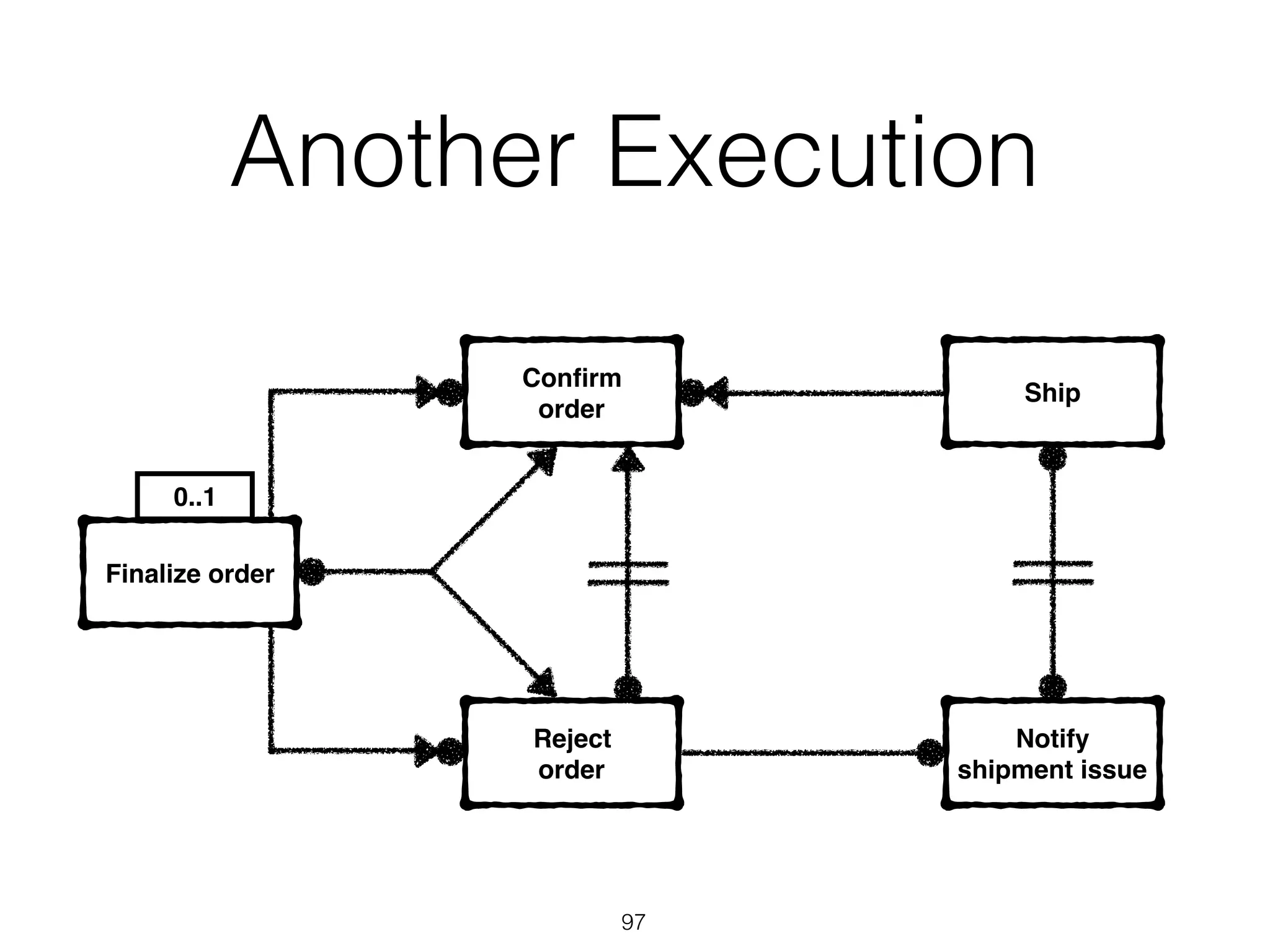

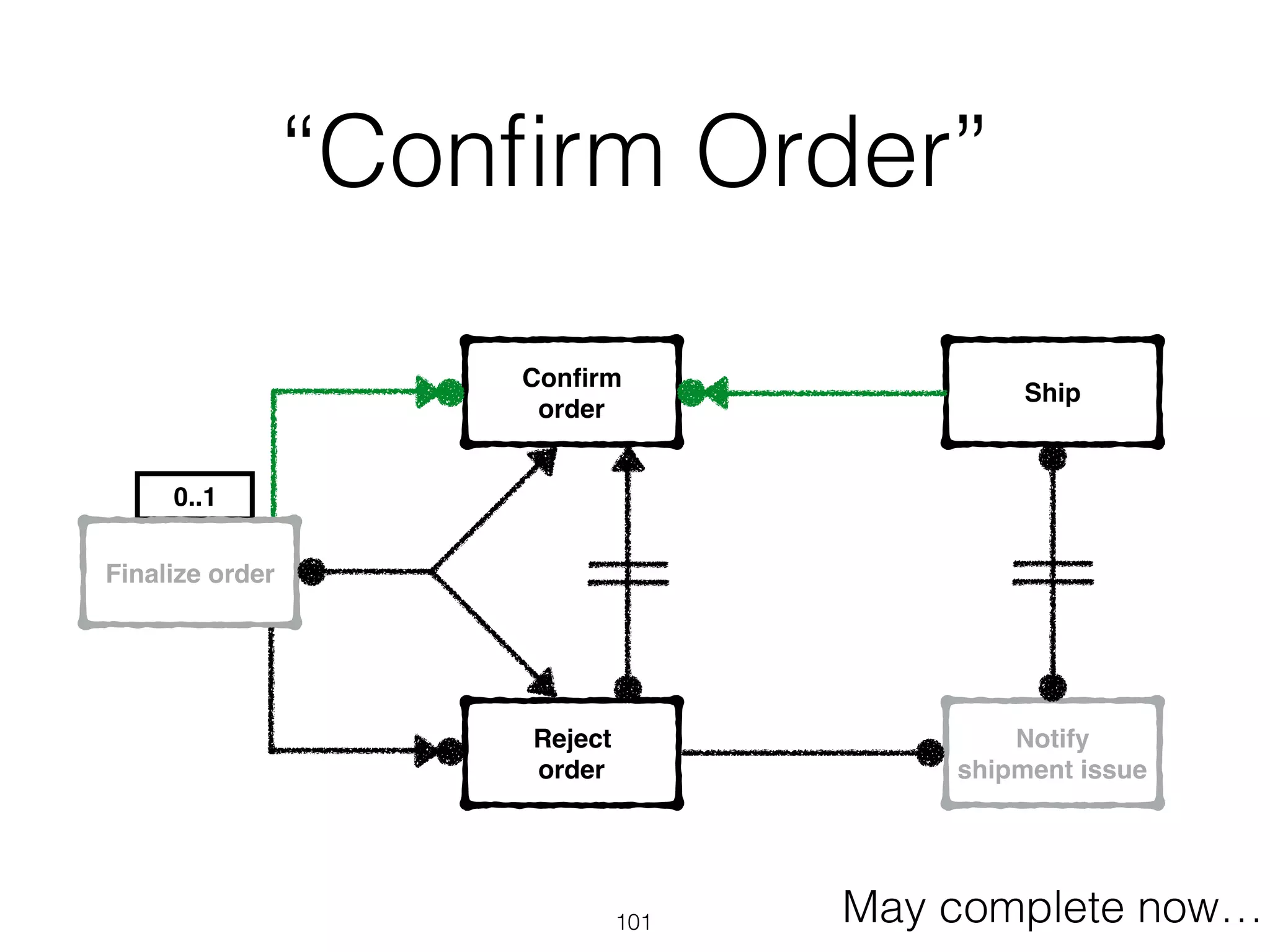

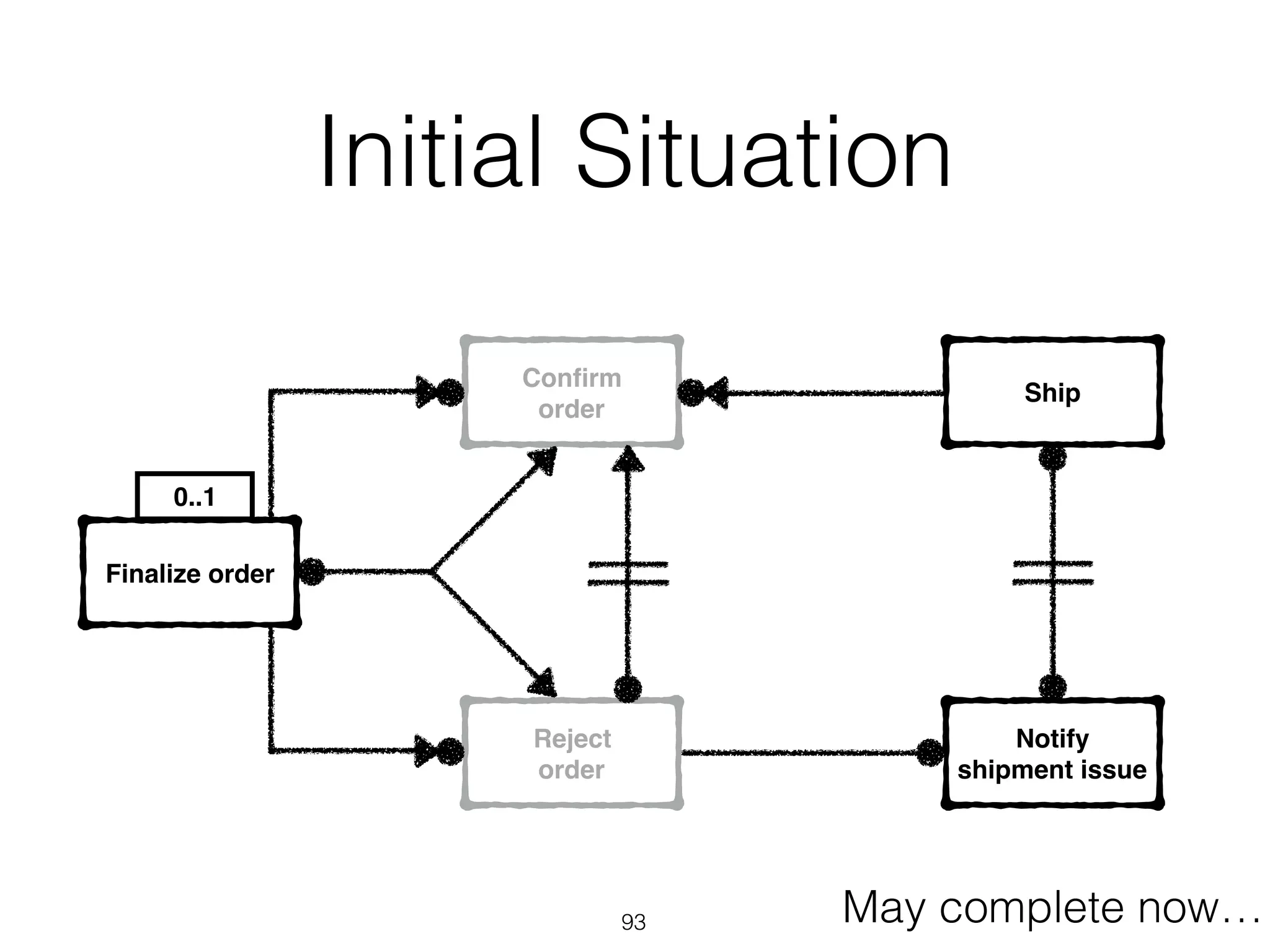

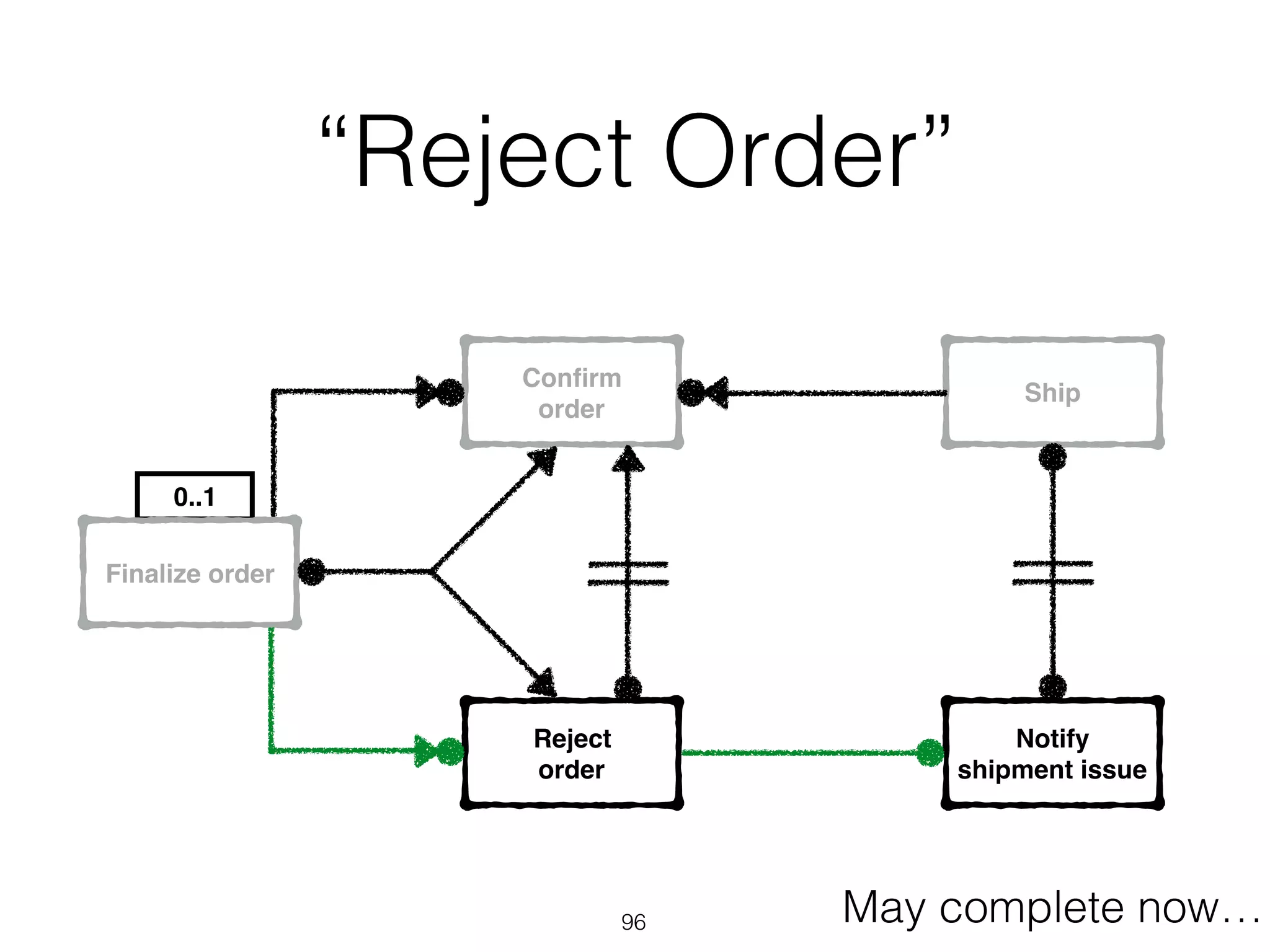

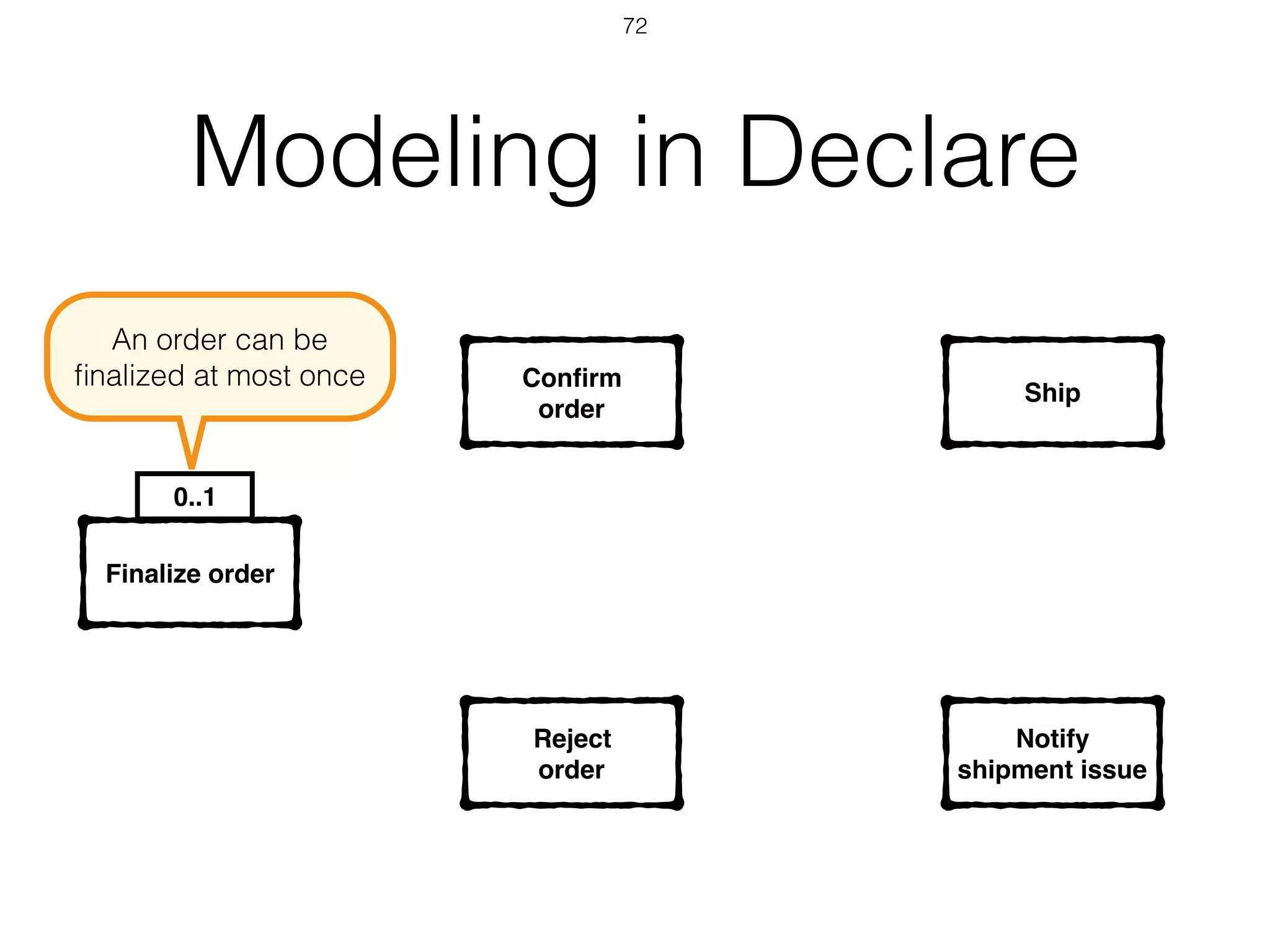

44. Choreography Example
• An order can be finalized at mosto once
• Once an order is finalized, it must be confirmed or rejected
• A confirmed order may be rejected later on (due to “late”
problems), but not vice-versa: a reject cannot be reverted.
• An order can be confirmed only if it shipped before.
• An order may be rejected autonomously by the seller.
However, if the warehouse notifies the seller of a shipment
issue, then the seller has to reject the order.
• The warehouse decision is firm: “Ship” and “Notify
shipment issue” are mutually exclusive.
44

45. What is your
Favourite Italian Food?
45
Order-to-delivery

46. What is your
Favourite Italian Food?
46
Order-to-delivery

47. What is your
Favourite Italian Food?
47
UnderstandingSpaghettiModelswithSequenceClusteringforProM9
thoseexceptions.Figure4depictstheresultofafirstattempttoanalyzethe
applicationserverlogsusingtheheuristicsminer[4].
Exception
(complete)
187
EstabelecimentoNotFoundException
(complete)
187
0,991
152
GREJBPersistencyException
(complete)
179
0,909
159
PGWSException
(complete)
168
0,889
12
ITPTExternalServiceException
(complete)
183
0,944
162
SIPSCNoRecordsFoundException
(complete)
160
0,8
5
PessoaSingularNotFoundException
(complete)
138
0,667
3
BusinessLogicException
(complete)
183
0,75
4
SICCLException
(complete)
175
0,857
19
NaoExistemRegistosException
(complete)
143
0,833
6
RPCBusinessException
(complete)
38
0,75
3
SAFBusinessException
(complete)
115
0,8
68
GREJBBusinessException
(complete)
45
0,75
23
DESWSException
(complete)
14
0,667
14
NullPointerException
(complete)
104
0,8
91
ValidationException
(complete)
31
0,8
12
GILBusinessException
(complete)
14
0,5
6
GRServicesException
(complete)
7
0,667
3
CSIBusinessException
(complete)
14
0,5
6
ConcorrenciaException
(complete)
5
0,5
2
CSIPersistencyException
(complete)
3
0,5
2
0,857
34
ITPTServerException
(complete)
21
0,667
15
COOPException
(complete)
4
0,5
2
RSIValidationException
(complete)
25
0,667
18
BasicSystemException
(complete)
16
0,667
11
PesquisaAmbiguaException
(complete)
6
0,5
6
CPFBusinessException
(complete)
3
0,5
2
0,8
95
ADOPException
(complete)
6
0,5
5
AFBusinessException
(complete)
64
SIPSCRemoteBusinessException
(complete)
51
0,833
13
ConcurrentModificationException
(complete)
5
0,5
1
CDFBusinessException
(complete)
6
0,667
2
AssinaturaNaoIncluidaException
(complete)
1
0,5
1
SICCSException
(complete)
32
0,8
11
CartaoCidadaoException
(complete)
64
0,833
38
SOAPException
(complete)
22
0,667
14
TooManyRowsException
(complete)
112
0,667
18
SIPSCFatalException
(complete)
20
0,667
9
LimiteTemporalException
(complete)
4
0,5
2
0,8
28
SVIBusinessUserException
(complete)
18
0,75
12
GRConcurrencyException
(complete)
8
0,5
2
ContribuinteRegionalNotFoundException
(complete)
63
0,75
30
JDOFatalUserException
(complete)
124
0,947
49
0,667
5
SQLException
(complete)
9
0,667
7
IOException
(complete)
27
0,75
22
PessoaColectivaNotFoundException
(complete)
23
0,75
20
ServiceDelegateRemoteException
(complete)
3
0,5
2
0,5
5
PASException
(complete)
2
0,5
1
FileNotFoundException
(complete)
31
0,75
13
QgenMIParametrizedBusinessException
(complete)
1
0,5
1
ADOPMessageException
(complete)
3
0,5
2
LayoffException
(complete)
1
0,5
1
0,75
8
CMPException
(complete)
1
0,5
1
GREJBRemoteServiceException
(complete)
34
0,75
4
RSIPersistenceException
(complete)
24
0,75
4
CSIRemoteException
(complete)
3
0,5
1
SIPSCFatalRemoteCallException
(complete)
3
0,5
1
SIPSCDatabaseException
(complete)
1
0,5
1
BusinessException
(complete)
159
0,667
9
SVIBusinessException
(complete)
1
0,5
1
ParametrizedBusinessException
(complete)
2
0,5
2
GDServicesException
(complete)
4
0,5
3
ServerException
(complete)
132
0,75
16
PGException
(complete)
6
0,667
5
0,75
4
DESException
(complete)
135
0,667
13
0,667
2
0,75
9
SIPSCException
(complete)
27
0,75
9
ReportException
(complete)
5
0,667
2
SSNServiceException
(complete)
1
0,5
1
AFException
(complete)
1
0,5
1
InvalidNISSException
(complete)
14
0,75
4
0,75
14
GILConcurrencyException
(complete)
1
0,5
1
RSISystemException
(complete)
28
0,75
7
0,667
5
0,667
1
0,75
2
0,667
5
0,833
5
0,667
5
0,667
4
0,75
12
0,981
53
ADOPUserChoiceException
(complete)
1
0,5
1
0,667
5
RPCException
(complete)
1
0,5
1
GREJBConcurrencyException
(complete)
15
0,875
8
0,5
1
0,5
1
0,667
1
MoradaPortuguesaNotFoundException
(complete)
1
0,5
1
0,75
4
0,5
1
0,667
6
0,5
1
0,5
2
0,889
8
0,75
3
0,8
3
RSIException
(complete)
1
0,5
1
0,5
1
0,5
1
0,667
4
0,667
3
0,5
1
0,5
2
0,75
5
0,5
1
0,5
1
0,5
2
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,8
1
0,5
1
0,5
1
0,5
1
Fig.4.Spaghettimodelobtainedfromtheapplicationserverlogsusingtheheuristics
miner.
Usingthesequenceclusteringplug-inanditspreprocessingcapabilities,as
wellasthepossibilityofvisuallyadjustingtheclustermodelsaccordingtocertain
Healthcare

48. What is your
Favourite Italian Food?
48
UnderstandingSpaghettiModelswithSequenceClusteringforProM9
thoseexceptions.Figure4depictstheresultofafirstattempttoanalyzethe
applicationserverlogsusingtheheuristicsminer[4].
Exception
(complete)
187
EstabelecimentoNotFoundException
(complete)
187
0,991
152
GREJBPersistencyException
(complete)
179
0,909
159
PGWSException
(complete)
168
0,889
12
ITPTExternalServiceException
(complete)
183
0,944
162
SIPSCNoRecordsFoundException
(complete)
160
0,8
5
PessoaSingularNotFoundException
(complete)
138
0,667
3
BusinessLogicException
(complete)
183
0,75
4
SICCLException
(complete)
175
0,857
19
NaoExistemRegistosException
(complete)
143
0,833
6
RPCBusinessException
(complete)
38
0,75
3
SAFBusinessException
(complete)
115
0,8
68
GREJBBusinessException
(complete)
45
0,75
23
DESWSException
(complete)
14
0,667
14
NullPointerException
(complete)
104
0,8
91
ValidationException
(complete)
31
0,8
12
GILBusinessException
(complete)
14
0,5
6
GRServicesException
(complete)
7
0,667
3
CSIBusinessException
(complete)
14
0,5
6
ConcorrenciaException
(complete)
5
0,5
2
CSIPersistencyException
(complete)
3
0,5
2
0,857
34
ITPTServerException
(complete)
21
0,667
15
COOPException
(complete)
4
0,5
2
RSIValidationException
(complete)
25
0,667
18
BasicSystemException
(complete)
16
0,667
11
PesquisaAmbiguaException
(complete)
6
0,5
6
CPFBusinessException
(complete)
3
0,5
2
0,8
95
ADOPException
(complete)
6
0,5
5
AFBusinessException
(complete)
64
SIPSCRemoteBusinessException
(complete)
51
0,833
13
ConcurrentModificationException
(complete)
5
0,5
1
CDFBusinessException
(complete)
6
0,667
2
AssinaturaNaoIncluidaException
(complete)
1
0,5
1
SICCSException
(complete)
32
0,8
11
CartaoCidadaoException
(complete)
64
0,833
38
SOAPException
(complete)
22
0,667
14
TooManyRowsException
(complete)
112
0,667
18
SIPSCFatalException
(complete)
20
0,667
9
LimiteTemporalException
(complete)
4
0,5
2
0,8
28
SVIBusinessUserException
(complete)
18
0,75
12
GRConcurrencyException
(complete)
8
0,5
2
ContribuinteRegionalNotFoundException
(complete)
63
0,75
30
JDOFatalUserException
(complete)
124
0,947
49
0,667
5
SQLException
(complete)
9
0,667
7
IOException
(complete)
27
0,75
22
PessoaColectivaNotFoundException
(complete)
23
0,75
20
ServiceDelegateRemoteException
(complete)
3
0,5
2
0,5
5
PASException
(complete)
2
0,5
1
FileNotFoundException
(complete)
31
0,75
13
QgenMIParametrizedBusinessException
(complete)
1
0,5
1
ADOPMessageException
(complete)
3
0,5
2
LayoffException
(complete)
1
0,5
1
0,75
8
CMPException
(complete)
1
0,5
1
GREJBRemoteServiceException
(complete)
34
0,75
4
RSIPersistenceException
(complete)
24
0,75
4
CSIRemoteException
(complete)
3
0,5
1
SIPSCFatalRemoteCallException
(complete)
3
0,5
1
SIPSCDatabaseException
(complete)
1
0,5
1
BusinessException
(complete)
159
0,667
9
SVIBusinessException
(complete)
1
0,5
1
ParametrizedBusinessException
(complete)
2
0,5
2
GDServicesException
(complete)
4
0,5
3
ServerException
(complete)
132
0,75
16
PGException
(complete)
6
0,667
5
0,75
4
DESException
(complete)
135
0,667
13
0,667
2
0,75
9
SIPSCException
(complete)
27
0,75
9
ReportException
(complete)
5
0,667
2
SSNServiceException
(complete)
1
0,5
1
AFException
(complete)
1
0,5
1
InvalidNISSException
(complete)
14
0,75
4
0,75
14
GILConcurrencyException
(complete)
1
0,5
1
RSISystemException
(complete)
28
0,75
7
0,667
5
0,667
1
0,75
2
0,667
5
0,833
5
0,667
5
0,667
4
0,75
12
0,981
53
ADOPUserChoiceException
(complete)
1
0,5
1
0,667
5
RPCException
(complete)
1
0,5
1
GREJBConcurrencyException
(complete)
15
0,875
8
0,5
1
0,5
1
0,667
1
MoradaPortuguesaNotFoundException
(complete)
1
0,5
1
0,75
4
0,5
1
0,667
6
0,5
1
0,5
2
0,889
8
0,75
3
0,8
3
RSIException
(complete)
1
0,5
1
0,5
1
0,5
1
0,667
4
0,667
3
0,5
1
0,5
2
0,75
5
0,5
1
0,5
1
0,5
2
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,5
1
0,8
1
0,5
1
0,5
1
0,5
1
Fig.4.Spaghettimodelobtainedfromtheapplicationserverlogsusingtheheuristics
miner.
Usingthesequenceclusteringplug-inanditspreprocessingcapabilities,as
wellasthepossibilityofvisuallyadjustingtheclustermodelsaccordingtocertain
Healthcare

49. Our Goal
49
represents
Reality
Model

50. Towards Flexible BPM
• Flexibility by underspecification:
Model left incomplete, then “completed” at run
time.
Example: YAWL.
• Flexibility by change:
imperative, completely specified model that may
be modified at runtime.
Example: ADEPT.
50

51. Towards Flexible BPM
• Flexibility by deviation:
imperative model that supports more possibilities at
runtime, deviating from what prescribed in the
model.
Example: FLOWer.
• Flexibility by design:
the process modeling language directly supports
flexibility.
Example: Constraint-based modeling (Declare,
DCR Graphs).
51

52. Constraint-Based Modeling
52

53. Constraint-Based Modeling
Focus: whathas to be accomplished
• Explicit description of the relevant business constraints
• behavioral constraints, best practices, norms, rules, …
Openmodeling
• All behaviors are possible unless they are explicitly
forbidden
• Control-flow left implicit
53

54. Organizational Boundaries
54

55. Declare
55

56. Declare
56

57. Declare
• A declarative, constraint-based language for flexible
process modeling
• An execution engine for constraint-based processes
http://www.win.tue.nl/declare/
• Originally proposed by Pesic and van der Aalst
• Formalized by Pesic and van der Aaalst, and by _
• Two main abstractions: task, constraint
57

58. Constraints
• Much richer than the simple “precedence sequence
flow connector” of imperative languages
• Allow for:
• Presence/absence of tasks (do/not do … N times)
• Negative relationships (it is forbidden to…)
• Atemporal relationships (no order imposed)
• Temporal relationships, with different strengths
58

59. Flexible Shopper
59
Pick item
Close order Pay

60. Flexible Shopper
60
Pick item
Close order Pay
response

61. Constraint Features
Three dimensions:
• Type
• Temporal direction
• Strength
61

62. Constraint Types
Unary constraints (apply on a single task)
• Existence: you should/cannot do A (for a certain number of times)
Binary constraints (apply to two - or more - tasks)
• Choice: do A or B
• Relation: if A occurs, then B should also occur (when?)
• Negation: if A then B cannot occur
(when?)
Binary constraints may branch to represent potential alternatives
62

63. Constraint Direction
• Applies to relation/negation constraints
• “If A occurs, then B should/cannot occur …”
• No direction: “… either before or after”
• Response: “… in the future”
• Precedence: “… in the past”
• Example: If close order, then pay in the future
63

64. Constraint Strength
• Applies to relation/negation constraints
• If A occurs, then B should/cannot occur
• Normal
• Alternate: A cannot occur again until B occurs
• Chain: Immediate constraint (applies to tasks occurring next to each other)
• Example:
• If close order, then pay in the future
vs
• If close order, then do not close order again until pay in the future
vs
• If close order, then the next task is to pay
64

65. Graphical Appearance
65
3.5 Usability of ConDec 65
Table 3.8. Basic visual constitutive elements of ConDec’s constraints
concept notation
existence constraints 0..N, M..*, K (a l´a UML)
choice
♦
/ (a l´a decision gateway in BP modeling notations)
binary constraints − (normal)
= (alternate)
≡ (chain)
source of binary constraints •
negation ∥
temporal ordering −−
succession representation response + precedence part
(e.g. •−− • = •−−− + −−− •)
ones. As attested by the case study presented in Sect. 3.4, a variety of natural

66. Existence Constraints
66
50 3 The ConDec Language
Table 3.1. ConDec existence constraints
name graphical meaning
absence(a)
0
a Activity a cannot be executed
absence(n+1,a)
0..n
a
Activity a can be executed at most n times, i.e., the
execution trace cannot contain n + 1 occurrences of a
existence(n,a)
n..∗
a Activity a must be executed at least n times
exactly(n,a)
n
a Activity a must be executed exactly n times
init(a)
init
a Activity a must be the first executed activity
1..∗
order item
On the contrary, an absenceN constraint could be used to state that at most
three payment attempts can be made by the customer:
Examples:
ec existence constraints
graphical meaning
0
a Activity a cannot be executed
0..n
a
Activity a can be executed at most n times, i.e., the
execution trace cannot contain n + 1 occurrences of a
n..∗
a Activity a must be executed at least n times
n
a Activity a must be executed exactly n times
init
a Activity a must be the first executed activity
1..∗
order item
, an absenceN constraint could be used to state that at most
absence(n+1,a)
0..n
a
Activity a can be executed at most n times, i
execution trace cannot contain n + 1 occurrenc
existence(n,a)
n..∗
a Activity a must be executed at least n times
exactly(n,a)
n
a Activity a must be executed exactly n times
init(a)
init
a Activity a must be the first executed activity
1..∗
order item
On the contrary, an absenceN constraint could be used to state that a
three payment attempts can be made by the customer:
0..3
pay

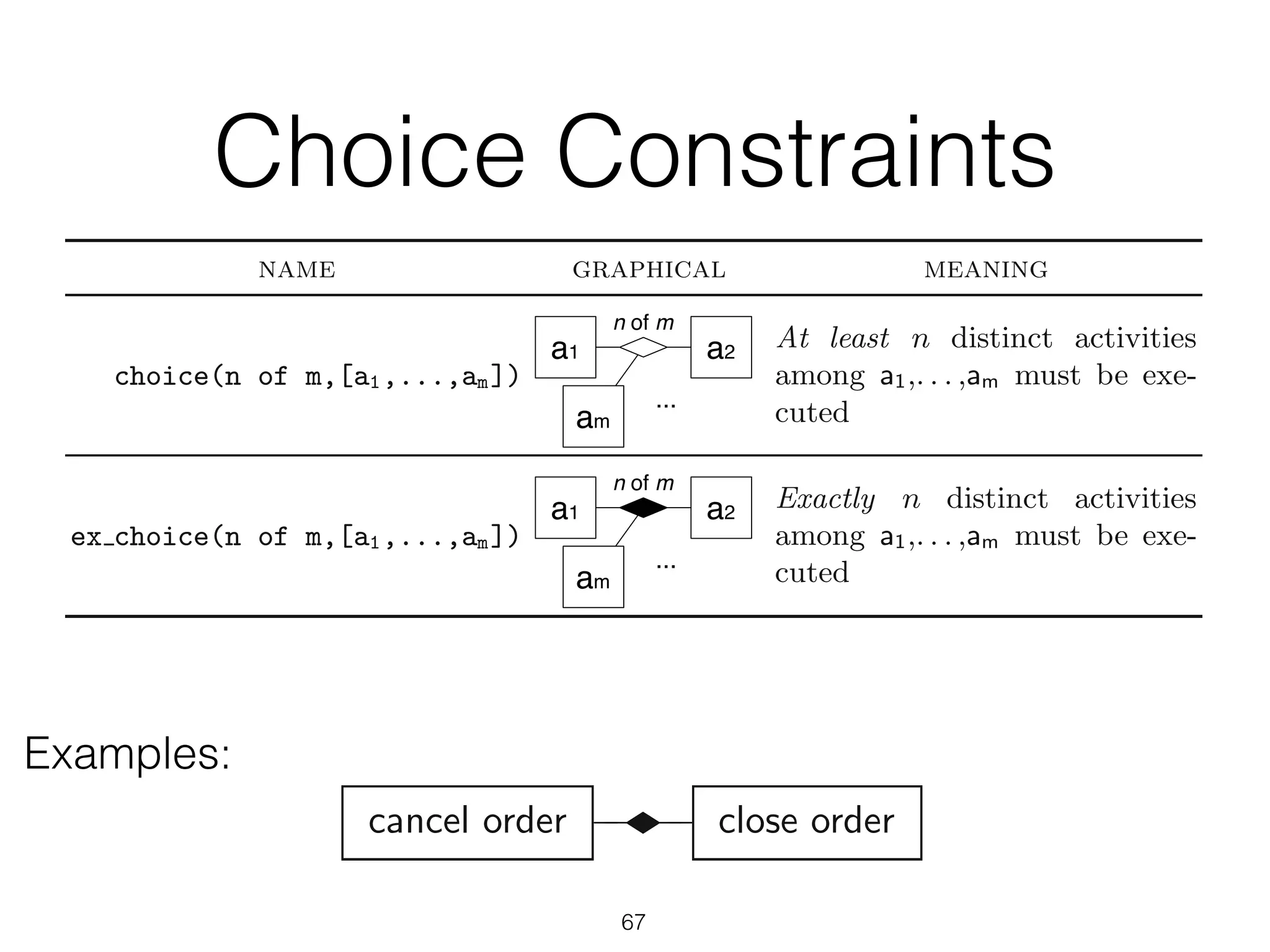

67. Choice Constraints
67
3.3 Constraints 51
Table 3.2. ConDec choice constraints
name graphical meaning
choice(n of m,[a1,...,am])
a1
am
a2
n of m
...
At least n distinct activities
among a1,. . . ,am must be exe-
cuted
ex choice(n of m,[a1,...,am])
a1
am
a2
n of m
...
Exactly n distinct activities
among a1,. . . ,am must be exe-
cuted
Note that the constraint supports an execution trace containing three submis-
sions of the paper (via e-mail and/or by using the web site), while it evaluates
a trace without submissions as noncompliant.
A 1 of 2-exclusive choice can be instead adopted to model the existence
between two alternatives that exclude each other. For example, it could be
used to state that, within an instance of the system, the customer commits
herself to cancel or successfully close the order, but not both:
Examples:
choice(n of m,[a1,...,am])
a1
am
a2
n of m
...
At least n distinct activitie
among a1,. . . ,am must be exe
cuted
x choice(n of m,[a1,...,am])
a1
am
a2
n of m
...
Exactly n distinct activitie
among a1,. . . ,am must be exe
cuted
ote that the constraint supports an execution trace containing three submis
ons of the paper (via e-mail and/or by using the web site), while it evaluate
trace without submissions as noncompliant.
A 1 of 2-exclusive choice can be instead adopted to model the existenc
etween two alternatives that exclude each other. For example, it could b
sed to state that, within an instance of the system, the customer commit
erself to cancel or successfully close the order, but not both:
cancel order −− −− close order
It is worth noting that choice constraints, together with the existence

68. 68
name graphical meaning
resp existence([a], [b]) a •−−−− b
If a is executed, then b must be exe-
cuted before or after a
coexistence([a],[b]) a •−−−• b
Neither a nor b is executed, or they
are both executed
response([a],[b]) a •−−− b
If a is executed, then b must be exe-
cuted thereafter
precedence([a],[b]) a −−− • b
b can be executed only if a has been
previously executed
succession([a],[b]) a •−− • b
a and b must be executed in succes-
sion, i.e. b must follow a and a must
precede b
alt response([a],[b]) a •=== b
b is response of a and between every
two executions of a, b must be exe-
cuted at least once
alt precedence([a],[b]) a === • b
a is precedence of b and between ev-
ery two executions of b, a must be
executed at least once
alt succession([a],[b]) a •== • b
b is alternate response of a, and a is
alternate precedence of b
chain response([a],[b]) a •=−=−=− b
If a is executed, then b must be exe-
cuted next (immediately after a)
chain precedence([a],[b]) a =−=−=− • b
If b is executed, then a must have
been executed immediately before b
chain succession([a],[b]) a •=−=− • b
a and b must be executed in sequence
(next to each other)
RelationConstraints

69. 69
NegationConstraints
Table 3.4. ConDec negation constraints
name graphical meaning
resp absence([a],[b]) a •−−−−∥ b
If a is executed, then b can never
be executed
not coexistence([a],[b]) a •−−−•∥ b a and b exclude each other
neg response([a],[b]) a •−−−∥ b b cannot be executed after a
neg precedence([a],[b]) a −−− •∥ b a cannot be executed before b
neg succession([a],[b]) a •−− •∥ b
a and b cannot be executed in
succession
neg alt response([a],[b]) a •===∥ b
b cannot be executed between
any two occurrences of a
neg alt precedence([a],[b]) a === •∥ b
a cannot be executed between
any two bs
neg alt succession([a],[b]) a •== •∥ b
b cannot be executed between
any two as and viceversa
neg chain response([a],[b]) a •=−=−=−∥ b b cannot be executed next to a
neg chain precedence([a],[b]) a =−=−=− •∥ b
a cannot be executed immedi-
ately before b
neg chain succession([a],[b]) a •=−=− •∥ b
a and b cannot be executed in
sequence

70. Choreography Example
• An order can be finalized at most once
• Once an order is finalized, it must be confirmed or rejected
• A confirmed order may be rejected later on (due to “late”
problems), but not vice-versa: a reject cannot be reverted.
• An order can be confirmed only if it shipped before.
• An order may be rejected autonomously by the seller.
However, if the warehouse notifies the seller of a shipment
issue, then the seller has to reject the order.
• The warehouse decision is firm: “Ship” and “Notify
shipment issue” are mutually exclusive.
70

71. Modeling in Declare
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
71

72. 0..1
Modeling in Declare
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
72
An order can be
finalized at most once

73. 0..1
Modeling in Declare
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
73
Once an order is finalized, it must
be confirmed or rejected

74. 0..1
Modeling in Declare
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
74
A confirmed order may be rejected
later on, but not vice-versa

75. 0..1
Modeling in Declare
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
75
if the warehouse notifies the seller of a shipment
issue, then the seller has to reject the order
An order can be confirmed only if
it shipped before

76. 0..1
Modeling in Declare
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
76
Mutually
exclusive

77. Linear temporal logic over finite traces (LTLf): propositional
logic enriched with temporal operators
• Models: words over the alphabet of tasks -> exactly one
task at a time!
• Constraints: formulae over tasks
N.B.: there is a huge difference between “standard” LTL and LTLf (not
discussed here)
Constraint Semantics
77
3.6 Linear Temporal Logic 69
Table 3.9. LTL temporal operators
op. name meaning intuition
current state
⃝φ (Next time) φ will hold in the next state
♦φ (Eventually) φ will hold sometimes in the future
φ (Globally) φ will always hold in the future
ψUφ (Until) φ will hold in a future moment, ψ
will always hold until that moment
• atomic propositions, i.e., events, together with the two special constants
true and false;
• classical propositional connectives, i.e., ¬, ∧, ∧ and ⇒;

78. Formalization Example
78
Moored
Under way
using engine
Under way
sailing
constrained by
her draught

79. Formalization Example
79
Moored
Under way
using engine
Under way
sailing
constrained by
her draught
¬⇤c _ ¬c Us
¬(⌃e ^ ⌃s)
Model formula: conjunction of all constraint formulae
⇤(m ! ⌃e)

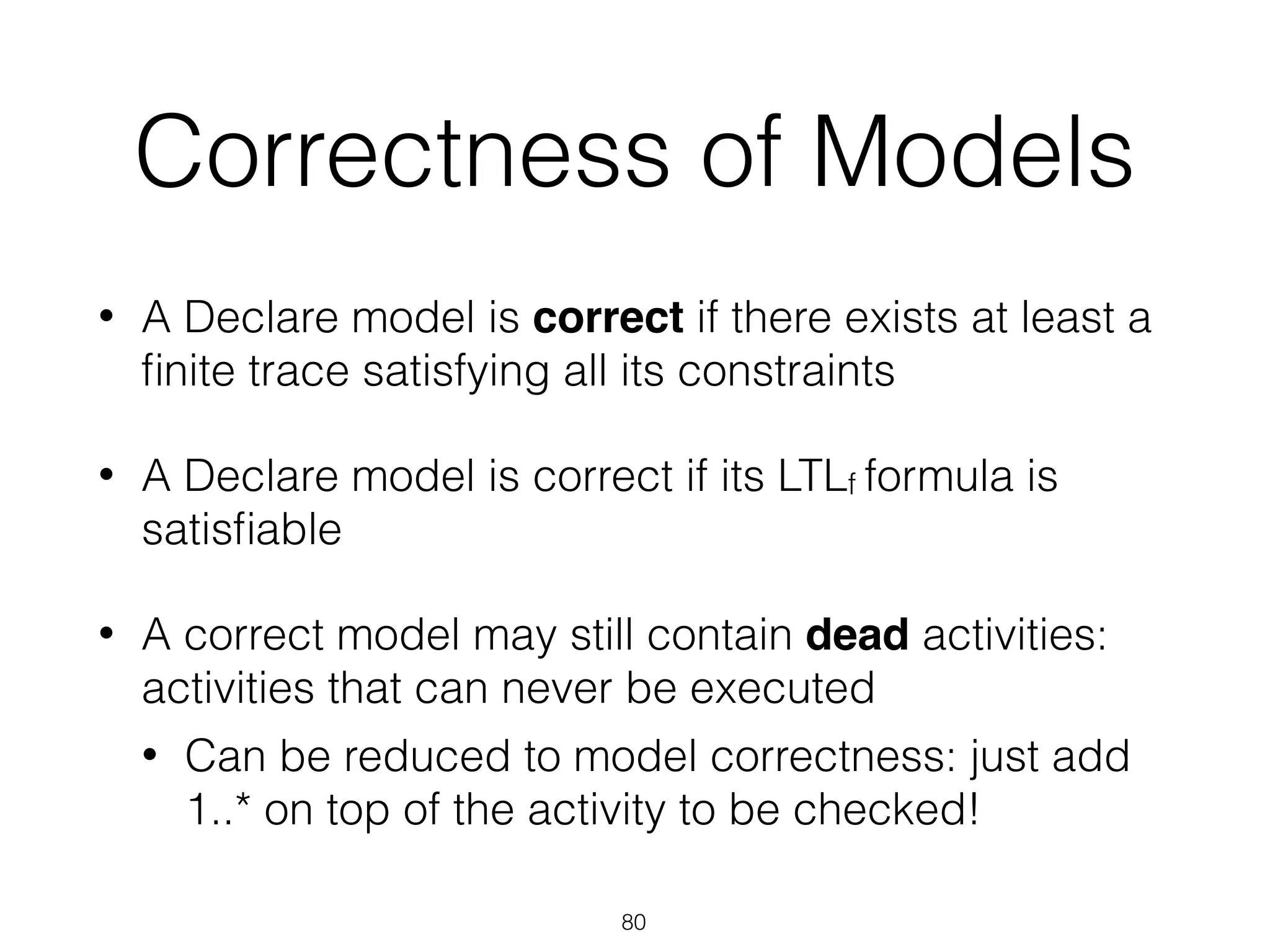

80. Correctness of Models
• A Declare model is correct if there exists at least a
finite trace satisfying all its constraints
• A Declare model is correct if its LTLf formula is
satisfiable
• A correct model may still contain dead activities:
activities that can never be executed
• Can be reduced to model correctness: just add
1..* on top of the activity to be checked!
80

81. 1..*
Example 1
81
a c
b

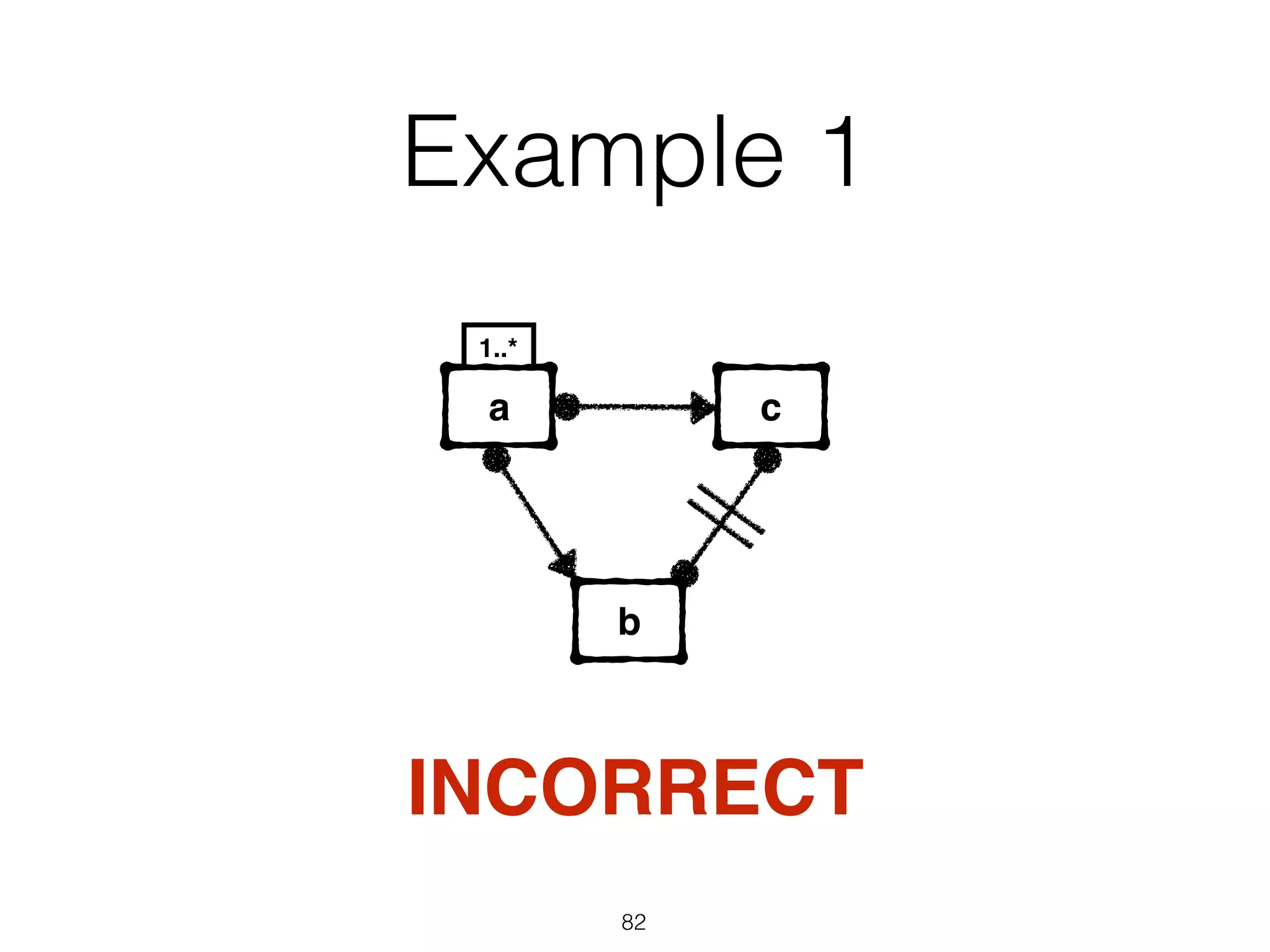

82. 1..*
Example 1
82
a c
b
INCORRECT

83. 0..1
Example 2
83
a c
b

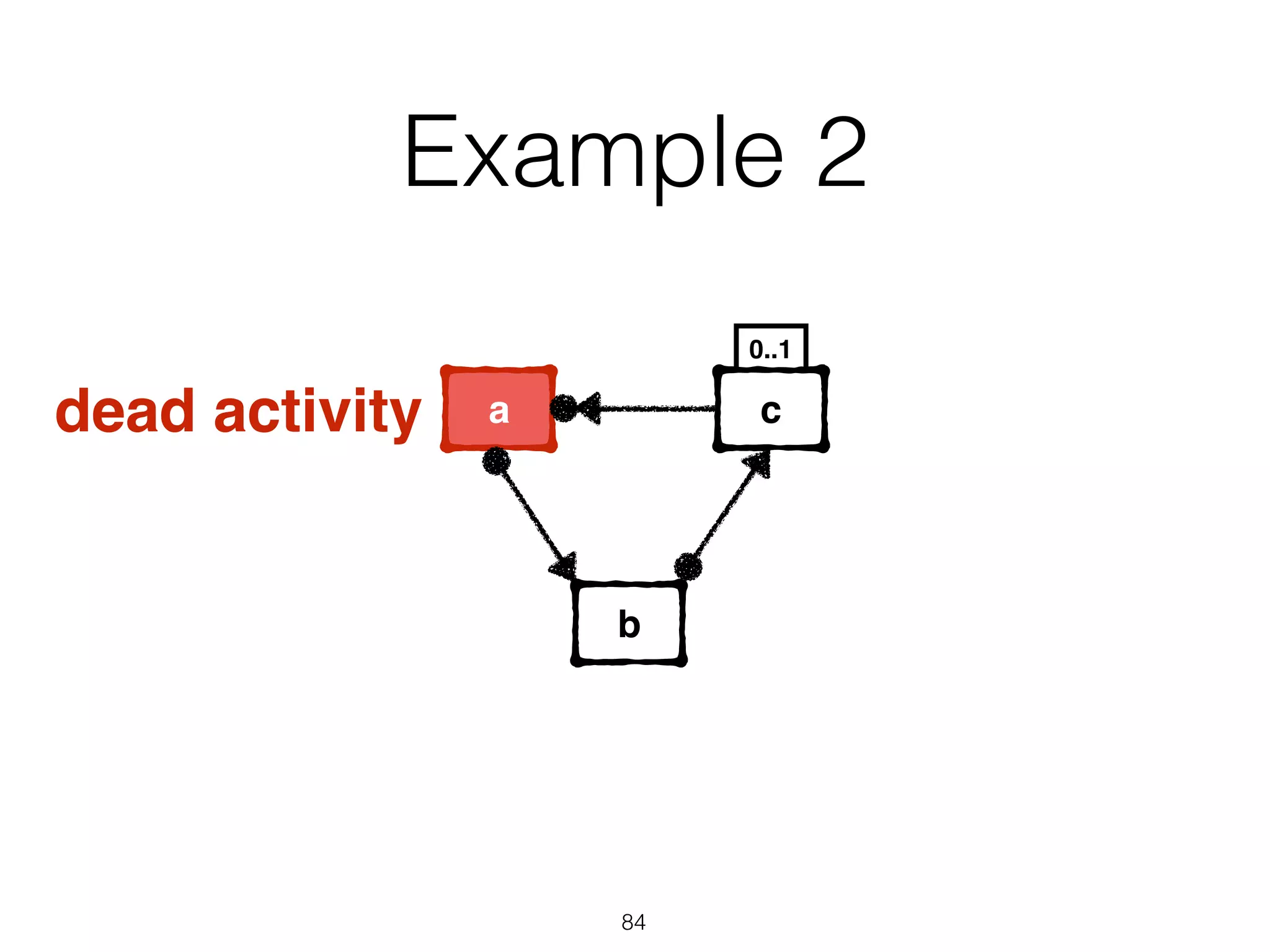

84. 0..1
Example 2
84
a c
b
dead activity

85. 0..1
Example 2
85
a c
b
dead activity
1..* 0..1
a c
b
INCORRECT!

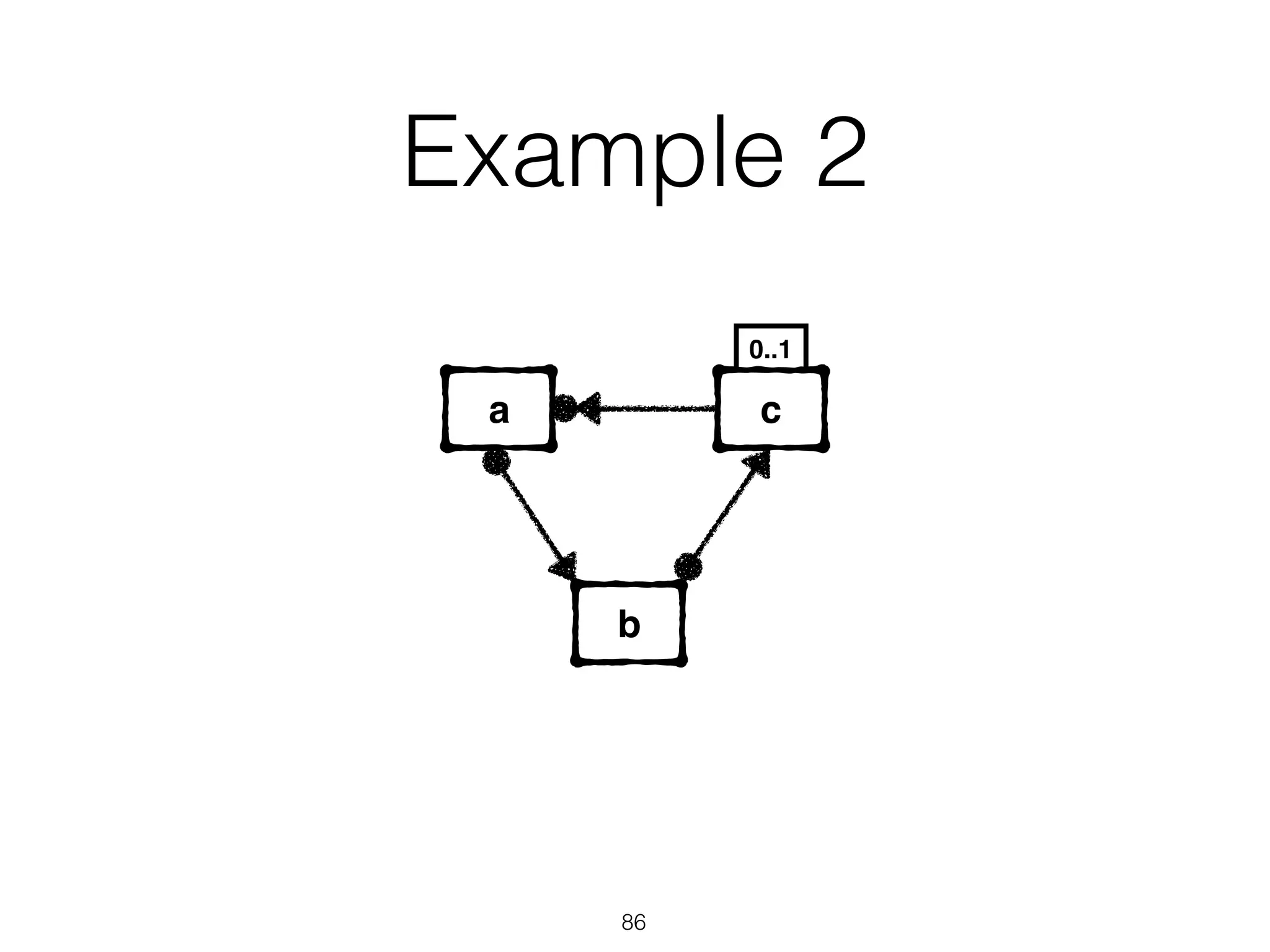

86. 0..1
Example 2
86
a c
b

87. Example 3
87
1..*
a b

88. Example 3
88
1..*
a b
INCORRECT
(finite traces)

89. Process Responsibilities
• History recognition: given the history of a running
instance, compute the current state (or reject)
• Todo list: given the current state, tell
which tasks can(not) be executed next
(including possibility of termination)
• Update: given a state and a task,
determine the new state
S
A
B
C
S
SnewS
89

90. RV-LTL Truth Values
Refined analysis of the “truth value” of a constraint.
Consider a partial trace t, and a constraint C
• C is permanently satisfied if t satisfies C and no matter
how t is extended, C will stay satisfied
• C is temporarily satisfied if t satisfies C but there is a
continuation of t that violates C
• C is temporarily violated if t violates C but there is a
continuation that leads to satisfy C
• C is permanently violated if t violates C and no matter
how t is extended, C will stay violated
90

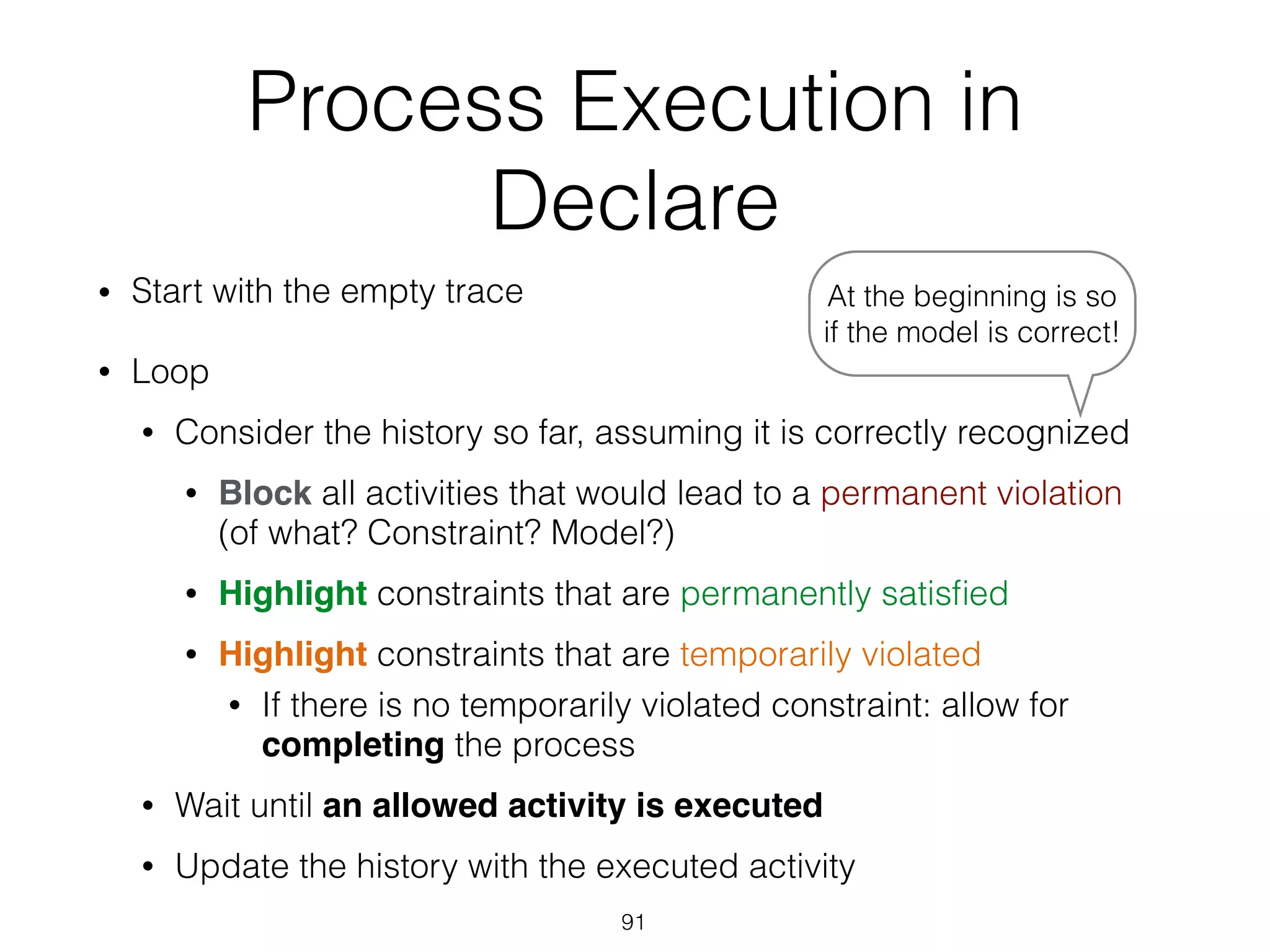

91. Process Execution in
Declare
• Start with the empty trace
• Loop
• Consider the history so far, assuming it is correctly recognized
• Block all activities that would lead to a permanent violation
(of what? Constraint? Model?)
• Highlight constraints that are permanently satisfied
• Highlight constraints that are temporarily violated
• If there is no temporarily violated constraint: allow for
completing the process
• Wait until an allowed activity is executed
• Update the history with the executed activity
91
At the beginning is so
if the model is correct!

92. Execution
92
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue

93. Initial Situation
93
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
May complete now…

94. “Finalize Order”
94
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue

95. “Notify Shipment Issue”
95
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue

96. “Reject Order”
96
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
May complete now…

97. Another Execution
97
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue

98. Initial Situation
98
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
May complete now…

99. “Finalize Order”
99
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue

100. “Ship”
100
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue

101. “Confirm Order”
101
0..1
Finalize order
Confirm
order
Reject
order
Ship
Notify
shipment issue
May complete now…

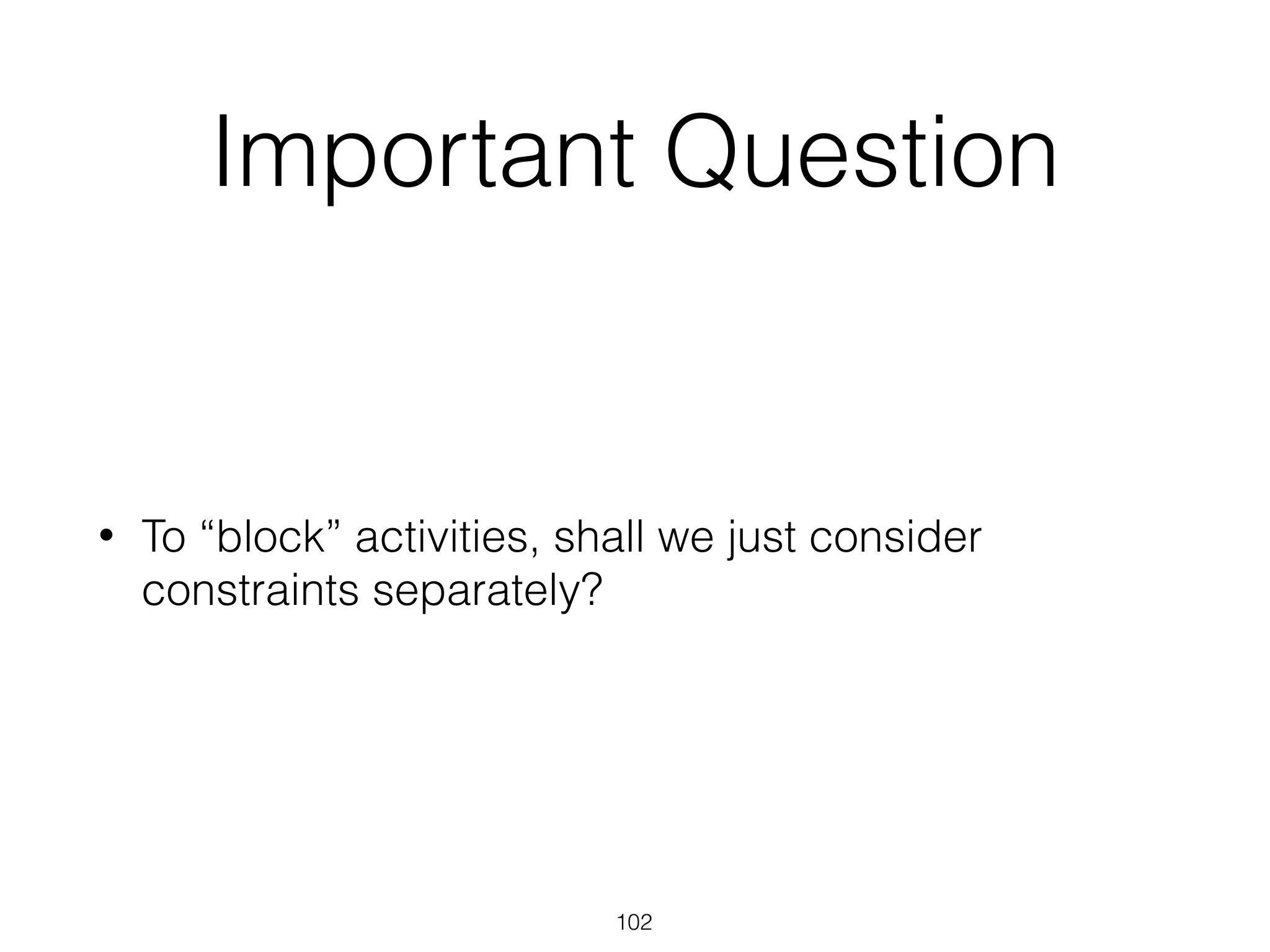

102. Important Question
• To “block” activities, shall we just consider
constraints separately?
102

103. Hidden Dependencies
103
Ship
Notify
shipment issue
Pick package Insert material Close package

104. Initial State
104
Ship
Notify
shipment issue
Pick package Insert material Close package
May complete now…

105. Initial State
105
Ship
Notify
shipment issue
Pick package Insert material Close package
May complete now…
What if I executed this?

106. “Notify Shipment Issue”
106
Ship
Notify
shipment issue
Pick package Insert material Close package
May complete now…
!!!

107. How to Implement This?
Automata to the Rescue!
107

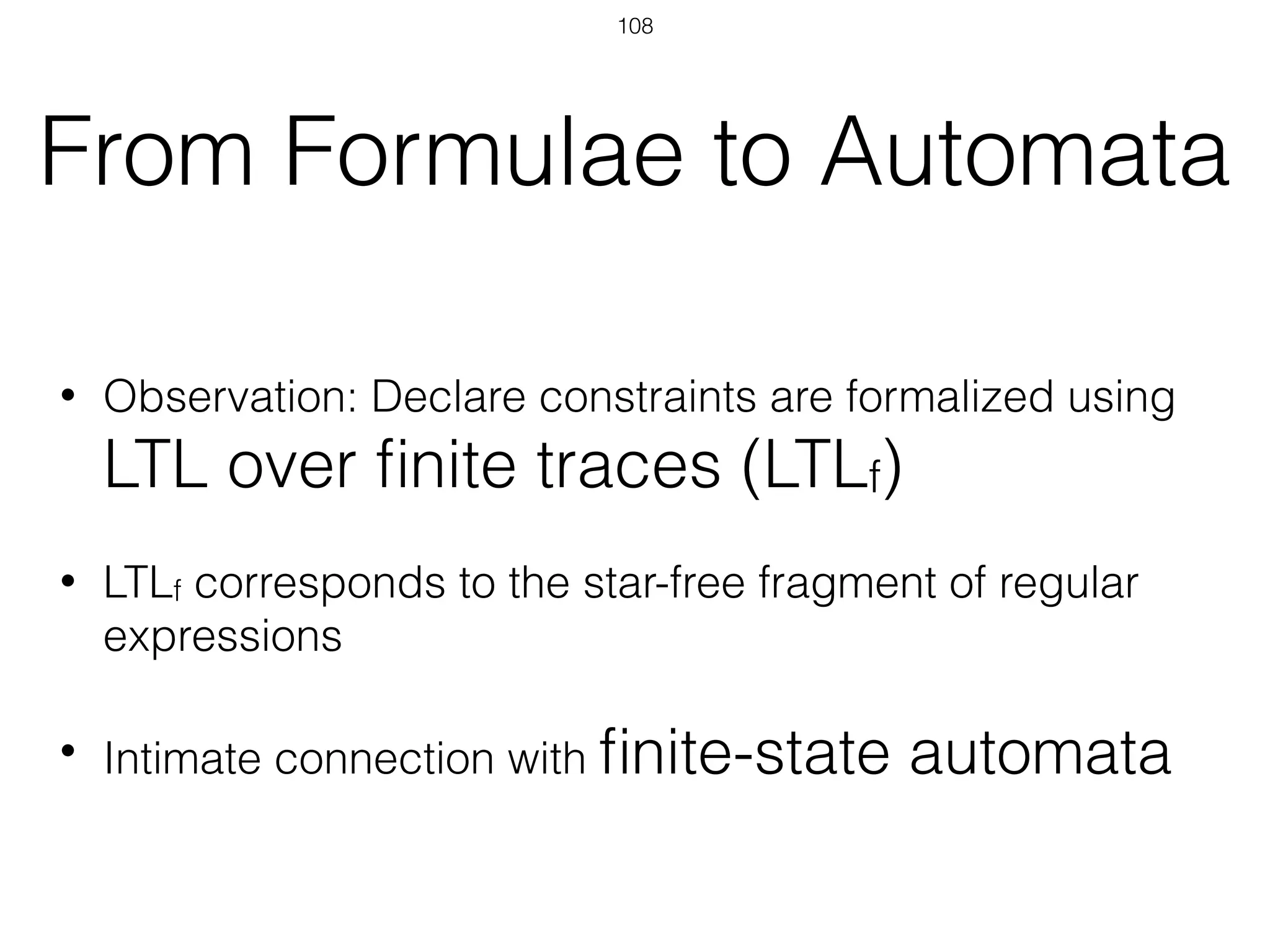

108. From Formulae to Automata
• Observation: Declare constraints are formalized using
LTL over finite traces (LTLf)
• LTLf corresponds to the star-free fragment of regular
expressions
• Intimate connection with finite-state automata
108

109. Declare 2 DFA
'
LTLf NFA
nondeterministic
DFA
deterministic
LTLf2aut determin.
109

110. Declare 2 DFA
LTLf NFA
nondeterministic
DFA
deterministic
LTLf2aut determin.
A process!
• allowed tasks: alphabet, task: symbol, trace: word
• history recognition —> word prefix recognition
• todo list —> return next symbols
• update —> transition
110
'

111. Local Automata
• For each constraint, we take its LTLf formula, and
compute the corresponding DFA
• This DFA accepts all and only the execution traces
that lead to satisfy (pemanently or temporarily) the
constraint
111

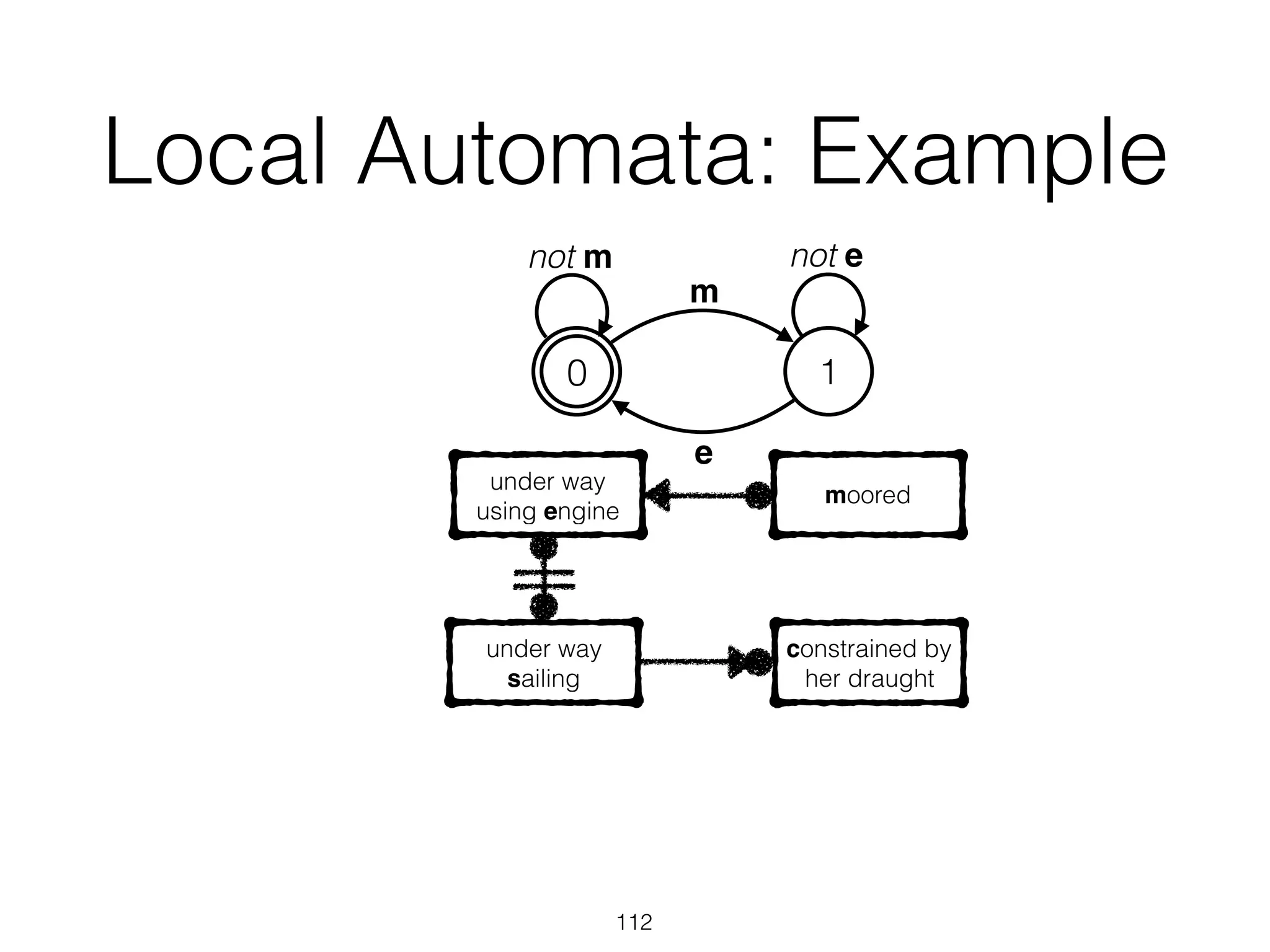

112. Local Automata: Example
112
00 1
m
e
not m not e
moored
under way
using engine
under way
sailing
constrained by
her draught

113. Local Automata: Example
113
0
s
c
not {c,s}
true1
0 true
moored
under way
using engine
under way
sailing
constrained by
her draught

114. Local Automata: Example
114
moored
under way
using engine
under way
sailing
constrained by
her draught
s
e
not s
true00
not {s,e}
1
2
3
e
s
not e
1
2

115. Coloring local automata
We color the states of each local automaton with their
corresponding RV-LTL truth values
• State permanently satisfied: it is final and cannot
reach a non-final state
• State temporarily satisfied: it is final but can reach a
non-final state
• State permanently violated: it is non-final and cannot
reach a final state
• State temporarily violated: it is non-final but can
reach a final state
115

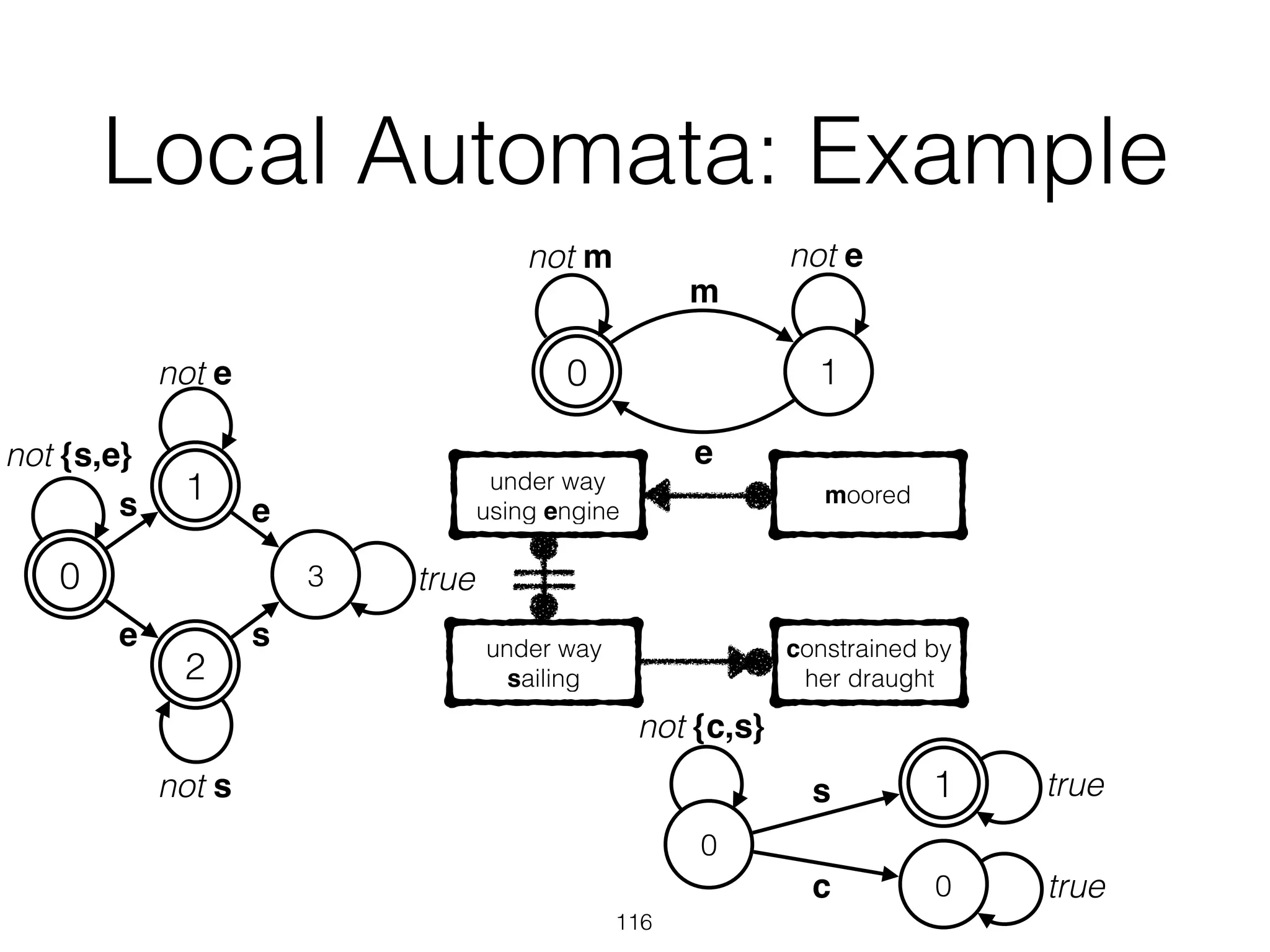

116. Local Automata: Example
116
moored
under way
using engine
under way
sailing
constrained by
her draught
0
s
c
not {c,s}
true1
0 true
00 1
m
e
not m not e
s
e
not s
true00
not {s,e}
1
2
3
e
s
not e
1
2

117. Local Automata: Example
117
moored
under way
using engine
under way
sailing
constrained by
her draught
0
s
c
not {c,s}
true1
0 true
00 1
m
e
not m not e

118. Local Automata: Example
118
moored
under way
using engine
under way
sailing
constrained by
her draught
0
s
c
not {c,s}
true1
0 true
00 1
m
e
not m not e
s
e
not s
true00
not {s,e}
1
2
3
e
s
not e
1
2

119. Local Automata: Example
119
moored
under way
using engine
under way
sailing
constrained by
her draught
0
s
c
not {c,s}
true1
0 true
00 1
m
e
not m not e
s
e
not s
true00
not {s,e}
1
2
3
e
s
not e
1
2

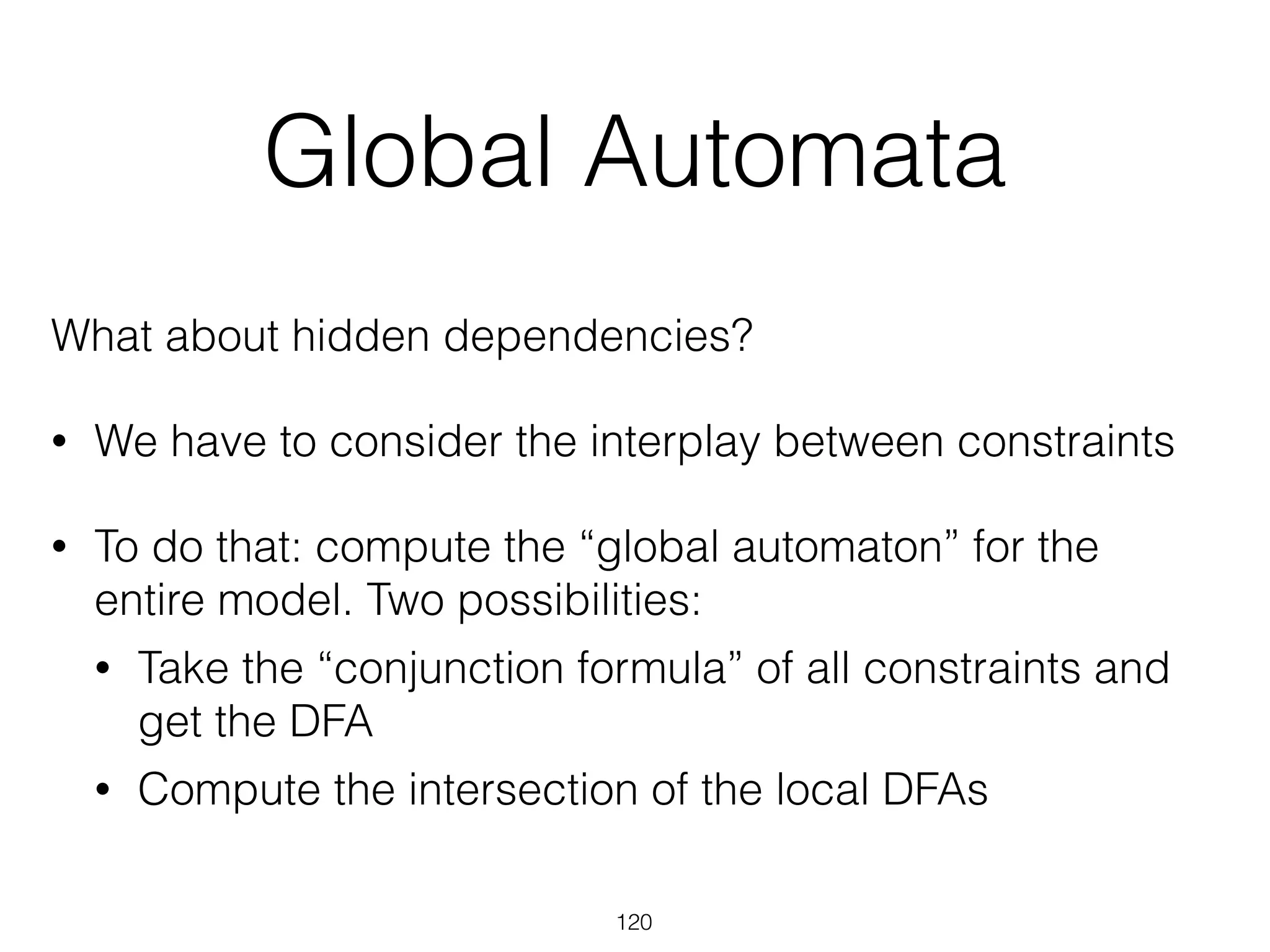

120. Global Automata
What about hidden dependencies?
• We have to consider the interplay between constraints
• To do that: compute the “global automaton” for the
entire model. Two possibilities:
• Take the “conjunction formula” of all constraints and
get the DFA
• Compute the intersection of the local DFAs
120

121. Can you Digest Spaghetti?
121

122. Declare 2 DFA: Complexity
'
LTLf NFA
nondeterministic
DFA
deterministic
LTLf2aut determin.
exponential
blow-up
exponential
blow-up
122

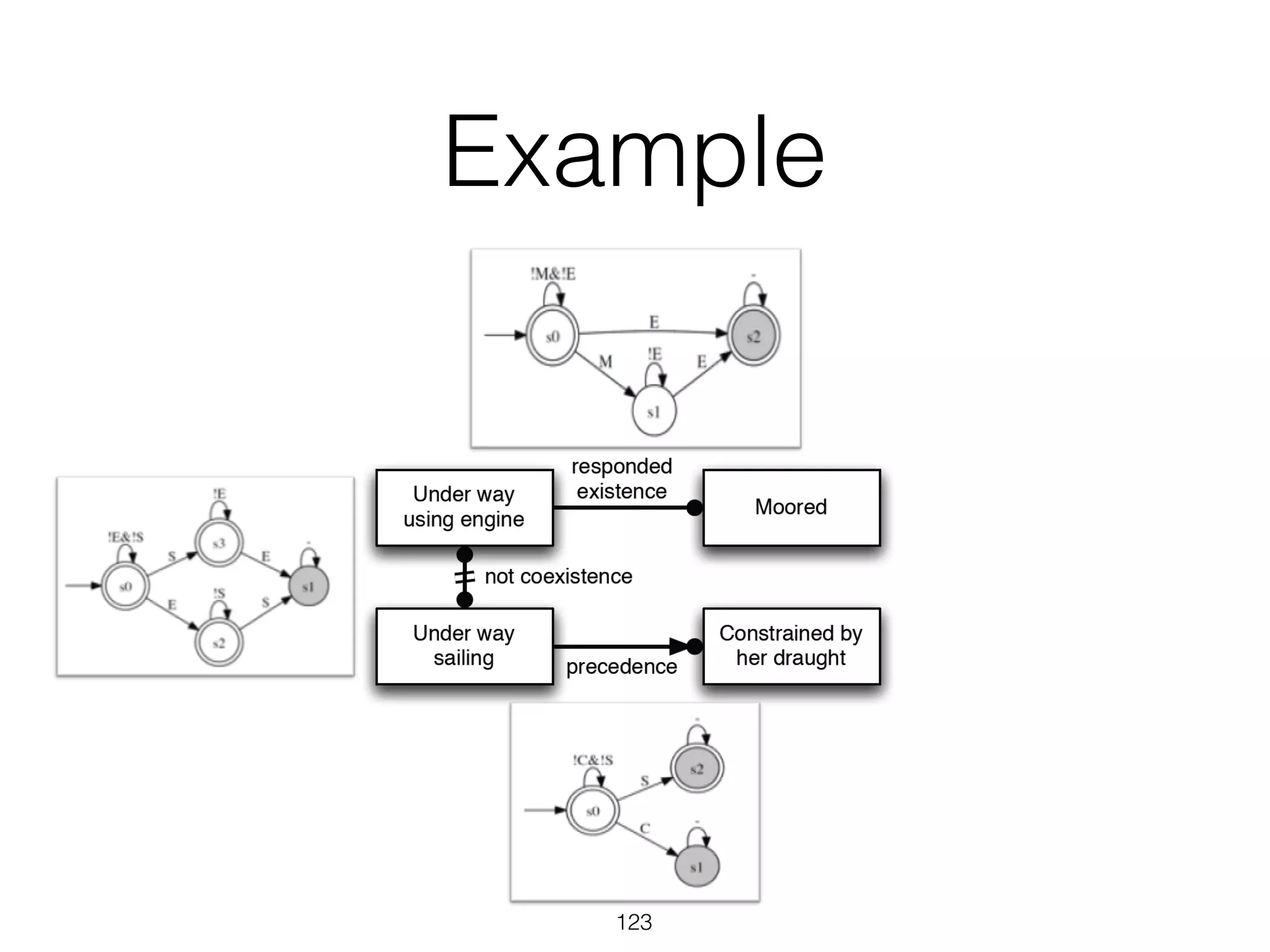

123. 123
Example

124. 124

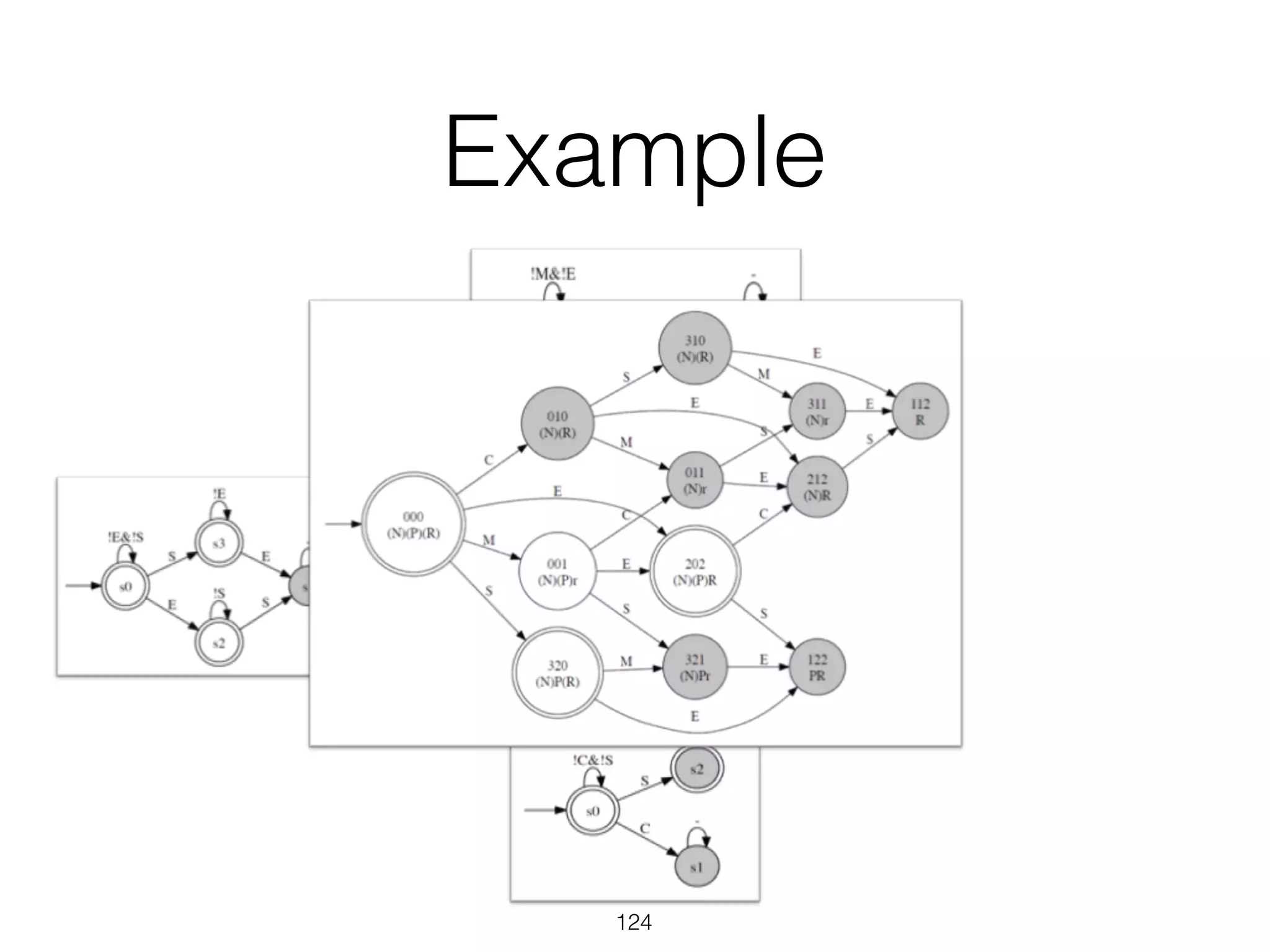

Example

125. Automaton: Design Time
Correctness of a Declare model reduced to
nonemptiness of the corresponding automaton
1. Obtain the LTLf formula for the model
2. Compute the corresponding DFA
3. Check whether the DFA is (non)empty
(if nonempty, there is at least one trace that
is accepted)
125

126. Runtime: Global Automaton
By computing the global DFA as the intersection of the
local colored DFAs, we can get a global DFA that retains
all “local colors”, and use it directly to manage the
execution!
126

127. Conclusion
• Turbulent, unpredictable, knowledge-intensive environments
demands flexibility
• Constraint-based approaches provide a declarative way to
capture flexible processes
• Declare does this by exploiting temporal logics over finite
traces: a compact way to represent spaghetti processes
• Flexible processes demand reasoning support for their
understanding and correct execution
• The automata-theoretic characterization of temporal logics gives
a “correct by design” computation mechanism for: model
verification, execution, monitoring, discovery, conformance
checking!
127

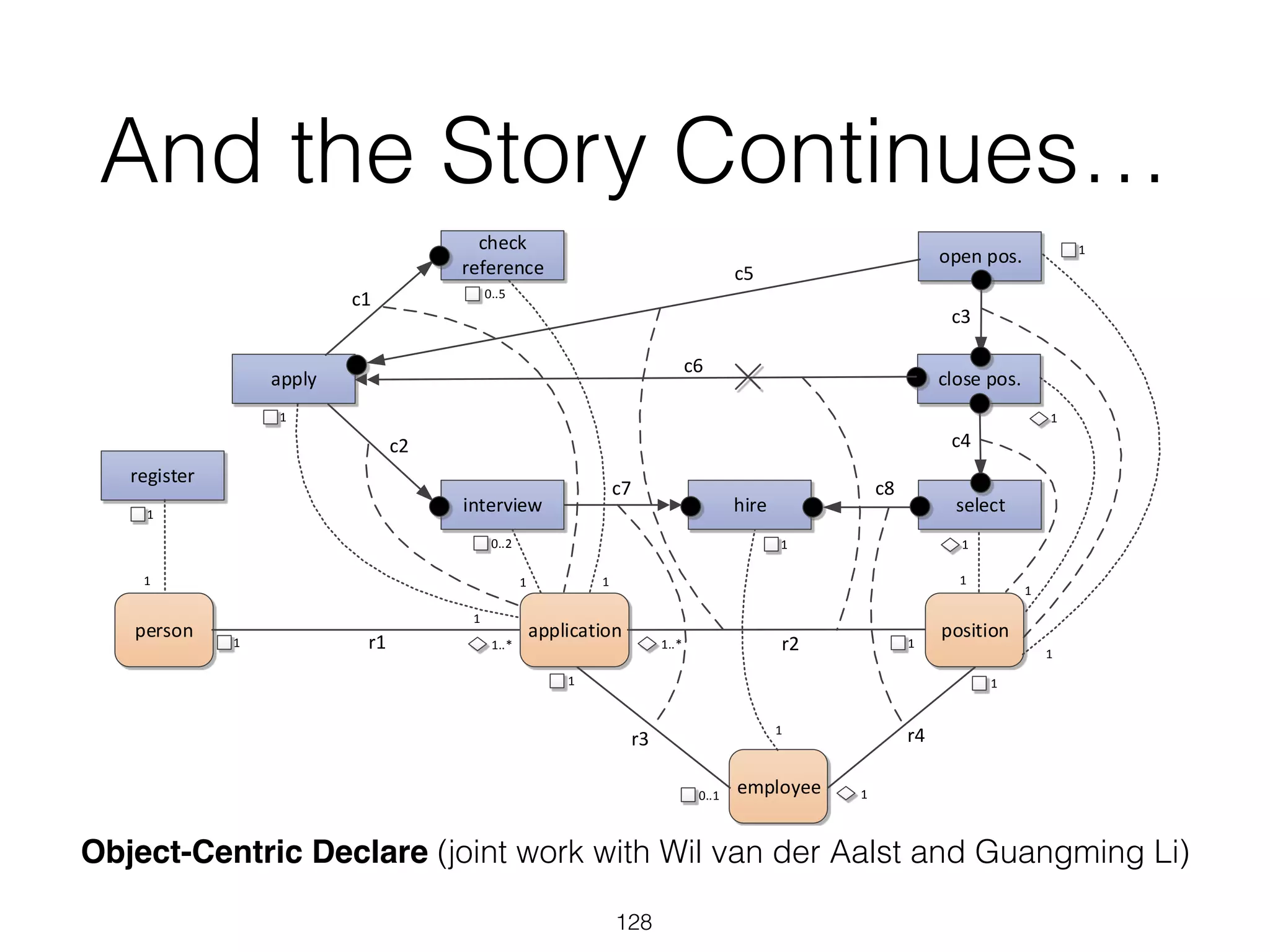

128. And the Story Continues…
128
Conformance Checking Using Object-Centric Behavioral Constraints 21
register
applicationperson position
1
employee
1
1
1
1..*
0..1
r1 r2
r3
11..*
1
1
r4
open pos.
close pos.
selecthire
apply
check
reference
interview
1
1
1
0..2
1
1
1
1
1
1
1
0..5
1
1
c1
c2
c3
c4
c5
c6
c7 c8
Fig. 13. An OCBC model modeling a hiring process.
Object-Centric Declare (joint work with Wil van der Aalst and Guangming Li)

129. References
Declare and its formalizations
• M. Pesic and W. van der Aalst, A Declarative Approach for Flexible
Business Processes Management, in Proceedings of the Business Process
Management Workshops. Springer-Verlag, 2006, vol. 4103, pp. 169-180.
• M. Montali, M. Pesic, W. M. P. van der Aalst, F. Chesani, P. Mello, and S.
Storari, Declarative specification and verification of service
choreographies, ACM Trans. Web, vol. 4, pp. 3:1–3:62, 2010.
• M. Montali. Specification and Verification of Declarative Open Interaction
Models: a Logic- Based Approach, vol. 56 of Lecture Notes in Business
Information Processing. Springer-Verlag, 2010. ISBN: 978-3-642-14537-7.
• M. Westergaard, Better Algorithms for Analyzing and Enacting
Declarative Workflow Languages Using LTL, in Proceedings of the 9th
International Conference on Business Process Management, Springer-
Verlag, 2011, pp. 83-98.
129

130. References
Declare Execution Environment
• M. Pesic, H. Schonenberg, and W. M. P. van der Aalst, DECLARE: Full
Support for Loosely-Structured Processes, in Proceedings of the 11th
IEEE International Enterprise Distributed Object Computing Conference,
Washington, DC, USA: IEEE Computer Society, 2007, pp. 287–300.
• M. Pesic, M. Schonenberg, N. Sidorova, and W. van der Aalst, Constraint-
Based Workflow Models: Change Made Easy, in On the Move to
Meaningful Internet Systems 2007: CoopIS, DOA, ODBASE, GADA, and
IS, R. Meersman and Z. Tari, Ed., Springer Berlin / Heidelberg, 2007, vol.
4803, pp. 77-94.
• M. Pesic, H. Schonenberg, and W. Aalst, The Declare Service, in Modern
Business Process Automation, Springer-Verlag, 2010, pp. 327-343.
• M. Westergaard, F. M. Maggi, Declare: A Tool Suite for Declarative
Workflow Modeling and Enactment, BPM (Demos) 2011.
130

131. References
Monitoring Declare constraints
• F. M. Maggi, M. Montali, M. Westergaard, and W. M. P. van der Aalst, Monitoring
Business Constraints with Linear Temporal Logic: An Approach Based on
Colored Automata, in Proceedings of the 9th International Conference on
Business Process Management, Springer-Verlag, 2011, pp. 132-147.
• F. M. Maggi, M. Westergaard, M. Montali, W. M. P. van der Aalst,
Runtime Verification of LTL-Based Declarative Process Models.: Proceedings
of the 2th International Conference on Runtime Verification, Springer-Verlag, 2011,
pp. 131-146.
• M. Montali, F. M. Maggi, F. Chesani, P. Mello, W. M. P. van der Aalst,
Monitoring business constraints with the event calculus. ACM Trans. on
Intelligent Systems and Technology 5(1): 17, 2013.
• G. De Giacomo, R. De Masellis, M. Grasso, F. M. Maggi, M. Montali,
Monitoring Business Metaconstraints Based on LTL and LDL for Finite Traces,
Proceedings of the 12th International Conference on Business Process
Management, Springer-Verlag, 2014, pp. 1-17.
131

132. References
Discovering Declare constraints
• F. Chesani, E. Lamma, P. Mello, M. Montali, F. Riguzzi, S. Storari, Exploiting Inductive Logic Programming Techniques
for Declarative Process Mining. Trans. Petri Nets and Other Models of Concurrency 2: 278-295, 2009.
• F. Maria Maggi, A. J. Mooij, W. M. P. van der Aalst, User-guided discovery of declarative process models. In
Proceedings of the IEEE Symposium on Computational Intelligence and Data Mining, Springer-Verlag, 2011, pp. 192-199.
• F. M. Maggi, R. P. J. Chandra Bose, W. M. P. van der Aalst, Efficient Discovery of Understandable Declarative Process
Models from Event Logs. In Proceedings of the 24th International Conference on Advanced Information Systems
Engineering, Springer-Verlag, 2012, pp. 270-285.
• F. M. Maggi, M. Dumas, L. García-Bañuelos, M. Montali, Discovering Data-Aware Declarative Process Models from
Event Logs. In Proceedings of the 11th International Conference on Business Process Management, Springer-Verlag,
2013, pp. 81-96.
• F. M. Maggi, Declarative Process Mining with the Declare Component of ProM. BPM (Demos) 2013.
• C. Di Ciccio, M- Mecella, On the Discovery of Declarative Control Flows for Artful Processes. ACM Trans.
Management Inf. Syst. 5(4): 24:1-24:37, 2015.
• C. Di Ciccio, F. M. Maggi, M. Montali, J. Mendling, Ensuring Model Consistency in Declarative Process Discovery. In
Proceedings of the 13th International Conference on Business Process Management, Springer-Verlag, 2015, pp. 144-159.
• C. Di Ciccio, F. M. Maggi, M. Montali, J. Mendling, Semantical Vacuity Detection in Declarative Process Mining. n
Proceedings of the 15th International Conference on Business Process Management, Springer-Verlag, 2016, pp. 158-175.
132
