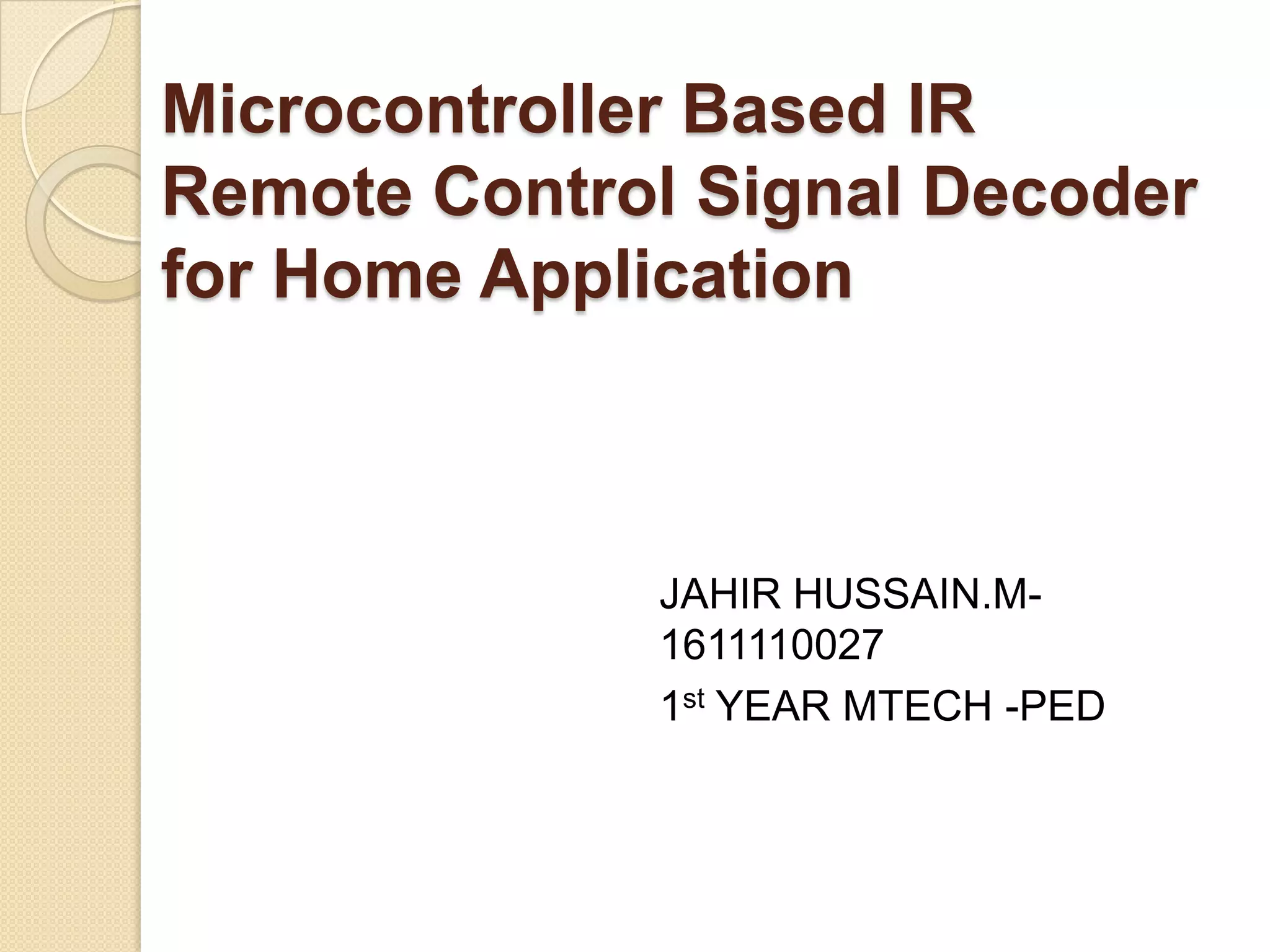

1. Microcontroller Based IR
Remote Control Signal Decoder
for Home Application
JAHIR HUSSAIN.M-
1611110027
1st YEAR MTECH -PED

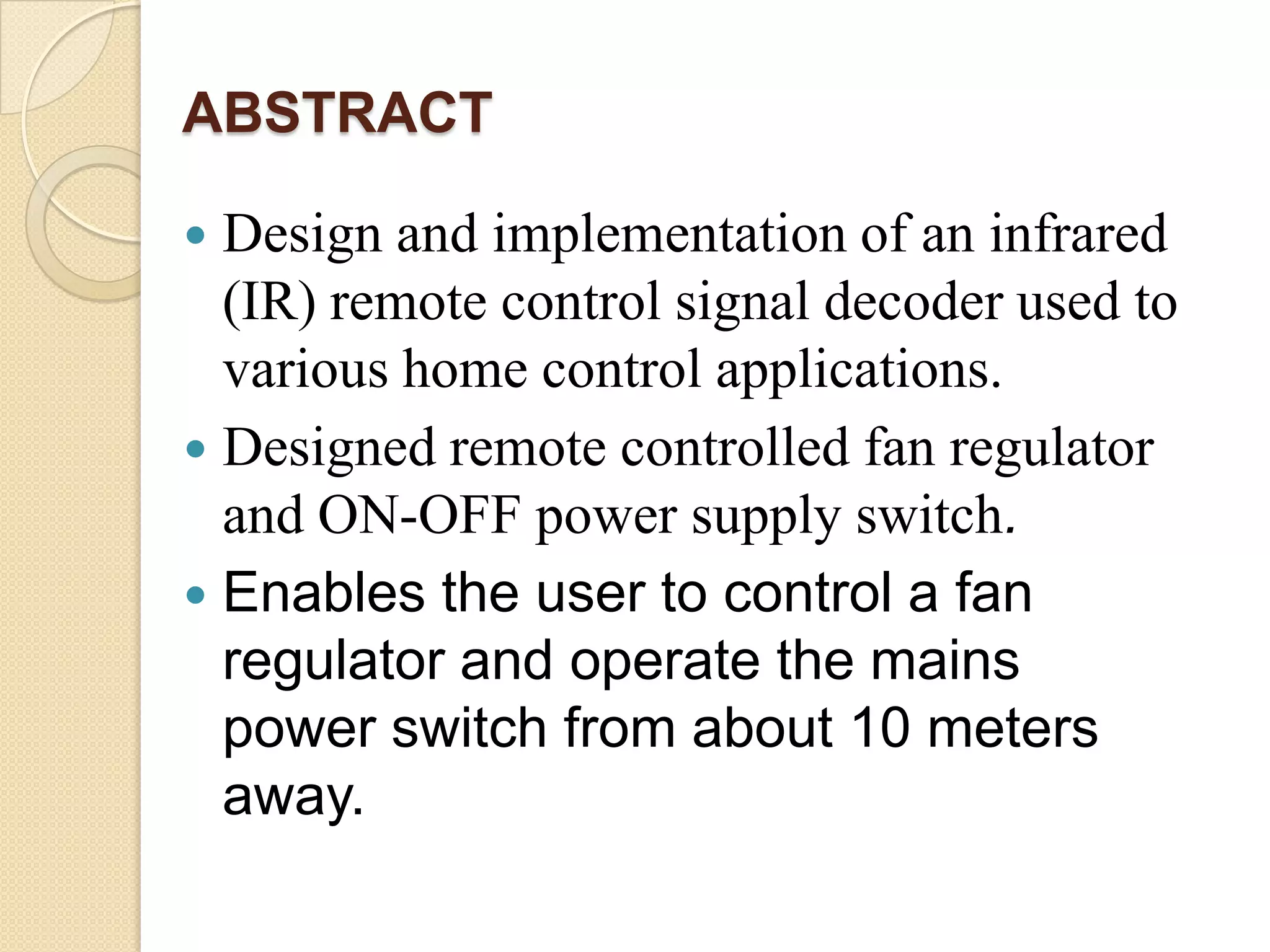

2. ABSTRACT
 Design and implementation of an infrared
(IR) remote control signal decoder used to
various home control applications.
 Designed remote controlled fan regulator
and ON-OFF power supply switch.
 Enables the user to control a fan
regulator and operate the mains
power switch from about 10 meters
away.

3. DEVICE HARDWARE DESIGN

4.  The device consist of blocks namely
IR transmitter, IR
receiver, microcontroller as
decoder, driver circuit.
 IR pulses convert into electric pulses
using IR sensor and given to
microcontroller.
 Electric pulses change into data byte
using zero crossing detector and on
chip timer and interrupt.
 Data bytes are used to take control
decisions.

5. Pin Configurations

6. IR remote transmitter

8. Zero crossing detector
 Zero crossing detector generates
pulses for every zero crossing of the
input AC signal.
 Pulses are fed to the microcontroller
interrupt pin through the opto-coupler.
 The opto-coupler is used for the
isolation of the high voltage AC to the
low voltage DC supply at the
microcontroller side.
 Microcontroller was interrupted for
every zero crossing which triggers the

9. Interfacing diagram

10. Microcontroller unit as
decoder
 Microcontroller’s on-chip peripherals
like programmable I/O port, Timer and
External Rest, RC-oscillator, EEPROM,
Power On Reset (POR).
 TSOP-1740 receiver module is used to
receive the IR signal form transmitter
 Present system to increase or decries
output AC voltage the function keys
used are ‘Volume +’ and ‘Volume -’ on
IR remote transmitter and to ON-OFF
AC mains switch ‘Power’ function key

11. Load Driver
 Power control device used triac BT136
being least expensive power switch to
operate directly on the 110/240V mains.
 It withstand a maximum load current 5A.
 output power is controlled by the phase
delay of the TRIAC drive.
 delay is referred to the zero crossing of
the
Line voltage detected by Zero crossing
detector circuit.
 The control output from microcontroller
port pin is given to opto-coupler
MOC3031M to trigger the triac.

12. Flow chart

13. The display circuit
 Device provides 10 steep speed
controls from 0 to 9.
 Current speed is displayed on a LCD
module. The LCD module has on-
board display controller.
 The display unit is composed of 16 x 2
lines.
 The LCD is configured in 4-bit mode
with read-write control (WR) pin
grounded.

14. PROGRAM
ORG 0000H
CLR A
HERE JNB P3.0 ; HERE
MOV TMOD, #20H
MOV TH1, #FDH
MOV SCON, #50h
MOV P3, #FFh
MOV A, SBUF
MOV R0, A
CJNE R0, #10h ; HERE1
MOV R0, 255h
GO MOV TMOD, #10h
MOV TL1, #00h
MOV TH1, #DCh
SETB TR1

15. AGAIN JNB TF1, AGAIN
DJNZ R0 , GO
HERE1 CJNE R0, #20h ; HERE2
MOV R0, 255h
GO1 MOV TMOD ,#20h
MOV TL1, #00h
MOV TH1, #EEh
SETB TR1
AGAIN 1 JNB TF1, AGAIN 1
DJNZ R0 , GO1
HERE2 CJNE R0, #30h ;
MOV R0, 255h
GO2 MOV TMOD ,#30h
MOV TL1, #00h
MOV TH1, #F7h
SETB TR1
AGAIN 2 JNB TF1, AGAIN 2
DJNZ R0 , GO2

16. CONCLUSION
 IR remote control signal decoder is
implemented using microcontroller and
its application is successfully
demonstrated for home applications.
 The system is quite cheap, reliable and
easy to operate.

17. THANK YOU
