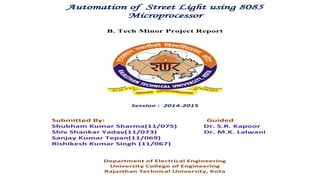

1. Automation of Street Light using 8085
Microprocessor
B. Tech Minor Project Report
Session : 2014-2015
Submitted By: Guided
Shubham Kumar Sharma(11/075) Dr. S.R. Kapoor
Shiv Shankar Yadav(11/073) Dr. M.K. Lalwani
Sanjay Kumar Tepan(11/069)
Rishikesh Kumar Singh (11/067)
Department of Electrical Engineering
University College of Engineering
Rajasthan Technical University, Kota

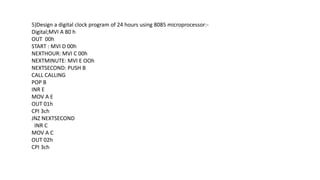

2. 5)Design a digital clock program of 24 hours using 8085 microprocessor:-
Digital;MVI A 80 h
OUT 00h
START : MVI D 00h
NEXTHOUR: MVI C 00h
NEXTMINUTE: MVI E OOh
NEXTSECOND: PUSH B
CALL CALLING
POP B
INR E
MOV A E
OUT 01h
CPI 3ch
JNZ NEXTSECOND
INR C
MOV A C
OUT 02h
CPI 3ch

3. JNZ NEXTMINUTE

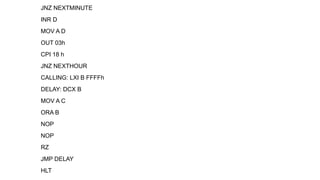

INR D
MOV A D
OUT 03h
CPI 18 h
JNZ NEXTHOUR
CALLING: LXI B FFFFh
DELAY: DCX B
MOV A C
ORA B
NOP
NOP
RZ
JMP DELAY
HLT

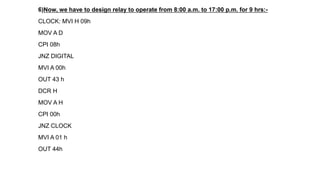

4. 6)Now, we have to design relay to operate from 8:00 a.m. to 17:00 p.m. for 9 hrs:-
CLOCK: MVI H 09h
MOV A D
CPI 08h
JNZ DIGITAL
MVI A 00h
OUT 43 h
DCR H
MOV A H
CPI 00h
JNZ CLOCK
MVI A 01 h
OUT 44h

5. Now we want to show digital clock on 8085 microprocessor kit:-
For this we will call directly 02B7 code and this will directly display [HL]
register pair content on data port or address port by giving following code:-
00 h =to display on address port.
01 h= to display on data port.
7)To display digital clock on 8085 microprocessor and operate relay from
8:00 am to 17:00pm:-

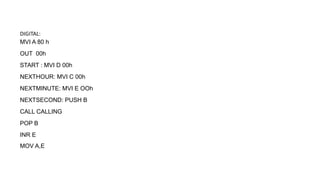

6. DIGITAL:
MVI A 80 h
OUT 00h
START : MVI D 00h
NEXTHOUR: MVI C 00h
NEXTMINUTE: MVI E OOh
NEXTSECOND: PUSH B
CALL CALLING
POP B
INR E
MOV A,E

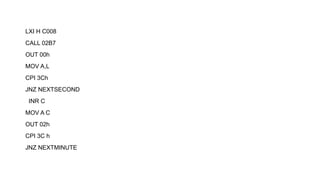

7. LXI H C008
CALL 02B7
OUT 00h
MOV A,L
CPI 3Ch
JNZ NEXTSECOND
INR C
MOV A C
OUT 02h
CPI 3C h
JNZ NEXTMINUTE

8. JNZ NEXTMINUTE
INR D
MOV A D
OUT 03 h

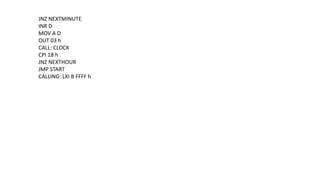

CALL: CLOCK
CPI 18 h
JNZ NEXTHOUR
JMP START
CALLING: LXI B FFFF h

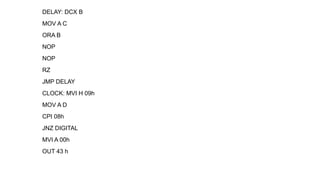

9. DELAY: DCX B
MOV A C
ORA B
NOP
NOP
RZ
JMP DELAY
CLOCK: MVI H 09h
MOV A D
CPI 08h
JNZ DIGITAL
MVI A 00h
OUT 43 h

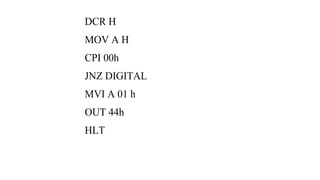

10. DCR H
MOV A H
CPI 00h
JNZ DIGITAL
MVI A 01 h
OUT 44h
HLT

11. 8)CONCLUSION:-
From this Project we conclude that we can easily automate street light using 8085 Microprocessor.we have
designed a program on 8085 microprocessor to trip relay from 8:00 am to 17:00 pm that will make street
light to off otherwise, street light will on.
