2. Microarray data analysis

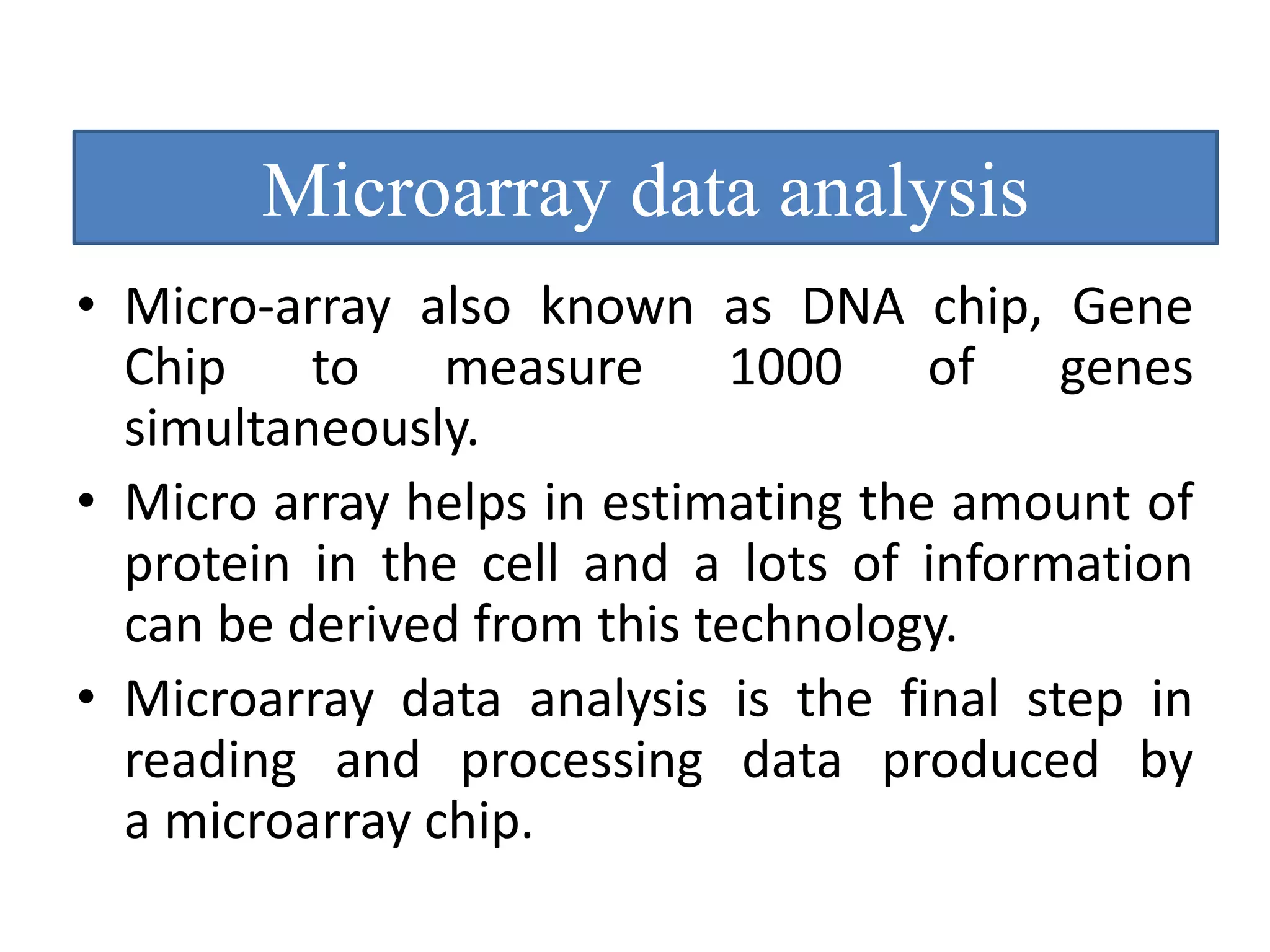

• Micro-array also known as DNA chip, Gene
Chip to measure 1000 of genes
simultaneously.
• Micro array helps in estimating the amount of
protein in the cell and a lots of information
can be derived from this technology.

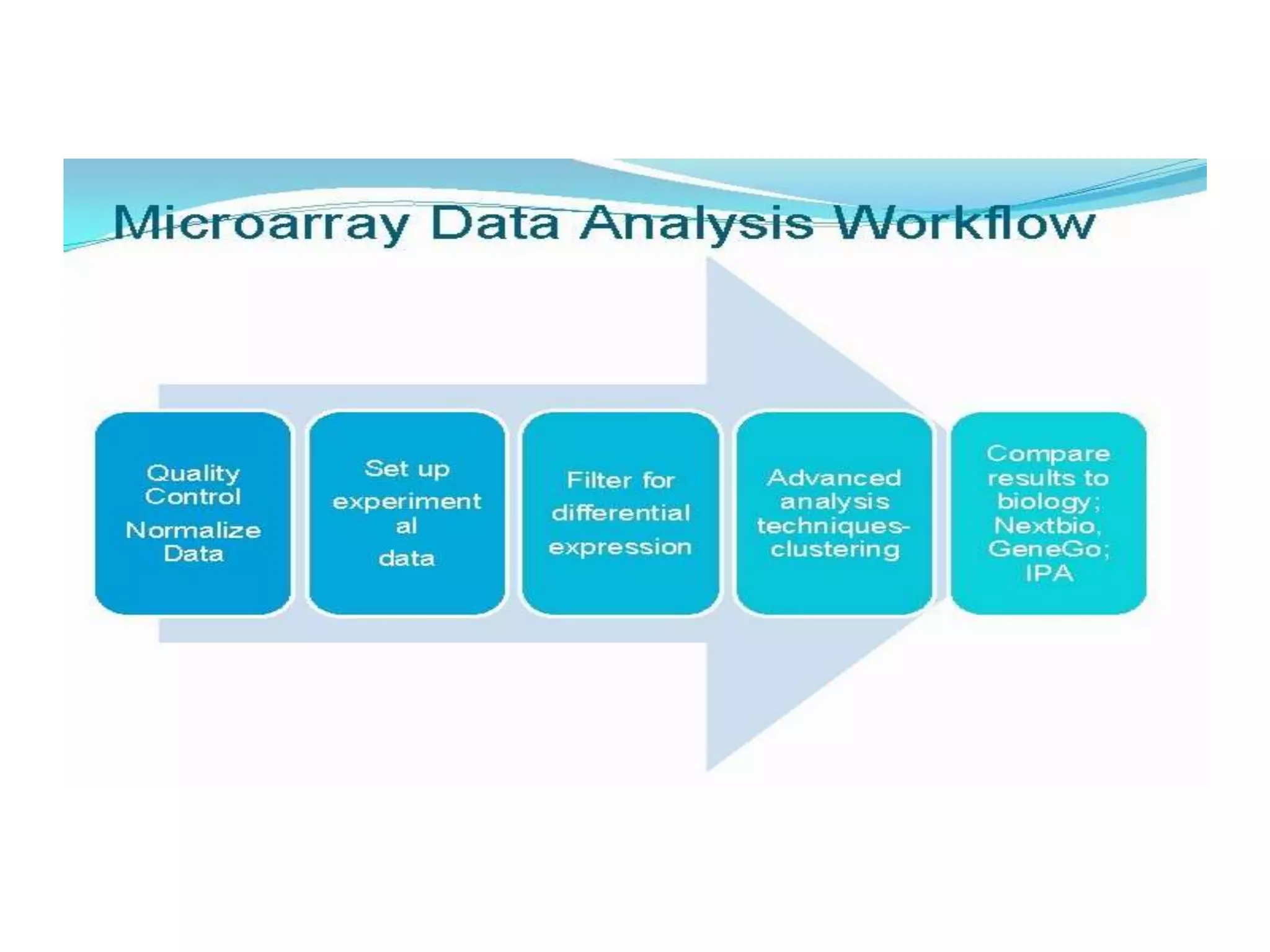

• Microarray data analysis is the final step in
reading and processing data produced by
a microarray chip.

3. • Samples undergo
various processes
including purification
and scanning using the
microchip, which then
produces a large
amount of data that
requires processing via
computer software.

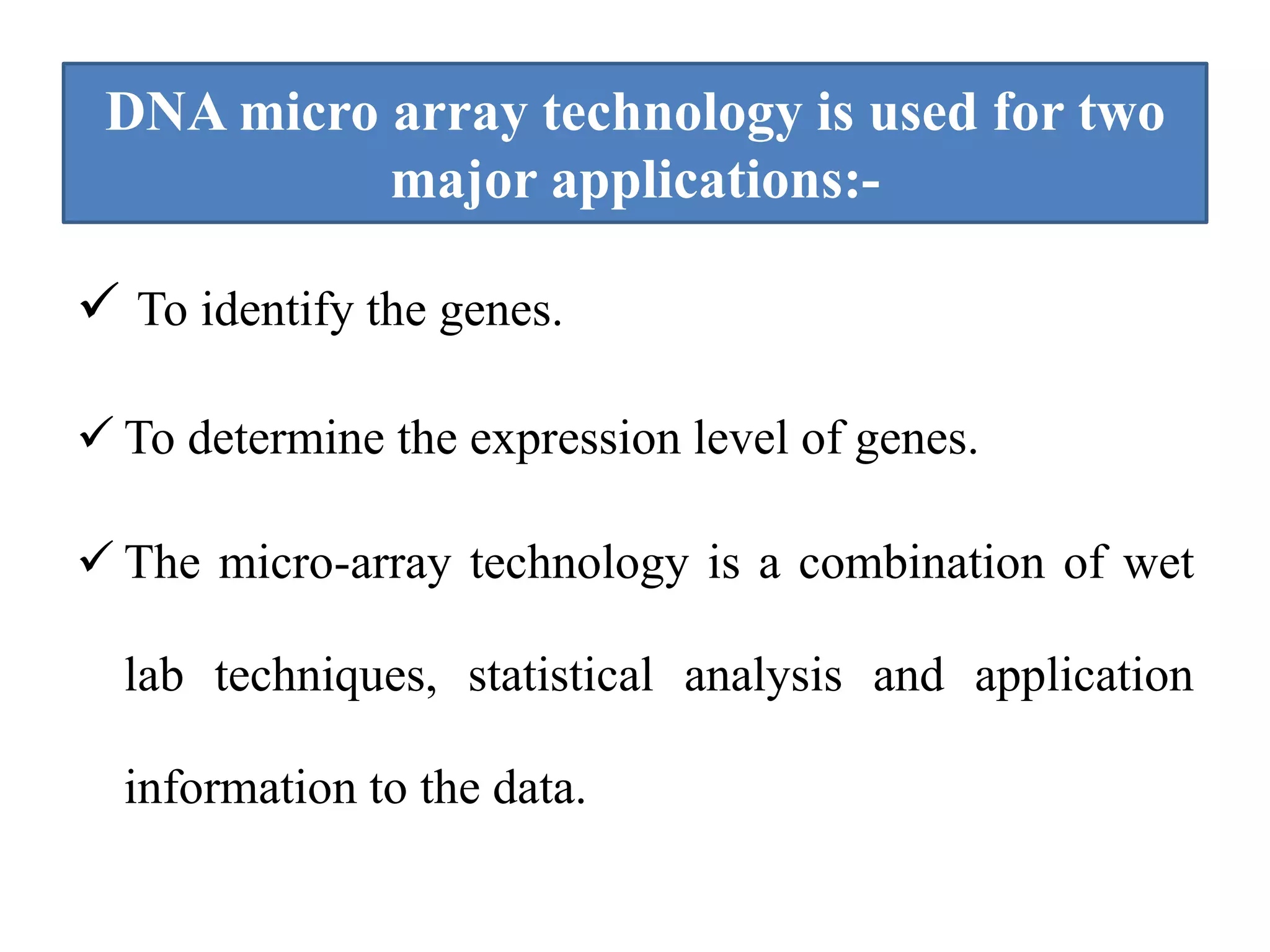

5. DNA micro array technology is used for two
major applications:-
 To identify the genes.
 To determine the expression level of genes.
 The micro-array technology is a combination of wet
lab techniques, statistical analysis and application
information to the data.

6. Tools for micro array
• A microarray experiment generates a large volume of data,
originally as image files which are later analyzed into
meaningful results.
• The whole process involves a number of steps and a number of
software and tools to obtain dependable expression values for
each gene.
– Soft finder
– SAGE (Serial Analysis of gene expression)
– MADAM (Micro array data manager)
– MIDAS (Micro array data analysis system)
– SNOMAD
– GenMAPP

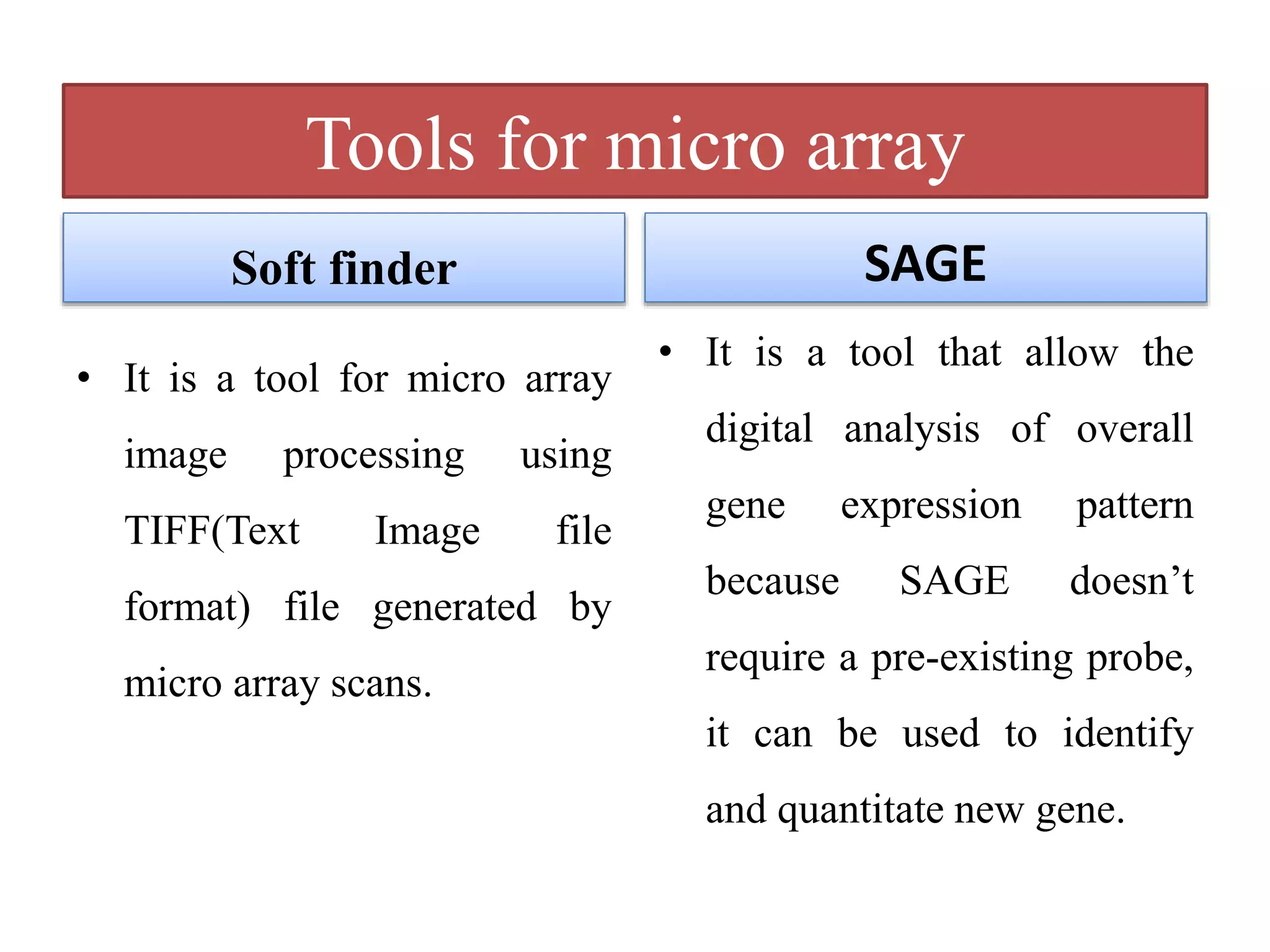

7. Soft finder
• It is a tool for micro array
image processing using
TIFF(Text Image file
format) file generated by
micro array scans.
SAGE
• It is a tool that allow the
digital analysis of overall
gene expression pattern
because SAGE doesn’t
require a pre-existing probe,
it can be used to identify
and quantitate new gene.
Tools for micro array

8. MADAM
• This program provide data
entry form, data report form
& other application which is
necessary to maintain an
micro-array data for further
analysis.
MIDAS
• It is a part of TM group of
software. The software is
designed to process the raw
expression values from
Spot-finder, perform
normalization, and data
adjustment techniques along
with various filtration
options.
Tools for micro array

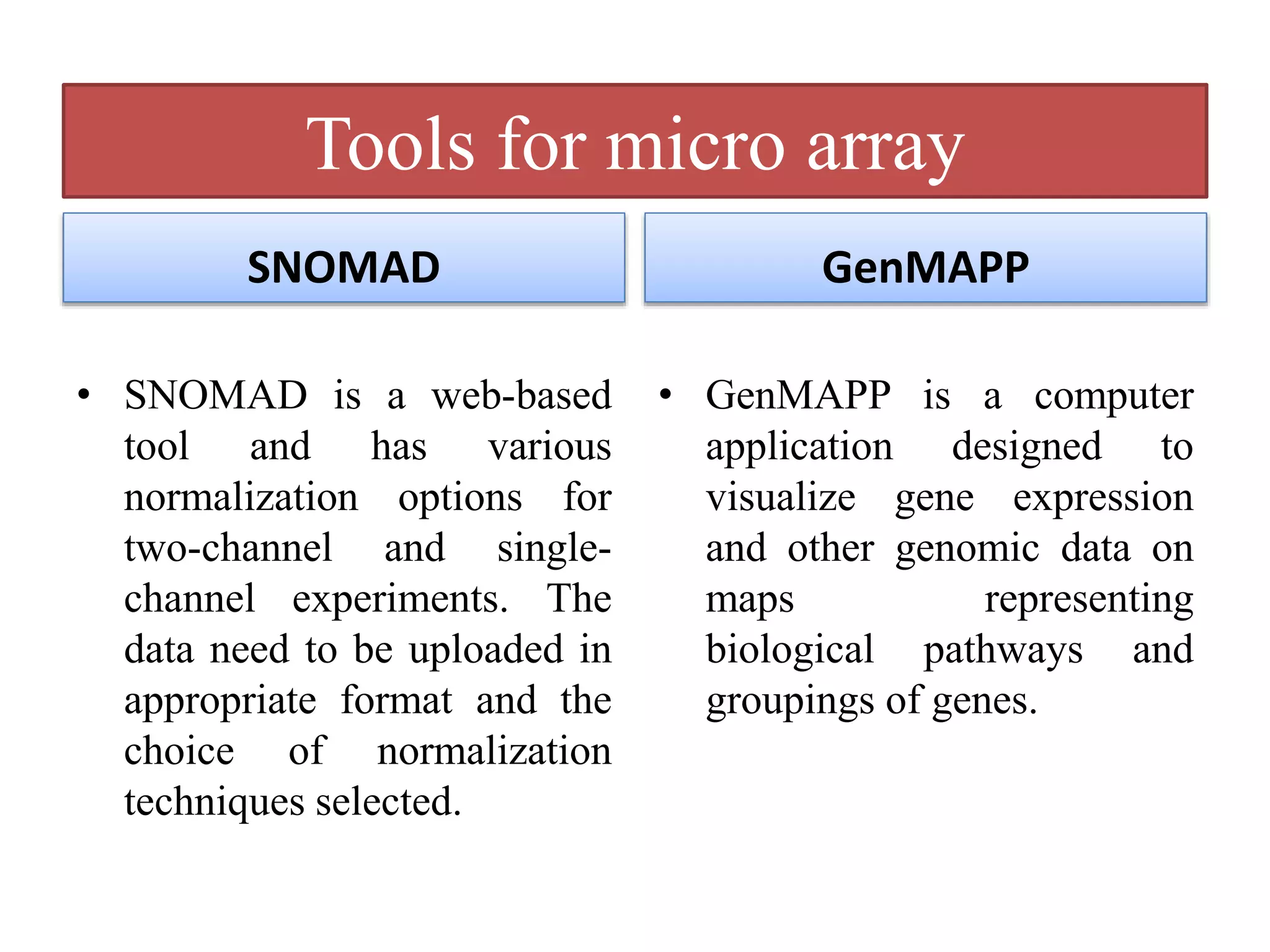

9. • SNOMAD is a web-based
tool and has various
normalization options for
two-channel and single-
channel experiments. The
data need to be uploaded in
appropriate format and the
choice of normalization
techniques selected.
• GenMAPP is a computer
application designed to
visualize gene expression
and other genomic data on
maps representing
biological pathways and
groupings of genes.
Tools for micro array
SNOMAD GenMAPP

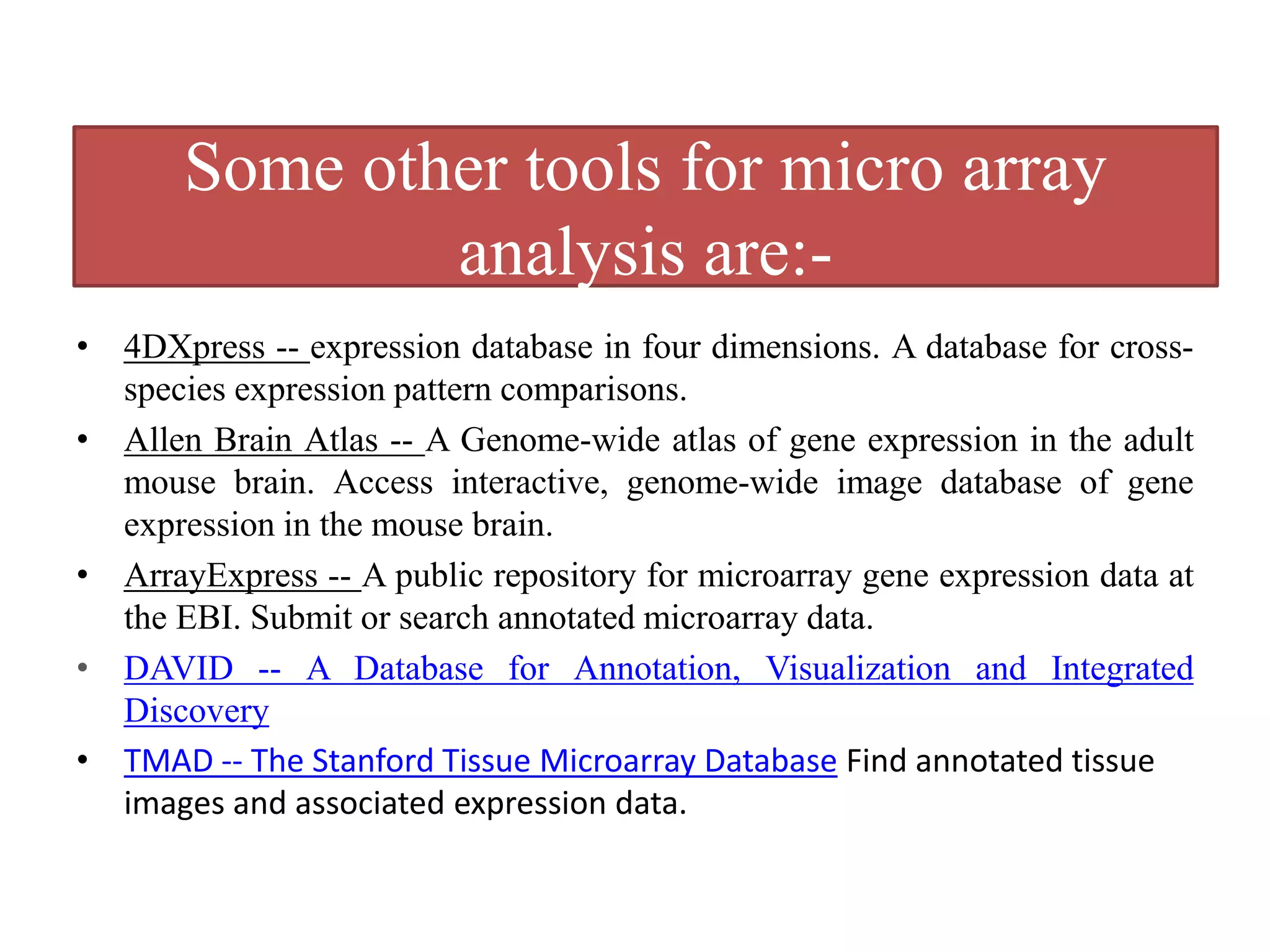

10. • 4DXpress -- expression database in four dimensions. A database for cross-
species expression pattern comparisons.
• Allen Brain Atlas -- A Genome-wide atlas of gene expression in the adult
mouse brain. Access interactive, genome-wide image database of gene
expression in the mouse brain.
• ArrayExpress -- A public repository for microarray gene expression data at
the EBI. Submit or search annotated microarray data.
• DAVID -- A Database for Annotation, Visualization and Integrated
Discovery
• TMAD -- The Stanford Tissue Microarray Database Find annotated tissue
images and associated expression data.
Some other tools for micro array
analysis are:-

11. • Medical Applications:- To identify genes involved in
disease, comparing gene expression between the healthy cells
and diseased person.
• Comparative Genomics:- Micro-array data from different
species. It can be used to study genomic preference between
species.
• Functional Genomics:- Micro-array is used in the area of
functional genomic and gene annotation i.e., determination of
the function of large number of genes.
• Protein & Peptide micro-array:- This technique is also used
to identify protein - protein enzyme substrate and protein
molecule interaction.
Applications of micro array technology
