1. AMY BENSON 6 november 2008 What’s New with AACR2? And the Rest of the Bibliographic Universe, too

2. Overview Terms and definitions What do all the acronyms mean? Categories of metadata schemes and tools How do they relate to each other? Uses and functions What do you do with them? It’s all about me Which ones will affect my work?

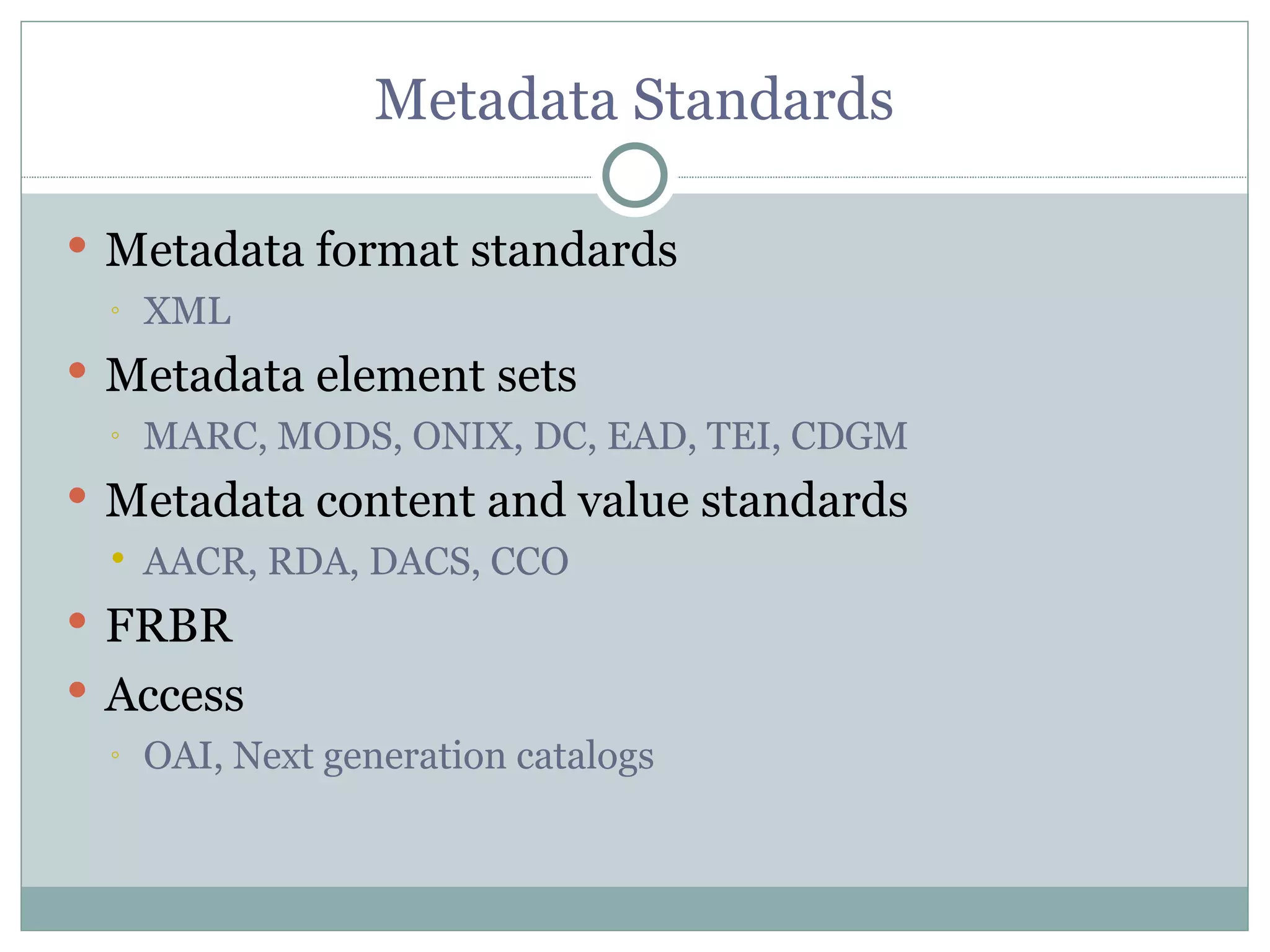

3. Metadata Standards Metadata format standards XML Metadata element sets MARC, MODS, ONIX, DC, EAD, TEI, CDGM Metadata content and value standards AACR, RDA, DACS, CCO FRBR Access OAI, Next generation catalogs

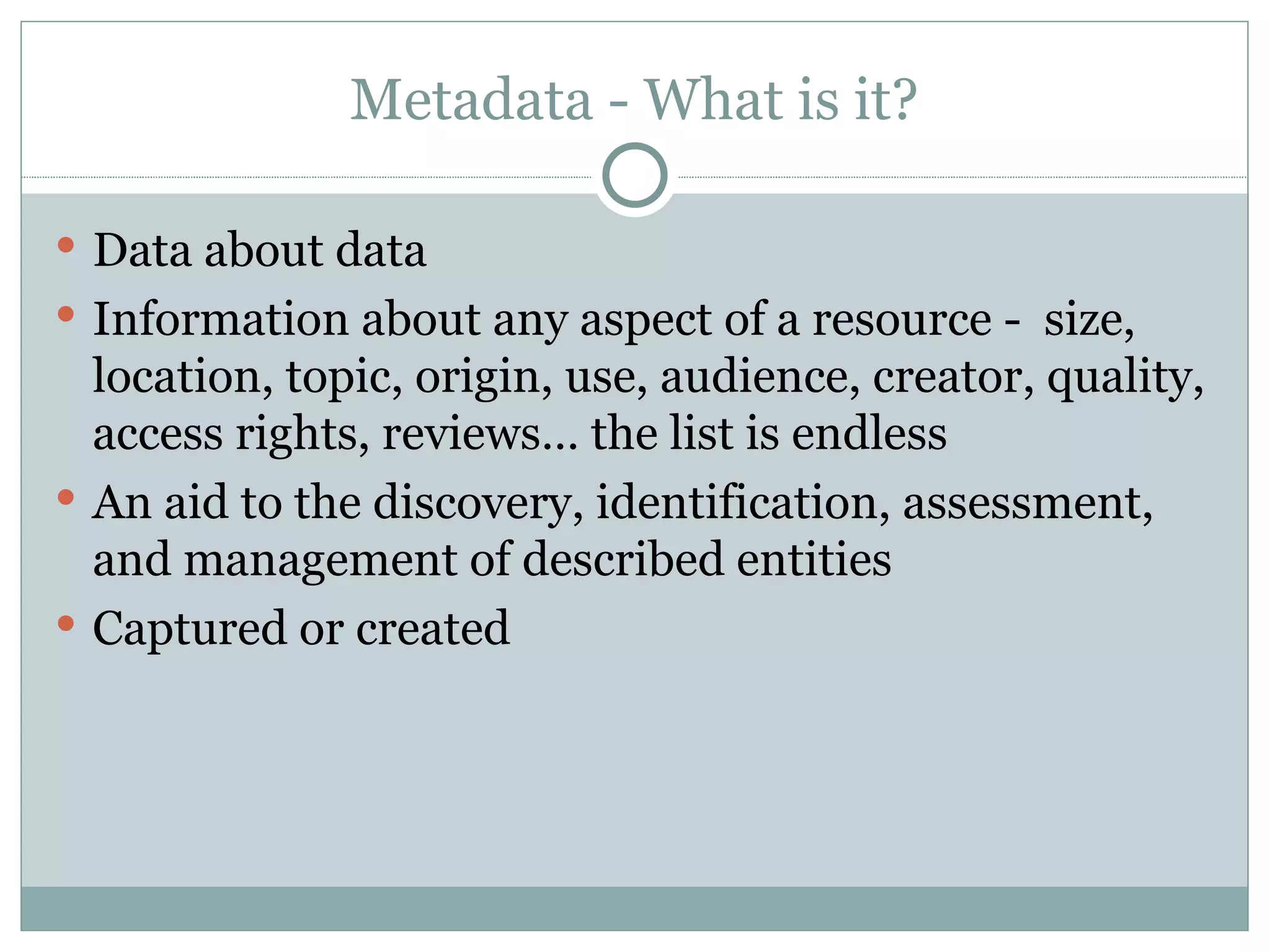

4. Metadata - What is it? Data about data Information about any aspect of a resource - size, location, topic, origin, use, audience, creator, quality, access rights, reviews… the list is endless An aid to the discovery, identification, assessment, and management of described entities Captured or created

5. Types of Metadata Descriptive/Discovery What is it? How can I find it? How can I get to it? Structural What files comprise it? Which file is page one? Administrative What do I need to know to manage it? Can I use it? How was it created? What needs to be preserved?

6. Metadata - Who needs it? Impact of metadata on collection access Improves service to users Provides the means for resource discovery, grouping, filtering, matching user needs Drives functionality/capabilities Keyword searching works only for resources that are text-based - excludes photographs, data sets, objects, maps, audio, video… Google Image Labeler Metadata decisions should reflect project goals

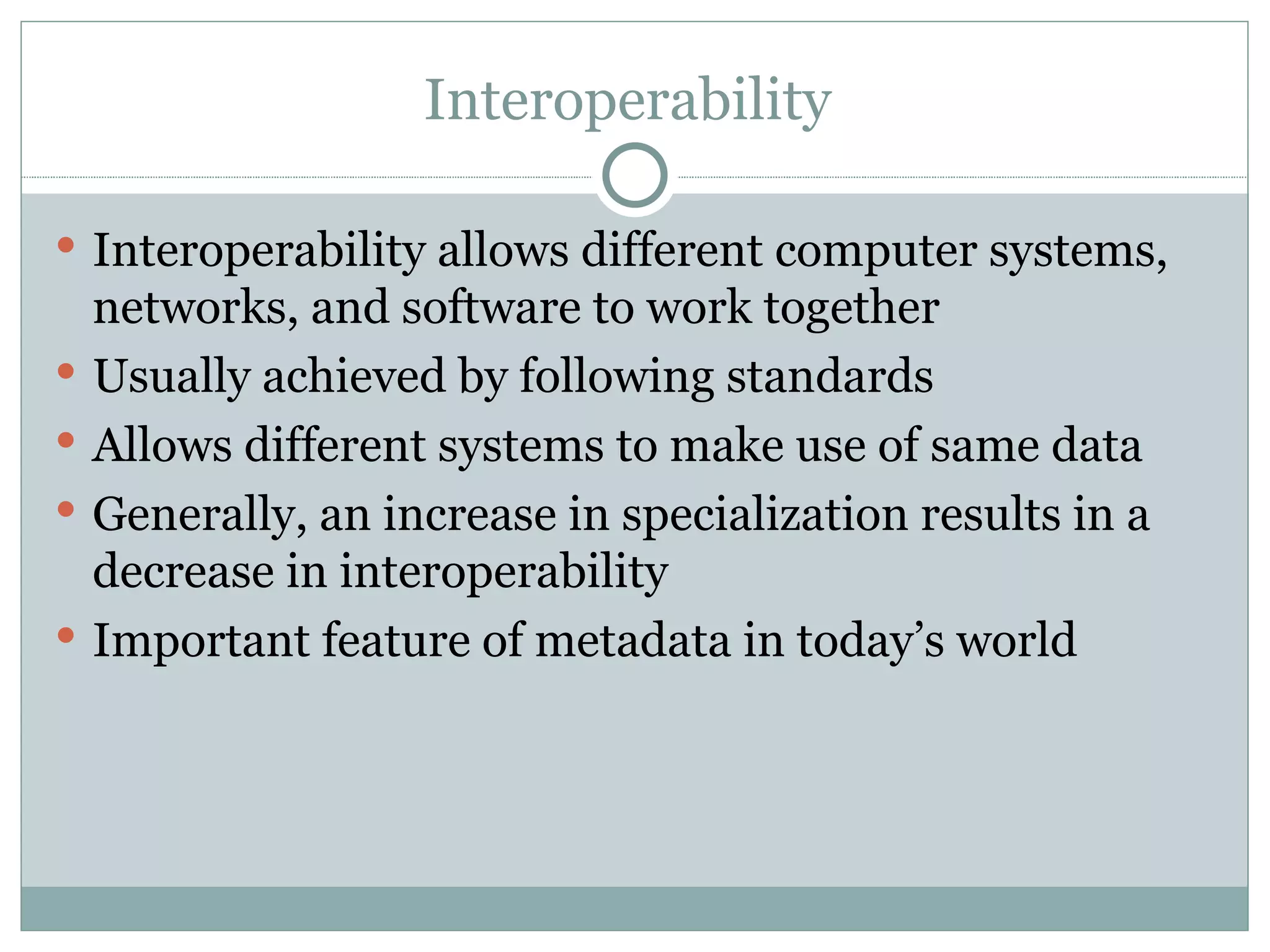

7. Interoperability Interoperability allows different computer systems, networks, and software to work together Usually achieved by following standards Allows different systems to make use of same data Generally, an increase in specialization results in a decrease in interoperability Important feature of metadata in today’s world

8. Interoperability Can increase awareness and use of collections Reduces geographic and domain-specific isolation of collections Likely to assist / promote the longevity of data and collections One-stop access to the universe of online resources

9. eXtensible Markup Language (XML) Developed by WWW Consortium (W3C) Open, international standard A structure for storing and tagging information, without prescribing how the information is displayed or used Platform independent A way to use the same data for many different purposes Facilitates the sharing of data across institutions and projects

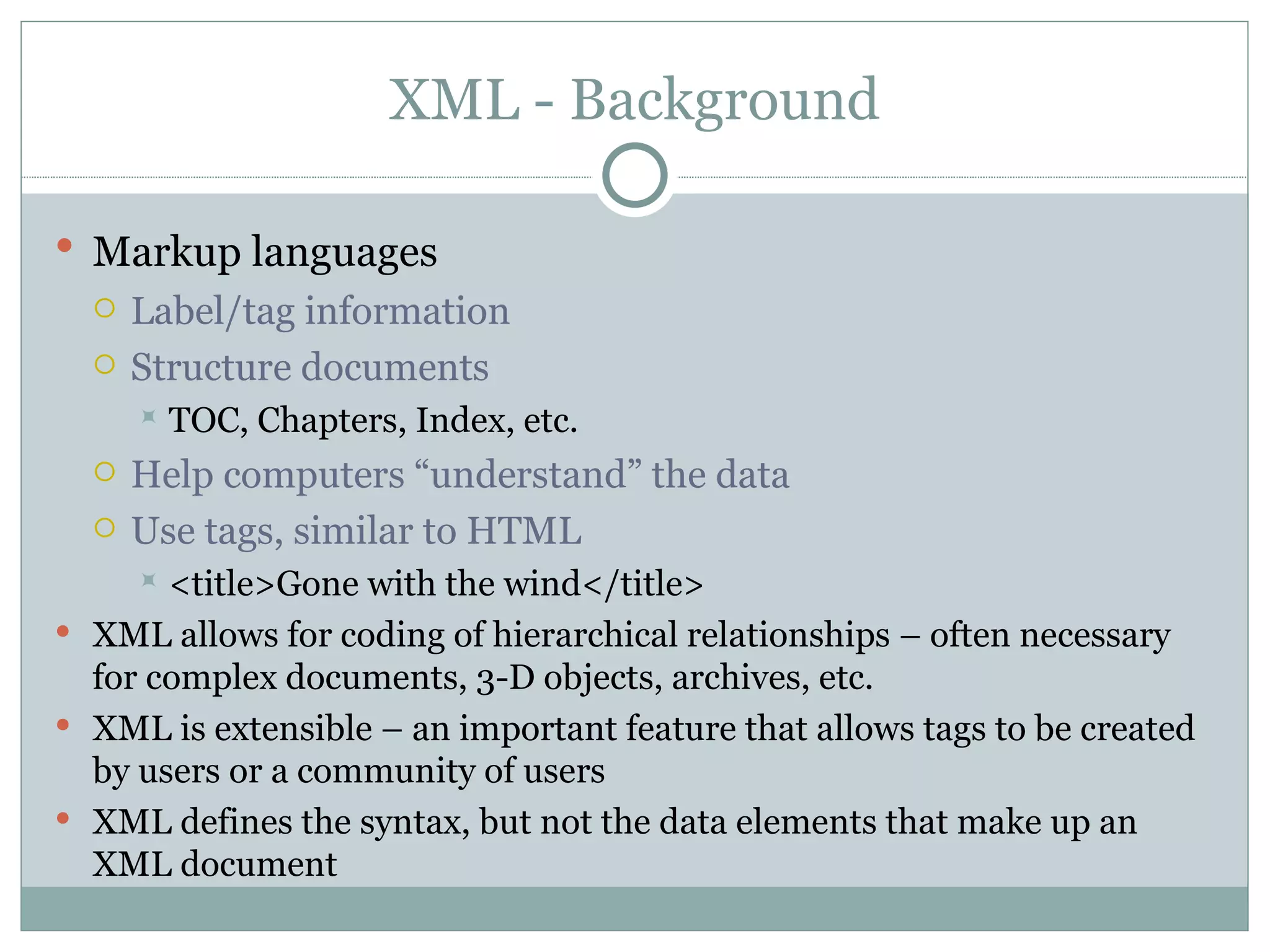

10. XML - Background Markup languages Label/tag information Structure documents TOC, Chapters, Index, etc. Help computers “understand” the data Use tags, similar to HTML <title>Gone with the wind</title> XML allows for coding of hierarchical relationships – often necessary for complex documents, 3-D objects, archives, etc. XML is extensible – an important feature that allows tags to be created by users or a community of users XML defines the syntax, but not the data elements that make up an XML document

11. XML - Elements Example list (book+) book (title, author+, date+, year, comment, code) title <value> author (aulast, aufirst) aulast <value> aufirst <value> date (day, month) day <value> month <value> year <value> comment <value> code <value>

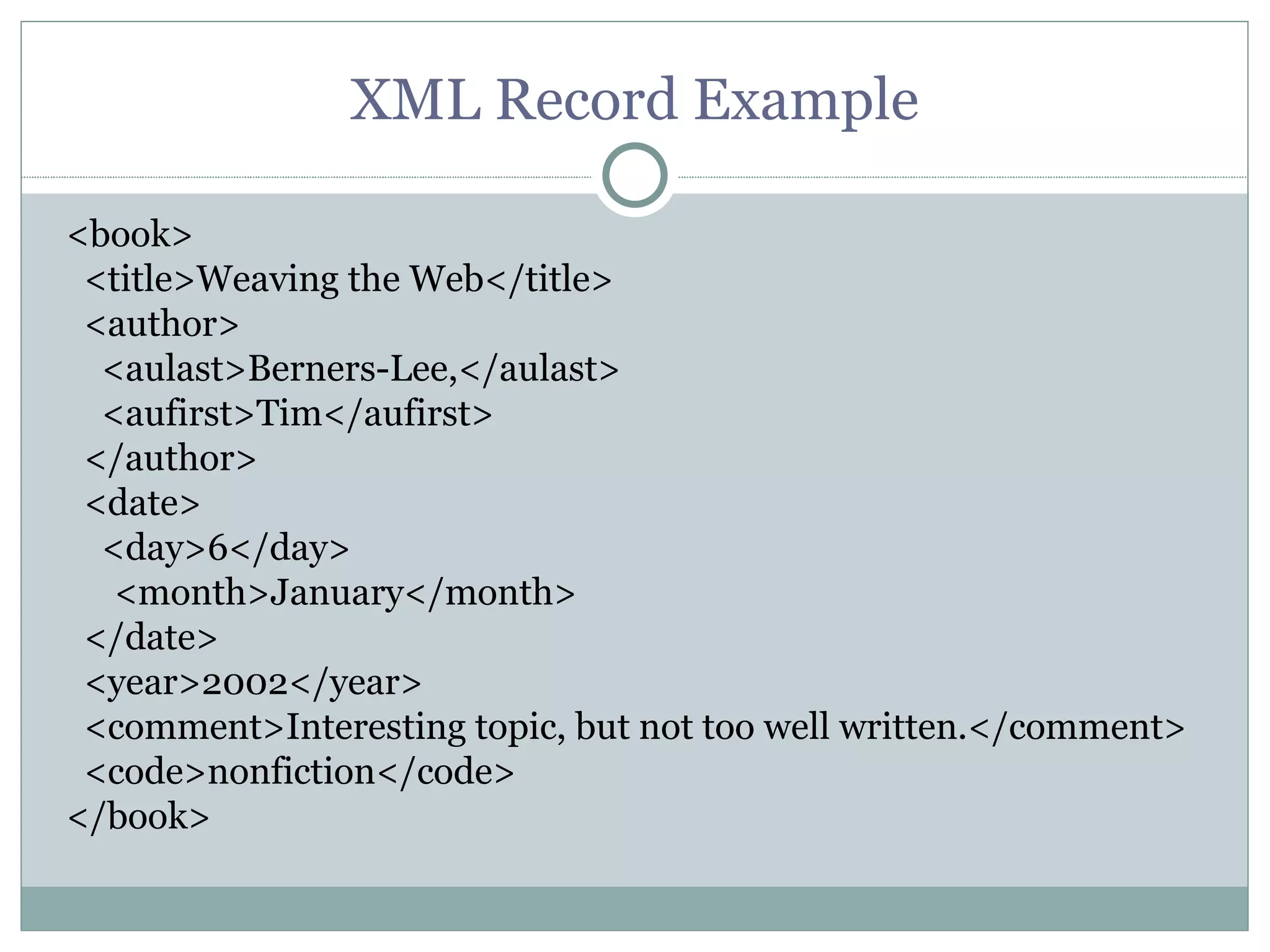

12. XML Record Example <book> <title>Weaving the Web</title> <author> <aulast>Berners-Lee,</aulast> <aufirst>Tim</aufirst> </author> <date> <day>6</day> <month>January</month> </date> <year>2002</year> <comment>Interesting topic, but not too well written.</comment> <code>nonfiction</code> </book>

13. XML – DTDs and Schemas Tags, definitions, and requirements are set and adhered to by a community of users MARC XML, RecipeML, EAD Two methods of defining specific XML implementations DTDs (Document Type Definition) Schemas Lay out the logical structure of the data Establish rules about which elements a document may have, which are required, which can repeat, etc. Establish a root element, parent and child elements, and where data can be placed within hierarchy

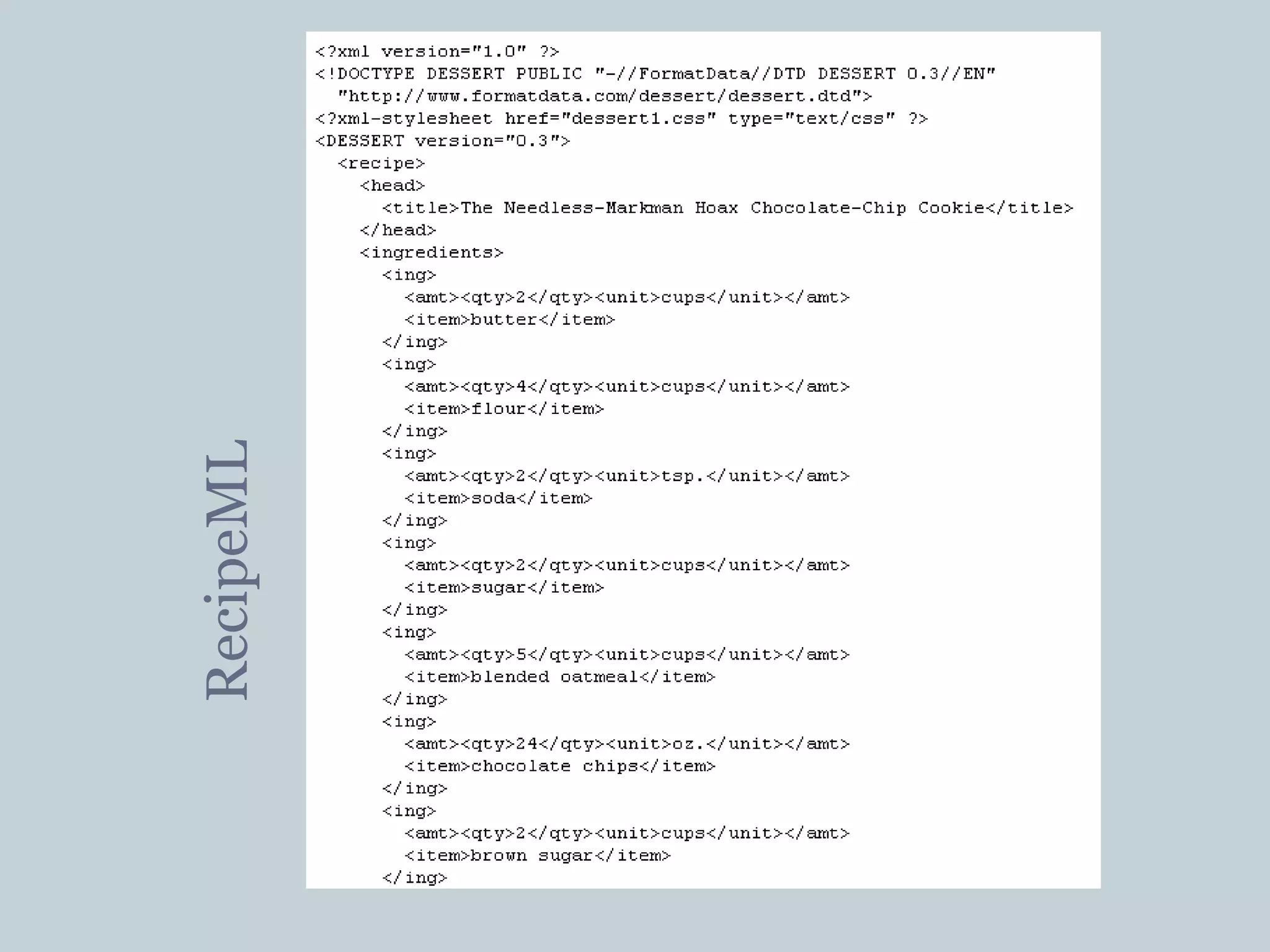

14. RecipeML

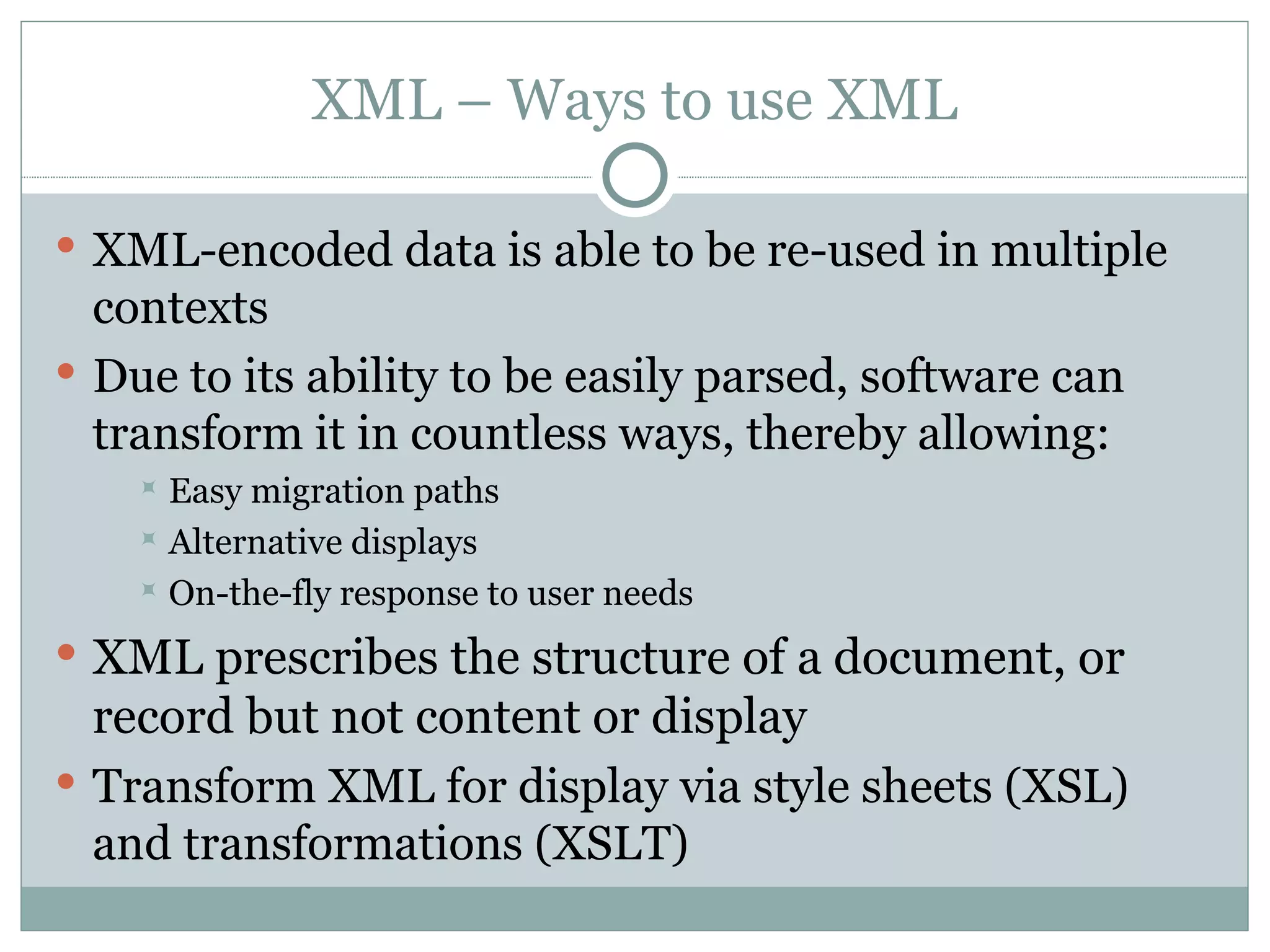

15. XML – Ways to use XML XML-encoded data is able to be re-used in multiple contexts Due to its ability to be easily parsed, software can transform it in countless ways, thereby allowing: Easy migration paths Alternative displays On-the-fly response to user needs XML prescribes the structure of a document, or record but not content or display Transform XML for display via style sheets (XSL) and transformations (XSLT)

17. XML File

18. XML File Transformation via XSL and XSLT

19. MARC MAchine-Readable Cataloging (MARC) Standard used to exchange, use, and interpret bibliographic information in libraries Long, established, successful history Large quantity of MARC data exists Weak on rights information, etc. Low extensibility Highly interoperable within the library community, but not beyond

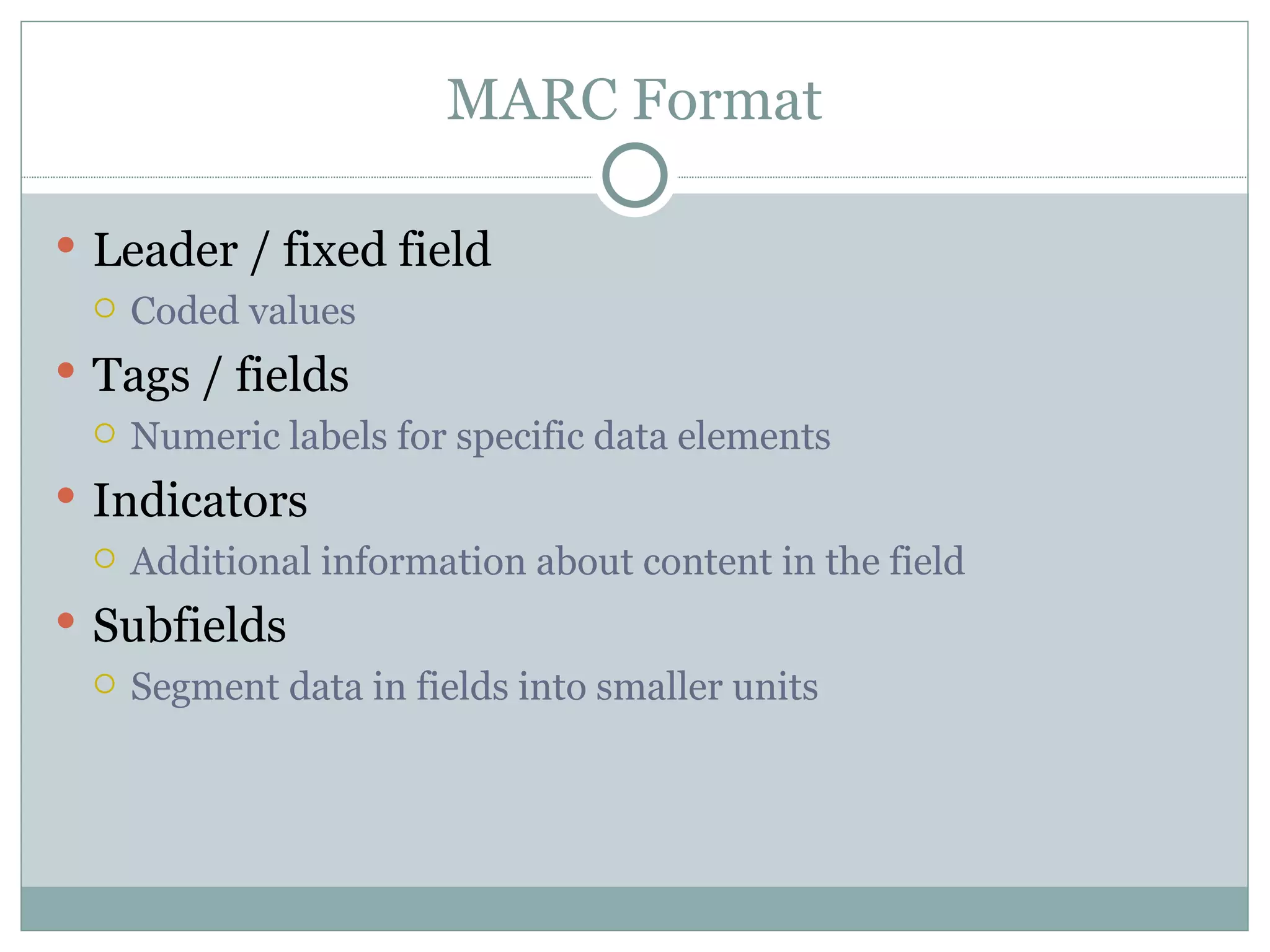

20. MARC Format Leader / fixed field Coded values Tags / fields Numeric labels for specific data elements Indicators Additional information about content in the field Subfields Segment data in fields into smaller units

21. MARC Basic Tag Groups 0XX Control information, numbers, codes Example: 020 for ISBN 1XX Main entry Example: 100 for personal name 2XX Titles, edition, imprint (in general, the title, statement of responsibility, edition, and publication information ) Example: 245 for title 3XX Physical description, etc. Example: 300 for extent 4XX Series statements (as shown in the book) Example: 490 for untraced series, or traced differently

22. MARC Basic Tag Groups 5XX Notes Example: 520 for summary note 6XX Subject added entries Example: 650 for topical subject heading 7XX Added entries other than subject or series Example: 700 for added entry, personal name 8XX Series added entries (other authoritative forms) Example: 830 for series added entries in title form 9XX Locally-defined uses Example: 949 for barcode numbers

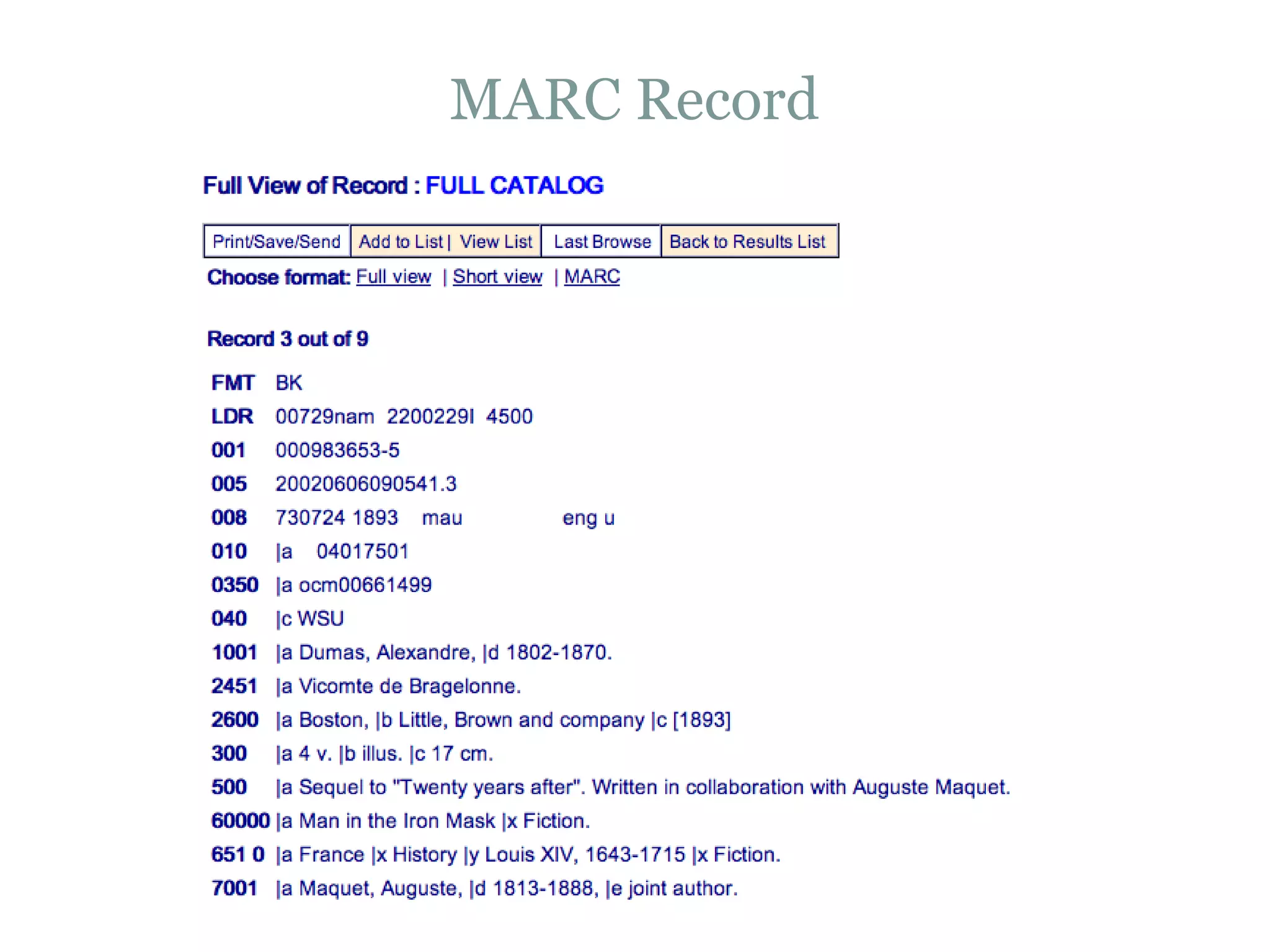

23. MARC Record

24. MARC XML Future of MARC Can it survive? MARC XML developed by the Library of Congress (LC) Allows representation of a complete MARC record in XML LC has developed a schema, stylesheets, tools, and crosswalks Will support new transformations for new uses of MARC data and into other standards such as MODS, EAD, ONIX, DC

25. MARCXML Example

26. Metadata Object Description Schema (MODS) Set of 20 bibliographic elements - a subset of the MARC 21 Format for Bibliographic Data XML-based standard Alternative to MARC Can be used for conversion of existing MARC records or to create new resource description records Useful for library applications that want to go beyond the OPAC

27. MODS Elements TitleInfo Name TypeOfResource Genre PublicationInfo Language PhysicalDescription Abstract TableOfContents TargetAudience Note Cartographics Subject Classification RelatedItem Identifier Location AccessCondition Extension RecordInfo

28. MODS Elements Elements can have sub-elements and attributes which provide refining detail for the element Elements and sub-elements are repeatable, except in certain cases Elements display in any order More on MODS http://www.loc.gov/standards/mods/

29. MODS Example

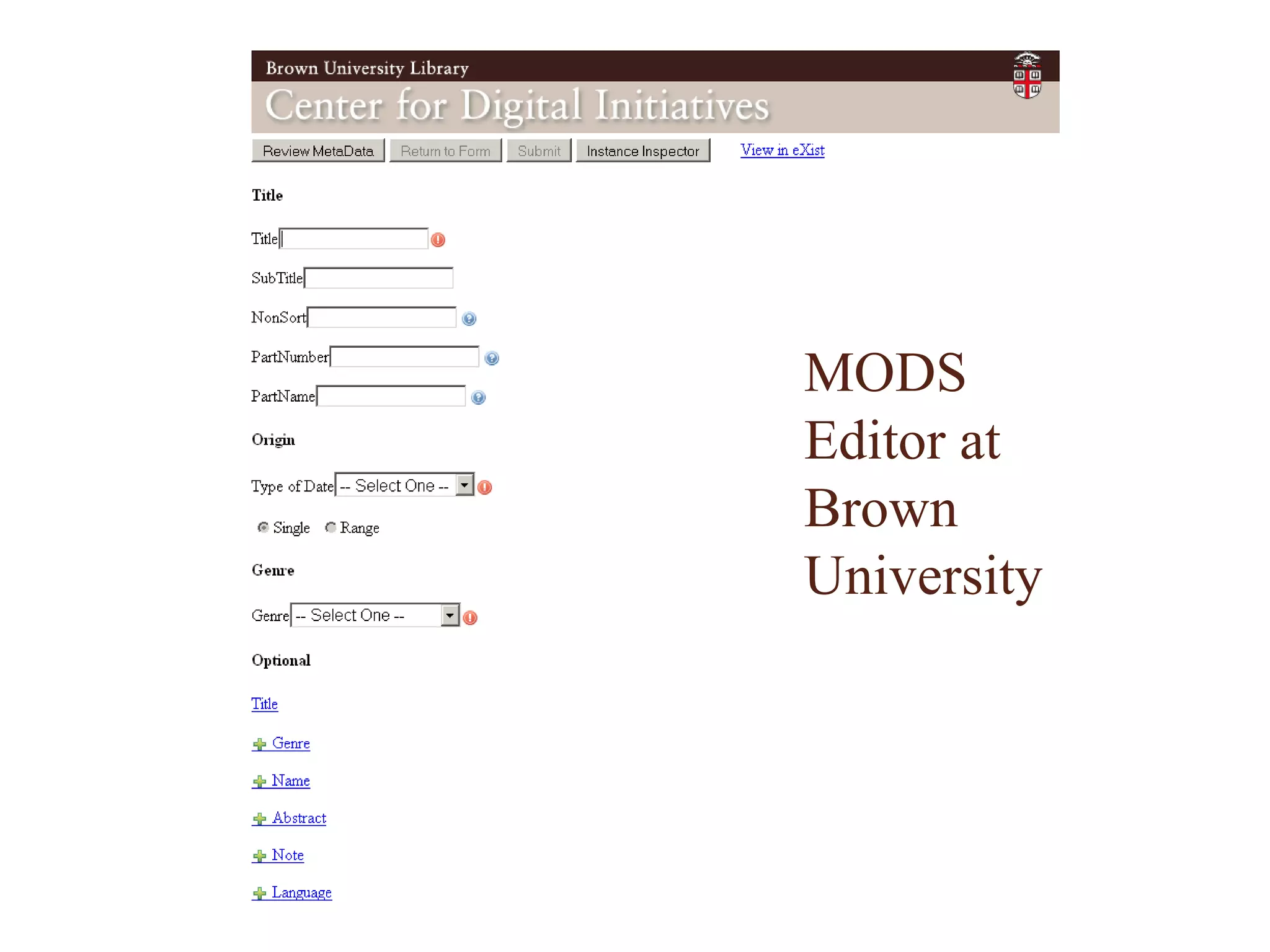

31. MODS Editor at Brown University

32. ONline Information eXchange (ONIX) ONIX is the international standard for representing and communicating book industry product information in electronic form Developed and maintained by EDItEUR and other international groups XML-based Focused on e-commerce of books Synchronize the widely varying formats of major book wholesalers and retailers – interoperability The need for richer book data online to improve sales May appear in future library applications

33. ONIX

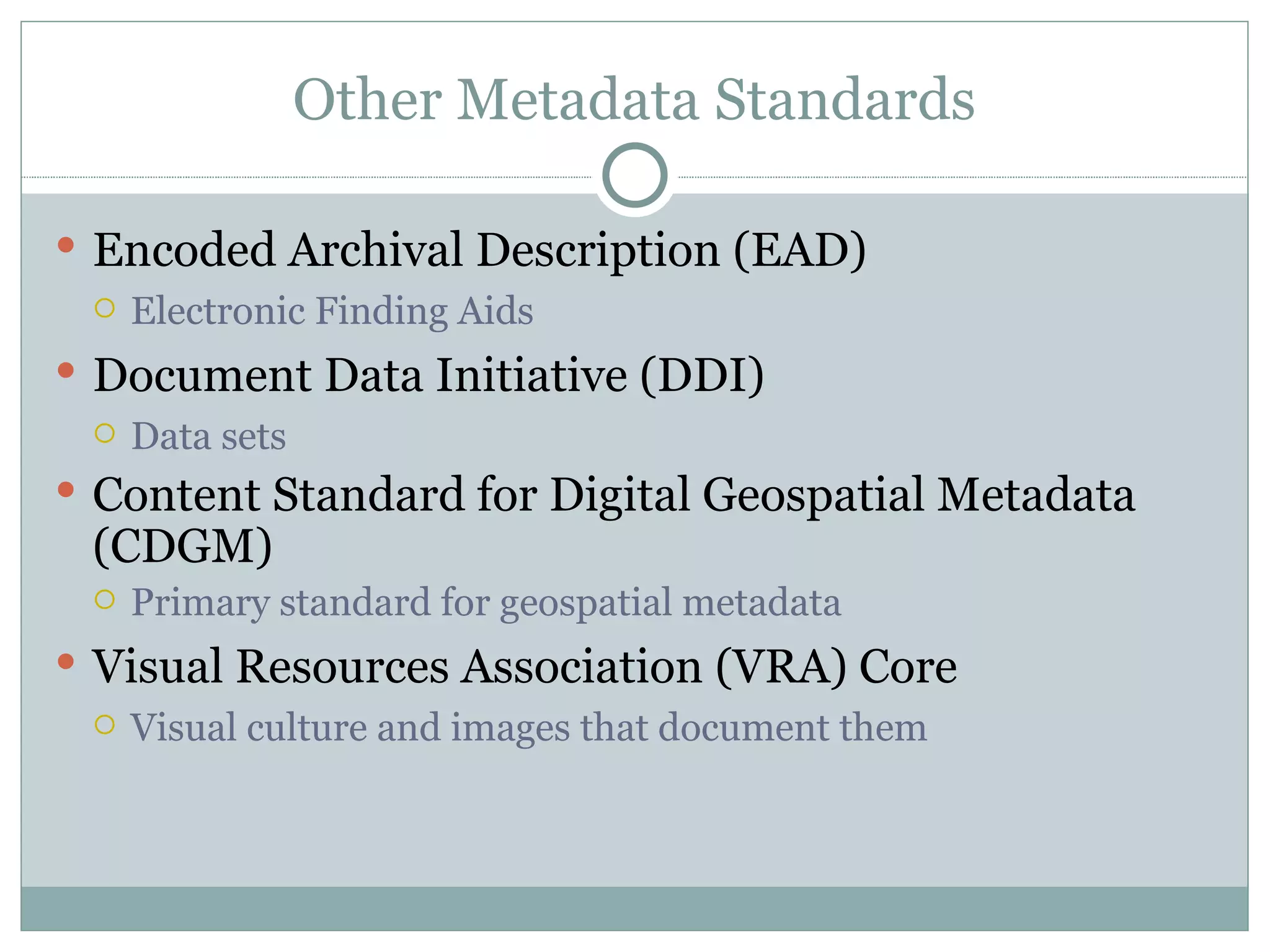

34. Other Metadata Standards Encoded Archival Description (EAD) Electronic Finding Aids Document Data Initiative (DDI) Data sets Content Standard for Digital Geospatial Metadata (CDGM) Primary standard for geospatial metadata Visual Resources Association (VRA) Core Visual culture and images that document them

35. Crosswalks Crosswalks map an element from one scheme to its closest equivalent in another scheme Convert data from one format to another - one that is potentially more widely accessible Support cross-domain searching and interoperability of data

36. Dublin Core (DC) A method of describing resources intended to facilitate the discovery of electronic resources Designed to allow simple description of resources by non-catalogers as well as specialists National and International standard ANSI/NISO standard Z39.85-2001 ISO standard 15836 Includes 15 “core” elements

37. Dublin Core Elements Title Creator Subject Description Publisher Contributor Date Type Format Identifier Source Language Relation Coverage Rights

38. Dublin Core All elements optional and repeatable Authority control not required Simple and Qualified DC Simple Less Rich Lowest common denominator Qualified More precise Less interoperable Extensible and flexible “ Container” agnostic

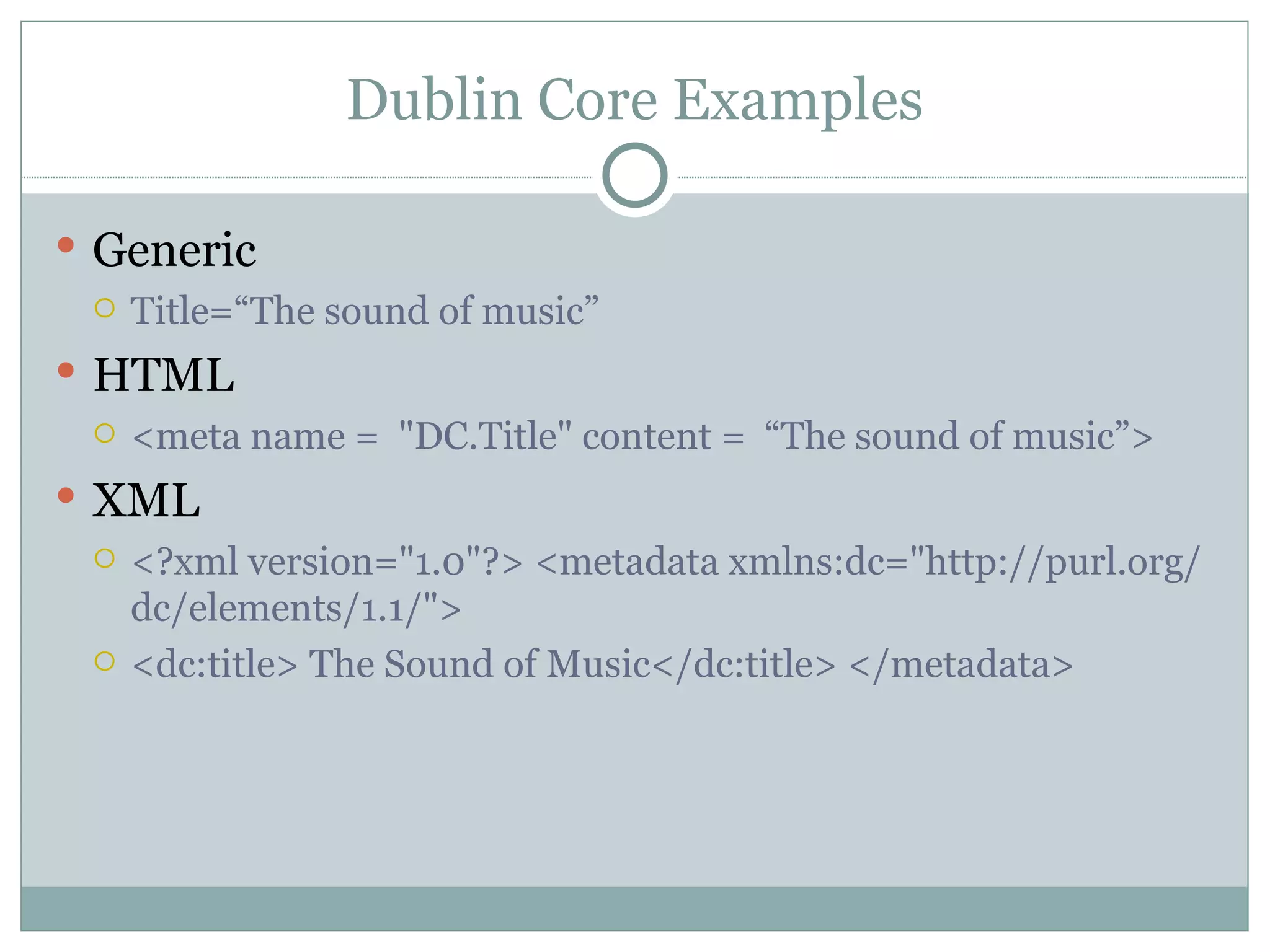

39. Dublin Core Examples Generic Title=“The sound of music” HTML <meta name = &quot;DC.Title&quot; content = “The sound of music”> XML <?xml version=&quot;1.0&quot;?> <metadata xmlns:dc=&quot;http://purl.org/dc/elements/1.1/&quot;> <dc:title> The Sound of Music</dc:title> </metadata>

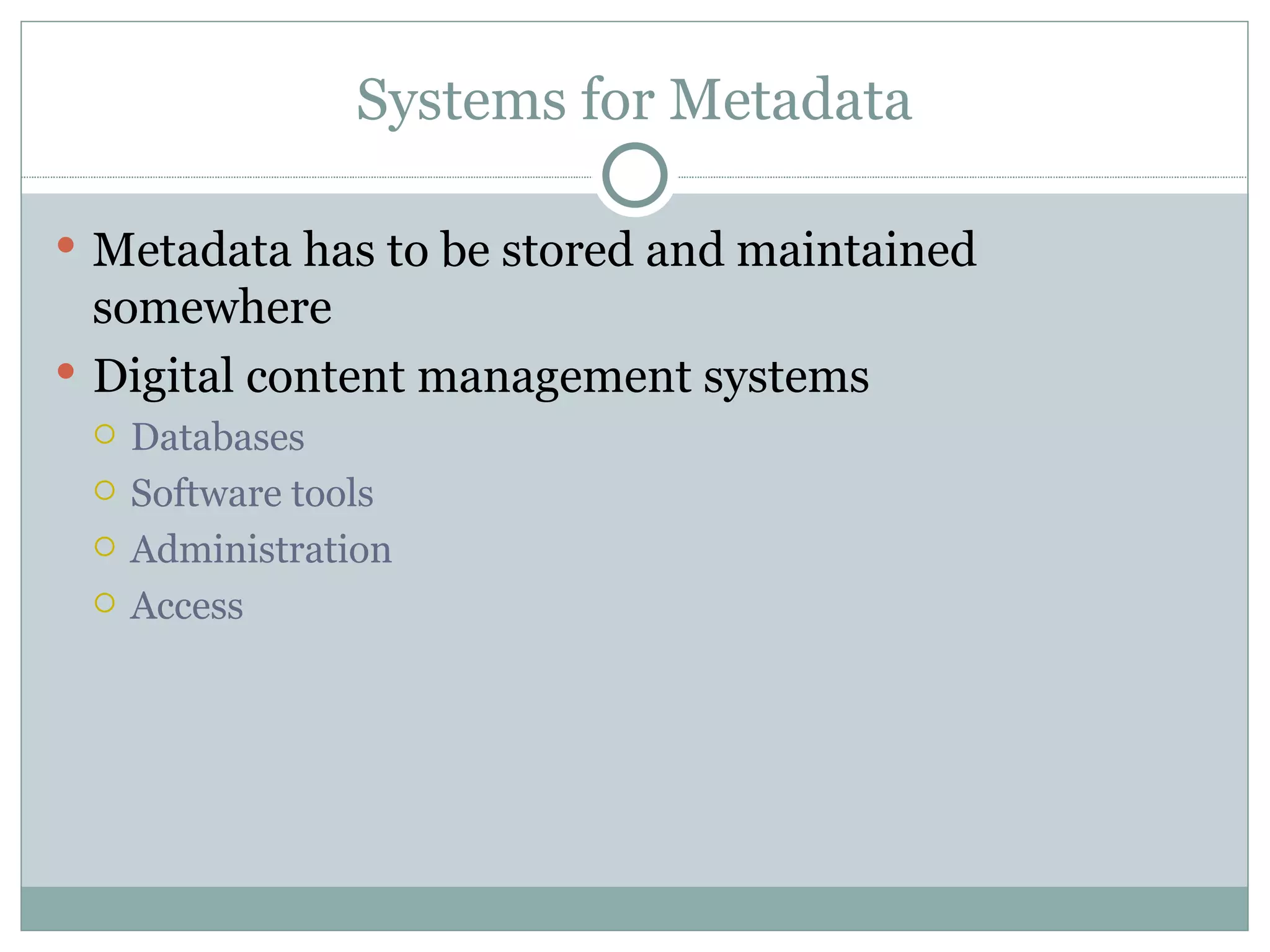

40. Systems for Metadata Metadata has to be stored and maintained somewhere Digital content management systems Databases Software tools Administration Access

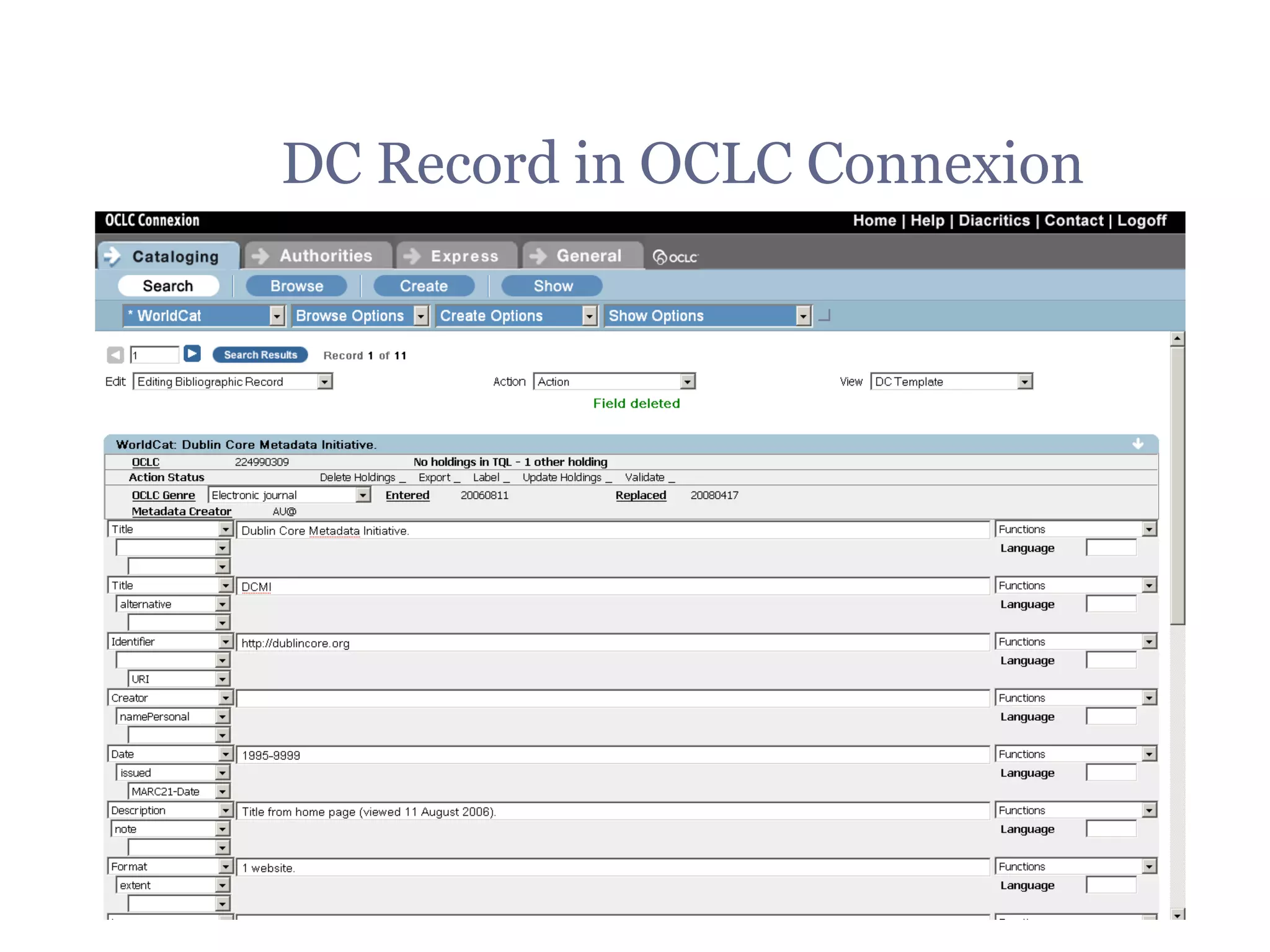

41. DC Record in OCLC Connexion

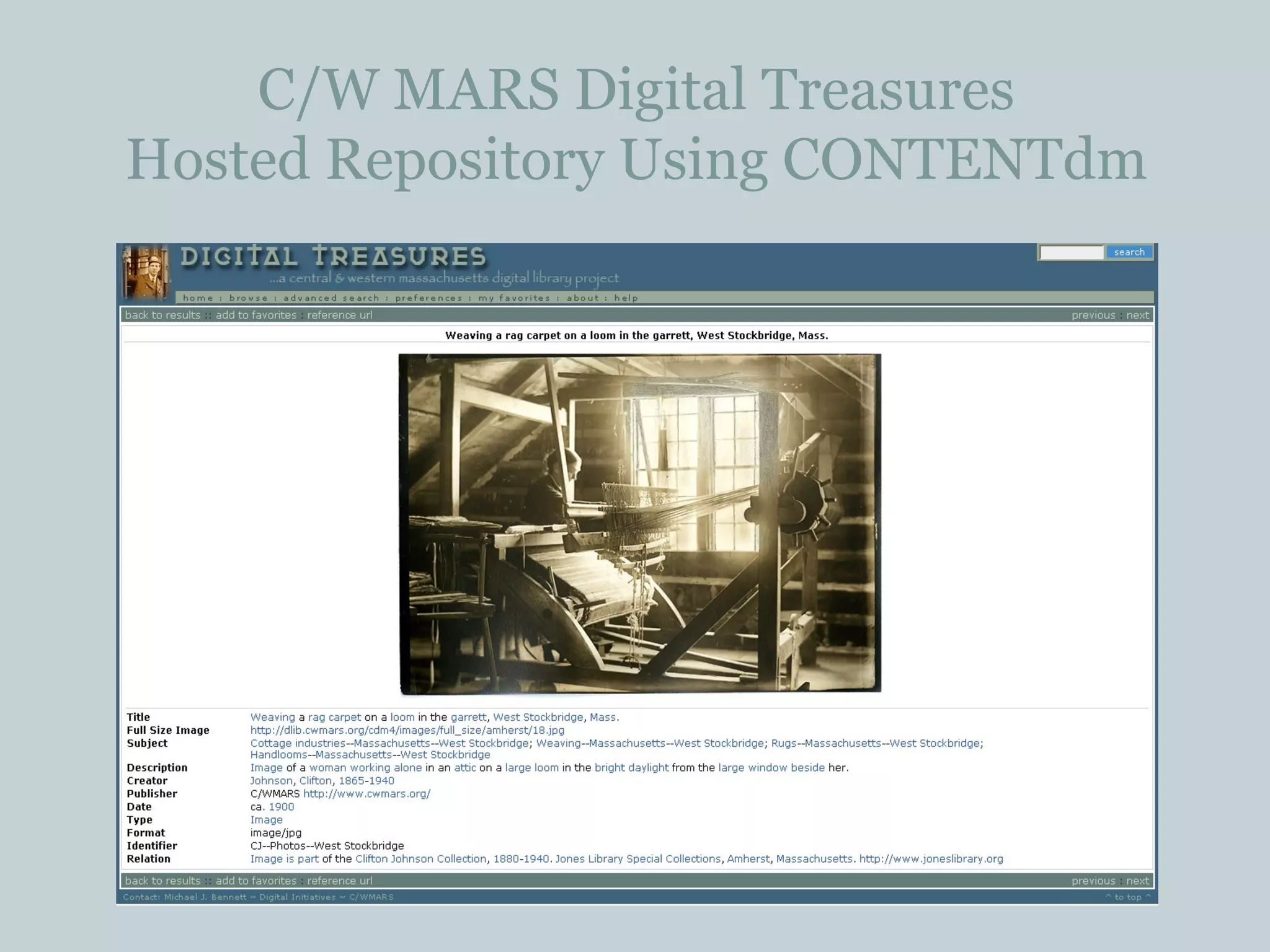

42. C/W MARS Digital Treasures Hosted Repository Using CONTENTdm

45. Content Standards AACR (Anglo-American Cataloguing Rules) “ The rules cover the description of, and the provision of access points for, all library materials commonly collected at the present time.” The current text is the 2nd ed, 2002 Revision (with 2003, 2004, and 2005 updates) The Joint Steering Committee for Revision of AACR (JSC) is working on a new code, “RDA: Resource Description and Access” scheduled for publication in 2009

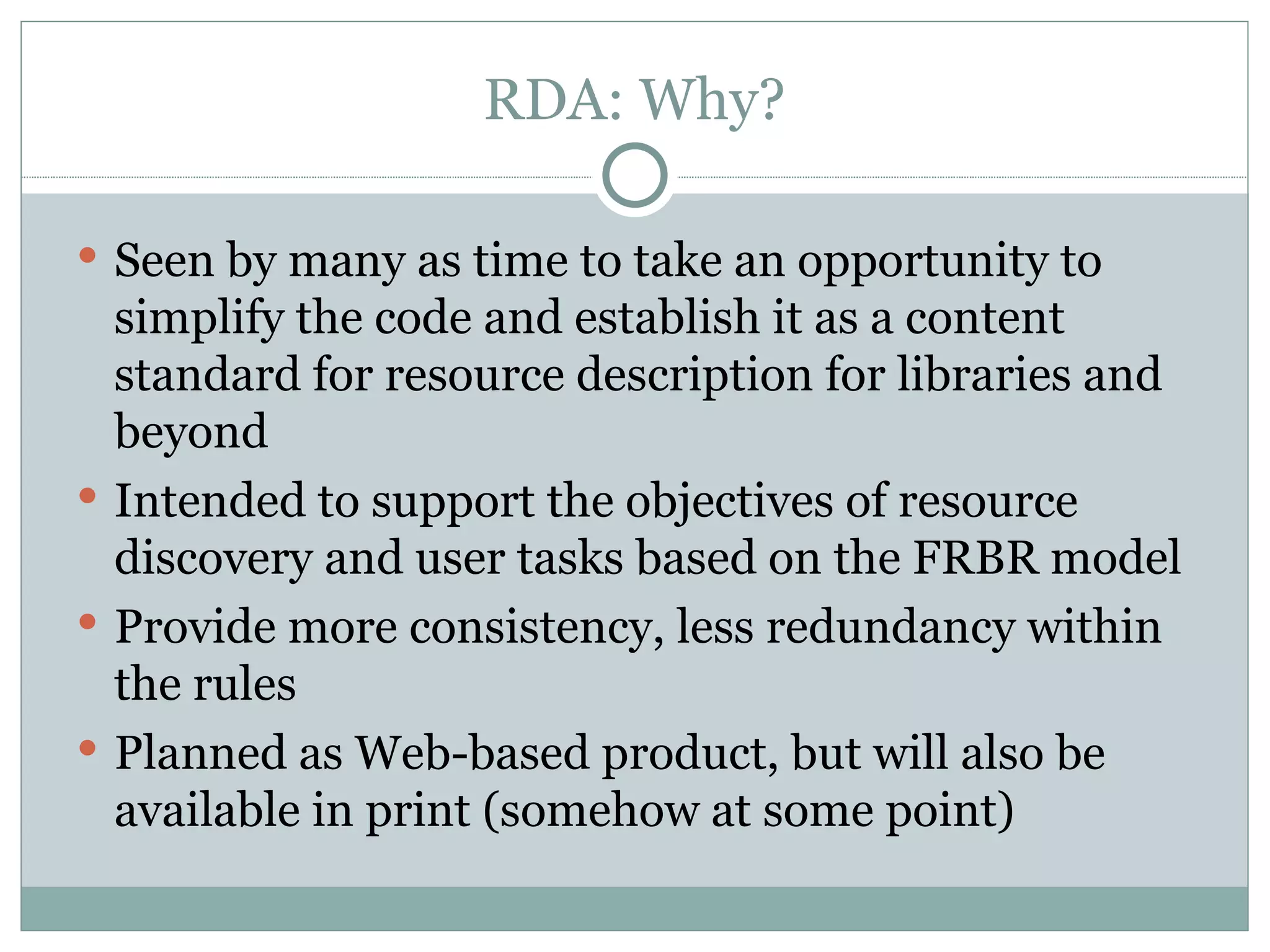

46. RDA: Why? Seen by many as time to take an opportunity to simplify the code and establish it as a content standard for resource description for libraries and beyond Intended to support the objectives of resource discovery and user tasks based on the FRBR model Provide more consistency, less redundancy within the rules Planned as Web-based product, but will also be available in print (somehow at some point)

47. RDA: Goals Flexible framework for describing all types of resources – analog and digital Simplify rules Create data that is readily adaptable to new and emerging database structures Encourage use beyond the library community Create data that is compatible with existing records in online library catalogs Generate records that contain data that is relevant and important to users

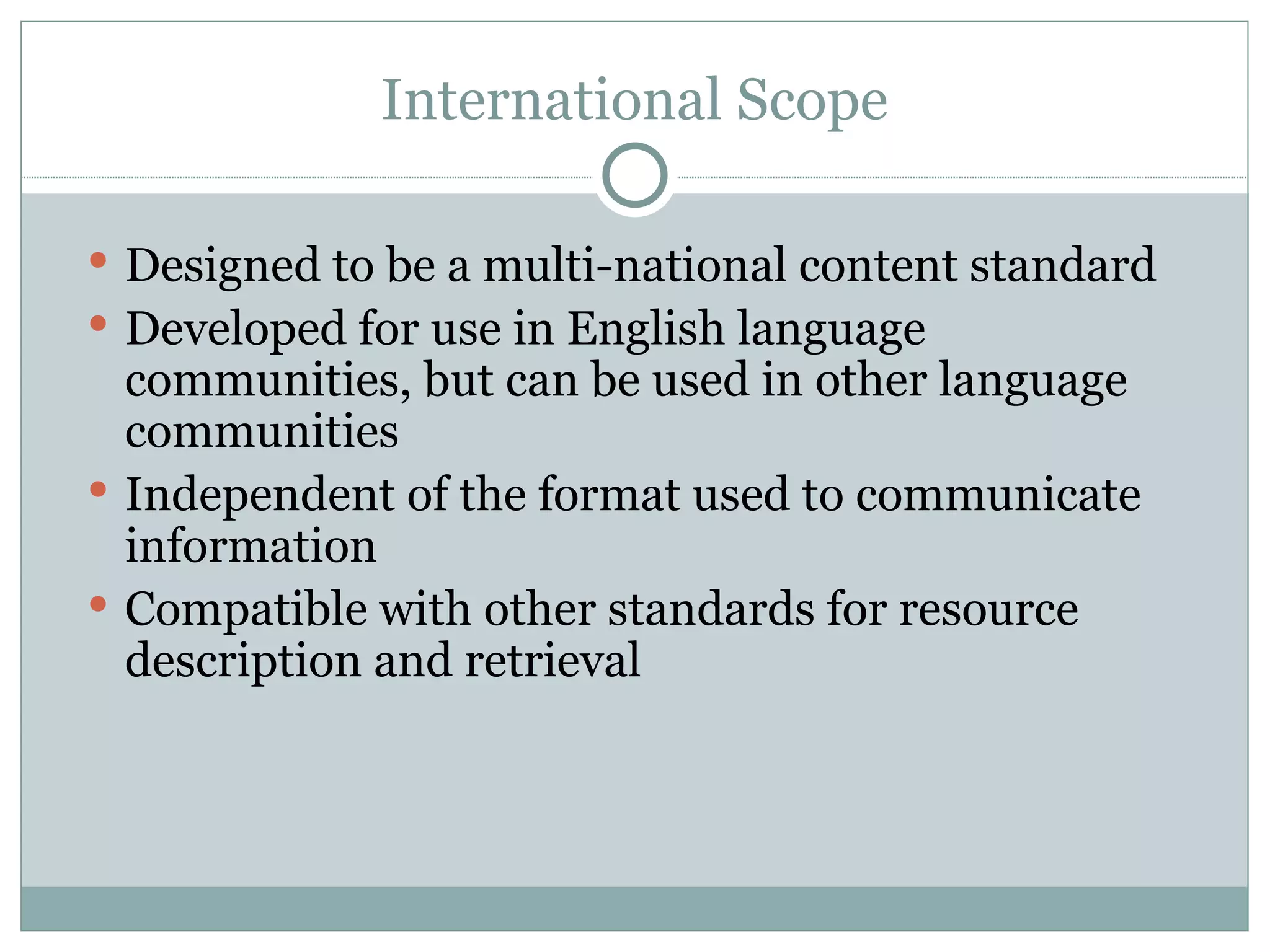

48. International Scope Designed to be a multi-national content standard Developed for use in English language communities, but can be used in other language communities Independent of the format used to communicate information Compatible with other standards for resource description and retrieval

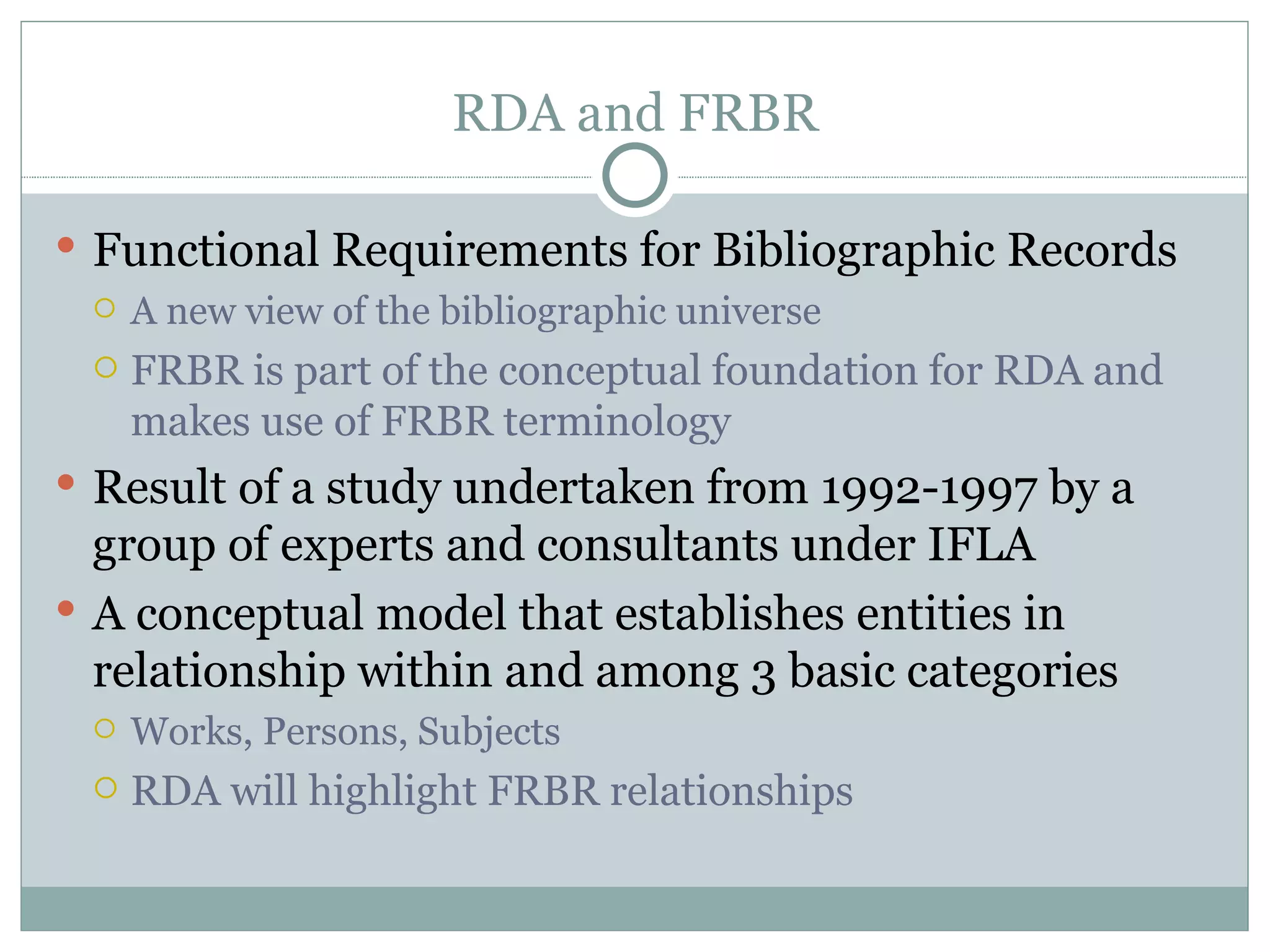

49. RDA and FRBR Functional Requirements for Bibliographic Records A new view of the bibliographic universe FRBR is part of the conceptual foundation for RDA and makes use of FRBR terminology Result of a study undertaken from 1992-1997 by a group of experts and consultants under IFLA A conceptual model that establishes entities in relationship within and among 3 basic categories Works, Persons, Subjects RDA will highlight FRBR relationships

50. FRBR Group 1 Entities The FRBR model divides Group 1 (bibliographic entities) into four levels of representation - the building blocks of the FRBR model Work Expression Manifestation Item

51. FRBR Group 1 Entities Work A distinct intellectual or artistic creation, in the abstract Expression The intellectual or artistic realization of a work by an illustrator, translator, performer Manifestation The physical embodiment of an expression of a work - a published edition Item A single example of a manifestation (copy)

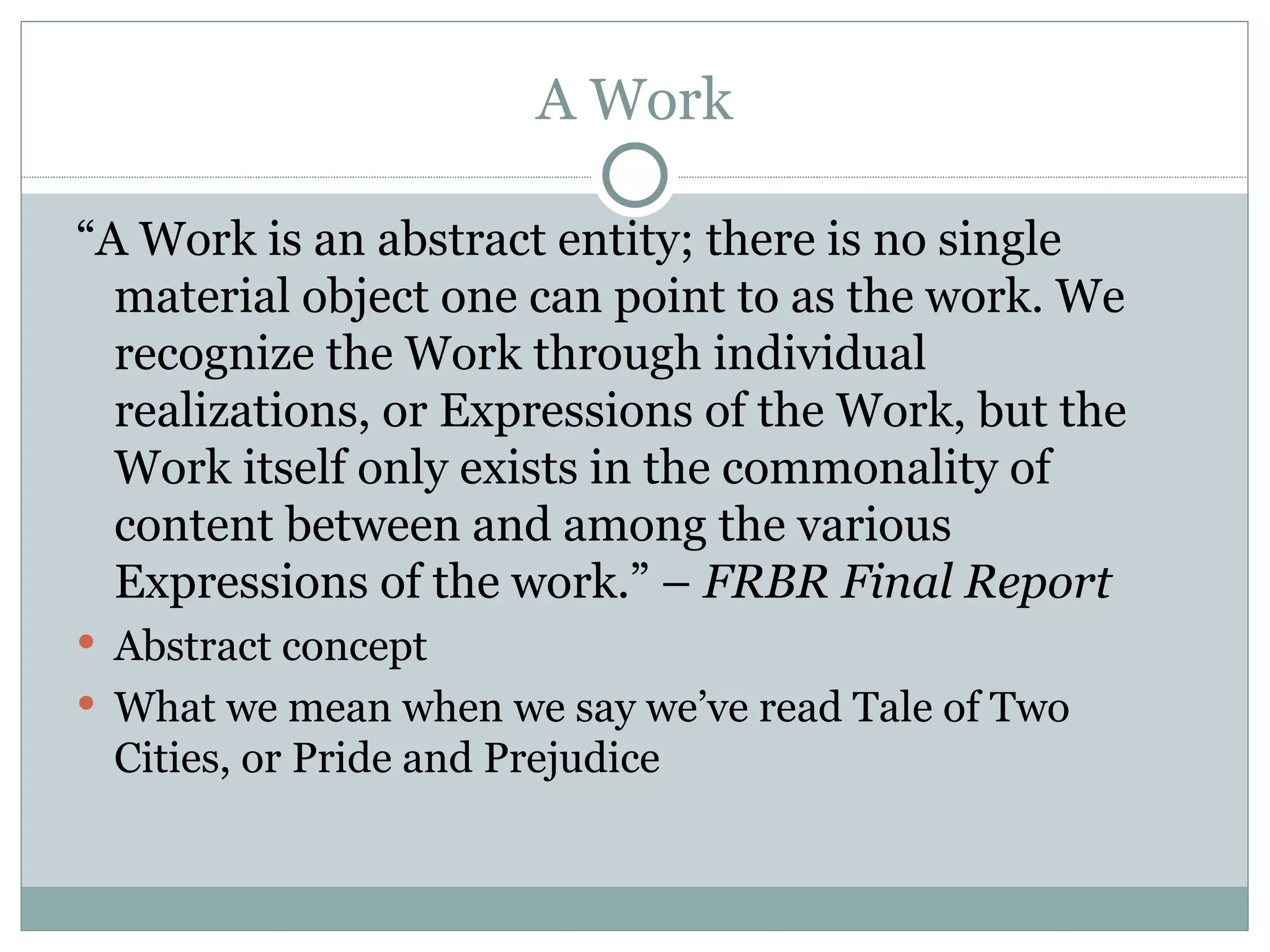

52. A Work “ A Work is an abstract entity; there is no single material object one can point to as the work. We recognize the Work through individual realizations, or Expressions of the Work, but the Work itself only exists in the commonality of content between and among the various Expressions of the work.” – FRBR Final Report Abstract concept What we mean when we say we’ve read Tale of Two Cities, or Pride and Prejudice

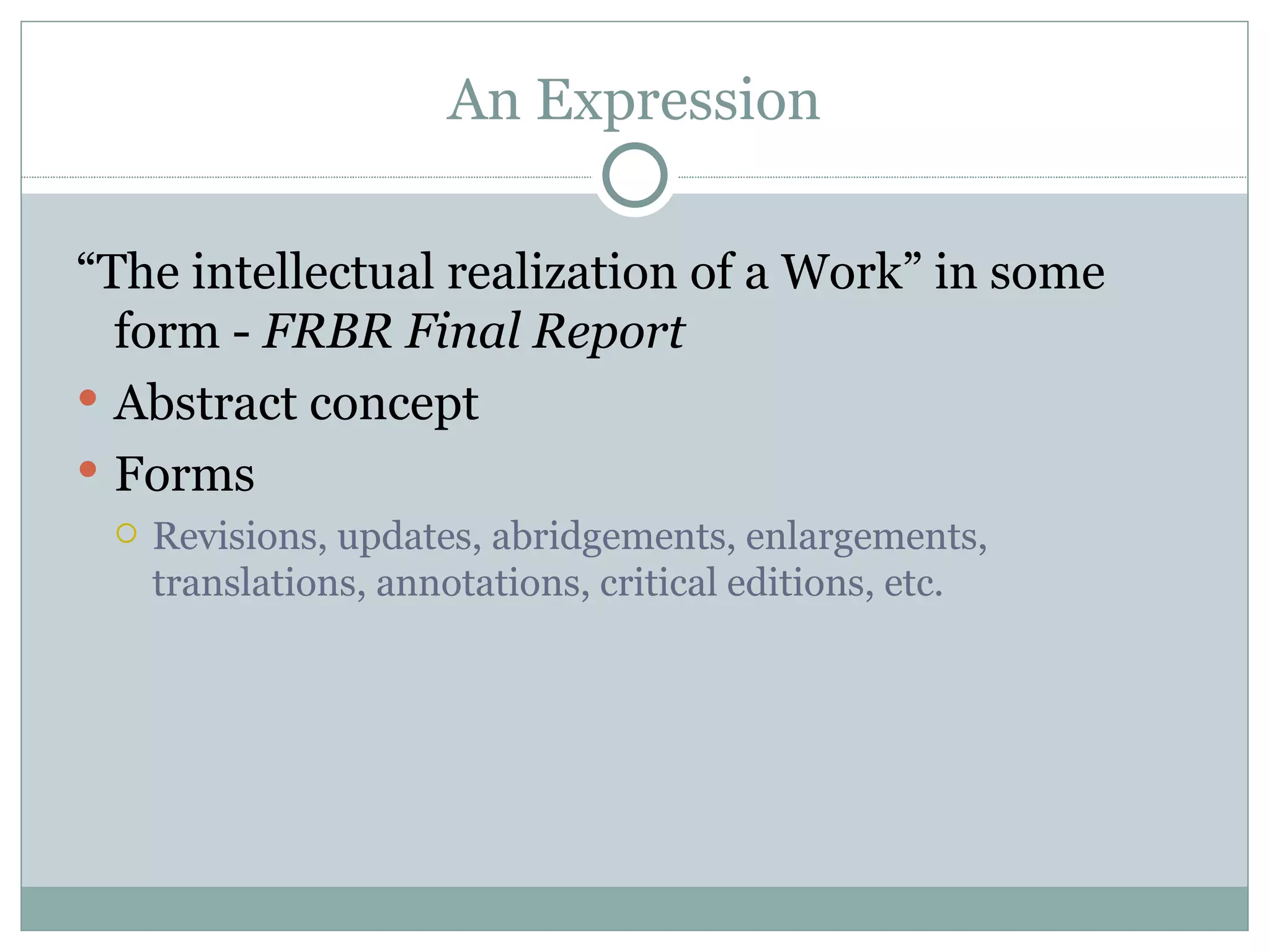

53. An Expression “ The intellectual realization of a Work” in some form - FRBR Final Report Abstract concept Forms Revisions, updates, abridgements, enlargements, translations, annotations, critical editions, etc.

54. A Manifestation “ The physical embodiment of an Expression of a Work ” FRBR Final Report Set of objects – still somewhat abstract Manuscripts, Books, Periodicals, Maps, Posters, Films, CD-ROMs, etc. Manifestations of a Work take different forms Example: E-text of Pride and Prejudice from Project Gutenberg versus the Oxford Illustrated edition Level at which we traditionally catalog library materials

55. An Item “ A single exemplar of a Manifestation ” – FRBR Final Report One specific concrete physical object Designates a copy, or the circulation level of a bibliographic entity Items may vary where the variations are a result of actions external to the intent of the producer of the Manifestation Houghton Library’s first edition of Gone with the Wind previously owned by Thomas Wolfe

56. Top two levels: abstract intellectual/artistic content Lower two levels: physical recording of content

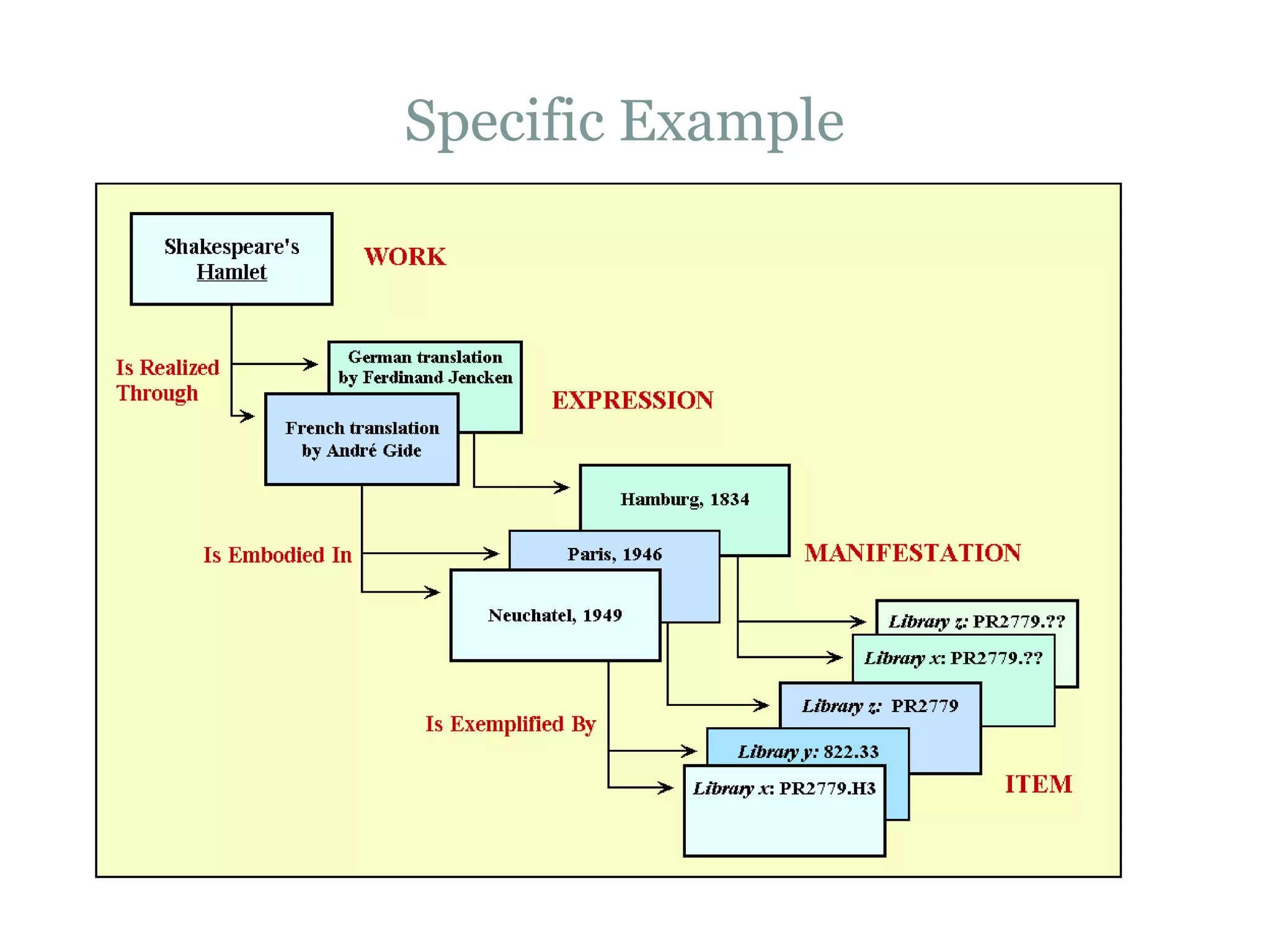

57. Specific Example

58. Groups 2 and 3 Group 2: Actor Entities Persons or corporate bodies “responsible for the intellectual or artistic content, the physical production and dissemination, or the custodianship of the entities in the first group” Group 3: Subject Entities What a Work may be about including Groups 1 & 2 (Other Works, People, Corporate Bodies) Concepts Objects Events Places

59. Advantages of FRBR Better logic and organization to catalog OPAC becomes simpler to navigate and understand Easier to see all available Expressions/ Manifestations of a single Work Easier to find desired resource when search results are grouped and related in meaningful ways Display bibliographic entities within the context of related, established entities Better understanding of relationships among related Works or Expressions

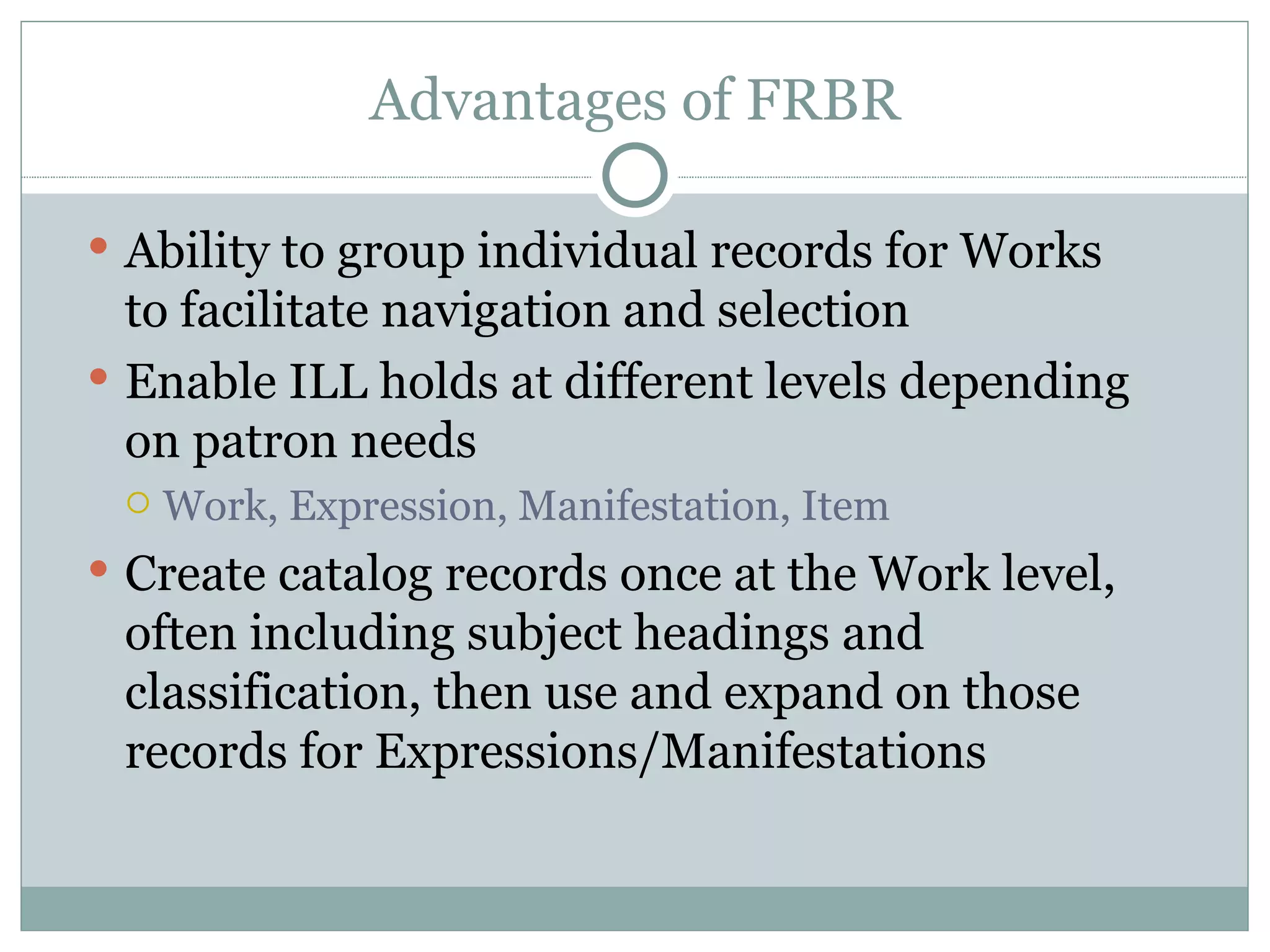

60. Advantages of FRBR Ability to group individual records for Works to facilitate navigation and selection Enable ILL holds at different levels depending on patron needs Work, Expression, Manifestation, Item Create catalog records once at the Work level, often including subject headings and classification, then use and expand on those records for Expressions/Manifestations

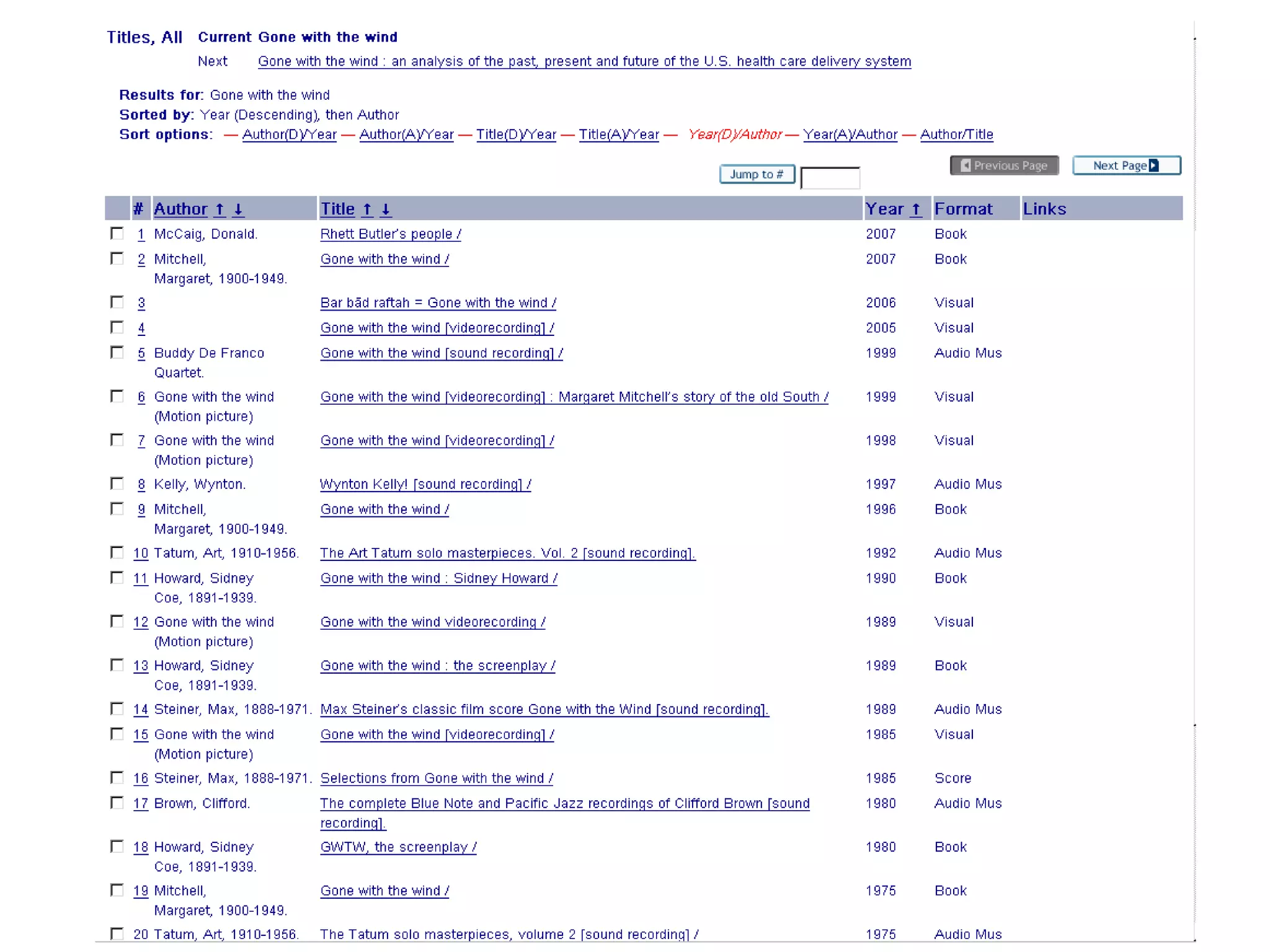

61. Traditional OPAC Display

64. OCLC WorldCat Analysis Sample of 996 records (Manifestations) Used computer algorithms to identify Works from within the group 78% have only a single Manifestation 99% of Works in WorldCat have 7 or fewer Manifestations 1% of the whole benefits the most from FRBRization

65. FRBR Research Links OCLC Research http://www.oclc.org/research/projects/frbr/default.htm Library of Congress FRBR display tool http://www.loc.gov/marc/marc-functional-analysis/frbr.html

66. Related Work: FRAD FRAD = Functional Requirements for Authority Data Provide a clearly defined, structured frame of reference for relating the data that are recorded in authority records to the needs of the users of those records Deals with entities related to authority data Expose the relationships between persons (or personas), names, and access points Assist in an assessment of the potential for international sharing and use of authority data both within the library sector and beyond Virtual International Authority File Current draft dated April 1, 2007

67. RDA: Quick Overview Designed for the digital environment Description and access of all digital ( and analog) resources Usable by libraries and other metadata communities

68. Working with RDA Product developed as a subscription-based, XML-driven, online web system Will include sample workflows, a core element set, customized views, links to rules, local notes, saved search profile s Take the cataloger through the various data elements to be included in the resource description Describe the purpose and scope of each element Where to look for that element How to record it Build cataloger’s judgement

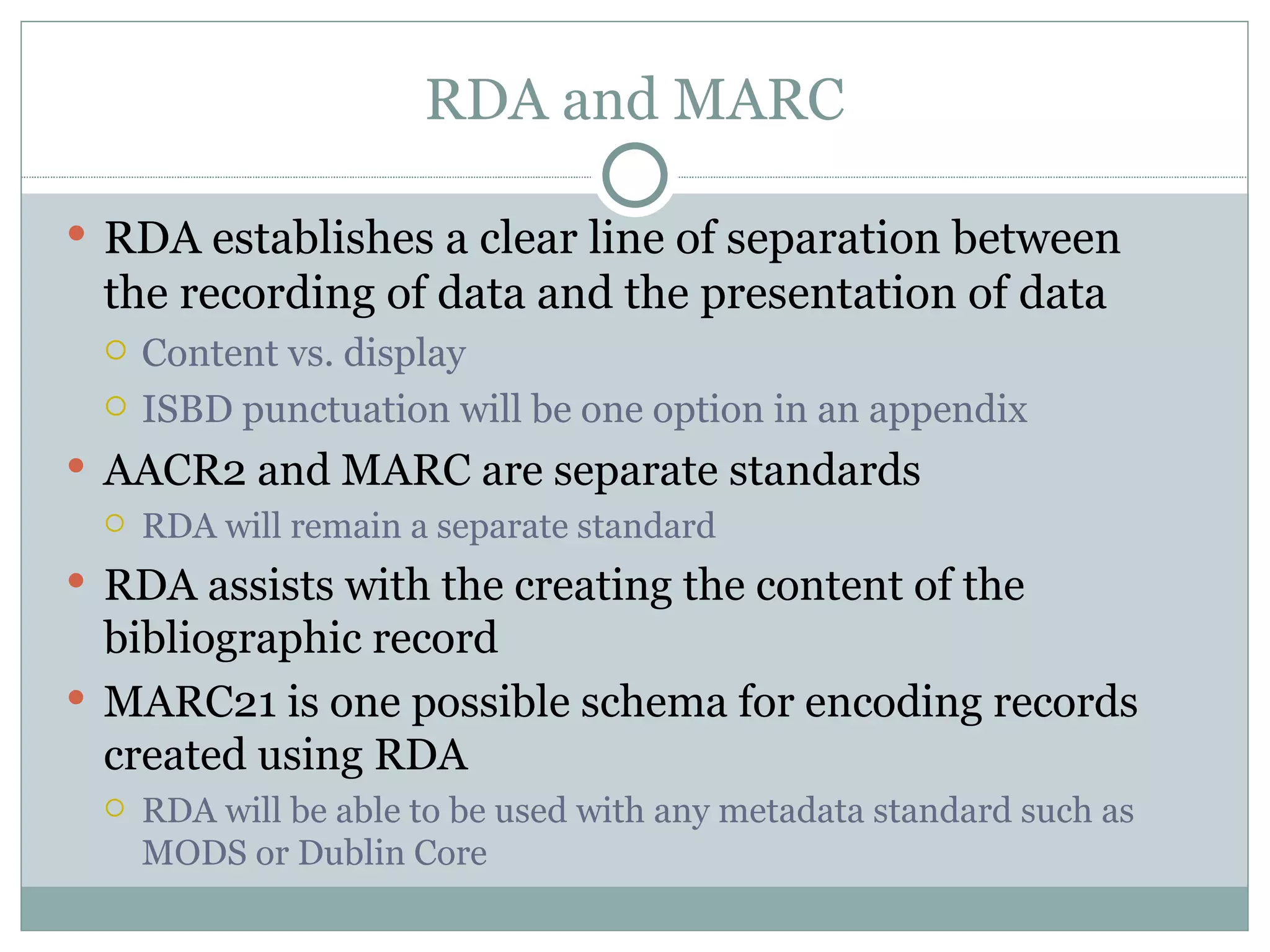

69. RDA and MARC RDA establishes a clear line of separation between the recording of data and the presentation of data Content vs. display ISBD punctuation will be one option in an appendix AACR2 and MARC are separate standards RDA will remain a separate standard RDA assists with the creating the content of the bibliographic record MARC21 is one possible schema for encoding records created using RDA RDA will be able to be used with any metadata standard such as MODS or Dublin Core

70. RDA: Impact on Libraries and Systems The Joint Steering Committee is striving to minimize need for retrospective adjustments to pre-RDA records RDA instructions are designed to be independent of the format, medium, or system used to store or communicate the data ILS systems may implement RDA in different ways Intended to be adaptable to newly-emerging database structures RDA and FRBR would be better optimized in a relational database structure

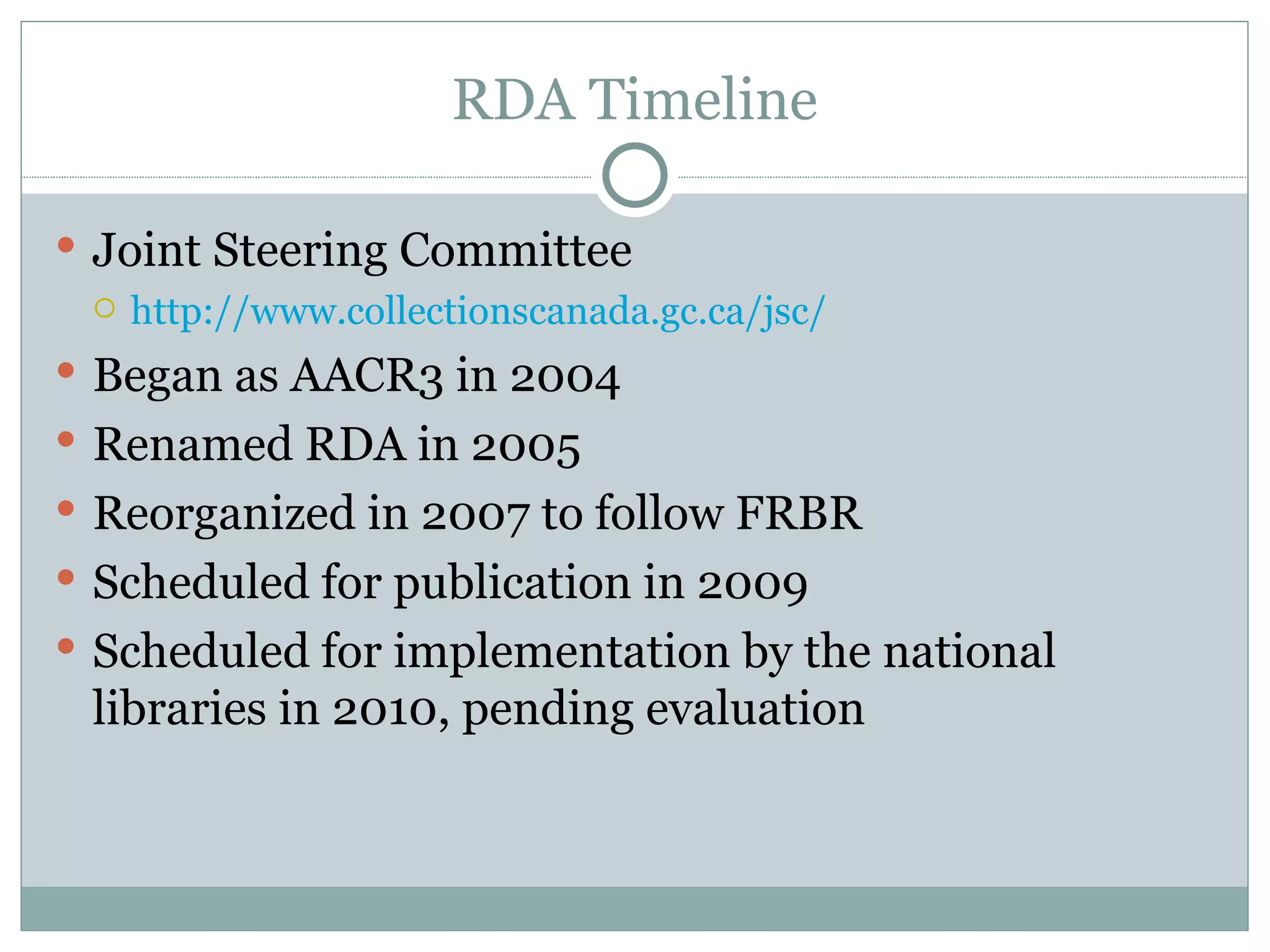

71. RDA Timeline Joint Steering Committee http://www.collectionscanada.gc.ca/jsc/ Began as AACR3 in 2004 Renamed RDA in 2005 Reorganized in 2007 to follow FRBR Scheduled for publication in 2009 Scheduled for implementation by the national libraries in 2010, pending evaluation

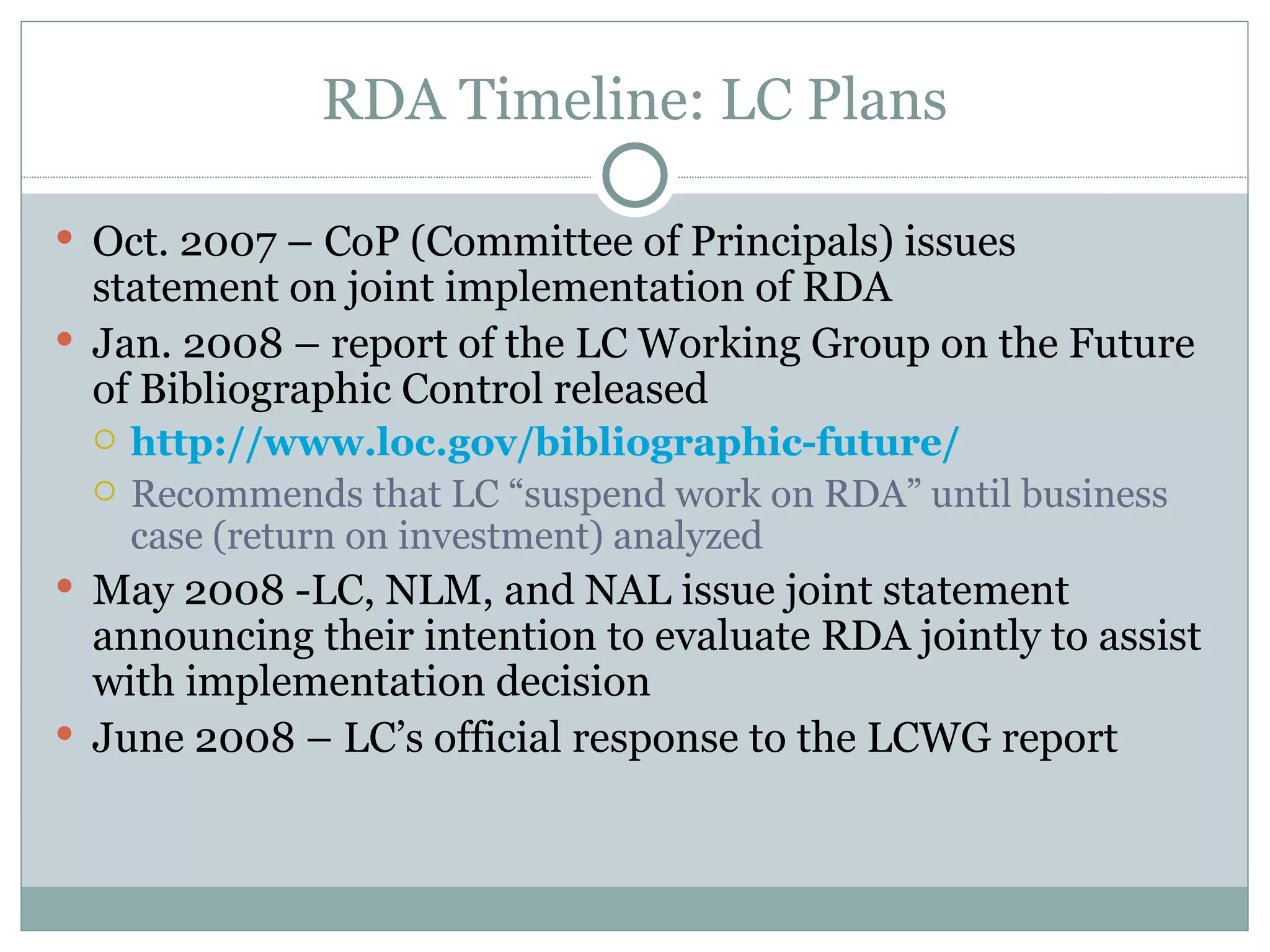

72. RDA Timeline: LC Plans Oct. 2007 – CoP (Committee of Principals) issues statement on joint implementation of RDA Jan. 2008 – report of the LC Working Group on the Future of Bibliographic Control released http://www.loc.gov/bibliographic-future/ Recommends that LC “suspend work on RDA” until business case (return on investment) analyzed May 2008 -LC, NLM, and NAL issue joint statement announcing their intention to evaluate RDA jointly to assist with implementation decision June 2008 – LC’s official response to the LCWG report

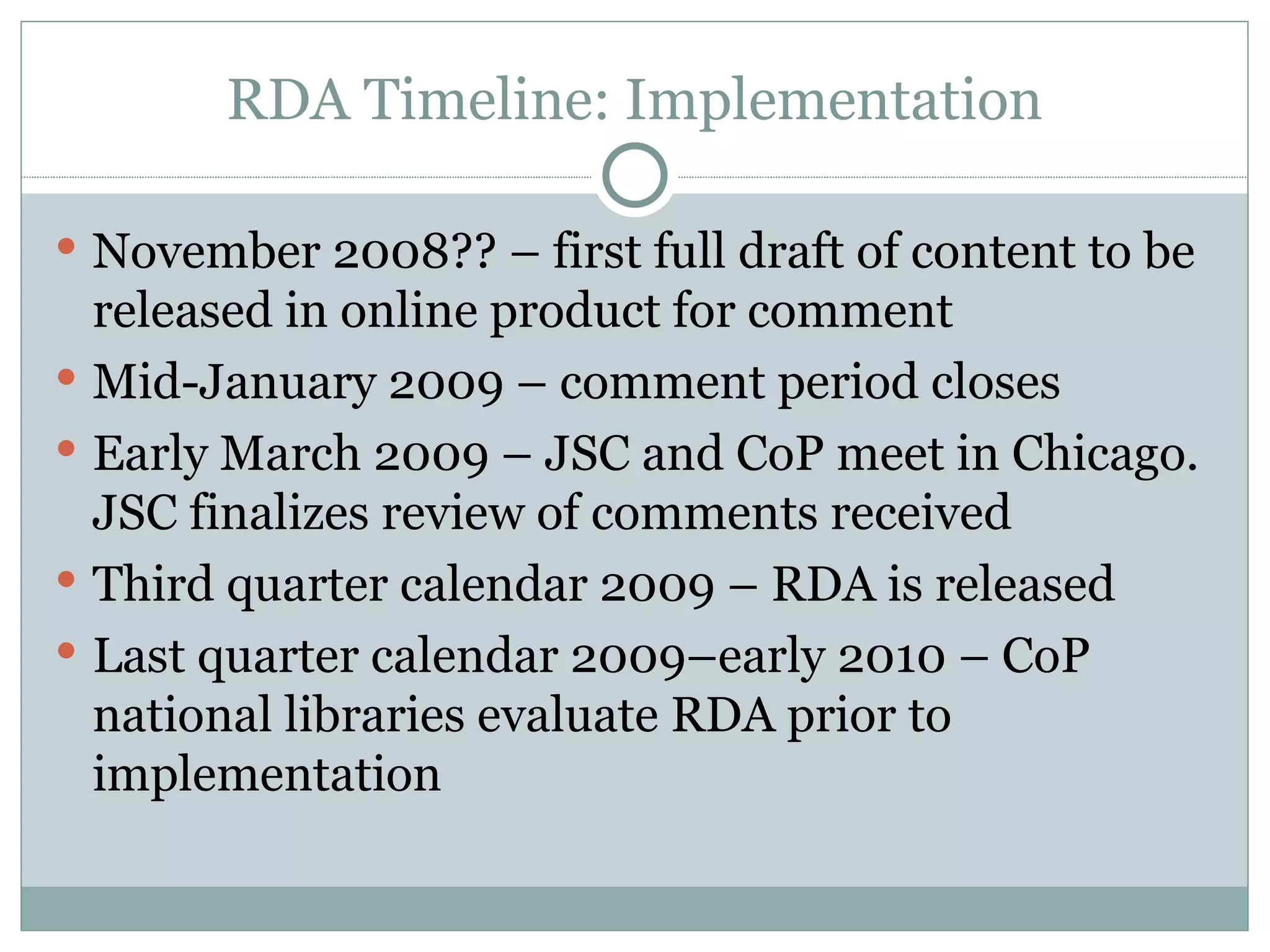

73. RDA Timeline: Implementation November 2008?? – first full draft of content to be released in online product for comment Mid-January 2009 – comment period closes Early March 2009 – JSC and CoP meet in Chicago. JSC finalizes review of comments received Third quarter calendar 2009 – RDA is released Last quarter calendar 2009–early 2010 – CoP national libraries evaluate RDA prior to implementation

74. RDA: Evaluation LC, NLM, NAL plus 10-20 others Selected libraries (PCC libraries, including small libraries in NACO funnel projects) Library school Archives Non-MARC users OCLC, Ex Libris, and other vendors Criteria for evaluation under development Usability, Technical, Financial criteria

75. Other Content Standards International Standard Bibliographic Description (ISBD) A family of standards to regularize the form and content of bibliographic descriptions Available for different material types: monographs, computer files, etc. Designed to promote record sharing and exchange

76. Other Content Standards Book Industry Standards And Communications (BISAC) Metadata Committee developed a Best Practices document Intended as a response to the question, “I’ve downloaded the ONIX documentation. Now what?” Its overriding purpose is to detail what data should be supplied and how it should be supplied

77. Other Content Standards Describing Archives: A Content Standard (DACS) Designed to facilitate consistent, appropriate, and self-explanatory description of archival materials and creators of archival materials Replaces Archives, Personal Papers, and Manuscripts (APPM)

78. Other Content Standards Cataloging Cultural Objects (CCO) A guide to describing cultural works and their images Provides guidelines for selecting, ordering, and formatting data used to populate catalog records Designed to promote good descriptive cataloging, shared documentation, and enhanced end-user access A project of the Visual Resources Association

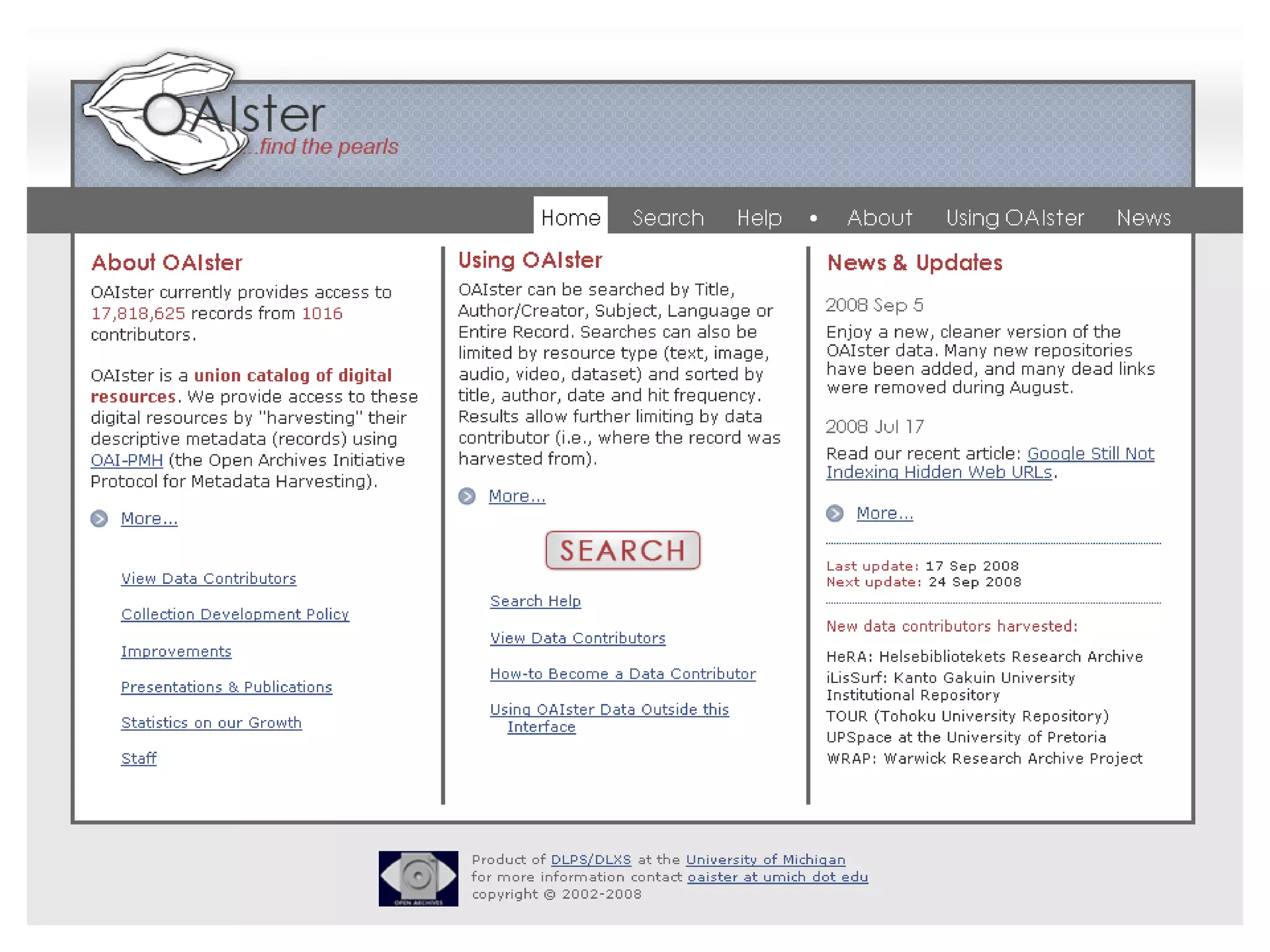

79. Access: Open Archives Initiative (OAI) A tool that supports interoperability among multiple databases OAI goal: coarse-granularity resource discovery Supports cross-database searching Aggregates metadata from multiple community-specific repositories Data providers expose (make available) the metadata for their collections Service providers harvest the exposed metadata from data providers and aggregate it

80. OAI OAI Protocol for Metadata Harvesting Metadata content must be encoded in XML and have a corresponding XML schema for validation Metadata must be supplied in unqualified Dublin Core format, at least Other metadata formats are optional, but recommended Metadata may optionally include a link to the actual content / resource

81. OAI Infrastructure repository repository repository repository Harvester Service Provider DC DC DC DC DC

82. OAI Infrastructure user Harvested Repository search Original repository

86. Book Details from U. of Chicago

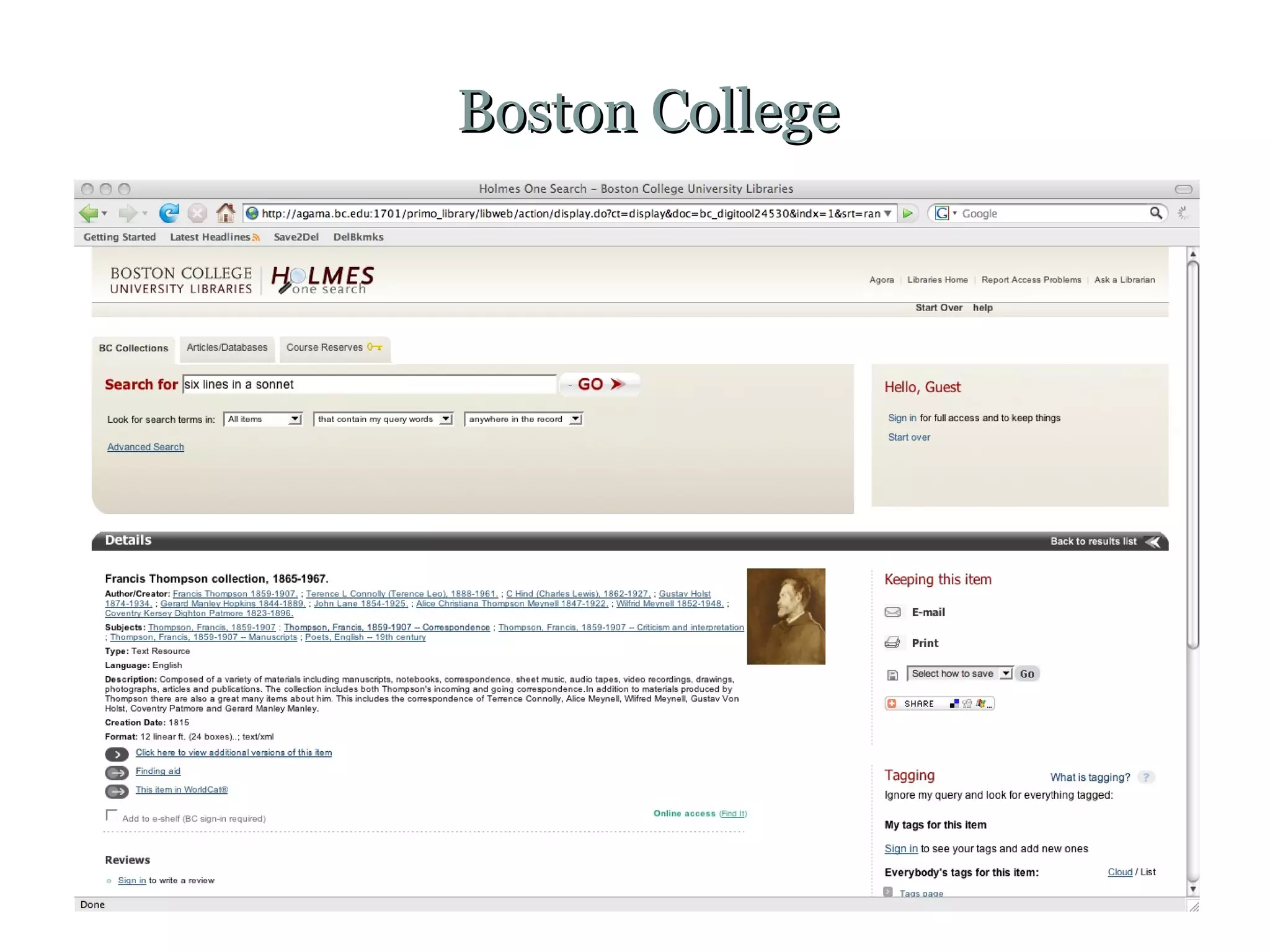

87. Boston College

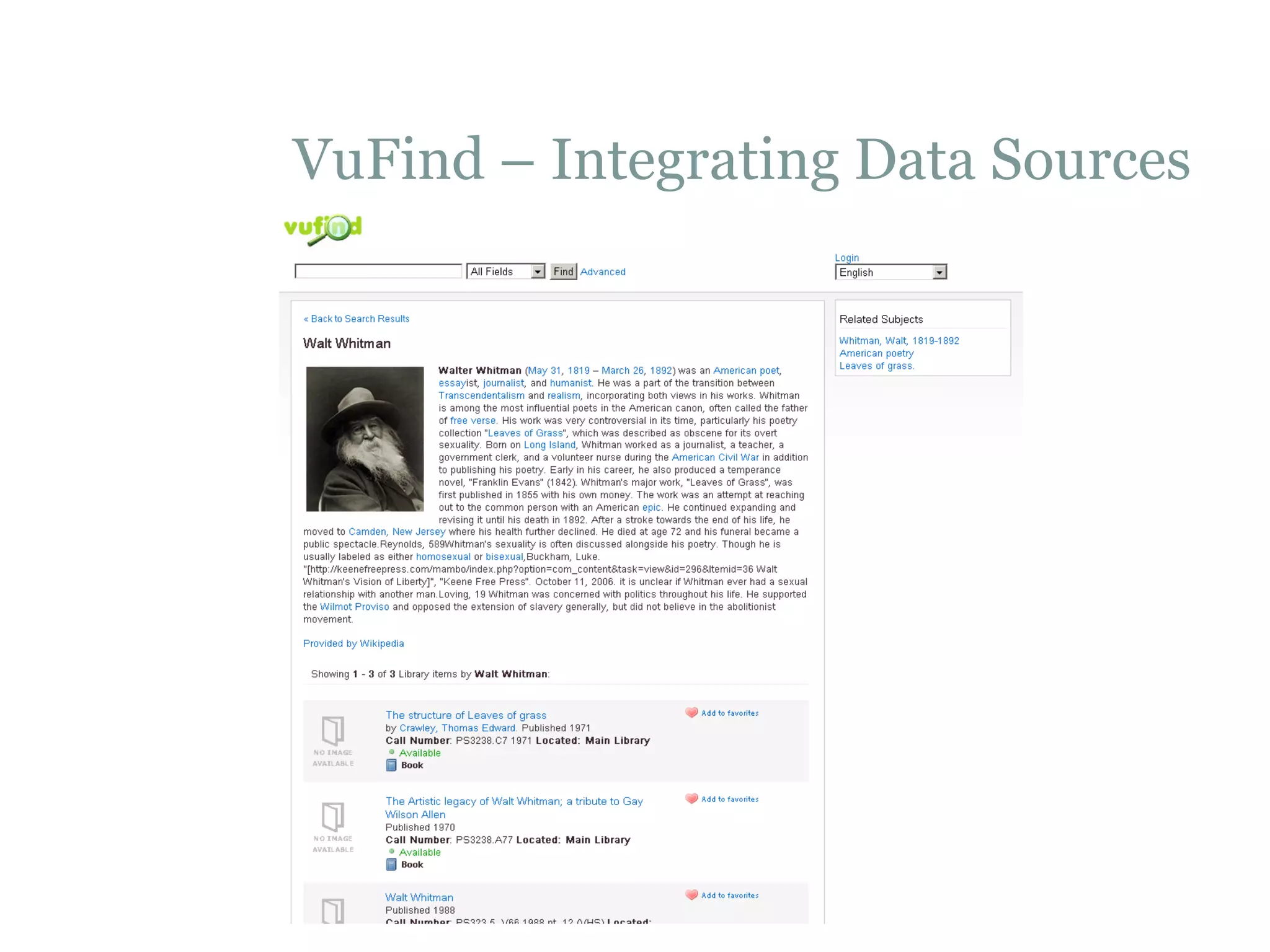

88. VuFind – Integrating Data Sources

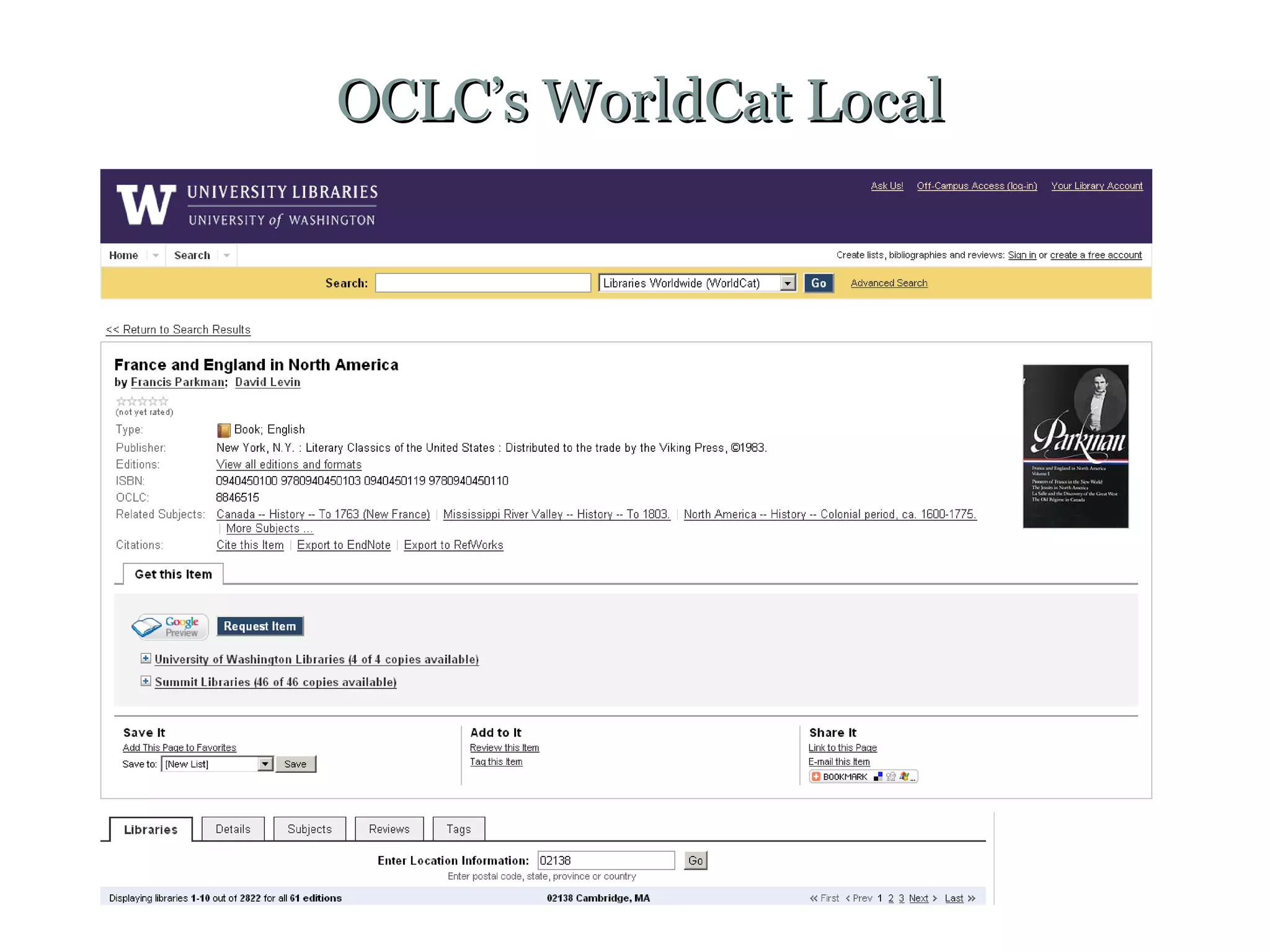

89. OCLC’s WorldCat Local

90. OCLC’s Fiction Finder

91. OCLC’s Fiction Finder

92. Social Data Libraries have some very useful data When made available in standardized formats the data can be used in new ways Wall of Books iGoogle widget Embrace data from users Seek outside sources of information to bring in that might enhance the user experience

93. Wall of Books created by AADL Patron

94. xISBN A Web Service that takes as input one ISBN and returns a list of other ISBNs of associated intellectual works – other expressions and manifestations Search results on one specific ISBN can be misleading Results intended for use by computer systems to generate new, more complete searches such as in an OPAC

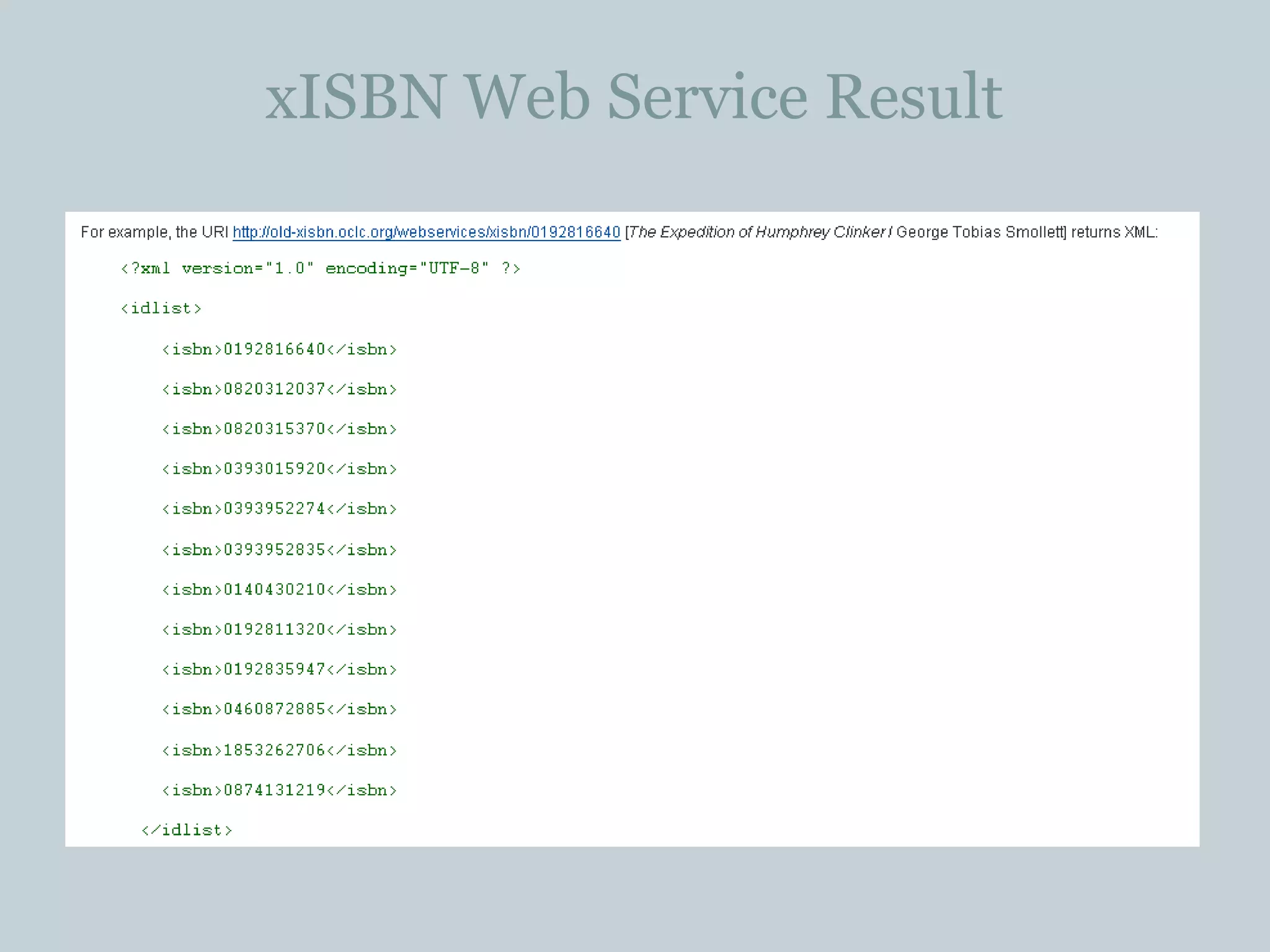

95. xISBN Web Service Result

96. Library Lookup

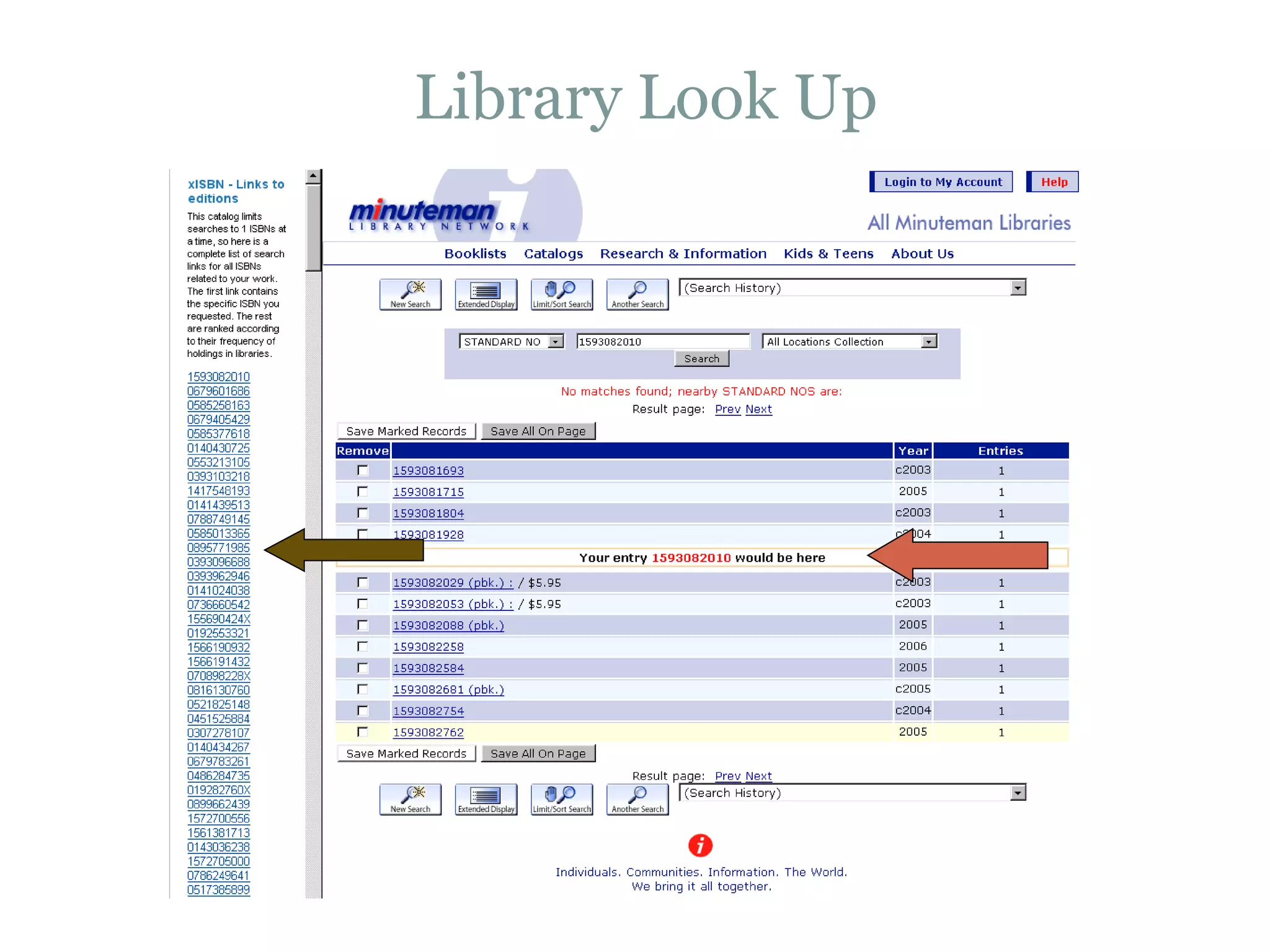

97. Library Look Up

98. Metadata’s Ideal Profile Metadata Characteristics Standards-based Consistent Descriptive Sharable Contextual Modular Adjustable Portable

99. Questions? Amy Benson Librarian/Archivist for Digital Initiatives Schlesinger Library Radcliffe Institute for Advanced Study Harvard University [email_address]
