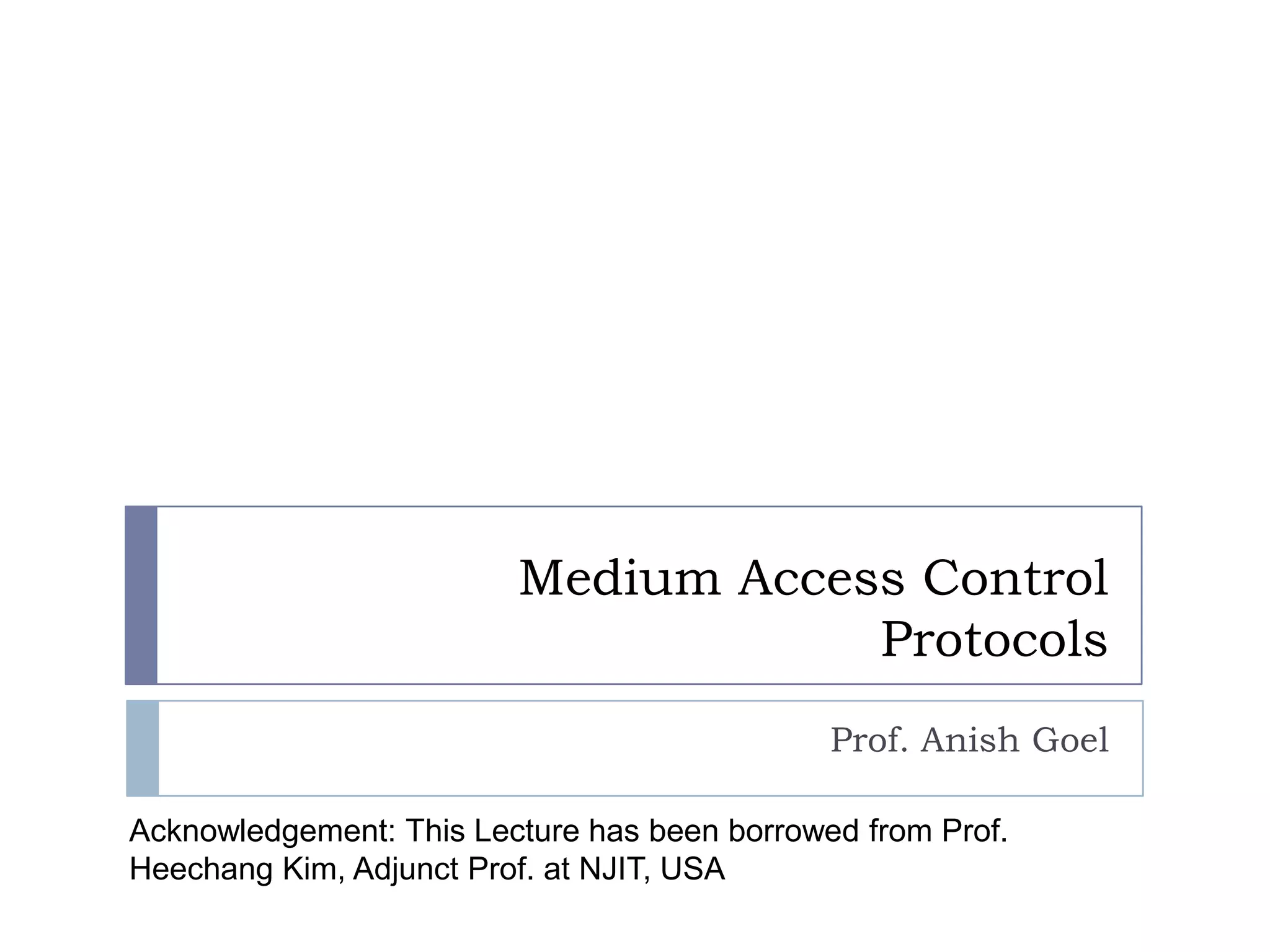

Medium Access ControlProtocols Prof. Anish Goel Acknowledgement: This Lecture has been borrowed from Prof. Heechang Kim, Adjunct Prof. at NJIT, USA

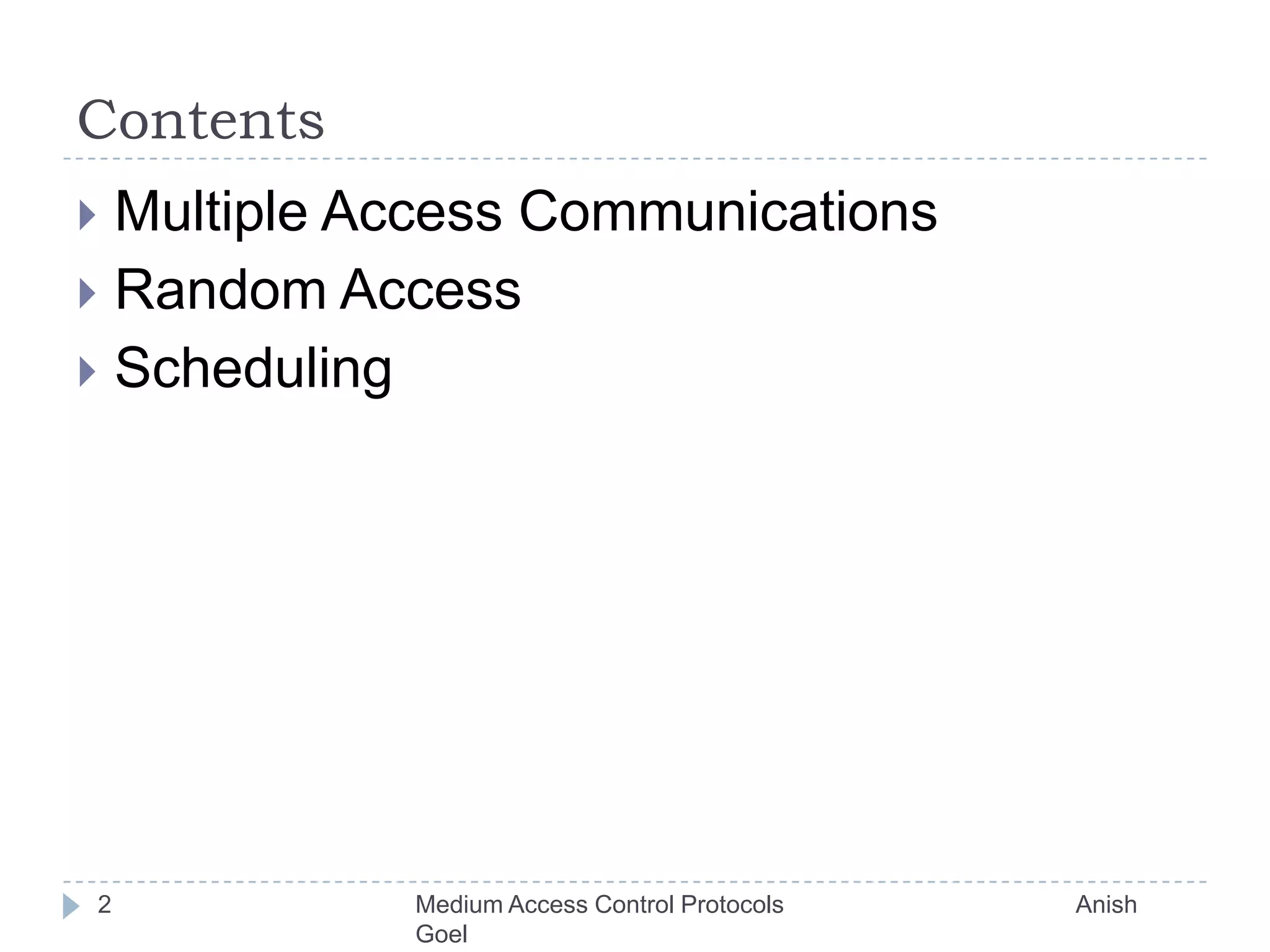

Contents Multiple Access Communications Random Access Scheduling Medium Access Control Protocols Anish Goel 2

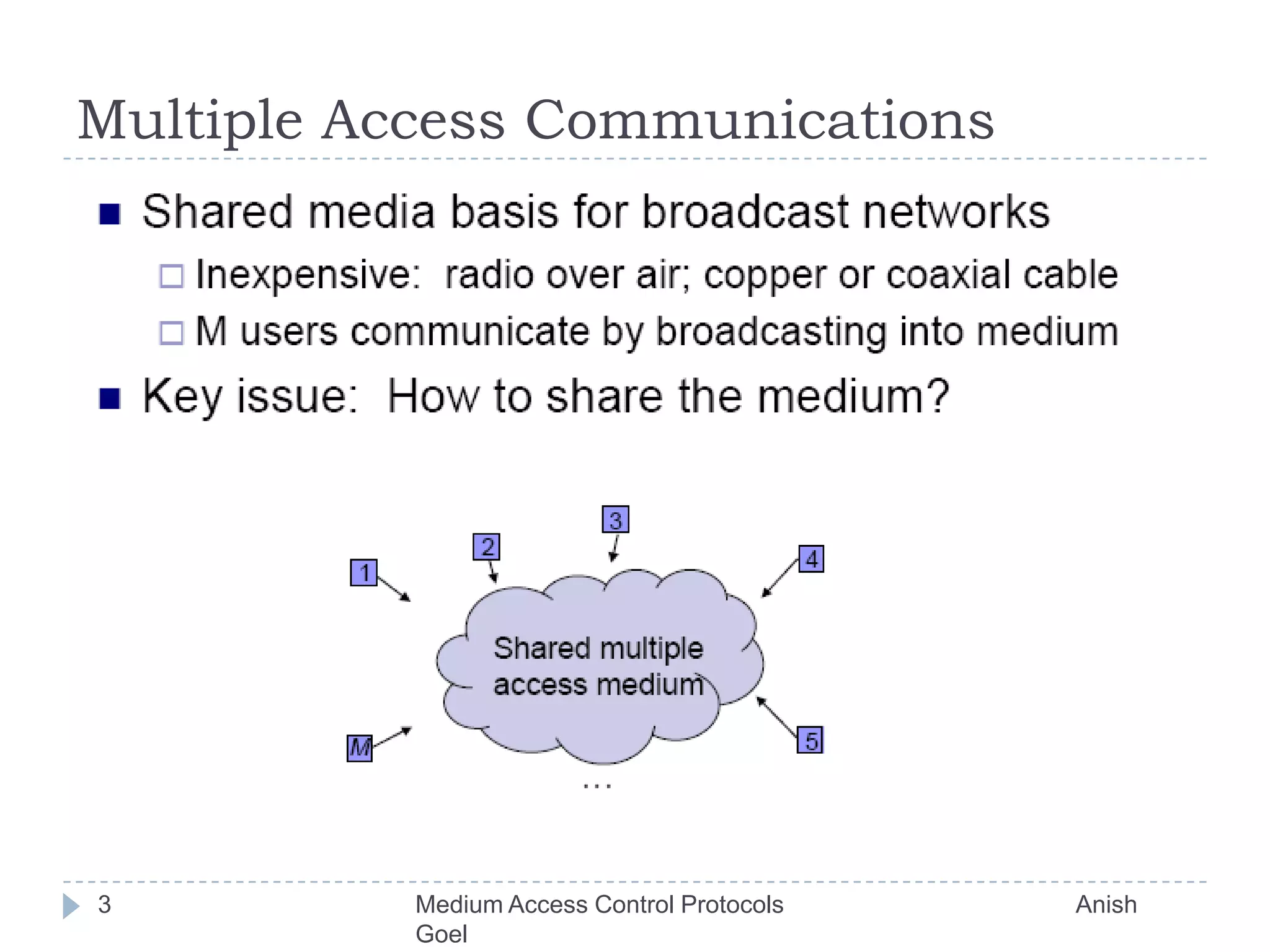

Multiple Access Communications 3 Medium Access Control Protocols Anish Goel

Approaches to Media Sharing 4 Medium Access Control Protocols Anish Goel

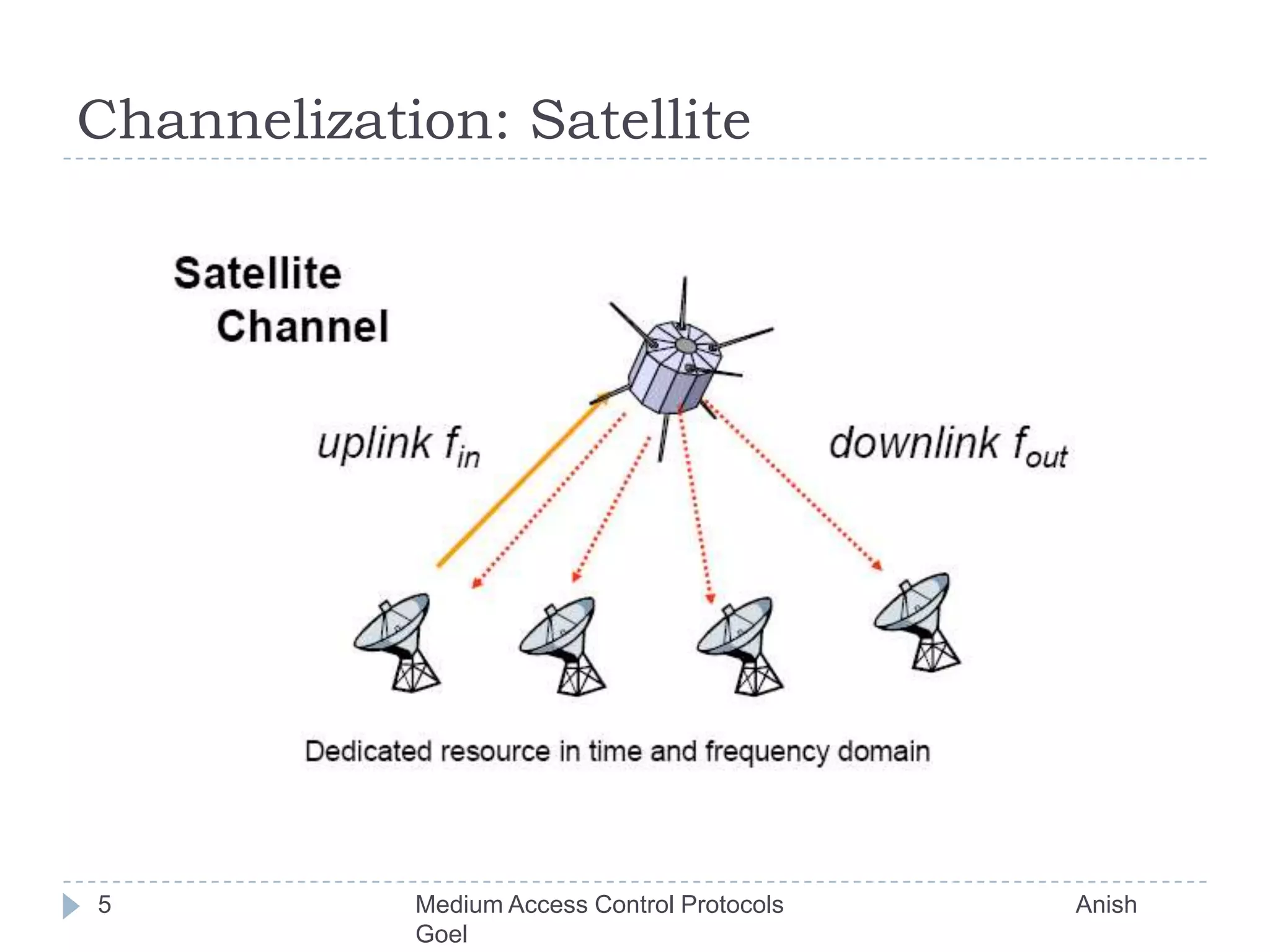

Channelization: Satellite 5 Medium Access Control Protocols Anish Goel

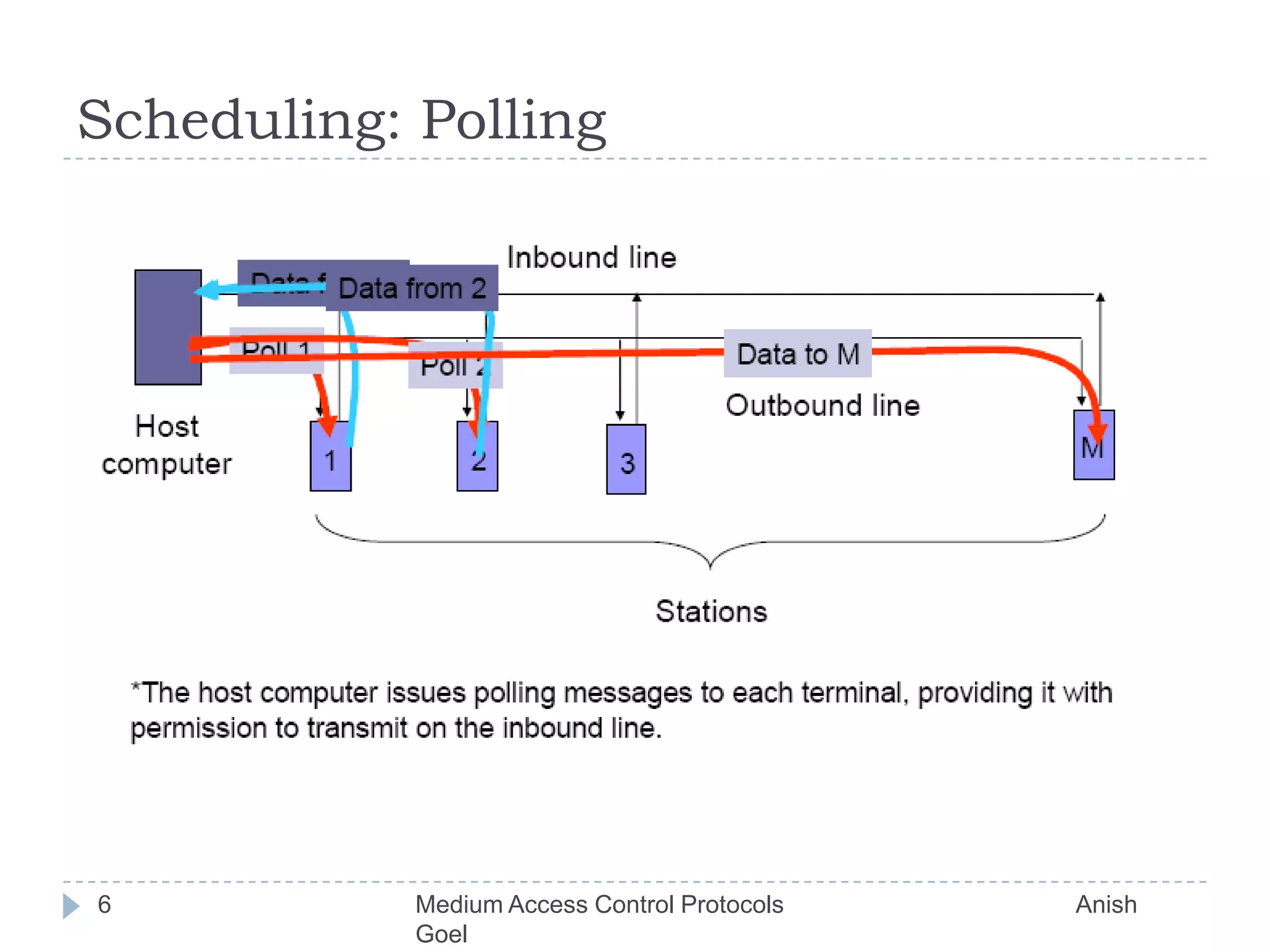

Scheduling: Polling 6 Medium Access Control Protocols Anish Goel

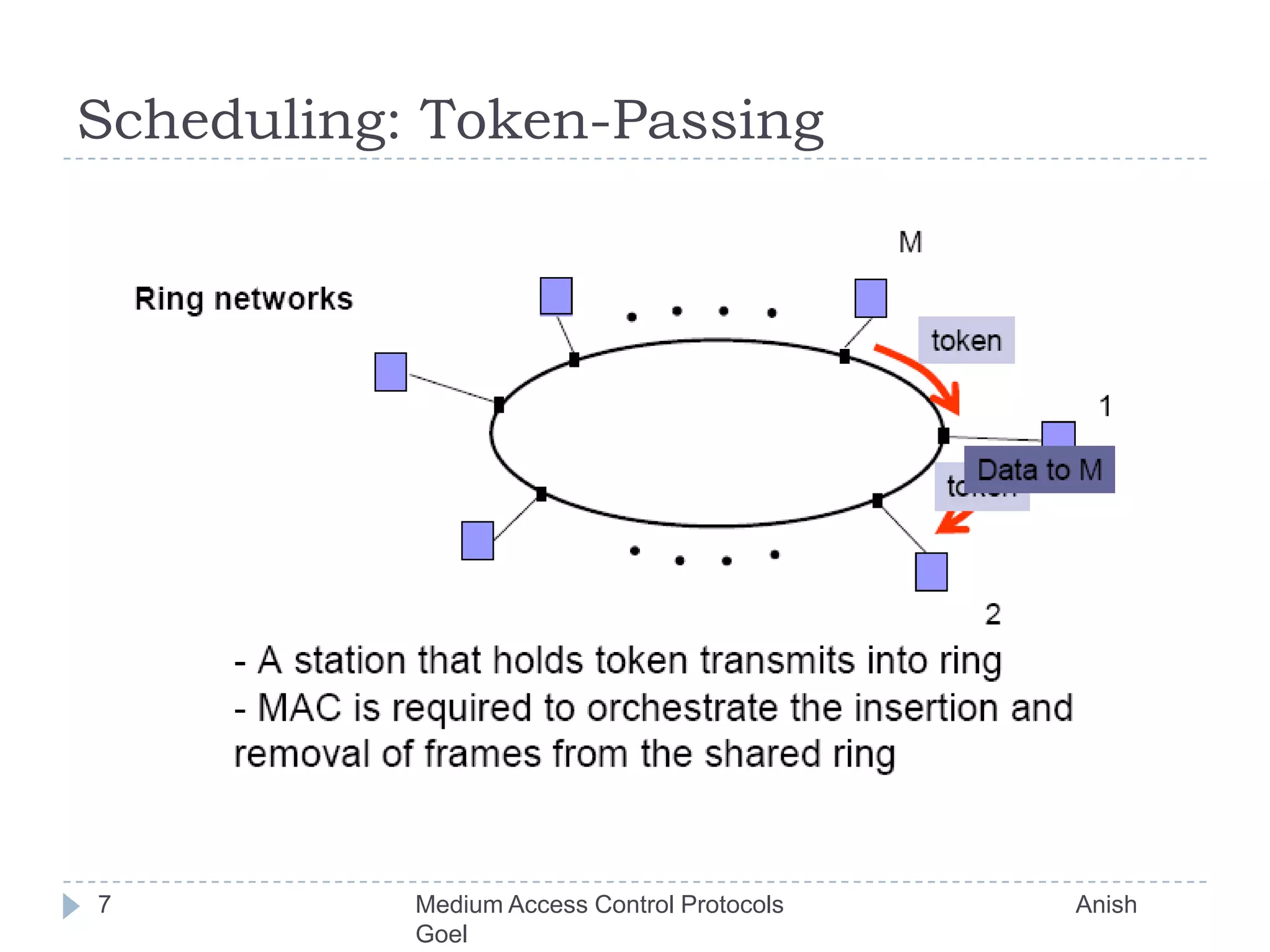

Scheduling: Token-Passing 7 Medium Access Control Protocols Anish Goel

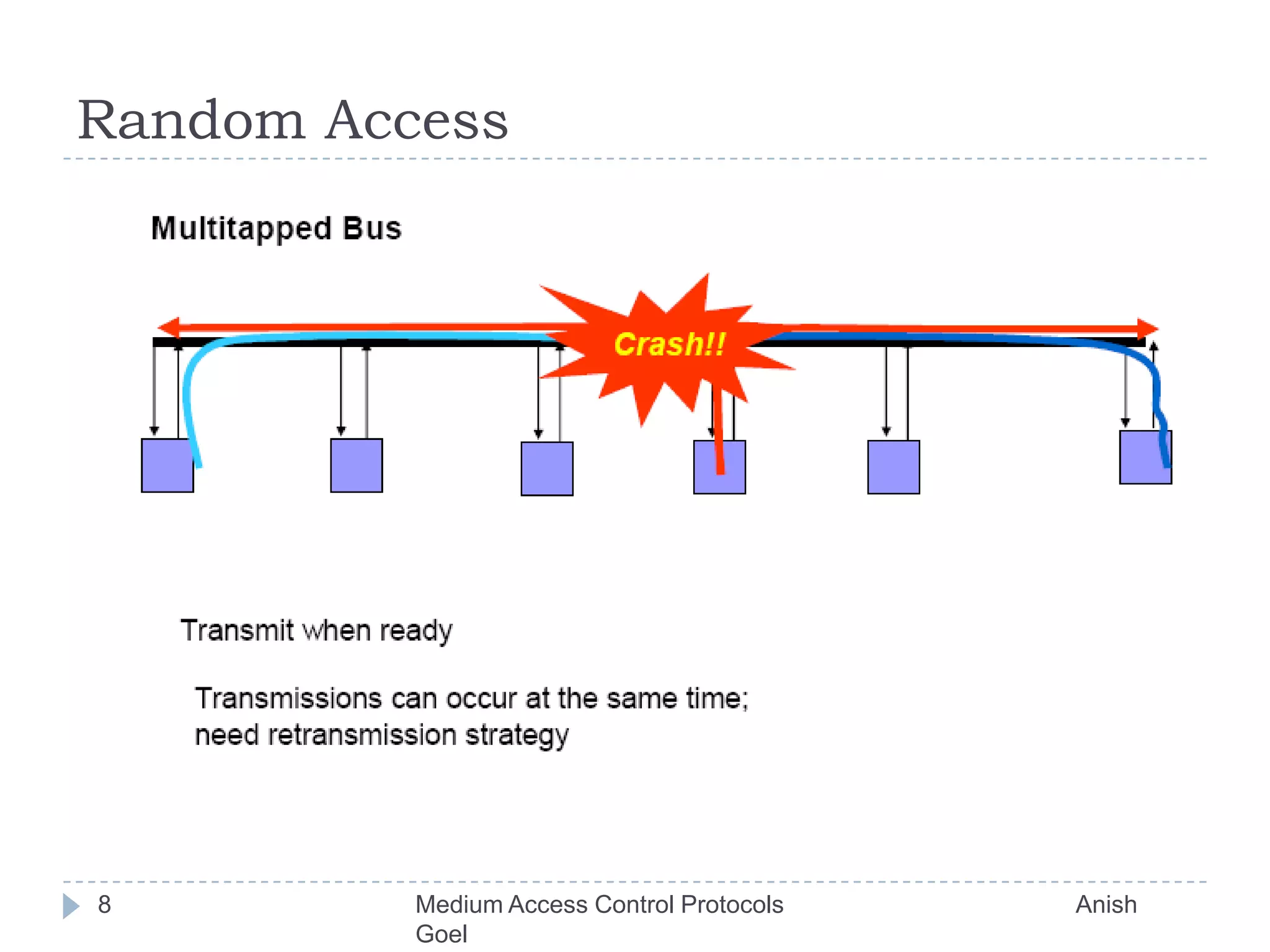

Random Access 8 Medium Access Control Protocols Anish Goel

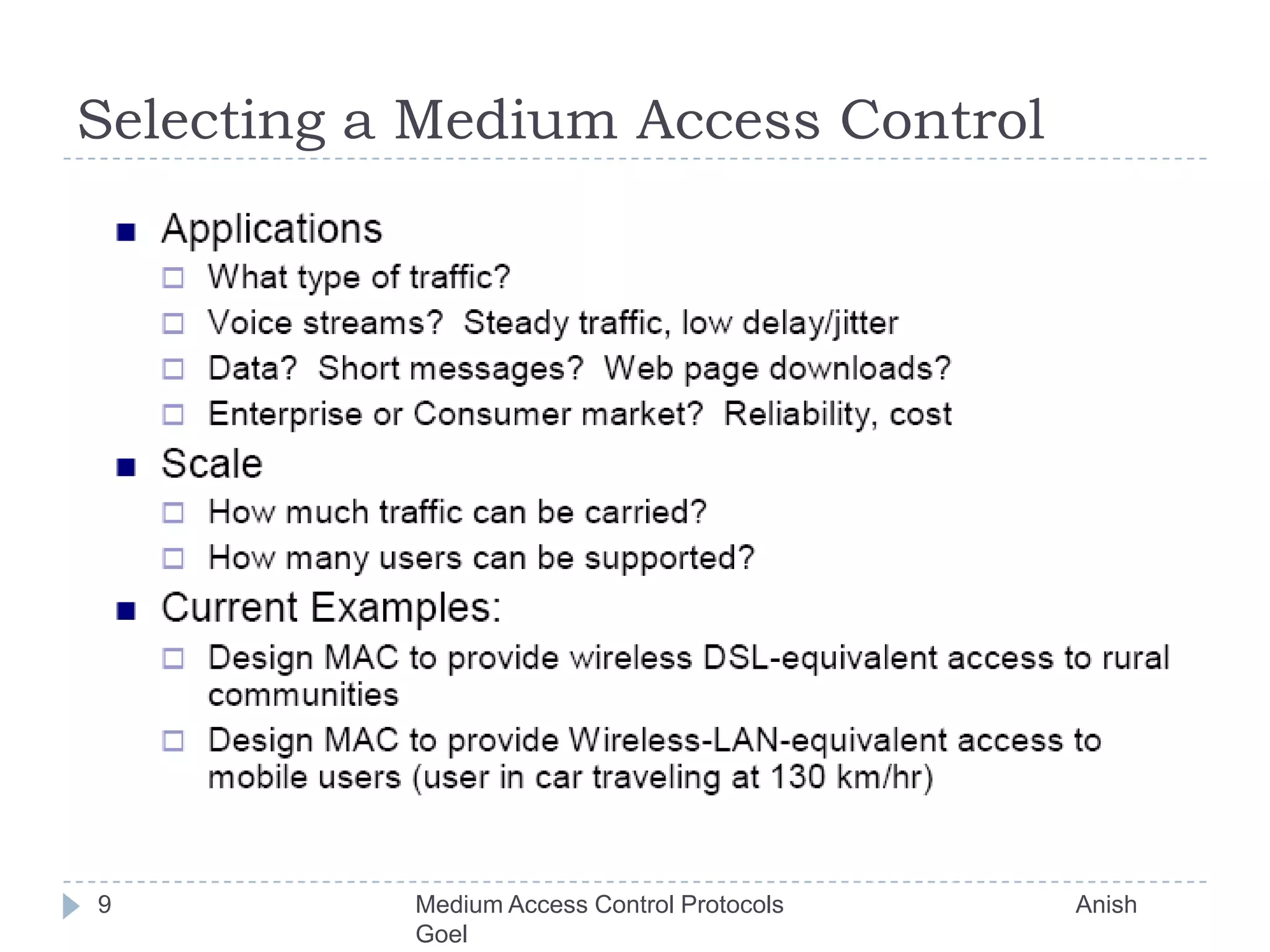

Selecting a Medium Access Control 9 Medium Access Control Protocols Anish Goel

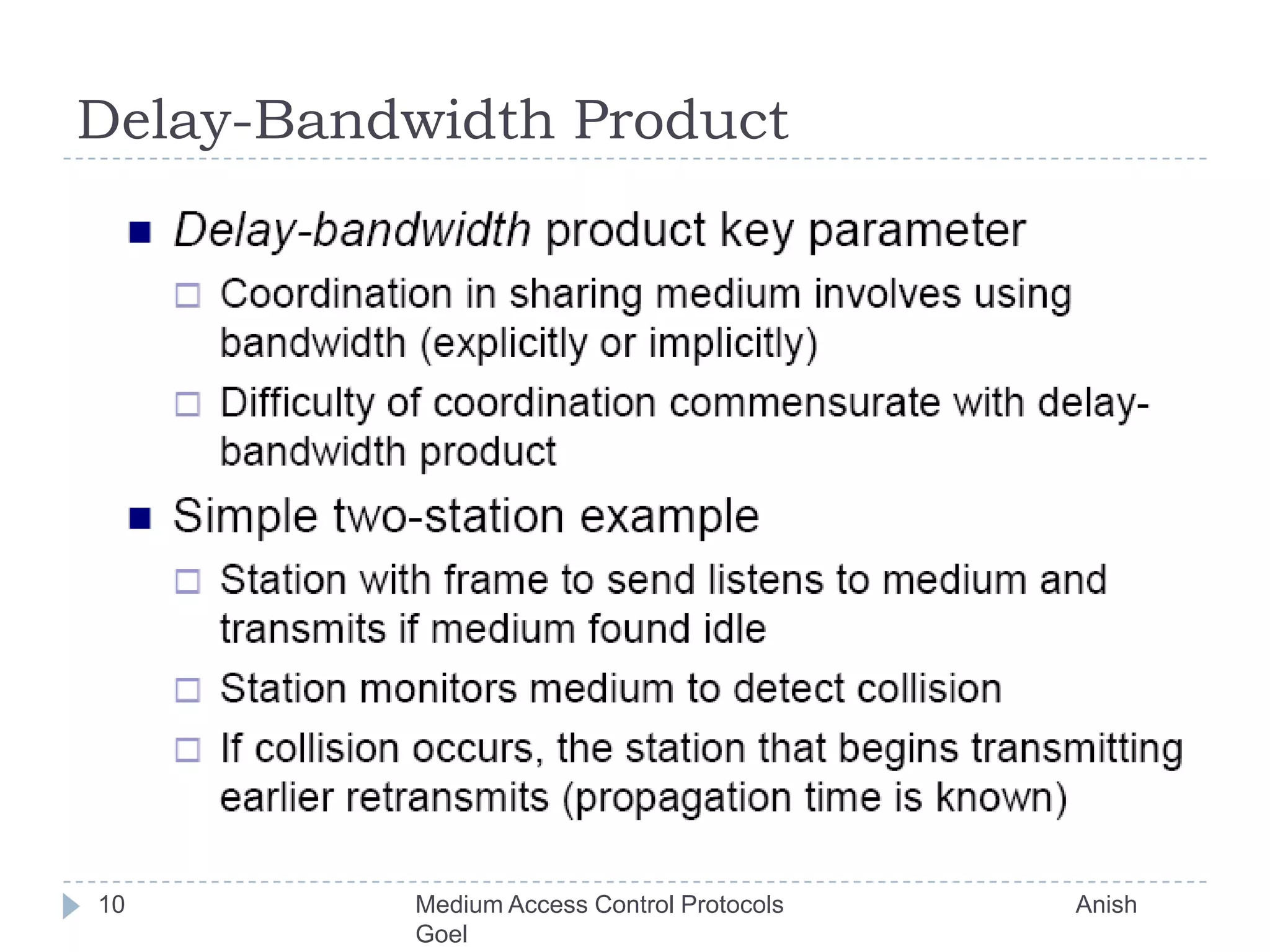

Delay-Bandwidth Product 10 Medium Access Control Protocols Anish Goel

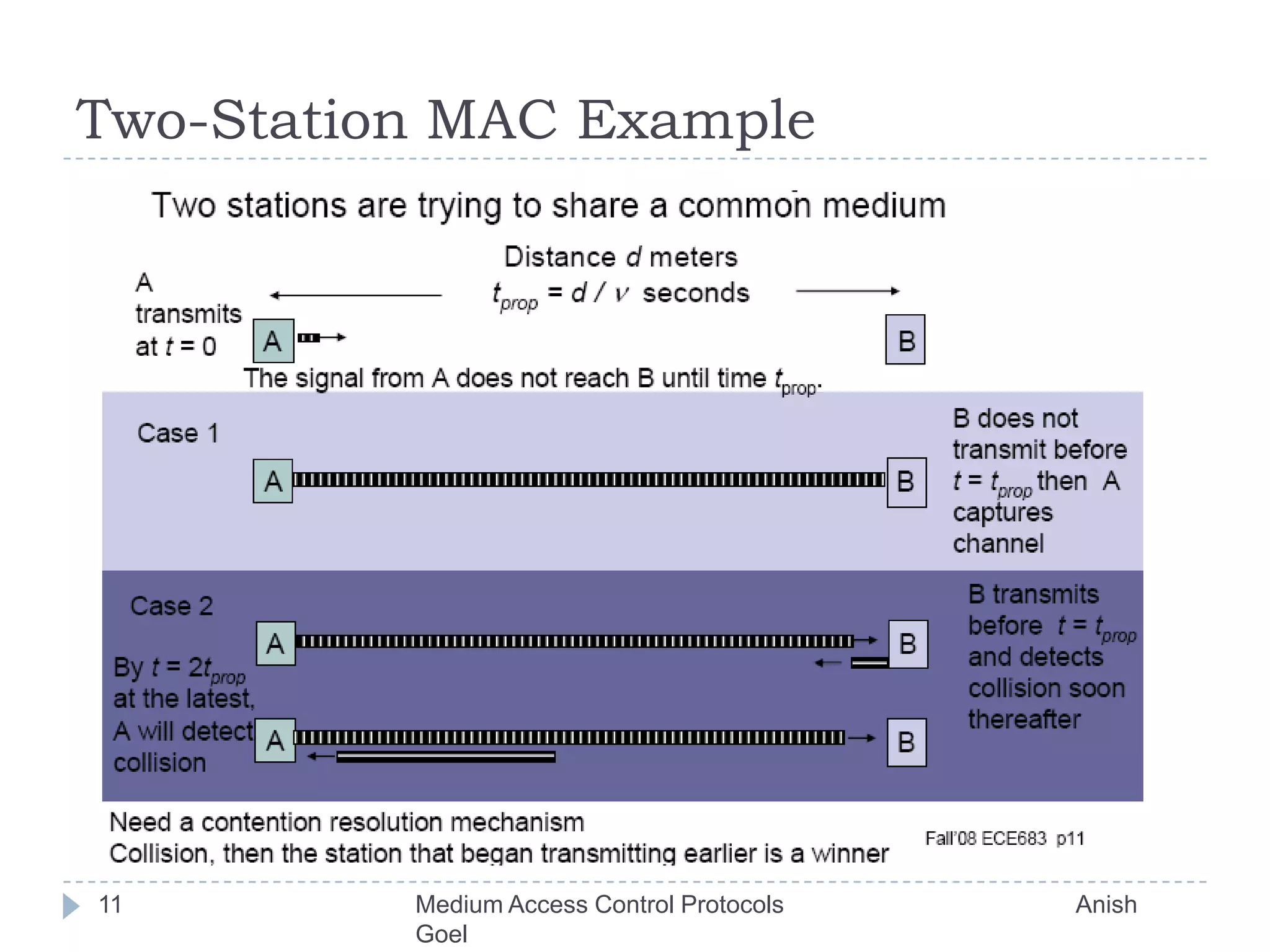

Two-Station MAC Example 11 Medium Access Control Protocols Anish Goel

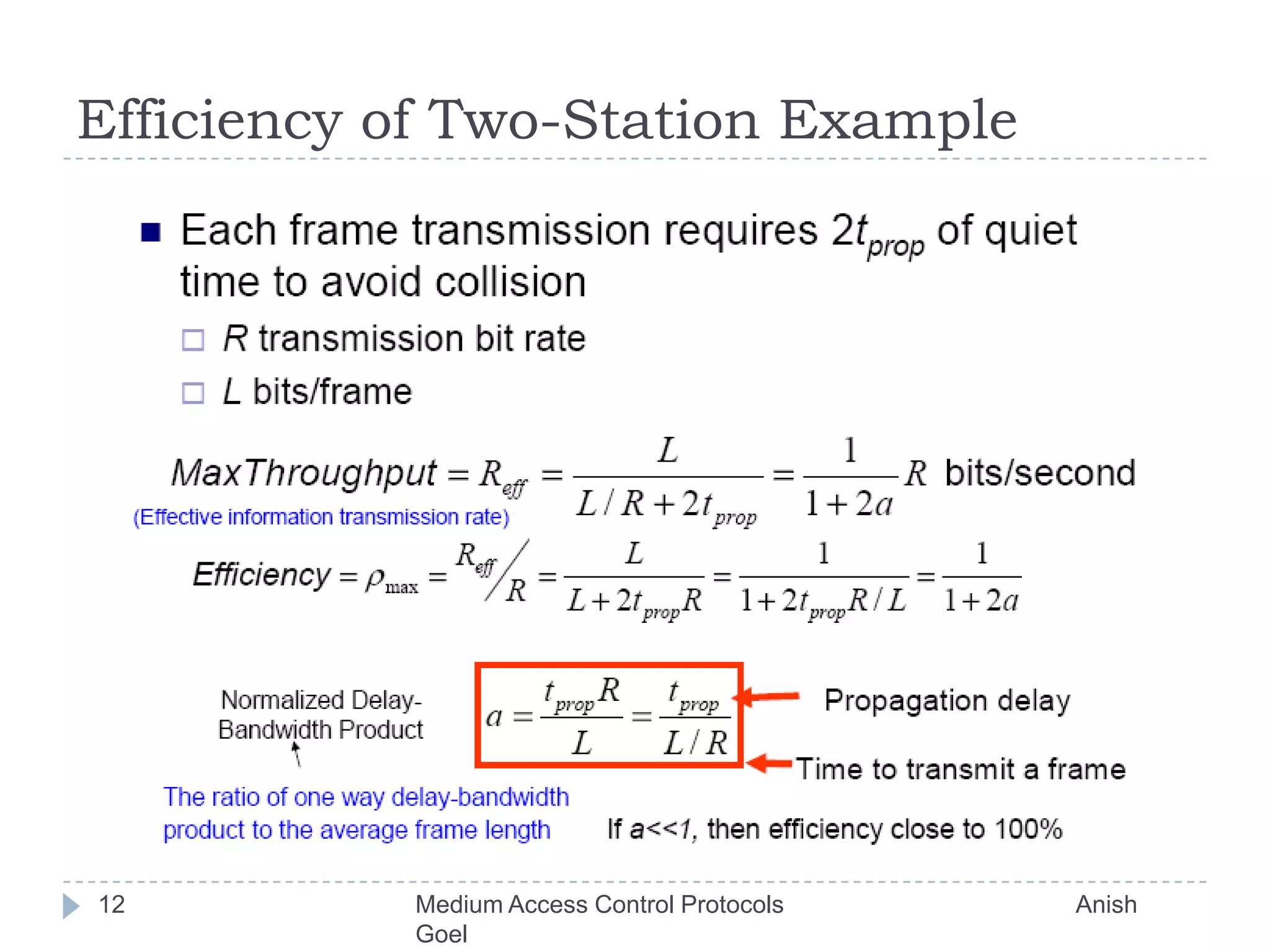

Efficiency of Two-Station Example 12 Medium Access Control Protocols Anish Goel

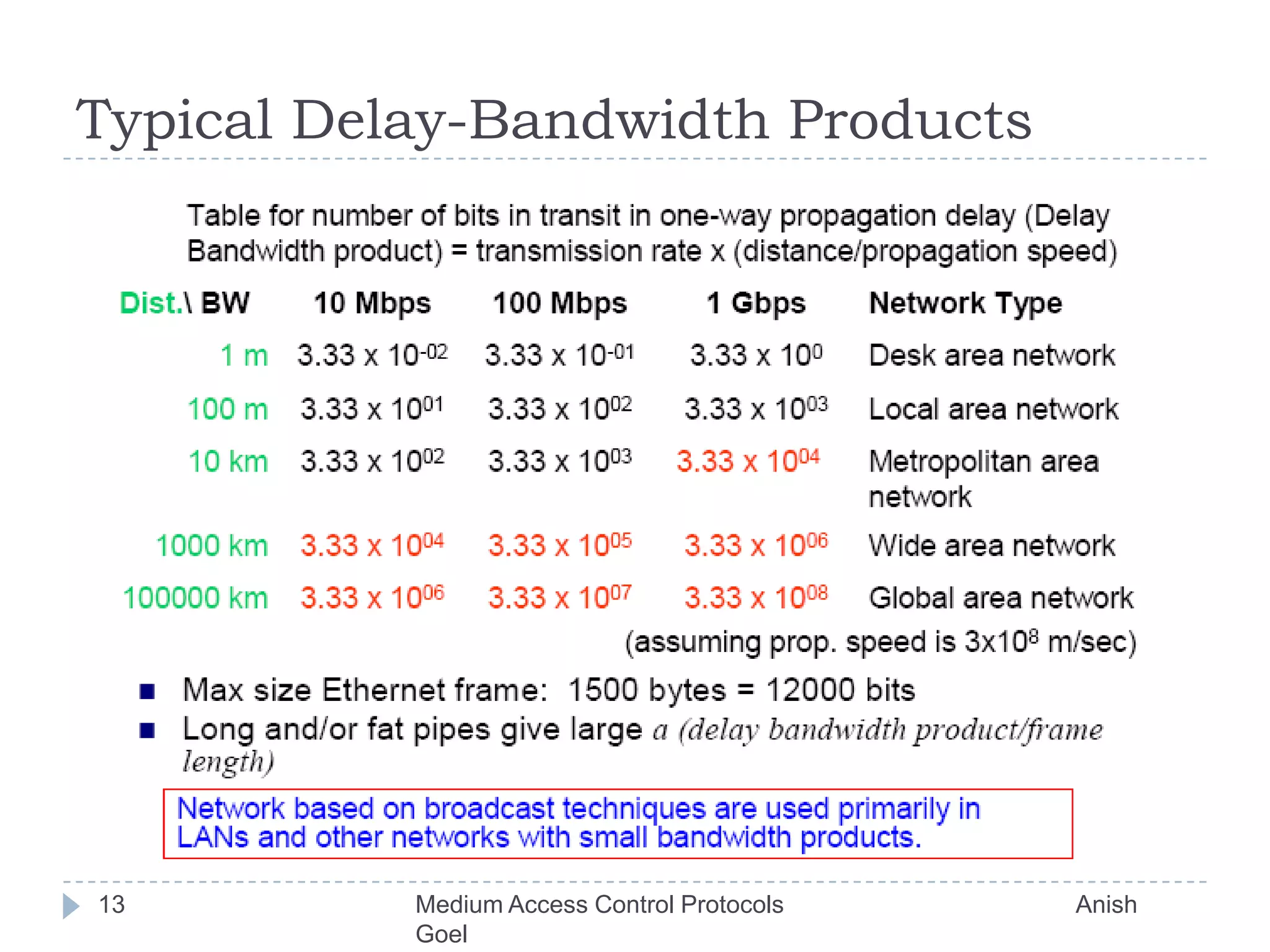

Typical Delay-Bandwidth Products 13 Medium Access Control Protocols Anish Goel

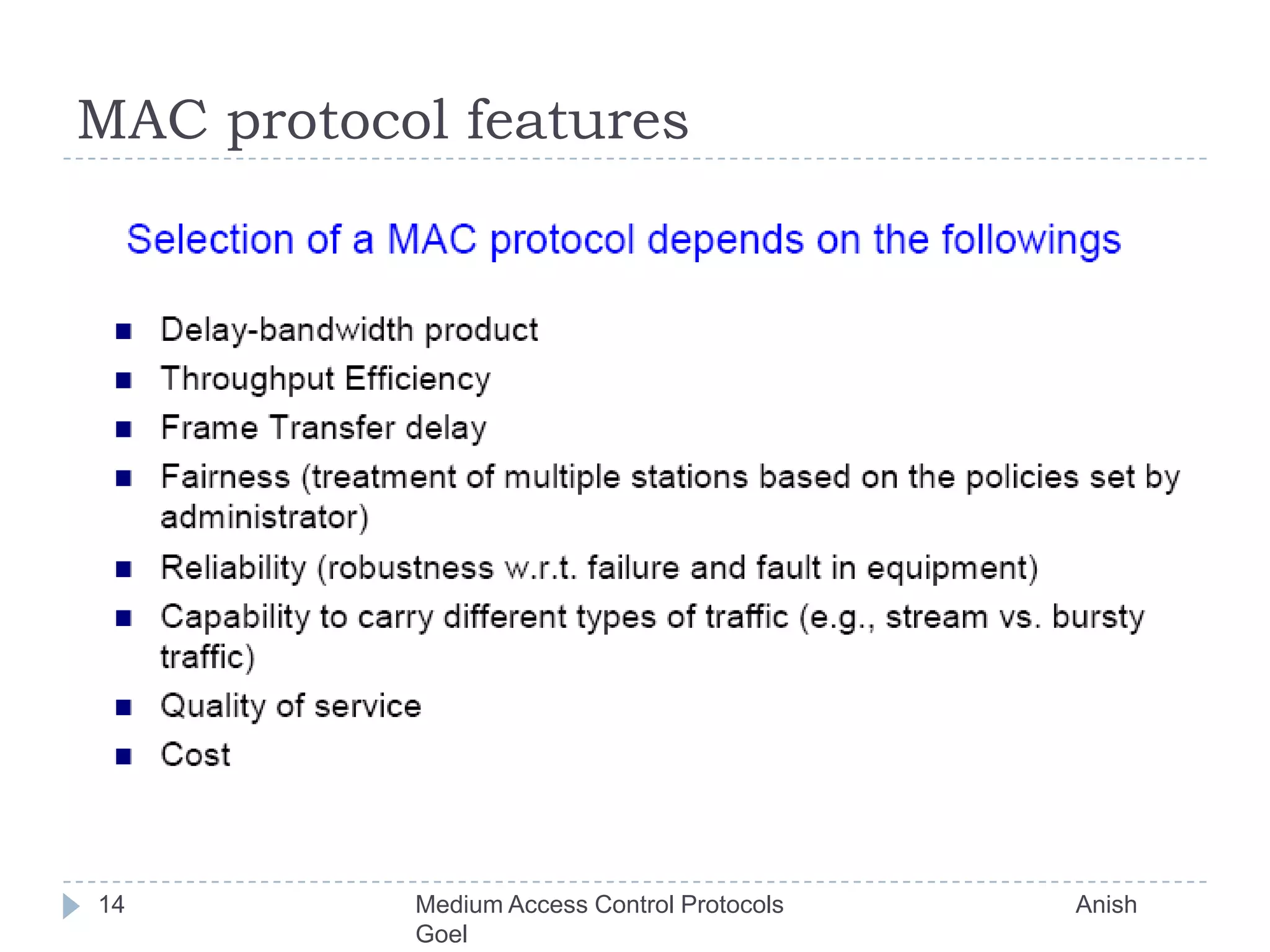

MAC protocol features 14 Medium Access Control Protocols Anish Goel

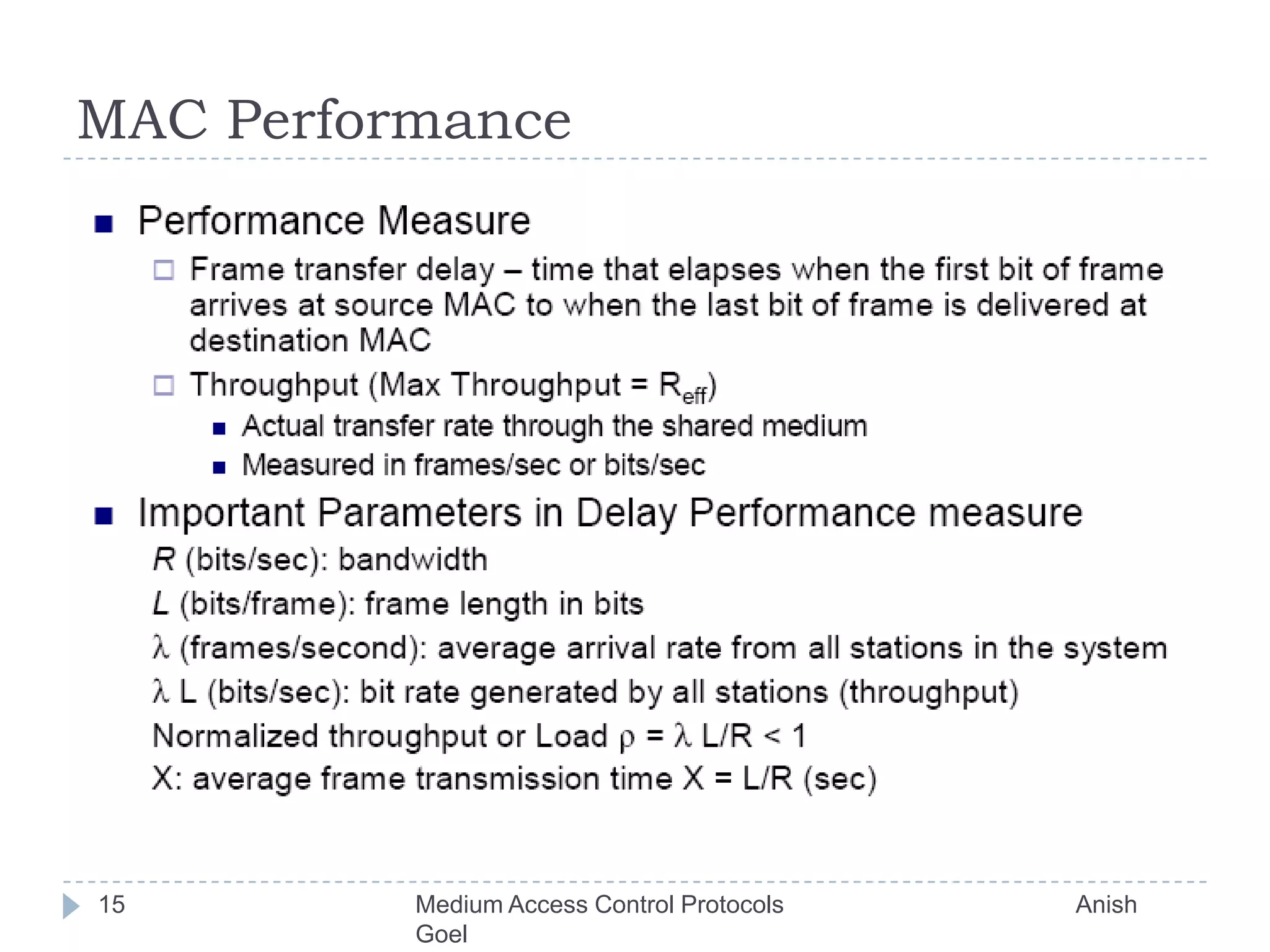

MAC Performance 15 Medium Access Control Protocols Anish Goel

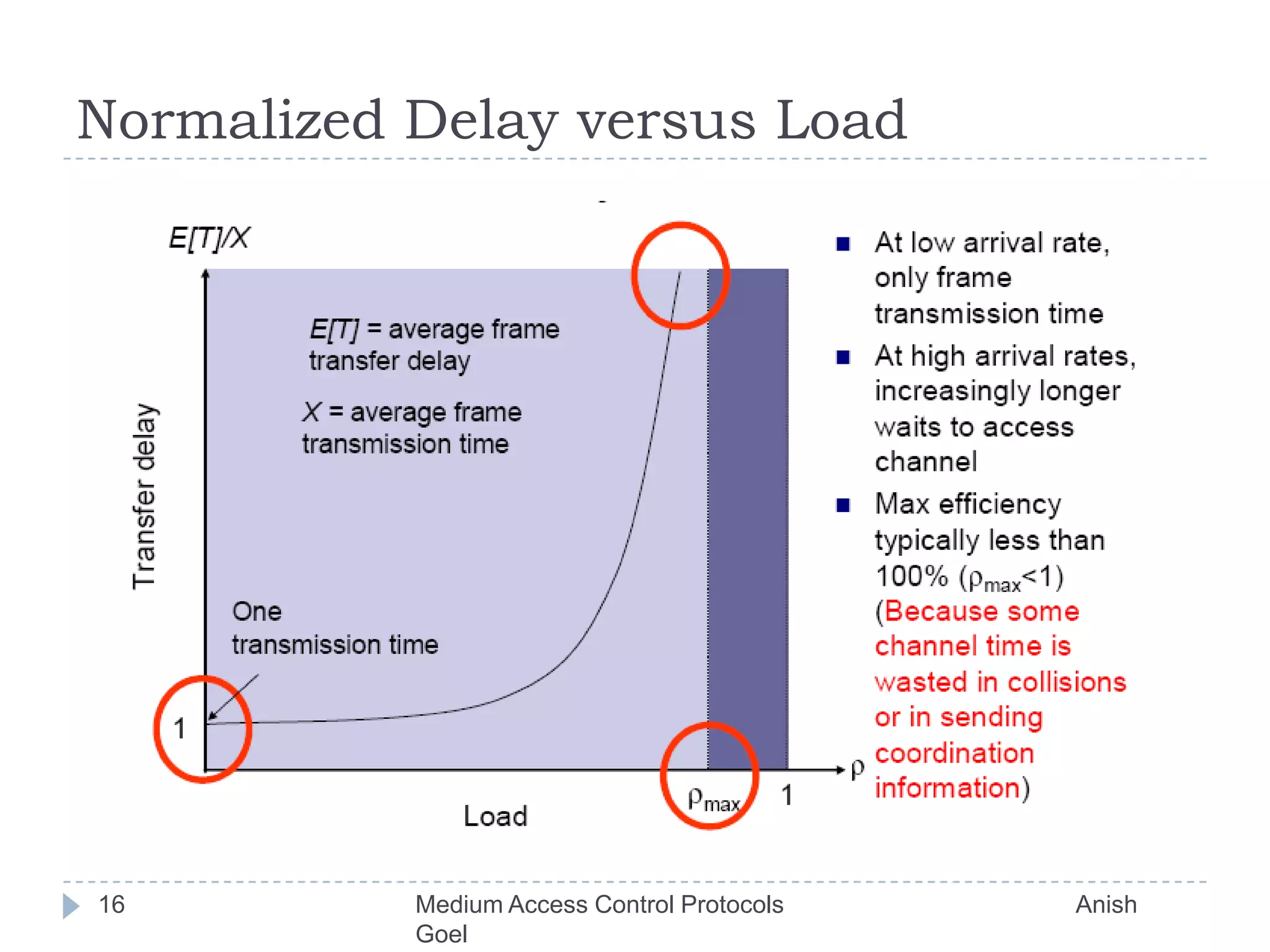

Normalized Delay versus Load 16 Medium Access Control Protocols Anish Goel

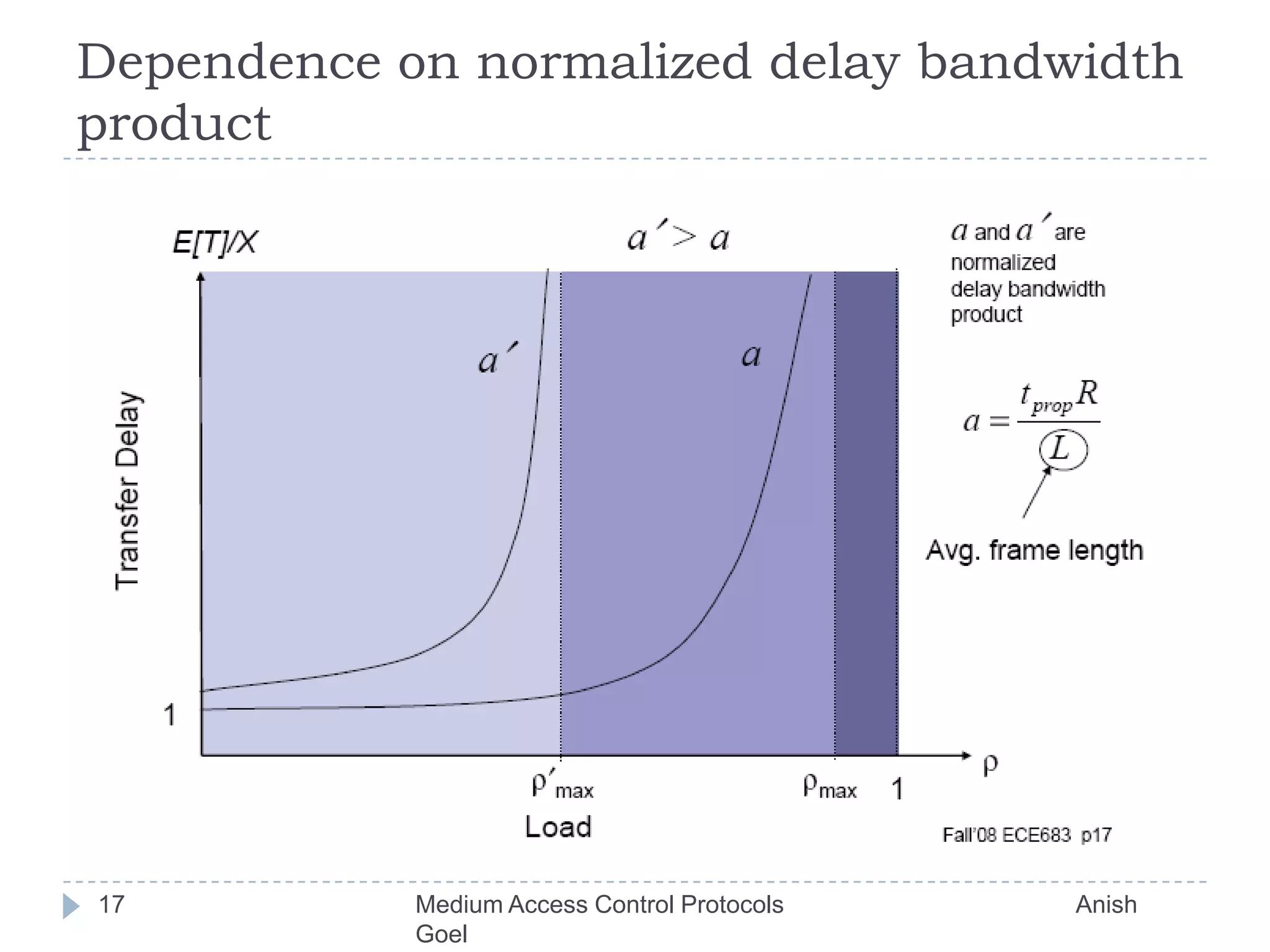

Dependence on normalized delay bandwidth product 17 Medium Access Control Protocols Anish Goel

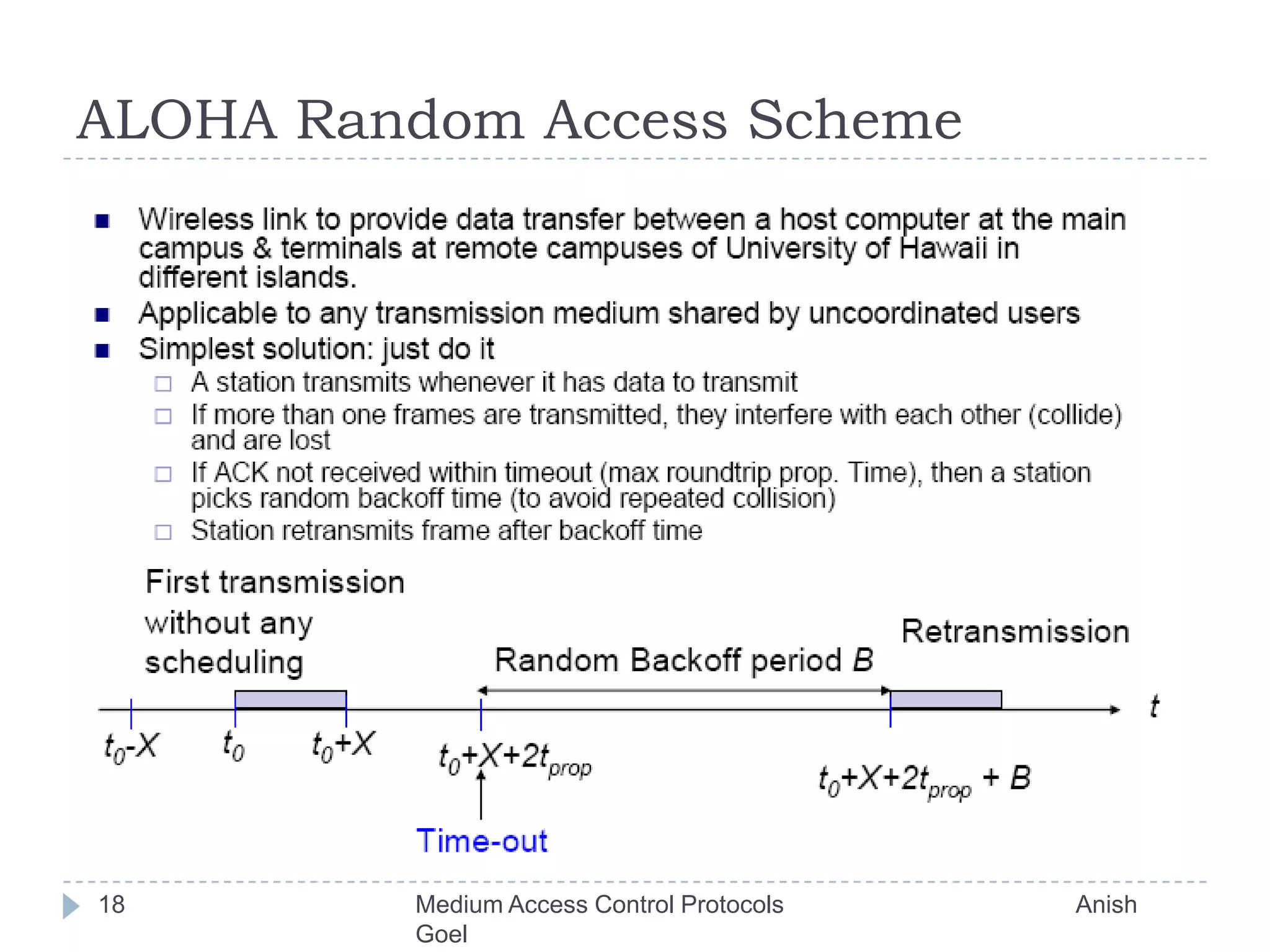

ALOHA Random Access Scheme 18 Medium Access Control Protocols Anish Goel

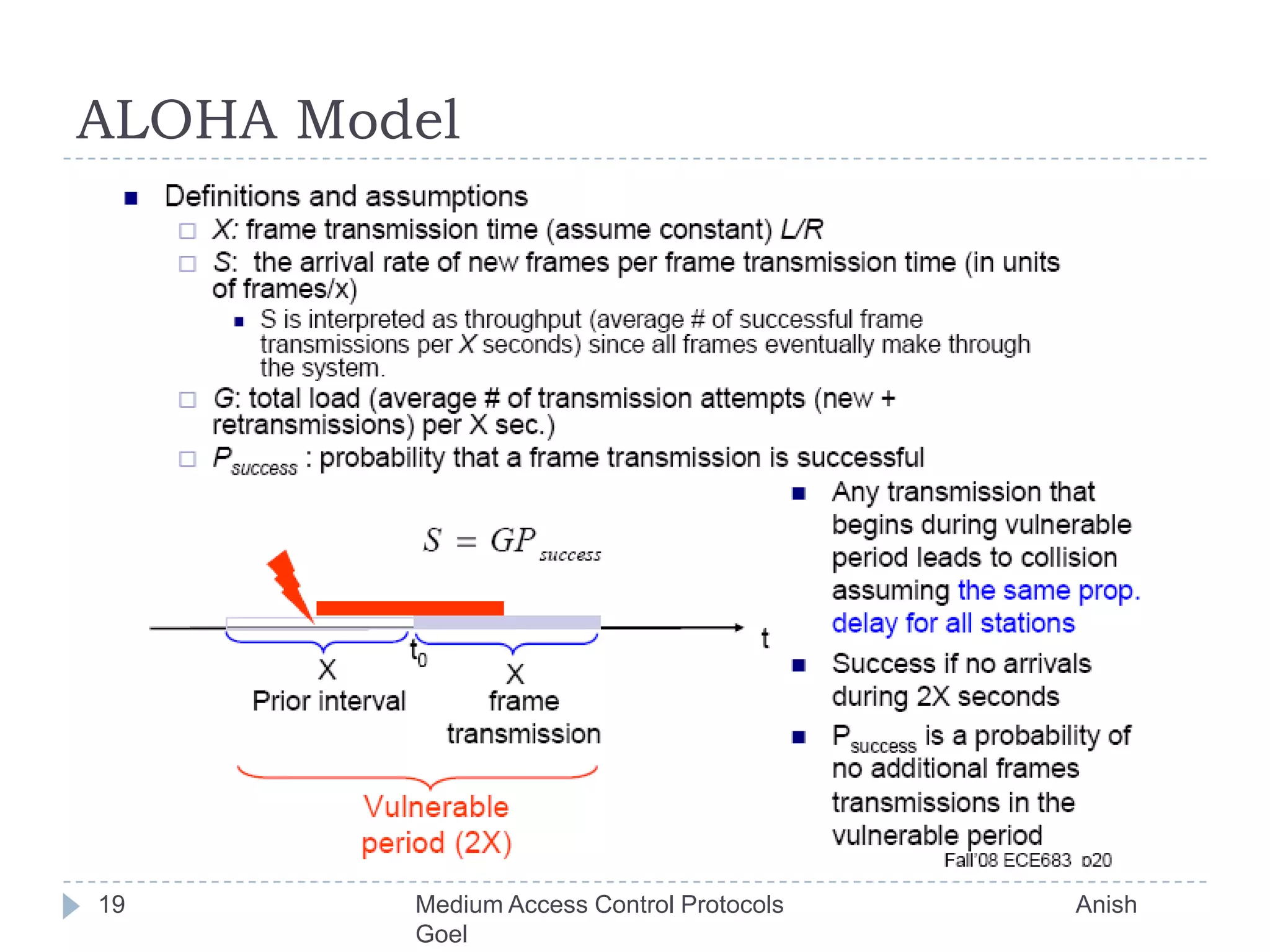

ALOHA Model 19 Medium Access Control Protocols Anish Goel

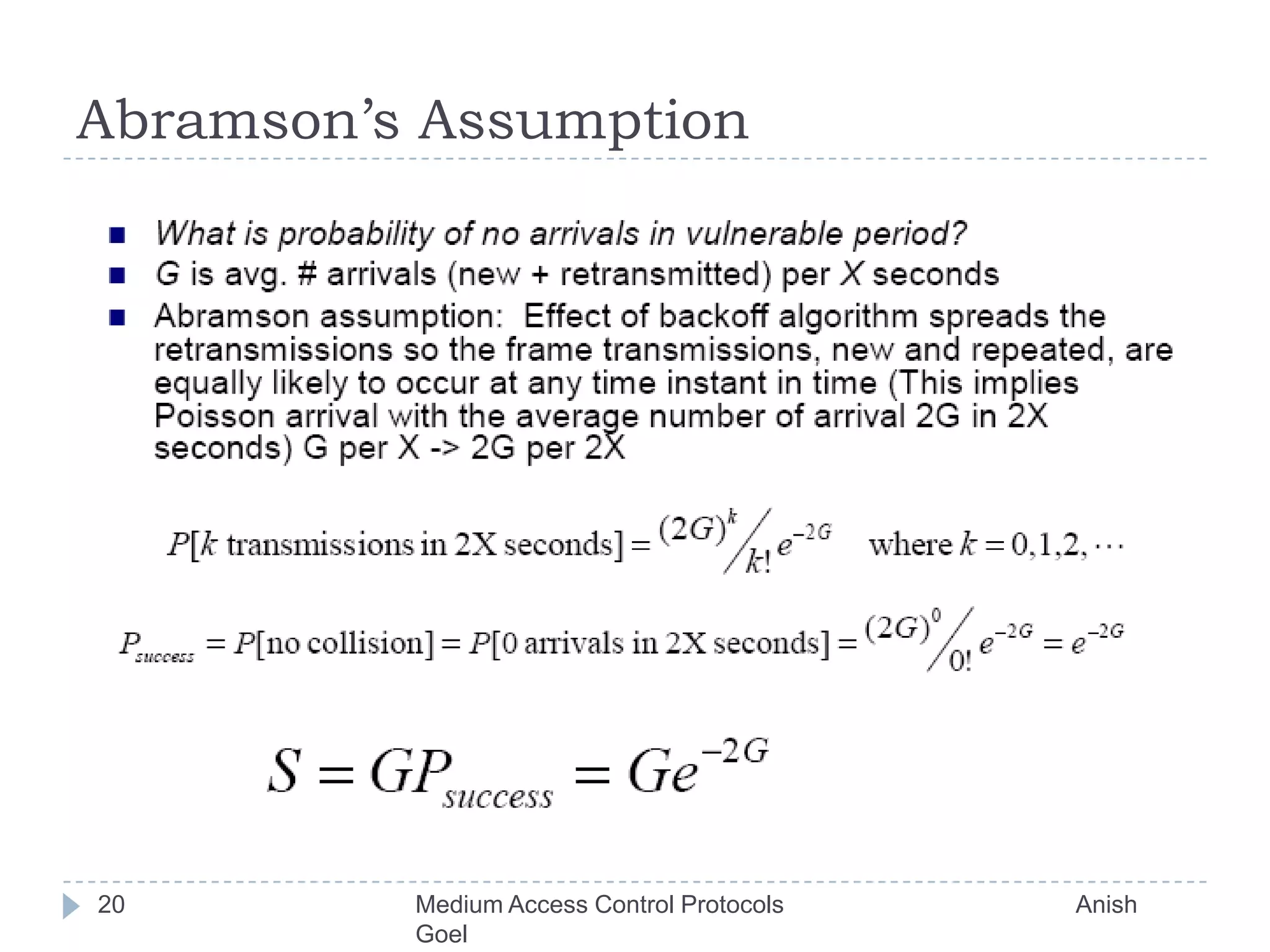

Abramson’s Assumption 20 Medium Access Control Protocols Anish Goel

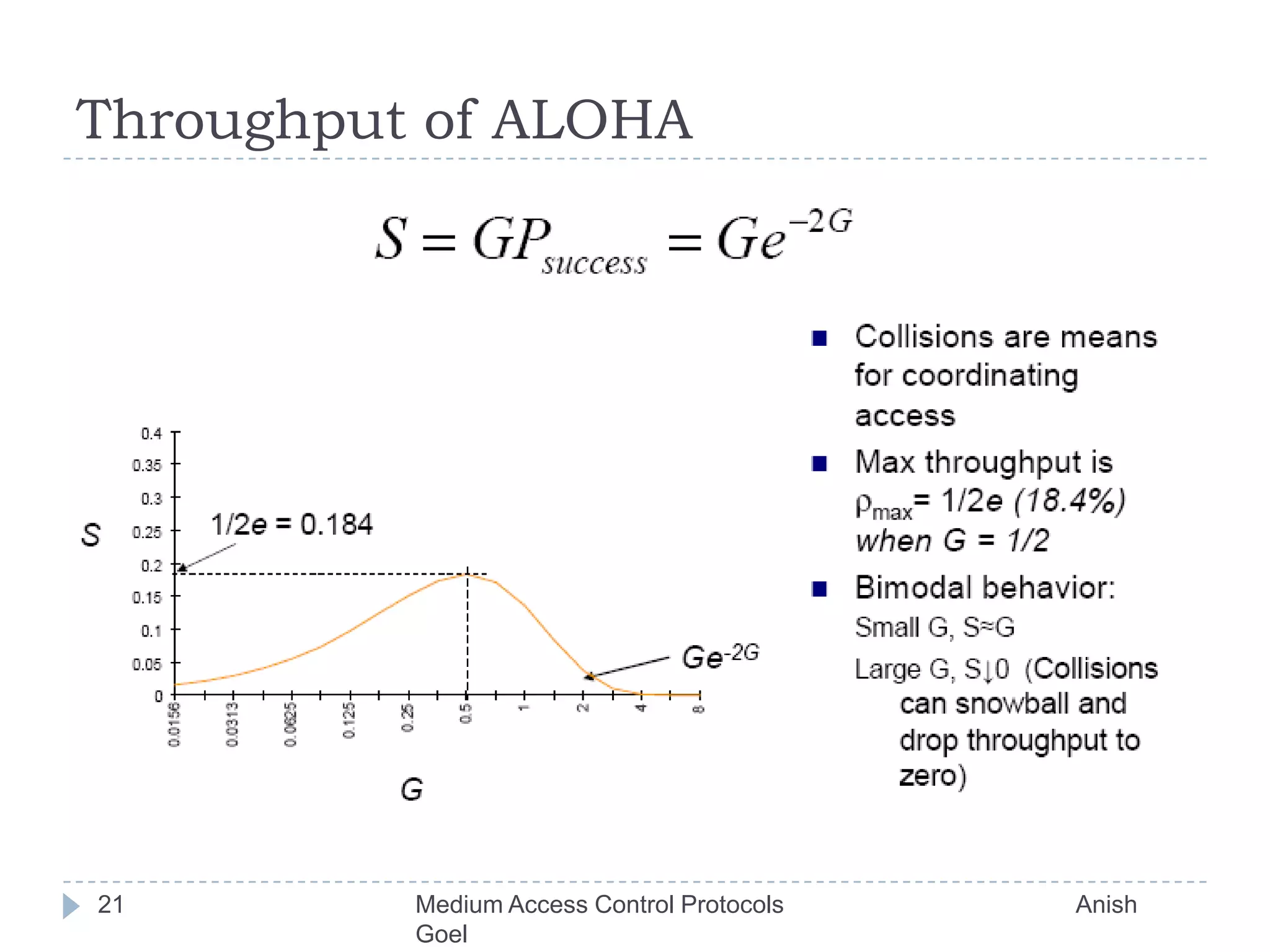

Throughput of ALOHA 21 Medium Access Control Protocols Anish Goel

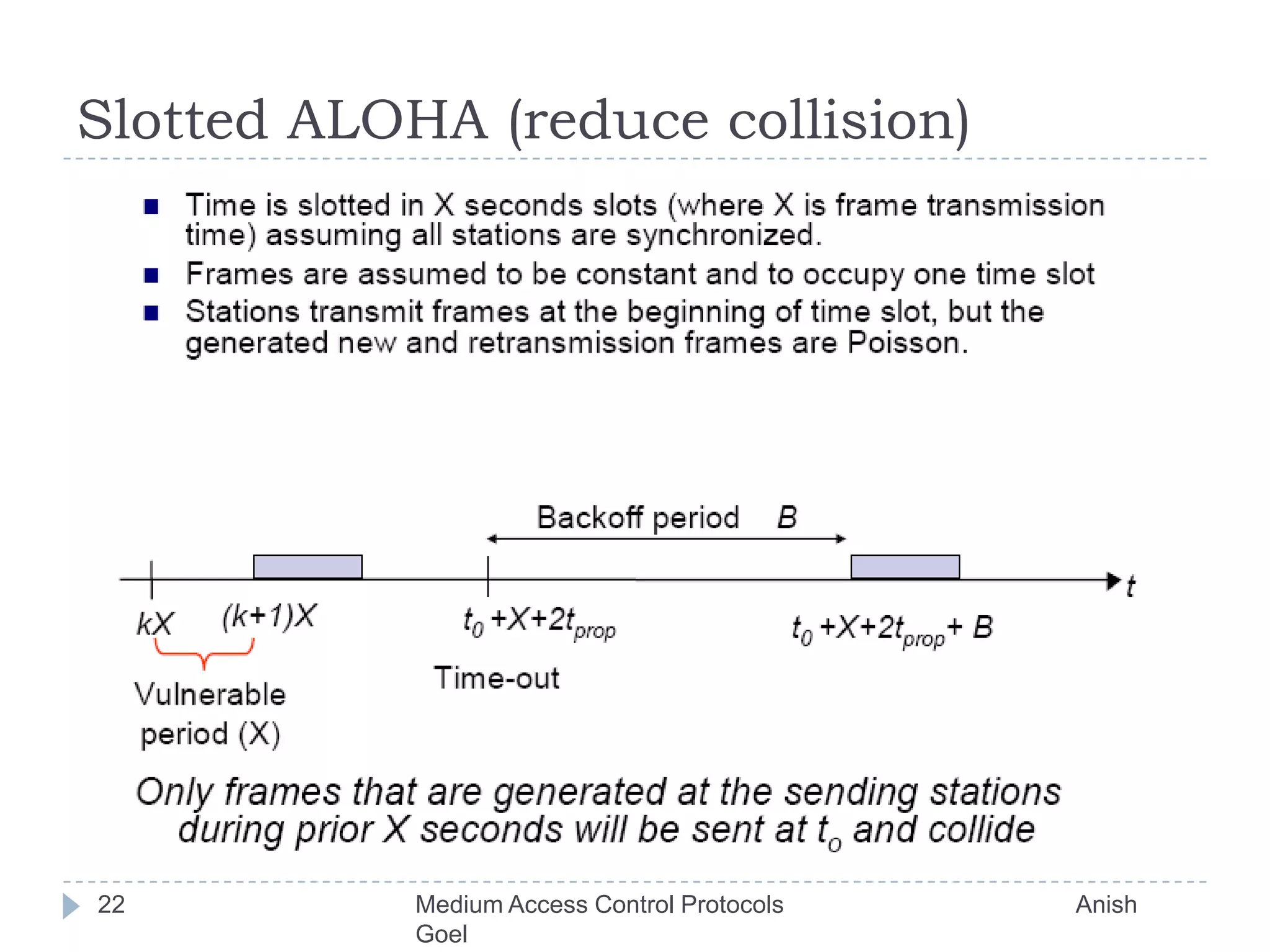

Slotted ALOHA (reduce collision) 22 Medium Access Control Protocols Anish Goel

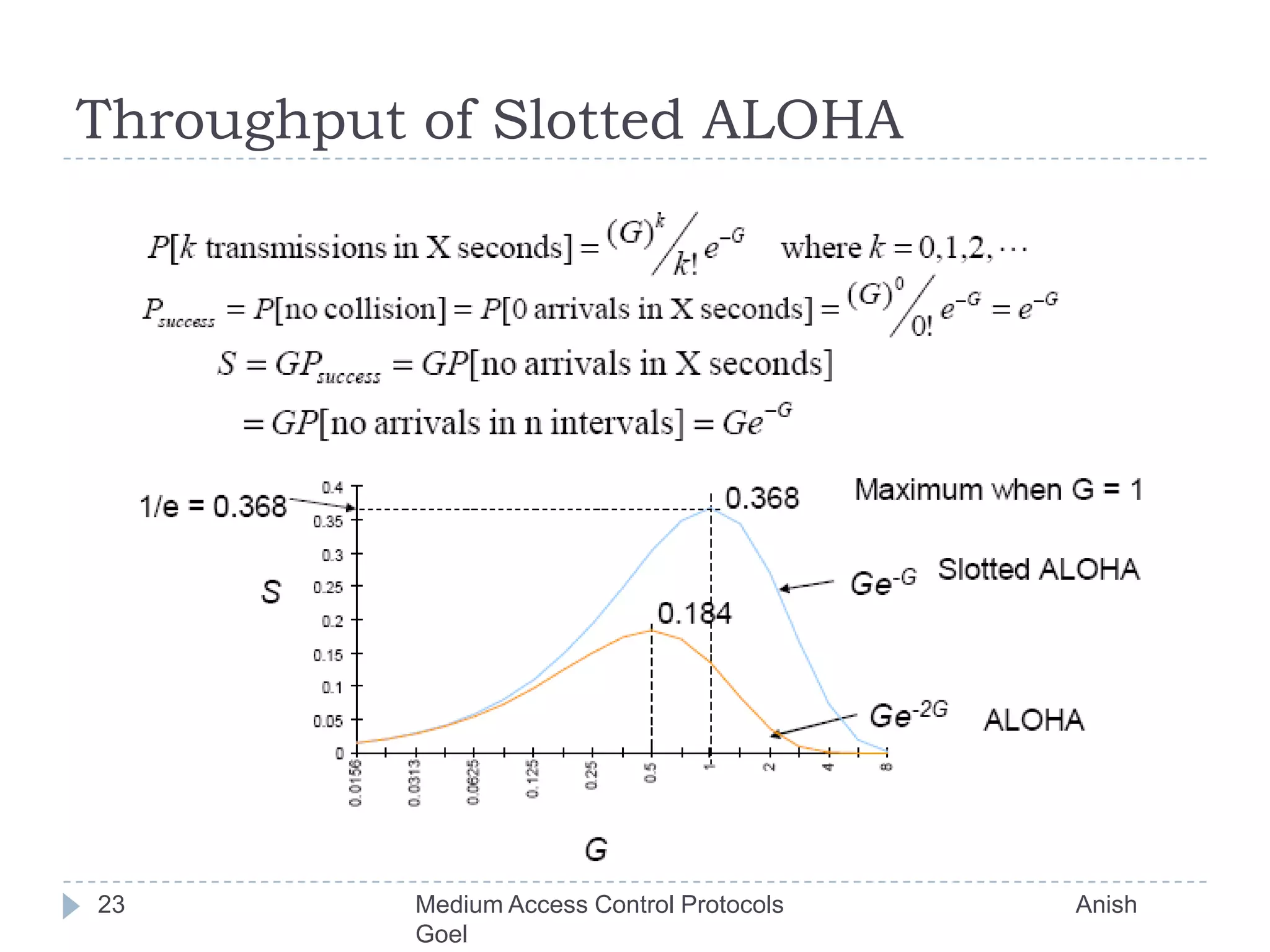

Throughput of Slotted ALOHA 23 Medium Access Control Protocols Anish Goel

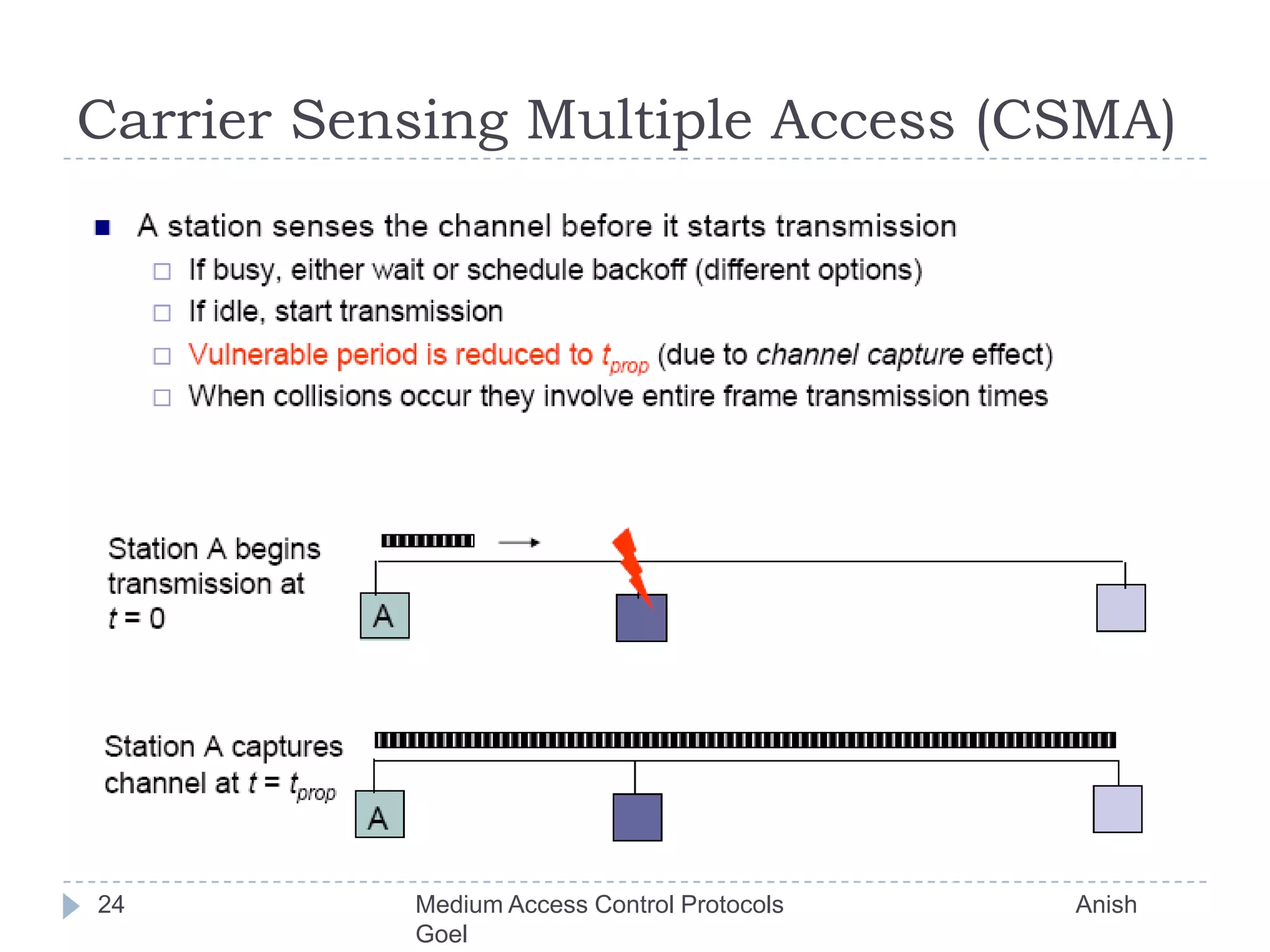

Carrier Sensing Multiple Access (CSMA) 24 Medium Access Control Protocols Anish Goel

CSMA Options 25 Medium Access Control Protocols Anish Goel

1-Persistent CSMA Throughput 26 Medium Access Control Protocols Anish Goel

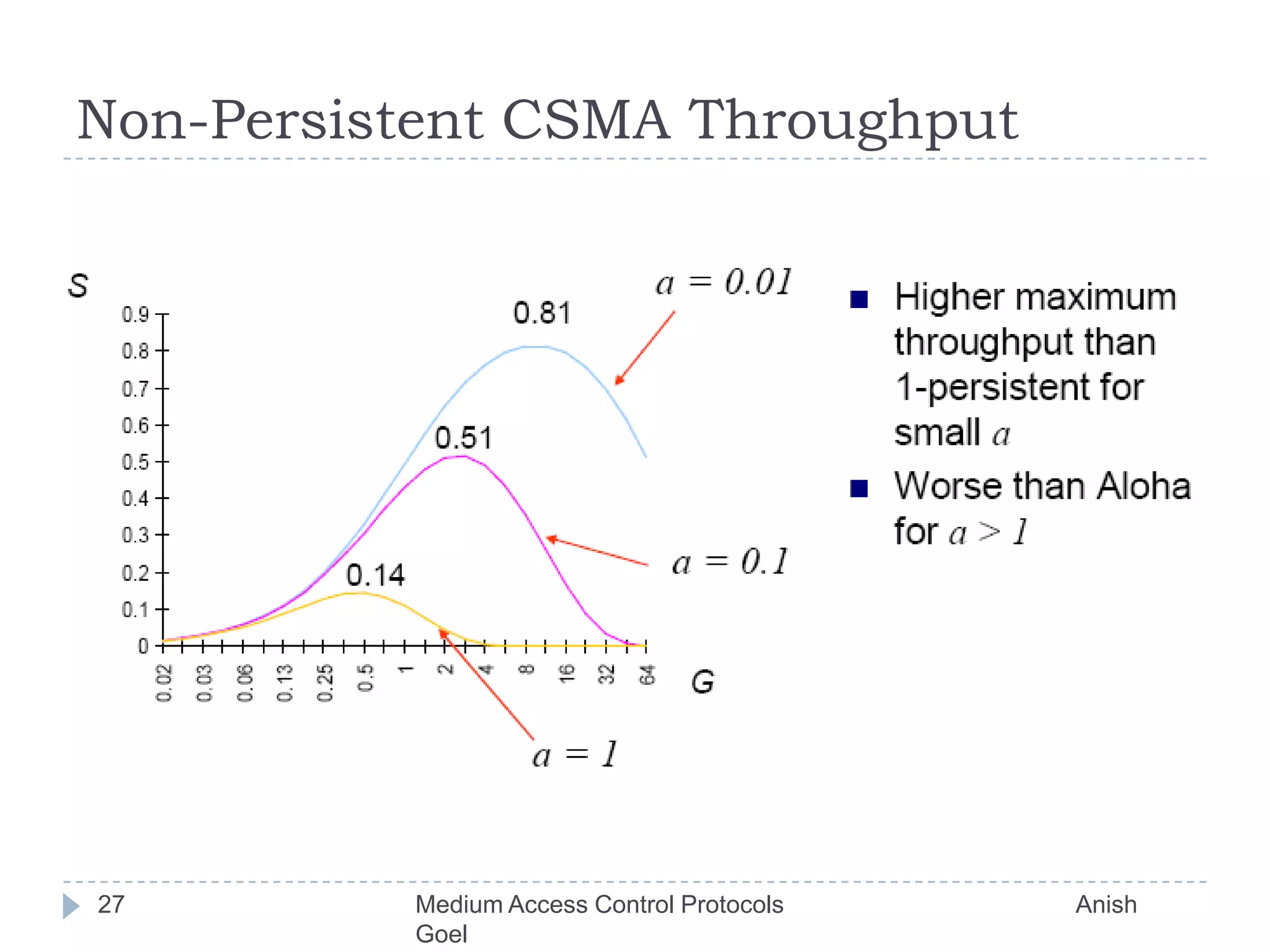

Non-Persistent CSMA Throughput 27 Medium Access Control Protocols Anish Goel

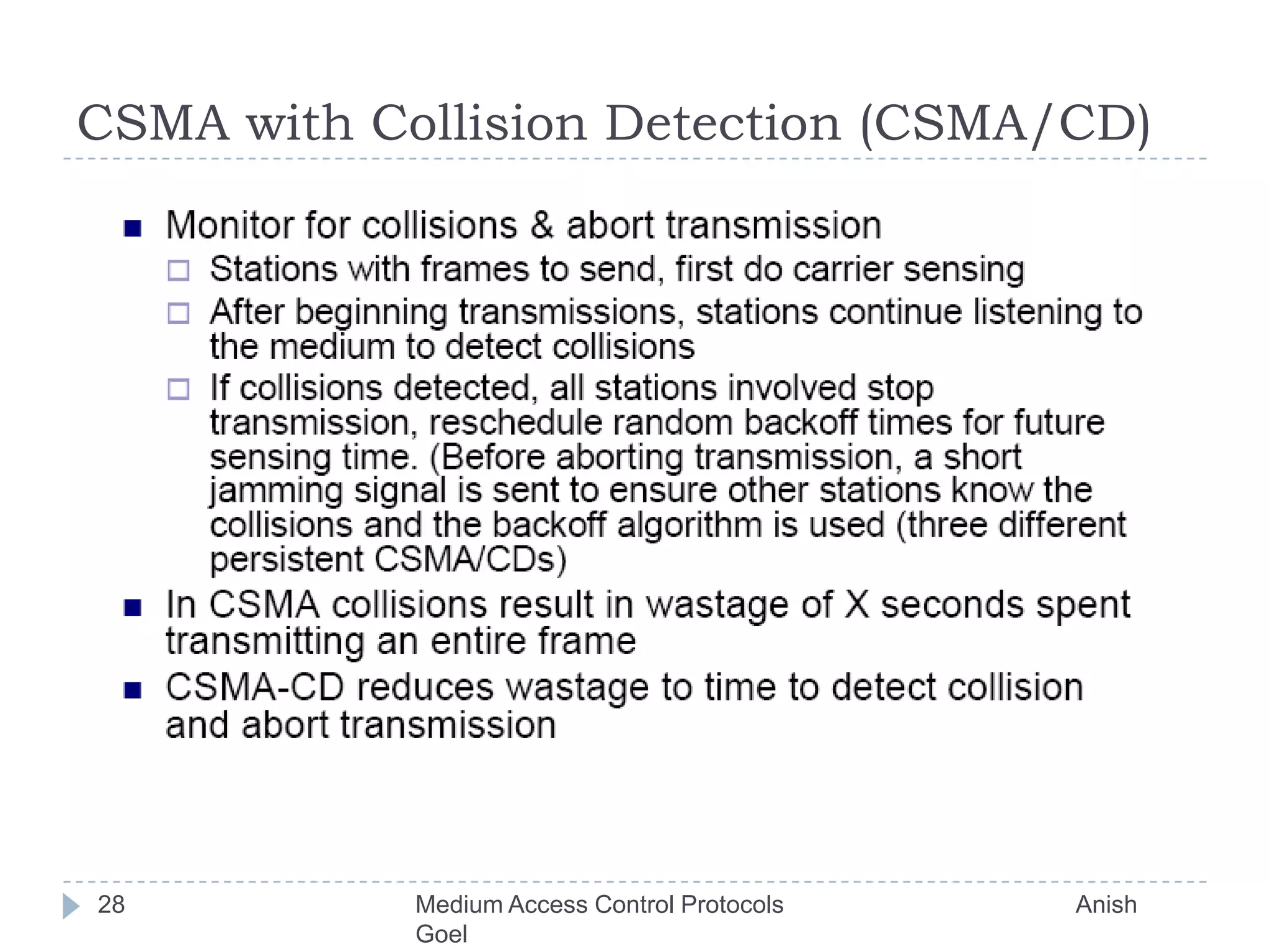

CSMA with Collision Detection (CSMA/CD) 28 Medium Access Control Protocols Anish Goel

CSMA/CD reaction time 29 Medium Access Control Protocols Anish Goel

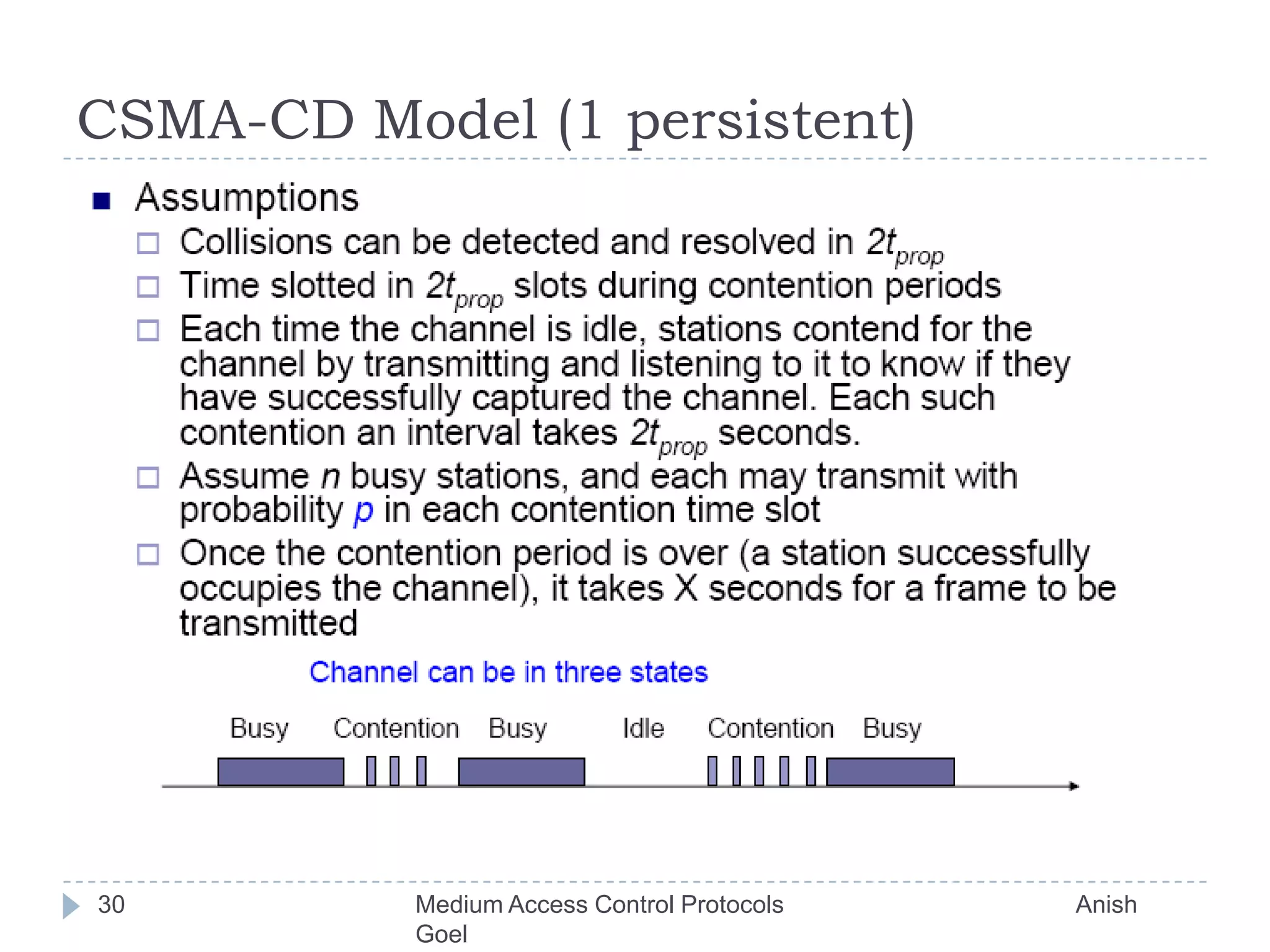

CSMA-CD Model (1 persistent) 30 Medium Access Control Protocols Anish Goel

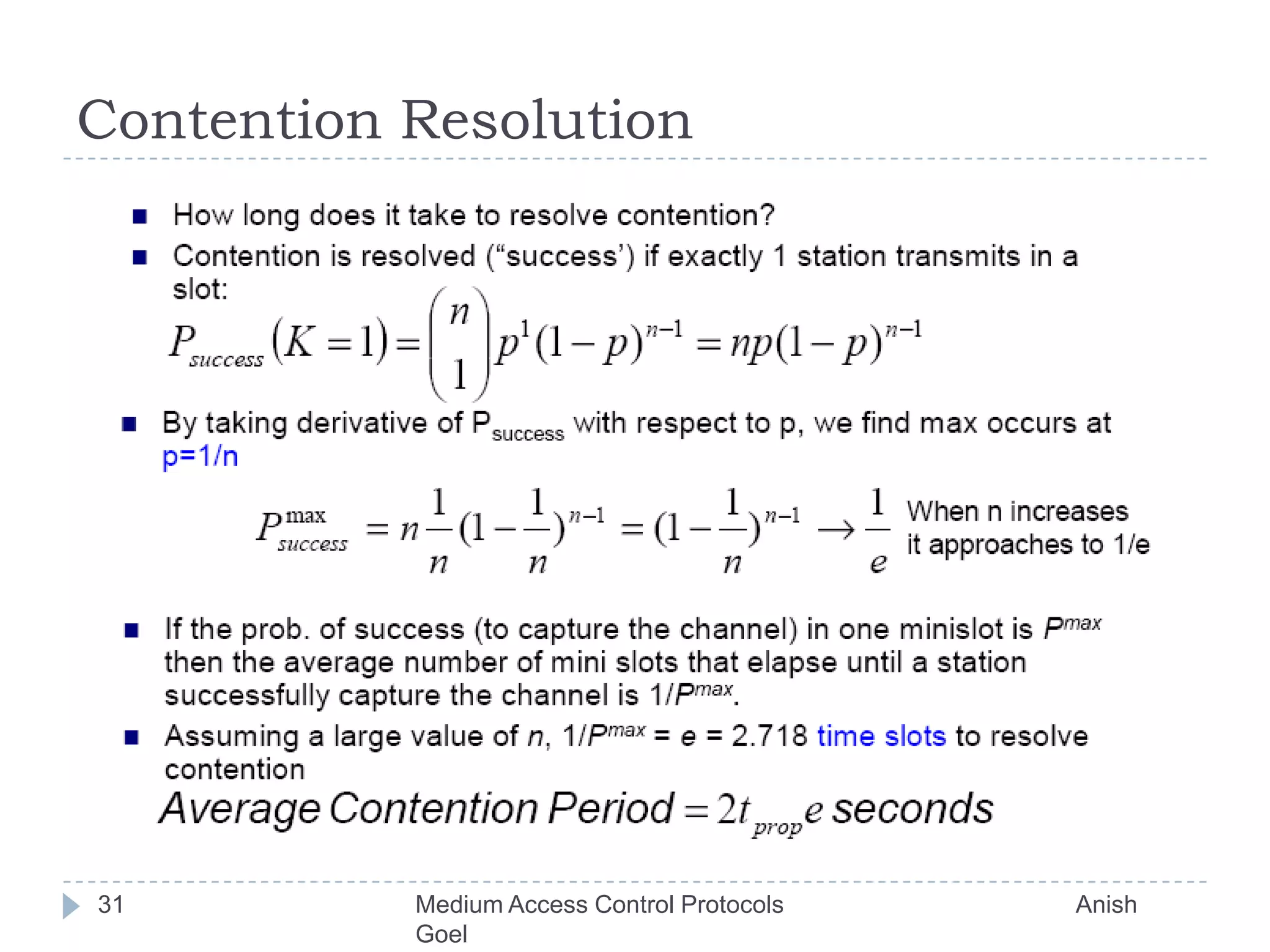

Contention Resolution 31 Medium Access Control Protocols Anish Goel

CSMA/CD Throughput 32 Medium Access Control Protocols Anish Goel

CSMA-CD Application: Ethernet 33 Medium Access Control Protocols Anish Goel

Throughput for Random Access MACs 34 Medium Access Control Protocols Anish Goel

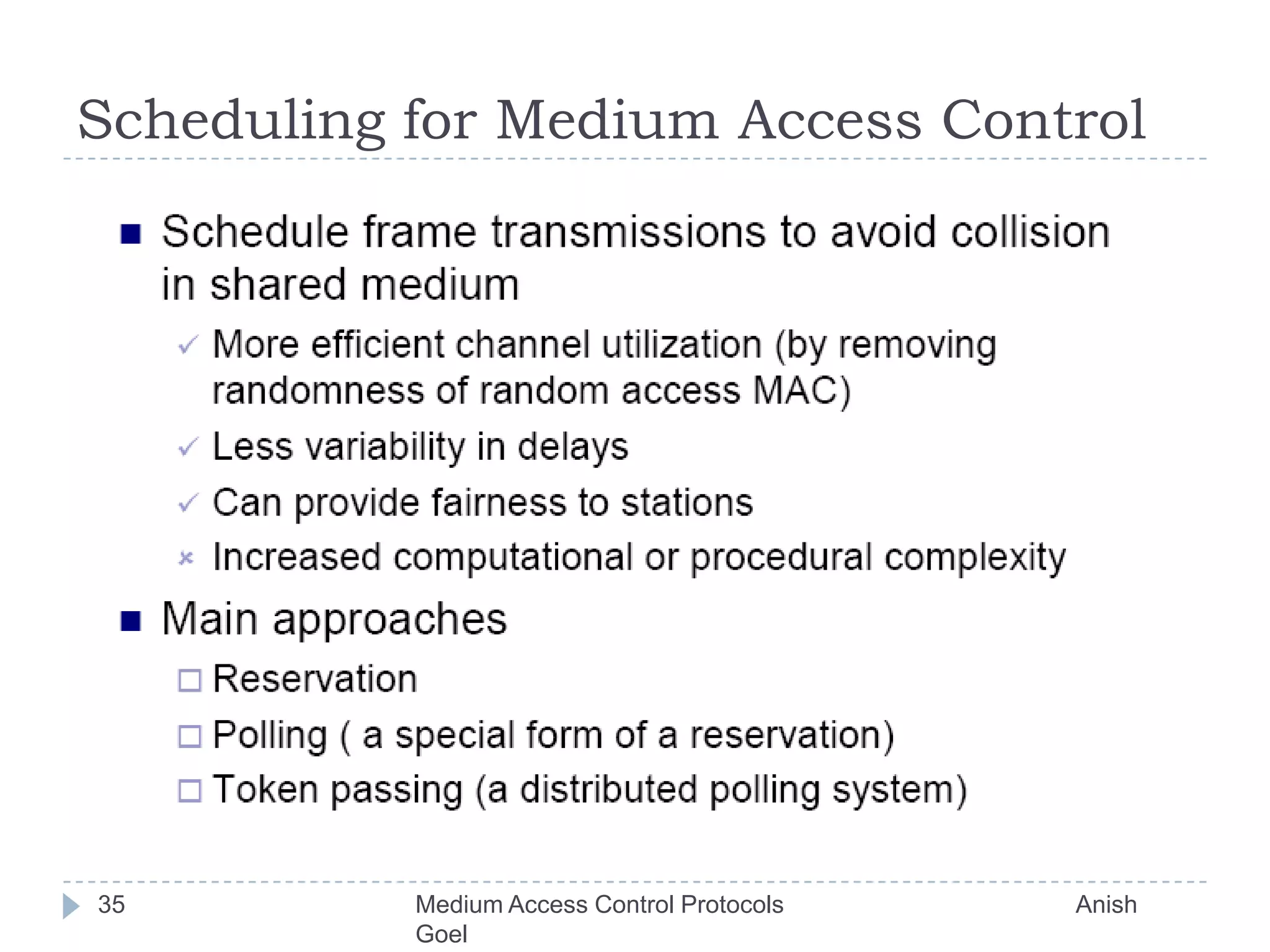

Scheduling for Medium Access Control 35 Medium Access Control Protocols Anish Goel

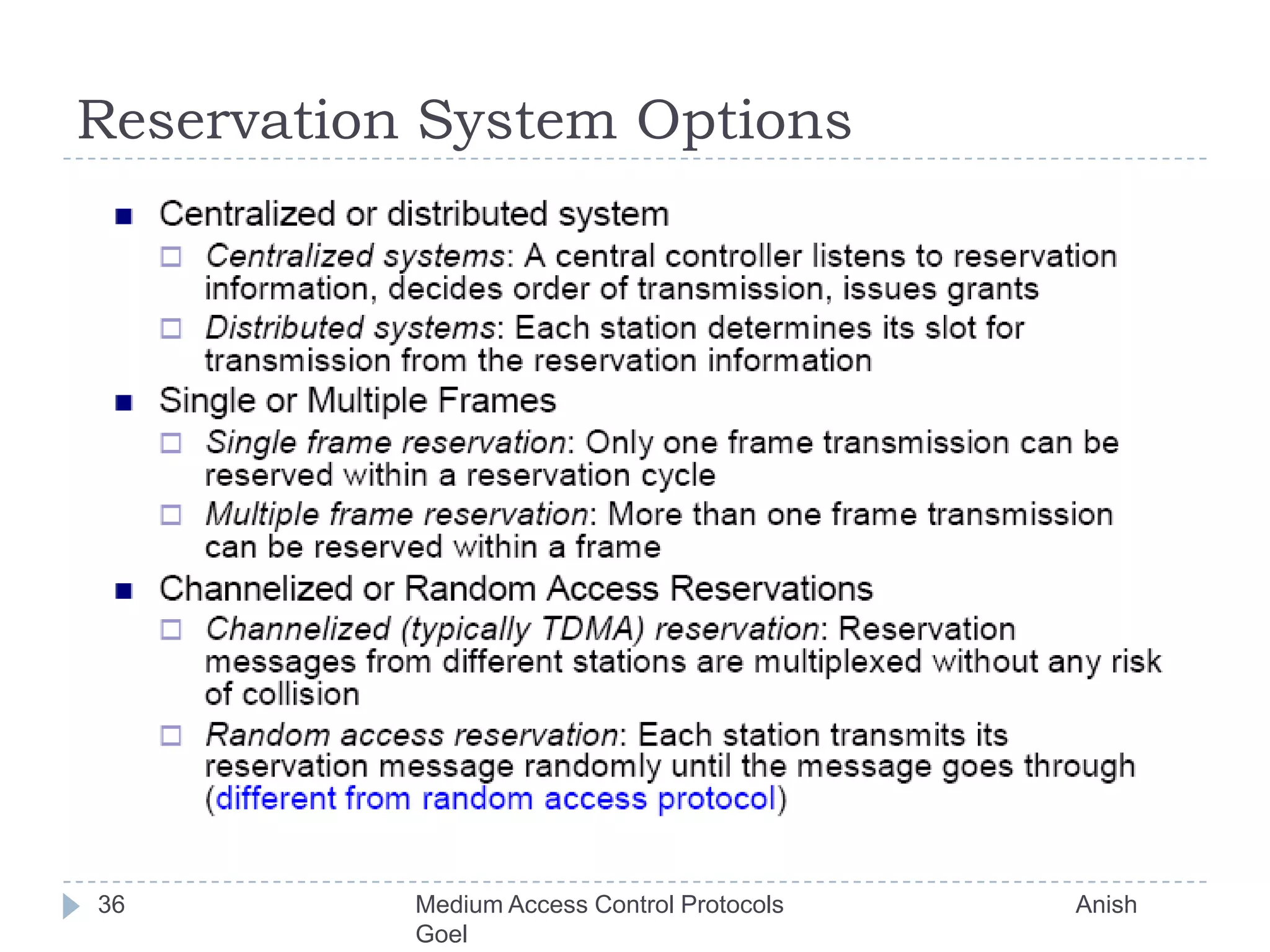

Reservation System Options 36 Medium Access Control Protocols Anish Goel

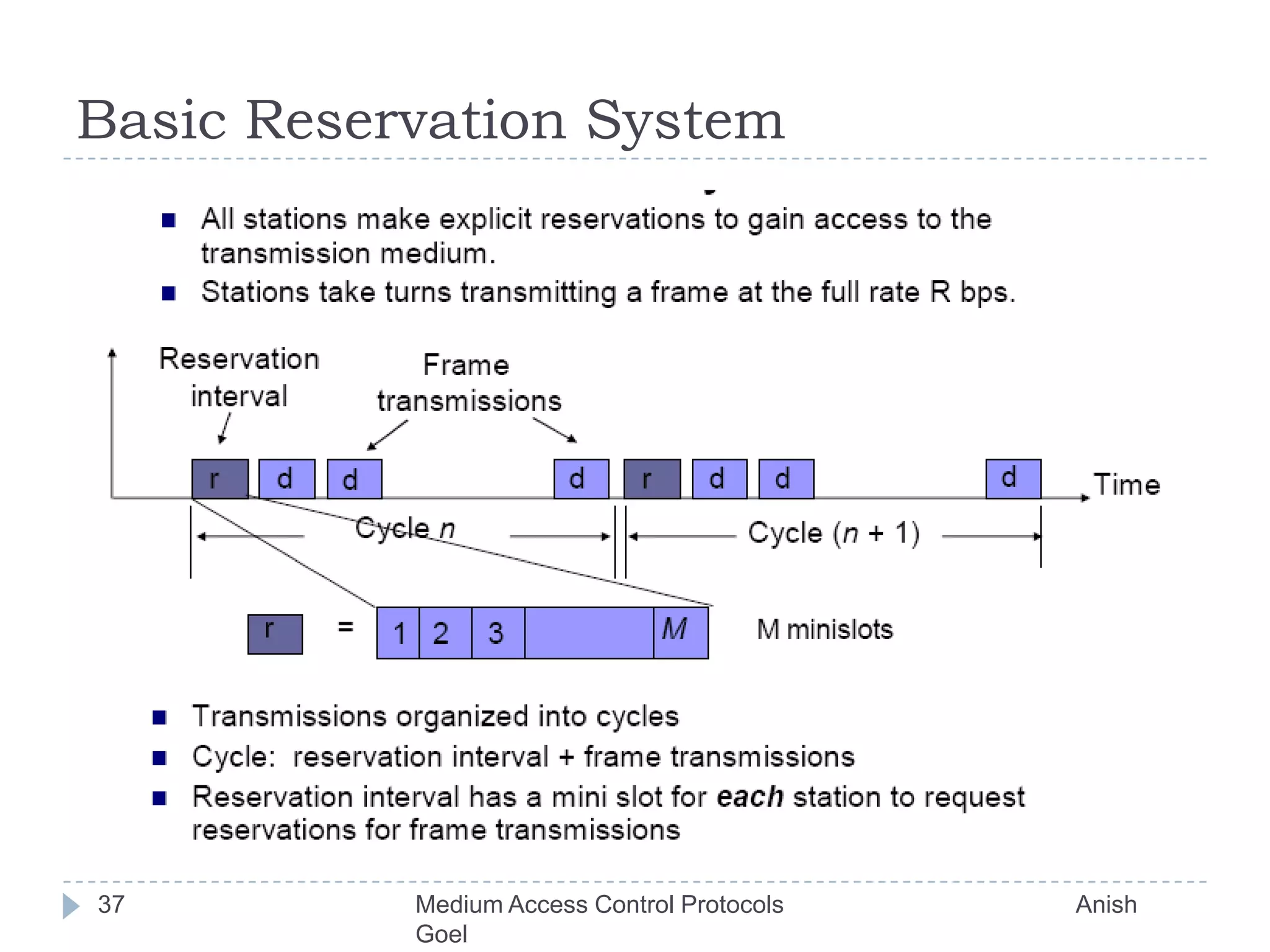

Basic Reservation System 37 Medium Access Control Protocols Anish Goel

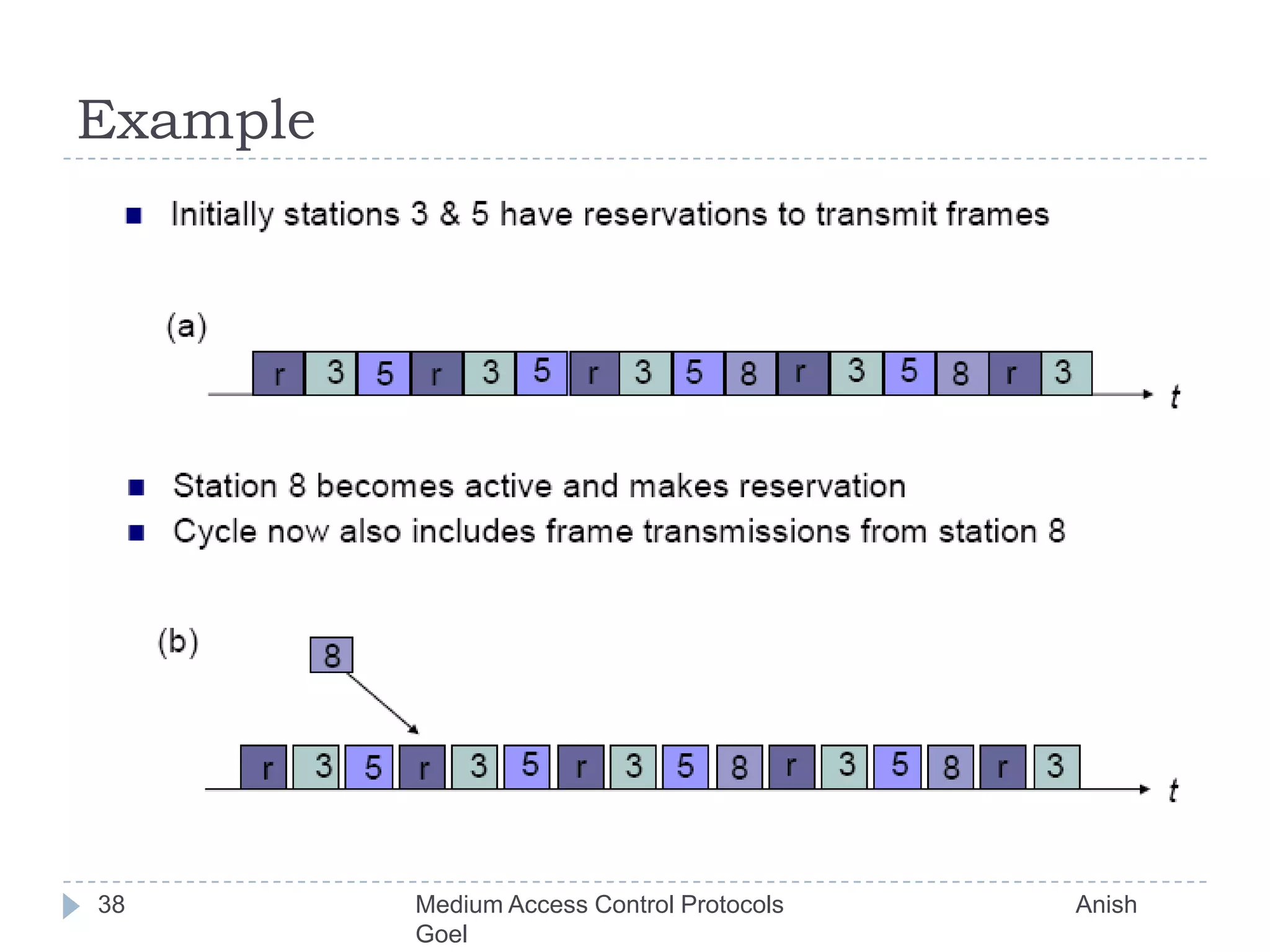

Example 38 Medium Access Control Protocols Anish Goel

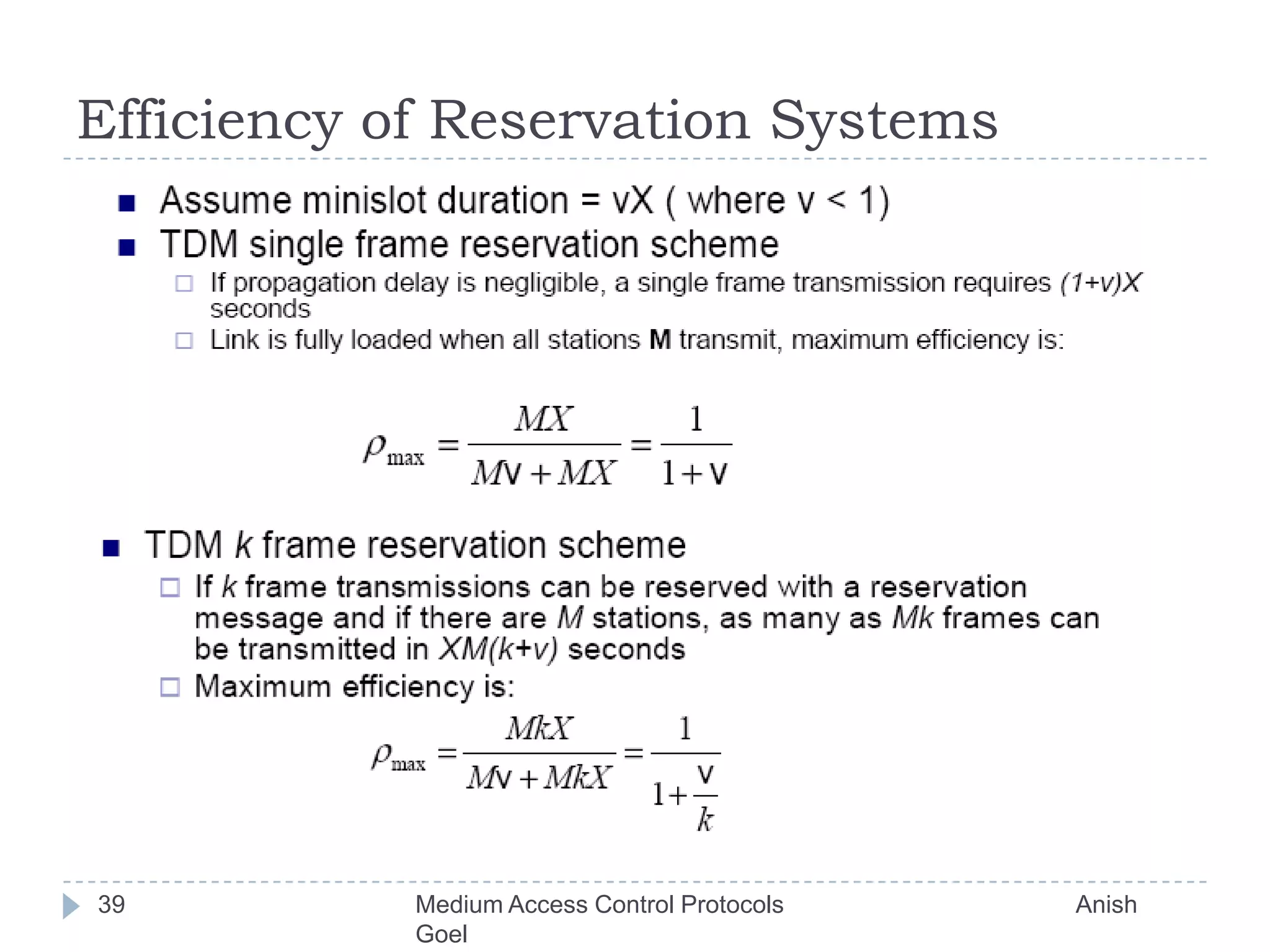

Efficiency of Reservation Systems 39 Medium Access Control Protocols Anish Goel

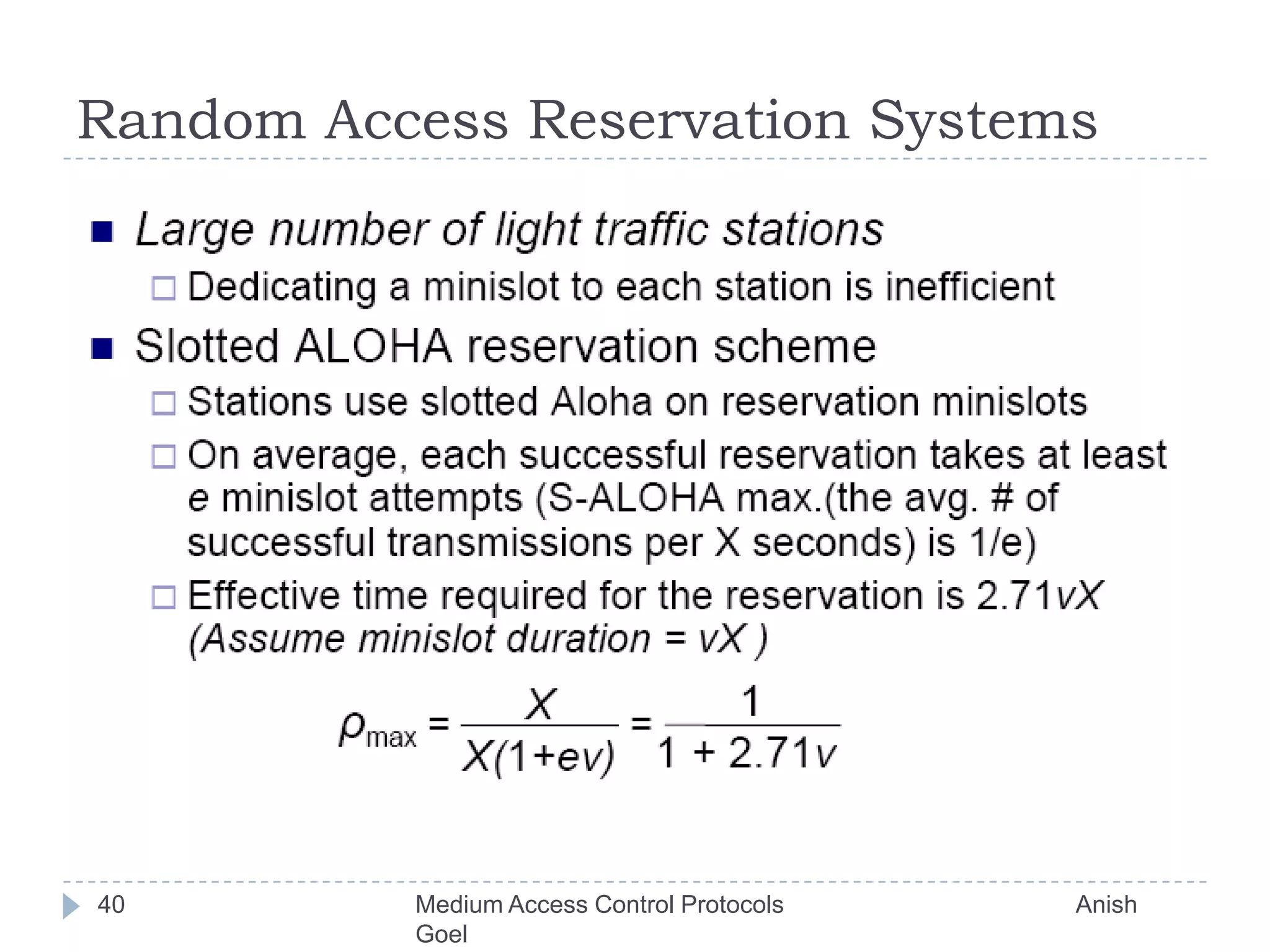

Random Access Reservation Systems 40 Medium Access Control Protocols Anish Goel

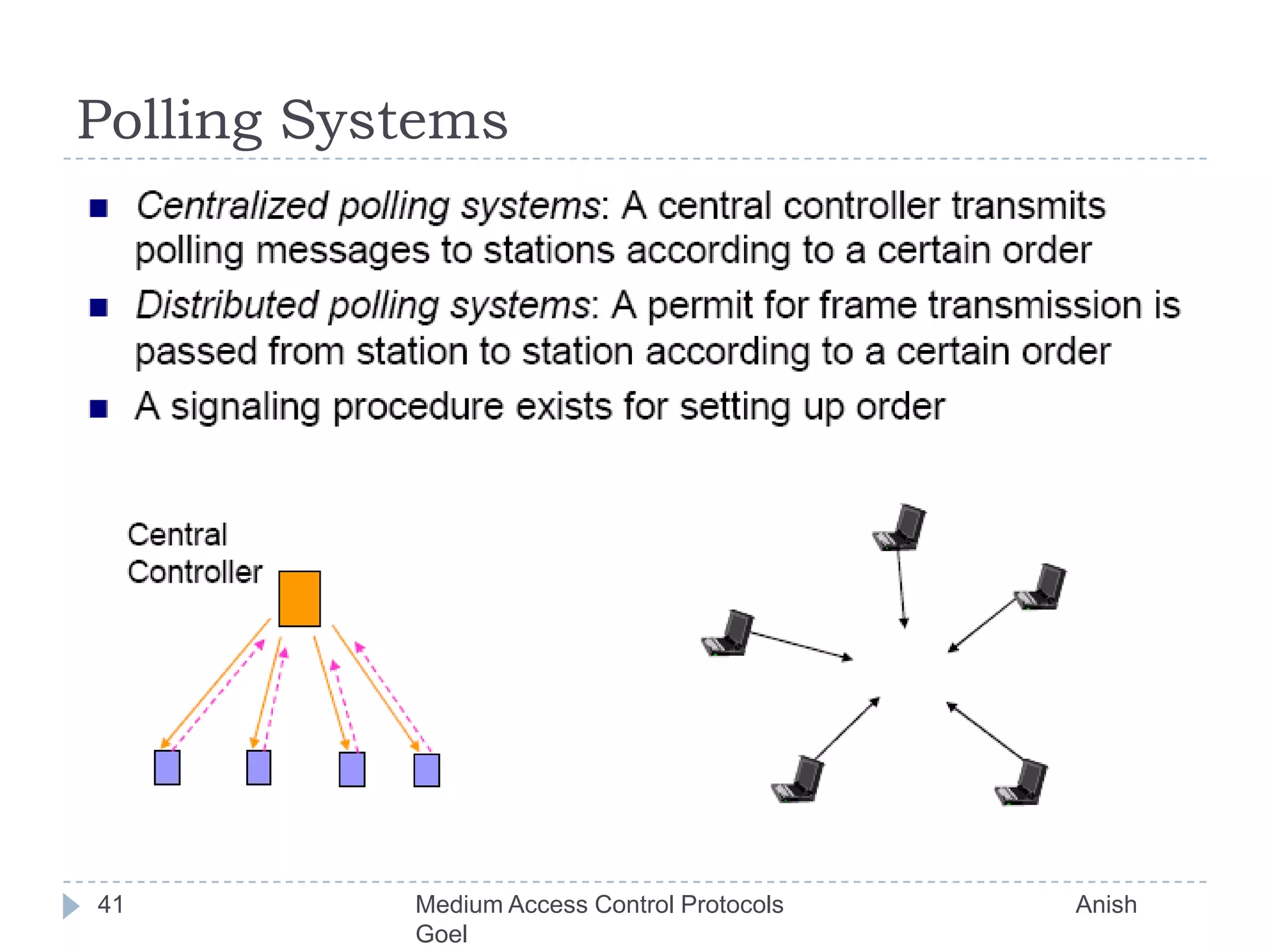

Polling Systems 41 Medium Access Control Protocols Anish Goel

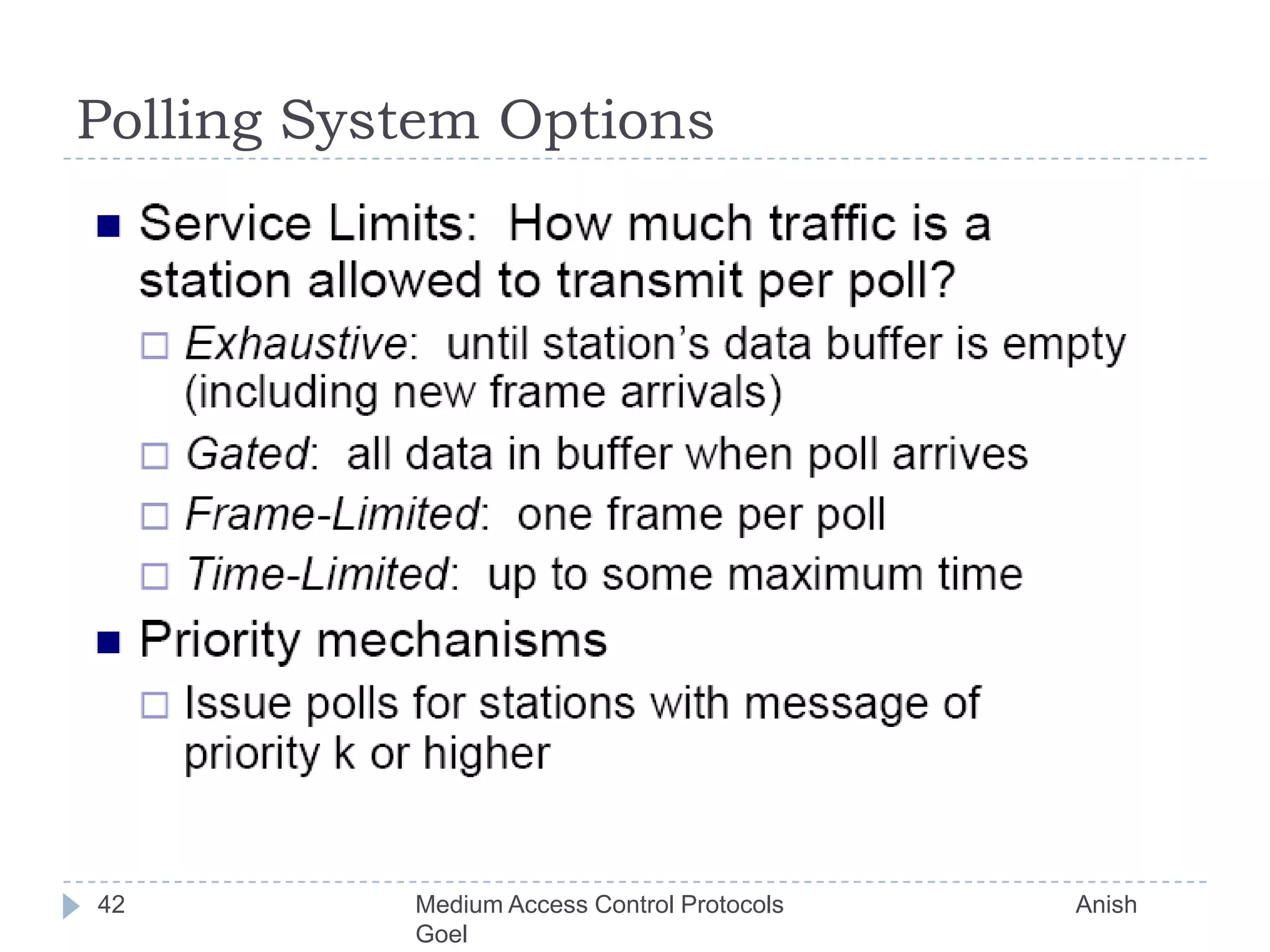

Polling System Options 42 Medium Access Control Protocols Anish Goel

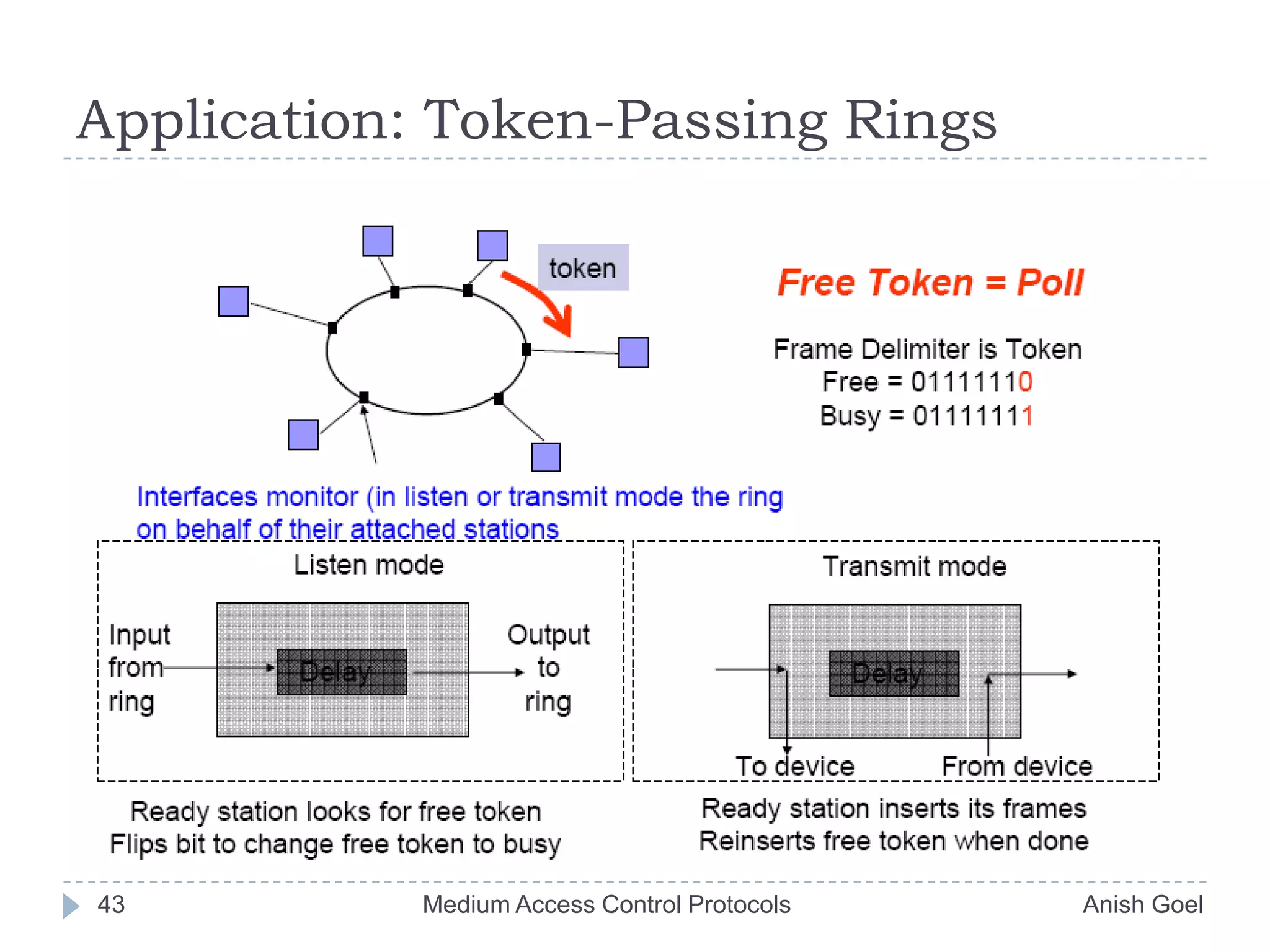

Application: Token-Passing Rings Medium Access Control Protocols Anish Goel 43

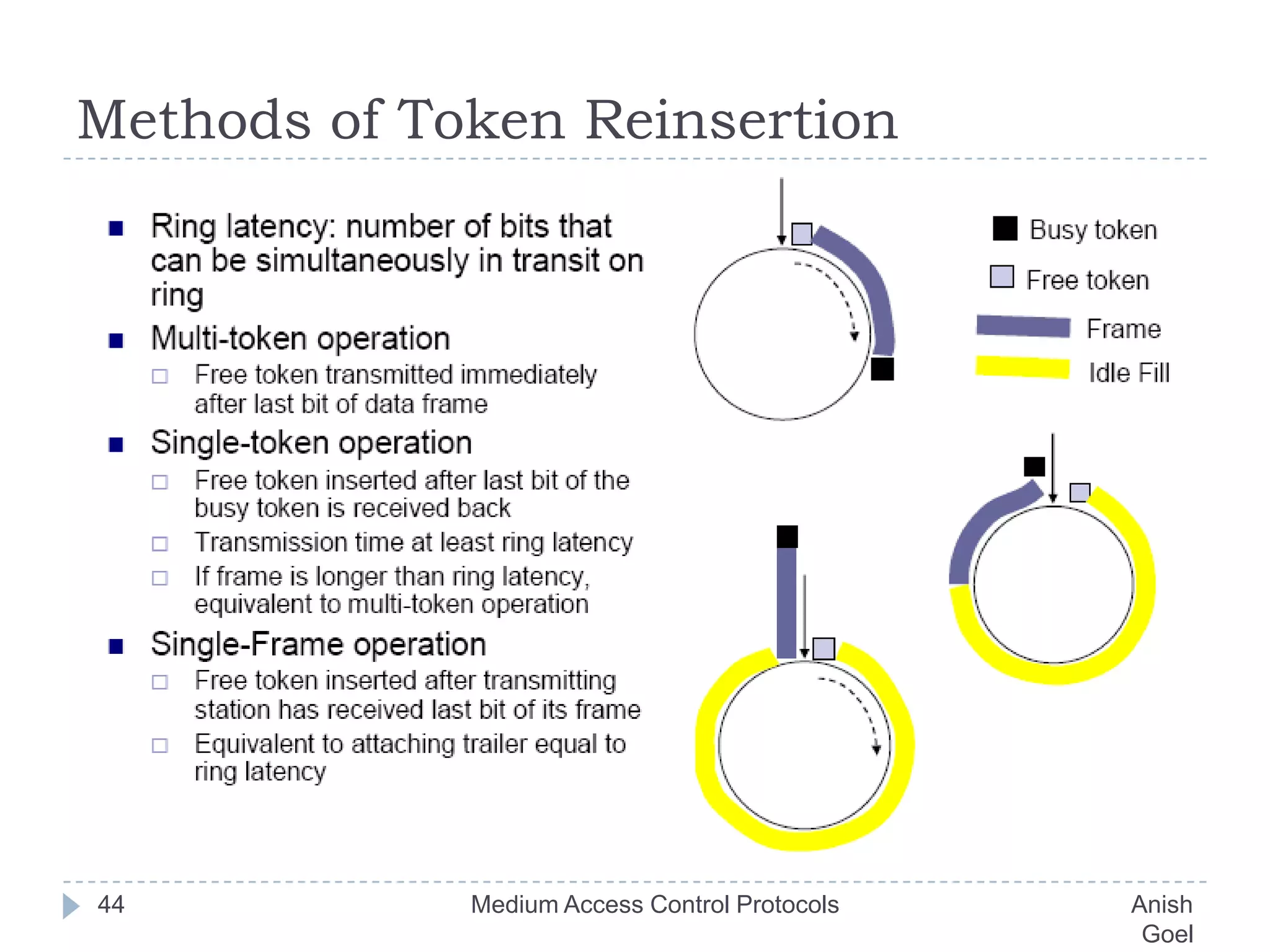

Methods of Token Reinsertion Medium Access Control Protocols Anish Goel 44

Comparison of MAC approaches 45 Medium Access Control Protocols Anish Goel

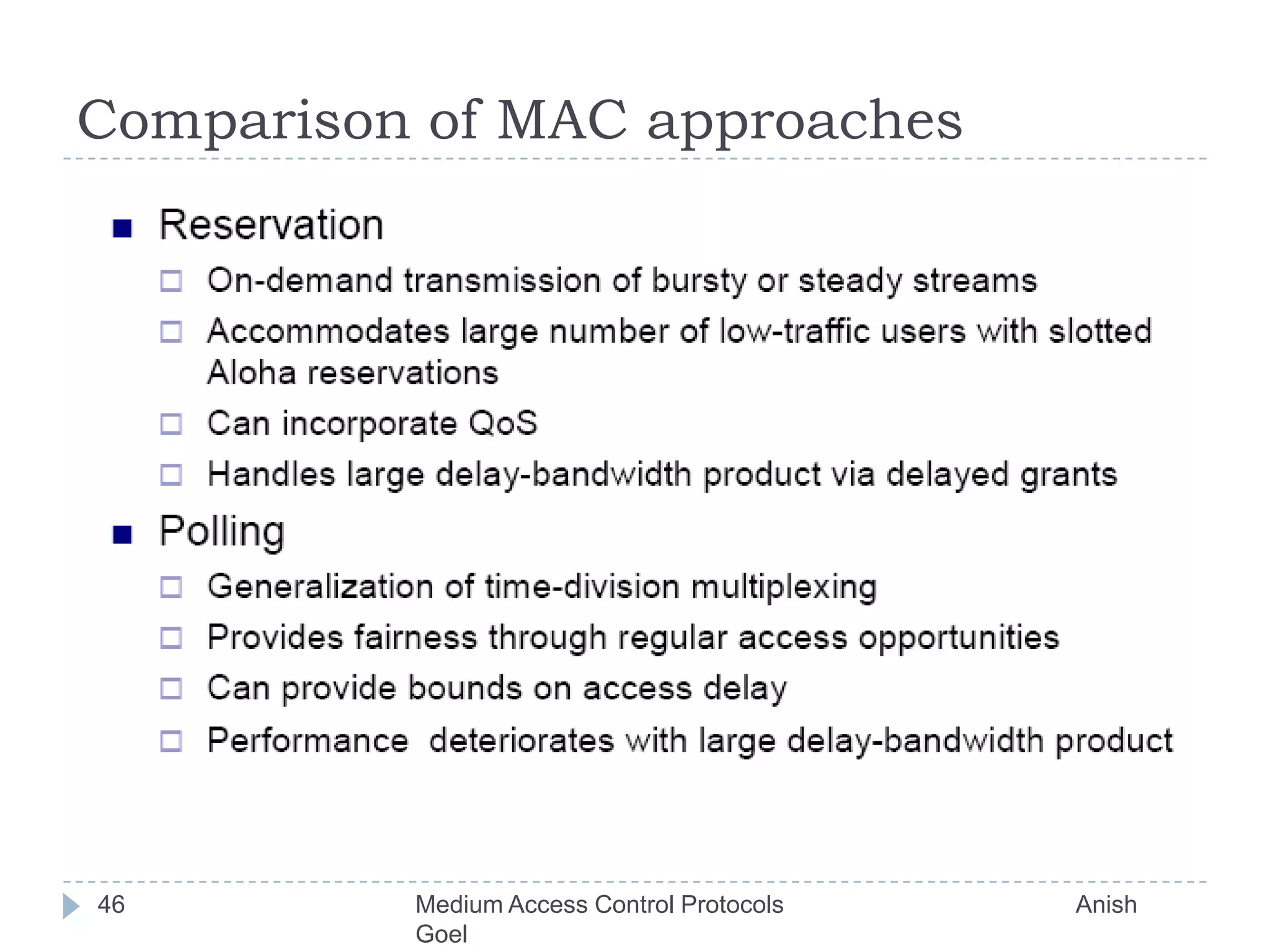

Comparison of MAC approaches 46 Medium Access Control Protocols Anish Goel

Viewers also liked

Code division multiple access

mangal das

Bluetooth Presentation

guest664c3f

The cellular concept

ZunAib Ali

Satellite communications

SARITHA REDDY

Code Division Multiple Access- CDMA

ViVek Patel

Multiple access control protocol

meenamunesh

Viewers also liked (6)

Code division multiple access

Bluetooth Presentation

The cellular concept

Satellite communications

Code Division Multiple Access- CDMA

Multiple access control protocol

Recently uploaded

The Challenger.pdf DNHS Official Publication

Delapenabediema

Thesis Statement for students diagnonsed withADHD.ppt

EverAndrsGuerraGuerr

Acetabularia Information For Class 9 .docx

vaibhavrinwa19

Biological Screening of Herbal Drugs in detailed.

Ashokrao Mane college of Pharmacy Peth-Vadgaon

Biological screening of herbal drugs: Introduction and Need for Phyto-Pharmacological Screening, New Strategies for evaluating Natural Products, In vitro evaluation techniques for Antioxidants, Antimicrobial and Anticancer drugs. In vivo evaluation techniques for Anti-inflammatory, Antiulcer, Anticancer, Wound healing, Antidiabetic, Hepatoprotective, Cardio protective, Diuretics and Antifertility, Toxicity studies as per OECD guidelines

A Survey of Techniques for Maximizing LLM Performance.pptx

thanhdowork

The French Revolution Class 9 Study Material pdf free download

Vivekanand Anglo Vedic Academy

The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe. For more information, visit-www.vavaclasses.com

Guidance_and_Counselling.pdf B.Ed. 4th Semester

Atul Kumar Singh

Normal Labour/ Stages of Labour/ Mechanism of Labour

Wasim Ak

Francesca Gottschalk - How can education support child empowerment.pptx

EduSkills OECD

Best Digital Marketing Institute In NOIDA

deeptiverma2406

Safalta Digital marketing institute in Noida, provide complete applications that encompass a huge range of virtual advertising and marketing additives, which includes search engine optimization, virtual communication advertising, pay-per-click on marketing, content material advertising, internet analytics, and greater. These university courses are designed for students who possess a comprehensive understanding of virtual marketing strategies and attributes.Safalta Digital Marketing Institute in Noida is a first choice for young individuals or students who are looking to start their careers in the field of digital advertising. The institute gives specialized courses designed and certification. for beginners, providing thorough training in areas such as SEO, digital communication marketing, and PPC training in Noida. After finishing the program, students receive the certifications recognised by top different universitie, setting a strong foundation for a successful career in digital marketing.

The Diamond Necklace by Guy De Maupassant.pptx

DhatriParmar

Embracing GenAI - A Strategic Imperative

Peter Windle

Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction. This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.

Marketing internship report file for MBA

gb193092

MASS MEDIA STUDIES-835-CLASS XI Resource Material.pdf

goswamiyash170123

1.4 modern child centered education - mahatma gandhi-2.pptx

JosvitaDsouza2

Azure Interview Questions and Answers PDF By ScholarHat

Scholarhat

Unit 8 - Information and Communication Technology (Paper I).pdf

Thiyagu K

Overview on Edible Vaccine: Pros & Cons with Mechanism

DeeptiGupta154

The Accursed House by Émile Gaboriau.pptx

DhatriParmar

Synthetic Fiber Construction in lab .pptx

Pavel ( NSTU)

Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.

Recently uploaded (20)

The Challenger.pdf DNHS Official Publication

Thesis Statement for students diagnonsed withADHD.ppt

Acetabularia Information For Class 9 .docx

Biological Screening of Herbal Drugs in detailed.

A Survey of Techniques for Maximizing LLM Performance.pptx

The French Revolution Class 9 Study Material pdf free download

Guidance_and_Counselling.pdf B.Ed. 4th Semester

Normal Labour/ Stages of Labour/ Mechanism of Labour

Francesca Gottschalk - How can education support child empowerment.pptx

Best Digital Marketing Institute In NOIDA

The Diamond Necklace by Guy De Maupassant.pptx

Embracing GenAI - A Strategic Imperative

Marketing internship report file for MBA

MASS MEDIA STUDIES-835-CLASS XI Resource Material.pdf

1.4 modern child centered education - mahatma gandhi-2.pptx

Azure Interview Questions and Answers PDF By ScholarHat

Unit 8 - Information and Communication Technology (Paper I).pdf

Overview on Edible Vaccine: Pros & Cons with Mechanism

The Accursed House by Émile Gaboriau.pptx

Synthetic Fiber Construction in lab .pptx

Medium Access Control

1. Medium Access ControlProtocols Prof. Anish Goel Acknowledgement: This Lecture has been borrowed from Prof. Heechang Kim, Adjunct Prof. at NJIT, USA

2. Contents Multiple Access Communications Random Access Scheduling Medium Access Control Protocols Anish Goel 2

3. Multiple Access Communications 3 Medium Access Control Protocols Anish Goel

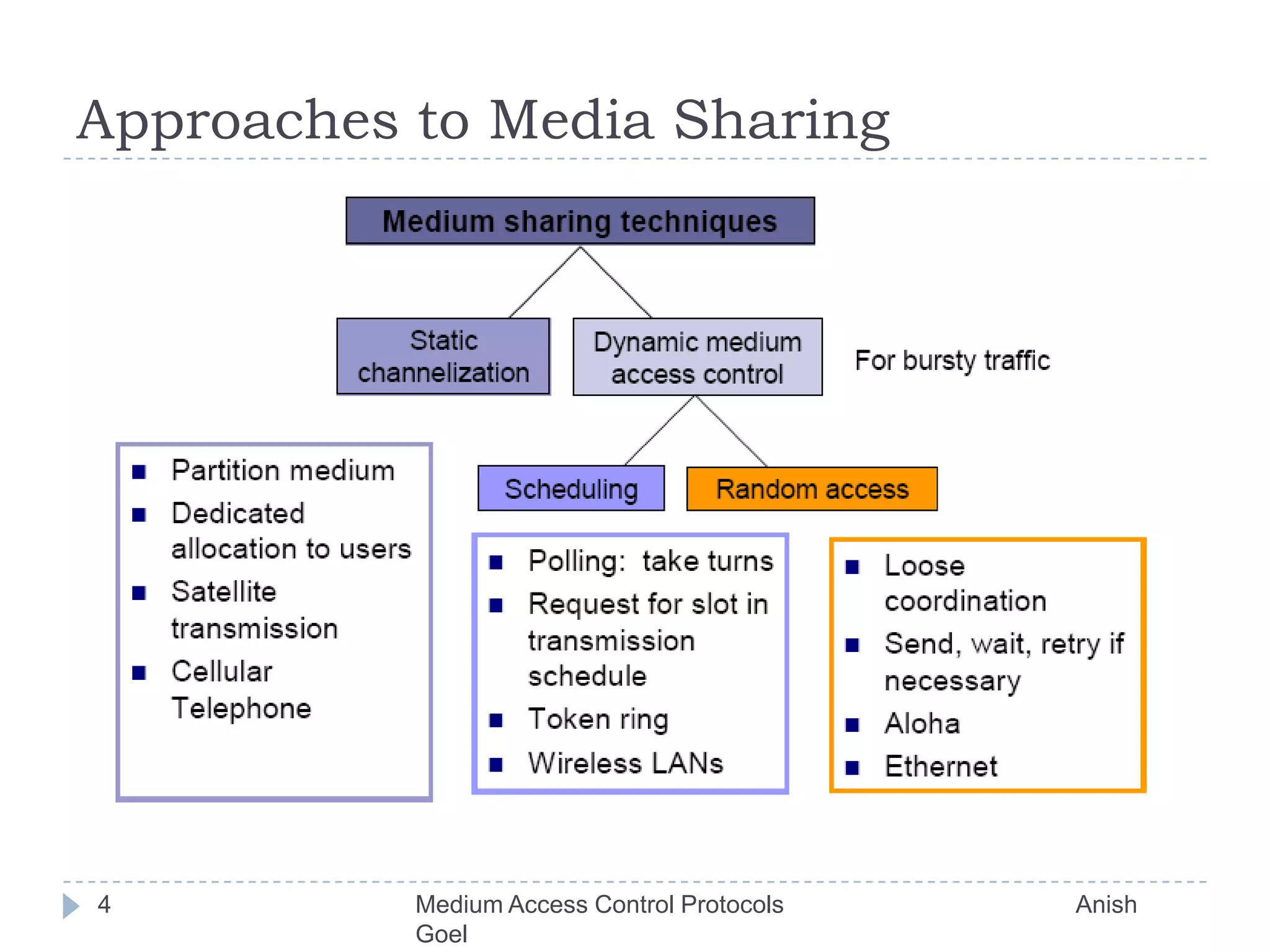

4. Approaches to Media Sharing 4 Medium Access Control Protocols Anish Goel

5. Channelization: Satellite 5 Medium Access Control Protocols Anish Goel

6. Scheduling: Polling 6 Medium Access Control Protocols Anish Goel

7. Scheduling: Token-Passing 7 Medium Access Control Protocols Anish Goel

8. Random Access 8 Medium Access Control Protocols Anish Goel

9. Selecting a Medium Access Control 9 Medium Access Control Protocols Anish Goel

10. Delay-Bandwidth Product 10 Medium Access Control Protocols Anish Goel

11. Two-Station MAC Example 11 Medium Access Control Protocols Anish Goel

12. Efficiency of Two-Station Example 12 Medium Access Control Protocols Anish Goel

13. Typical Delay-Bandwidth Products 13 Medium Access Control Protocols Anish Goel

14. MAC protocol features 14 Medium Access Control Protocols Anish Goel

15. MAC Performance 15 Medium Access Control Protocols Anish Goel

16. Normalized Delay versus Load 16 Medium Access Control Protocols Anish Goel

17. Dependence on normalized delay bandwidth product 17 Medium Access Control Protocols Anish Goel

18. ALOHA Random Access Scheme 18 Medium Access Control Protocols Anish Goel

19. ALOHA Model 19 Medium Access Control Protocols Anish Goel

20. Abramson’s Assumption 20 Medium Access Control Protocols Anish Goel

21. Throughput of ALOHA 21 Medium Access Control Protocols Anish Goel

22. Slotted ALOHA (reduce collision) 22 Medium Access Control Protocols Anish Goel

23. Throughput of Slotted ALOHA 23 Medium Access Control Protocols Anish Goel

24. Carrier Sensing Multiple Access (CSMA) 24 Medium Access Control Protocols Anish Goel

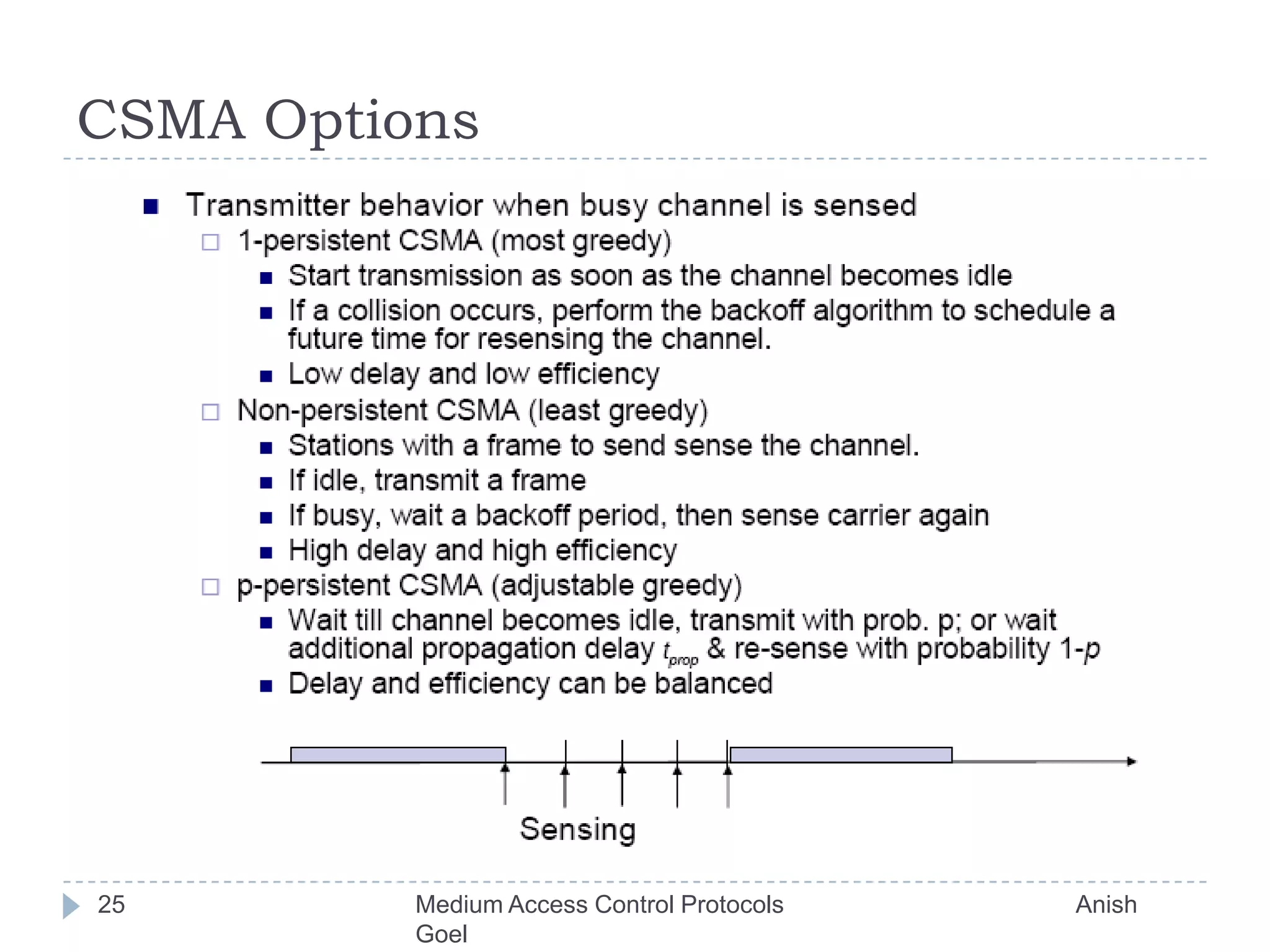

25. CSMA Options 25 Medium Access Control Protocols Anish Goel

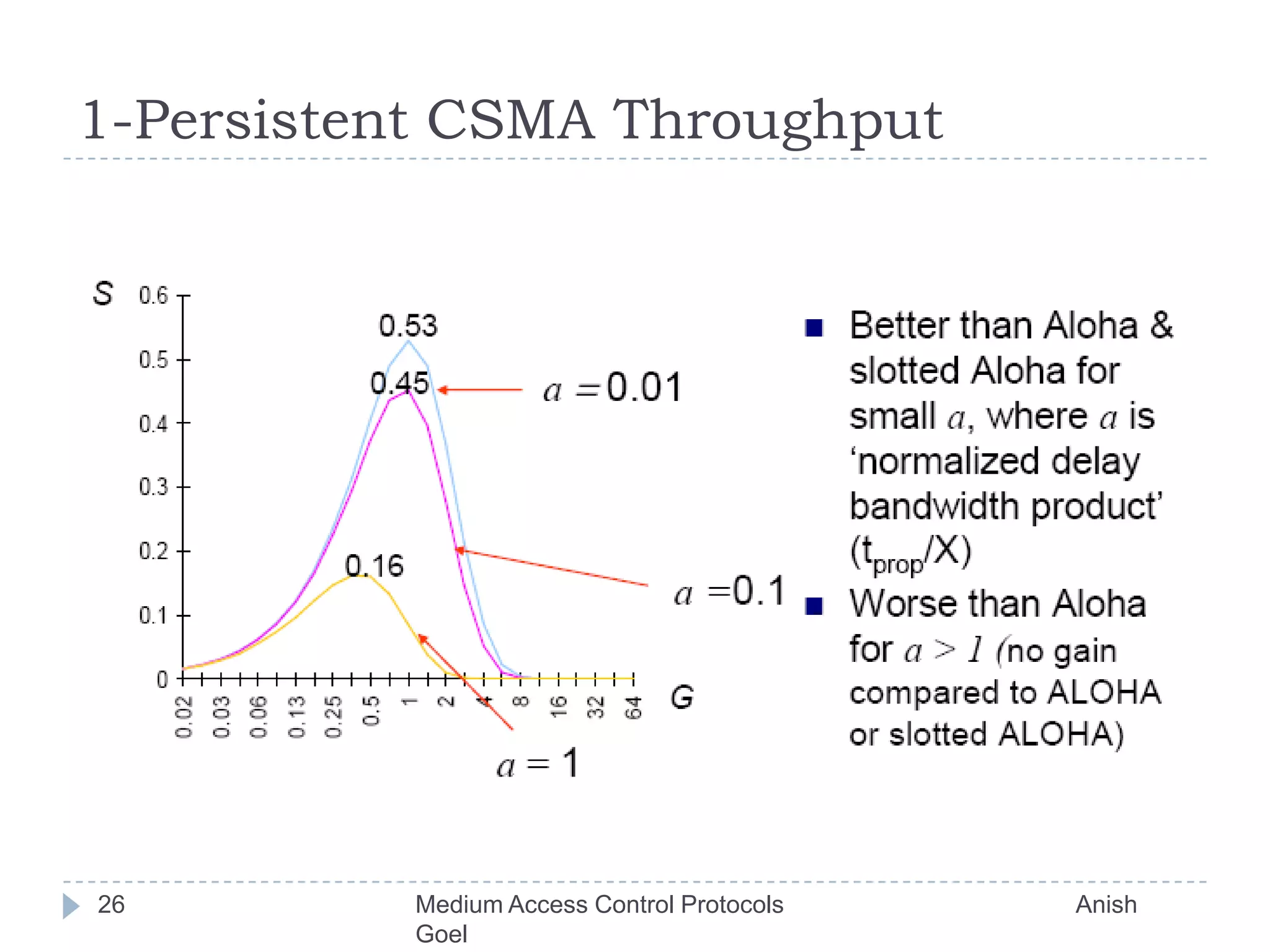

26. 1-Persistent CSMA Throughput 26 Medium Access Control Protocols Anish Goel

27. Non-Persistent CSMA Throughput 27 Medium Access Control Protocols Anish Goel

28. CSMA with Collision Detection (CSMA/CD) 28 Medium Access Control Protocols Anish Goel

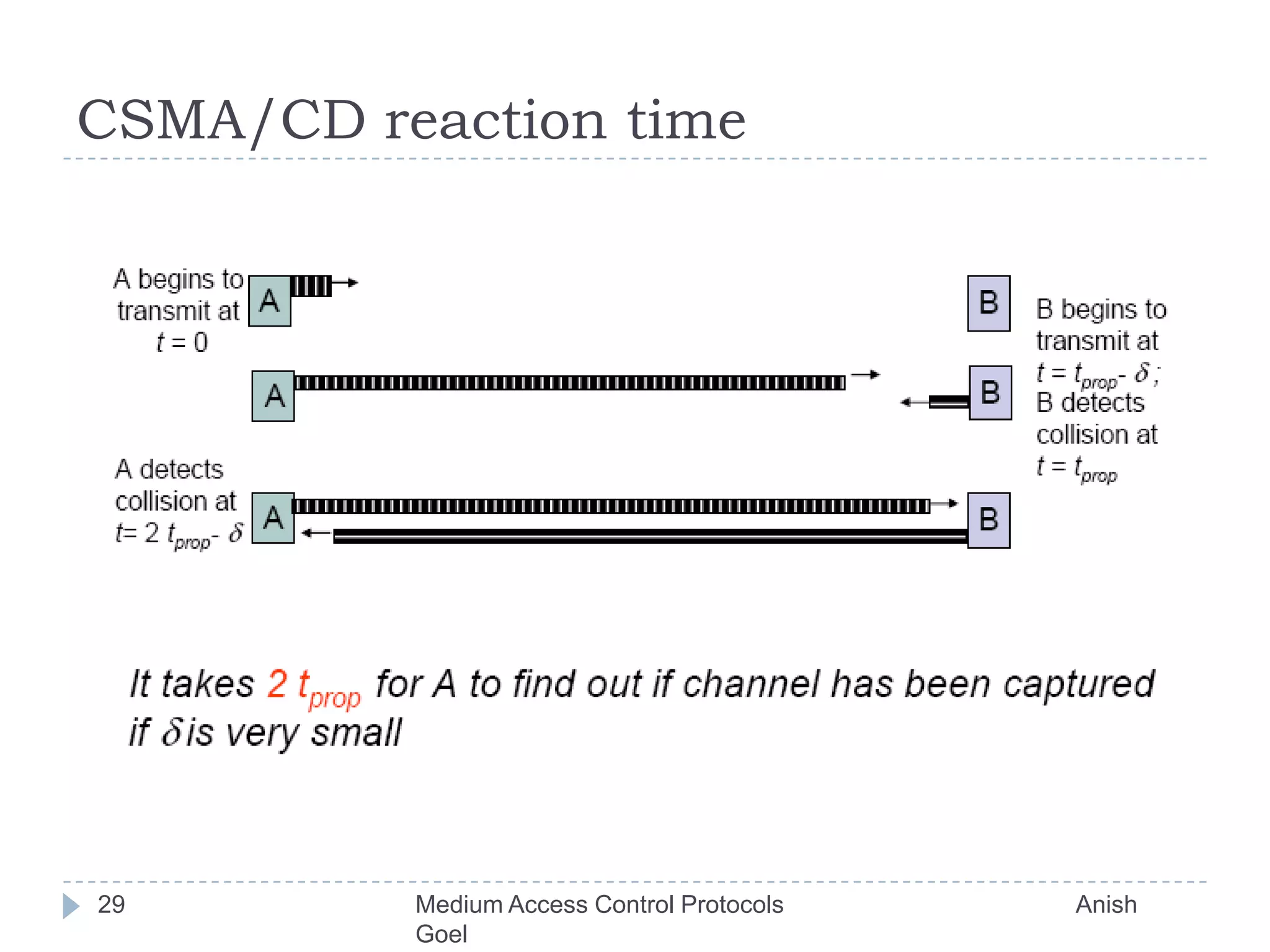

29. CSMA/CD reaction time 29 Medium Access Control Protocols Anish Goel

30. CSMA-CD Model (1 persistent) 30 Medium Access Control Protocols Anish Goel

31. Contention Resolution 31 Medium Access Control Protocols Anish Goel

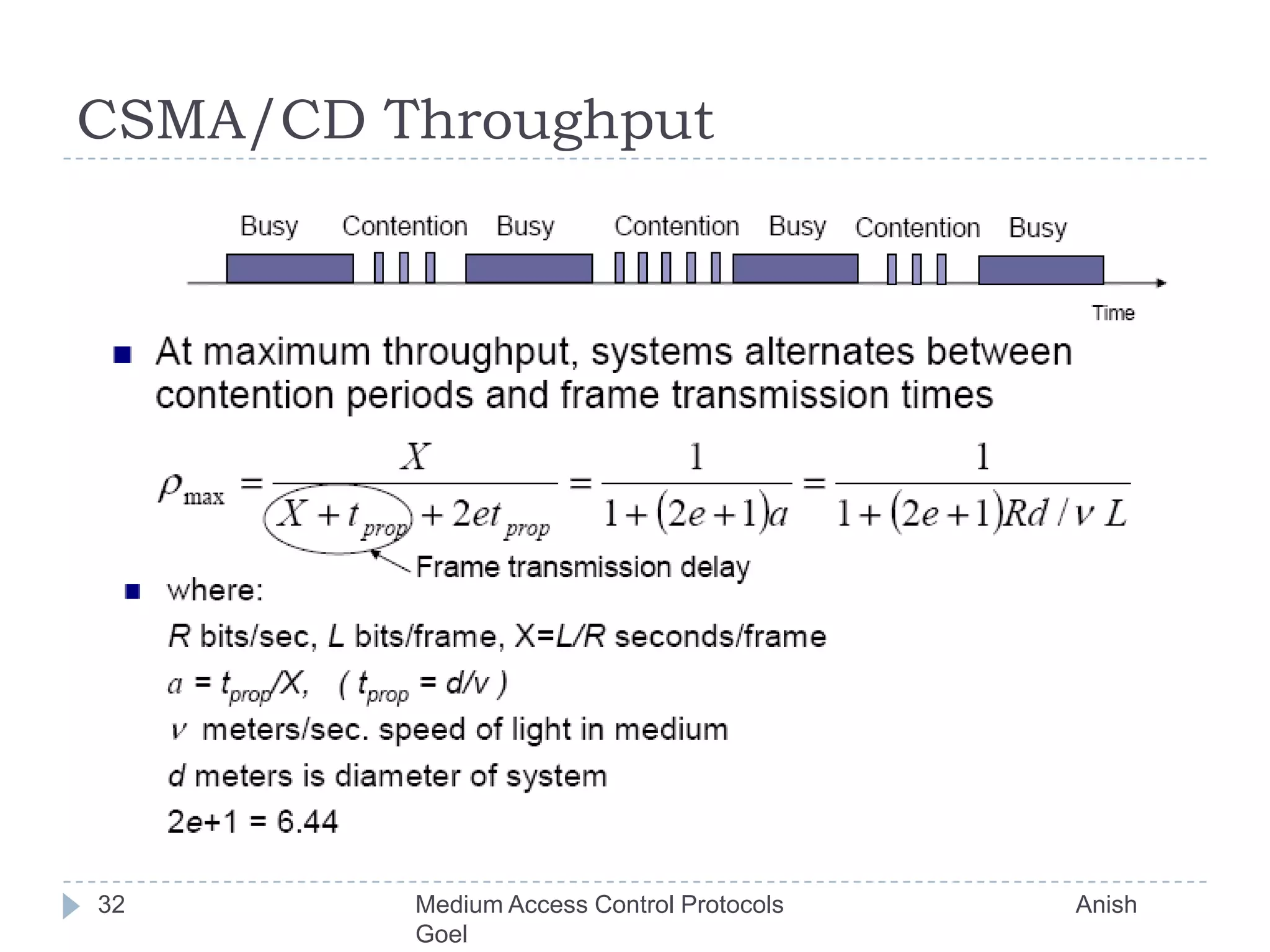

32. CSMA/CD Throughput 32 Medium Access Control Protocols Anish Goel

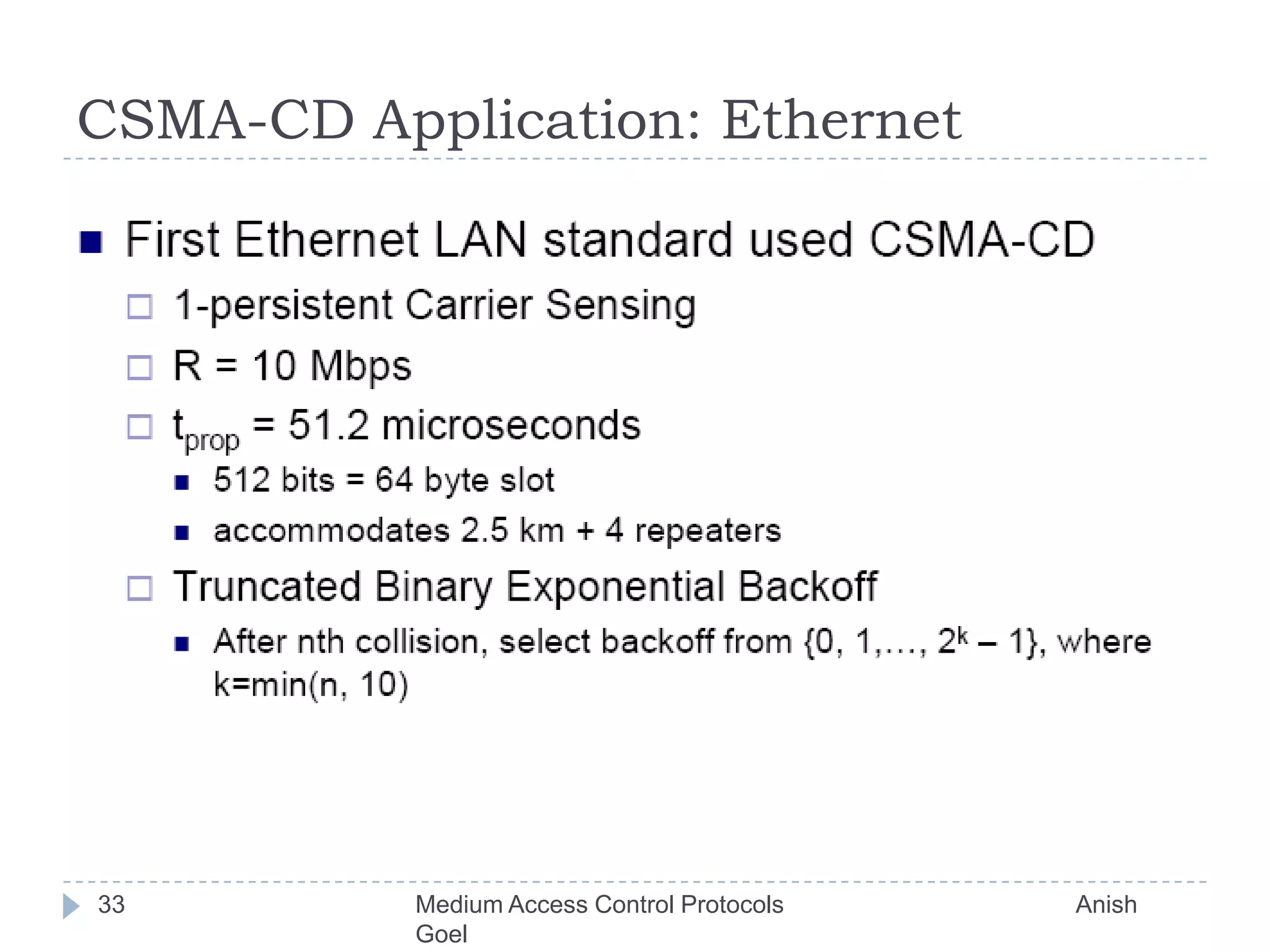

33. CSMA-CD Application: Ethernet 33 Medium Access Control Protocols Anish Goel

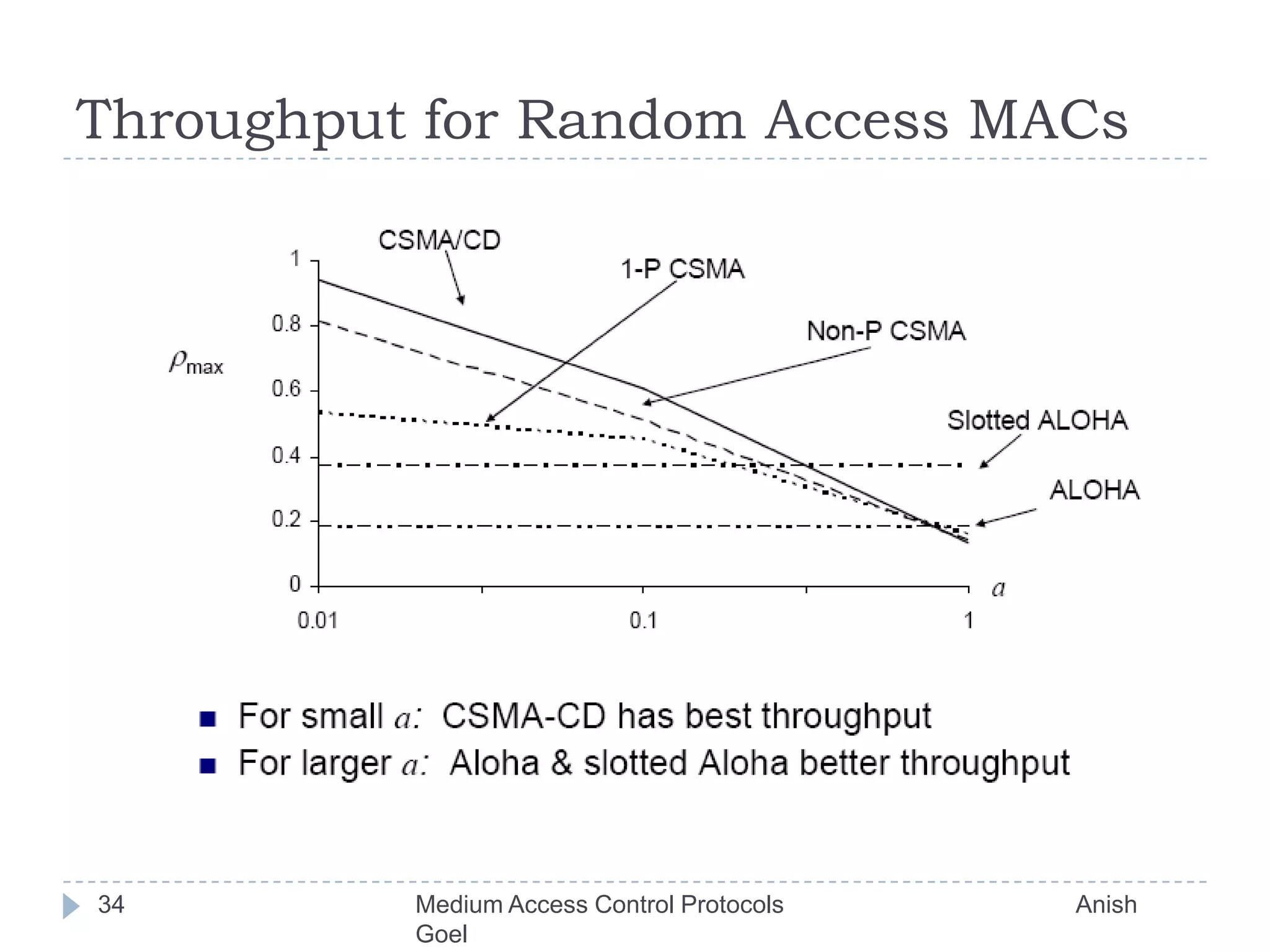

34. Throughput for Random Access MACs 34 Medium Access Control Protocols Anish Goel

35. Scheduling for Medium Access Control 35 Medium Access Control Protocols Anish Goel

36. Reservation System Options 36 Medium Access Control Protocols Anish Goel

37. Basic Reservation System 37 Medium Access Control Protocols Anish Goel

38. Example 38 Medium Access Control Protocols Anish Goel

39. Efficiency of Reservation Systems 39 Medium Access Control Protocols Anish Goel

40. Random Access Reservation Systems 40 Medium Access Control Protocols Anish Goel

41. Polling Systems 41 Medium Access Control Protocols Anish Goel

42. Polling System Options 42 Medium Access Control Protocols Anish Goel

43. Application: Token-Passing Rings Medium Access Control Protocols Anish Goel 43

44. Methods of Token Reinsertion Medium Access Control Protocols Anish Goel 44

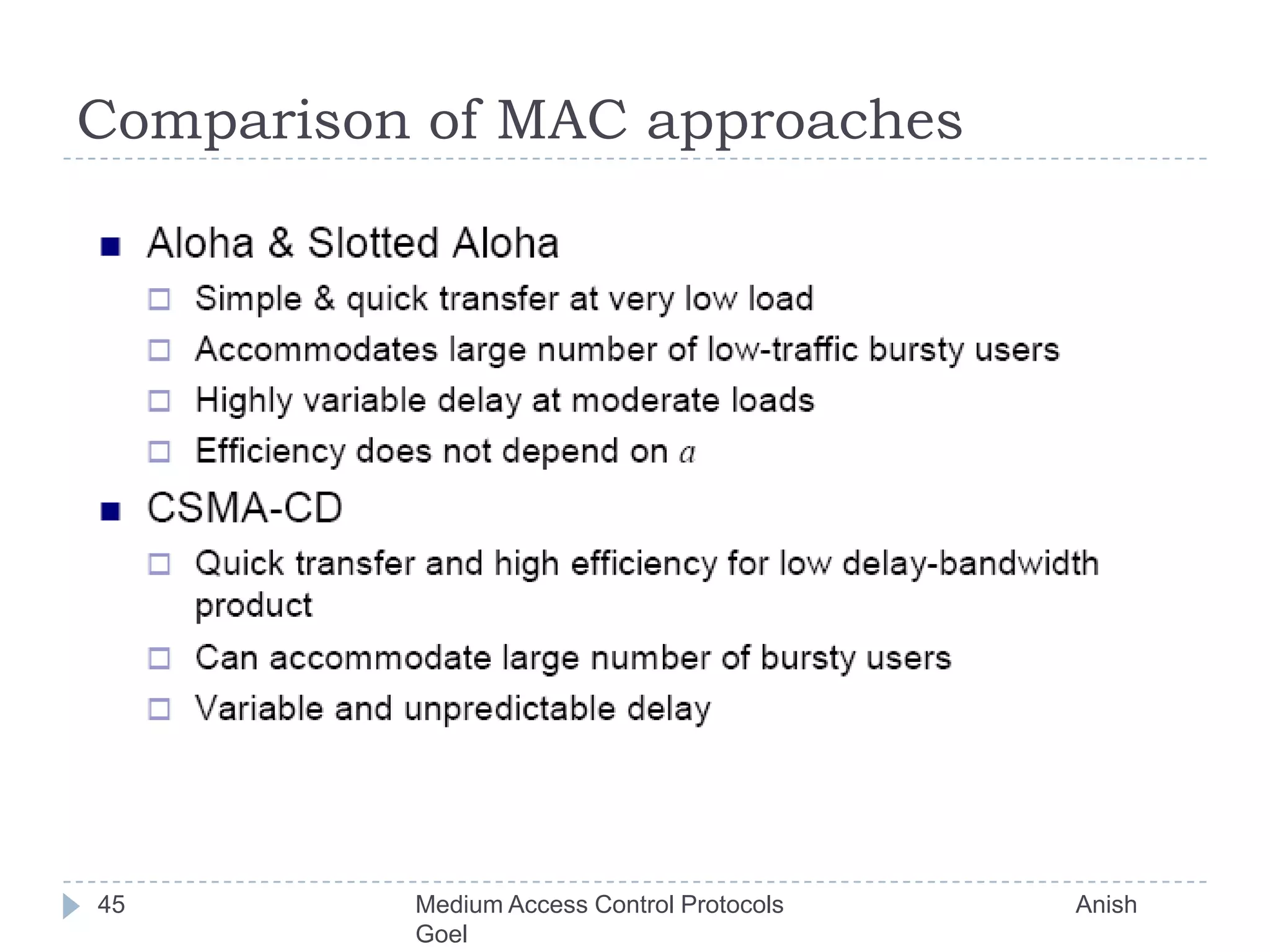

45. Comparison of MAC approaches 45 Medium Access Control Protocols Anish Goel
