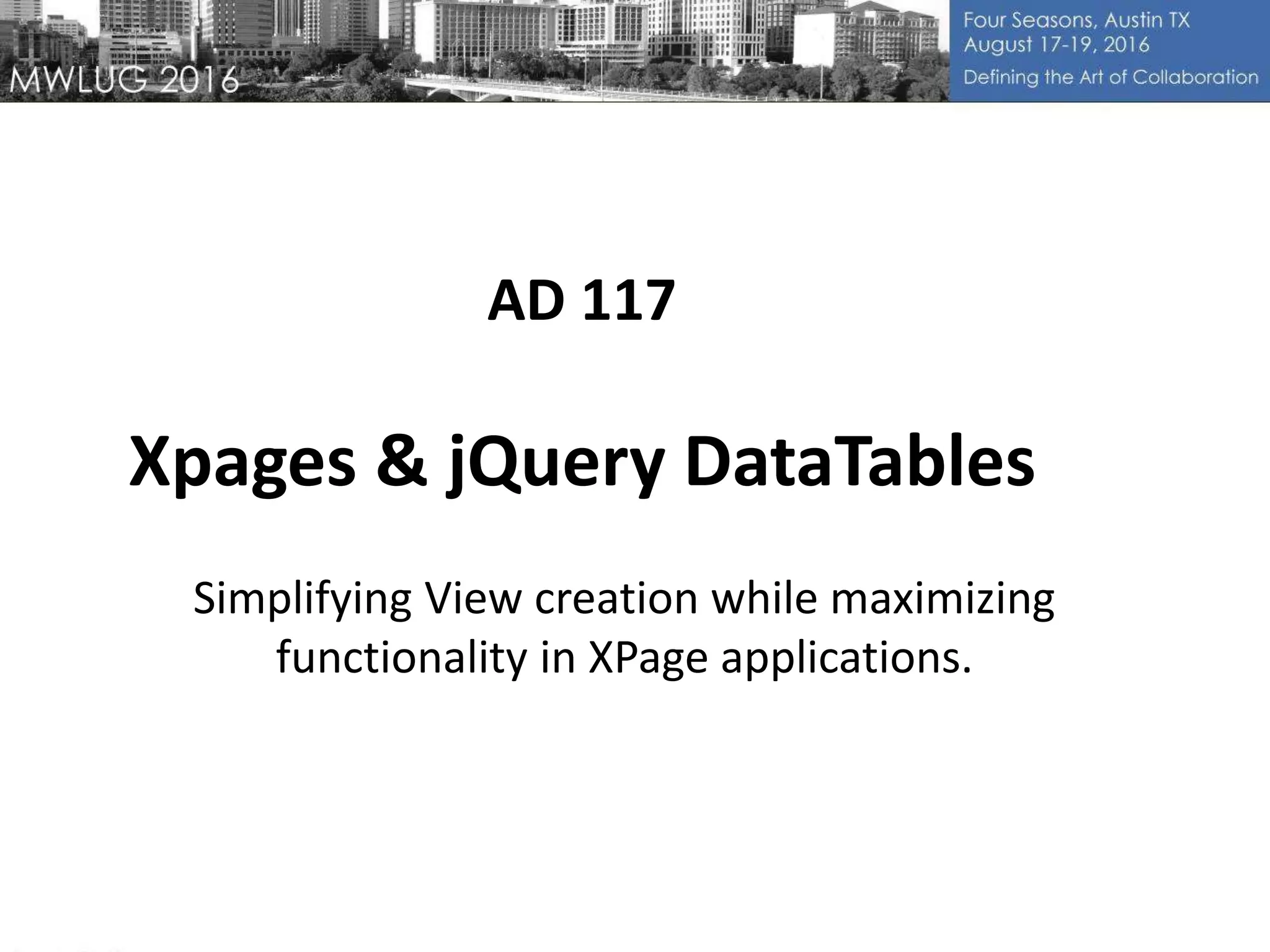

AD 117
Xpages & jQuery DataTables
Simplifying View creation while maximizing
functionality in XPage applications.

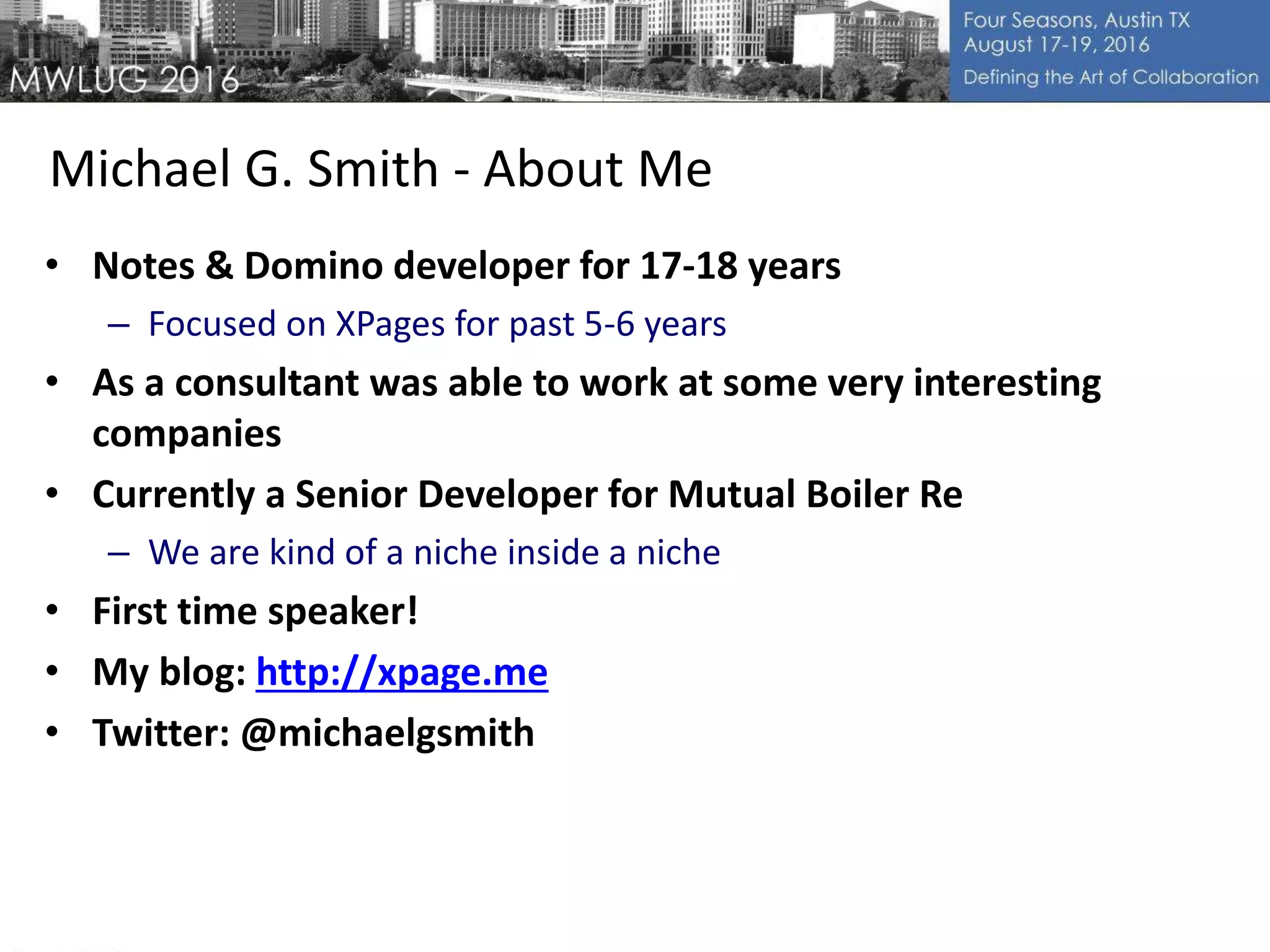

• Notes & Domino developer for 17-18 years
– Focused on XPages for past 5-6 years
• As a consultant was able to work at some very interesting
companies
• Currently a Senior Developer for Mutual Boiler Re
– We are kind of a niche inside a niche
• First time speaker!
• My blog: http://xpage.me
• Twitter: @michaelgsmith
Michael G. Smith - About Me
• Introduction to DataTables
– Try to cut through the fat and focus on the most useful stuff
– This is not a comprehensive overview
• Roadmap to quickly surface view data in your Xpage apps
– Brand new or existing apps
• Share my experiences and lessons learned
– I learned a lot just working on this presentation!
• How to take everything and utilize it in an enterprise application
– Scalability
• You should be able to walk away and utilize these concepts
immediately
– If I’ve done my job
Goals for this session
• What is DataTables?
• Why DataTables?
• Getting started with DataTables
• Putting the “Data” in DataTables
• The DataTables lifecycle
• Advanced configuration
• Domino View Management
• Putting it all together
Agenda
• Simply defined, it is:
– A client side framework/library
– A jQuery plugin
– It’s HUGE!
• It is NOT:
– the XPages control
• From the DataTables online manual:
The stated goal of DataTables is "To enhance the accessibility of data in HTML
tables”.
• My definition:
– A great tool for creating Domino-like rich views in XPage and web
applications
What is DataTables?
• Very easy to hit the ground running
• Integrates well with Bootstrap
• Further separates data from design
• Became more and more impressed with it’s capabilities
• “A” way, not “The” way
• Extremely well documented through online reference material
and support forums
– When using example code try to make sure it is from v 1.10 or later
• Excellent at handling data types
• Great replacement for views and embedded views
– Embedded views on tabs – only load data when tab is clicked
Why DataTables?
• Adding files to your project
– CDN
– Locally (WebContent)
– Package Manager (Bower/NPM)
• Dependencies
– jQuery 1.7 or later
• My Demos
– DataTables 1.10.2
– jQuery 1.11.2
Getting started with DataTables
• Styling options
– Default DataTables css
– Bootstrap
• Requires a reduced DataTables css
• Use the Bootstrap table classes when assigning classes to the table
markup
– Other frameworks
• Foundation
• jQuery UI
– Use the DataTables theme creator to match your UI
– https://datatables.net/manual/styling/theme-creator
Getting started with DataTables (cont.)
• Add appropriate source files to your theme
– Core DataTables
• DataTables CSS
• jQuery
• DataTables js
– Bootstrap
• Bootstrap css
• DataTables Bootstrap css
• jQuery js
• Bootstrap js
• DataTables js
Getting started with DataTables (cont.)
Putting the “Data” in DataTables
• From the Docs:
Data for a DataTable can essentially come from three different
locations:
– HTML - ideal for when your table already exists and has been
populated with data.
– Javascript Array - used when your data exists in a Javascript array
– An Ajax data source
• Let’s start with a simple xp:repeat
Putting the “Data” in DataTables
Putting the “Data” in DataTables (cont.)
• Adding a DataTable to a xp:repeat
• Simple xp:repeat Demo
Putting the “Data” in DataTables (cont.)
• DataTables default configuration
Adding a DataTable to a xp:repeat (cont.)
• DataTables default configuration
Adding a DataTable to a xp:repeat (cont.)
• DataTables default configuration
Adding a DataTable to a xp:repeat (cont.)
• DataTables configuration options
Adding a DataTable to a xp:repeat (cont.)
• Demo – adding simple configuration
Adding a DataTable to a xp:repeat (cont.)
• Simply add classes to your table markup
• From the DataTables reference:
Adding style to the xp:repeat
• By applying classes to the markup we turn this:
Adding style to the xp:repeat (cont.)
• Into this:
Adding style to the xp:repeat (cont.)
• In Bootstrap:
Adding style to the xp:repeat (cont.)
Creating a DataTable from REST data
• Use the “ajax” option to retrieve data:
Creating a DataTable from REST data
• DataTables expects:
– Array of arrays
• Columns object must be defined or ..
• Markup must contain thead with th/td cells for each data column
– Array of objects (JSON)
• Columns object must be defined!
Creating a DataTable from REST data (cont.)
• Array of arrays
– Defining the columns object
• Need one object per column
• With no data field, the order of the objects must correspond to the
order of the returned data
• Use the data field to match up objects with 0 based index of the row
array (order doesn’t matter)
Creating a DataTable from REST data (cont.)
• Array of arrays
– Using markup
• Must have a thead element and a th or td for each column
• Order matters
Creating a DataTable from REST data (cont.)
• Array of objects (JSON)
– Columns object must be defined!
Creating a DataTable from REST data
• Array of objects (JSON)
– Map the “data” field of the columns object to the appropriate field
in the returned JSON object
Creating a DataTable from REST data
• The most common ways to retrieve REST data in Domino:
Creating a DataTable from REST data (cont.)
• The most common ways to retrieve REST data in Domino:
• xeViewJsonService
– Pros
• Easy to hit the ground running
• Domino handles data serialization
– Cons
• More difficult to fine tune the data returned (i.e. reduce payload size)
Creating a DataTable from REST data (cont.)
• The most common ways to retrieve REST data in Domino:
• xeCustomRestService
– Pros
• More granular control
• Easier to define the column definitions at the rest service
– Cons
• Need to be aware of data types and make sure data is serialized
properly
• Need to actually write the code that builds the data
Creating a DataTable from REST data (cont.)
• The most common ways to retrieve REST data in Domino:
• XAgent
– Pros
• More granular control (even more?)
• Easier to define the column definitions at the rest service
– Cons
• Need to be aware of data types and make sure data is serialized
properly
• Need to actually write the code that builds the data
Creating a DataTable from REST data (cont.)
• REST demo:
Creating a DataTable from REST data (cont.)
The DataTables Lifecycle
• Use callbacks to provide a “rich” view experience
– initComplete()
– drawCallback()
– rowCallback()
– createdRow()
• Similarities to the XPages lifecycle
• Be cognizant of your users
– Don’t slow down user experience by adding too much client side
processing
The DataTables “Lifecycle” (callbacks)
• Callback demo
The DataTables “Lifecycle” (callbacks) (cont.)
Advanced Configuration
• Adding click events
– Use the “createdRow” or “rowCallback” callbacks
• DataTables docs say createdRow is more efficient
• This *should* result in better browser performance, i.e. javascript
objects won’t be left behind when the DataTable is destroyed
– Be aware when double clicking, click event is also fired unless the
timeout method is used
• This is a browser issue, not DataTables
• Demo
Advanced Configuration
• Renderers
– Possibly the most powerful aspect of DataTables
– Executed whenever DataTables needs to get the data for a cell in the
column.
– This function might be called multiple times, as DataTables will call it
for the different data types that it needs:
• display
• sorting
• filtering
– Orthogonal Data
• Each data point has the ability to take multiple forms
• Demo:
Advanced Configuration (cont.)
• Renderers
Advanced Configuration (cont.)
• Filtering programmatically
– The real power of DataTables can be exploited through the use of
the API
– Tables can be searched by row, column or globally across all data
– Must call the draw() event after performing search
• Demo
Advanced Configuration (cont.)
• Filtering programmatically
Advanced Configuration (cont.)
• Filtering programmatically
Advanced Configuration (cont.)
• Lazy Loading
– Grab additional data via REST and use DataTables api to insert rows
• Demo
Advanced Configuration
• Categorization
– Not built in to DataTables but easy to add using the api and callbacks
– Outdated, but sometimes still a requirement during the app
modernization process
• Gently ease users into new tech by keeping some familiarity
• Demo
Advanced Configuration
• Reloading data
– Avoid the dreaded “Can’t reinitialize DataTable” message
• When referencing your table be sure to use the same class it was
instantiated with
– When data is reloaded current sort remains intact
Advanced Configuration
Putting it all together
• Manage your Domino views
– Separation of data and functionality
– Use views as strictly back end data containers
• Load em up with data!
– Minimize “click to sort” columns to reduce view index size
– Domino ISO-8601 dates can be problematic if not careful
• Ex. 1957-03-14T21:54:30Z
• My preference: creating a text column
– Strip out unnecessary columns, i.e. colors, icons
• May need to create REST only views in coexistence scenarios
– Fewer views
• No more specialized views with only a handful of columns
• Utilize categories and keys and ftsearch
Putting it all together
• Managing your Domino views (cont.)
– Make sure columns have an itemName !!!
Putting it all together (cont.)
• In order to apply all of this to an enterprise application we need
to be able to “connect” the data to the configurations
• My solution: REST View Manager
– Configure DataTable configurations in a browser and store json in a
Notes Document
• Minimizes need to touch designs
• Makes view customization by users much easier to implement and
manage
– Use a custom control that can be dragged and dropped into any
Xpage or custom control and configured through custom properties
– Opens the door to allowing users to customize their views
Putting it all together (cont.)
• REST View Manager
Putting it all together (cont.)
• REST View Manager
Putting it all together (cont.)
nsf
REST configuration
created client side
Xpage
DataTable
Client
Side
Server
side
REST Service
Read view config
Read view config
GET data
Save view config
• The Grand Finale Demo!
– Create a new REST configuration
– Create an Xpage
– Add the ccRestView custom control to the xpage
– Configure the ccRestView custom control with new REST
configuration
– Revel in view data!
Putting it all together (cont.)
• http://datatables.net
• Extensions
• Error handling
• DataTables 1.10.6
– Uses AMD loader
Additional Topics

More Related Content

What's hot

Break out of The Box - Part 2
Break out of The Box - Part 2Break out of The Box - Part 2
Break out of The Box - Part 2
Karl-Henry Martinsson

AD102 - Break out of the Box
AD102 - Break out of the BoxAD102 - Break out of the Box
AD102 - Break out of the Box
Karl-Henry Martinsson

 Active Storage - Modern File Storage? 
 Active Storage - Modern File Storage?  Active Storage - Modern File Storage? 
 Active Storage - Modern File Storage? 
Michael Yagudaev

AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...
AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...
AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...
panagenda

Advanced Site Studio Class, June 18, 2012
Advanced Site Studio Class, June 18, 2012Advanced Site Studio Class, June 18, 2012
Advanced Site Studio Class, June 18, 2012
Lee Klement

Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3
Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3
Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3
Kathy Brown

Getting started with rails active storage wae
Getting started with rails active storage waeGetting started with rails active storage wae
Getting started with rails active storage wae
Bishal Khanal

S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...
S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...
S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...
Cathrine Wilhelmsen

Lessons from a Dying CMS
Lessons from a Dying CMSLessons from a Dying CMS
Lessons from a Dying CMS
Sandy Smith

BP204 - Take a REST and put your data to work with APIs!
BP204 - Take a REST and put your data to work with APIs!BP204 - Take a REST and put your data to work with APIs!
BP204 - Take a REST and put your data to work with APIs!
Craig Schumann

Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...
Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...
Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...
Cathrine Wilhelmsen

Gaelyk - SpringOne2GX - 2010 - Guillaume Laforge
Gaelyk - SpringOne2GX - 2010 - Guillaume LaforgeGaelyk - SpringOne2GX - 2010 - Guillaume Laforge
Gaelyk - SpringOne2GX - 2010 - Guillaume Laforge
Guillaume Laforge

XPages Blast - Lotusphere 2013
XPages Blast - Lotusphere 2013XPages Blast - Lotusphere 2013
XPages Blast - Lotusphere 2013
Tim Clark

XPages Blast - Lotusphere 2012
XPages Blast - Lotusphere 2012XPages Blast - Lotusphere 2012
XPages Blast - Lotusphere 2012
Tim Clark

Local Storage for Web Applications
Local Storage for Web ApplicationsLocal Storage for Web Applications
Local Storage for Web Applications
Markku Laine

Indexes: The neglected performance all rounder
Indexes: The neglected performance all rounderIndexes: The neglected performance all rounder
Indexes: The neglected performance all rounder
Markus Winand

Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)
Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)
Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)
c4rl

Everything You Need to Know About the Top Changes in Drupal 8
Everything You Need to Know About the Top Changes in Drupal 8Everything You Need to Know About the Top Changes in Drupal 8
Everything You Need to Know About the Top Changes in Drupal 8
Acquia

HTML 5
HTML 5HTML 5
HTML 5
Rajan Pal

Echo HTML5
Echo HTML5Echo HTML5
Echo HTML5
Nathan Smith


What's hot (20)

Break out of The Box - Part 2
Break out of The Box - Part 2Break out of The Box - Part 2
Break out of The Box - Part 2

AD102 - Break out of the Box
AD102 - Break out of the BoxAD102 - Break out of the Box
AD102 - Break out of the Box

 Active Storage - Modern File Storage? 
 Active Storage - Modern File Storage?  Active Storage - Modern File Storage? 
 Active Storage - Modern File Storage? 

AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...
AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...
AD1387: Outside The Box: Integrating with Non-Domino Apps using XPages and Ja...

Advanced Site Studio Class, June 18, 2012
Advanced Site Studio Class, June 18, 2012Advanced Site Studio Class, June 18, 2012
Advanced Site Studio Class, June 18, 2012

Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3
Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3
Uno! Deux! Three! Making Localization of XPages as Easy as 1-2-3

Getting started with rails active storage wae
Getting started with rails active storage waeGetting started with rails active storage wae
Getting started with rails active storage wae

S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...
S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...
S.M.A.R.T. Biml - Standardize, Model, Automate, Reuse and Transform (SQLSatur...

Lessons from a Dying CMS
Lessons from a Dying CMSLessons from a Dying CMS
Lessons from a Dying CMS

BP204 - Take a REST and put your data to work with APIs!
BP204 - Take a REST and put your data to work with APIs!BP204 - Take a REST and put your data to work with APIs!
BP204 - Take a REST and put your data to work with APIs!

Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...
Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...
Biml for Beginners - Generating SSIS Packages with BimlScript (SQLSaturday Go...

Gaelyk - SpringOne2GX - 2010 - Guillaume Laforge
Gaelyk - SpringOne2GX - 2010 - Guillaume LaforgeGaelyk - SpringOne2GX - 2010 - Guillaume Laforge
Gaelyk - SpringOne2GX - 2010 - Guillaume Laforge

XPages Blast - Lotusphere 2013
XPages Blast - Lotusphere 2013XPages Blast - Lotusphere 2013
XPages Blast - Lotusphere 2013

XPages Blast - Lotusphere 2012
XPages Blast - Lotusphere 2012XPages Blast - Lotusphere 2012
XPages Blast - Lotusphere 2012

Local Storage for Web Applications
Local Storage for Web ApplicationsLocal Storage for Web Applications
Local Storage for Web Applications

Indexes: The neglected performance all rounder
Indexes: The neglected performance all rounderIndexes: The neglected performance all rounder
Indexes: The neglected performance all rounder

Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)
Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)
Theme preprocess functions: An Introduction (DrupalCamp NYC 10 2011)

Everything You Need to Know About the Top Changes in Drupal 8
Everything You Need to Know About the Top Changes in Drupal 8Everything You Need to Know About the Top Changes in Drupal 8
Everything You Need to Know About the Top Changes in Drupal 8

HTML 5
HTML 5HTML 5
HTML 5

Echo HTML5
Echo HTML5Echo HTML5
Echo HTML5


Viewers also liked

A Beard, An App, A Blender
A Beard, An App, A BlenderA Beard, An App, A Blender
A Beard, An App, A Blender
edm00se

What the App? : A Modernization Strategy for Your Business Applications
What the App? : A Modernization Strategy for Your Business ApplicationsWhat the App? : A Modernization Strategy for Your Business Applications
What the App? : A Modernization Strategy for Your Business Applications
John Head

Speed geeking-lotusscript
Speed geeking-lotusscriptSpeed geeking-lotusscript
Speed geeking-lotusscript
Bill Buchan

AD1542 Get Hands On With Bluemix
AD1542 Get Hands On With BluemixAD1542 Get Hands On With Bluemix
AD1542 Get Hands On With Bluemix
Martin Donnelly

IBM Connect 2016 - AD1548 - Building Responsive XPages Applications
IBM Connect 2016 - AD1548 - Building Responsive XPages ApplicationsIBM Connect 2016 - AD1548 - Building Responsive XPages Applications
IBM Connect 2016 - AD1548 - Building Responsive XPages Applications
beglee

AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...
AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...
AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...
Paul Withers

Connect 2016-Move Your XPages Applications to the Fast Lane
Connect 2016-Move Your XPages Applications to the Fast LaneConnect 2016-Move Your XPages Applications to the Fast Lane
Connect 2016-Move Your XPages Applications to the Fast Lane
Howard Greenberg

Building Responsive Applications Using XPages
Building Responsive Applications Using XPagesBuilding Responsive Applications Using XPages
Building Responsive Applications Using XPages
Teamstudio

Using Cool New Frameworks in (Mobile) Domino Apps
Using Cool New Frameworks in (Mobile) Domino AppsUsing Cool New Frameworks in (Mobile) Domino Apps
Using Cool New Frameworks in (Mobile) Domino Apps
Teamstudio

D8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpages
D8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpagesD8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpages
D8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpages
CERTyou Formation


Viewers also liked (10)

A Beard, An App, A Blender
A Beard, An App, A BlenderA Beard, An App, A Blender
A Beard, An App, A Blender

What the App? : A Modernization Strategy for Your Business Applications
What the App? : A Modernization Strategy for Your Business ApplicationsWhat the App? : A Modernization Strategy for Your Business Applications
What the App? : A Modernization Strategy for Your Business Applications

Speed geeking-lotusscript
Speed geeking-lotusscriptSpeed geeking-lotusscript
Speed geeking-lotusscript

AD1542 Get Hands On With Bluemix
AD1542 Get Hands On With BluemixAD1542 Get Hands On With Bluemix
AD1542 Get Hands On With Bluemix

IBM Connect 2016 - AD1548 - Building Responsive XPages Applications
IBM Connect 2016 - AD1548 - Building Responsive XPages ApplicationsIBM Connect 2016 - AD1548 - Building Responsive XPages Applications
IBM Connect 2016 - AD1548 - Building Responsive XPages Applications

AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...
AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...
AD1279 "Marty, You're Not Thinking Fourth Dimensionally" - Troubleshooting XP...

Connect 2016-Move Your XPages Applications to the Fast Lane
Connect 2016-Move Your XPages Applications to the Fast LaneConnect 2016-Move Your XPages Applications to the Fast Lane
Connect 2016-Move Your XPages Applications to the Fast Lane

Building Responsive Applications Using XPages
Building Responsive Applications Using XPagesBuilding Responsive Applications Using XPages
Building Responsive Applications Using XPages

Using Cool New Frameworks in (Mobile) Domino Apps
Using Cool New Frameworks in (Mobile) Domino AppsUsing Cool New Frameworks in (Mobile) Domino Apps
Using Cool New Frameworks in (Mobile) Domino Apps

D8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpages
D8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpagesD8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpages
D8 l55g formation-introduction-a-ibm-lotus-domino-8-5-xpages


Similar to MWLUG 2016 : AD117 : Xpages & jQuery DataTables

Taming the shrew Power BI
Taming the shrew Power BITaming the shrew Power BI
Taming the shrew Power BI
Kellyn Pot'Vin-Gorman

Building better SQL Server Databases
Building better SQL Server DatabasesBuilding better SQL Server Databases
Building better SQL Server Databases
ColdFusionConference

What's new in pandas and the SciPy stack for financial users
What's new in pandas and the SciPy stack for financial usersWhat's new in pandas and the SciPy stack for financial users
What's new in pandas and the SciPy stack for financial users
Wes McKinney

Learning Tableau - Data, Graphs, Filters, Dashboards and Advanced features
Learning Tableau -  Data, Graphs, Filters, Dashboards and Advanced featuresLearning Tableau -  Data, Graphs, Filters, Dashboards and Advanced features
Learning Tableau - Data, Graphs, Filters, Dashboards and Advanced features
Venkata Reddy Konasani

Exciting Features for SQL Devs in SQL 2012
Exciting Features for SQL Devs in SQL 2012Exciting Features for SQL Devs in SQL 2012
Exciting Features for SQL Devs in SQL 2012
Brij Mishra

Java Developers, make the database work for you (NLJUG JFall 2010)
Java Developers, make the database work for you (NLJUG JFall 2010)Java Developers, make the database work for you (NLJUG JFall 2010)
Java Developers, make the database work for you (NLJUG JFall 2010)
Lucas Jellema

Datastage Introduction To Data Warehousing
Datastage Introduction To Data WarehousingDatastage Introduction To Data Warehousing
Datastage Introduction To Data Warehousing
Vibrant Technologies & Computers

Build a modern data platform.pptx
Build a modern data platform.pptxBuild a modern data platform.pptx
Build a modern data platform.pptx
Ike Ellis

SAP BO and Teradata best practices
SAP BO and Teradata best practicesSAP BO and Teradata best practices
SAP BO and Teradata best practices
Dmitry Anoshin

Real-world BISM in SQL Server 2012 SSAS
Real-world BISM in SQL Server 2012 SSASReal-world BISM in SQL Server 2012 SSAS
Real-world BISM in SQL Server 2012 SSAS
Lynn Langit

Storage Systems For Scalable systems
Storage Systems For Scalable systemsStorage Systems For Scalable systems
Storage Systems For Scalable systems
elliando dias

Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)
James Serra

Taming the shrew, Optimizing Power BI Options
Taming the shrew, Optimizing Power BI OptionsTaming the shrew, Optimizing Power BI Options
Taming the shrew, Optimizing Power BI Options
Kellyn Pot'Vin-Gorman

Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...
Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...
Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...
DataStax

Self-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and DatabricksSelf-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Grega Kespret

MongoDB using Grails plugin by puneet behl
MongoDB using Grails plugin by puneet behlMongoDB using Grails plugin by puneet behl
MongoDB using Grails plugin by puneet behl
TO THE NEW | Technology

Machine Learning with ML.NET and Azure - Andy Cross
Machine Learning with ML.NET and Azure - Andy CrossMachine Learning with ML.NET and Azure - Andy Cross
Machine Learning with ML.NET and Azure - Andy Cross
Andrew Flatters

Improve power bi performance
Improve power bi performanceImprove power bi performance
Improve power bi performance
Annie Xu

Dynamic DDL: Adding structure to streaming IoT data on the fly
Dynamic DDL: Adding structure to streaming IoT data on the flyDynamic DDL: Adding structure to streaming IoT data on the fly
Dynamic DDL: Adding structure to streaming IoT data on the fly
DataWorks Summit

Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!
Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!
Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!
Caserta


Similar to MWLUG 2016 : AD117 : Xpages & jQuery DataTables (20)

Taming the shrew Power BI
Taming the shrew Power BITaming the shrew Power BI
Taming the shrew Power BI

Building better SQL Server Databases
Building better SQL Server DatabasesBuilding better SQL Server Databases
Building better SQL Server Databases

What's new in pandas and the SciPy stack for financial users
What's new in pandas and the SciPy stack for financial usersWhat's new in pandas and the SciPy stack for financial users
What's new in pandas and the SciPy stack for financial users

Learning Tableau - Data, Graphs, Filters, Dashboards and Advanced features
Learning Tableau -  Data, Graphs, Filters, Dashboards and Advanced featuresLearning Tableau -  Data, Graphs, Filters, Dashboards and Advanced features
Learning Tableau - Data, Graphs, Filters, Dashboards and Advanced features

Exciting Features for SQL Devs in SQL 2012
Exciting Features for SQL Devs in SQL 2012Exciting Features for SQL Devs in SQL 2012
Exciting Features for SQL Devs in SQL 2012

Java Developers, make the database work for you (NLJUG JFall 2010)
Java Developers, make the database work for you (NLJUG JFall 2010)Java Developers, make the database work for you (NLJUG JFall 2010)
Java Developers, make the database work for you (NLJUG JFall 2010)

Datastage Introduction To Data Warehousing
Datastage Introduction To Data WarehousingDatastage Introduction To Data Warehousing
Datastage Introduction To Data Warehousing

Build a modern data platform.pptx
Build a modern data platform.pptxBuild a modern data platform.pptx
Build a modern data platform.pptx

SAP BO and Teradata best practices
SAP BO and Teradata best practicesSAP BO and Teradata best practices
SAP BO and Teradata best practices

Real-world BISM in SQL Server 2012 SSAS
Real-world BISM in SQL Server 2012 SSASReal-world BISM in SQL Server 2012 SSAS
Real-world BISM in SQL Server 2012 SSAS

Storage Systems For Scalable systems
Storage Systems For Scalable systemsStorage Systems For Scalable systems
Storage Systems For Scalable systems

Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)Data Lakehouse, Data Mesh, and Data Fabric (r2)
Data Lakehouse, Data Mesh, and Data Fabric (r2)

Taming the shrew, Optimizing Power BI Options
Taming the shrew, Optimizing Power BI OptionsTaming the shrew, Optimizing Power BI Options
Taming the shrew, Optimizing Power BI Options

Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...
Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...
Webinar - Macy’s: Why Your Database Decision Directly Impacts Customer Experi...

Self-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and DatabricksSelf-serve analytics journey at Celtra: Snowflake, Spark, and Databricks
Self-serve analytics journey at Celtra: Snowflake, Spark, and Databricks

MongoDB using Grails plugin by puneet behl
MongoDB using Grails plugin by puneet behlMongoDB using Grails plugin by puneet behl
MongoDB using Grails plugin by puneet behl

Machine Learning with ML.NET and Azure - Andy Cross
Machine Learning with ML.NET and Azure - Andy CrossMachine Learning with ML.NET and Azure - Andy Cross
Machine Learning with ML.NET and Azure - Andy Cross

Improve power bi performance
Improve power bi performanceImprove power bi performance
Improve power bi performance

Dynamic DDL: Adding structure to streaming IoT data on the fly
Dynamic DDL: Adding structure to streaming IoT data on the flyDynamic DDL: Adding structure to streaming IoT data on the fly
Dynamic DDL: Adding structure to streaming IoT data on the fly

Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!
Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!
Big Data Warehousing Meetup: Dimensional Modeling Still Matters!!!


Recently uploaded

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
onemonitarsoftware

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore
Nextskill Technologies

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
Srinivas Dukka

Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
87tomato

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
jealousviolet

Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
rachitkumar09887

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移
Jersey (CHE-PING) Su

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)
miso_uam

11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf
kalichargn70th171

Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
shanihomely

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation
NYGGS Construction ERP Software

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.
shivamt017

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
confluent

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
bhumivarma35300

Google ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learningGoogle ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learning
VishrutGoyani1

Odoo E-commerce website development guides
Odoo E-commerce website development guidesOdoo E-commerce website development guides
Odoo E-commerce website development guides
jhkdigitalmarketing

Artificial intelligence in customer services or chatbots
Artificial intelligence  in customer services or chatbotsArtificial intelligence  in customer services or chatbots
Artificial intelligence in customer services or chatbots
kayash1656

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
ashiklo9823

Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
45unexpected

🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
bahubalikumar09988


Recently uploaded (20)

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.

Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...

Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移

Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)Software development... for all? (keynote at ICSOFT'2024)
Software development... for all? (keynote at ICSOFT'2024)

11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf

Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...

NYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction InnovationNYGGS 360: A Complete ERP for Construction Innovation
NYGGS 360: A Complete ERP for Construction Innovation

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...

Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...
Independent Girls call Service Pune 000XX00000 Provide Best And Top Girl Serv...

Google ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learningGoogle ML-Kit - Understanding on-device machine learning
Google ML-Kit - Understanding on-device machine learning

Odoo E-commerce website development guides
Odoo E-commerce website development guidesOdoo E-commerce website development guides
Odoo E-commerce website development guides

Artificial intelligence in customer services or chatbots
Artificial intelligence  in customer services or chatbotsArtificial intelligence  in customer services or chatbots
Artificial intelligence in customer services or chatbots

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...

Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...
Celebrity Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Servic...

🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...🚂🚘 Premium Girls Call Ranchi  🛵🚡000XX00000 💃 Choose Best And Top Girl Service...
🚂🚘 Premium Girls Call Ranchi 🛵🚡000XX00000 💃 Choose Best And Top Girl Service...


MWLUG 2016 : AD117 : Xpages & jQuery DataTables

  • 1. AD 117 Xpages & jQuery DataTables Simplifying View creation while maximizing functionality in XPage applications.
  • 2. • Notes & Domino developer for 17-18 years – Focused on XPages for past 5-6 years • As a consultant was able to work at some very interesting companies • Currently a Senior Developer for Mutual Boiler Re – We are kind of a niche inside a niche • First time speaker! • My blog: http://xpage.me • Twitter: @michaelgsmith Michael G. Smith - About Me
  • 3. • Introduction to DataTables – Try to cut through the fat and focus on the most useful stuff – This is not a comprehensive overview • Roadmap to quickly surface view data in your Xpage apps – Brand new or existing apps • Share my experiences and lessons learned – I learned a lot just working on this presentation! • How to take everything and utilize it in an enterprise application – Scalability • You should be able to walk away and utilize these concepts immediately – If I’ve done my job Goals for this session
  • 4. • What is DataTables? • Why DataTables? • Getting started with DataTables • Putting the “Data” in DataTables • The DataTables lifecycle • Advanced configuration • Domino View Management • Putting it all together Agenda
  • 5. • Simply defined, it is: – A client side framework/library – A jQuery plugin – It’s HUGE! • It is NOT: – the XPages control • From the DataTables online manual: The stated goal of DataTables is "To enhance the accessibility of data in HTML tables”. • My definition: – A great tool for creating Domino-like rich views in XPage and web applications What is DataTables?
  • 6. • Very easy to hit the ground running • Integrates well with Bootstrap • Further separates data from design • Became more and more impressed with it’s capabilities • “A” way, not “The” way • Extremely well documented through online reference material and support forums – When using example code try to make sure it is from v 1.10 or later • Excellent at handling data types • Great replacement for views and embedded views – Embedded views on tabs – only load data when tab is clicked Why DataTables?
  • 7. • Adding files to your project – CDN – Locally (WebContent) – Package Manager (Bower/NPM) • Dependencies – jQuery 1.7 or later • My Demos – DataTables 1.10.2 – jQuery 1.11.2 Getting started with DataTables
  • 8. • Styling options – Default DataTables css – Bootstrap • Requires a reduced DataTables css • Use the Bootstrap table classes when assigning classes to the table markup – Other frameworks • Foundation • jQuery UI – Use the DataTables theme creator to match your UI – https://datatables.net/manual/styling/theme-creator Getting started with DataTables (cont.)
  • 9. • Add appropriate source files to your theme – Core DataTables • DataTables CSS • jQuery • DataTables js – Bootstrap • Bootstrap css • DataTables Bootstrap css • jQuery js • Bootstrap js • DataTables js Getting started with DataTables (cont.)
  • 10. Putting the “Data” in DataTables
  • 11. • From the Docs: Data for a DataTable can essentially come from three different locations: – HTML - ideal for when your table already exists and has been populated with data. – Javascript Array - used when your data exists in a Javascript array – An Ajax data source • Let’s start with a simple xp:repeat Putting the “Data” in DataTables
  • 12. Putting the “Data” in DataTables (cont.) • Adding a DataTable to a xp:repeat
  • 13. • Simple xp:repeat Demo Putting the “Data” in DataTables (cont.)
  • 14. • DataTables default configuration Adding a DataTable to a xp:repeat (cont.)
  • 15. • DataTables default configuration Adding a DataTable to a xp:repeat (cont.)
  • 16. • DataTables default configuration Adding a DataTable to a xp:repeat (cont.)
  • 17. • DataTables configuration options Adding a DataTable to a xp:repeat (cont.)
  • 18. • Demo – adding simple configuration Adding a DataTable to a xp:repeat (cont.)
  • 19. • Simply add classes to your table markup • From the DataTables reference: Adding style to the xp:repeat
  • 20. • By applying classes to the markup we turn this: Adding style to the xp:repeat (cont.)
  • 21. • Into this: Adding style to the xp:repeat (cont.)
  • 22. • In Bootstrap: Adding style to the xp:repeat (cont.)
  • 23. Creating a DataTable from REST data
  • 24. • Use the “ajax” option to retrieve data: Creating a DataTable from REST data
  • 25. • DataTables expects: – Array of arrays • Columns object must be defined or .. • Markup must contain thead with th/td cells for each data column – Array of objects (JSON) • Columns object must be defined! Creating a DataTable from REST data (cont.)
  • 26. • Array of arrays – Defining the columns object • Need one object per column • With no data field, the order of the objects must correspond to the order of the returned data • Use the data field to match up objects with 0 based index of the row array (order doesn’t matter) Creating a DataTable from REST data (cont.)
  • 27. • Array of arrays – Using markup • Must have a thead element and a th or td for each column • Order matters Creating a DataTable from REST data (cont.)
  • 28. • Array of objects (JSON) – Columns object must be defined! Creating a DataTable from REST data
  • 29. • Array of objects (JSON) – Map the “data” field of the columns object to the appropriate field in the returned JSON object Creating a DataTable from REST data
  • 30. • The most common ways to retrieve REST data in Domino: Creating a DataTable from REST data (cont.)
  • 31. • The most common ways to retrieve REST data in Domino: • xeViewJsonService – Pros • Easy to hit the ground running • Domino handles data serialization – Cons • More difficult to fine tune the data returned (i.e. reduce payload size) Creating a DataTable from REST data (cont.)
  • 32. • The most common ways to retrieve REST data in Domino: • xeCustomRestService – Pros • More granular control • Easier to define the column definitions at the rest service – Cons • Need to be aware of data types and make sure data is serialized properly • Need to actually write the code that builds the data Creating a DataTable from REST data (cont.)
  • 33. • The most common ways to retrieve REST data in Domino: • XAgent – Pros • More granular control (even more?) • Easier to define the column definitions at the rest service – Cons • Need to be aware of data types and make sure data is serialized properly • Need to actually write the code that builds the data Creating a DataTable from REST data (cont.)
  • 34. • REST demo: Creating a DataTable from REST data (cont.)
  • 36. • Use callbacks to provide a “rich” view experience – initComplete() – drawCallback() – rowCallback() – createdRow() • Similarities to the XPages lifecycle • Be cognizant of your users – Don’t slow down user experience by adding too much client side processing The DataTables “Lifecycle” (callbacks)
  • 37. • Callback demo The DataTables “Lifecycle” (callbacks) (cont.)
  • 39. • Adding click events – Use the “createdRow” or “rowCallback” callbacks • DataTables docs say createdRow is more efficient • This *should* result in better browser performance, i.e. javascript objects won’t be left behind when the DataTable is destroyed – Be aware when double clicking, click event is also fired unless the timeout method is used • This is a browser issue, not DataTables • Demo Advanced Configuration
  • 40. • Renderers – Possibly the most powerful aspect of DataTables – Executed whenever DataTables needs to get the data for a cell in the column. – This function might be called multiple times, as DataTables will call it for the different data types that it needs: • display • sorting • filtering – Orthogonal Data • Each data point has the ability to take multiple forms • Demo: Advanced Configuration (cont.)
  • 42. • Filtering programmatically – The real power of DataTables can be exploited through the use of the API – Tables can be searched by row, column or globally across all data – Must call the draw() event after performing search • Demo Advanced Configuration (cont.)
  • 45. • Lazy Loading – Grab additional data via REST and use DataTables api to insert rows • Demo Advanced Configuration
  • 46. • Categorization – Not built in to DataTables but easy to add using the api and callbacks – Outdated, but sometimes still a requirement during the app modernization process • Gently ease users into new tech by keeping some familiarity • Demo Advanced Configuration
  • 47. • Reloading data – Avoid the dreaded “Can’t reinitialize DataTable” message • When referencing your table be sure to use the same class it was instantiated with – When data is reloaded current sort remains intact Advanced Configuration
  • 48. Putting it all together
  • 49. • Manage your Domino views – Separation of data and functionality – Use views as strictly back end data containers • Load em up with data! – Minimize “click to sort” columns to reduce view index size – Domino ISO-8601 dates can be problematic if not careful • Ex. 1957-03-14T21:54:30Z • My preference: creating a text column – Strip out unnecessary columns, i.e. colors, icons • May need to create REST only views in coexistence scenarios – Fewer views • No more specialized views with only a handful of columns • Utilize categories and keys and ftsearch Putting it all together
  • 50. • Managing your Domino views (cont.) – Make sure columns have an itemName !!! Putting it all together (cont.)
  • 51. • In order to apply all of this to an enterprise application we need to be able to “connect” the data to the configurations • My solution: REST View Manager – Configure DataTable configurations in a browser and store json in a Notes Document • Minimizes need to touch designs • Makes view customization by users much easier to implement and manage – Use a custom control that can be dragged and dropped into any Xpage or custom control and configured through custom properties – Opens the door to allowing users to customize their views Putting it all together (cont.)
  • 52. • REST View Manager Putting it all together (cont.)
  • 53. • REST View Manager Putting it all together (cont.) nsf REST configuration created client side Xpage DataTable Client Side Server side REST Service Read view config Read view config GET data Save view config
  • 54. • The Grand Finale Demo! – Create a new REST configuration – Create an Xpage – Add the ccRestView custom control to the xpage – Configure the ccRestView custom control with new REST configuration – Revel in view data! Putting it all together (cont.)
  • 55. • http://datatables.net • Extensions • Error handling • DataTables 1.10.6 – Uses AMD loader Additional Topics
