This document provides analytical design equations for simple impedance matching networks like L-match and inverted L-match networks. It introduces basic concepts like impedance, admittance, ABCD parameters and input impedance/admittance. Design procedures for L-match network using analytical equations and Smith chart are presented. The document contains an example problem demonstrating the design of an L-match network to match a given load impedance to a source impedance. Analytical equations to design inverted L-match network are also provided.
Reducing the wastage of power
Reducing physical efforts
Improve the system in our daily life
Light falls on LDR, it shows its minimum resistance and voltage drops across LDR less than VBE of Transistor Q1.
So, no current will go from the collector to the emitter and transistor remains turn off.
Oscillators generate an output signal without an input signal by converting DC power to AC power. They produce periodic waveforms like sine, square, triangle, and sawtooth waves. The Wien bridge oscillator is a two-stage RC coupled amplifier circuit that is stable at its resonant frequency. It uses a feedback circuit of series and parallel RC networks to produce a phase shift. Monostable multivibrators have one stable and one quasi-stable state. They switch to the quasi-stable state when triggered externally and return to the stable state after a set time period determined by resistor-capacitor values in the circuit.
Design of ring oscillator using controlled low voltage swing inverter khush_19
Hello everyone. I am khushboo kumari.
I am pursuing M.tech from NIT Agartala(2017-2019). This is my 3rd semester partial project where i have successfully implemented the design of low voltage swing inverter. In the 4th semester i would be designing ring oscillator by connecting odd number of this inverter design in cascade.
I was able to complete this under the supervision of my respected guide Bidyut kumar .
Hope this presentation helps you to some extent.
Thank you.
Please do comment me if you have any doubts/ query/ or suggestions.
The document summarizes instrumentation amplifiers and peaking amplifiers. It defines an instrumentation amplifier as a difference amplifier that meets requirements for amplifying low-level signals from transducers, such as high input impedance, high gain accuracy, low noise, and high common mode rejection ratio. A common three op-amp instrumentation amplifier circuit is described that provides adjustable gain. Applications discussed include temperature controllers, indicators, and light intensity meters. The document also defines a peaking amplifier as one that uses a parallel LC network in the feedback path to peak the frequency response at the LC resonance frequency.
Voltage regulation circuits like the zener diode and three-terminal regulators can maintain a constant output voltage despite fluctuations in load conditions or input voltage. A zener diode operates in reverse bias to regulate voltage at a specific breakdown voltage. A three-terminal voltage regulator integrated circuit provides precise voltage control with only a few external components and has built-in protections like overcurrent prevention. The adjustable three-terminal regulator uses a resistor network and reference voltage to set the output voltage.
An inverter is a device that converts DC power from batteries into AC power. It allows appliances that run on AC power to operate from a DC power source. There are different types of inverters based on their output waveform: square wave, modified sine wave, and pure sine wave. Square wave inverters are the cheapest but produce a less stable output. Modified sine wave inverters produce a three-step waveform and are suitable for basic appliances. Pure sine wave inverters have the best waveform quality but are the most expensive. Inverters are commonly used in UPS systems, with solar panels, for backup power, and in HVDC transmission.
This document provides a project proposal for designing an apparatus for wireless energy transfer via resonant inductive coupling. The project aims to power and charge electrical devices up to 1 meter away without wires. It will involve theoretical study of resonant wireless charging, simulating coil designs using software, and building a physical prototype. Key aspects that will be analyzed include Q-factor, bandwidth, coupling coefficient, mutual inductance, and impacts of coil geometry, size, and magnetic shielding. The project objectives, constraints, background, and proposed methods are outlined over 15 pages with tables, figures, and a work breakdown structure.
Description of zener diode.
Know about the equivalent circuits.
Know about zener diode and how it works as voltage stabilizer.
see its advantages and also its disadvantages
Thanks in advance.
Reducing the wastage of power
Reducing physical efforts
Improve the system in our daily life
Light falls on LDR, it shows its minimum resistance and voltage drops across LDR less than VBE of Transistor Q1.
So, no current will go from the collector to the emitter and transistor remains turn off.
Oscillators generate an output signal without an input signal by converting DC power to AC power. They produce periodic waveforms like sine, square, triangle, and sawtooth waves. The Wien bridge oscillator is a two-stage RC coupled amplifier circuit that is stable at its resonant frequency. It uses a feedback circuit of series and parallel RC networks to produce a phase shift. Monostable multivibrators have one stable and one quasi-stable state. They switch to the quasi-stable state when triggered externally and return to the stable state after a set time period determined by resistor-capacitor values in the circuit.
Design of ring oscillator using controlled low voltage swing inverter khush_19
Hello everyone. I am khushboo kumari.
I am pursuing M.tech from NIT Agartala(2017-2019). This is my 3rd semester partial project where i have successfully implemented the design of low voltage swing inverter. In the 4th semester i would be designing ring oscillator by connecting odd number of this inverter design in cascade.
I was able to complete this under the supervision of my respected guide Bidyut kumar .
Hope this presentation helps you to some extent.
Thank you.
Please do comment me if you have any doubts/ query/ or suggestions.
The document summarizes instrumentation amplifiers and peaking amplifiers. It defines an instrumentation amplifier as a difference amplifier that meets requirements for amplifying low-level signals from transducers, such as high input impedance, high gain accuracy, low noise, and high common mode rejection ratio. A common three op-amp instrumentation amplifier circuit is described that provides adjustable gain. Applications discussed include temperature controllers, indicators, and light intensity meters. The document also defines a peaking amplifier as one that uses a parallel LC network in the feedback path to peak the frequency response at the LC resonance frequency.
Voltage regulation circuits like the zener diode and three-terminal regulators can maintain a constant output voltage despite fluctuations in load conditions or input voltage. A zener diode operates in reverse bias to regulate voltage at a specific breakdown voltage. A three-terminal voltage regulator integrated circuit provides precise voltage control with only a few external components and has built-in protections like overcurrent prevention. The adjustable three-terminal regulator uses a resistor network and reference voltage to set the output voltage.
An inverter is a device that converts DC power from batteries into AC power. It allows appliances that run on AC power to operate from a DC power source. There are different types of inverters based on their output waveform: square wave, modified sine wave, and pure sine wave. Square wave inverters are the cheapest but produce a less stable output. Modified sine wave inverters produce a three-step waveform and are suitable for basic appliances. Pure sine wave inverters have the best waveform quality but are the most expensive. Inverters are commonly used in UPS systems, with solar panels, for backup power, and in HVDC transmission.
This document provides a project proposal for designing an apparatus for wireless energy transfer via resonant inductive coupling. The project aims to power and charge electrical devices up to 1 meter away without wires. It will involve theoretical study of resonant wireless charging, simulating coil designs using software, and building a physical prototype. Key aspects that will be analyzed include Q-factor, bandwidth, coupling coefficient, mutual inductance, and impacts of coil geometry, size, and magnetic shielding. The project objectives, constraints, background, and proposed methods are outlined over 15 pages with tables, figures, and a work breakdown structure.
Description of zener diode.
Know about the equivalent circuits.
Know about zener diode and how it works as voltage stabilizer.
see its advantages and also its disadvantages
Thanks in advance.
Solar cells convert sunlight into electricity through the photovoltaic effect. The document discusses various types of solar cells like crystalline silicon, cadmium telluride, and gallium arsenide. It also covers the basic components and workings of solar photovoltaic systems including solar panels, batteries, inverters, and their connections to either the electric grid or for off-grid use. Calculations for sizing solar arrays and estimating power outputs are also presented.
RF Circuit Design - [Ch2-1] Resonator and Impedance MatchingSimen Li
1) The document discusses resonators and impedance matching using lumped elements. It describes series and parallel resonant circuits, quality factor, bandwidth, and loaded/unloaded Q.
2) It also covers two-element L-shaped impedance matching networks for matching a load impedance to a source impedance. Methods for determining the reactance and susceptance values are presented for cases where the source impedance is less than or greater than the load impedance.
3) The goal of impedance matching is to maximize power transfer by making the impedances seen looking into the matching network equal to the source or transmission line impedance.
This document describes an RFID-based student attendance system. It aims to easily and efficiently track student attendance by having each student carry an RFID tag. When a student's tag is scanned by the RFID reader, their attendance will be logged as present or absent in the Arduino microcontroller. Ultrasonic sensors also help detect if students are entering or leaving the classroom. This automated attendance system could replace manual attendance tracking and provide benefits like time savings, easy control and reliability for universities.
AUTOMATIC FIRE ALARM using IR LED and BUZZERShihab Hasnine
This document describes an automatic fire alarm circuit using an IR LED and buzzer. The key components are an IR LED, which transmits infrared radiation, a buzzer to sound the alarm, and a 9V battery. When the IR path is obstructed, such as by smoke in a fire, the buzzer will sound to alert of the potential fire. The circuit works by having the IR LED on one side of a door frame and an IR sensor on the other - under normal conditions the sensor receives the IR radiation, but if the path is blocked the buzzer will activate the alarm.
Resonance in electrical circuits – series resonancemrunalinithanaraj
This document discusses electrical resonance in series RLC circuits. It explains that series resonance occurs when the inductive and capacitive reactances cancel each other out, resulting in a minimum impedance. This is useful for applications that require a stable oscillating frequency, like radio transmission. The document defines key terms like resonant frequency, bandwidth, and quality factor (Q factor). It describes how the Q factor relates the peak stored energy to energy lost, and how a higher Q factor results in a narrower bandwidth.
The Parallel RLC Circuit is the exact opposite to the series circuit we looked at in the previous tutorial although some of the previous concepts and equations still apply.
The 555 timer IC can be used to generate precise time delays from microseconds to hours. It operates from 5-18V and has 8 pins including power, ground, trigger, output, reset and control functions. It can be used in monostable or astable modes. In monostable mode, a single output pulse is produced in response to a trigger. In astable mode, it produces a continuous square wave without a trigger. The 555 timer has applications including timers, pulse generators, oscillators and more.
AC bridges: Inductance and Capacitance measurementDr Naim R Kidwai
The presentation describes theory of AC bridges, inductance measurement using Maxwell bridge, Maxwell Wein bridge, Hay's bridge, Capacitance measurement using De sauty bridge, Schering bridge and working of Q meter.
The document discusses three-phase circuits and provides information on:
- The advantages of three-phase supply systems such as higher efficiency of power transfer and smoother load characteristics.
- Key concepts like phase sequence, balanced/unbalanced supply and load, and the relationships between line and phase voltages and currents.
- How to calculate power in a balanced three-phase system and use two wattmeters to measure total power and power factor.
The document discusses transmission line analysis and the telegrapher's equations. It introduces transmission lines as two-conductor structures that can guide electrical energy from one point to another. At microwave frequencies, transmission lines must be analyzed using distributed element models rather than lumped element models due to effects like phase variation, radiation, and causality. The telegrapher's equations describe voltage and current propagation on a transmission line as a function of both space and time. They take the form of wave equations that can be solved for traveling wave solutions on the line.
This document describes a project to control the speed of a single-phase induction motor using a TRIAC. It includes sections on the circuit description, induction motor working, SCR, TRIAC, DIAC, applications, advantages and disadvantages. The circuit uses a DIAC to trigger a TRIAC, allowing control of the firing angle to vary the voltage applied to the motor. This provides speed control of the induction motor for applications like pumps, fans and refrigeration.
This document discusses Sumpner's test, which is used to determine the regulation and efficiency of large power transformers. Sumpner's test involves connecting two identical transformers back-to-back, with their primaries in parallel and secondaries in series opposition. This allows them to be tested at full load conditions without actual loading. The test provides accurate measurements of total losses, including both iron and copper losses occurring simultaneously as in actual use. Its advantages are that it requires little power and tests transformers under full load conditions. The limitation is that it requires two identical transformers.
Here is the list of major electrical and electronic components utilized in electrical and electronic projects and several circuits are designed with numerous components like Resistors, Capacitors, Fuses, Transistors, Integrated Circuits, Relays, Switches, Motors, Circuit Breakers, Resistors, Inductors, Transformers, Battery And Fuse.
This document summarizes the operation of an astable multivibrator circuit using a 555 timer integrated circuit. The circuit consists of two comparators, three 5k ohm resistors, and a 0.01uF capacitor. It generates a square wave output without needing an external trigger, with the high and low times determined by the resistor and capacitor values. The duty cycle of the output wave is calculated as the charge time divided by the total period. Key advantages are its simple operation, low external component count, and perfect square wave output, though the duty cycle is limited to above 50%.
The inverter is a static device. It can convert one form of electrical power into other forms of electrical power. But it cannot generate electrical power. Hence the inverter is a converter, not a generator.
This document discusses resonant circuits and series resonance. It defines resonance as occurring when the input voltage and current are in phase for an RLC circuit. For a series RLC circuit, resonance occurs when 1/(ωL) = 1/(ωC). The peak current through the circuit occurs at resonance. The bandwidth and quality factor Q are also defined for a series resonant circuit. Matlab programs are included to simulate different series RLC circuits and illustrate how varying Q impacts the frequency response. Parallel resonance is also briefly covered.
This document summarizes a seminar presentation on transmission line maintenance techniques in India. It provides an overview of extra high voltage alternating current (EHVAC) transmission line maintenance in India, including methods such as predictive maintenance using thermography and insulator testing, as well as preventive maintenance techniques including cold line maintenance (with the line de-energized) and live line maintenance (with the line energized). It describes some of the specific maintenance works that can be done using live line techniques, and discusses the advantages of live line maintenance.
study of lightning arrester ' working principal and working of lighning and construction of lightning arrester. and at the end what are the types of lightning arrester how these types are different from each other and what is their working principal and which is used mostly on 500kva substation.
Chp1 Transmission line theory with examples-part2anwar jubba
The document discusses transmission line theory and the Smith chart. It introduces the Smith chart as a graphical tool for transmission line circuits and microwave components that can plot both normalized impedance and reflection coefficient on the same chart. It then covers using the Smith chart to analyze transmission lines and impedance matching techniques including the quarter-wave transformer and stub matching using both series and shunt stubs. Examples are provided to demonstrate how to use the Smith chart to solve problems related to transmission line impedance, reflection coefficient, input impedance, and designing matching networks.
Solar cells convert sunlight into electricity through the photovoltaic effect. The document discusses various types of solar cells like crystalline silicon, cadmium telluride, and gallium arsenide. It also covers the basic components and workings of solar photovoltaic systems including solar panels, batteries, inverters, and their connections to either the electric grid or for off-grid use. Calculations for sizing solar arrays and estimating power outputs are also presented.
RF Circuit Design - [Ch2-1] Resonator and Impedance MatchingSimen Li
1) The document discusses resonators and impedance matching using lumped elements. It describes series and parallel resonant circuits, quality factor, bandwidth, and loaded/unloaded Q.
2) It also covers two-element L-shaped impedance matching networks for matching a load impedance to a source impedance. Methods for determining the reactance and susceptance values are presented for cases where the source impedance is less than or greater than the load impedance.
3) The goal of impedance matching is to maximize power transfer by making the impedances seen looking into the matching network equal to the source or transmission line impedance.
This document describes an RFID-based student attendance system. It aims to easily and efficiently track student attendance by having each student carry an RFID tag. When a student's tag is scanned by the RFID reader, their attendance will be logged as present or absent in the Arduino microcontroller. Ultrasonic sensors also help detect if students are entering or leaving the classroom. This automated attendance system could replace manual attendance tracking and provide benefits like time savings, easy control and reliability for universities.
AUTOMATIC FIRE ALARM using IR LED and BUZZERShihab Hasnine
This document describes an automatic fire alarm circuit using an IR LED and buzzer. The key components are an IR LED, which transmits infrared radiation, a buzzer to sound the alarm, and a 9V battery. When the IR path is obstructed, such as by smoke in a fire, the buzzer will sound to alert of the potential fire. The circuit works by having the IR LED on one side of a door frame and an IR sensor on the other - under normal conditions the sensor receives the IR radiation, but if the path is blocked the buzzer will activate the alarm.
Resonance in electrical circuits – series resonancemrunalinithanaraj
This document discusses electrical resonance in series RLC circuits. It explains that series resonance occurs when the inductive and capacitive reactances cancel each other out, resulting in a minimum impedance. This is useful for applications that require a stable oscillating frequency, like radio transmission. The document defines key terms like resonant frequency, bandwidth, and quality factor (Q factor). It describes how the Q factor relates the peak stored energy to energy lost, and how a higher Q factor results in a narrower bandwidth.
The Parallel RLC Circuit is the exact opposite to the series circuit we looked at in the previous tutorial although some of the previous concepts and equations still apply.
The 555 timer IC can be used to generate precise time delays from microseconds to hours. It operates from 5-18V and has 8 pins including power, ground, trigger, output, reset and control functions. It can be used in monostable or astable modes. In monostable mode, a single output pulse is produced in response to a trigger. In astable mode, it produces a continuous square wave without a trigger. The 555 timer has applications including timers, pulse generators, oscillators and more.
AC bridges: Inductance and Capacitance measurementDr Naim R Kidwai
The presentation describes theory of AC bridges, inductance measurement using Maxwell bridge, Maxwell Wein bridge, Hay's bridge, Capacitance measurement using De sauty bridge, Schering bridge and working of Q meter.
The document discusses three-phase circuits and provides information on:
- The advantages of three-phase supply systems such as higher efficiency of power transfer and smoother load characteristics.
- Key concepts like phase sequence, balanced/unbalanced supply and load, and the relationships between line and phase voltages and currents.
- How to calculate power in a balanced three-phase system and use two wattmeters to measure total power and power factor.
The document discusses transmission line analysis and the telegrapher's equations. It introduces transmission lines as two-conductor structures that can guide electrical energy from one point to another. At microwave frequencies, transmission lines must be analyzed using distributed element models rather than lumped element models due to effects like phase variation, radiation, and causality. The telegrapher's equations describe voltage and current propagation on a transmission line as a function of both space and time. They take the form of wave equations that can be solved for traveling wave solutions on the line.
This document describes a project to control the speed of a single-phase induction motor using a TRIAC. It includes sections on the circuit description, induction motor working, SCR, TRIAC, DIAC, applications, advantages and disadvantages. The circuit uses a DIAC to trigger a TRIAC, allowing control of the firing angle to vary the voltage applied to the motor. This provides speed control of the induction motor for applications like pumps, fans and refrigeration.
This document discusses Sumpner's test, which is used to determine the regulation and efficiency of large power transformers. Sumpner's test involves connecting two identical transformers back-to-back, with their primaries in parallel and secondaries in series opposition. This allows them to be tested at full load conditions without actual loading. The test provides accurate measurements of total losses, including both iron and copper losses occurring simultaneously as in actual use. Its advantages are that it requires little power and tests transformers under full load conditions. The limitation is that it requires two identical transformers.
Here is the list of major electrical and electronic components utilized in electrical and electronic projects and several circuits are designed with numerous components like Resistors, Capacitors, Fuses, Transistors, Integrated Circuits, Relays, Switches, Motors, Circuit Breakers, Resistors, Inductors, Transformers, Battery And Fuse.
This document summarizes the operation of an astable multivibrator circuit using a 555 timer integrated circuit. The circuit consists of two comparators, three 5k ohm resistors, and a 0.01uF capacitor. It generates a square wave output without needing an external trigger, with the high and low times determined by the resistor and capacitor values. The duty cycle of the output wave is calculated as the charge time divided by the total period. Key advantages are its simple operation, low external component count, and perfect square wave output, though the duty cycle is limited to above 50%.
The inverter is a static device. It can convert one form of electrical power into other forms of electrical power. But it cannot generate electrical power. Hence the inverter is a converter, not a generator.
This document discusses resonant circuits and series resonance. It defines resonance as occurring when the input voltage and current are in phase for an RLC circuit. For a series RLC circuit, resonance occurs when 1/(ωL) = 1/(ωC). The peak current through the circuit occurs at resonance. The bandwidth and quality factor Q are also defined for a series resonant circuit. Matlab programs are included to simulate different series RLC circuits and illustrate how varying Q impacts the frequency response. Parallel resonance is also briefly covered.
This document summarizes a seminar presentation on transmission line maintenance techniques in India. It provides an overview of extra high voltage alternating current (EHVAC) transmission line maintenance in India, including methods such as predictive maintenance using thermography and insulator testing, as well as preventive maintenance techniques including cold line maintenance (with the line de-energized) and live line maintenance (with the line energized). It describes some of the specific maintenance works that can be done using live line techniques, and discusses the advantages of live line maintenance.
study of lightning arrester ' working principal and working of lighning and construction of lightning arrester. and at the end what are the types of lightning arrester how these types are different from each other and what is their working principal and which is used mostly on 500kva substation.
Chp1 Transmission line theory with examples-part2anwar jubba
The document discusses transmission line theory and the Smith chart. It introduces the Smith chart as a graphical tool for transmission line circuits and microwave components that can plot both normalized impedance and reflection coefficient on the same chart. It then covers using the Smith chart to analyze transmission lines and impedance matching techniques including the quarter-wave transformer and stub matching using both series and shunt stubs. Examples are provided to demonstrate how to use the Smith chart to solve problems related to transmission line impedance, reflection coefficient, input impedance, and designing matching networks.
1) The passage provides a past paper for the Electrical Engineering GATE exam with 27 multiple choice questions covering topics like signals, circuits, transformers, machines, and more.
2) For each question, 4 possible answers are given labeled a, b, c, or d and the correct answer must be indicated in the answer book.
3) The questions cover topics testing knowledge of properties of signals, circuit analysis, transformer operation, machine operation, transmission lines, relays, power converters, sampling, diodes, state space representations, allpass systems, oscilloscopes, and more.
This document summarizes key concepts about RLC circuits:
1. RLC circuits can exhibit resonance where the impedance/admittance is minimized. This occurs at the resonant frequency defined by ω0 = 1/√LC.
2. At resonance, the reactive components (inductance and capacitance) cancel out. The voltage/current is multiplied by the quality factor Q.
3. Higher Q circuits have narrower bandwidth and are more selectively tuned to the resonant frequency. The bandwidth is inversely proportional to Q.
The document describes the process of constructing steady-state equivalent circuit models for DC-DC power converters. Key steps include:
1) Deriving loop and node equations from circuit analyses during switching intervals.
2) Representing the equations as equivalent circuits using dependent sources and transformers.
3) Solving the equivalent circuit to obtain output characteristics like voltage conversion ratio and efficiency.
Losses from resistances and semiconductor voltages can be included to make the model more accurate. The equivalent circuit approach provides a time-invariant model of the converter under steady-state conditions.
The document discusses transmission line theory and the propagation of waves on transmission lines. It introduces the lumped element circuit model of a transmission line and derives the telegrapher's equations that describe wave propagation on the line. It then shows how a transmission line can be modeled as a two-port network and discusses wave propagation on lossless transmission lines, including when the line is terminated by different impedances.
1. The document describes theorems for analyzing AC circuits, including superposition, Thevenin's, and Norton's theorems.
2. Superposition theorem states that the current in any element of a linear circuit with multiple independent sources is the algebraic sum of the currents produced by each source acting alone.
3. Thevenin's and Norton's theorems provide methods to reduce two-terminal AC circuits to equivalent circuits of a voltage source in series with an impedance or a current source in parallel with an impedance, respectively.
The document discusses scattering (S) parameters, which describe the electrical behavior of linear electrical networks. It defines S-parameters for one-port and two-port networks, relating the incident and reflected waves. Formulas are provided to calculate S-parameters from ABCD parameters of transmission lines and other elements. As an example, the S-parameters of a quarter-wave transformer matching a 100Ω load to a 50Ω source are calculated.
This document discusses network analysis and different parameter representations for multiport networks, including:
- Z (impedance), Y (admittance), ABCD, and S (scattering) parameters.
- Definitions of the parameters in terms of open/short circuit measurements.
- Relationships between the different parameter representations.
- Properties of reciprocal networks and cascading network parameters.
- Advantages of S parameters for high frequency network analysis.
The document discusses microwave device and integrated circuit technology. It begins with an introduction and then covers various topics related to impedance matching including reviewing the Smith chart, impedance matching using reactive components, converting between series and parallel resistor-inductor and resistor-capacitor circuits, tapped capacitors and inductors, mutual inductance, matching using transformers, tuning transformers, bandwidth of impedance transformation networks, quality factors of LC resonators, transmission lines, and S, Y, and Z parameters. Diagrams and examples are provided to illustrate key concepts.
Use s parameters-determining_inductance_capacitancePei-Che Chang
1. Use s parameters-determining_inductance_capacitance
2. Relationship Between Common Circuits and the ABCD Parameters
3. Converts Z-parameters to S-parameters
4. Relationships Between Two-Port S and ABCD Parameters
5. Via and equivalent circuit
The document summarizes an experiment on analyzing series and parallel RLC circuits. It describes:
1) Calculating the theoretical resonance frequency of a series RLC circuit as 18.8 kHz, but measuring it experimentally as 16.73 kHz, a difference of 11.1%.
2) Plotting the output voltage versus frequency, which reaches a minimum at the theoretical resonance point.
3) Analyzing the phase relationship and impedance characteristics at resonance, finding the voltage and current are in phase.
This document contains 30 multiple choice questions from a GATE EE exam, along with explanations for the answers. It discusses topics related to electrical engineering, including circuits, electromagnetism, power systems, and electrical machines. The questions range from basic circuit analysis and energy calculations to more complex topics involving synchronous generators, induction motors, and HVDC transmission systems. The document is intended as a practice resource for the GATE EE exam.
The document discusses impedance matching in microwave engineering. It defines impedance matching as terminating a transmission line in its characteristic impedance to eliminate reflections. An impedance matching network is used to ensure maximum power transfer between two dissimilar impedances by matching an arbitrary load to the transmission line. Key factors for impedance matching include complexity, bandwidth, implementation, and adjustability. Common matching methods include lumped element matching networks and single-stub and double-stub matching using transmission line sections.
This document provides an introduction to basic electric circuit concepts including:
- The SI system of units used to measure electrical quantities like current, voltage, power, etc.
- Definitions of current, voltage, power, and charge as the fundamental quantities in electric circuits.
- Descriptions of ideal independent and dependent voltage and current sources as basic circuit elements.
- Examples of calculating current from a given charge equation and calculating charge from a given current equation.
- An example power balance problem showing power supplied equals power absorbed in a circuit.
This document contains 20 multiple choice questions from a GATE EE exam. It covers topics in signals and systems, circuits, electromagnetic theory, machines, and instrumentation. For each question, the full question and multiple choice options are provided, along with the solution and explanation for the correct answer.
This document contains an unsolved past paper on electrical engineering from 2008. It consists of 35 multiple choice questions testing concepts related to electrical circuits, signals and systems, electronics, electromagnetic fields, and power systems. The questions cover topics such as circuit analysis, Thevenin's theorem, Fourier analysis, Laplace transforms, diodes, op-amps, transformers, transmission lines, motors, and more.
This document describes a chapter on transmission lines from a course on polyphase circuit analysis. It begins with an outline of the chapter sections on short lines, medium lines, and long lines. It then introduces transmission lines and their equivalent models. The main types of transmission lines are described as short lines less than 80km, medium lines from 80-250km, and long lines over 250km. Details are provided on modeling short lines as a series impedance and medium lines using the pi model with shunt capacitance. An example problem demonstrates using the models to analyze a medium line.
This document provides an overview of complex power in electrical systems. It defines phasor representation using complex exponentials to simplify analysis of constant frequency AC circuits. It describes how real and reactive power can be calculated from voltage and current phasors and discusses power factor. The document also discusses reactive compensation using capacitors to improve power factor by supplying reactive power locally. It provides an example of power factor correction and introduces balanced three-phase power systems with both wye and delta connections.
Null Bangalore | Pentesters Approach to AWS IAMDivyanshu
#Abstract:
- Learn more about the real-world methods for auditing AWS IAM (Identity and Access Management) as a pentester. So let us proceed with a brief discussion of IAM as well as some typical misconfigurations and their potential exploits in order to reinforce the understanding of IAM security best practices.
- Gain actionable insights into AWS IAM policies and roles, using hands on approach.
#Prerequisites:
- Basic understanding of AWS services and architecture
- Familiarity with cloud security concepts
- Experience using the AWS Management Console or AWS CLI.
- For hands on lab create account on [killercoda.com](https://killercoda.com/cloudsecurity-scenario/)
# Scenario Covered:
- Basics of IAM in AWS
- Implementing IAM Policies with Least Privilege to Manage S3 Bucket
- Objective: Create an S3 bucket with least privilege IAM policy and validate access.
- Steps:
- Create S3 bucket.
- Attach least privilege policy to IAM user.
- Validate access.
- Exploiting IAM PassRole Misconfiguration
-Allows a user to pass a specific IAM role to an AWS service (ec2), typically used for service access delegation. Then exploit PassRole Misconfiguration granting unauthorized access to sensitive resources.
- Objective: Demonstrate how a PassRole misconfiguration can grant unauthorized access.
- Steps:
- Allow user to pass IAM role to EC2.
- Exploit misconfiguration for unauthorized access.
- Access sensitive resources.
- Exploiting IAM AssumeRole Misconfiguration with Overly Permissive Role
- An overly permissive IAM role configuration can lead to privilege escalation by creating a role with administrative privileges and allow a user to assume this role.
- Objective: Show how overly permissive IAM roles can lead to privilege escalation.
- Steps:
- Create role with administrative privileges.
- Allow user to assume the role.
- Perform administrative actions.
- Differentiation between PassRole vs AssumeRole
Try at [killercoda.com](https://killercoda.com/cloudsecurity-scenario/)
Redefining brain tumor segmentation: a cutting-edge convolutional neural netw...IJECEIAES
Medical image analysis has witnessed significant advancements with deep learning techniques. In the domain of brain tumor segmentation, the ability to
precisely delineate tumor boundaries from magnetic resonance imaging (MRI)
scans holds profound implications for diagnosis. This study presents an ensemble convolutional neural network (CNN) with transfer learning, integrating
the state-of-the-art Deeplabv3+ architecture with the ResNet18 backbone. The
model is rigorously trained and evaluated, exhibiting remarkable performance
metrics, including an impressive global accuracy of 99.286%, a high-class accuracy of 82.191%, a mean intersection over union (IoU) of 79.900%, a weighted
IoU of 98.620%, and a Boundary F1 (BF) score of 83.303%. Notably, a detailed comparative analysis with existing methods showcases the superiority of
our proposed model. These findings underscore the model’s competence in precise brain tumor localization, underscoring its potential to revolutionize medical
image analysis and enhance healthcare outcomes. This research paves the way
for future exploration and optimization of advanced CNN models in medical
imaging, emphasizing addressing false positives and resource efficiency.
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...IJECEIAES
Climate change's impact on the planet forced the United Nations and governments to promote green energies and electric transportation. The deployments of photovoltaic (PV) and electric vehicle (EV) systems gained stronger momentum due to their numerous advantages over fossil fuel types. The advantages go beyond sustainability to reach financial support and stability. The work in this paper introduces the hybrid system between PV and EV to support industrial and commercial plants. This paper covers the theoretical framework of the proposed hybrid system including the required equation to complete the cost analysis when PV and EV are present. In addition, the proposed design diagram which sets the priorities and requirements of the system is presented. The proposed approach allows setup to advance their power stability, especially during power outages. The presented information supports researchers and plant owners to complete the necessary analysis while promoting the deployment of clean energy. The result of a case study that represents a dairy milk farmer supports the theoretical works and highlights its advanced benefits to existing plants. The short return on investment of the proposed approach supports the paper's novelty approach for the sustainable electrical system. In addition, the proposed system allows for an isolated power setup without the need for a transmission line which enhances the safety of the electrical network
Advanced control scheme of doubly fed induction generator for wind turbine us...IJECEIAES
This paper describes a speed control device for generating electrical energy on an electricity network based on the doubly fed induction generator (DFIG) used for wind power conversion systems. At first, a double-fed induction generator model was constructed. A control law is formulated to govern the flow of energy between the stator of a DFIG and the energy network using three types of controllers: proportional integral (PI), sliding mode controller (SMC) and second order sliding mode controller (SOSMC). Their different results in terms of power reference tracking, reaction to unexpected speed fluctuations, sensitivity to perturbations, and resilience against machine parameter alterations are compared. MATLAB/Simulink was used to conduct the simulations for the preceding study. Multiple simulations have shown very satisfying results, and the investigations demonstrate the efficacy and power-enhancing capabilities of the suggested control system.
Software Engineering and Project Management - Introduction, Modeling Concepts...Prakhyath Rai
Introduction, Modeling Concepts and Class Modeling: What is Object orientation? What is OO development? OO Themes; Evidence for usefulness of OO development; OO modeling history. Modeling
as Design technique: Modeling, abstraction, The Three models. Class Modeling: Object and Class Concept, Link and associations concepts, Generalization and Inheritance, A sample class model, Navigation of class models, and UML diagrams
Building the Analysis Models: Requirement Analysis, Analysis Model Approaches, Data modeling Concepts, Object Oriented Analysis, Scenario-Based Modeling, Flow-Oriented Modeling, class Based Modeling, Creating a Behavioral Model.
Comparative analysis between traditional aquaponics and reconstructed aquapon...bijceesjournal
The aquaponic system of planting is a method that does not require soil usage. It is a method that only needs water, fish, lava rocks (a substitute for soil), and plants. Aquaponic systems are sustainable and environmentally friendly. Its use not only helps to plant in small spaces but also helps reduce artificial chemical use and minimizes excess water use, as aquaponics consumes 90% less water than soil-based gardening. The study applied a descriptive and experimental design to assess and compare conventional and reconstructed aquaponic methods for reproducing tomatoes. The researchers created an observation checklist to determine the significant factors of the study. The study aims to determine the significant difference between traditional aquaponics and reconstructed aquaponics systems propagating tomatoes in terms of height, weight, girth, and number of fruits. The reconstructed aquaponics system’s higher growth yield results in a much more nourished crop than the traditional aquaponics system. It is superior in its number of fruits, height, weight, and girth measurement. Moreover, the reconstructed aquaponics system is proven to eliminate all the hindrances present in the traditional aquaponics system, which are overcrowding of fish, algae growth, pest problems, contaminated water, and dead fish.
Manufacturing Process of molasses based distillery ppt.pptx
Matching_Network.pdf

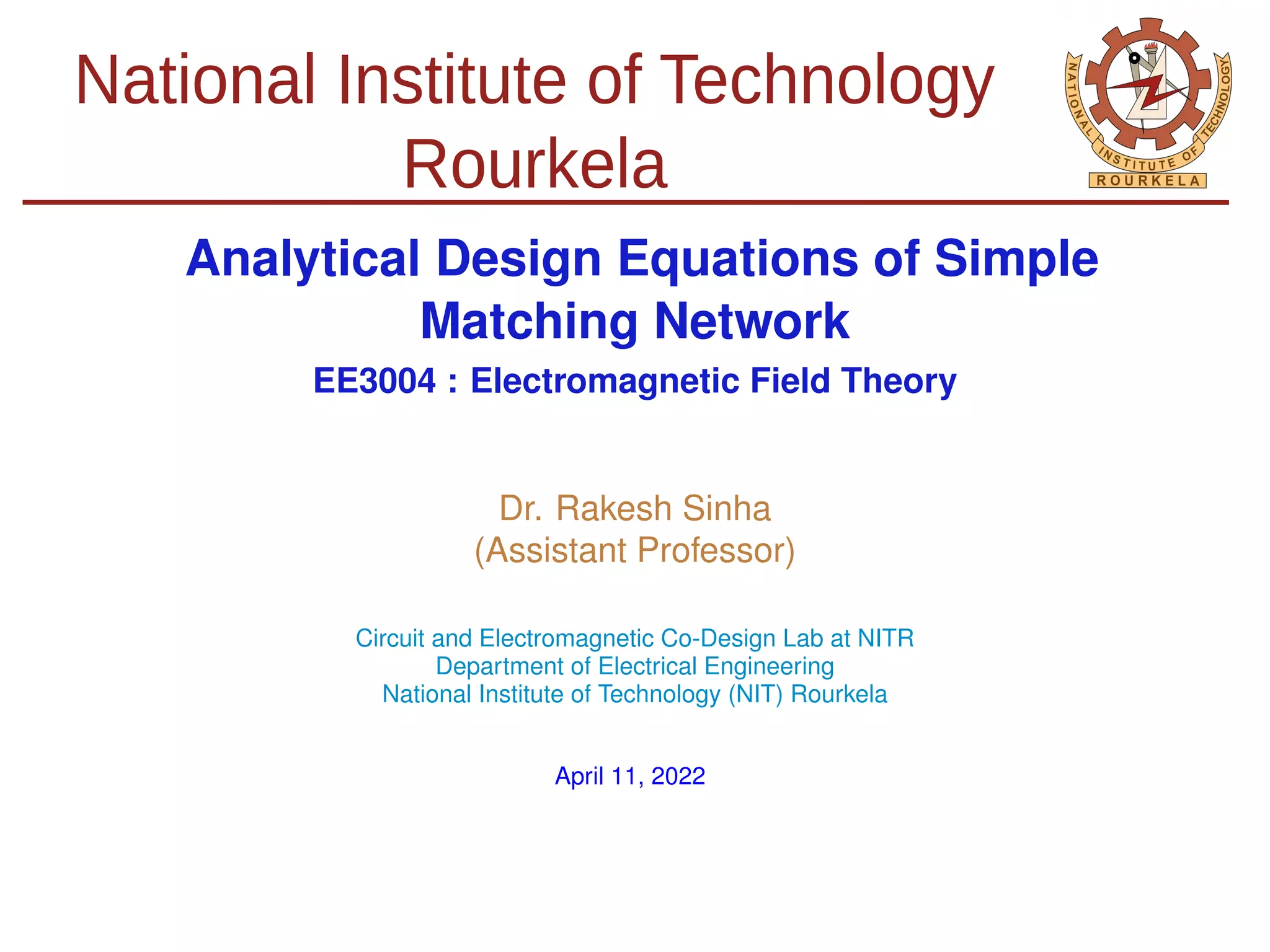

1. National Institute of Technology
Rourkela
Analytical Design Equations of Simple
Matching Network
EE3004 : Electromagnetic Field Theory
Dr. Rakesh Sinha
(Assistant Professor)
Circuit and Electromagnetic Co-Design Lab at NITR
Department of Electrical Engineering
National Institute of Technology (NIT) Rourkela
April 11, 2022
2. Circuit-EM Co-Design Lab
Outline
1 Introduction
2 Preliminary Concept
3 L-match Network
4 L-match Network using Smith Chart
5 Inverted L-match Network
6 inv L-match Network using Smith Chart
7 Single Series Stub Matching Network
8 Single Shunt Stub Matching Network
2/58
4. Circuit-EM Co-Design Lab
Introduction
q The impedance matching network (IMN) is one of the fundamental and
crucial component spanning over the entire spectrum of RF, microwave
and millimetre-wave.
q The IMNs are in general passive, reciprocal,lossless, two-port networks
q Application: antenna feed network, amplifier input and output matching,
power combiners and dividers, RFID, impedance compensation network
for energy harvesting and WPT etc.
q When delivering ac power, maximum real power is delivered to the
complex load, when the load impedance as seen through an IMN, by the
complex source is equal to the complex conjugate of the source
impedance
4/58
5. Circuit-EM Co-Design Lab
Introduction
(a) (b)
Figure 1: (a) A two-port lossless passive reciprocal network transforming a load
impedance ZL = RL + jXL into complex conjugate of the source impedance
¯
ZS = RS − jXS; (b) The same network transforming the source impedance
ZS = RS + jXS into complex conjugate of the load impedance ¯
ZL = RL − jXL
5/58
6. Circuit-EM Co-Design Lab
Introduction
q Depending on the frequency of operation, the IMNs can be implemented
using lumped inductor and capacitor or using distributed transmission line
(TL) or combination of lumped and distributed elements.
q Lumped elements topology: L-match, Inverted L-match, Π-match and
T-match.
q Distributed elements topology: Single section TL, Stepped impedance,
L-type or single stub (series and shunt), Π-type or double stub and T-type.
q Most of the book follow Smith Chart method to design a Matching
Network. So one have to carry Smith Chart and geometry box to design a
matching network.
q In this presentation four analytical techniques are provided to design
simple matching network like L-match, inverted L-match and single stub
matching network (series and shunt).
6/58
8. Circuit-EM Co-Design Lab
Preliminary Concept
q Impedance of a load in general define as Z = R + jX, where the real
part R is resistive part responsible for loss and the imaginary part X is
the reactive part responsible for stored energy.
q Similarly, Admittance of a load in general define as Y = G + jB, where G
is conductance responsible for loss and B is the susceptance responsible
for stored energy.
q Y = 1
Z ; G = R
|Z|2 ; B = − X
|Z|2 ; |Z|2
= R2
+ X2
q Similarly, Z = 1
Y ; R = G
|Y |2 ; X = − B
|Y |2 ; |Y |2
= G2
+ B2
q Impedance of an inductor of inductance L is Z = jωL, similarly
admittance is Y = − j
ωL .
q Admittance of an capacitor of capacitance C is Y = jωC, similarly
impedance is Z = − j
ωC .
8/58
9. Circuit-EM Co-Design Lab
Preliminary Concept
q If the imaginary part of a load impedance is positive, then the load is
inductive in nature.
q Else if the imaginary part of a load impedance is negative, then the load
is capacitive in nature.
q If the imaginary part of a load admittance is positive, then the load is
capacitive in nature.
q Else if the imaginary part of a load admittance is negative, then the load
is inductive in nature.
q If the real part of load impedance or admittance is zero, then load is
purely reactive in nature.
q If the imaginary part of load impedance or admittance is zero, then load is
purely resistive in nature.
9/58
10. Circuit-EM Co-Design Lab
Preliminary Concept-ABCD parameter
Figure 2: Two-port Network
q The ABCD parameter of a two-port network shown in Fig. 2 can be
defined as
V1
I1
=
A B
C D
V2
−I2
. (1)
q When port-2 as input port the ABCD matrix define as
V2
I2
=
1
AD − BC
D B
C A
V1
−I1
. (2)
10/58
11. Circuit-EM Co-Design Lab
Preliminary Concept-ABCD parameter
q For a reciprocal two-port network
AD − BC = 1. (3)
q For lossless network the ABCD parameters define as
A B
C D
=
a jb
jc d
(4)
q where a, b, c and d are pure real number.
q For a lossless reciprocal two-port network
ad + bc = 1. (5)
q For a symmetric network
A = D. (6)
11/58
12. Circuit-EM Co-Design Lab
Preliminary Concept-ABCD parameter
Circuit ABCD parameters of a
Series Impedance Z is:
A B
C D
=
1 Z
0 1
Shunt Admittance Y is:
A B
C D
=
1 0
Y 1
Transmission Line of characteristic
impedance Z0 or admittance Y0 = 1
Z0
and electrical length θ = βl is:
A B
C D
=
cos θ jZ0 sin θ
jY0 sin θ cos θ
12/58
13. Circuit-EM Co-Design Lab
Preliminary Concept-Input Impedance
Figure 3: Port-2 of a two-port network terminated by load impedance ZL
q The input impedance seen at port-1, when port-2 is terminated by load
impedance ZL or admittance YL, is given as
Zin1 =
V1
I1
=
AV2 − BI2
CV2 − DI2
=
AZL + B
CZL + D
=
A + BYL
C + DYL
(7)
q The input impedance seen at port-2, when port-1 is terminated by load
impedance ZL admittance YL, is given as
Zin2 =
DZL + B
CZL + A
=
D + BYL
C + AYL
(8)
13/58
14. Circuit-EM Co-Design Lab
Preliminary Concept-Input Admittance
q The input admittance seen at port-1, when port-2 is terminated by load
admittance YL or impedance ZL, is given as
Yin1 =
DYL + C
BYL + A
=
D + CZL
B + AZL
(9)
q The input admittance seen at port-2, when port-1 is terminated by load
admittance YL or impedance ZL, is given as
Yin2 =
AYL + C
BYL + D
=
A + CZL
B + DZL
(10)
14/58
15. Circuit-EM Co-Design Lab
Input Impedance/Admittance of TL
q The input impedance of a transmission line of characteristic impedance
Z0 and electrical length θ is terminated by load impedance ZL or
admittance YL, is given as
Zin = Z0
ZL cos θ + jZ0 sin θ
jZL sin θ + Z0 cos θ
= Z0
Y0 cos θ + jYL sin θ
jY0 sin θ + YL cos θ
(11)
q The input admittance of a transmission line of characteristic impedance
Z0 and electrical length θ is terminated by load impedance ZL or
admittance YL, is given as
Yin = Y0
YL cos θ + jY0 sin θ
jYL sin θ + Y0 cos θ
= Y0
Z0 cos θ + jZL sin θ
jZ0 sin θ + ZL cos θ
(12)
15/58
16. Circuit-EM Co-Design Lab
Input Impedance/Admittance of short/open
circuited TL
q The input impedance/admittance of a short circuited (i.e., ZL = 0 or
YL = ∞) transmission line of characteristic impedance Z0 and electrical
length θ , is given as
Zin = jZ0 tan θ; Yin = −jY0 cot θ (13)
q The input impedance/admittance of a open circuited (i.e., ZL = ∞ or
YL = 0) transmission line of characteristic impedance Z0 and electrical
length θ , is given as
Zin = −jZ0 cot θ; Yin = jY0 tan θ (14)
16/58
18. Circuit-EM Co-Design Lab
L-match Network
Figure 4: L-match network consist of shunt susceptance B1 and series reactance X2,
matches the complex load impedance ZL = RL + jXL to a real source impedance
Z0 = 1/Y0 or admittance Y0 = 1/Z0.
q The system can be normalized with respect to real source impedance
and the normalized parameters are given as
b1 = B1Z0; x2 = X2
Z0
; zL = rL + jxL = ZL
Z0
= RL+jXL
Z0
(15)
18/58
19. Circuit-EM Co-Design Lab
L-match Network
Figure 5: Normalized L-match network consist of shunt susceptance b1 and series
reactance x2, matches the complex load impedance zL = rL + jxL to a real source
impedance z0 = 1 or admittance y0 = 1.
q The input admittance yin2 can be calculated as
yin2 = 1 − jb1 =
1
zL + jx2
=
1
rL + j(xL + x2)
(16)
19/58
20. Circuit-EM Co-Design Lab
L-match Network
q The above equation (16) can be rewritten as
(1 − jb1) (rL + j(xL + x2)) = 1
rL + b1(xL + x2) + j ((xL + x2) − rLb1) = 1
(17)
q By separating the real and imaginary parts of (17), one can obtain
(xL + x2) =
1 − rL
b1
(18)
(xL + x2) = b1rL (19)
q By comparing the above equations one can obtain the solution b1 and x2 of
L-match network as
b1 = ±
r
1 − rL
rL
(20)
x2 = −xL ±
p
(1 − rL)rL (21)
20/58
21. Circuit-EM Co-Design Lab
L-match Network
q The solution of renormalized L-match network for capacitive shunt
element (B1 0) can be given as
B1 = Y0
r
1 − rL
rL
(22)
X2 = −Z0
xL −
p
(1 − rL)rL
(23)
q The solution of renormalized L-match network for inductive shunt element
(B1 0) can be given as
B1 = −Y0
r
1 − rL
rL
(24)
X2 = −Z0
xL +
p
(1 − rL)rL
(25)
21/58
22. Circuit-EM Co-Design Lab
L-match network
Problem-1
Design a lumped L-match Network which matches load impedance of ZL = 40 − j30 Ω
to a source having internal impedance of ZS = 50 Ω at 1.2 GHz frequency.
Solution-1
q From the problem statement one can write
Z0 = 50 Ω,Y0 = 0.02 f, ZL = 40 − j30 Ω, zL = 0.8 − j0.6
rL = 0.8, xL = −0.6, f0 = 1.2 GHz
q The first solution set with capacitive shunt element can be written as
B1 = Y0
r
1 − rL
rL
= 0.01 f (26)
X2 = −Z0
xL −
p
(1 − rL)rL
= 50 Ω. (27)
22/58
23. Circuit-EM Co-Design Lab
L-match network
Solution-1
q As shunt element B1 is positive can be implemented using capacitor C1
and the series element can be implemented using inductor L2 due to
positive value of X2.
C1 =
B1
2πf0
= 1.3263 pF L2 =
X2
2πf0
= 6.6315 nH
q The second solution set with inductive shunt element can be written as
B1 = −Y0
r
1 − rL
rL
= −0.01 f (28)
X2 = −Z0
xL +
p
(1 − rL)rL
= 10 Ω. (29)
23/58
24. Circuit-EM Co-Design Lab
L-match network
Solution-1
q As shunt element B1 is negative can be implemented using inductor L1 and the
series element can also be implemented using inductor L2 due to positive value
of X2.
L1 = −
1
2πf0B1
= 13.263 nH L2 =
X2
2πf0
= 1.3263 nH
(a) (b)
Figure 6: L-match network: a. first solution b. second solution
24/58
26. Circuit-EM Co-Design Lab
L-match Network using Smith Chart
q Following steps to be followed to design L-match network using smith
chart.
1. Normalized the load impedance ZL to zL = ZL/Z0, where Z0 is the source
impedance.
2. Please ensure that zL is outside z = 1 + jx circle. If inside you need to go
for inv-L match network.
3. Draw constant SWR circle |z| = |zL|.
4. Draw y = 1 + jb circle.
5. Move to the point z1 = 1/y1 through constant resistance circle z = rL + jx
such that constant rL circle cut y = 1 + jb circle.
6. The desired series reactance for the L-match is jx1 = z1 − zL.
7. Convert z1 into y1 = 1 + jb1 via reflection.
8. Add susceptance such that y1 = 1 + jb1 move to matched point y = 1.
9. The desired shunt susceptance is −jb1 = 1 − y1.
10. Follow step 5-9 for second solution.
11. Scaled the reactance and susceptance to X1 = Z0x1 and
B1 = b1/Z0 = Y0b1.
12. Get the L or C value at the design frequency.
26/58
29. Circuit-EM Co-Design Lab
Inverted-L-match Network
Figure 7: Inverted L-match network consist of series reactance X1 and shunt
susceptance B2, matches the complex load impedance ZL = RL + jXL or admittance
YL = GL + jBL to a real source impedance Z0 = 1/Y0 or admittance Y0 = 1/Z0.
q The system can be normalized with respect to real source admittance Y0 and the
normalized parameters are given as
x1 = x1Y0; b2 = B2
Y0
; yL = gL + jbL = YL
Y0
= GL+jBL
Y0
(30)
gL + jbL =
1
rL + jxL
=
rL − jxL
|zL|2
(31)
29/58
30. Circuit-EM Co-Design Lab
Inverted L-match Network
Figure 8: Normalized inverted L-match network consist of series reactance x1 and
shunt susceptance b2, matches the complex load admittance yL = gL + jbL to a real
source impedance z0 = 1 or admittance y0 = 1.
q The input impedance zin2 can be calculated as
zin2 = 1 − jx1 =
1
yL + jb2
=
1
gL + j(bL + b2)
(32)
q Note that L-match (16) and inverted L match (32) are dual problem and
the solutions are similar to each other.
30/58
31. Circuit-EM Co-Design Lab
Inverted L-match Network
q The above equation (32) can be rewritten as
(1 − jx1) (gL + j(bL + b2)) = 1
gL + x1(bL + b2) + j ((bL + b2) − gLx1) = 1
(33)
q By separating the real and imaginary parts of (33), one can obtain
(bL + b2) =
1 − gL
x1
(34)
(bL + b2) = x1gL (35)
q By comparing the above equations one can obtain the solution x1 and b2 of
L-match network as
x1 = ±
r
1 − gL
gL
(36)
b2 = −bL ±
p
(1 − gL)gL (37)
31/58
32. Circuit-EM Co-Design Lab
Inverted L-match Network
q The solution of renormalized inverted L-match network for inductive
series element (X1 0) can be given as
X1 = Z0
r
1 − gL
gL
(38)
B2 = −Y0
bL −
p
(1 − gL)gL
(39)
q The solution of renormalized inverted L-match network for capacitive
series element (X1 0) can be given as
X1 = −Z0
r
1 − gL
gL
(40)
B2 = −Y0
bL +
p
(1 − gL)gL
(41)
32/58
33. Circuit-EM Co-Design Lab
Inverted L-match network
Problem-2
Design a lumped inverted L-match network which matches load impedance of
ZL = 40 − j30 Ω to a source having internal impedance of ZS = 50 Ω at 1.2 GHz
frequency.
Solution-2
q From the problem statement one can write
Z0 = 50 Ω,Y0 = 0.02 f, ZL = 40 − j30 Ω, yL = 0.8 + j0.6
gL = 0.8, bL = 0.6, f0 = 1.2 GHz
q The first solution set with inductive series element can be written as
X1 = Z0
r
1 − gL
gL
= 25 Ω (42)
B2 = −Y0
bL −
p
(1 − gL)gL
= −0.004 f (43)
33/58
34. Circuit-EM Co-Design Lab
Inverted L-match network
Solution-2
q As series element X1 is positive can be implemented using inductor L1
and the shunt element can also be implemented using inductor L2 due to
negative value of B2.
L1 =
X1
2πf0
= 3.3157 nH L2 = −
1
2πf0B2
= 33.157 nH
q The second solution set with capacitive series element can be written as
X1 = −Z0
r
1 − gL
gL
= −25 Ω (44)
B2 = −Y0
bL +
p
(1 − gL)gL
= −0.02 f (45)
34/58
35. Circuit-EM Co-Design Lab
Inverted L-match network
Solution-2
q As series element X1 is negative can be implemented using capacitor C1 and the
shunt element can be implemented using inductor L2 due to negative value of B2.
C1 = −
1
2πf0X1
= 5.3052 pF L2 = −
1
2πf0B2
= 6.6315 nH
(a) (b)
Figure 9: Inverted L-match: a. First solution b. Second solution
35/58
37. Circuit-EM Co-Design Lab
inv-L-match Network using Smith Chart
q Following steps to be followed to design inv-L-match network using smith
chart.
1. Normalized the load impedance ZL to zL = ZL/Z0, where Z0 is the source
impedance.
2. Please ensure that zL is inside z = 1 + jx circle. If outside you need to go
for L match network.
3. Draw constant SWR circle |z| = |zL|.
4. Draw y = 1 + jb circle in Z-smith chart, which can be used as z = 1 + jx
circle in Y-smith chart.
5. Convert zL into yL via reflection in constant SWR circle.
6. Move to the point y1 = 1/z1 through constant conductance circle y = gL + jb
such that constant gL circle cut x = 1 + jx circle.
7. The desired shunt susceptance for the inv-L-match is jb1 = y1 − yL.
8. Convert y1 into z1 = 1 + jx1 via reflection.
9. Add reactance such that z1 = 1 + jx1 move to matched point z = 1.
10. The desired series reactance is −jx1 = 1 − z1.
11. Follow step 6-10 for second solution.
12. Scaled the reactance and susceptance to X1 = Z0x1 and
B1 = b1/Z0 = Y0b1.
13. Get the L or C value at the design frequency.
37/58
40. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
Figure 10: Single series stub matching network consist of series stub (characteristic
impedance Z0 and electrical length θs = βls) having input impedance of jX and main
line (characteristic impedance Z0 and electrical length θm = βlm), matches the
complex load impedance ZL = RL + jXL to a real source impedance Z0 = 1/Y0 or
admittance Y0 = 1/Z0.
q The system can be normalized with respect to real source impedance Z0
and the normalized parameters are given as
x = X
Z0
; zL = rL + jxL = ZL
Z0
= RL+jXL
Z0
(46)
40/58
41. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
Figure 11: Normalized single series stub matching network, matches the complex load
impedance ZL = rL + jxL to a real source impedance z0 = 1 or admittance y0 = 1.
q The input impedance zin2 can be calculated as
zin2 = 1 − jx =
zL cos θm + j sin θm
jzL sin θm + cos θm
=
(rL + jxL) cos θm + j sin θm
j(rL + jxL) sin θm + cos θm
(47)
41/58
42. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
q The above equation (47) can be rewritten as
(1 − jx) (j(rL + jxL) sin θm + cos θm)
= (rL + jxL) cos θm + j sin θm
cos θm − (xL − xrL) sin θm + j ((rL + xxL) sin θm − x cos θm)
= rL cos θm + j (xL cos θm + sin θm)
(48)
q By separating the real and imaginary parts of (48), one can obtain
tan θm =
1 − rL
xL − rLx
(49)
tan θm =
xL + x
xxL − (1 − rL)
(50)
q By comparing the above equations one can write
1 − rL
xL − rLx
=
xL + x
xxL − (1 − rL)
(51)
42/58
43. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
q The the equation (51) can be rewritten as
(1 − rL)xxL − (1 − rL)2
= xL
2
+ xxL − rLxxL − rLx2
(52)
x2
=
(1 − rL)2
+ xL
2
rL
(53)
q The above equation has two solutions: one is inductive series stub
(x 0) and other one is capacitive series stub (x 0). The solution are
given as
x = ±
s
(1 − rL)2 + xL
2
rL
(54)
q The parameters related to main line electrical length can be obtain as
t = tan θm =
1 − rL
xL − rLx
=
1 − rL
xL ∓
p
rL(1 − rL)2 + rLxL
2
(55)
43/58
44. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
q The electrical length of the main line and shunt line can be obtained as
θm = tan−1
(t) (56)
θs = tan−1
(x) for short stub
= cot−1
(−x) for open stub.
(57)
q If θm,s is negative then add 180◦
to it, when θm,s is in degree. The
physical lengths of the main line and shunt line can be obtained as
lm,s =
θm,s
360◦
λg (58)
q Here λg is the guided wavelength of the transmission lines.
44/58
45. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
Problem-3
Design a single series stub matching network which matches load impedance
of ZL = 40 − j30 Ω to a source having internal impedance of ZS = 50 Ω at 1.2
GHz frequency.
Solution-3
q From the problem statement one can write
Z0 = 50 Ω,Y0 = 0.02 f, ZL = 40 − j30 Ω, zL = 0.8 − j0.6
rL = 0.8, xL = −0.6, f0 = 1.2 GHz
q The first solution set with inductive series stub can be written as
x =
s
(1 − rL)2 + xL
2
rL
= 0.70711 Ω (59)
45/58
46. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
Solution-3
q The parameters related to main line electrical length can be obtain as
t = tan θm =
1 − rL
xL − xrL
= −0.17157 (60)
q The electrical length of the main line and the series stub can calculated as
θm = tan−1
(t) = 170.26◦
θs(short) = tan−1
(x) = 35.264◦
θs(open) = cot−1
(−x) = 125.26◦
q Corresponding physical length are given as
lm =
θm
360
λg = 0.47296λg ls(short) =
θs
360
λg = 0.097957λg
ls(open) =
θs
360
λg = 0.34796λg
46/58
47. Circuit-EM Co-Design Lab
Single Series Stub Matching Network
Solution-3
q The second solution set with capacitive series stub can be written as
x = −
s
(1 − rL)2 + xL
2
rL
= −0.70711 Ω (61)
q The parameters related to main line electrical length can be obtain as
t = tan θm =
1 − rL
xL − xrL
= −5.8284 (62)
q The electrical length of the main line and the series stub can calculated
as
θm = tan−1
(t) = 99.736◦
θs(short) = tan−1
(x) = 144.74◦
θs(open) = cot−1
(−x) = 54.736◦
47/58
50. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
Figure 12: Single shunt stub matching network consist of shunt stub ( electrical length
θs = βls) having input admittance of jB and main line ( electrical length θm = βlm),
matches the complex load admittance YL = GL + jBL to a real source admittance
Y0 = 1/Z0.
q The system can be normalized with respect to real source admittance Y0
and the normalized parameters are given as
b = BZ0; yL = gL + jbL = YLZ0 = (GL + jBL)Z0 (63)
50/58
51. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
Figure 13: Normalized single shunt stub matching network, matches the complex load
admittance yL = gL + jbL to a real source admittance y0 = 1.
q The input admittance zin2 can be calculated as
yin2 = 1 − jb =
yL cos θm + j sin θm
jyL sin θm + cos θm
=
(gL + jbL) cos θm + j sin θm
j(gL + jbL) sin θm + cos θm
(64)
q Note that series stub matching (47) and shunt stub matching (64) are dual
problem and the solutions are similar to each other.
51/58
52. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
q The above equation (64) can be rewritten as
(1 − jb) (j(gL + jbL) sin θm + cos θm)
= (gL + jbL) cos θm + j sin θm
cos θm − (bL − bgL) sin θm + j ((gL + bbL) sin θm − b cos θm)
= gL cos θm + j (bL cos θm + sin θm)
(65)
q By separating the real and imaginary parts of (65), one can obtain
tan θm =
1 − gL
bL − gLb
(66)
tan θm =
bL + b
bbL − (1 − gL)
(67)
q By comparing the above equations one can write
1 − gL
bL − gLb
=
bL + b
bbL − (1 − gL)
(68)
52/58
53. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
q The the equation (68) can be rewritten as
(1 − gL)bbL − (1 − gL)2
= bL
2
+ bbL − gLbbL − gLb2
(69)
b2
=
(1 − gL)2
+ bL
2
gL
(70)
q The above equation has two solutions: one is capacitive shunt stub (b 0) and
other one is inductive shunt stub (b 0). The solution are given as
b = ±
s
(1 − gL)2 + bL
2
gL
(71)
q The parameters related to main line electrical length can be obtain as
t = tan θm =
1 − gL
bL − gLb
=
1 − gL
bL ∓
p
gL(1 − gL)2 + gLbL
2
(72)
53/58
54. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
q The electrical length of the main line and shunt line can be obtained as
θm = tan−1
(t) (73)
θs = tan−1
(b) for open stub
= cot−1
(−b) for short stub.
(74)
q If θm,s is negative then add 180◦
to it, when θm,s is in degree. The
physical lengths of the main line and shunt line can be obtained as
lm,s =
θm,s
360◦
λg. (75)
q Here λg is the guided wavelength of the transmission lines.
54/58
55. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
Problem-4
Design a single shunt stub matching network which matches load impedance
of ZL = 40 − j30 Ω to a source having internal impedance of ZS = 50 Ω at 1.2
GHz frequency.
Solution-4
q From the problem statement one can write
Z0 = 50 Ω,Y0 = 0.02 f, ZL = 40 − j30 Ω, yL = 0.8 + j0.6
gL = 0.8, bL = 0.6, f0 = 1.2 GHz
q The first solution set with capacitive shunt stub can be written as
b =
s
(1 − gL)2 + bL
2
gL
= 0.70711 Ω (76)
55/58
56. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
Solution-4
q The parameters related to main line electrical length can be obtain as
t = tan θm =
1 − gL
bL − bgL
= 5.8284 (77)
q The electrical length of the main line and the series stub can calculated as
θm = tan−1
(t) = 80.264◦
θs(open) = tan−1
(b) = 35.264◦
θs(short) = cot−1
(−b) = 125.26◦
q Corresponding physical length are given as
lm =
θm
360
λg = 0.22296λg ls(open) =
θs
360
λg = 0.097957λg
ls(short) =
θs
360
λg = 0.34796λg
56/58
57. Circuit-EM Co-Design Lab
Single Shunt Stub Matching Network
Solution-4
q The second solution set with inductive shunt stub can be written as
b = −
s
(1 − gL)2 + bL
2
gL
= −0.70711 Ω (78)
q The parameters related to main line electrical length can be obtain as
t = tan θm =
1 − gL
bL − bgL
= 0.17157 (79)
q The electrical length of the main line and the series stub can calculated
as
θm = tan−1
(t) = 9.7356◦
θs(open) = tan−1
(x) = 144.74◦
θs(short) = cot−1
(−x) = 54.736◦
57/58
