Mashing up DevOps with Cloud Computing

2. © 2014 Cloud Technology Partners, Inc. / Confidential
2
It’s all about agility and time-to-market

3. © 2014 Cloud Technology Partners, Inc. / Confidential
3

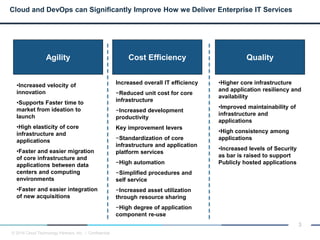

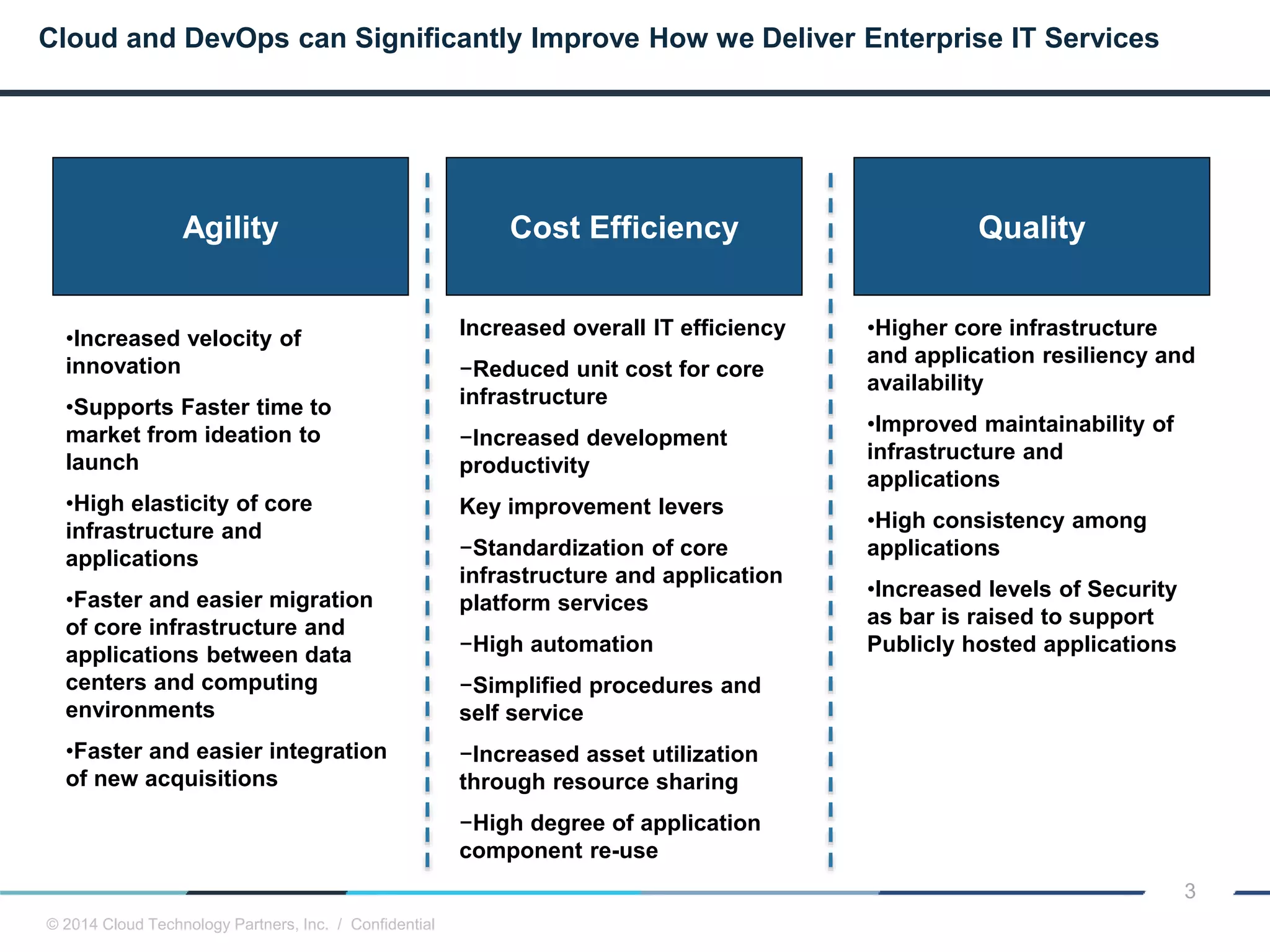

Cloud and DevOps can Significantly Improve How we Deliver Enterprise IT Services
Agility Cost Efficiency Quality
•Increased velocity of
innovation
•Supports Faster time to
market from ideation to
launch
•High elasticity of core
infrastructure and
applications
•Faster and easier migration
of core infrastructure and
applications between data
centers and computing
environments
•Faster and easier integration
of new acquisitions
Increased overall IT efficiency
−Reduced unit cost for core
infrastructure
−Increased development
productivity
Key improvement levers
−Standardization of core
infrastructure and application
platform services
−High automation
−Simplified procedures and
self service
−Increased asset utilization
through resource sharing
−High degree of application
component re-use
•Higher core infrastructure
and application resiliency and
availability
•Improved maintainability of
infrastructure and
applications
•High consistency among
applications
•Increased levels of Security
as bar is raised to support
Publicly hosted applications

4. © 2014 Cloud Technology Partners, Inc. / Confidential
4

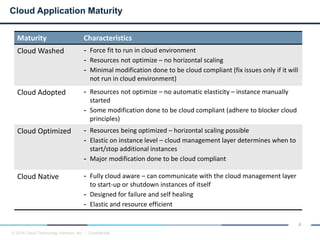

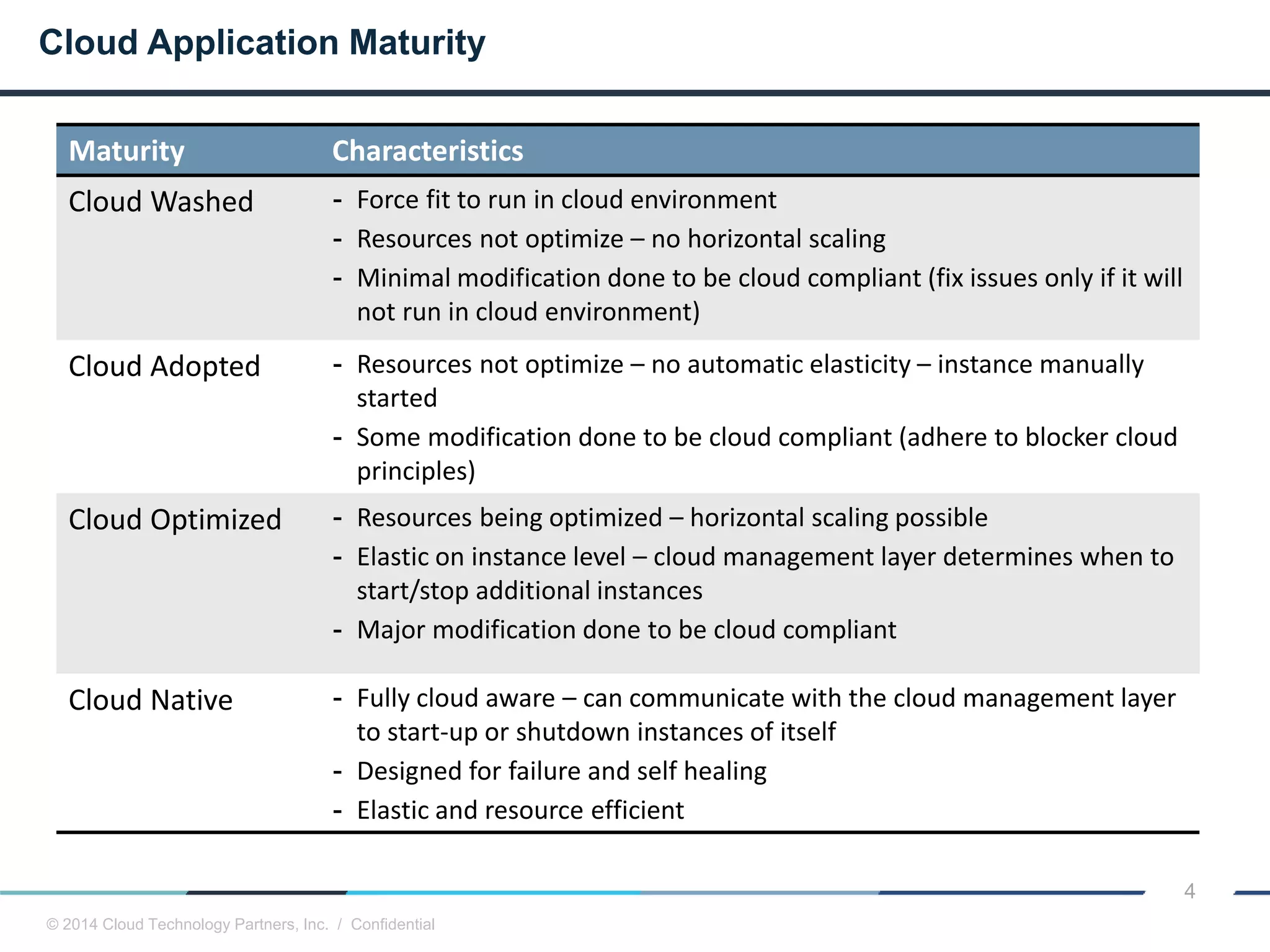

Maturity Characteristics
Cloud Washed - Force fit to run in cloud environment
- Resources not optimize – no horizontal scaling
- Minimal modification done to be cloud compliant (fix issues only if it will
not run in cloud environment)
Cloud Adopted - Resources not optimize – no automatic elasticity – instance manually
started
- Some modification done to be cloud compliant (adhere to blocker cloud
principles)
Cloud Optimized - Resources being optimized – horizontal scaling possible
- Elastic on instance level – cloud management layer determines when to
start/stop additional instances
- Major modification done to be cloud compliant
Cloud Native - Fully cloud aware – can communicate with the cloud management layer
to start-up or shutdown instances of itself
- Designed for failure and self healing
- Elastic and resource efficient
Cloud Application Maturity

5. © 2014 Cloud Technology Partners, Inc. / Confidential
5

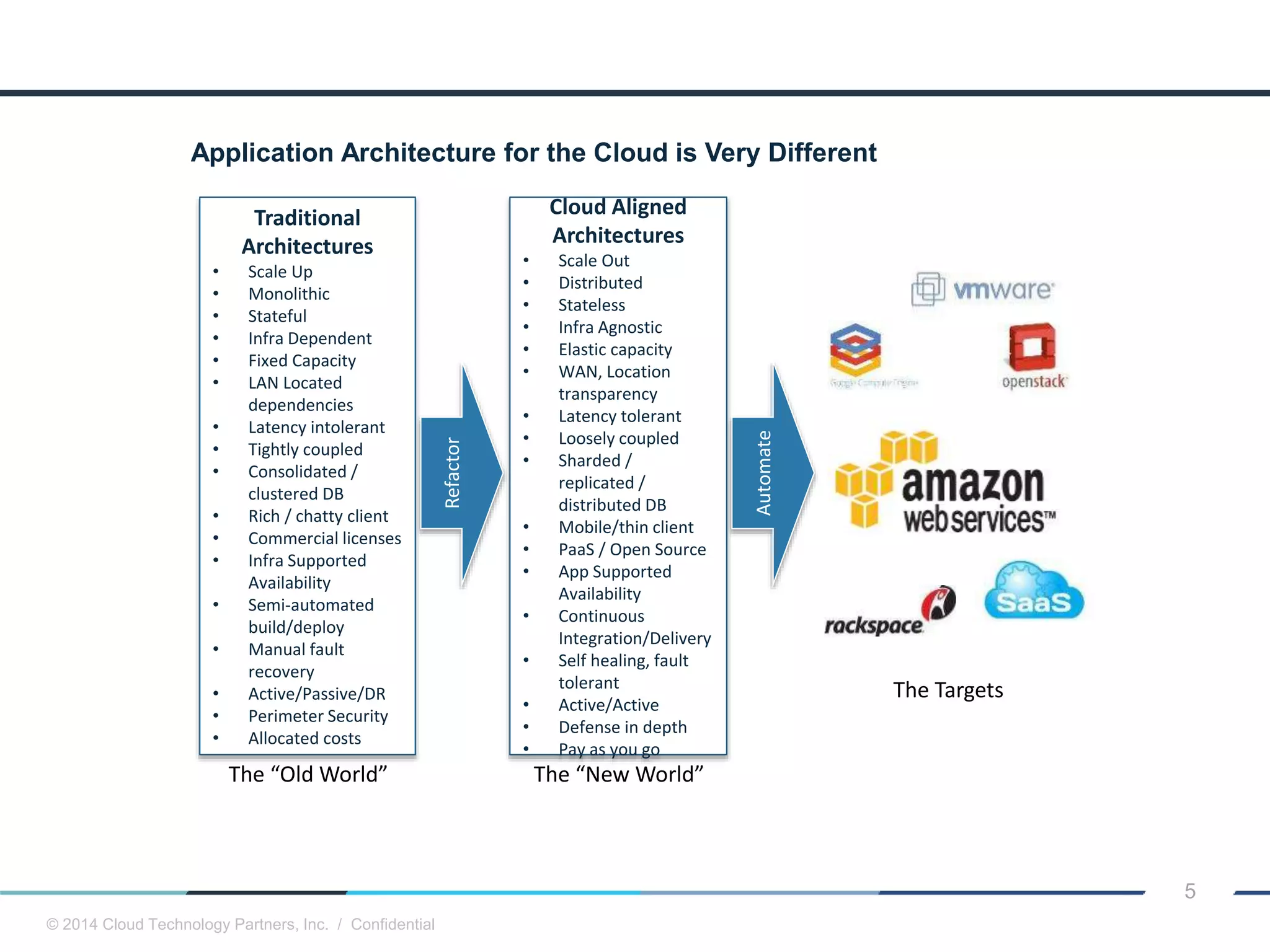

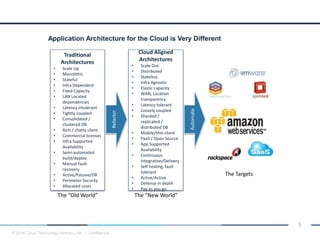

Application Architecture for the Cloud is Very Different
Traditional
Architectures
• Scale Up
• Monolithic
• Stateful
• Infra Dependent
• Fixed Capacity
• LAN Located
dependencies
• Latency intolerant
• Tightly coupled
• Consolidated /
clustered DB
• Rich / chatty client
• Commercial licenses
• Infra Supported
Availability
• Semi-automated
build/deploy
• Manual fault
recovery
• Active/Passive/DR
• Perimeter Security
• Allocated costs
The “Old World”
Cloud Aligned
Architectures
• Scale Out
• Distributed
• Stateless
• Infra Agnostic
• Elastic capacity
• WAN, Location
transparency
• Latency tolerant
• Loosely coupled
• Sharded /
replicated /
distributed DB
• Mobile/thin client
• PaaS / Open Source
• App Supported
Availability
• Continuous
Integration/Delivery
• Self healing, fault
tolerant
• Active/Active
• Defense in depth
• Pay as you go
The “New World”
The Targets
Refactor
Automate

6. © 2014 Cloud Technology Partners, Inc. / Confidential
6

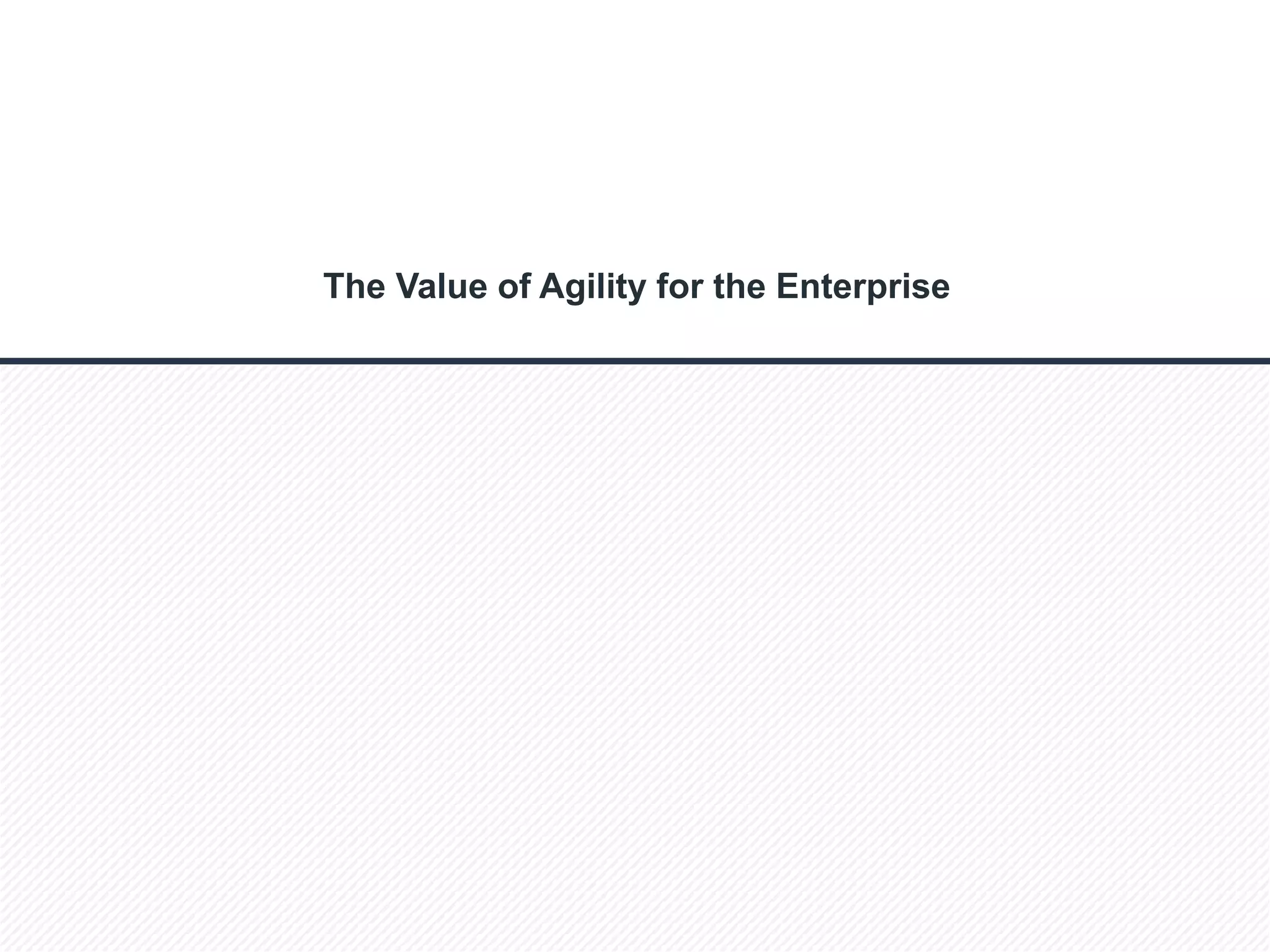

The Value of Agility for the Enterprise

7. © 2014 Cloud Technology Partners, Inc. / Confidential
7

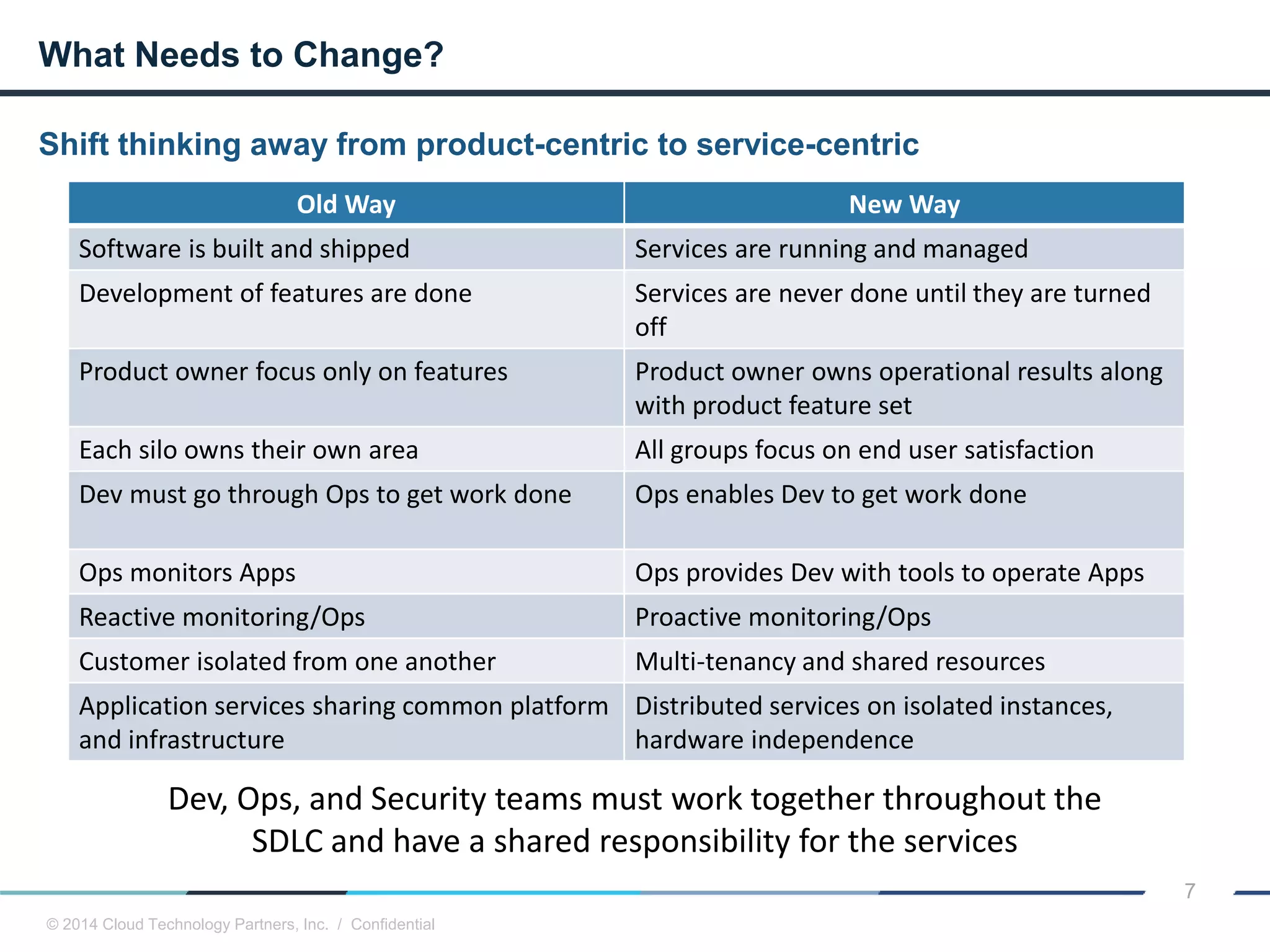

Shift thinking away from product-centric to service-centric
What Needs to Change?
Old Way New Way
Software is built and shipped Services are running and managed
Development of features are done Services are never done until they are turned
off
Product owner focus only on features Product owner owns operational results along
with product feature set
Each silo owns their own area All groups focus on end user satisfaction
Dev must go through Ops to get work done Ops enables Dev to get work done
Ops monitors Apps Ops provides Dev with tools to operate Apps
Reactive monitoring/Ops Proactive monitoring/Ops
Customer isolated from one another Multi-tenancy and shared resources
Application services sharing common platform
and infrastructure
Distributed services on isolated instances,
hardware independence
Dev, Ops, and Security teams must work together throughout the
SDLC and have a shared responsibility for the services

8. © 2014 Cloud Technology Partners, Inc. / Confidential
8

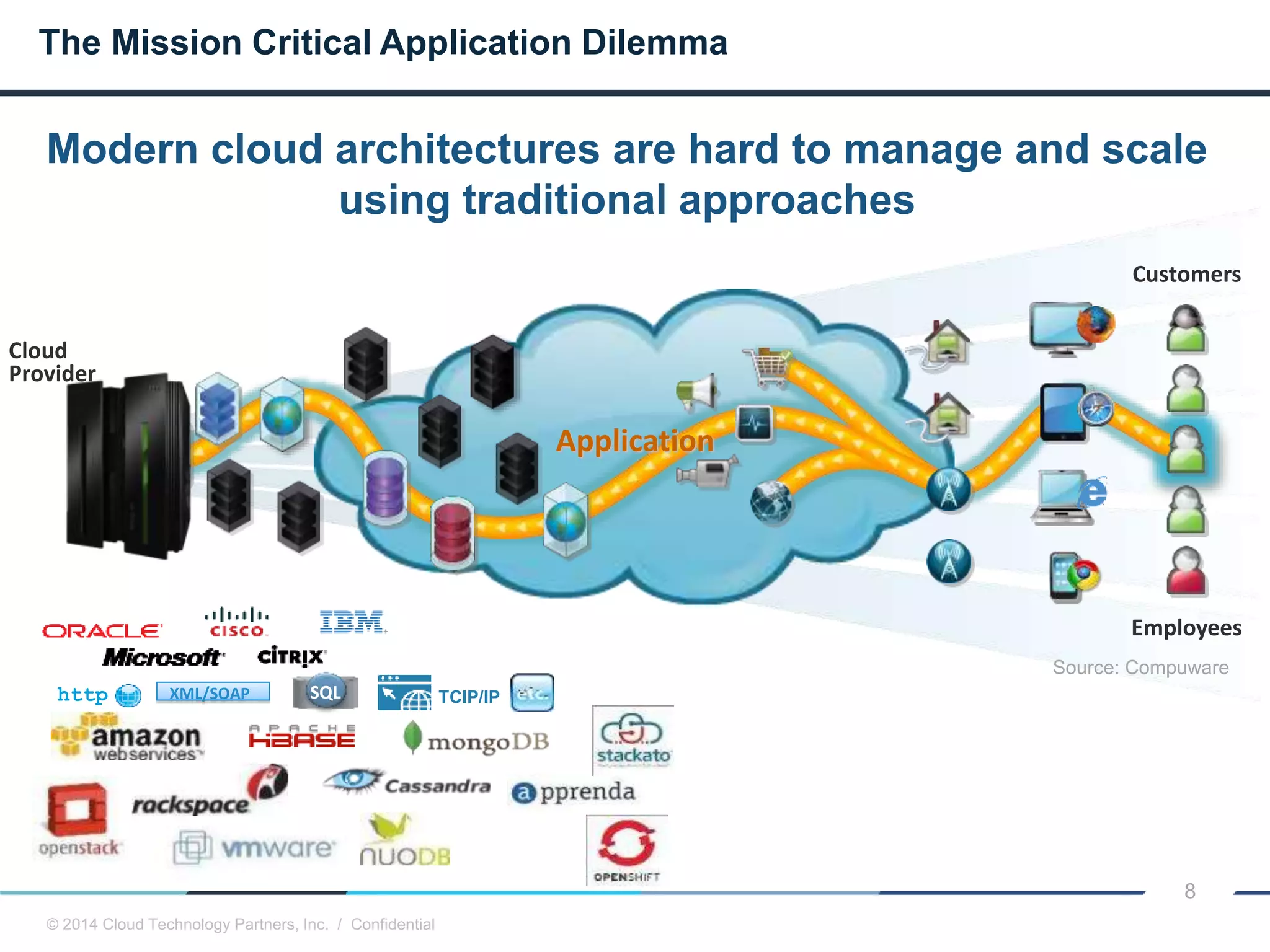

Modern cloud architectures are hard to manage and scale
using traditional approaches
The Mission Critical Application Dilemma
Cloud
Provider
Customers
Employees
Application
Source: Compuware
XML/SOAPhttp SQL TCIP/IP

9. © 2014 Cloud Technology Partners, Inc. / Confidential
9

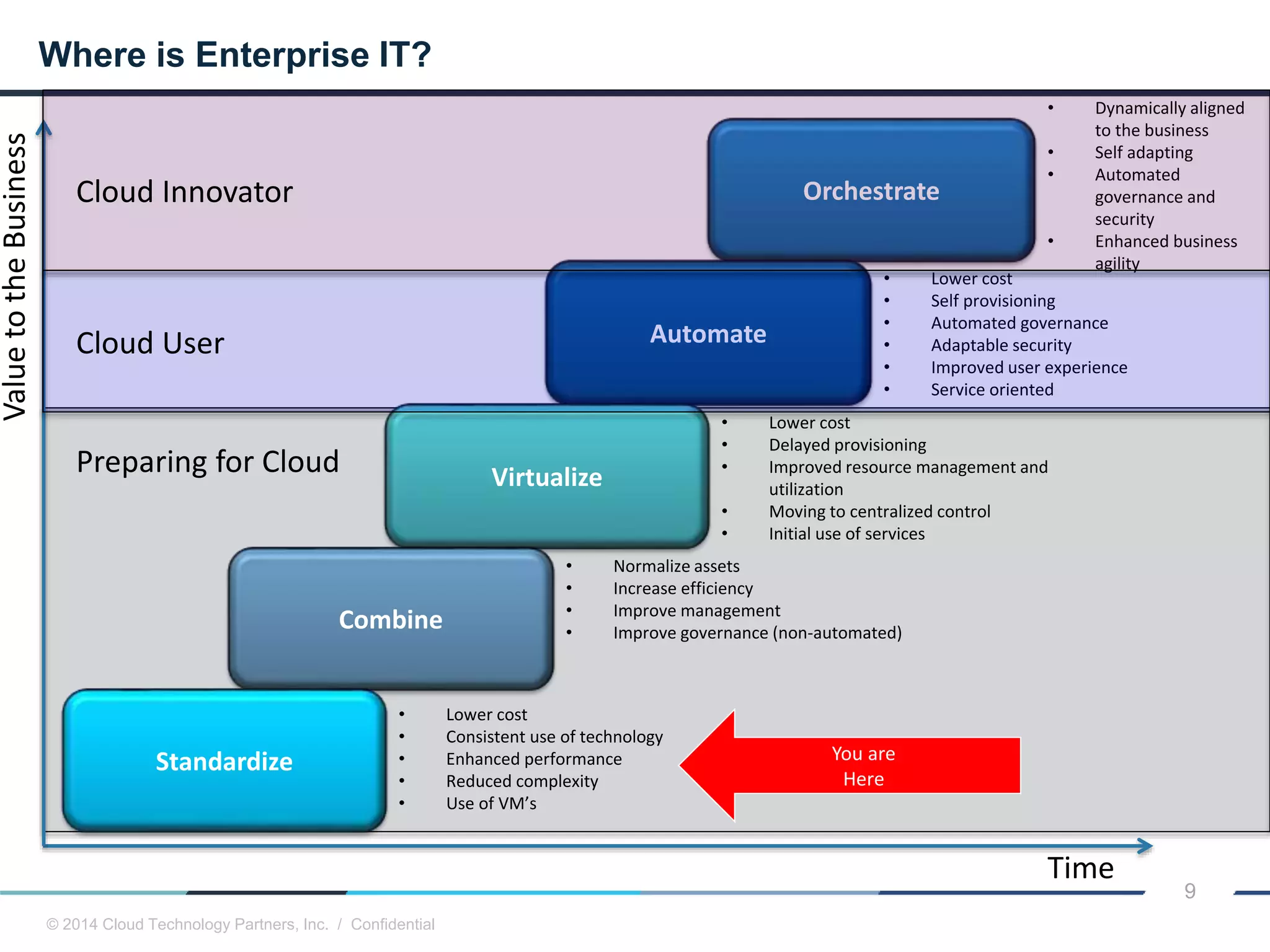

Where is Enterprise IT?
Orchestrate
Automate
Virtualize
Combine
Standardize
Time
ValuetotheBusiness
• Lower cost
• Consistent use of technology
• Enhanced performance
• Reduced complexity
• Use of VM’s
• Normalize assets
• Increase efficiency
• Improve management
• Improve governance (non-automated)
• Lower cost
• Delayed provisioning
• Improved resource management and
utilization
• Moving to centralized control
• Initial use of services
• Lower cost
• Self provisioning
• Automated governance
• Adaptable security
• Improved user experience
• Service oriented
• Dynamically aligned
to the business
• Self adapting
• Automated
governance and
security
• Enhanced business
agility
Preparing for Cloud
Cloud User
Cloud Innovator
You are
Here

10. © 2014 Cloud Technology Partners, Inc. / Confidential
10

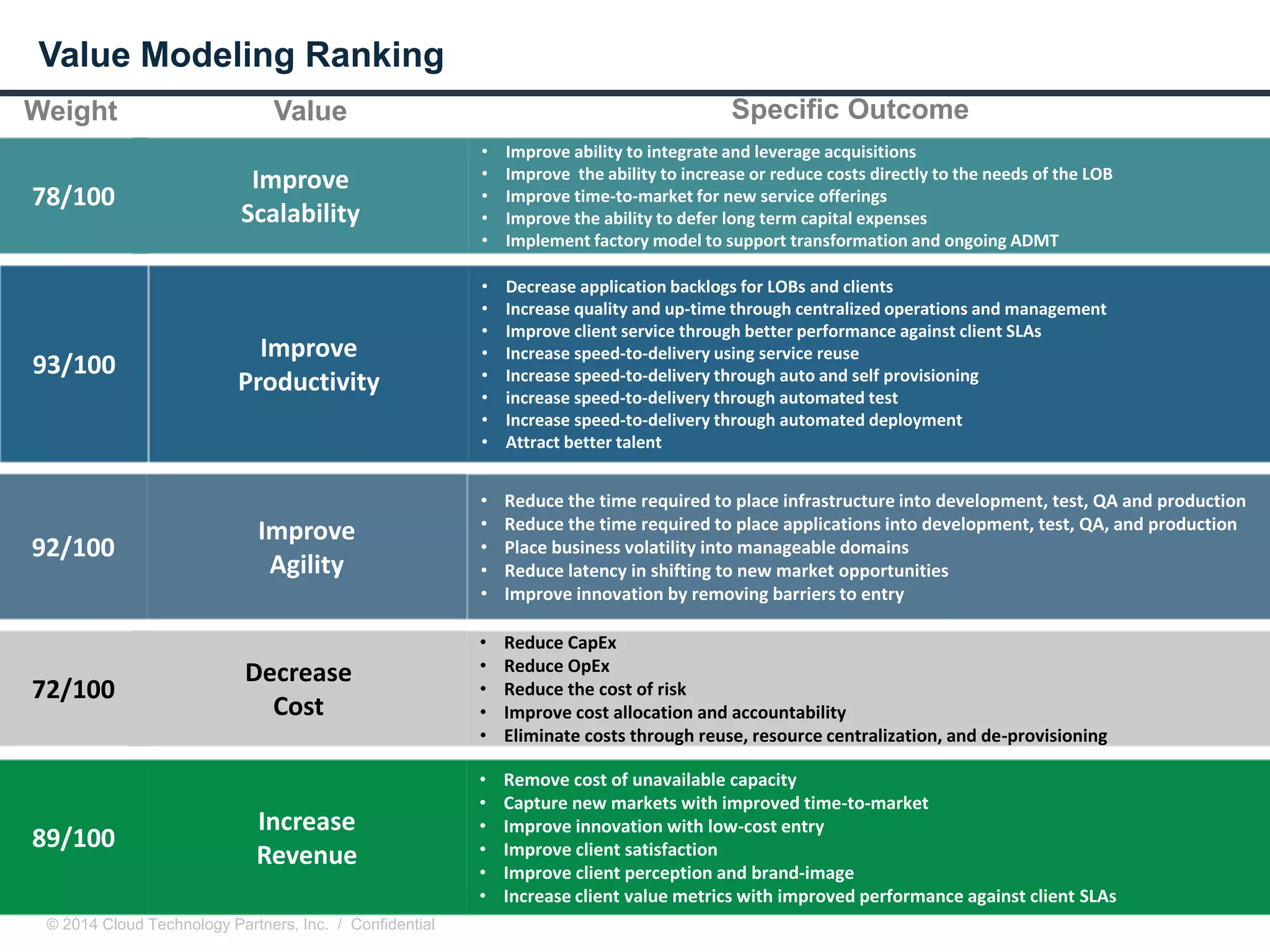

Value Modeling Ranking
Improve
Scalability
Improve
Productivity
Improve
Agility
Decrease
Cost
• Improve ability to integrate and leverage acquisitions
• Improve the ability to increase or reduce costs directly to the needs of the LOB
• Improve time-to-market for new service offerings
• Improve the ability to defer long term capital expenses
• Implement factory model to support transformation and ongoing ADMT
• Decrease application backlogs for LOBs and clients
• Increase quality and up-time through centralized operations and management
• Improve client service through better performance against client SLAs
• Increase speed-to-delivery using service reuse
• Increase speed-to-delivery through auto and self provisioning
• increase speed-to-delivery through automated test
• Increase speed-to-delivery through automated deployment
• Attract better talent
• Reduce the time required to place infrastructure into development, test, QA and production
• Reduce the time required to place applications into development, test, QA, and production
• Place business volatility into manageable domains
• Reduce latency in shifting to new market opportunities
• Improve innovation by removing barriers to entry
• Reduce CapEx
• Reduce OpEx
• Reduce the cost of risk
• Improve cost allocation and accountability
• Eliminate costs through reuse, resource centralization, and de-provisioning
• Remove cost of unavailable capacity
• Capture new markets with improved time-to-market
• Improve innovation with low-cost entry
• Improve client satisfaction
• Improve client perception and brand-image
• Increase client value metrics with improved performance against client SLAs
Increase
Revenue
Weight
78
83
92
56
76
78/100
93/100
92/100
72/100
89/100
Value Specific Outcome

11. © 2014 Cloud Technology Partners, Inc. / Confidential
11

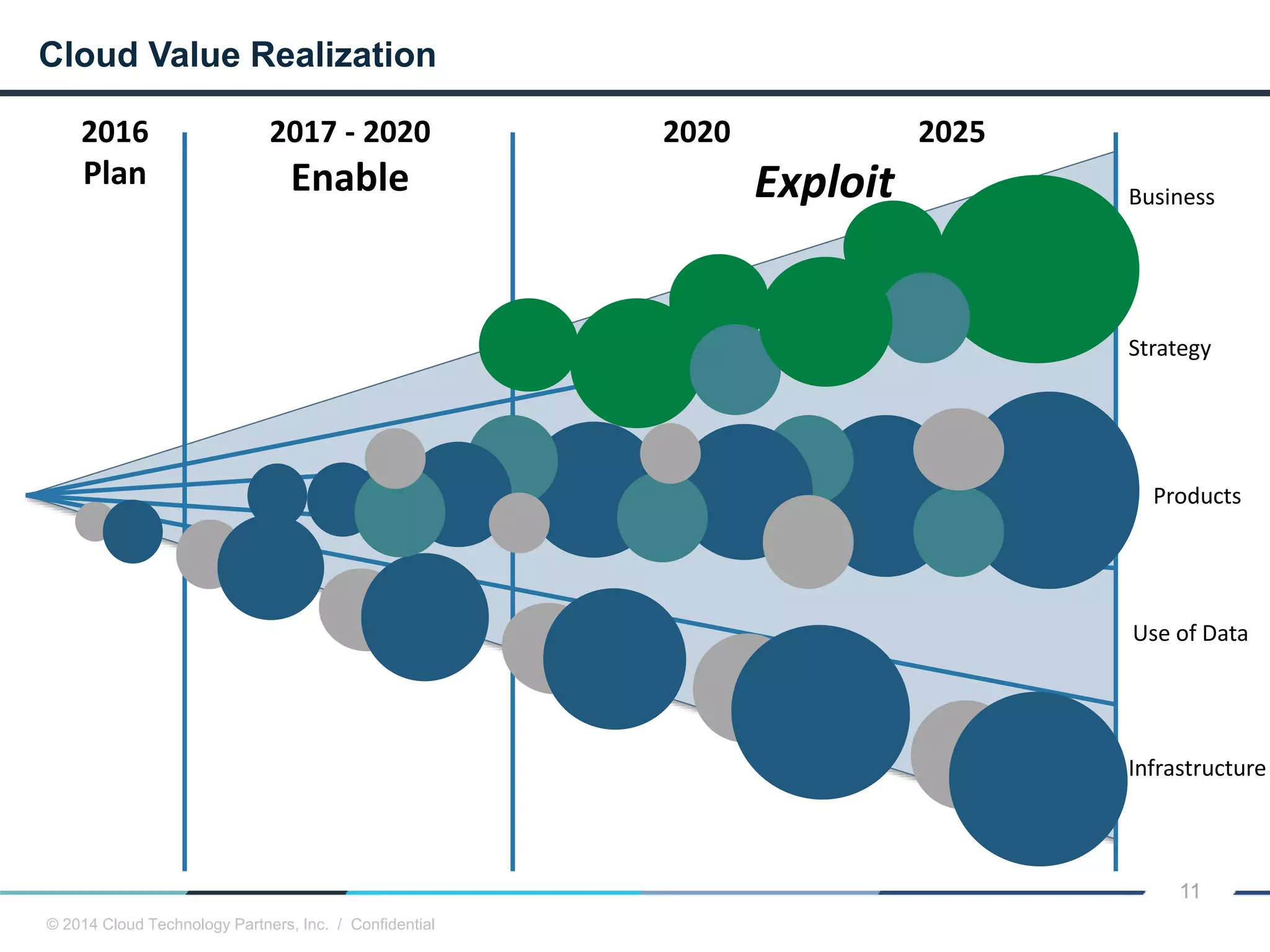

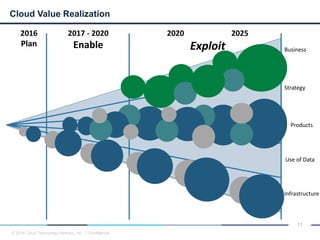

Cloud Value Realization
2016
Plan
2017 - 2020
Enable
2020 2025
Exploit Business
Strategy
Products
Use of Data
Infrastructure

12. © 2014 Cloud Technology Partners, Inc. / Confidential
12

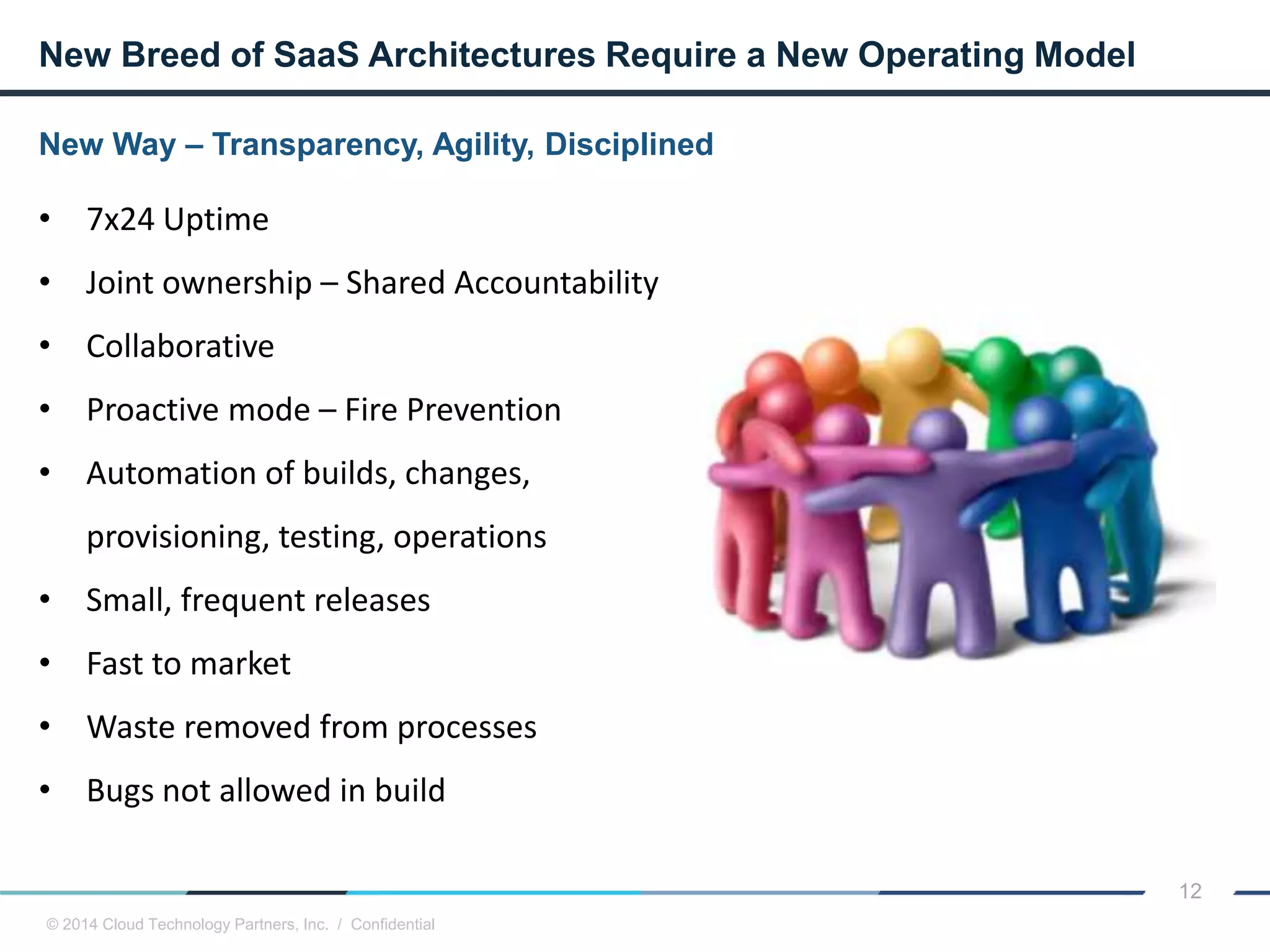

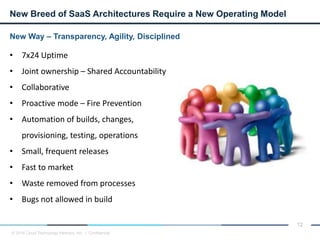

New Way – Transparency, Agility, Disciplined
New Breed of SaaS Architectures Require a New Operating Model
• 7x24 Uptime
• Joint ownership – Shared Accountability
• Collaborative
• Proactive mode – Fire Prevention
• Automation of builds, changes,
provisioning, testing, operations
• Small, frequent releases
• Fast to market
• Waste removed from processes
• Bugs not allowed in build

13. © 2014 Cloud Technology Partners, Inc. / Confidential
13

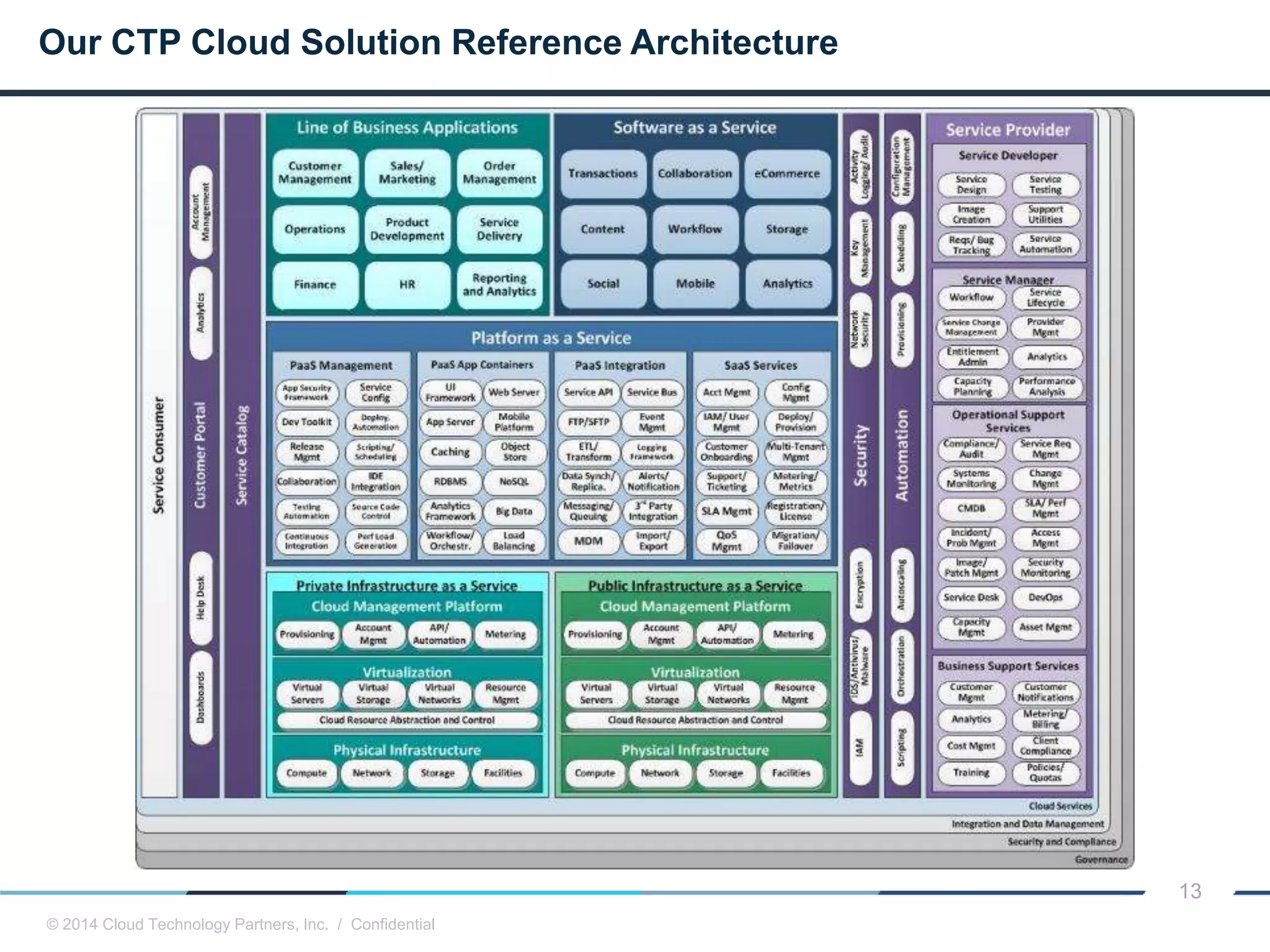

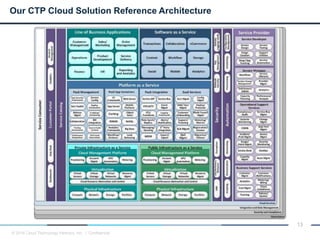

Our CTP Cloud Solution Reference Architecture

14. © 2014 Cloud Technology Partners, Inc. / Confidential
14

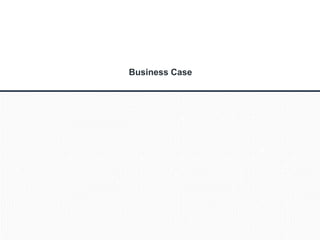

Business Case

15. © 2014 Cloud Technology Partners, Inc. / Confidential
15

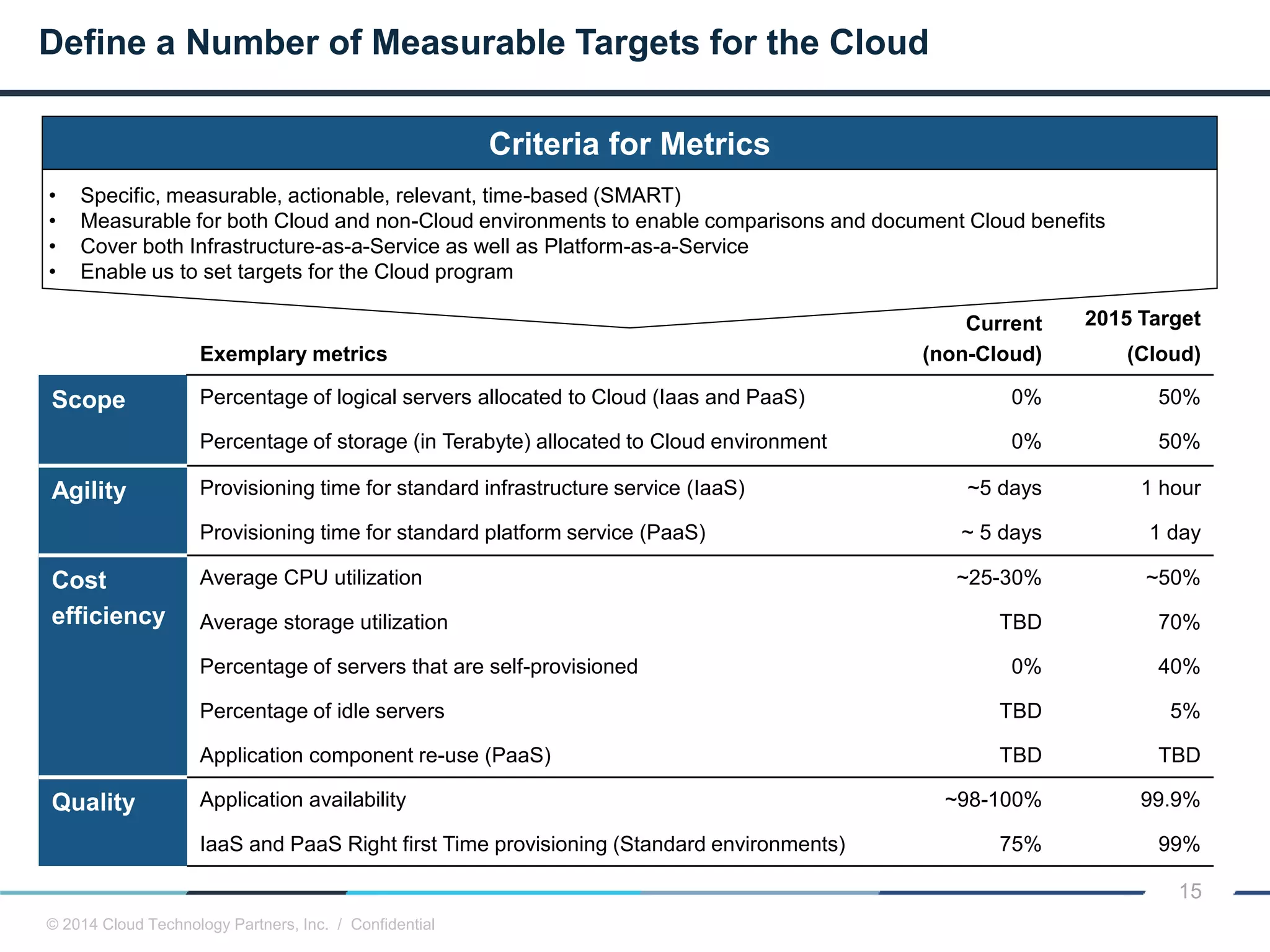

Define a Number of Measurable Targets for the Cloud
Exemplary metrics
Current
(non-Cloud)
2015 Target
(Cloud)
Scope Percentage of logical servers allocated to Cloud (Iaas and PaaS) 0% 50%
Percentage of storage (in Terabyte) allocated to Cloud environment 0% 50%
Agility Provisioning time for standard infrastructure service (IaaS) ~5 days 1 hour
Provisioning time for standard platform service (PaaS) ~ 5 days 1 day
Cost
efficiency
Average CPU utilization ~25-30% ~50%
Average storage utilization TBD 70%
Percentage of servers that are self-provisioned 0% 40%
Percentage of idle servers TBD 5%
Application component re-use (PaaS) TBD TBD
Quality Application availability ~98-100% 99.9%
IaaS and PaaS Right first Time provisioning (Standard environments) 75% 99%
• Specific, measurable, actionable, relevant, time-based (SMART)
• Measurable for both Cloud and non-Cloud environments to enable comparisons and document Cloud benefits
• Cover both Infrastructure-as-a-Service as well as Platform-as-a-Service
• Enable us to set targets for the Cloud program
Criteria for Metrics

16. © 2014 Cloud Technology Partners, Inc. / Confidential
16
0
500,000
1,000,000
1,500,000
2,000,000
2,500,000
3,000,000
3,500,000
4,000,000
4,500,000
Jan-11 Jul-11 Jan-12 Jul-12 Jan-13 Jul-13 Jan-14 Jul-14 Jan-15 Jul-15

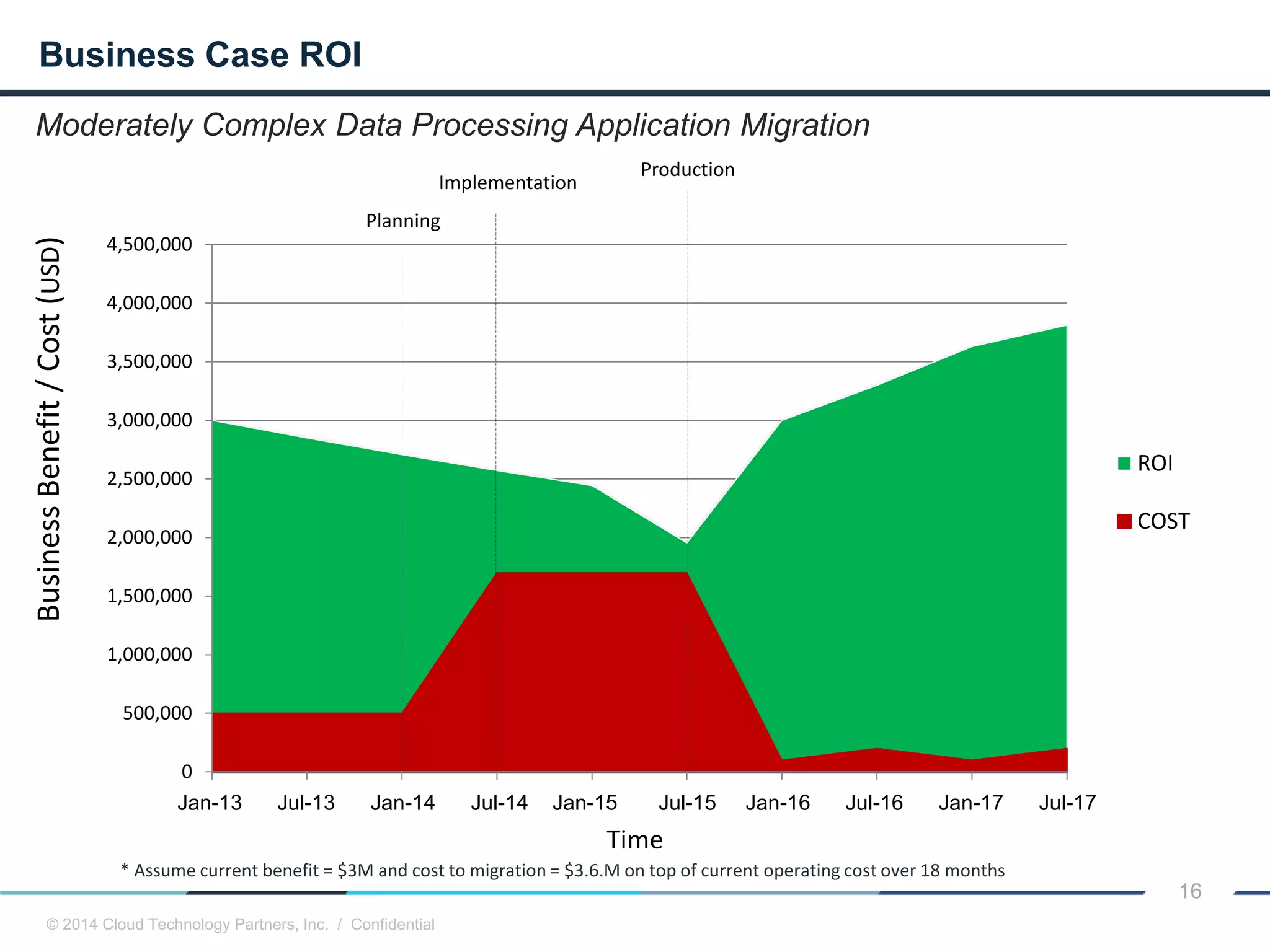

ROI
COST
Moderately Complex Data Processing Application Migration
Business Case ROIBusinessBenefit/Cost(USD)
Time
Implementation
Planning
* Assume current benefit = $3M and cost to migration = $3.6.M on top of current operating cost over 18 months
Production
Jan-13 Jul-13 Jan-14 Jul-14 Jan-15 Jul-15 Jan-16 Jul-16 Jan-17 Jul-17

17. © 2014 Cloud Technology Partners, Inc. / Confidential
17

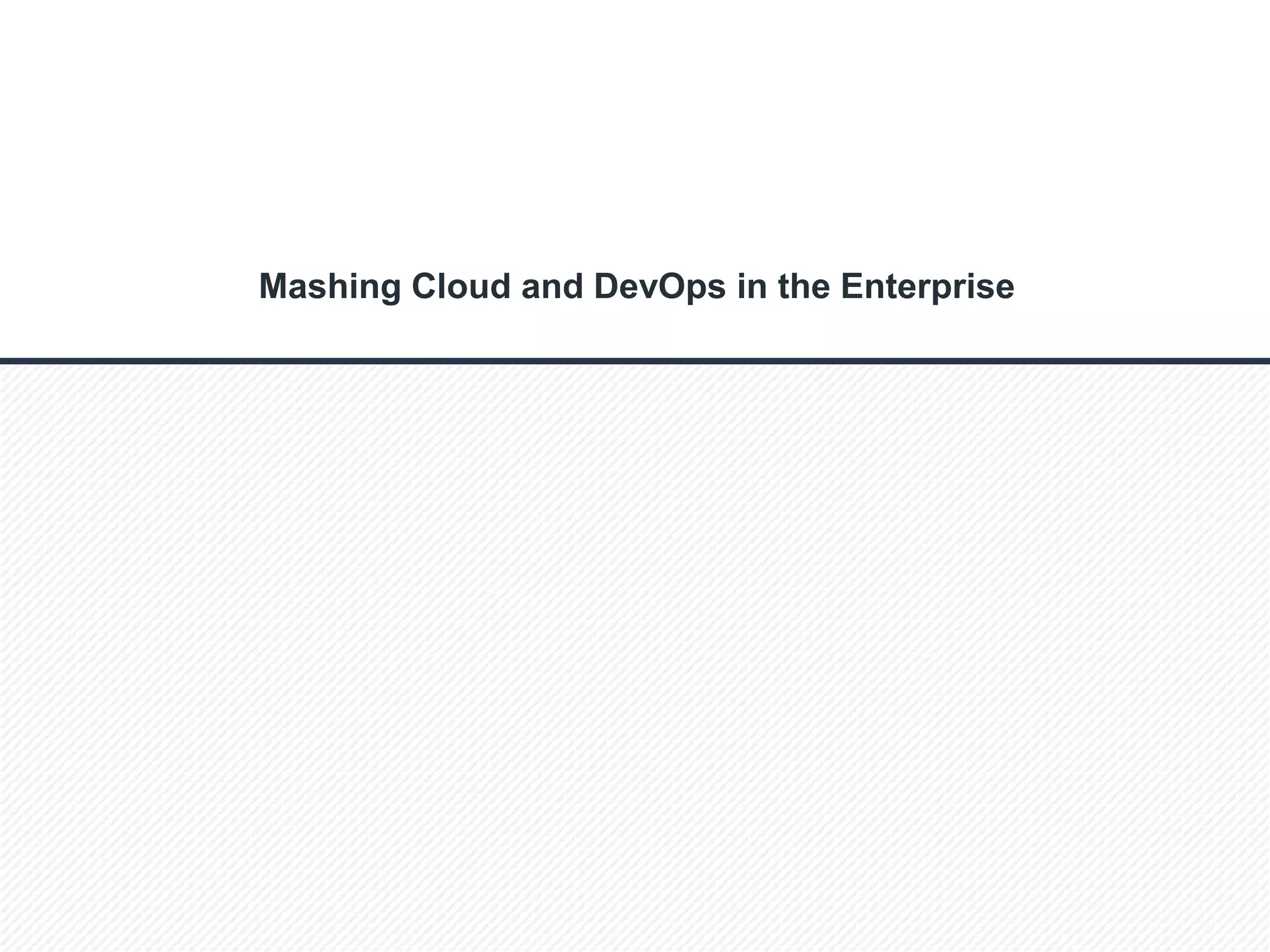

Mashing Cloud and DevOps in the Enterprise

18. © 2014 Cloud Technology Partners, Inc. / Confidential
18

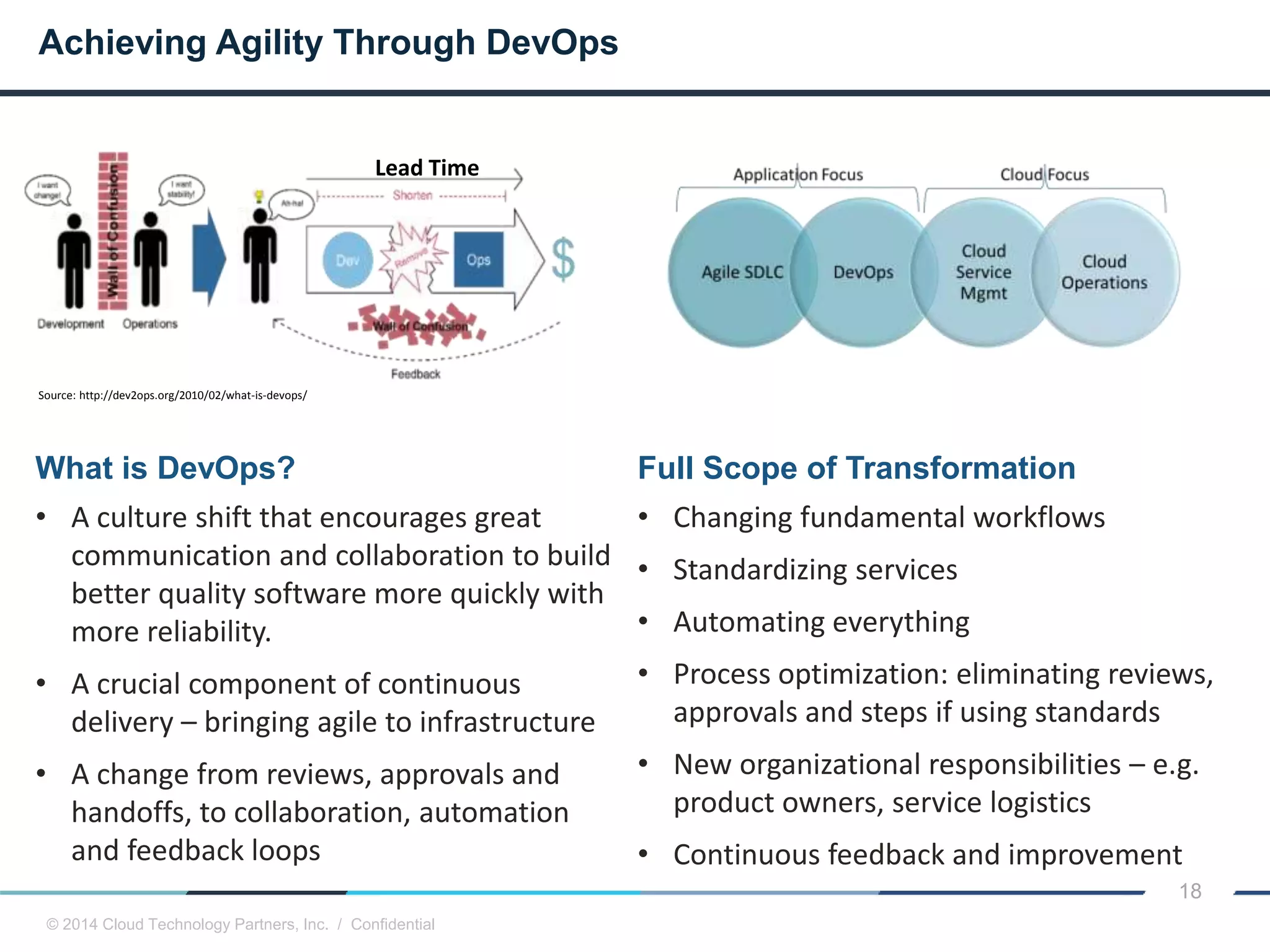

What is DevOps?
• A culture shift that encourages great
communication and collaboration to build
better quality software more quickly with
more reliability.
• A crucial component of continuous
delivery – bringing agile to infrastructure
• A change from reviews, approvals and
handoffs, to collaboration, automation
and feedback loops
Full Scope of Transformation
• Changing fundamental workflows
• Standardizing services
• Automating everything
• Process optimization: eliminating reviews,
approvals and steps if using standards
• New organizational responsibilities – e.g.
product owners, service logistics
• Continuous feedback and improvement
Achieving Agility Through DevOps
Lead Time
Source: http://dev2ops.org/2010/02/what-is-devops/

19. © 2014 Cloud Technology Partners, Inc. / Confidential
19

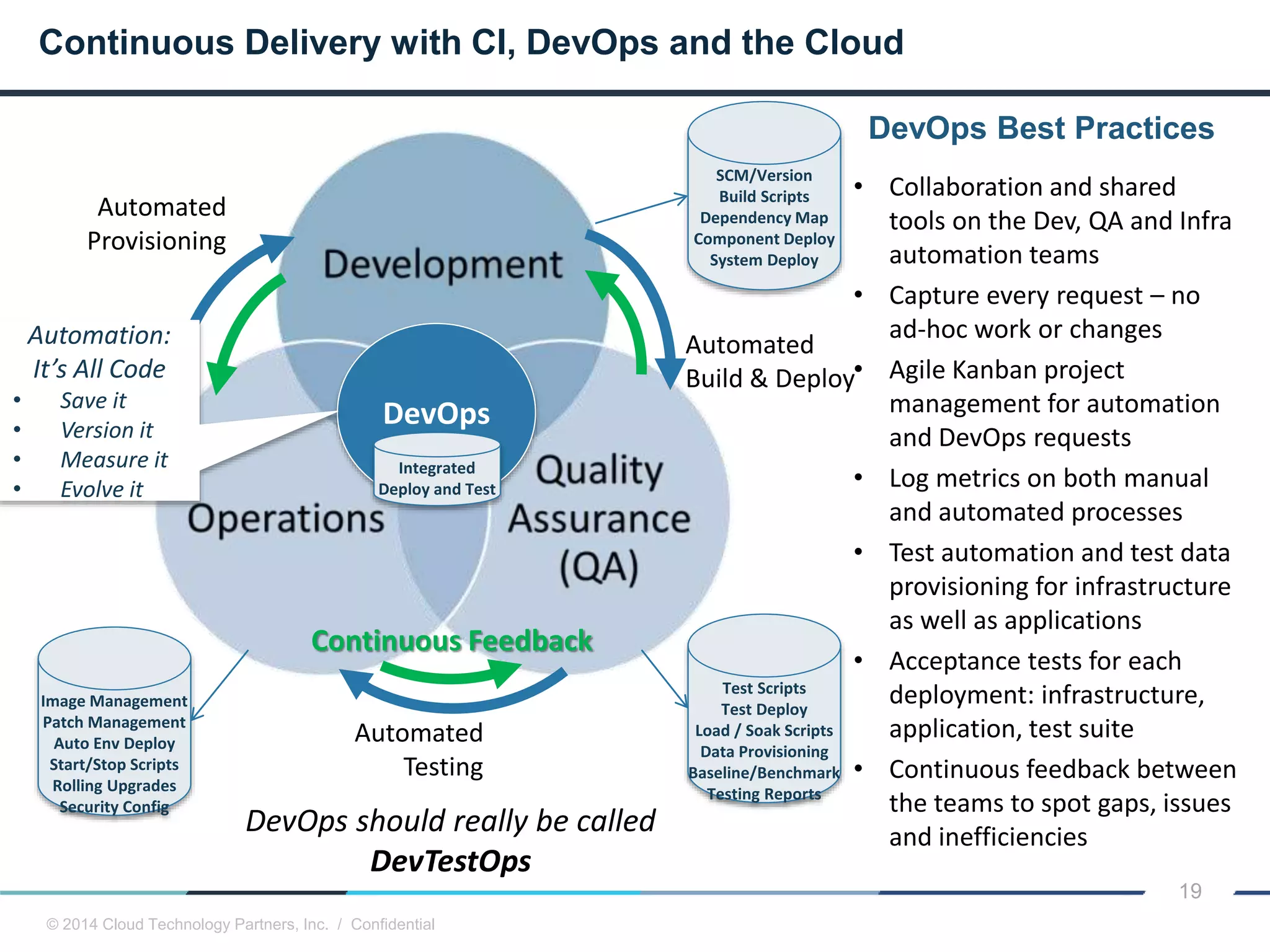

Continuous Delivery with CI, DevOps and the Cloud
DevOps
Automated
Provisioning
Automated
Testing
Automated
Build & Deploy
SCM/Version
Build Scripts
Dependency Map
Component Deploy
System Deploy
Test Scripts
Test Deploy
Load / Soak Scripts
Data Provisioning
Baseline/Benchmark
Testing Reports
Image Management
Patch Management
Auto Env Deploy
Start/Stop Scripts
Rolling Upgrades
Security Config
Integrated
Deploy and Test
DevOps should really be called
DevTestOps
• Collaboration and shared
tools on the Dev, QA and Infra
automation teams
• Capture every request – no
ad-hoc work or changes
• Agile Kanban project
management for automation
and DevOps requests
• Log metrics on both manual
and automated processes
• Test automation and test data
provisioning for infrastructure
as well as applications
• Acceptance tests for each
deployment: infrastructure,
application, test suite
• Continuous feedback between
the teams to spot gaps, issues
and inefficiencies
Automation:
It’s All Code
• Save it
• Version it
• Measure it
• Evolve it
Continuous Feedback
DevOps Best Practices

20. © 2014 Cloud Technology Partners, Inc. / Confidential
20
Crawl
Walk
Run
Fly

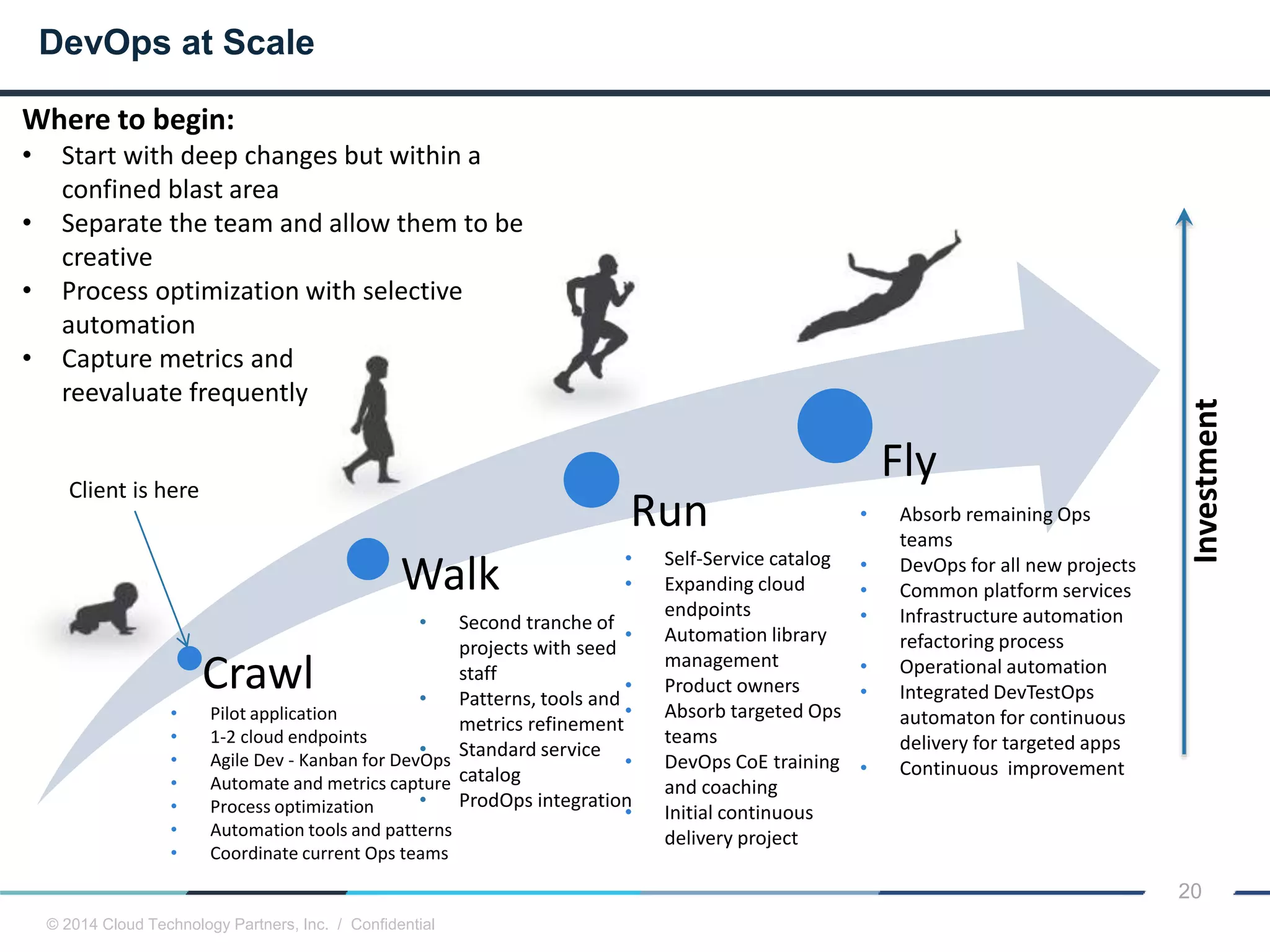

DevOps at Scale
Investment
• Pilot application
• 1-2 cloud endpoints
• Agile Dev - Kanban for DevOps
• Automate and metrics capture
• Process optimization
• Automation tools and patterns
• Coordinate current Ops teams
• Second tranche of
projects with seed
staff
• Patterns, tools and
metrics refinement
• Standard service
catalog
• ProdOps integration
• Self-Service catalog
• Expanding cloud
endpoints
• Automation library
management
• Product owners
• Absorb targeted Ops
teams
• DevOps CoE training
and coaching
• Initial continuous
delivery project
• Absorb remaining Ops
teams
• DevOps for all new projects
• Common platform services
• Infrastructure automation
refactoring process
• Operational automation
• Integrated DevTestOps
automaton for continuous
delivery for targeted apps
• Continuous improvement
Client is here
Where to begin:
• Start with deep changes but within a
confined blast area
• Separate the team and allow them to be
creative
• Process optimization with selective
automation
• Capture metrics and
reevaluate frequently

21. © 2014 Cloud Technology Partners, Inc. / Confidential
21
Maturity Level People Process Technology
Level 1
Ad-Hoc
• Silo based
• Blame, finger pointing
• Dependent on experts
• Lack of accountability
• Manual processes
• Tribal knowledge is the norm
• Unpredictable, reactive
• Manual builds and
deployments
• Manual testing
• Environment inconsistencies
Level 2
Repeatable
• Managed communications
• Limited knowledge sharing
• Processes established within
silos
• No standards
• Can repeat what is known,
but can’t react to unknowns
• Automated builds
• Automated tests written as
part of story development
• Painful but repeatable
releases
Level 3
Defined
• Collaboration exists
• Shared decision making
• Shared Accountability
• Processes are automated
across SDLC
• Standards across organization
• Automated build & test cycle
for every commit
• Push button deployments
• Automated user &
acceptance testing
Level 4
Measured
• Collaboration backed on
shared metrics with a focus
on removing bottlenecks
• Proactive monitoring
• Metrics collected and
analyzed against business
goals
• Visibility & predictability
• Build metrics visible and
acted on
• Orchestrated deployments
with auto rollbacks
• Non functional requirements
defined and measured
Level 5
Optimized
• A culture of continuous
improvement permeates
through the organization
• Self service automation
• Risk & cost optimization
• High degree of
experimentation
• Zero downtime deployments
• Immutable infrastructure
• Actively enforce resiliency by
forcing failures

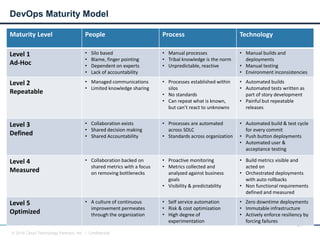

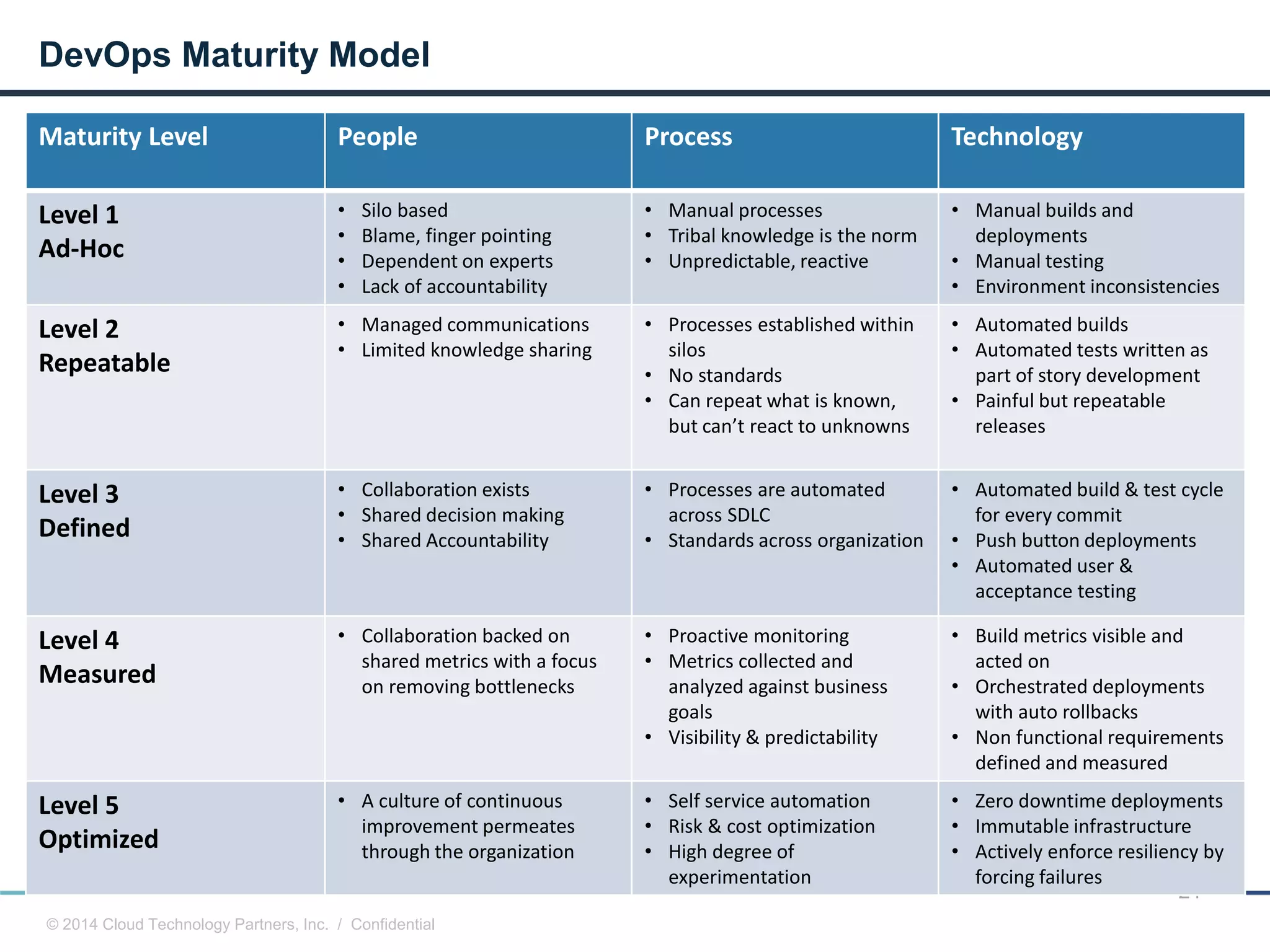

DevOps Maturity Model

22. © 2014 Cloud Technology Partners, Inc. / Confidential
22
Maturity Level People Process Technology
Level 1
Ad-Hoc
• Silo based
• Blame, finger pointing
• Dependent on experts
• Lack of accountability
• Manual processes
• Tribal knowledge is the norm
• Unpredictable, reactive
• Manual builds and
deployments
• Manual testing
• Environment inconsistencies
Level 2
Repeatable
• Managed communications
• Limited knowledge sharing
• Processes established within
silos
• No standards
• Can repeat what is known,
but can’t react to unknowns
• Automated builds
• Automated tests written as
part of story development
• Painful but repeatable
releases
Level 3
Defined
• Collaboration exists
• Shared decision making
• Shared Accountability
• Processes are automated
across SDLC
• Standards across organization
• Automated build & test cycle
for every commit
• Push button deployments
• Automated user &
acceptance testing
Level 4
Measured
• Collaboration backed on
shared metrics with a focus
on removing bottlenecks
• Proactive monitoring
• Metrics collected and
analyzed against business
goals
• Visibility & predictability
• Build metrics visible and
acted on
• Orchestrated deployments
with auto rollbacks
• Non functional requirements
defined and measured
Level 5
Optimized
• A culture of continuous
improvement permeates
through the organization
• Self service automation
• Risk & cost optimization
• High degree of
experimentation
• Zero downtime deployments
• Immutable infrastructure
• Actively enforce resiliency by
forcing failures
DevOps Maturity Model

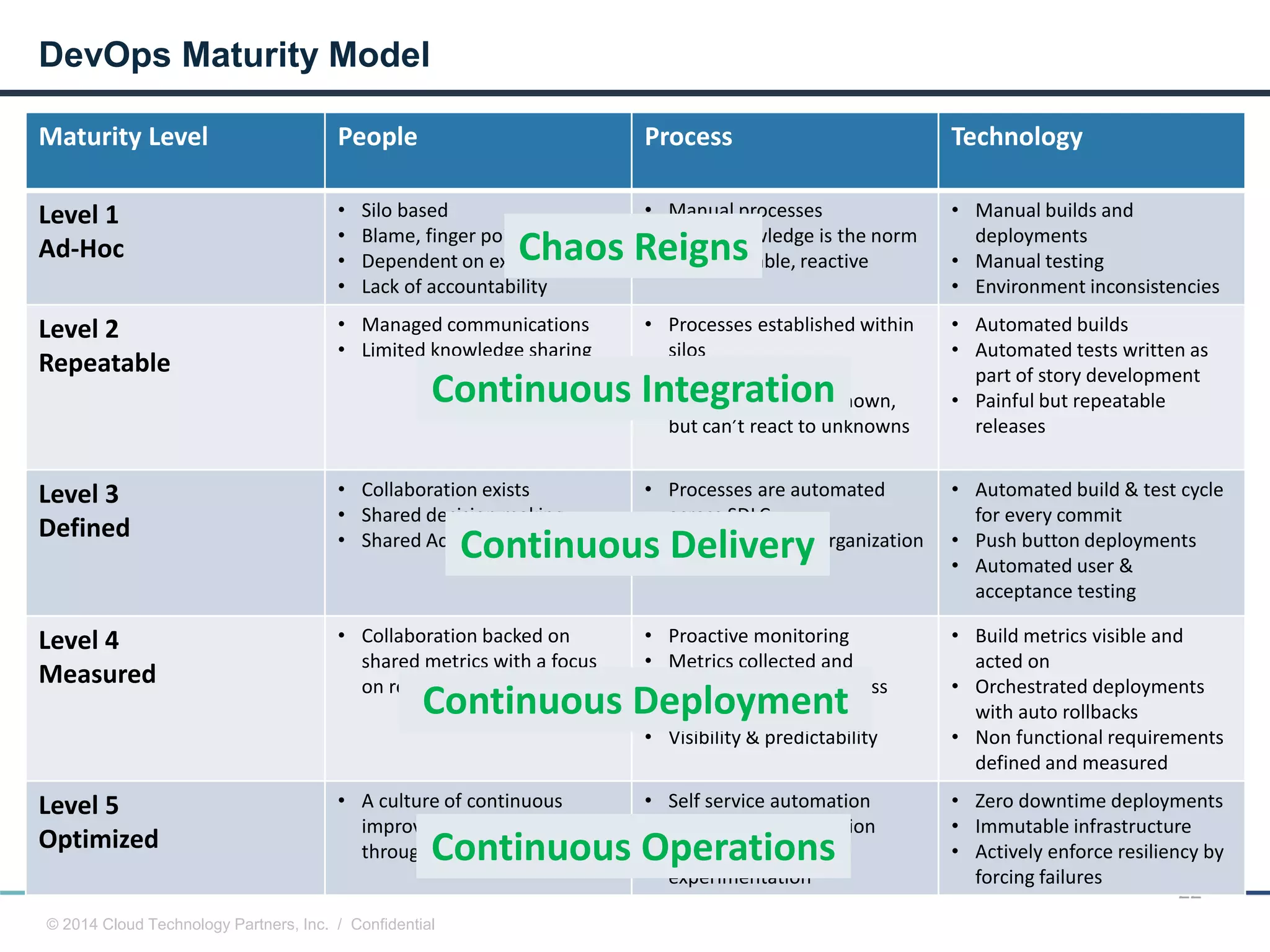

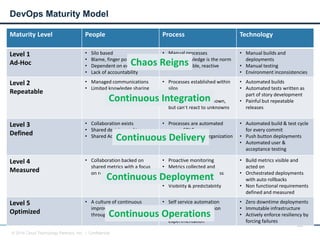

Chaos Reigns
Continuous Integration
Continuous Delivery
Continuous Deployment
Continuous Operations

23. © 2014 Cloud Technology Partners, Inc. / Confidential
23

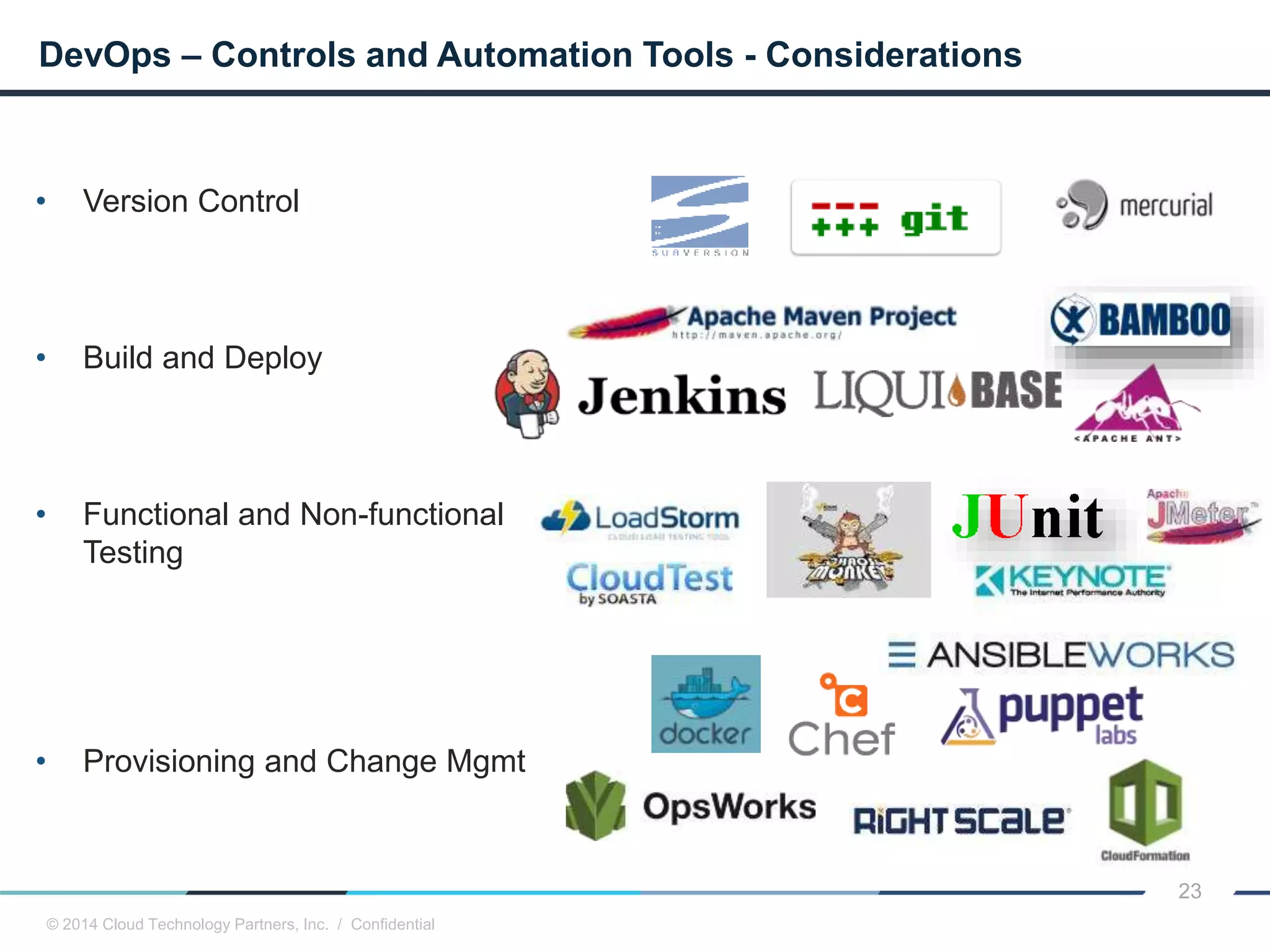

• Version Control
• Build and Deploy
• Functional and Non-functional
Testing
• Provisioning and Change Mgmt
DevOps – Controls and Automation Tools - Considerations

24. © 2014 Cloud Technology Partners, Inc. / Confidential
24
Thanks!
Questions?
David Linthicum
David.linthicum@cloudtp.com
