CloudServiceManagement discusses strategic implications of cloud computing for IT service management. It provides an overview of cloud basics, industry dynamics, OpenStack as an open source cloud platform, and HP's approach and portfolio for helping customers adopt cloud. HP's Helion integration program maps requirements across three phases to deliver a virtual private cloud offering integrated with IT service management tools.
Cloud Services Integration Automation-External

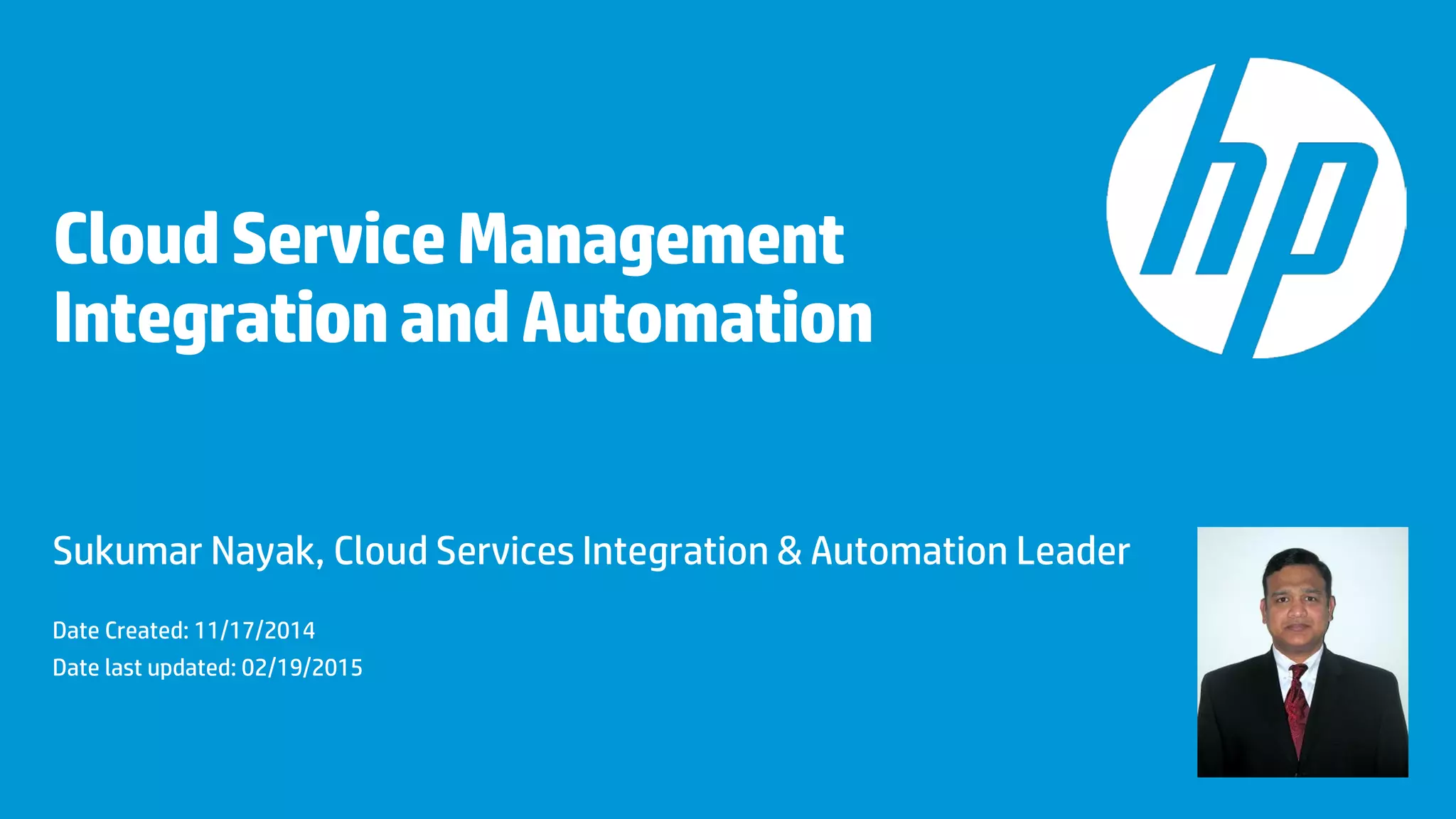

- 1. CloudServiceManagement IntegrationandAutomation Sukumar Nayak, CloudServices Integration & Automation Leader Date Created: 11/17/2014 Date last updated: 02/19/2015

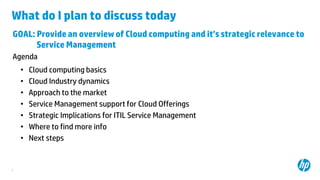

- 2. 2 What do Iplan to discuss today GOAL: Provide an overview of Cloud computing and it’s strategic relevance to Service Management Agenda • Cloud computing basics • Cloud Industry dynamics • Approach to the market • Service Management support for Cloud Offerings • Strategic Implications for ITIL Service Management • Where to find more info • Next steps

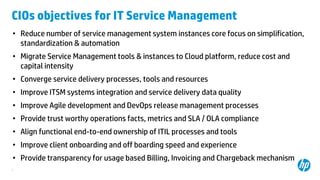

- 3. 3 CIOs objectives forIT Service Management • Reduce number of service management system instances core focus on simplification, standardization & automation • Migrate Service Management tools & instances to Cloud platform, reduce cost and capital intensity • Converge service delivery processes, tools and resources • Improve ITSM systems integration and service delivery data quality • Improve Agile development and DevOps release management processes • Provide trust worthy operations facts, metrics and SLA / OLA compliance • Align functional end-to-end ownership of ITIL processes and tools • Improve client onboarding and off boarding speed and experience • Provide transparency for usage based Billing, Invoicing and Chargeback mechanism
- 4. 4 Cloud computing basics NISTDefinition: Cloud computing is a model for enabling ubiquitous, convenient, on-demand network access to a shared pool of configurable computing resources (e.g., networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction. This cloud model is composed of five essential characteristics, three service models, and four deployment models. Ref: NIST Cloud Computing Definition SP 800-145 http://csrc.nist.gov/publications/nistpubs/800-145/SP800-145.pdf 5 Essential Characteristics • On-demand self-service • Resource pooling • Rapid elasticity • Measured service • Broad network access 3 Service Delivery Models • Software as a Service (SaaS) • Platform as a Service (PaaS) • Infrastructure as a Service (IaaS) 4 Deployment Models • Public Cloud • Private Cloud • Community Cloud • Hybrid Cloud

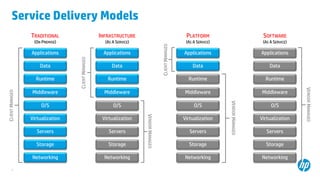

- 5. 5 Storage Servers Networking O/S Middleware Virtualization Data Applications Runtime CLIENTMANAGED Storage Servers Networking O/S Middleware Virtualization Data Applications Runtime INFRASTRUCTURE (AS A SERVICE) VENDORMANAGED Storage Servers Networking O/S Middleware Virtualization Data Applications Runtime PLATFORM (ASA SERVICE) CLIENTMANAGED VENDORMANAGED CLIENTMANAGED Storage Servers Networking O/S Middleware Virtualization Data Applications Runtime SOFTWARE (AS A SERVICE) VENDORMANAGED Service Delivery Models TRADITIONAL (ON PREMISE)
- 6. 6 Enterprise Architecture andCloud Architecture Business Architecture Information Architecture Application Architecture Technology & Infrastructure Architecture Service Delivery What, Who, Why • Mission • Vision • Stakeholders • Operating Model & Processes • Value Chain Models • Metrics & Measures • Align Business Strategy to IT Strategy What, How • Data Models • Data Flows • Interface, Integration & Interoperability • Relevance to Business functions With what • Applications • Tools • Functions • Capabilities • Workflows With what • Servers • Software • Network • Storage • GRC, Legal, Security & Privacy • Date Centers Sites How & How much • Deployment • Chargeback • Break fix • SLAs/SLOs • Operations & Management Enterprise Architecture focus Cloud Architecture focus

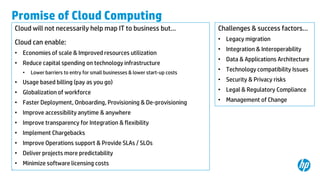

- 7. 7 Promise of CloudComputing Cloud will not necessarily help map IT to business but… Cloud can enable: • Economies of scale & Improved resources utilization • Reduce capital spending on technology infrastructure • Lower barriers to entry for small businesses & lower start-up costs • Usage based billing (pay as you go) • Globalization of workforce • Faster Deployment, Onboarding, Provisioning & De-provisioning • Improve accessibility anytime & anywhere • Improve transparency for Integration & flexibility • Implement Chargebacks • Improve Operations support & Provide SLAs / SLOs • Deliver projects more predictability • Minimize software licensing costs Challenges & success factors… • Legacy migration • Integration & Interoperability • Data & Applications Architecture • Technology compatibility Issues • Security & Privacy risks • Legal & Regulatory Compliance • Management of Change

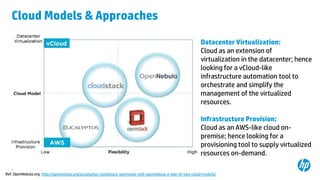

- 8. 8 Cloud Models &Approaches Ref: OpenNebula.org http://opennebula.org/eucalyptus-cloudstack-openstack-and-opennebula-a-tale-of-two-cloud-models/ Datacenter Virtualization: Cloud as an extension of virtualization in the datacenter; hence looking for a vCloud-like infrastructure automation tool to orchestrate and simplify the management of the virtualized resources. Infrastructure Provision: Cloud as an AWS-like cloud on- premise; hence looking for a provisioning tool to supply virtualized resources on-demand.
- 9. 9 Factors for choosingCloud Models & Approaches Datacenter Virtualization Infrastructure Provision Applications Multi-tiered applications defined in a traditional, “enterprise” way “Re-architected” applications to fit into the cloud paradigm Interfaces Feature-rich API and administration portal Simple cloud APIs and self-service portal Management Capabilities Complete life-cycle management of virtual and physical resources Simplified life-cycle management of virtual resources with abstraction of underlying infrastructure Cloud Deployment Mostly private Mostly public Internal Design Bottom-up design dictated by the management of datacenter complexity Top-down design dictated by the efficient implementation of cloud interfaces Enterprise Capabilities High availability, fault tolerance, replication, scheduling… provided by the cloud management platform Most of them built into the application, as in “design for failure” Datacenter Integration Easy to adapt to fit into any existing infrastructure environment to leverage IT investments Built on new, homogeneous commodity infrastructure
- 10. 10 OpenStack introduction Key Components: •Compute (Nova) • Image Service (Glance) • Networking (Neutron) • Object Storage (Swift) • Block Storage (Cinder) • Dashboard (Horizon) • Identity Service (Keystone) • Telemetry (Ceilometer) • Orchestration (Heat) • Database (Trove) • Bare Metal Provisioning (Ironic) • Multiple Tenant Cloud Messaging (Zaqar) • Elastic Map Reduce (Sahara) Ref: OpenStack http://www.openstack.org/

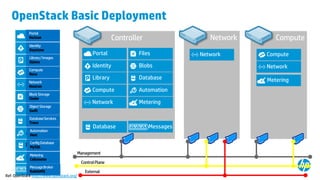

- 11. 11 OpenStack Basic Deployment Automation Database Blobs Files MessagesDatabase Identity Library Compute Network PortalNetwork Compute Network Metering Portal Identity Library Compute Network Automation Database Blobs Files Database Messages Metering Portal Identity Library/Images Compute Network BlockStorage ObjectStorage DatabaseServices Automation MessageBroker Metering ConfigDatabase Metering Ref: OpenStack http://www.openstack.org/
- 12. 12 OpenStack Feature Releases ComputeCompute BlobsObjectStorage LibraryLibrary/Images Portal Identity Portal Identity Network Files Network BlockStorage AutomationAutomation MeteringMetering DatabaseDatabaseServices AustinBexar Cactus Diablo Essex Folsom Grizzly Havana Icehouse Ref: OpenStack http://www.openstack.org/

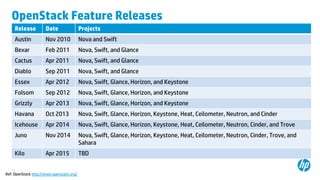

- 13. 13 OpenStack Feature Releases ReleaseDate Projects Austin Nov 2010 Nova and Swift Bexar Feb 2011 Nova, Swift, and Glance Cactus Apr 2011 Nova, Swift, and Glance Diablo Sep 2011 Nova, Swift, and Glance Essex Apr 2012 Nova, Swift, Glance, Horizon, and Keystone Folsom Sep 2012 Nova, Swift, Glance, Horizon, and Keystone Grizzly Apr 2013 Nova, Swift, Glance, Horizon, and Keystone Havana Oct 2013 Nova, Swift, Glance, Horizon, Keystone, Heat, Ceilometer, Neutron, and Cinder Icehouse Apr 2014 Nova, Swift, Glance, Horizon, Keystone, Heat, Ceilometer, Neutron, Cinder, and Trove Juno Nov 2014 Nova, Swift, Glance, Horizon, Keystone, Heat, Ceilometer, Neutron, Cinder, Trove, and Sahara Kilo Apr 2015 TBD Ref: OpenStack http://www.openstack.org/

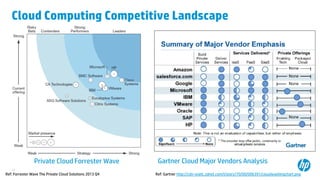

- 14. 14 Cloud Computing CompetitiveLandscape Ref: Forrester Wave The Private Cloud Solutions 2013 Q4 Private Cloud Forrester Wave Ref: Gartner http://cdn-static.zdnet.com/i/story/70/00/006391/cloudwashingchart.png Gartner Cloud Major Vendors Analysis
- 15. 15 HP’s approach • Advise •Determine the best cloud choice for each workload • Understand how to get best return on your current infrastructure and applications investment • Build a business case and high-level plan • Define a step-by-step plan for the journey • Transform • Move from the current state to the future state • Transform application workloads (design, build, and test) • Design and implement Cloud environments • Transition workloads and infrastructure into production • Manage • Provide monitoring and support for hybrid environments with the confidence it is all managed consistently and securely Private PublicTraditional Managed Hybrid Delivery Cloud OS OpenStack Architecture Interoperable Services, Unified Management via OpenStack Build on-premises cloud services Consume off-premises cloud services
- 16. 16 Enterprise Cloud Servicesoffers an ecosystem for Cloud Services Leverage HP’s broad managed Cloud portfolio HP Enterprise Cloud Services Solutions Private Cloud Virtual Private Cloud ContinuityIaaS Messaging Collaboration Unified Communications MobilityEnd User/ Workplace Cloud Microsoft Dynamic CRM SAP Applications OracleApplications AppsTransformation Infrastr.Transformation AppsDev.forCloud

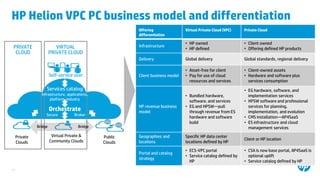

- 17. 17 Orchestrate HP Helion VPCPC business model and differentiation Offering differentiation Virtual Private Cloud (VPC) Private Cloud Infrastructure • HP owned • HP defined • Client owned • Offering defined HP products Delivery Global delivery Global standards, regional delivery Client business model • Asset-free for client • Pay for use of cloud resources and services • Client-owned assets • Hardware and software plus services consumption HP revenue business model • Bundled hardware, software, and services • EG and HPSW—pull through revenue from ES hardware and software build • EG hardware, software, and implementation services • HPSW software and professional services for planning, implementation, and evolution • CMS installation—AP4SaaS • ES infrastructure and cloud management services Geographies and locations Specific HP data center locations defined by HP Client or HP location Portal and catalog strategy • ECS-VPC portal • Service catalog defined by HP • CSA is now base portal, AP4SaaS is optional uplift • Service catalog defined by HP Public Clouds Self-service user BrokerSecure Private Clouds Virtual Private & Community Clouds VIRTUAL PRIVATE CLOUD PRIVATE CLOUD BridgeBridge Services catalog Infrastructure, applications, platform, industry

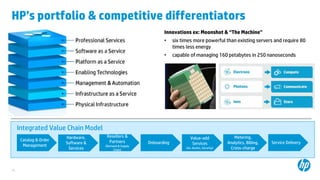

- 18. 18 HP’s portfolio &competitive differentiators Innovations ex: Moonshot & “The Machine” • six times more powerful than existing servers and require 80 times less energy • capable of managing 160 petabytes in 250 nanoseconds Catalog & Order Management Hardware, Software & Services Resellers & Partners (Demand & Supply Chain) Onboarding Value-add Services (ex: Assets, Security) Metering, Analytics, Billing, Cross-charge Service Delivery Integrated Value Chain Model

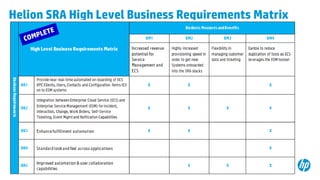

- 19. 19 Helion SRA HighLevel Business Requirements Matrix

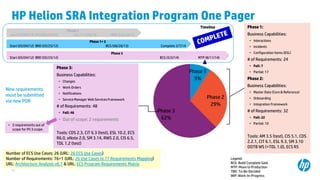

- 20. 20 Number of ECSUse Cases: 26 (URL: 26 ECS Use Cases) Number of Requirements: 76+1 (URL: 26 Use Cases to 77 Requirements Mapping) URL: Architecture Analysis v6.1 & URL: ECS Program Requirements Matrix HP Helion SRA Integration Program One Pager Phase 1 9% Phase 2 29% Phase 3 62% Phase 1: Business Capabilities: • Interactions • Incidents • Configuration Items (ESL) # of Requirements: 24 • Full: 7 • Partial: 17 Phase 2: Business Capabilities: • Master Data (Core & Reference) • Onboarding • Integration Framework # of Requirements: 32 • Full: 22 • Partial: 10 Tools: AM 3.5 (test), CIS 5.1, CDS 2.2.1, CIT 6.1, ESL 9.3, SM 3.10 OOTB WS (+TDL 1.0), ECS R5 Phase 3: Business Capabilities: • Changes • Work Orders • Notifications • Service Manager Web Services Framework # of Requirements: 48 • Full: 46 • Out of scope: 2 requirements Tools: CDS 2.3, CiT 6.3 (test), ESL 10.2, ECS R6.0, eNote 2.0, SM 3.14, RWS 2.0, CIS 6.5, TDL 1.2 (test) Phase 1 Start (05/04/12) BRD (05/25/12) BCG (11/29/12) MTP (03/30/13) Phase 1+ 2 Start (05/04/12) BRD (05/25/12) BCG (06/26/13) Complete 2/7/14 Phase 3 Start (05/04/12) BRD (05/25/12) BCG (5/2/14) MTP (8/11/14) Legend: BCG: Build Complete Gate MTP: Move to Production TBD: To-Be-Decided WIP: Work-In-Progress Timeline • 2 requirements out of scope for Ph 3 scope. New requirements must be submitted via new POR

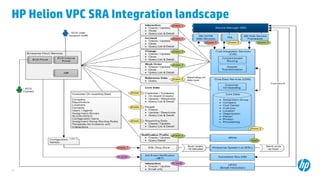

- 21. 21 HP Helion VPCSRA Integration landscape
- 22. 22 HP Helion SRAIntegration STRATEGIC IMPLICATIONS HP Helion Virtual Private Cloud (VPC) SRA Integration provides leverage-able artifacts • Strategy, Solution Design & Architecture • Other key Deliverables examples • Use Cases • BRD • RACI • Onboarding steps & flows • Integration APIs • Data Architecture • Training • Testing Strategy & Plan • Integrated Support Processes Virtual Private Cloud Private Cloud Messaging Collaboration Real-time Collaboration Continuity Unified Communication HP Helion Services SRA ITIL Services Leverage the integration Enterprise Security Services (ESS) Mobility Legend: Integration & Automation in Production: Partial use of Integration & Automation:

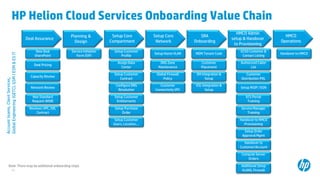

- 23. 23 HP Helion CloudServices Onboarding Value Chain Deal Assurance Planning & Design Setup Core Compartment Setup Core Network SRA Onboarding HMCO Admin setup & Handover to Provisioning HMCO Operations Accountteams,ClientServices, GlobalEngineering(GETC),GSM/ESM&ESIT New Deal SharePoint Deal Pricing Capacity Review Network Review Non Standard Request (NSR) Reviews: VPC, ISR, Contract Service Initiation Form (SIF) Setup Customer Profile Assign Data Center Setup Customer Contract Configure DNS Resolution Setup Customer Entitlements Setup Purchase Order Setup Customer Users, Location,… Note: There may be additional onboarding steps Setup Home VLAN DNS Zone Maintenance Global Firewall Policy Customer Connectivity VPC MDM Tenant Code Customer Placement SM Integration & Setup ESL Integration & Setup ECSO Customer & Contact Listing Authorized Caller List Customer Distribution PDL Setup RtOP / EON ECS Portal Training Service Manager Training Handover to HMCO Provisioning Setup Order Approval Mgmt Handover to Customer/Account Compute Server Orders Additional Setup VLANS, Firewall Handover to HMCO

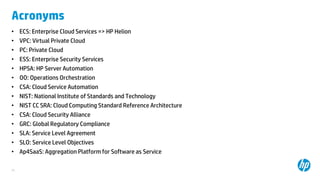

- 24. 24 Acronyms • ECS: EnterpriseCloud Services => HP Helion • VPC: Virtual Private Cloud • PC: Private Cloud • ESS: Enterprise Security Services • HPSA: HP Server Automation • OO: Operations Orchestration • CSA: Cloud Service Automation • NIST: National Institute of Standards and Technology • NIST CC SRA: Cloud Computing Standard Reference Architecture • CSA: Cloud Security Alliance • GRC: Global Regulatory Compliance • SLA: Service Level Agreement • SLO: Service Level Objectives • Ap4SaaS: Aggregation Platform for Software as Service

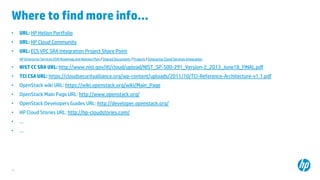

- 25. 25 Where to findmore info... • URL: HP Helion Portfolio • URL: HP Cloud Community • URL: ECS VPC SRA Integration Project Share Point HP Enterprise Services ESM Roadmap and Release Plan / Shared Documents / Projects / Enterprise Cloud Services Integration • NIST CC SRA URL: http://www.nist.gov/itl/cloud/upload/NIST_SP-500-291_Version-2_2013_June18_FINAL.pdf • TCI CSA URL: https://cloudsecurityalliance.org/wp-content/uploads/2011/10/TCI-Reference-Architecture-v1.1.pdf • OpenStack wiki URL: https://wiki.openstack.org/wiki/Main_Page • OpenStack Main Page URL: http://www.openstack.org/ • OpenStack Developers Guides URL: http://developer.openstack.org/ • HP Cloud Stories URL: http://hp-cloudstories.com/ • … • …
- 26.
- 27. 27 NIST CC SecurityReference Architecture Cloud Consumer Cloud Provider Cloud Service Management Cloud Carrier Cloud Auditor Cloud Consumer Provisioning/ Configuration Portability/ Interoperability Security Audit Privacy Impact Audit Performance Audit Business Support Physical Resource Layer Hardware Facility Resource Abstraction and Control Layer Service Layer IaaS SaaS PaaS Cloud Orchestration Cross Cutting Concerns: Security, Privacy, etc Cloud Broker Service Intermediation Service Aggregation Service Arbitrage

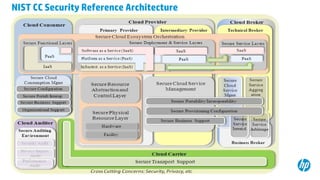

- 28. 28 NIST CC SecurityReference Architecture
- 29. 29 TCI Cloud SecurityAlliance Reference Architecture

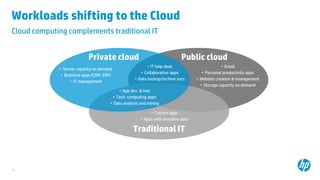

- 30. 30 Workloads shifting tothe Cloud Traditional IT • Server capacity on demand • Business apps (CRM, ERP) • IT management • Email • Personal productivity apps • Website creation & management • Storage capacity on demand • App dev. & test • Tech. computing apps • Data analysis and mining • Custom apps • Apps with sensitive data Private cloud Public cloud • IT help desk • Collaborative apps • Data backup/archive svcs Cloud computing complements traditional IT

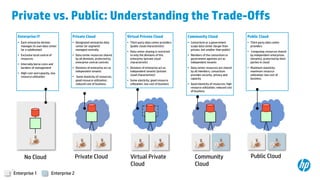

- 31. 31 Private vs. Public:Understanding the Trade-Offs Enterprise 1 Enterprise 2 Private Cloud Private Cloud • Designated enterprise data center (or segment) managed centrally • Data center resources shared by all divisions, protected by enterprise central controls • Divisions of enterprise act as independent tenants • Some elasticity of resources; good resource utilization; reduced cost of business No Cloud Enterprise IT • Each enterprise division manages its own data center (or a subdivision) • Exclusive local control of resources • Internally borne costs and burdens of management • High-cost overcapacity, low resource utilization Virtual Private Cloud Virtual Private Cloud • Third-party data center providers (public cloud characteristic) • Data center sharing is restricted to only the divisions of this enterprise (private cloud characteristic) • Divisions of enterprise act as independent tenants (private cloud characteristic) • Some elasticity; good resource utilization; low cost of business Community Cloud Community Cloud • Consortium or a government scope data center (larger than private, but smaller than public) • Members of the consortium or government agencies act as independent tenants • Data center resources are shared by all members; consortium provides security, privacy and capacity • Good elasticity of resources; high resource utilization; reduced cost of business Public Cloud • Third-party data center providers • Computing resources shared by independent enterprises (tenants), protected by third parties in cloud • Maximum elasticity; maximum resource utilization; low cost of business Public Cloud

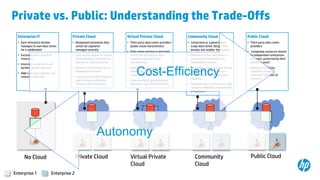

- 32. 32 Private vs. Public:Understanding the Trade-Offs Enterprise 1 Enterprise 2 Private Cloud Private Cloud • Designated enterprise data center (or segment) managed centrally • Data center resources shared by all divisions, protected by enterprise central controls • Divisions of enterprise act as independent tenants • Some elasticity of resources; good resource utilization; reduced cost of business No Cloud Enterprise IT • Each enterprise division manages its own data center (or a subdivision) • Exclusive local control of resources • Internally borne costs and burdens of management • High-cost overcapacity, low resource utilization Virtual Private Cloud Virtual Private Cloud • Third-party data center providers (public cloud characteristic) • Data center sharing is restricted to only the divisions of this enterprise (private cloud characteristic) • Divisions of enterprise act as independent tenants (private cloud characteristic) • Some elasticity; good resource utilization; low cost of business Community Cloud Community Cloud • Consortium or a government scope data center (larger than private, but smaller than public) • Members of the consortium or government agencies act as independent tenants • Data center resources are shared by all members; consortium provides security, privacy and capacity • Good elasticity of resources; high resource utilization; reduced cost of business Public Cloud • Third-party data center providers • Computing resources shared by independent enterprises (tenants), protected by third parties in cloud • Maximum elasticity; maximum resource utilization; low cost of business Public Cloud Autonomy Cost-Efficiency

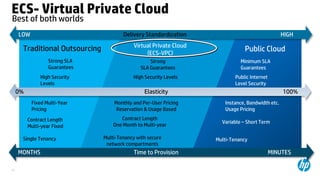

- 33. 33 ECS- Virtual PrivateCloud Public CloudTraditional Outsourcing Virtual Private Cloud (ECS-VPC) LOW Delivery Standardization HIGH MONTHS Time to Provision MINUTES Minimum SLA Guarantees Strong SLA Guarantees Strong SLA Guarantees Variable – Short TermContract Length Multi-year Fixed Contract Length One Month to Multi-year High Security Levels High Security Levels Public Internet Level Security Single Tenancy Multi-Tenancy with secure network compartments Multi-Tenancy 33 Fixed Multi-Year Pricing Monthly and Per-User Pricing Reservation & Usage Based Instance, Bandwidth etc. Usage Pricing 0% Elasticity 100% Best of both worlds

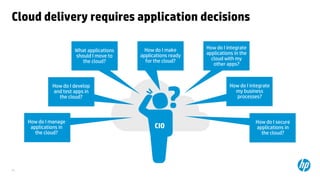

- 34. 34 Cloud delivery requiresapplication decisions What applications should I move to the cloud? How do I make applications ready for the cloud? How do I secure applications in the cloud? How do I integrate my business processes? How do I integrate applications in the cloud with my other apps? How do I develop and test apps in the cloud? How do I manage applications in the cloud? CIO
- 35. 35 Critical factors toalign for new cloud services Business Strategy, Vision, Goals End-user view-points, & adoption IT Operations Model Technology, Transformation, Integration, Migration, Management of Change ITSM Service Delivery Model Organization, Accountability & Governance, Business Processes, Value Chain Models, Metrics & Measures Cloud Services

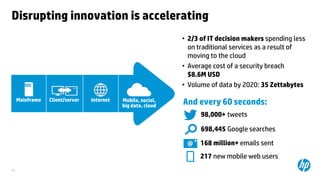

- 36. 36 Disrupting innovation isaccelerating Mainframe Client/server Internet Mobile, social, big data, cloud 98,000+ tweets 698,445 Google searches 168 million+ emails sent And every 60 seconds: 217 new mobile web users • 2/3 of IT decision makers spending less on traditional services as a result of moving to the cloud • Average cost of a security breach $8.6M USD • Volume of data by 2020: 35 Zettabytes

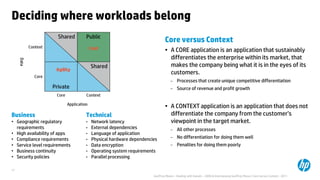

- 37. 37 Deciding where workloadsbelong Business • Geographic regulatory requirements • High availability of apps • Compliance requirements • Service level requirements • Business continuity • Security policies Technical • Network latency • External dependencies • Language of application • Physical hardware dependencies • Data encryption • Operating system requirements • Parallel processing Core versus Context • A CORE application is an application that sustainably differentiates the enterprise within its market, that makes the company being what it is in the eyes of its customers. – Processes that create unique competitive differentiation – Source of revenue and profit growth • A CONTEXT application is an application that does not differentiate the company from the customer’s viewpoint in the target market. – All other processes – No differentiation for doing them well – Penalties for doing them poorly Geoffrey Moore – Dealing with Darwin – 2006 & Interviewing Geoffrey Moore: Core versus Context - 2011
