NVDK-ESP32 WiFi Station / Access Point
- 1. NVDK-ESP32 WiFi WiFi Access,Network Security, Station, Access Point
- 2. WiFi - Overview •Technology for Wireless LAN based on 802.11 • MAC and PHY Layer specifications of Wireless LAN • Uses 2.4GHz and 5.8 GHz ISM Radio bands • Service Set Identifier ( SSID ) • 32 Byte identifier for every wireless network • Devices uses the WiFi Technology, • PC, Laptop, Smart Phone, Cameras, Smart TVs, Audio Player & Printers

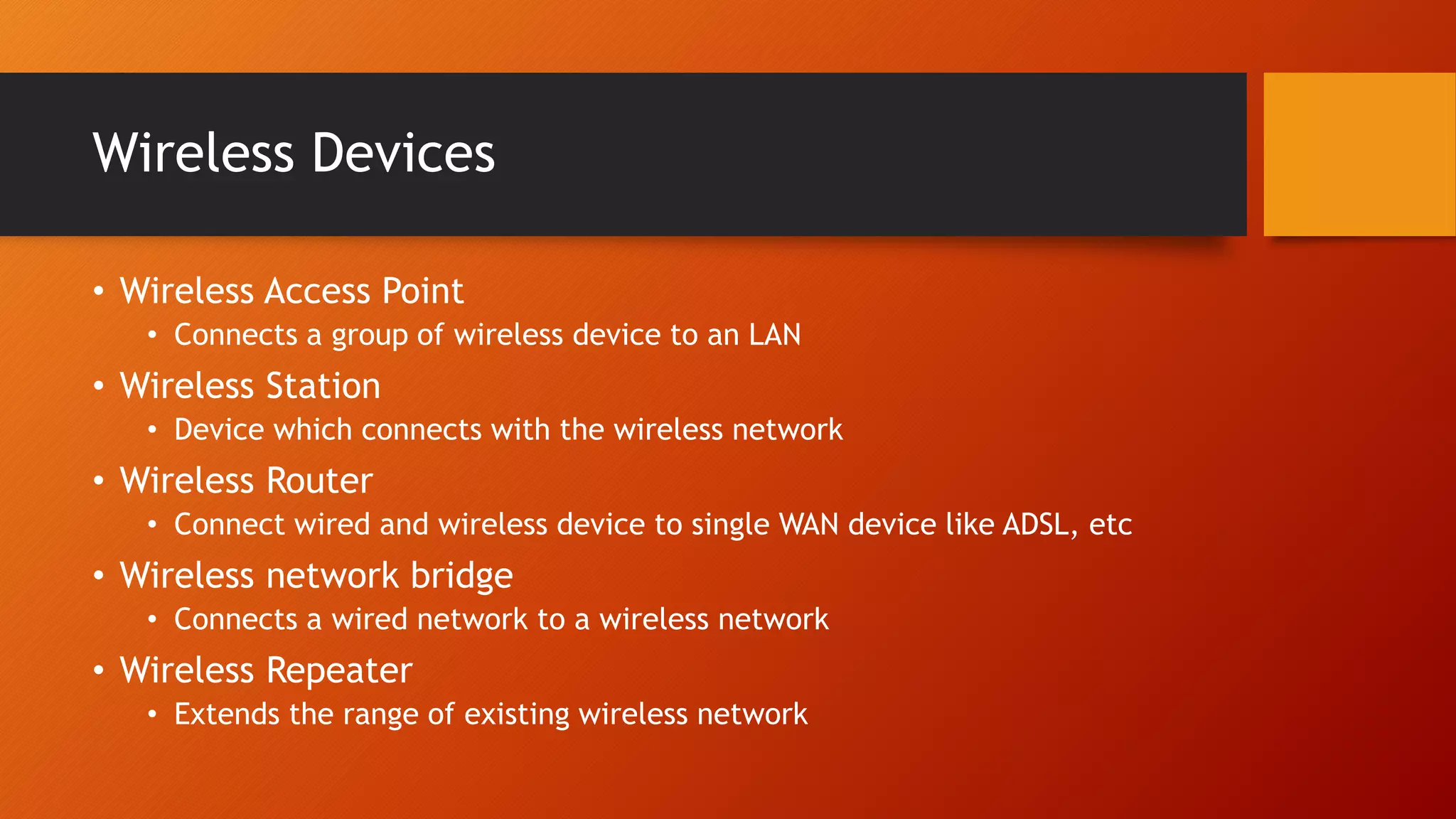

- 3. Wireless Devices • WirelessAccess Point • Connects a group of wireless device to an LAN • Wireless Station • Device which connects with the wireless network • Wireless Router • Connect wired and wireless device to single WAN device like ADSL, etc • Wireless network bridge • Connects a wired network to a wireless network • Wireless Repeater • Extends the range of existing wireless network

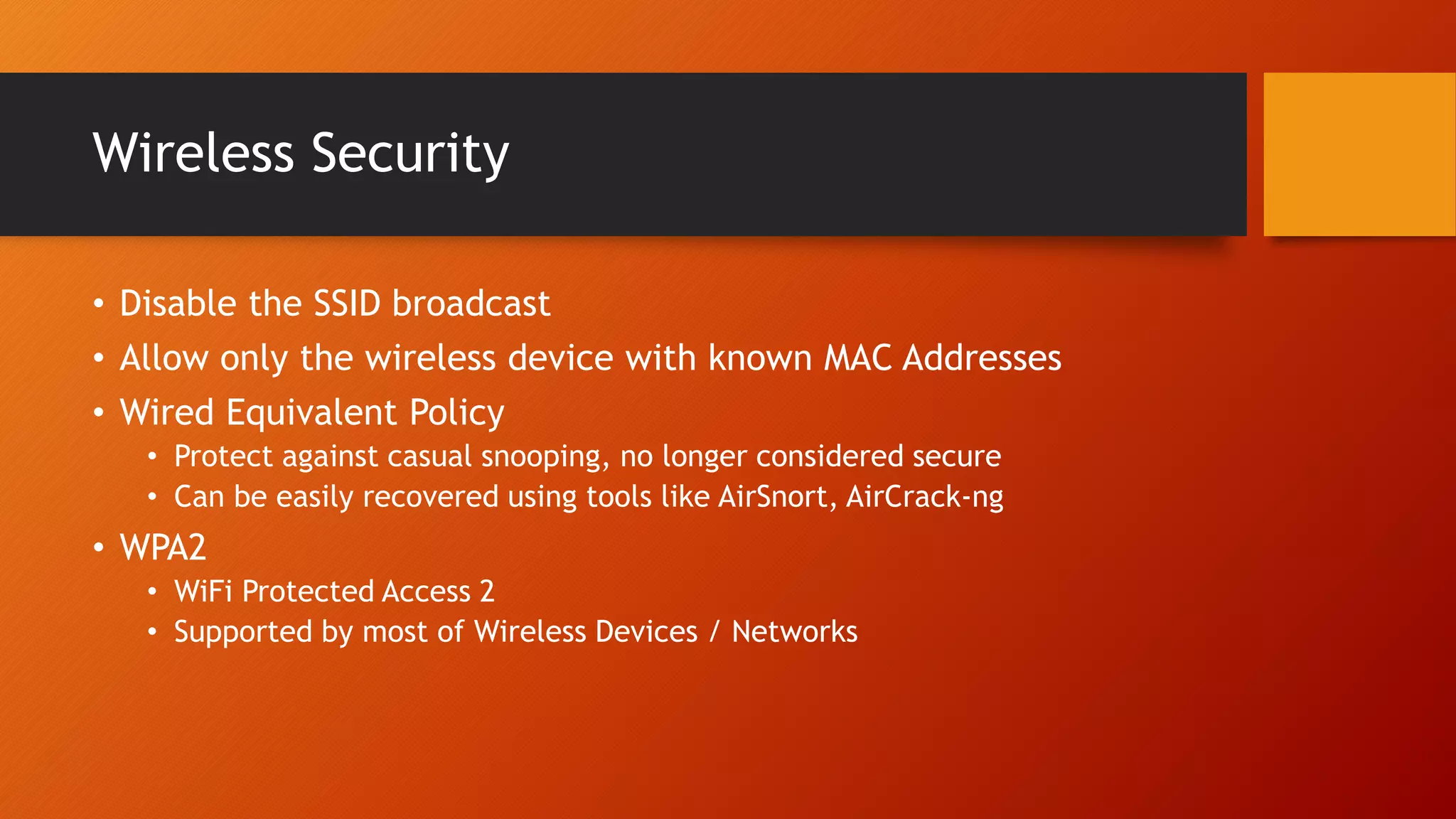

- 4. Wireless Security • Disablethe SSID broadcast • Allow only the wireless device with known MAC Addresses • Wired Equivalent Policy • Protect against casual snooping, no longer considered secure • Can be easily recovered using tools like AirSnort, AirCrack-ng • WPA2 • WiFi Protected Access 2 • Supported by most of Wireless Devices / Networks

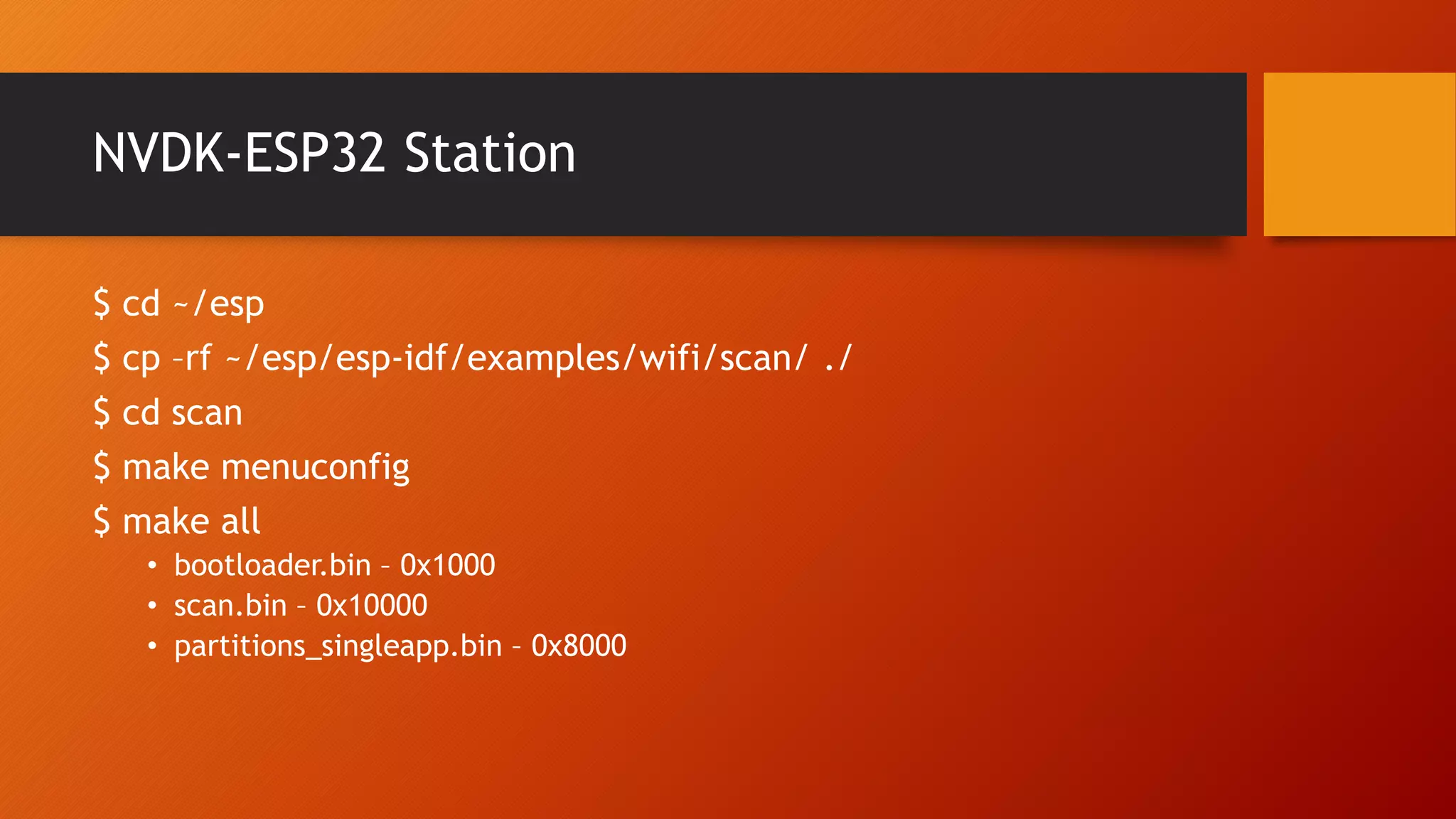

- 5. NVDK-ESP32 Station $ cd~/esp $ cp –rf ~/esp/esp-idf/examples/wifi/scan/ ./ $ cd scan $ make menuconfig $ make all • bootloader.bin – 0x1000 • scan.bin – 0x10000 • partitions_singleapp.bin – 0x8000
- 6. NVDK-ESP32 Soft AP $cd ~/esp $ cp –rf ~/esp/esp-idf/examples/wifi/scan/ ./ $ cd scan $ make menuconfig $ make all • bootloader.bin – 0x1000 • Simple_wifi.bin – 0x10000 • partitions_singleapp.bin – 0x8000
- 7. Web : www.neeveetech.com E-Mail: nvhariharan@neeveetech.com Thank You. Subscribe for updates
