Designing a schema
for a Data Warehouse
Why a Data
Warehouse?
DWH

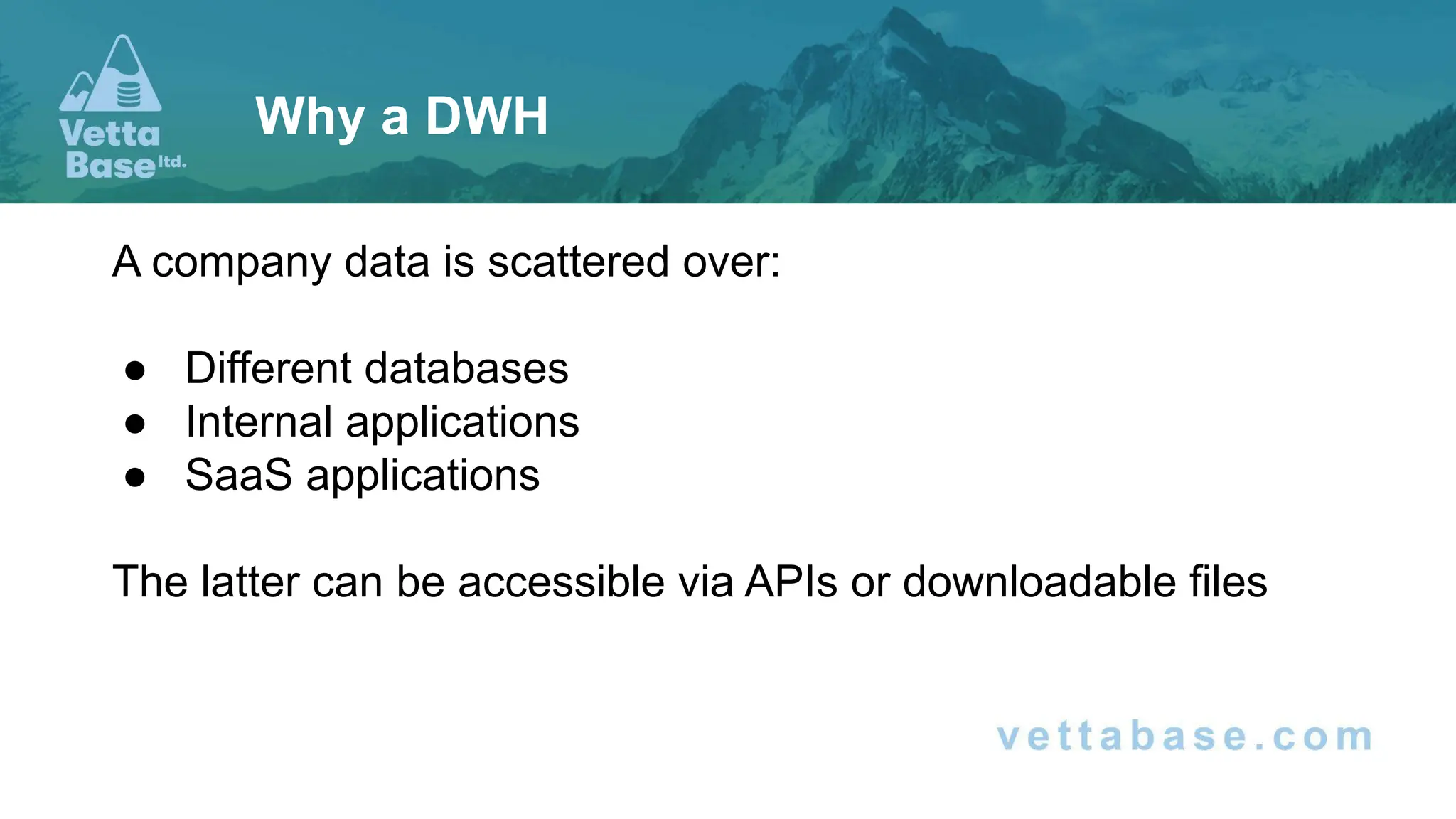

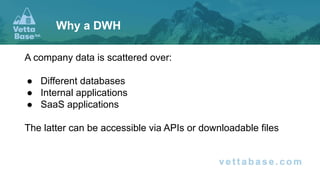

A company data is scattered over:
● Different databases
● Internal applications
● SaaS applications
The latter can be accessible via APIs or downloadable files
Why a DWH

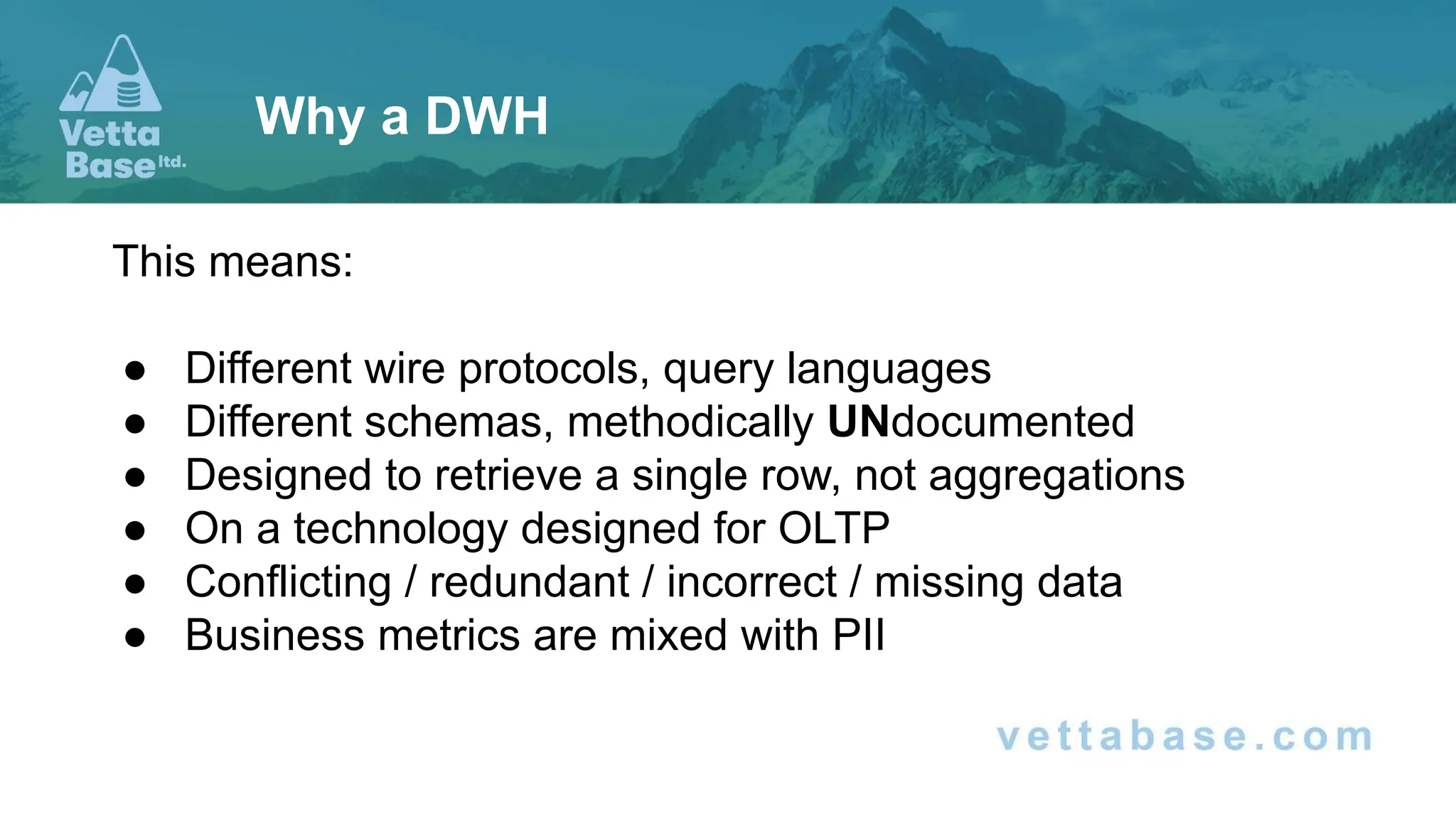

This means:
● Different wire protocols, query languages
● Different schemas, methodically UNdocumented
● Designed to retrieve a single row, not aggregations
● On a technology designed for OLTP
● Conflicting / redundant / incorrect / missing data
● Business metrics are mixed with PII
Why a DWH

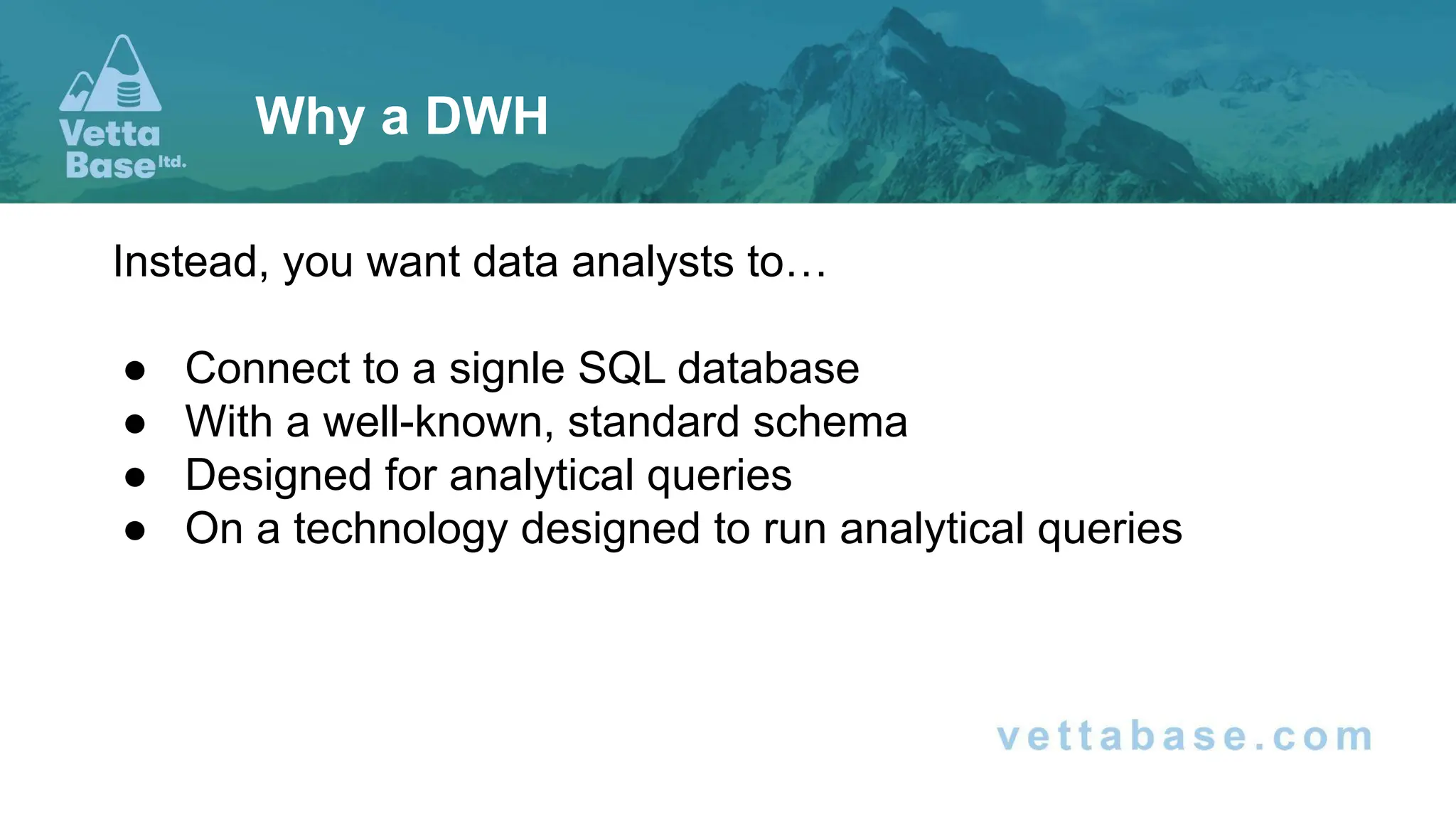

Instead, you want data analysts to…
● Connect to a signle SQL database
● With a well-known, standard schema
● Designed for analytical queries
● On a technology designed to run analytical queries
Why a DWH

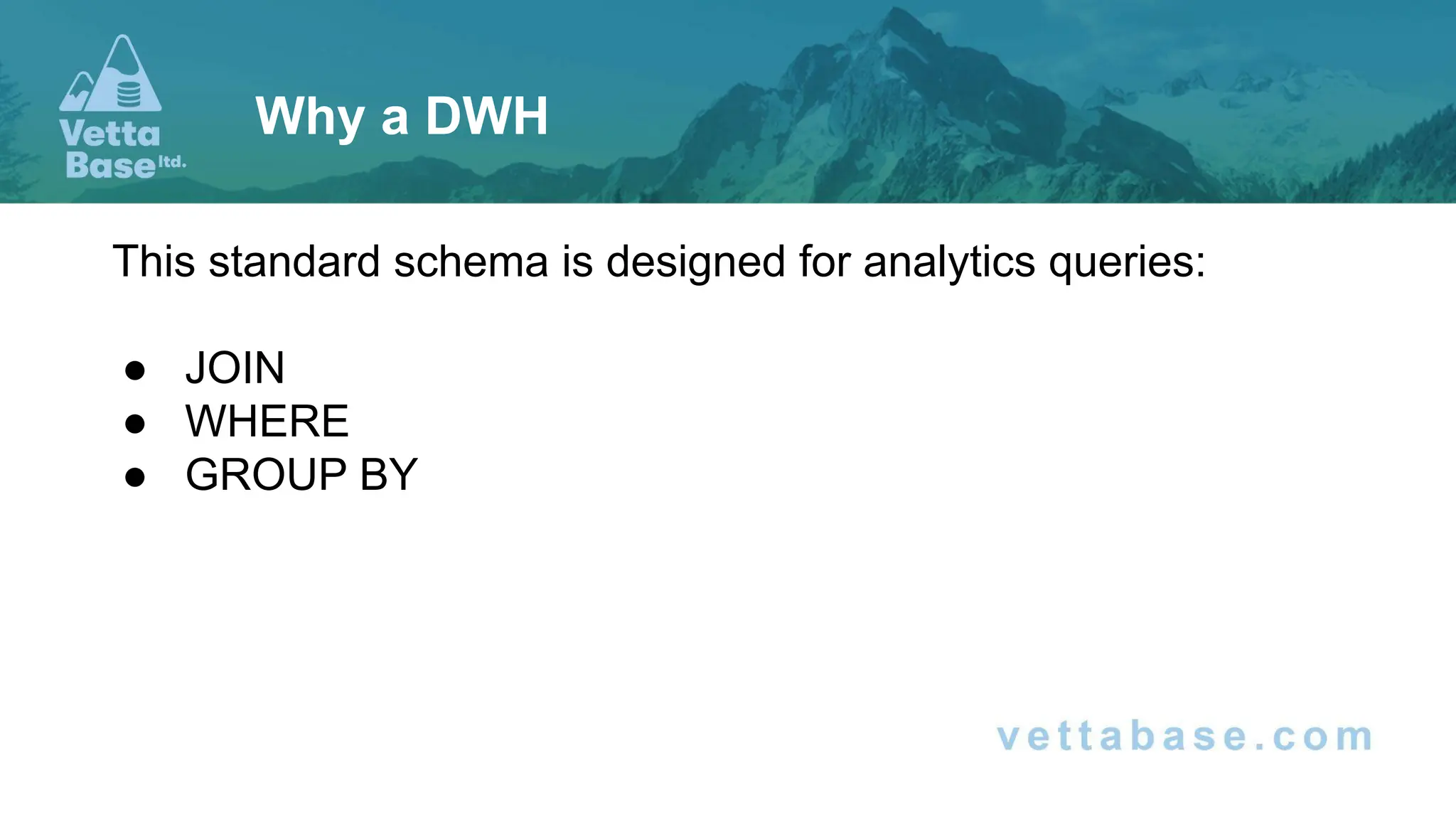

This standard schema is designed for analytics queries:
● JOIN
● WHERE
● GROUP BY
Why a DWH
Why a DWH

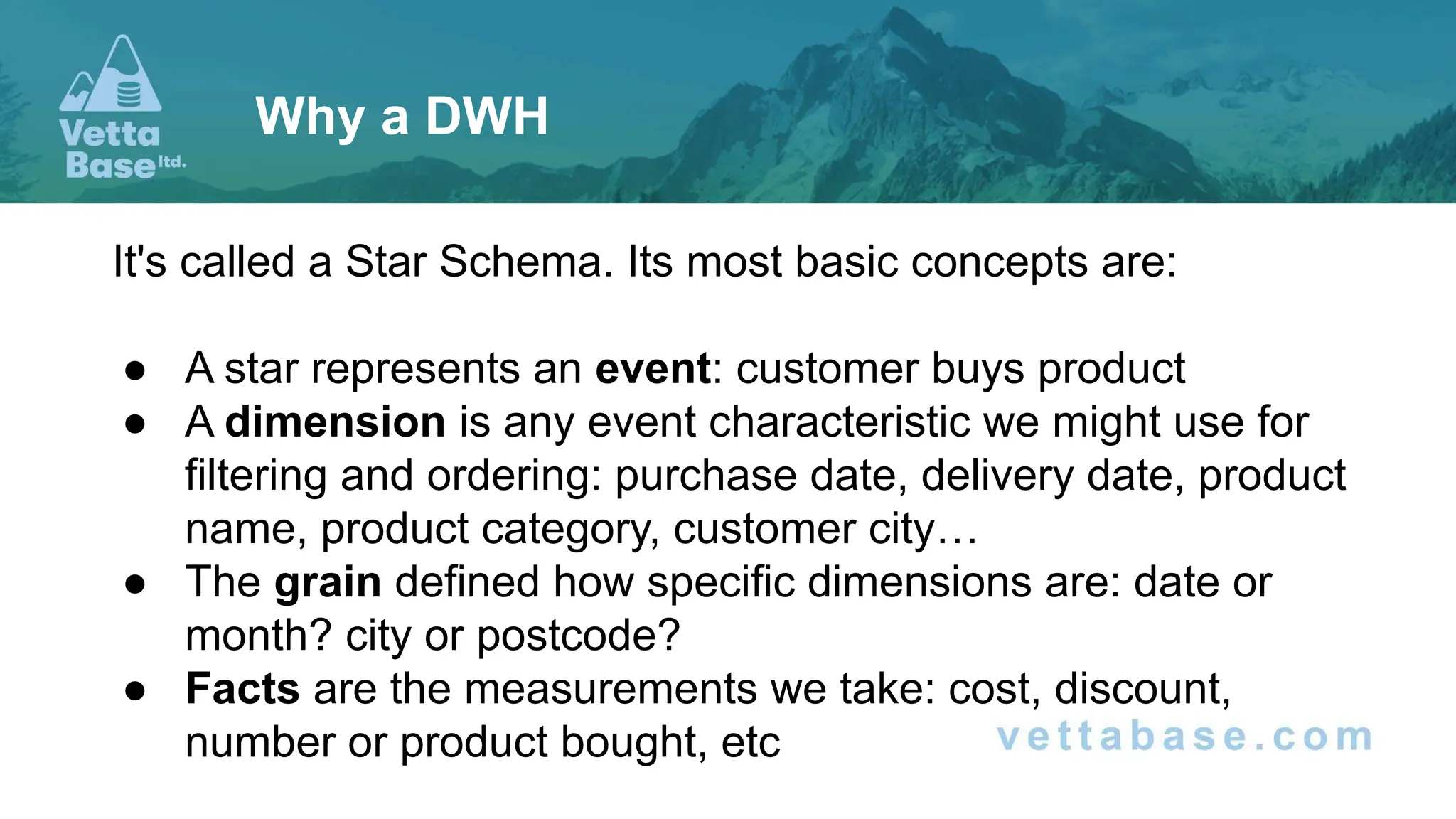

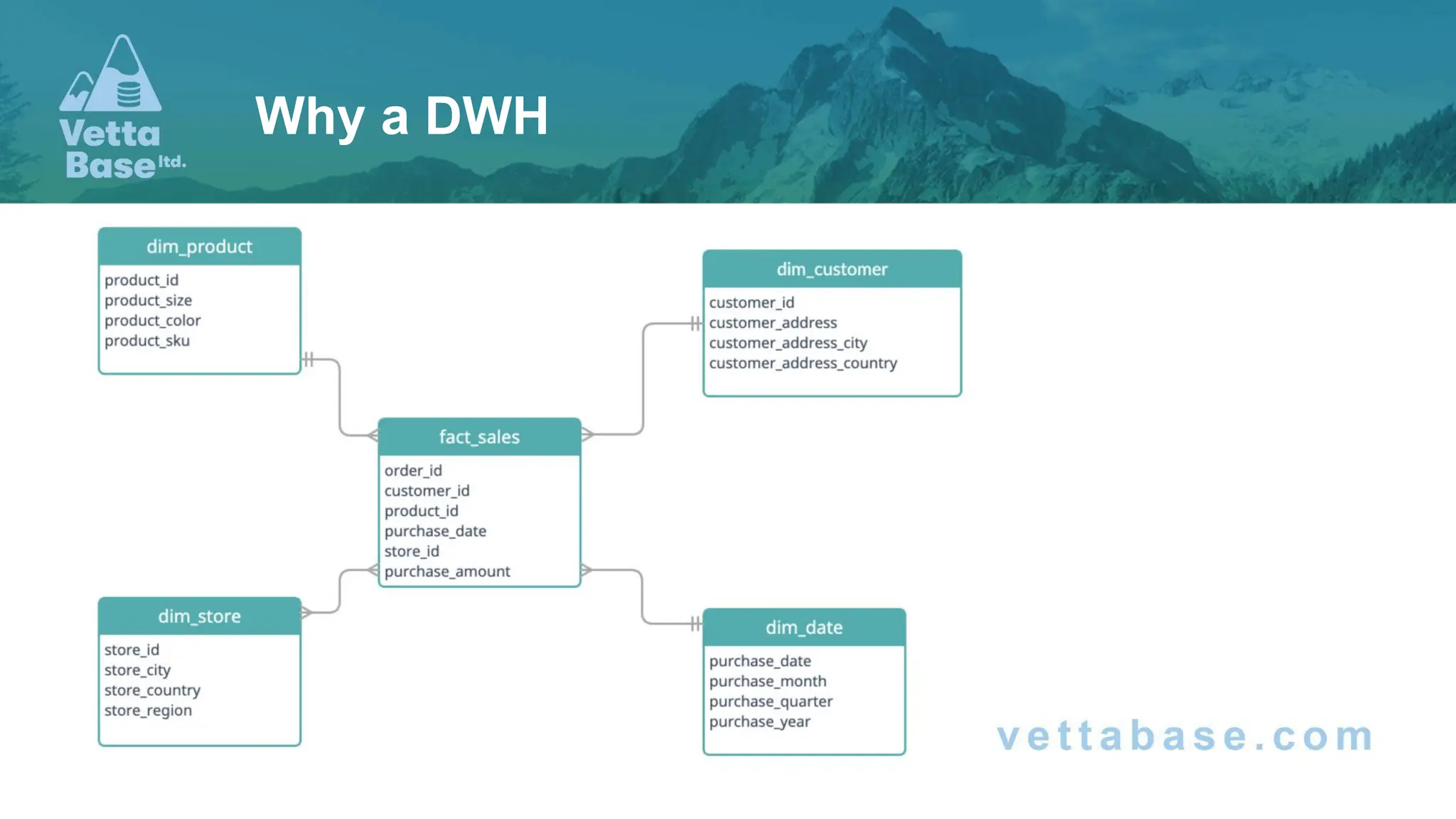

It's called a Star Schema. Its most basic concepts are:
● A star represents an event: customer buys product
● A dimension is any event characteristic we might use for
filtering and ordering: purchase date, delivery date, product
name, product category, customer city…
● The grain defined how specific dimensions are: date or
month? city or postcode?
● Facts are the measurements we take: cost, discount,
number or product bought, etc
Why a DWH

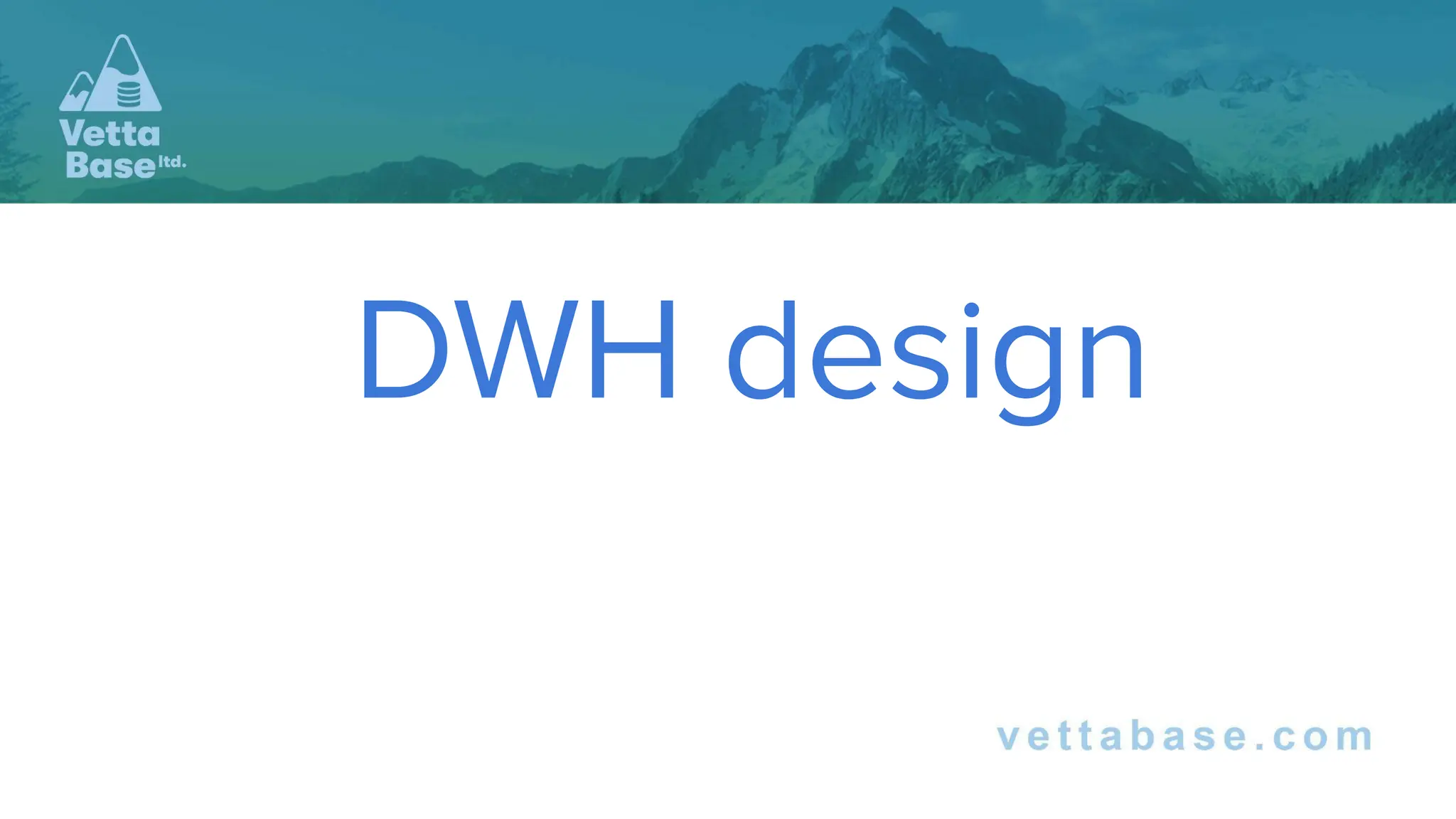

DWH design

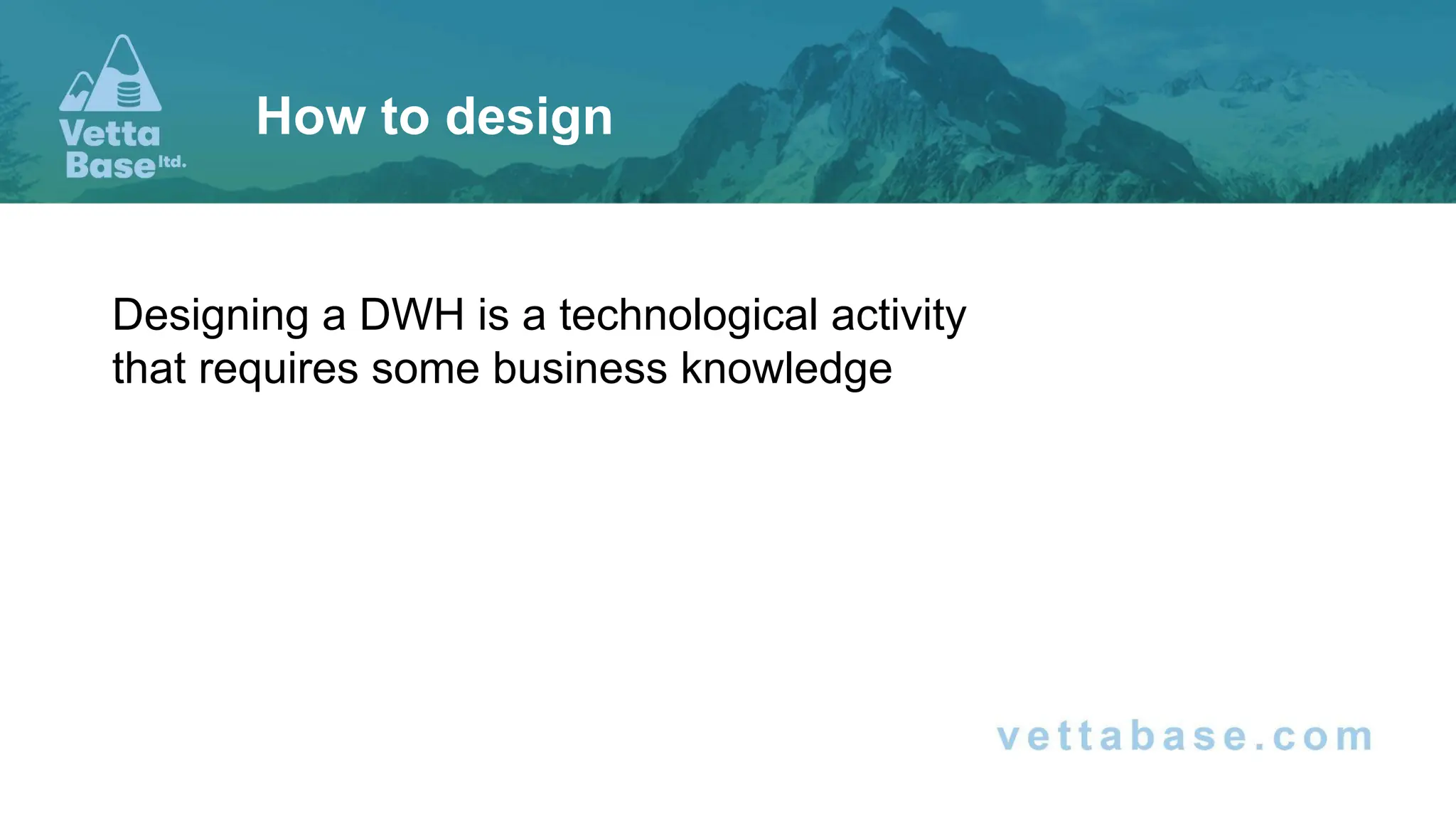

Designing a DWH is a technological activity
that requires some business knowledge
How to design

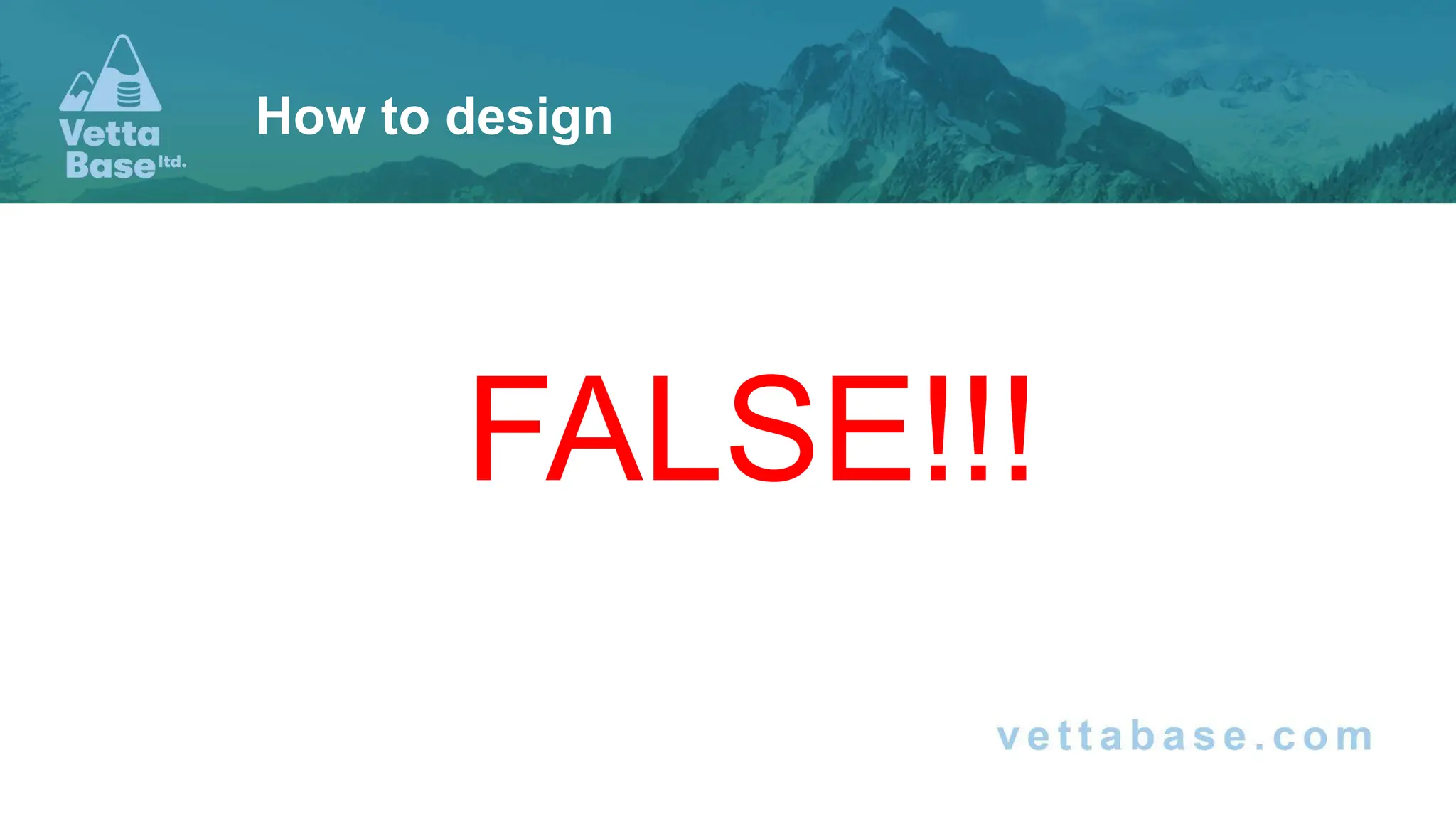

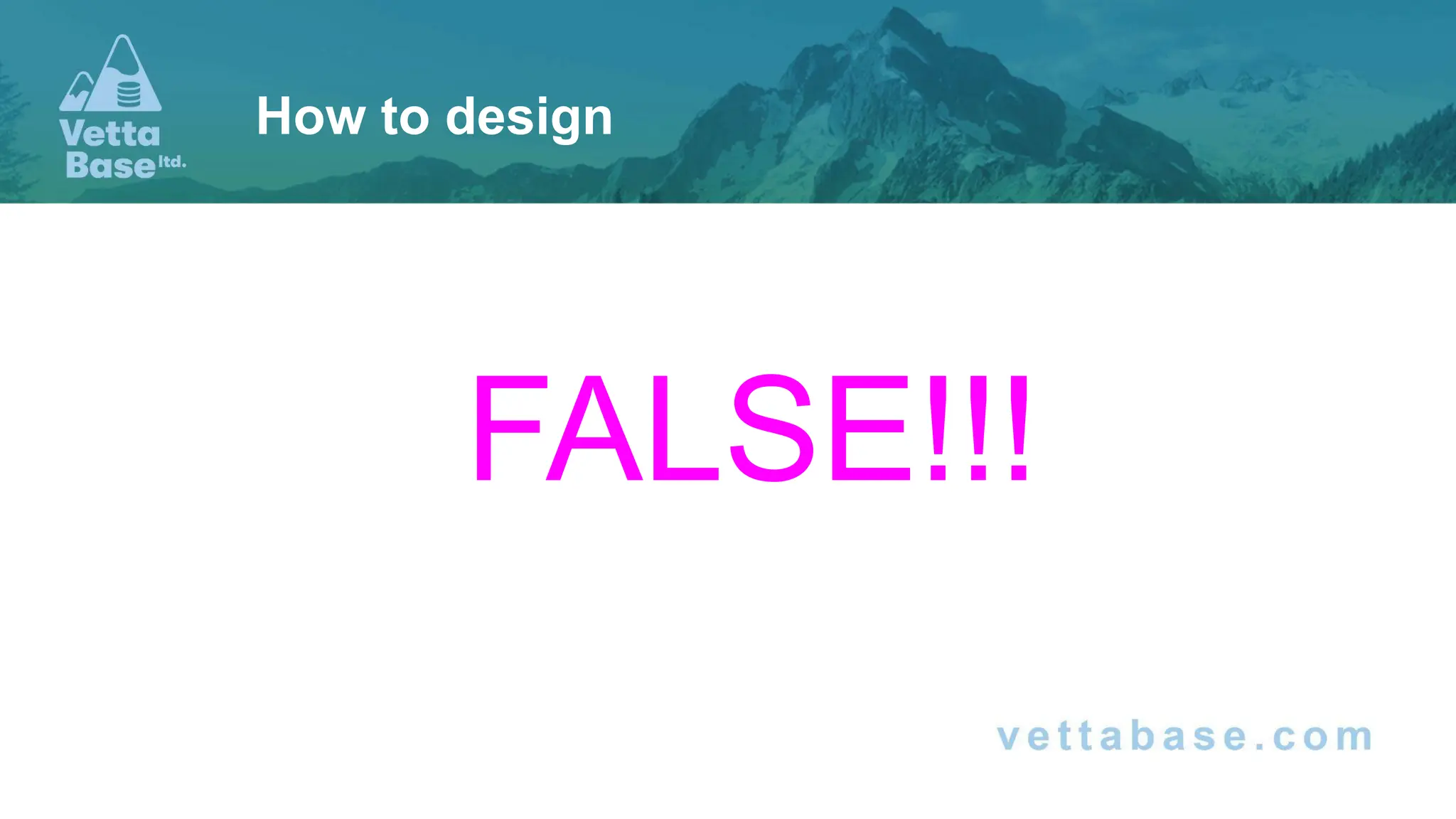

FALSE!!!
How to design
FALSE!!!
How to design
FALSE!!!
How to design

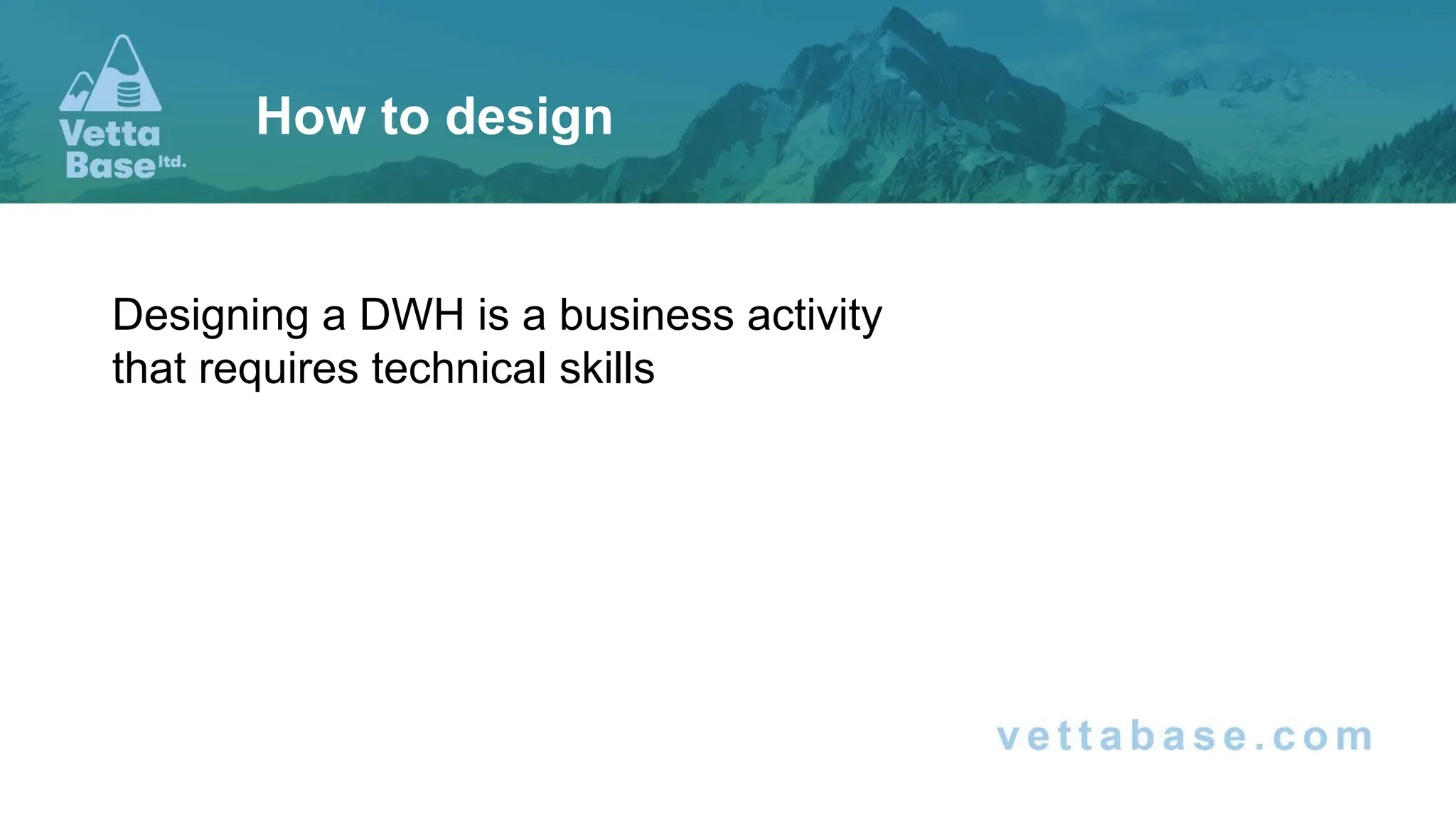

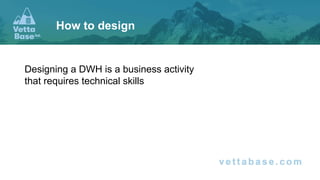

Designing a DWH is a business activity
that requires technical skills
How to design

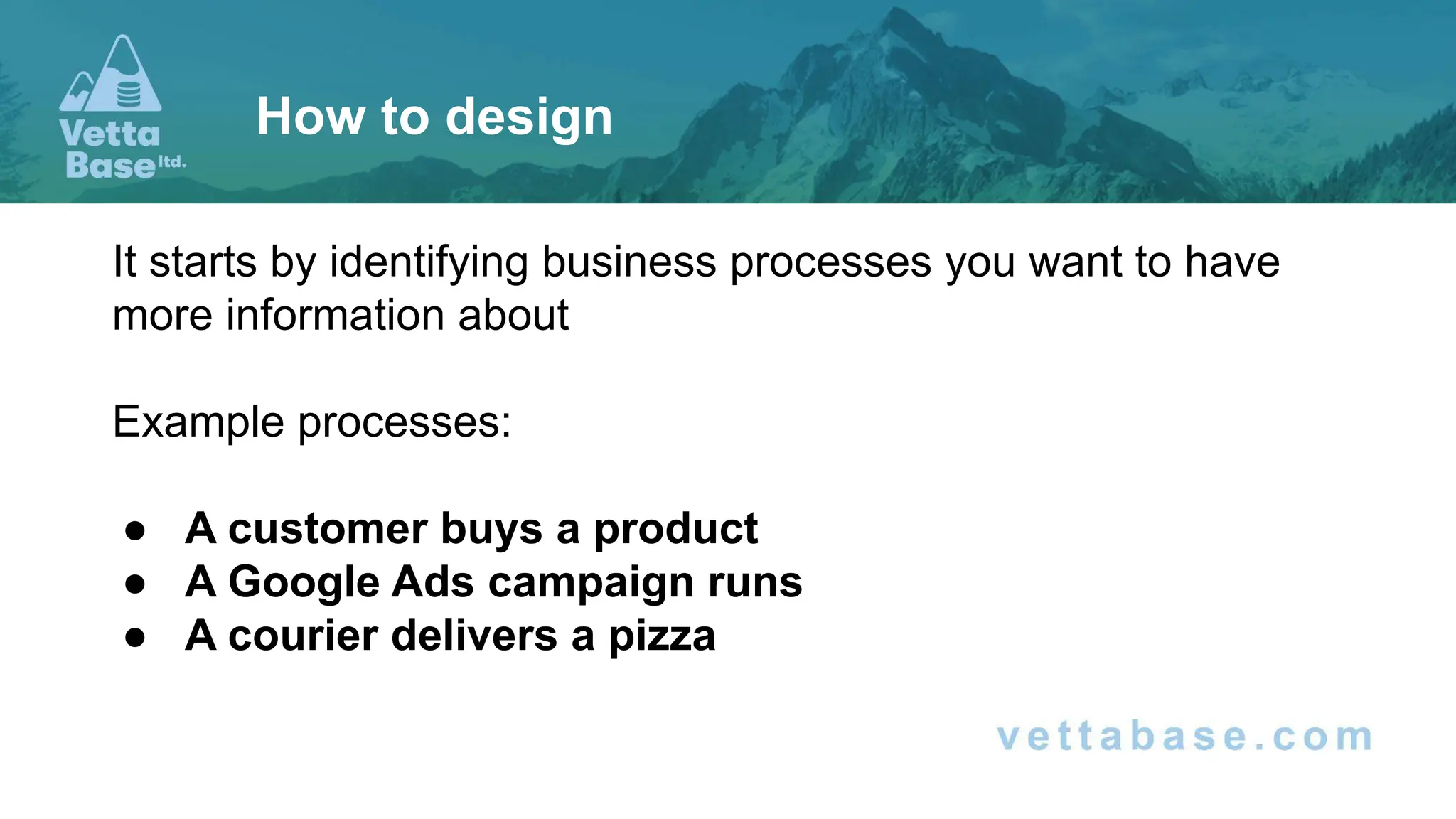

It starts by identifying business processes you want to have
more information about
Example processes:
● A customer buys a product
● A Google Ads campaign runs
● A courier delivers a pizza
How to design

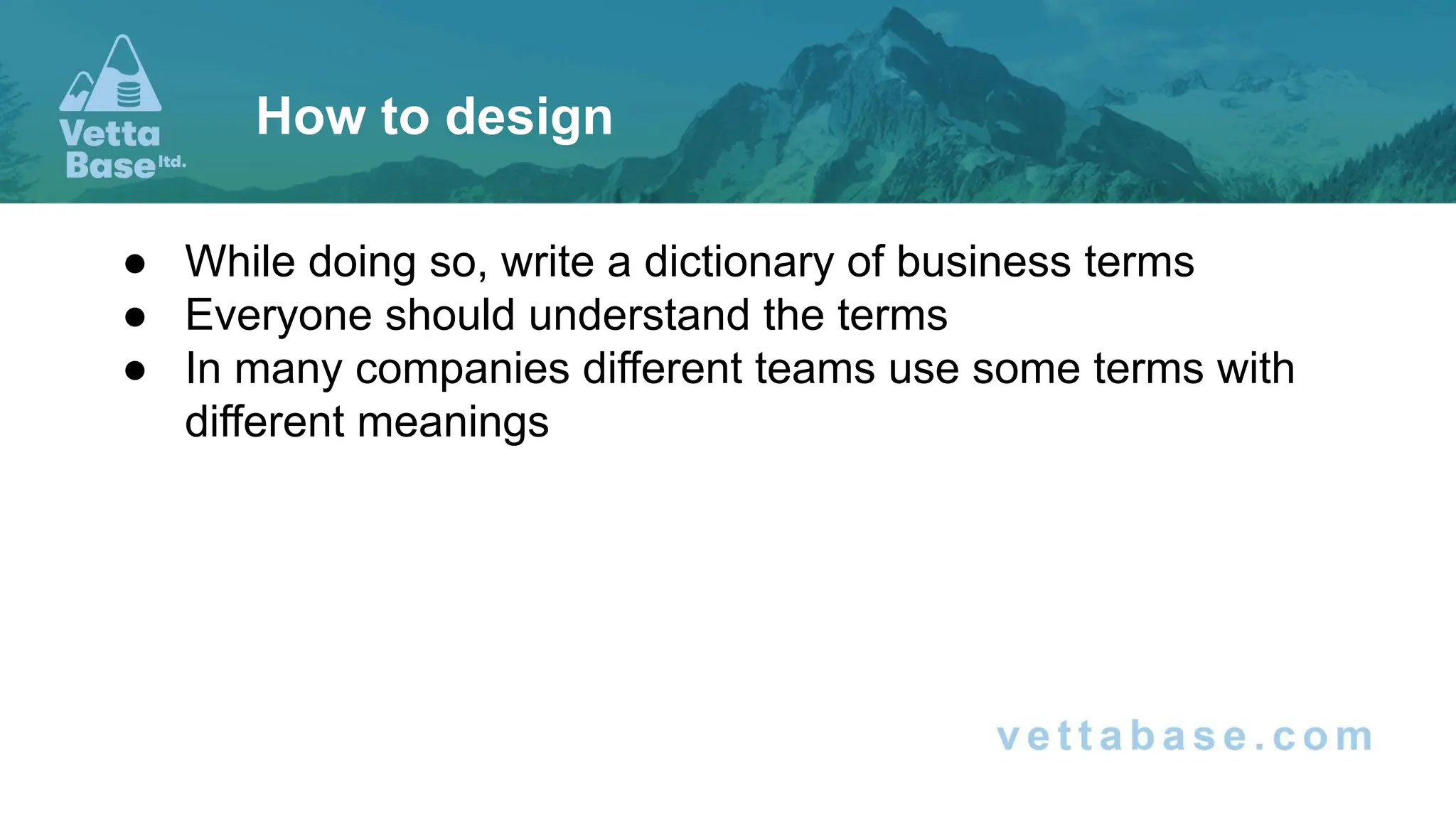

● While doing so, write a dictionary of business terms
● Everyone should understand the terms
● In many companies different teams use some terms with
different meanings
How to design

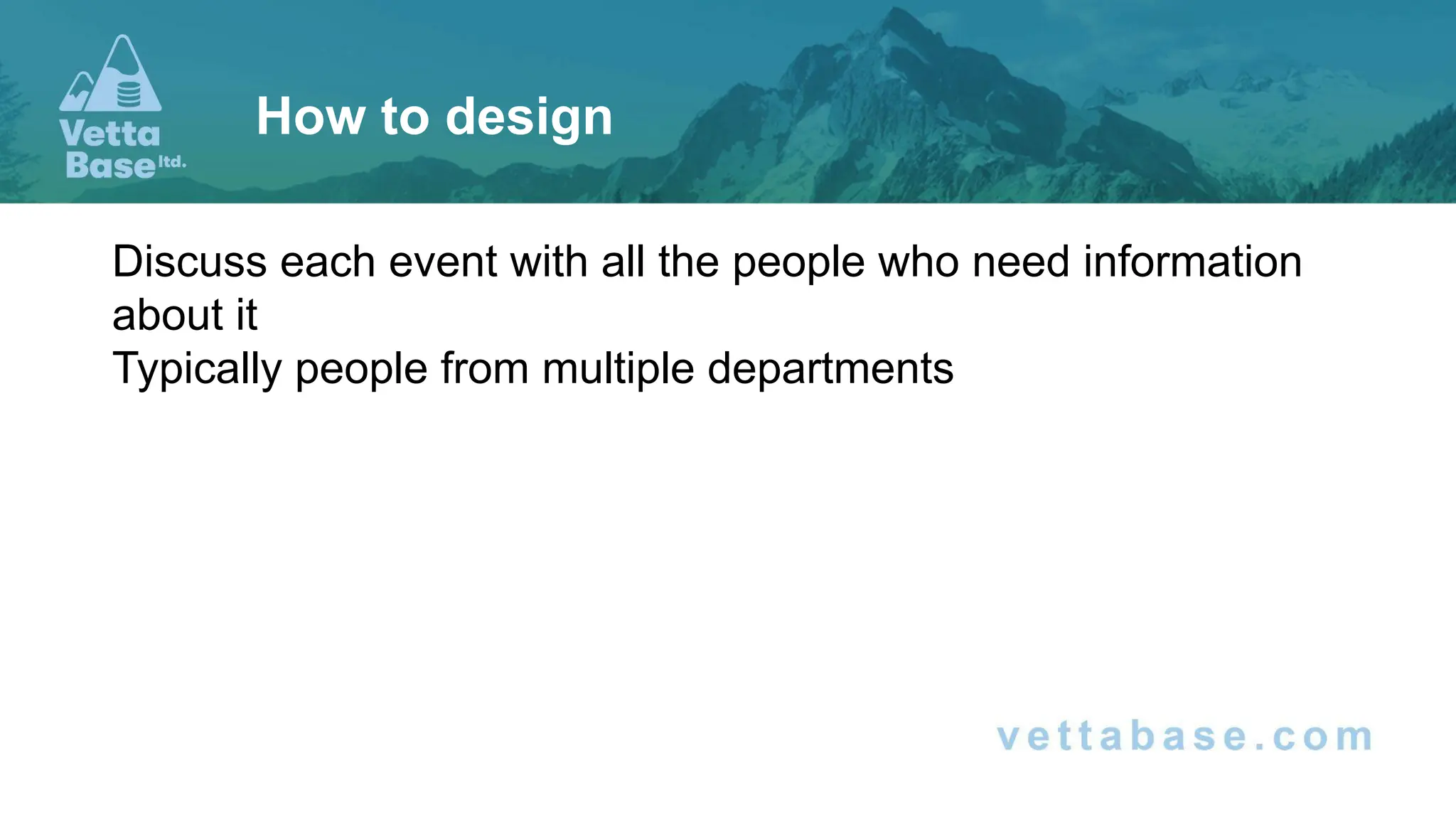

Discuss each event with all the people who need information
about it
Typically people from multiple departments
How to design

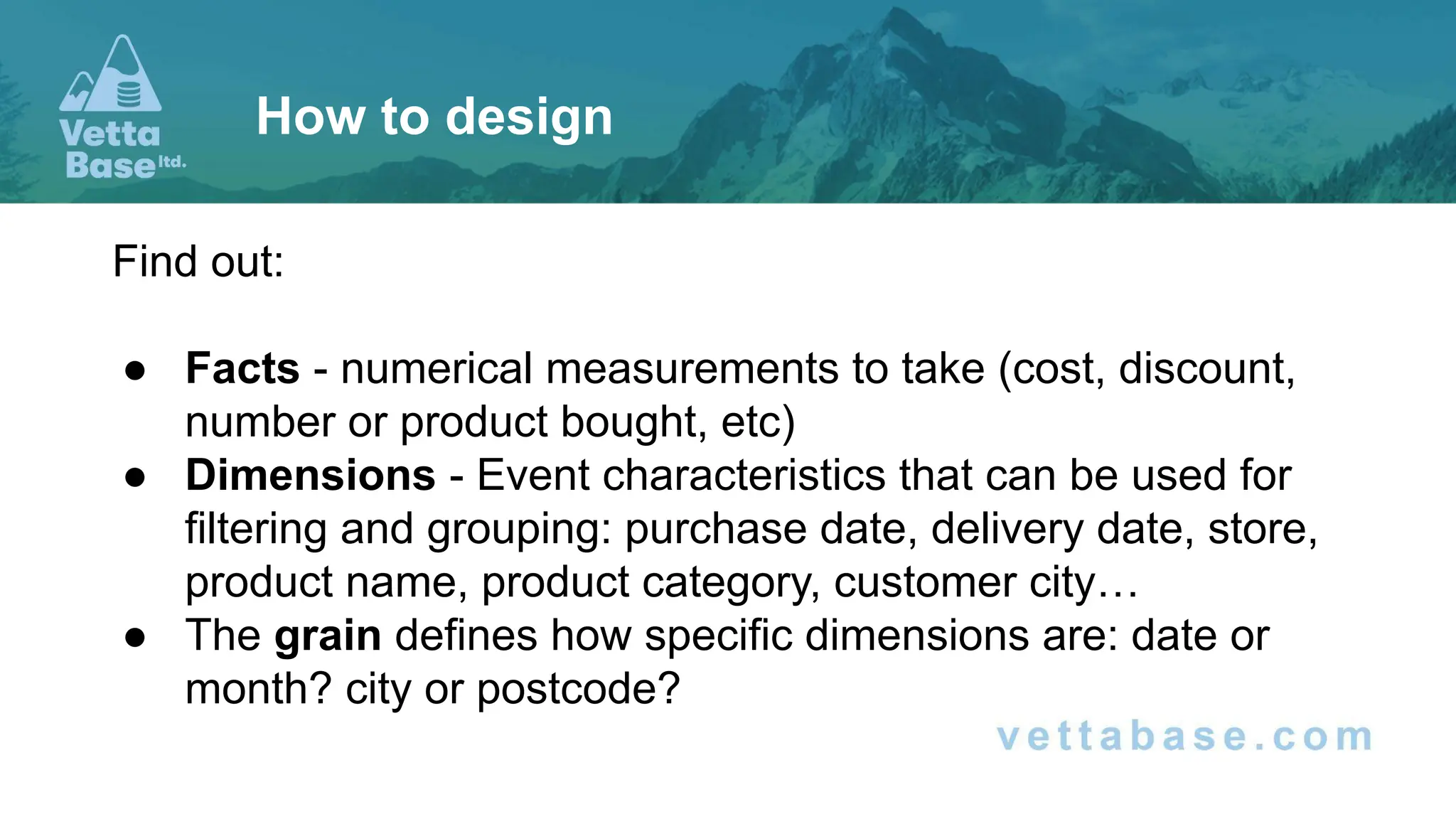

Find out:
● Facts - numerical measurements to take (cost, discount,
number or product bought, etc)
● Dimensions - Event characteristics that can be used for
filtering and grouping: purchase date, delivery date, store,
product name, product category, customer city…
● The grain defines how specific dimensions are: date or
month? city or postcode?
How to design

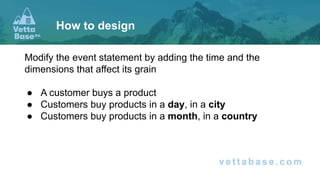

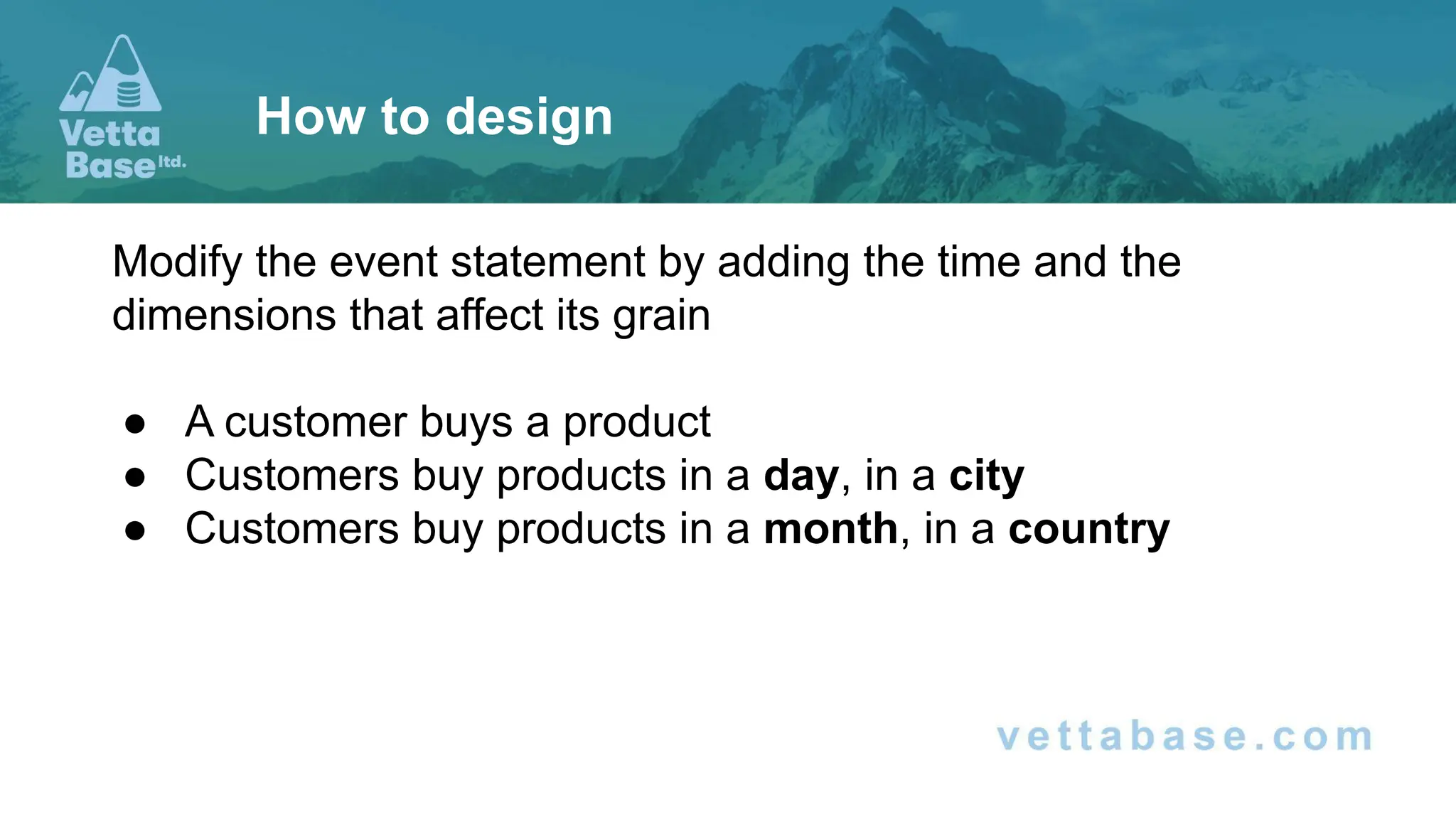

Modify the event statement by adding the time and the
dimensions that affect its grain
● A customer buys a product
● Customers buy products in a day, in a city
● Customers buy products in a month, in a country
How to design
Dimensions

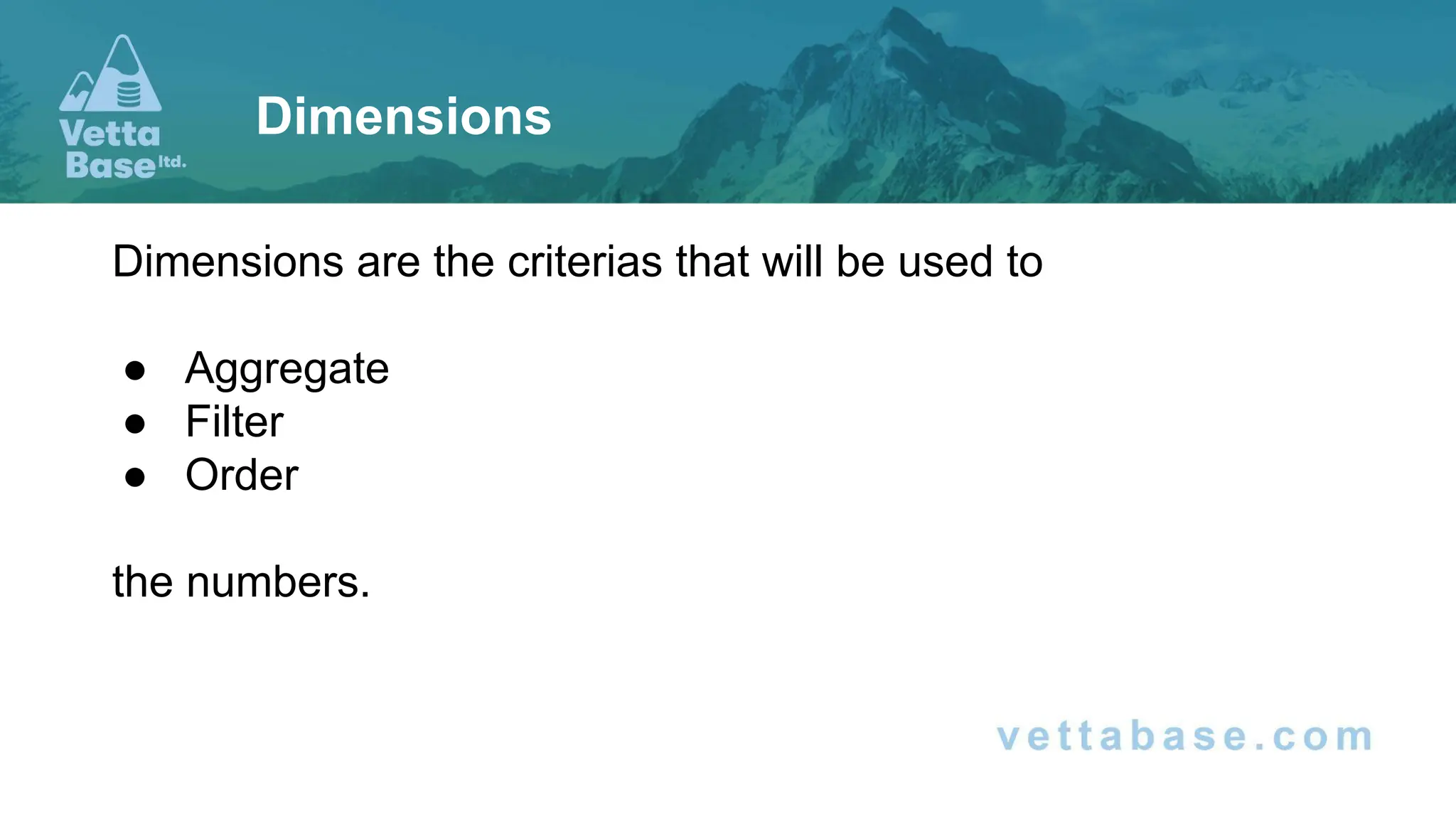

Dimensions are the criterias that will be used to
● Aggregate
● Filter
● Order
the numbers.
Dimensions

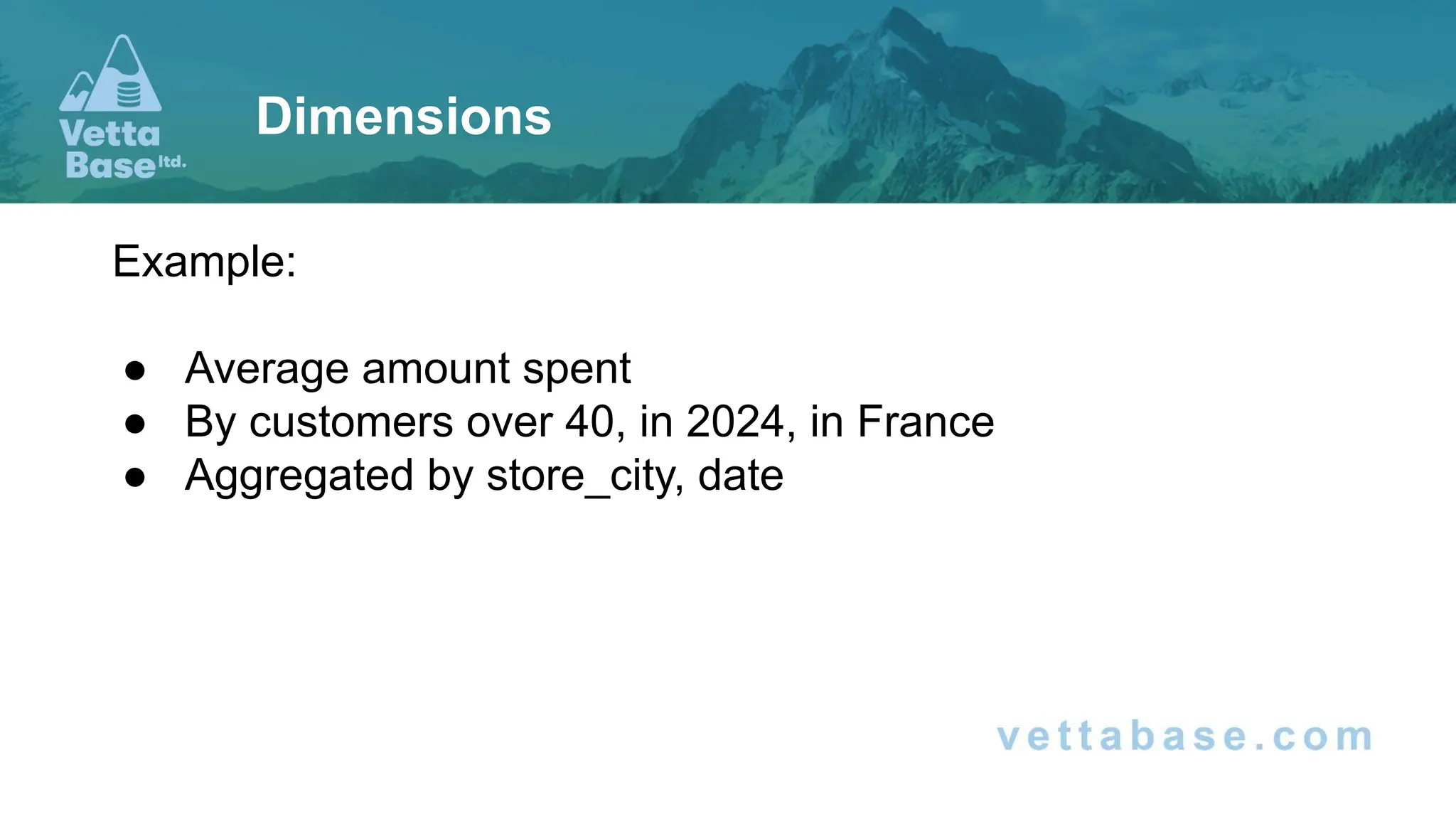

Example:
● Average amount spent
● By customers over 40, in 2024, in France
● Aggregated by store_city, date
Dimensions

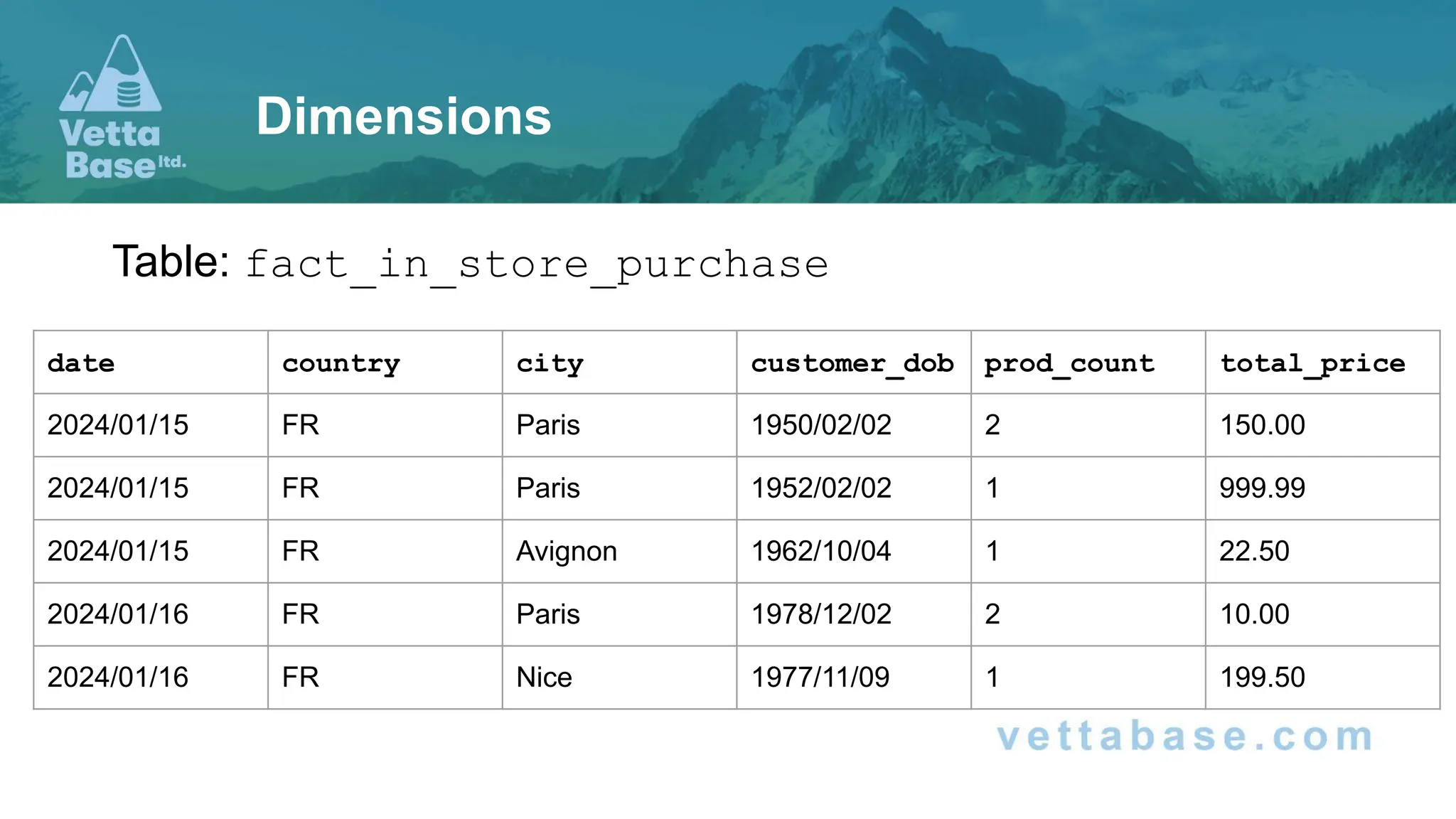

Table: fact_in_store_purchase
Dimensions
date country city customer_dob prod_count total_price
2024/01/15 FR Paris 1950/02/02 2 150.00
2024/01/15 FR Paris 1952/02/02 1 999.99
2024/01/15 FR Avignon 1962/10/04 1 22.50
2024/01/16 FR Paris 1978/12/02 2 10.00
2024/01/16 FR Nice 1977/11/09 1 199.50

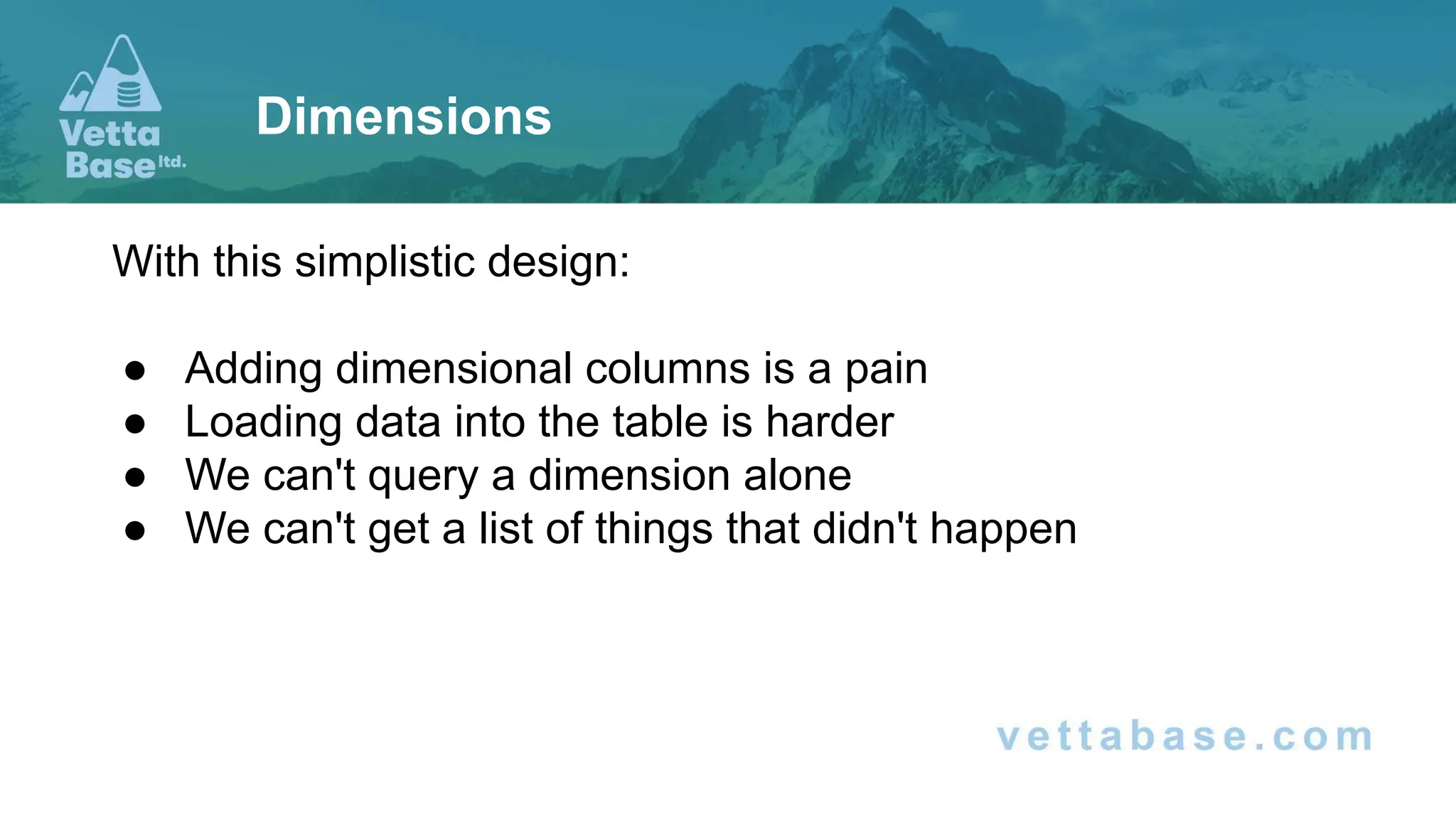

With this simplistic design:
● Adding dimensional columns is a pain
● Loading data into the table is harder
● We can't query a dimension alone
● We can't get a list of things that didn't happen
Dimensions

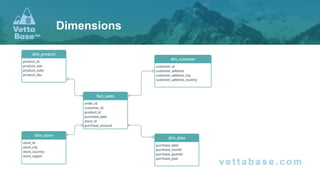

Dimensions

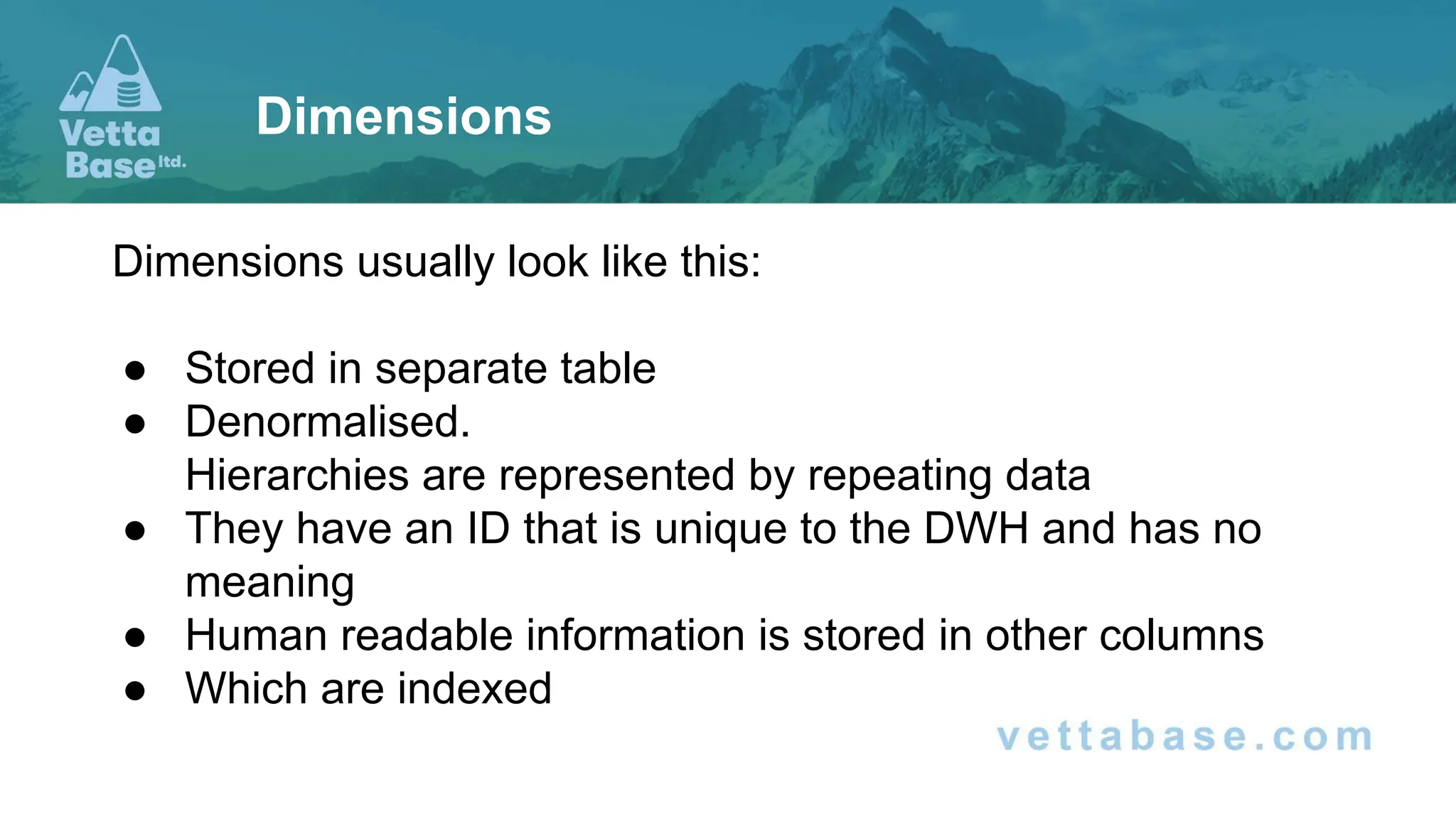

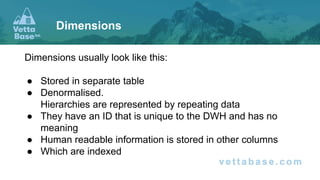

Dimensions usually look like this:
● Stored in separate table
● Denormalised.
Hierarchies are represented by repeating data
● They have an ID that is unique to the DWH and has no
meaning
● Human readable information is stored in other columns
● Which are indexed
Dimensions

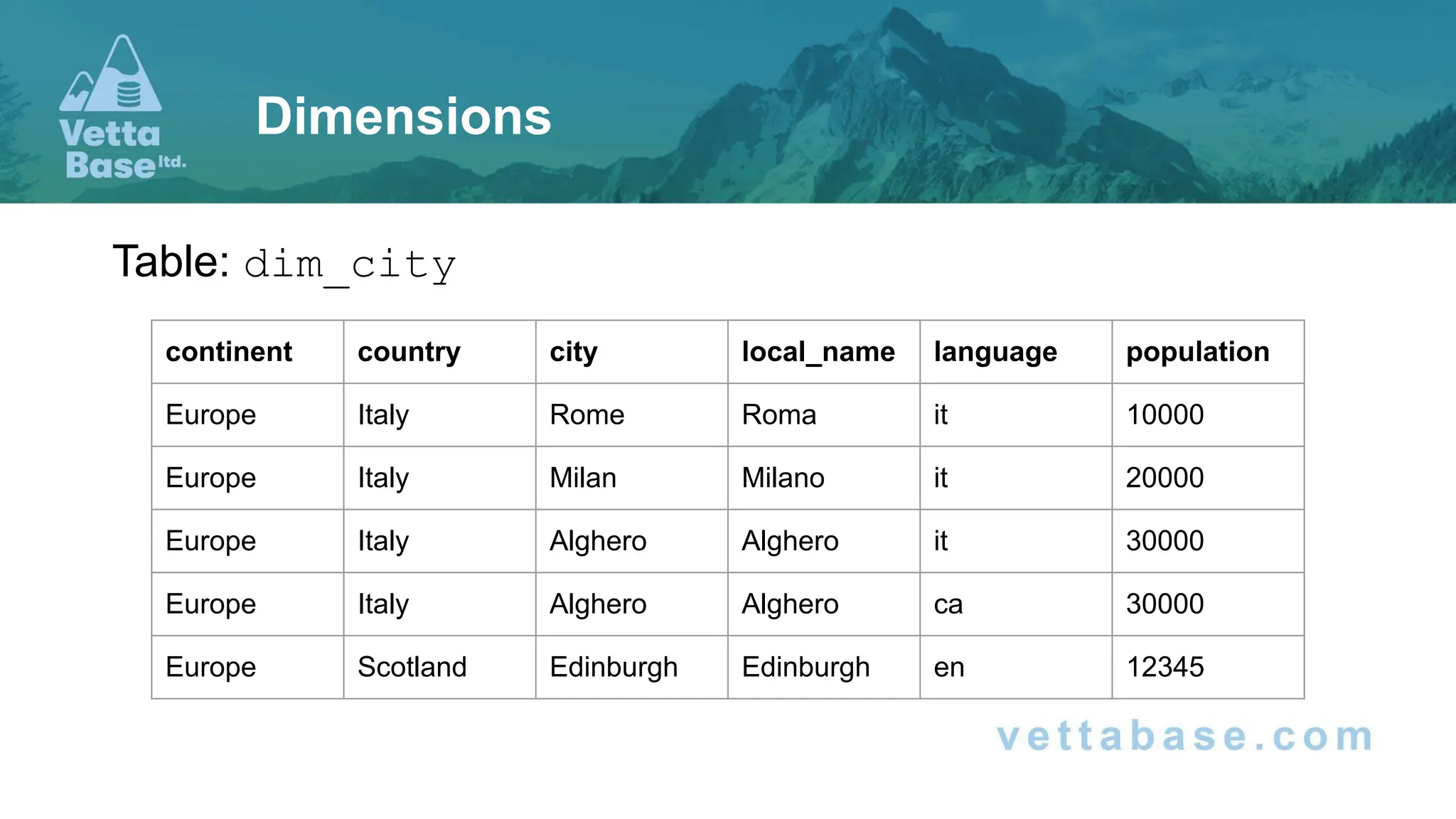

Table: dim_city
Dimensions
continent country city local_name language population
Europe Italy Rome Roma it 10000
Europe Italy Milan Milano it 20000
Europe Italy Alghero Alghero it 30000
Europe Italy Alghero Alghero ca 30000
Europe Scotland Edinburgh Edinburgh en 12345
Facts

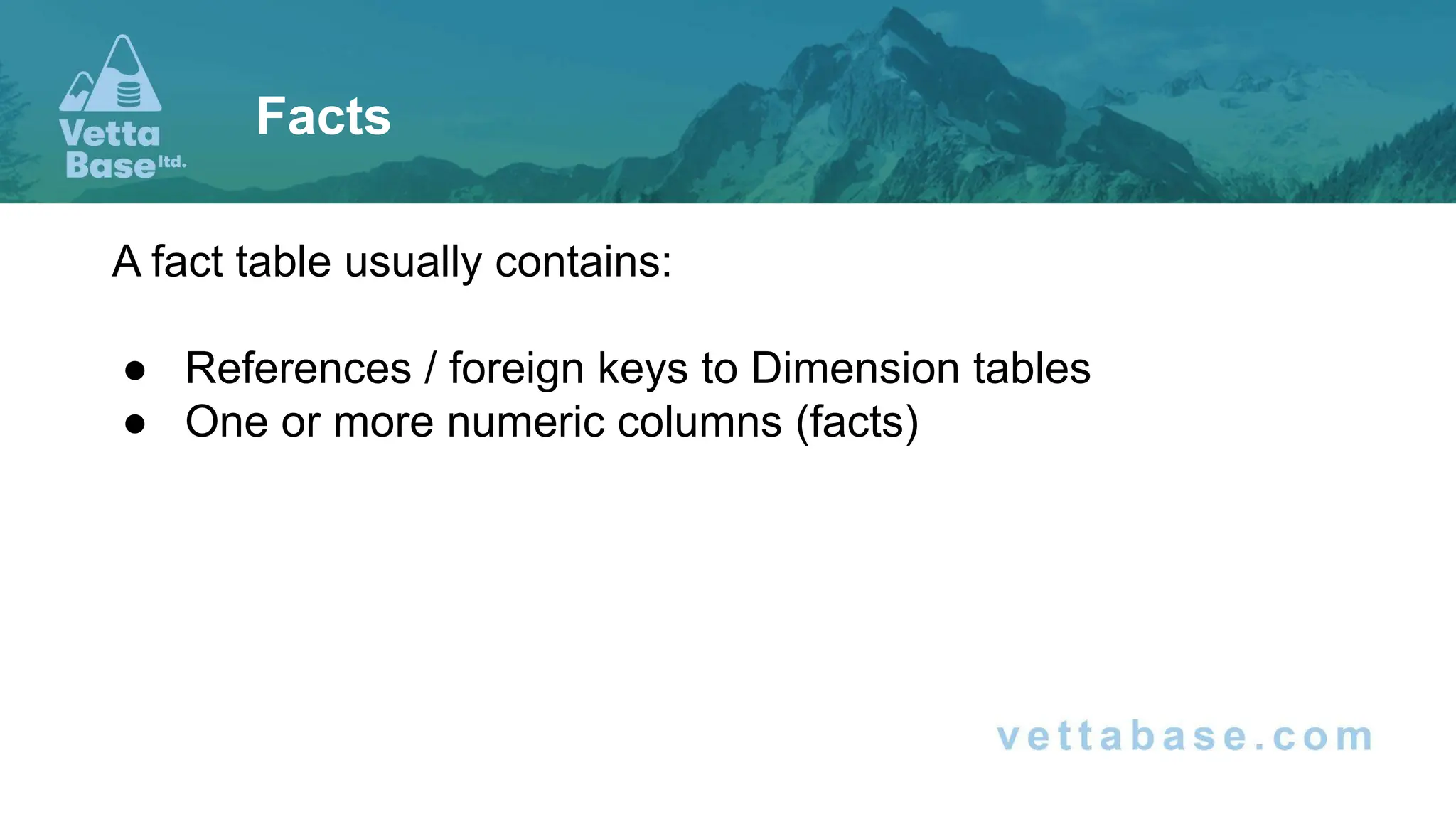

A fact table usually contains:
● References / foreign keys to Dimension tables
● One or more numeric columns (facts)
Facts

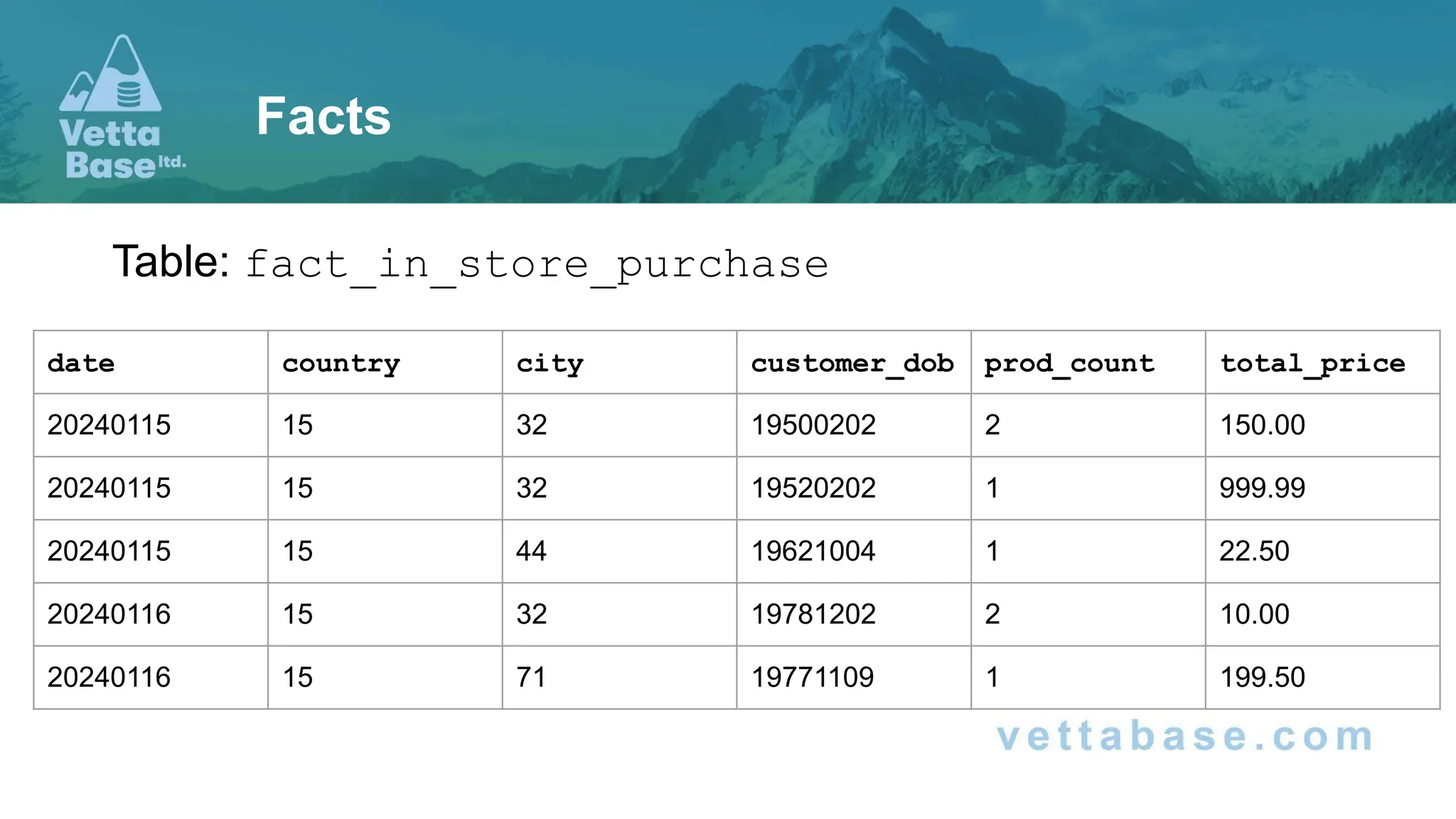

Table: fact_in_store_purchase
Facts
date country city customer_dob prod_count total_price
20240115 15 32 19500202 2 150.00
20240115 15 32 19520202 1 999.99
20240115 15 44 19621004 1 22.50
20240116 15 32 19781202 2 10.00
20240116 15 71 19771109 1 199.50

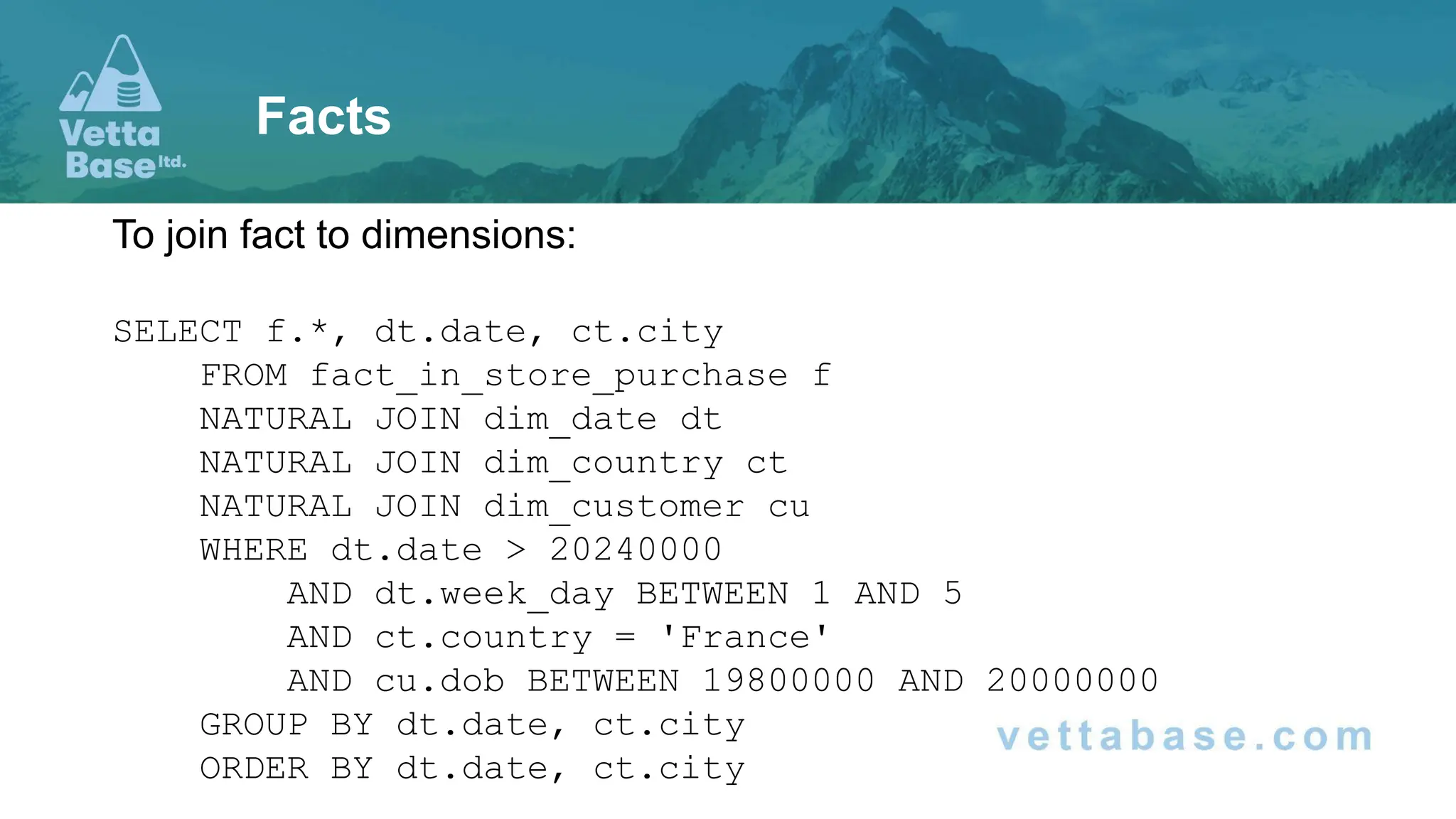

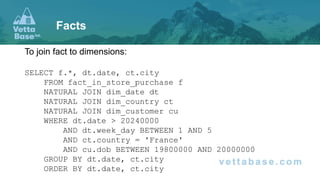

To join fact to dimensions:
SELECT f.*, dt.date, ct.city
FROM fact_in_store_purchase f
NATURAL JOIN dim_date dt
NATURAL JOIN dim_country ct
NATURAL JOIN dim_customer cu
WHERE dt.date > 20240000
AND dt.week_day BETWEEN 1 AND 5
AND ct.country = 'France'
AND cu.dob BETWEEN 19800000 AND 20000000
GROUP BY dt.date, ct.city
ORDER BY dt.date, ct.city
Facts

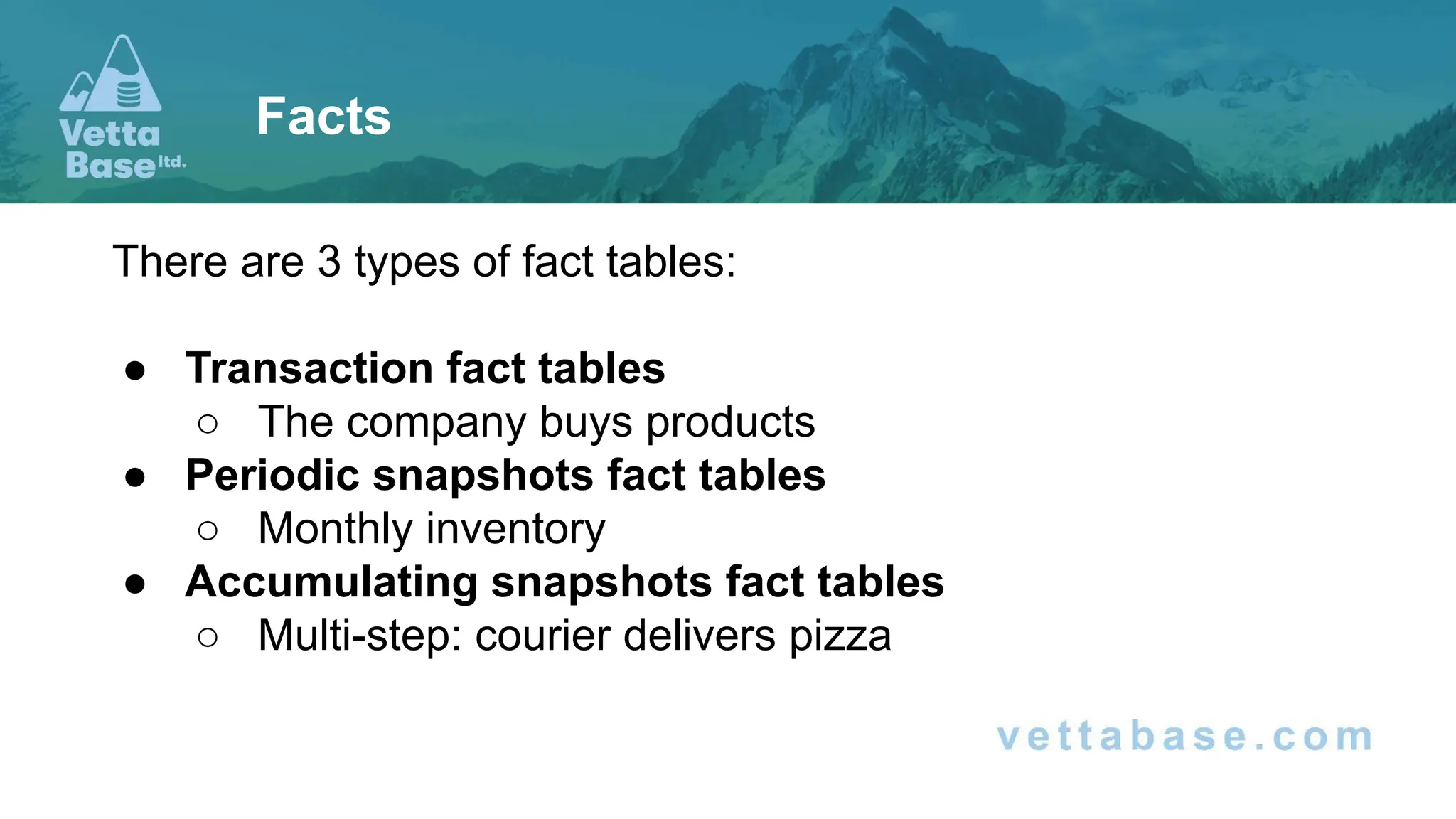

There are 3 types of fact tables:
● Transaction fact tables
○ The company buys products
● Periodic snapshots fact tables
○ Monthly inventory
● Accumulating snapshots fact tables
○ Multi-step: courier delivers pizza
Facts

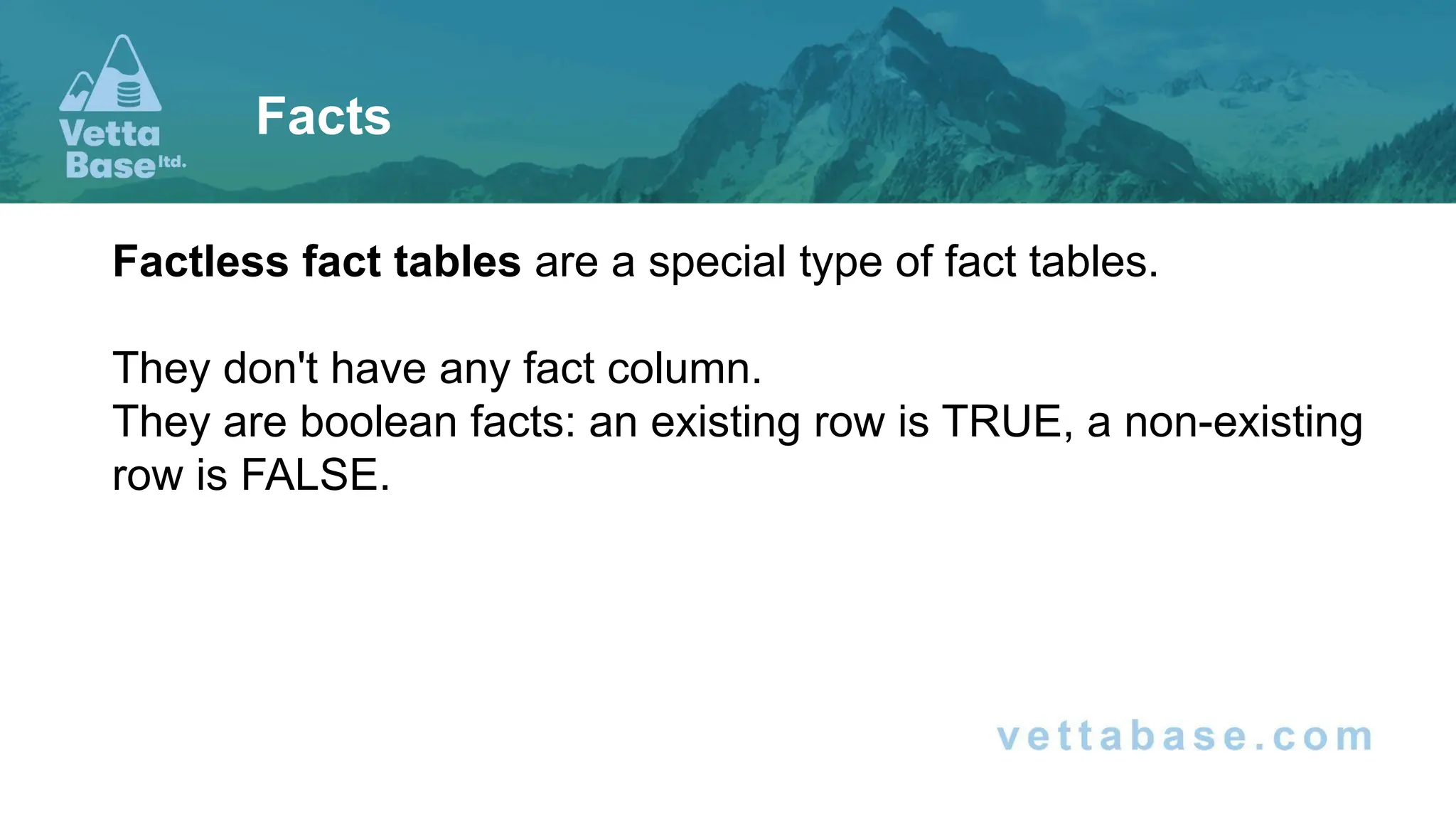

Factless fact tables are a special type of fact tables.
They don't have any fact column.
They are boolean facts: an existing row is TRUE, a non-existing
row is FALSE.
Facts

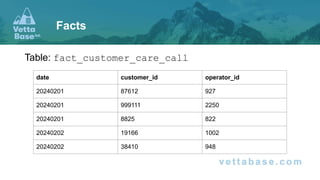

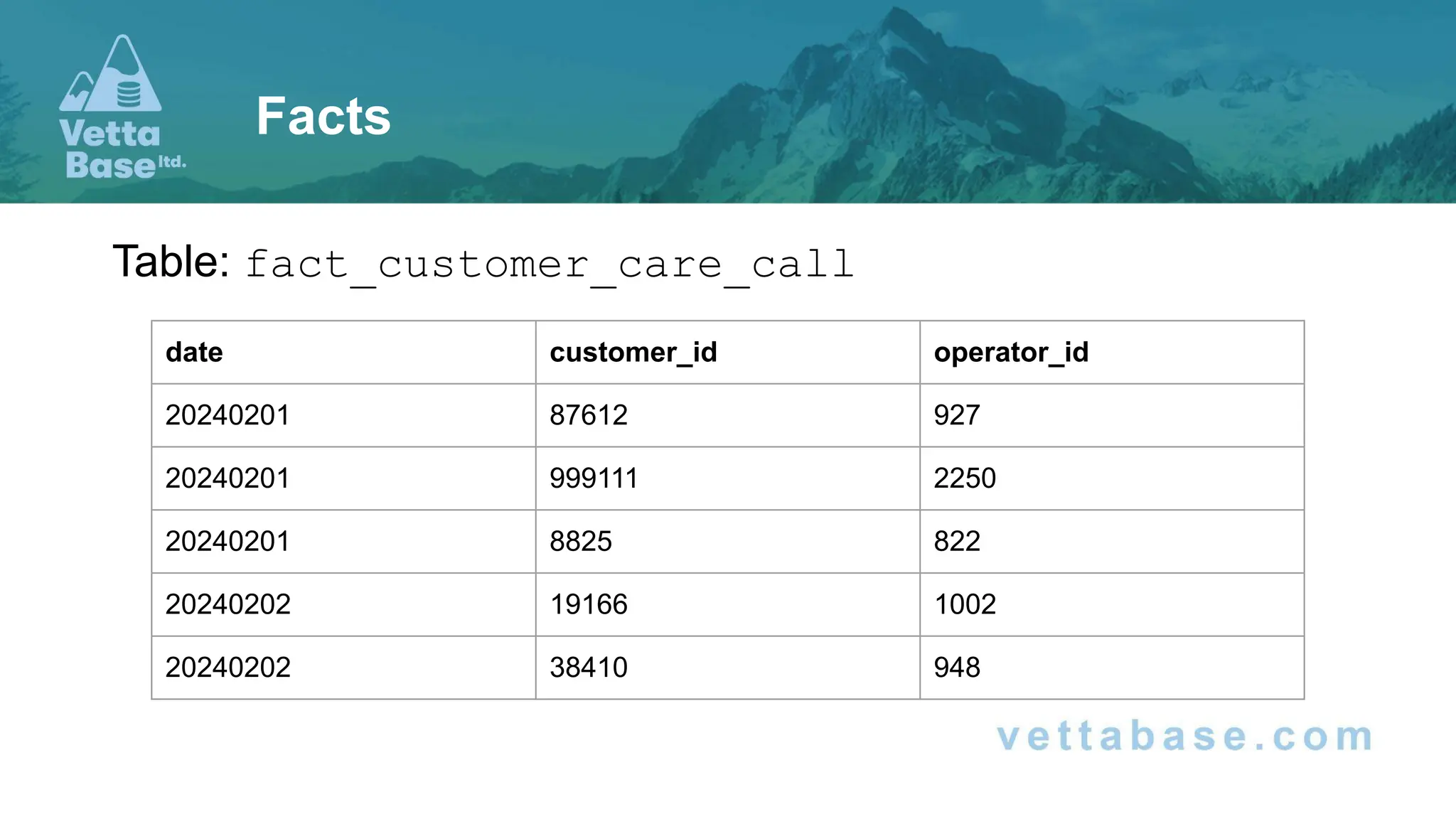

Table: fact_customer_care_call
Facts
date customer_id operator_id
20240201 87612 927
20240201 999111 2250
20240201 8825 822
20240202 19166 1002
20240202 38410 948
Time Dimensions

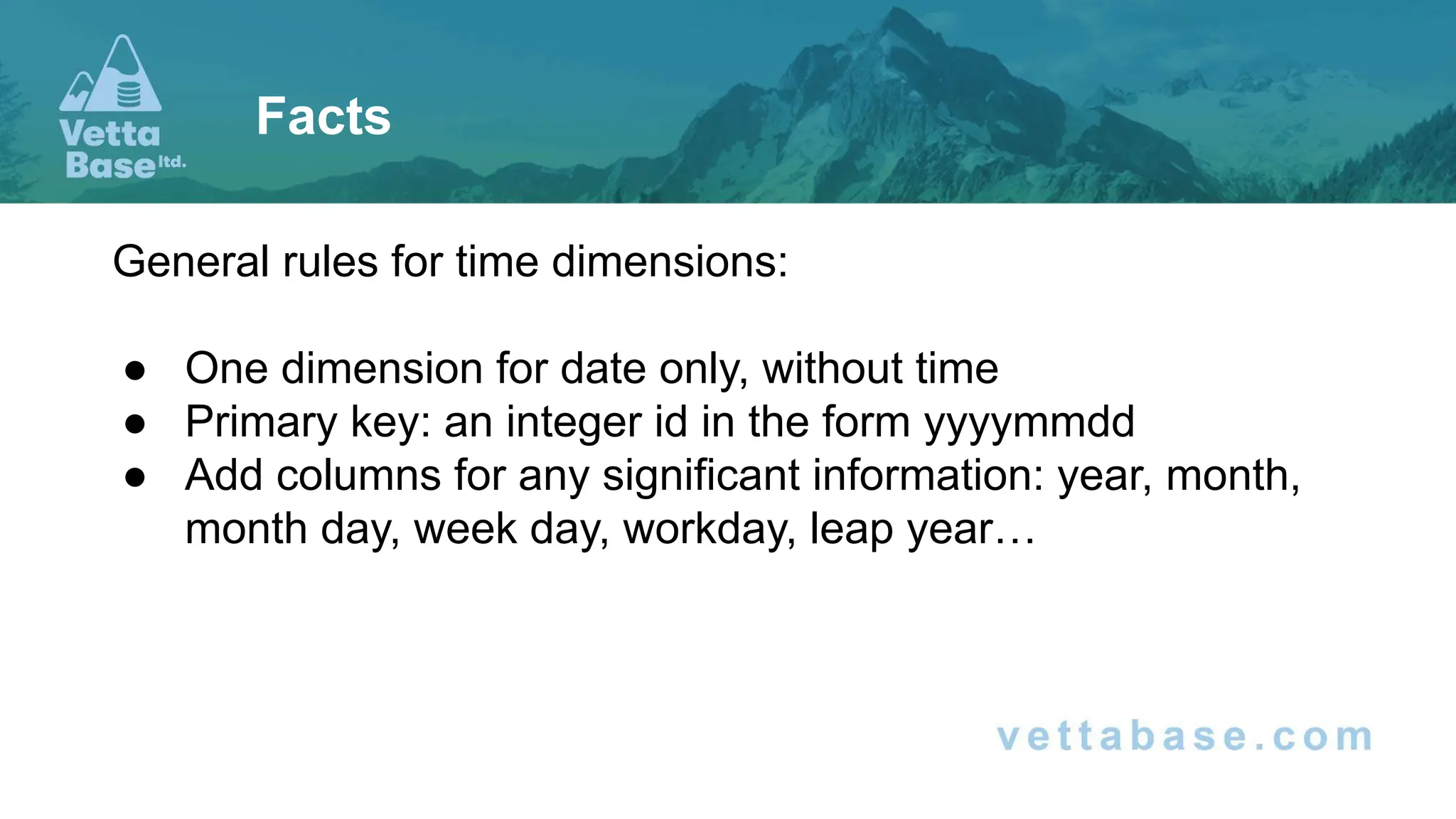

General rules for time dimensions:
● One dimension for date only, without time
● Primary key: an integer id in the form yyyymmdd
● Add columns for any significant information: year, month,
month day, week day, workday, leap year…
Facts

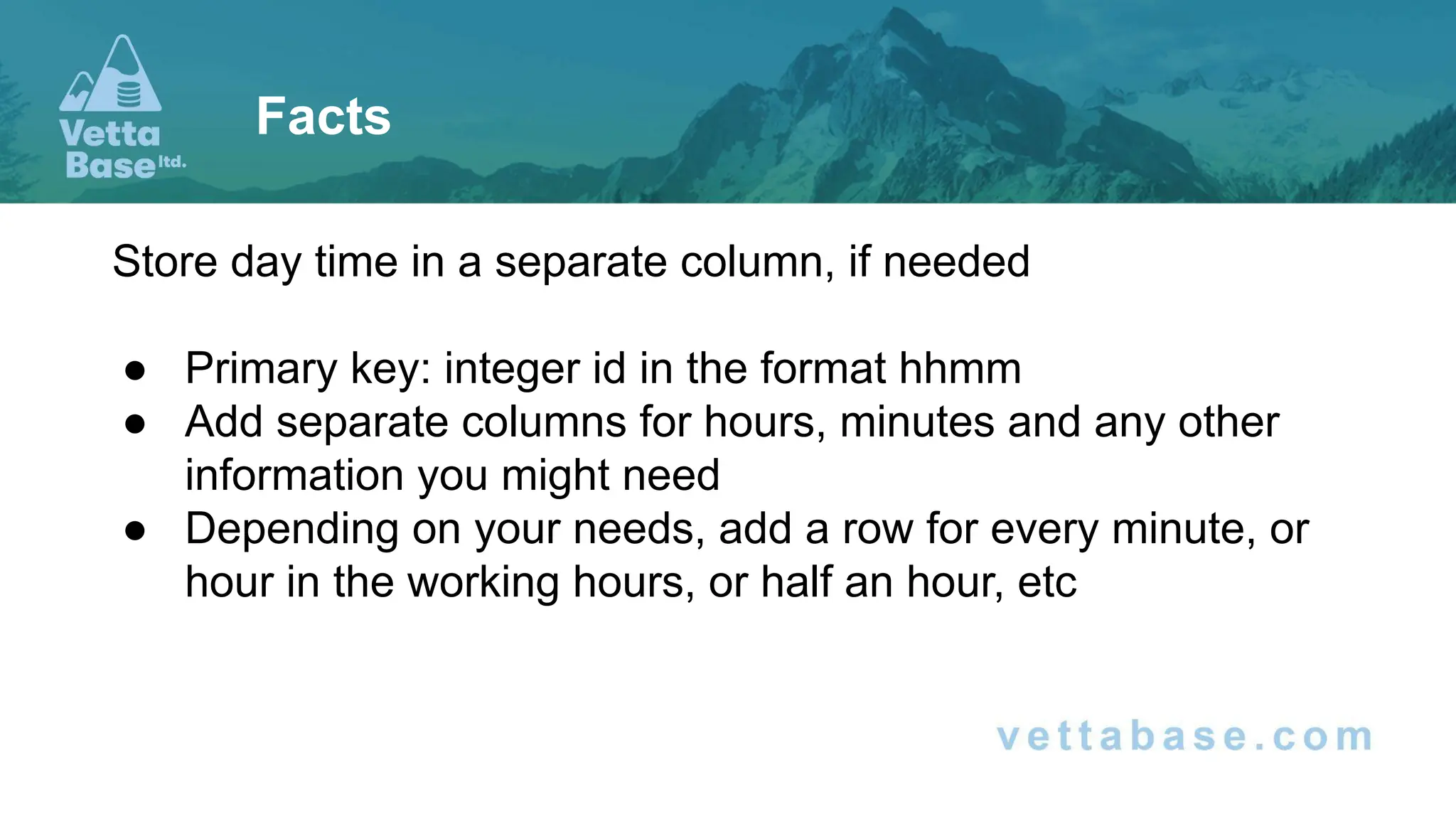

Store day time in a separate column, if needed
● Primary key: integer id in the format hhmm
● Add separate columns for hours, minutes and any other
information you might need
● Depending on your needs, add a row for every minute, or
hour in the working hours, or half an hour, etc
Facts

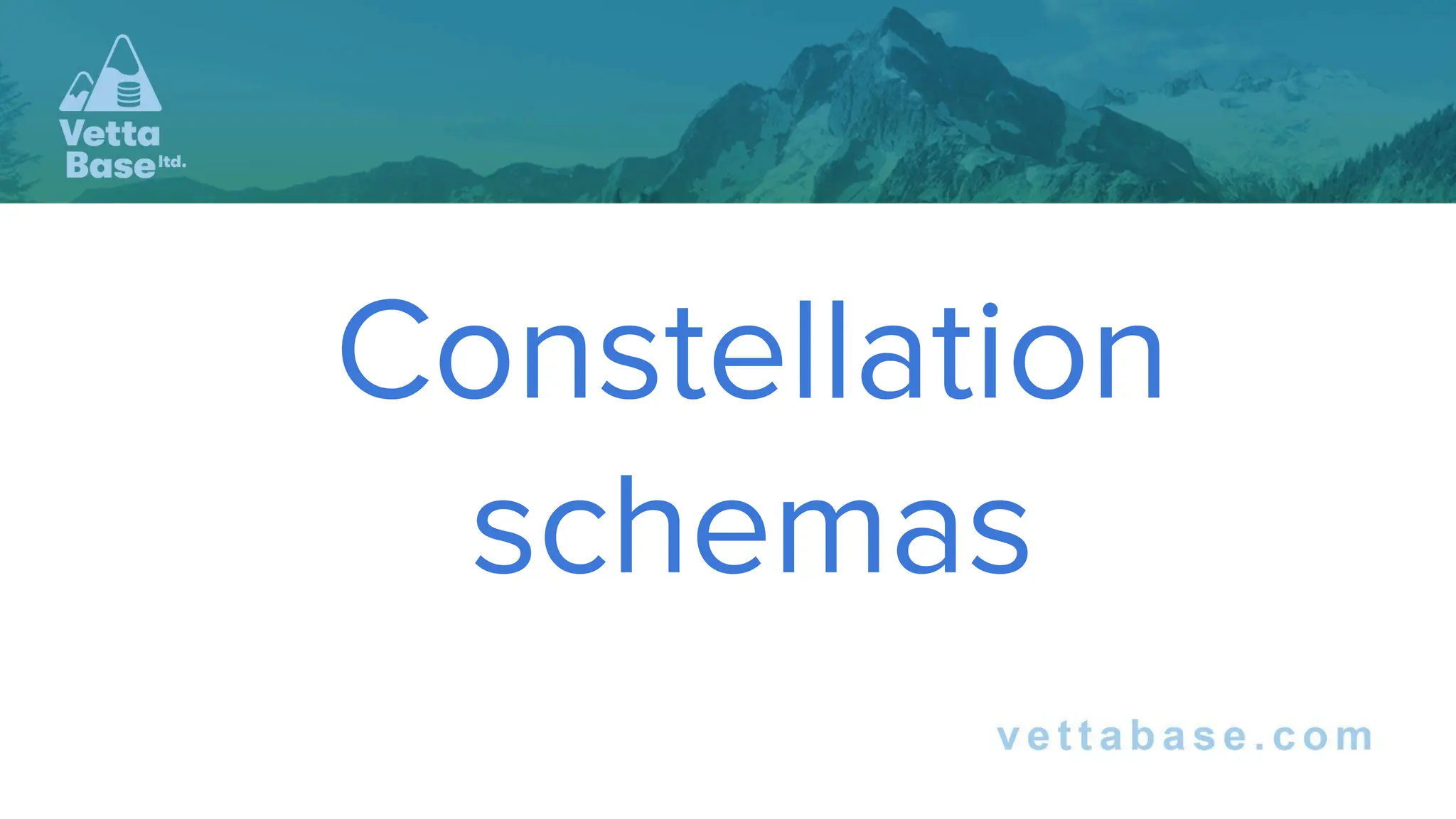

Constellation
schemas

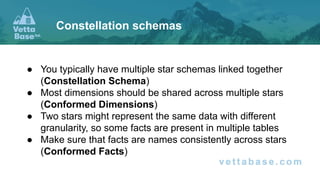

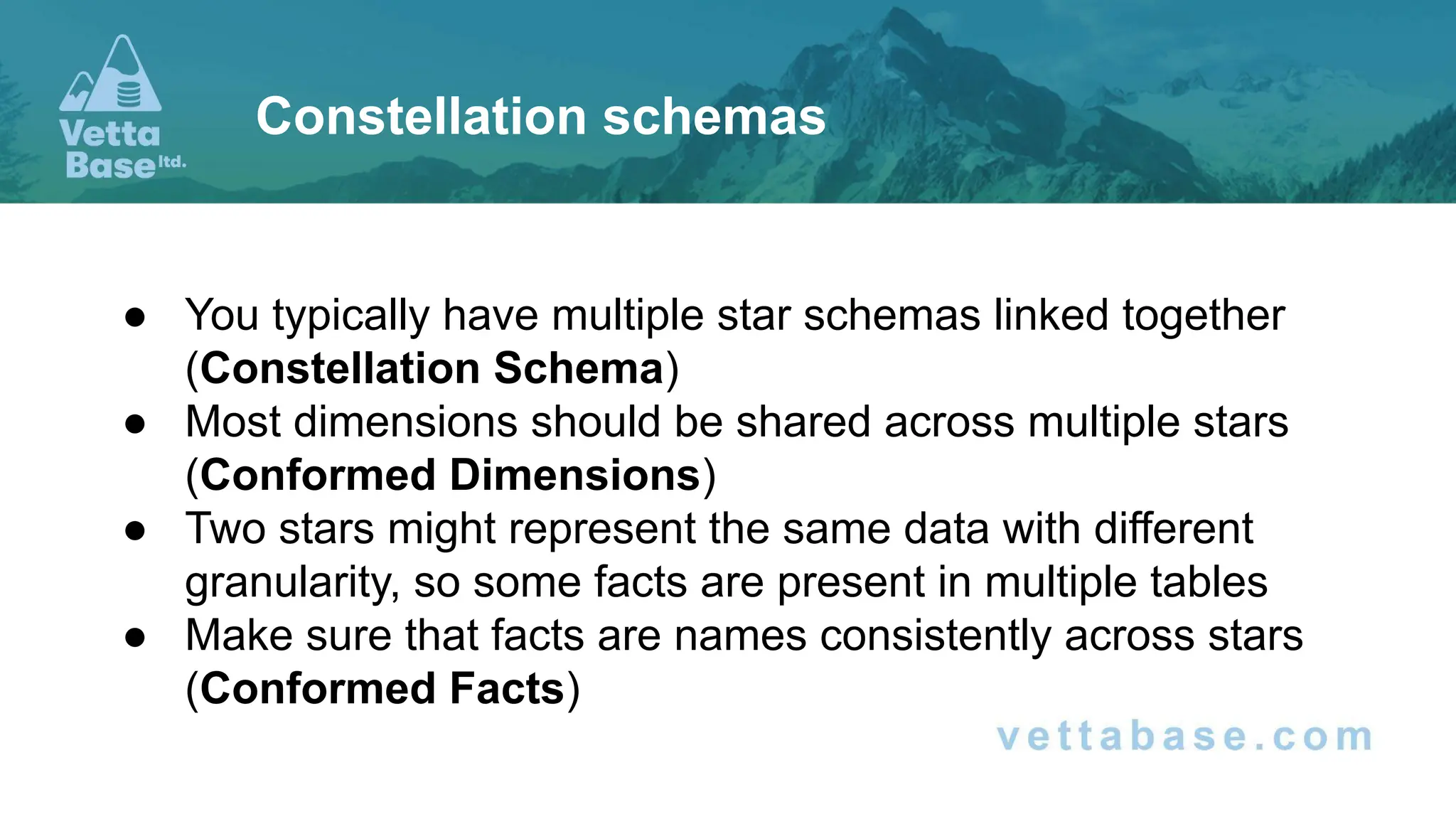

● You typically have multiple star schemas linked together
(Constellation Schema)
● Most dimensions should be shared across multiple stars
(Conformed Dimensions)
● Two stars might represent the same data with different
granularity, so some facts are present in multiple tables
● Make sure that facts are names consistently across stars
(Conformed Facts)
Constellation schemas
But DWH is a
complex matter…

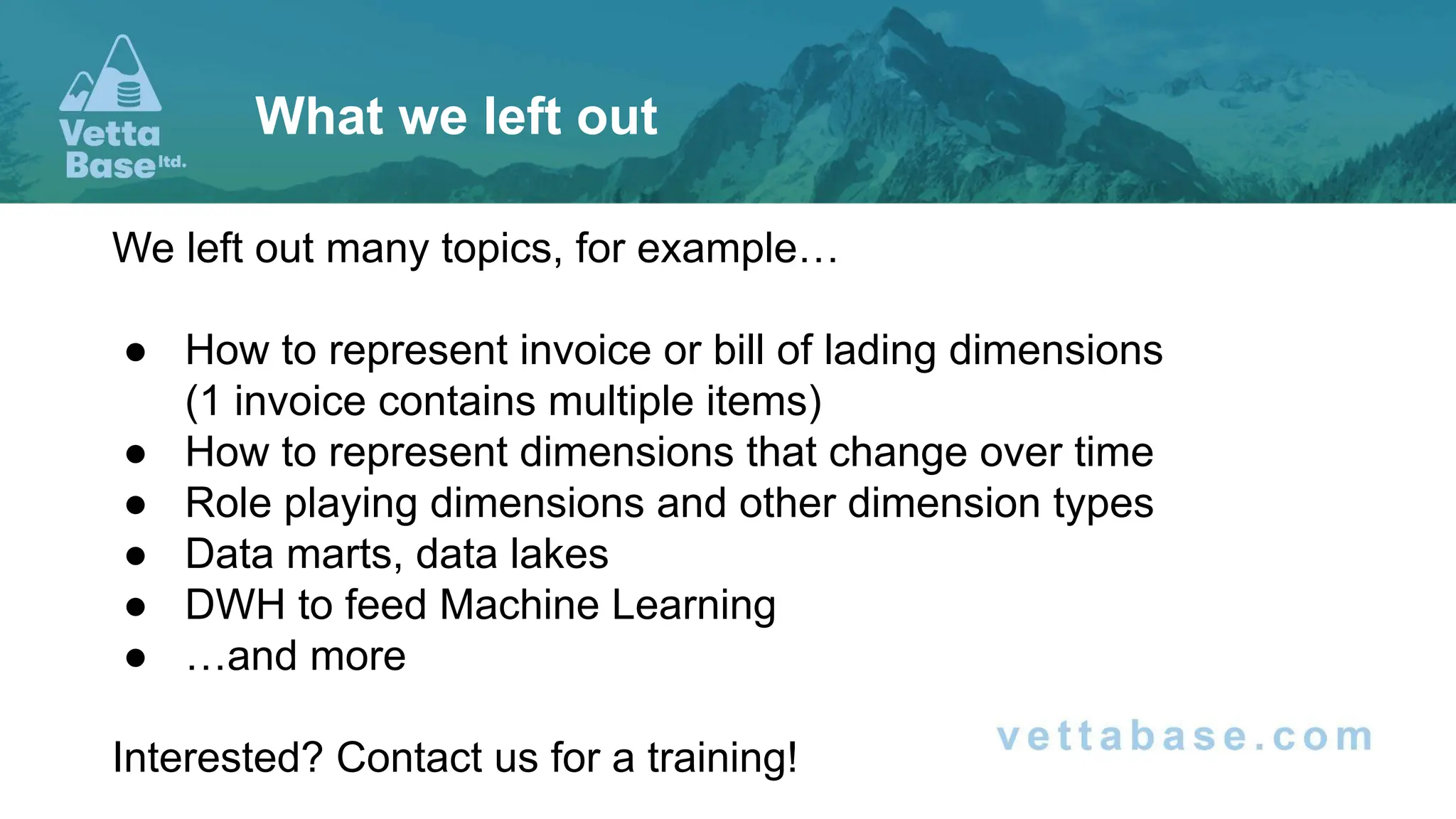

We left out many topics, for example…
● How to represent invoice or bill of lading dimensions
(1 invoice contains multiple items)
● How to represent dimensions that change over time
● Role playing dimensions and other dimension types
● Data marts, data lakes
● DWH to feed Machine Learning
● …and more
Interested? Contact us for a training!
What we left out
