Malware Evasion Techniques

.
McAfee – Thomas Roccia
troccia.tdgt.org | Security Consultant Researcher
Malware Evasion Techniques
How to Defeat Malware Protection?
@fr0gger_

.
Whoami
Thomas Roccia | @fr0gger_
French Security Consultant Researcher
Working at McAfee Foundstone
Malware Fighting
Incident Response
Threat Intelligence
Red Team
Assessment
Education
2

.

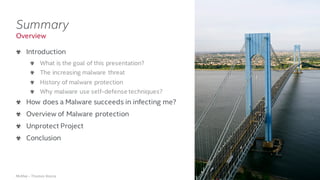

Summary
Introduction
What is the goal of this presentation?
The increasing malware threat
History of malware protection
Why malware use self-defense techniques?
How does a Malware succeeds in infecting me?
Overview of Malware protection
Unprotect Project
Conclusion
Overview

.

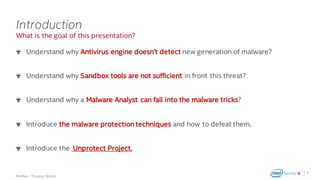

What is the goal of this presentation?
Introduction
Understand why Antivirus engine doesn’t detect new generation of malware?
Understand why Sandbox tools are not sufficient in front this threat?
Understand why a Malware Analyst can fall into the malware tricks?
Introduce the malware protection techniques and how to defeat them.
Introduce the Unprotect Project.
4

.

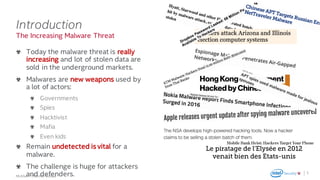

The Increasing Malware Threat
Introduction
Today the malware threat is really
increasing and lot of stolen data are
sold in the underground markets.
Malwares are new weapons used by
a lot of actors:
Governments
Spies
Hacktivist
Mafia
Even kids
Remain undetected is vital for a
malware.
The challenge is huge for attackers
and defenders. 5

.

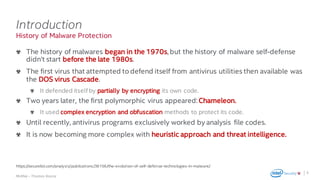

History of Malware Protection
Introduction
The history of malwares began in the 1970s, but the history of malware self-defense
didn’t start before the late 1980s.
The first virus that attempted to defend itself from antivirus utilities then available was
the DOS virus Cascade.
It defended itself by partially by encrypting its own code.
Two years later, the first polymorphic virus appeared:Chameleon.
It used complex encryption and obfuscation methods to protect its code.
Until recently, antivirus programs exclusively worked by analysis file codes.
It is now becoming more complex with heuristic approach and threat intelligence.
6
https://securelist.com/analysis/publications/36156/the-evolution-of-self-defense-technologies-in-malware/

.

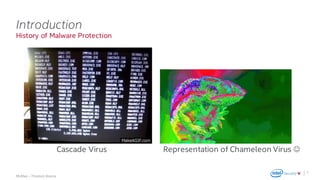

History of Malware Protection
Introduction
7
Cascade Virus Representation of Chameleon Virus J

.

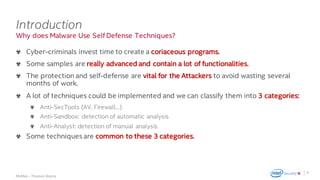

Why does Malware Use Self Defense Techniques?
Introduction
Cyber-criminals invest time to create a coriaceous programs.
Some samples are really advanced and contain a lot of functionalities.
The protection and self-defense are vital for the Attackers to avoid wasting several
months of work.
A lot of techniques could be implemented and we can classify them into 3 categories:
Anti-SecTools (AV, Firewall…)
Anti-Sandbox: detection of automatic analysis
Anti-Analyst: detection of manual analysis
Some techniques are common to these 3 categories.
8

.

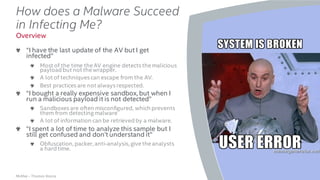

How does a Malware Succeed
in Infecting Me?
“I have the last update of the AV but I get
infected”
Most of the time the AV engine detectsthe malicious
payload but not the wrapper.
A lot of techniquescan escape from the AV.
Best practicesare not alwaysrespected.
“I bought a really expensive sandbox, but when I
run a malicious payload it is not detected”
Sandboxesare often misconfigured, which prevents
them from detectingmalware
A lot of information can be retrieved by a malware.
“I spent a lot of time to analyze this sample but I
still get confused and don’t understand it”
Obfuscation, packer, anti-analysis, give the analysts
a hard time.
9
Overview

.
Antivirus Engine can Fail
How does a Malware Succeed in Infecting Me?
Most of the time an Antivirus engine is based on:
Signature detection
Scanning functionalities
Heuristic engine
A Malware can escape from these functionalities by different techniques:
Adding Antivirus exceptions
Disabling an Antivirus
Using the Sleep Method
Using Code injection
Etc.
10

.

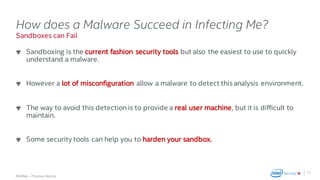

Sandboxes can Fail
Sandboxing is the current fashion security tools but also the easiest to use to quickly
understand a malware.
However a lot of misconfiguration allow a malware to detect this analysis environment.
The way to avoid this detection is to provide a real user machine, but it is difficult to
maintain.
Some security tools can help you to harden your sandbox.
11

.

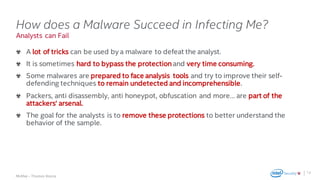

Analysts can Fail
A lot of tricks can be used by a malware to defeat the analyst.
It is sometimes hard to bypass the protection and very time consuming.
Some malwares are prepared to face analysis tools and try to improve their self-
defending techniques to remain undetected and incomprehensible.
Packers, anti disassembly, anti honeypot, obfuscation and more… are part of the
attackers‘ arsenal.
The goal for the analysts is to remove these protections to better understand the
behavior of the sample.
12

.

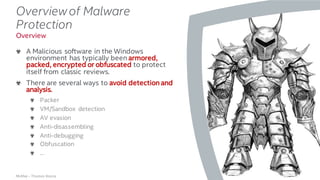

Overviewof Malware
Protection
A Malicious software in the Windows
environment has typically been armored,
packed, encrypted or obfuscated to protect
itself from classic reviews.
There are several ways to avoid detection and
analysis.
Packer
VM/Sandbox detection
AV evasion
Anti-disassembling
Anti-debugging
Obfuscation
…
13
Overview

.

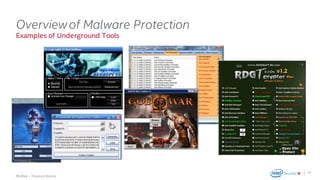

Examples of Underground Tools
Overviewof Malware Protection
14

.

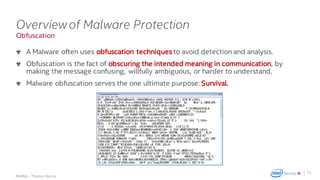

Obfuscation
A Malware often uses obfuscation techniques to avoid detection and analysis.
Obfuscation is the fact of obscuring the intended meaning in communication, by
making the message confusing, willfully ambiguous, or harder to understand.
Malware obfuscation serves the one ultimate purpose: Survival.
15

.

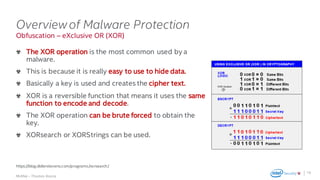

Obfuscation – eXclusive OR (XOR)
The XOR operation is the most common used by a
malware.
This is because it is really easy to use to hide data.
Basically a key is used and creates the cipher text.
XOR is a reversible function that means it uses the same
function to encode and decode.
The XOR operation can be brute forced to obtain the
key.
XORsearch or XORStrings can be used.
16
https://blog.didierstevens.com/programs/xorsearch/

.

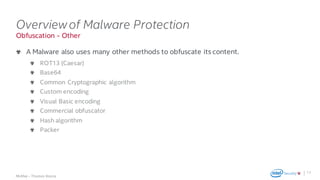

Obfuscation - Other
A Malware also uses many other methods to obfuscate its content.
ROT13 (Caesar)
Base64
Common Cryptographic algorithm
Custom encoding
Visual Basic encoding
Commercial obfuscator
Hash algorithm
Packer
17

.

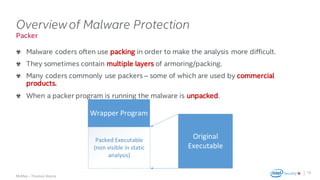

Packer
Malware coders often use packing in order to make the analysis more difficult.
They sometimes contain multiple layers of armoring/packing.
Many coders commonly use packers – some of which are used by commercial
products.
When a packer program is running the malware is unpacked.
18
Wrapper Program
Packed Executable
(non visible in static
analysis)
Original
Executable

.

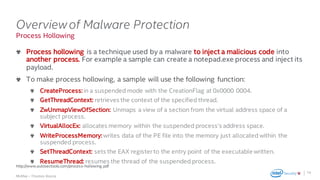

Process Hollowing
Process hollowing is a technique used by a malware to inject a malicious code into
another process. For example a sample can create a notepad.exe process and inject its
payload.
To make process hollowing, a sample will use the following function:
CreateProcess:in a suspended mode with the CreationFlag at 0x0000 0004.
GetThreadContext: retrieves the context of the specified thread.
ZwUnmapViewOfSection: Unmaps a view of a section from the virtual address space of a
subject process.
VirtualAllocEx: allocates memory within the suspended process’s address space.
WriteProcessMemory:writes data of the PE file into the memory just allocated within the
suspended process.
SetThreadContext: sets the EAX registerto the entry point of the executable written.
ResumeThread: resumes the thread of the suspended process.
19
http://www.autosectools.com/process-hollowing.pdf

.

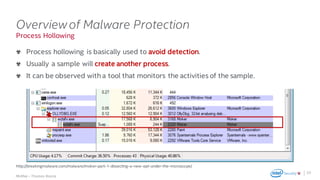

Process Hollowing
Process hollowing is basically used to avoid detection.
Usually a sample will create another process.
It can be observed with a tool that monitors the activities of the sample.
20
http://breakingmalware.com/malware/moker-part-1-dissecting-a-new-apt-under-the-microscope/

.

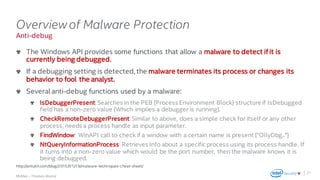

Anti-debug
The Windows API provides some functions that allow a malware to detect if it is
currently being debugged.
If a debugging setting is detected, the malware terminates its process or changes its
behavior to fool the analyst.
Several anti-debug functions used by a malware:
IsDebuggerPresent:Searches in the PEB (Process Environment Block) structure if IsDebugged
field has a non-zero value (Which implies a debugger is running).
CheckRemoteDebuggerPresent:Similar to above, does a simple check for itself or any other
process, needs a process handle as input parameter.
FindWindow: WinAPI call to check if a window with a certain name is present ("OllyDbg..")
NtQueryInformationProcess: Retrieves Info about a specific process using its process handle. If
it turns into a non-zero value which would be the port number, then the malware knows it is
being debugged.
21
http://antukh.com/blog/2015/01/19/malware-techniques-cheat-sheet/

.

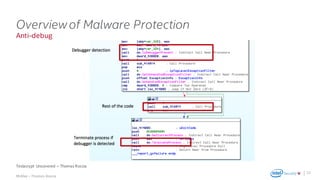

Anti-debug
22
Teslacrypt Uncovered – Thomas Roccia

.

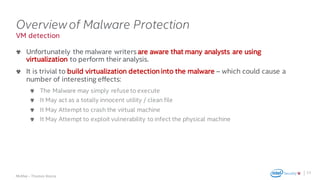

VM detection
Unfortunately the malware writers are aware that many analysts are using
virtualization to perform their analysis.
It is trivial to build virtualization detection into the malware – which could cause a
number of interesting effects:
The Malware may simply refuse to execute
It May act as a totally innocent utility / clean file
It May Attempt to crash the virtual machine
It May Attempt to exploit vulnerability to infect the physical machine
23

.
VM detection – Red Pill Technique
The Red Pill is an anti-VM technique that executes the SIDT instruction to grab the
value of the IDTR register.
The IDTR register can be used only by one OS.
VMware relocates the address of IDT for emulation with 0xFFXXXXXX.
24
http://www.simonganiere.ch/2012/11/20/malware-anti-vm-technics/

.

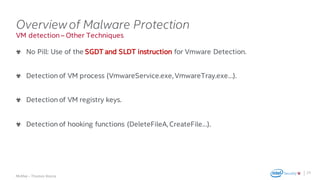

VM detection – Other Techniques
No Pill: Use of the SGDT and SLDT instruction for Vmware Detection.
Detection of VM process (VmwareService.exe, VmwareTray.exe…).
Detection of VM registry keys.
Detection of hooking functions (DeleteFileA, CreateFile…).
25

.

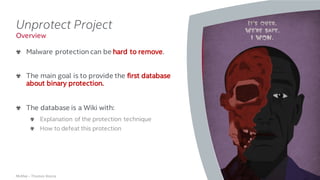

Unprotect Project
Malware protection can be hard to remove.
The main goal is to provide the first database
about binary protection.
The database is a Wiki with:
Explanation of the protection technique
How to defeat this protection
26
Overview

.
The first database about binary protection

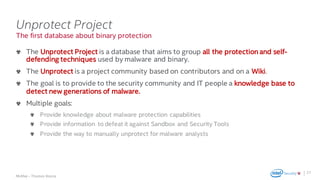

Unprotect Project
The Unprotect Project is a database that aims to group all the protection and self-
defending techniques used by malware and binary.
The Unprotect is a project community based on contributors and on a Wiki.
The goal is to provide to the security community and IT people a knowledge base to
detect new generations of malware.
Multiple goals:
Provide knowledge about malware protection capabilities
Provide information to defeat it against Sandbox and Security Tools
Provide the way to manually unprotect for malware analysts
27

.

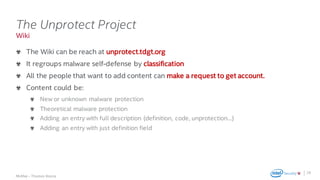

Wiki
The Unprotect Project
The Wiki can be reach at unprotect.tdgt.org
It regroups malware self-defense by classification
All the people that want to add content can make a request to get account.
Content could be:
New or unknown malware protection
Theoretical malware protection
Adding an entry with full description (definition, code, unprotection…)
Adding an entry with just definition field
28

.
unprotect.tdgt.org
29

.

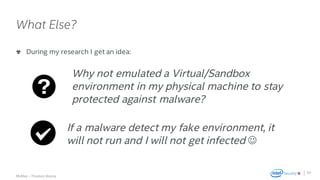

What Else?
During my research I get an idea:
30
Why not emulated a Virtual/Sandbox
environment in my physical machine to stay
protected against malware?
If a malware detect my fake environment, it
will not run and I will not get infected J

.

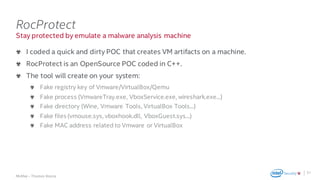

Stay protected by emulate a malware analysis machine

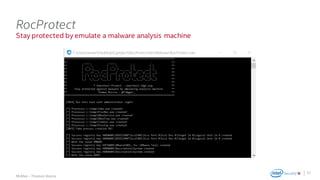

RocProtect
I coded a quick and dirty POC that creates VM artifacts on a machine.
RocProtect is an OpenSource POC coded in C++.
The tool will create on your system:
Fake registry key of Vmware/VirtualBox/Qemu
Fake process (VmwareTray.exe, VboxService.exe, wireshark.exe...)
Fake directory (Wine, Vmware Tools, VirtualBox Tools...)
Fake files (vmouse.sys, vboxhook.dll, VboxGuest.sys...)
Fake MAC address related to Vmware or VirtualBox
31

.
Stay protected by emulate a malware analysis machine
RocProtect
32

.

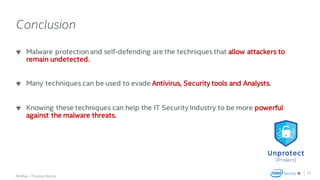

Conclusion
Malware protection and self-defending are the techniques that allow attackers to
remain undetected.
Many techniques can be used to evade Antivirus, Security tools and Analysts.
Knowing these techniques can help the IT Security Industry to be more powerful
against the malware threats.
33

.
34
• Thomas Roccia
• @fr0gger_
Thank you

Malware Evasion Techniques

More Related Content

What's hot

Similar to Malware Evasion Techniques

More from Thomas Roccia

Malware Evasion Techniques
