Machine learning for document analysis and understanding

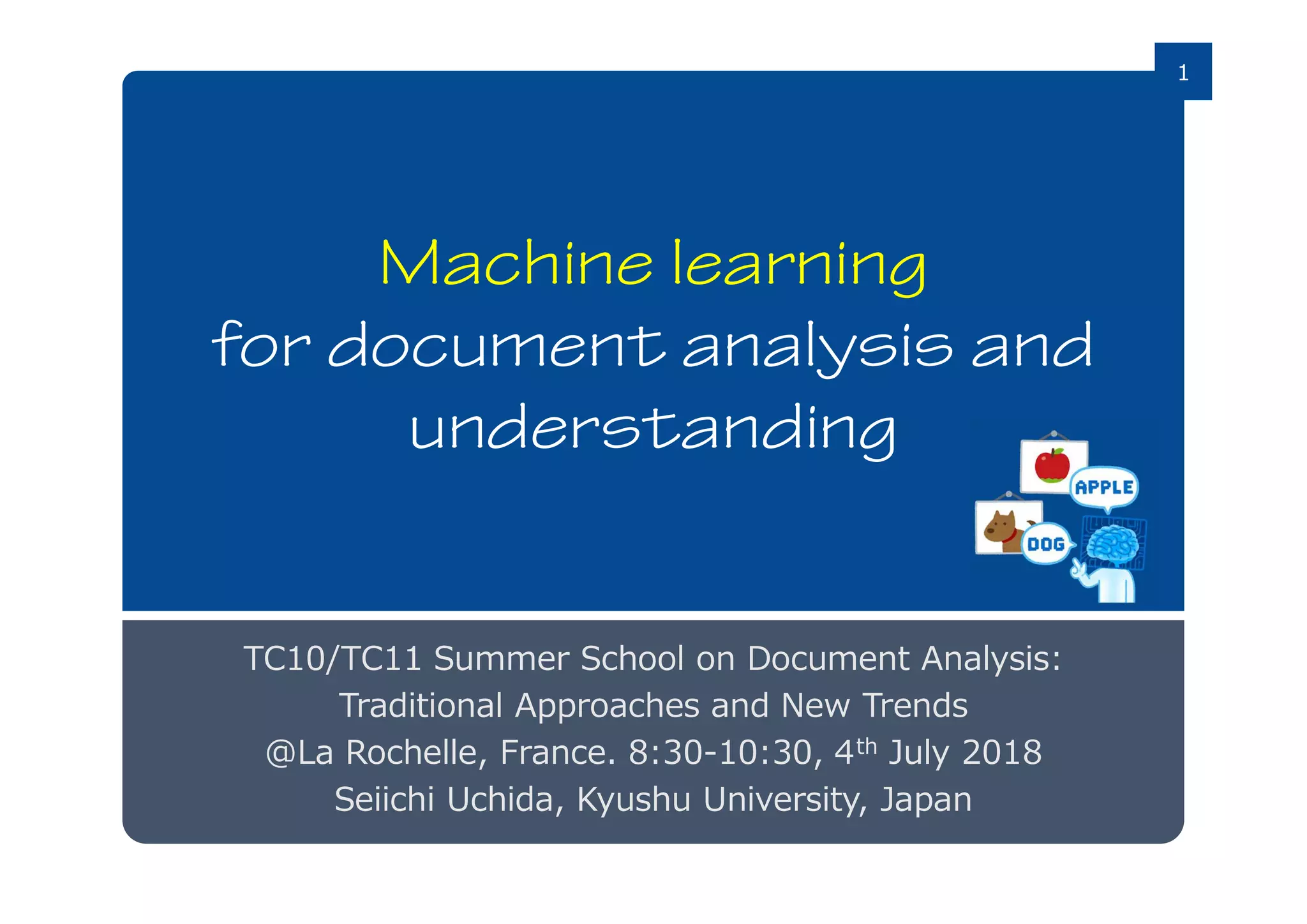

- 1. 1 Machine learning for document analysis and understanding TC10/TC11 Summer School on Document Analysis: Traditional Approaches and New Trends @La Rochelle, France. 8:30-10:30, 4th July 2018 Seiichi Uchida, Kyushu University, Japan

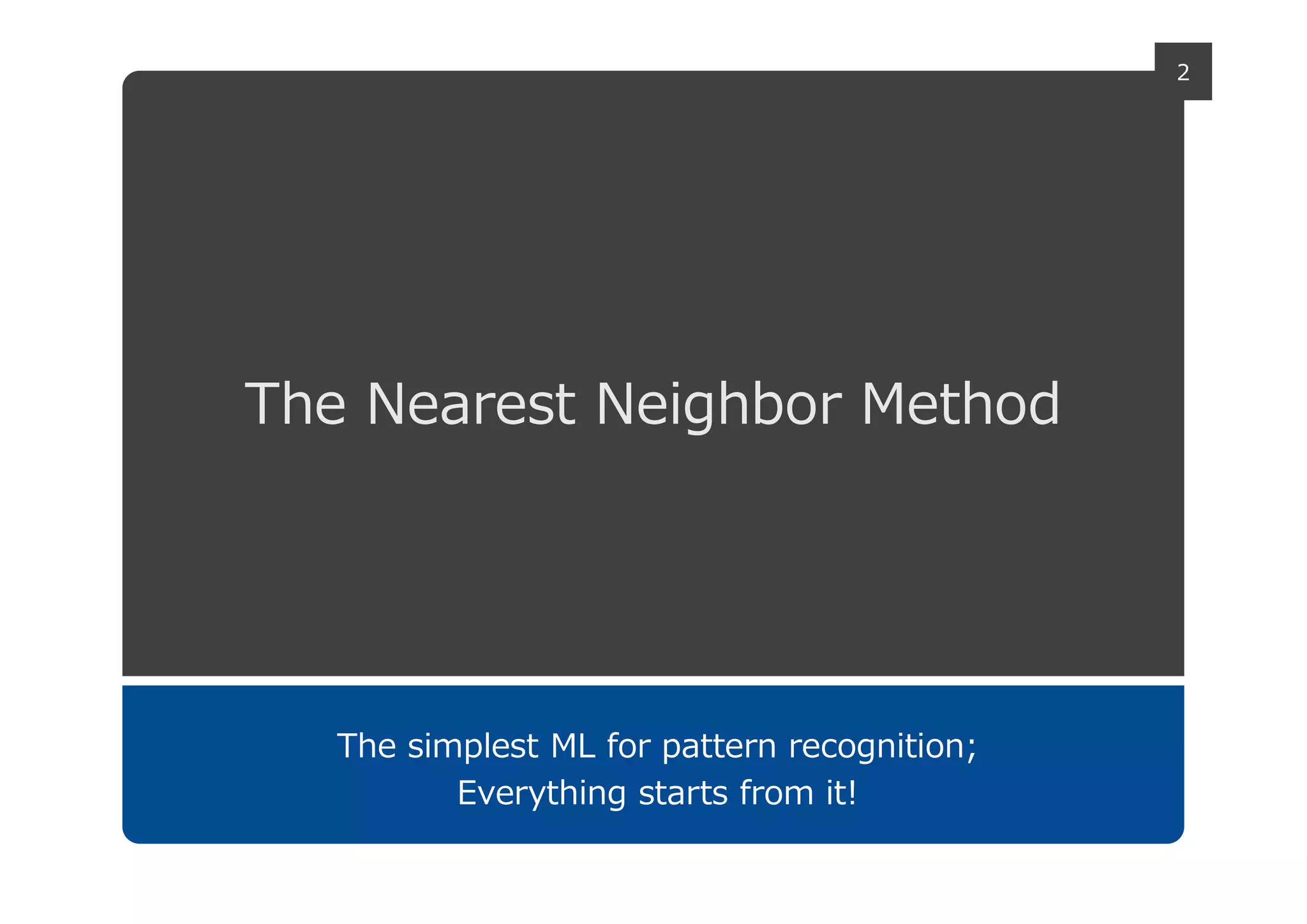

- 2. 2 The Nearest Neighbor Method The simplest ML for pattern recognition; Everything starts from it!
- 3. 3 The nearest neighbor method: Learning = memorizing Input PorkBeef Orange Watermelon Pineapple Fish Which reference pattern is the most similar? Reference patterns
- 4. 4 Each pattern is represented as a feature vector Color feature Texture feature Pork=(10, 2.5, 4.3) *Those numbers are just a random example Note: In the classical nearest neighbor method, those features are designed by human
- 5. 5 A different pattern becomes a different feature vector Beef = (8, 2.6, 0.9) *Those numbers are just a random example Pork=(10, 2.5, 4.3) *Those numbers are just a random example Color feature Texture feature
- 6. 6 Reference patterns in the feature vector space Color feature Texture feature
- 7. 7 An input pattern in the feature vector space We want to recognize this input x Color feature Texture feature
- 8. 8 input x Nearest neighbor method in the feature vector space Nearest neighbor input = orange Color feature Texture feature
- 9. 99 How do you define “the nearest neighbor”? Distance-based The smallest distance gives the nearest neighbor Ex. • Euclidean distance / Similarity-based The largest similarity gives the nearest neighbor Ex. • Inner product • Cosine similarity 𝐱 𝐲 𝐱 𝐲 x ?
- 10. 1010 Do you remember an important property of “inner product”? If and are in the similar direction, their inner product becomes larger The inner product evaluates the similarity between and
- 11. 11 Well, two different types of features (Note: important to understand deep learning) Features defined by the pattern itself Orange pixels→ Many Blue pixels → Rare Roundness → High Symmetry →High Texture → Fine … Features defined by the similarity to others Similarity to ”car” → Low Similarity to ”apple” → High Similarity to “monkey”→Low Similarity to “Kaki” (persimmon) →Very high …
- 12. 12 The nearest neighbor method with similarity-based feature vectors Similarity to “Kaki” Similarity to “car” Important note: Similarity is used for not only feature extraction but also classification
- 13. 13 A shallow explanation of neural networks Don’t think it is a black box. If you know “inner-product”, it becomes
- 14. 14 The neuron – its reality https://commons.wikimedia.org/
- 15. 15 From reality to computational model https://commons.wikimedia.org/ input g xgx 1x jx dx 1w jw dw f xg
- 16. 16 The neuron by computer Σ xg 1x jx dx 1 …… b bf bxwfg T d j jj xw x 1 )( x 1w jw dw f f: non-linear func. input output
- 17. 17 The neuron by computer Σ xg 1x jx dx 1 …… b x 1w jw dw f f: non-linear func. Let’s forget bf bxwfg T d j jj xw x 1 )(
- 18. 18 The neuron by computer Σ xg 1x jx dx 1 …… b x 1w jw dwLet’s forget d j jj bxwg 1 )(x
- 19. 19 The neuron by computer Σ 1x jx dx …… xwT just “inner product” of two vectors x 1w jw dw w xw x T d j jj xwg 1 )(
- 20. 20 So, a neuron calculate… xwT Σ 1x jx dx …… 1w jw dw xw andbetweensimilarityA =0.9 if they are similar =0.02 if they are dissimilar
- 21. 21 So, if we have K neurons, we have a K-dimensional similarity-based feature vector … xw xw xw T K T T 2 11w 2w Kwx 1x jx dx 0.9 0.05 0.75 x
- 22. 22 K-dimensional similarity-based feature vector by K neurons 0.9 0.05 0.75 input equiv. similarity to similarity to
- 23. 23 Another function of the inner product Similarity-based classification! (Yes, the nearest neighbor method!) Σ 1x jx dx …… x reference pattern of class k
- 24. 24 Note: Multiple functions are realized by just combining neurons! Just by layering the neuron elements, we can have a complete recognition system! … Feature extraction 1w Kw 1x jx dx …… 2w Classification AV CV BV Similarity to class A Similarity to class B Similarity to class C Choose max
- 25. 25 Now the time for deep neural networks 1x jx dx feature extraction layers …… … f f f … classification f f f
- 26. 26 An example: AlexNet “Deep” neural network called AlexNet A Krizhevsky, NIPS2012 feature extraction layers classification layers
- 27. 27 Now the time for deep neural networks 1x jx dx feature extraction layers …… … f f f … Classification f f f Why do we need to repeat feature extraction?
- 28. 28 Why do we need to repeat feature extraction? A D C B E Ｆ A difficult classification task
- 29. 29 Why do we need to repeat feature extraction? A D C B E Ｆ 1w2w
- 30. 30 Why do we need to repeat feature extraction? A D C B E Ｆ 1w2w Ｆ A B C D E Large similarity to 𝐰 Small similarity to 𝐰 similarity to similarity to𝐰 Note: The lower picture is not very accurate (because it does not use inner-product-based but distance-based space transformation. However I believe that it does not seriously damage the explanation here.
- 31. 31 Why do we need to repeat feature extraction? A D C B E Ｆ 1w2w Ｆ A B C D E It becomes more separable but still not very separable similarity to similarity to𝐰
- 32. 32 Why do we need to repeat feature extraction? A D C B E Ｆ 1w2w Ｆ A B C D E3w 4w similarity to similarity to𝐰
- 33. 33 Why do we need to repeat feature extraction? A D C B E Ｆ 1w2w Ｆ A B C D E3w 4w similarity to similarity to𝐰 A D E B C Ｆ similarity to similarity to𝐰
- 34. 34 Ｆ A B C D E3w 4w similarity to similarity to𝐰 A D E B C Ｆ similarity to similarity to𝐰 Why do we need to repeat feature extraction? A D C B E Ｆ 1w2w 3w 4w Wow, they become separable!
- 35. 35 Why do we need to repeat feature extraction? A D C B E Ｆ 1w2w Now two classes become totally separable by 2v 1v A D E B C Ｆ similarity to similarity to𝐰 A D E B C Ｆ similarity to similarity to𝐰 Ｆ A B C D E3w 4w similarity to similarity to𝐰
- 36. 36 Remembering the non-linear function Σ xg 1x jx dx 1 …… b x 1w jw dw f f: non-linear func.
- 37. 37 The typical non-linear function: Rectified linear function (ReLU) Σ xg 1x jx dx 1 …… b x 1w jw dw f Rectified linear function
- 38. 3838 How does ReLU affect the similarity-based feature? Minus elements in the feature vector are forced to be zero xwT 1 xwT K f Unchanged Unchanged f
- 39. 39 How to train neural networks: Super-superficial explanation
- 40. 40 In order to realize a DNN with an expected “input-output” relation … 1w Kw 1x jx dx …… 2w AV CV BV Similarity to class A Similarity to class B Similarity to class C Those parameters should be tuned 1w AV2w
- 41. 41 Training DNN; the goal Class B Class A DNN Knobs Perfect classification boundary Note: Actual number of #knobs (=#parameters)
- 42. 42 Training DNN; error-correcting learning by back propagation NG tuning NG NG NG Initial status tuning OK, end. boundary
- 43. 4343 Advanced topic: Why (SGD-based) back- propagation works? Many theoretical researches have been done [Choromanska+, PMLR2015] [Wu+, arXiv2017] Under several assumptions, local minima is close to the global minimum. flat basin of loss surface
- 44. 44 Knob = weight = a pattern for similarity-based feature Σ 1x jx dx …… input weight similarity to similarity to This pattern is automatically derived through training…
- 45. 45 Optimal feature is extracted automatically through training (Representation learning) Google’s cat https://googleblog.blogspot.jp/2012/06/ similarity to similarity toDetermined automatically
- 46. 46 DNN for image classification: Convolutional neural networks (CNN)
- 47. 47 kw How to deal with images by DNN? x xwT k 400million-dim vector 400million-dim vector ①Intractable computations ②Enormous parameters
- 48. 4848 kw Convolution = Repeating “local inner product” operations = Linear filtering x ji T k ,xw Low-dimensional vector ji,x ①Tractable computations ②Trainable #parameters
- 49. 49 kw Convolutional layer x ji,x = Use the same weight (filter coefficient) at all locations “Filtered” image
- 50. 50 kw Pooling layer x ji,x Keep only the maximum value ①Deformation compensation ②Local info aggregation
- 51. 51 Application to DAR: Isolated character recognition machine printed handwritten designed fonts 95.49% 99.79% 99.99% [Uchida+, ICFHR2016] Near-human performance
- 52. 5252 Application to DAR: Breaking Captcha 99.8% by 1 million training samples [Goodfellow＋, ArXiv, 2014]
- 53. 53 Application to DAR: Detecting a component in a character imageMulti-part component [Iwana+, ICDAR2017] Q: Can CNN detect complex components accurately?
- 54. 54 Application to DAR: Font Recognition (DeepFont) [Wang+, ACMMM2015]
- 55. 55 Several tips about DNN/CNN
- 56. 56 CNN can be used as a feature extractor 1x jx dx feature extraction layers …… … f f f … classification (discarded) f f f 1x jx dx …… … f f f Another classifier e.g., SVM and LSTM Anomaly detector Clustering great
- 57. 5757 The current CNN does not “understand” characters yet Adversarial examples [Abe+, unpublished] Motivated by [Nguyen+, CVPR2015] Likelihood values for classes “A” and “B”
- 58. 58 On the other hand, CNN can learn “math operation” through images input images output “image” showing the sum [Hoshen+, AAAI, 2016]
- 59. 5959 Visualization for deep learning: DeCAF [Donahue+, arXiv 2013] Visualizing the pattern distribution at each layer Near to the input layer Near to the output layer
- 60. 6060 Visualization for deep learning: DeepDream and its relations Finding an input image that excites a neuron at a certain layer https://distill.pub/2017/feature-visualization/
- 61. 6161 Visualization for deep learning: Layer-wise Relevance Propagation (LRP) Finding pixels which contribute the final decision by a backward process http://www.explain-ai.org/
- 62. 62 Visualization for deep learning: Local sensitivity analysis by making a hole Motivated by [Zeiler+, arXiv, 2013][Ide+, Unpublished] Likelihood of class “0” degrades a lot by making a hole around the pixel
- 63. 6363 Visualization for deep learning: Grad-CAM [Selvaraju+, arXiv2016] Finding pixels which contribute the final decision by a backward process http://gradcam.cloudcv.org/
- 64. 6464 tensorflow playground by Google https://playground.tensorflow.org/
- 65. 65 Several Variants of DNN/CNN
- 66. 6666 Auto encoder (= Nonlinear principal component analysis) Training the network to output the input App: Denoising by convolutional auto-encoder Compact representation of the input wikipedia https://blog.sicara.com/keras-tutorial-content-based-image-retrieval-convolutional-denoising-autoencoder-dc91450cc511
- 67. 6767 U-Net: Conv-Deconv net that outputs an image [Ronneberger+, MICCAI2015] Skip connection cell image cell boundary image
- 68. 68 Application to DAR: Scene text eraser [Nakamura+, ICDAR2017]
- 69. 6969 Application to DAR: Binarization ICDAR-DIBCO2017 Winner (Smart Engines Ltd, Moscow, Russia) used U-net [Pratikakis+, ICDAR2017]
- 70. 70 Application to DAR: Dewarping [Ma+, CVPR2018] Stacked U-nets
- 71. 7171 Note: Deep Image Prior [Ulyanov+, CVPR2018] Conv-Deonv structure has an inherent characteristics which is suitable for image completion and other “low-pass” operations train a conv-deconv net just to generate the left image but it results in the right image
- 72. 7272 Generative Adversarial Networks The battle of two neural networks VS Generate “fake bill” Discriminate fake or real bill Generator Discriminator Fake bill becomes more and more realistic
- 73. 73 Application to DAR: (Our) Style-consistent font generation [Hayashi+, unpublished]
- 74. 74 Application to DAR: Oh no.. CVPR2018 was filled by Font-GANs
- 75. 75 Huge variety of GANs: Just several examples… StackGANCycleGAN Standard GAN (DCGAN) https://www.slideshare.net/YunjeyChoi/generative-adversarial-networks-75916964 condition (class) Conditional GAN
- 76. 76 Style Transfer [Gatys+, CVPR2016] style image (given) content image (given) generated image
- 77. 77 Style Transfer [Gatys+, CVPR2016] style image (given) content image (given) generated image similar internal outputs similar internal output
- 78. 78 Application to DAR: Font Style Transfer [Gantugs+, DAS2018]
- 79. 79 SSD (Single Shot MultiBox Detector) Fully-Conv Net that outputs bounding boxes [Liu+, ECCV2016]
- 80. 80 Application to DAR: EAST: An Efficient and Accurate Scene Text Detector [Zhou+, “EAST: An Efficient and Accurate Scene Text Detector”, CVPR2017] Evaluating bounding box shape
- 81. 81 Long short-term memory(LSTM), which is the most typical Recurrent Neural Networks
- 82. 82 LSTM (Long short-term memory): A recurrent neural network … … … … Recurrent structure Info from all the past Gate structure Active info selection input vector output vector Also very effective for solving the vanishing gradient problem in t-direction [Graves+, TPAMI2009]
- 83. 83 LSTM NN Recurrent NN Recurrent structure Info from all the past LSTM NN Gate structure Active info selection input output input output input gate forget gate output gate [Graves+, TPAMI2009]
- 84. 84 Standard LSTM NN-based HWR Character class Feature vector sequence
- 85. 85 Extension to Bi-directional LSTM Character class Feature vector sequence combine Output using the past info Output using the future info
- 86. 86 Deep BLSTM network [Frinken-Uchida, ICDAR2015] Output layer Input layer LSTM layer LSTM layer LSTM layer
- 87. 87 Application to DAR: Convolutional Recurrent Neural Network (CRNN) An End-to-End Trainable Neural Network for Image-Based Sequence Recognition and Its Application to Scene Text Recognition, IEEE TPAMI, 2017
- 88. 88 Image Captioning (CNN+LSTM): Converting an image to a “document” [Vinyals+, arXiv2015]
- 89. 89 Application to DAR: End-to-end math OCR (Image LaTeX) [Deng+, Image-to-Markup Generation with Coarse-to-Fine Attention, arXiv2017]
- 90. 90 More conventional machine learning techniques (SVM, -machine, AdaBoost)
- 91. 91 Support Vector Machines (SVM) Still the best choice when the amount of data is insufficient
- 92. 92 Linear discriminant function A A AB B x training patterns from class A and B
- 93. 93 Linear discriminant function A A AB B x bT xw positive =classA negative =classB
- 94. 94 Linear discriminant function A A AB B x bT xw positive =classA negative =classB misrecognized
- 95. 95 Linear discriminant function A A AB B x bT xw positive =classA negative =classB no misrecognition!
- 96. 96 Which one is the best? A A AB B x bT xw positive =classA negative =classB All of those functions can recognize all training patterns…
- 97. 97 Don’t forget unseen patterns… A A AB B x bT xw positive =classA negative =classB B A We might have those patterns around the class boundary A
- 98. 98 Max-margin classification A A AB B x bT xw positive =classA negative =classB margin margin
- 99. 99 A A AB B How can we get it? Minimize the slope under constraints x bT xw 1 -1 For us, the function value should be more than 1 For us, the function value should be more than 1
- 100. 100 A A AB B How can we get it? Minimize the slope under constraints x bT xw 1 -1 NG OK NG
- 101. 101 A A AB B How can we get it? Minimize the slope under constraints x bT xw 1 -1 nail
- 102. 102 A A AB B How can we get it? Minimize the slope under constraints x bT xw 1 -1 the minimum slope satisfying the constraints
- 103. 103 A A AB B How can we get it? Minimize the slope under constraints x bT xw 1 -1 It also gives the maximum margin classification!
- 104. 104 A A AB B Support vectors x bT xw 1 -1 SV SV Only those SVs contribute to determine the discriminant function
- 105. 105 Two-dimensional case Minimize the slope
- 106. 106 No solution that satisfies the constraints: Not linearly-separable A A AB B x bT xw 1 -1 B
- 107. 107 A relaxation: Replace the constraint as a penalty A A AB B x bT xw 1 -1 B Penalty Penalty Minimize “slope + penalty”
- 108. 108 -machine An old partner for linear classifier The idea of “kernel” comes from this
- 109. 109 Mapping the feature vector space to a higher-dimensional space 1x 2x 1 1 0 Not linearly-separable 1x 21xx 2x Linearly-separable! 21 2 1 2 1 xx x x x x :
- 110. 110 What happens in the original space 1x 2x 21xx
- 111. 111 What happens in the original space 1y 2y 3y dcybyay 321 A plane in 3D space Rewrite
- 112. 112 What happens in the original space 1x 2x 21xx dxcxbxax 2121 ??? What is this? Revert
- 113. 113 What happens in the original space 1x 2x 1 1 0 1 1 2 2121 cxb axd x dxcxbxax 識別面： Linear classification in the higher-space corresponds to a non-linear classification in the original space Classification boundary
- 114. 114 Another example A A B B 1x 2x B 1x 2 2 1 xx B A A 2x 2 2 1 2 1 2 1 xx x x x x ：
- 115. 115 What happens in the original space daxcx cb x dxxcbxax 1 2 12 2 2 121 1 B 1x 2 2 1 xx B A A 2x A A B B 1x 2x
- 116. 116116 Notes about -machine Combination with SVM is popular -function leads “kernel” Choosing a good mapping is not trivial In the past, the choice was done by try-and-error Recently…. i iji ji jiji i ij T i ji jiji i ij T i ji jiji kyy yy yy xx xx xx , , , ,
- 117. 117117 Deep neural networks can find a good mapping automatically Feature extraction layer = a mapping The mapping is specified by the weight The weight (i.e, ) is optimized via training It is so-called “representation learning” … …
- 119. 119 Majority voting ifsum>0thenA;elseB 1g cg… … Cg … …1cg Two-class classifier that returns: 1 for class A, -1 for class B +1 -1 +1 +1 input x A A A B A
- 120. 120 Weighted majority voting 1g cg… … Cg … …1cg Two-class classifier that returns: 1 for class A, -1 for class B input x A A A B 0.7 0.02 0.2 0.15 0.7 -0.2 ifsum>0thenA;elseB A well, how do we decide the weighs?
- 121. 121 AdaBoost: A set of complementary classifiers 1g 0.7 training patterns 1.Train ifsum>0thenA;elseB 2. Reliability
- 122. 122 AdaBoost: A set of complementary classifiers 0.7 training patterns ifsum>0thenA;elseB 3. Give a large (small) weight to each sample which is misrecognized (correctly recognized) by
- 123. 123 training patterns ifsum>0thenA;elseB AdaBoost: A set of complementary classifiers 0.7 0.43 4. Training with the weight (Patterns with larger weight should be recognized correctly) 5. Reliability
- 124. 124 training patterns ifsum>0thenA;elseB AdaBoost: A set of complementary classifiers 0.7 0.43 6. Give a large (small) weight to each sample which is misrecognized (correctly recognized) by Repeat until convergence of training accuracy
- 125. 125125 Today I cannot explain the following ML techniques… Semi-supervised learning methods ex. constrained clustering, virtual adversarial training, Weakly-supervised learning methods ex. Multiple-instance learning Unsupervised learning methods Clustering, self-organizing feature maps, intrinsic dimensionality Ensemble methods Random forests, ECOC, bagging, random subspace Robust regression Hidden Markov models, graphical models Error-correcting learning (and perceptron) Statistical inference Esp. Gaussian mixtures, maximum likelihood, Bayesian estimation
- 126. 126 Concluding remarks: New DAR research by ML
- 127. 127 Near-human performance has been achieved by big data and neural networks machine printed handwritten designed fonts 95.49% 99.79% 99.99% [Uchida+, ICFHR2016] [Zhou+, CVPR2017] Scene text detection Scene text recognition CRNN [Shi+, TPAMI, 2017] F value=0.8 on ICDAR2015 Incidental scene text 89.6% word recog. rate on ICDAR2013
- 128. 128 Now we can imagine what we can do in the world
- 129. 129 Beyond 100% = Computer can detect, read, and collect all text information perfectly Texts on notebook Texts on object label Texts on digital display Texts on book page Texts on signboard Texts on poster / ad So, what do want to do with the perfect recognition results?
- 130. 130 Poor recognition results In fact, our real goal should NOT be perfect recognition results Real goals Ultimate application by using perfect recognition results Scientific discovery by analyzing perfect recognition results Perfect recognition results Tentative goal
- 131. 131 What will you do in the world beyond 100%? Ultimate application Education “Total-recall” for perfect information search Welfare Alarm, translation, information complement “Life log”-related apps Summary, log compression, captioning, question answering, behavior prediction, reminder Scientific discovery With social science Interaction between scene text and human Text statistics With design science Font shape and impression Discovering typographic knowledge With humanities Historical knowledge Semiology
- 132. 132132 Another direction: Use characters to understand ML Simple binary and stroke-structured pattern Less background clutter Small size (ex. 32x32) Big data (ex. 80,000 samples / class) Predefined classes (ex. 10 classes for digits) ML has achieved near-human performance Very good “testbed” for not only evaluating but also understanding ML
- 133. 133 The last message... ... and please do NOT become an accuracist, parameter-tuner, and libraholic!
