Lyophilization, or freeze drying, is a dehydration process used to preserve materials by removing moisture through sublimation, enabling convenient transport and extended shelf life. The process involves freezing a substance, followed by primary drying to remove most of the water and secondary drying to eliminate remaining moisture, typically used in pharmaceuticals and food preservation. While it offers advantages like minimal damage to heat-sensitive products and easy reconstitution, it also has drawbacks such as high capital and energy costs.

1. INTRODUCTION :-
• Lyophilization is also known as Freeze Drying or Cryodesiccation is a dehydration
process typically used to preserve a perishable material or made the material more
convenient for transport.
• It is a special form of drying that removes all moistures and tends to have less effect on
a food’s taste than normal dehydration process.
• In this process , food is frozen and placed in a strong vacuum . The water in the food
sublimates , it turns straight from ice into vapour.
• Process was first applied to the food products after the second world war.
• Coffee was first freeze dried food product to be produced.
DEFINITION :-
A stabilizing process in which a substance is first frozen and then the quantity of the solvent is
reduced , first by sublimation (primary drying stage) and then desorption (secondary drying
stage) to values that will no longer support biological activity or chemical reactions.
PRINCIPLE :-
• Lyophilization is carried out using a simple principle of physics sublimation. Sublimation
is the transition of a substance from the solid to the vapour state , without first passing
through an intermediate liquid phase.
• Lyophilization is performed at temperature and pressure conditions below the triple
point , to enable sublimation of ice.
• Triple point of water is a point where , water exists in all the three phases, the solid , the
liquid and the gas. This point is achieved at the temperature of 0.01°C and the pressure
of 0.00603 atm.
• The entire process is performed at low temperature and pressure by applying vacuum ,
hence is suited for drying of thermolabile compounds.
• So , when the process is performed below these conditions the solid ice is directly
converted into the gaseous form without converting into the liquid.
• So , in this technique thr liquid is frozen to solid and then is converted to gas , to remove
all the moisture or solvent present in it.

2. TYPES :-
The types of lyophilizer are classified as –
1. On the basis of their size.
2. On the basis of their capacity.
1. On the basis of size :- Depending upon the size they can be classified as –
A Typical Manifold Dryer
B Shelf Freeze Dryer
C Combination Lab Freeze Dryer
2. On the basis of capacity :- Depending upon the capacity they can be classified as –
A Bench Top Freeze Dryer
B Pivot Freeze Dryer
C Production Freeze Dryer
COMPONENTS OF LYOPHILIZER :-
The main components of lyophilizer are –
• Chamber
• Shelves
• Refrigerator System
• Condenser
• Vacuum Pump

3. 1. Chamber :- A chamber is tight insulated box pf stainless steel consisting of shelves.
2. Shelves :- Shelves on which products are kept and acts as a heat exchanger.
3. Refrigerator System :- A refrigerator system , which has a compressor which cools the
condenser.
4. Condenser :- Condenser is a form of coils or plates for trapping solvent vapours.
5. Vacuum Pump :- A vacuum pump is there for lowering the temperature.
PROCESS OF LYOPHILIZATION :-
The process of lyophilization involves following steps –
1. Pre treatment
2. Freezing Stage
3. Primary Drying Stage
4. Secondary Drying Stage
5. Packing

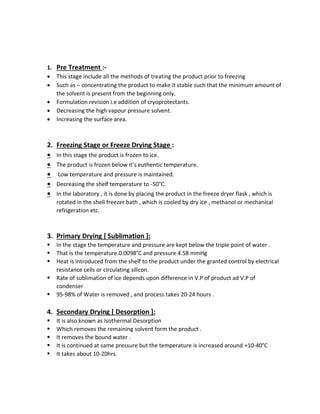

4. 1. Pre Treatment :-
• This stage include all the methods of treating the product prior to freezing
• Such as – concentrating the product to make it stable such that the minimum amount of
the solvent is present from the beginning only.
• Formulation revision i.e addition of cryoprotectants.
• Decreasing the high vapour pressure solvent.
• Increasing the surface area.
2. Freezing Stage or Freeze Drying Stage :
• In this stage the product is frozen to ice.
• The product is frozen below it’s euthentic temperature.
• Low temperature and pressure is maintained.
• Decreasing the shelf temperature to -50°C.
• In the laboratory , it is done by placing the product in the freeze dryer flask , which is
rotated in the shell freezer bath , which is cooled by dry ice , methanol or mechanical
refrigeration etc.
3. Primary Drying [ Sublimation ]:
▪ In the stage the temperature and pressure are kept below the triple point of water .
▪ That is the temperature.0.0098°C and pressure 4.58 mmHg
▪ Heat is introduced from the shelf to the product under the granted control by electrical
resistance cells or circulating silicon.
▪ Rate of sublimation of ice depends upon difference in V.P of product ad V.P of
condenser
▪ 95-98% of Water is removed , and process takes 20-24 hours .
4. Secondary Drying [ Desorption ]:
▪ It is also known as Isothermal Desorption
▪ Which removes the remaining solvent form the product .
▪ It removes the bound water .
▪ It is continued at same pressure but the temperature is increased around +10-40°C
▪ It takes about 10-20hrs.

5. 5. Packing :
▪ After drying the vaccum is replaced by filtered air or nitrogen to establish atmospheric
pressure .
▪ Ampoules are sealed by either tip sealing or clousers and aluminium caps .
▪ Vials and bottles are sealed with rubber clousers and alluminium caps.
APPLICATIONS OF LYOPHILIZATION :-
Following are the applications of lyophilization –
1. Pharmaceutical Industry and Biotechnology :-
• Pharmaceutical companies often use freeze drying to increase the shelf life of products ,
such as vaccines and other injectable.
• By removing the water from the material and sealing the material in a vial , the material
can be easily stored , shipped and later reconstituted to its original form for injection.
2. Food Industry :-
• Freeze – drying is used to preserve food and make it very light weight.
• The process has been popularized in the forms of freeze dried icecream ; an example of
astronaut food.
• Instant coffee powder is prepared.
• To produce essences or flavouring agents.
• Culinary herbs are preserved.
• Freeze dried fruits are produced.
3. Technological Industries :-
• In chemical synthesis , products are often lyophilized to make them more stable , or
easier to dissolve in water for subsequent use.
• It is also capable of concentrating substances with low molecular weights that are two
small to be removed by a filtration membrane.
4. Other uses :-
• Freeze-drying is used for flora and fauna preservation.
• It is also used for recovery of water- damaged books and documents.

6. ADVANTAGES OF LYOPHILIZATION :-
Following are the advantages of lyophilization –
• Minimum damage to heat labile material.
• Removal of water at low temperature.
• Compatible with aseptic operations.
• Sterility can be maintained.
• Reconstitution is easy.
• Increasing shelf life of the product.
• Doesnot shrink the samples.
• Reduces weight and volume of samples ; ideal for shipping .
• Samples can be stored at room temperature indefinitely.
DISADVANTAGES OF LYOPHILIZATION :-
Following are the disadvantages of lyophilization –
• High capital cost of equipment.
• High energy cost.
• Time consuming process ( Typically 4-10 hrs per drying cycle ).
• Possible damage to products due to change in pH and tonicity.
• Many biological molecules are damaged by the stress associated with freezing.
• The open porous structure of the food may allow oxygen to enter and cause oxidative
degradation of lipids (packing in inert gas necessary).
