Intel_Low Power Intelligent Solutions with Intel Atom Processor
Intel presented information on their Atom processor-based platforms for embedded systems. They discussed the Queens Bay Atom E6xx and Cedar Trail Atom N2000 and D2000 series processors. Cedar Trail offers improved performance over previous generations through a 32nm process, faster memory and graphics. Development kits are available to help designers evaluate and integrate the Atom platforms into their products. Future generations will provide continued enhancements for embedded and mobile intelligent devices.
More Related Content
Similar to Intel_Low Power Intelligent Solutions with Intel Atom Processor
![[DevFest Strasbourg 2025] - NodeJs Can do that !!](https://cdn.slidesharecdn.com/ss_thumbnails/devfeststrasbourg2025-nodejscandothat-251127142731-da65b6fd-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Mobile Development] Mobile Engineer and Software Engineer: Are we...](https://cdn.slidesharecdn.com/ss_thumbnails/md-mobileengineerandsoftwareengineerarewestillrelevantsidiqpermana-251127010650-55224ef1-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Mobile Development] Crafting Immersive UI with E2E and AGSL Shade...](https://cdn.slidesharecdn.com/ss_thumbnails/md-craftingimmersiveuiwithe2eandagslshaderveronicaputrianggraini-251124030840-0c677f44-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Mobile Development] Exploring Apple’s On-Device FoundationModels](https://cdn.slidesharecdn.com/ss_thumbnails/md-exploringappleson-devicefoundationmodels-251124030840-d690542c-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Full-Stack Development] PHP in AI Age: The Laravel Way. (Rizqy Hi...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-phpinaiagethelaravelway-251125012602-ef9d330e-thumbnail.jpg?width=640&height=640&fit=bounds)
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Intel_Low Power Intelligent Solutions with Intel Atom Processor
- 1. Intel® Atom™ Based Platforms Intelligent Devices Everywhere Intelligent Systems Group 1 Intel® Atom™ Processors 1
- 2.

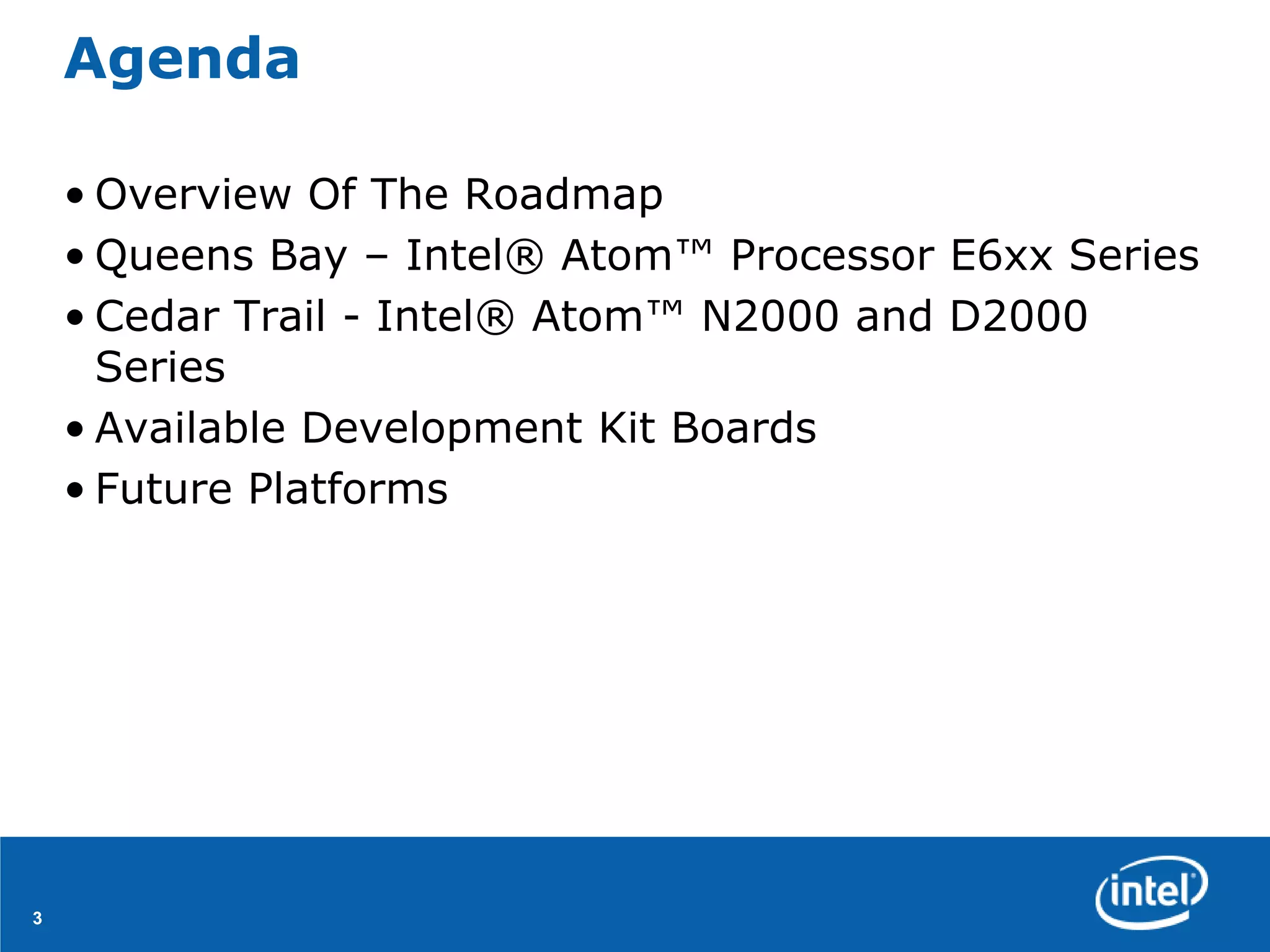

- 3. Agenda • Overview Of The Roadmap • Queens Bay – Intel® Atom™ Processor E6xx Series • Cedar Trail - Intel® Atom™ N2000 and D2000 Series • Available Development Kit Boards • Future Platforms 3
- 4. Overview Of TheRoadmap 4
- 5.

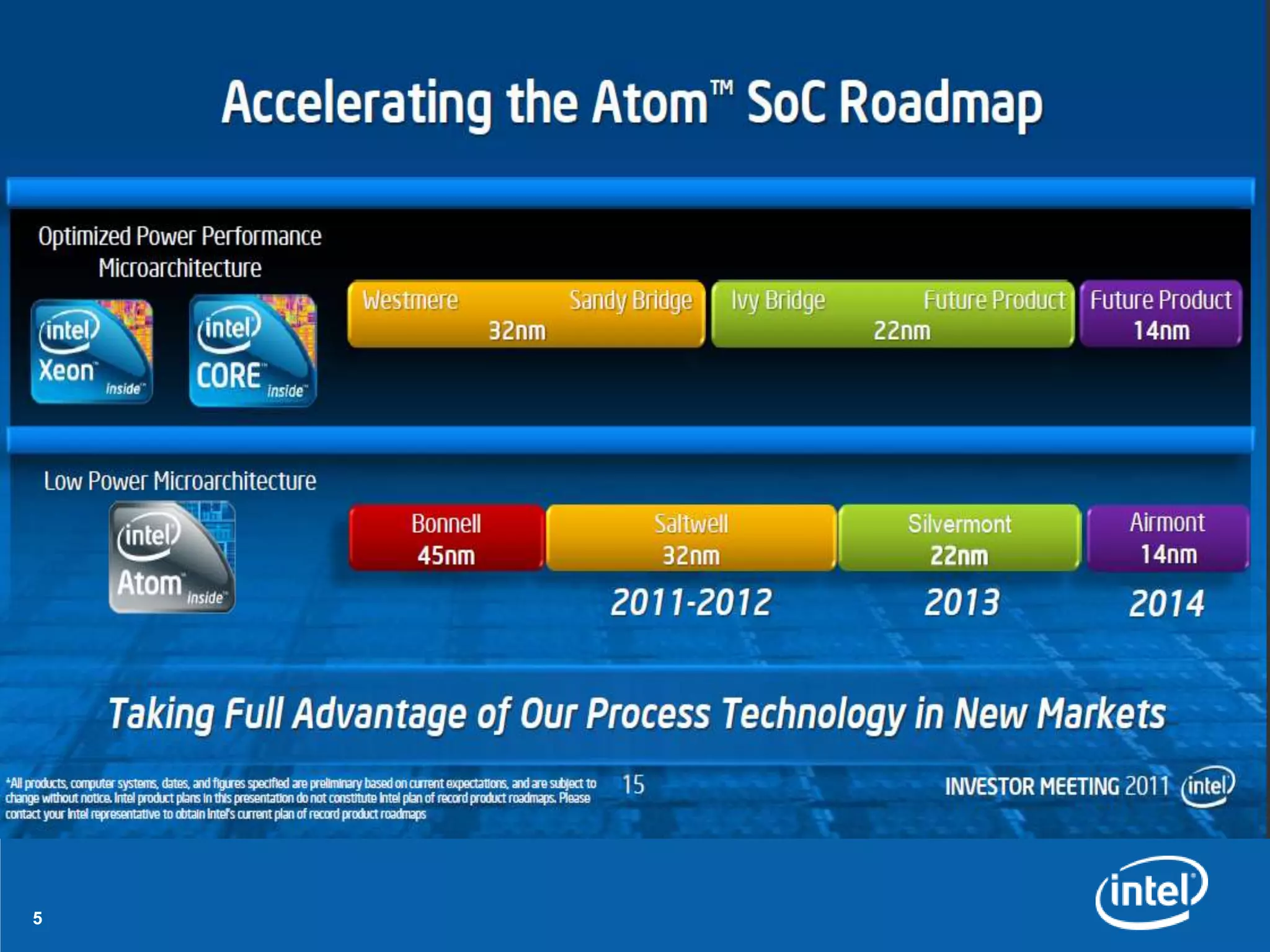

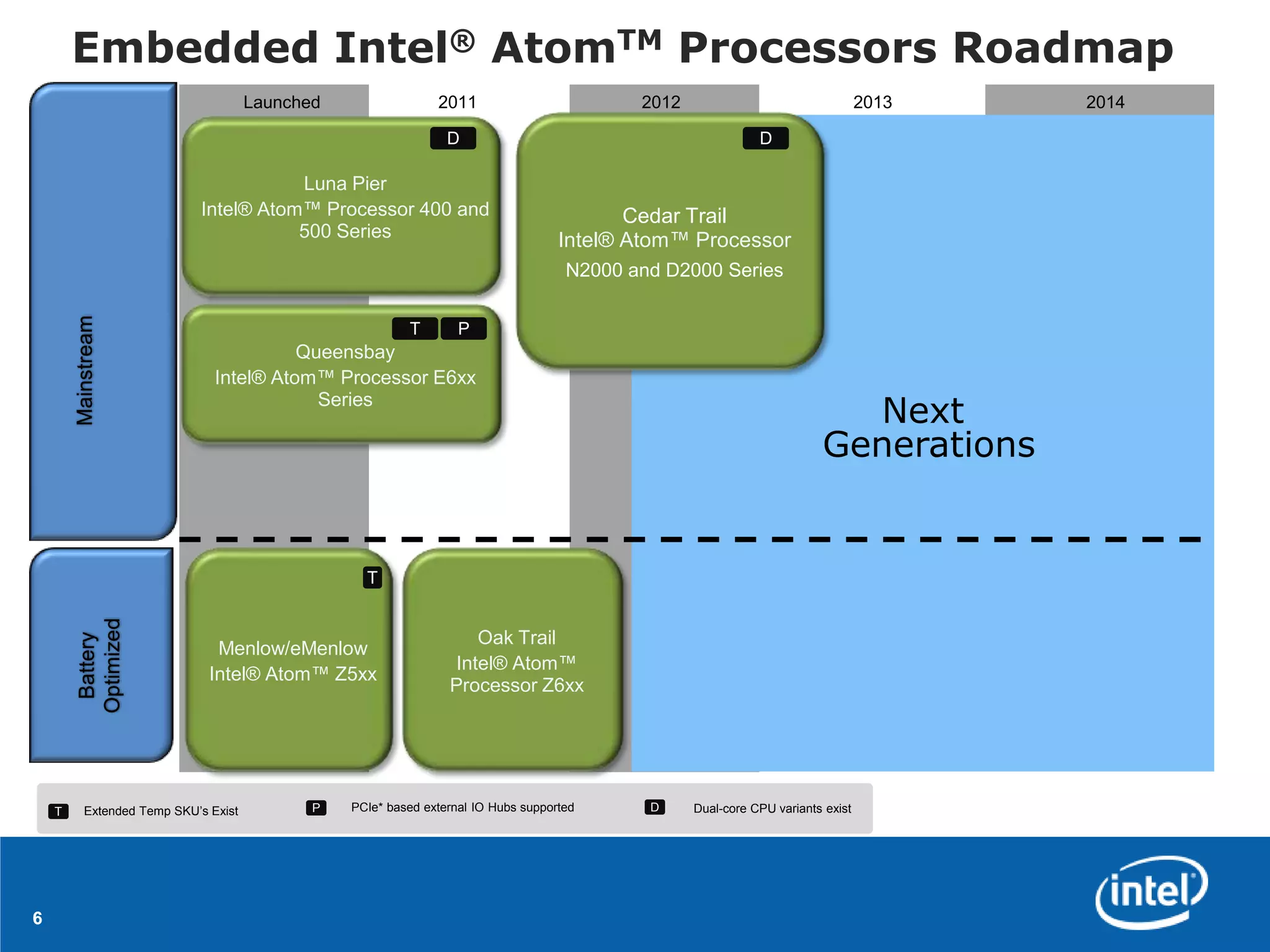

- 6. Embedded Intel® AtomTMProcessors Roadmap Launched 2011 2012 2013 2014 D D Luna Pier Intel® Atom™ Processor 400 and Cedar Trail 500 Series Intel® Atom™ Processor N2000 and D2000 Series Mainstream T P Queensbay Intel® Atom™ Processor E6xx Series Next Generations T Optimized Oak Trail Battery Menlow/eMenlow Intel® Atom™ Intel® Atom™ Z5xx Processor Z6xx T Extended Temp SKU’s Exist P PCIe* based external IO Hubs supported D Dual-core CPU variants exist 6
- 7. Queens Bay –Intel® Atom™ Processor E6xx Series 7

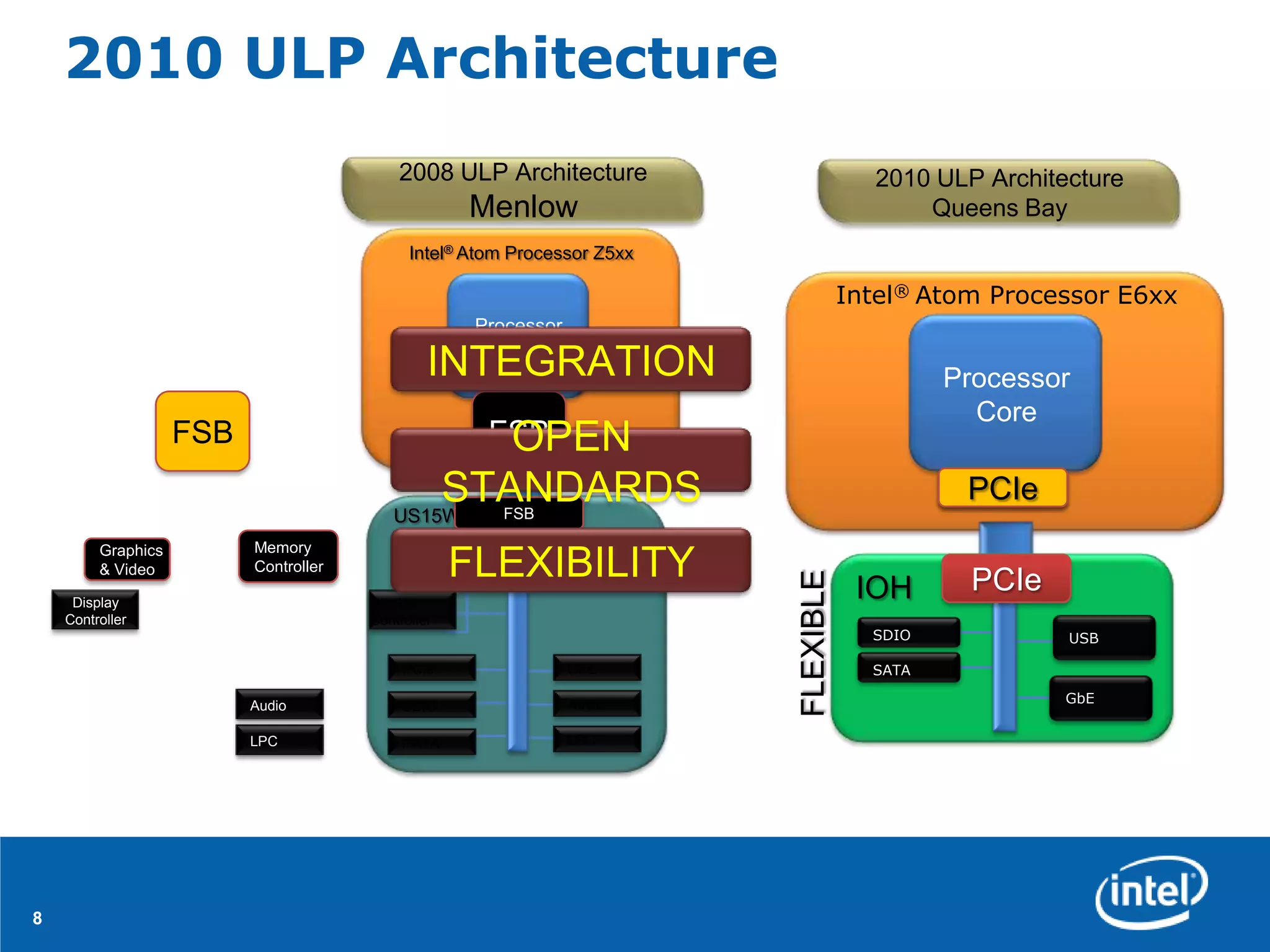

- 8. 2010 ULP Architecture 2008 ULP Architecture 2010 ULP Architecture Menlow Queens Bay Intel® Atom Processor Z5xx Intel® Atom Processor E6xx Processor series Core INTEGRATION Processor Core FSB FSB OPEN STANDARDS US15W FSB PCIe PCIe Graphics Memory Graphics Memory & Video Controller FLEXIBILITY & Video Controller PCIe FLEXIBLE Display Display IOH Controller Controller SDIO USB PCIe* USB SATA Audio GbE Audio SDIO LPC PATA LPC 8

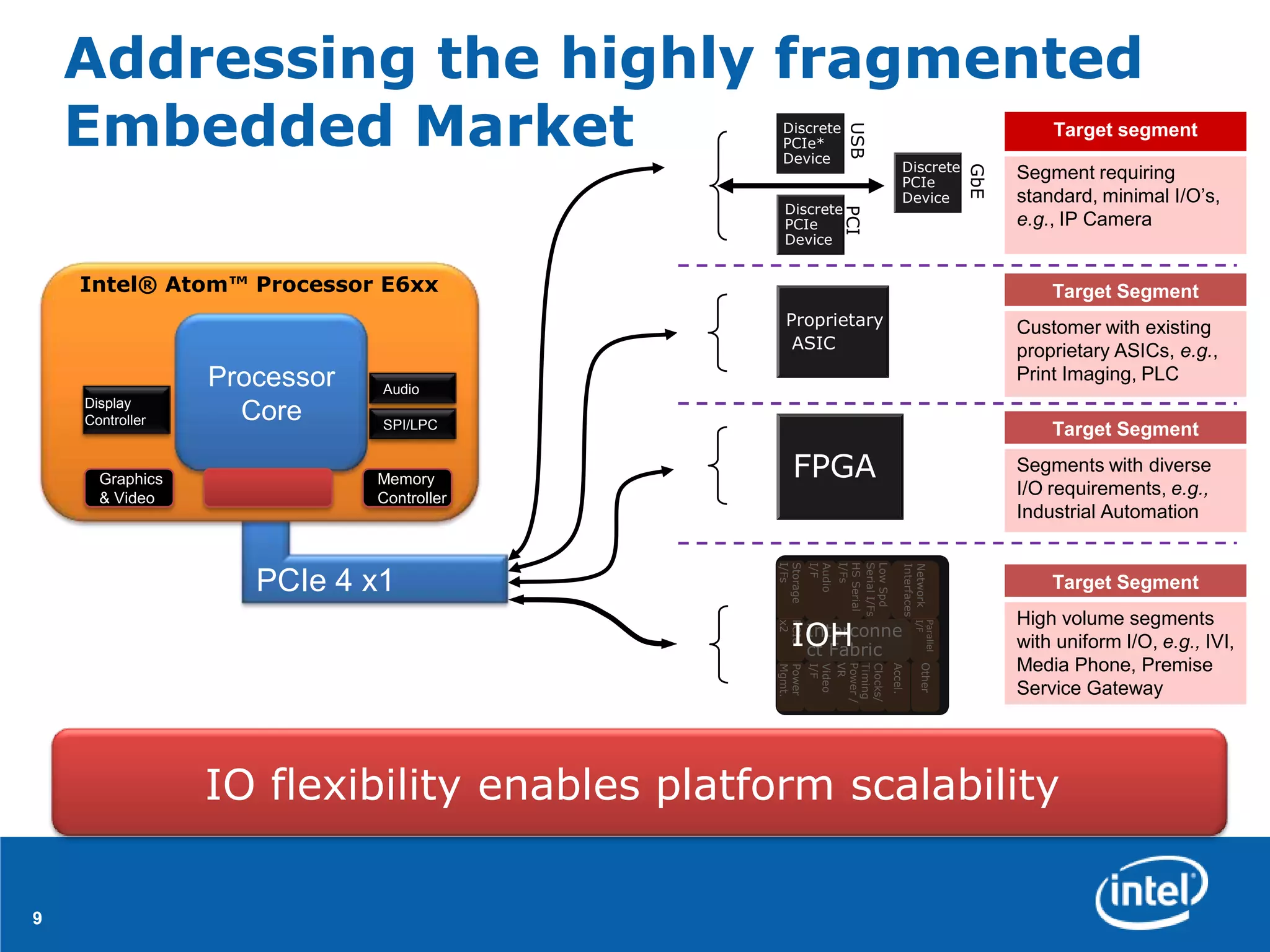

- 9. Addressing the highlyfragmented Embedded Market Discrete USB Target segment PCIe* Device Discrete GbE PCIe Segment requiring Device standard, minimal I/O’s, Discrete PCI PCIe e.g., IP Camera Device Intel® Atom™ Processor E6xx Target Segment Proprietary Customer with existing ASIC proprietary ASICs, e.g., Processor Audio Print Imaging, PLC Display Controller Core SPI/LPC Target Segment Graphics Memory FPGA Segments with diverse & Video Controller I/O requirements, e.g., Industrial Automation I/Fs Storage I/Fs HS Serial Serial I/Fs Low Spd I/F Audio Interfaces Network I/F PCIe 4 x1 Target Segment High volume segments IOH Interconne x2 PCIe Parallel ct Fabric with uniform I/O, e.g., IVI, Media Phone, Premise VR Power / Other Accel. Timing Clocks/ I/F Video Mgmt. Power Service Gateway IO flexibility enables platform scalability 9

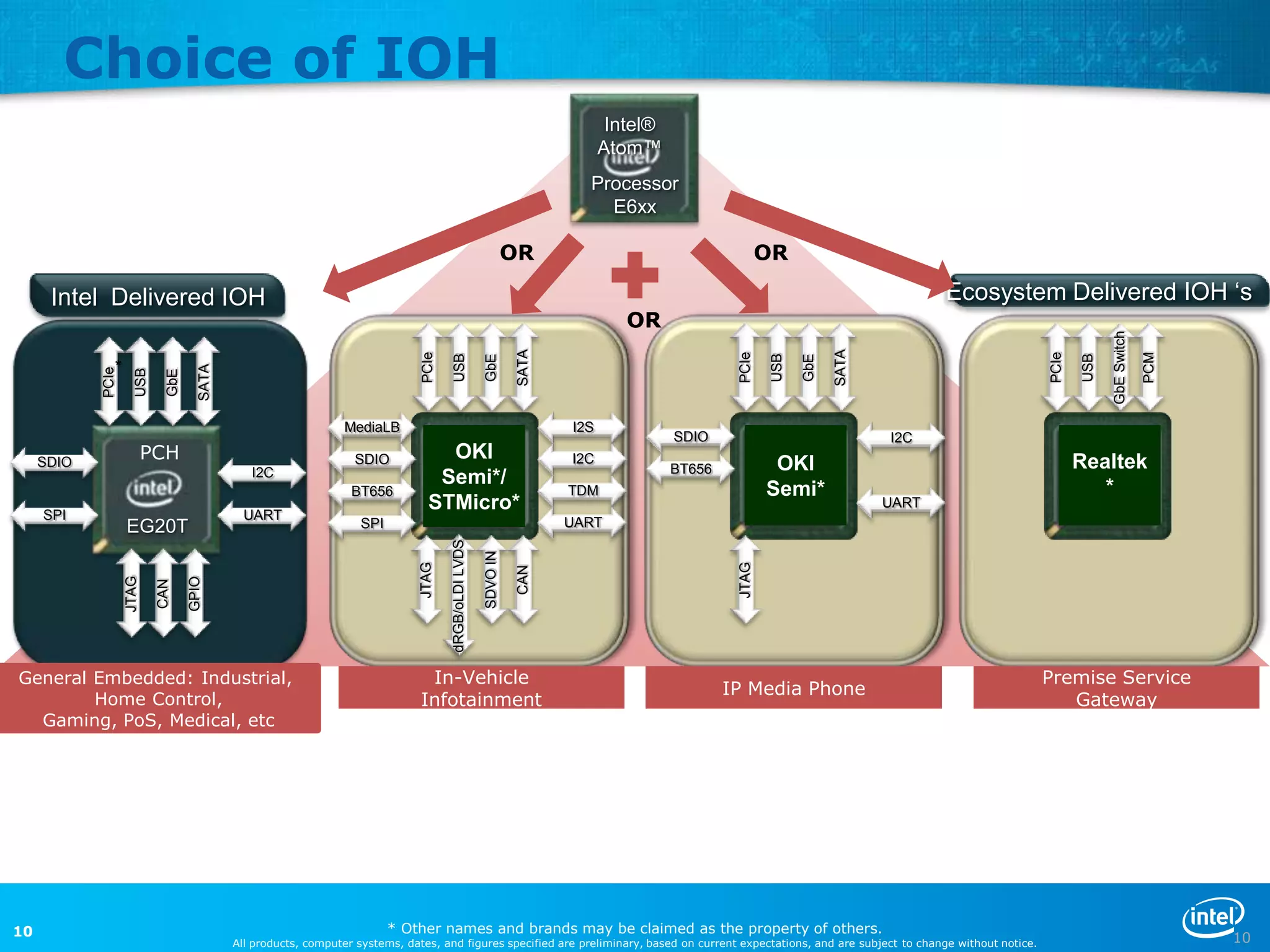

- 10. Choice of IOH Intel® Atom™ Processor E6xx OR OR Intel Delivered IOH Ecosystem Delivered IOH ‘s OR GbE Switch SATA SATA PCIe PCIe PCIe PCM USB USB USB GbE GbE * SATA PCIe USB GbE MediaLB I2S SDIO I2C PCH SDIO OKI I2C Realtek SDIO I2C BT656 OKI Semi*/ * BT656 TDM Semi* STMicro* UART SPI UART EG20T SPI UART dRGB/oLDI LVDS SDVO IN JTAG JTAG CAN JTAG GPIO CAN General Embedded: Industrial, In-Vehicle Premise Service IP Media Phone Home Control, Infotainment Gateway Gaming, PoS, Medical, etc 10 * Other names and brands may be claimed as the property of others. All products, computer systems, dates, and figures specified are preliminary, based on current expectations, and are subject to change without notice. 10
- 11. Cedar Trail -Intel® Atom™ N2000 and D2000 Series 11

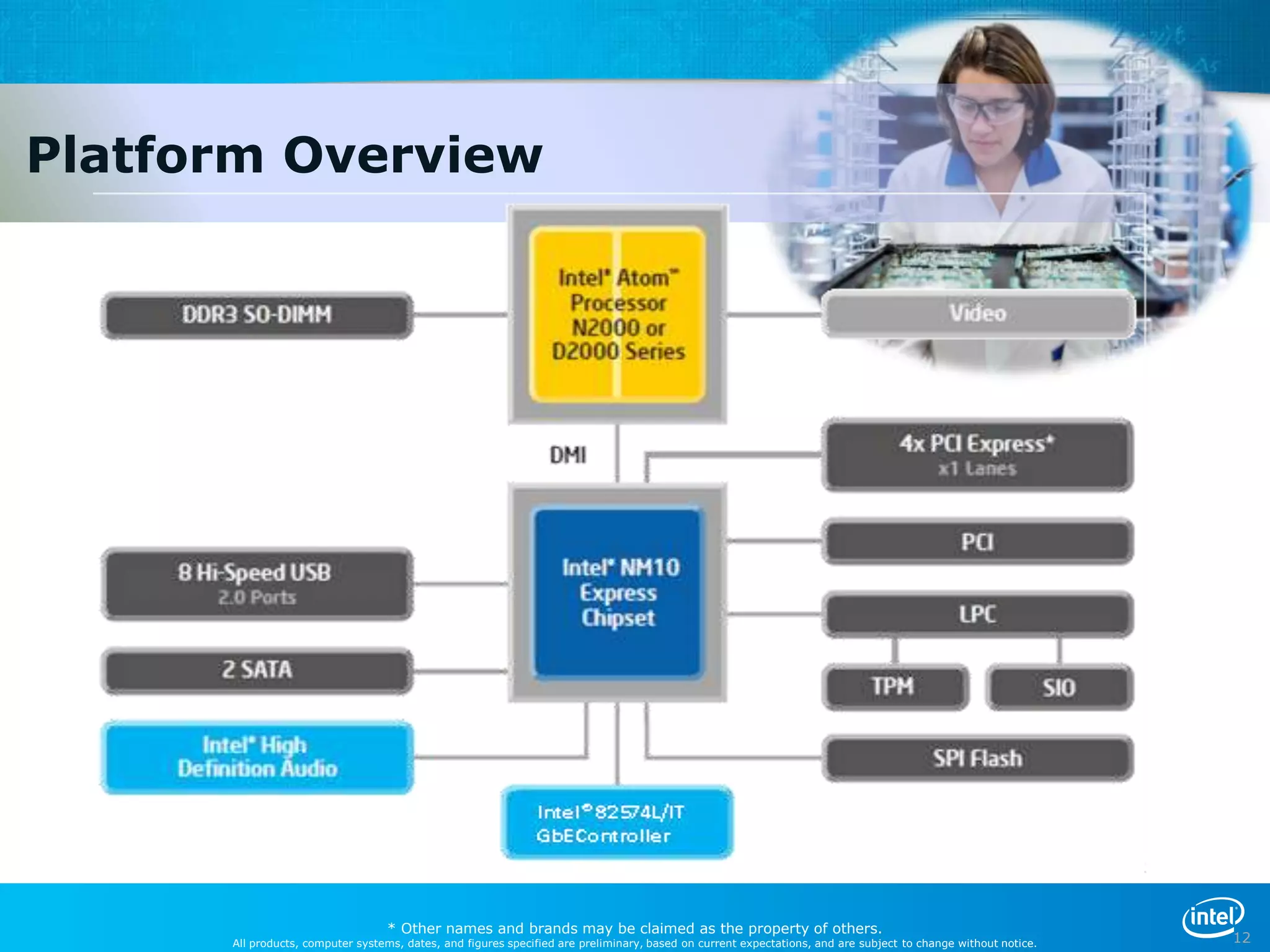

- 12. Platform Overview 12 * Other names and brands may be claimed as the property of others. All products, computer systems, dates, and figures specified are preliminary, based on current expectations, and are subject to change without notice. 12

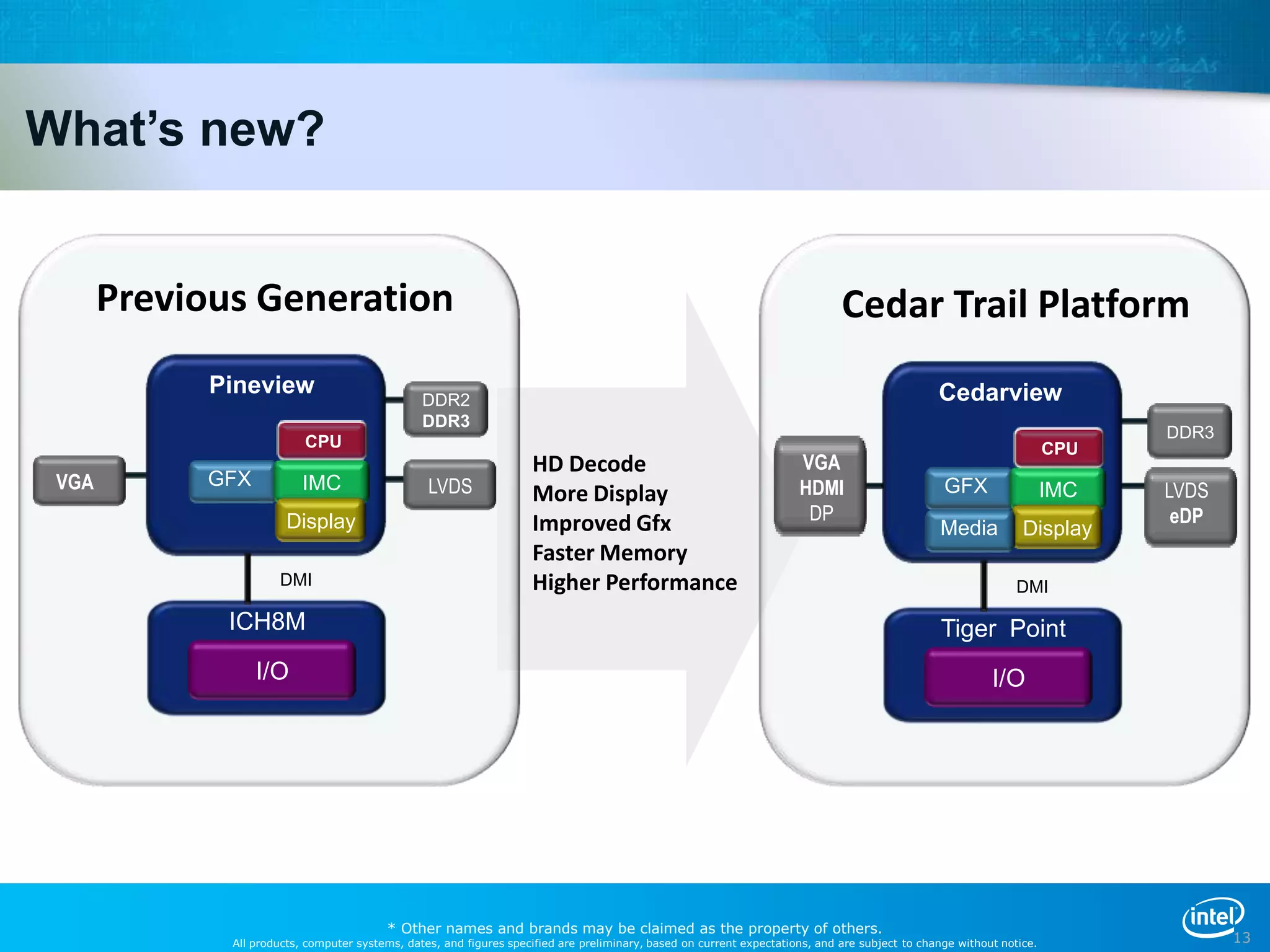

- 13. What’s new? Previous Generation Cedar Trail Platform Pineview Cedarview DDR2 DDR3 DDR3 CPU CPU HD Decode VGA VGA GFX IMC LVDS HDMI GFX IMC LVDS More Display Display Improved Gfx DP eDP Media Display Faster Memory DMI Higher Performance DMI ICH8M Tiger Point I/O I/O * Other names and brands may be claimed as the property of others. All products, computer systems, dates, and figures specified are preliminary, based on current expectations, and are subject to change without notice. 13

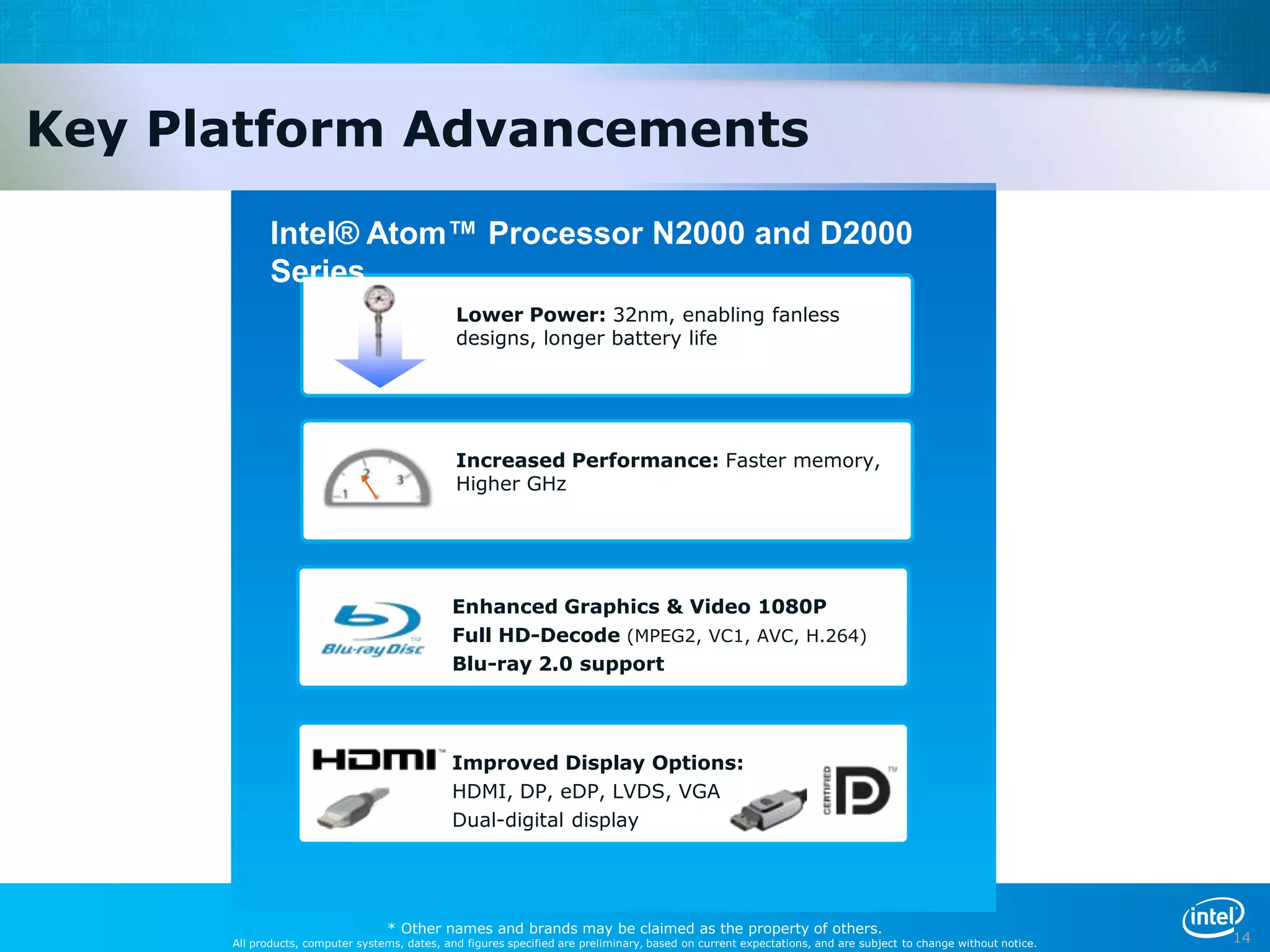

- 14. Key Platform Advancements Intel® Atom™ Processor N2000 and D2000 Series Lower Power: 32nm, enabling fanless designs, longer battery life Increased Performance: Faster memory, Higher GHz Enhanced Graphics & Video 1080P Full HD-Decode (MPEG2, VC1, AVC, H.264) Blu-ray 2.0 support Improved Display Options: HDMI, DP, eDP, LVDS, VGA Dual-digital display * Other names and brands may be claimed as the property of others. All products, computer systems, dates, and figures specified are preliminary, based on current expectations, and are subject to change without notice. 14

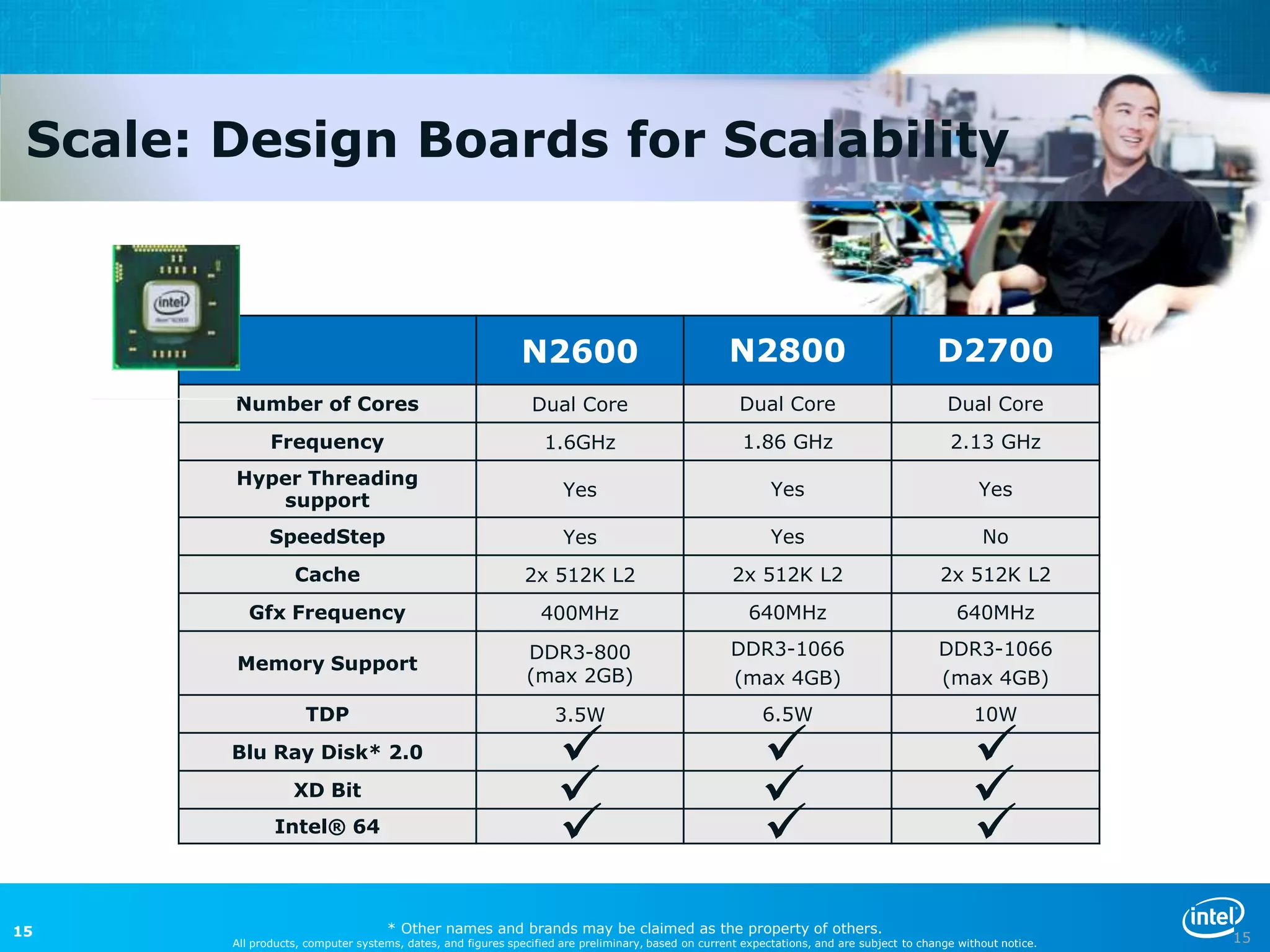

- 15. Scale: Design Boardsfor Scalability N2600 N2800 D2700 Number of Cores Dual Core Dual Core Dual Core Frequency 1.6GHz 1.86 GHz 2.13 GHz Hyper Threading Yes Yes Yes support SpeedStep Yes Yes No Cache 2x 512K L2 2x 512K L2 2x 512K L2 Gfx Frequency 400MHz 640MHz 640MHz DDR3-800 DDR3-1066 DDR3-1066 Memory Support (max 2GB) (max 4GB) (max 4GB) TDP 3.5W 6.5W 10W Blu Ray Disk* 2.0 XD Bit Intel® 64 15 * Other names and brands may be claimed as the property of others. All products, computer systems, dates, and figures specified are preliminary, based on current expectations, and are subject to change without notice. 15

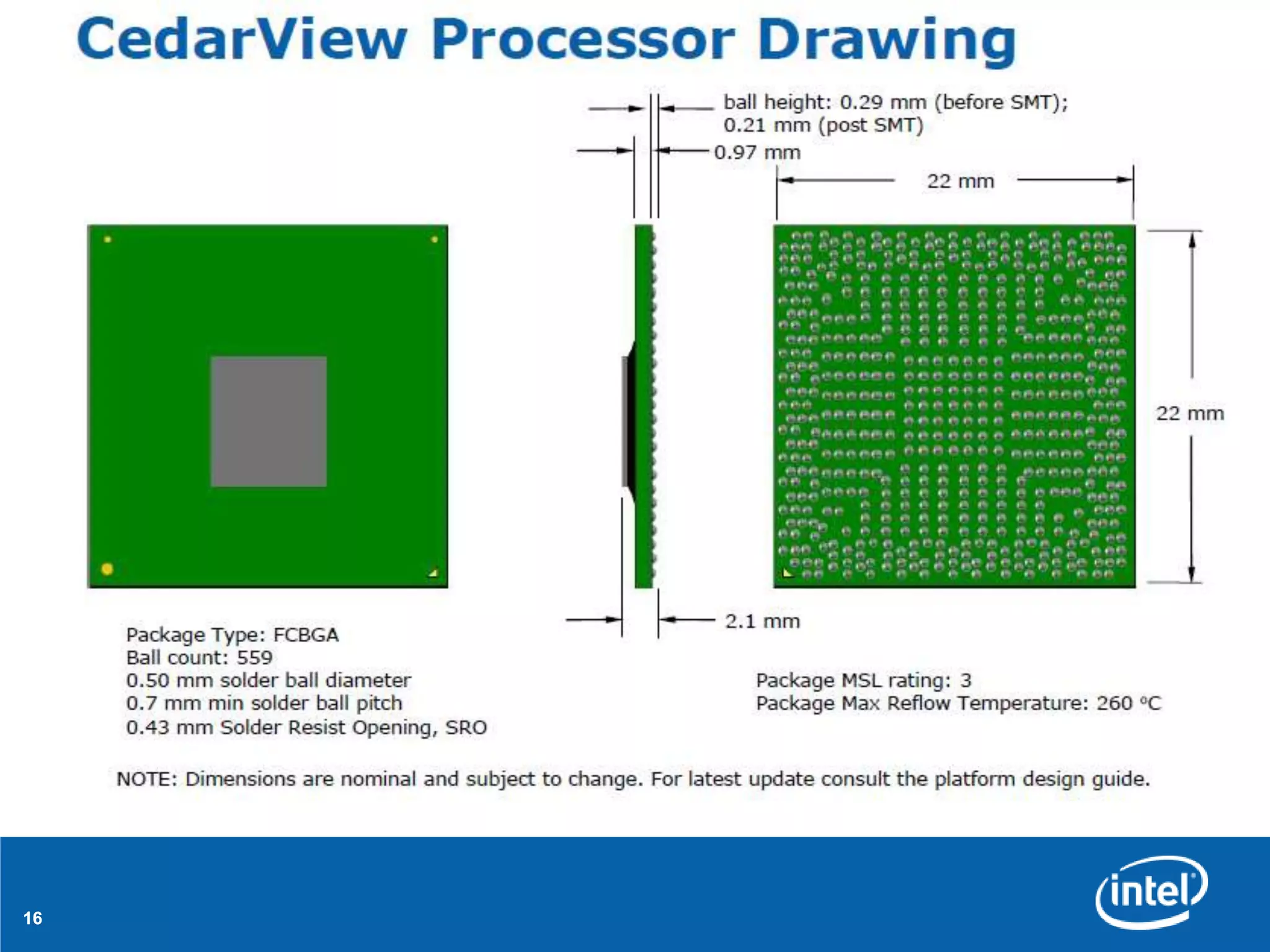

- 16.

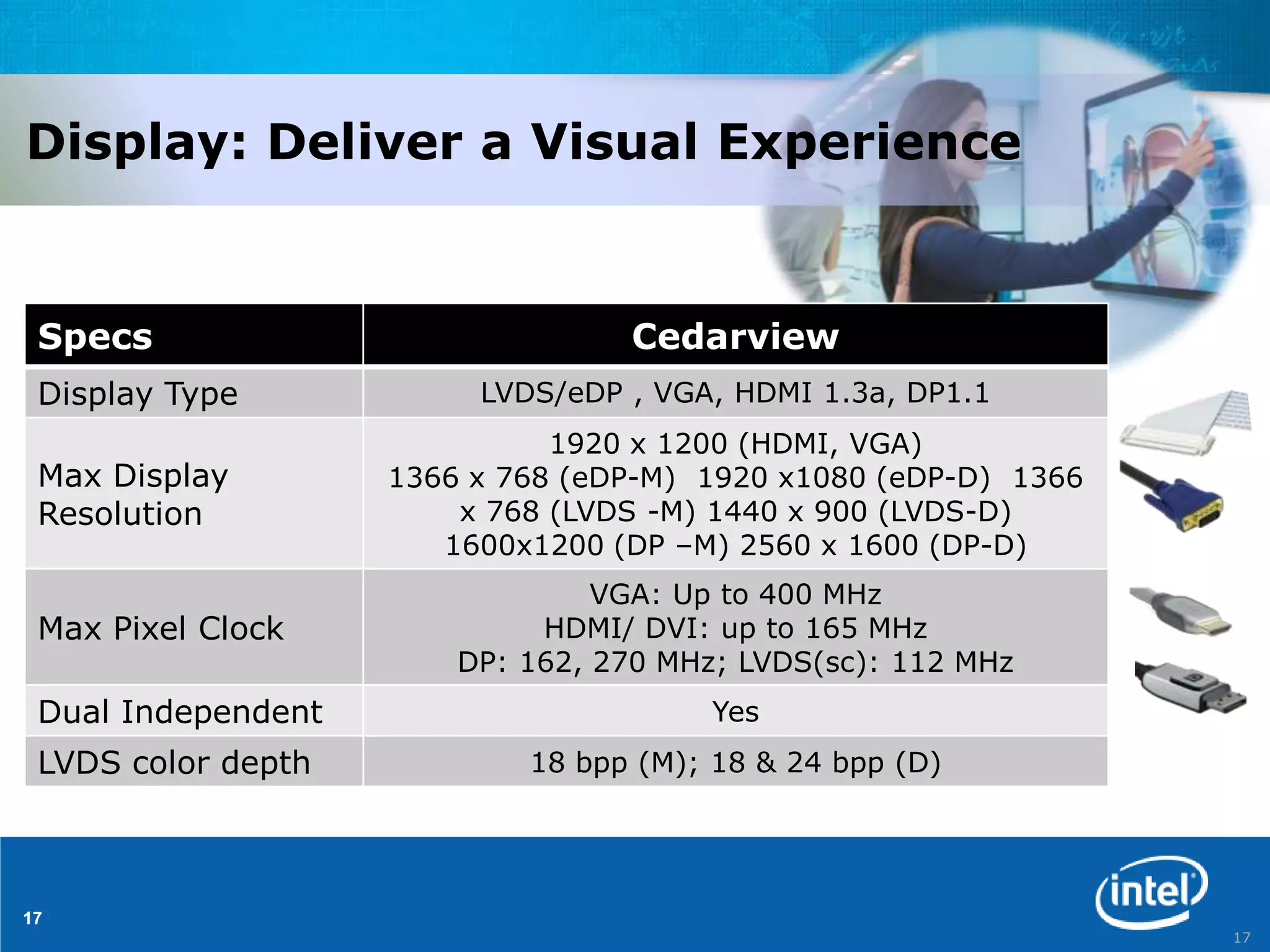

- 17. Display: Deliver aVisual Experience Specs Cedarview Display Type LVDS/eDP , VGA, HDMI 1.3a, DP1.1 1920 x 1200 (HDMI, VGA) Max Display 1366 x 768 (eDP-M) 1920 x1080 (eDP-D) 1366 Resolution x 768 (LVDS -M) 1440 x 900 (LVDS-D) 1600x1200 (DP –M) 2560 x 1600 (DP-D) VGA: Up to 400 MHz Max Pixel Clock HDMI/ DVI: up to 165 MHz DP: 162, 270 MHz; LVDS(sc): 112 MHz Dual Independent Yes LVDS color depth 18 bpp (M); 18 & 24 bpp (D) 17 17

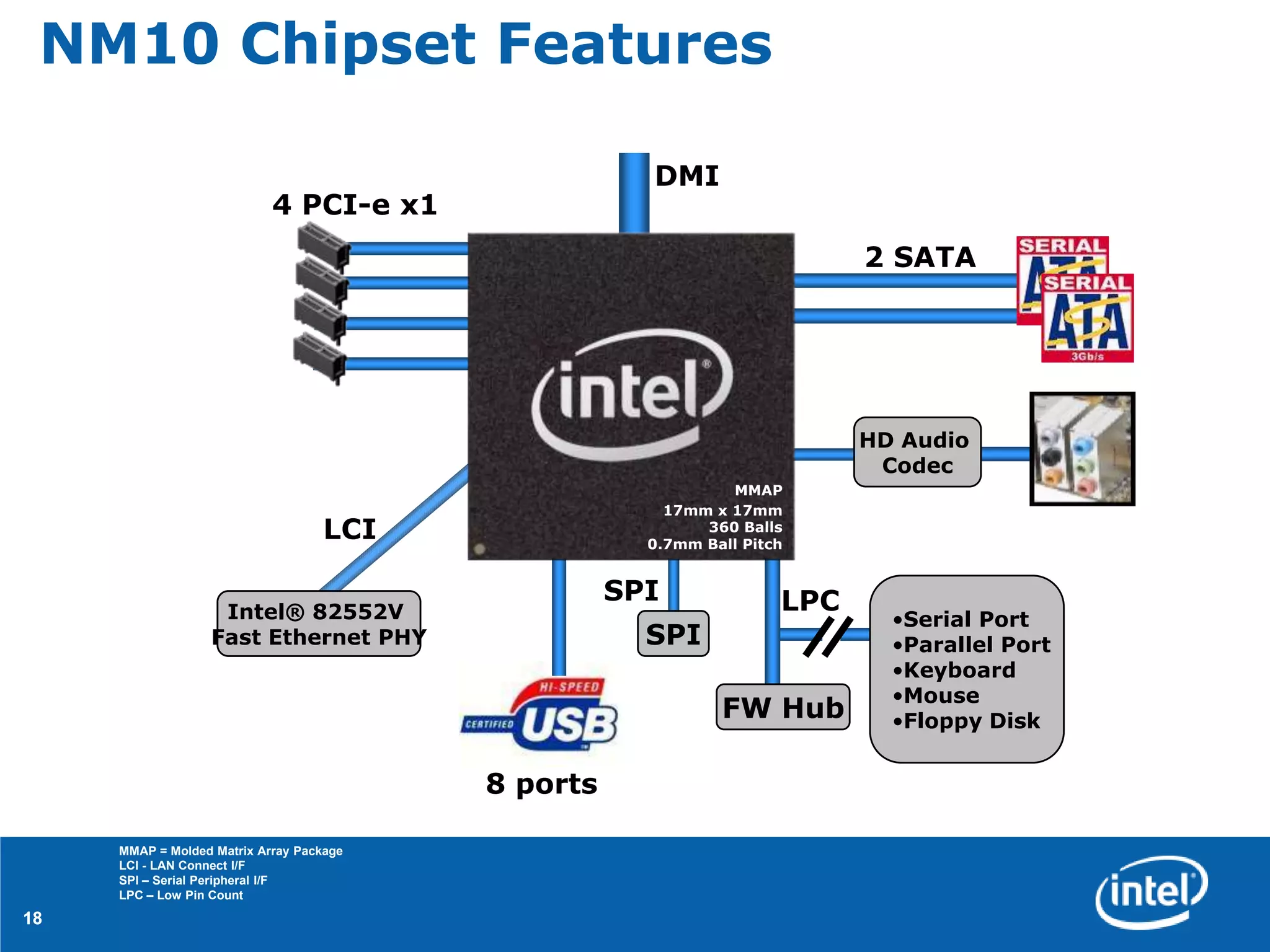

- 18. NM10 Chipset Features DMI 4 PCI-e x1 2 SATA HD Audio Codec MMAP 17mm x 17mm LCI 360 Balls 0.7mm Ball Pitch SPI LPC Intel® 82552V •Serial Port Fast Ethernet PHY SPI •Parallel Port •Keyboard •Mouse FW Hub •Floppy Disk 8 ports MMAP = Molded Matrix Array Package LCI - LAN Connect I/F SPI – Serial Peripheral I/F LPC – Low Pin Count 18

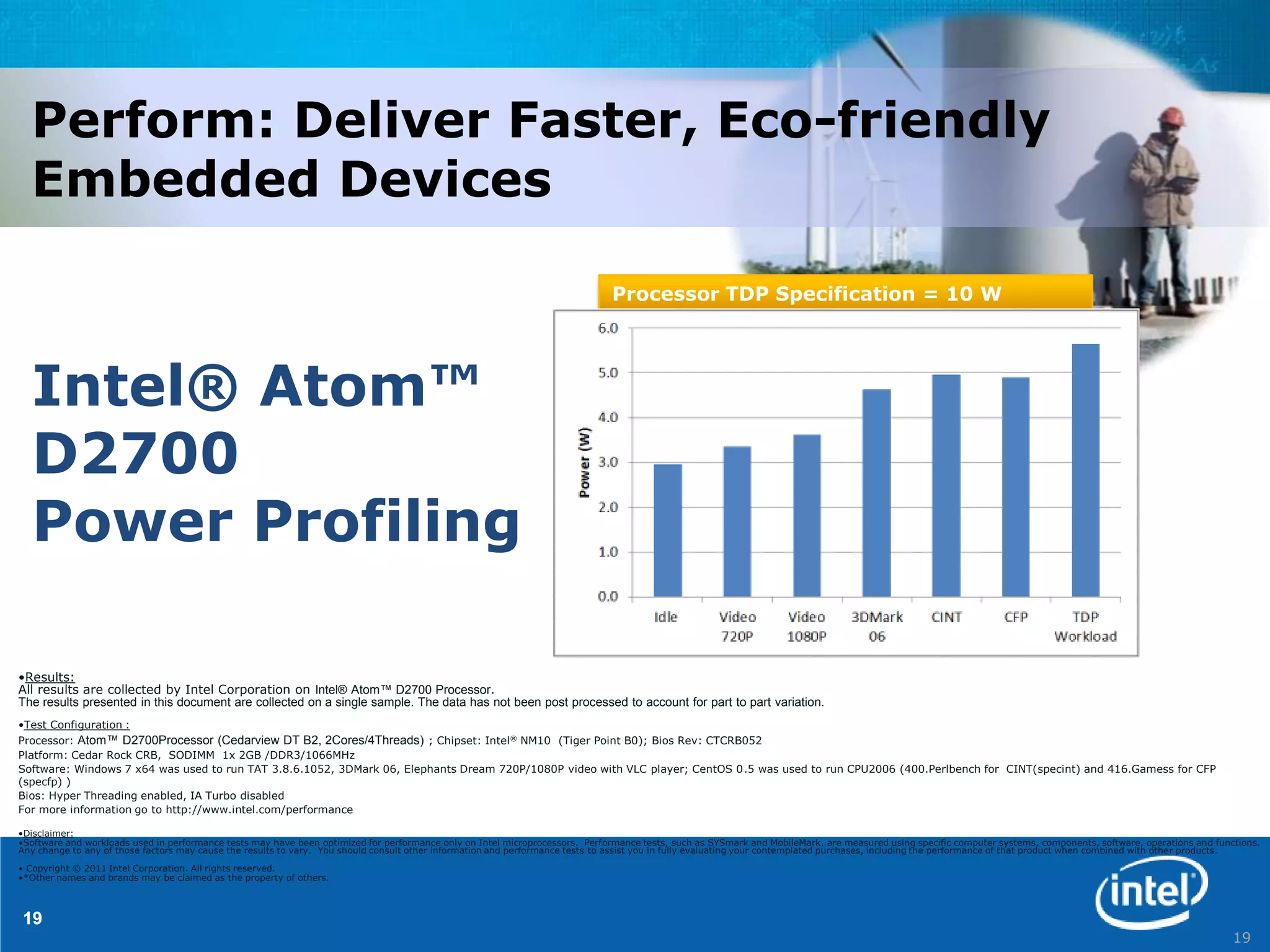

- 19. Perform: Deliver Faster,Eco-friendly Embedded Devices Processor TDP Specification = 10 W Intel® Atom™ D2700 Power Profiling •Results: All results are collected by Intel Corporation on Intel® Atom™ D2700 Processor. The results presented in this document are collected on a single sample. The data has not been post processed to account for part to part variation. •Test Configuration : Processor: Atom™ D2700Processor (Cedarview DT B2, 2Cores/4Threads) ; Chipset: Intel ® NM10 (Tiger Point B0); Bios Rev: CTCRB052 Platform: Cedar Rock CRB, SODIMM 1x 2GB /DDR3/1066MHz Software: Windows 7 x64 was used to run TAT 3.8.6.1052, 3DMark 06, Elephants Dream 720P/1080P video with VLC player; CentOS 0.5 was used to run CPU2006 (400.Perlbench for CINT(specint) and 416.Gamess for CFP (specfp) ) Bios: Hyper Threading enabled, IA Turbo disabled For more information go to http://www.intel.com/performance •Disclaimer: •Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. • Copyright © 2011 Intel Corporation. All rights reserved. •*Other names and brands may be claimed as the property of others. 19 19
- 20. Perform: Deliver Faster,Eco-friendly Embedded Devices Processor TDP Specification = 3.5 W Intel® Atom™ N2600 Power Profiling •Results: All results are collected by Intel Corporation on Intel® Atom™ N2600 Processor. The results presented in this document are collected on a single sample. The data has not been post processed to account for part to part variation. •Test Configuration : Processor: Atom™ N2600Processor (Cedarview MB B2, 2Cores/4Threads) ; Chipset: Intel ® NM10 (Tiger Point B0); Bios Rev: CTCRB052 Platform: Cedar Rock CRB, SODIMM 1x 2GB /DDR3/1066MHz Software: Windows 7 x64 was used to run TAT 3.8.6.1052, 3DMark 06, Elephants Dream 720P/1080P video with VLC player; CentOS 0.5 was used to run CPU2006 (400.Perlbench for CINT(specint) and 416.Gamess for CFP (specfp) ) Bios: Hyper Threading enabled, IA Turbo disabled, C states were disabled for all tests unless otherwise stated For more information go to http://www.intel.com/performance •Disclaimer: •Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products. • Copyright © 2011 Intel Corporation. All rights reserved. •*Other names and brands may be claimed as the property of others. 20 20
- 21. Available Development Kit Boards 21

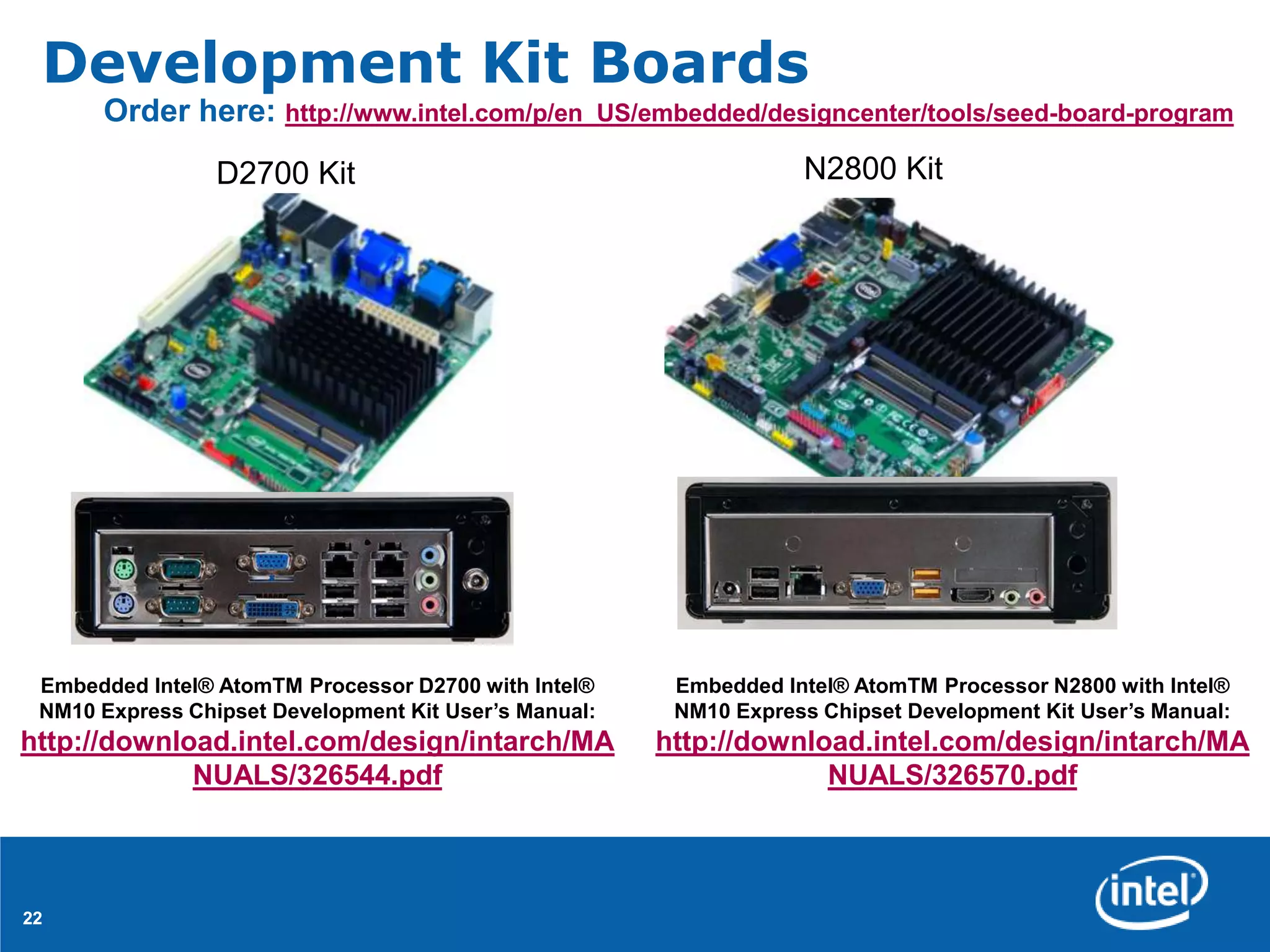

- 22. Development Kit Boards Order here: http://www.intel.com/p/en_US/embedded/designcenter/tools/seed-board-program D2700 Kit N2800 Kit Embedded Intel® AtomTM Processor D2700 with Intel® Embedded Intel® AtomTM Processor N2800 with Intel® NM10 Express Chipset Development Kit User’s Manual: NM10 Express Chipset Development Kit User’s Manual: http://download.intel.com/design/intarch/MA http://download.intel.com/design/intarch/MA NUALS/326544.pdf NUALS/326570.pdf 22
- 23.

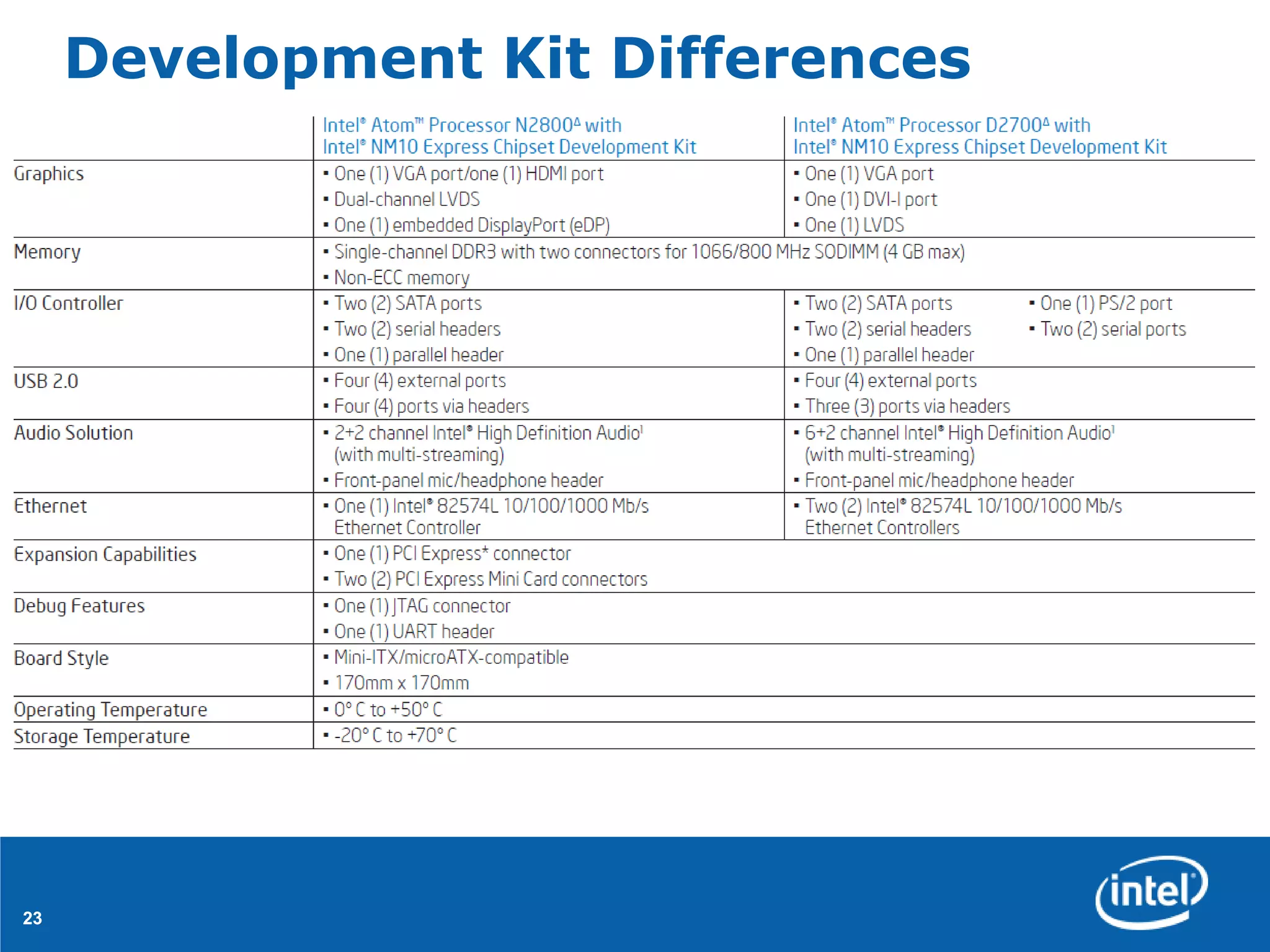

- 24.

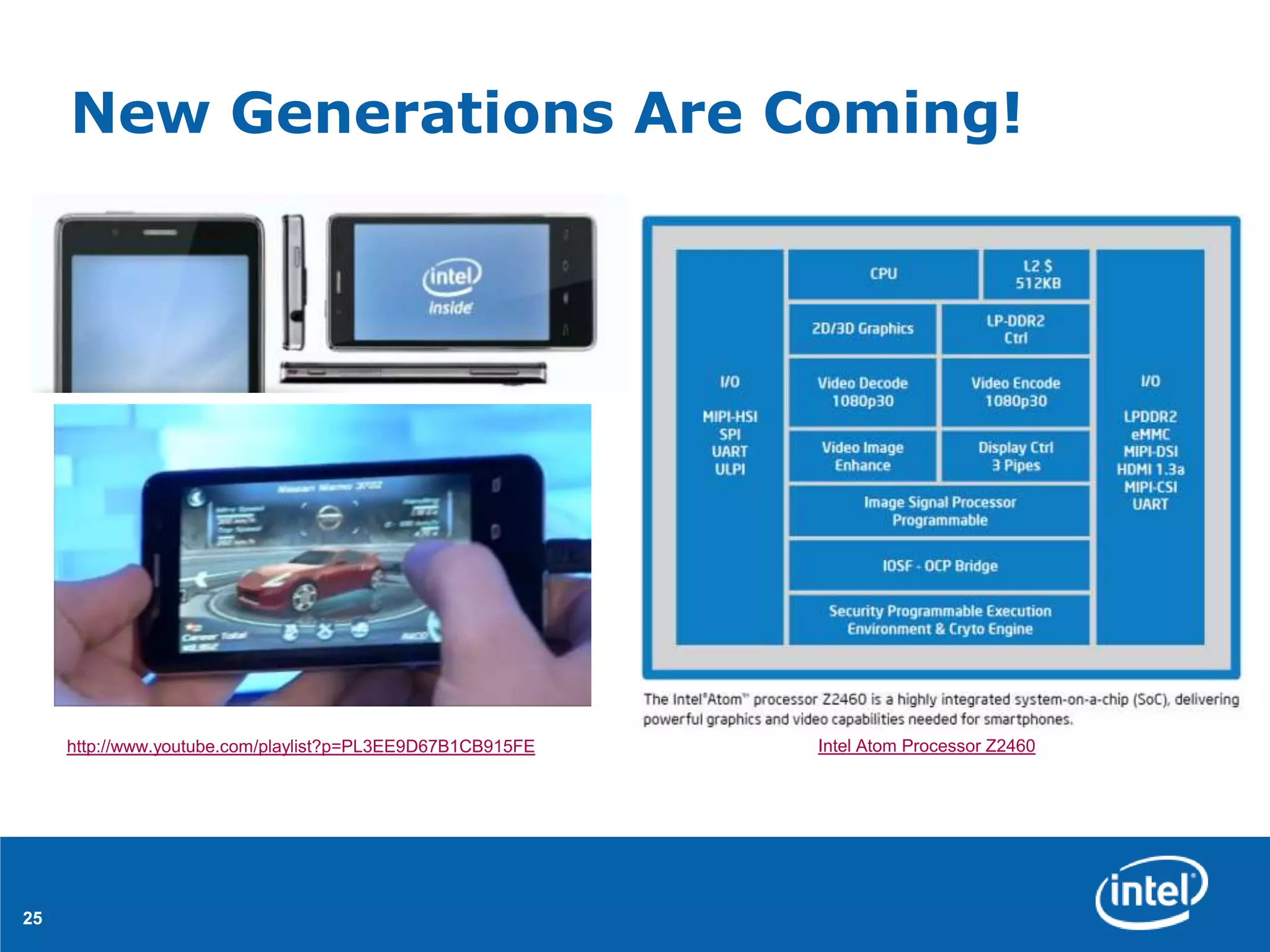

- 25. New Generations AreComing! http://www.youtube.com/playlist?p=PL3EE9D67B1CB915FE Intel Atom Processor Z2460 25
- 26.

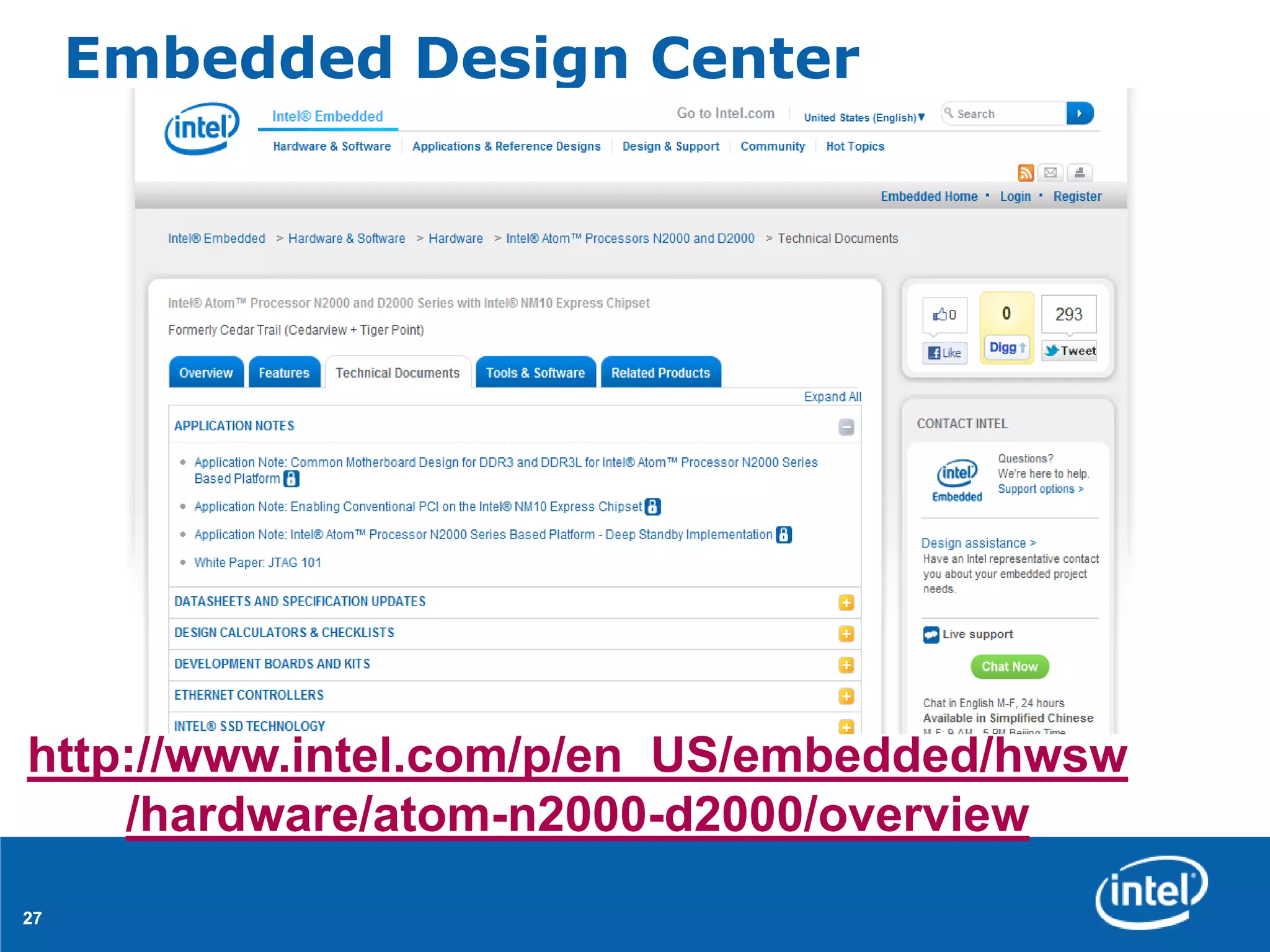

- 27. Embedded Design Center http://www.intel.com/p/en_US/embedded/hwsw /hardware/atom-n2000-d2000/overview 27
- 28.
