1. The preferred global vendor for
innovative embedded solutions
Computer-On-Modules
Intel Intelligent Systems Workshop Istanbul
April 3rd 2012
Moshe Ramon
Moshe.ramon@congatec.com

2. Vision
The preferred global vendor for
innovative embedded solutions
to enable competitive advantages
for our customers.
Page 2 January 2012 © congatec AG

3. Who is congatec?
 The driver for innovation
and technology leadership
 Focused on Computer-On-Module
(COM) Technology
 Accelerating time-to-market for
x86-based embedded computer designs
 Intel Embedded Alliance Associate Member
 Technology Provider Platinum
 Embedded Building Block Initiative
Page 3 January 2012 © congatec AG

4. congatec Facts
 Founded Dec. 2004
 Revenue 48 M€ (2011 prel.)
 Employees 124 (Dec 2011)
 Headquarter Deggendorf
 Subsidiaries San Diego (USA)
Taipei (TW)
Plzen, Brno (CZ)
 Sales Offices London, Paris, Stockholm, Tel Aviv
 Sales Partners worldwide
 Registered capital 3.6 M€
Page 4 January 2012 © congatec AG

5. Entities & Partners
Page 5 January 2012 © congatec AG

6. Partnerships
 Intel® Technology Provider - Platinum
 Intel® Embedded Alliance
 PICMG - Executive member
 COM Express design guide - editor
 COM Express Rev. 2.0 & 2.1 - editor
 Qseven - Founding member
 Specification & design guide editor
 XTX - Founding member
 Specification & design guide editor
 Microsoft Embedded Partner
 AMD Embedded Partner
 SGET (Standardization Group for Embedded Technology)
 Founder and board member
Page 6 January 2012 © congatec AG

7. Module Concept
 Concept
 CPU board with standard PC core
functions
 Baseboard with customer specific
functions and size
 Customer benefits
 Reduced development costs
 Faster time to market
 Fast reaction on market trends
 Scalable product range
 Investment security
by technology upgrade
 Engineering resources can be
focused on system functions
 Second source philosophy
Page 7 January 2012 © congatec AG

8. Product Portfolio
Qseven ETX/XTX COM Express COM Express
Compact Basic
Qseven ETX XTX COM Express COM Express
Compact Basic
LX800 x x x
915GME x x
945GME x x
US15W x x
US15WPT x
EG20 x x
945 + Atom™ x x x
GS45/GM45 x x
HM55/QM57 x
QM67 Type 2&6
AMD Fusion x x x x
Page 8 January 2012 © congatec AG

9. Product Portfolio based on Intel
Technology
Progress
Core i3/5/7
3rd Gen.
2nd Gen. Core i3/5/7
QM/HM67
Core i3/5/7
QM57/HM55
Core2Duo
GM/GS45
2nd Gen. Atom
NM10
CoreDuo
945GME E6xx
EG20
Z5xx
US15W
2008 2009 2010 2011 2012 Time
Page 9 January 2012 © congatec AG

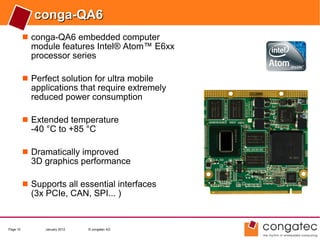

10. conga-QA6
 conga-QA6 embedded computer
module features Intel® Atom™ E6xx
processor series
 Perfect solution for ultra mobile
applications that require extremely
reduced power consumption
 Extended temperature
-40 °C to +85 °C
 Dramatically improved
3D graphics performance
 Supports all essential interfaces
(3x PCIe, CAN, SPI... )
Page 10 January 2012 © congatec AG

11. Page 11 January 2012 © congatec AG

12. Page 12 January 2012 © congatec AG

13. Conga-TM77/TS77 - 3rd Generation Intel® Core™
 COM Express, Rev. 2.0, Basic Size, Type 6 Pinout
 Highest Performance Module COM Express Type 6
 3rd Generation Intel® Core™ processor-based platform
 COM Express module with PCI Express, SATA, USB, HDMI
 Better transcode HD-HD, HD Video Conferencing
 Improved Graphics Performance, DirectX 11
Page 13 January 2012 © congatec AG

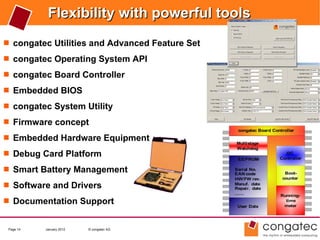

14. Flexibility with powerful tools
 congatec Utilities and Advanced Feature Set
 congatec Operating System API
 congatec Board Controller
 Embedded BIOS
 congatec System Utility
 Firmware concept
congatec Board Controller
 Embedded Hardware Equipment
Multistage
Watchdog
 Debug Card Platform I2C
Controller
EEPROM
 Smart Battery Management Serial No.
EAN code Boot-
HW/FW rev. counter
 Software and Drivers Manuf. date
Repair. date
......
Running-
 Documentation Support time
meter
User Data
Page 14 January 2012 © congatec AG

15. Software and Driver Support
 For the most important OS
 congatec offers advanced Board-
Support Packages
 With latest tested drivers from silicon
vendors
 Specific drivers for accessing all of
our additional embedded module
features
Page 15 January 2012 © congatec AG

16. COM Express / Qseven Mini Carrier Board
• GB Ethernet
• SATA II
• Audio
• 6x USB 2.0
• LVDS 2x24 bit
• PCI Express x1
• Mini PCIe
• CFAST
• SD Card
• HDMI/DVI
• Smart Battery
Managment
Capability
Page 16 January 2012 © congatec AG

17. congatec Cooling Pipes – new cooling solution
 Cooling is even more important
 With integrated Heat Pipes
 For unbridled processor
performance
 Turbo Boost 2
 Direct affect to performance
 Heat Pipe Solutions
 Up to 15°C advantage
 Improves MTBF up to 8x
 Available Versions
 Heatspreader
 Passive Cooling Solution
 Active Cooling Solution
 Higher Reliability
Page 17 January 2012 © congatec AG

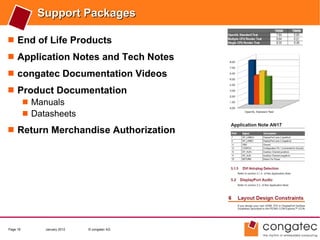

18. Support Packages
 End of Life Products
 Application Notes and Tech Notes
 congatec Documentation Videos
 Product Documentation
 Manuals
 Datasheets
 Return Merchandise Authorization
Page 18 January 2012 © congatec AG

19. Digital Signage Controller
congatec

20. DSC1 - Digital Signage Controller
Page 20 January 2012 © congatec AG

21. DSC1 – Design & Security Features
 Mounting between screen and VESA mechanics
 Maximum anti- theft security
 VESA 100 and 200
 Flat housing (30mm)
 Lockable cable housing
 For vandal protection
 Fanless and closed design
 Keeps dust out
 Immediate alarm feature
 In case of modifications or power loss
 Embedded product
 Industrial design
 Long term availability
 Modular design (COM Express based)
 Reliable 24/7 operation
Page 21 January 2012 © congatec AG

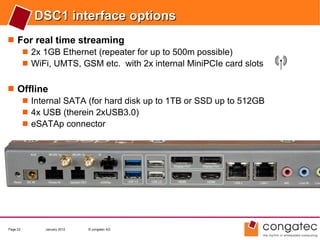

22. DSC1 interface options
 For real time streaming
 2x 1GB Ethernet (repeater for up to 500m possible)
 WiFi, UMTS, GSM etc. with 2x internal MiniPCIe card slots
 Offline
 Internal SATA (for hard disk up to 1TB or SSD up to 512GB
 4x USB (therein 2xUSB3.0)
 eSATAp connector
Page 22 January 2012 © congatec AG

23. DSC1 Software Support
 All important Operating systems
 Microsoft Windows (XP/Win7/embedded)
 Linux
 Wide range of supported
Digital Signage Software
 WireSpring FireCast
 YCD | Player
 HARRIS
 C-nario Messenger
 Tandberg Movie Client
 Stinova
 (.... evaluation continues
for all leading vendors)
Page 23 January 2012 © congatec AG

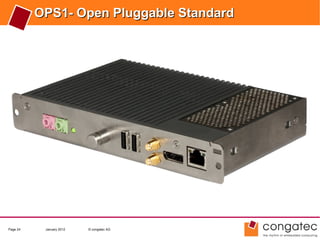

24. OPS1- Open Pluggable Standard
Page 24 January 2012 © congatec AG

25. OPS1 – Features
 Plug-In unit
 Compliant to Intel OPS Spec Apr. 2011
 Performance
 Intel Atom E680 up to Intel Core i7 620M
 Video
 Dual Channel Full HD (1x Internal, 1x external DP)
 I/O and Communication
 Ethernet, Audio, USB
 2x MiniPCIe for WLAN, Bluetooth, GSM, 3G, LT, ...
Page 25 January 2012 © congatec AG
