IBM System p, AIX & Linux Aktuell 2008




Matching Network Parameters between
IBM System p and CISCO Networks


        Alexander Paul
        Netmakers IT-Consulting
        paulalex@de.ibm.com




                                                 © 2008 Alexander Paul
Matching Network Parameters between IBM System p and CISCO Networks

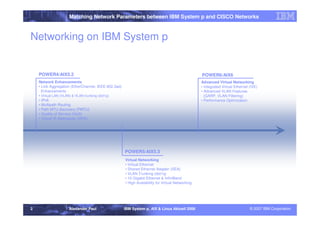

Networking on IBM System p


    POWER4/AIX5.2                                                                                  POWER6/AIX6
    Network Enhancements                                                                           Advanced Virtual Networking
    • Link Aggregation (EtherChannel, IEEE 802.3ad)                                                • Integrated Virtual Ethernet (IVE)
      Enhancements                                                                                 • Advanced VLAN Features
    • Virtual LAN (VLAN) & VLAN trunking (dot1q)                                                     (GARP, VLAN Filtering)
    • IPv6                                                                                         • Performance Optimization
    • Multipath Routing
    • Path MTU discovery (PMTU)
    • Quality of Service (QoS)
    • Virtual IP Addresses (VIPA)




                                                      POWER5/AIX5.3
                                                      Virtual Networking
                                                      • Virtual Ethernet
                                                      • Shared Ethernet Adapter (SEA)
                                                      • VLAN Trunking (dot1q)
                                                      • 10 Gigabit Ethernet & InfiniBand
                                                      • High Availability for Virtual Networking




2                    Alexander Paul                   IBM System p, AIX & Linux Aktuell 2008                                     © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



There are many interesting connection points …
                                In this session,
                            we focus on two topics:



             – Link Aggregation (LA):
               Discover how LA works by looking on perfomance behavior and
               the confguration on both sites (AIX and Cisco).


             – Multiple VLANs:
               Connection on Cisco catalyst switches to provide a full VLAN
               connectivity to the Virtual I/O server.




3      Alexander Paul         IBM System p, AIX & Linux Aktuell 2008          © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks




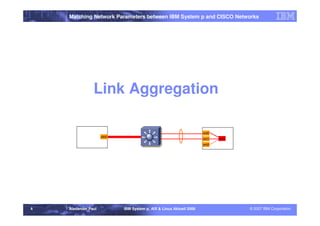

                Link Aggregation

                                                                     ent0
                     eth0
                                                                     ent1   ent3
                                                                     ent2




4   Alexander Paul          IBM System p, AIX & Linux Aktuell 2008                 © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



What exactly is Link Aggregation (LA)?


       LA is a logical grouping of physical ports.

       There are different namings for the same things on
       AIX and Cisco:

         – EtherChannel (AIX/Cisco)
           Means a cisco proprietary protocol, named PAgP.
           EtherChannel is a trademark of Cisco.
         – Aggregate Port (AIX/Cisco)
         – Port Channel (Cisco)
         – Channel Group (Cisco)




5       Alexander Paul     IBM System p, AIX & Linux Aktuell 2008      © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



What is Link Aggregation used for?


       Eliminates SPOF on physical adapter connections
        – Very efficient with less failover latency
        – Several tuning points to fit the LA to your network behavior
        – Hot adapter add, remove or replace

       May improve overall throughput
        – More about this in only a few slides…




6      Alexander Paul     IBM System p, AIX & Linux Aktuell 2008      © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Link Aggregation protocols


       Cisco EtherChannel (PAgP)
        – Cisco proprietary
        – Uses a logical PortChannel on Cisco site that can bundle up to
          8 physical ports.
        – Supported by AIX and VIOS
        – Supports load balancing mechanisms


       IEEE 802.3ad (LACP)
        – Supported by Cisco and other switch vendors
        – Supported by AIX, VIOS and Linux bonding
        – Supports load balancing mechanisms



7      Alexander Paul     IBM System p, AIX & Linux Aktuell 2008      © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

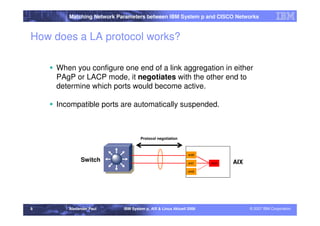

How does a LA protocol works?

     When you configure one end of a link aggregation in either
     PAgP or LACP mode, it negotiates with the other end to
     determine which ports would become active.

     Incompatible ports are automatically suspended.



                                   Protocol negotiation



                                                             ent0
             Switch                                          ent1   ent3   AIX
                                                             ent2




8       Alexander Paul     IBM System p, AIX & Linux Aktuell 2008                © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



What to do before configuring Link Aggregation?
     On AIX site:

       Configure speed and duplex settings for each adapter ports.
       Know the workload from AIX to switch.



                           IBM System p



                                             Cisco Catalyst

     On Switch site:

       Configure speed and duplex settings for each switchport.
       A appropriate description on switchports to be aggregate may be helpful in
       case of trouble.
       Know the workload leaving the switch through the portchannel.


                            IBM System p



                                             Cisco Catalyst



9       Alexander Paul      IBM System p, AIX & Linux Aktuell 2008        © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Configuring Link Aggregation (IEEE 802.3ad)

                     aix61server2                          1. Add a new Link Aggregation:
                                                             aix61server2:/#smitty addethch1

                           LA
                           ent3
                                                            2. Select the adapters for the active channel:
                                                               > ent0      active
Physical Adapters   ent0   ent1   ent2
                                                               > ent1      active
                                                                 ent2      backup




                                                           3. Configure LA-mode, backup and load balacing:

                                                              Add An EtherChannel / Link Aggregation

                                                             Type or select values in entry fields.
                                                             Press Enter AFTER making all desired changes.

                                                                                                                      [Entry Fields]
                                                               EtherChannel / Link Aggregation Adapters             ent0,ent1          +
                                                               Enable Alternate Address                             no
                                                               Alternate Address                                   []
                                                               Enable Gigabit Ethernet Jumbo Frames                 no
                                                               Mode                                                 8023ad
                                                               Hash Mode                                            default
                                                               Backup Adapter                                       ent2
                                                                    Automatically Recover to Main Channel           yes
                                                                    Perform Lossless Failover After Ping Failure    yes
                                                               Internet Address to Ping                            [9.155.62.1]
                                                               Number of Retries                                   [3]
                                                               Retry Timeout (sec)                                 [1]




10                  Alexander Paul       IBM System p, AIX & Linux Aktuell 2008                              © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

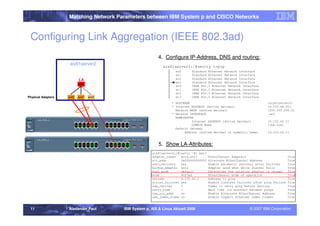

 Configuring Link Aggregation (IEEE 802.3ad)
                                                           4. Configure IP-Address, DNS and routing:
                     aix61server2
                                                              aix61server2:/#smitty tcpip
                                                                │     en0      Standard Ethernet Network Interface
                                                                │     en1      Standard Ethernet Network Interface
                           LA                                   │     en2      Standard Ethernet Network Interface
                                                                │     en3      Standard Ethernet Network Interface
                           ent3
                                                                │     et0      IEEE 802.3 Ethernet Network Interface
                                                                │     et1      IEEE 802.3 Ethernet Network Interface
                                                                │     et2      IEEE 802.3 Ethernet Network Interface
Physical Adapters   ent0   ent1   ent2                          │     et3      IEEE 802.3 Ethernet Network Interface
                                                                    * HOSTNAME                                           [aix61server2]
                                                                    * Internet ADDRESS (dotted decimal)                  [9.155.66.95]
                                                                      Network MASK (dotted decimal)                      [255.255.240.0]
                                                                    * Network INTERFACE                                   en3
                                                                      NAMESERVER
                                                                               Internet ADDRESS (dotted decimal)         [9.155.62.5]
                                                                               DOMAIN Name                               [ibm.com]
                                                                      Default Gateway
                                                                           Address (dotted decimal or symbolic name)     [9.155.62.1]



                                                           5. Show LA-Attributes:
                                                        aix61server2:/#lsattr -El ent3
                                                        adapter_names   ent0,ent1        EtherChannel Adapters                         True
                                                        alt_addr        0x000000000000   Alternate EtherChannel Address                True
                                                        auto_recovery   yes              Enable automatic recovery after failover      True
                                                        backup_adapter ent2              Adapter used when whole channel fails         True
                                                        hash_mode       default          Determines how outgoing adapter is chosen     True
                                                        mode            8023ad           EtherChannel mode of operation                True
                                                        netaddr         9.155.62.1       Address to ping                               True
                                                        noloss_failover yes              Enable lossless failover after ping failure   True
                                                        num_retries     3                Times to retry ping before failing            True
                                                        retry_time      1                Wait time (in seconds) between pings          True
                                                        use_alt_addr    no               Enable Alternate EtherChannel Address         True
                                                        use_jumbo_frame no               Enable Gigabit Ethernet Jumbo Frames          True


 11                 Alexander Paul       IBM System p, AIX & Linux Aktuell 2008                                 © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Configuring Link Aggregation (IEEE 802.3ad)
                                                        A. Setup the PortChannel No. 1:
Cat_3560_1   FastEthernet 0/9
                                              Cat_3560_1(config)#interface range fastEthernet 0/9 - 10
                               ent0
                               ent1   AIX     Cat_3560_1(config-if-range)#channel-group 1 mode ?
                               ent2             active     Enable LACP unconditionally
FastEthernet 0/10                               auto       Enable PAgP only if a PAgP device is detected
                                                desirable Enable PAgP unconditionally
                                                on         Enable Etherchannel only
                                                passive    Enable LACP only if a LACP device is detected




                                              Cat_3560_1(config-if-range)#channel-group 1 mode passive
                                              Creating a port-channel interface Port-channel 1




12                  Alexander Paul          IBM System p, AIX & Linux Aktuell 2008        © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Configuring Link Aggregation (IEEE 802.3ad)
                                                        B. Show the result
      FastEthernet 0/9
                                                Cat_3560_1#show etherchannel summary
                               ent0             Flags: D - down          P - in port-channel
                               ent1   AIX               I - stand-alone s - suspended
                               ent2                     H - Hot-standby (LACP only)
FastEthernet 0/10                                       R - Layer3       S - Layer2
                                                        u - unsuitable for bundling
                                                        U - in use       f - failed to allocate aggregator
                                                        d - default port

                                                Number of channel-groups in use: 1
                                                Number of aggregators:           1

                                                Group Port-channel Protocol      Ports
                                                ------+-------------+-----------+-------------------------
                                                1      Po1(SU)       LACP        Fa0/9(Pd)   Fa0/10(P)


                                                      PortChannel is UP                All Switchports are
                                                                                       part of the channel
                                                                        IEEE 802.3ad




13                  Alexander Paul          IBM System p, AIX & Linux Aktuell 2008             © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

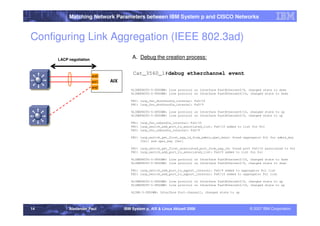

Configuring Link Aggregation (IEEE 802.3ad)
     LACP negotiation
                                         A. Debug the creation process:


                        ent0
                                         Cat_3560_1#debug etherchannel event
                        ent1   AIX
                        ent2
                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to down
                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to down

                                        FEC: lacp_fec_dontbundle_internal: Fa0/10
                                        FEC: lacp_fec_dontbundle_internal: Fa0/9

                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to up
                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to up

                                        FEC: lacp_fec_unbundle_internal: Fa0/10
                                        FEC: lacp_switch_add_port_to_associated_list: Fa0/10 added to list for Po1
                                        FEC: lacp_fec_unbundle_internal: Fa0/9

                                        FEC: lacp_switch_get_first_agg_id_from_admin_oper_keys: found aggregator Po1 for admin_key
                                             [0x1] and oper_key [0x1]

                                        FEC: lacp_switch_get_first_associated_port_from_agg_id: found port Fa0/10 associated to Po1
                                        FEC: lacp_switch_add_port_to_associated_list: Fa0/9 added to list for Po1

                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to down
                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to down

                                        FEC: lacp_switch_add_port_to_agport_internal: Fa0/9 added to aggregator Po1 list
                                        FEC: lacp_switch_add_port_to_agport_internal: Fa0/10 added to aggregator Po1 list

                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to up
                                        %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to up

                                        %LINK-3-UPDOWN: Interface Port-channel1, changed state to up




14        Alexander Paul             IBM System p, AIX & Linux Aktuell 2008                              © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Test AIX Link Aggregation throughput
              192.168.1.161      GigabitEthernet 0/1     FastEthernet 0/9          192.168.1.160

                                                                                  ent0
      Linux                   eth0
                                                                                  ent1       ent3      AIX
                                                                                  ent2

                     Server                             FastEthernet 0/10
                                                                                           Client
                   application                                                           application
                                               Traffic direction

                                     ------------------------------------------------------------
                                     Client connecting to 192.168.1.161, TCP port 5001
                                     TCP window size:   256 KByte (default)
                                     ------------------------------------------------------------
     One TCP session:                [ 3] local 192.168.1.160 port 32838 connected with 192.168.1.161 port 5001
                                     [ 3] 0.0-10.0 sec      112 MBytes 94.2 Mbits/sec


                                     ------------------------------------------------------------
                                     Client connecting to 192.168.1.161, TCP port 5001
                                     TCP window size:   256 KByte (default)
                                     ------------------------------------------------------------
                                     [ 4] local 192.168.1.160 port 32840 connected with 192.168.1.161 port 5001
     Two TCP sessions:               [ 3] local 192.168.1.160 port 32839 connected with 192.168.1.161 port 5001
                                     [ 3] 0.0-10.0 sec 56.5 MBytes 45.2 Mbits/sec
                                     [ 4] 0.0-10.0 sec 55.5 MBytes 44.4 Mbits/sec
                                     [SUM] 0.0-10.0 sec     112 MBytes 93.9 Mbits/sec




15       Alexander Paul                  IBM System p, AIX & Linux Aktuell 2008                              © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Load Balacing for AIX link aggregation

       Hash_Mode: Default uses a hash of the last byte of the IP address
       to select the output adapter (or MAC address for non-IP frames)

       Other possible load balancing methods are:
         – Per Layer 4 source port (src_port)
         – Per Layer 4 destination sort (dst_port)
         – Per Layer 4 source and destination port (src_dst_port)


       Can only be changed by removing the LA.




16      Alexander Paul         IBM System p, AIX & Linux Aktuell 2008   © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Change load balancing hash mode

                                                                            ent0
      Linux                 eth0
                                                                            ent1   ent3     AIX
                                                                            ent2




     aix61server2:/#ifconfig en3 detach
     aix61server2:/#rmdev –dl ent3
     aix61server2:/#smitty etherchannel

     […]

     aix61server2:/#lsattr -El ent3
     adapter_names   ent0,ent1        EtherChannel Adapters                               True
     alt_addr        0x000000000000   Alternate EtherChannel Address                      True
     auto_recovery   yes              Enable automatic recovery after failover            True
     backup_adapter ent2              Adapter used when whole channel fails               True
     hash_mode       src_dst_port     Determines how outgoing adapter is chosen           True
     mode            8023ad           EtherChannel mode of operation                      True
     netaddr         192.168.1.111    Address to ping                                     True
     noloss_failover yes              Enable lossless failover after ping failure         True
     num_retries     3                Times to retry ping before failing                  True
     retry_time      1                Wait time (in seconds) between pings                True
     use_alt_addr    no               Enable Alternate EtherChannel Address               True
     use_jumbo_frame no               Enable Gigabit Ethernet Jumbo Frames                True




17         Alexander Paul          IBM System p, AIX & Linux Aktuell 2008                         © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Test AIX Link Aggregation throughput
               192.168.1.161      GigabitEthernet 0/1     FastEthernet 0/9          192.168.1.160

                                                                                   ent0
       Linux                   eth0
                                                                                   ent1       ent3      AIX
                                                                                   ent2

                      Server                             FastEthernet 0/10
                                                                                            Client
                    application                                                           application
                                                Traffic direction




                                      ------------------------------------------------------------
                                      Client connecting to 192.168.1.161, TCP port 5001
                                      TCP window size:   256 KByte (default)
                                      ------------------------------------------------------------
     Two TCP sessions:                [ 4] local 192.168.1.160 port 32857 connected with 192.168.1.161 port 5001
                                      [ 3] local 192.168.1.160 port 32856 connected with 192.168.1.161 port 5001
                                      [ 3] 0.0-10.0 sec      109 MBytes 87.2 Mbits/sec
                                      [ 4] 0.0-10.0 sec      110 MBytes 88.0 Mbits/sec
                                      [SUM] 0.0-10.0 sec     168 MBytes   175.2 Mbits/sec




18        Alexander Paul                  IBM System p, AIX & Linux Aktuell 2008                              © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Test switch Link Aggregation throughput
              192.168.1.161      GigabitEthernet 0/1     FastEthernet 0/9          192.168.1.160

                                                                                  ent0
      Linux                   eth0
                                                                                  ent1       ent3      AIX
                                                                                  ent2

                     Client                             FastEthernet 0/10
                                                                                           Server
                   application                                                           application
                                              Traffic direction


                                     ------------------------------------------------------------
                                     Server listening on TCP port 5001
                                     TCP window size: 16.0 KByte (default)
     One session:                    ------------------------------------------------------------
                                     [ 4] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 48471
                                     [ 4] 0.0-10.0 sec      112 MBytes 93.6 Mbits/sec




                                     [ 4] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 48472
                                     [ 5] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 48473
     Two sessions:                   [ 4] 0.0-10.0 sec 56.1 MBytes 47.0 Mbits/sec
                                     [ 5] 0.0-10.0 sec 56.2 MBytes 47.1 Mbits/sec
                                     [SUM] 0.0-10.0 sec    112 MBytes 94.1 Mbits/sec




19       Alexander Paul                  IBM System p, AIX & Linux Aktuell 2008                              © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

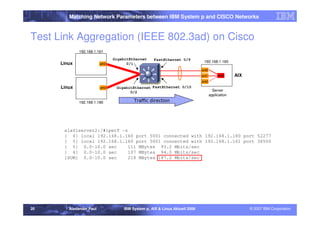

Test Link Aggregation (IEEE 802.3ad) on Cisco
              192.168.1.161
                                 GigabitEthernet     FastEthernet 0/9
                                                                               192.168.1.160
      Linux               eth0         0/1
                                                                              ent0
                                                                              ent1        ent3     AIX
                                                                              ent2

      Linux               eth0    GigabitEthernet FastEthernet 0/10
                                        0/2                                            Server
                                                                                     application
              192.168.1.180               Traffic direction




       aix61server2:/#iperf -s
       [ 4] local 192.168.1.160 port 5001 connected with 192.168.1.180 port 52277
       [ 5] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 36500
       [ 5] 0.0-10.0 sec      111 MBytes 93.2 Mbits/sec
       [ 4] 0.0-10.0 sec      107 MBytes 94.0 Mbits/sec
       [SUM] 0.0-10.0 sec     218 MBytes 187.2 Mbits/sec




20       Alexander Paul              IBM System p, AIX & Linux Aktuell 2008                              © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Load Balacing for Cisco port channels

       Cisco switches uses load balancing by source mac-address.
         Cat_3560_2#show etherchannel load-balance
         EtherChannel Load-Balancing Operational State (src-mac):
         Non-IP: Source MAC address
           IPv4: Source MAC address
           IPv6: Source IP address

       Availability of other load balancing methods depends on switch model:
         Cat_3560_2(config)#port-channel load-balance ?
           dst-ip       Dst IP Addr
           dst-mac      Dst Mac Addr
           src-dst-ip   Src XOR Dst IP Addr
           src-dst-mac Src XOR Dst Mac Addr
           src-ip       Src IP Addr
           src-mac      Src Mac Addr


       Load balancing can be changed dynamically.


21      Alexander Paul      IBM System p, AIX & Linux Aktuell 2008     © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Troubleshooting Link Aggregation on AIX


       aix61server2:/#entstat -d ent3

       […]
       Number of adapters: 2
       Operating mode: Standard mode (IEEE 802.3ad)
       IEEE 802.3ad Link Aggregation Statistics:
       Aggregation status: Aggregated
               Received LACPDUs: 18       This indicates a successful LA negotiation.
               Transmitted LACPDUs: 18
               Received marker PDUs: 0
               Transmitted marker PDUs: 0
               Received marker response PDUs: 0
               Transmitted marker response PDUs: 0
               Received unknown PDUs: 0
               Received illegal PDUs: 0
       Hash mode: Destination IP address
       […]




22     Alexander Paul       IBM System p, AIX & Linux Aktuell 2008         © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Troubleshooting on Cisco switches

       show etherchannel summary
        – Lists the status of a port channel and the associated switchports
        – Lists the configured protocol or mode for the port channel.


       show etherchannel detail
        – Lists detailed information about the switchport behavior.


       debug etherchannel event
        – Gives live report to the console regarding important etherchannel events.
        – Good for tracing a problem during the configuration process.




23     Alexander Paul         IBM System p, AIX & Linux Aktuell 2008                  © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Link Aggregation and POWER6 IVE

           Client LPAR 1                Client LPAR 2                  Client LPAR 3



                        (LA)                      (LA)


                LOG        LOG                 LOG    LOG                      LOG
                PORT       PORT                PORT   PORT                     PORT




         HEA Switch               HEA Switch              HEA Switch                  HEA Switch
                                                                                                    4 Port IVE
                                                                                                     Adapter




24     Alexander Paul               IBM System p, AIX & Linux Aktuell 2008                         © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Virtualization in a switched environment


       Cisco Catalyst 6500 Virtual Switching System (VSS) 1440

         – Cisco Catalyst 6500 VSS 1440 enables multiple Catalyst 6500 switches
           to be pooled into one virtual switch, simplifying network management,
           increasing availability, and optimizing switch resources.


         – Cisco Catalyst 6500 VSS enables interchassis stateful failover
           capabilities while Smart Call Home service reduces resolution time for
           Catalyst 6500 issues. In-service software upgrades enhance availability
           on both the Catalyst 6500 and Catalyst 4500 platforms.




25      Alexander Paul      IBM System p, AIX & Linux Aktuell 2008         © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks




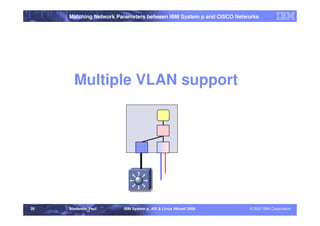

       Multiple VLAN support




26   Alexander Paul     IBM System p, AIX & Linux Aktuell 2008      © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Cisco Switch configuration for VIO environment
       VIOS 1                                                        Client 1                     Client 2




                                           en2                                                         en1
                                           (if)                                                        (if)


                                        ent2                               en0        en1             ent1          en0
                                       (SEA)                               (if)       (if)            VLAN          (if)

                          ent0         ent1                                ent0      ent1                           ent0
                         (Phy)         (Vir)                               (Vir)     (Vir)                          (Vir)

                                     VID          PVID                 PVID             PVID                 PVID           VID
       Hypervisor




                                      2            1                    1                2                    1              2




                                                     This Link must be configured to forward dot1q-tagged
                                                     frames.



               Cisco Catalyst
27                  Alexander Paul                       IBM System p, AIX & Linux Aktuell 2008                                   © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



  Show trunk configuration on switch interfaces
           VIOS 1
                                                                         Switch#show interface Gi0/1 switchport
                             en2
                             (if)
                                                                         [...]
                                                                         Name: Gi0/1
                             ent2                                        Switchport: Enabled
                            (SEA)                                        Administrative Mode: dynamic auto
                                                                         Operational Mode: down
                                                                         Administrative Trunking Encapsulation: negotiate
                 ent0        ent1                                        Operational Trunking Encapsulation: native
                (Phy)        (Vir)                                       Negotiation of Trunking: Off
                                     PVID 1                              Access Mode VLAN: 1 (default)
                                              PHYP                       Trunking Native Mode VLAN: 1 (default)
                                 VID 2
       VLAN 1                                                            Administrative Native VLAN tagging: enabled
                                                                         Voice VLAN: none
Tag    VLAN 2                                                            Administrative private-vlan host-association: none
                                                                         Administrative private-vlan mapping: none
                                                                         Administrative private-vlan trunk native VLAN: none
                                                                         Administrative private-vlan trunk Native VLAN tagging: enabled
                                     Only untagged frames are            Administrative private-vlan trunk encapsulation: dot1q
                        VLAN 1       forwarded to the VIO server and     Administrative private-vlan trunk normal VLANs: none
                                     accepted by the switch.             Administrative private-vlan trunk private VLANs: none
                                                                         Operational private-vlan: none
                                                                         Trunking VLANs Enabled: ALL
Tag    VLAN 2                                                            Pruning VLANs Enabled: 2-1001
                                                                         Capture Mode Disabled
                                                                         Capture VLANs Allowed: ALL




       VLAN 1


  28                      Alexander Paul                  IBM System p, AIX & Linux Aktuell 2008                   © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

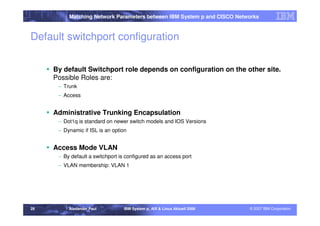

Default switchport configuration

     By default Switchport role depends on configuration on the other site.
     Possible Roles are:
      – Trunk
      – Access


     Administrative Trunking Encapsulation
      – Dot1q is standard on newer switch models and IOS Versions
      – Dynamic if ISL is an option


     Access Mode VLAN
      – By default a switchport is configured as an access port
      – VLAN membership: VLAN 1




29        Alexander Paul          IBM System p, AIX & Linux Aktuell 2008   © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

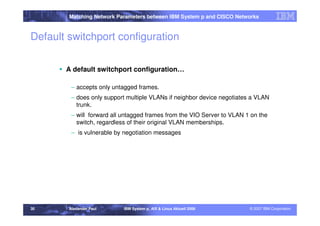

Default switchport configuration

       A default switchport configuration…

         – accepts only untagged frames.
         – does only support multiple VLANs if neighbor device negotiates a VLAN
           trunk.
         – will forward all untagged frames from the VIO Server to VLAN 1 on the
           switch, regardless of their original VLAN memberships.
         – is vulnerable by negotiation messages




30      Alexander Paul      IBM System p, AIX & Linux Aktuell 2008       © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

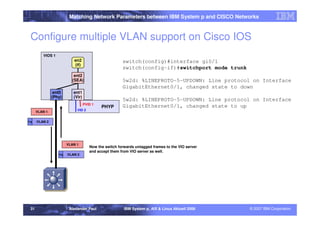

 Configure multiple VLAN support on Cisco IOS
         VIOS 1
                           en2                         switch(config)#interface gi0/1
                           (if)
                                                       switch(config-if)#switchport mode trunk
                           ent2
                          (SEA)                        5w2d: %LINEPROTO-5-UPDOWN: Line protocol on Interface
                                                       GigabitEthernet0/1, changed state to down
                ent0       ent1
               (Phy)       (Vir)
                                                       5w2d: %LINEPROTO-5-UPDOWN: Line protocol on Interface
                                   PVID 1
                                            PHYP       GigabitEthernet0/1, changed state to up
                             VID 2
      VLAN 1

Tag   VLAN 2




                        VLAN 1
                                      Now the switch forwards untagged frames to the VIO server
                                      and accept them from VIO server as well.
                  Tag   VLAN 2




 31                      Alexander Paul                 IBM System p, AIX & Linux Aktuell 2008    © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks



Configure multiple VLAN support on Cisco IOS
     VIOS 1
                                                switch#show interface gi0/1 switchport
                  en2
                                                Name: Gi0/1
                  (if)
                                                Switchport: Enabled
                                                Administrative Mode: trunk
                  ent2                          Operational Mode: trunk
                 (SEA)                          Administrative Trunking Encapsulation: dot1q
                                                Operational Trunking Encapsulation: dot1q
                                                Negotiation of Trunking: On
         ent0     ent1
                                                Access Mode VLAN: 1 (default)
        (Phy)     (Vir)
                                                Trunking Native Mode VLAN: 1 (default)
                                                Voice VLAN: none
                  Gigabit Ethernet 0/1          Administrative private-vlan host-association: none
                                                Administrative private-vlan mapping: none
                                                Administrative private-vlan trunk native VLAN: none
                                                Administrative private-vlan trunk encapsulation: dot1q
                                                Administrative private-vlan trunk normal VLANs: none
                                                Administrative private-vlan trunk private VLANs: none
                                                Operational private-vlan: none
                                                Trunking VLANs Enabled: ALL
                                                Pruning VLANs Enabled: 2-1001
                                                Capture Mode Disabled
                                                Capture VLANs Allowed: ALL
                                                Protected: false
                                                Unknown unicast blocked: disabled
                                                Unknown multicast blocked: disabled
                                                Appliance trust: none




32              Alexander Paul      IBM System p, AIX & Linux Aktuell 2008                  © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

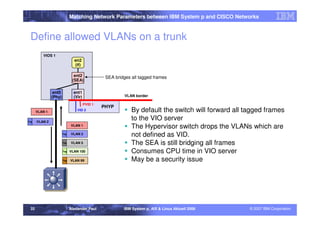

 Define allowed VLANs on a trunk
         VIOS 1
                               en2
                               (if)

                               ent2              SEA bridges all tagged frames
                              (SEA)

                ent0           ent1
               (Phy)           (Vir)                      VLAN border

                                       PVID 1
                                                PHYP
      VLAN 1
                                 VID 2                       By default the switch will forward all tagged frames
Tag   VLAN 2
                                                             to the VIO server
                             VLAN 1
                                                             The Hypervisor switch drops the VLANs which are
                       Tag   VLAN 2                          not defined as VID.
                       Tag   VLAN 5                          The SEA is still bridging all frames
                       Tag   VLAN 100                        Consumes CPU time in VIO server
                       Tag   VLAN 99                         May be a security issue




 33                          Alexander Paul              IBM System p, AIX & Linux Aktuell 2008      © 2007 IBM Corporation
Matching Network Parameters between IBM System p and CISCO Networks

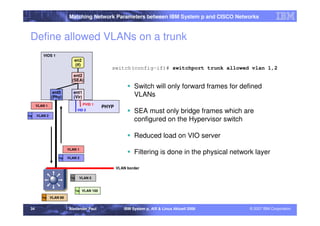

 Define allowed VLANs on a trunk
         VIOS 1
                            en2
                            (if)
                                                    switch(config-if)# switchport trunk allowed vlan 1,2
                            ent2
                           (SEA)
                                                                Switch will only forward frames for defined
                ent0        ent1
               (Phy)        (Vir)                               VLANs
      VLAN 1                          PVID 1
                                                 PHYP
                                 VID 2
                                                                SEA must only bridge frames which are
Tag   VLAN 2
                                                                configured on the Hypervisor switch

                                                                Reduced load on VIO server
                         VLAN 1
                                                                Filtering is done in the physical network layer
                   Tag   VLAN 2

                                                        VLAN border

                          Tag     VLAN 5


                                Tag   VLAN 100
         Tag   VLAN 99


 34                      Alexander Paul                    IBM System p, AIX & Linux Aktuell 2008      © 2007 IBM Corporation

More Related Content

What's hot

supervision réseau (snmp netflow)
 supervision réseau (snmp netflow) supervision réseau (snmp netflow)
supervision réseau (snmp netflow)
medalaa

Symantec White Paper: W32.Ramnit Analysis
Symantec White Paper: W32.Ramnit AnalysisSymantec White Paper: W32.Ramnit Analysis
Symantec White Paper: W32.Ramnit Analysis
Symantec

Etude de la virtualisation
Etude de la virtualisationEtude de la virtualisation
Etude de la virtualisation
Antoine Benkemoun

Administration VMware esxi vsphere
Administration VMware esxi  vsphere Administration VMware esxi  vsphere
Administration VMware esxi vsphere
tiandrazanalino

Protection-dun-réseau-dentreprise-via-un-firewall.pdf
Protection-dun-réseau-dentreprise-via-un-firewall.pdfProtection-dun-réseau-dentreprise-via-un-firewall.pdf
Protection-dun-réseau-dentreprise-via-un-firewall.pdf
MELLAH MOULOUD Sorbonne Université - Sciences et Ingénierie

VMware Horizon DaaS for Service Providers
VMware Horizon DaaS for Service ProvidersVMware Horizon DaaS for Service Providers
VMware Horizon DaaS for Service Providers
Ingram Micro Cloud - META

Deploiement de la virtualisation des postes de travail sous vmware
Deploiement de la virtualisation des postes de travail sous vmwareDeploiement de la virtualisation des postes de travail sous vmware
Deploiement de la virtualisation des postes de travail sous vmware
Mame Cheikh Ibra Niang

Zabbix
ZabbixZabbix
Zabbix
pundir5

Live VM Migration
Live VM MigrationLive VM Migration
Live VM Migration
Shivam Singh

[SINS] Présentation de Nagios
[SINS] Présentation de Nagios[SINS] Présentation de Nagios
[SINS] Présentation de Nagiosjeyg

Alphorm.com Support de la formation Vmware Esxi 6.0
Alphorm.com Support de la formation Vmware Esxi 6.0Alphorm.com Support de la formation Vmware Esxi 6.0
Alphorm.com Support de la formation Vmware Esxi 6.0
Alphorm

VMware vSphere 6.0 Lab Manual
VMware vSphere 6.0 Lab Manual VMware vSphere 6.0 Lab Manual
VMware vSphere 6.0 Lab Manual
Vepsun Technologies

Presentation Zabbix en Français du 6 Juin 2013
Presentation Zabbix en Français du 6 Juin 2013Presentation Zabbix en Français du 6 Juin 2013
Presentation Zabbix en Français du 6 Juin 2013
Alain Ganuchaud

Virtual SAN 6.2, hyper-converged infrastructure software
Virtual SAN 6.2, hyper-converged infrastructure softwareVirtual SAN 6.2, hyper-converged infrastructure software
Virtual SAN 6.2, hyper-converged infrastructure software
Duncan Epping

Zabbix 3.2 presentation June 2017
Zabbix 3.2 presentation June 2017Zabbix 3.2 presentation June 2017
Zabbix 3.2 presentation June 2017
Amirhossein Saberi

Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...
Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...
Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...
Guillaume MOCQUET

VMware Virtual SAN Presentation
VMware Virtual SAN PresentationVMware Virtual SAN Presentation
VMware Virtual SAN Presentation
virtualsouthwest

Spectrum Scale Best Practices by Olaf Weiser
Spectrum Scale Best Practices by Olaf WeiserSpectrum Scale Best Practices by Olaf Weiser
Spectrum Scale Best Practices by Olaf Weiser
Sandeep Patil


What's hot (20)

supervision réseau (snmp netflow)
 supervision réseau (snmp netflow) supervision réseau (snmp netflow)
supervision réseau (snmp netflow)

Symantec White Paper: W32.Ramnit Analysis
Symantec White Paper: W32.Ramnit AnalysisSymantec White Paper: W32.Ramnit Analysis
Symantec White Paper: W32.Ramnit Analysis

Etude de la virtualisation
Etude de la virtualisationEtude de la virtualisation
Etude de la virtualisation

Administration VMware esxi vsphere
Administration VMware esxi  vsphere Administration VMware esxi  vsphere
Administration VMware esxi vsphere

Protection-dun-réseau-dentreprise-via-un-firewall.pdf
Protection-dun-réseau-dentreprise-via-un-firewall.pdfProtection-dun-réseau-dentreprise-via-un-firewall.pdf
Protection-dun-réseau-dentreprise-via-un-firewall.pdf

VMware Horizon DaaS for Service Providers
VMware Horizon DaaS for Service ProvidersVMware Horizon DaaS for Service Providers
VMware Horizon DaaS for Service Providers

Deploiement de la virtualisation des postes de travail sous vmware
Deploiement de la virtualisation des postes de travail sous vmwareDeploiement de la virtualisation des postes de travail sous vmware
Deploiement de la virtualisation des postes de travail sous vmware

Zabbix
ZabbixZabbix
Zabbix

Live VM Migration
Live VM MigrationLive VM Migration
Live VM Migration

[SINS] Présentation de Nagios
[SINS] Présentation de Nagios[SINS] Présentation de Nagios
[SINS] Présentation de Nagios

Alphorm.com Support de la formation Vmware Esxi 6.0
Alphorm.com Support de la formation Vmware Esxi 6.0Alphorm.com Support de la formation Vmware Esxi 6.0
Alphorm.com Support de la formation Vmware Esxi 6.0

Zabbix
ZabbixZabbix
Zabbix

VMware vSphere 6.0 Lab Manual
VMware vSphere 6.0 Lab Manual VMware vSphere 6.0 Lab Manual
VMware vSphere 6.0 Lab Manual

Ansible tp
Ansible tpAnsible tp
Ansible tp

Presentation Zabbix en Français du 6 Juin 2013
Presentation Zabbix en Français du 6 Juin 2013Presentation Zabbix en Français du 6 Juin 2013
Presentation Zabbix en Français du 6 Juin 2013

Virtual SAN 6.2, hyper-converged infrastructure software
Virtual SAN 6.2, hyper-converged infrastructure softwareVirtual SAN 6.2, hyper-converged infrastructure software
Virtual SAN 6.2, hyper-converged infrastructure software

Zabbix 3.2 presentation June 2017
Zabbix 3.2 presentation June 2017Zabbix 3.2 presentation June 2017
Zabbix 3.2 presentation June 2017

Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...
Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...
Plateforme centralisée d’analyse des logs des frontaux http en temps réel dan...

VMware Virtual SAN Presentation
VMware Virtual SAN PresentationVMware Virtual SAN Presentation
VMware Virtual SAN Presentation

Spectrum Scale Best Practices by Olaf Weiser
Spectrum Scale Best Practices by Olaf WeiserSpectrum Scale Best Practices by Olaf Weiser
Spectrum Scale Best Practices by Olaf Weiser


Viewers also liked

AIX and PowerVM Update
AIX and PowerVM UpdateAIX and PowerVM Update
AIX and PowerVM Update
Andrey Klyachkin

Power8 sales exam prep
 Power8 sales exam prep Power8 sales exam prep
Power8 sales exam prep
Jason Wong

Presentation power vm editions and power systems virtualization - basic
Presentation   power vm editions and power systems virtualization - basicPresentation   power vm editions and power systems virtualization - basic
Presentation power vm editions and power systems virtualization - basic
solarisyougood

Power8 hardware technical deep dive workshop
Power8 hardware technical deep dive workshopPower8 hardware technical deep dive workshop
Power8 hardware technical deep dive workshop
solarisyougood

Multiple Shared Processor Pools In Power Systems
Multiple Shared Processor Pools In Power SystemsMultiple Shared Processor Pools In Power Systems
Multiple Shared Processor Pools In Power Systems
Andrey Klyachkin

Overview of v cloud case studies
Overview of v cloud case studiesOverview of v cloud case studies
Overview of v cloud case studies
solarisyougood

Accelerate Return on Data
Accelerate Return on DataAccelerate Return on Data
Accelerate Return on Data
Jeffrey T. Pollock

Sparc t4 systems customer presentation
Sparc t4 systems customer presentationSparc t4 systems customer presentation
Sparc t4 systems customer presentation
solarisyougood

Ibm tivoli storage manager in a clustered environment sg246679
Ibm tivoli storage manager in a clustered environment sg246679Ibm tivoli storage manager in a clustered environment sg246679
Ibm tivoli storage manager in a clustered environment sg246679
Banking at Ho Chi Minh city

IBMRedbook
IBMRedbookIBMRedbook
IBMRedbook
Neelamegan Minor

Ibm tivoli storage manager bare machine recovery for aix with sysback - red...
Ibm tivoli storage manager   bare machine recovery for aix with sysback - red...Ibm tivoli storage manager   bare machine recovery for aix with sysback - red...
Ibm tivoli storage manager bare machine recovery for aix with sysback - red...
Banking at Ho Chi Minh city

AIX 5L Differences Guide Version 5.3 Edition
AIX 5L Differences Guide Version 5.3 EditionAIX 5L Differences Guide Version 5.3 Edition
AIX 5L Differences Guide Version 5.3 Edition
IBM India Smarter Computing

Presentation oracle on power power advantages and license optimization
Presentation   oracle on power power advantages and license optimizationPresentation   oracle on power power advantages and license optimization
Presentation oracle on power power advantages and license optimization
solarisyougood

Avoiding Chaos: Methodology for Managing Performance in a Shared Storage A...
Avoiding Chaos:  Methodology for Managing Performance in a Shared Storage A...Avoiding Chaos:  Methodology for Managing Performance in a Shared Storage A...
Avoiding Chaos: Methodology for Managing Performance in a Shared Storage A...
brettallison

Visual studio 2008 overview
Visual studio 2008 overviewVisual studio 2008 overview
Visual studio 2008 overview
sagaroceanic11

Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...
Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...
Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...
VibrantGroup

Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762
Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762
Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762
Banking at Ho Chi Minh city

RHT Design for Security
RHT Design for SecurityRHT Design for Security
RHT Design for Security
virtualsouthwest

RHT Upgrading to vSphere 5
RHT Upgrading to vSphere 5RHT Upgrading to vSphere 5
RHT Upgrading to vSphere 5
virtualsouthwest

2.ibm flex system manager overview
2.ibm flex system manager overview2.ibm flex system manager overview
2.ibm flex system manager overview
solarisyougood


Viewers also liked (20)

AIX and PowerVM Update
AIX and PowerVM UpdateAIX and PowerVM Update
AIX and PowerVM Update

Power8 sales exam prep
 Power8 sales exam prep Power8 sales exam prep
Power8 sales exam prep

Presentation power vm editions and power systems virtualization - basic
Presentation   power vm editions and power systems virtualization - basicPresentation   power vm editions and power systems virtualization - basic
Presentation power vm editions and power systems virtualization - basic

Power8 hardware technical deep dive workshop
Power8 hardware technical deep dive workshopPower8 hardware technical deep dive workshop
Power8 hardware technical deep dive workshop

Multiple Shared Processor Pools In Power Systems
Multiple Shared Processor Pools In Power SystemsMultiple Shared Processor Pools In Power Systems
Multiple Shared Processor Pools In Power Systems

Overview of v cloud case studies
Overview of v cloud case studiesOverview of v cloud case studies
Overview of v cloud case studies

Accelerate Return on Data
Accelerate Return on DataAccelerate Return on Data
Accelerate Return on Data

Sparc t4 systems customer presentation
Sparc t4 systems customer presentationSparc t4 systems customer presentation
Sparc t4 systems customer presentation

Ibm tivoli storage manager in a clustered environment sg246679
Ibm tivoli storage manager in a clustered environment sg246679Ibm tivoli storage manager in a clustered environment sg246679
Ibm tivoli storage manager in a clustered environment sg246679

IBMRedbook
IBMRedbookIBMRedbook
IBMRedbook

Ibm tivoli storage manager bare machine recovery for aix with sysback - red...
Ibm tivoli storage manager   bare machine recovery for aix with sysback - red...Ibm tivoli storage manager   bare machine recovery for aix with sysback - red...
Ibm tivoli storage manager bare machine recovery for aix with sysback - red...

AIX 5L Differences Guide Version 5.3 Edition
AIX 5L Differences Guide Version 5.3 EditionAIX 5L Differences Guide Version 5.3 Edition
AIX 5L Differences Guide Version 5.3 Edition

Presentation oracle on power power advantages and license optimization
Presentation   oracle on power power advantages and license optimizationPresentation   oracle on power power advantages and license optimization
Presentation oracle on power power advantages and license optimization

Avoiding Chaos: Methodology for Managing Performance in a Shared Storage A...
Avoiding Chaos:  Methodology for Managing Performance in a Shared Storage A...Avoiding Chaos:  Methodology for Managing Performance in a Shared Storage A...
Avoiding Chaos: Methodology for Managing Performance in a Shared Storage A...

Visual studio 2008 overview
Visual studio 2008 overviewVisual studio 2008 overview
Visual studio 2008 overview

Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...
Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...
Aix admin course provider Navi Mumbai | AIX Admin Course Training Navi Mumbai...

Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762
Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762
Proof of concept guide for ibm tivoli storage manager version 5.3 sg246762

RHT Design for Security
RHT Design for SecurityRHT Design for Security
RHT Design for Security

RHT Upgrading to vSphere 5
RHT Upgrading to vSphere 5RHT Upgrading to vSphere 5
RHT Upgrading to vSphere 5

2.ibm flex system manager overview
2.ibm flex system manager overview2.ibm flex system manager overview
2.ibm flex system manager overview


Similar to Matching Cisco and System p

Yu linux-tsm2004
Yu linux-tsm2004Yu linux-tsm2004
Yu linux-tsm2004
alegara

Ccna certification training
Ccna certification trainingCcna certification training
Ccna certification training
ccnaguide

Shortest path bridging 802.1 aq
Shortest path bridging 802.1 aqShortest path bridging 802.1 aq
Shortest path bridging 802.1 aq
Motty Ben Atia

Dc tco in_a_nutshell
Dc tco in_a_nutshellDc tco in_a_nutshell
Dc tco in_a_nutshell
erjosito

Ccna pdf
Ccna pdfCcna pdf
Ccna pdf
ccnaguide

Ccna certification
Ccna certificationCcna certification
Ccna certification
ccnaguide

Ccna certification course
Ccna certification courseCcna certification course
Ccna certification course
ccnaguide

CCNA3 Verson6 Chapter4
CCNA3 Verson6 Chapter4CCNA3 Verson6 Chapter4
CCNA3 Verson6 Chapter4
Chaing Ravuth

Chapter_2_CCNA2
Chapter_2_CCNA2Chapter_2_CCNA2
Chapter_2_CCNA2
sunabozu

1000ccnaquestionsandanswers 091215082359-phpapp02
1000ccnaquestionsandanswers 091215082359-phpapp021000ccnaquestionsandanswers 091215082359-phpapp02
1000ccnaquestionsandanswers 091215082359-phpapp02
A.S.M Shmimul Islam.

Chapter3 frame relay
Chapter3   frame relayChapter3   frame relay
Chapter3 frame relay
juliusbangaw

iSCSI Protocol and Functionality
iSCSI Protocol and FunctionalityiSCSI Protocol and Functionality
iSCSI Protocol and Functionality
Lexumo

Ccna 8 exam
Ccna 8 examCcna 8 exam
Ccna 8 exam
ccnaguide

Data Center: Cloud & Convergencia
Data Center: Cloud & ConvergenciaData Center: Cloud & Convergencia
Data Center: Cloud & Convergencia
Logicalis Latam

Ccna 11 exam
Ccna 11 examCcna 11 exam
Ccna 11 exam
ccnaguide

Examen1ccna3v5.0
Examen1ccna3v5.0Examen1ccna3v5.0
Examen1ccna3v5.0
Juan Carlos Banegas

Ccna 9 exam
Ccna 9 examCcna 9 exam
Ccna 9 exam
ccnaguide

Virtual Switch System.pdf
Virtual Switch System.pdfVirtual Switch System.pdf
Virtual Switch System.pdf
TrungNguyen335833

ARM LPC2300/LPC2400 TCP/IP Stack Porting
ARM LPC2300/LPC2400 TCP/IP Stack PortingARM LPC2300/LPC2400 TCP/IP Stack Porting
ARM LPC2300/LPC2400 TCP/IP Stack Porting
Mathivanan Elangovan

Ccna 12 exam
Ccna 12 examCcna 12 exam
Ccna 12 exam
ccnaguide


Similar to Matching Cisco and System p (20)

Yu linux-tsm2004
Yu linux-tsm2004Yu linux-tsm2004
Yu linux-tsm2004

Ccna certification training
Ccna certification trainingCcna certification training
Ccna certification training

Shortest path bridging 802.1 aq
Shortest path bridging 802.1 aqShortest path bridging 802.1 aq
Shortest path bridging 802.1 aq

Dc tco in_a_nutshell
Dc tco in_a_nutshellDc tco in_a_nutshell
Dc tco in_a_nutshell

Ccna pdf
Ccna pdfCcna pdf
Ccna pdf

Ccna certification
Ccna certificationCcna certification
Ccna certification

Ccna certification course
Ccna certification courseCcna certification course
Ccna certification course

CCNA3 Verson6 Chapter4
CCNA3 Verson6 Chapter4CCNA3 Verson6 Chapter4
CCNA3 Verson6 Chapter4

Chapter_2_CCNA2
Chapter_2_CCNA2Chapter_2_CCNA2
Chapter_2_CCNA2

1000ccnaquestionsandanswers 091215082359-phpapp02
1000ccnaquestionsandanswers 091215082359-phpapp021000ccnaquestionsandanswers 091215082359-phpapp02
1000ccnaquestionsandanswers 091215082359-phpapp02

Chapter3 frame relay
Chapter3   frame relayChapter3   frame relay
Chapter3 frame relay

iSCSI Protocol and Functionality
iSCSI Protocol and FunctionalityiSCSI Protocol and Functionality
iSCSI Protocol and Functionality

Ccna 8 exam
Ccna 8 examCcna 8 exam
Ccna 8 exam

Data Center: Cloud & Convergencia
Data Center: Cloud & ConvergenciaData Center: Cloud & Convergencia
Data Center: Cloud & Convergencia

Ccna 11 exam
Ccna 11 examCcna 11 exam
Ccna 11 exam

Examen1ccna3v5.0
Examen1ccna3v5.0Examen1ccna3v5.0
Examen1ccna3v5.0

Ccna 9 exam
Ccna 9 examCcna 9 exam
Ccna 9 exam

Virtual Switch System.pdf
Virtual Switch System.pdfVirtual Switch System.pdf
Virtual Switch System.pdf

ARM LPC2300/LPC2400 TCP/IP Stack Porting
ARM LPC2300/LPC2400 TCP/IP Stack PortingARM LPC2300/LPC2400 TCP/IP Stack Porting
ARM LPC2300/LPC2400 TCP/IP Stack Porting

Ccna 12 exam
Ccna 12 examCcna 12 exam
Ccna 12 exam


More from Andrey Klyachkin

Buch des jungen Kämpfers mit AIX V6 - Teil 03
Buch des jungen Kämpfers mit AIX V6 - Teil 03Buch des jungen Kämpfers mit AIX V6 - Teil 03
Buch des jungen Kämpfers mit AIX V6 - Teil 03Andrey Klyachkin

Buch des jungen Kämpfers mit AIX V6 - Teil 02
Buch des jungen Kämpfers mit AIX V6 - Teil 02Buch des jungen Kämpfers mit AIX V6 - Teil 02
Buch des jungen Kämpfers mit AIX V6 - Teil 02Andrey Klyachkin

Buch des jungen Kämpfers mit AIX V6 - Teil 01
Buch des jungen Kämpfers mit AIX V6 - Teil 01Buch des jungen Kämpfers mit AIX V6 - Teil 01
Buch des jungen Kämpfers mit AIX V6 - Teil 01Andrey Klyachkin

Taking Advantage Of COD
Taking Advantage Of CODTaking Advantage Of COD
Taking Advantage Of COD
Andrey Klyachkin

Racking Your System
Racking Your SystemRacking Your System
Racking Your System
Andrey Klyachkin

Power Blades Implementation
Power Blades ImplementationPower Blades Implementation
Power Blades Implementation
Andrey Klyachkin

Faster Than A Speeding Disk
Faster Than A Speeding DiskFaster Than A Speeding Disk
Faster Than A Speeding Disk
Andrey Klyachkin

BladeCenter 101
BladeCenter 101BladeCenter 101
BladeCenter 101
Andrey Klyachkin

Power Systems 2009 Hardware
Power Systems 2009 HardwarePower Systems 2009 Hardware
Power Systems 2009 Hardware
Andrey Klyachkin


More from Andrey Klyachkin (9)

Buch des jungen Kämpfers mit AIX V6 - Teil 03
Buch des jungen Kämpfers mit AIX V6 - Teil 03Buch des jungen Kämpfers mit AIX V6 - Teil 03
Buch des jungen Kämpfers mit AIX V6 - Teil 03

Buch des jungen Kämpfers mit AIX V6 - Teil 02
Buch des jungen Kämpfers mit AIX V6 - Teil 02Buch des jungen Kämpfers mit AIX V6 - Teil 02
Buch des jungen Kämpfers mit AIX V6 - Teil 02

Buch des jungen Kämpfers mit AIX V6 - Teil 01
Buch des jungen Kämpfers mit AIX V6 - Teil 01Buch des jungen Kämpfers mit AIX V6 - Teil 01
Buch des jungen Kämpfers mit AIX V6 - Teil 01

Taking Advantage Of COD
Taking Advantage Of CODTaking Advantage Of COD
Taking Advantage Of COD

Racking Your System
Racking Your SystemRacking Your System
Racking Your System

Power Blades Implementation
Power Blades ImplementationPower Blades Implementation
Power Blades Implementation

Faster Than A Speeding Disk
Faster Than A Speeding DiskFaster Than A Speeding Disk
Faster Than A Speeding Disk

BladeCenter 101
BladeCenter 101BladeCenter 101
BladeCenter 101

Power Systems 2009 Hardware
Power Systems 2009 HardwarePower Systems 2009 Hardware
Power Systems 2009 Hardware


Recently uploaded

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques
Postman

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment
Octavian Nadolu

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
Pixlogix Infotech

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Safe Software

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture
fredae14

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
shyamraj55

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Project Management Semester Long Project - Acuity
Project Management Semester Long Project - AcuityProject Management Semester Long Project - Acuity
Project Management Semester Long Project - Acuity
jpupo2018

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization
David Brossard

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus
Zilliz

Webinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data WarehouseWebinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data Warehouse
Federico Razzoli

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda


Recently uploaded (20)

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Recommendation System using RAG Architecture
Recommendation System using RAG ArchitectureRecommendation System using RAG Architecture
Recommendation System using RAG Architecture

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Project Management Semester Long Project - Acuity
Project Management Semester Long Project - AcuityProject Management Semester Long Project - Acuity
Project Management Semester Long Project - Acuity

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

OpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - AuthorizationOpenID AuthZEN Interop Read Out - Authorization
OpenID AuthZEN Interop Read Out - Authorization

Generating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and MilvusGenerating privacy-protected synthetic data using Secludy and Milvus
Generating privacy-protected synthetic data using Secludy and Milvus

Webinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data WarehouseWebinar: Designing a schema for a Data Warehouse
Webinar: Designing a schema for a Data Warehouse

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU


Matching Cisco and System p

  • 1. IBM System p, AIX & Linux Aktuell 2008 Matching Network Parameters between IBM System p and CISCO Networks Alexander Paul Netmakers IT-Consulting paulalex@de.ibm.com © 2008 Alexander Paul
  • 2. Matching Network Parameters between IBM System p and CISCO Networks Networking on IBM System p POWER4/AIX5.2 POWER6/AIX6 Network Enhancements Advanced Virtual Networking • Link Aggregation (EtherChannel, IEEE 802.3ad) • Integrated Virtual Ethernet (IVE) Enhancements • Advanced VLAN Features • Virtual LAN (VLAN) & VLAN trunking (dot1q) (GARP, VLAN Filtering) • IPv6 • Performance Optimization • Multipath Routing • Path MTU discovery (PMTU) • Quality of Service (QoS) • Virtual IP Addresses (VIPA) POWER5/AIX5.3 Virtual Networking • Virtual Ethernet • Shared Ethernet Adapter (SEA) • VLAN Trunking (dot1q) • 10 Gigabit Ethernet & InfiniBand • High Availability for Virtual Networking 2 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 3. Matching Network Parameters between IBM System p and CISCO Networks There are many interesting connection points … In this session, we focus on two topics: – Link Aggregation (LA): Discover how LA works by looking on perfomance behavior and the confguration on both sites (AIX and Cisco). – Multiple VLANs: Connection on Cisco catalyst switches to provide a full VLAN connectivity to the Virtual I/O server. 3 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 4. Matching Network Parameters between IBM System p and CISCO Networks Link Aggregation ent0 eth0 ent1 ent3 ent2 4 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 5. Matching Network Parameters between IBM System p and CISCO Networks What exactly is Link Aggregation (LA)? LA is a logical grouping of physical ports. There are different namings for the same things on AIX and Cisco: – EtherChannel (AIX/Cisco) Means a cisco proprietary protocol, named PAgP. EtherChannel is a trademark of Cisco. – Aggregate Port (AIX/Cisco) – Port Channel (Cisco) – Channel Group (Cisco) 5 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 6. Matching Network Parameters between IBM System p and CISCO Networks What is Link Aggregation used for? Eliminates SPOF on physical adapter connections – Very efficient with less failover latency – Several tuning points to fit the LA to your network behavior – Hot adapter add, remove or replace May improve overall throughput – More about this in only a few slides… 6 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 7. Matching Network Parameters between IBM System p and CISCO Networks Link Aggregation protocols Cisco EtherChannel (PAgP) – Cisco proprietary – Uses a logical PortChannel on Cisco site that can bundle up to 8 physical ports. – Supported by AIX and VIOS – Supports load balancing mechanisms IEEE 802.3ad (LACP) – Supported by Cisco and other switch vendors – Supported by AIX, VIOS and Linux bonding – Supports load balancing mechanisms 7 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 8. Matching Network Parameters between IBM System p and CISCO Networks How does a LA protocol works? When you configure one end of a link aggregation in either PAgP or LACP mode, it negotiates with the other end to determine which ports would become active. Incompatible ports are automatically suspended. Protocol negotiation ent0 Switch ent1 ent3 AIX ent2 8 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 9. Matching Network Parameters between IBM System p and CISCO Networks What to do before configuring Link Aggregation? On AIX site: Configure speed and duplex settings for each adapter ports. Know the workload from AIX to switch. IBM System p Cisco Catalyst On Switch site: Configure speed and duplex settings for each switchport. A appropriate description on switchports to be aggregate may be helpful in case of trouble. Know the workload leaving the switch through the portchannel. IBM System p Cisco Catalyst 9 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 10. Matching Network Parameters between IBM System p and CISCO Networks Configuring Link Aggregation (IEEE 802.3ad) aix61server2 1. Add a new Link Aggregation: aix61server2:/#smitty addethch1 LA ent3 2. Select the adapters for the active channel: > ent0 active Physical Adapters ent0 ent1 ent2 > ent1 active ent2 backup 3. Configure LA-mode, backup and load balacing: Add An EtherChannel / Link Aggregation Type or select values in entry fields. Press Enter AFTER making all desired changes. [Entry Fields] EtherChannel / Link Aggregation Adapters ent0,ent1 + Enable Alternate Address no Alternate Address [] Enable Gigabit Ethernet Jumbo Frames no Mode 8023ad Hash Mode default Backup Adapter ent2 Automatically Recover to Main Channel yes Perform Lossless Failover After Ping Failure yes Internet Address to Ping [9.155.62.1] Number of Retries [3] Retry Timeout (sec) [1] 10 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 11. Matching Network Parameters between IBM System p and CISCO Networks Configuring Link Aggregation (IEEE 802.3ad) 4. Configure IP-Address, DNS and routing: aix61server2 aix61server2:/#smitty tcpip │ en0 Standard Ethernet Network Interface │ en1 Standard Ethernet Network Interface LA │ en2 Standard Ethernet Network Interface │ en3 Standard Ethernet Network Interface ent3 │ et0 IEEE 802.3 Ethernet Network Interface │ et1 IEEE 802.3 Ethernet Network Interface │ et2 IEEE 802.3 Ethernet Network Interface Physical Adapters ent0 ent1 ent2 │ et3 IEEE 802.3 Ethernet Network Interface * HOSTNAME [aix61server2] * Internet ADDRESS (dotted decimal) [9.155.66.95] Network MASK (dotted decimal) [255.255.240.0] * Network INTERFACE en3 NAMESERVER Internet ADDRESS (dotted decimal) [9.155.62.5] DOMAIN Name [ibm.com] Default Gateway Address (dotted decimal or symbolic name) [9.155.62.1] 5. Show LA-Attributes: aix61server2:/#lsattr -El ent3 adapter_names ent0,ent1 EtherChannel Adapters True alt_addr 0x000000000000 Alternate EtherChannel Address True auto_recovery yes Enable automatic recovery after failover True backup_adapter ent2 Adapter used when whole channel fails True hash_mode default Determines how outgoing adapter is chosen True mode 8023ad EtherChannel mode of operation True netaddr 9.155.62.1 Address to ping True noloss_failover yes Enable lossless failover after ping failure True num_retries 3 Times to retry ping before failing True retry_time 1 Wait time (in seconds) between pings True use_alt_addr no Enable Alternate EtherChannel Address True use_jumbo_frame no Enable Gigabit Ethernet Jumbo Frames True 11 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 12. Matching Network Parameters between IBM System p and CISCO Networks Configuring Link Aggregation (IEEE 802.3ad) A. Setup the PortChannel No. 1: Cat_3560_1 FastEthernet 0/9 Cat_3560_1(config)#interface range fastEthernet 0/9 - 10 ent0 ent1 AIX Cat_3560_1(config-if-range)#channel-group 1 mode ? ent2 active Enable LACP unconditionally FastEthernet 0/10 auto Enable PAgP only if a PAgP device is detected desirable Enable PAgP unconditionally on Enable Etherchannel only passive Enable LACP only if a LACP device is detected Cat_3560_1(config-if-range)#channel-group 1 mode passive Creating a port-channel interface Port-channel 1 12 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 13. Matching Network Parameters between IBM System p and CISCO Networks Configuring Link Aggregation (IEEE 802.3ad) B. Show the result FastEthernet 0/9 Cat_3560_1#show etherchannel summary ent0 Flags: D - down P - in port-channel ent1 AIX I - stand-alone s - suspended ent2 H - Hot-standby (LACP only) FastEthernet 0/10 R - Layer3 S - Layer2 u - unsuitable for bundling U - in use f - failed to allocate aggregator d - default port Number of channel-groups in use: 1 Number of aggregators: 1 Group Port-channel Protocol Ports ------+-------------+-----------+------------------------- 1 Po1(SU) LACP Fa0/9(Pd) Fa0/10(P) PortChannel is UP All Switchports are part of the channel IEEE 802.3ad 13 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 14. Matching Network Parameters between IBM System p and CISCO Networks Configuring Link Aggregation (IEEE 802.3ad) LACP negotiation A. Debug the creation process: ent0 Cat_3560_1#debug etherchannel event ent1 AIX ent2 %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to down %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to down FEC: lacp_fec_dontbundle_internal: Fa0/10 FEC: lacp_fec_dontbundle_internal: Fa0/9 %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to up FEC: lacp_fec_unbundle_internal: Fa0/10 FEC: lacp_switch_add_port_to_associated_list: Fa0/10 added to list for Po1 FEC: lacp_fec_unbundle_internal: Fa0/9 FEC: lacp_switch_get_first_agg_id_from_admin_oper_keys: found aggregator Po1 for admin_key [0x1] and oper_key [0x1] FEC: lacp_switch_get_first_associated_port_from_agg_id: found port Fa0/10 associated to Po1 FEC: lacp_switch_add_port_to_associated_list: Fa0/9 added to list for Po1 %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to down %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to down FEC: lacp_switch_add_port_to_agport_internal: Fa0/9 added to aggregator Po1 list FEC: lacp_switch_add_port_to_agport_internal: Fa0/10 added to aggregator Po1 list %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/9, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/10, changed state to up %LINK-3-UPDOWN: Interface Port-channel1, changed state to up 14 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 15. Matching Network Parameters between IBM System p and CISCO Networks Test AIX Link Aggregation throughput 192.168.1.161 GigabitEthernet 0/1 FastEthernet 0/9 192.168.1.160 ent0 Linux eth0 ent1 ent3 AIX ent2 Server FastEthernet 0/10 Client application application Traffic direction ------------------------------------------------------------ Client connecting to 192.168.1.161, TCP port 5001 TCP window size: 256 KByte (default) ------------------------------------------------------------ One TCP session: [ 3] local 192.168.1.160 port 32838 connected with 192.168.1.161 port 5001 [ 3] 0.0-10.0 sec 112 MBytes 94.2 Mbits/sec ------------------------------------------------------------ Client connecting to 192.168.1.161, TCP port 5001 TCP window size: 256 KByte (default) ------------------------------------------------------------ [ 4] local 192.168.1.160 port 32840 connected with 192.168.1.161 port 5001 Two TCP sessions: [ 3] local 192.168.1.160 port 32839 connected with 192.168.1.161 port 5001 [ 3] 0.0-10.0 sec 56.5 MBytes 45.2 Mbits/sec [ 4] 0.0-10.0 sec 55.5 MBytes 44.4 Mbits/sec [SUM] 0.0-10.0 sec 112 MBytes 93.9 Mbits/sec 15 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 16. Matching Network Parameters between IBM System p and CISCO Networks Load Balacing for AIX link aggregation Hash_Mode: Default uses a hash of the last byte of the IP address to select the output adapter (or MAC address for non-IP frames) Other possible load balancing methods are: – Per Layer 4 source port (src_port) – Per Layer 4 destination sort (dst_port) – Per Layer 4 source and destination port (src_dst_port) Can only be changed by removing the LA. 16 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 17. Matching Network Parameters between IBM System p and CISCO Networks Change load balancing hash mode ent0 Linux eth0 ent1 ent3 AIX ent2 aix61server2:/#ifconfig en3 detach aix61server2:/#rmdev –dl ent3 aix61server2:/#smitty etherchannel […] aix61server2:/#lsattr -El ent3 adapter_names ent0,ent1 EtherChannel Adapters True alt_addr 0x000000000000 Alternate EtherChannel Address True auto_recovery yes Enable automatic recovery after failover True backup_adapter ent2 Adapter used when whole channel fails True hash_mode src_dst_port Determines how outgoing adapter is chosen True mode 8023ad EtherChannel mode of operation True netaddr 192.168.1.111 Address to ping True noloss_failover yes Enable lossless failover after ping failure True num_retries 3 Times to retry ping before failing True retry_time 1 Wait time (in seconds) between pings True use_alt_addr no Enable Alternate EtherChannel Address True use_jumbo_frame no Enable Gigabit Ethernet Jumbo Frames True 17 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 18. Matching Network Parameters between IBM System p and CISCO Networks Test AIX Link Aggregation throughput 192.168.1.161 GigabitEthernet 0/1 FastEthernet 0/9 192.168.1.160 ent0 Linux eth0 ent1 ent3 AIX ent2 Server FastEthernet 0/10 Client application application Traffic direction ------------------------------------------------------------ Client connecting to 192.168.1.161, TCP port 5001 TCP window size: 256 KByte (default) ------------------------------------------------------------ Two TCP sessions: [ 4] local 192.168.1.160 port 32857 connected with 192.168.1.161 port 5001 [ 3] local 192.168.1.160 port 32856 connected with 192.168.1.161 port 5001 [ 3] 0.0-10.0 sec 109 MBytes 87.2 Mbits/sec [ 4] 0.0-10.0 sec 110 MBytes 88.0 Mbits/sec [SUM] 0.0-10.0 sec 168 MBytes 175.2 Mbits/sec 18 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 19. Matching Network Parameters between IBM System p and CISCO Networks Test switch Link Aggregation throughput 192.168.1.161 GigabitEthernet 0/1 FastEthernet 0/9 192.168.1.160 ent0 Linux eth0 ent1 ent3 AIX ent2 Client FastEthernet 0/10 Server application application Traffic direction ------------------------------------------------------------ Server listening on TCP port 5001 TCP window size: 16.0 KByte (default) One session: ------------------------------------------------------------ [ 4] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 48471 [ 4] 0.0-10.0 sec 112 MBytes 93.6 Mbits/sec [ 4] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 48472 [ 5] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 48473 Two sessions: [ 4] 0.0-10.0 sec 56.1 MBytes 47.0 Mbits/sec [ 5] 0.0-10.0 sec 56.2 MBytes 47.1 Mbits/sec [SUM] 0.0-10.0 sec 112 MBytes 94.1 Mbits/sec 19 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 20. Matching Network Parameters between IBM System p and CISCO Networks Test Link Aggregation (IEEE 802.3ad) on Cisco 192.168.1.161 GigabitEthernet FastEthernet 0/9 192.168.1.160 Linux eth0 0/1 ent0 ent1 ent3 AIX ent2 Linux eth0 GigabitEthernet FastEthernet 0/10 0/2 Server application 192.168.1.180 Traffic direction aix61server2:/#iperf -s [ 4] local 192.168.1.160 port 5001 connected with 192.168.1.180 port 52277 [ 5] local 192.168.1.160 port 5001 connected with 192.168.1.161 port 36500 [ 5] 0.0-10.0 sec 111 MBytes 93.2 Mbits/sec [ 4] 0.0-10.0 sec 107 MBytes 94.0 Mbits/sec [SUM] 0.0-10.0 sec 218 MBytes 187.2 Mbits/sec 20 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 21. Matching Network Parameters between IBM System p and CISCO Networks Load Balacing for Cisco port channels Cisco switches uses load balancing by source mac-address. Cat_3560_2#show etherchannel load-balance EtherChannel Load-Balancing Operational State (src-mac): Non-IP: Source MAC address IPv4: Source MAC address IPv6: Source IP address Availability of other load balancing methods depends on switch model: Cat_3560_2(config)#port-channel load-balance ? dst-ip Dst IP Addr dst-mac Dst Mac Addr src-dst-ip Src XOR Dst IP Addr src-dst-mac Src XOR Dst Mac Addr src-ip Src IP Addr src-mac Src Mac Addr Load balancing can be changed dynamically. 21 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 22. Matching Network Parameters between IBM System p and CISCO Networks Troubleshooting Link Aggregation on AIX aix61server2:/#entstat -d ent3 […] Number of adapters: 2 Operating mode: Standard mode (IEEE 802.3ad) IEEE 802.3ad Link Aggregation Statistics: Aggregation status: Aggregated Received LACPDUs: 18 This indicates a successful LA negotiation. Transmitted LACPDUs: 18 Received marker PDUs: 0 Transmitted marker PDUs: 0 Received marker response PDUs: 0 Transmitted marker response PDUs: 0 Received unknown PDUs: 0 Received illegal PDUs: 0 Hash mode: Destination IP address […] 22 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 23. Matching Network Parameters between IBM System p and CISCO Networks Troubleshooting on Cisco switches show etherchannel summary – Lists the status of a port channel and the associated switchports – Lists the configured protocol or mode for the port channel. show etherchannel detail – Lists detailed information about the switchport behavior. debug etherchannel event – Gives live report to the console regarding important etherchannel events. – Good for tracing a problem during the configuration process. 23 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 24. Matching Network Parameters between IBM System p and CISCO Networks Link Aggregation and POWER6 IVE Client LPAR 1 Client LPAR 2 Client LPAR 3 (LA) (LA) LOG LOG LOG LOG LOG PORT PORT PORT PORT PORT HEA Switch HEA Switch HEA Switch HEA Switch 4 Port IVE Adapter 24 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 25. Matching Network Parameters between IBM System p and CISCO Networks Virtualization in a switched environment Cisco Catalyst 6500 Virtual Switching System (VSS) 1440 – Cisco Catalyst 6500 VSS 1440 enables multiple Catalyst 6500 switches to be pooled into one virtual switch, simplifying network management, increasing availability, and optimizing switch resources. – Cisco Catalyst 6500 VSS enables interchassis stateful failover capabilities while Smart Call Home service reduces resolution time for Catalyst 6500 issues. In-service software upgrades enhance availability on both the Catalyst 6500 and Catalyst 4500 platforms. 25 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 26. Matching Network Parameters between IBM System p and CISCO Networks Multiple VLAN support 26 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 27. Matching Network Parameters between IBM System p and CISCO Networks Cisco Switch configuration for VIO environment VIOS 1 Client 1 Client 2 en2 en1 (if) (if) ent2 en0 en1 ent1 en0 (SEA) (if) (if) VLAN (if) ent0 ent1 ent0 ent1 ent0 (Phy) (Vir) (Vir) (Vir) (Vir) VID PVID PVID PVID PVID VID Hypervisor 2 1 1 2 1 2 This Link must be configured to forward dot1q-tagged frames. Cisco Catalyst 27 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 28. Matching Network Parameters between IBM System p and CISCO Networks Show trunk configuration on switch interfaces VIOS 1 Switch#show interface Gi0/1 switchport en2 (if) [...] Name: Gi0/1 ent2 Switchport: Enabled (SEA) Administrative Mode: dynamic auto Operational Mode: down Administrative Trunking Encapsulation: negotiate ent0 ent1 Operational Trunking Encapsulation: native (Phy) (Vir) Negotiation of Trunking: Off PVID 1 Access Mode VLAN: 1 (default) PHYP Trunking Native Mode VLAN: 1 (default) VID 2 VLAN 1 Administrative Native VLAN tagging: enabled Voice VLAN: none Tag VLAN 2 Administrative private-vlan host-association: none Administrative private-vlan mapping: none Administrative private-vlan trunk native VLAN: none Administrative private-vlan trunk Native VLAN tagging: enabled Only untagged frames are Administrative private-vlan trunk encapsulation: dot1q VLAN 1 forwarded to the VIO server and Administrative private-vlan trunk normal VLANs: none accepted by the switch. Administrative private-vlan trunk private VLANs: none Operational private-vlan: none Trunking VLANs Enabled: ALL Tag VLAN 2 Pruning VLANs Enabled: 2-1001 Capture Mode Disabled Capture VLANs Allowed: ALL VLAN 1 28 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 29. Matching Network Parameters between IBM System p and CISCO Networks Default switchport configuration By default Switchport role depends on configuration on the other site. Possible Roles are: – Trunk – Access Administrative Trunking Encapsulation – Dot1q is standard on newer switch models and IOS Versions – Dynamic if ISL is an option Access Mode VLAN – By default a switchport is configured as an access port – VLAN membership: VLAN 1 29 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 30. Matching Network Parameters between IBM System p and CISCO Networks Default switchport configuration A default switchport configuration… – accepts only untagged frames. – does only support multiple VLANs if neighbor device negotiates a VLAN trunk. – will forward all untagged frames from the VIO Server to VLAN 1 on the switch, regardless of their original VLAN memberships. – is vulnerable by negotiation messages 30 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 31. Matching Network Parameters between IBM System p and CISCO Networks Configure multiple VLAN support on Cisco IOS VIOS 1 en2 switch(config)#interface gi0/1 (if) switch(config-if)#switchport mode trunk ent2 (SEA) 5w2d: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/1, changed state to down ent0 ent1 (Phy) (Vir) 5w2d: %LINEPROTO-5-UPDOWN: Line protocol on Interface PVID 1 PHYP GigabitEthernet0/1, changed state to up VID 2 VLAN 1 Tag VLAN 2 VLAN 1 Now the switch forwards untagged frames to the VIO server and accept them from VIO server as well. Tag VLAN 2 31 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 32. Matching Network Parameters between IBM System p and CISCO Networks Configure multiple VLAN support on Cisco IOS VIOS 1 switch#show interface gi0/1 switchport en2 Name: Gi0/1 (if) Switchport: Enabled Administrative Mode: trunk ent2 Operational Mode: trunk (SEA) Administrative Trunking Encapsulation: dot1q Operational Trunking Encapsulation: dot1q Negotiation of Trunking: On ent0 ent1 Access Mode VLAN: 1 (default) (Phy) (Vir) Trunking Native Mode VLAN: 1 (default) Voice VLAN: none Gigabit Ethernet 0/1 Administrative private-vlan host-association: none Administrative private-vlan mapping: none Administrative private-vlan trunk native VLAN: none Administrative private-vlan trunk encapsulation: dot1q Administrative private-vlan trunk normal VLANs: none Administrative private-vlan trunk private VLANs: none Operational private-vlan: none Trunking VLANs Enabled: ALL Pruning VLANs Enabled: 2-1001 Capture Mode Disabled Capture VLANs Allowed: ALL Protected: false Unknown unicast blocked: disabled Unknown multicast blocked: disabled Appliance trust: none 32 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 33. Matching Network Parameters between IBM System p and CISCO Networks Define allowed VLANs on a trunk VIOS 1 en2 (if) ent2 SEA bridges all tagged frames (SEA) ent0 ent1 (Phy) (Vir) VLAN border PVID 1 PHYP VLAN 1 VID 2 By default the switch will forward all tagged frames Tag VLAN 2 to the VIO server VLAN 1 The Hypervisor switch drops the VLANs which are Tag VLAN 2 not defined as VID. Tag VLAN 5 The SEA is still bridging all frames Tag VLAN 100 Consumes CPU time in VIO server Tag VLAN 99 May be a security issue 33 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
  • 34. Matching Network Parameters between IBM System p and CISCO Networks Define allowed VLANs on a trunk VIOS 1 en2 (if) switch(config-if)# switchport trunk allowed vlan 1,2 ent2 (SEA) Switch will only forward frames for defined ent0 ent1 (Phy) (Vir) VLANs VLAN 1 PVID 1 PHYP VID 2 SEA must only bridge frames which are Tag VLAN 2 configured on the Hypervisor switch Reduced load on VIO server VLAN 1 Filtering is done in the physical network layer Tag VLAN 2 VLAN border Tag VLAN 5 Tag VLAN 100 Tag VLAN 99 34 Alexander Paul IBM System p, AIX & Linux Aktuell 2008 © 2007 IBM Corporation
