1. Highlights 2011

2. Mini PC

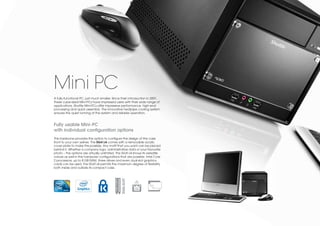

A fully-functional PC, just much smaller. Since their introduction in 2001,
these cube-sized Mini-PCs have impressed users with their wide range of
applications. Shuttle Mini-PCs offer impressive performance, high-end
processing and quick assembly. The innovative heatpipe cooling system
ensures the quiet running of the system and reliable operation.
Fully usable Mini-PC
with individual configuration options
This barebone provides the option to configure the design of the case
front to your own wishes. The SG41J4 comes with a removable acrylic
cover plate to make this possible. Any motif that you want can be placed
behind it. Whether a company logo, administrative data or your favourite
photo – the options are virtually unlimited. The SG41J4 shows its versatile
nature as well in the hardware configurations that are possible. Intel Core
2 processors, up to 8 GB RAM, three drives and even dual-slot graphics
cards can be used. The SG41J4 permits the maximum degree of flexibility
both inside and outside its compact case.
DUAL-SLOT

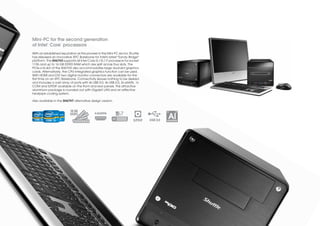

3. Mini-PC for the second generation
© ™
of Intel Core processors
With an established reputation as the pioneer in the Mini-PC sector, Shuttle
has released an innovative XPC Barebone for Intel's latest "Sandy Bridge"
platform. The SH67H3 supports all Intel Core i3 / i5 / i7 processors for socket
1155 and up to 16 GB DDR3 RAM which are split across four slots. The
PCIe-x16 slot of the SH67H3 also accommodates large dual-slot graphics
cards. Alternatively, the CPU-integrated graphics function can be used.
With HDMI and DVI two digital monitor connectors are available for the
first time on an XPC Barebone. Connectivity leaves nothing to be desired
and includes a vast array of ports with 4x USB 3.0, 4x USB 2.0, 2x eSATA, 1x
COM and S/PDIF available on the front and rear panels. This attractive
aluminium package is rounded out with Gigabit LAN and an effective
heatpipe cooling system.
Also available in the SH67H7 alternative design version.
16 GB 13 27
DDR3
S/PDIF USB 3.0
Al
ALUMINIUM

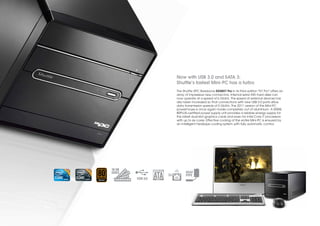

4. Now with USB 3.0 and SATA 3:
Shuttle’s fastest Mini-PC has a turbo
The Shuttle XPC Barebone SX58H7 Pro in its third edition "H7 Pro" offers an
array of impressive new connectors. Internal serial ATA hard disks can
now operate at a speed of 6 Gbit/s. The speed of external devices has
also been increased so that connections with new USB 3.0 ports allow
data transmission speeds of 5 Gbit/s. The 2011 version of this Mini-PC
powerhouse is once again made completely out of aluminium. A 500W,
80PLUS-certified power supply unit provides a reliable energy supply for
the latest dual-slot graphics cards and even for Intel Core i7 processors
with up to six cores. Effective cooling of the entire Mini-PC is ensured by
an intelligent heatpipe cooling system with fully automatic control.
16 GB
DDR3 HEAT
2x PIPE
USB 3.0

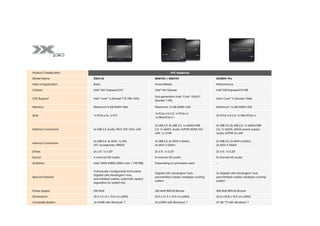

5. Product Classification XPC Barebone
Model Name SG41J4 SH67H3 / SH67H7 SX58H7 Pro
Field of Application Basic Home-Media Performance
® ® ®
Chipset Intel G41 Express/ICH7 Intel H67 Express Intel X58 Express/ICH10R
®
®
2nd generation Intel Core™ i3/i5/i7 ®
CPU Support Intel Core™ 2 (Socket 775, FSB 1333) Intel Core™ i7 (Socket 1366)
(Socket 1155)
Memory Maximum 8 GB DDR3-1066 Maximum 16 GB DDR3-1333 Maximum 16 GB DDR3-1333
1x PCIe x16 2.0, 1x PCIe x1,
Slots 1x PCIe x16, 1x PCI 2x PCI-E x16 2.0, 1x Mini-PCIe x1
1x Mini-PCIe x1
2x USB 3.0, 4x USB 2.0, 1x eSATA/USB 2x USB 3.0, 8x USB 2.0, 1x eSATA/USB
External Connectors 6x USB 2.0, Audio, PS/2, DVI, VGA, LAN 2.0, 1x eSATA, Audio, S/PDIF, HDMI, DVI, 2.0, 1x eSATA, eSATA power supply,
LAN, 1x COM audio, S/PDIF, 2x LAN
2x USB 2.0, 3x SATA, 1x ATA, 2x USB 2.0, 2x SATA 6 Gbit/s, 2x USB 2.0, 2x SATA 6 Gbit/s,
Internal Connectors
LPC accessories J-RS232 2x SATA 3 Gbit/s 2x SATA 3 Gbit/s
Drives 2x 3.5", 1x 5.25" 2x 3.5", 1x 5.25" 2x 3.5", 1x 5.25"
Sound 6 channel HD audio 8 channel HD audio 8 channel HD audio
®
Graphics Intel GMA X4500 (UMA max. 1.759 MB) Depending on processor used –
Individually configurable front panel, ® ®
®
Gigabit LAN, Kensington lock, 2x Gigabit LAN, Kensington lock,
Gigabit LAN, Kensington lock,
Special Features pre-installed cables, heatpipe cooling pre-installed cables, heatpipe cooling
pre-installed cables, automatic speed
system system
regulation for system fan
Power Supply 250 Watt 300 Watt 80PLUS Bronze 500 Watt 80PLUS Bronze
Dimensions 32.5 x 21.5 x 19.0 cm (LWH) 33.0 x 21.5 x 19.0 cm (LWH) 32.6 x 20.8 x 18.9 cm (LWH)
® ® ®
Complete System J4 4100B with Windows 7 H3 6700H with Windows 7 H7 58**P with Windows 7

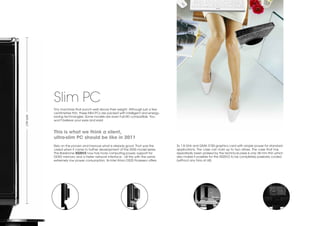

6. Slim PC
Tiny machines that punch well above their weight. Although just a few
centimetres thin, these Mini-PCs are packed with intelligent and energy-
Life-size
saving technologies. Some models are even Full-HD compatible. You
won't believe your eyes and ears!
This is what we think a silent,
ultra-slim PC should be like in 2011
Rely on the proven and improve what is already good. That was the 2x 1.8 GHz and GMA 3150 graphics card with ample power for standard
creed when it came to further development of the XS35 model series. applications. The case can hold up to two drives. The case that has
The Barebone XS35V2 now has more computing power, support for repeatedly been praised by the technical press is only 38 mm thin which
DDR3 memory and a faster network interface - all this with the same also makes it possible for the XS35V2 to be completely passively cooled
extremely low power consumption. Its Intel Atom D525 Prozessor offers (without any fans at all).

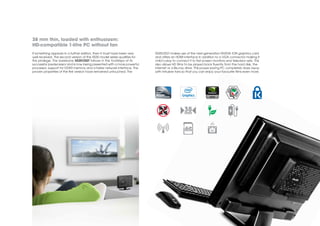

7. 38 mm thin, loaded with enthusiasm:
HD-compatible 1-litre PC without fan
If something appears in a further edition, then it must have been very XS35V2GT makes use of the next-generation NVIDIA ION graphics card
well received. The second version of the XS35 model series qualifies for and offers an HDMI interface in addition to a VGA connector making it
this privilege. The barebone XS35V2GT follows in the footsteps of its child’s play to connect it to flat screen monitors and television sets. This
successful predecessor and is now being presented with a more powerful also allows HD films to be played back fluently from the hard disk, the
processor, support for DDR3 memory and a faster network interface. The internet or a Blu-ray drive. This power-saving PC completely does away
proven properties of the first version have remained untouched. The with intrusive fans so that you can enjoy your favourite films even more.

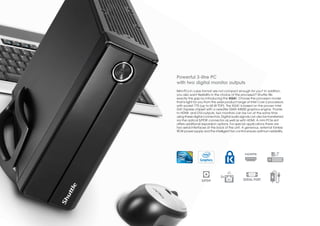

8. Powerful 3-litre PC
with two digital monitor outputs
Mini-PCs in cube format are not compact enough for you? In addition,
you also want flexibility in the choice of the processor? Shuttle fills
exactly this gap by introducing the XG41. Choose the processor model
that is right for you from the wide product range of Intel Core 2 processors
with socket 775 (up to 65 W TDP). The XG41 is based on the proven Intel
G41 Express chipset with a versatile GMA X4500 graphics engine. Thanks
to HDMI- and DVI-outputs, two monitors can be run at the same time
using these digital connectors. Digital audio signals can also be transferred
via the optical S/PDIF connector as well as with HDMI. A mini PCIe slot
offers additional expansion options. For special applications there are
two serial interfaces at the back of the unit. A generous, external fanless
90 W power supply and the intelligent fan control ensure optimum reliability.
2x
S/PDIF SERIAL PORT

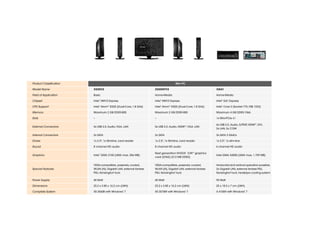

9. Product Classification Slim-PC
Model Name XS35V2 XS35GTV2 XG41
Field of Application Basic Home-Media Home-Media
® ® ®
Chipset Intel NM10 Express Intel NM10 Express Intel G41 Express
® ® ®
CPU Support Intel Atom™ D525 (Dual-Core, 1.8 GHz) Intel Atom™ D525 (Dual-Core, 1.8 GHz) Intel Core 2 (Socket 775, FSB 1333)
Memory Maximum 2 GB DDR3-800 Maximum 2 GB DDR3-800 Maximum 4 GB DDR3-1066
Slots – – 1x Mini-PCIe x1
6x USB 2.0, Audio, S/PDIF, HDMI™, DVI,
External Connectors 5x USB 2.0, Audio, VGA, LAN 5x USB 2.0, Audio, HDMI™, VGA, LAN
2x LAN, 2x COM
Internal Connectors 2x SATA 2x SATA 3x SATA 3 Gbit/s
Drives 1x 2.5", 1x Slimline, card reader 1x 2.5", 1x Slimline, card reader 1x 2.5", 1x slim-line
Sound 8 channel HD audio 8 channel HD audio 6 channel HD audio
®
®
™
Next generation NVIDIA ION graphics
Graphics Intel GMA 3150 (UMA max. 256 MB) Intel GMA X4500 (UMA max. 1.759 MB)
card [ION2] (512 MB DDR3)
VESA-compatible, passively cooled, VESA-compatible, passively cooled, Horizontal and vertical operation possible,
Special Features WLAN (N), Gigabit LAN, external fanless WLAN (N), Gigabit LAN, external fanless 2x Gigabit LAN, external fanless PSU,
® ® ®
PSU, Kensington lock PSU, Kensington lock Kensington lock, heatpipe cooling system
Power Supply 40 Watt 40 Watt 90 Watt
Dimensions 25.2 x 3.85 x 16.2 cm (LWH) 25.2 x 3.85 x 16.2 cm (LWH) 25 x 18.5 x 7 cm (LWH)
® ® ®
Complete System XS 3560B with Windows 7 XS 3570M with Windows 7 X 4100H with Windows 7

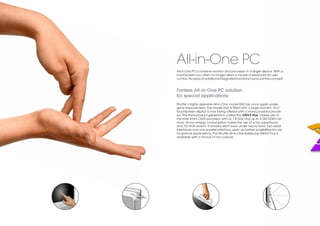

10. All-in-One PC
All-in-One PCs combine monitor and processor in a single device. With a
touchscreen you often no longer need a mouse or keyboard for user
control. An array of additional integrated functions round out this concept.
Fanless All-in-One PC solution
for special applications
Shuttle’s highly desirable All-in-One model X50 has once again under-
gone improvement. The model that is fitted with a large and slim 15.6"
touchscreen display is now being offered with a more powerful proces-
sor. The third product generation, called the X50V2 Plus, makes use of
the Intel Atom D525 processor with 2x 1.8 GHz and up to 4 GB DDR3 me-
mory. Its low energy consumption makes the use of a fan superfluous
and, for that reason, it remains silent even under heavy load. Two serial
interfaces and one parallel interface open up further possibilities for use
for special applications. The Shuttle All-in-One Barebone X50V2 Plus is
available with a choice of two colours.

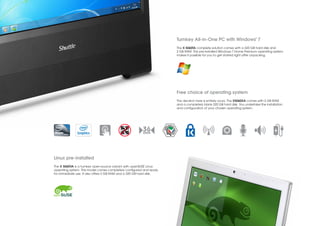

12. ®
Turnkey All-in-One PC with Windows 7
The X 5060TA complete solution comes with a 320 GB hard disk and
2 GB RAM. The pre-installed Windows 7 Home Premium operating system
makes it possible for you to get started right after unpacking.
Free choice of operating system
The decision here is entirely yours. The X5060XA comes with 2 GB RAM
and a completely blank 320 GB hard disk. You undertake the installation
and configuration of your chosen operating system.
Linux pre-installed
The X 5060VA is a turnkey open-source variant with openSUSE Linux
operating system. This model comes completely configured and ready
for immediate use. It also offers 2 GB RAM and a 320 GB hard disk.

13. Product Classification All-in-One PC
Model Name X50V2 Plus
Field of Application Basic
®
Chipset Intel NM10 Express
®
CPU Support Intel Atom™ D525 (Dual-Core, 1.8 GHz)
Memory Maximum 4 GB DDR3-800
External Connectors 4x USB 2.0, audio, VGA, 2x COM, 1x parallel, LAN
Drives 1x 2.5", card reader
Sound Stereo
®
Graphics Intel GMA 3150 (UMA max. 256 MB)
Display Touchscreen 39,62 cm (15,6") Widescreen, resolution: 1.366 x 768, LED-Backlight
VESA-compatible, loudspeakers, microphone, webcam, passively cooled,
Special Features ®
WLAN (N), LAN, external fanless PSU, Kensington lock
Power Supply 40 Watt
Dimensions 39.13 x 32.7 x 3.6 cm (LWH)
®
Complete System X 5060T with Windows 7, X506V with Linux™

14. Accessories
The accessories programme
®
for Shuttle products
Extend the possibilities of your Shuttle product with our intelligent accessories.
Shuttle offers practical carrying bags, power supply units with additional
power, connection cables for additional interfaces and special mounts.
Get more out of your Shuttle product with our XPC accessories.
®
About Shuttle
As one of the most experienced developers and manufacturers of Mini- focus of business for the head office operating out of Taipei. Acclaimed
PCs and portable devices, Shuttle ensures the highest production standards, by customers and the trade press alike, Shuttle stands out due to its
consistent use of the latest platforms and a huge spectrum of application effective management and its long-standing experience as a manu-
areas for its products. Established in 1983 in Taiwan, Shuttle Inc. specialises facturer of high-quality motherboards. Shuttle Mini-PC Barebones and
in the development and production of innovative Mini-PC solutions. The Complete Systems have for years been the first choice for many system
stock market listed company is represented globally through subsidiaries integrators, VARs, OEMs and ODMs. With its new, mobile PC solutions
in Germany, the USA, Japan and China. Since 2001 the attractive cuboid Shuttle is also meeting the constantly changing demands of the consumer.
PCs designed for virtually every application area have been the main
Contact
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Telephone +49 (0)4121-476 860 · Email: sales@shuttle.eu
Printing mistakes, errors and technical modifications excepted.
All brand names mentioned are the property of the relevant brand owner.

15. Brand Loyalty Ranked
Higher than Dell,
ULTRd’s Fastest
(X100), Form Fac ALL
Red dustrial D
PC
fo
IDC Research, 2005
( XP1 7
Sony and Apple by
r In
tor
A SM
FOfice INA
Dot A esign
(M OOM G irst
O H f
C
), 2005
UR Cre , 2
5
F
200 C
200
TH ated 005
0), P
ward
R IN s
l
Wor
LIVorld’
5
100 X
W OR 17
B –
or T ),
P XP
ran
ld A 20
I, 2 ith ll
(
SL PC wma
’s B 04
W
ch
Fi L
5
IA or t S
00
rs E
ID Fact Firs
tU L
LT CD
Sh
NV rm ’s
ld
RA
i
SF ps
Fo or
as F P 1
W
st
200 Shu C (alMilli ’s Fir
C,
4 ttle so K onth rld P
XP now Wo DIA R X
C n ), ME NTE
TH CE05
Offic IRD Br 20 EENE
R
JAP e Createdanch me G
R
AN , – Becalemented cy), 2005
2 0 04 (imp -free poli
lead
XPC Gained 15th GREATEST
WORLDWIDE LANDMARK IN PC
RECOGNITION HISTORY by PC World,
(synonymous with 2006
barebone), 2003
Shutt
le Bra
nd Mo
ted th
e ed
Paten ly-Acclaim E
NO. 5
to
W OR
ved U
p
P LDWID
High ATCPI2002
HE ),
2006 E BY
I.C.E. (for XP
IDG,
Intr
o
D e duce
SE sign d New
RIE s –
C ORN), 200
1
S, X Ch a
200 & sis
s
XPS BSV24
In
tro
G 6 T
A (
W C d PR L A M du
ce
F P ar
F d ), D ’V I M O d
XP
d’s S tan 24 O A , R, C
orl T S (SV
W IRS All- nts Fir
s Se &
F ith pone L t rie
S IQ s,
w om 1 PC DXi UID 20
C 001
2 0 0000 , 2 Ex -
00 tre CO
07
14 d,
2 7 m O
me W
O- ifie AN t
eG L
Be
ca Ba orld’ am ED
(SX sed sS
ISert IW ke r 58H on ma
l
ing
C 7), Inte lest
TA a 000 PC
on k M5), 2 Se
200 l
8 X5
IPO oc : 240
ts K
ind
L cond 8
StAIEX of i 998 SDIQUI
(T irst ARD cm), 1 Xi D
, 20 Extr -CO
PC
’s F O 7
rld RB 17x1 09 e m e O
WoOTHE M ( Ga LED
M rO E m in
fo g
ew
ed N N First
All-In
blish IWA PC L
Esta ory in TA997 -One
S e ri a u n c h e
Fact00 ping), 1 es),
2009d (X Visio
(3,0 n
NO. 5 Introduced First
MOTHERBOARD LAPTOP PCs
MANUFACTURER Powered by Shuttle,
(by volume), 1995 2010
SECOND Branch Office Created
– GERMANY, 1990
FIRST Branch Office Created
– UNITED STATES, 1988
Motherboard
Manufacturing Roots Began, 1984
SHUTTLE Was Born, 1983
