AMD Opteron 6200 and 4200 Series Presentation

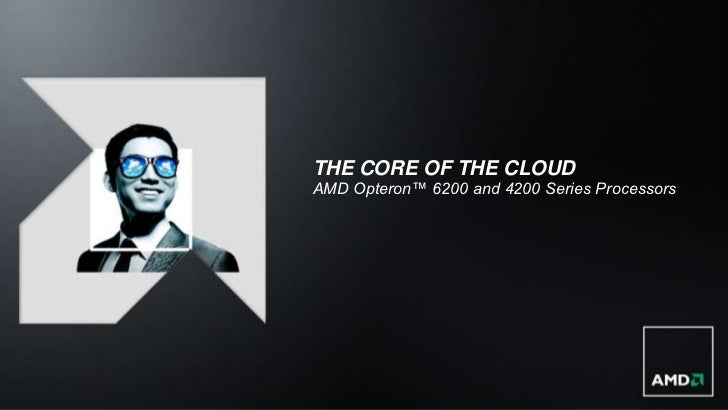

  1. 1. THE CORE OF THE CLOUDAMD Opteron™ 6200 and 4200 Series Processors
  2. 2. THE UNDENIABLE BUSINESS AND I.T . UPLIFTFROM CLOUD-BASED ECONOMICS Clouds UNIX and PCs Virtualized Mainframes and Minis and Cloud Distributed Cloud deployments accelerate Traditional IT gains in business agility and efficiency while speeding the rate of information exchange TIMELINE2 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  3. 3. SUCCESSFUL NEW SERVER PLATFORMS MUST BALANCEWORKLOADS AND DATA CENTER REQUIRMENTS DATABASE VIRTUALIZATION CLOUD HPC Performance for Scalability for Economics for data centers Virtualization the Cloud3 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  4. 4. AVAILABLE TODAY:SERVERS FEATURING THE ALL NEW AMD OPTERON PROCESSOR Performance for data centers  Up to 84% higher performance* Scalability for Virtualization  73% more memory bandwidth* A BETTER OPTION FOR Economics for the Cloud THE HYPEREFFICIENT,  1/2 the power-per-core* VIRTUALIZED, CLOUD-READY WORLD  Requires 2/3 less floor space*  1/3 to 2/3 lower platform price**See backup processor and performance information on slides 22-23.4 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  5. 5. AMD “BULLDOZER” TECHNOLOGY:BUILT TO WORK FOR SERVER TRENDSWorld’s first 16 core x86 CPU is an innovativearchitecture like nothing else in the market – Flex FP – the world’s only dynamic, flexible floating point complex – Revamped integrated memory controller – AMD Turbo CORE technology for additional performance – TDP Power CapDriving huge benefits to customers – Outstanding value and power efficiency – Modular architecture for future innovationFlexible Shared & Dedicated Resources approachhelps maximize power efficiency and costs – Shared components maximize performance per watt Dedicated Components – Dedicated components to help increase Shared at the module level performance and scalability Shared at the chip level5 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  6. 6. INTRODUCING THE NEW AMD OPTERON 6200 AND 4200 SERIES PROCESSORS AMD Opteron™ 6200 Series Processor AMD Opteron™ 4200 Series Processor (“Interlagos”) (“Valencia”) The world’s first x86 The world’s lowest x86 16-core processor1 power-per-core2 Scalability Up to 4 sockets with up to 16 cores Up to 2 sockets with up to 8 cores Memory 4 memory channels up to 1600 MHz memory 2 memory channels up to 1600 MHz memory Frequency Up to 3.3 GHz base frequency & up to 3.7 GHz frequency using AMD Turbo CORE technology* Cache: L1 - 16KB data per core + 64KB instruction Cache: L1 - 16KB data per core + 64KB instruction Cache per module; per module; L2 - 1MB per core; L3 – 8MB per L2 - 1MB per core; L3 - 16MB per socket socket Four x16 HyperTransport™ technology 3.0 links Three x16 HyperTransport™ technology 3.0 links I/O @ up to 6.4GT/s per link @ up to 6.4GT/s per link 85W to 140 W TDP (Consistent with AMD Opteron 6100 35 to 95W TDP (Consistent with AMD Opteron 4100 Power Series) Series) 1 Based on 16-core AMD Opteron 6200 Series processor compared to 6-core Intel Xeon 5600 Series and 10-core Intel Xeon E7 processors. 2 As of Nov 1, 2011, AMD Opteron™ processor Models 4200 EE have the lowest known power per core of any x86 server processor, at 35W TDP (35W /8 = 4.375W/core). Intel s lowest power per core server processor, L5630, is 40W TDP (40W/4 = 10W/core). See http://www.intel.com/Assets/PDF/prodbrief/323501.pdf. Previous record held by AMD Opteron processor Models 4100 EE at 35W TDP / 6 cores = 5.83 W/core.6 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  7. 7. WORLD’S MOST CONFIGURABLE CORES FOR AN AGILE CLOUD Platform & Virtualization Processing Flexibility Power Flexibility Flexibility  AMD Turbo CORE  TDP Power Cap  Highest x86 core count* for more VMs,  AMD Core Select  C6 state better server utilization  Multiple Flex FP  6 power bands  Scalable for rapid processing modes growth/expansion  Low & Ultra Low Voltage  Virtual Cache Partitioning memory support  1P to 4P with same  New technical computing platform and chipset instructions  Supports 4 to 64 cores Up to 46% lower power Up to 84% greater at idle*; as little as Multi-generational performance* 4.375W per core platform consistency*See backup processor and performance information on slides 24.7 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  8. 8. AMD TURBO CORE TECHNOLOGY Base frequency with All core boost activated Max turbo activated TDP headroom (up to 500MHz) (up to 1GHz+, half cores) + All Core Boost Max Turbo Boost When there is TDP headroom in a When a lightly threaded workload sends half the given workload, AMD Turbo CORE “Bulldozer” modules into C6 sleep state but also technology is automatically activated requests max performance, AMD Turbo CORE and can increase clock speeds by technology can increase clock speeds by up to 300-500 MHz* across all cores. 1 GHz+* across half the cores.*Based on AMD Opteron™ 6200 Series processors with up to 300 MHz in P1 boost state and up to 1 GHz+ in P0 boost state over base P2 clock frequency.8 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  9. 9. FLEX FP 256-BIT FPU AND NEW TECHNICAL COMPUTING INSTRUCTIONS Instructions Applications/Use Cases SSSE3, SSE4.1, • Video encoding and transcoding SSE4.2 • Biometrics algorithms (AMD and Intel) • Text-intensive applications • Application using AES encryption AESNI • Secure network transactions PCLMULQDQ • Disk encryption (MSFT BitLocker) (AMD and Intel) • Database encryption (Oracle) • Cloud security Floating point intensive applications: • Signal processing / Seismic • A flexible floating point unit shared AVX • Multimedia between 2 integer cores (AMD and Intel) • Scientific simulations • Financial analytics • Simultaneously executes two 128-bit • 3D modeling instructions or one 256-bit instruction • Vector and matrix multiplications FMA4 • Polynomial evaluations • Saves die space and conserves power (AMD Unique) • Chemistry, physics, quantum mechanics and for majority of non-FP applications digital signal processing • Dedicated floating point scheduler, XOP • Numeric applications which minimizes latency for floating • Multimedia applications (AMD Unique) • Algorithms used for audio/radio point applications9 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  10. 10. DESIGNED TO DRIVE DOWN POWER REQUIREMENTS More Low Power Reduces Idle CPU Enables More Power Intelligent Circuit Memory Choices Power By Up to 46%² Control for IT Design Low and Ultra Low C6 power state TDP Power Cap All New Design Voltage Memory Shuts down clocks and Flexibility to set power Minimizes the number 1.35v DIMMs reduce power to idle cores limits without capping of active transistors for voltage by 10%; frequency lower power and better 1.25v DIMMs reduce performance voltage by 16%¹ Up to 56% better power-per-core than Xeon³ ¹Regular voltage=1.5v, low voltage=1.35v, ultra-low voltage=1.25v; ² ² Based on internal testing as of 8/2011: AMD Opteron™ processor model 6174 (12-core 2.2GHz) consumes 11.7W in active idle C1E power state, while AMD Opteron™ processor model 6276 (16-core 2.3GHz) consumes only 6.4W in the active idle C1E power state with new C6 power gating employed. System configuration: “Drachma” reference design kit, 32GB (8 x 4GB DDR3-1333) memory, 500GB SATA disk drive, Microsoft® Windows Server® 2008 x64 Enterprise Edition R2. SVR- 60; ³based on AMD Opteron 4200 Series processor with 8 cores at 35W TDP versus lowest wattage, highest core Intel Xeon processor with 6 cores at 60W TDP.10 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  11. 11. TDP POWER CAP – THE ULTIMATE POWER AND UTILIZATION TOOL 6000W Rack Example Allows granular control of power envelopes Maximizes the density of servers in the data center Convert untapped space in the rack into additional density Customer-definable, up to 1W increments Many workloads will still operate 17 2U servers @ 20 2U servers @ within the same performance 350W max power 300W max power range despite the lower TDP 5,950W total power 6,000W total power 8U of wasted space 17% more servers11 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  12. 12. BEATING THE MOST POPULAR XEON PROCESSORS BY 89% AMD Opteron™ processor model 6276 beats Intel‟s most popular Xeon by 89%, at the same price AMD delivers clearly superior performance where customers are actually spending their money Intel 2011 Xeon 5600 Series Shipments1 Xeon E5640 AMD Opteron 6276 Xeon X5680 100% 160 Xeon X5677 90% 140 Xeon X5670 80% 89% 120 Xeon X5667 70% 100 Xeon X5660 60% 50% 80 Xeon X5650 40% Xeon E5640 60 30% Xeon E5630 40 20% Xeon E5620 10% 20 0% 0 1Q11 2Q11 3Q11 Price Performance 1 Source: Mercury Research, PC Processors and Chip Sets Updated Edition 3Q2011 ²SPECint®_rate2006 Score= 480, 2 x AMD Opteron™ processors Model 6276 in Supermicro A+ Server 1022-URF server, 128GB (16 x 8GB DDR3-1333) memory, Red Hat Enterprise Linux 6.1, x86 Open64 4.2.5.2 Compiler Suite, based on AMD internal testing in Oct‟11. SPECint®_rate2006 Score = 253, 2 x Intel Xeon processors Model X5640 in Cisco UCS C210 M2 , 48GB (12 x 4GB DDR3- 1333) memory, SUSE Linux Enterprise Server 11 SP1, Intel C++ Compiler XE Version 12.0.1.116 Build 20101116, published Mar‟11 at http://www.spec.org/cpu2006/results/res2011q2/cpu2006- 20110329-15460.html12 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  13. 13. SAME PRICE, BETTER PERFORMANCE, WITH 2-3X THE BENEFIT¹ Intel AMD Advantage 2 AMD Opteron™ Series Processor 2 Xeon E5640 Processors Model 6220 25% faster Memory 16GB 32GB Twice the memory RAID Controller None RAID 5 Controller Higher availability Hard Drives 1 x 146GB 3 x 146GB Triple the storage Price $4,736 $4,576 3% lower price Helping businesses get the most for their budget1 Pricing and specifications from www.hp.com as of 10/26/11. As of 10/26/11, pricing for the HP DL385 with AMD Opteron processor Model 6220 (1ku pricing $523) isnot yet available. The price of an HP DL385 with AMD Opteron processors Model 6134 (1ku pricing $523) was used as a proxy because pricing for AMD Opteron 6100and 6200 Series processor-based servers is expected to be very similar. Server configurations are identical except on the specifications listed above and includestandard warranty, power supply and no OS. Difference in processor speeds is based on the top SPECint®_rate2006 results published by, or submitted by AMD to,SPEC as of 10/26/2011 for 2P servers with the above identified processors and may differ from the performance of the servers priced and described above. For thelatest results, visit www.spec.org. See backup slide for configuration details.13 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  14. 14. AMD OPTERON ADVANTAGES FOR VIRTUALIZATION Virtualization Lower Cost Greater Virtualization per VM Density  Microsoft Hyper-V Intel AMD  VMware vSphere  Microsoft Remote FX  VMware View  Xen, KVM Customer Requirements:  Core density At 1VM per core, AMD can host 2P 4P  High memory addressability 672 VMs in a standard 42U rack Estimated 72 – 77% platform The same load would require  Large L3 cache level savings on like to like 2.6 racks of Intel systems²,  Cost efficiency configurations¹ 3X the floor space ¹, ² See backup data on slide 2514 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  15. 15. PERFORMANCE THAT DRIVES THE CLOUD Web / Cloud Unmatched Power Core Density Efficiency for Greater Throughput  Windows® Azure Xeon 5690 AMD Opteron 6282 12  LAMP Stack 140 10  Java 8 120 100  Hadoop 6 80 4  OpenStack 60 2 40 0 20 Customer Requirements: Xeon AMD AMD 0  Power efficiency 5600 Opteron Opteron 6200 4200 Spec Int SPEC JBB  Core scalability  Node and thread density Lowest x86 watts/core in the 24-25% better performance in  High throughput industry: 5.3W for “Interlagos” web-focused workloads² and 4.375W for “Valencia”¹ ¹, ² See backup data on slide 2615 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  16. 16. AMD IS POWERING THE CLOUD TODAYAMD’s Private Cloud 115K cores at work and counting Supports thousands of engineers worldwide 40M+ tasks executed per month 90% utilization rate for both cores and systems 100% of engineering projects in the company reside in the cloud  High core count, scalability and power efficiency are driving clouds to adopt AMD  There are more than 2 million AMD Opteron™ processors at work today in the cloud16 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  17. 17. THE HPC LEADER HPC 73GB/s Superior Greatest FLOPs memory Performance¹ per Sq. Foot throughput3  Linux OS Xeon 5670 AMD Opteron 6276  Open64 73% more 200 memory  GCC bandwidth 150 than Intel3  PGI Compilers 100 Maximum Customer Requirements: cores 50  Scalable performance per rack2 -  Strong floating point NAMD WRF LAMMPS SPEC FP STREAM LINPACK performance More FLOPs  High memory throughput per sq. foot2 With almost twice the FLOPs  More cores for highly per sq. ft. with “Interlagos”, it threaded apps would take Intel almost 2 racks 33% lower 24-84% better performance at  Wide range of technical cost per core4 significantly lower price¹ to match AMD in density and instructions performance² ¹-3 See complete benchmark data on slides 27-29.17 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  18. 18. HPC: THE EARLY ADOPTER MARKET HPC acts as leading indicator for new technology Half a million "Bulldozer" cores have already shipped to Adopts and proves viability of new performance and some of the most demanding customers in the world efficiency trends  U.S. Department of Energy As of June 2011, 1/3 of the world‟s top 100 – Oak Ridge National Lab – Sandia National Lab Supercomputers are based on the AMD Opteron™ – Los Alamos National Lab processor – Pacific Northwest National Lab AMD – the power behind the first system to break the  National Oceanic & Atmospheric Administration petaflop barrier - currently powers 4 petaflop-capable top  Department of Defense 10 systems  The HECToR initiative in Europe  University of Stuttgart‟s High Performance Computing Center “ORNL is deploying more than 25,000 of AMD‟s „Interlagos‟ processors over the next few months as we upgrade Jaguar to the new Titan system. Our users are excited about the increase in performance over previous- generation processors, and our sponsors are delighted with the power savings that will make Titan one of the world‟s most powerful and efficient research tools.” Buddy Bland Project Director, ORNL Leadership Computing Facility18 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  19. 19. CUSTOMERS AND PARTNERS Systems and Infrastructure Software and Ecosystem Partners Range of Infrastructure platforms More than 30 expected server platforms19 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  20. 20. THE NEW AMD OPTERON™ PROCESSOR:THE CORE OF THE CLOUD Designed for the inflection point around the hyper-efficient, virtualized Cloud Strong OEM and end-customer support out of the gate Superior performance, ranging from 24% to 84% in key trending workloads Increased virtualization scalability As much as 56% lower power-per-core Perfectly matched architecture for today‟s highly threaded workloads including cloud, web, virtualization, database and HPC20 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  21. 21. BACKUP21 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  22. 22. DATA:AVAILABLE TODAY: SERVERS FEATURING THE ALL NEW AMD OPTERON PROCESSOR 84% Better performance: LINPACK (2P) AMD Opteron processor Model 6276 generates 84% more FLOPS than Intel Xeon processor Model X5670 – 239.1 FLOPS, AMD Opteron 6276, Trial 127, STEP B2G, Node 1, PROC. 32, PARAM WR01R2R4, N 83200, NB 100, P 4, Q 8, E .81, FC gfortran 4.6, BLAS ACML 5.0.0.0, FCFLAGS -fomit-frame-pointer -O3 -funroll-loops -W -Wall -mavx -mfma4, NUMA hwloc, MPI OMPI 1.5.3, DIMM MHz 1600, DIMM# 8, DIMM GB 8, Total Capacity 64, System SM H8DGT, OS SLES11 SP1, Kernel 2.6.32.28-fam15h-default, Notes HPC mode – 130.1 FLOPS, Intel Xeon X5670, Trial 5, STEP NA, Node 1, PROC. 1, PARAM WR01R2R4, N 51744, NB 112, P 2, Q 6, E .93, FC ifort 11.1, BLAS MKL 10.3, FCFLAGS O3 -w -ansi-alias -i-static -openmp -nocompchk, NUMA –localalloc, MPI OMPI 1.5.1, DIMM MHz 1333, DIMM# 4, DIMM GB 6, Total Capacity 24, System SM X8DTT, OS SLES11, Kernel 2.6.27, Notes Turbo 73% better scalability: STREAM (2P) AMD Opteron processor Model 6276 has 73% higher memory bandwidth than Intel Xeon processor Model X5670 – 73, 2 x AMD Opteron™ processors Model 6276 in Supermicro H8DGT, 64GB (8 x 8GB DDR3-1600) memory, SuSE Linux® Enterprise Server 11 SP1 64-bit, x86 Open64 4.2.5-1 Compiler Suite – 42, 2 x Intel Xeon processors Model X5670 in Supermicro X8DTT server, 24GB (6 x 4GB DDR3-1333) memory, SuSE Linux® Enterprise Server 11 SP1 64-bit, Intel Compiler v11.1.06422 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  23. 23. DATA:AVAILABLE TODAY: SERVERS FEATURING THE ALL NEW AMD OPTERON PROCESSOR 1/2 the power-per-core* – As of Nov 1, 2011, AMD Opteron™ processor Models 4200 EE have the lowest known power per core of any x86 server processor, at 35W TDP (35W/8 = 4.375W/core). Intel s lowest power per core server processor, L5630, is 40W TDP (40W/4 = 10W/core). See http://www.intel.com/Assets/PDF/prodbrief/323501.pdf. Previous record held by AMD Opteron processor Models 4100 EE at 35W TDP / 6 cores = 5.83 W/core. Requires 2/3 less floor space* – VMs/rack (2P and 4P) One rack of AMD Opteron 6200 Series-based servers can support 672 VMs (1 VM per core, 2U servers) – This would take three racks and 56 2U Intel Xeon 5600 Series-based servers to do the same. – Assumes 1 VM/core, AMD Opteron 6200 Series-based 2P 2U server has up to 32 cores, supports up to 32 VMs/server x 21 servers per rack, which equals 672 VMs per server. Intel Xeon 5600 Series-based 2P 2U server has up to 12 cores, supports up to 12 VMs/server x 21 servers per rack, which equals 252 VMs per server, Intel specs as of 11/4/11 at www.intc.com/pricelist.cfm. 1/3 to 2/3 lower platform price* – Top bin comparisons. Dell R710 with two top bin Intel Xeon processor Model X5690s is $7,103 . Since pricing for a Dell R715 with two top bin AMD Opteron processor Model 6282 SE is not yet available, the similarly priced AMD Opteron processor Model 6140 was used and the server yielded a price of $4564. That is a 36% price savings. Both servers were configured with 32GB RAM, 146GB 10K hdd, and 3yr base warranty and large enterprise pricing is from www.dell.com as of 10/22/11. HP DL 580 with four top bin Intel Xeon processor Model E7-4870 is $29,336 at www.dell.com. Since pricing for an HP DL585 pricing with four top bin AMD Opteron Model 6828 SE is not yet available, the similarly priced AMD Opteron processor Model 6140 was used and server yielded a price of $11,094. Both servers were configured with 64GB RAM, 72GB 15K hdd, and 3yr base warranty and large enterprise pricing is from www.hp.com as of 10/22/11. VMware vSphere pricing not included, assuming both servers configured with versions 5.0 or 4.1u2, which are the same price for AMD- and Intel-based servers.23 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  24. 24. DATA: WORLD’S MOST CONFIGURABLE CORES FOR AN AGILE CLOUD 1 84% Better performance: – LINPACK (2P) AMD Opteron processor Model 6276 generates 84% more FLOPS than Intel Xeon processor Model X5670 – 239.1 FLOPS, AMD Opteron 6276, Trial 127, STEP B2G, Node 1, PROC. 32, PARAM WR01R2R4, N 83200, NB 100, P 4, Q 8, E .81, FC gfortran 4.6, BLAS ACML 5.0.0.0, FCFLAGS -fomit-frame-pointer -O3 -funroll-loops -W -Wall -mavx -mfma4, NUMA hwloc, MPI OMPI 1.5.3, DIMM MHz 1600, DIMM# 8, DIMM GB 8, Total Capacity 64, System SM H8DGT, OS SLES11 SP1, Kernel 2.6.32.28-fam15h-default, Notes HPC mode – 130.1 FLOPS, Intel Xeon X5670, Trial 5, STEP NA, Node 1, PROC. 1, PARAM WR01R2R4, N 51744, NB 112, P 2, Q 6, E .93, FC ifort 11.1, BLAS MKL 10.3, FCFLAGS O3 -w - ansi-alias -i-static -openmp -nocompchk, NUMA –localalloc, MPI OMPI 1.5.1, DIMM MHz 1333, DIMM# 4, DIMM GB 6, Total Capacity 24, System SM X8DTT, OS SLES11, Kernel 2.6.27, Notes Turbo ² Based on internal testing as of 8/2011: AMD Opteron™ processor model 6174 (12-core 2.2GHz) consumes 11.7W in active idle C1E power state, while AMD Opteron™ processor model 6276 (16-core 2.3GHz) consumes only 6.4W in the active idle C1E power state with new C6 power gating employed. System configuration: “Drachma” reference design kit, 32GB (8 x 4GB DDR3-1333) memory, 500GB SATA disk drive, Microsoft® Windows Server® 2008 x64 Enterprise Edition R2. SVR-60 3 Based on 16-core AMD Opteron 6200 Series processor compared to 6-core Intel Xeon 5600 Series and 10-core Intel Xeon E7 processors.24 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  25. 25. DATA: “AMD OPTERON ADVANTAGES FOR VIRTUALIZATION” 1Server cost per VM (2P) AMD Opteron 6200-based server cost per VM is up to 72% less expensive Assumes 1 VM/core, Dell R710 with two top bin Intel Xeon processor Model X5690 is $7,361, has 12 cores and 12VMs, $613/VM. Since pricing for a Dell R715 with two top bin AMD Opteron processor Model 6282 SE is not yet available, the similarly priced AMD Opteron processor Model 6140 was used and the server yielded a price of $5406, has 32 cores and 32VMs, $169/VM . Servers were configured with 32GB RAM, 146GB 10K hdd, and 3yr base warranty and large enterprise pricing is from www.dell.com as of 10/27/11 and 10/28/11. Server cost per VM (4P) AMD Opteron 6200-based server cost per VM is up to 77% less expensive Assumes 1 VM/core, HP DL 580 G7 with four top bin Intel Xeon processor Model E7-4870 is $28,936, has 40 cores and 32VMs, $723/VM. Since pricing for an HP DL585 with four top bin AMD Opteron processor Model 6282 SE is not yet available, the similarly priced AMD Opteron processor Model 6140 was used and the server yielded a price of $10,698, has 64 cores and 64VMs, $167/VM. Servers were configured with 64GB RAM, 72GB 15K hdd, and 3yr base warranty and large enterprise pricing is from www.hp.com as of 11/4/11. VMware vSphere pricing not included, assuming both servers configured with versions 5.0 or 4.1u2, which are the same price for AMD- and Intel-based servers. ²AMD Opteron 6200 Series-based 2P servers can support up to 32VMs each, assuming 1 VM per core. 21 servers fit in a rack x 32 VMs = 672 VMs per rack. Intel Xeon 5600 Series-based 2P servers can support up to 12VMs each, based on core counts listed at www.intc.com/pricelist.cfm as of 10/24/11, which equates to 21 servers x 12 VMs = 252 VMs. # of vCPUs for 16 VMs = max cores/16.25 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  26. 26. DATA: “PERFORMANCE THAT DRIVES THE CLOUD” ¹Intel Xeon processor Model L5609 is 10W/core (40W TDP/4 cores) as of 10/24/11, see http://www.intc.com/pricelist.cfm. AMD Opteron 6200 Series “HE” processors will be as low as 85W with 16 cores for 5.3 W/core. AMD Opteron 4200 Series “EE” processors will be as low as 35W TDP with 8 cores for 4.375W/core.²SPECint®_rate2006 Score= 526, 2 x AMD Opteron™ processors Model 6282 SE in Supermicro A+ Server 1022-URF server, 128GB (16x 8GB DDR3-1333) memory, Red Hat Enterprise Linux 6.1, x86 Open64 4.2.5.2 Compiler Suite, based on AMD internal testing in Oct‟11.SPECint®_rate2006 Score = 421, 2 x Intel Xeon processors Model X5690 in NEC Express5800/R120b-1 server, 96GB (12 x 8GB DDR3-1333) memory, SUSE Linux Enterprise Server 11 SP1, Intel C++ Compiler XE v12.0.3.174, published Aug‟11 athttp://www.spec.org/cpu2006/results/res2011q3/cpu2006-20110801-17813.html.SPECjbb2005 Score = 1211915 for AMD Opteron processor Model 6282 SE based on AMD internal testing in Oct‟11. SPECjbb2005Score = 975257 for Intel Xeon processor Model X5690. Cisco UCS B200 M2 (Intel Xeon X5690, 3.46GHz) 48GB(12 x 4GB 2Rx4 PC3-10600R, ECC, running 1333MHz) IBM Corporation IBM J9 JVM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled), published in Mar‟11 athttp://www.spec.org/osg/jbb2005/results/res2011q1/jbb2005-20110223-00958.html.SPEC, SPECint, and SPECJBB are registered trademarks of the Standard Performance Evaluation Corporation. The results stated abovetop reflect results published on http://www.spec.org/cpu2006/results/ as of 10/26/1126 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  27. 27. DATA: “THE HPC LEADER”¹SPECfp 360, 2 x AMD Opteron™ processors Model 6276 in Supermicro A+ 1022-URFserver, 64GB (8 x 8GB DDR3-1600) memory, Red Hat Enterprise Linux 6.1 64-bit, x86 Open64 4.2.5.2 Compiler Suite 263, 2 x Intel Xeon processors Model X5670 in Cisco UCS B200 M2 server, 48GB (12 x 4GB DDR3-1333) memory, SUSE Linux® Enterprise Server 11 SP1 64-bit, Intel C++ Compiler XE v12.0.1.116 http://www.spec.org/cpu2006/results/res2011q1/cpu2006-20110301-14786.htmlSTREAM 73, 2 x AMD Opteron™ processors Model 6276 in Supermicro H8DGT, 64GB (8 x 8GB DDR3-1600) memory, SuSE Linux® Enterprise Server 11 SP1 64-bit, x86 Open64 4.2.5-1 Compiler Suite 42, 2 x Intel Xeon processors Model X5670 in Supermicro X8DTT server, 24GB (6 x 4GB DDR3-1333) memory, SuSE Linux® Enterprise Server 11 SP1 64-bit, Intel Compiler v11.1.064LINPACK GFLOPS = # processors x processor clock speed x # cores per processor x # 32-bit operations per second 147.2, 1 x AMD Opteron™ processors Model 6276 x 16 cores x 2.3GHz x 4 70.32, 1 x Intel Xeon processors Model X5670 x 6 cores x 2.93GHz x 4GROMACS 100s, Intel Xeon X5670, 1 node, 12 processes, 1 OMP, 1S, 1E, 40.67 GFLOPS, CC ICC 11.1, CCFLAGS-O3 -axS -no-prec-div, NUMA numactl, FFT fftw 3 MKL, PREC Single, MPI OMPI 1.5.1, DIMM Spec 1333, DIMM Capacity(GB) 4, DIMM Count 6, Total Capacity (GB) 24, System SM X8DTT, OS SLES11 SP1, Kernel 2.6.32.12-0.7-default 84s, AMD Opteron 6276, 1 node, 32 processes, 1 OMP, 1S, 1E, 48.737 GFLOPS, GCC 4.60, CCFLAGS-O3 -O3 -funroll-loops, NUMA APPFILE, FFT 3.2.2, PREC Single, MPI OpenMPI 1.5.3, DIMM Spec 1600, DIMM Capacity(GB) 8, DIMM Count 4, Total Capacity (GB) 32, System SM H8DGT, OS SLES11 SP1, Kernel 2.6.32.12-0.7-default27 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  28. 28. DATA: “THE HPC LEADER” (CONT.)LAMMPS 471s, Intel Xeon X5670, Trial 24, Nodes 1, CXX Intel 11.1.064, CXXFLAGS -O2 -funroll-loops -fstrict-aliasin, MPI OMPI 1.5.1 + knem 0.9.5, DIMM Speed (MHz) 1333, DIMM Capacity (GB) 4, DIMM Count 6, Total Capacity (GB) 24, System SM X8DTT, OS SLES11 SP1, Kernel 2.6.32.12-0.7-default, Notes Turbo ON, HT OFF, -mca btl_sm_use_knem 1 333s, AMD Opteron 6276, Trial 9, Nodes 1, CXX openCC 4.2.5.2-1, CXXFLAGS -O3 -OPT:Ofast -OPT:rsqrt=2 -march=bdver1 -mavx -mfma4, MPI OpenMPI 1.5.3, DIMM Speed (MHz) 1600, DIMM Capacity (GB) 8, DIMM Count 8, Total Capacity (GB) 64, System SM H8DGT, OS SLES11 SP1, Kernel 2.6.32.28-fam15h-default, Notes hpcNAMD .636 day/ns, Intel Xeon X5670, Trial 40, NAMD Version 2.7, Nodes 1, MB memory 274.328, CC Intel 11.1, CCFLAGS -ip -fno-rtti -O3 -xSSE4.2 -no-prec-div, MPI OMPI 1.5.1, DIMM Speed (MHz) 1333, DIMM Capacity (GB) 4, DIMM Count 6, Total Capacity (GB) 24, System SM X8DTT, OS SLES11 SP1, Kernel 2.6.32.12-0.7-default, Notes default .375 day/ns, AMD Opteron 6276, Trial 77, NAMD Version 2.8, Nodes 1, MB memory 260.277, CC opencc 4.2.5-2.1, CCFLAGS -O3 -m64 -march=bdver1 -mfma4 -mavx - CG:compute_to=ON -OPT:Olimit=40000, MPI OpenMPI 1.5.3+knem 0.9.6, DIMM Speed (MHz) 1600, DIMM Capacity (GB) 8, DIMM Count 8, Total Capacity (GB) 64, System SM H8DGT, OS SLES11 SP1, Kernel 2.6.32.28-fam15h-default, Notes defaultWRF 224s, Intel Xeon X5670, Trial 124, STEP NA, NODE 1, FC Intel 11.1.064, NETCDF 4.1.1, FCFLAGS -w -O3 -ip -xSSE4.2 -fp-model fast=2 -no-prec-div -no-prec-sqr, NUMA NA, MPI OMPI 1.5.1 + knem 0.9.5, DIMM # 6, DIMM GB 4, DIMM MHz 2 1333, Total Capacity 24, System SM X8DTT, OS SLES11 SP1, Kernel 2.6.32.12-0.7-default, Notes -mca btl_sm_use_knem 1 180s, AMD Opteron 6276, Trial 436, STEP B2g, NODE 1, FC open64 4.2.5-1, NETCDF 4.1.2, FCFLAGS -O3 -HP -march=bdver1 -mavx -mfma4 -DpgiFortran -OPT:unroll_size=256 - LNO:blocking=off -LANG:copyinout=o, NUMA APP FILE, MPI OMPI 1.5.3, DIMM # 8, DIMM GB 8, DIMM MHz 2 1600, Total Capacity 64, System SM H8DGT, OS SLES11 SP1, Kernel 2.6.32.28-fam15h-default, Notes NA 2 Intel can only process one 128-bit instruction at a time. See page 13 of the Intel Hot Chips presentation (http://www.hotchips.org/archives/hc18/3_Tues/HC18.S9/HC18.S9T4.pdf). AMD Opteron™ 6200 Series has FMAC that can execute an FMA4 execution (a=b+c*d) in one cycle vs. 2 cycles that would be required for FMA3 or standard SSE floating point calculation. Intel cannot multiply and add in one clock cycle (FMA4 and XOP instructions). See page 9 of the Intel Hot Chips presentation (http://www.hotchips.org/archives/hc18/3_Tues/HC18.S9/HC18.S9T4.pdf).²GFLOPS = # processors x processor clock speed x # cores per processor x # 32-bit operations per second. 2P server using AMD Opteron 6282 SE can generate up to 358 GFLOPs. 21 (2P) servers per rack x 358 = 7518 GFLOPs per rack. 2P server using Intel Xeon 5690 can generate up to 166 GLOPS per server. Therefore, it take over 2 racks (over 45 Intel-based servers) to generate 7518 GFLOPs.Information on Intel‟s specs as of 9/26/11 at http://www.intc.com/priceList.cfm. AMD specs based on pre-production values.28 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  29. 29. DATA: THE HPC LEADER 3 STREAM (2P) AMD Opteron processor Model 6276 has 73% higher memory bandwidth than Intel Xeon processor Model X5670 – 73, 2 x AMD Opteron™ processors Model 6276 in Supermicro H8DGT, 64GB (8 x 8GB DDR3-1600) memory, SuSE Linux® Enterprise Server 11 SP1 64-bit, x86 Open64 4.2.5-1 Compiler Suite – 42, 2 x Intel Xeon processors Model X5670 in Supermicro X8DTT server, 24GB (6 x 4GB DDR3-1333) memory, SuSE Linux® Enterprise Server 11 SP1 64-bit, Intel Compiler v11.1.064 4 Comparison of 12-core AMD Opteron™ processor Moel 6234 expected price of $377 at launch with 4- core Intel Xeon E5603 price of $188 according to www.intel.com as of 11/4/11.29 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  30. 30. PRICING AND MODEL NUMBERS All-Core Turbo Max Turbo Core Model Number Core Count Core Speed TDP 1KU Pricing Frequency Frequency 6282 SE 16 2.6GHz 3.0GHz 3.3GHz 140W $1019 6276 16 2.3GHz 2.6GHz 3.2GHz 115W $788 6274 16 2.2GHz 2.5GHz 3.1GHz 115W $639 6272 16 2.1GHz 2.4GHz 3.0GHz 115W $523 6238 12 2.6GHz 2.9GHz 3.2GHz 115W $455 6234 12 2.4GHz 2.7GHz 3.0GHz 115W $377 6220 8 3.0GHz 3.3GHz 3.6GHz 115W $523 6212 8 2.6GHz 2.9GHz 3.2GHz 115W $266 6204 4 3.3GHz N/A N/A 115W $455 6262 HE 16 1.6GHz 2.1GHz 2.9GHz 85W $523 4284 8 3.0GHz 3.3GHz 3.7GHz 95W $316 4280 8 2.8GHz 3.1GHz 3.5GHz 95W $255 4238 6 3.3GHz 3.5GHz 3.7GHz 95W $255 4234 6 3.1GHz 3.3GHz 3.5GHz 95W $174 4226 6 2.7GHz 2.9GHz 3.1GHz 95W $125 4274 HE 8 2.5GHz 2.8GHz 3.5GHz 65W $377 4228 HE 6 2.8GHz 3.1GHz 3.6GHz 65W $255 4256 EE 8 1.6GHz 1.9GHz 2.8GHz 35W $37730 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  31. 31. DISCLAIMER AND ATTRIBUTION DISCLAIMER The information presented in this document is for informational purposes only and may contain technical inaccuracies, omissions and typographical errors. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including but not limited to product and roadmap changes, component and motherboard version changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. AMD assumes no obligation to update or otherwise correct or revise this information. However, AMD reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of AMD to notify any person of such revisions or changes. AMD MAKES NO REPRESENTATIONS OR WARRANTIES WITH RESPECT TO THE CONTENTS HEREOF AND ASSUMES NO RESPONSIBILITY FOR ANY INACCURACIES, ERRORS OR OMISSIONS THAT MAY APPEAR IN THIS INFORMATION. ATTRIBUTION ©2011 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, AMD Opteron and combinations thereof are trademarks of Advanced Micro Devices, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation in the U.S. and/or other jurisdictions. Other names are for informational purposes only and may be trademarks of their respective owners.31 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  32. 32. GET MORE WITH AMD FOR EVERY IT DOLLAR SPENT Intel-based server AMD Opteron™-based server Advantage $8,246 $7,915 Processor 2 x Xeon X5690 2 x AMD Opteron 6282SE 26% faster processor Memory 48GB 64GB 33% more memory RAS upgrades None RAID 5 Controller High availability Redundant power supply Hard Drives 1 x 300GB 3 x 300GB 3X the storage Support 1yr 24x7 support Installation + 3yr 24x7 support 3X the support upgrade upgrade More hardware for the same IT budgetPricing and specifications from www.hp.com as of 10/26/11. As of 10/26/11, pricing for the HP DL385 with AMD Opteron processor Model 6282 SE (1ku pricing $1019) is not yetavailable. The price of an HP DL385 with AMD Opteron processors Model 6172 (1ku pricing $989) was used as a proxy because pricing for AMD Opteron 6100 and 6200 Seriesprocessor-based servers is expected to be very similar. . Server configurations are identical except on the specifications listed above and include no OS.. Difference in processorspeeds is based on the top SPECint®_rate2006 results published by, or submitted by AMD to, SPEC as of 10/26/2011 for 2P servers with the above identified processors andmay differ from the performance of the servers priced and described above. For the latest results, visit www.spec.org. See backup slide for configuration details. 32 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |
  33. 33. BACKUP – SAME PRICE, 2-3X THE BENEFIT 526 using 2 x AMD Opteron™ processor Model 6282SE in Supermicro A+ 1022-URF server, 128GB (16 x 8GB DDR3-1333) memory, Red Hat Enterprise Linux Server release 6.1 419 using 2 x Intel Xeon X5690: http://www.spec.org/cpu2006/results/res2011q1/cpu2006-20110211- 14447.html 317 using 2 x AMD Opteron™ processor Model 6220 in Supermicro A+ 1022G-URF server, 64GB (8 x 8GB DDR3-1) memory, Red Hat Enterprise Linux Server release 6.1 253 using 2 x Intel Xeon E5640: http://www.spec.org/cpu2006/results/res2011q2/cpu2006-20110329- 15452.html33 | AMD Opteron™ 6200/4200 Series Processors Launch Presentation | Under Embargo until 12:01 a.m. EST, November 14, 2011 |

×
