The document provides an in-depth exploration of logic gates, explaining their principles, uses in technology, and significance in digital systems. It elaborates on various types of logic gates like NAND and NOR, their practical applications in devices from computers to home appliances, and future advancements in logic gate technology. Finally, it highlights the essential role of logic gates in driving modern technology and innovation.

1. Name :
Std :
Roll No. :
LOGIC GATES

2. Sr.
No.
Content Page
No.
01 Acknowledgment 01
02 Introduction 02
03 Principle 03
04 Use of Logic Gates 04
05 NAND Gate 07
06 NOR Gate 09
07 Advantages of Logic Gates 11
08 Future of Logic Gates 13
09 Conclusion 14
10 Bibliography 15
INDEX

3. ACKNOWLEDGMENT
01

4. INTRODUCTION
A gate refers to a digital circuit that performs a logical
operation on one or more inputs and produces a single
output.
Logic gates are the building blocks of digital circuits, and
they are used to create more complex digital systems.
A logic gate may have one or more inputs, but it has
only one output. The relationship between the possible
values of input and output voltage is expressed in the
form of a table called truth table or table of
combination. It shows all the input and output
possibilities for the logic gate.
George Boole invented a different kind of algebra based
on the binary nature at the logic, this algebra of logic is
called Boolean algebra.
A logical statement can have only two values, such as
High/Low, On/Off, Closed/Open, Yes/No, etc. The two
values of logic statements are denoted by the binary
number 1 and 0. the binary number 1 is used to denote
the higher value. The logical statements that logic gates
follow are called Boolean expressions.
02

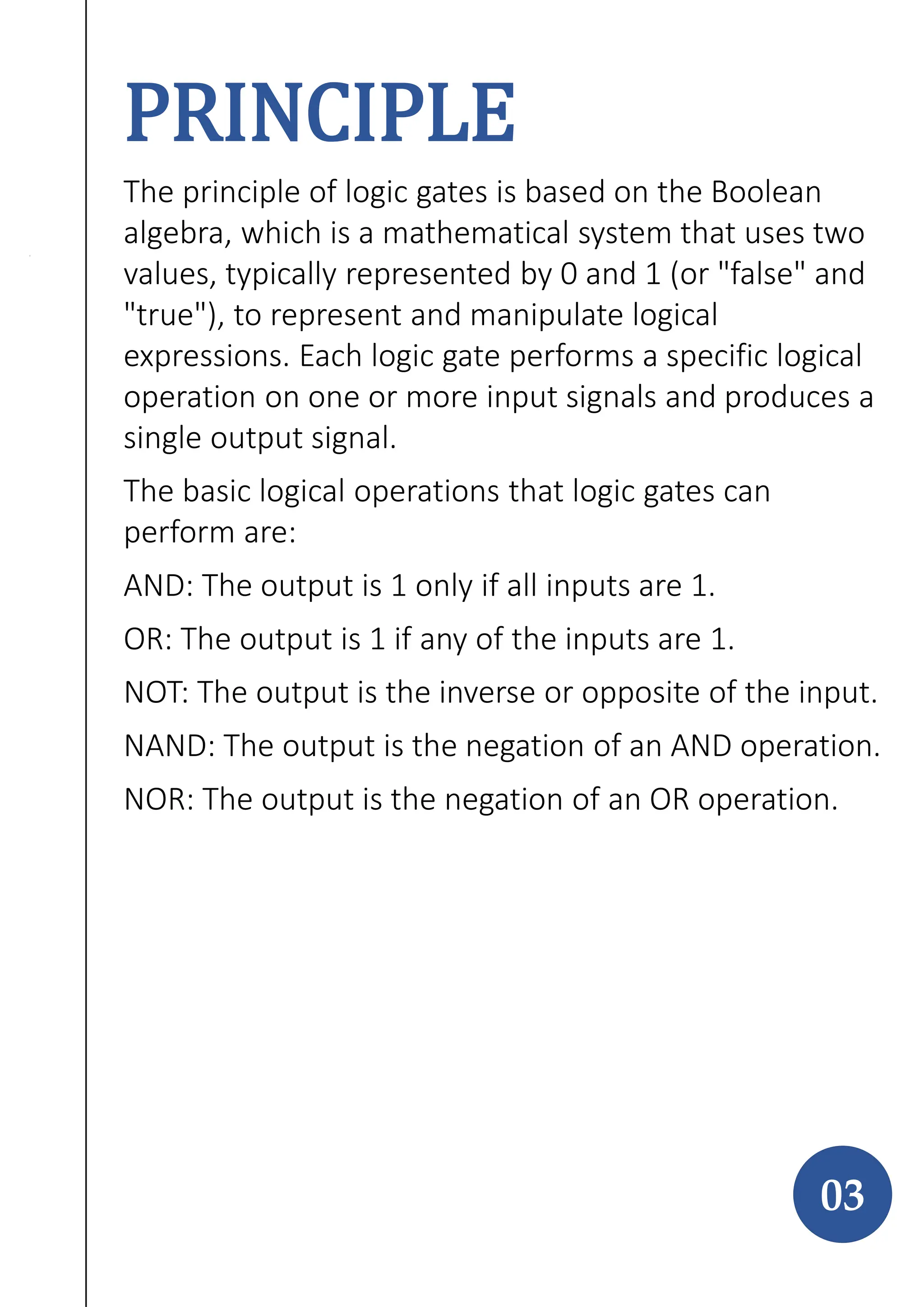

5. PRINCIPLE
The principle of logic gates is based on the Boolean
algebra, which is a mathematical system that uses two
values, typically represented by 0 and 1 (or "false" and
"true"), to represent and manipulate logical
expressions. Each logic gate performs a specific logical
operation on one or more input signals and produces a
single output signal.
The basic logical operations that logic gates can
perform are:
AND: The output is 1 only if all inputs are 1.
OR: The output is 1 if any of the inputs are 1.
NOT: The output is the inverse or opposite of the input.
NAND: The output is the negation of an AND operation.
NOR: The output is the negation of an OR operation.
03

6. USE OF LOGIC GATES
In Computers
1. Arithmetic Operations: Computers use logic gates to
perform arithmetic operations like addition,
subtraction, multiplication, and division on binary data.
These operations are fundamental to all computations.
2. Cache Memory: Logic gates are used in cache
memory, which stores frequently used data and
instructions for rapid access by the CPU.
3. Hard Drives and SSDs: Logic gates control the reading
and writing of data to storage devices, enabling the
storage and retrieval of information from storage
media.
4. Program Execution: Logic gates are used to facilitate
conditional execution and loop control in programming.
They determine whether certain code blocks should be
executed based on conditions.
5. Input/output Controllers: Logic gates are used in
Input/output controllers to manage data transfer
between the CPU and external devices, such as
keyboards, mice, and printers.
6. Binary Encoding: Logic gates are essential for
encoding and decoding binary data, enabling computers
04
to represent and manipulate information using
1s and 0s.

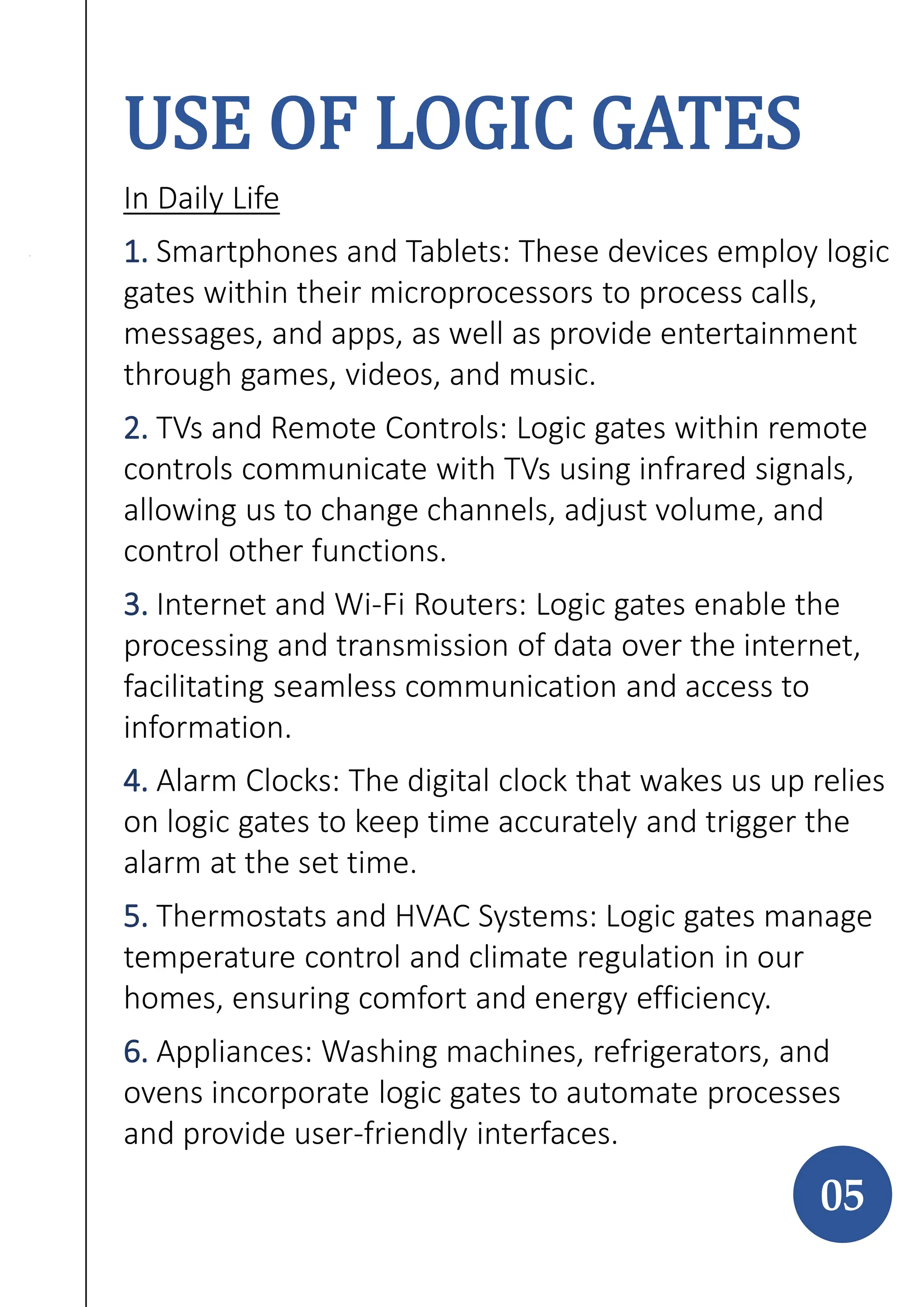

7. USE OF LOGIC GATES
In Daily Life
1. Smartphones and Tablets: These devices employ logic
gates within their microprocessors to process calls,
messages, and apps, as well as provide entertainment
through games, videos, and music.
2. TVs and Remote Controls: Logic gates within remote
controls communicate with TVs using infrared signals,
allowing us to change channels, adjust volume, and
control other functions.
3. Internet and Wi-Fi Routers: Logic gates enable the
processing and transmission of data over the internet,
facilitating seamless communication and access to
information.
4. Alarm Clocks: The digital clock that wakes us up relies
on logic gates to keep time accurately and trigger the
alarm at the set time.
5. Thermostats and HVAC Systems: Logic gates manage
temperature control and climate regulation in our
homes, ensuring comfort and energy efficiency.
6. Appliances: Washing machines, refrigerators, and
ovens incorporate logic gates to automate processes
and provide user-friendly interfaces.
05

8. USE OF LOGIC GATES
7. Security Systems: Logic gates help create complex
security systems that monitor doors, windows, and
motion sensors, triggering alarms if unauthorized
access is detected.
8. LED Lights: Logic gates are used in LED lighting
systems, controlling their brightness levels and color
changes.
9. Microwaves and Ovens: Logic gates are integral to
controlling cooking times, temperatures, and other
settings in kitchen appliances.
10. Gaming and Entertainment: Logic gates are integral
to the operation of gaming consoles, controllers, and
other entertainment devices, providing seamless
interaction and immersive experiences. Logic gates
form the basis of video game programming, controlling
characters' actions, scenarios, and interactions
In Medicine and Healthcare: Logic gates are present in
medical equipment like heart rate monitors, blood
pressure monitors, and glucose meters, aiding in
patient care and diagnostics. They are crucial in
managing and securing electronic health records,
ensuring patient privacy and accurate data storage.
06

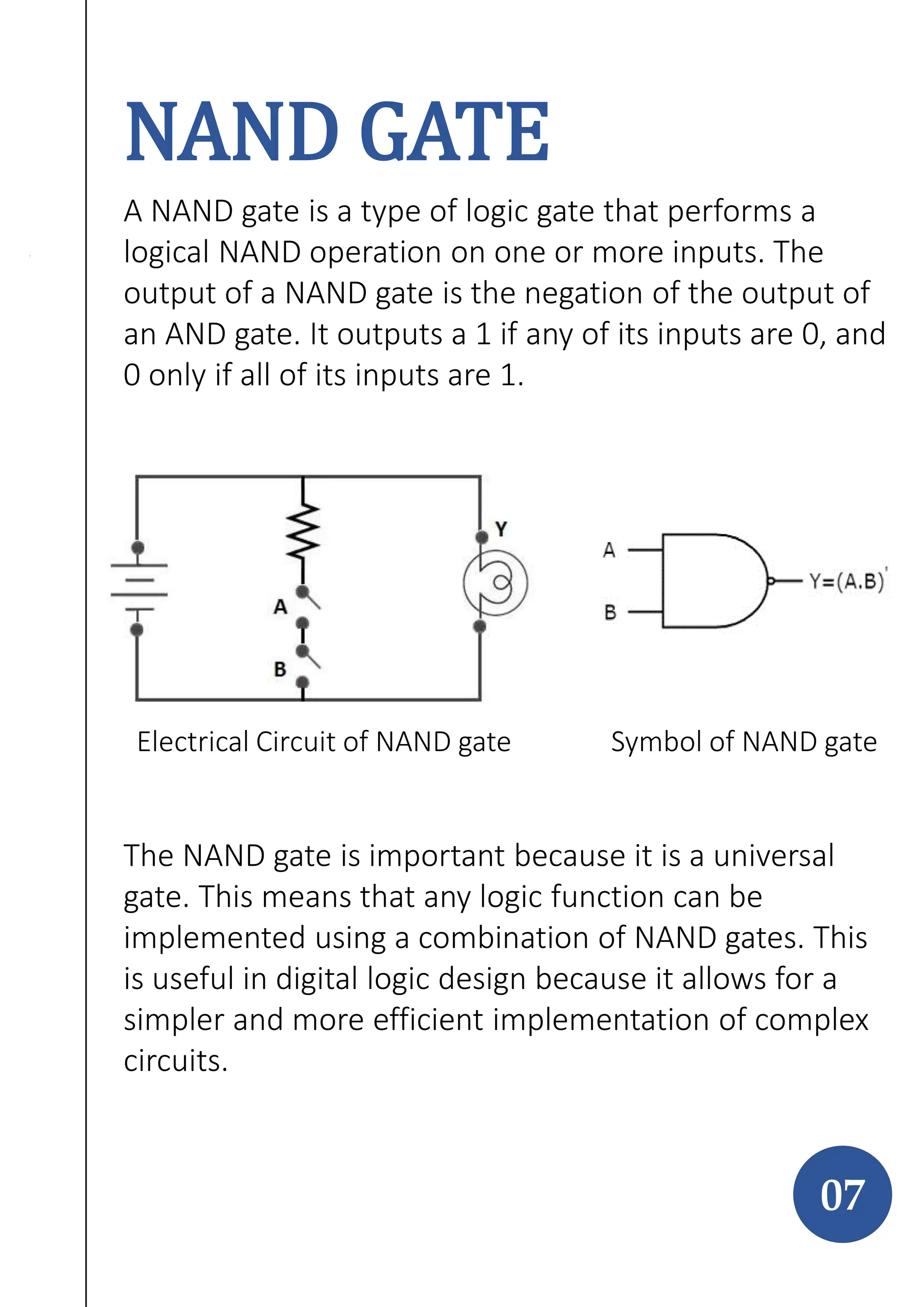

9. NAND GATE
A NAND gate is a type of logic gate that performs a
logical NAND operation on one or more inputs. The
output of a NAND gate is the negation of the output of
an AND gate. It outputs a 1 if any of its inputs are 0, and
0 only if all of its inputs are 1.
The NAND gate is important because it is a universal
gate. This means that any logic function can be
implemented using a combination of NAND gates. This
is useful in digital logic design because it allows for a
simpler and more efficient implementation of complex
circuits.
07
Electrical Circuit of NAND gate Symbol of NAND gate

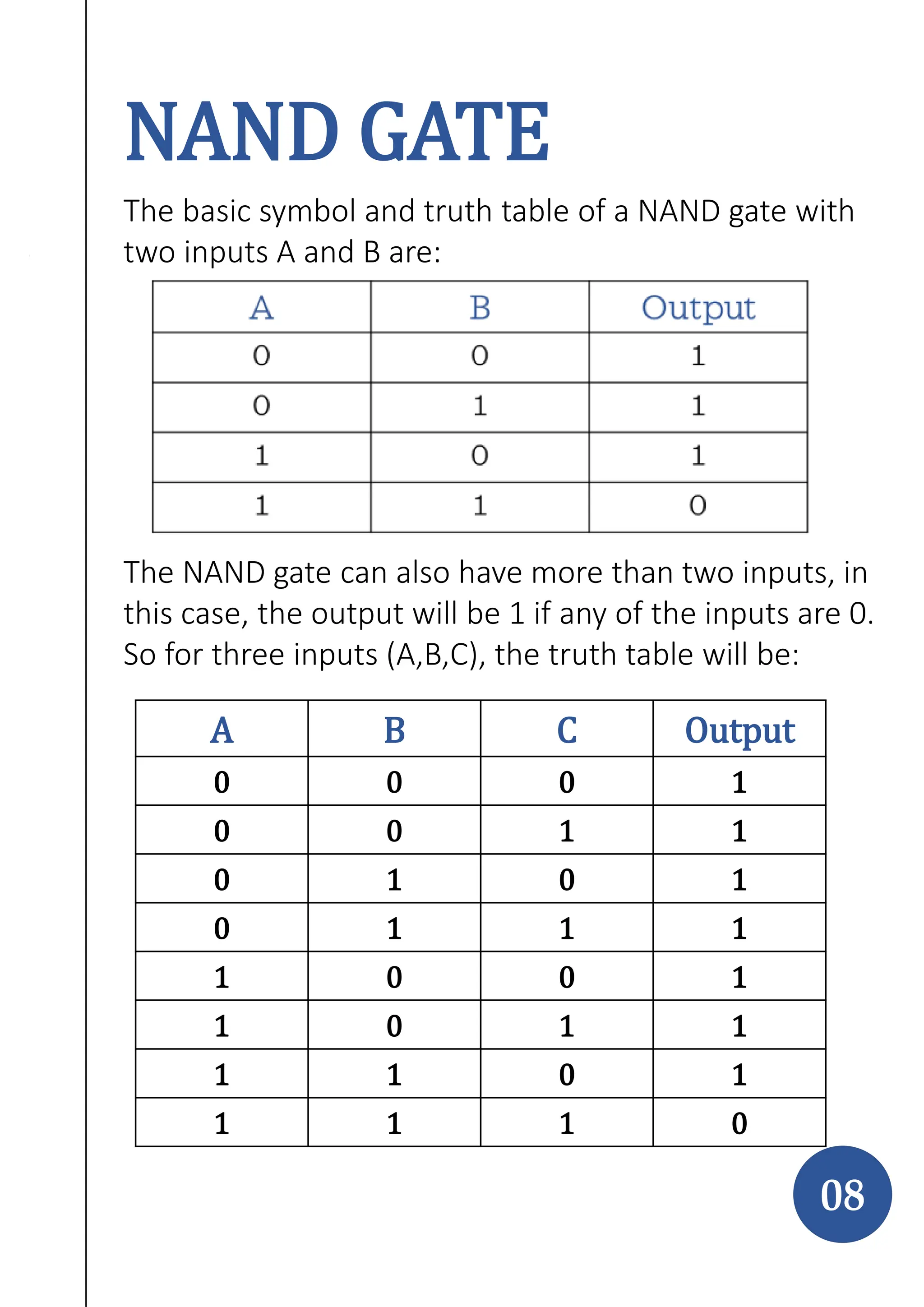

10. NAND GATE
The basic symbol and truth table of a NAND gate with
two inputs A and B are:
The NAND gate can also have more than two inputs, in
this case, the output will be 1 if any of the inputs are 0.
So for three inputs (A,B,C), the truth table will be:
08
A B C Output
0 0 0 1
0 0 1 1
0 1 0 1
0 1 1 1
1 0 0 1
1 0 1 1
1 1 0 1
1 1 1 0

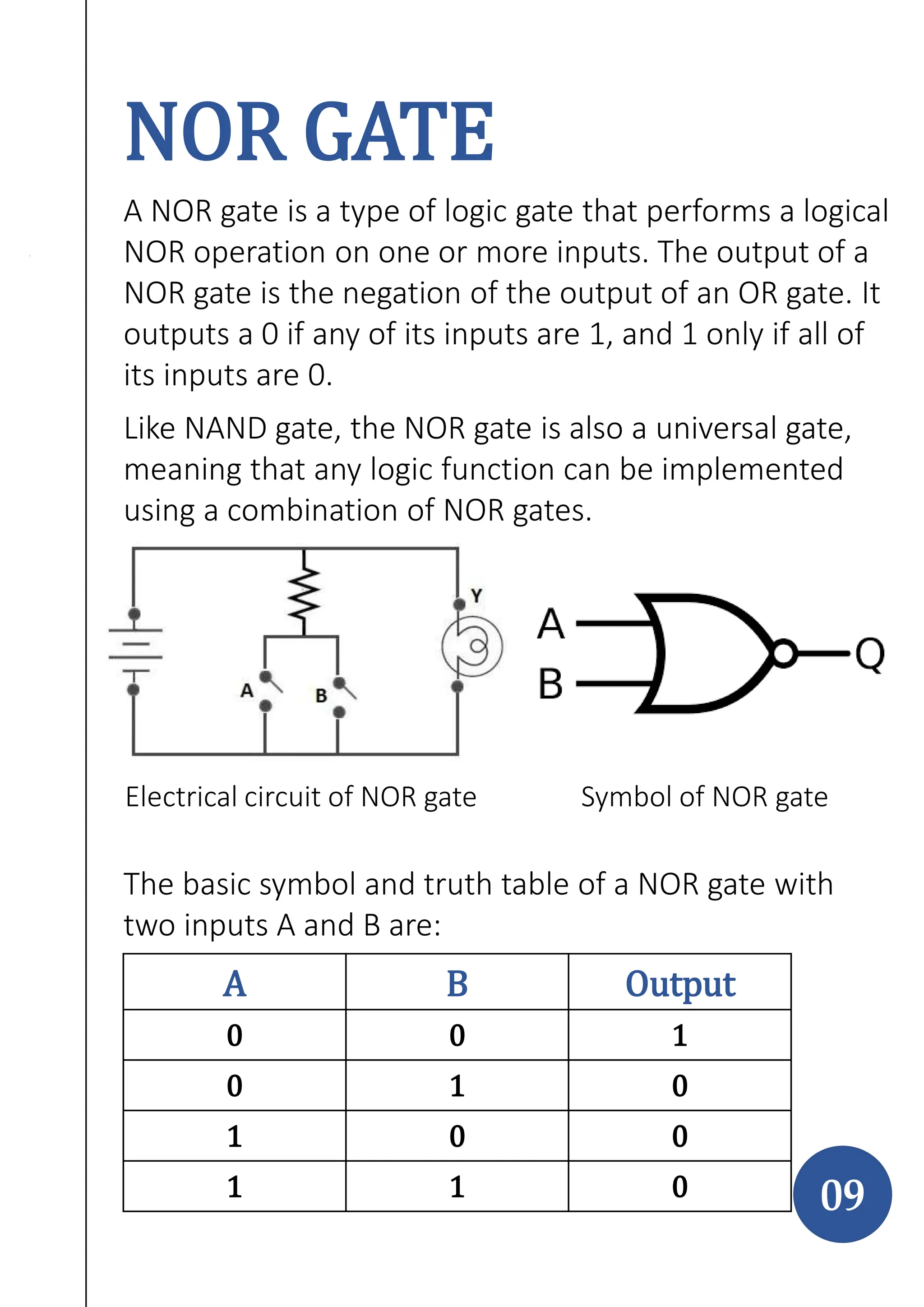

11. NOR GATE
A NOR gate is a type of logic gate that performs a logical
NOR operation on one or more inputs. The output of a
NOR gate is the negation of the output of an OR gate. It
outputs a 0 if any of its inputs are 1, and 1 only if all of
its inputs are 0.
Like NAND gate, the NOR gate is also a universal gate,
meaning that any logic function can be implemented
using a combination of NOR gates.
The basic symbol and truth table of a NOR gate with
two inputs A and B are:
09
A B Output
0 0 1
0 1 0
1 0 0
1 1 0
Electrical circuit of NOR gate Symbol of NOR gate

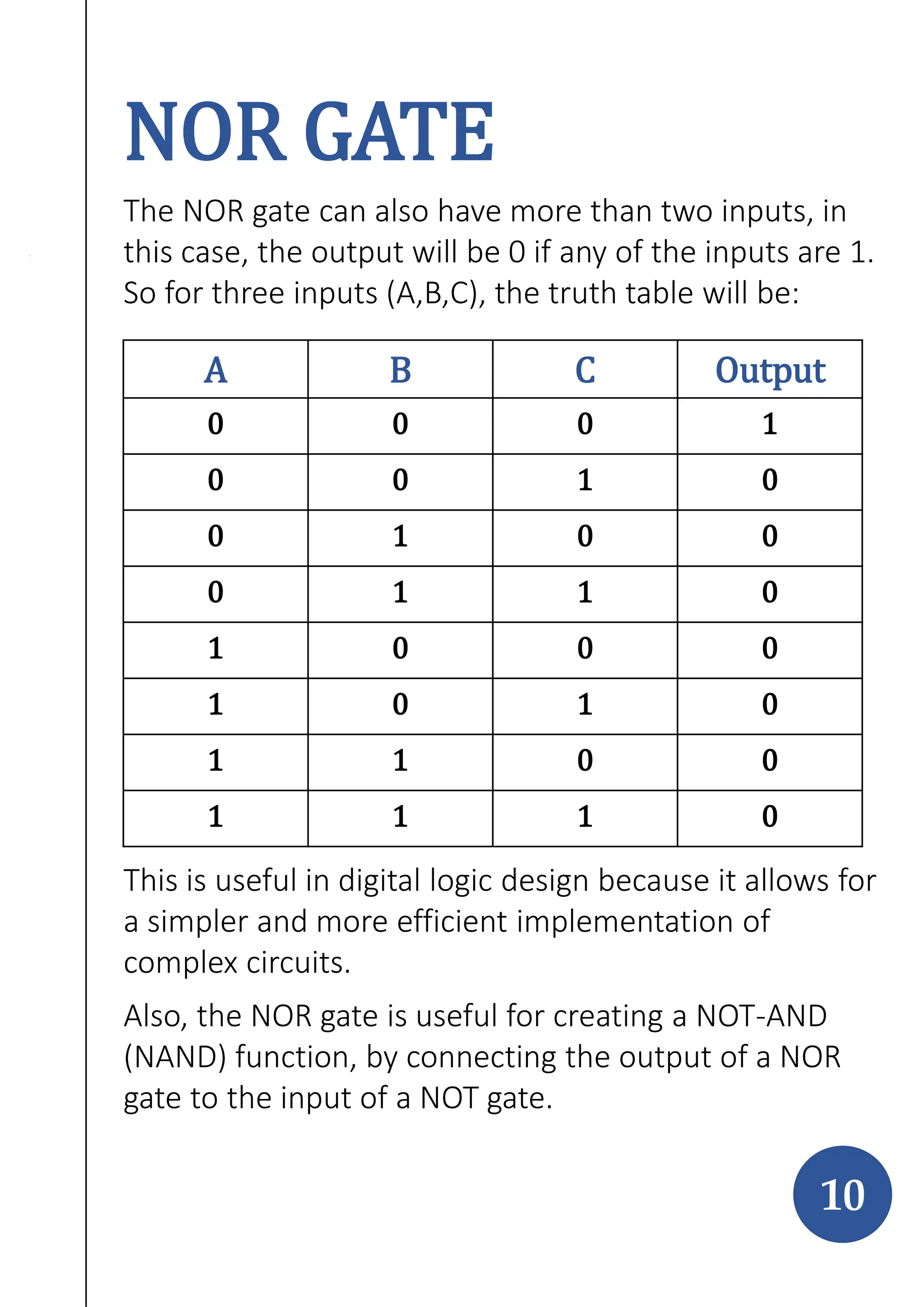

12. NOR GATE
The NOR gate can also have more than two inputs, in
this case, the output will be 0 if any of the inputs are 1.
So for three inputs (A,B,C), the truth table will be:
This is useful in digital logic design because it allows for
a simpler and more efficient implementation of
complex circuits.
Also, the NOR gate is useful for creating a NOT-AND
(NAND) function, by connecting the output of a NOR
gate to the input of a NOT gate.
10
A B C Output
0 0 0 1
0 0 1 0
0 1 0 0
0 1 1 0
1 0 0 0
1 0 1 0
1 1 0 0
1 1 1 0

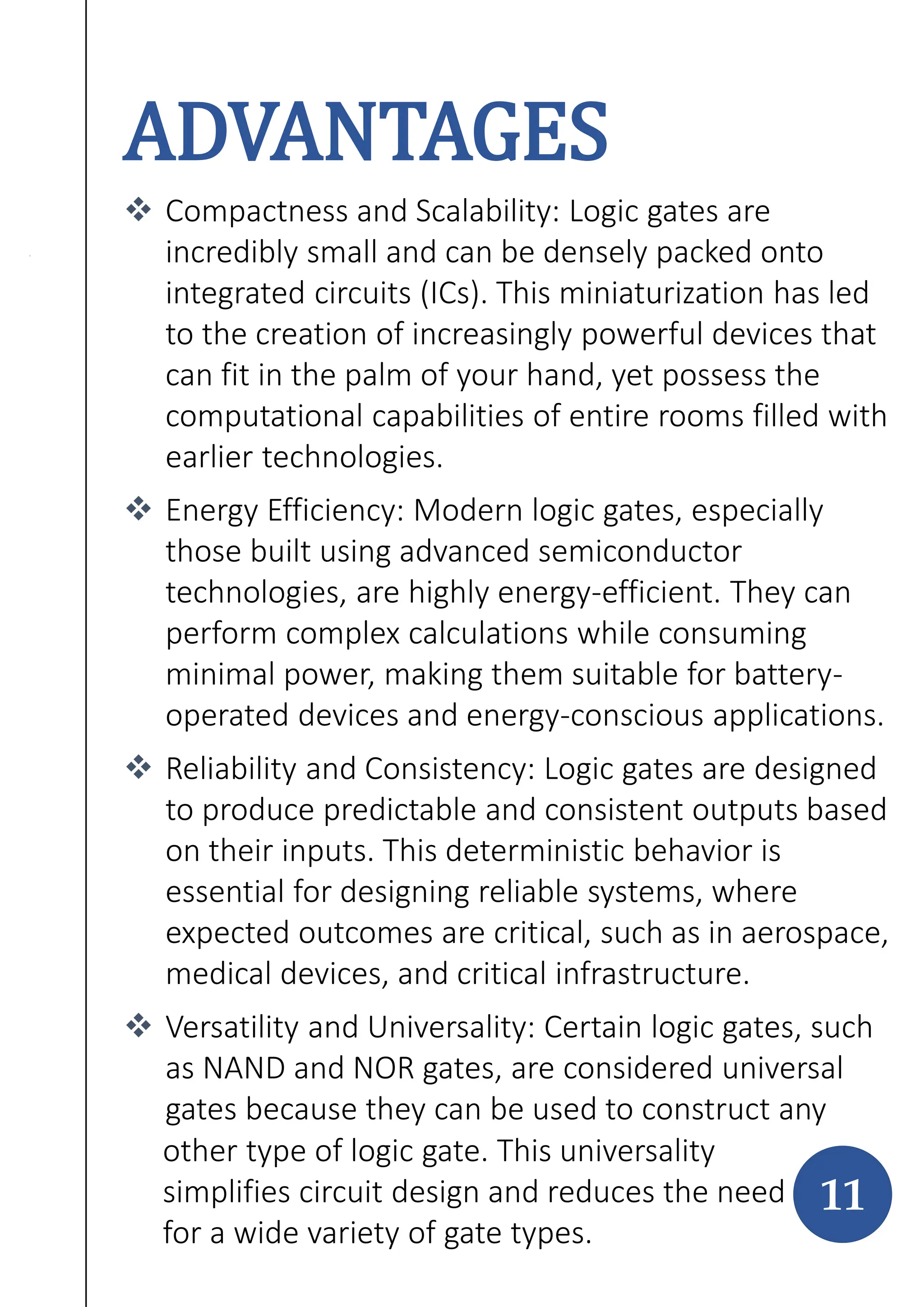

13. ADVANTAGES
 Compactness and Scalability: Logic gates are
incredibly small and can be densely packed onto
integrated circuits (ICs). This miniaturization has led
to the creation of increasingly powerful devices that
can fit in the palm of your hand, yet possess the
computational capabilities of entire rooms filled with
earlier technologies.
 Energy Efficiency: Modern logic gates, especially
those built using advanced semiconductor
technologies, are highly energy-efficient. They can
perform complex calculations while consuming
minimal power, making them suitable for battery-
operated devices and energy-conscious applications.
 Reliability and Consistency: Logic gates are designed
to produce predictable and consistent outputs based
on their inputs. This deterministic behavior is
essential for designing reliable systems, where
expected outcomes are critical, such as in aerospace,
medical devices, and critical infrastructure.
 Versatility and Universality: Certain logic gates, such
as NAND and NOR gates, are considered universal
gates because they can be used to construct any
11
other type of logic gate. This universality
simplifies circuit design and reduces the need
for a wide variety of gate types.

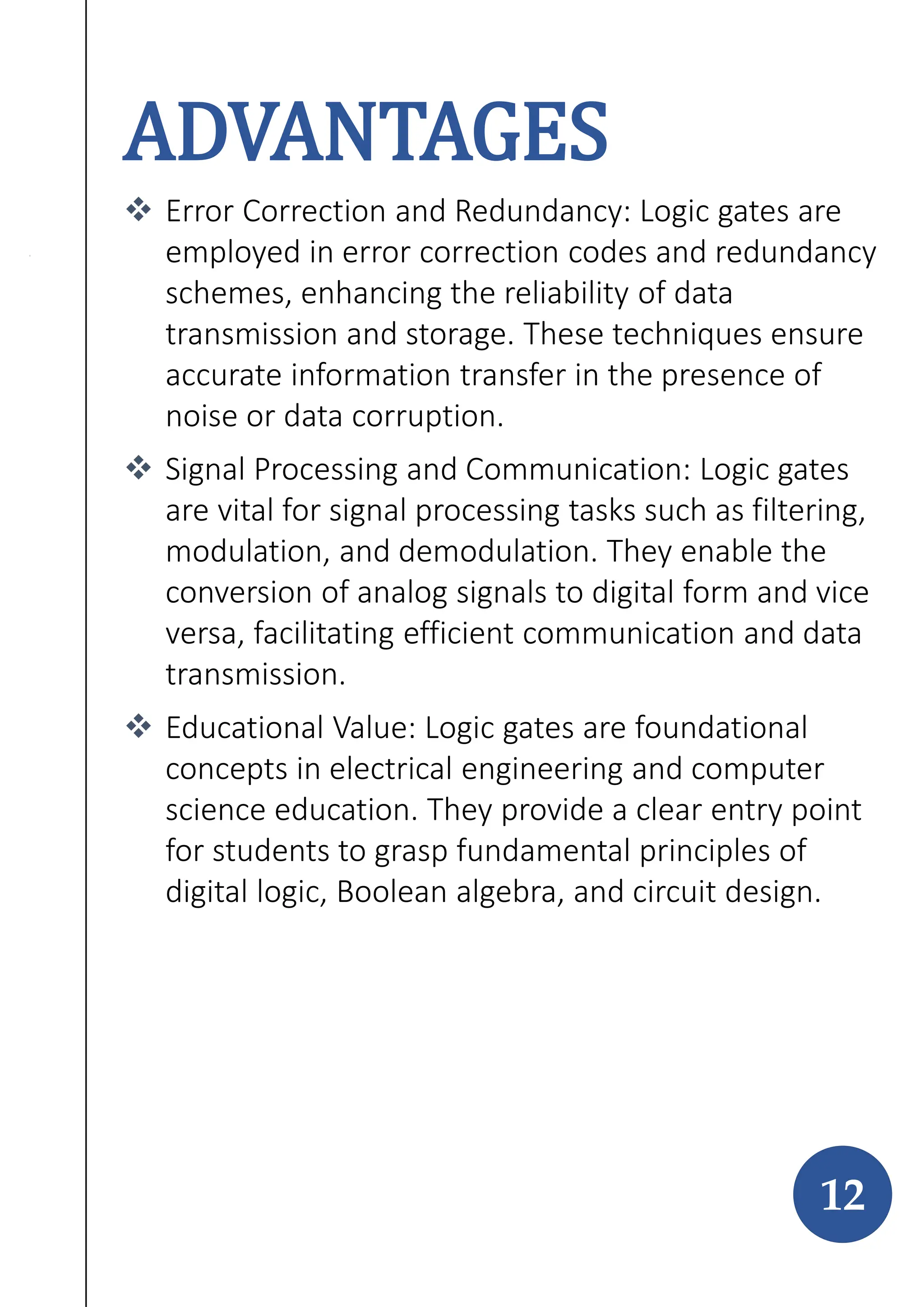

14. ADVANTAGES
 Error Correction and Redundancy: Logic gates are
employed in error correction codes and redundancy
schemes, enhancing the reliability of data
transmission and storage. These techniques ensure
accurate information transfer in the presence of
noise or data corruption.
 Signal Processing and Communication: Logic gates
are vital for signal processing tasks such as filtering,
modulation, and demodulation. They enable the
conversion of analog signals to digital form and vice
versa, facilitating efficient communication and data
transmission.
 Educational Value: Logic gates are foundational
concepts in electrical engineering and computer
science education. They provide a clear entry point
for students to grasp fundamental principles of
digital logic, Boolean algebra, and circuit design.
12

15. FUTURE OF LOGIC
GATES
As technology continues to advance, logic gates evolve as
well. The development of more energy-efficient,
miniaturized, and faster logic gates has driven the progression
of computing power. Potential future of logic gates could
include life changing technologies like:
1. Reversible computing: This is a concept that involves
performing computations without losing information, that is,
in such a way that the computation could always be reversed
to recover its earlier state. Reversible computing could offer
dramatic improvements in energy efficiency, as it would avoid
the generation of heat associated with irreversible logic
gates.
2. Lightwave electronics: This is a concept that involves using
laser light to guide the motion of electrons in matter, and
then using this control to develop electronic circuit elements.
Lightwave electronics could enable information processing at
the petahertz limit, where one quadrillion computational
operations can be processed per second. That is almost a
million times faster than today’s computers operating with
gigahertz clock rates.
3. Optical logic gates: This is a concept that involves using
light instead of electricity to perform logical operations.
Optical logic gates could offer advantages such as high speed,
low power consumption, parallel processing, and integration
with optical communication systems.
13

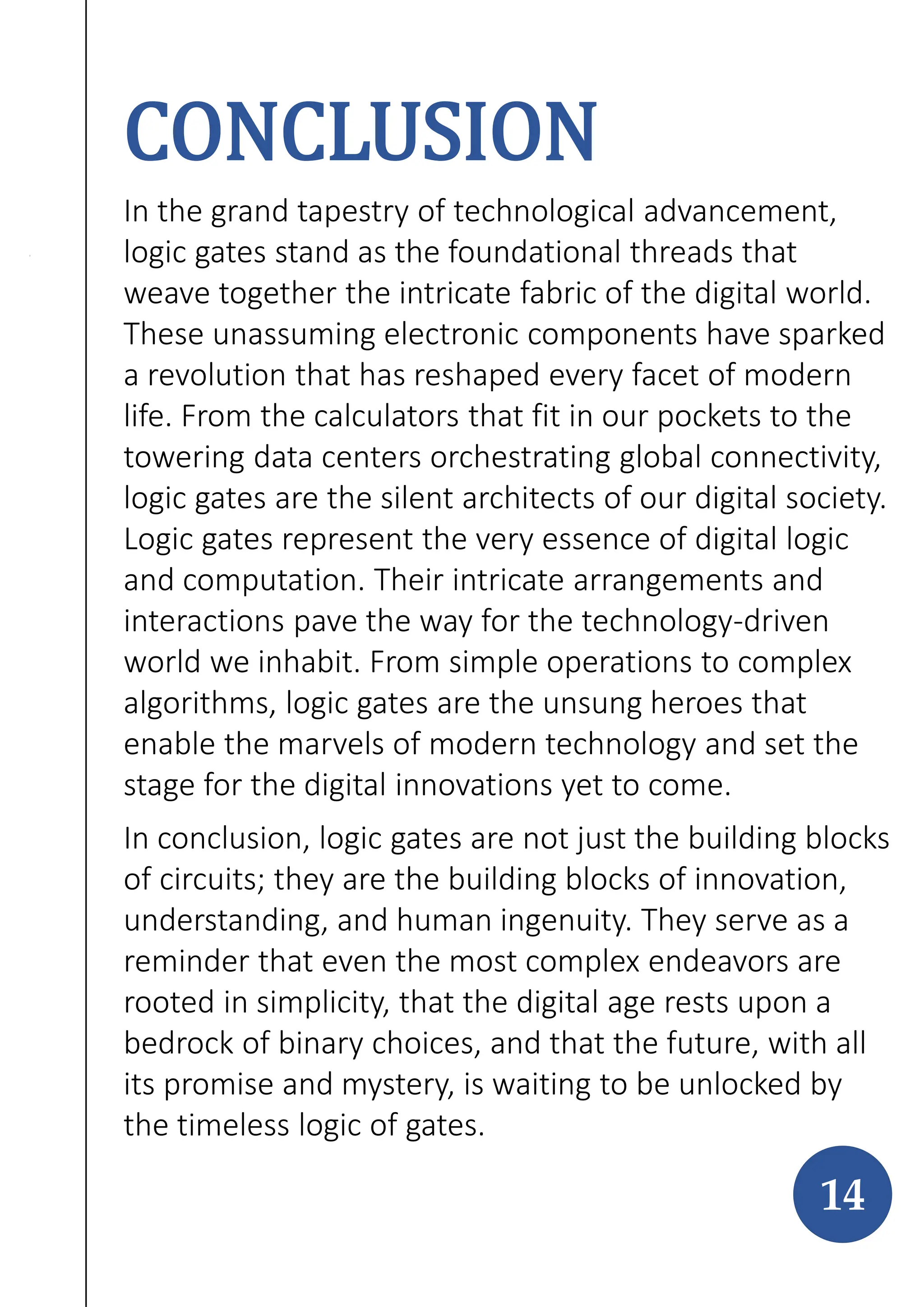

16. CONCLUSION
In the grand tapestry of technological advancement,
logic gates stand as the foundational threads that
weave together the intricate fabric of the digital world.
These unassuming electronic components have sparked
a revolution that has reshaped every facet of modern
life. From the calculators that fit in our pockets to the
towering data centers orchestrating global connectivity,
logic gates are the silent architects of our digital society.
Logic gates represent the very essence of digital logic
and computation. Their intricate arrangements and
interactions pave the way for the technology-driven
world we inhabit. From simple operations to complex
algorithms, logic gates are the unsung heroes that
enable the marvels of modern technology and set the
stage for the digital innovations yet to come.
In conclusion, logic gates are not just the building blocks
of circuits; they are the building blocks of innovation,
understanding, and human ingenuity. They serve as a
reminder that even the most complex endeavors are
rooted in simplicity, that the digital age rests upon a
bedrock of binary choices, and that the future, with all
its promise and mystery, is waiting to be unlocked by
the timeless logic of gates.
14

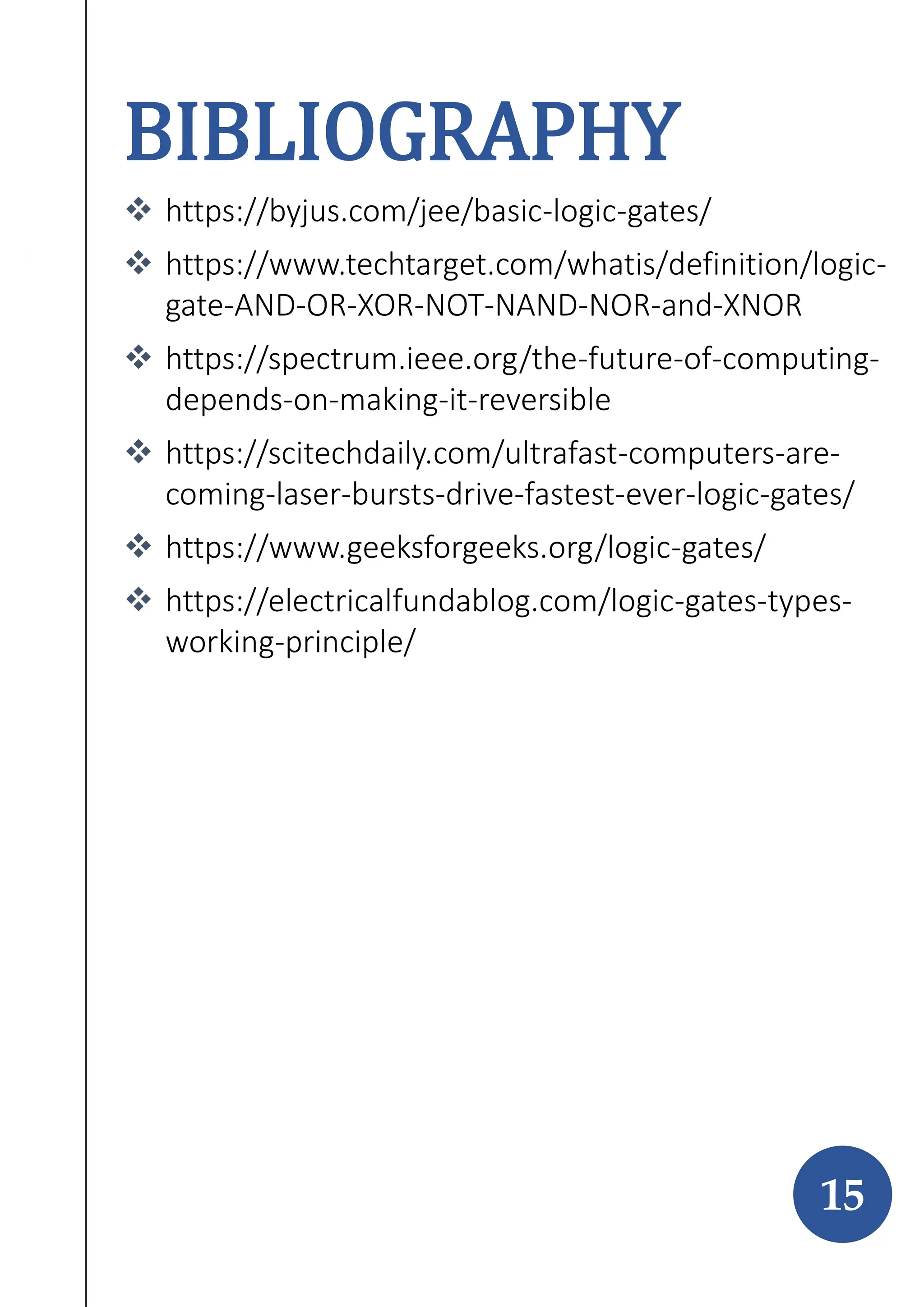

17. BIBLIOGRAPHY
 https://byjus.com/jee/basic-logic-gates/
 https://www.techtarget.com/whatis/definition/logic-
gate-AND-OR-XOR-NOT-NAND-NOR-and-XNOR
 https://spectrum.ieee.org/the-future-of-computing-
depends-on-making-it-reversible
 https://scitechdaily.com/ultrafast-computers-are-
coming-laser-bursts-drive-fastest-ever-logic-gates/
 https://www.geeksforgeeks.org/logic-gates/
 https://electricalfundablog.com/logic-gates-types-
working-principle/
15
