The document discusses how to use a 7408 AND logic gate including connecting power (VCC and GND), an LED output, and two inputs. It emphasizes carefully inserting the logic gate into a breadboard. It also provides a truth table for a 7408 AND gate and recommends downloading simulation software to design logic circuits virtually before building physically.

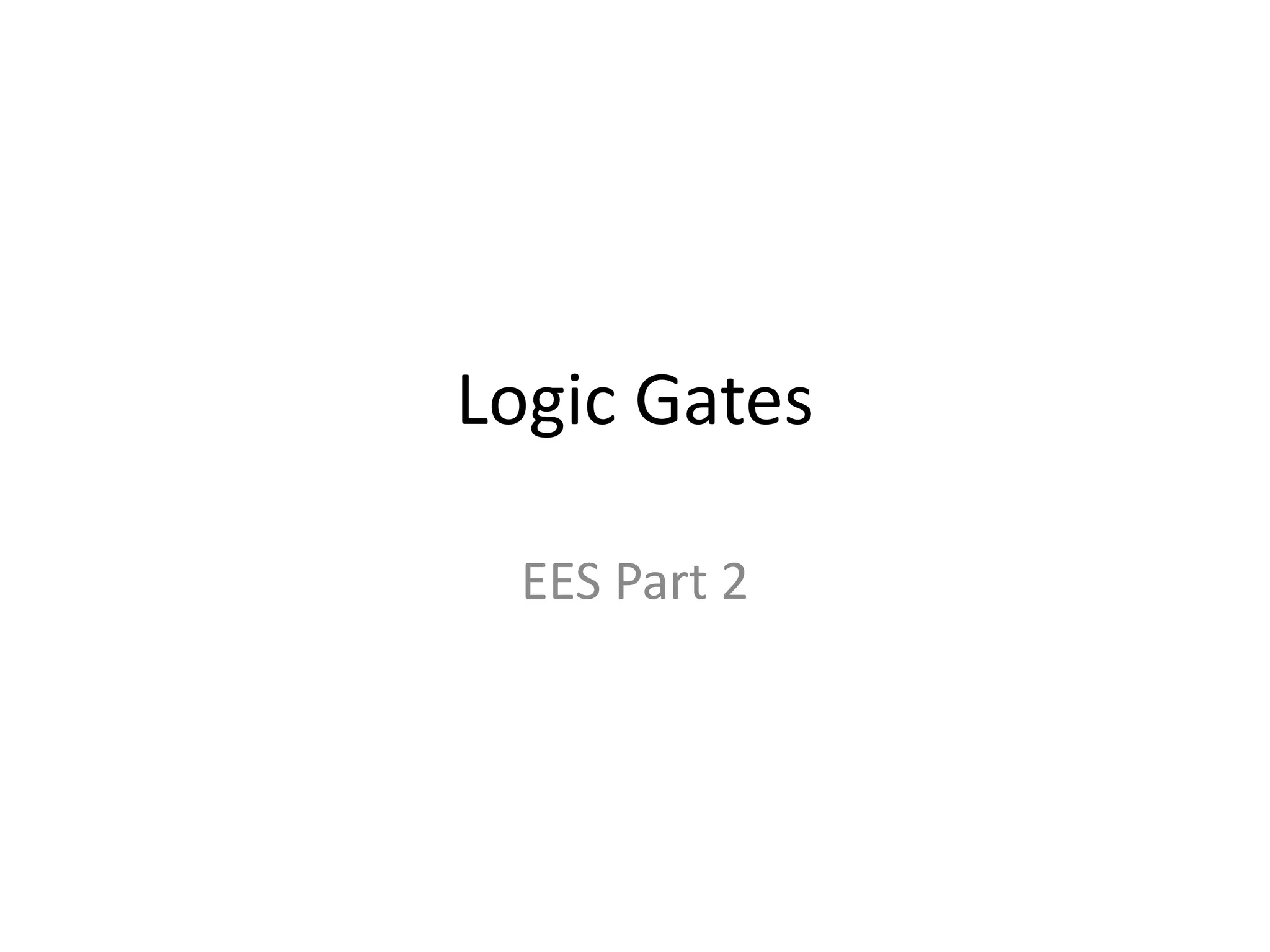

1. Logic Gates
EES Part 2

2. UNDERSTAND THE 7408 LOGIC
GATE AND ITS CONNECTIONS

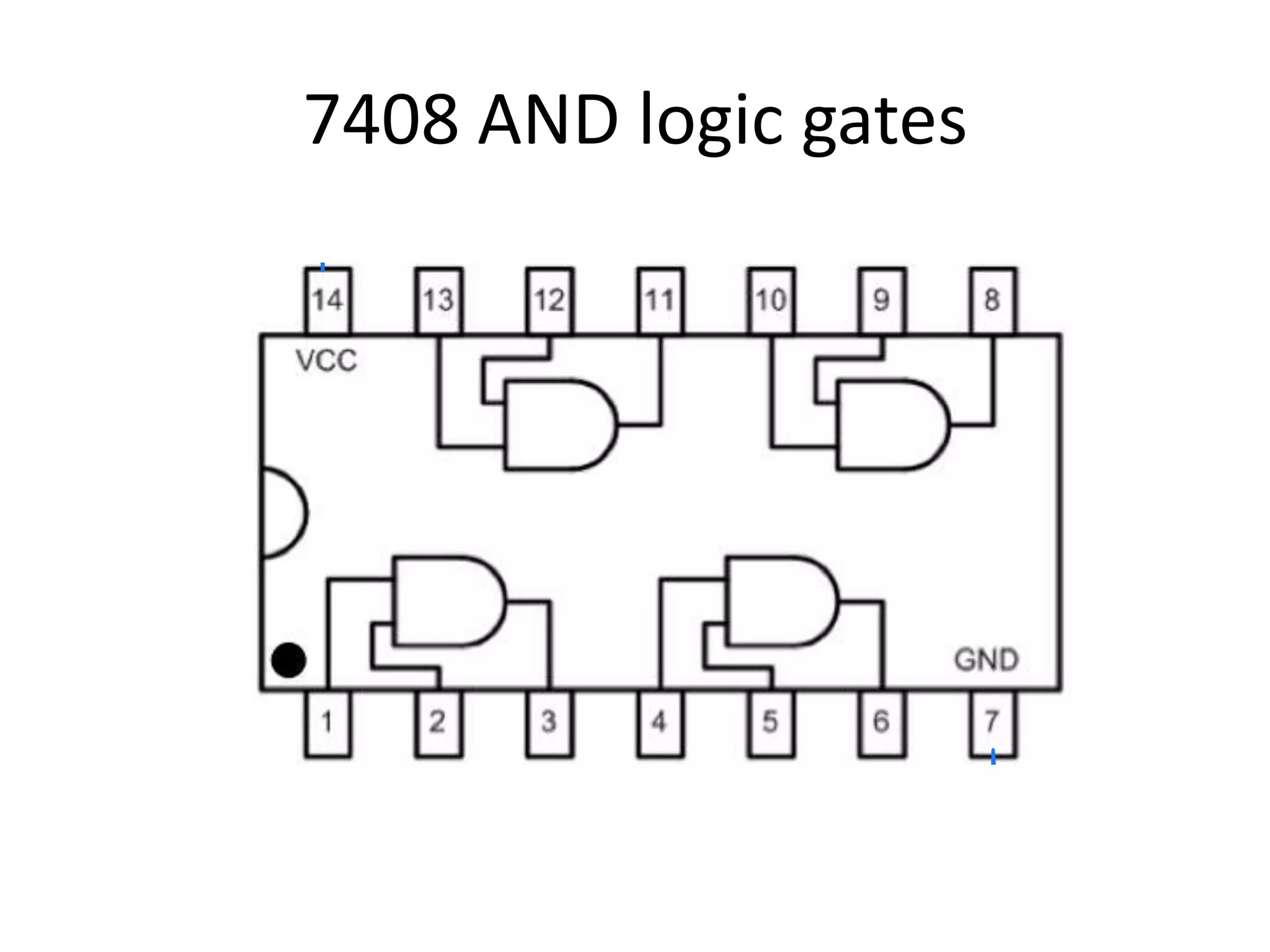

3. 7408 AND logic gates

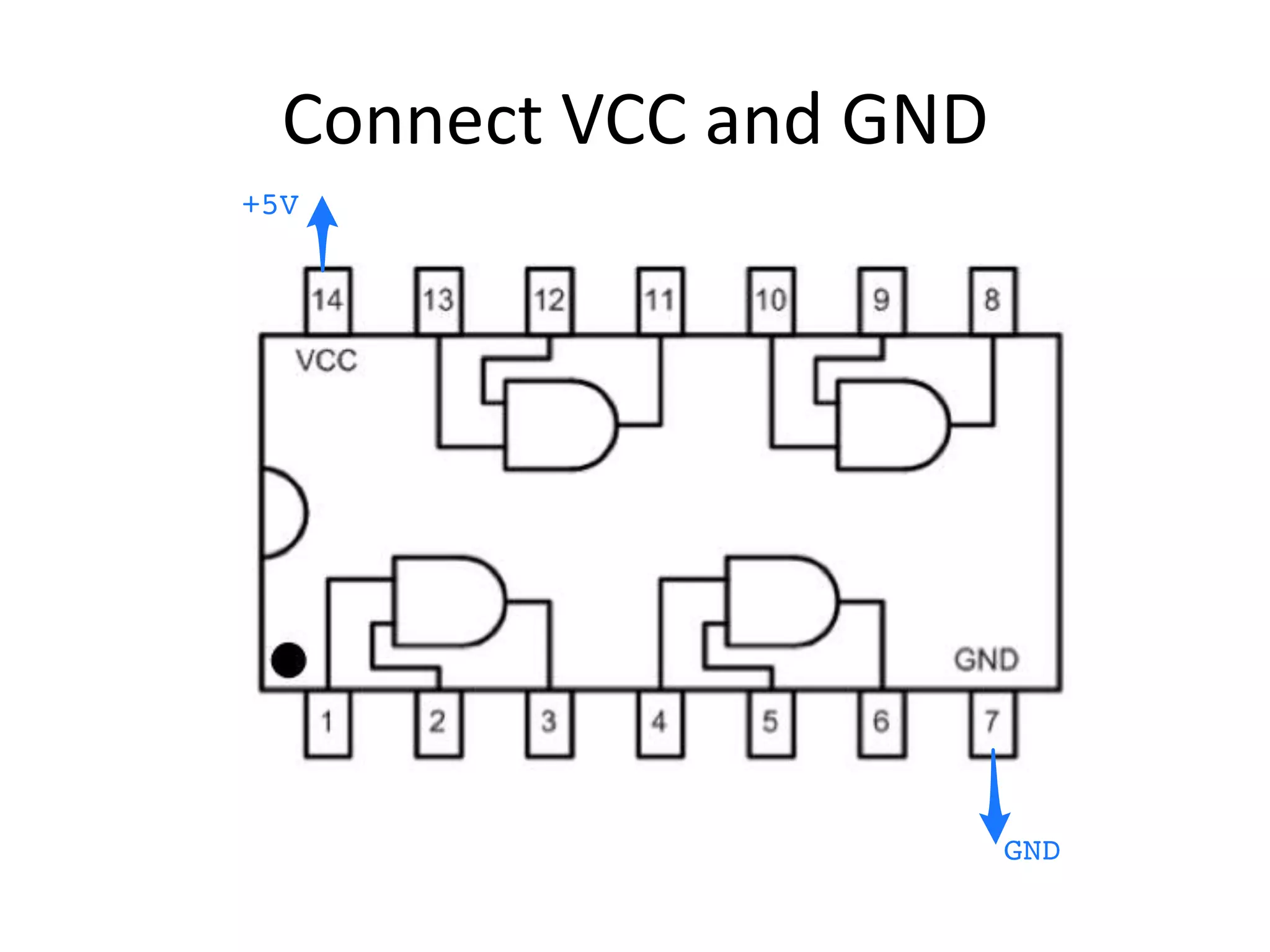

4. Connect VCC and GND

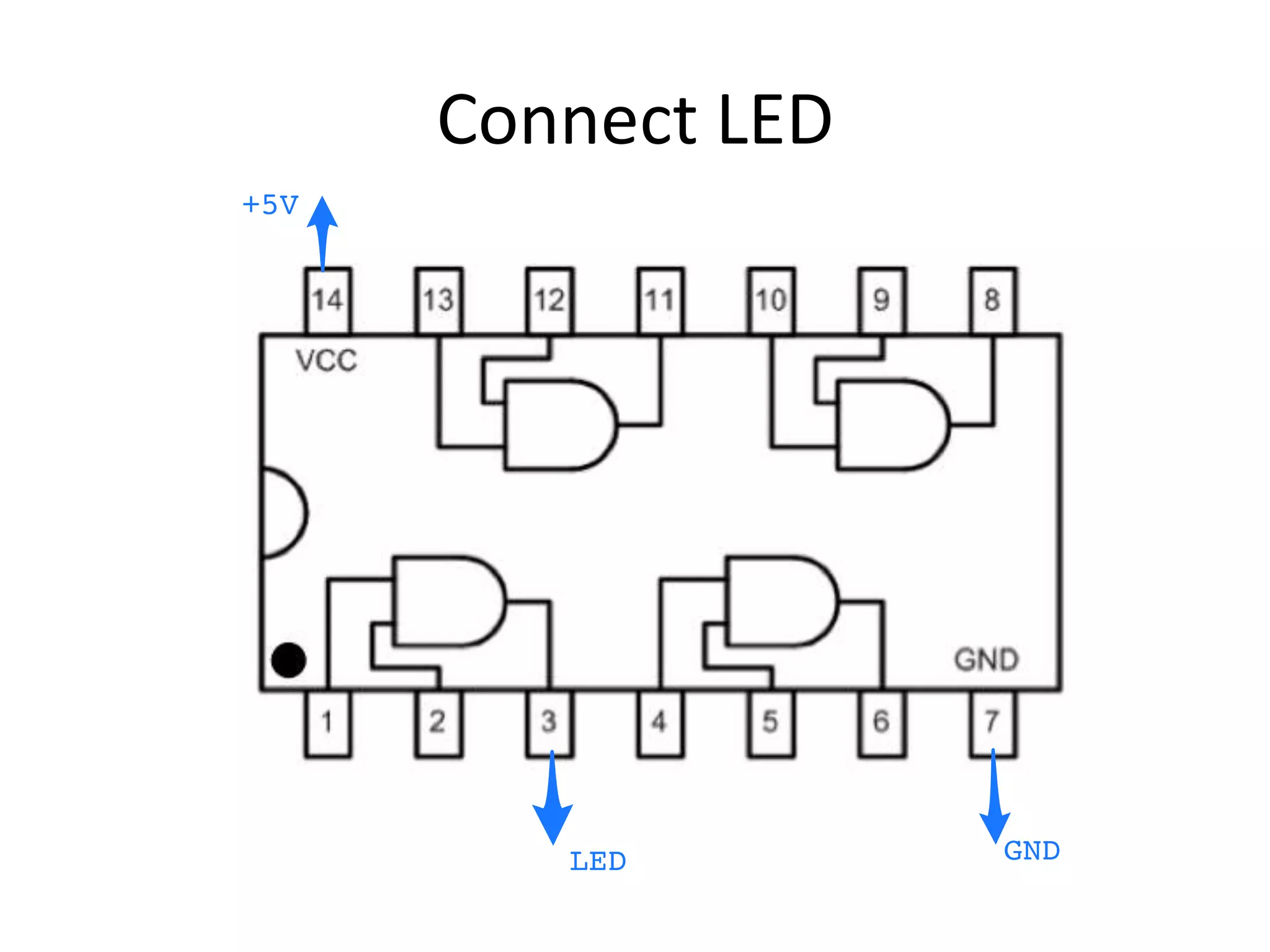

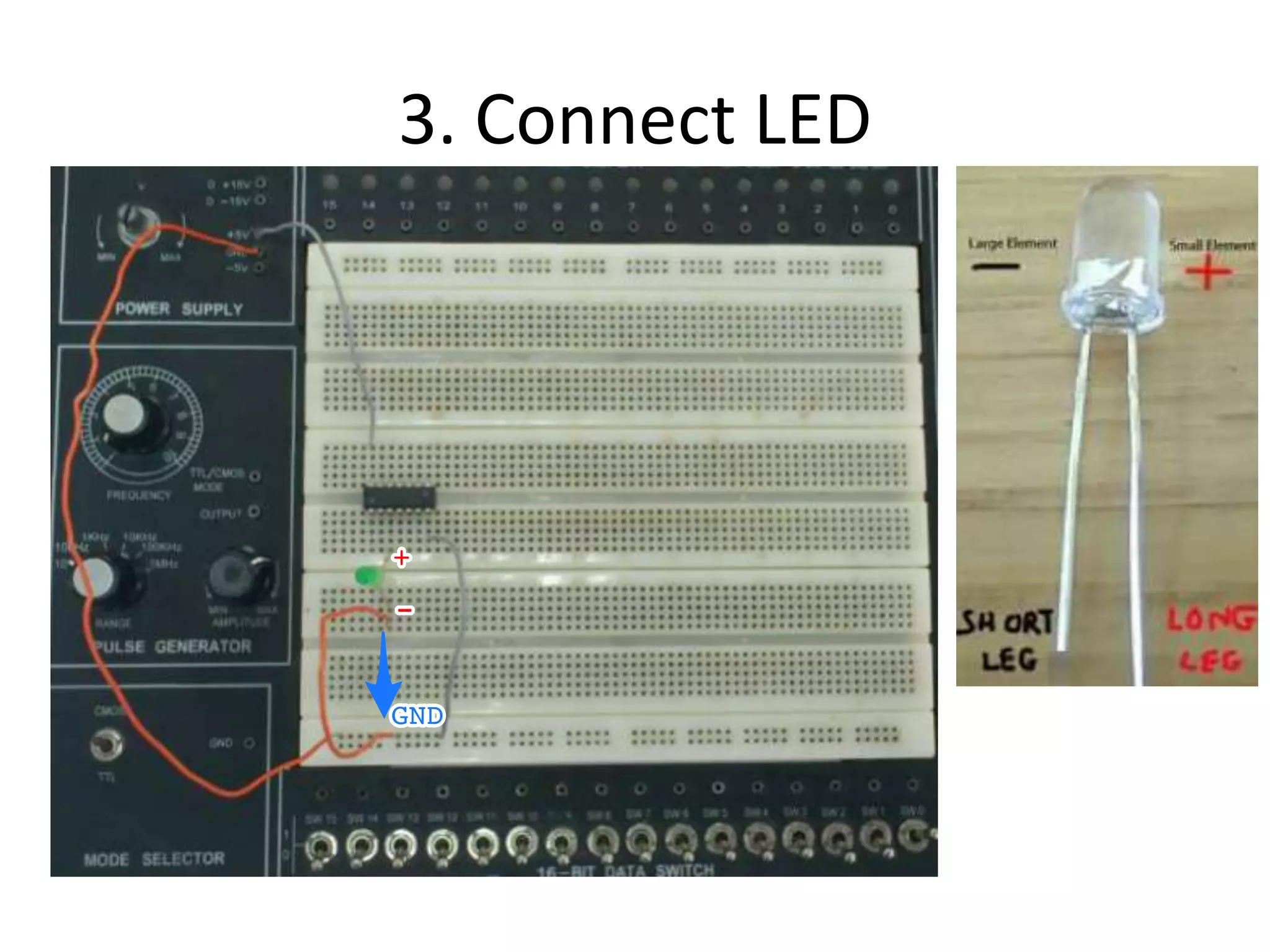

5. Connect LED

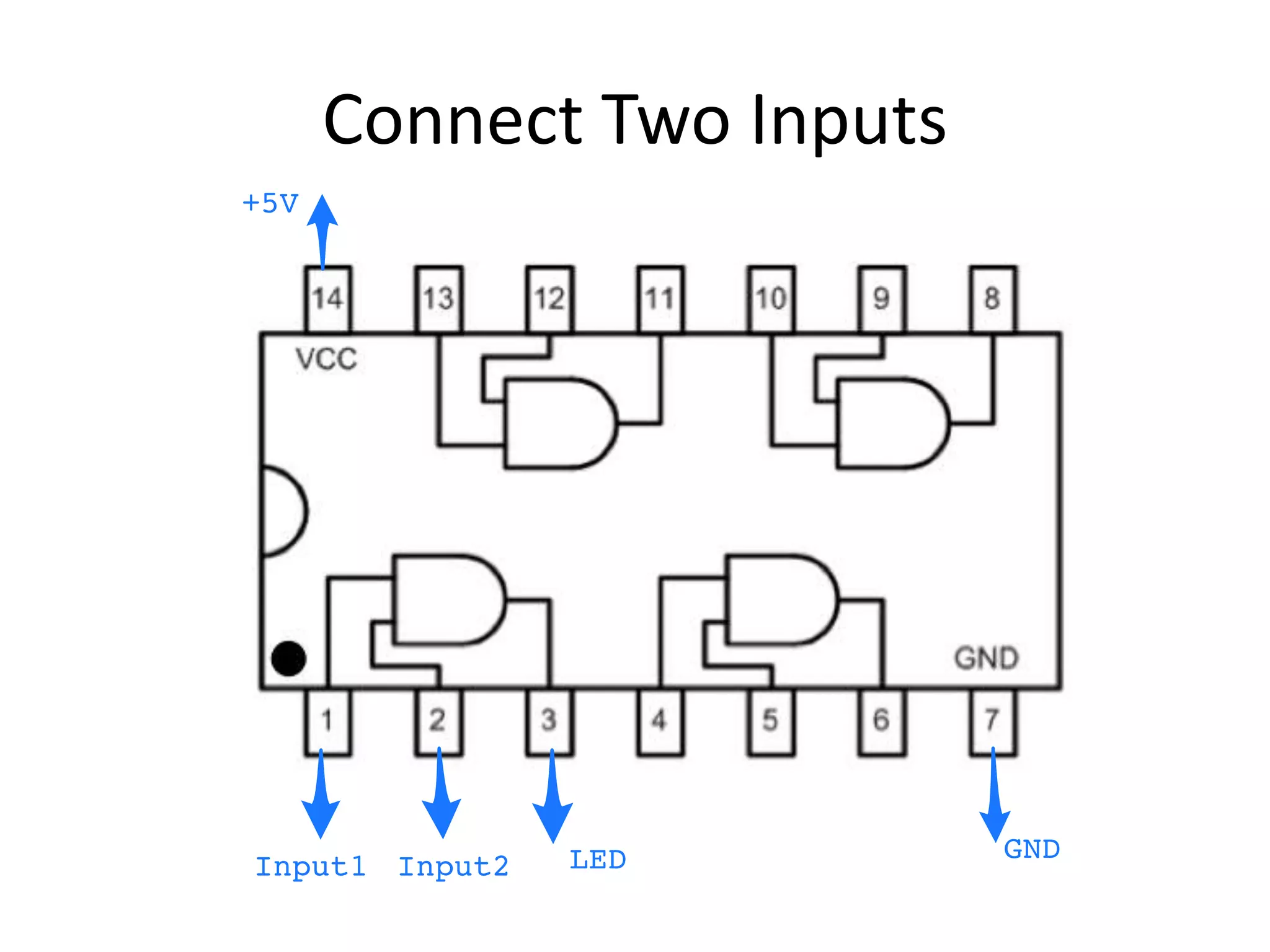

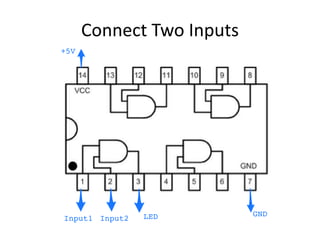

6. Connect Two Inputs

7. UNDERSTAND THE PHYSICAL
CONNECTIONS

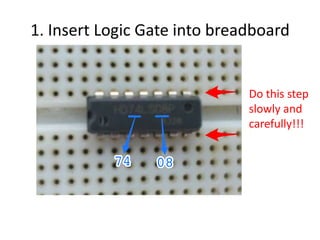

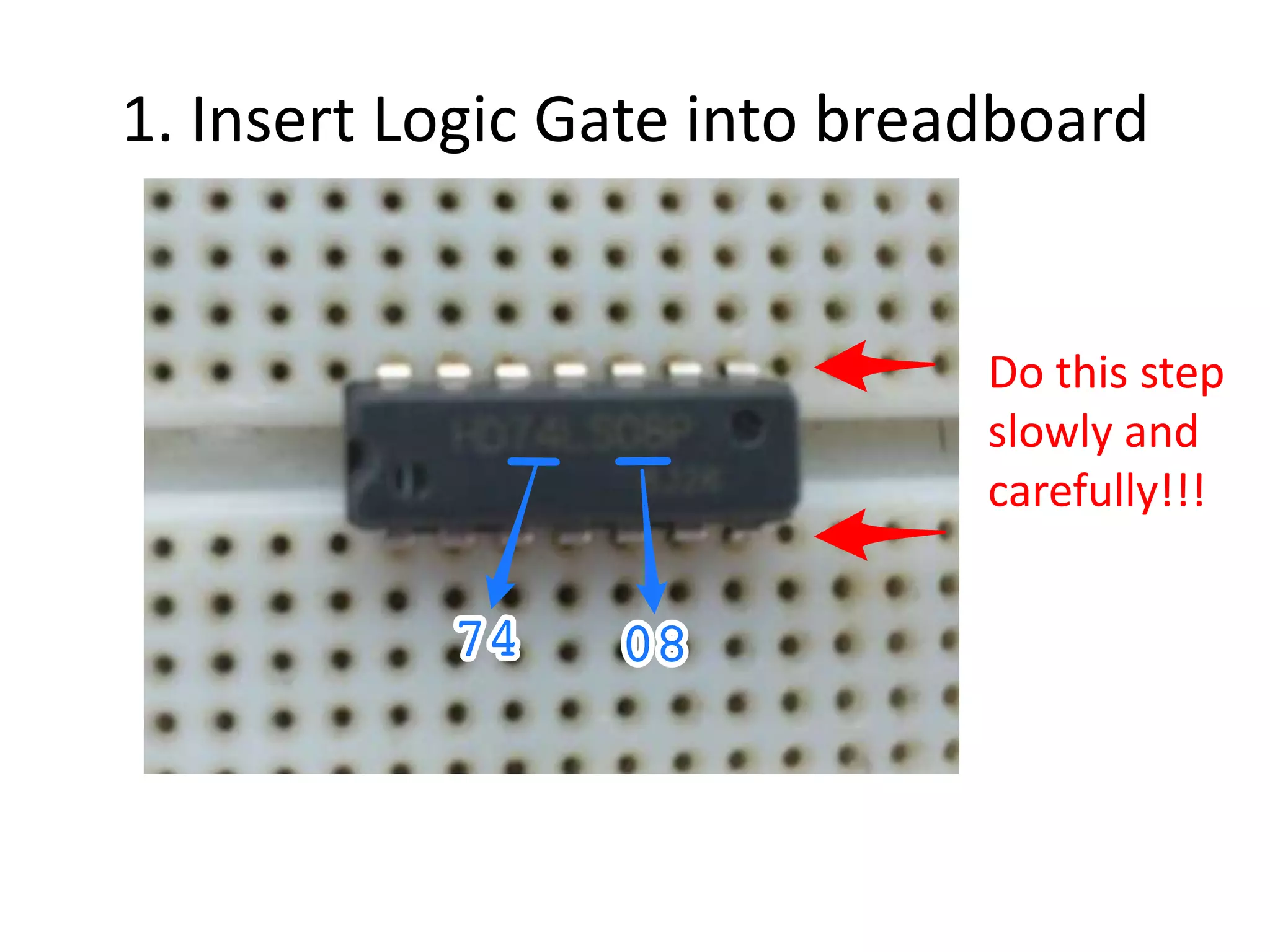

8. 1. Insert Logic Gate into breadboard
Do this step
slowly and
carefully!!!

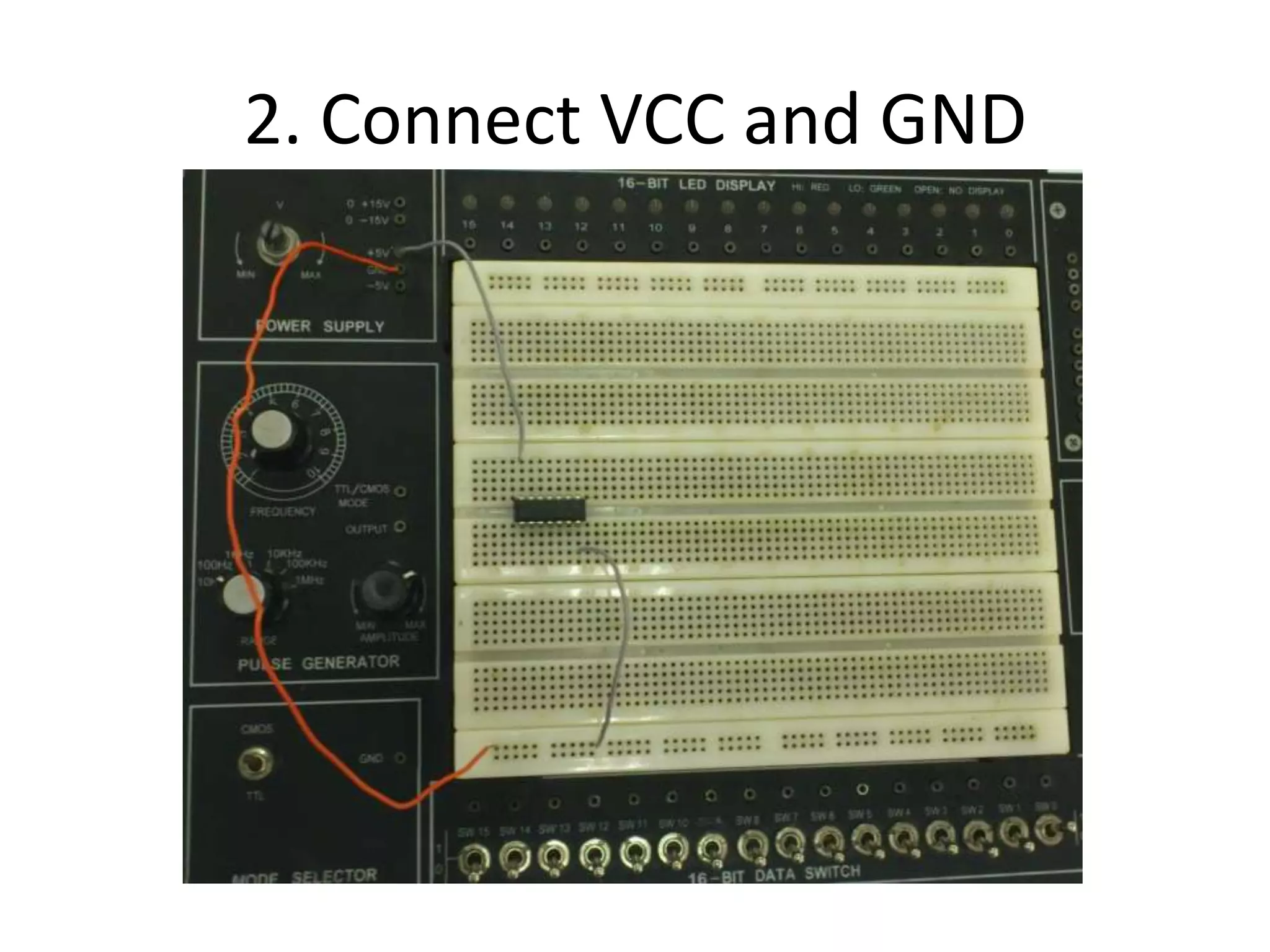

9. 2. Connect VCC and GND

10. 3. Connect LED

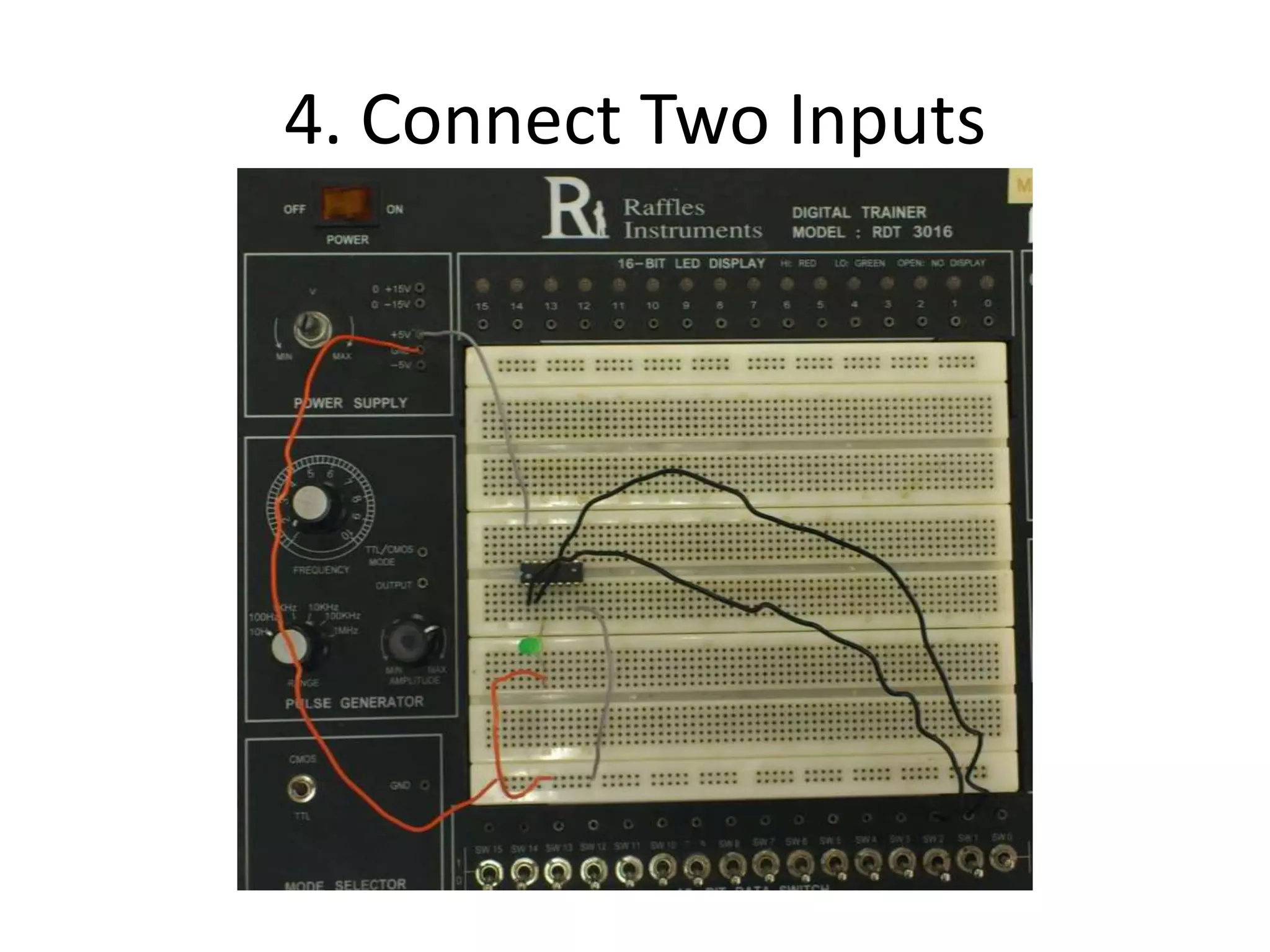

11. 4. Connect Two Inputs

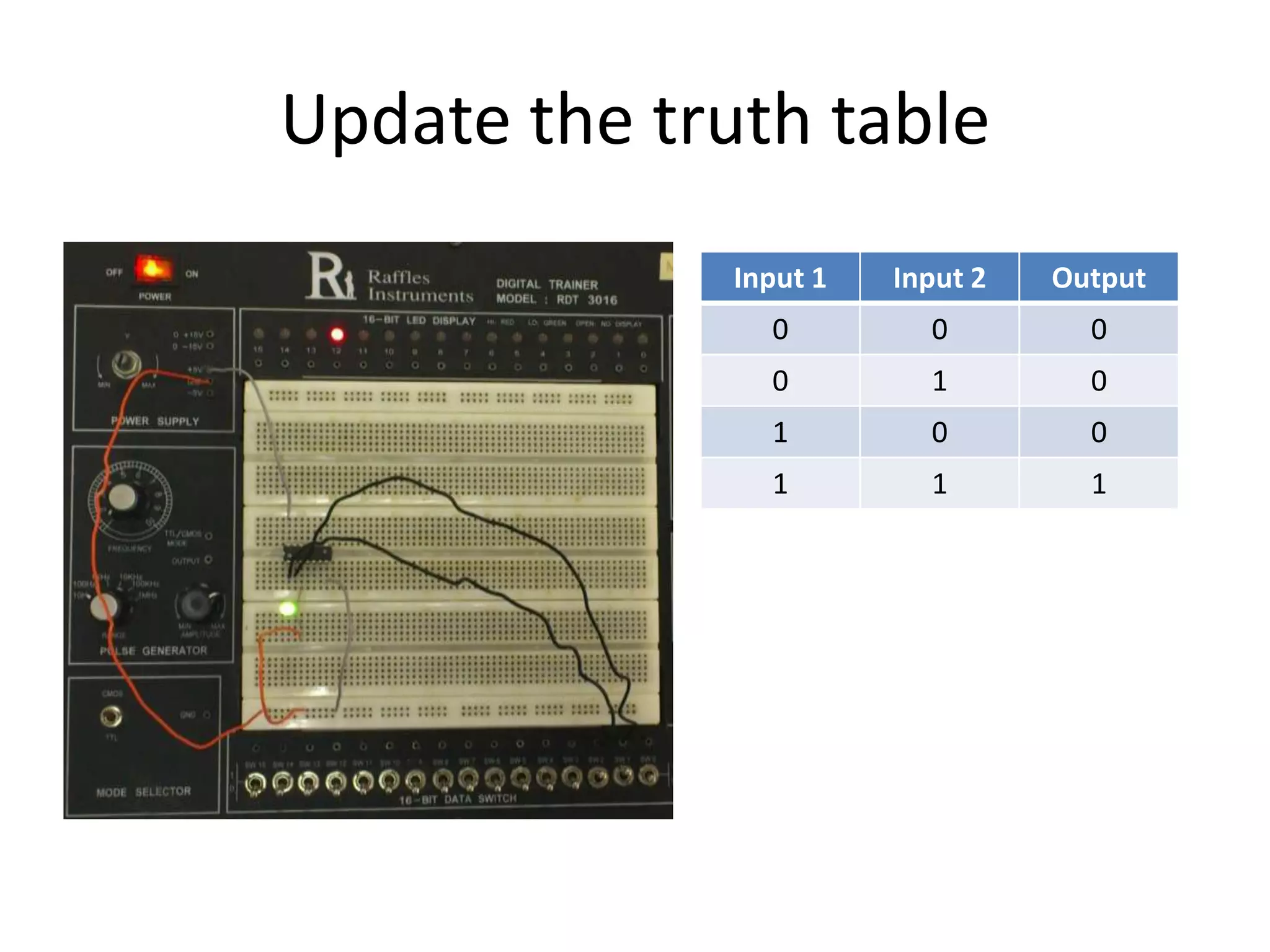

12. Update the truth table
Input 1 Input 2 Output
0 0 0
0 1 0
1 0 0
1 1 1

13. USING SIMULATION SOFTWARE –
LOGIC CIRCUIT DESIGNER

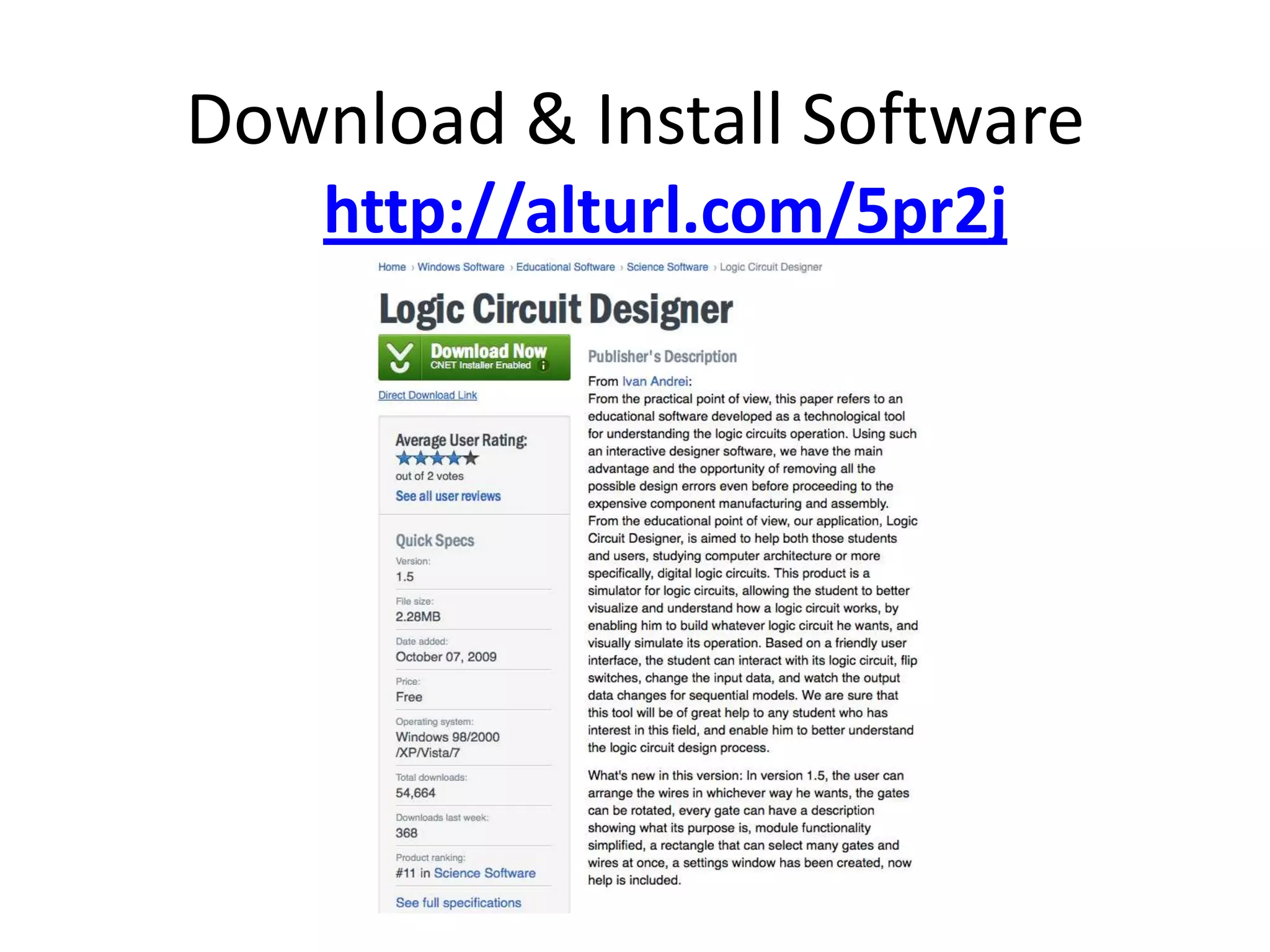

14. Download & Install Software
http://alturl.com/5pr2j

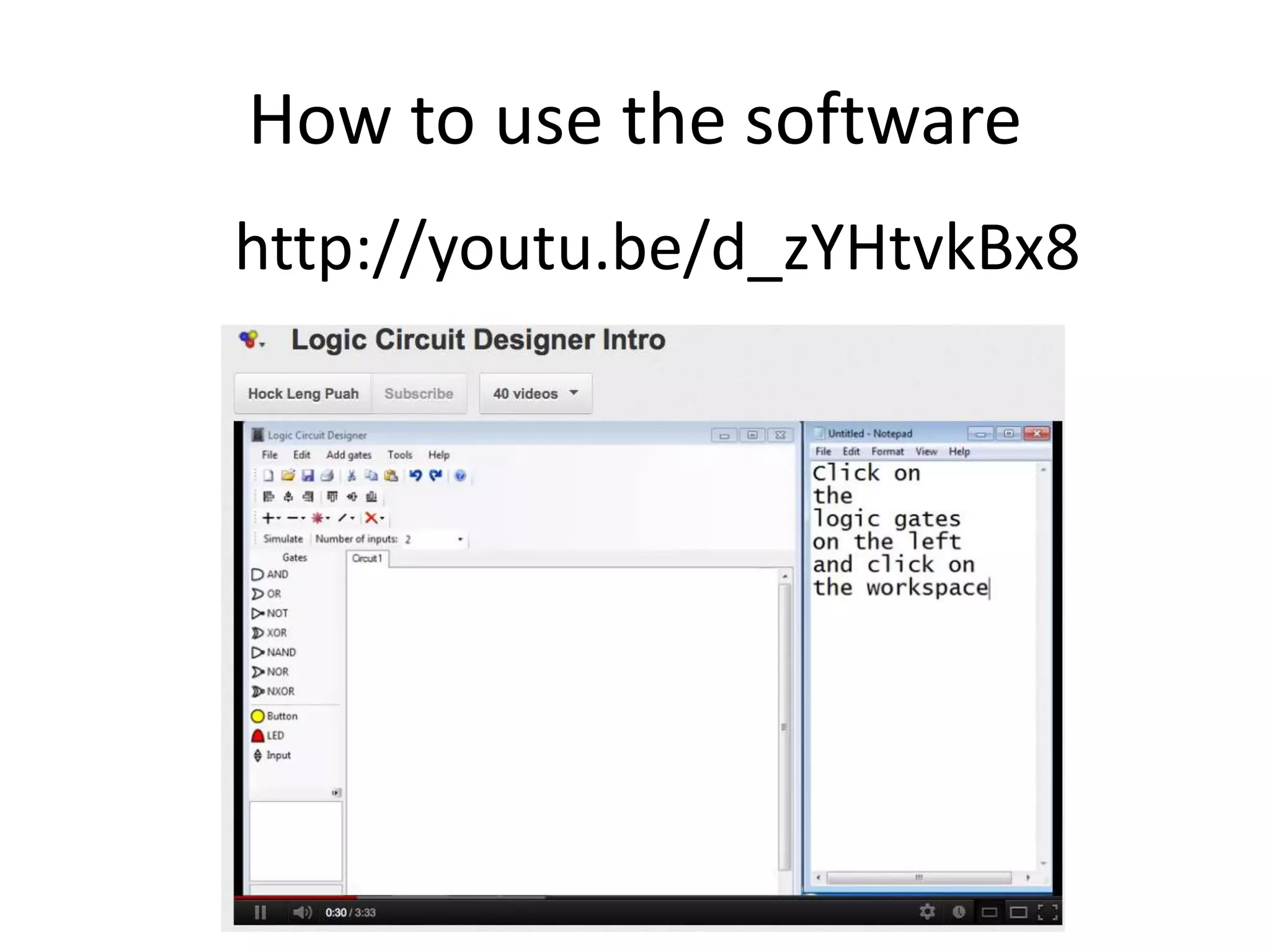

15. How to use the software
http://youtu.be/d_zYHtvkBx8
