Connections Exercises Guide

This document provides a step-by-step guide to measuring voltage and current through key connections for week 02 connection exercises, including identifying the key connections needed to measure voltage and current.

Embed presentation

Download to read offline
Step by step Guide to Week 02 Connection Exercises

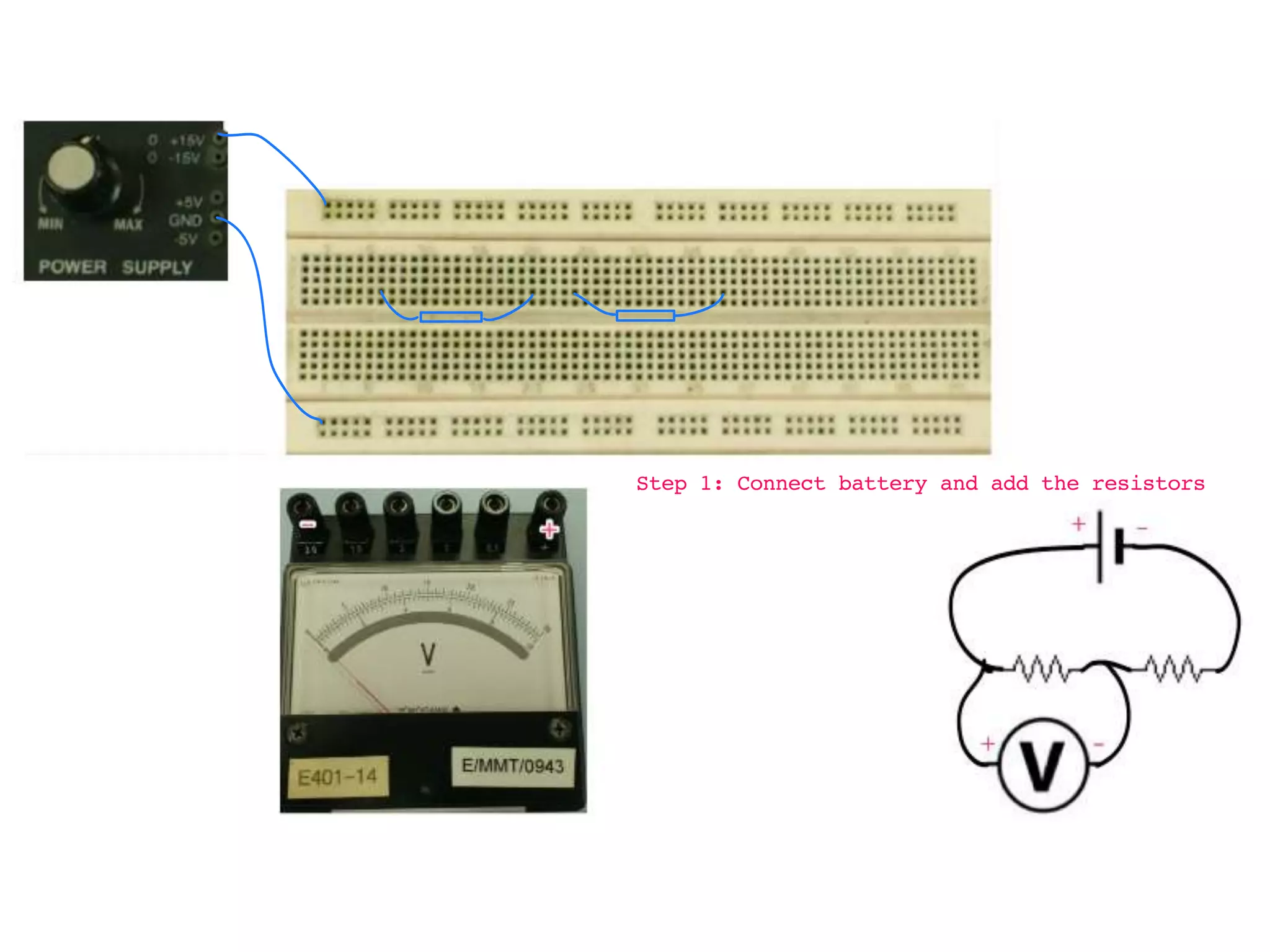

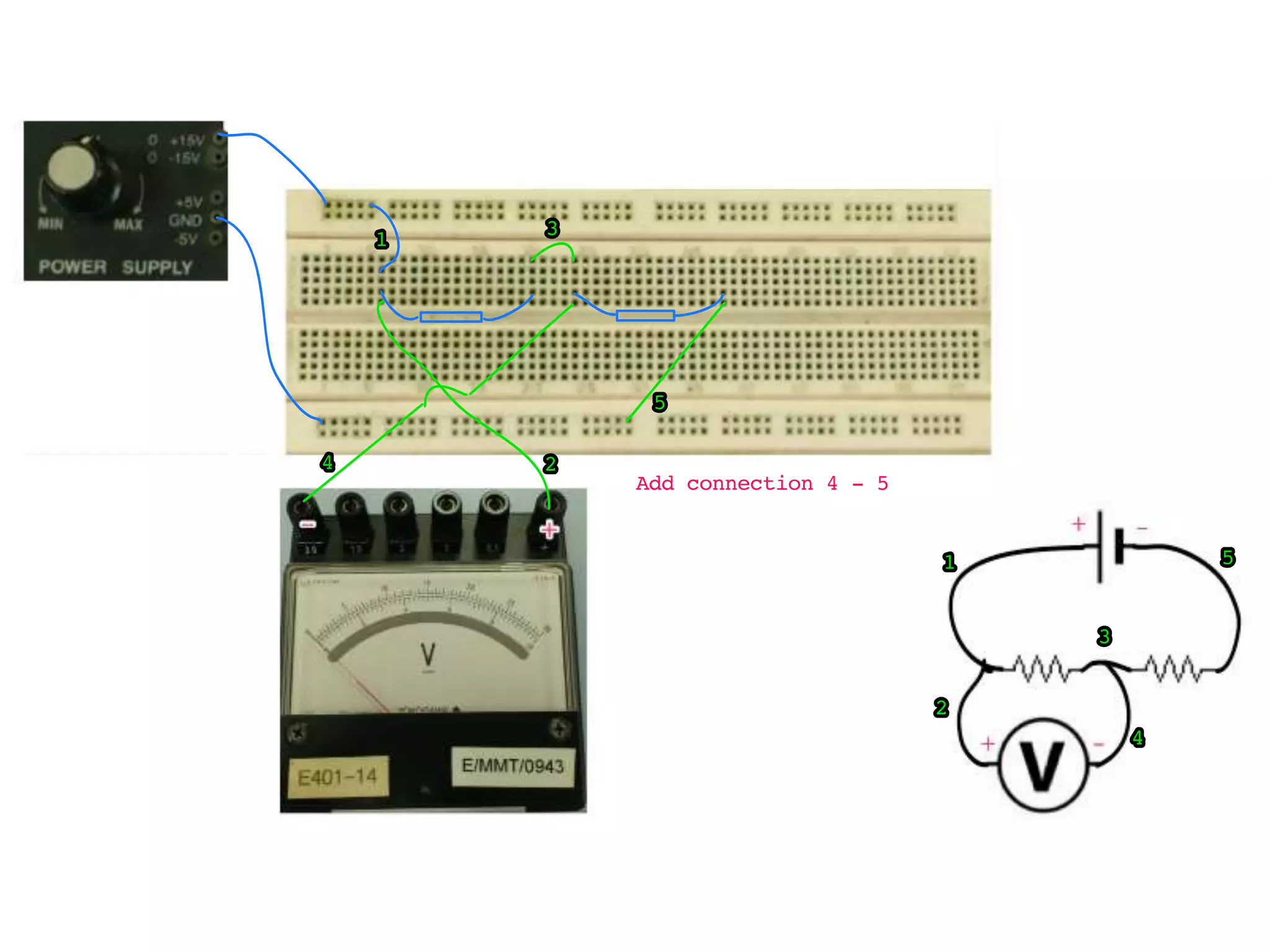

CONNECTIONS TO MEASURE VOLTAGE

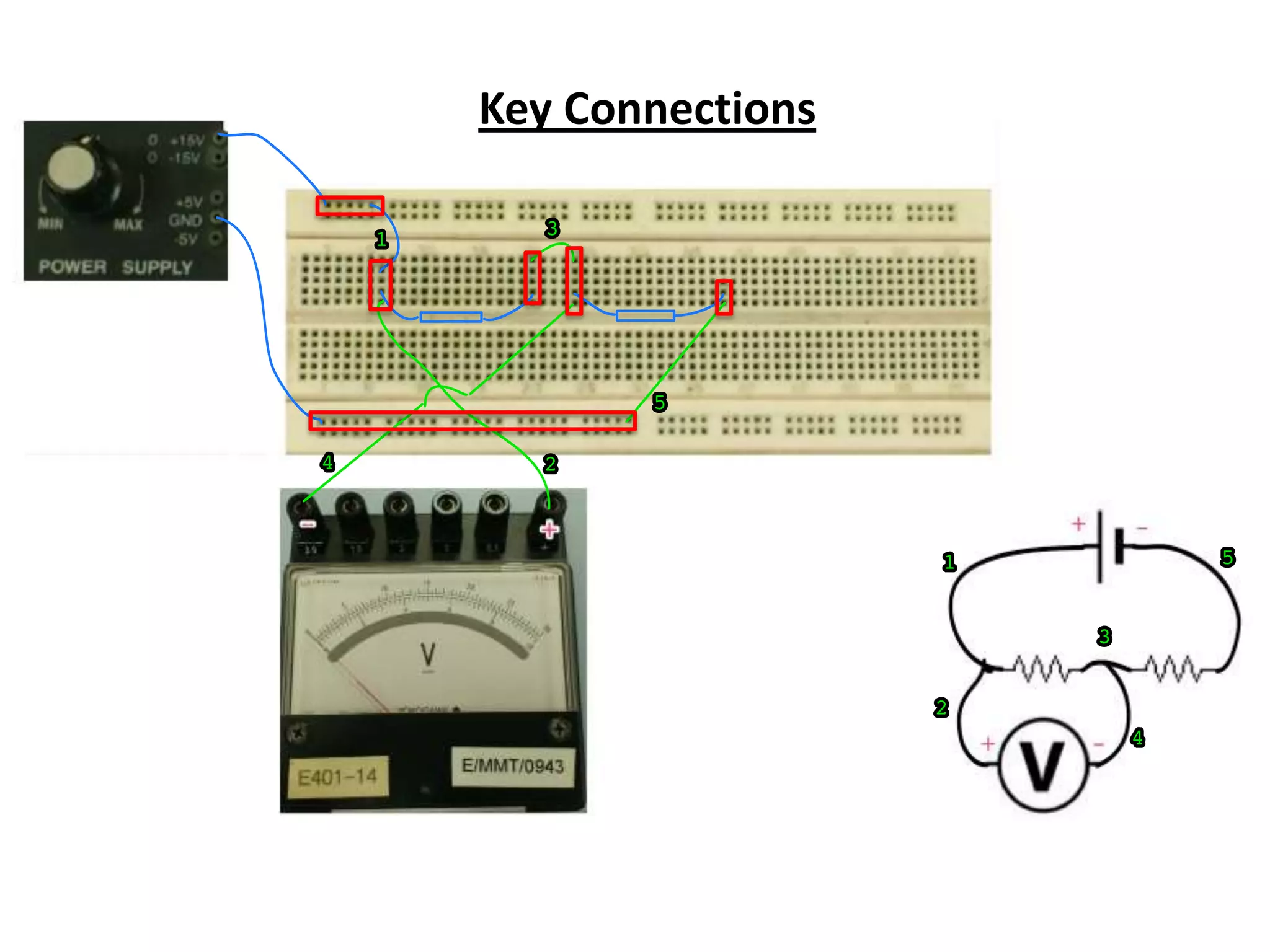

Key Connections

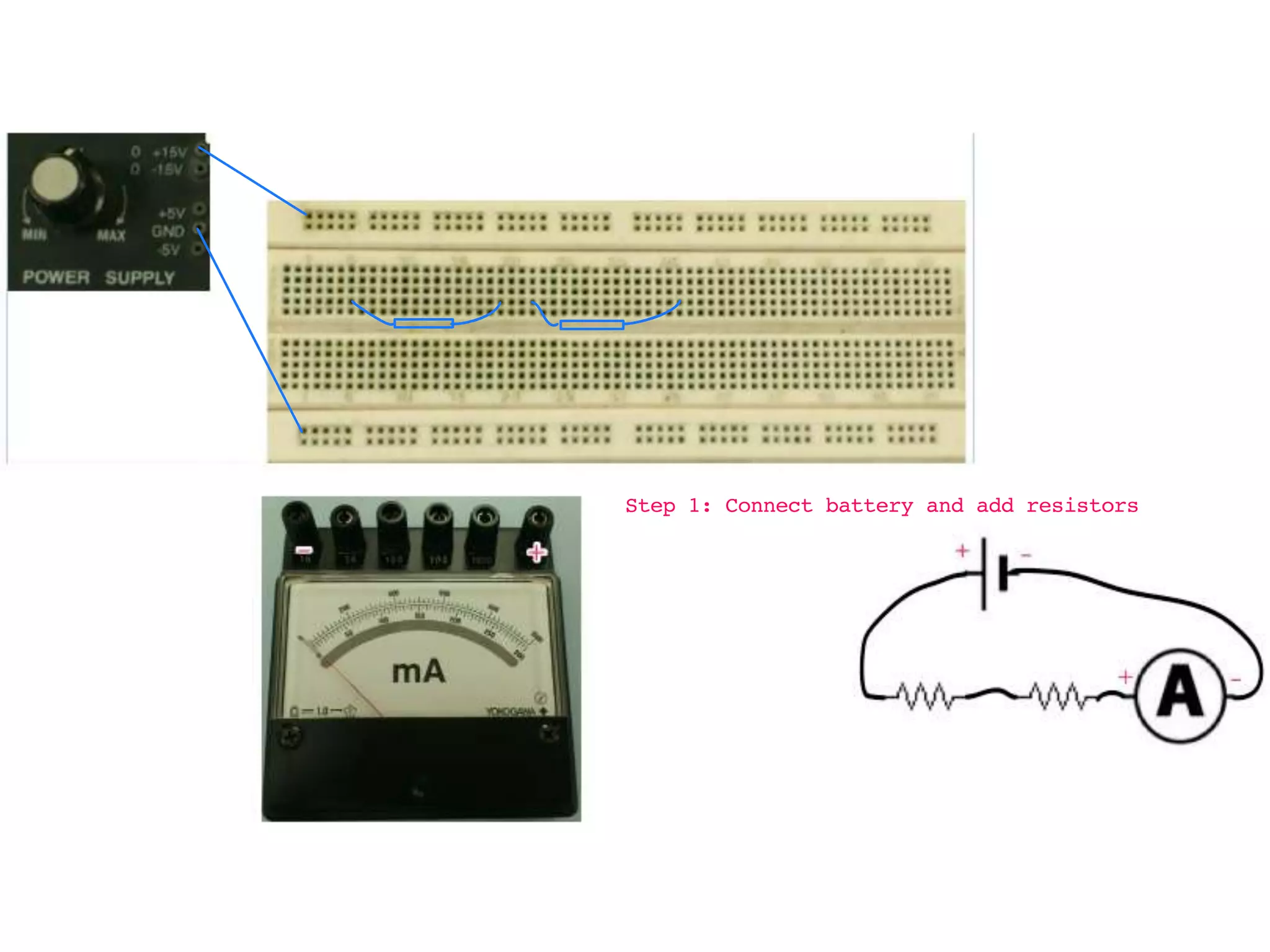

CONNECTIONS TO MEASURE CURRENT

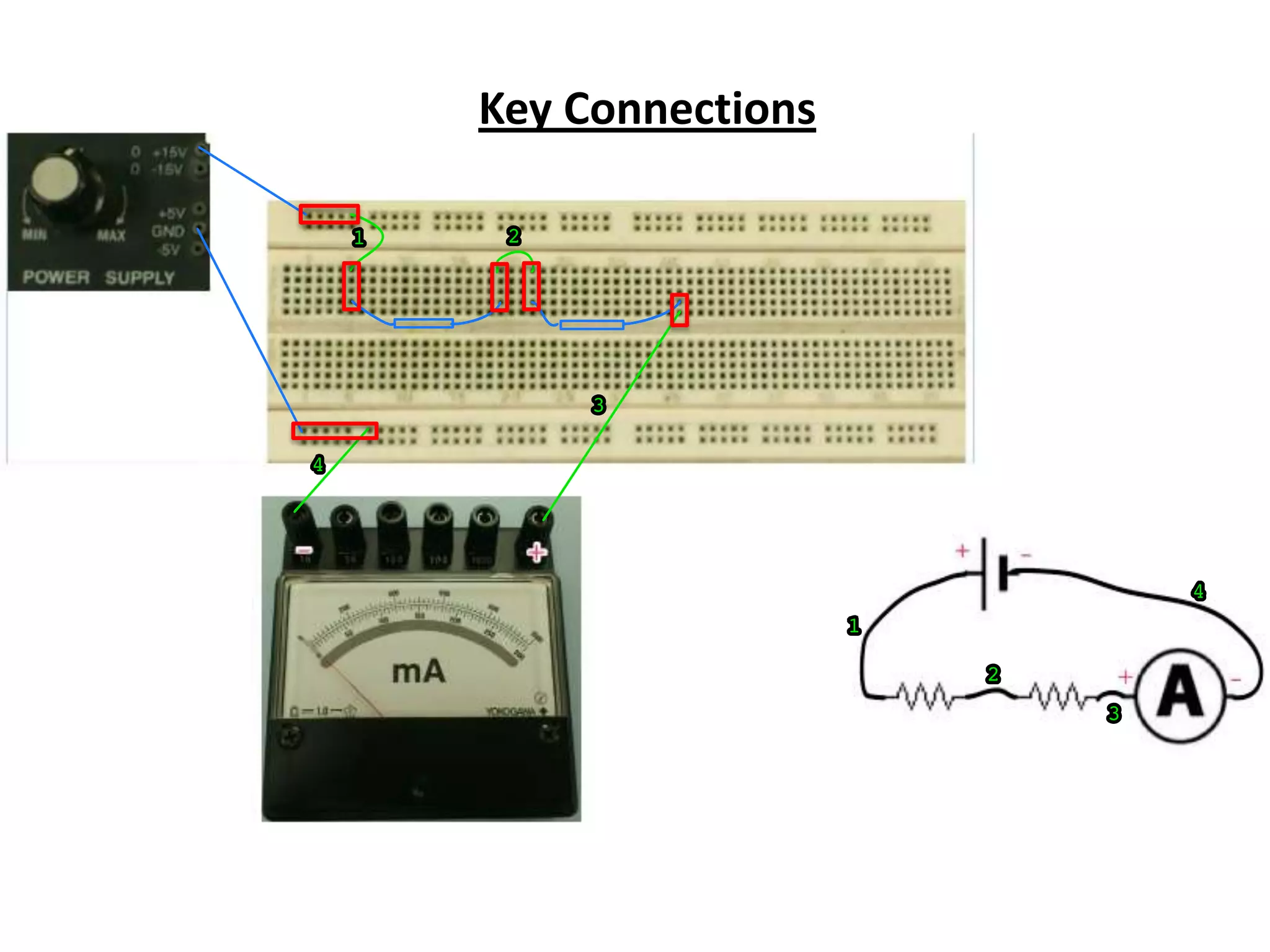

Key Connections
