This document provides information about different types of log formats and log analysis. It discusses common log formats like the Common Log Format, Extended W3C Log Format, and Squid Log Format. It also covers multi-line logs, Iptables logs, and tools for log analysis like Splunk and OSSEC. The key details provided include sample log entries for each format and basic configuration steps for Splunk after installation.

1. Thank You

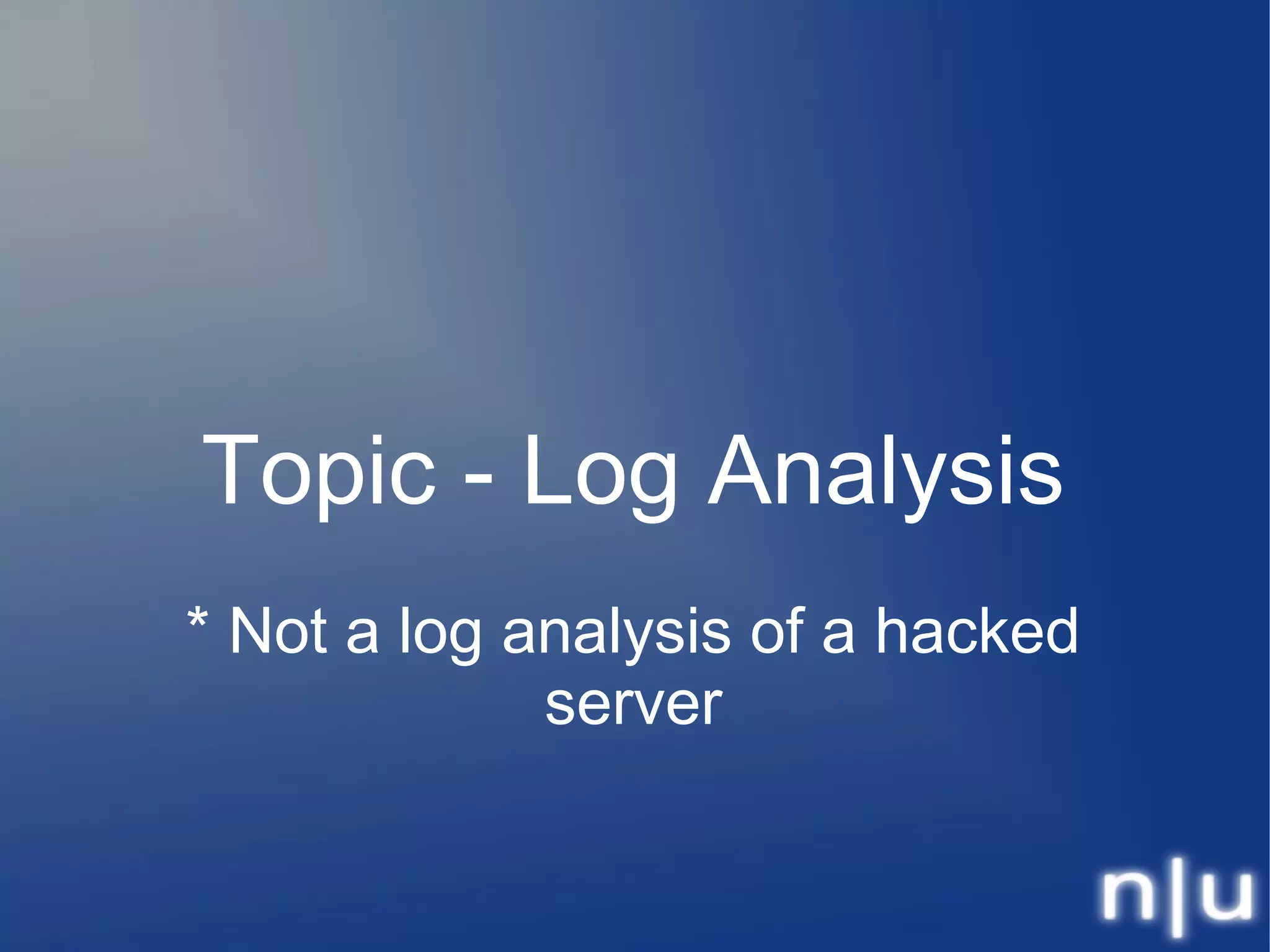

2. Topic - Log Analysis
* Not a log analysis of a hacked
server

3. References
Security Metrics –
Replacing FUD *Diversion ahead

4. Good Metrics -
- Consistently Measured
- Cheap to Gather
- Expressed as a number / percentage
- Expressed using one unit of measure
- Contextually specific – avoid So What ?

5. Bad Metrics -
- Inconsistently Measured / Varies from
person to person
- Cannot be Gathered cheaply
- Does not express results with numbers
e.g. - ratings and grades

6. Log – Record of all the
activities in an Application /
Server or a Process
Log Analysis – Extracting
information from the logs

7. Pre-Requisites of Log
Analysis
- Logging should be enabled
- Correct Time to be recorded in the logs
- Data should not be corrupted
- Known / Intuitive Log format
- Patience
- Caution

8. Common Log Format
Host Ident Authuser [Date] Request Status Bytes
127.0.0.1 - - [14/Oct/2010:15:41:45 +0530] "GET /announce?
info_hash=%9E%F7E%21m0%C3%BB%C8%17%AC%CF%C7K
%CCO%85L%B7S&peer_id=-AZ4510-
jsyzmsekckgz&supportcrypto=1&port=14523&azudp=14523&uploaded
=0&downloaded=0&left=144067607&corrupt=0&event=started&numwa
nt=34&no_peer_id=1&compact=1&key=R34XtNXz&azver=3 HTTP/1.1"
404 300 "-" "Azureus 4.5.1.0;Linux;Java 1.6.0_18"
(Last two fields makes the format – Combined Log Format)

9. Extended W3C Log Format
#Software: Microsoft Internet Security and Acceleration Server 2004
#Version: 2.0
#Date: 2009-10-28 00:00:01
#Fields: computer date time IP protocol source destination original
client IP source network destination network action status rule
application protocol bytes sent bytes sent intermediate bytes received
bytes received intermediate connection time connection time intermediate
username agent session ID connection ID
FW1 2009-10-28 00:00:01 TCP 192.9.133.33:2179
124.153.12.25:443 192.9.133.33 Internal External Establish 0x0
LAN to Internet HTTPS 0 0 0 0 - - - - 248445
7348626

10. Squid Log Format
Native access.log
Time Duration ClientIp ResultCodes RequestMethod URL Ident Hierarchy Type
1286536314.464 475 192.168.0.188 TCP_MISS/200 627 GET
http://api.bing.com/qsml.aspx? - DIRECT/122.160.242.136 text/xml
1286536314.489 780 192.168.0.68 TCP_MISS/200 507 POST http://rcv-
srv37.inplay.tubemogul.com/streamreceiver/services - DIRECT/174.129.41.128
application/xml
Custom access.log
Dec 15 06:44:23 box squid[2011]: 192.9.101.130 TCP_MISS/200 389 POST
http://65.54.49.123/gateway/gateway.dll? - DIRECT/65.54.49.123 application/x-
msn-messenger
Dec 15 06:45:24 box squid[2011]: 192.9.101.130 TCP_MISS/200 389 POST
http://65.54.49.123/gateway/gateway.dll? - DIRECT/65.54.49.123 application/x-
msn-messenger
Dec 15 06:47:25 box last message repeated 2 times
Dec 15 06:47:32 box squid[2011]: 127.0.0.1 TCP_MISS/200 68777105 GET
http://update.nai.com/products/commonupdater/dat-5832.zip -
DIRECT/122.166.109.18 application/zip

11. Multi-line Log Format
Generated by Applications which runs multiple processes internally.
Such logs are created when a single activity as seen by the End User internally
translates to several different tasks in the Application.
LogEntry1 of Task1
LogEntry2 of Task2
LogEntry3 of Task3
Almost all Mail Server Logs are Multi line logs.
Example – Postfix and IronPort (Cisco) Email Server

12. Iptables Log Format
Dec 5 00:17:38 box Shorewall:nic012FW:ACCEPT: IN=eth1 OUT=
MAC=00:1f:e2:6c:cb:6d:00:1e:58:22:6b:30:08:00 SRC=124.153.10.16
DST=192.168.1.4 LEN=44 TOS=00
PREC=0x00 TTL=55 ID=39105 CE PROTO=TCP SPT=36597 DPT=5666
SEQ=3522285426 ACK=0 WINDOW=5840 SYN URGP=0
Dec 5 00:17:40 box Shorewall:nic012FW:DROP: IN=eth1 OUT=
MAC=ff:ff:ff:ff:ff:ff:00:e0:e4:a5:46:f1:08:00 SRC=192.168.1.87
DST=192.168.1.255 LEN=229 TOS=00
PREC=0x00 TTL=128 ID=3758 PROTO=UDP SPT=138 DPT=138 LEN=209
Dec 5 00:17:47 box Shorewall:nic012nic01:DROP: IN=eth1 OUT=eth1
MAC=00:1f:e2:6c:cb:6d:00:1b:b9:63:a3:19:08:00 SRC=192.168.1.120
DST=202.54.157.139 LEN=48 T
OS=00 PREC=0x00 TTL=127 ID=3754 DF PROTO=TCP SPT=1414 DPT=80
SEQ=2498894647 ACK=0 WINDOW=65535 SYN URGP=0

13. Splunk – Monitor, Report
and Analyze live
streaming / historical IT
data

14. Basic Configuration after installation
cd /opt/splunk/bin
export SPLUNK_IGNORE_SELINUX=1
./splunk start
Use your browser to login to
http://localhost:8000

15. New Apps goes to /opt/splunk/etc/apps
For custom log format -
update the following configuration file
/opt/splunk/etc/system/local/props.conf
and
/opt/splunk/etc/system/local/transforms.conf
with entries of new log format

16. OSSEC – This is an Open Source Host Based
Intrusion Detection System which can work in
a client – server mode.
