The document discusses different components involved in translating a high-level programming language code into an executable program. It describes the functions of compilers, assemblers, linkers, and loaders. Specifically, it explains that a linker merges object files and library routines to create an executable file by performing relocation and resolving references between modules. A loader then allocates memory, performs relocation, and loads the executable code into memory to start program execution. The document also compares static and dynamic linking and different types of loaders.

1. Loaders and Linkers
 Name: Kunj Desai
 Branch: CSE A
 Semester: 5th
 Year: 2016

2. Translation Hierarchy
 Compiler : Translates high-level language program
into
assembly language.
 Assembler: Converts assembly language programs
into
object files.
 Object files contain a combination of machine
instructions, data, and information needed to place
instructions properly in memory.

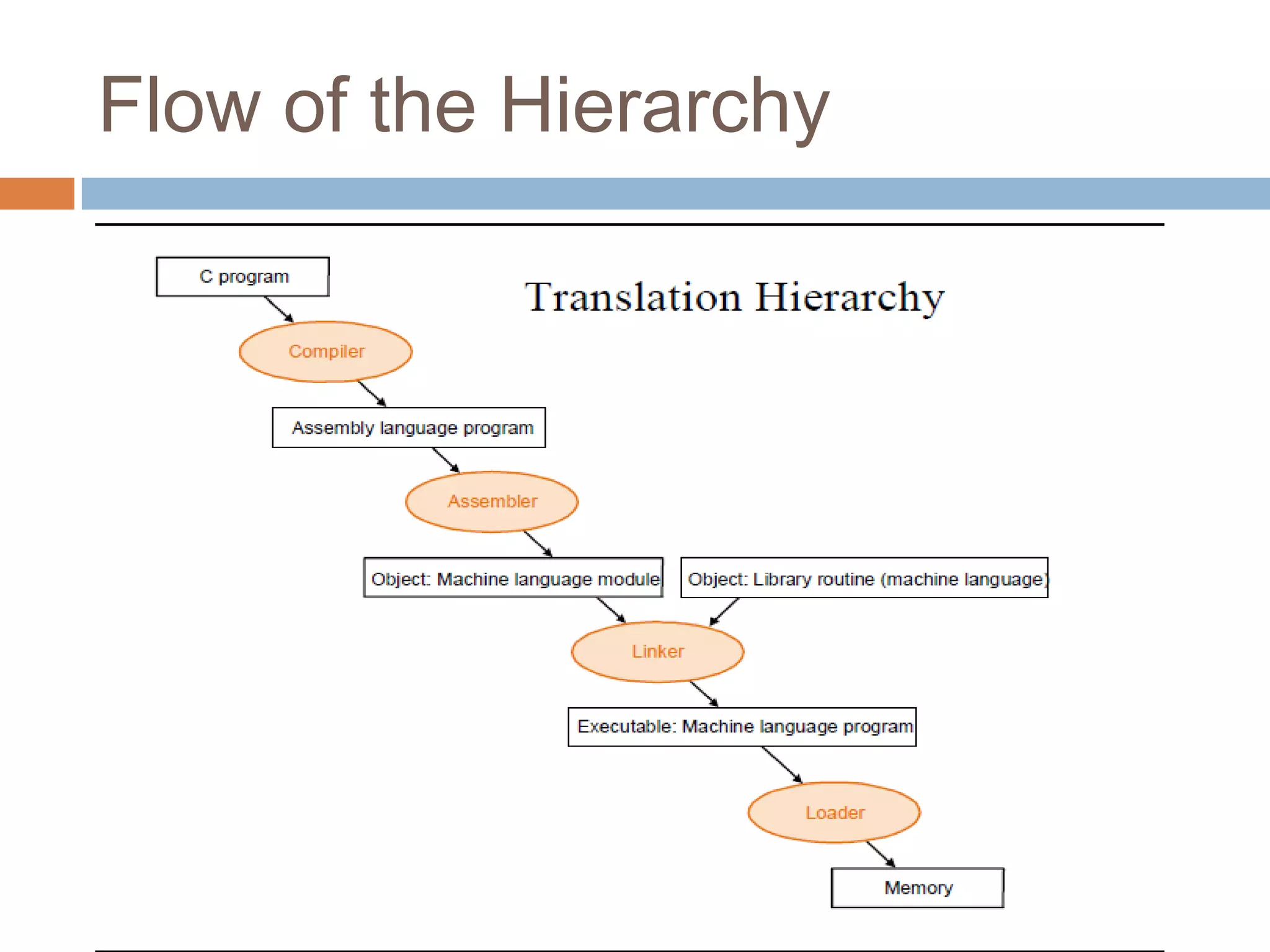

3. Flow of the Hierarchy

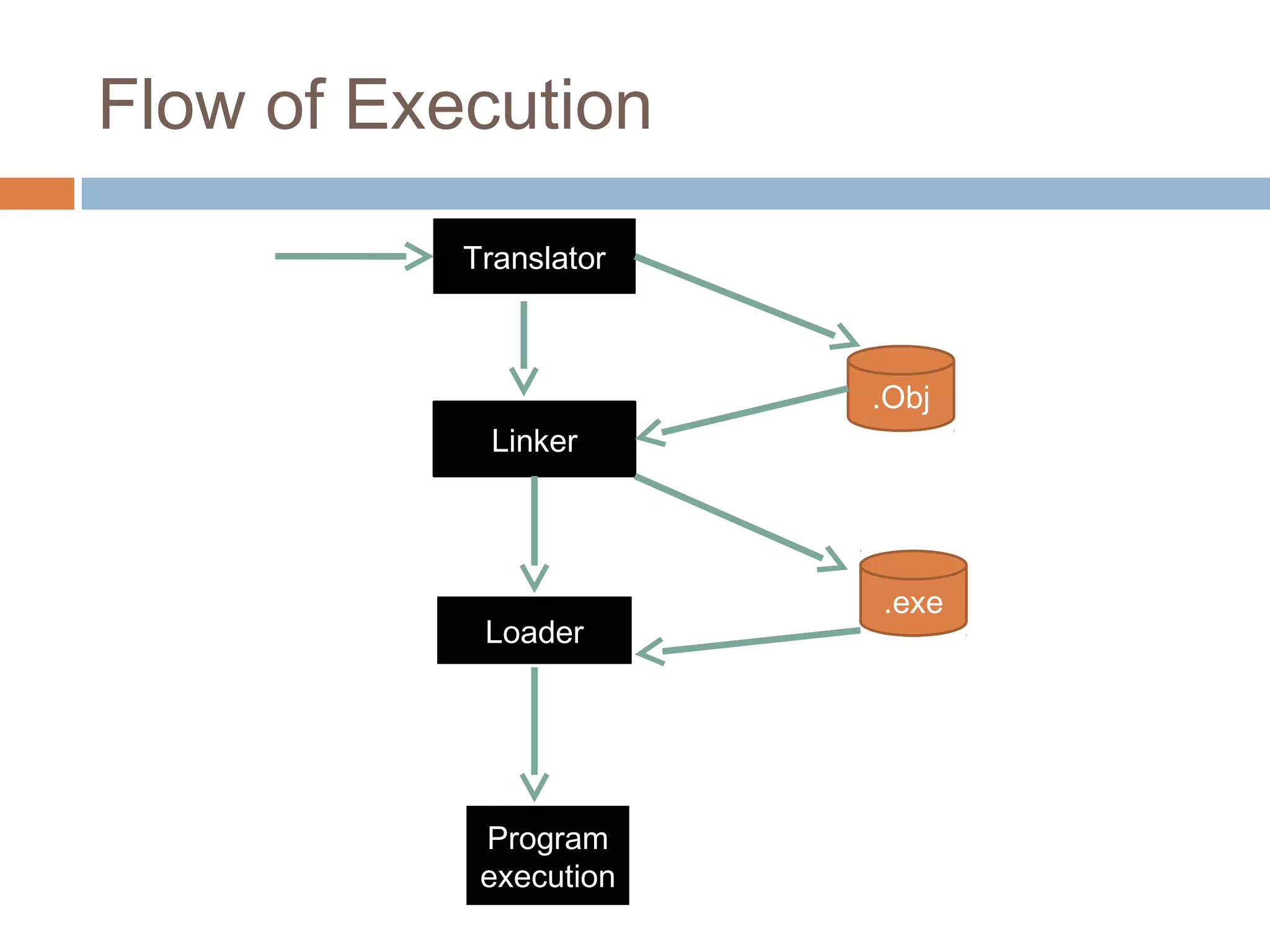

4. Flow of Execution
Translator
Linker
Loader
Program
execution
.Obj
.exe

5. Process for producing an executable file

6. Explanation to Linker
 Definition: Tool that merges the object files produced by
separate compilation or assembly and creates an
executable file.
 Three tasks done by LINKER:
 Searches the program to find library routines used by
program, e.g. printf(),sqrt(),strcat() and various other.
 Determines the memory locations that code from each
module will occupy and relocates its instructions by
adjusting absolute references.

7. Explanation to Linker
 Relocation, which modifies the object program so
that it can be loaded at an address different from the
location originally specified.
It combines two or more separate object programs and
supplies the information needed to allow references
between them .

8. Linking Concepts
 Computer programs typically comprise several parts or modules; all these
parts/modules need not be contained within a single object file, and in such
case refer to each other by means of symbols. Typically, an object file can
contain three kinds of symbols:
 Publicly defined symbols, which allow it to be called by other modules , also
called as public definition .
 Externally defined symbols(undefined symbols), which calls the other
modules where these symbols are defined, also called as external reference.
 Local symbols, used internally within the object file to facilitate relocation.

9. Static Linking
 Static linking occurs when a calling program is linked to a
called program in a single executable module. When the
program is loaded, the operating system places into
memory a single file that contains the executable code
and data.
 The result of statically linking programs is an .EXE file or
dynamic link library (DLL) subprogram that contains the
executable code for multiple programs. This file includes
both the calling program and the called program.

10. Advantages and Disadvantages
 Advantages
 The advantage of static linking is that you can create self-
contained, independent programs. In other words, the
executable program consists of one part (the .EXE file)
that you need to keep track of.
 Disadvantages:
 You cannot change the behavior of executable files
without re-linking them.
 External called programs cannot be shared, requiring that
duplicate copies of programs be loaded in memory if
more than one calling program needs to access them.

11. Dynamic linking
 Many operating system environments allow dynamic
linking, that is the postponing of the resolving of some
undefined symbols until a program is run.
 That means that the executable code still contains
undefined symbols, plus a list of objects or libraries
that will provide definitions for these. Loading the
program will load these objects/libraries as well, and
perform a final linking.

12. Advantages
 Advantages :
 Often-used libraries (for example the standard system
libraries) need to be stored in only one location, not
duplicated in every single binary.
 If an error in a library function is corrected by
replacing the library, all programs using it dynamically
will benefit from the correction after restarting them.
Programs that included this function by static linking
would have to be re-linked first.

13. Disadvantages
 Disadvantages:
 Known on the Windows platform as "DLL Hell", an
incompatible updated DLL will break executables that
depended on the behavior of the previous DLL.
 A program, together with the libraries it uses, might be
certified (e.g. as to correctness, documentation
requirements, or performance) as a package, but not
if components can be replaced.

14. Definition of Loader
 Loader is utility program which takes object code as
input prepares it for execution and loads the
executable code into the memory. Thus loader is
actually responsible for initiating the execution
process.
 It is a SYSTEM PROGRAM that brings an executable
file residing on disk into memory and starts it running.

15. Functions of Loader
 The loader is responsible for the activities such as allocation, linking ,
relocation and loading:
1) It allocates the space for program in the memory, by calculating the
size of the program. This activity is called allocation.
2) It resolves the symbolic references (code/data) between the object
modules by assigning all the user subroutine and library subroutine
addresses. This activity is called linking.
3) There are some address dependent locations in the program, such
address constants must be adjusted according to allocated space, such
activity done by loader is called relocation.

16. Functions of Loader
4) Finally it places all the machine instructions and data of corresponding programs and
subroutines into the memory. Thus program now becomes ready for execution, this
activity is called loading.
 Steps:
1. Read executable file’s header to determine the size of text and data segments.
2. Create a new address space for the program. Copies instructions and data into
address space. Copies arguments passed to the program on the stack. Initializes
the machine registers including the stack pointer.
3. Jumps to a startup routine that copies the program’s arguments from the stack to
registers and calls the program’s main routine.

17. Types of Loaders
 Compile/Assemble and Go loader: In compile and go loader is a link
editor/program loader in which the assembler itself places the assembled
instruction directly into the designated memory locations for execution.
 General Scheme Loader: In this loader scheme, the source program is
converted to object program by some translator (assembler). The loader
accepts these object modules and puts machine instruction and data in
an executable form at their assigned memory. The loader occupies some
portion of main memory.

18. Types of Loaders
 Absolute Loader: An absolute loader is simple loader which performs loading process
and need not to perform linking and program relocation processes.
 Relocating Loader : When a single subroutine is changed then all the subroutines
need to be reassembled. The task of allocation and linking must be carried out once again.
To avoid this rework a new class of loaders is introduced which is called relocating loader.
 Direct Linking Loader: A Direct linking loader is a general relocating loader and
is the most popular loading scheme presently used. This scheme has an
advantage that it allows the programmer to use multiple procedure and multiple
data segments.
