A linker is a program that combines object files and libraries into a single executable file. It performs two main tasks - symbol resolution and relocation. Linking can occur at compile time (static linking), load time, or run time (dynamic linking). Static linking embeds library code into the executable, increasing its size, while dynamic linking uses shared libraries that can be loaded at runtime, reducing executable size.

1. Linkers

3. Introduction to linkers

A linker is a computer program that takes one or
more object files generated by a compiler and
combines them into a single executable file.

This process is called linking.

Linker is also called as link editor.

Linkers can take objects from a collection called a
library.

Linking can be done at compile time, i.e. when the
source code is translated or, at load time, i.e. whenwhen
the program is loaded into memory or, even at runthe program is loaded into memory or, even at run
time.time.

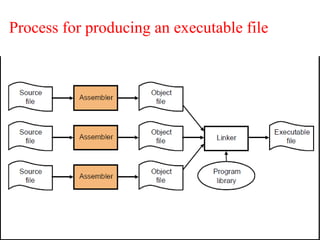

4. Process for producing an executable file

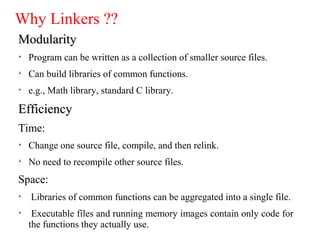

5. Why Linkers ??
ModularityModularity

Program can be written as a collection of smaller source files.

Can build libraries of common functions.

e.g., Math library, standard C library.
EfficiencyEfficiency
Time:

Change one source file, compile, and then relink.

No need to recompile other source files.
Space:

Libraries of common functions can be aggregated into a single file.

Executable files and running memory images contain only code for
the functions they actually use.

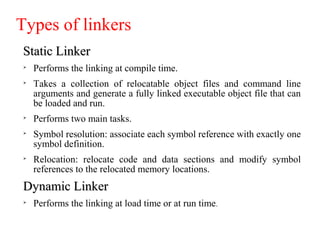

6. Types of linkers
Static LinkerStatic Linker

Performs the linking at compile time.

Takes a collection of relocatable object files and command line
arguments and generate a fully linked executable object file that can
be loaded and run.

Performs two main tasks.

Symbol resolution: associate each symbol reference with exactly one
symbol definition.

Relocation: relocate code and data sections and modify symbol
references to the relocated memory locations.
Dynamic LinkerDynamic Linker

Performs the linking at load time or at run time.

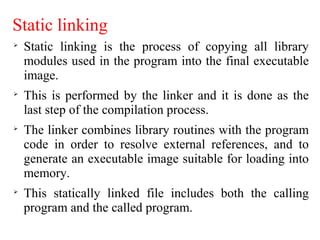

7. Static linking

Static linking is the process of copying all library
modules used in the program into the final executable
image.

This is performed by the linker and it is done as the
last step of the compilation process.

The linker combines library routines with the program
code in order to resolve external references, and to
generate an executable image suitable for loading into
memory.

This statically linked file includes both the calling
program and the called program.

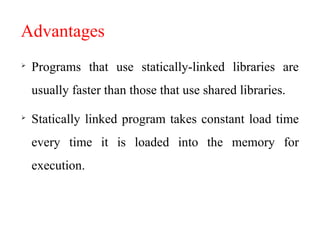

8. Advantages

Programs that use statically-linked libraries are
usually faster than those that use shared libraries.

Statically linked program takes constant load time
every time it is loaded into the memory for
execution.

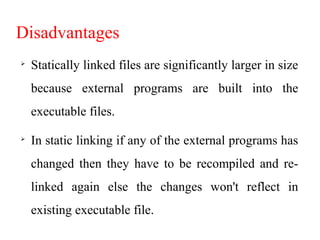

9. Disadvantages

Statically linked files are significantly larger in size
because external programs are built into the
executable files.

In static linking if any of the external programs has
changed then they have to be recompiled and re-
linked again else the changes won't reflect in
existing executable file.

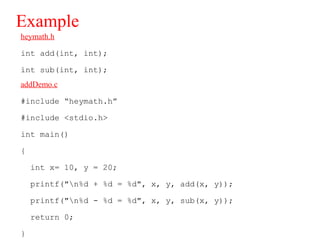

10. Example
heymath.h
int add(int, int);
int sub(int, int);
addDemo.c
#include “heymath.h”
#include <stdio.h>
int main()
{
int x= 10, y = 20;
printf("n%d + %d = %d", x, y, add(x, y));
printf("n%d - %d = %d", x, y, sub(x, y));
return 0;
}

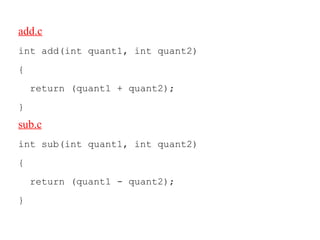

11. add.c
int add(int quant1, int quant2)
{
return (quant1 + quant2);
}
sub.c
int sub(int quant1, int quant2)
{
return (quant1 - quant2);
}

12. Creating object files

Object code or an object file is the representation of code
that a compiler or assembler generates by pre-processing a
source code file.

Object files contain compact code called binaries.

A linker is used to generate an executable file by linking
object files together. The only essential element in an
object file is machine code.

Object files also contain data for use by the code at
runtime, relocation information, program symbols(names
of variables and functions) for linking and/or debugging
purposes, and another debugging information.

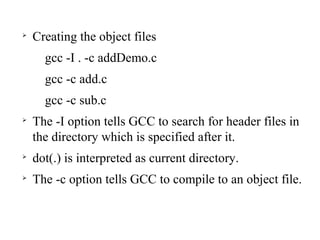

13. 
Creating the object files
gcc -I . -c addDemo.c
gcc -c add.c
gcc -c sub.c

The -I option tells GCC to search for header files in
the directory which is specified after it.

dot(.) is interpreted as current directory.

The -c option tells GCC to compile to an object file.

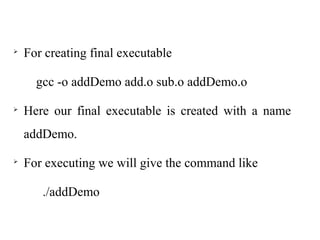

14. 
For creating final executable
gcc -o addDemo add.o sub.o addDemo.o

Here our final executable is created with a name
addDemo.

For executing we will give the command like
./addDemo

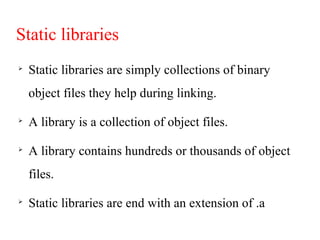

15. Static libraries

Static libraries are simply collections of binary
object files they help during linking.

A library is a collection of object files.

A library contains hundreds or thousands of object
files.

Static libraries are end with an extension of .a

16. Creating static libraries

Command to generate static libraries
ar rs libheymath.a add.o sub.o

Here libheymath.a is a static library containing two
object files add.o and sub.o

ar is used to create, modify and extract archives.

r is used to insert the files into archives.

s is used to add an index to the archive, or update it
if it already exists.

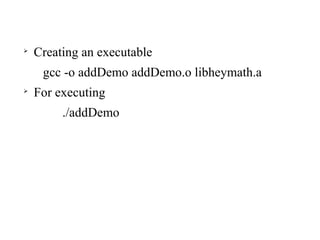

17. 
Creating an executable
gcc -o addDemo addDemo.o libheymath.a

For executing
./addDemo

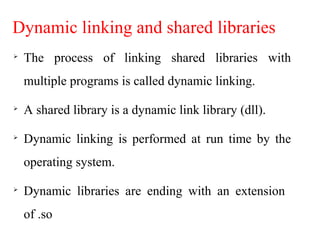

18. Dynamic linking and shared libraries

The process of linking shared libraries with
multiple programs is called dynamic linking.

A shared library is a dynamic link library (dll).

Dynamic linking is performed at run time by the
operating system.

Dynamic libraries are ending with an extension
of .so

19. Advantages

In dynamic linking only one copy of shared library
is kept in memory. This significantly reduces the
size of executable programs, thereby saving
memory and disk space.

Individual shared modules can be updated and
recompiled.

In dynamic linking load time might be reduced if
the shared library code is already present in
memory.

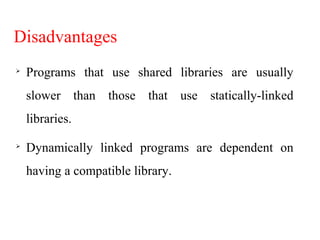

20. Disadvantages

Programs that use shared libraries are usually
slower than those that use statically-linked
libraries.

Dynamically linked programs are dependent on
having a compatible library.

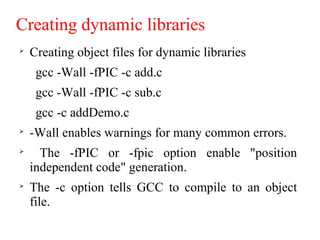

21. Creating dynamic libraries

Creating object files for dynamic libraries
gcc -Wall -fPIC -c add.c
gcc -Wall -fPIC -c sub.c
gcc -c addDemo.c

-Wall enables warnings for many common errors.

The -fPIC or -fpic option enable "position
independent code" generation.

The -c option tells GCC to compile to an object
file.

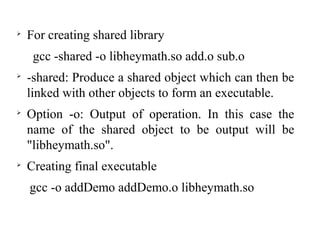

22. 
For creating shared library
gcc -shared -o libheymath.so add.o sub.o

-shared: Produce a shared object which can then be
linked with other objects to form an executable.

Option -o: Output of operation. In this case the
name of the shared object to be output will be
"libheymath.so".

Creating final executable
gcc -o addDemo addDemo.o libheymath.so

23. 
Setting the path of a shared library
export LD_LIBRARY_PATH=/opt/lib:$LD_LIBRARY_PATH

Specify the environment variable
LD_LIBRARY_PATH to point to the directory
paths containing the shared object library.

This instructs the run time loader to look in the
path described by the environment variable
LD_LIBRARY_PATH, to resolve shared libraries.

This will include the path /opt/lib.

For executing
./addDemo
