2. LINKED LIST
PRESENTED BY:
Javeria
(11-arid-3303)
MIT-3
University Institute of Information
Technology,
Rawalpindi (UIIT, UAAR)

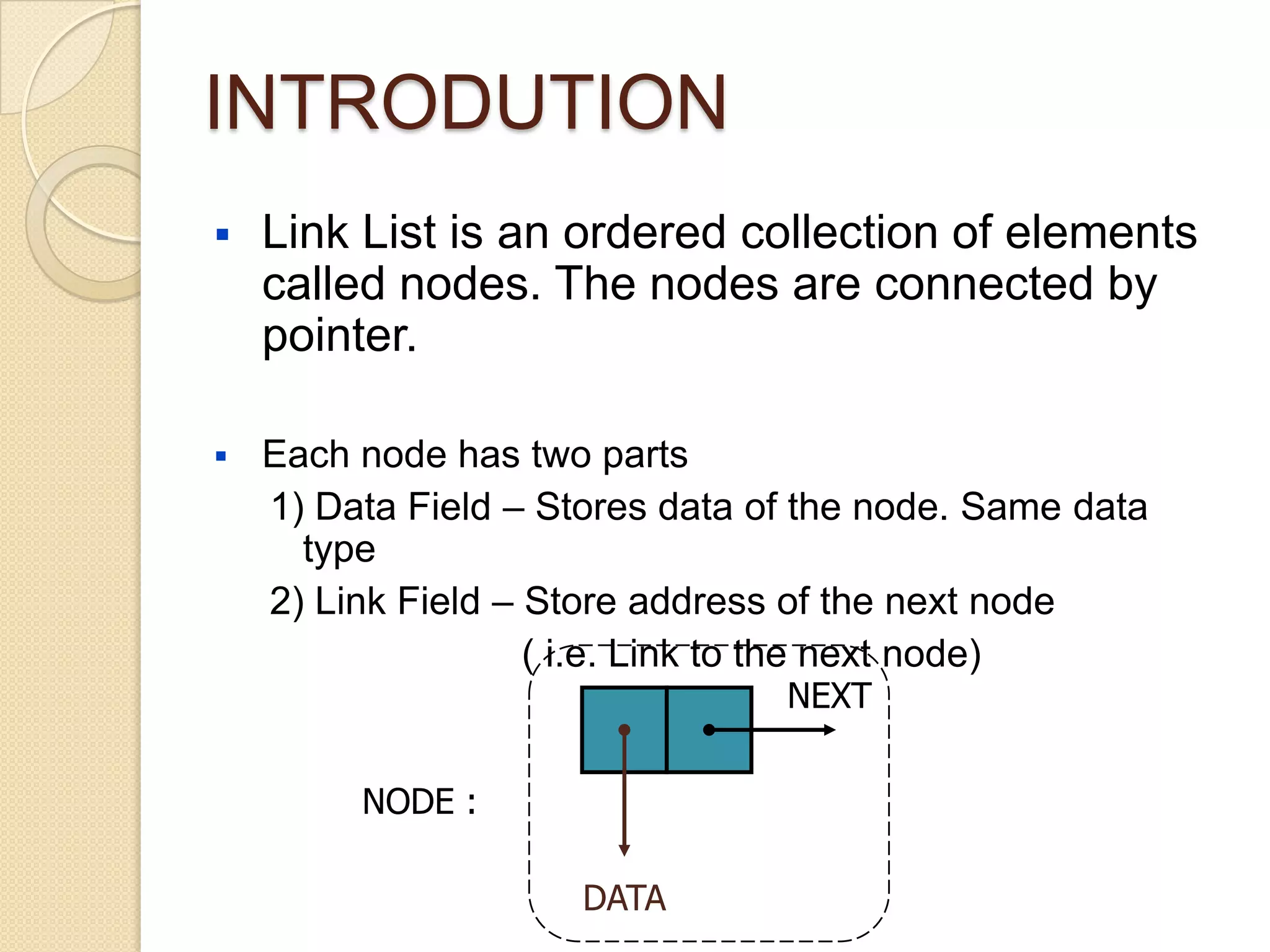

3. INTRODUTION
 Link List is an ordered collection of elements
called nodes. The nodes are connected by
pointer.
 Each node has two parts
1) Data Field – Stores data of the node. Same data
type
2) Link Field – Store address of the next node
( i.e. Link to the next node)
NEXT
NODE :
DATA

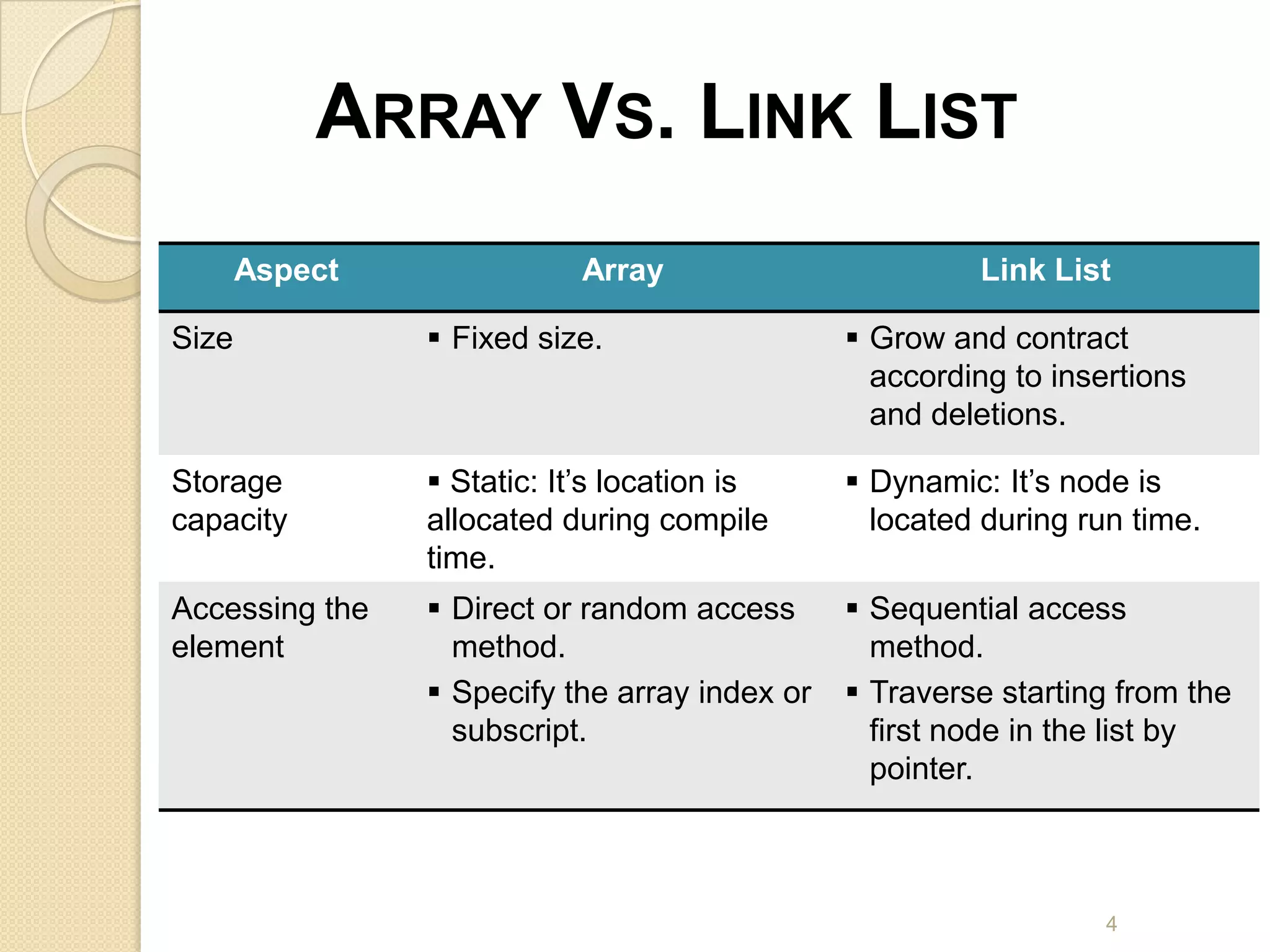

4. ARRAY VS. LINK LIST
Aspect Array Link List
Size  Fixed size.  Grow and contract
according to insertions
and deletions.
Storage  Static: It’s location is  Dynamic: It’s node is
capacity allocated during compile located during run time.
time.
Accessing the  Direct or random access  Sequential access
element method. method.
 Specify the array index or  Traverse starting from the
subscript. first node in the list by
pointer.
4

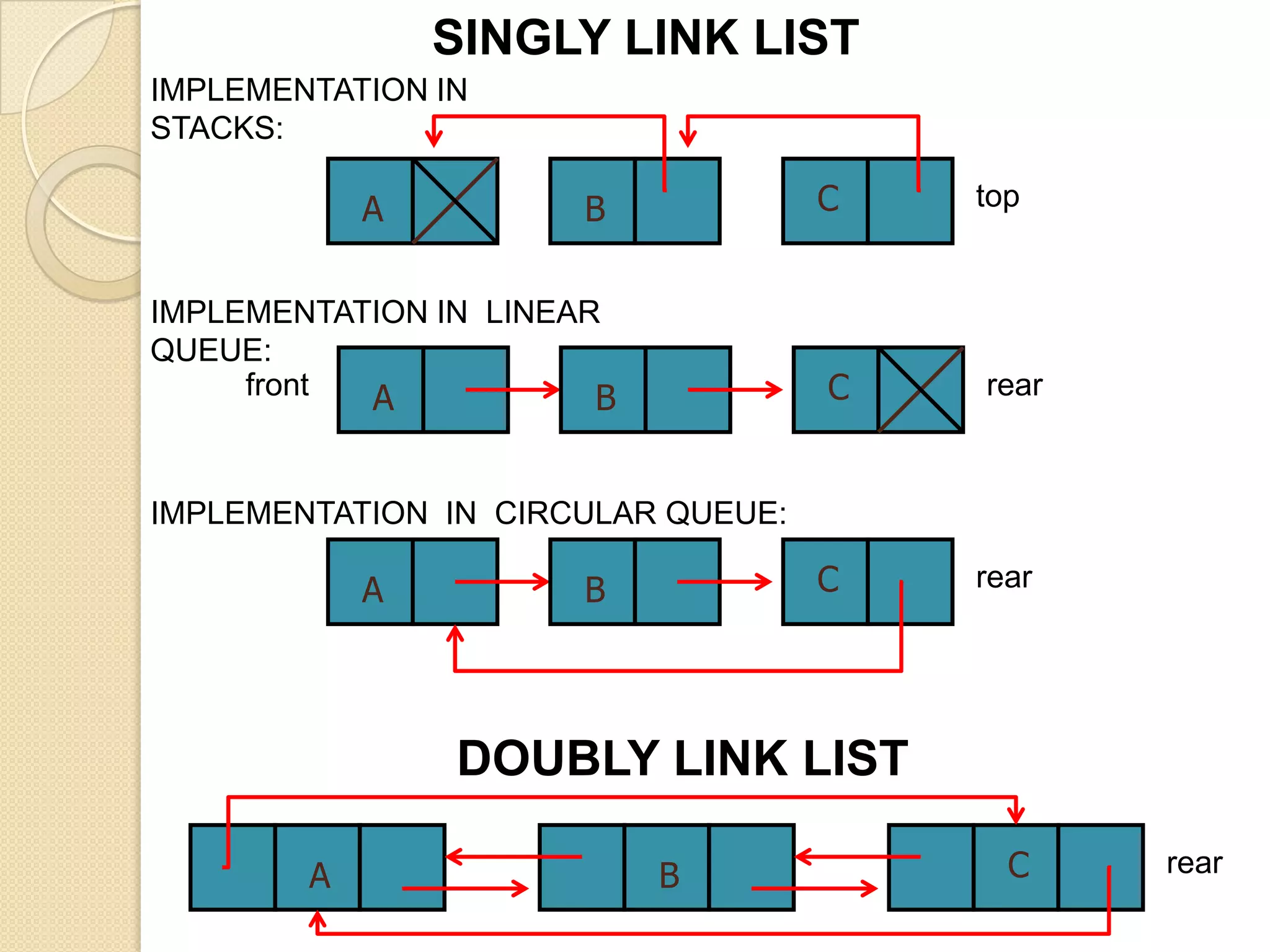

5. SINGLY LINK LIST
IMPLEMENTATION IN
STACKS:
A B C top
IMPLEMENTATION IN LINEAR
QUEUE:
front A B C rear
IMPLEMENTATION IN CIRCULAR QUEUE:
A B C rear
DOUBLY LINK LIST
A B C rear

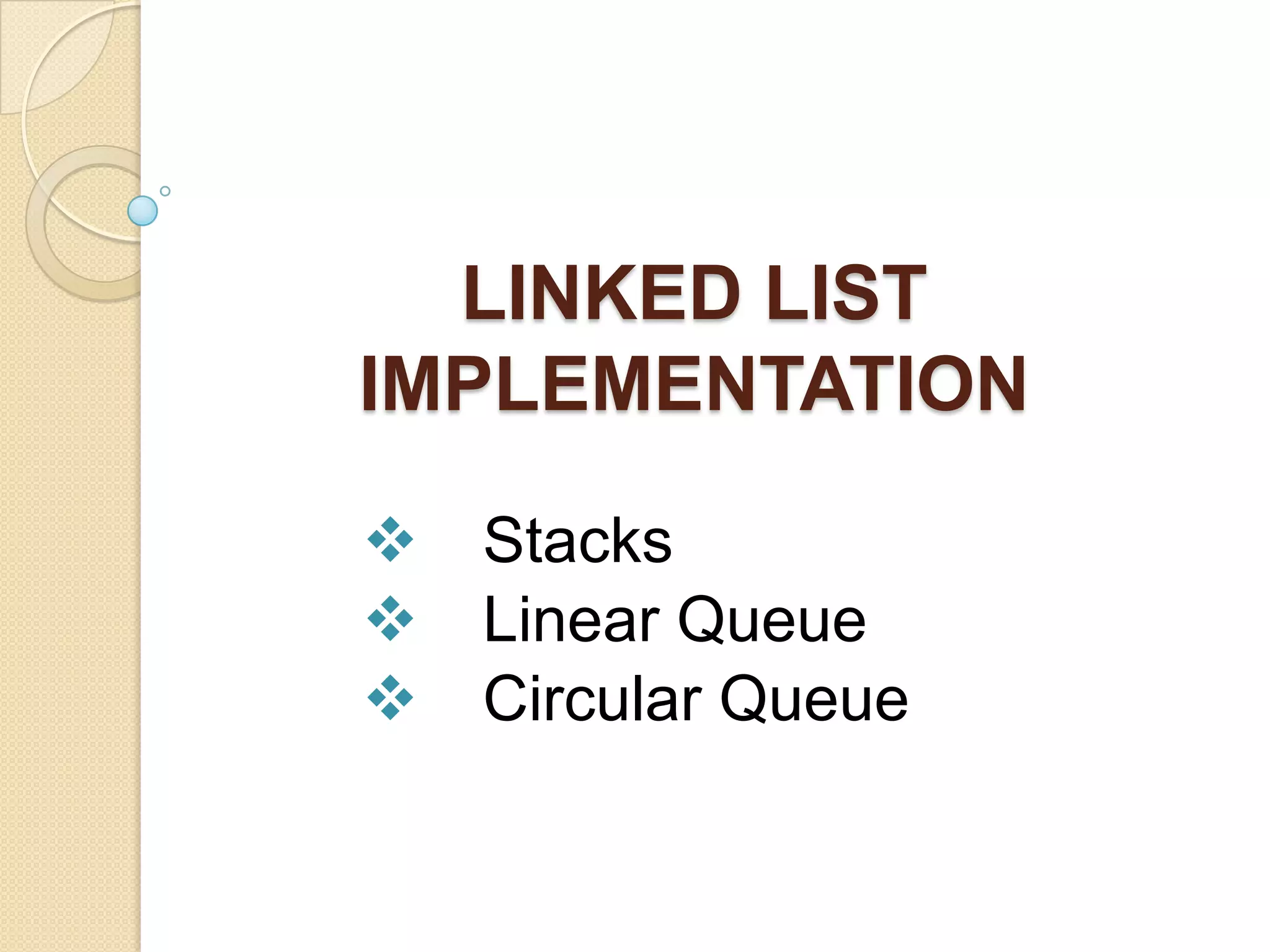

6. LINKED LIST
IMPLEMENTATION
 Stacks
 Linear Queue
 Circular Queue

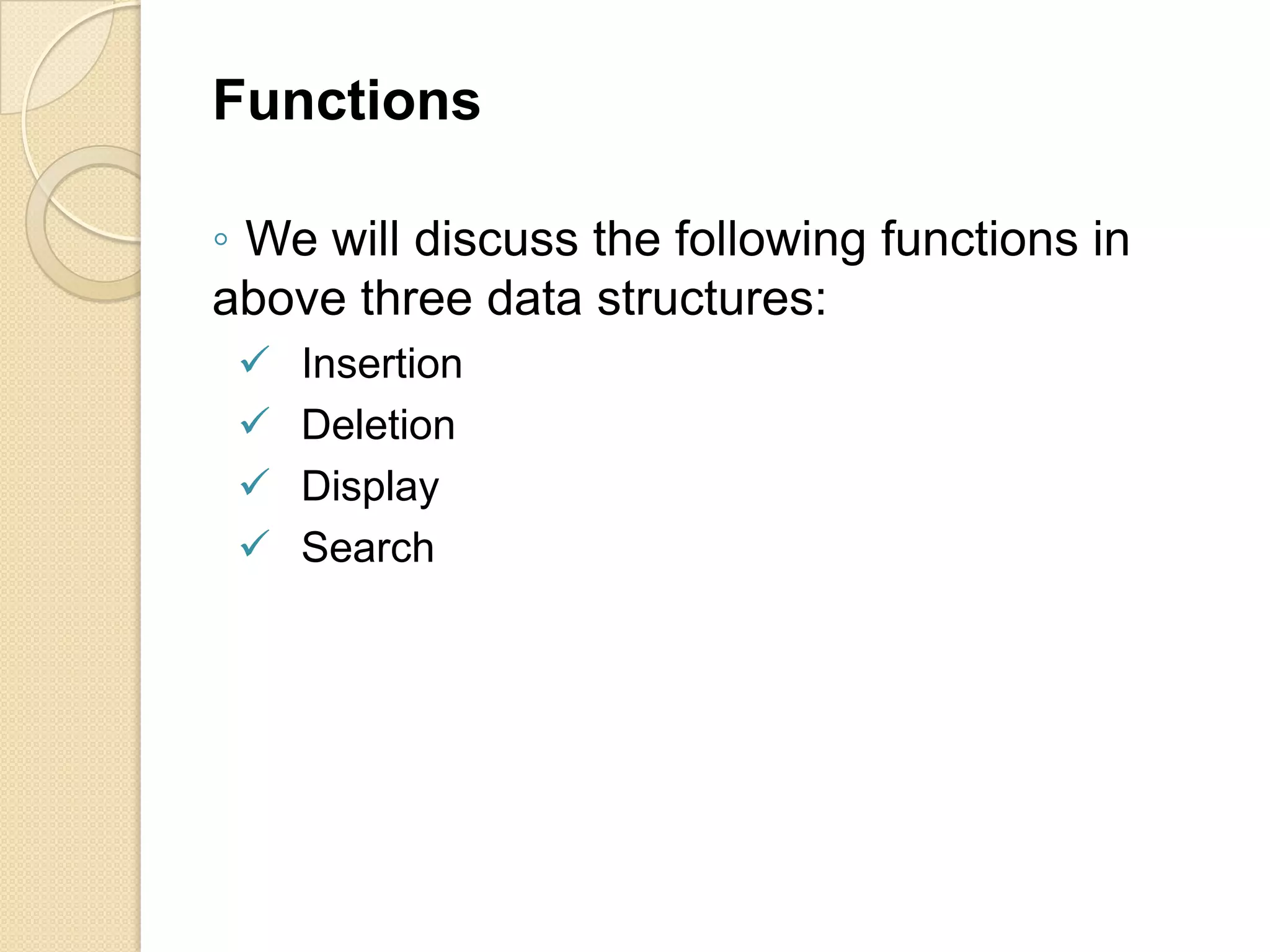

7. Functions
◦ We will discuss the following functions in
above three data structures:
 Insertion
 Deletion
 Display
 Search

8. LINK LIST IMPLEMENTATION
OF STACKS

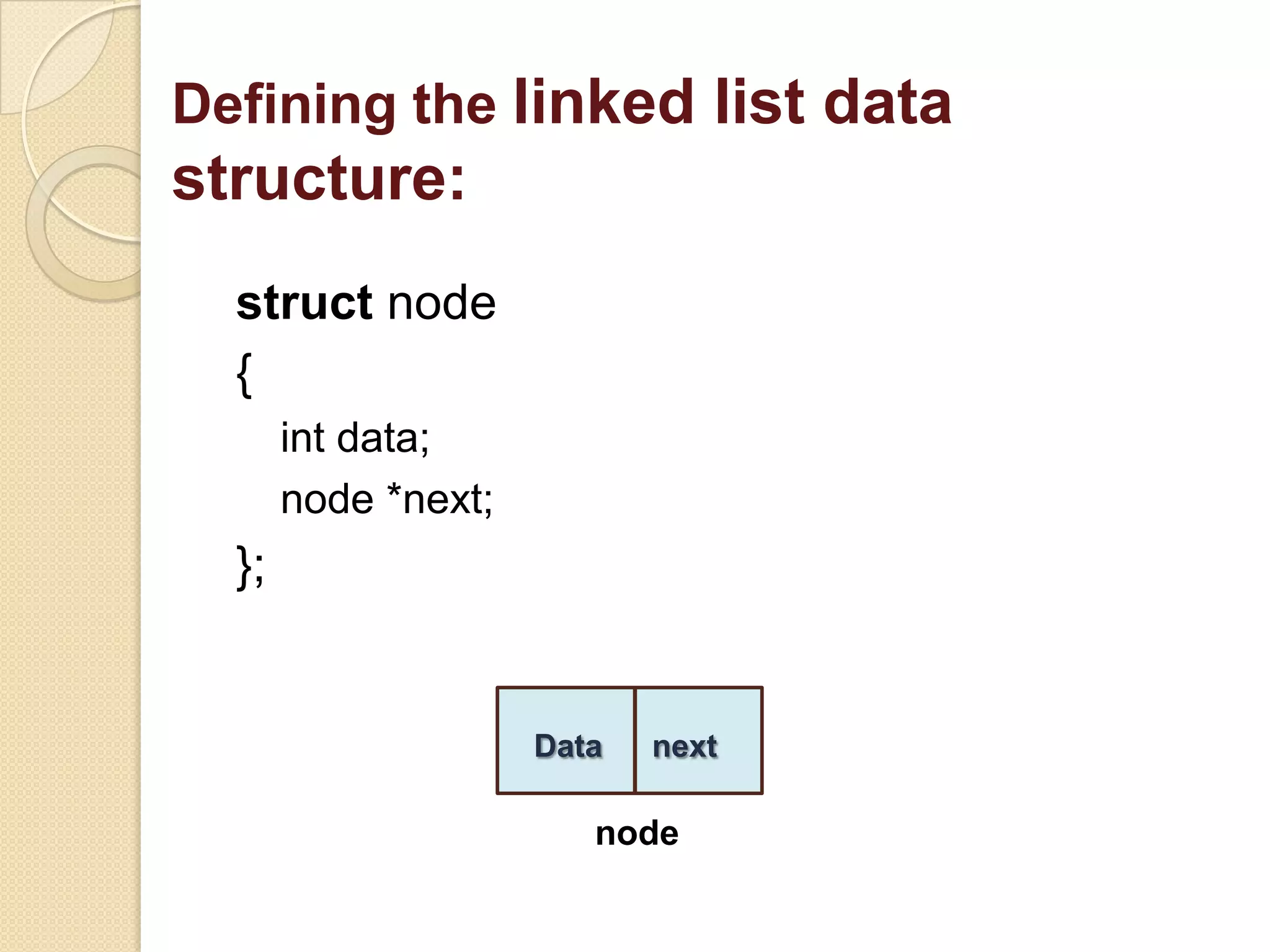

9. Defining the linked list data
structure:
struct node
{
int data;
node *next;
};
Data next
node

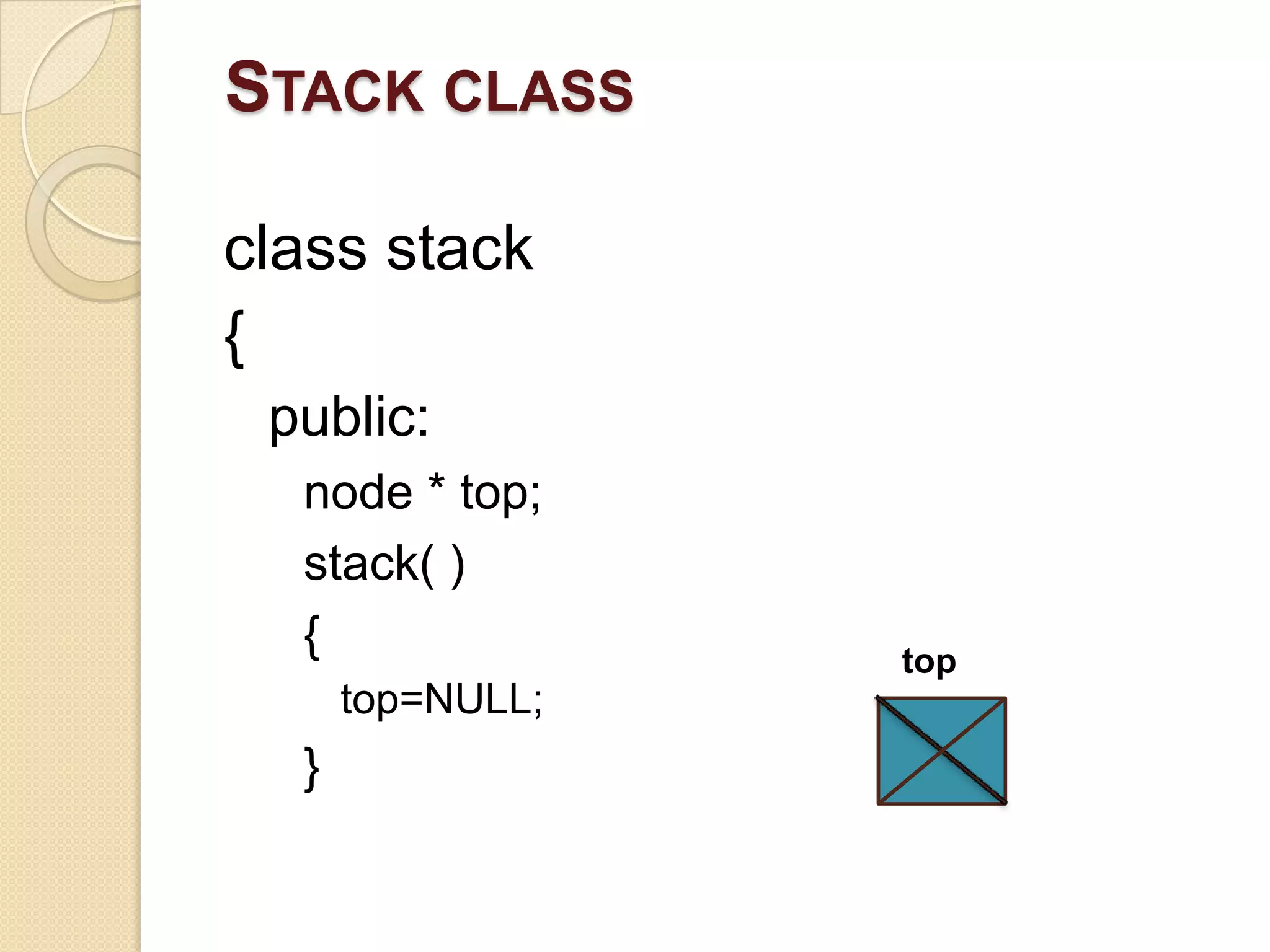

10. STACK CLASS
class stack
{
public:
node * top;
stack( )
{ top
top=NULL;
}

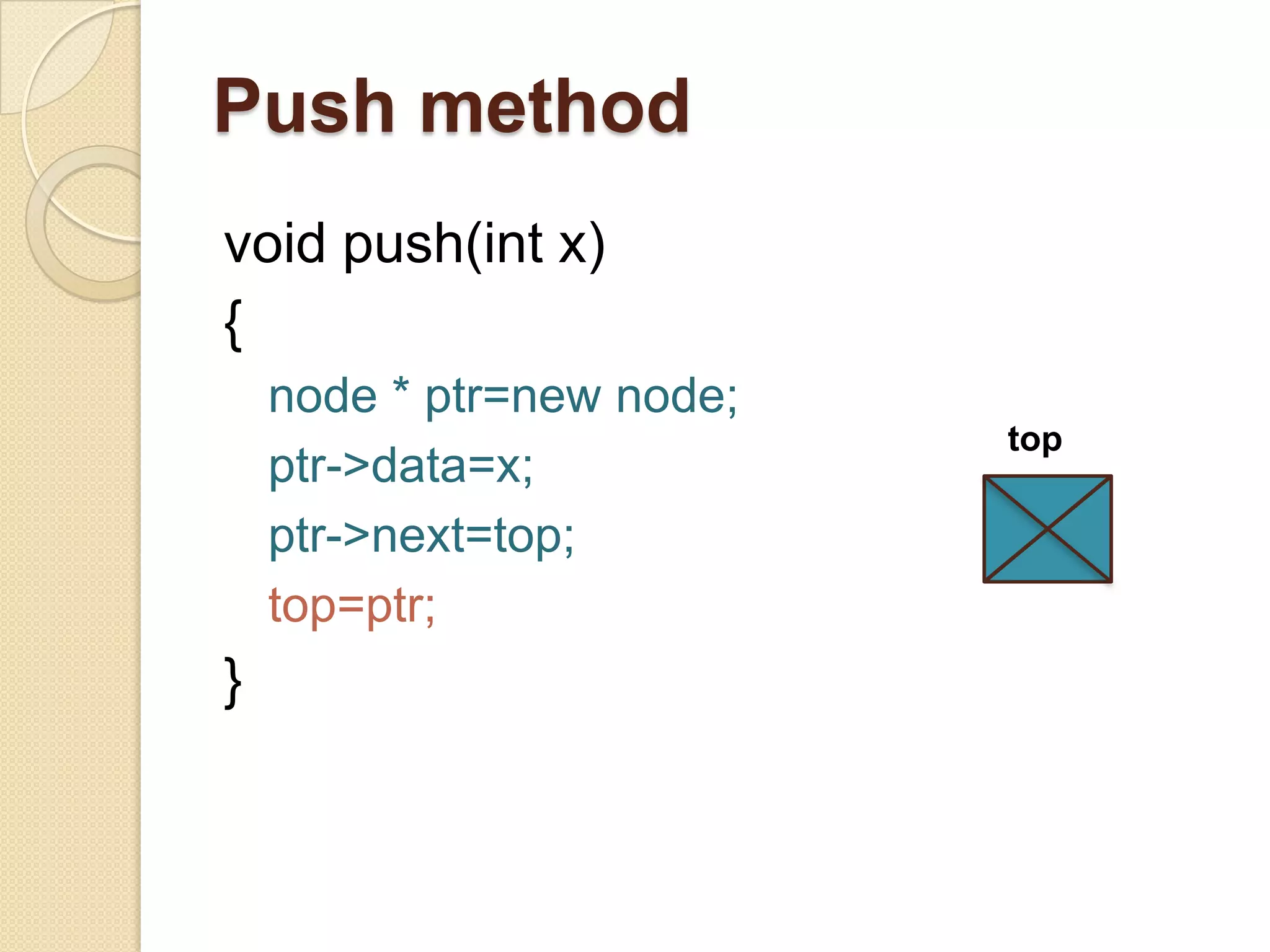

11. Push method
void push(int x)
{
node * ptr=new node;
top
ptr->data=x;
ptr->next=top;
top=ptr;
}

12. Push method
void push(int x) ptr
{
node * ptr=new node;
top
ptr->data=x;
ptr->next=top;
top=ptr;
}

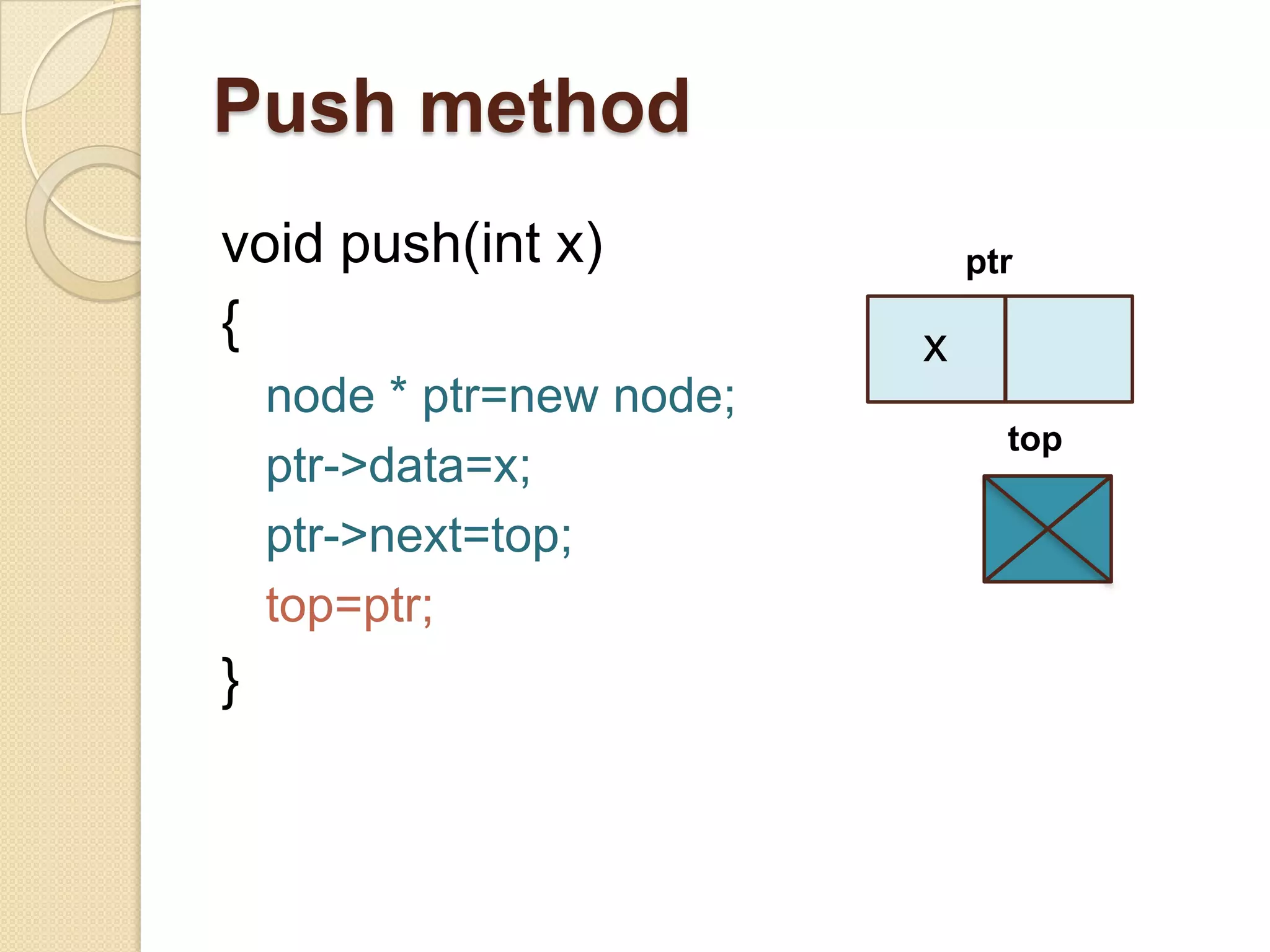

13. Push method
void push(int x) ptr
{ x
node * ptr=new node;
top
ptr->data=x;
ptr->next=top;
top=ptr;
}

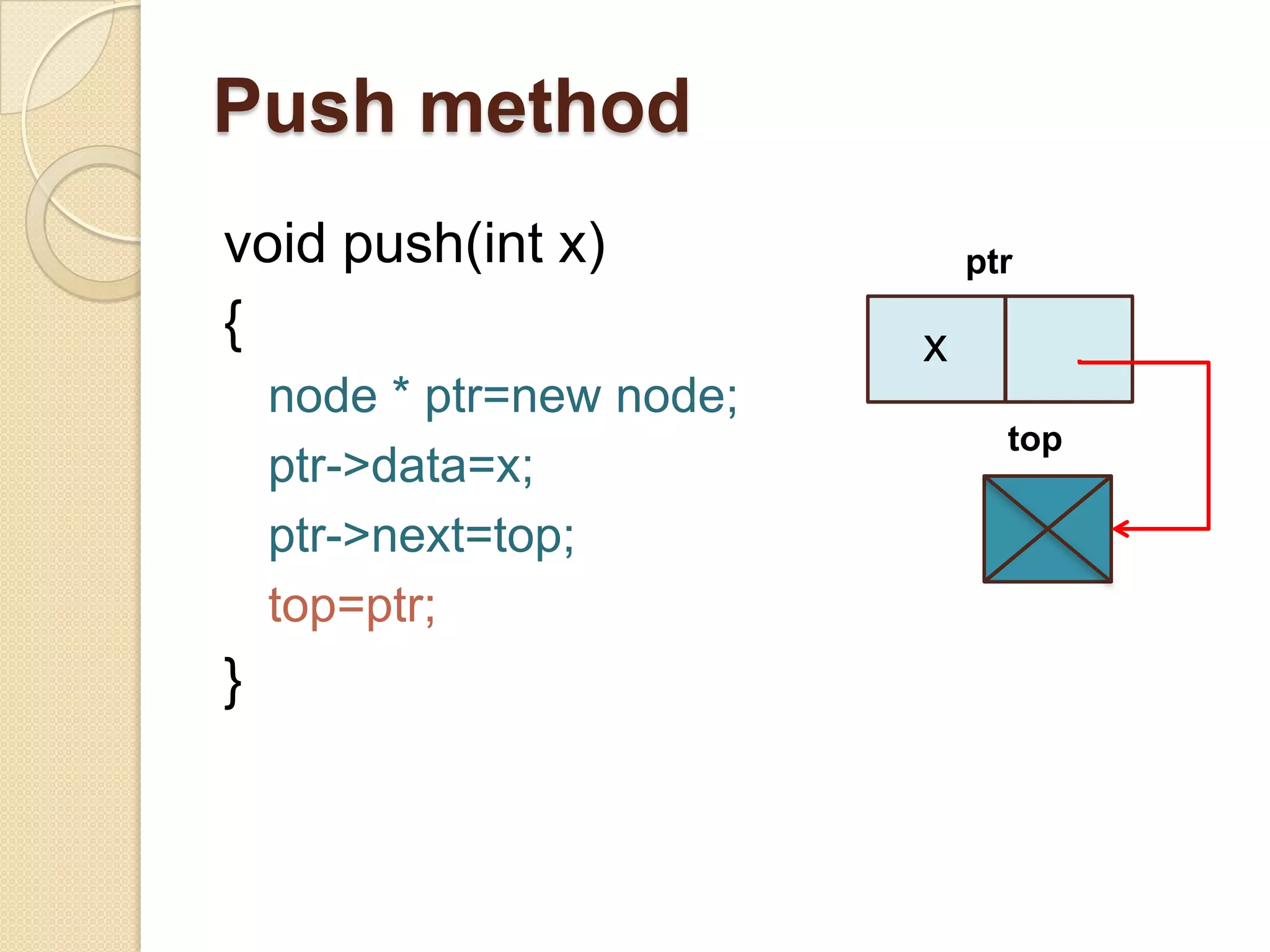

14. Push method
void push(int x) ptr
{ x
node * ptr=new node;
top
ptr->data=x;
ptr->next=top;
top=ptr;
}

15. Push method
void push(int x) ptr
{ x
node * ptr=new node;
top
ptr->data=x;
ptr->next=top;
top=ptr;
}

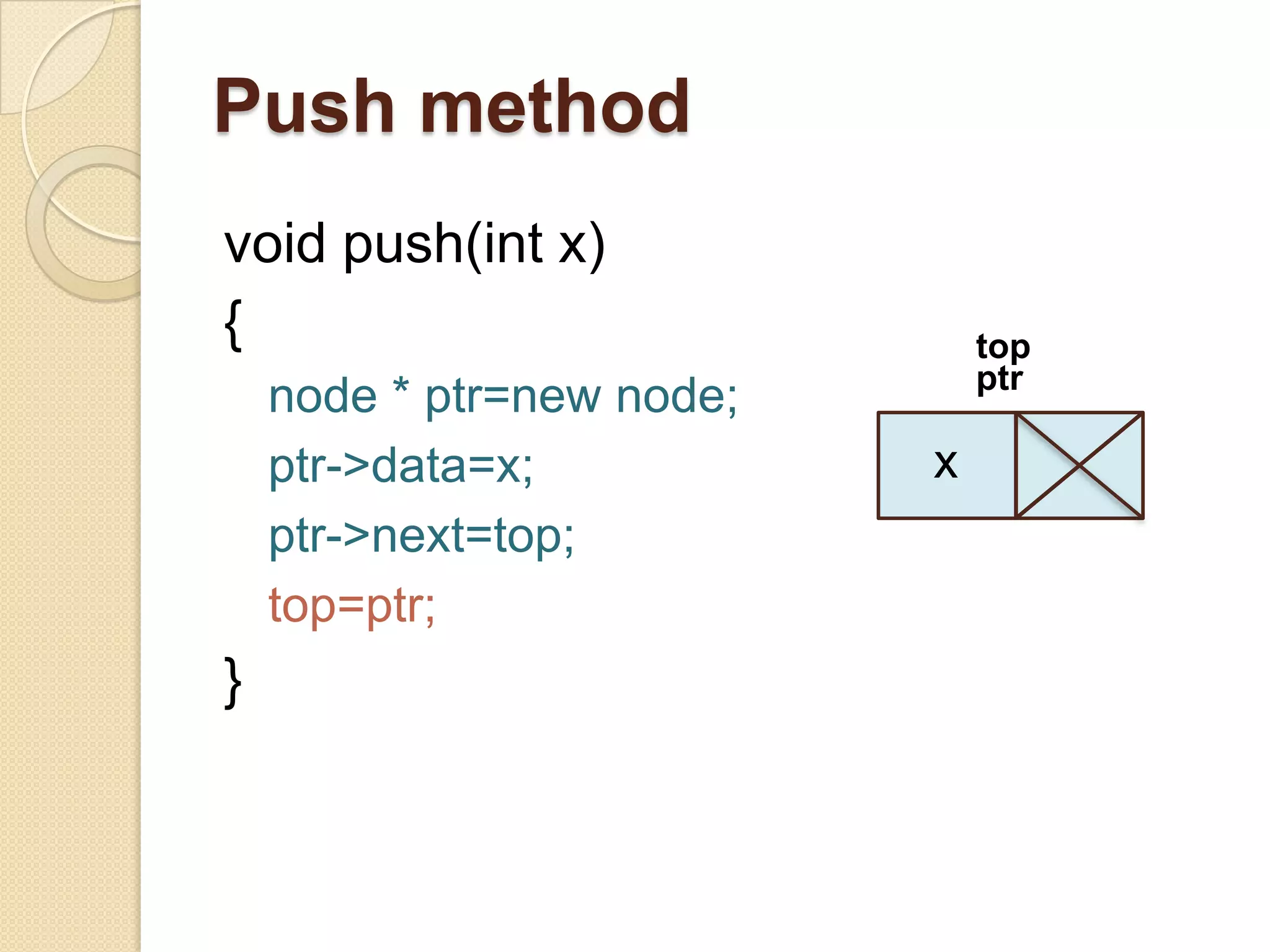

16. Push method
void push(int x)
{ top
ptr
node * ptr=new node;
ptr->data=x; x
ptr->next=top;
top=ptr;
}

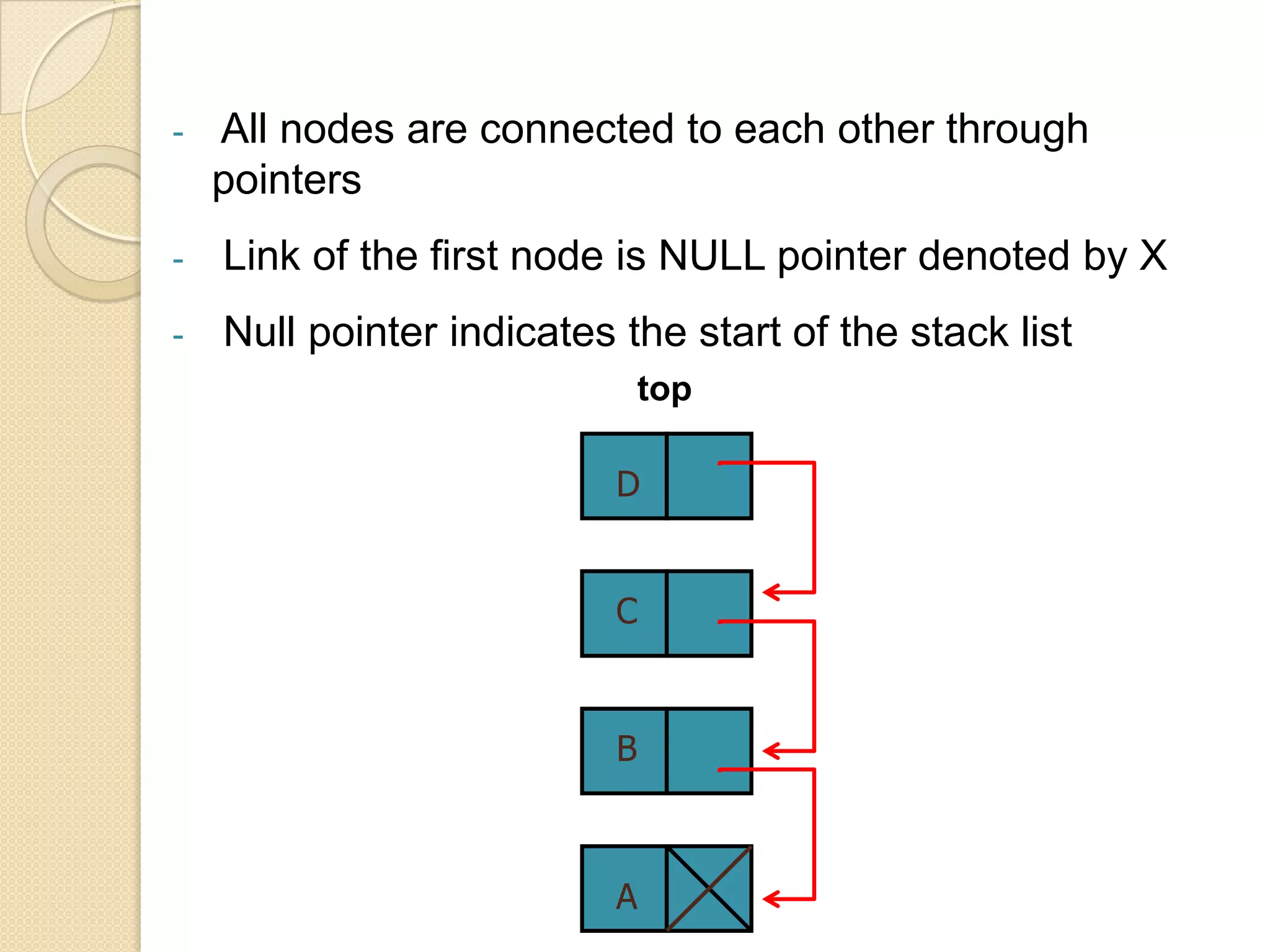

17. - All nodes are connected to each other through
pointers
- Link of the first node is NULL pointer denoted by X
- Null pointer indicates the start of the stack list
top
D
C
B
A

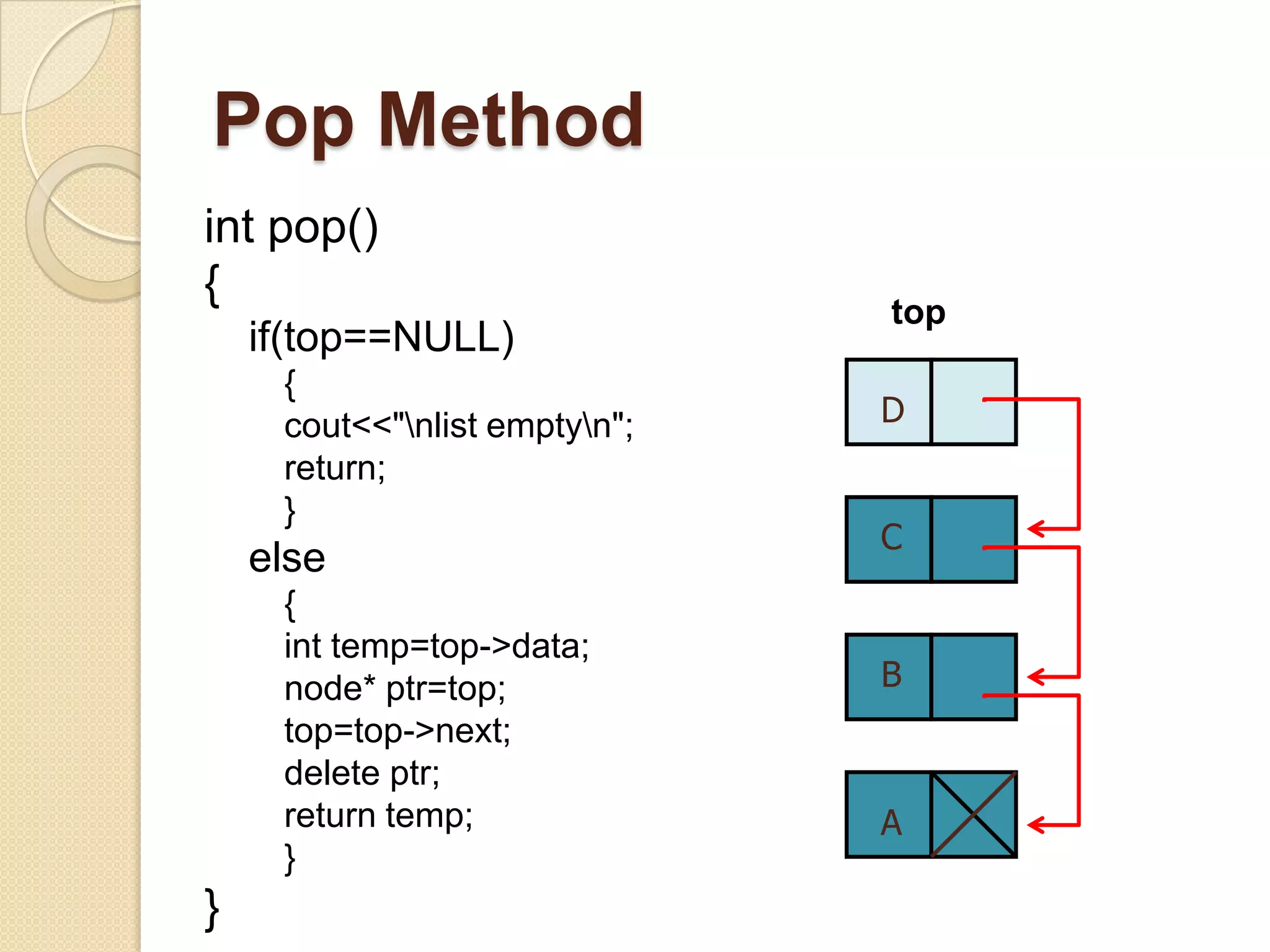

18. Pop Method
int pop()
{
top
if(top==NULL)
{
cout<<"nlist emptyn"; D
return;
}
C
else
{
int temp=top->data;
node* ptr=top; B
top=top->next;
delete ptr;
return temp; A
}
}

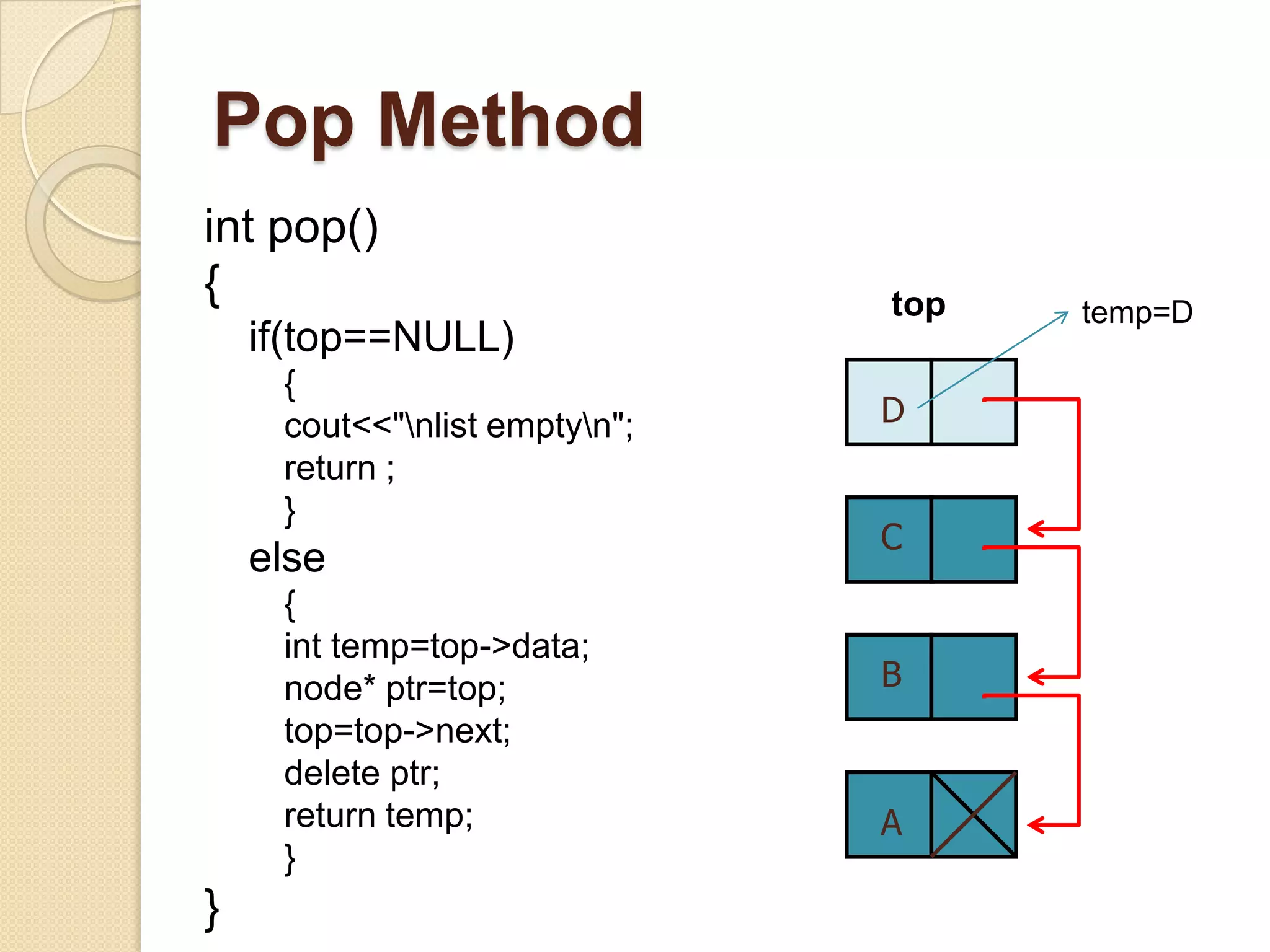

19. Pop Method
int pop()
{ top temp=D
if(top==NULL)
{
cout<<"nlist emptyn"; D
return ;
}
C
else
{
int temp=top->data;
node* ptr=top; B
top=top->next;
delete ptr;
return temp; A
}
}

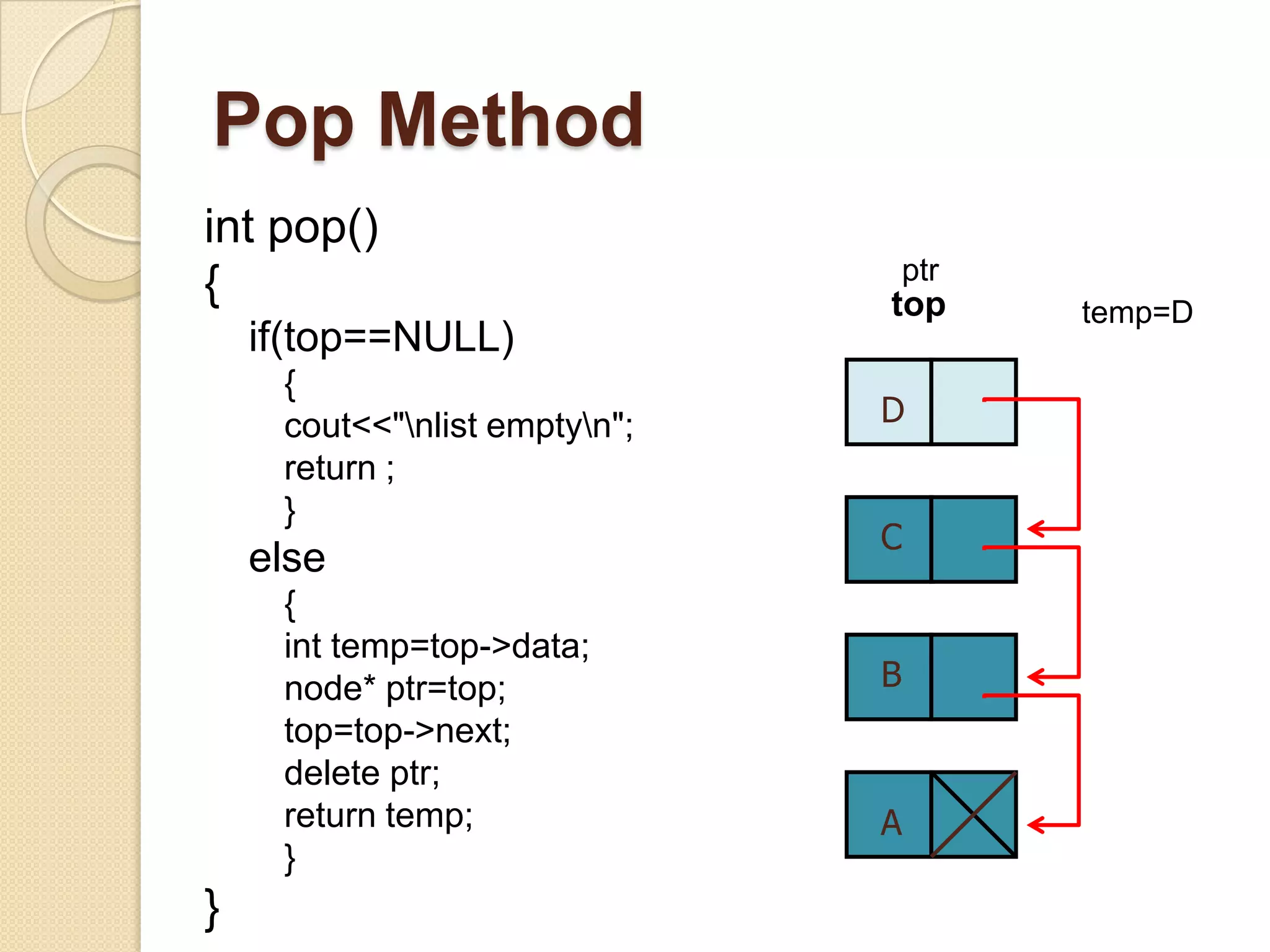

20. Pop Method
int pop()
ptr
{ top temp=D
if(top==NULL)
{
cout<<"nlist emptyn"; D
return ;
}
C
else
{
int temp=top->data;
node* ptr=top; B
top=top->next;
delete ptr;
return temp; A
}
}

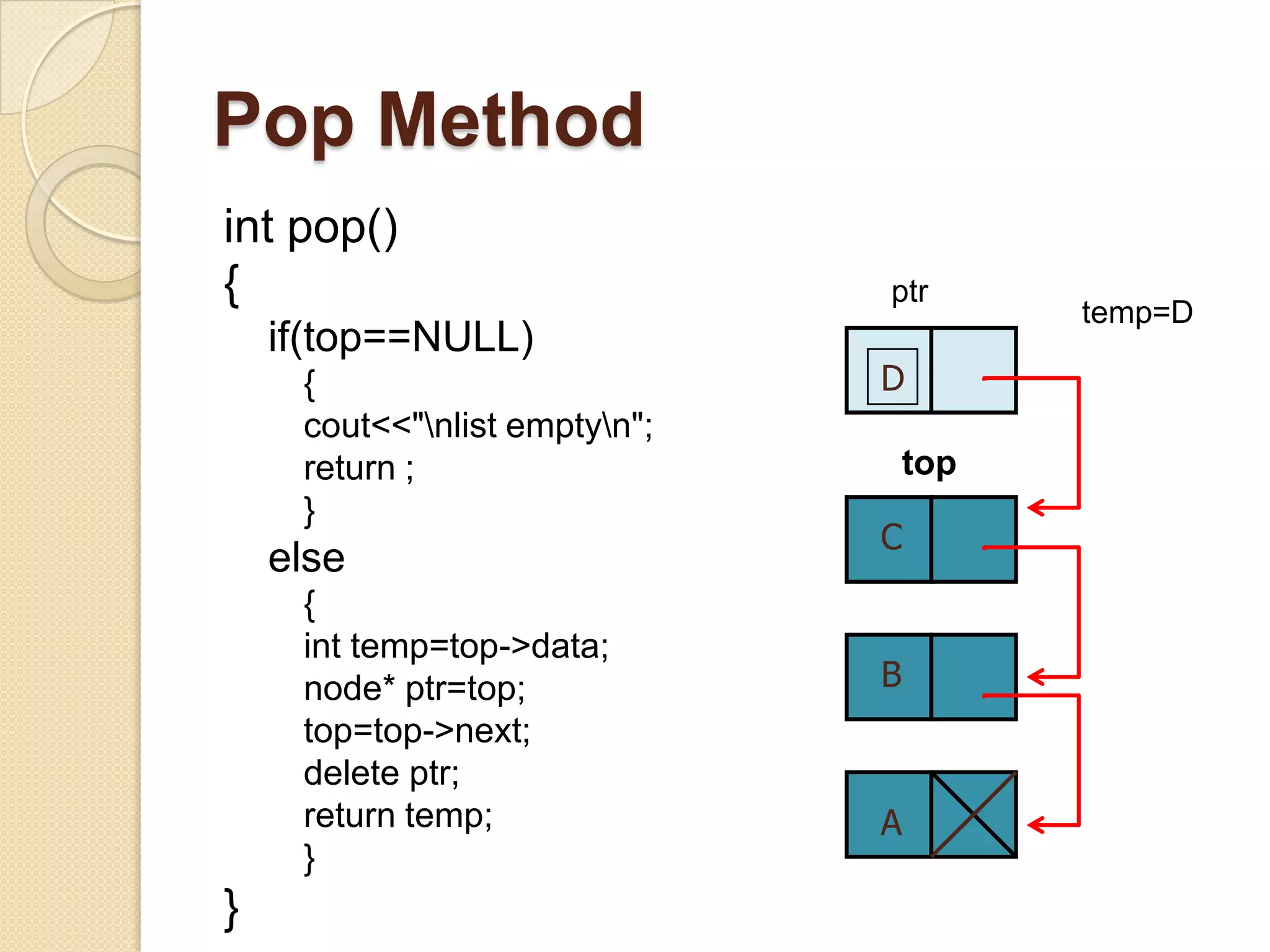

21. Pop Method
int pop()
{ ptr
temp=D
if(top==NULL)
{ D
cout<<"nlist emptyn";
return ; top
}
C
else
{
int temp=top->data;
node* ptr=top; B
top=top->next;
delete ptr;
return temp; A
}
}

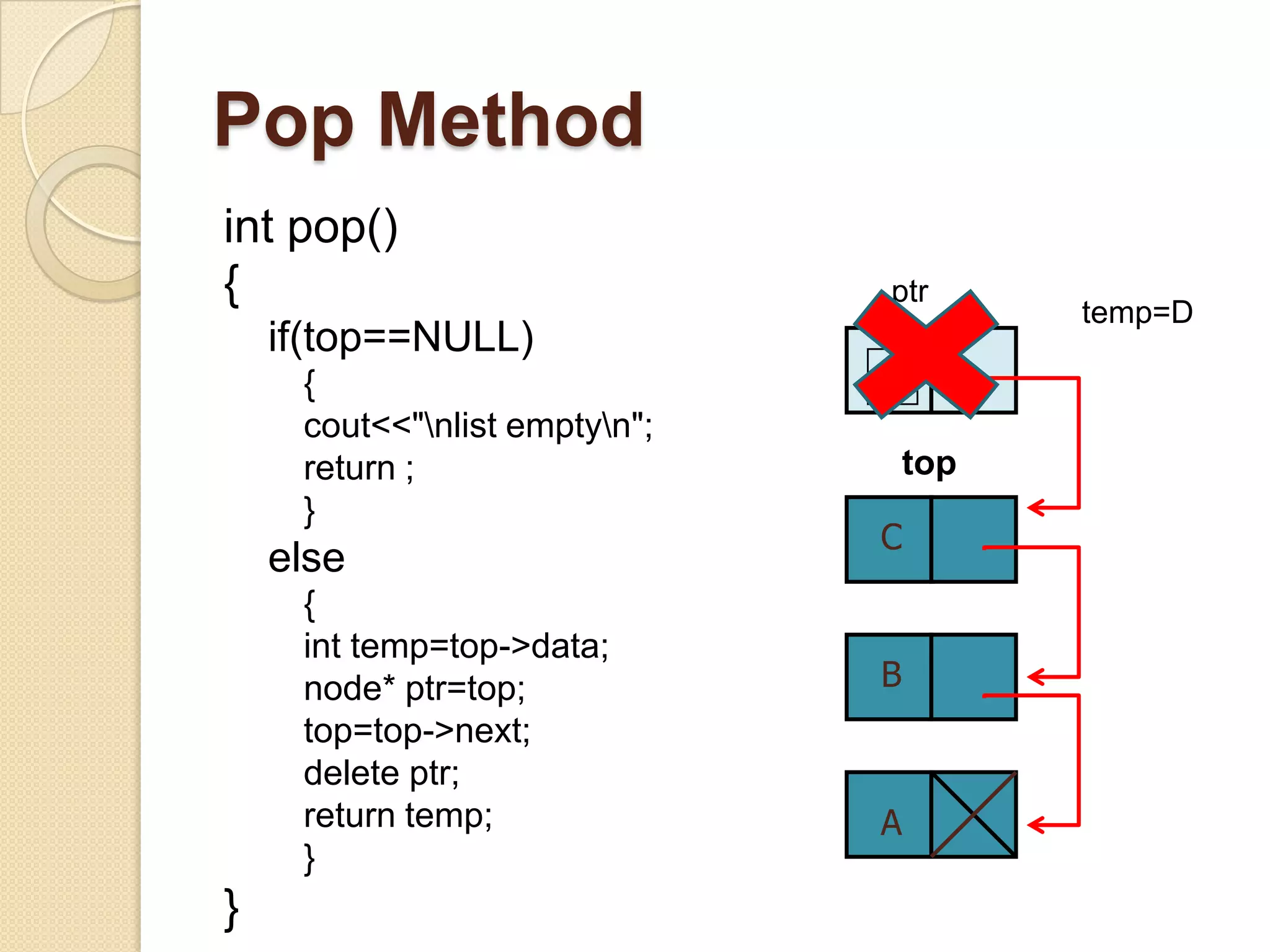

22. Pop Method
int pop()
{ ptr
temp=D
if(top==NULL)
{ D
cout<<"nlist emptyn";
return ; top
}
C
else
{
int temp=top->data;
node* ptr=top; B
top=top->next;
delete ptr;
return temp; A
}
}

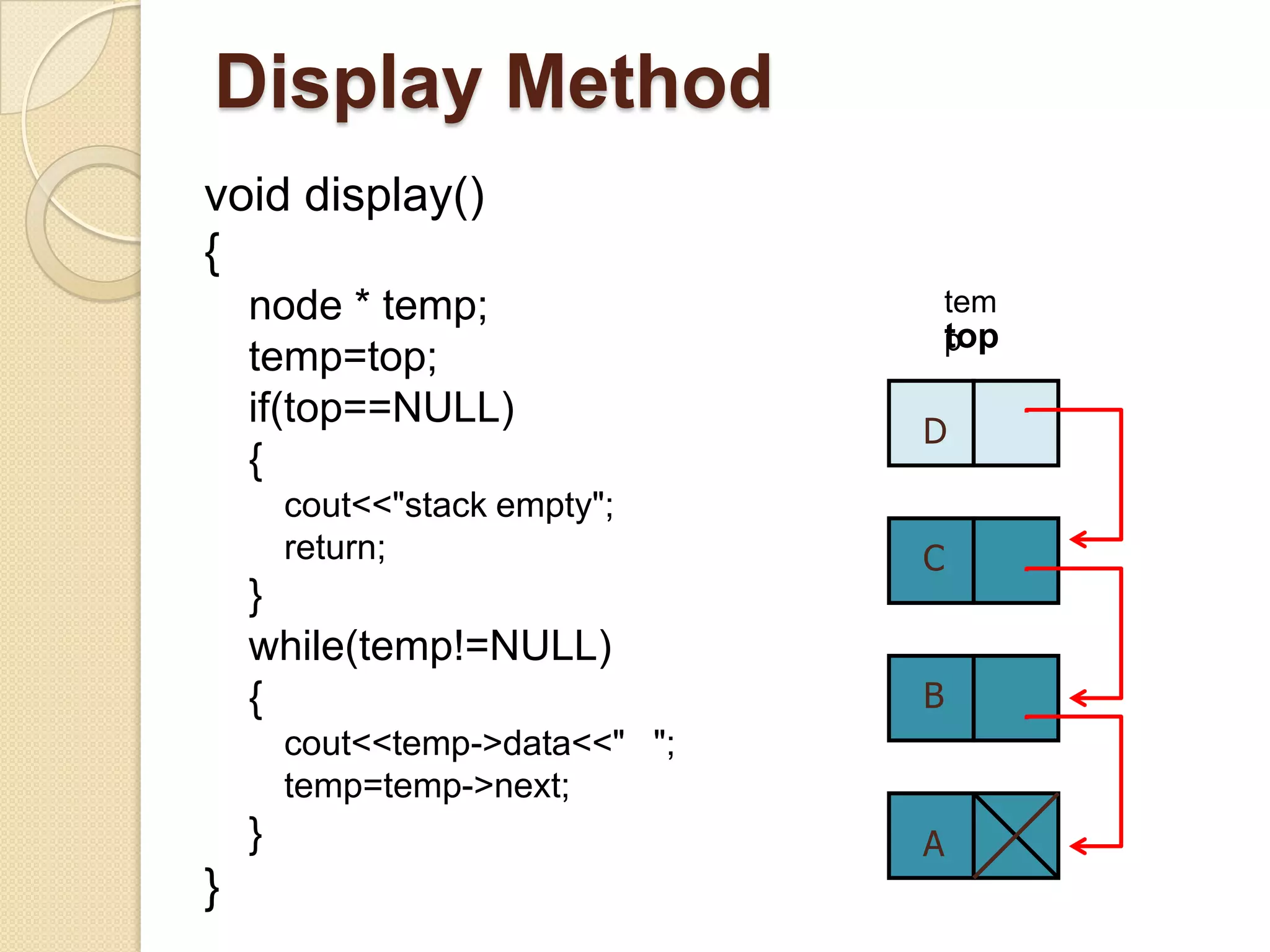

23. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}

24. Display Method
void display()
{
node * temp; tem
top
p
temp=top;
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}

25. Display Method
void display()
{
node * temp; tem
top
p
temp=top; display D
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}

26. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty"; tem
p
return; C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}

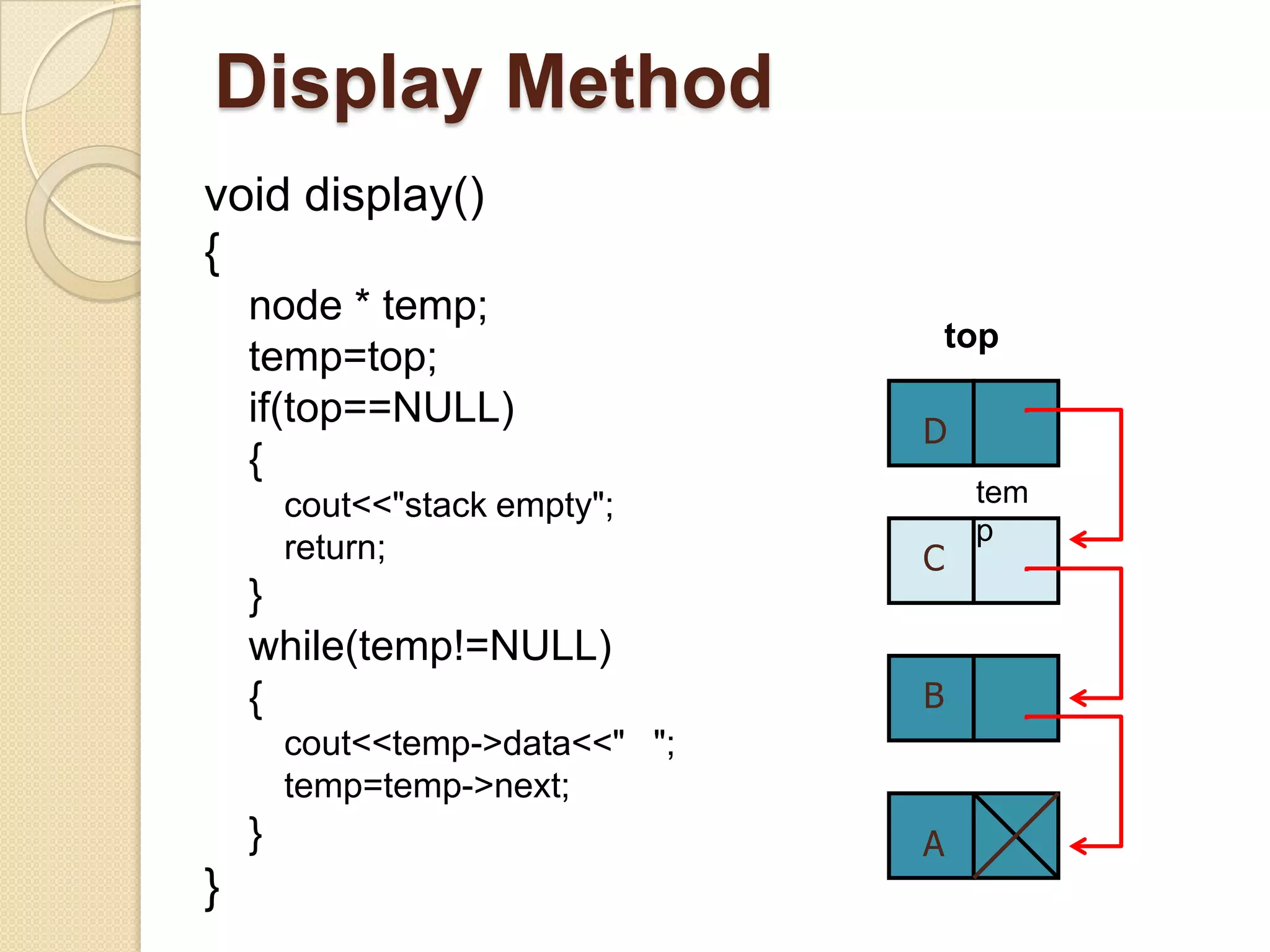

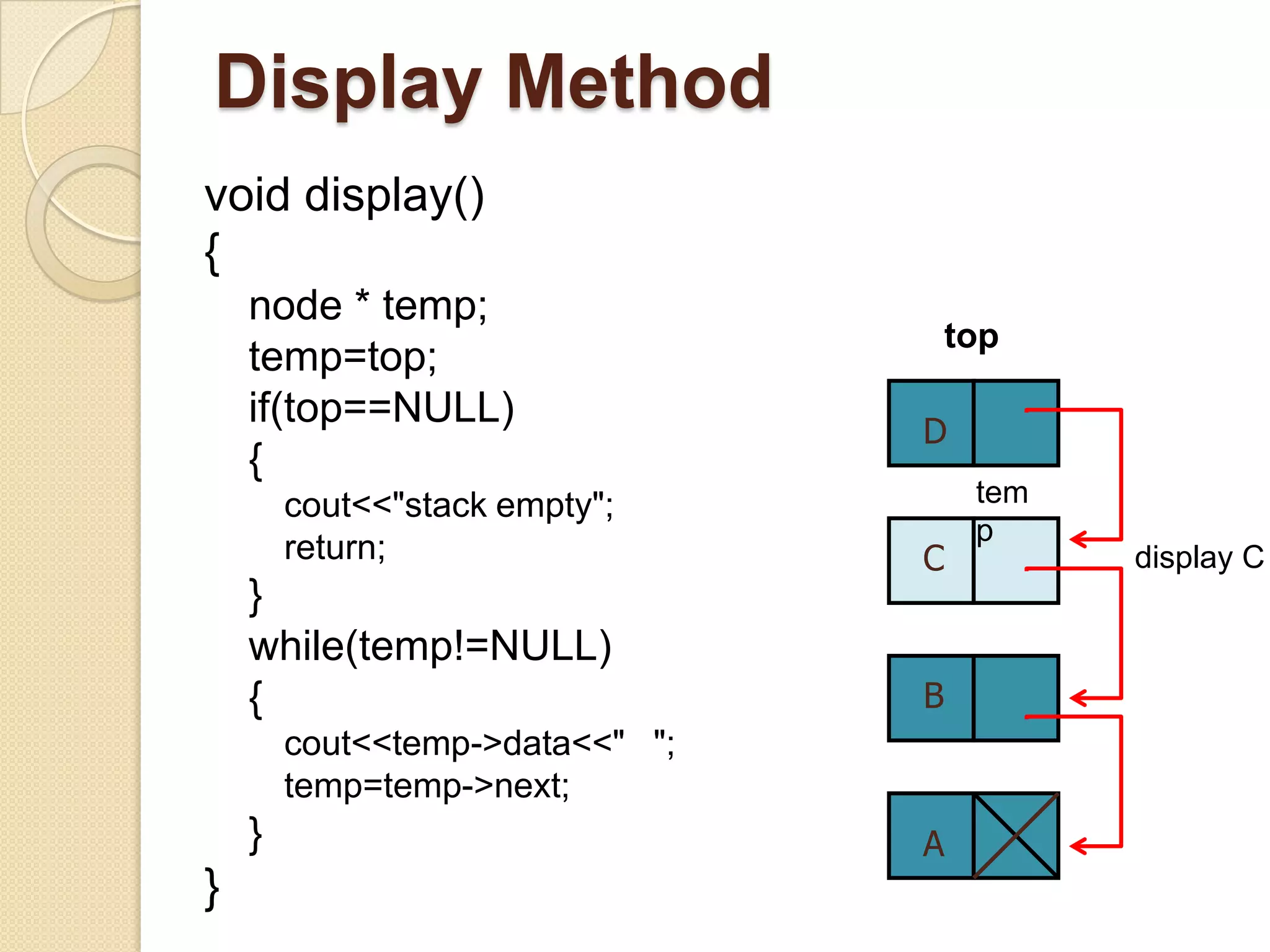

27. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty"; tem
p
return; C display C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}

28. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
tem
while(temp!=NULL) p
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}

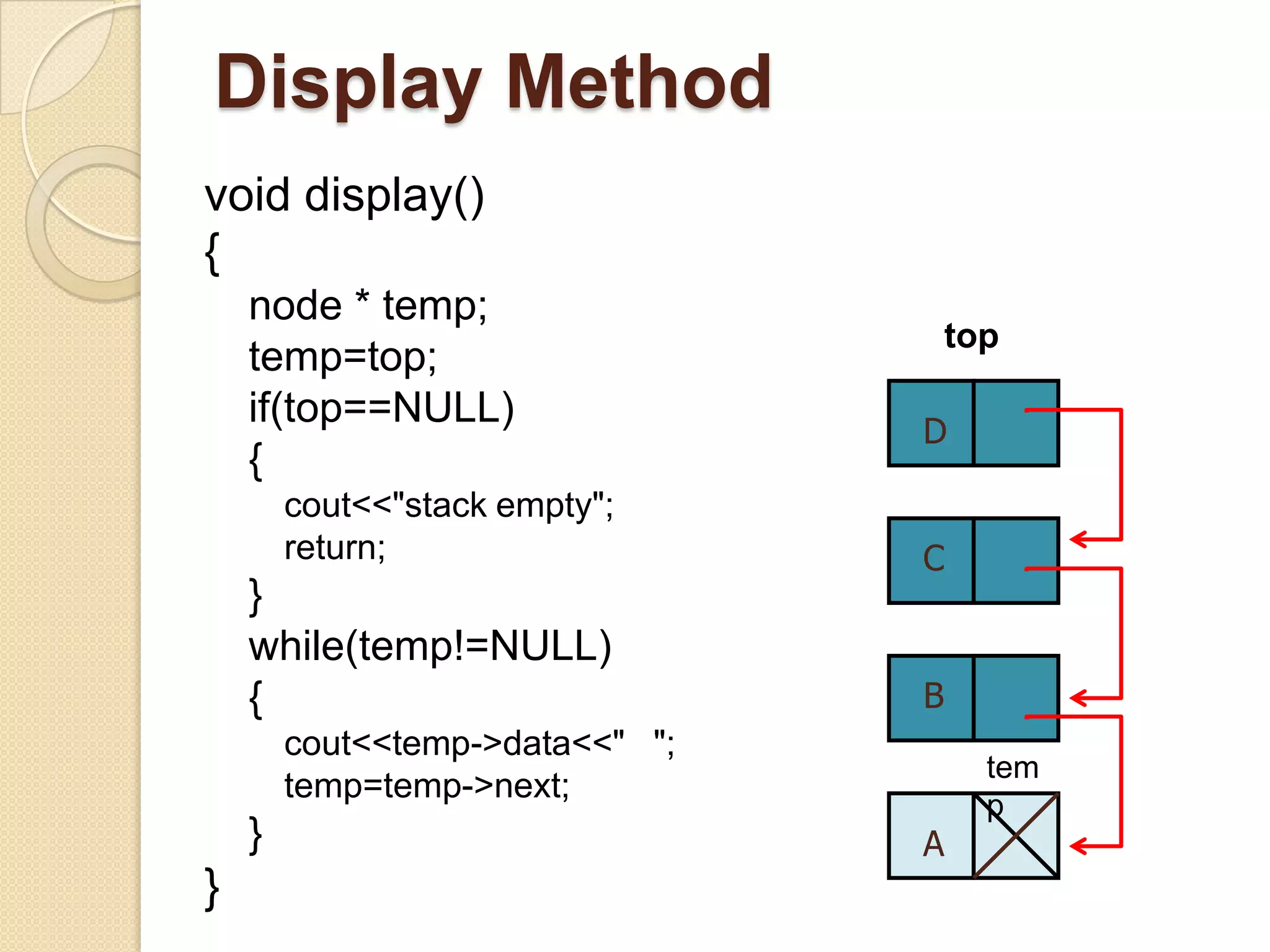

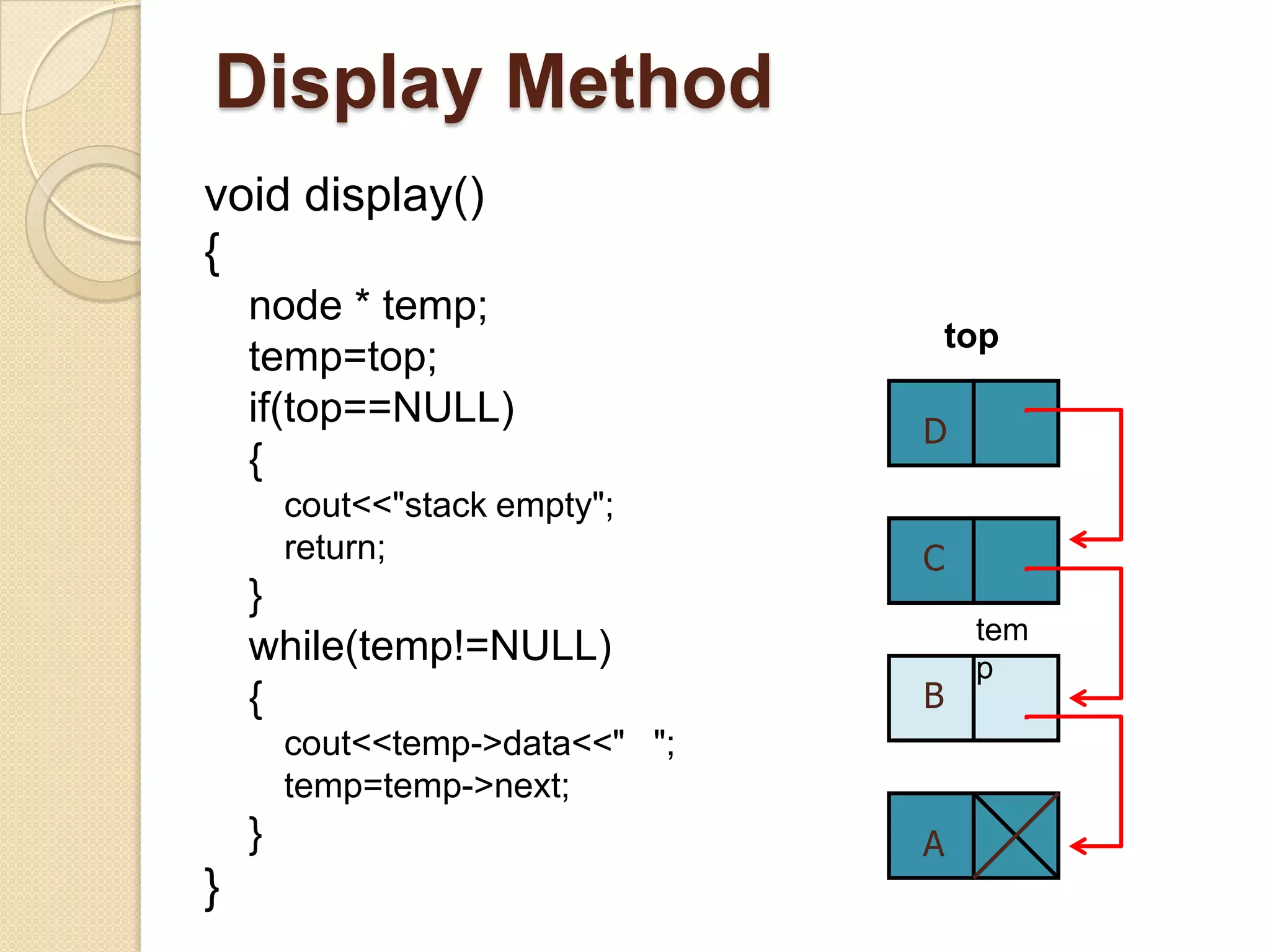

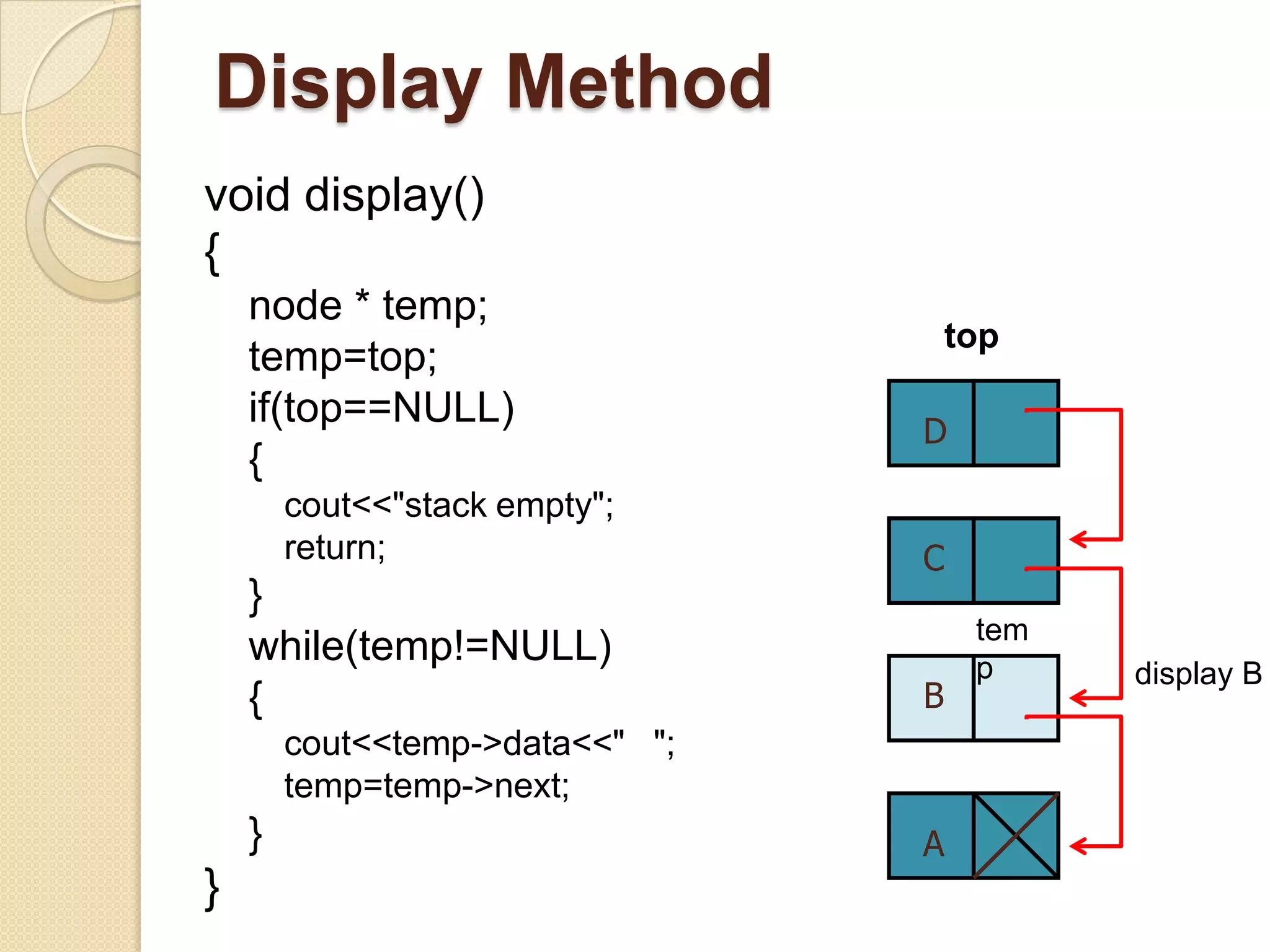

29. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
tem
while(temp!=NULL) p display B
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}

30. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
tem
temp=temp->next;
p
} A
}

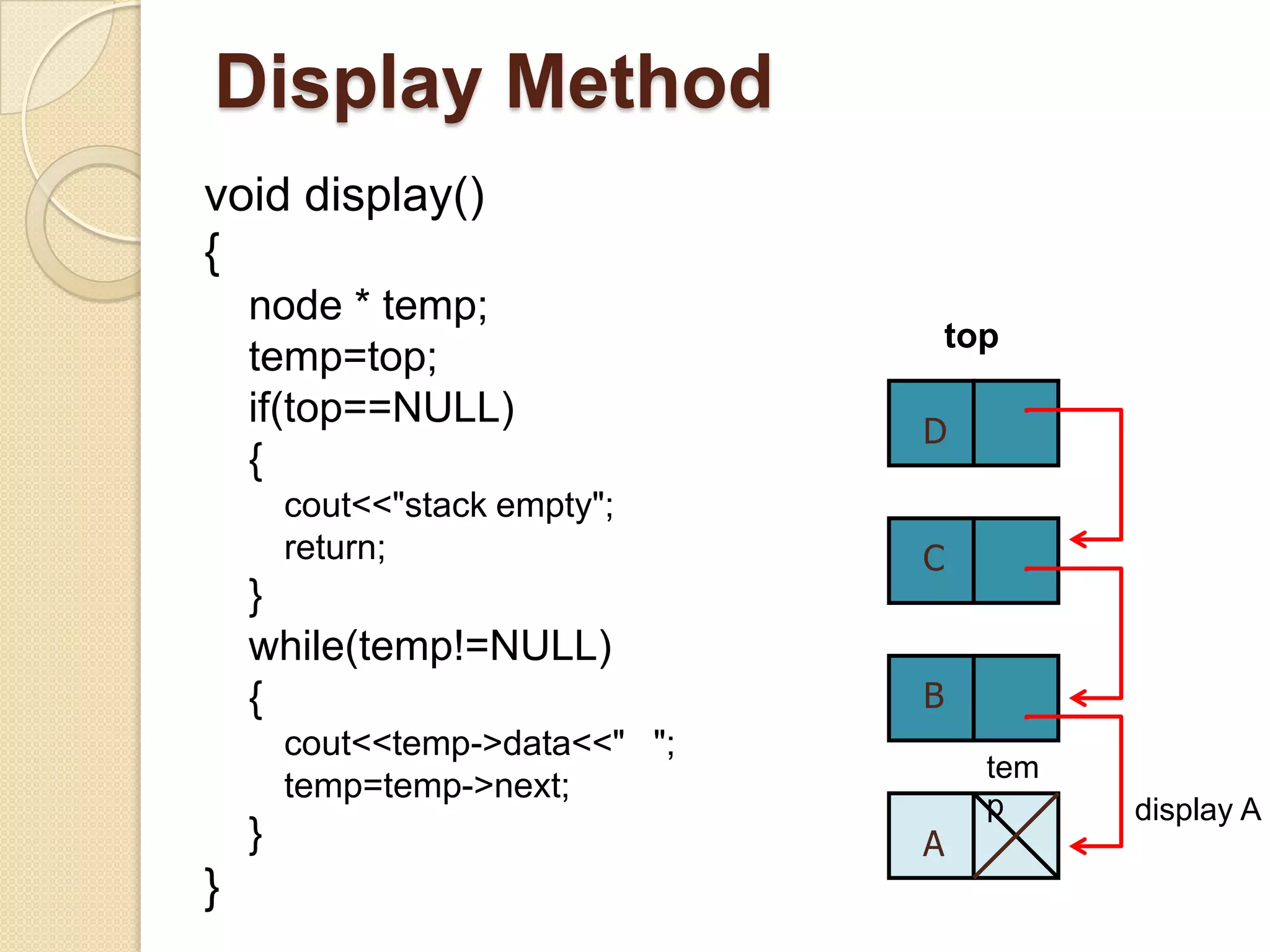

31. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
tem
temp=temp->next;
p display A
} A
}

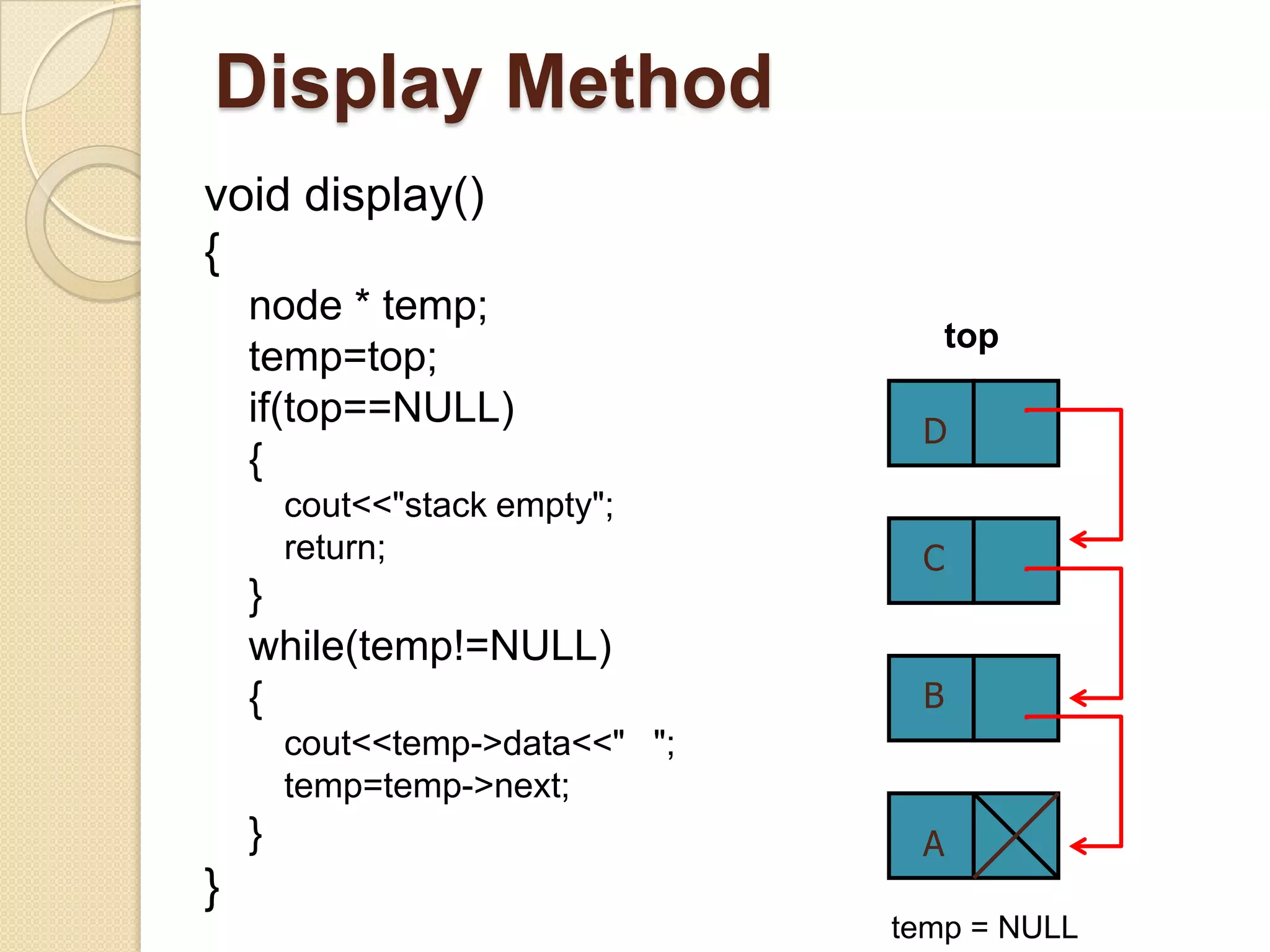

32. Display Method
void display()
{
node * temp;
top
temp=top;
if(top==NULL)
D
{
cout<<"stack empty";
return; C
}
while(temp!=NULL)
{ B
cout<<temp->data<<" ";
temp=temp->next;
} A
}
temp = NULL

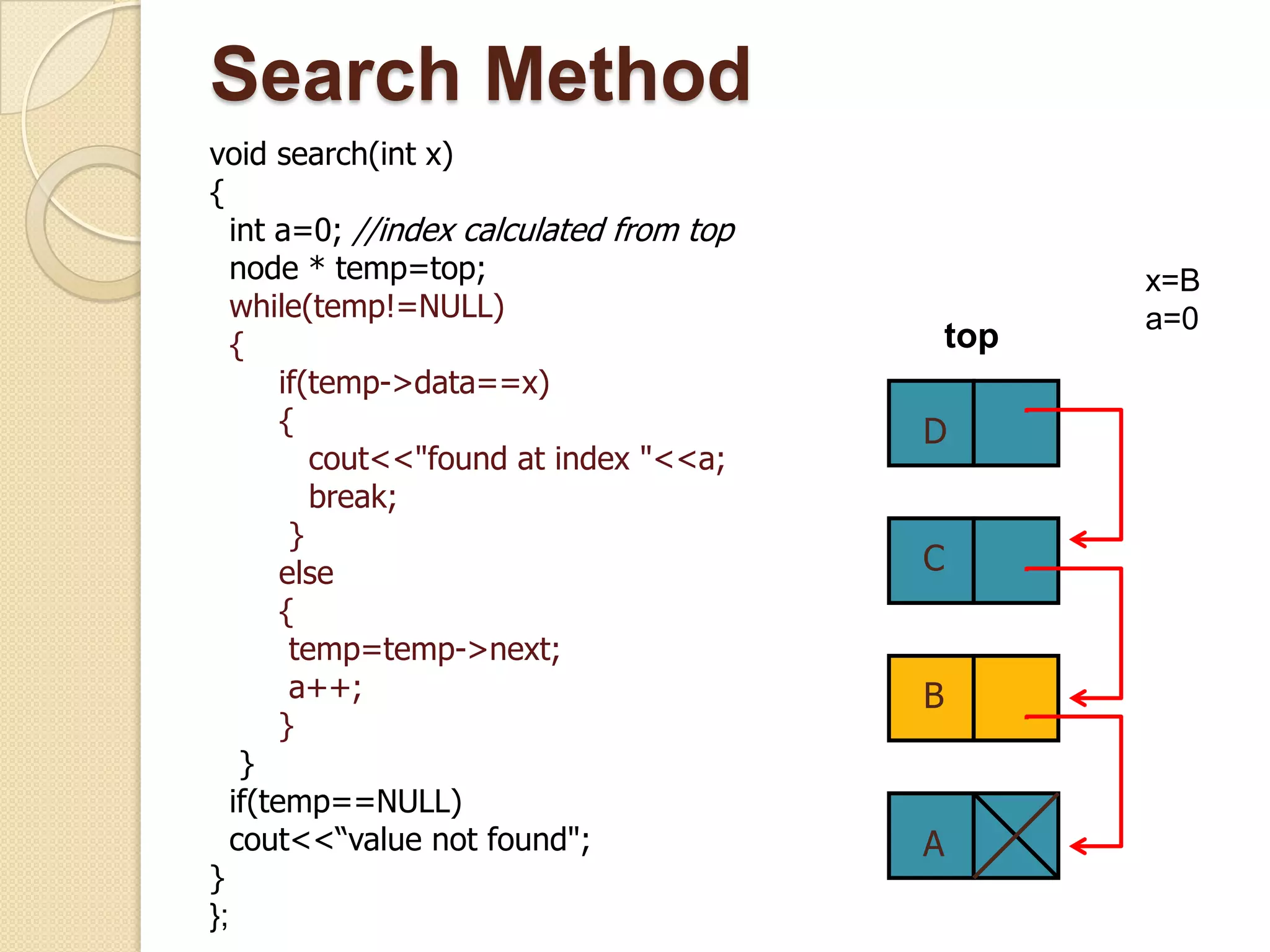

33. Search Method
void search(int x)
{
int a=0; //index calculated from top
node * temp=top; x=B
while(temp!=NULL) a=0
{ top
if(temp->data==x)
{ D
cout<<"found at index "<<a;
break;
}
else C
{
temp=temp->next;
a++; B
}
}
if(temp==NULL)
cout<<“value not found"; A
}
};

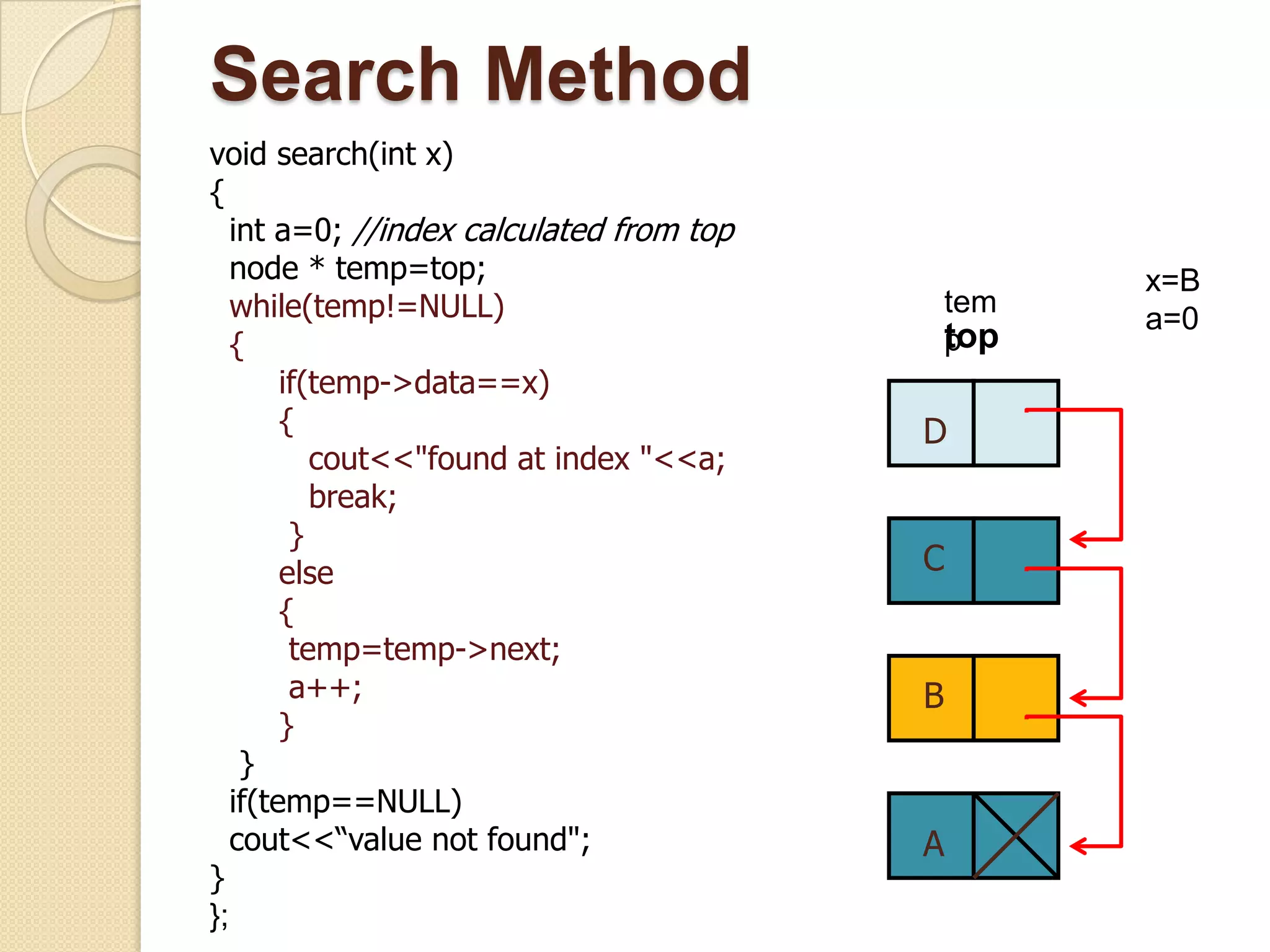

34. Search Method
void search(int x)
{
int a=0; //index calculated from top
node * temp=top; x=B
while(temp!=NULL) tem
a=0
{ top
p
if(temp->data==x)
{ D
cout<<"found at index "<<a;
break;
}
else C
{
temp=temp->next;
a++; B
}
}
if(temp==NULL)
cout<<“value not found"; A
}
};

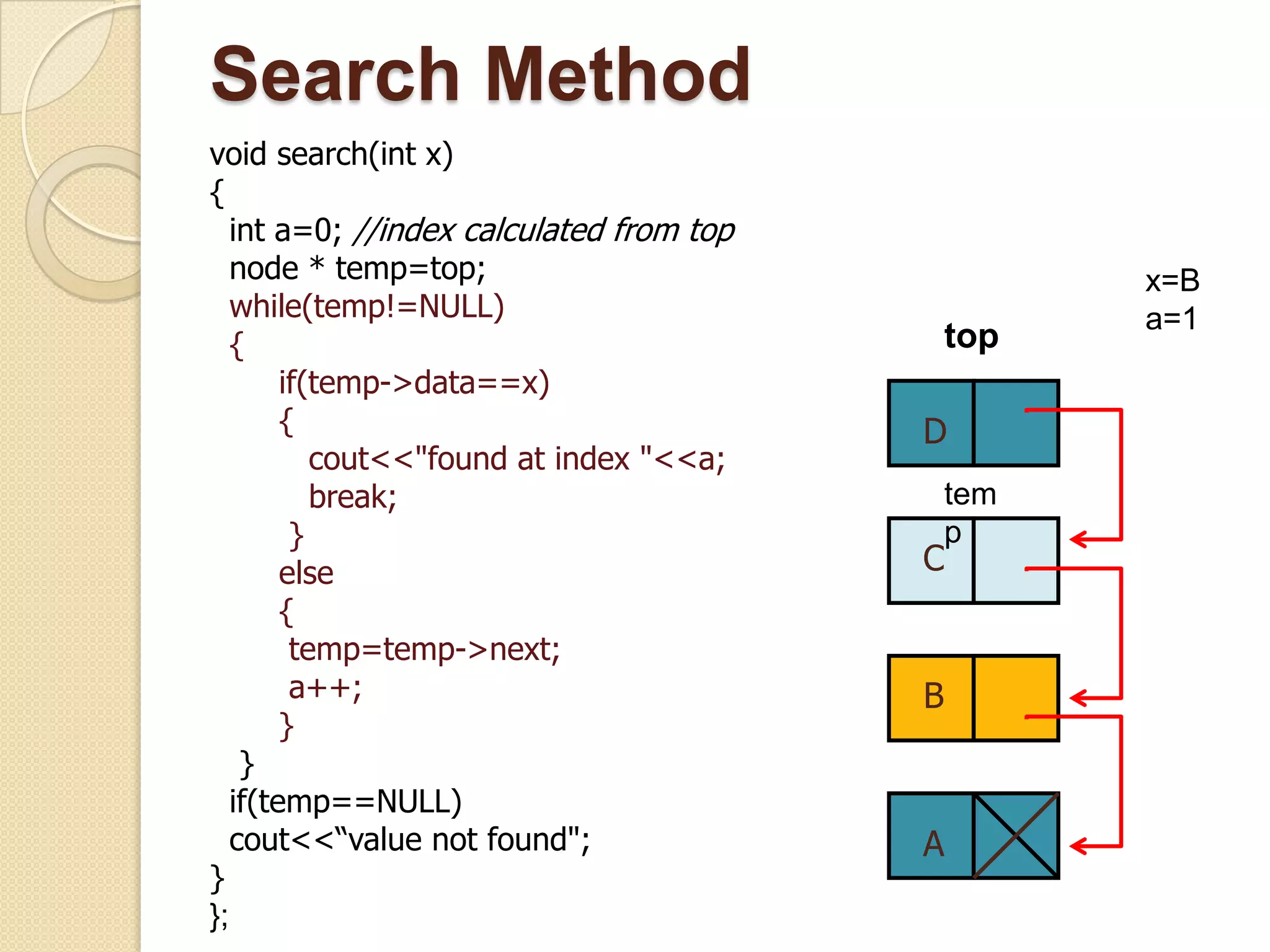

35. Search Method
void search(int x)
{
int a=0; //index calculated from top
node * temp=top; x=B
while(temp!=NULL) a=1
{ top
if(temp->data==x)
{ D
cout<<"found at index "<<a;
break; tem
} p
else C
{
temp=temp->next;
a++; B
}
}
if(temp==NULL)
cout<<“value not found"; A
}
};

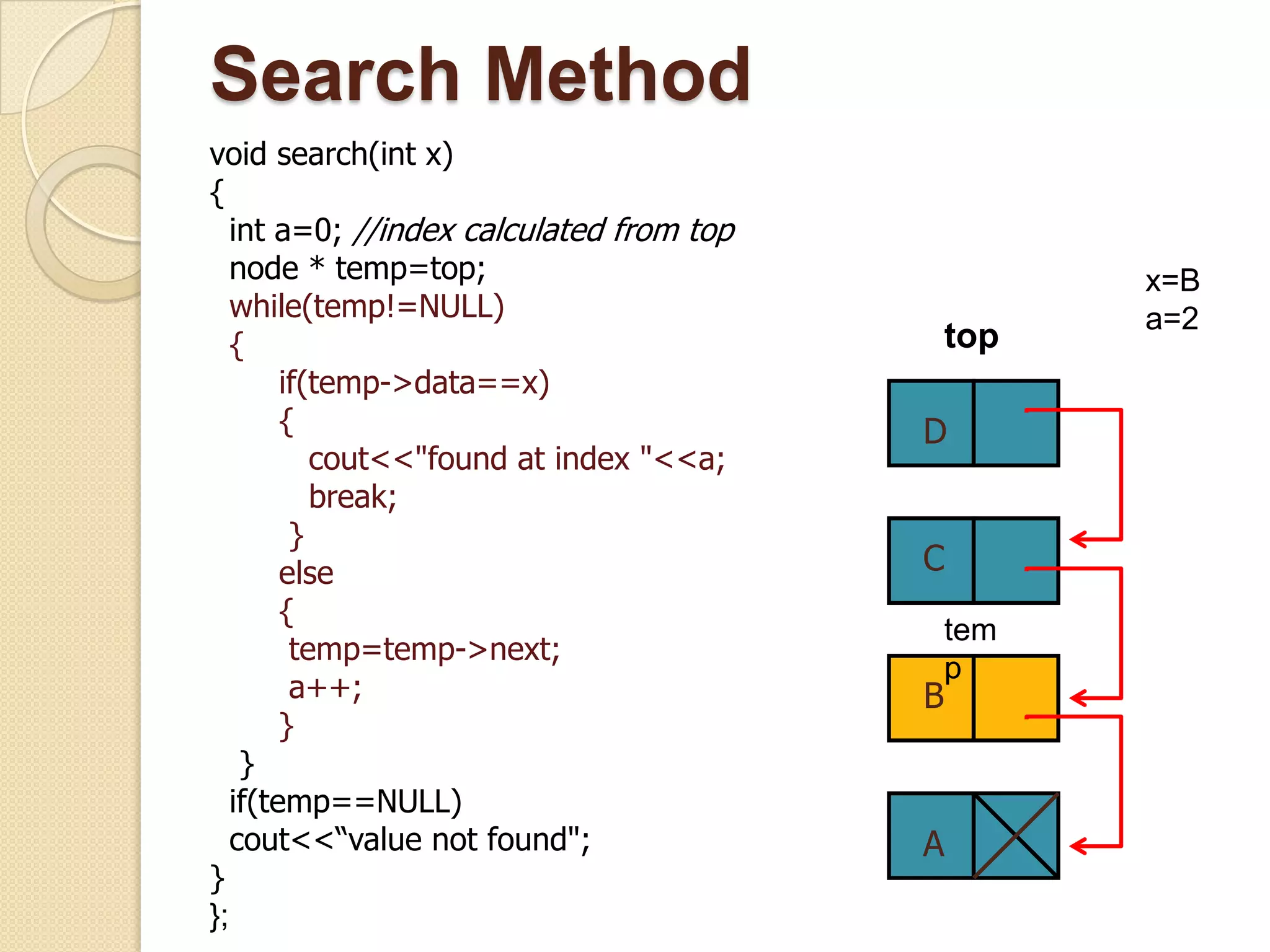

36. Search Method
void search(int x)
{
int a=0; //index calculated from top
node * temp=top; x=B
while(temp!=NULL) a=2
{ top
if(temp->data==x)
{ D
cout<<"found at index "<<a;
break;
}
else C
{
tem
temp=temp->next;
p
a++; B
}
}
if(temp==NULL)
cout<<“value not found"; A
}
};

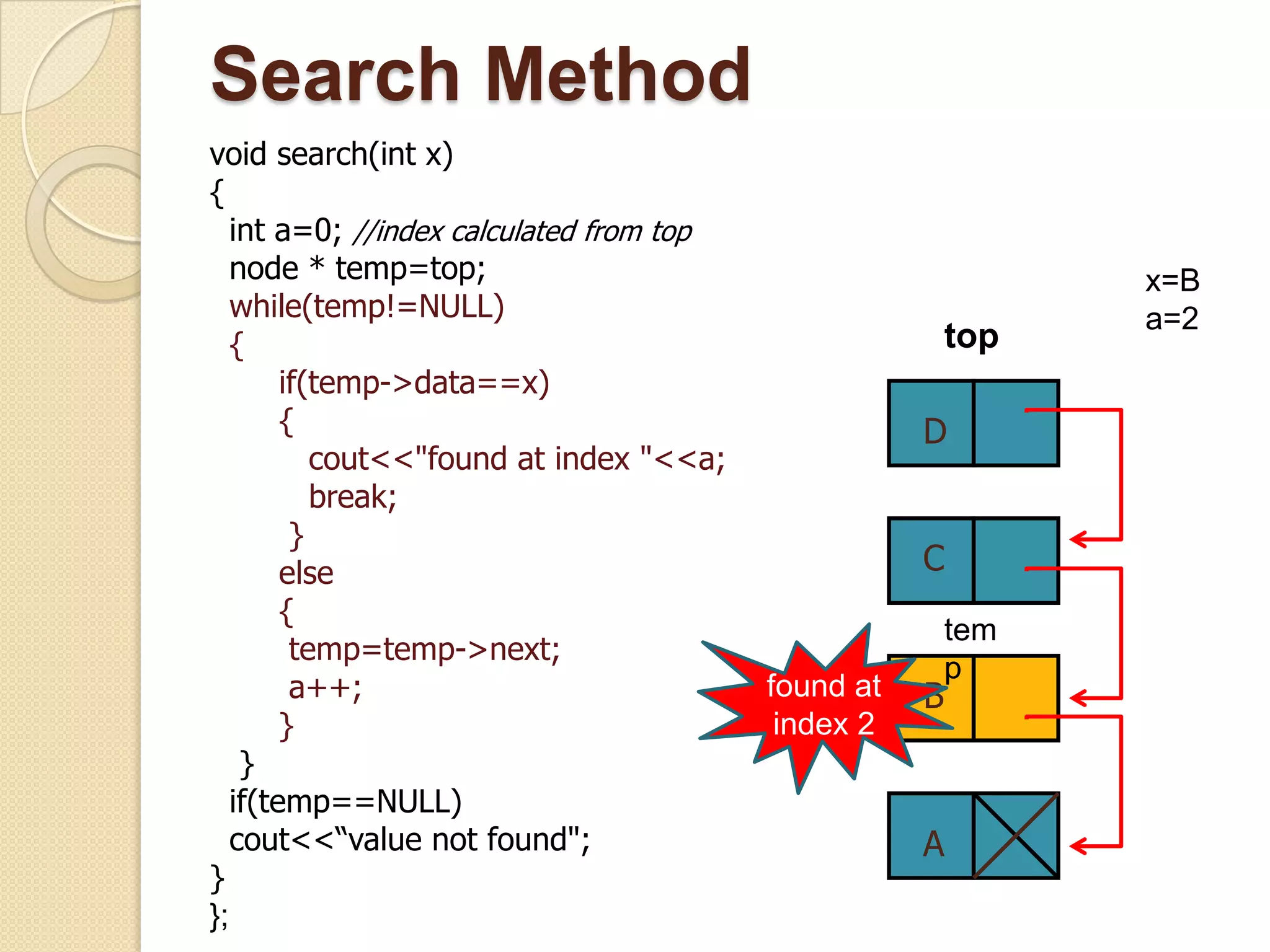

37. Search Method
void search(int x)
{
int a=0; //index calculated from top
node * temp=top; x=B
while(temp!=NULL) a=2
{ top
if(temp->data==x)
{ D
cout<<"found at index "<<a;
break;
}
else C
{
tem
temp=temp->next;
p
a++; found at B
} index 2
}
if(temp==NULL)
cout<<“value not found"; A
}
};

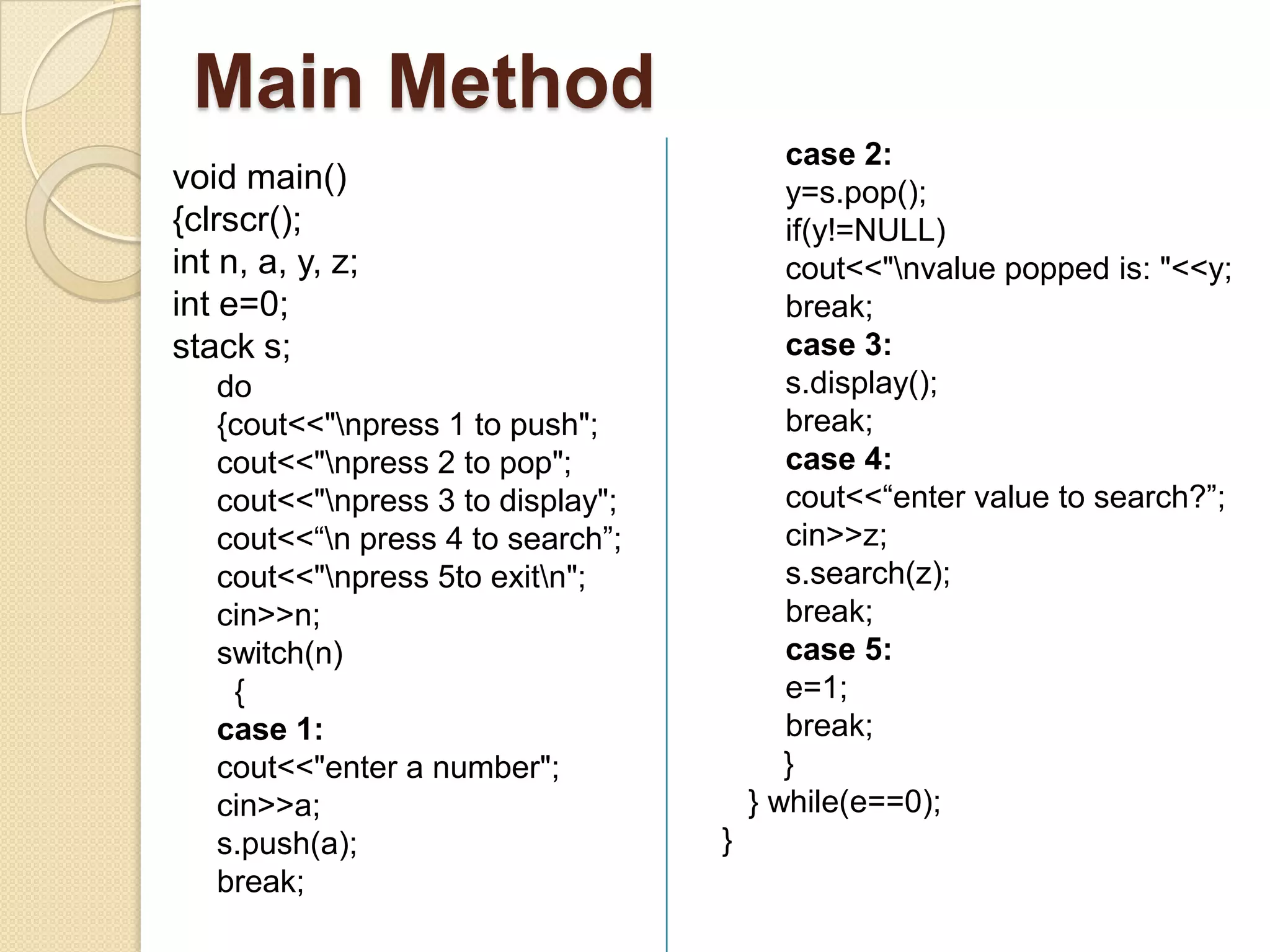

38. Main Method
case 2:
void main() y=s.pop();
{clrscr(); if(y!=NULL)
int n, a, y, z; cout<<"nvalue popped is: "<<y;
int e=0; break;
stack s; case 3:
do s.display();
{cout<<"npress 1 to push"; break;
cout<<"npress 2 to pop"; case 4:
cout<<"npress 3 to display"; cout<<“enter value to search?”;
cout<<“n press 4 to search”; cin>>z;
cout<<"npress 5to exitn"; s.search(z);
cin>>n; break;
switch(n) case 5:
{ e=1;
case 1: break;
cout<<"enter a number"; }
cin>>a; } while(e==0);
s.push(a); }
break;

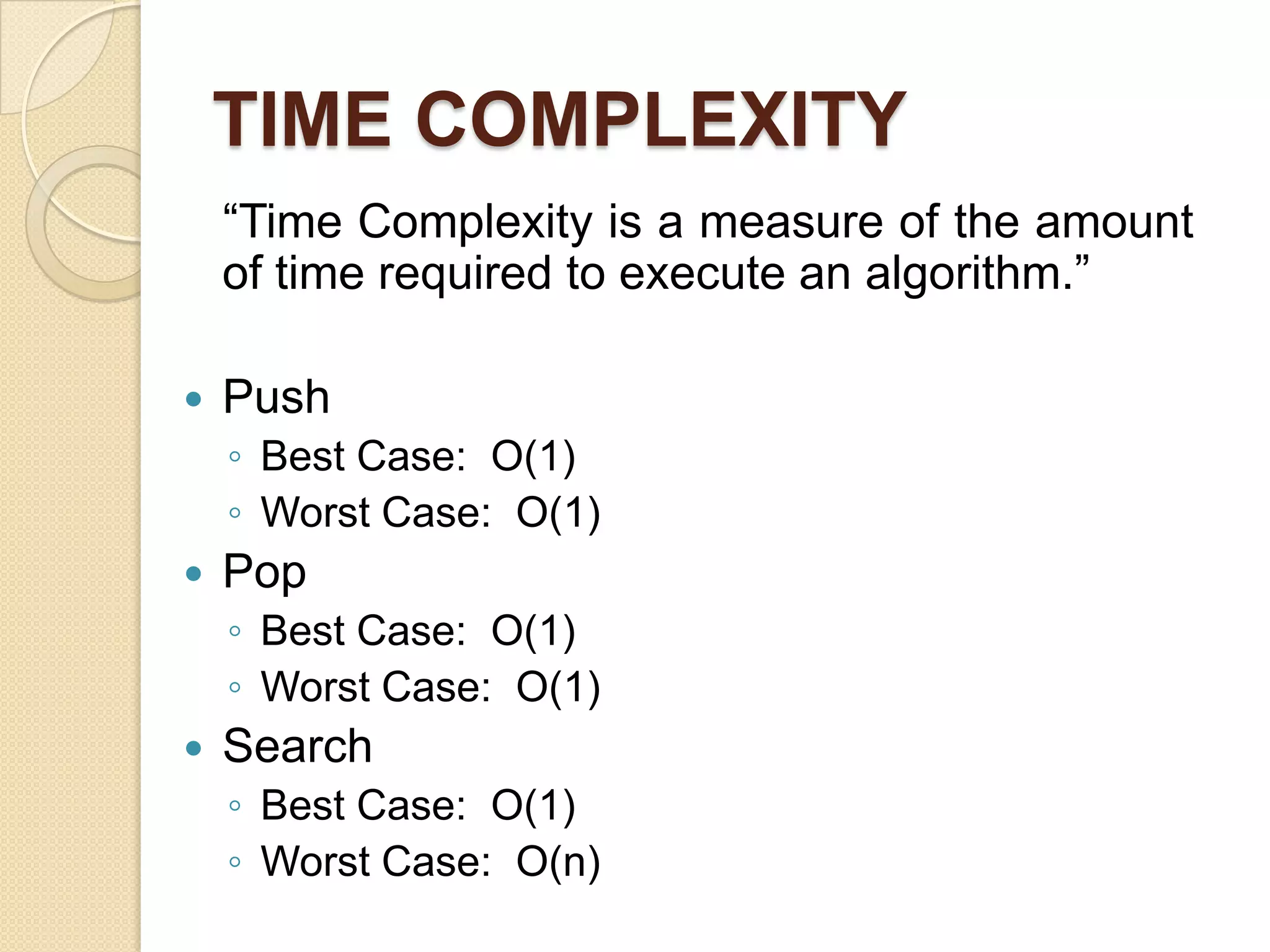

39. TIME COMPLEXITY
“Time Complexity is a measure of the amount
of time required to execute an algorithm.”
 Push
◦ Best Case: O(1)
◦ Worst Case: O(1)
 Pop
◦ Best Case: O(1)
◦ Worst Case: O(1)
 Search
◦ Best Case: O(1)
◦ Worst Case: O(n)

40. LINK LIST
IMPLEMENTATION OF
LINEAR QUEUE

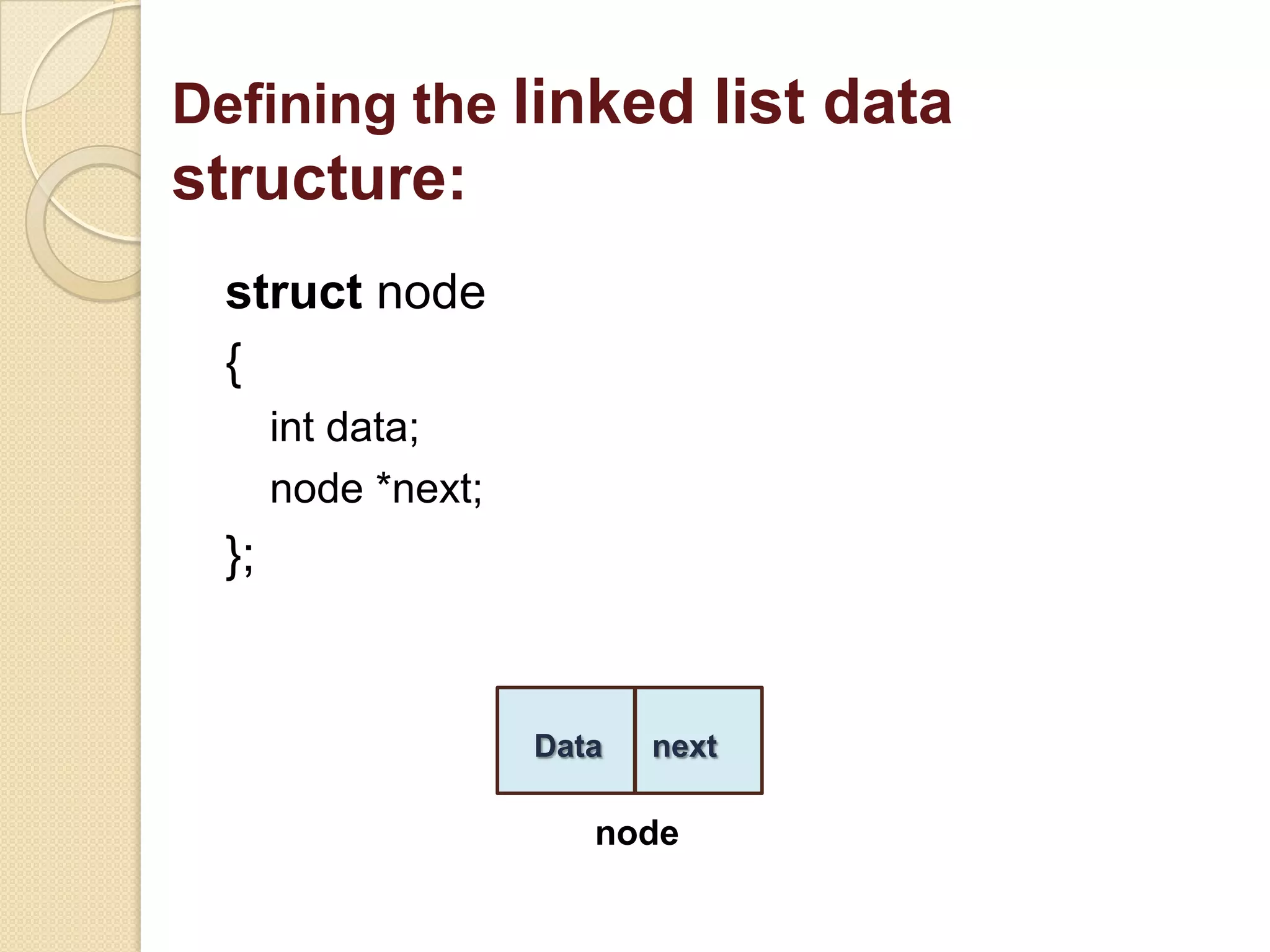

41. Defining the linked list data
structure:
struct node
{
int data;
node *next;
};
Data next
node

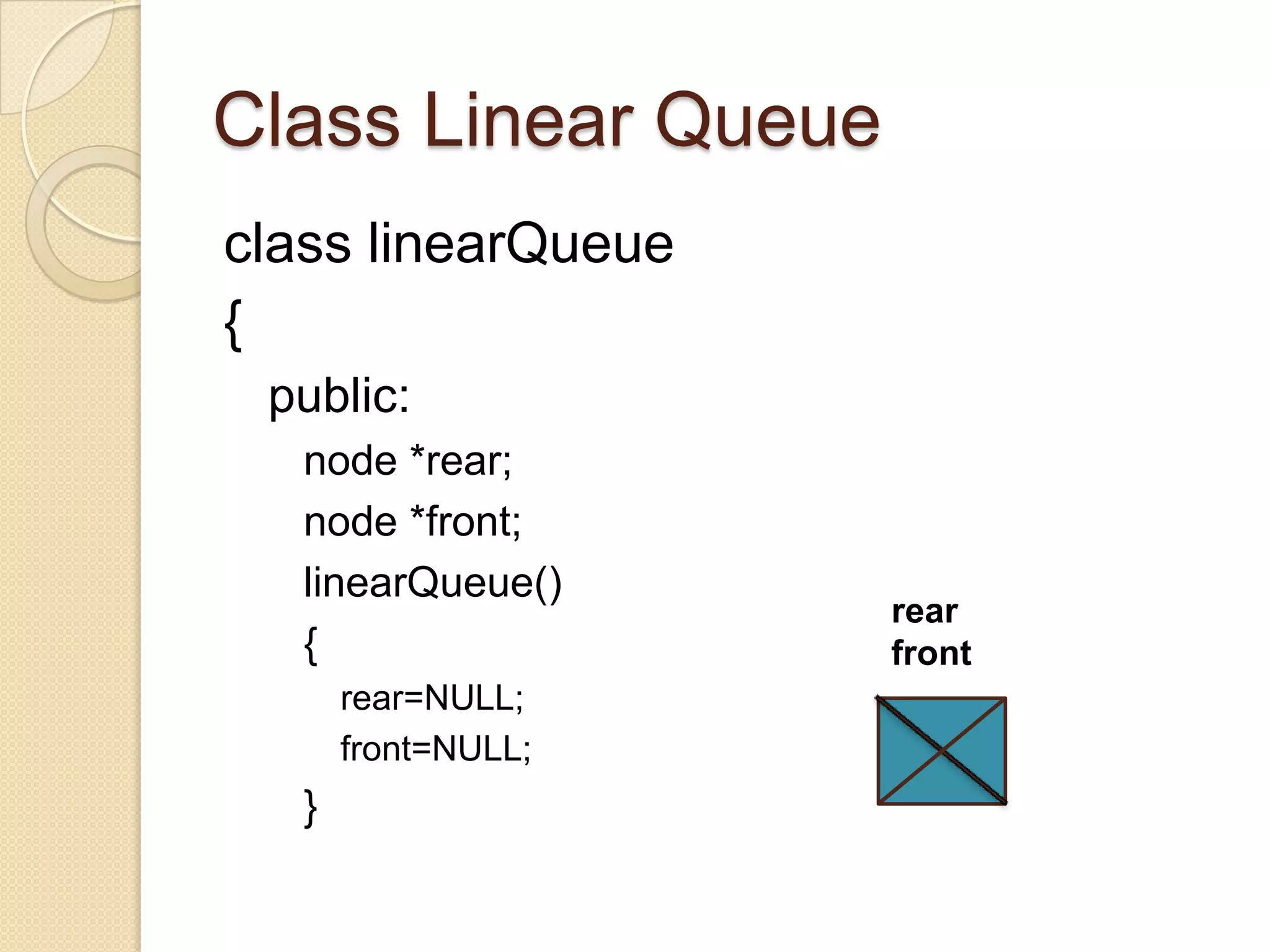

42. Class Linear Queue
class linearQueue
{
public:
node *rear;
node *front;
linearQueue()
rear
{ front
rear=NULL;
front=NULL;
}

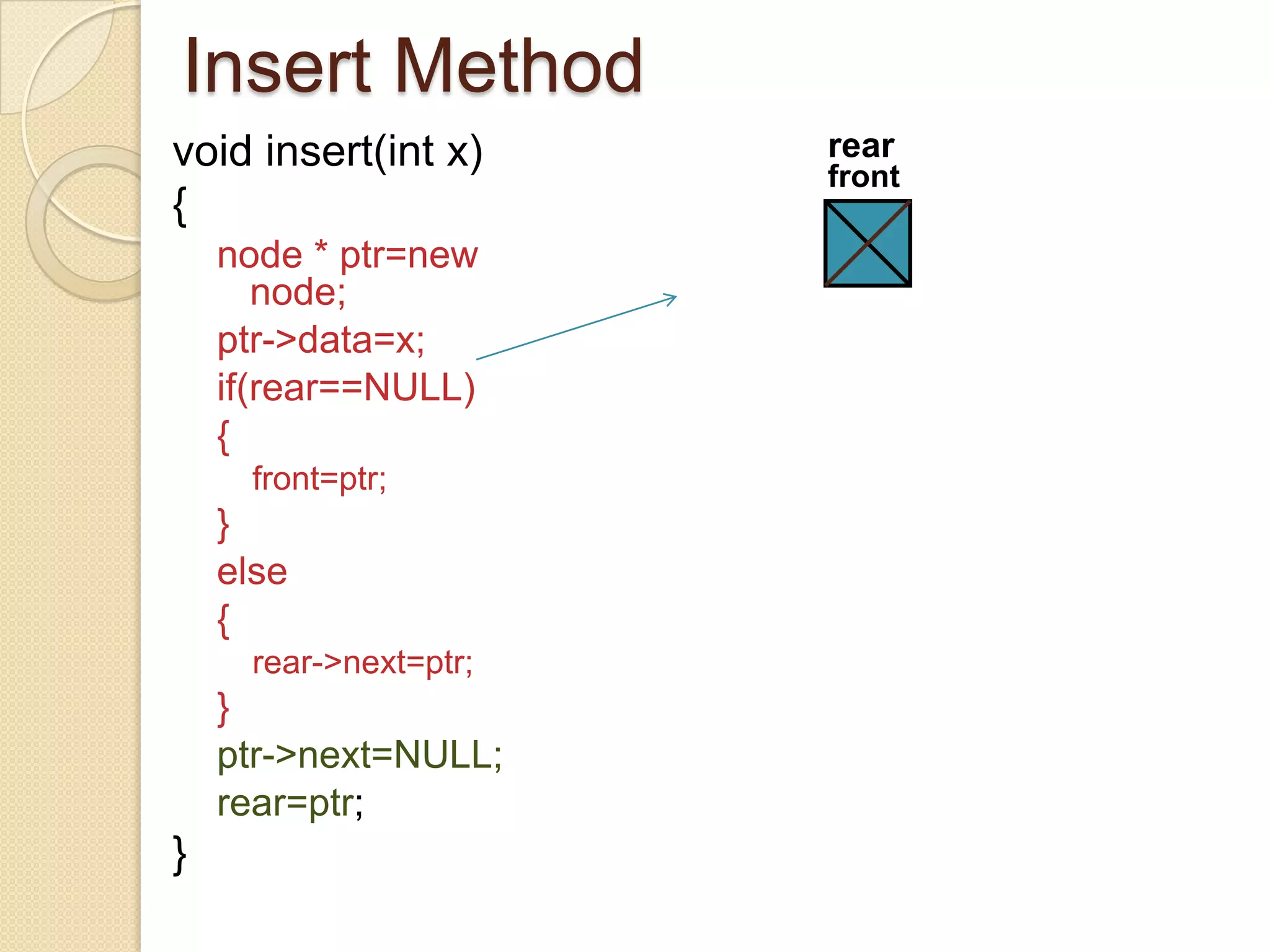

43. Insert Method
void insert(int x) rear
front
{
node * ptr=new
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
{
rear->next=ptr;
}
ptr->next=NULL;
rear=ptr;
}

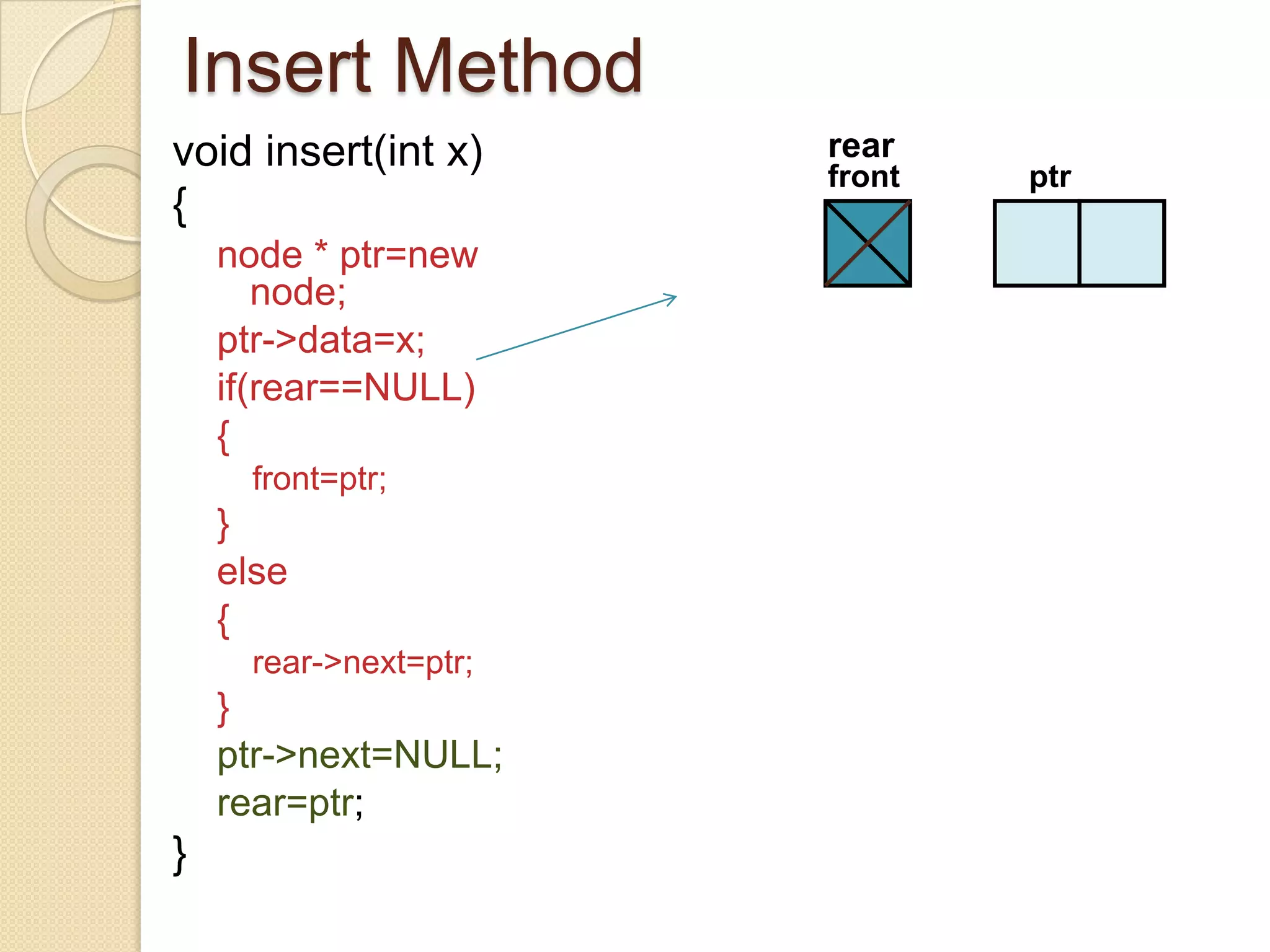

44. Insert Method
void insert(int x) rear
front ptr
{
node * ptr=new
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
{
rear->next=ptr;
}
ptr->next=NULL;
rear=ptr;
}

45. Insert Method
void insert(int x) rear
front ptr
{
node * ptr=new x
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
{
rear->next=ptr;
}
ptr->next=NULL;
rear=ptr;
}

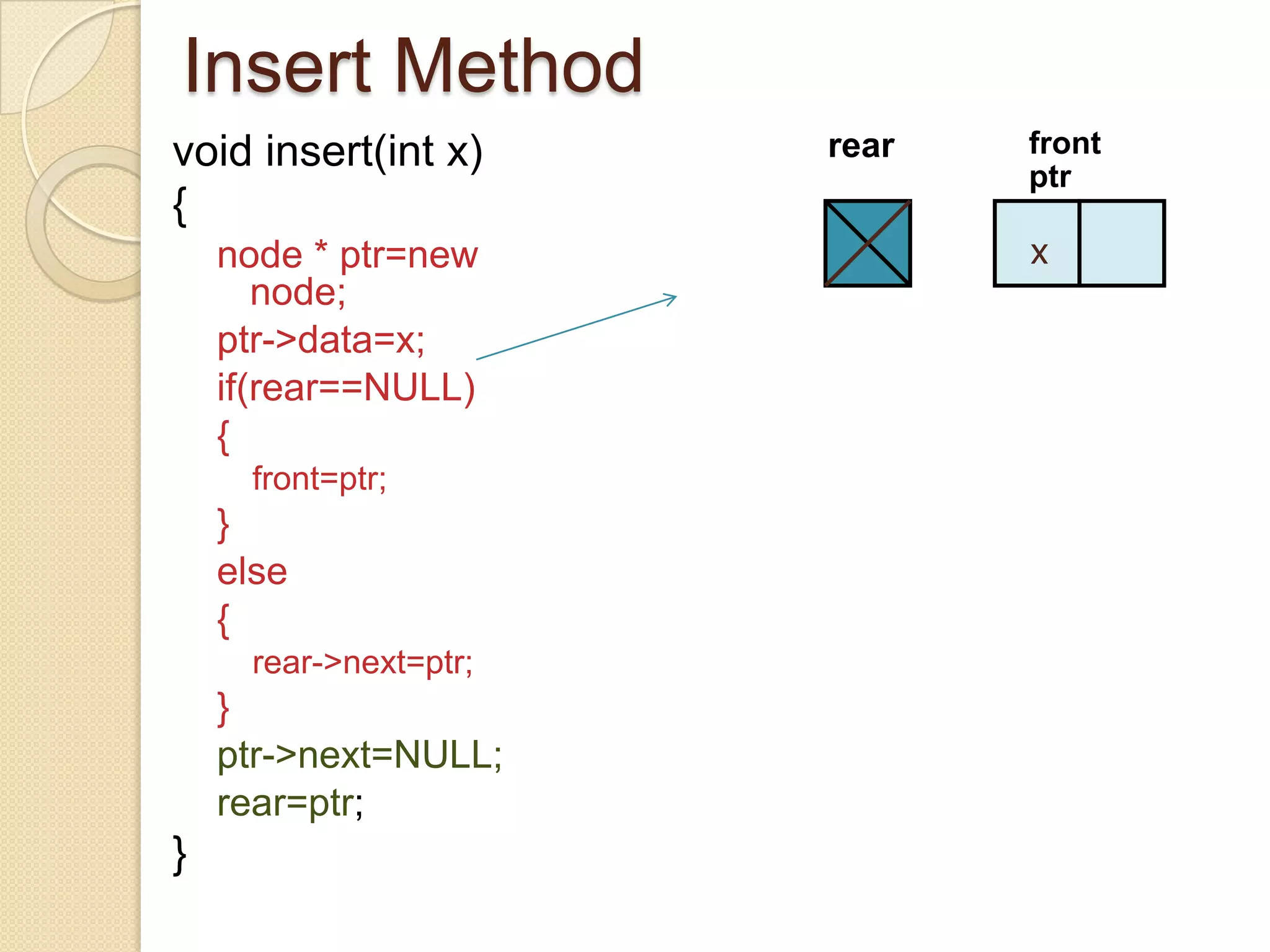

46. Insert Method
void insert(int x) rear front
ptr
{
node * ptr=new x
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
{
rear->next=ptr;
}
ptr->next=NULL;
rear=ptr;
}

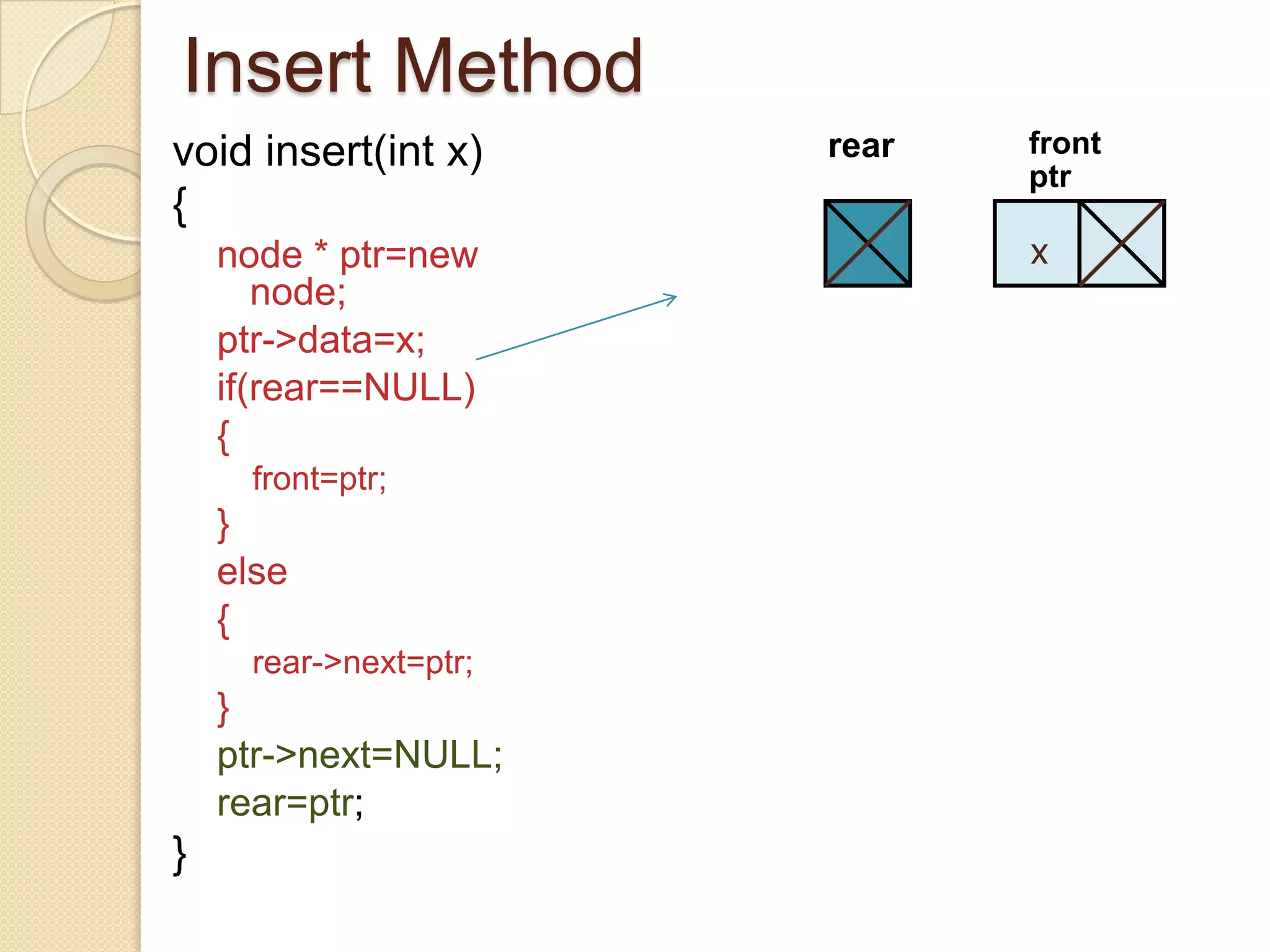

47. Insert Method
void insert(int x) rear front
ptr
{
node * ptr=new x
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
{
rear->next=ptr;
}
ptr->next=NULL;
rear=ptr;
}

48. Insert Method
rear
void insert(int x) front
{ ptr
node * ptr=new x
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
{
rear->next=ptr;
}
ptr->next=NULL;
rear=ptr;
}

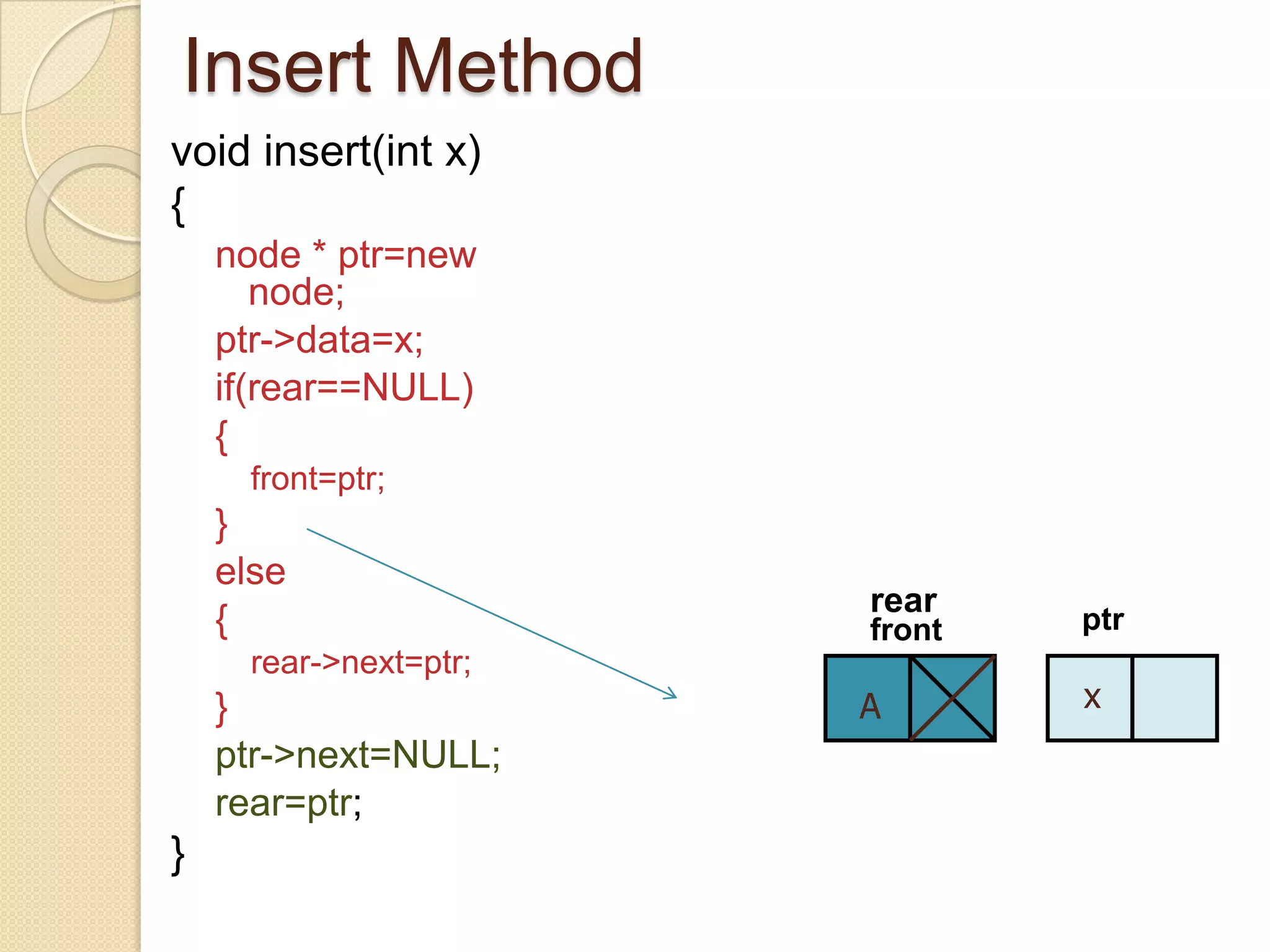

49. Insert Method
void insert(int x)
{
node * ptr=new
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
rear
{ front ptr
rear->next=ptr;
} A ptr x
ptr->next=NULL;
rear=ptr;
}

50. Insert Method
void insert(int x)
{
node * ptr=new
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
rear
{ front ptr
rear->next=ptr;
} A x
ptr->next=NULL;
rear=ptr;
}

51. Insert Method
void insert(int x)
{
node * ptr=new
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else
rear
{ front ptr
rear->next=ptr;
} A ptr x
ptr->next=NULL;
rear=ptr;
}

52. Insert Method
void insert(int x)
{
node * ptr=new
node;
ptr->data=x;
if(rear==NULL)
{
front=ptr;
}
else rear
{ front ptr
rear->next=ptr;
} A ptr x
ptr->next=NULL;
rear=ptr;
}

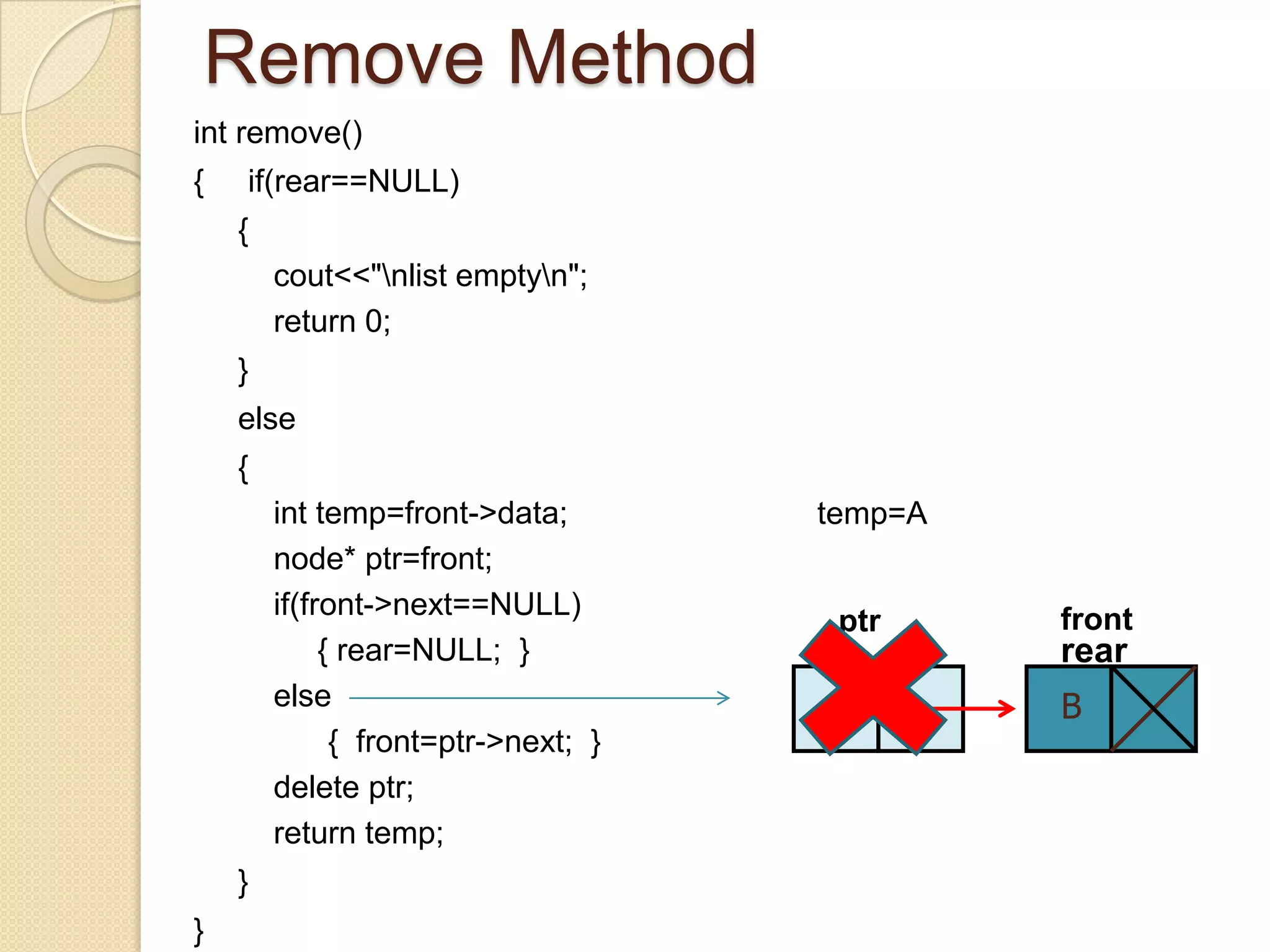

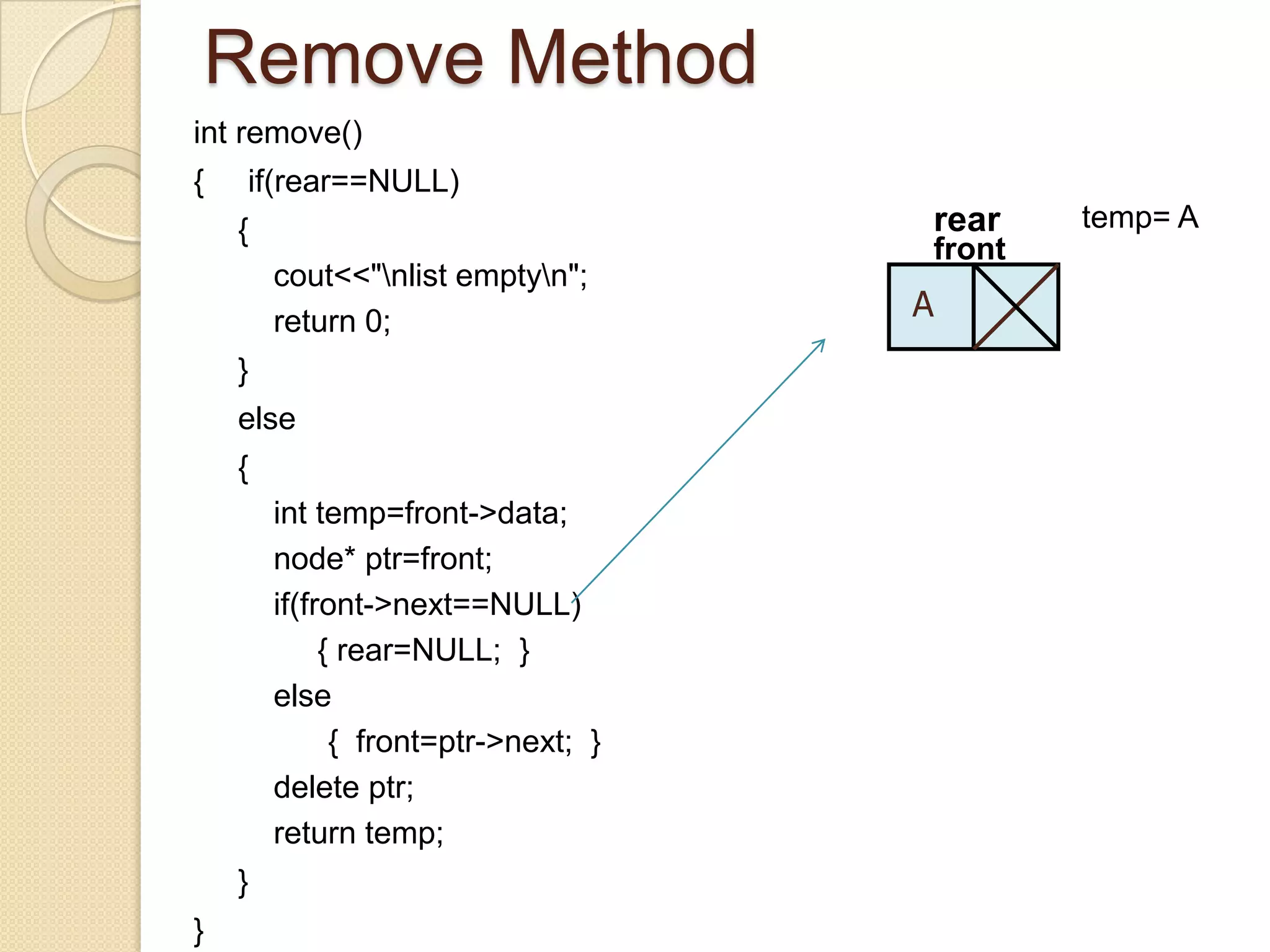

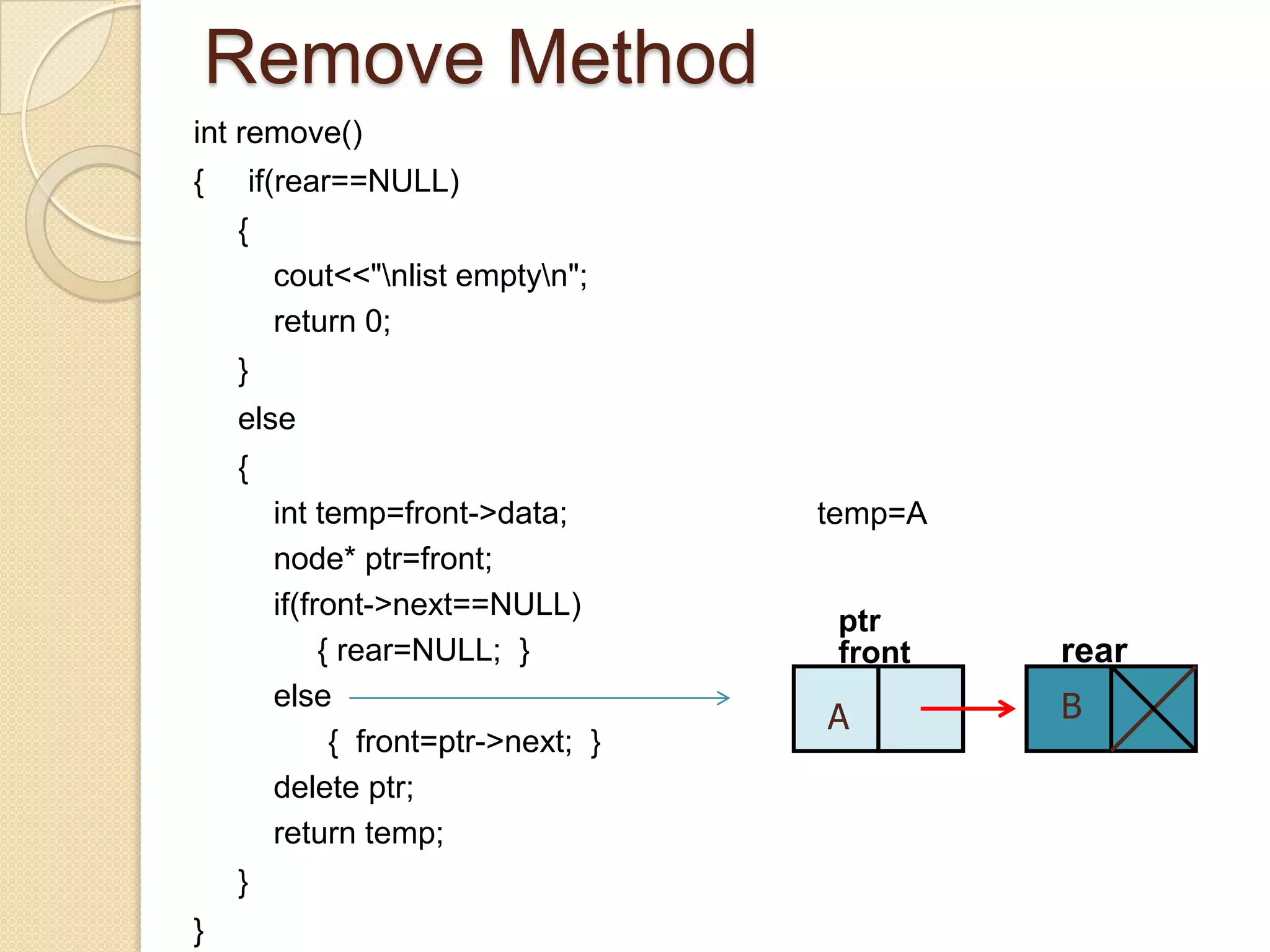

53. Remove Method
int remove()
{ if(rear==NULL)
{ rear temp= A
front
cout<<"nlist emptyn";
return 0; A
}
else
{
int temp=front->data;
node* ptr=front;
if(front->next==NULL)
{ rear=NULL; }
else
{ front=ptr->next; }
delete ptr;
return temp;
}
}

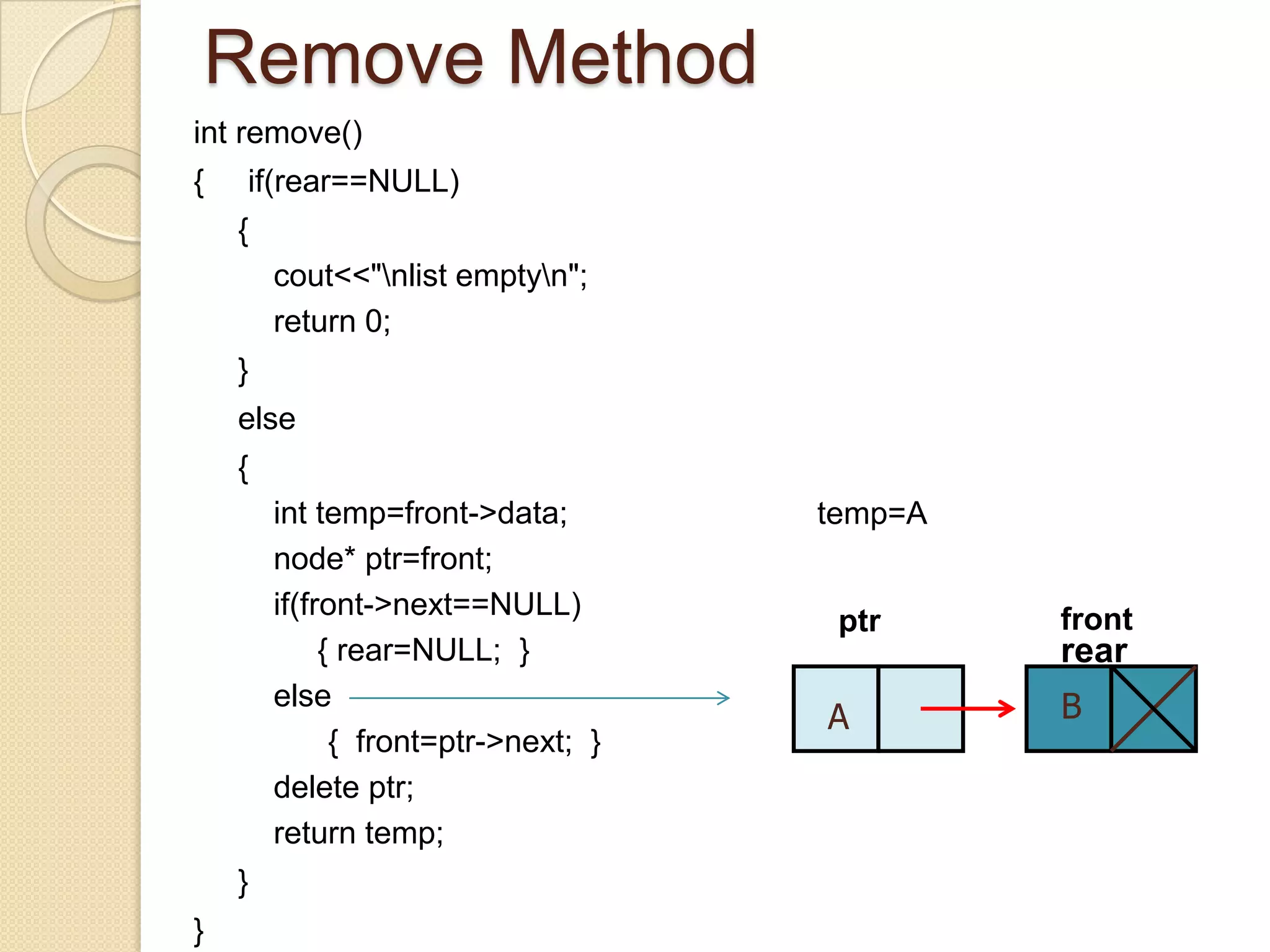

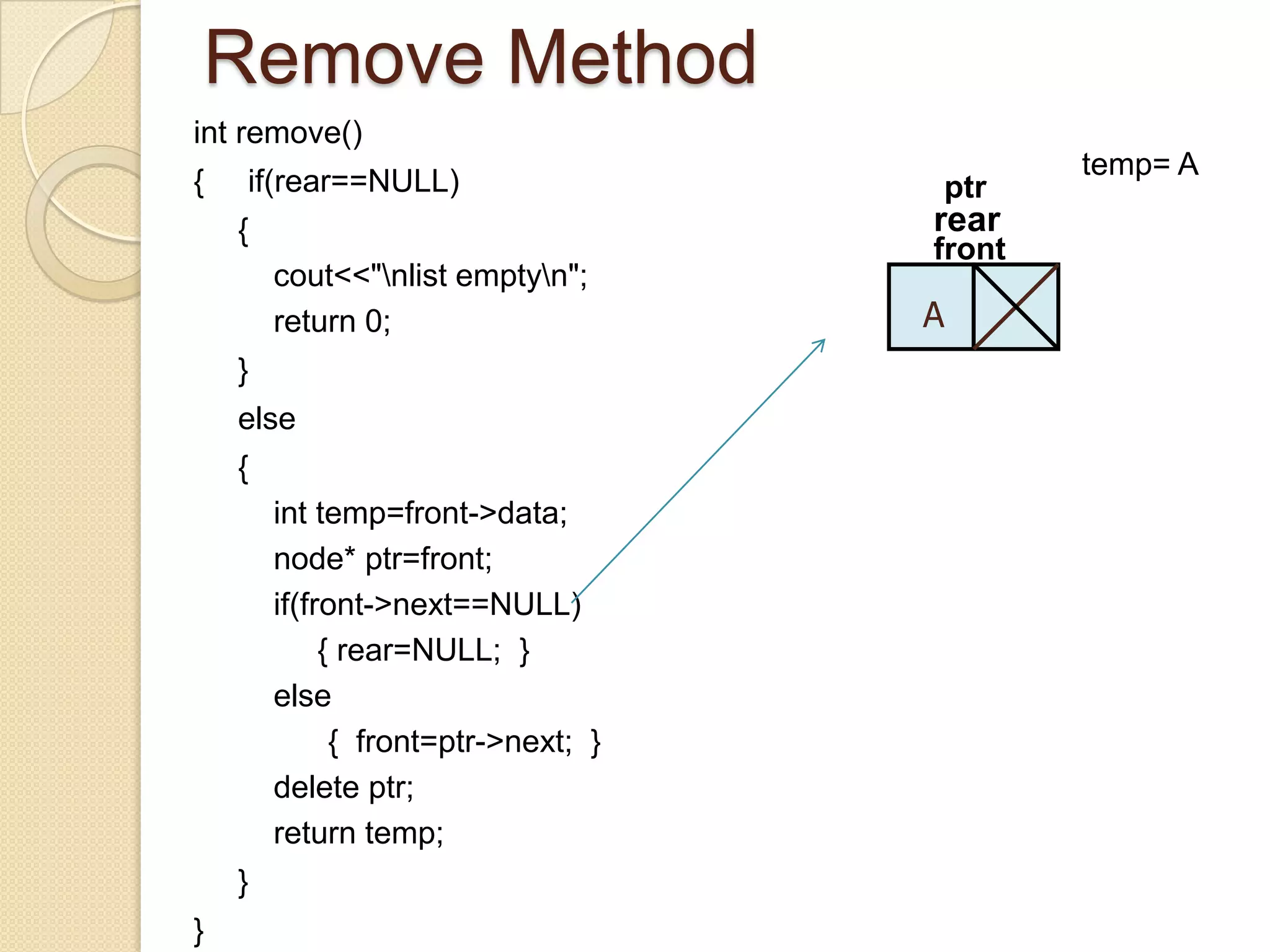

54. Remove Method
int remove()
temp= A
{ if(rear==NULL) ptr
{ rear
front
cout<<"nlist emptyn";
return 0; A
}
else
{
int temp=front->data;
node* ptr=front;
if(front->next==NULL)
{ rear=NULL; }
else
{ front=ptr->next; }
delete ptr;
return temp;
}
}

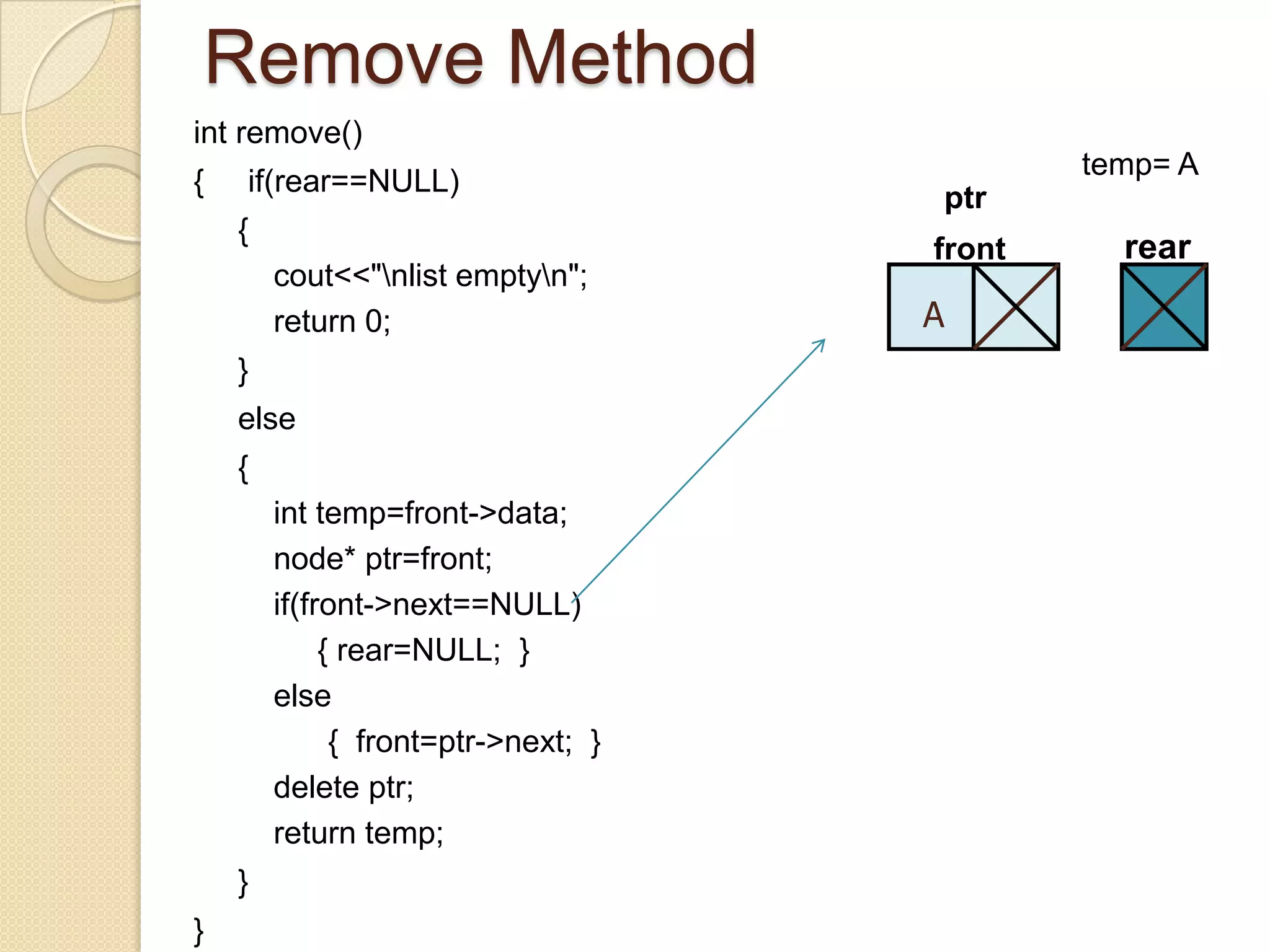

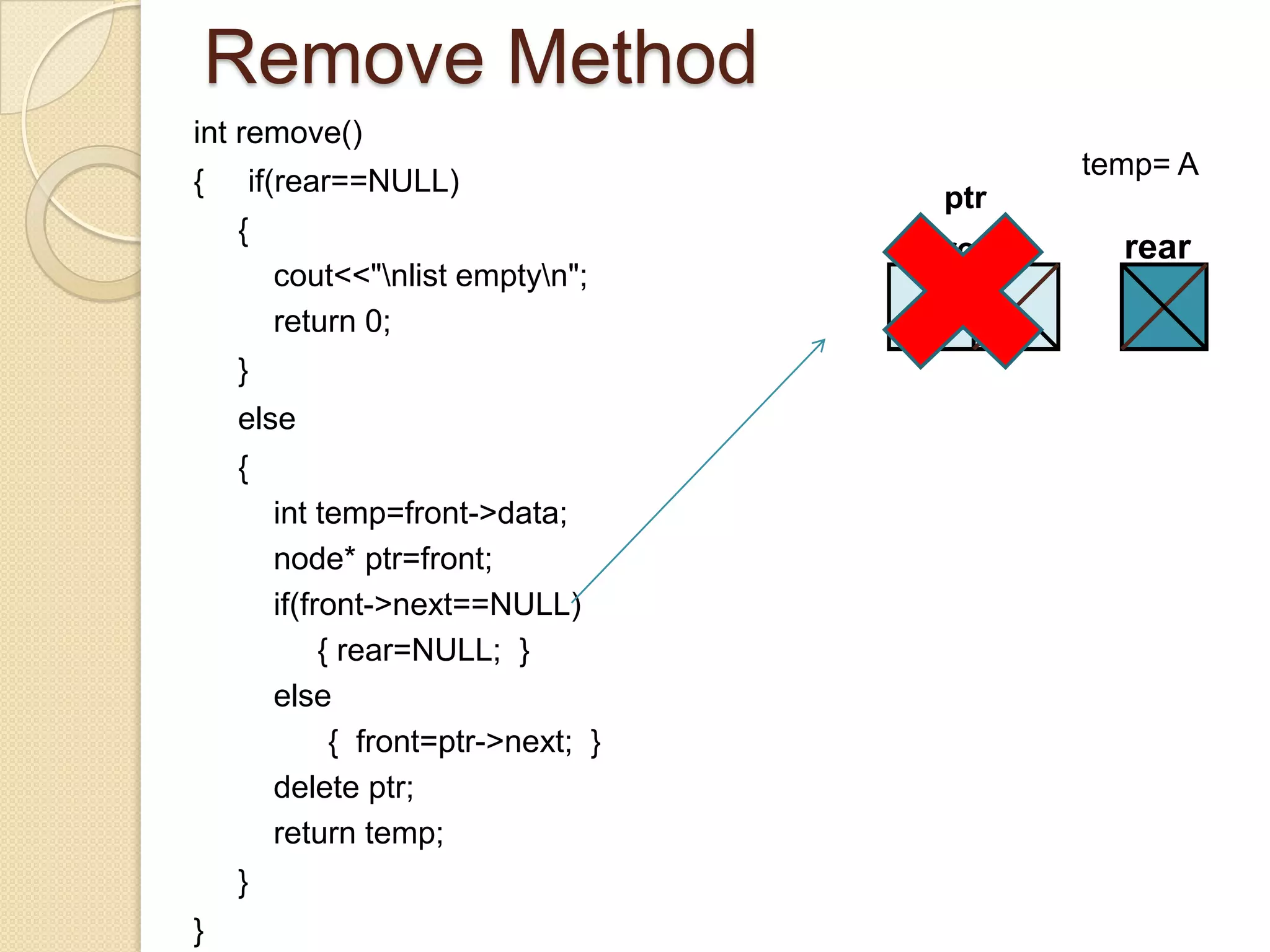

55. Remove Method
int remove()
temp= A
{ if(rear==NULL)
ptr
{
front rear
cout<<"nlist emptyn";
return 0; A
}
else
{
int temp=front->data;
node* ptr=front;
if(front->next==NULL)
{ rear=NULL; }
else
{ front=ptr->next; }
delete ptr;
return temp;
}
}

56. Remove Method
int remove()
temp= A
{ if(rear==NULL)
ptr
{
front rear
cout<<"nlist emptyn";
return 0; A
}
else
{
int temp=front->data;
node* ptr=front;
if(front->next==NULL)
{ rear=NULL; }
else
{ front=ptr->next; }
delete ptr;
return temp;
}
}

57. Remove Method
int remove()
{ if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
{
int temp=front->data; temp=A
node* ptr=front;
if(front->next==NULL)
ptr
{ rear=NULL; } front rear
else
A B
{ front=ptr->next; }
delete ptr;
return temp;
}
}

58. Remove Method
int remove()
{ if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
{
int temp=front->data; temp=A
node* ptr=front;
if(front->next==NULL) front
ptr
{ rear=NULL; } rear
else
A B
{ front=ptr->next; }
delete ptr;
return temp;
}
}

59. Remove Method
int remove()
{ if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
{
int temp=front->data; temp=A
node* ptr=front;
if(front->next==NULL) front
ptr
{ rear=NULL; } rear
else
A B
{ front=ptr->next; }
delete ptr;
return temp;
}
}

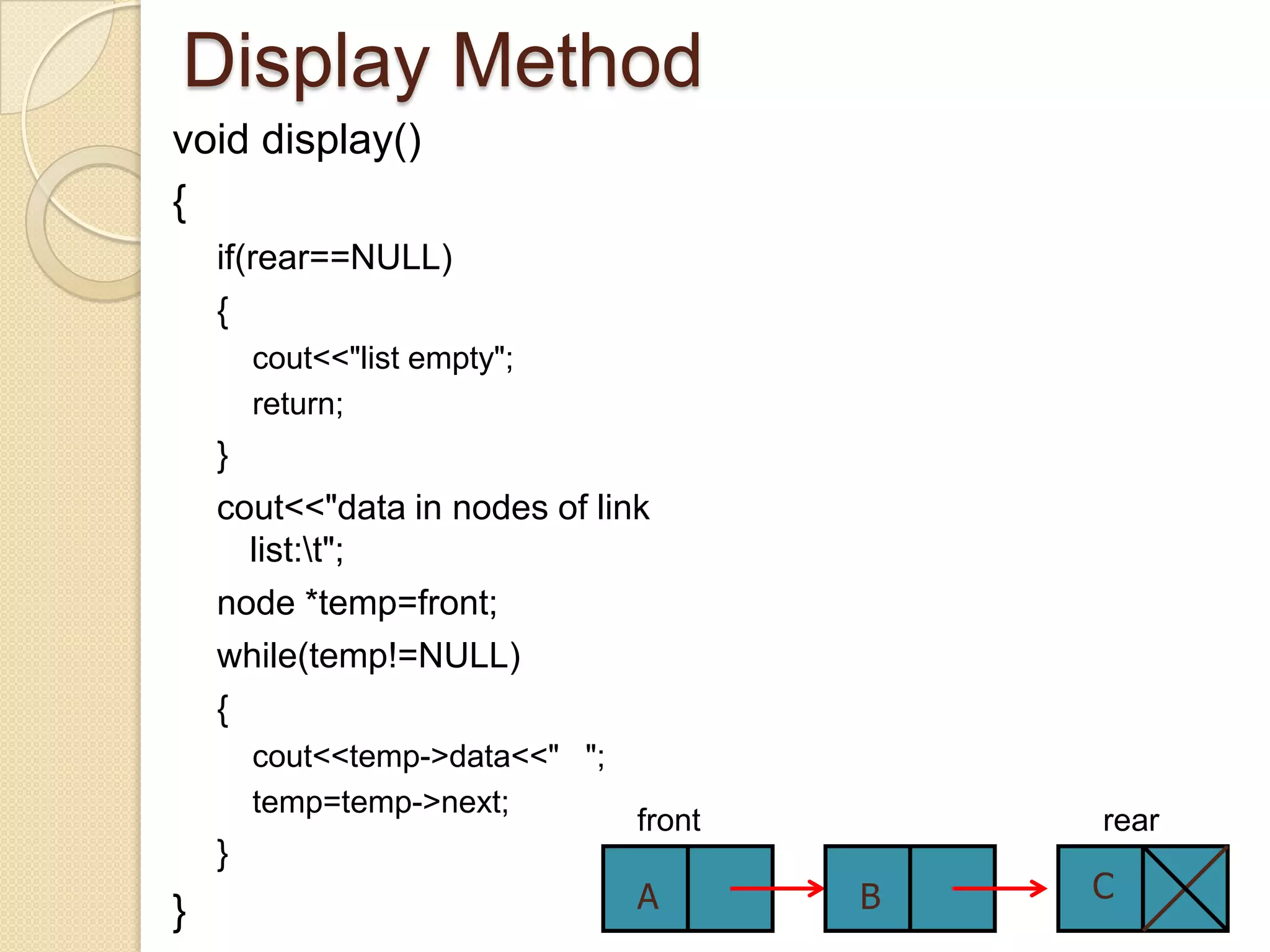

60. Display Method
void display()
{
if(rear==NULL)
{
cout<<"list empty";
return;
}
cout<<"data in nodes of link
list:t";
node *temp=front;
while(temp!=NULL)
{
cout<<temp->data<<" ";
temp=temp->next;
front rear
}
A B C
}

61. Display Method
void display()
{
if(rear==NULL)
{
cout<<"list empty";
return;
}
cout<<"data in nodes of link
list:t";
node *temp=front;
while(temp!=NULL)
{
cout<<temp->data<<" ";
temp=temp->next; temp
front rear
}
A B C
}

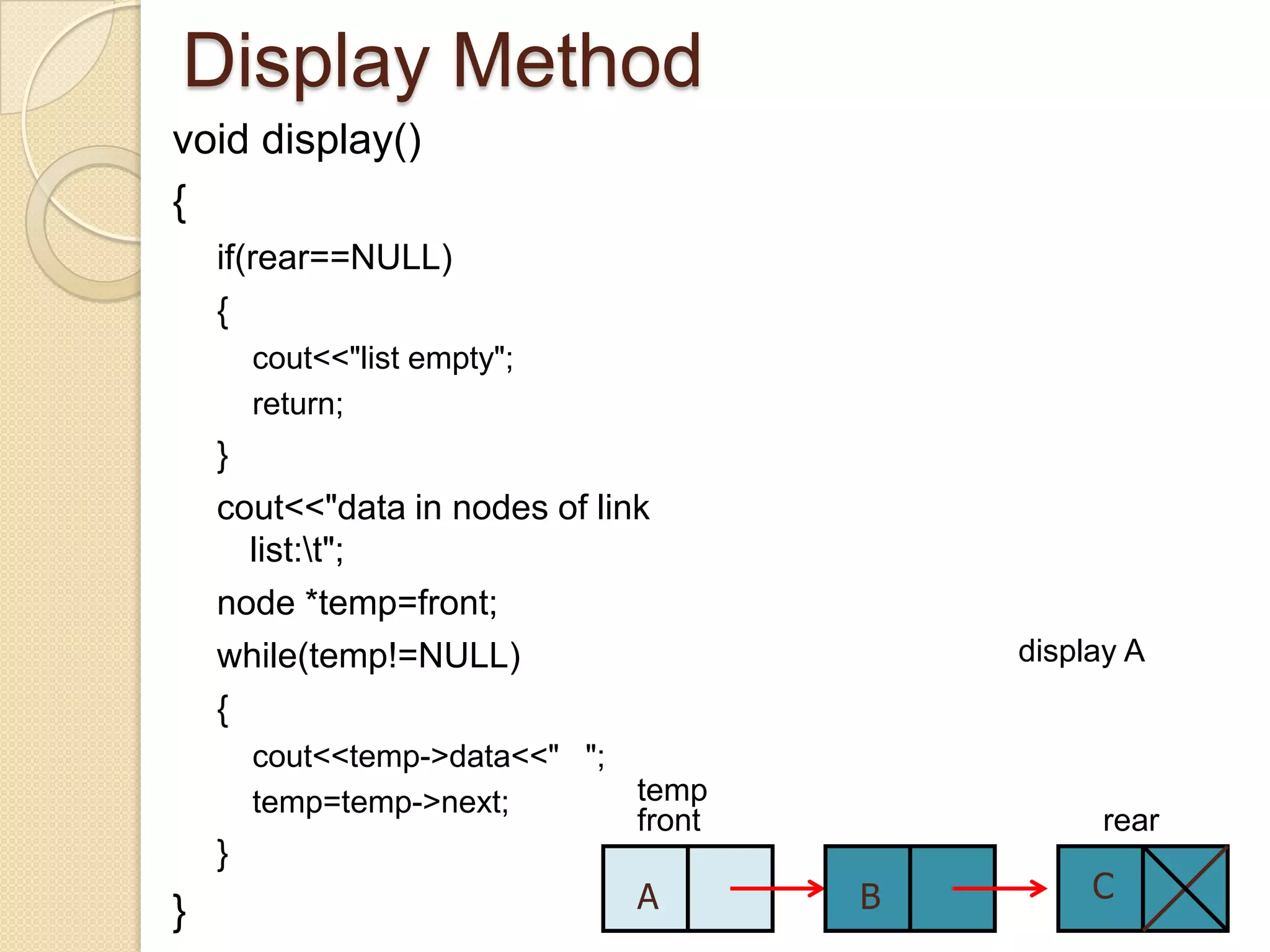

62. Display Method
void display()
{
if(rear==NULL)
{
cout<<"list empty";
return;
}
cout<<"data in nodes of link
list:t";
node *temp=front;
while(temp!=NULL) display A
{
cout<<temp->data<<" ";
temp=temp->next; temp
front rear
}
A B C
}

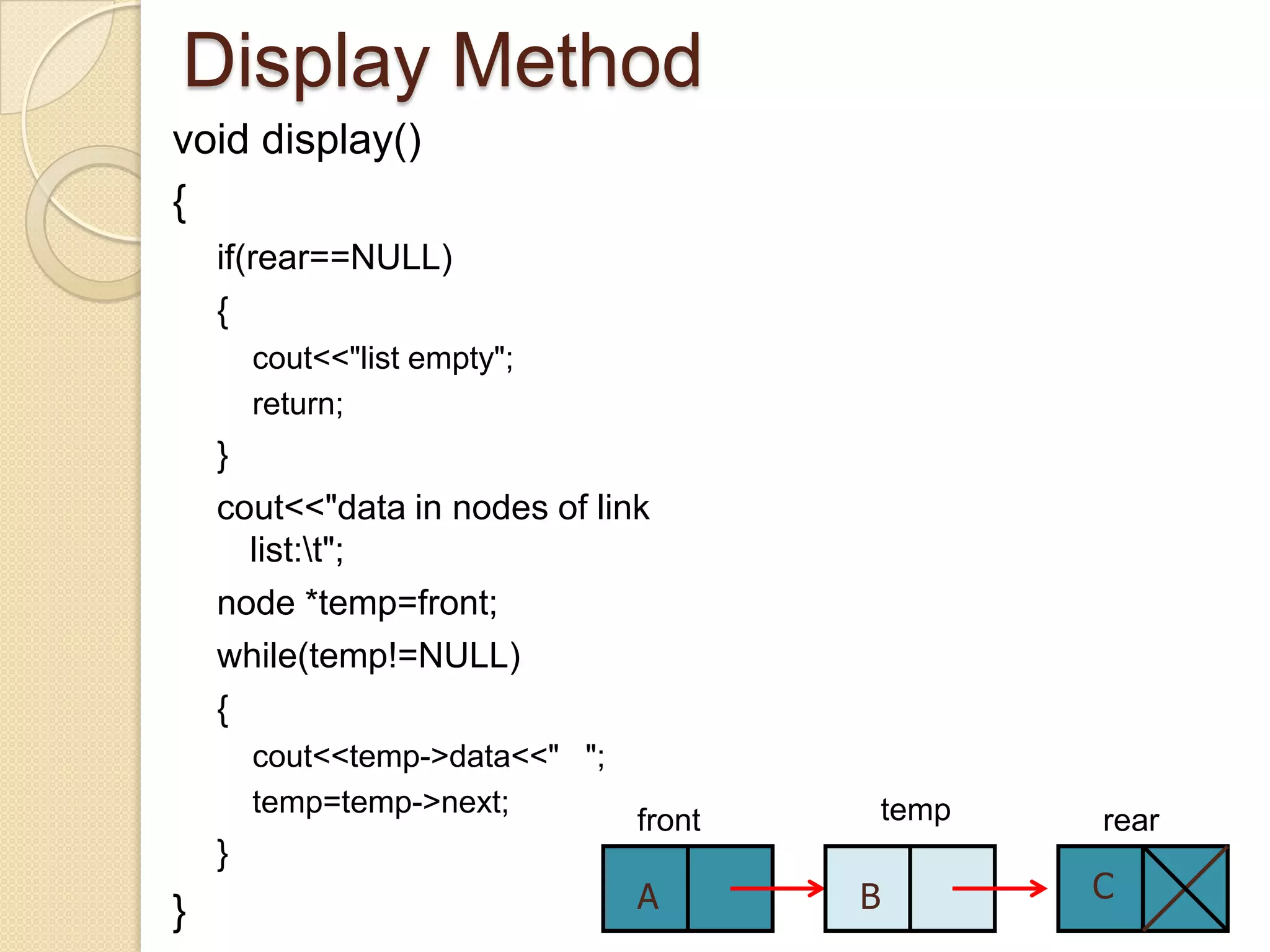

63. Display Method
void display()
{
if(rear==NULL)
{
cout<<"list empty";
return;
}
cout<<"data in nodes of link
list:t";
node *temp=front;
while(temp!=NULL)
{
cout<<temp->data<<" ";
temp=temp->next; temp
front rear
}
A B C
}

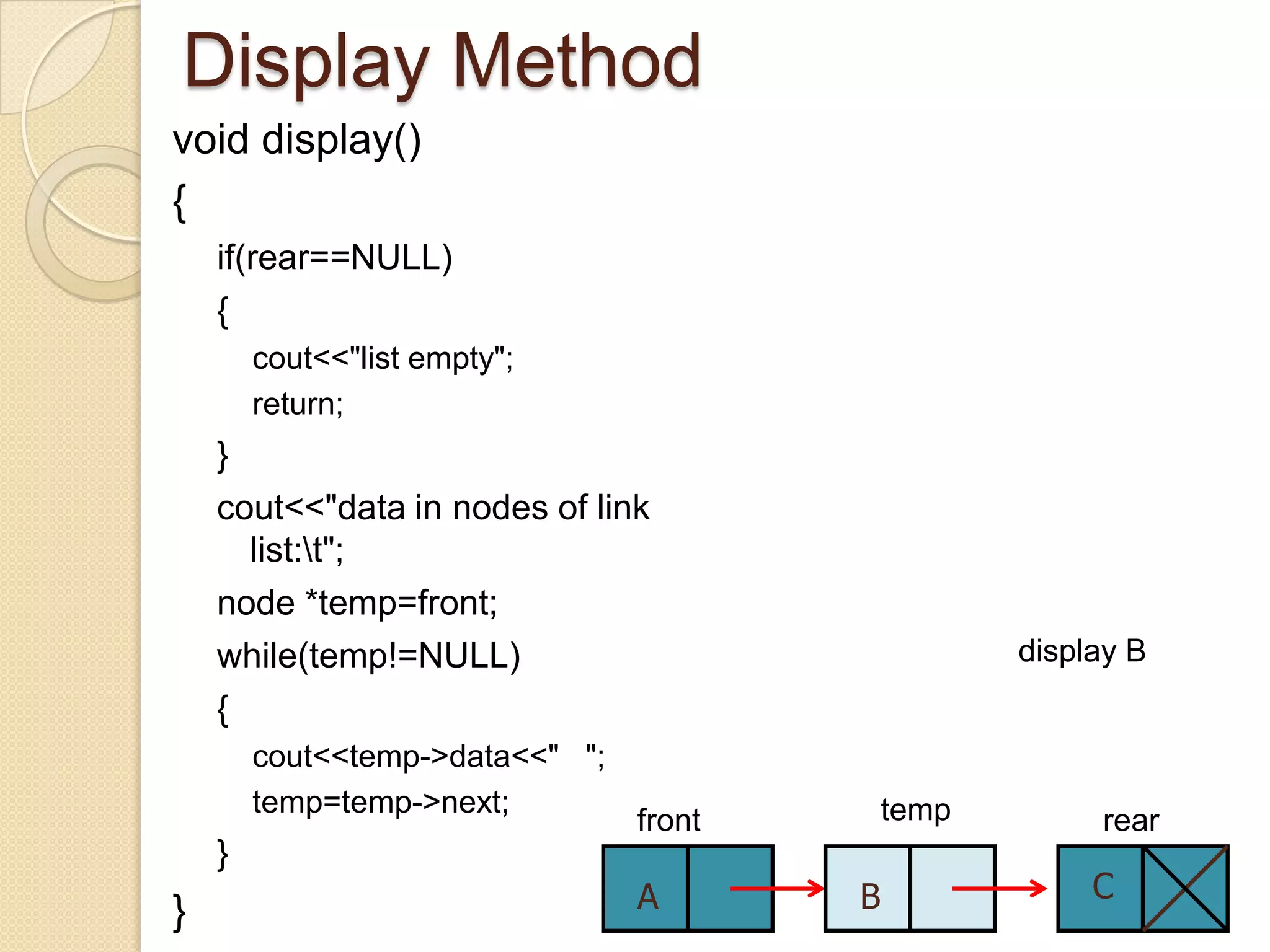

64. Display Method
void display()
{
if(rear==NULL)
{
cout<<"list empty";
return;
}
cout<<"data in nodes of link
list:t";
node *temp=front;
while(temp!=NULL) display B
{
cout<<temp->data<<" ";
temp=temp->next; temp
front rear
}
A B C
}

65. Display Method
void display()
{
if(rear==NULL)
{
cout<<"list empty";
return;
}
cout<<"data in nodes of link
list:t";
node *temp=front;
while(temp!=NULL)
{
cout<<temp->data<<" ";
temp=temp->next; temp
front rear
}
A B C
}

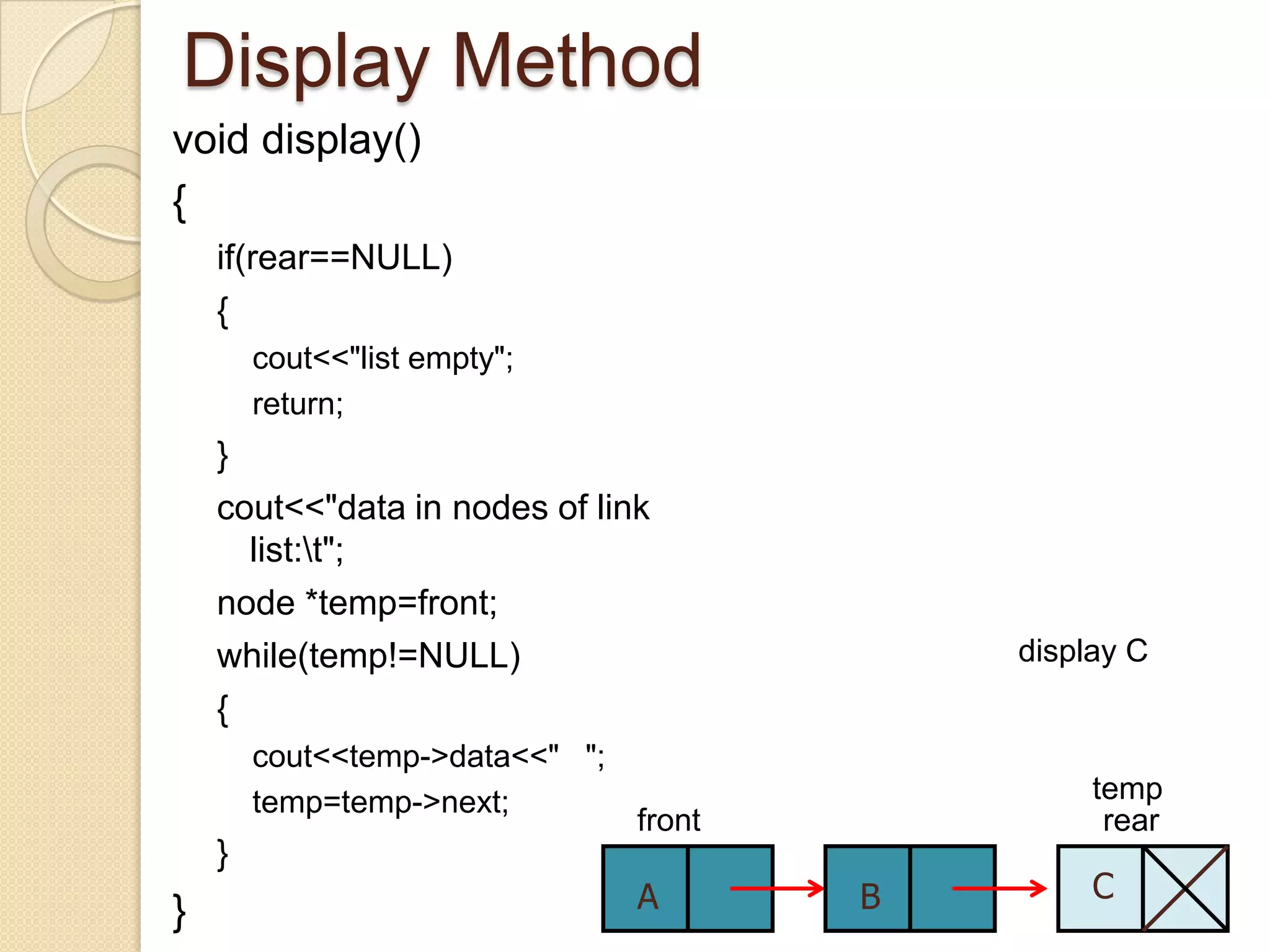

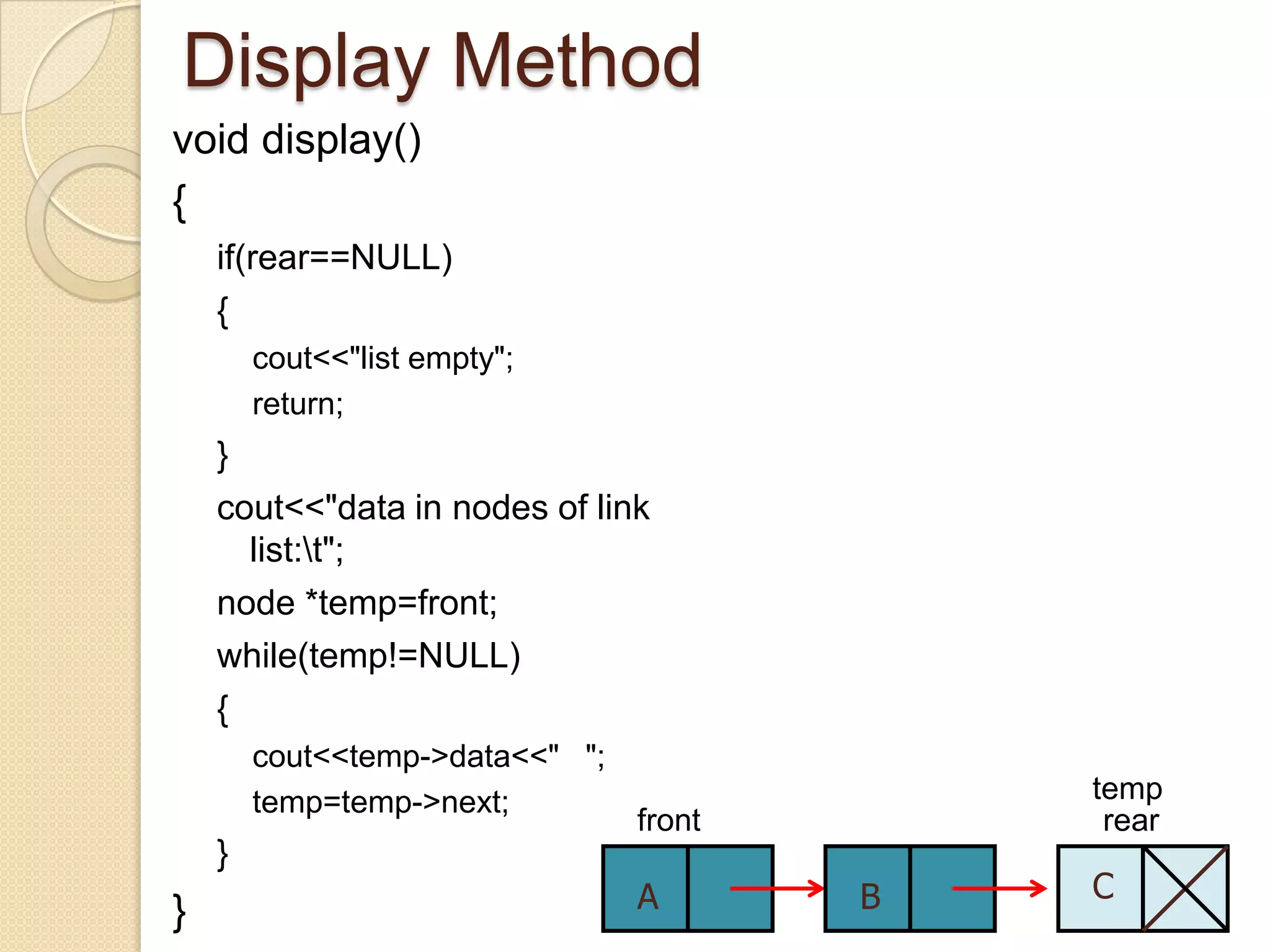

66. Display Method
void display()
{
if(rear==NULL)
{
cout<<"list empty";
return;
}
cout<<"data in nodes of link
list:t";
node *temp=front;
while(temp!=NULL) display C
{
cout<<temp->data<<" ";
temp=temp->next; temp
front rear
}
A B C
}

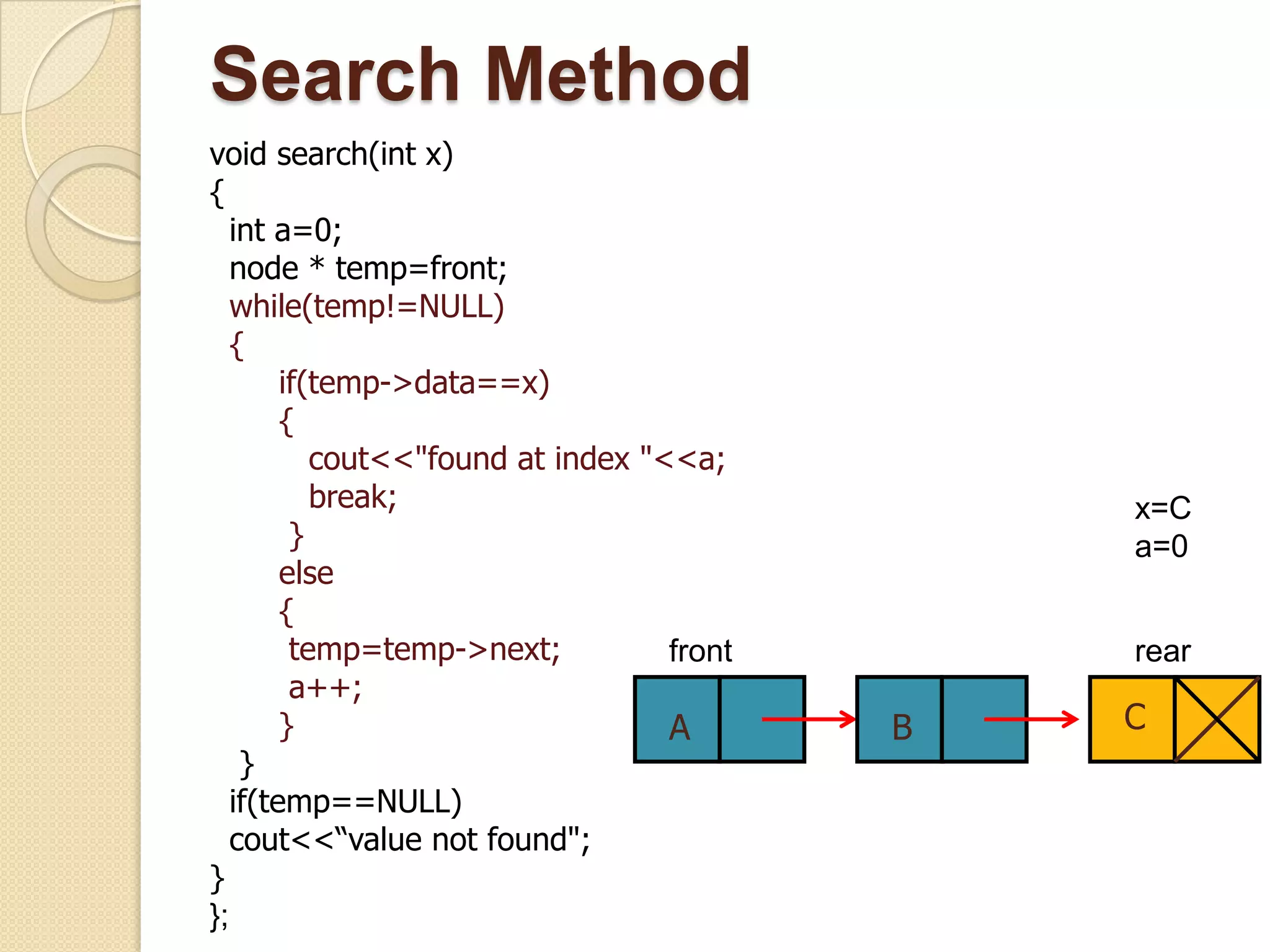

67. Search Method
void search(int x)
{
int a=0;
node * temp=front;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=0
else
{
temp=temp->next; front rear
a++;
} A B C
}
if(temp==NULL)
cout<<“value not found";
}
};

68. Search Method
void search(int x)
{
int a=0;
node * temp=front;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=0
else
{ temp
temp=temp->next; front rear
a++;
} A B C
}
if(temp==NULL)
cout<<“value not found";
}
};

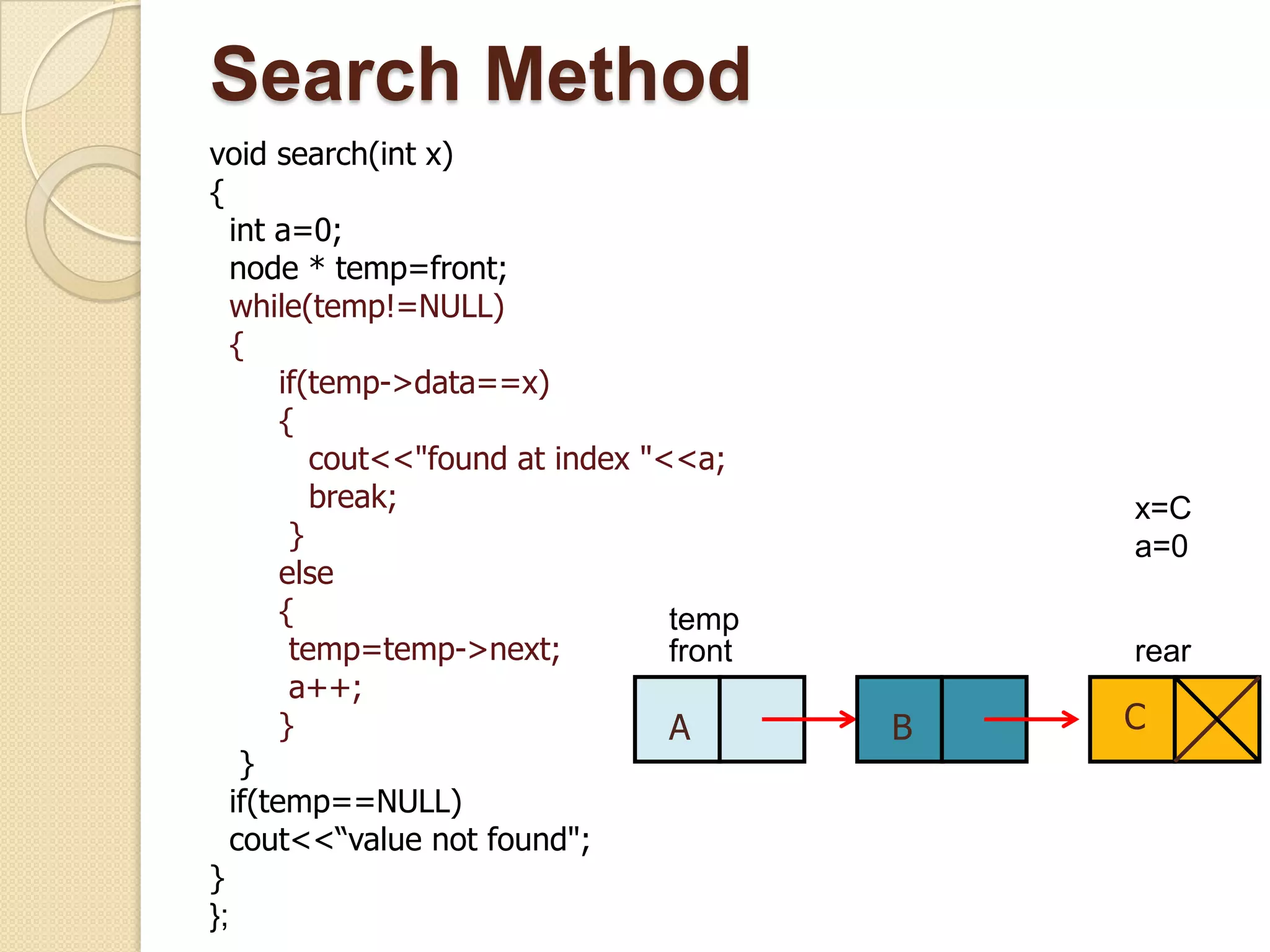

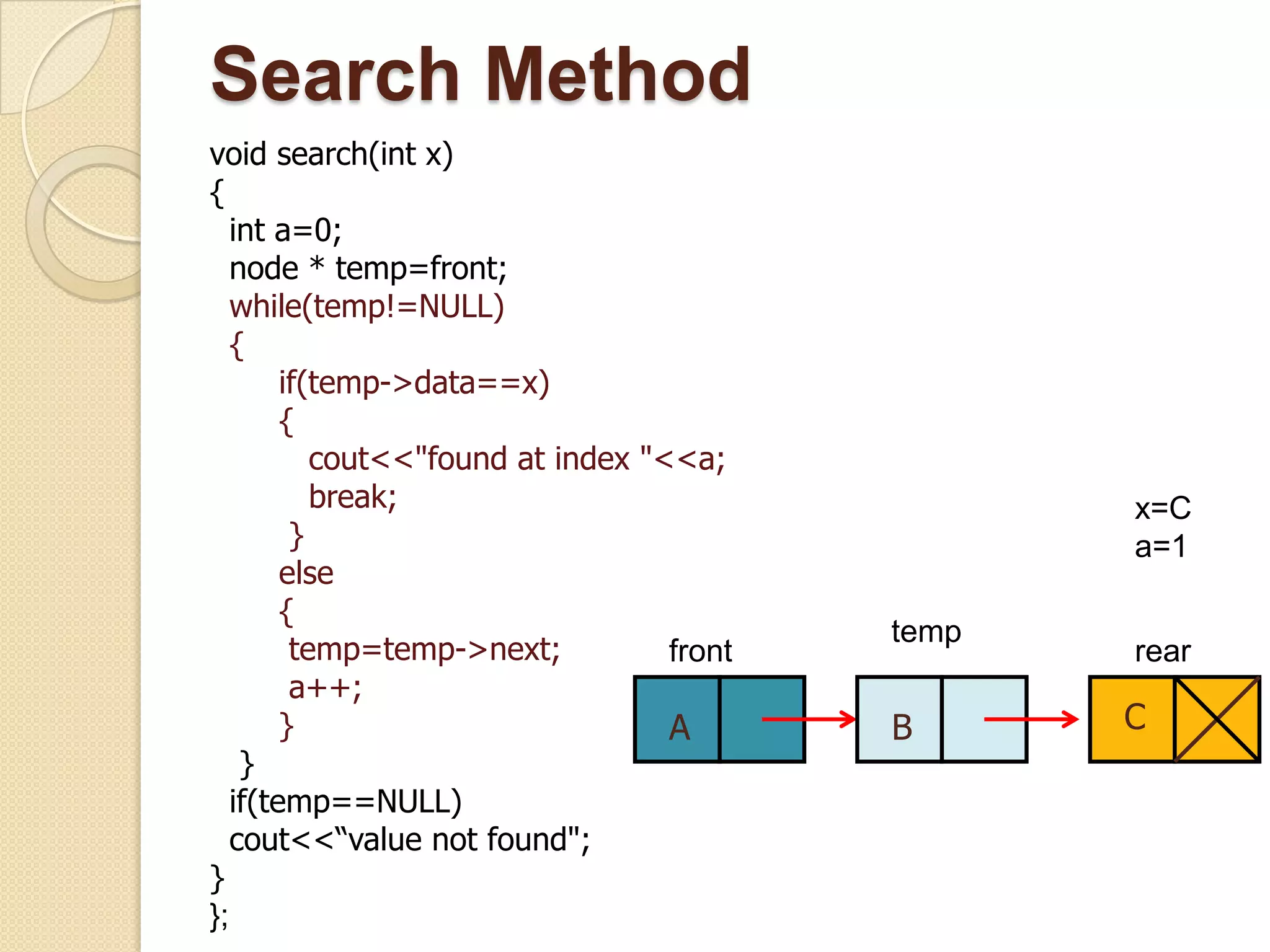

69. Search Method
void search(int x)
{
int a=0;
node * temp=front;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=1
else
{
temp
temp=temp->next; front rear
a++;
} A B C
}
if(temp==NULL)
cout<<“value not found";
}
};

70. Search Method
void search(int x)
{
int a=0;
node * temp=front;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=2
else
{ temp
temp=temp->next; front rear
a++;
} A B C
}
if(temp==NULL)
cout<<“value not found";
}
};

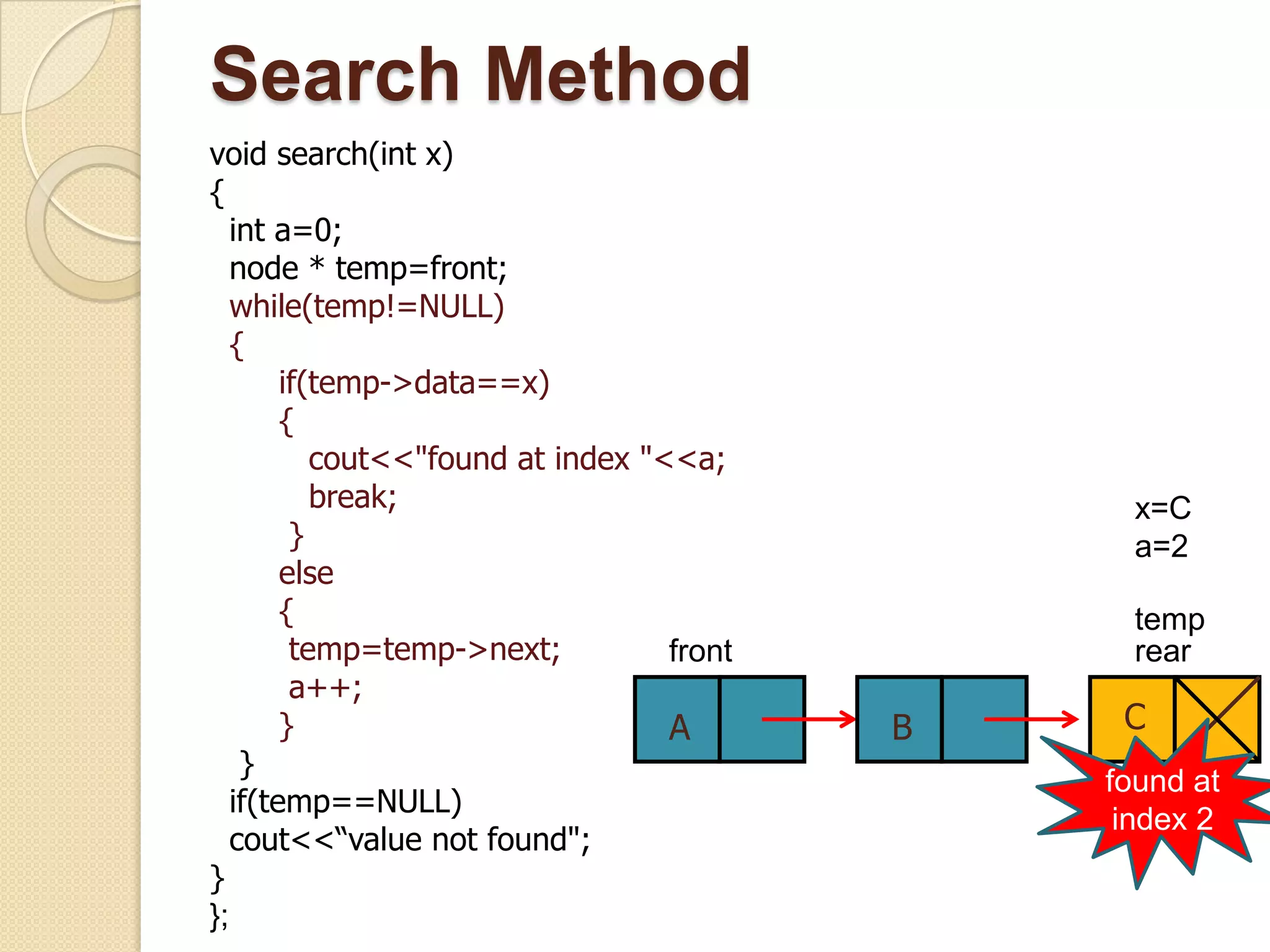

71. Search Method
void search(int x)
{
int a=0;
node * temp=front;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=2
else
{ temp
temp=temp->next; front rear
a++;
} A B C
}
found at
if(temp==NULL)
index 2
cout<<“value not found";
}
};

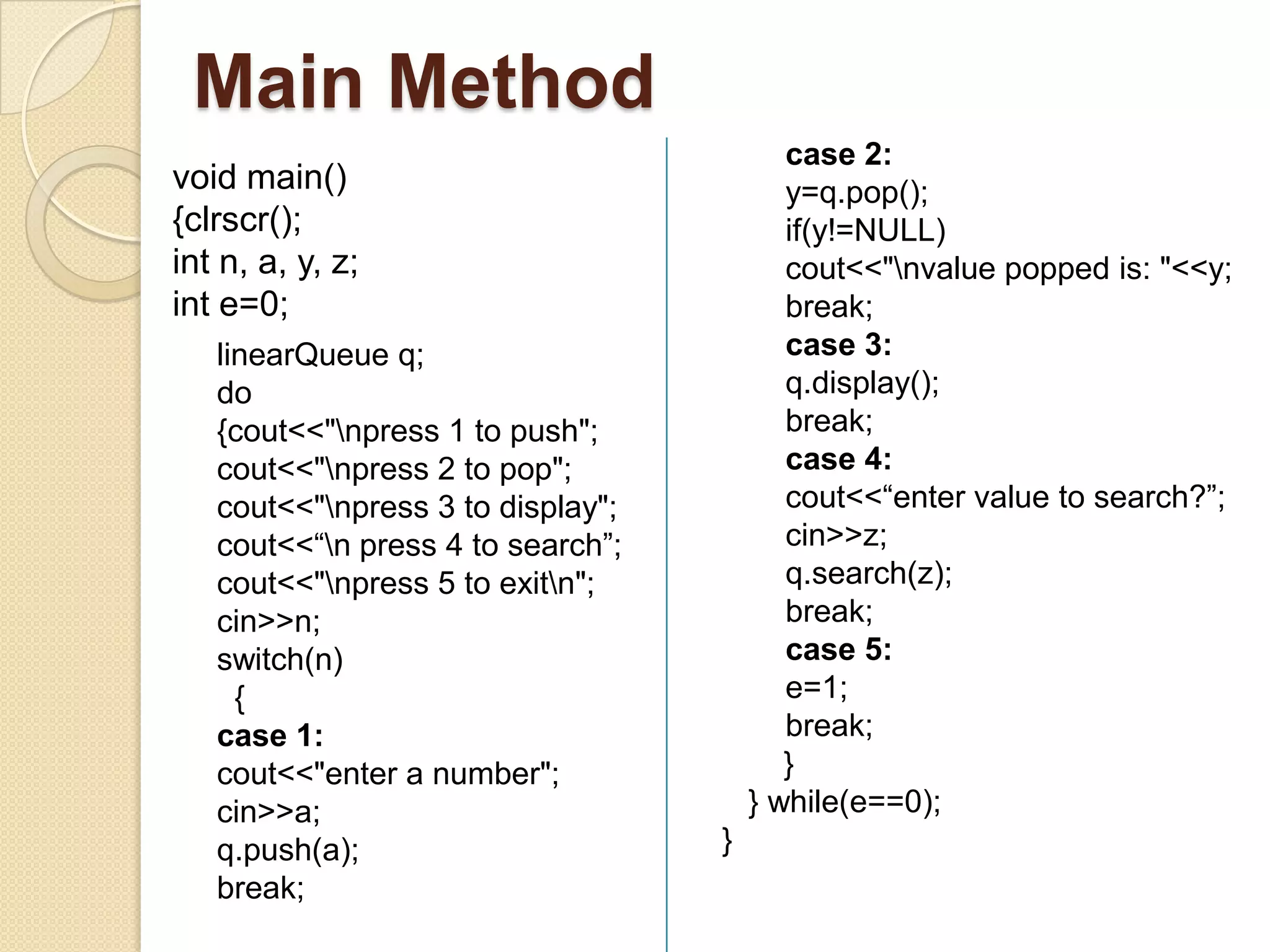

72. Main Method
case 2:
void main() y=q.pop();
{clrscr(); if(y!=NULL)
int n, a, y, z; cout<<"nvalue popped is: "<<y;
int e=0; break;
linearQueue q; case 3:
do q.display();
{cout<<"npress 1 to push"; break;
cout<<"npress 2 to pop"; case 4:
cout<<"npress 3 to display"; cout<<“enter value to search?”;
cout<<“n press 4 to search”; cin>>z;
cout<<"npress 5 to exitn"; q.search(z);
cin>>n; break;
switch(n) case 5:
{ e=1;
case 1: break;
cout<<"enter a number"; }
cin>>a; } while(e==0);
q.push(a); }
break;

73. TIME COMPLEXITY
 Insert
◦ Best Case: O(1)
◦ Worst Case: O(1)
 Remove
◦ Best Case: O(1)
◦ Worst Case: O(1)
 Search
◦ Best Case: O(1)
◦ Worst Case: O(n)

74. LINK LIST IMPLEMENTATION
OF CIRCULAR QUEUE

75. Defining the linked list data
structure:
struct node
{
int data;
node *next;
};
Data next
node

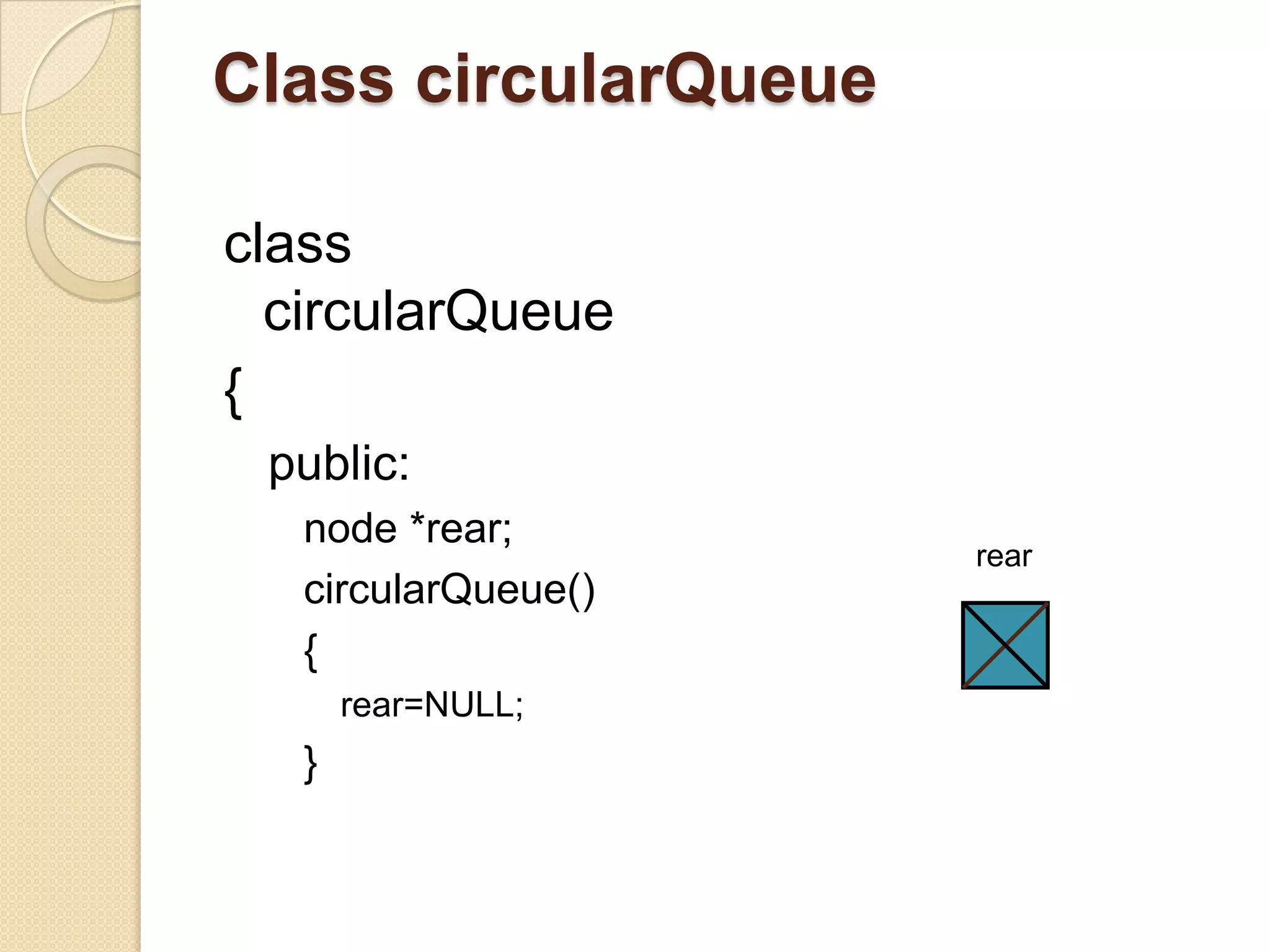

76. Class circularQueue
class
circularQueue
{
public:
node *rear;
rear
circularQueue()
{
rear=NULL;
}

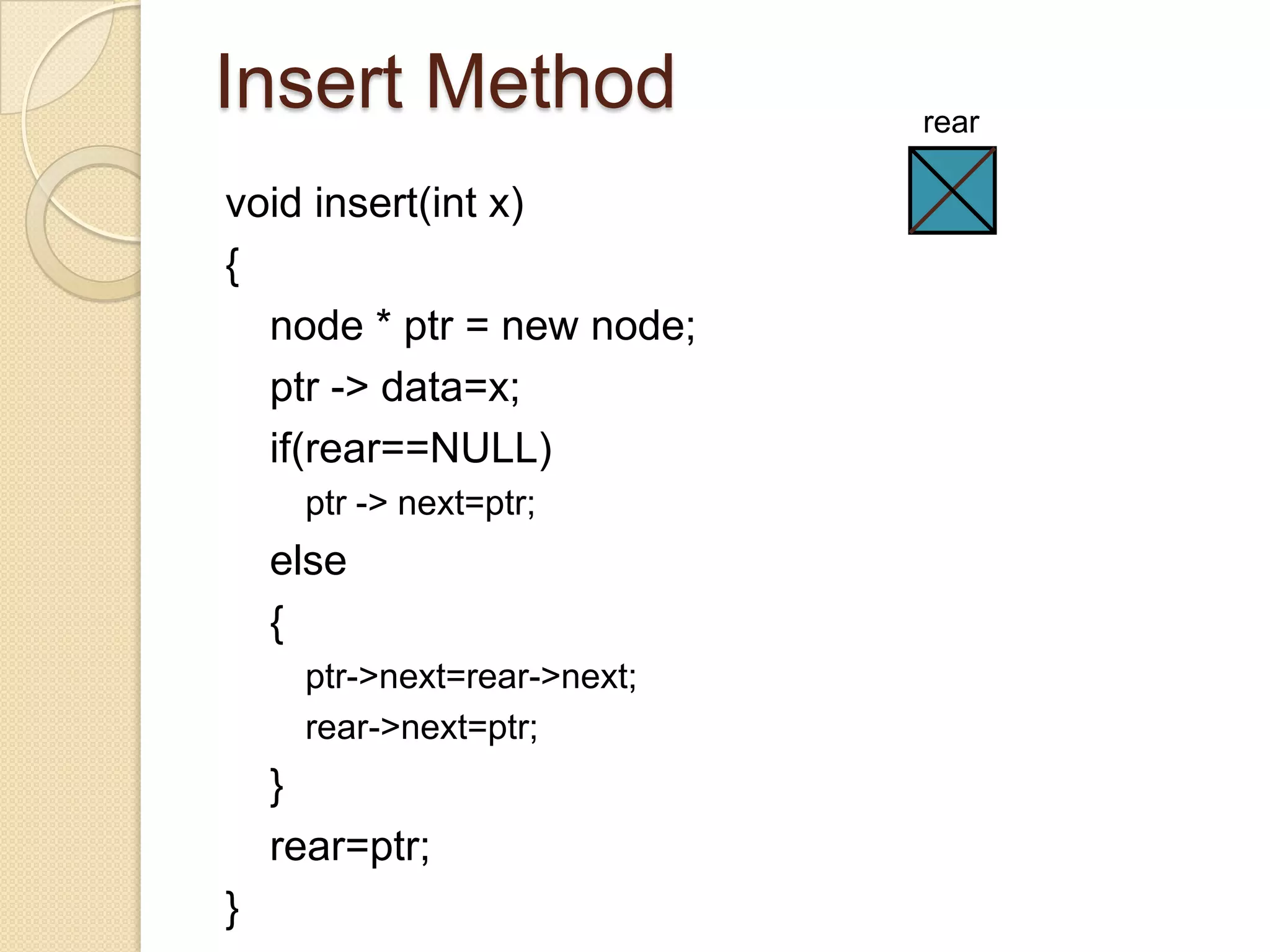

77. Insert Method rear
void insert(int x)
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else
{
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

78. Insert Method rear ptr
void insert(int x)
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else
{
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

79. Insert Method rear ptr
void insert(int x) x
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else
{
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

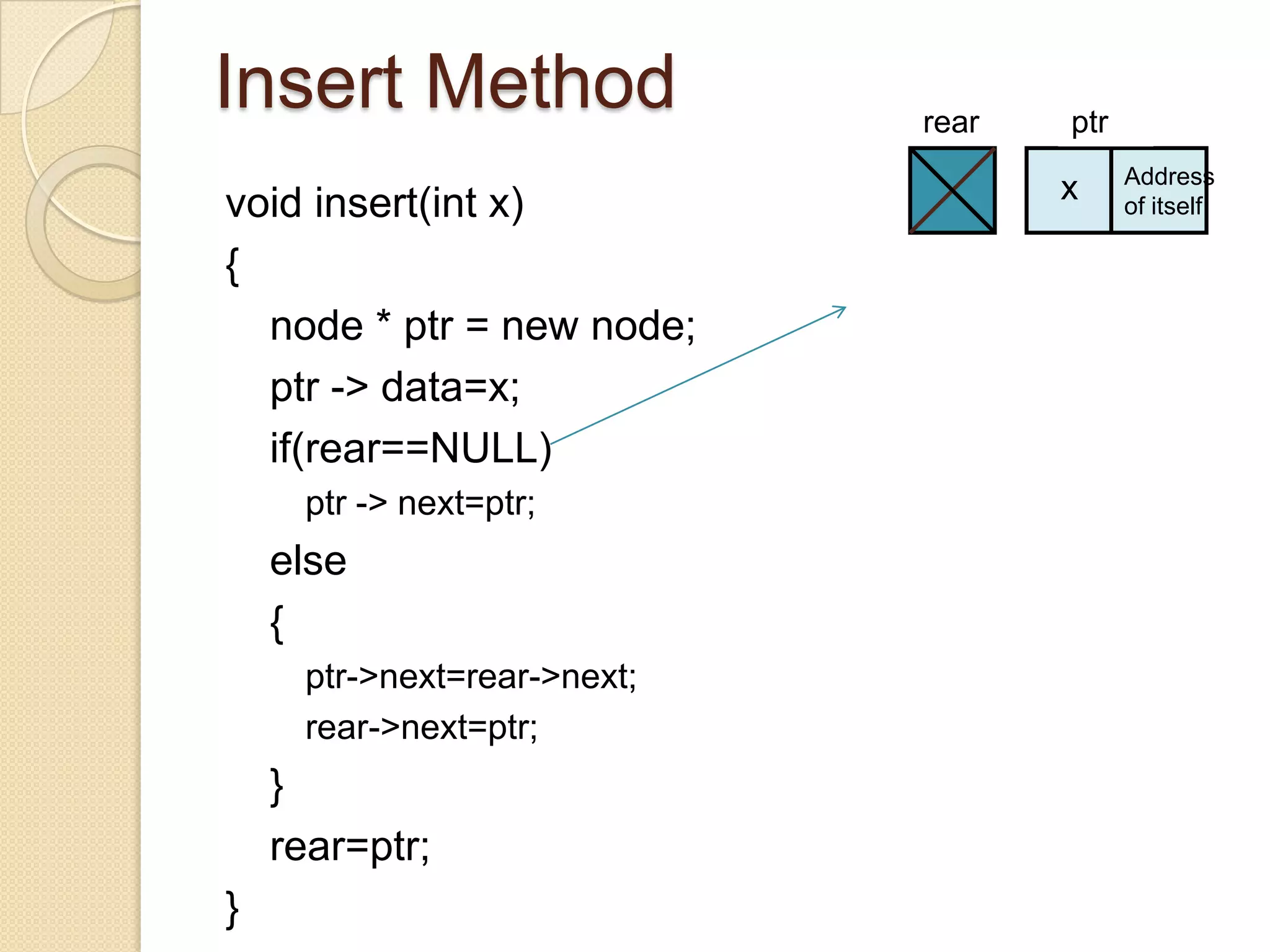

80. Insert Method rear ptr
Address
void insert(int x) x of itself
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else
{
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

81. Insert Method rear
ptr
Address
void insert(int x) x of itself
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else
{
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

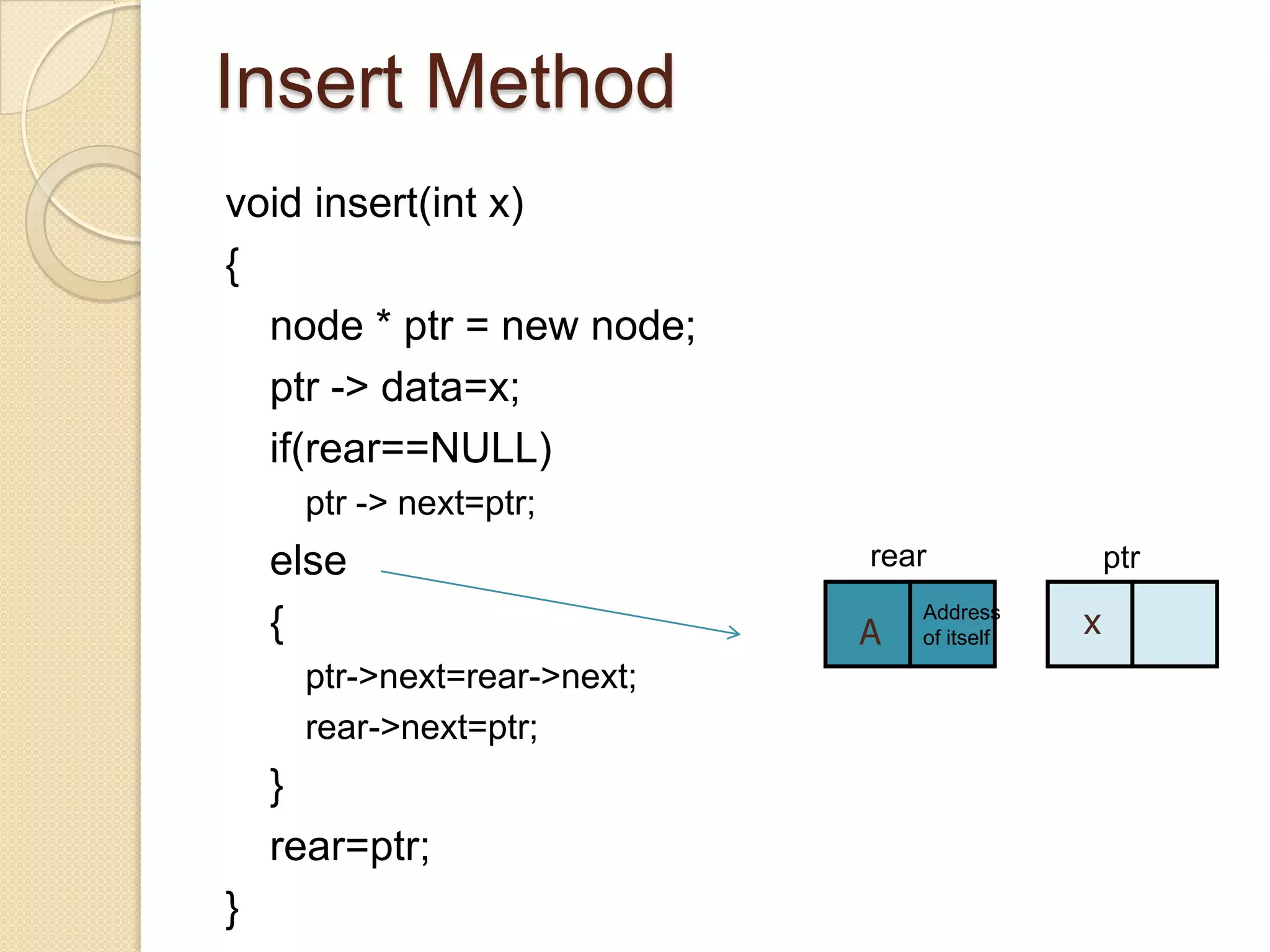

82. Insert Method
void insert(int x)
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else rear ptr
{ A
Address
of itself
x
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

83. Insert Method
void insert(int x)
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else rear ptr
{ A
Address
of itself
x
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

84. Insert Method
void insert(int x)
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
else rear ptr
{ A x
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

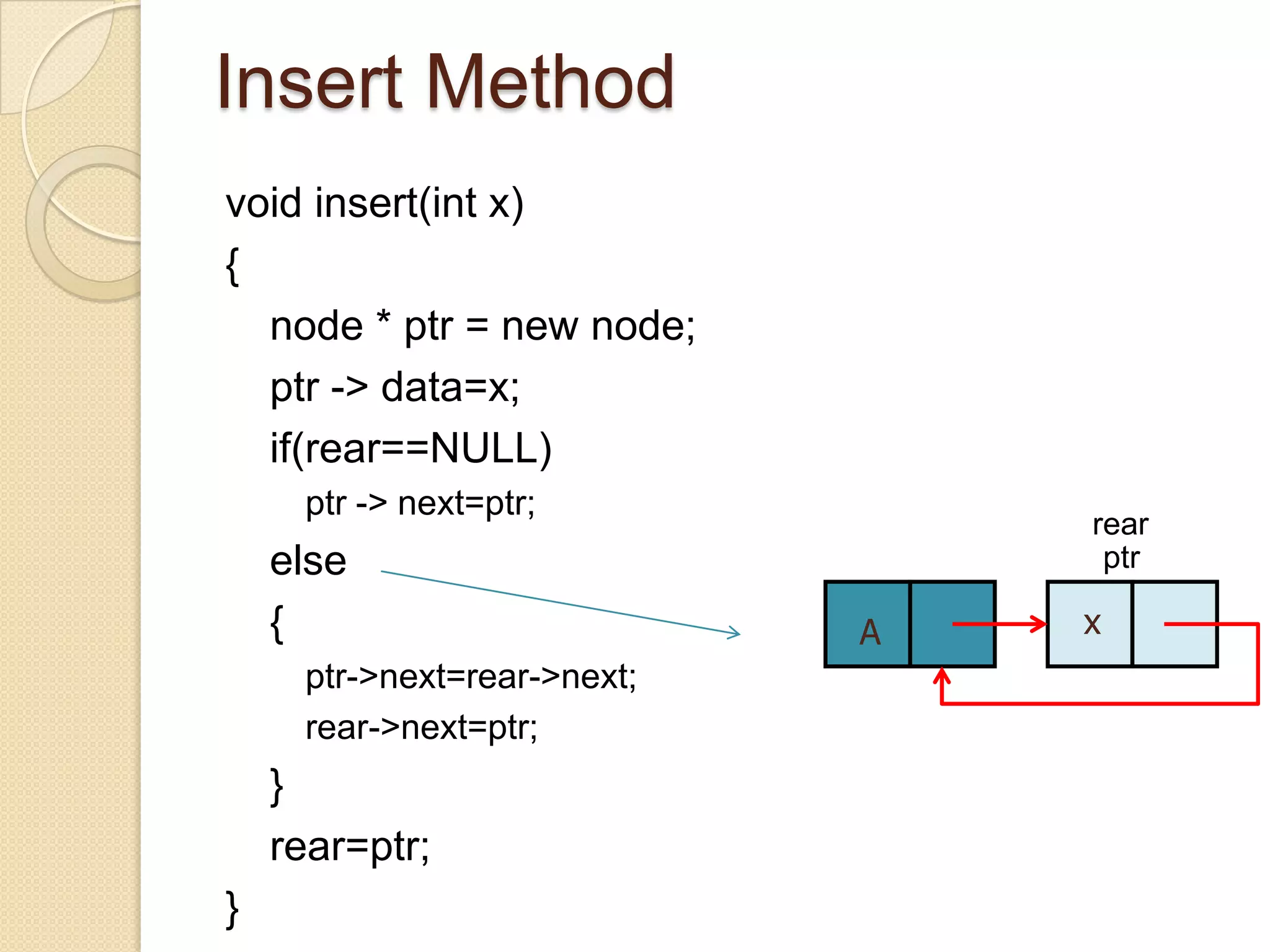

85. Insert Method
void insert(int x)
{
node * ptr = new node;
ptr -> data=x;
if(rear==NULL)
ptr -> next=ptr;
rear
else ptr
{ A x
ptr->next=rear->next;
rear->next=ptr;
}
rear=ptr;
}

86. Remove
Method
int remove()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return 0; rear
}
else A Address
of itself
{
int temp=rear->next->data;
node* ptr=rear->next;
if(rear==rear->next)
{ rear=NULL;
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

87. Remove
Method
int remove()
{
if(rear==NULL) temp=A
{
cout<<"nlist emptyn";
return 0; rear
}
else A Address
of itself
{
int temp=rear->next->data;
node* ptr=rear->next;
if(rear==rear->next)
{ rear=NULL;
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

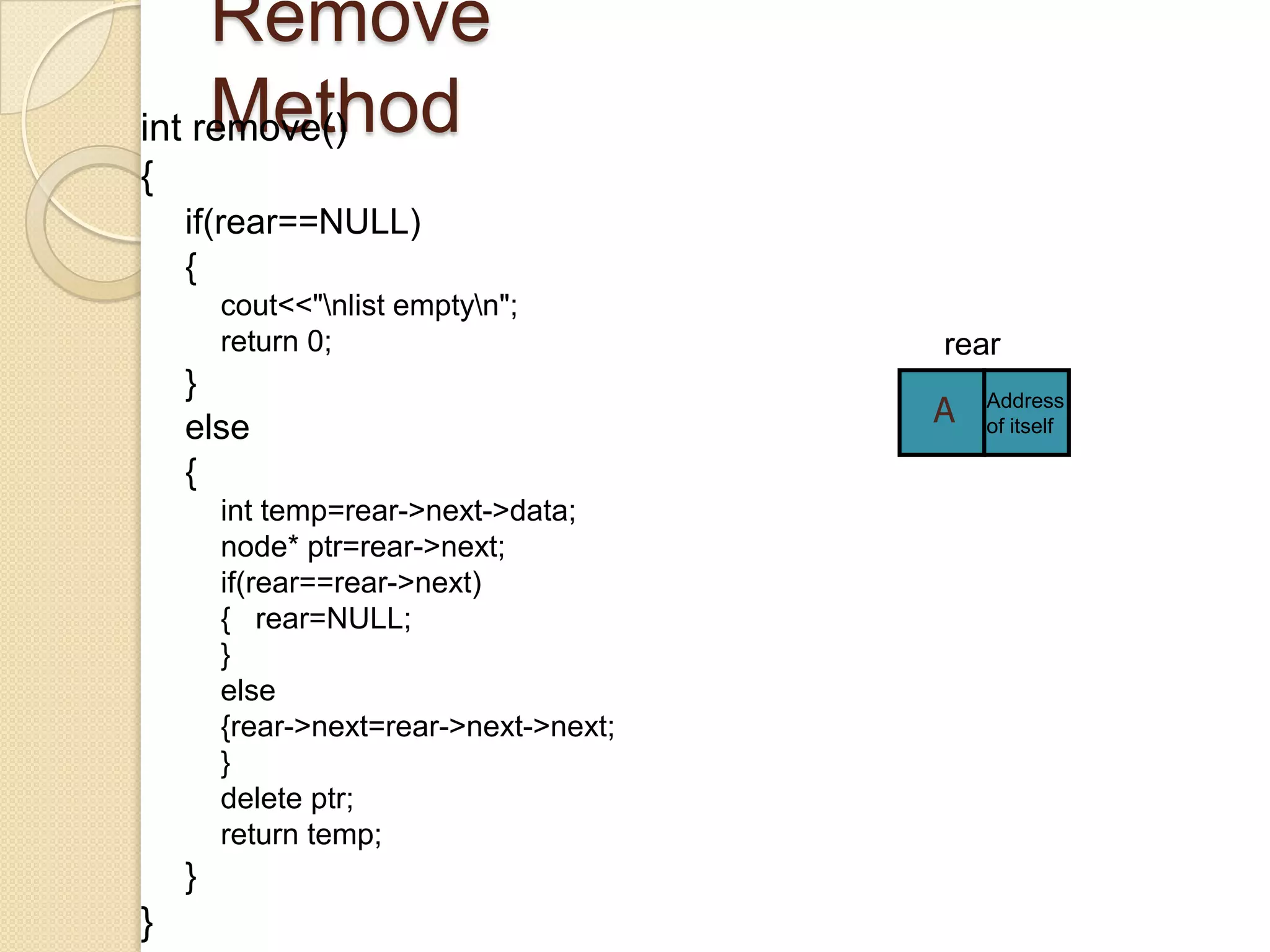

88. Remove
Method
int remove()
{
if(rear==NULL) temp=A
{
cout<<"nlist emptyn"; ptr
return 0; rear
}
else A Address
of itself
{
int temp=rear->next->data;
node* ptr=rear->next;
if(rear==rear->next)
{ rear=NULL;
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

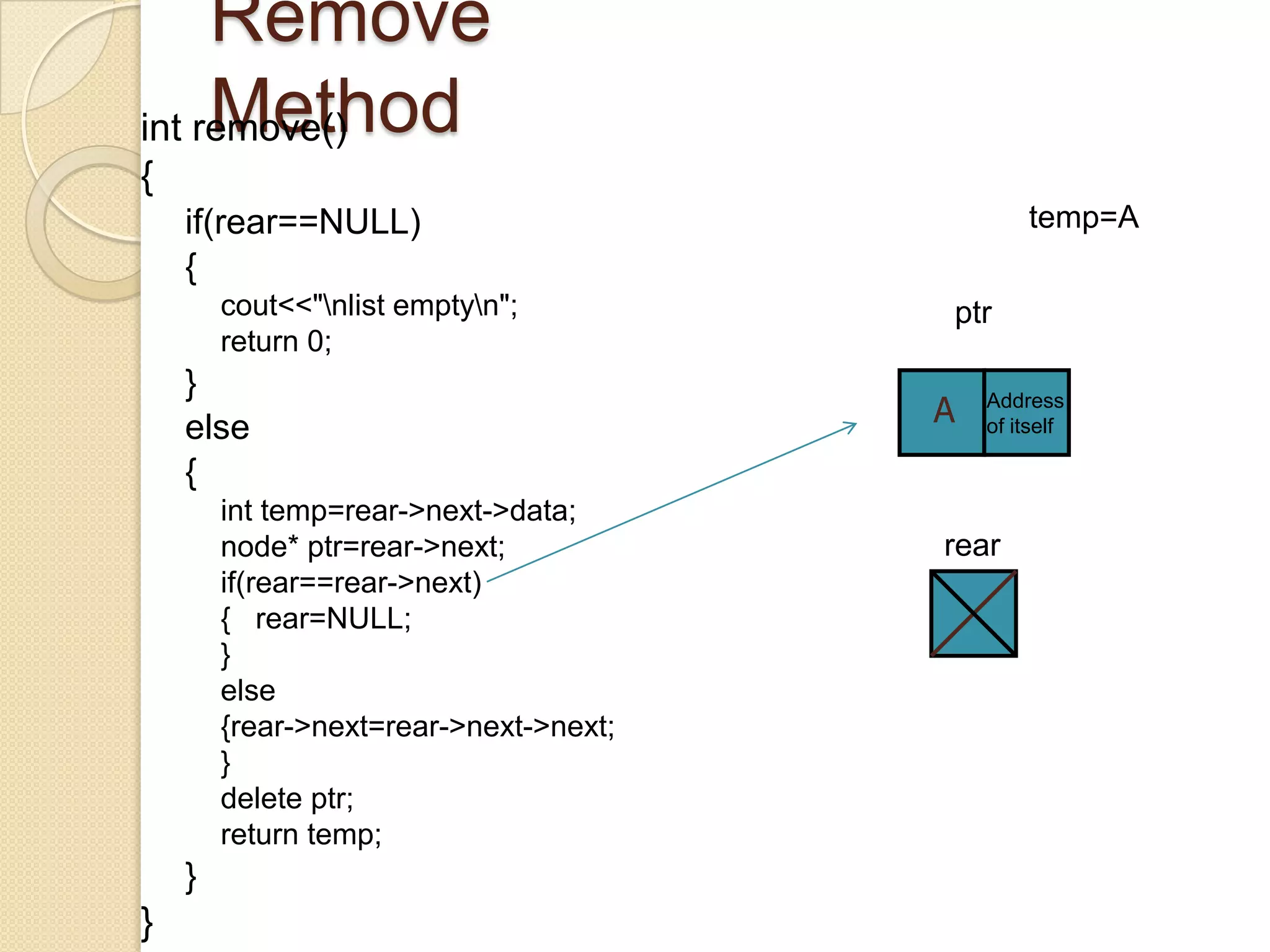

89. Remove
Method
int remove()
{
if(rear==NULL) temp=A
{
cout<<"nlist emptyn"; ptr
return 0;
}
else A Address
of itself
{
int temp=rear->next->data;
node* ptr=rear->next; rear
if(rear==rear->next)
{ rear=NULL;
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

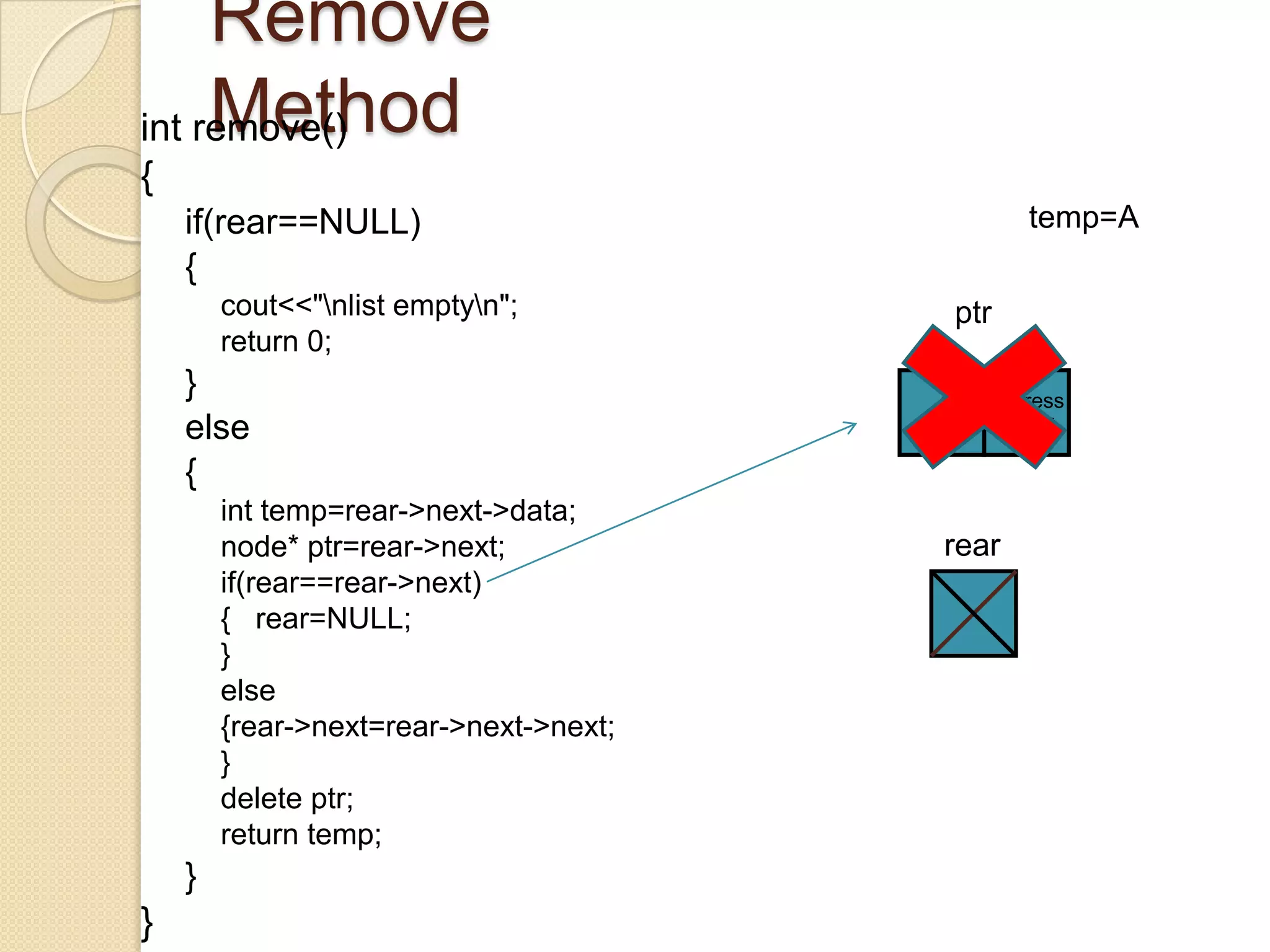

90. Remove
Method
int remove()
{
if(rear==NULL) temp=A
{
cout<<"nlist emptyn"; ptr
return 0;
}
else A Address
of itself
{
int temp=rear->next->data;
node* ptr=rear->next; rear
if(rear==rear->next)
{ rear=NULL;
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

91. Remove
Method
int remove()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
{
int temp=rear->next->data;
node* ptr=rear->next; rear
if(rear==rear->next)
{ rear=NULL; A B C
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

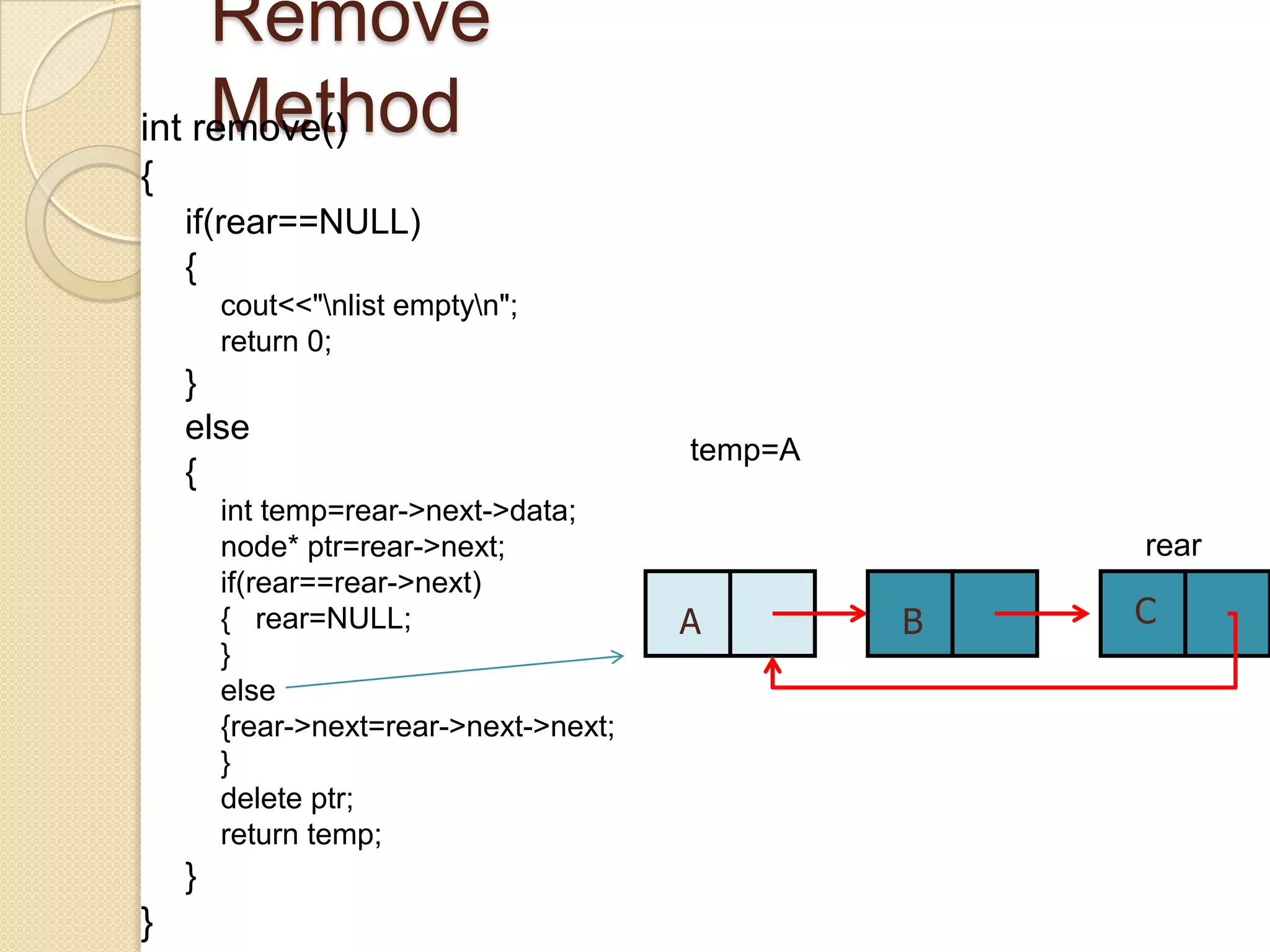

92. Remove
Method
int remove()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
temp=A
{
int temp=rear->next->data;
node* ptr=rear->next; rear
if(rear==rear->next)
{ rear=NULL; A B C
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

93. Remove
Method
int remove()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
temp=A
{
int temp=rear->next->data;
node* ptr=rear->next; ptr rear
if(rear==rear->next)
{ rear=NULL; A B C
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

94. Remove
Method
int remove()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
temp=A
{
int temp=rear->next->data;
node* ptr=rear->next; ptr rear
if(rear==rear->next)
{ rear=NULL; A B C
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

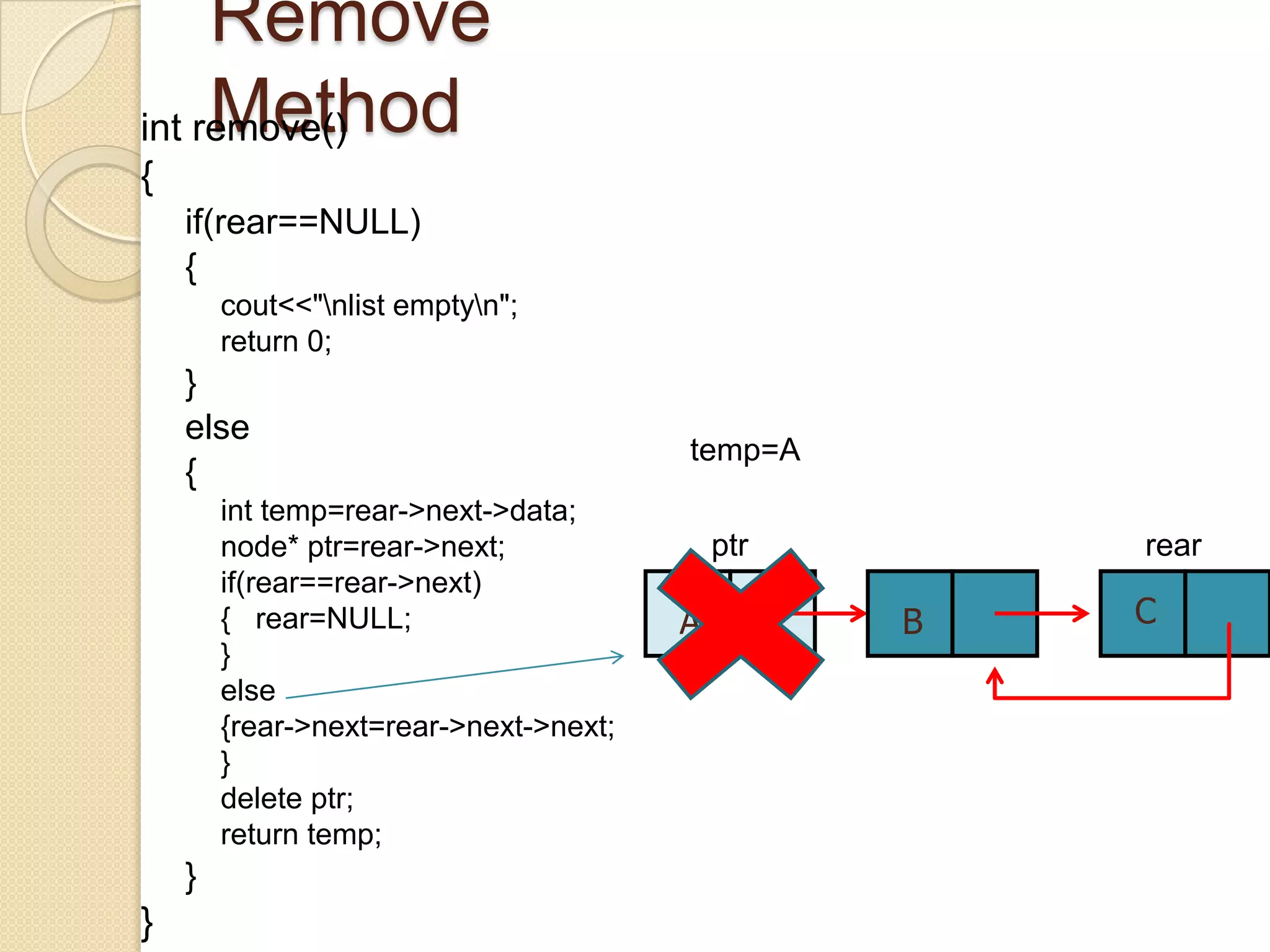

95. Remove
Method
int remove()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return 0;
}
else
temp=A
{
int temp=rear->next->data;
node* ptr=rear->next; ptr rear
if(rear==rear->next)
{ rear=NULL; A B C
}
else
{rear->next=rear->next->next;
}
delete ptr;
return temp;
}
}

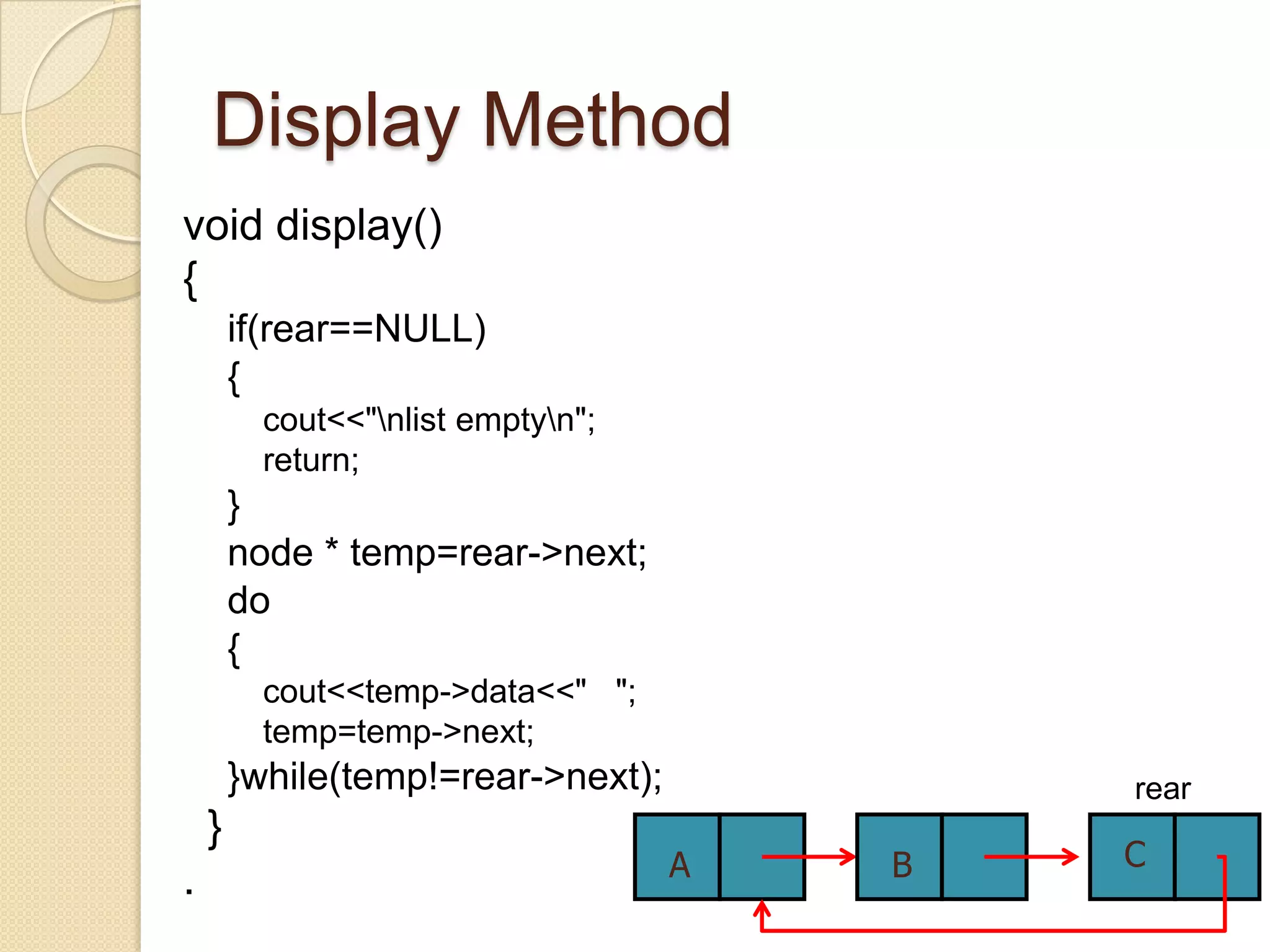

96. Display Method
void display()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return;
}
node * temp=rear->next;
do
{
cout<<temp->data<<" ";
temp=temp->next;
}while(temp!=rear->next); rear
}
A B C
.

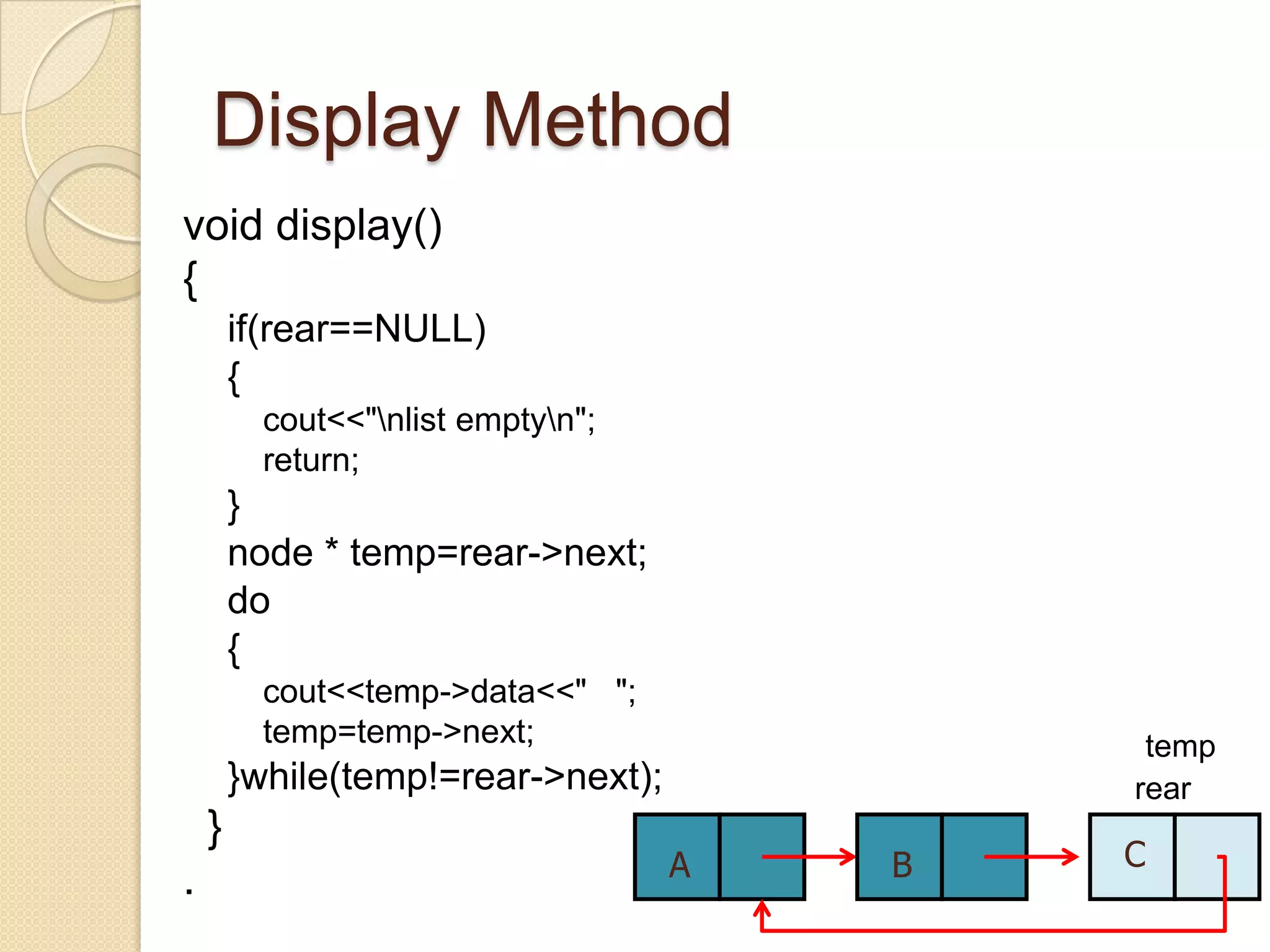

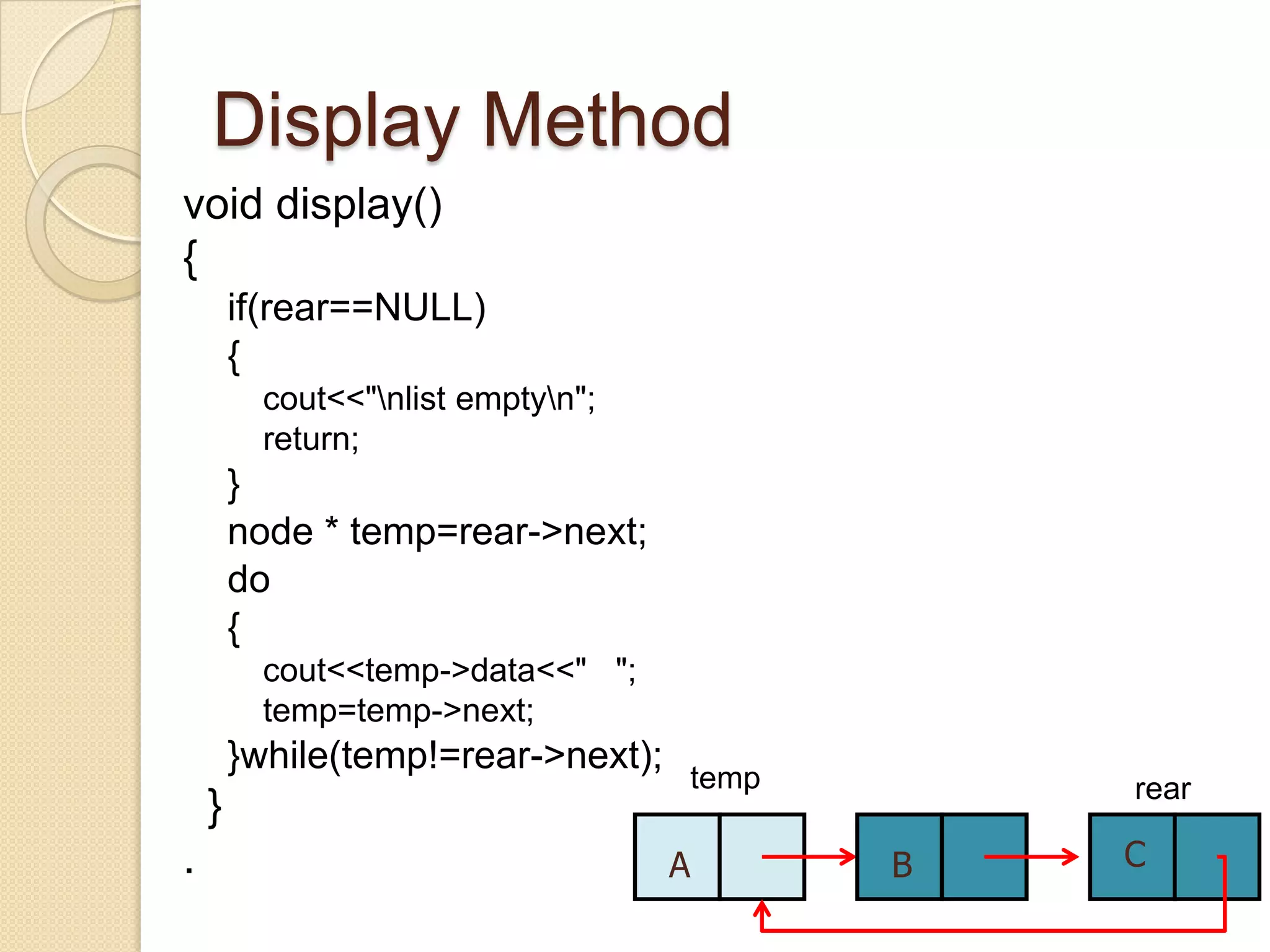

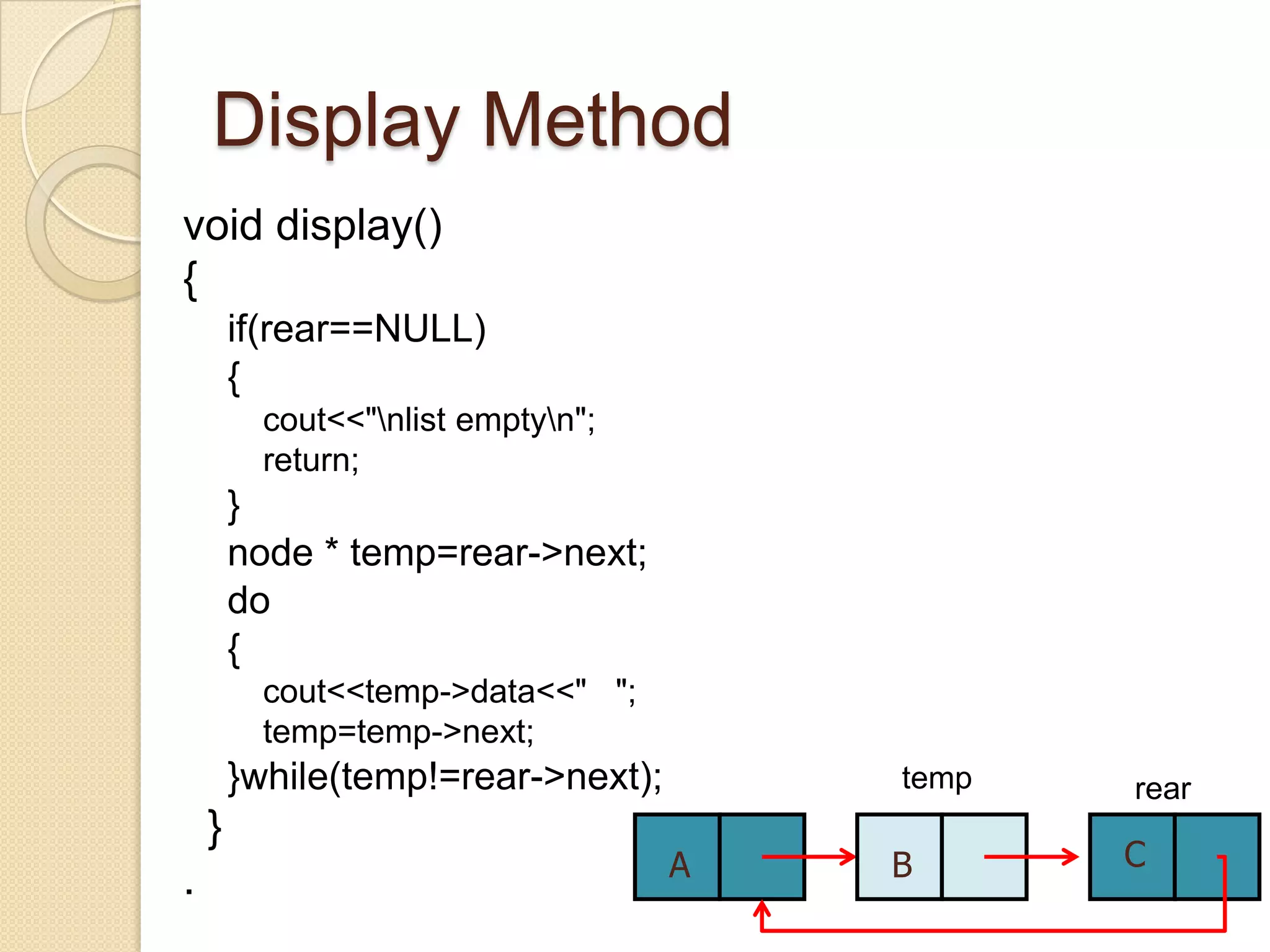

97. Display Method
void display()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return;
}
node * temp=rear->next;
do
{
cout<<temp->data<<" ";
temp=temp->next;
}while(temp!=rear->next);
temp rear
}
. A B C

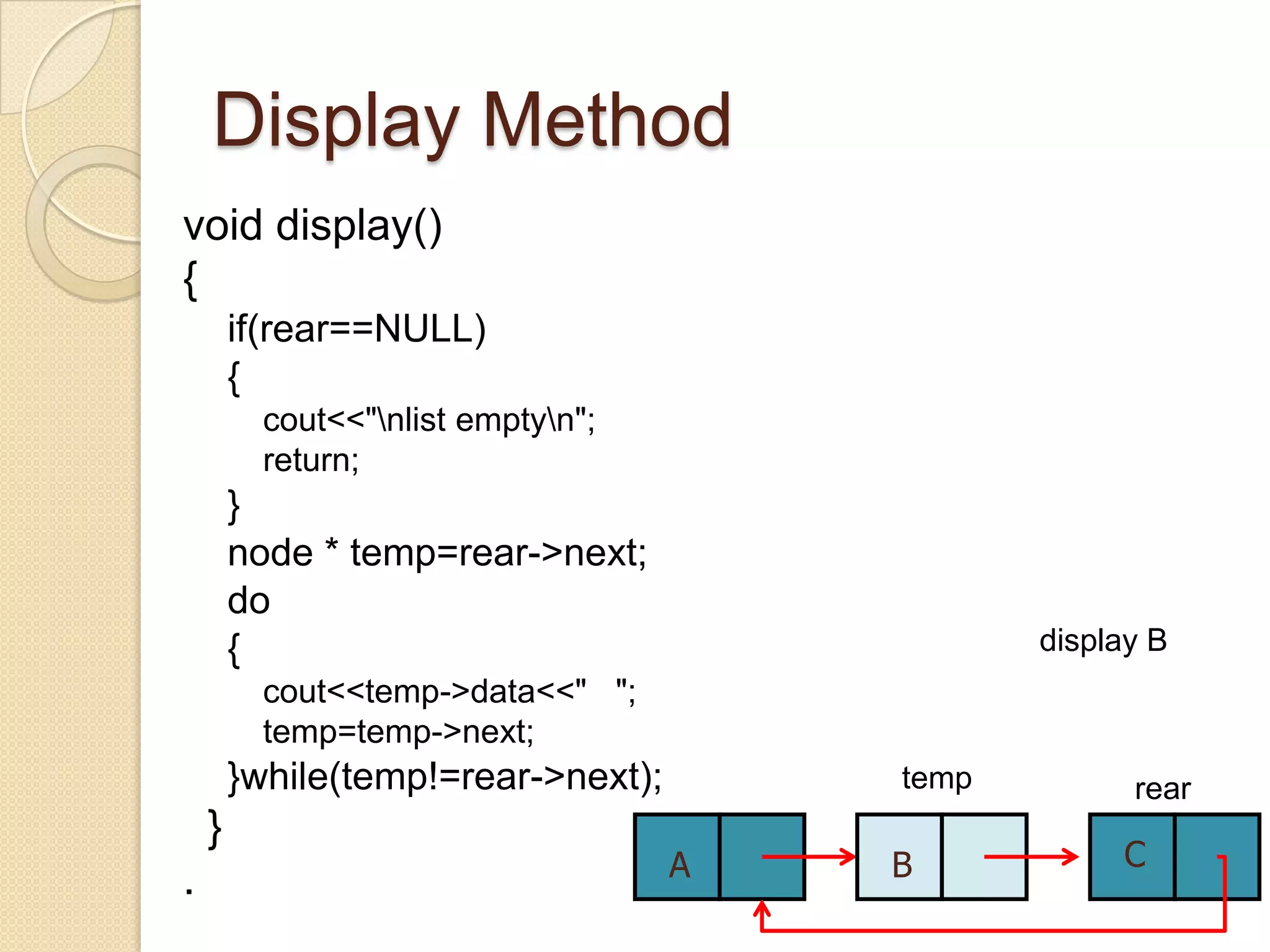

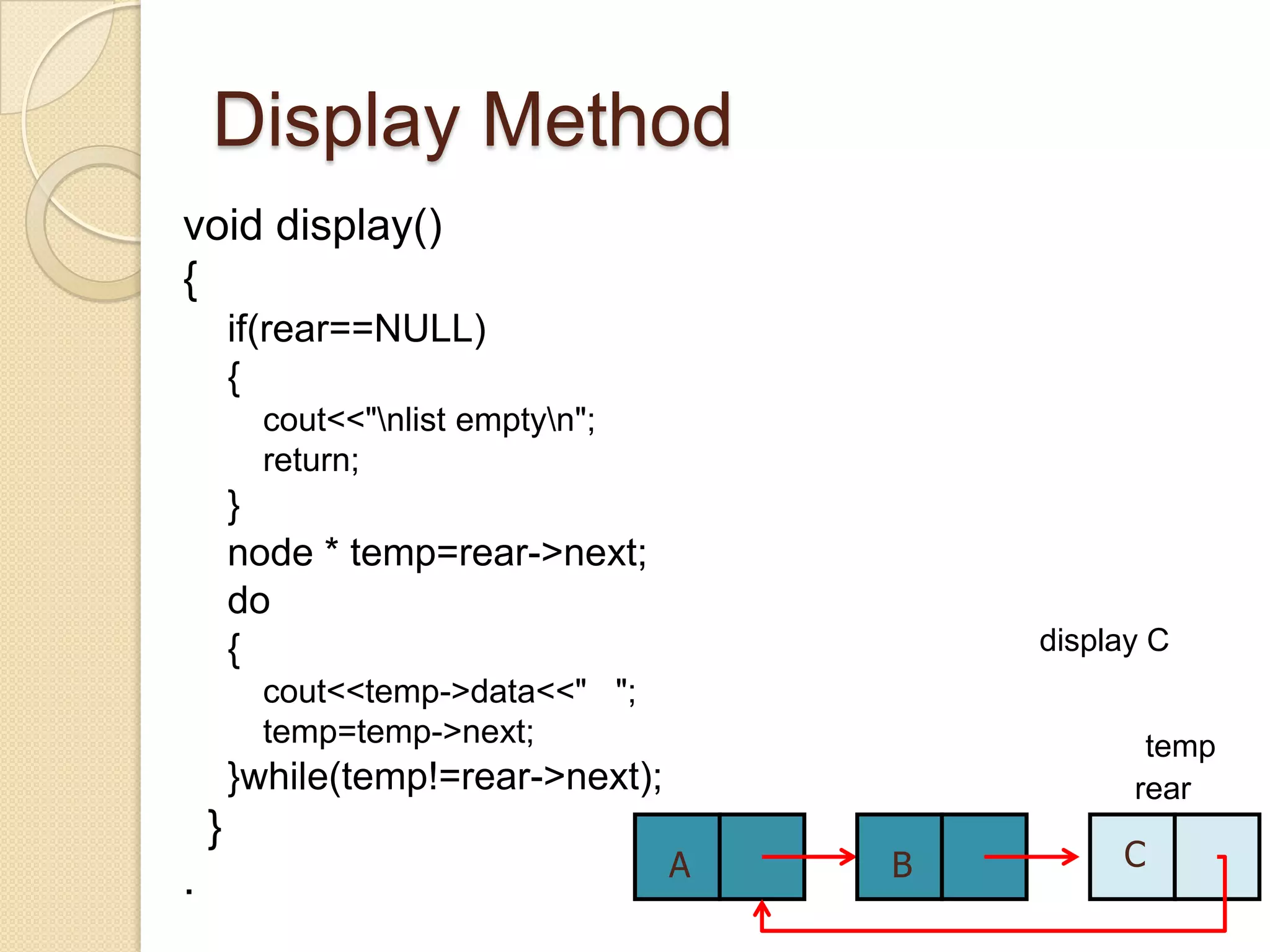

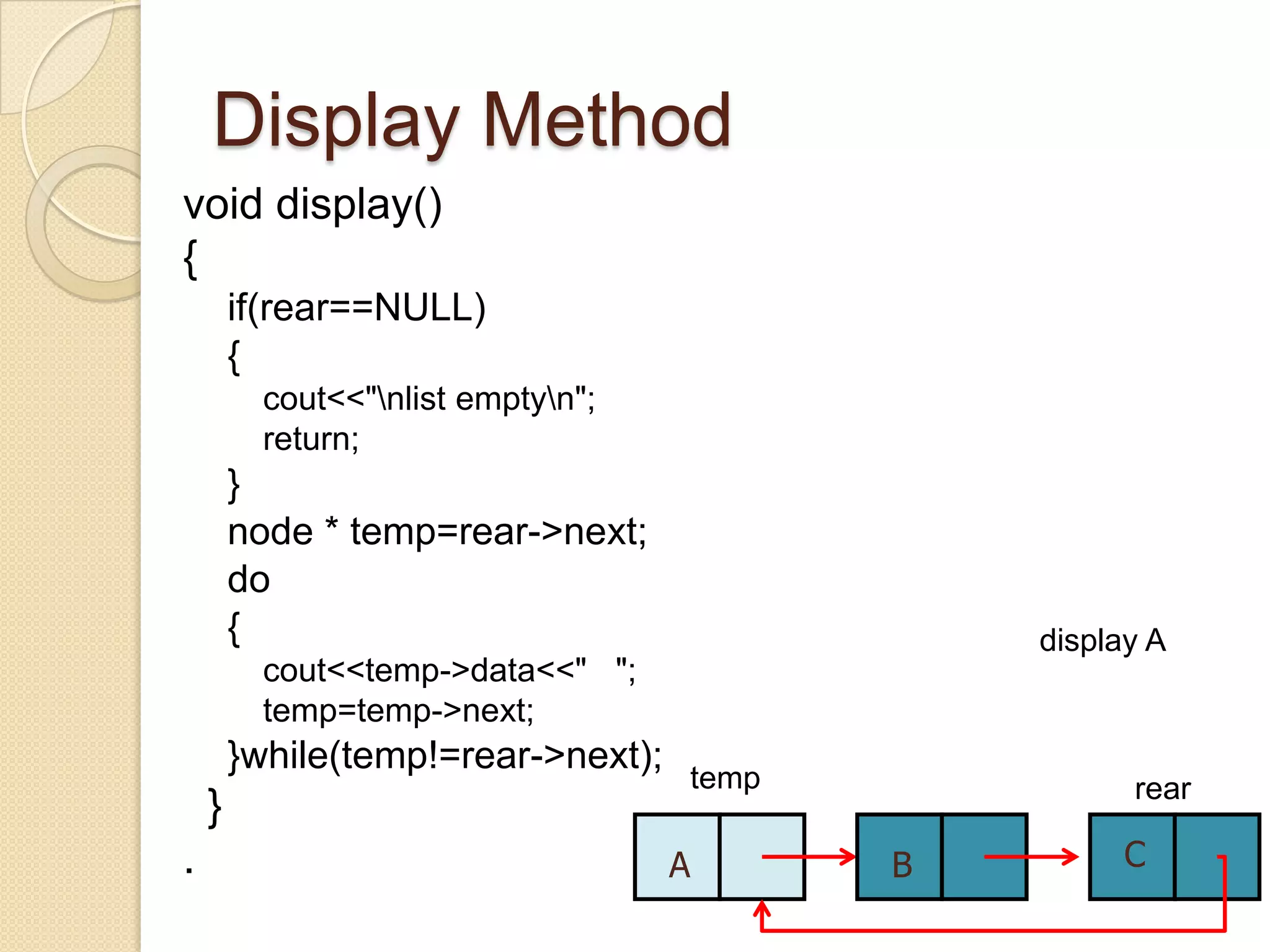

98. Display Method
void display()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return;
}
node * temp=rear->next;
do
{ display A
cout<<temp->data<<" ";
temp=temp->next;
}while(temp!=rear->next);
temp rear
}
. A B C

99. Display Method
void display()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return;
}
node * temp=rear->next;
do
{
cout<<temp->data<<" ";
temp=temp->next;
}while(temp!=rear->next); temp rear
}
A B C
.

100. Display Method
void display()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return;
}
node * temp=rear->next;
do
{ display B
cout<<temp->data<<" ";
temp=temp->next;
}while(temp!=rear->next); temp rear
}
A B C
.

101. Display Method
void display()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return;
}
node * temp=rear->next;
do
{
cout<<temp->data<<" ";
temp=temp->next; temp
}while(temp!=rear->next); rear
}
A B C
.

102. Display Method
void display()
{
if(rear==NULL)
{
cout<<"nlist emptyn";
return;
}
node * temp=rear->next;
do
{ display C
cout<<temp->data<<" ";
temp=temp->next; temp
}while(temp!=rear->next); rear
}
A B C
.

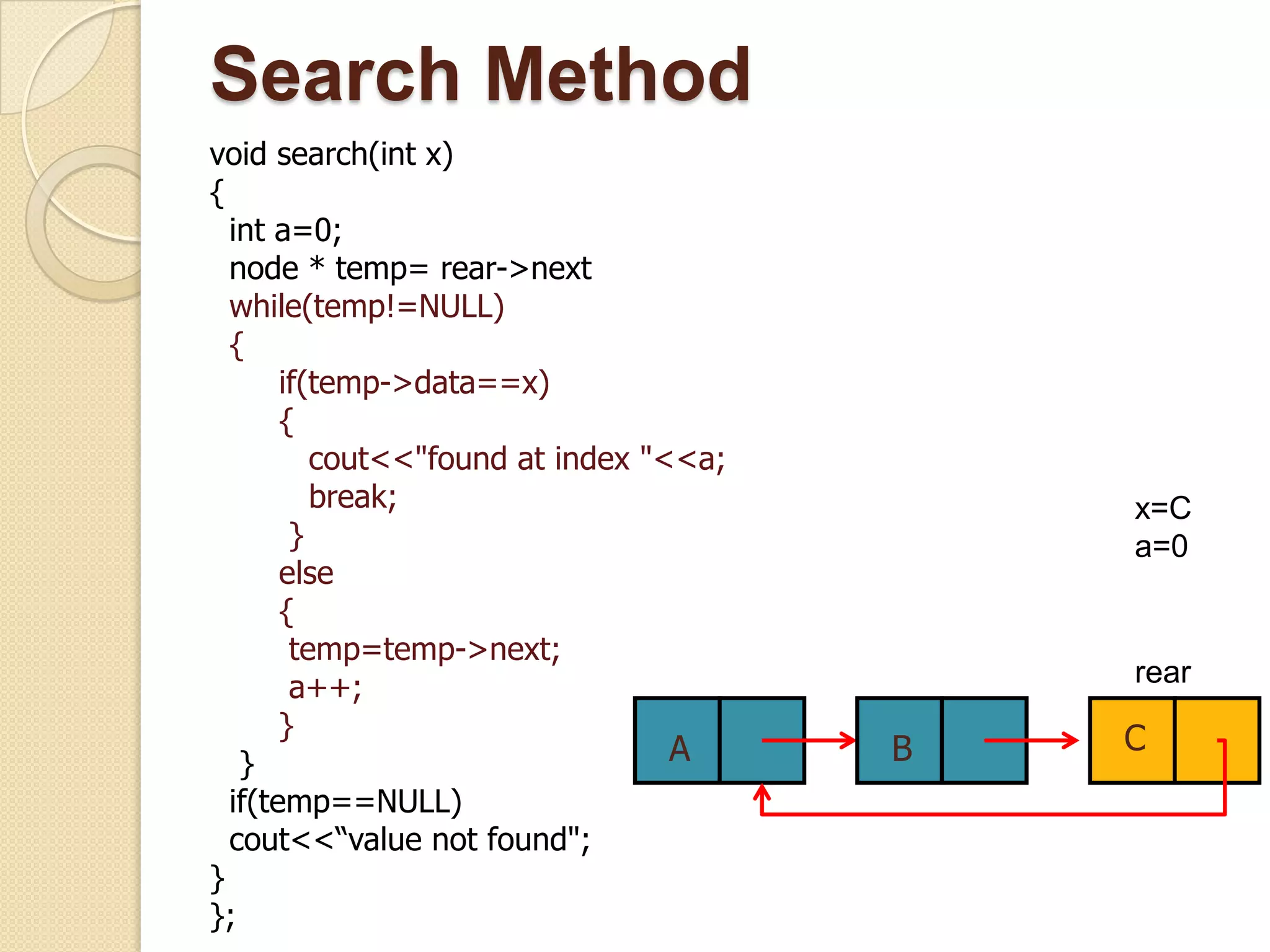

103. Search Method
void search(int x)
{
int a=0;
node * temp= rear->next
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=0
else
{
temp=temp->next;
a++; rear
} C
} A B
if(temp==NULL)
cout<<“value not found";
}
};

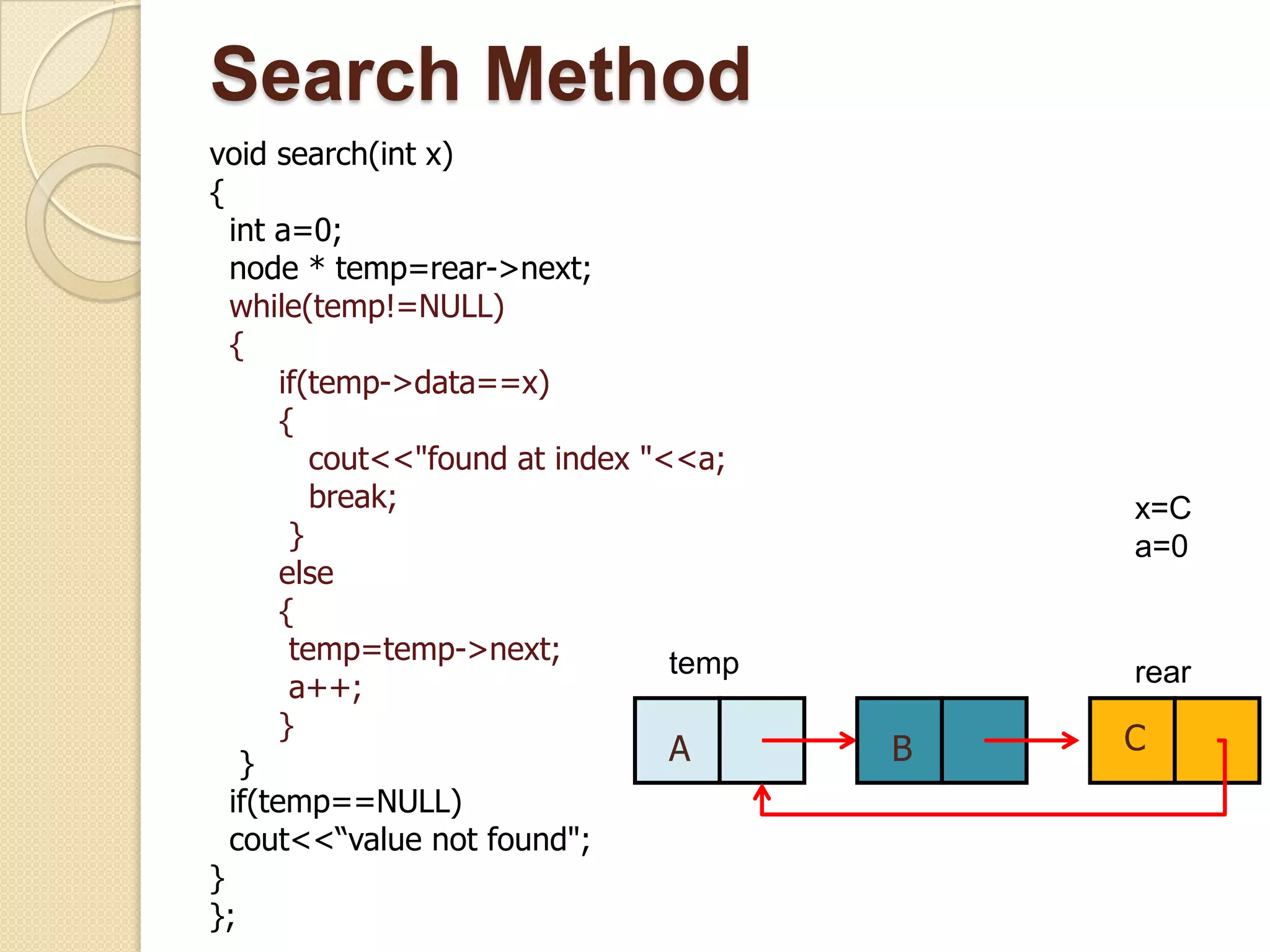

104. Search Method
void search(int x)
{
int a=0;
node * temp=rear->next;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=0
else
{
temp=temp->next; temp
a++; rear
} C
} A B
if(temp==NULL)
cout<<“value not found";
}
};

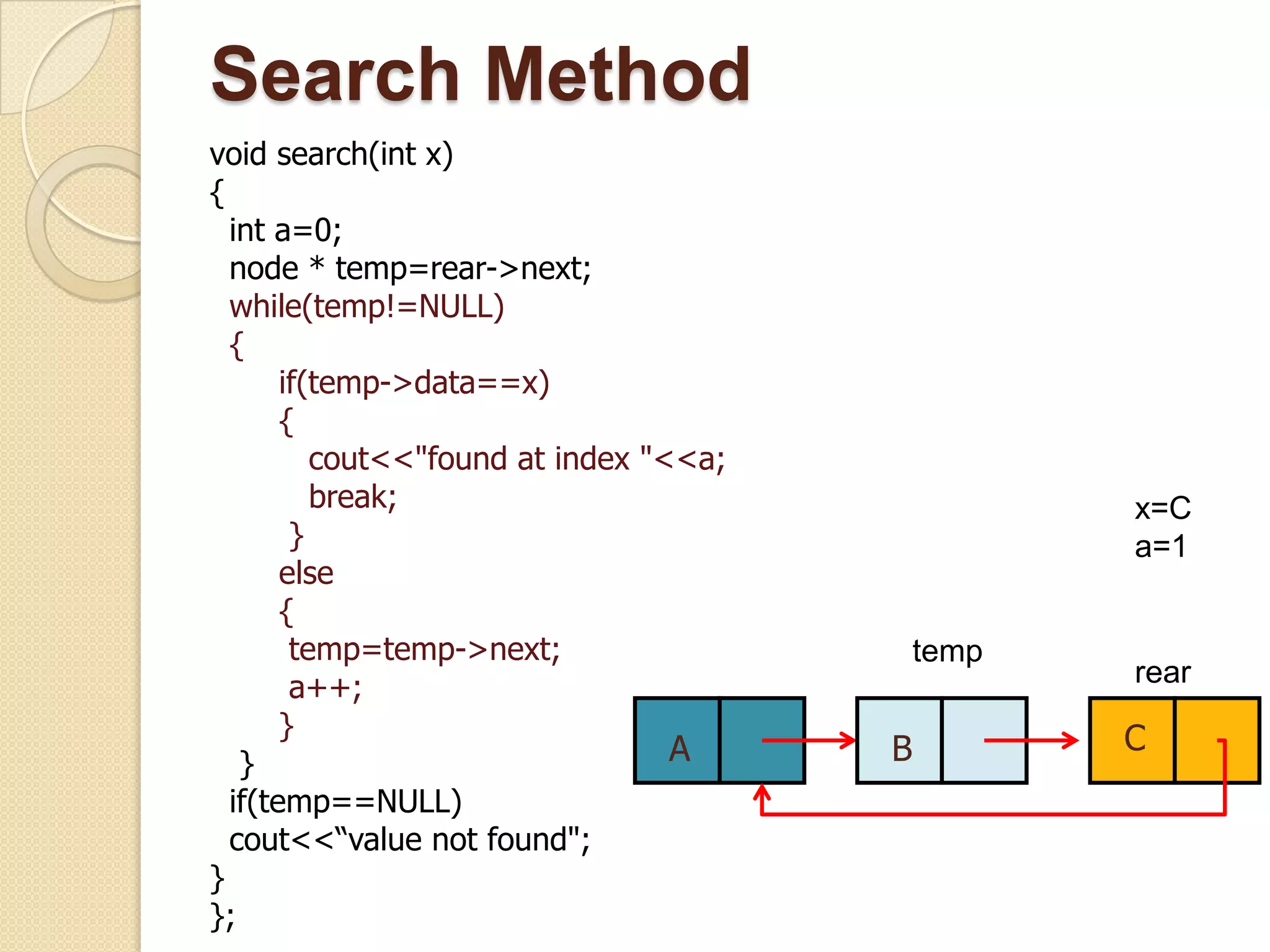

105. Search Method
void search(int x)
{
int a=0;
node * temp=rear->next;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=1
else
{
temp=temp->next; temp
a++; rear
} C
} A B
if(temp==NULL)
cout<<“value not found";
}
};

106. Search Method
void search(int x)
{
int a=0;
node * temp=rear->next;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=2
else
{
temp=temp->next; temp
a++; rear
} C
} A B
if(temp==NULL)
cout<<“value not found";
}
};

107. Search Method
void search(int x)
{
int a=0;
node * temp=rear->next;
while(temp!=NULL)
{
if(temp->data==x)
{
cout<<"found at index "<<a;
break; x=C
} a=2
else
{
temp=temp->next; temp
a++; rear
} C
} A B
found at
if(temp==NULL)
index 2
cout<<“value not found";
}
};

108. Main Method
case 2:
void main() y=q.pop();
{clrscr(); if(y!=NULL)
int n, a, y, z; cout<<"nvalue popped is: "<<y;
int e=0; break;
circularQueue q; case 3:
do q.display();
{cout<<"npress 1 to push"; break;
cout<<"npress 2 to pop"; case 4:
cout<<"npress 3 to display"; cout<<“enter value to search?”;
cout<<“n press 4 to search”; cin>>z;
cout<<"npress 5 to exitn"; q.search(z);
cin>>n; break;
switch(n) case 5:
{ e=1;
case 1: break;
cout<<"enter a number"; }
cin>>a; } while(e==0);
q.push(a); }
break;

109. TIME COMPLEXITY
 Insert
◦ Best Case: O(1)
◦ Worst Case: O(1)
 Remove
◦ Best Case: O(1)
◦ Worst Case: O(1)
 Search
◦ Best Case: O(1)
◦ Worst Case: O(n)

110. THANK YOU!
