1. Presentation on Data Structure
Made By:
Harsh Gupta

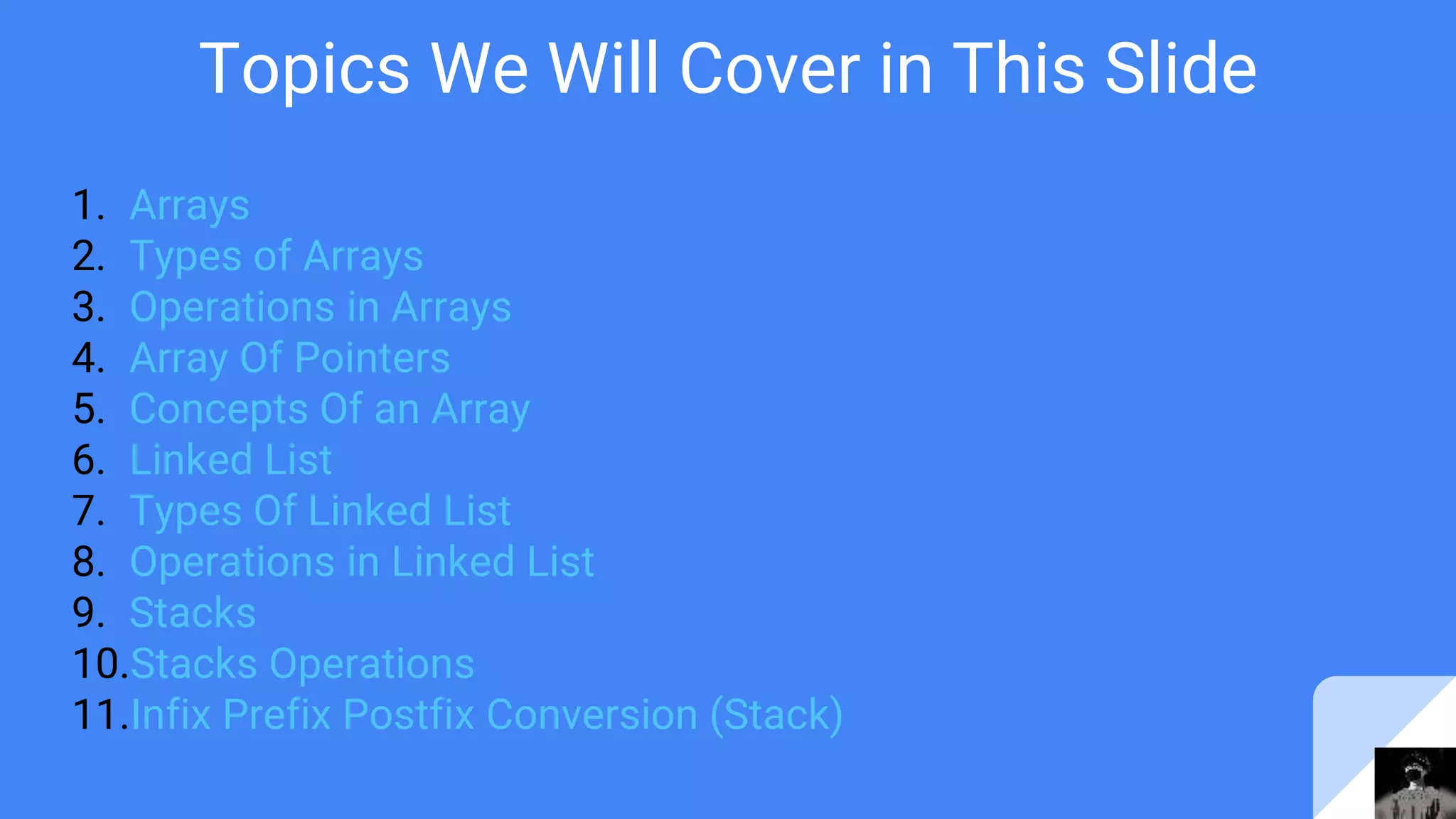

2. Topics We Will Cover in This Slide
1. Arrays
2. Types of Arrays
3. Operations in Arrays
4. Array Of Pointers
5. Concepts Of an Array
6. Linked List
7. Types Of Linked List
8. Operations in Linked List
9. Stacks
10.Stacks Operations
11.Infix Prefix Postfix Conversion (Stack)

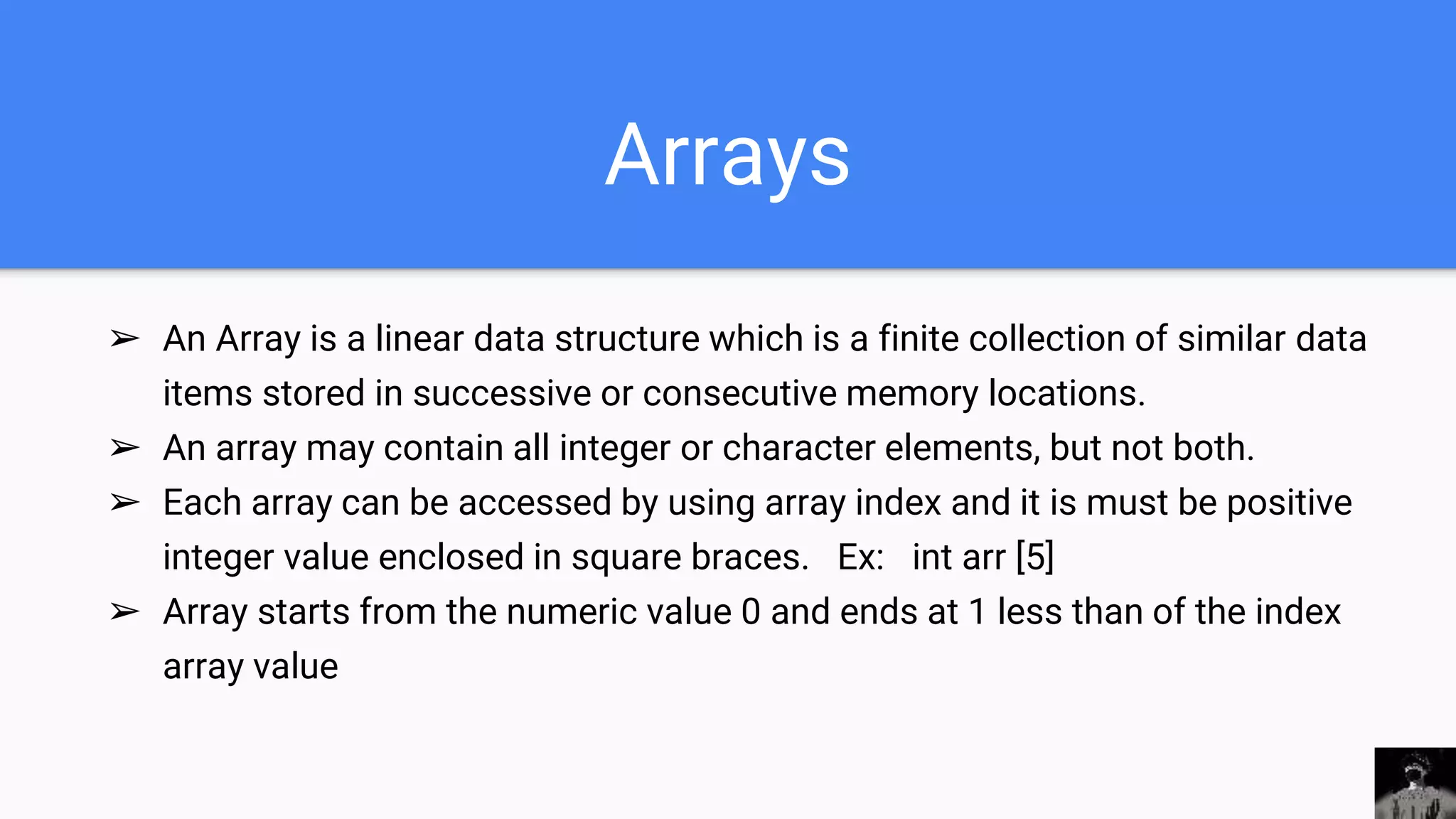

3. Arrays
➢ An Array is a linear data structure which is a finite collection of similar data
items stored in successive or consecutive memory locations.
➢ An array may contain all integer or character elements, but not both.
➢ Each array can be accessed by using array index and it is must be positive
integer value enclosed in square braces. Ex: int arr [5]
➢ Array starts from the numeric value 0 and ends at 1 less than of the index
array value

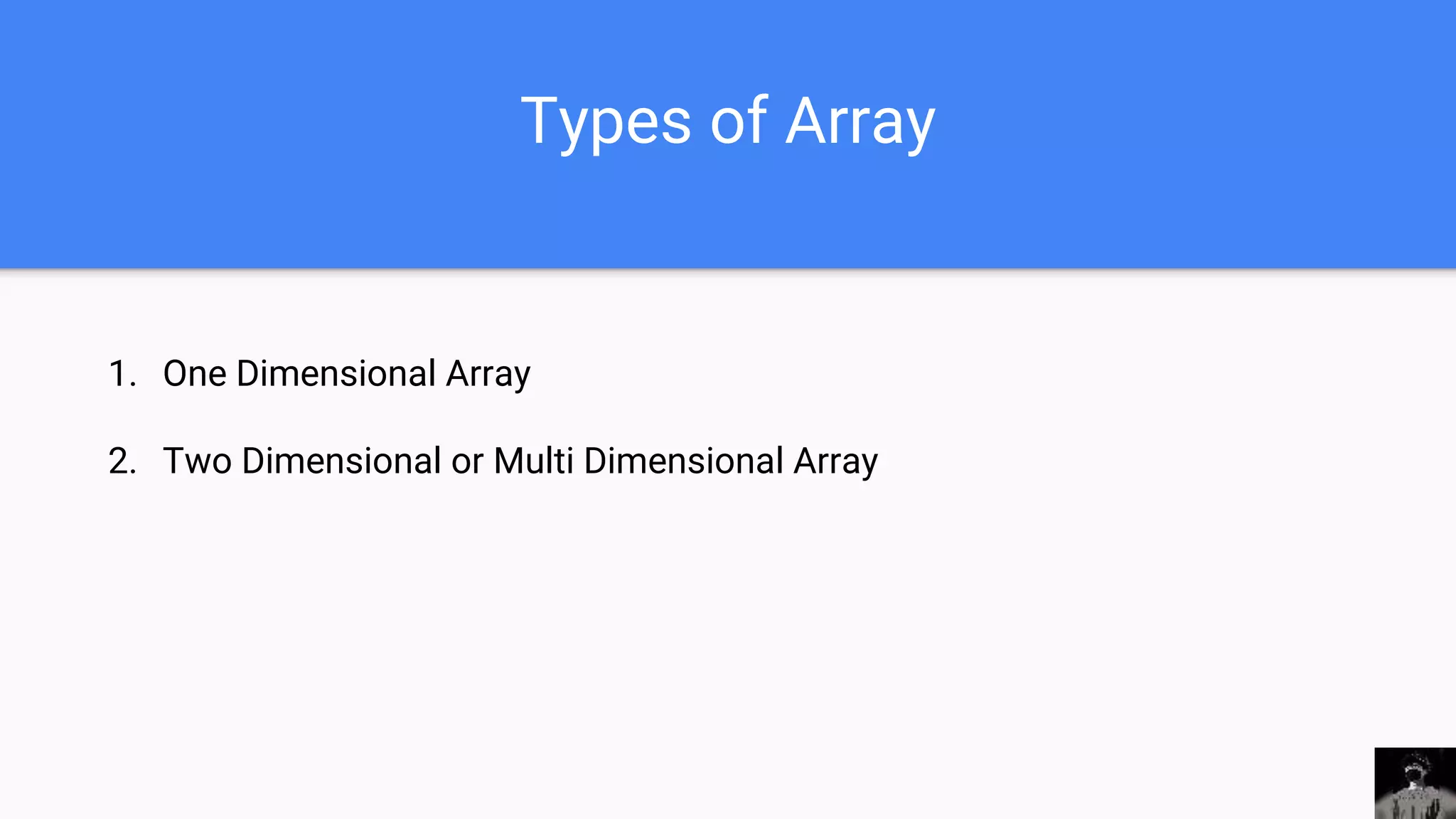

4. Types of Array
1. One Dimensional Array
2. Two Dimensional or Multi Dimensional Array

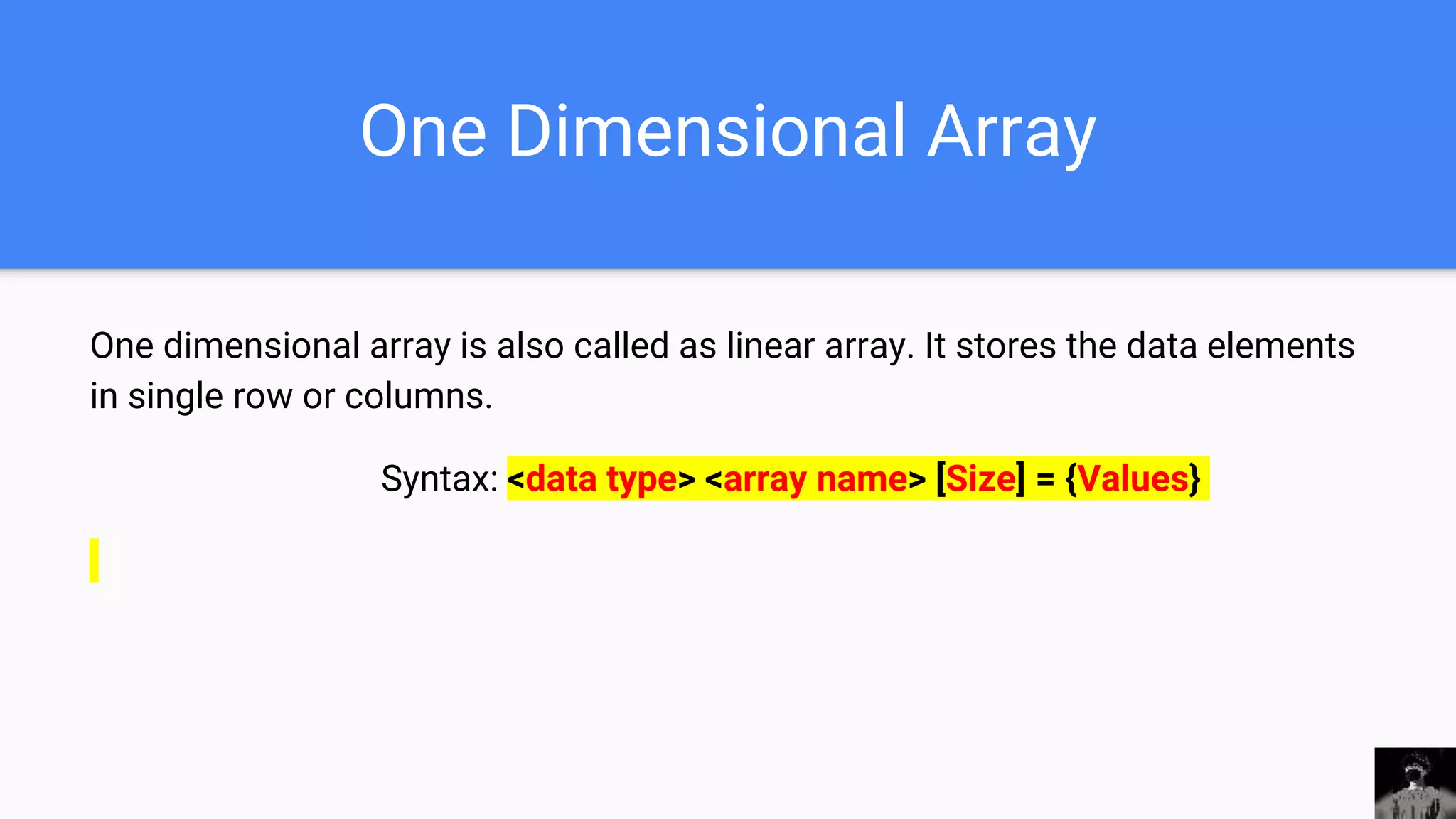

5. One Dimensional Array
One dimensional array is also called as linear array. It stores the data elements
in single row or columns.
Syntax: <data type> <array name> [Size] = {Values}

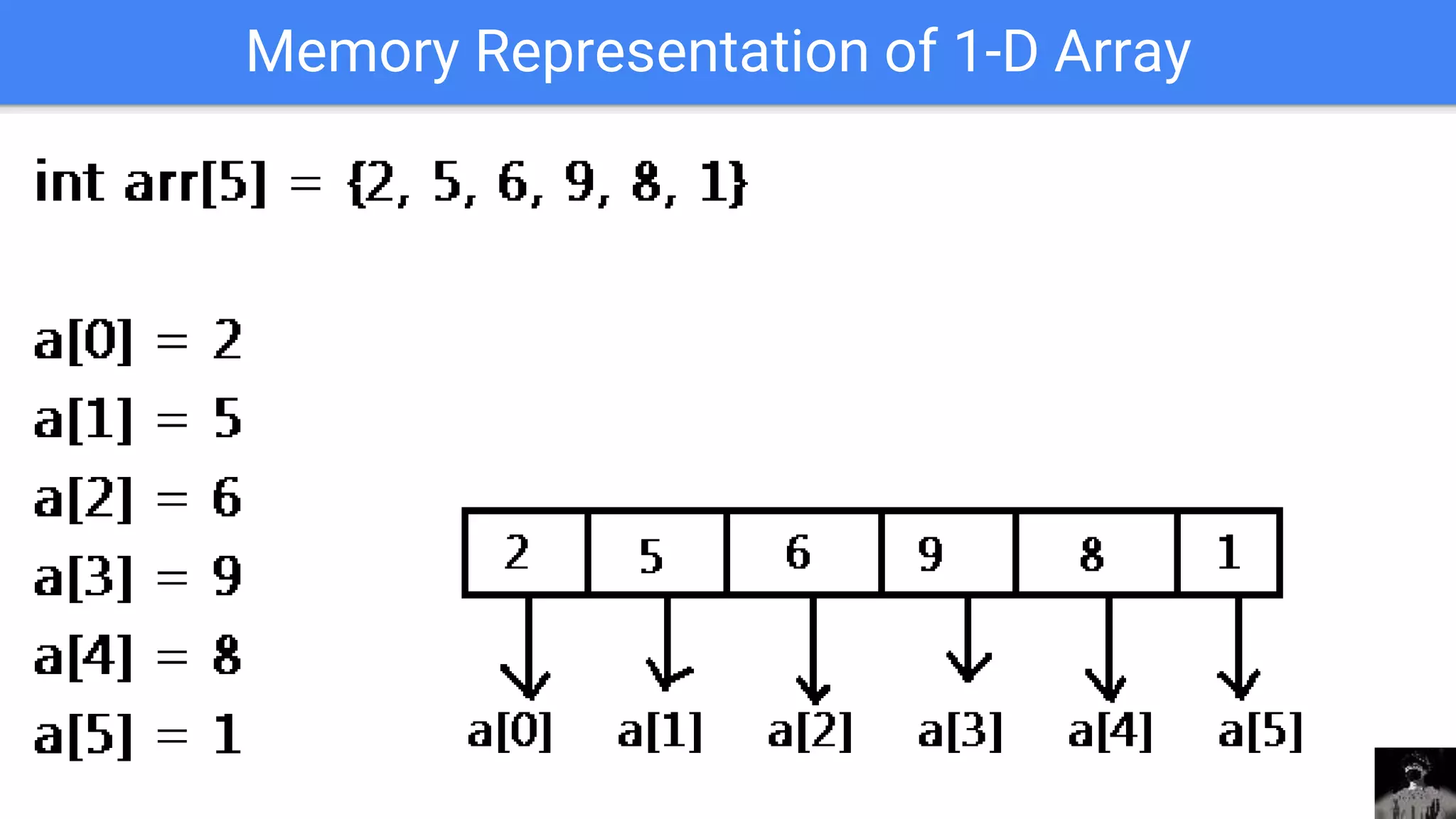

6. Memory Representation of 1-D Array

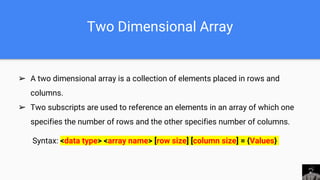

7. Two Dimensional Array
➢ A two dimensional array is a collection of elements placed in rows and
columns.
➢ Two subscripts are used to reference an elements in an array of which one
specifies the number of rows and the other specifies number of columns.
Syntax: <data type> <array name> [row size] [column size] = {Values}

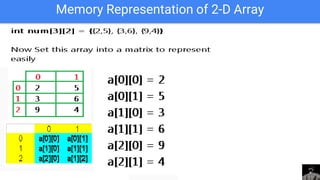

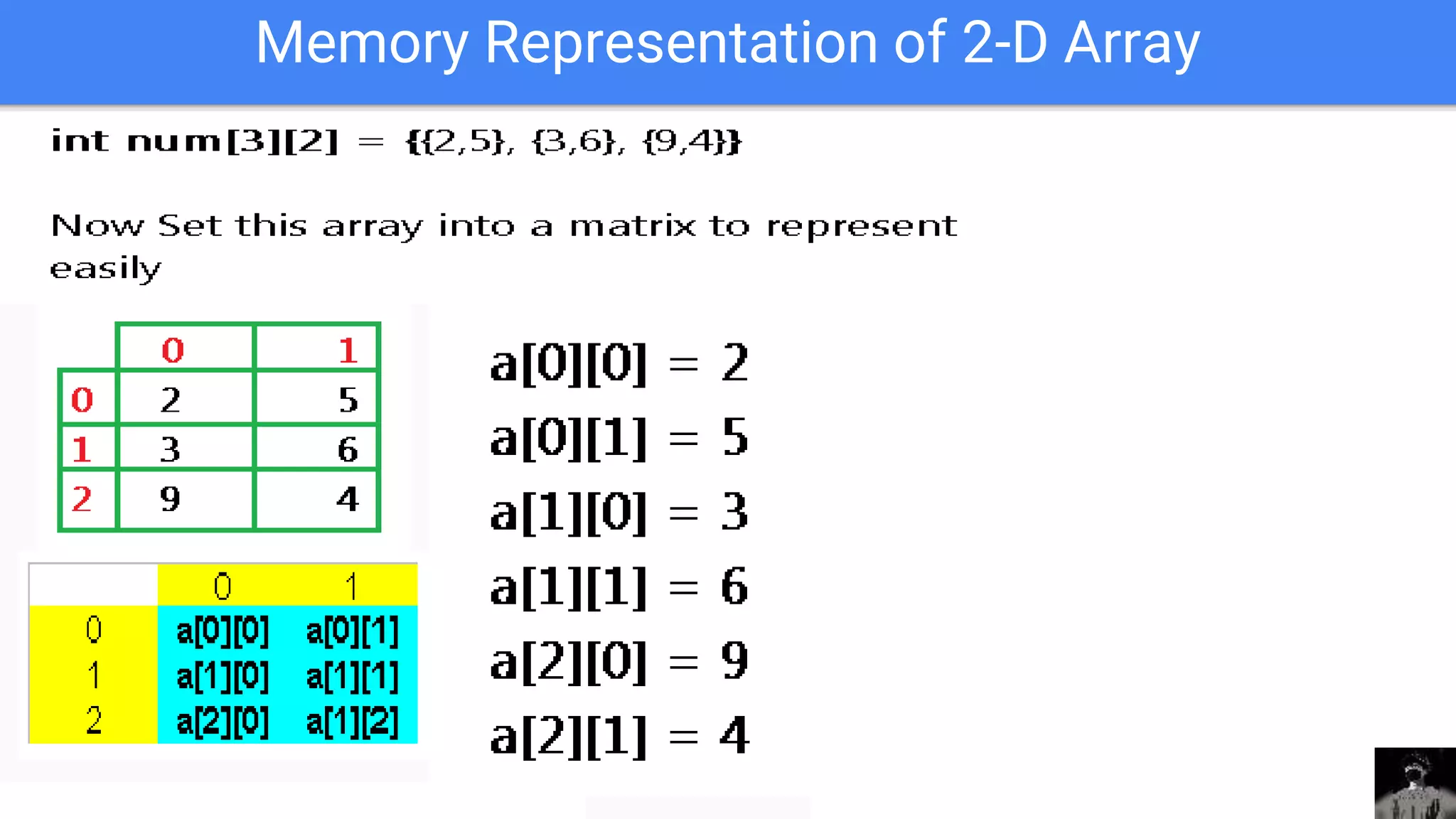

8. Memory Representation of 2-D Array

9. Operations in Arrays
★ Insertion
★ Deletion
★ Traversel
★ Reversing
★ Sorting
★ Merging

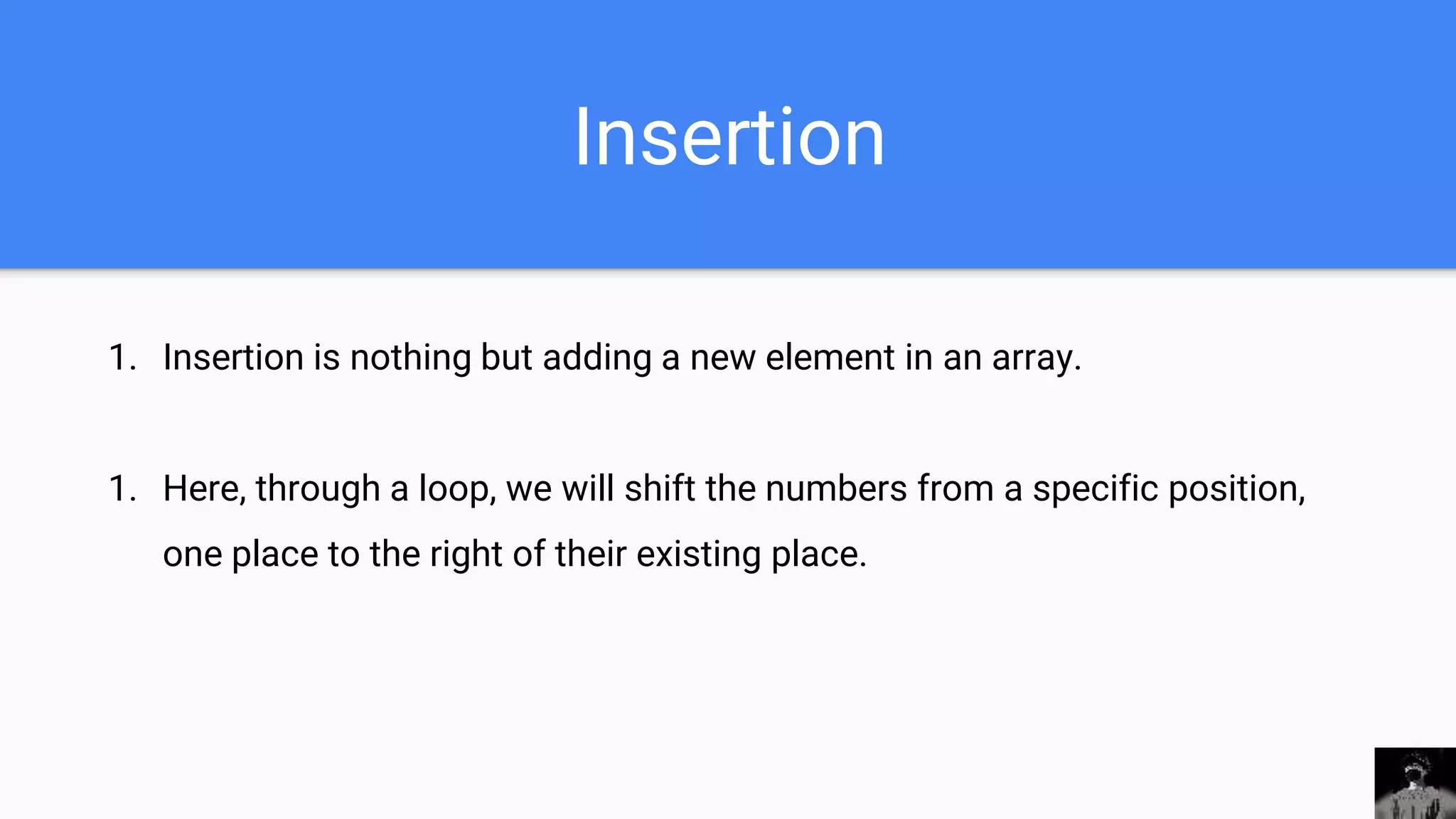

10. Insertion
1. Insertion is nothing but adding a new element in an array.
1. Here, through a loop, we will shift the numbers from a specific position,
one place to the right of their existing place.

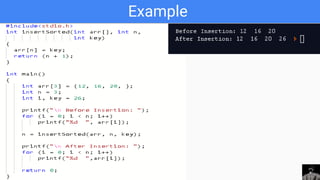

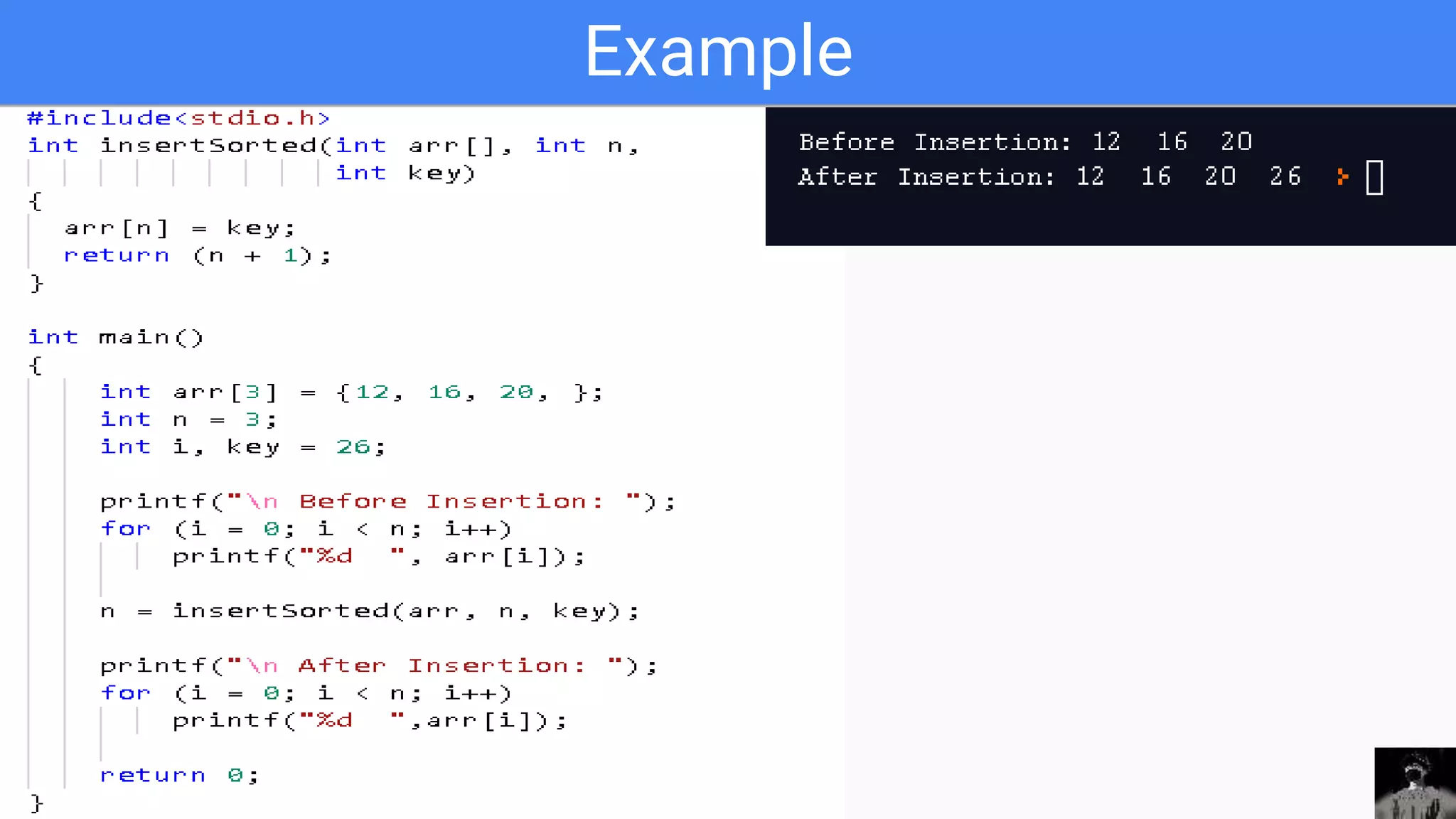

11. Example

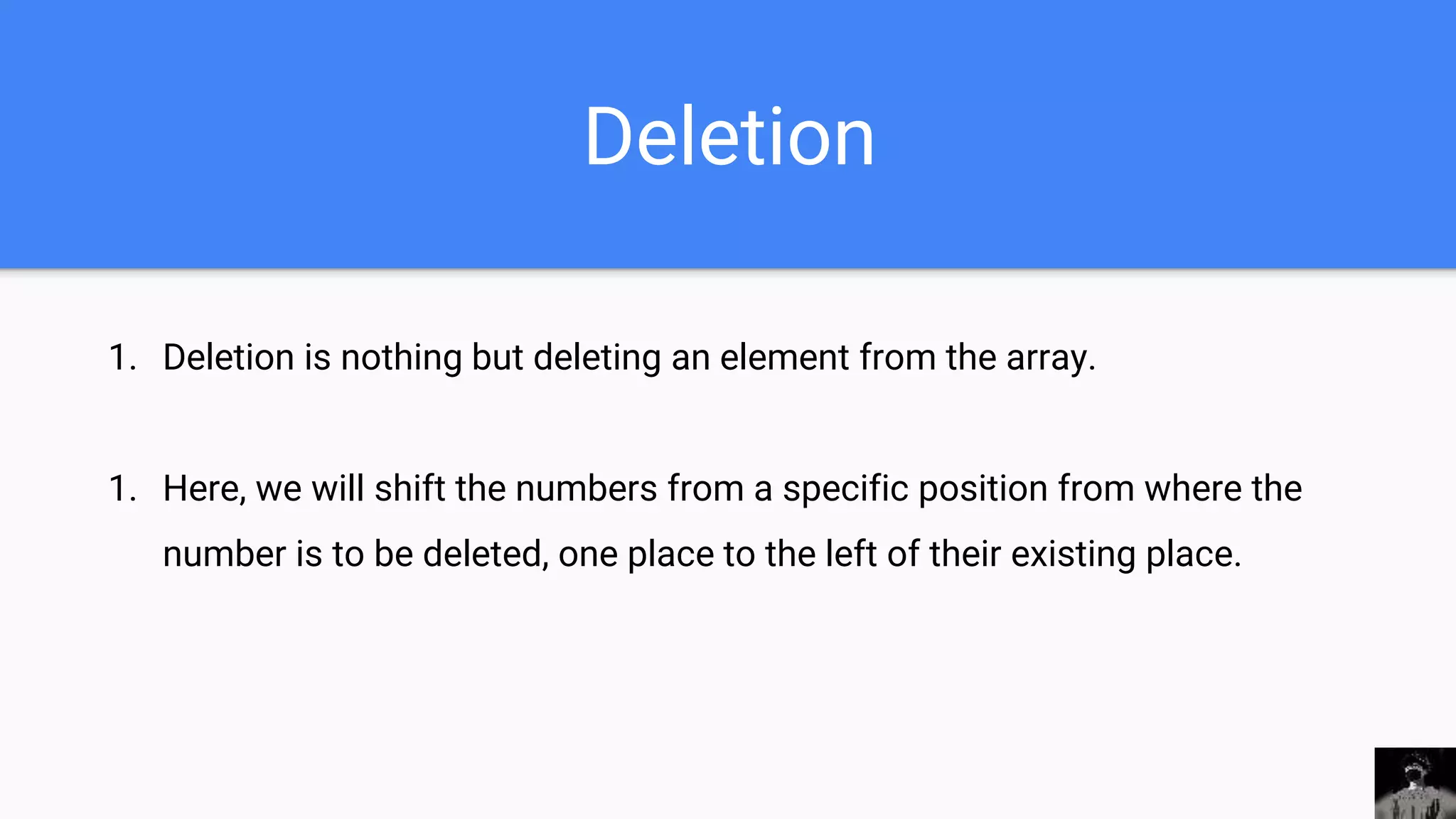

12. Deletion
1. Deletion is nothing but deleting an element from the array.
1. Here, we will shift the numbers from a specific position from where the
number is to be deleted, one place to the left of their existing place.

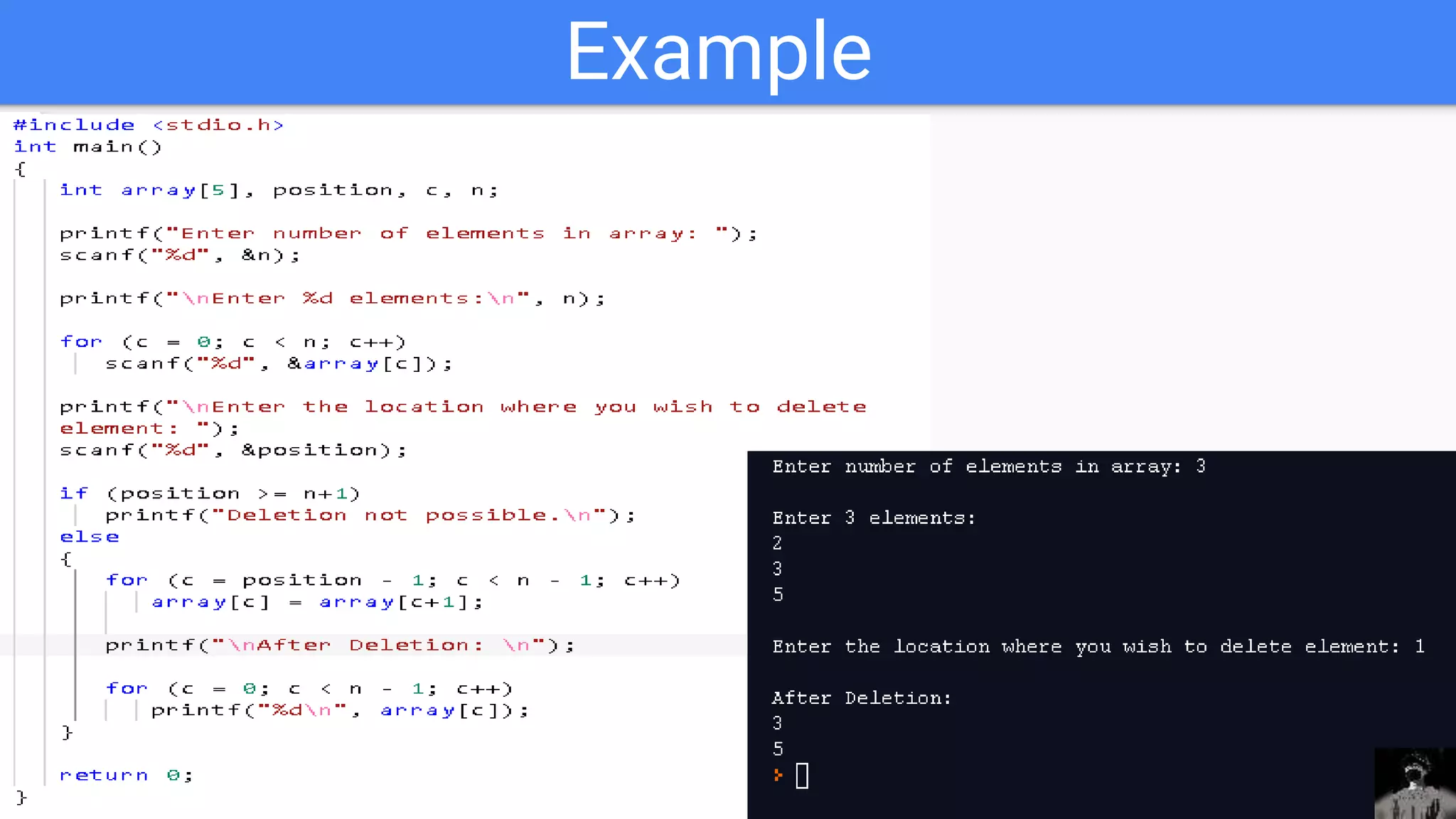

13. Example

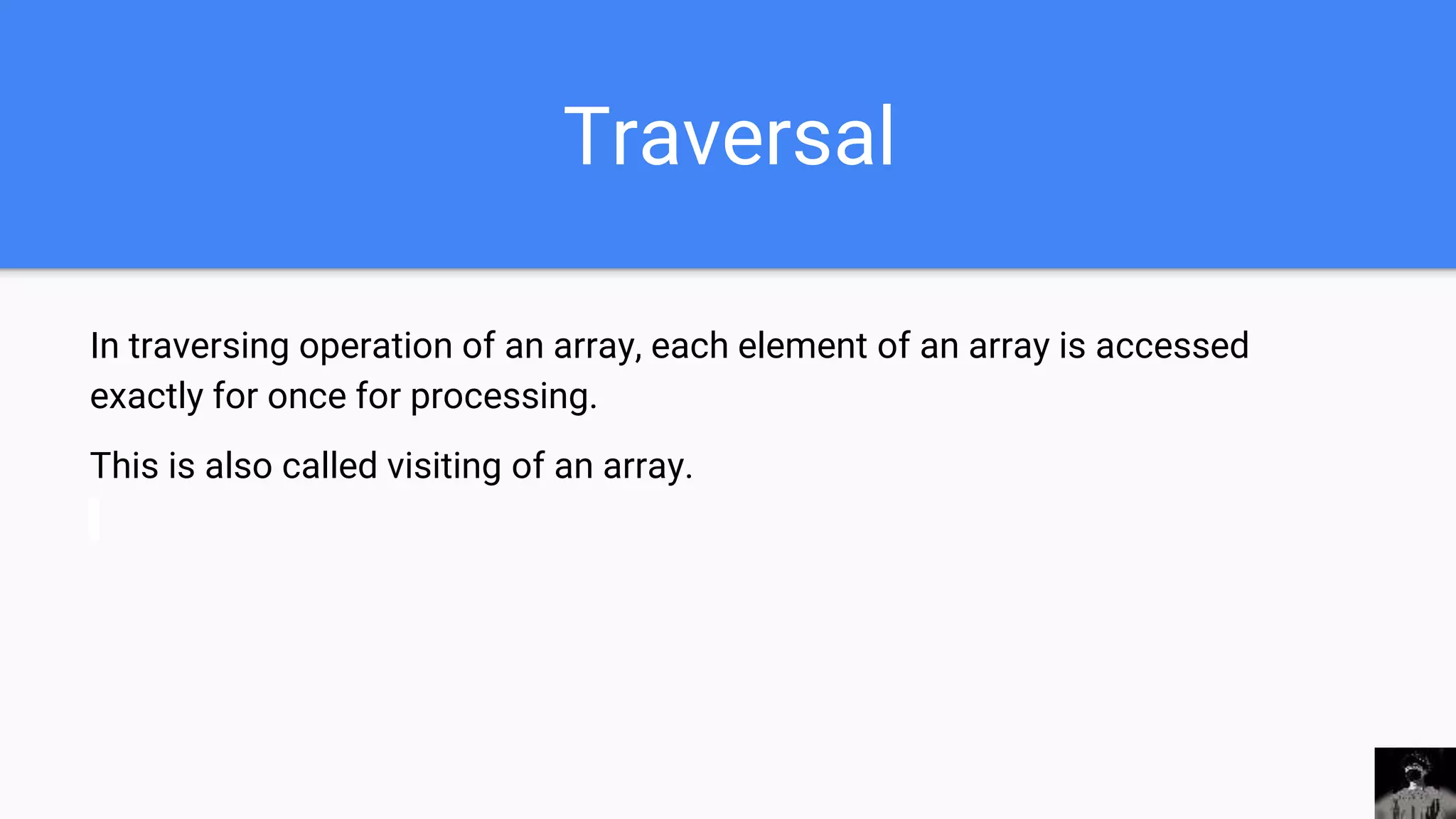

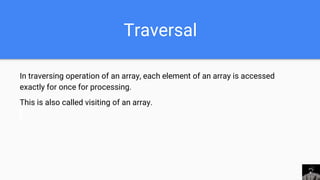

14. Traversal
In traversing operation of an array, each element of an array is accessed
exactly for once for processing.
This is also called visiting of an array.

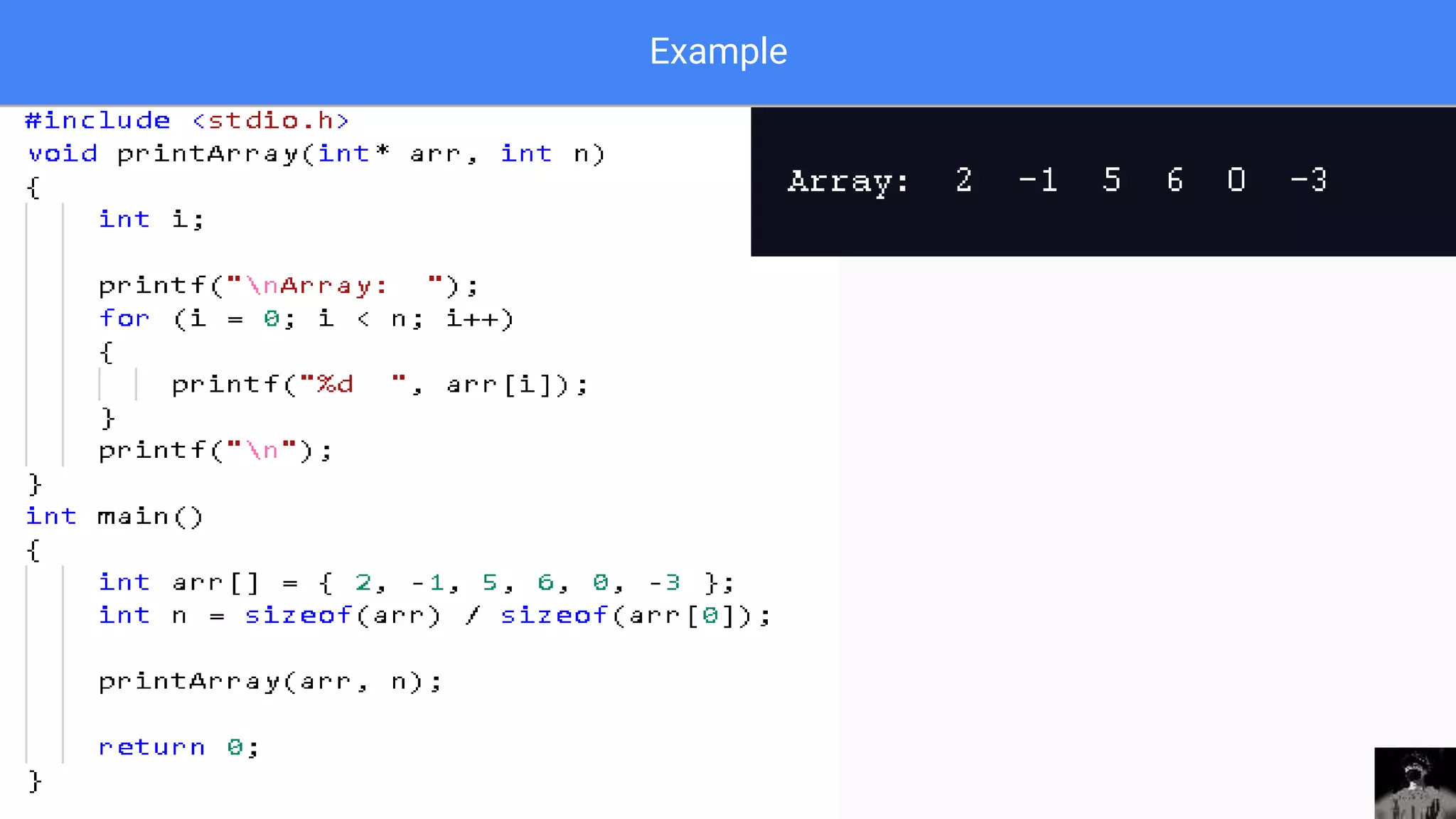

15. Example

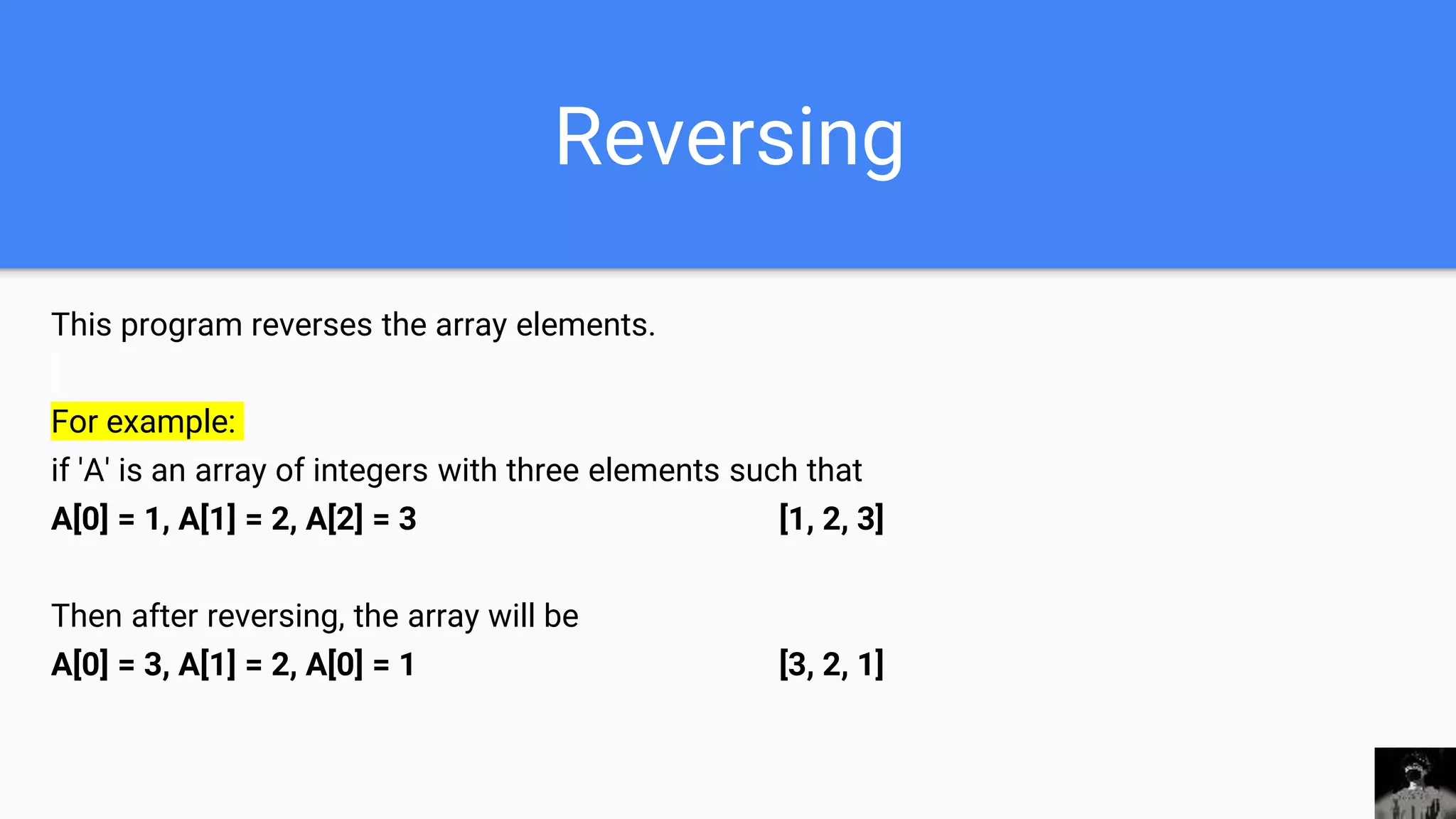

16. Reversing
This program reverses the array elements.
For example:
if 'A' is an array of integers with three elements such that
A[0] = 1, A[1] = 2, A[2] = 3 [1, 2, 3]
Then after reversing, the array will be
A[0] = 3, A[1] = 2, A[0] = 1 [3, 2, 1]

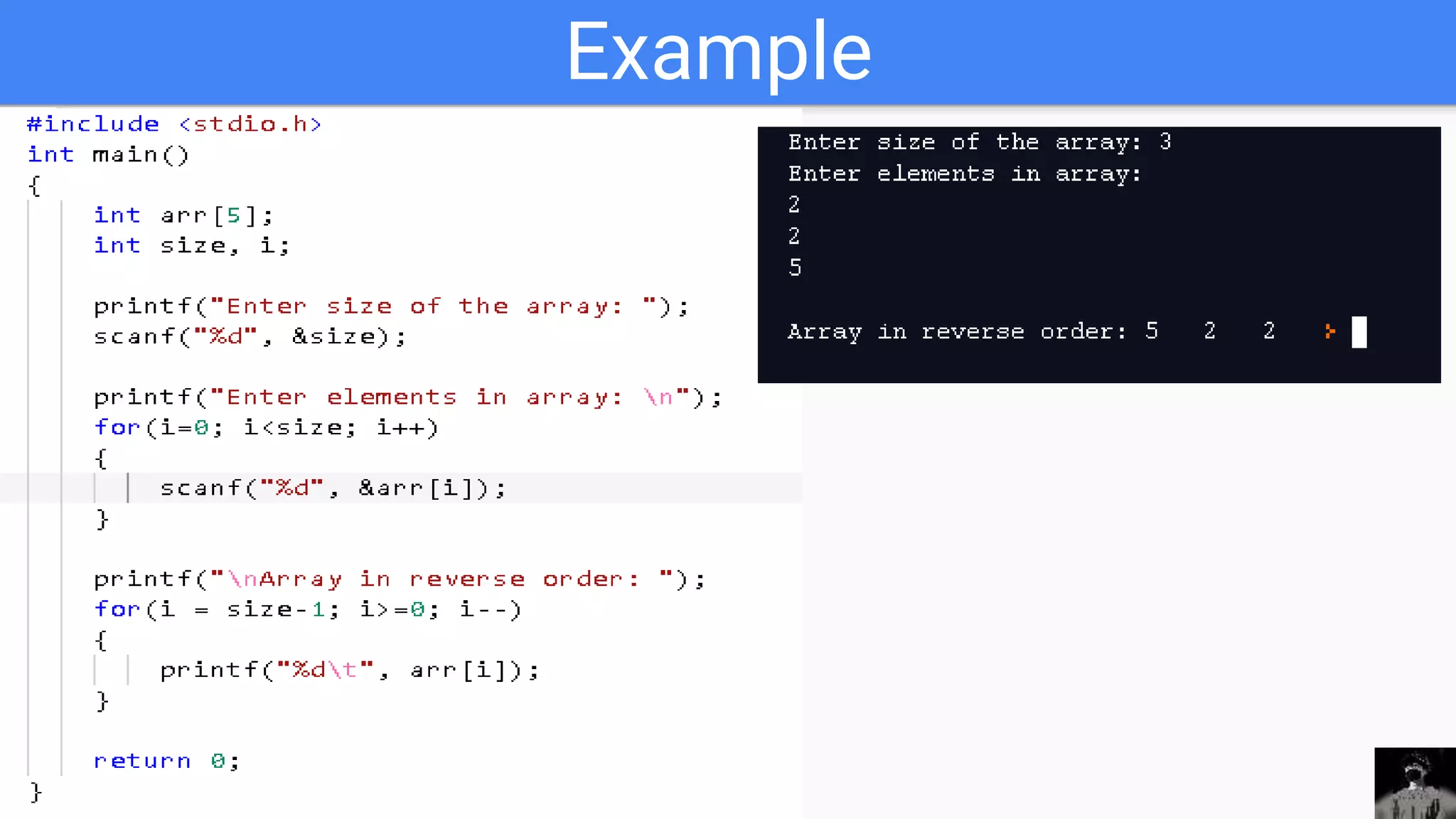

17. Example

18. Sorting
Sorting means arranging a set of data in some order like ascending or
descending order.

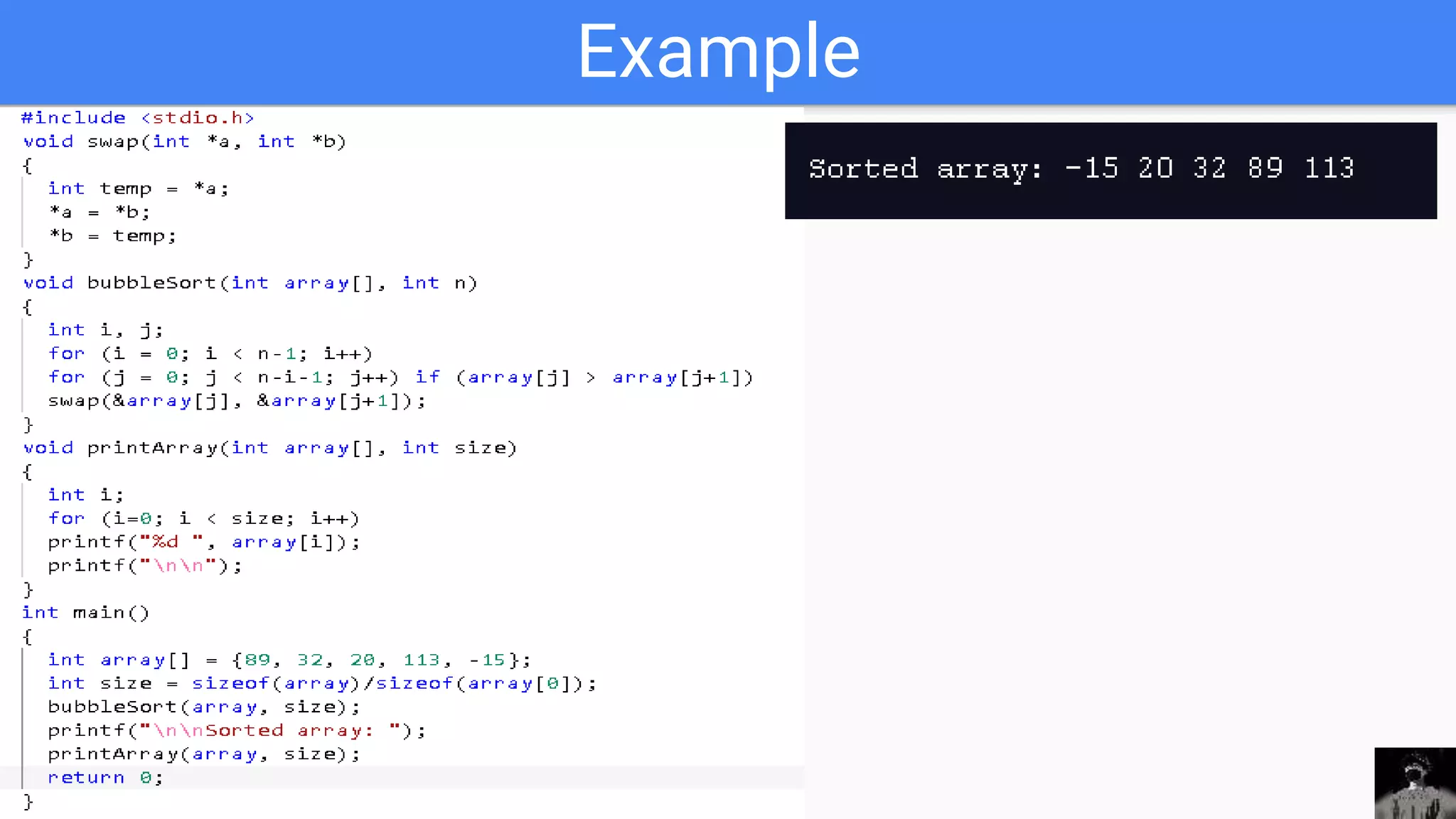

19. Example

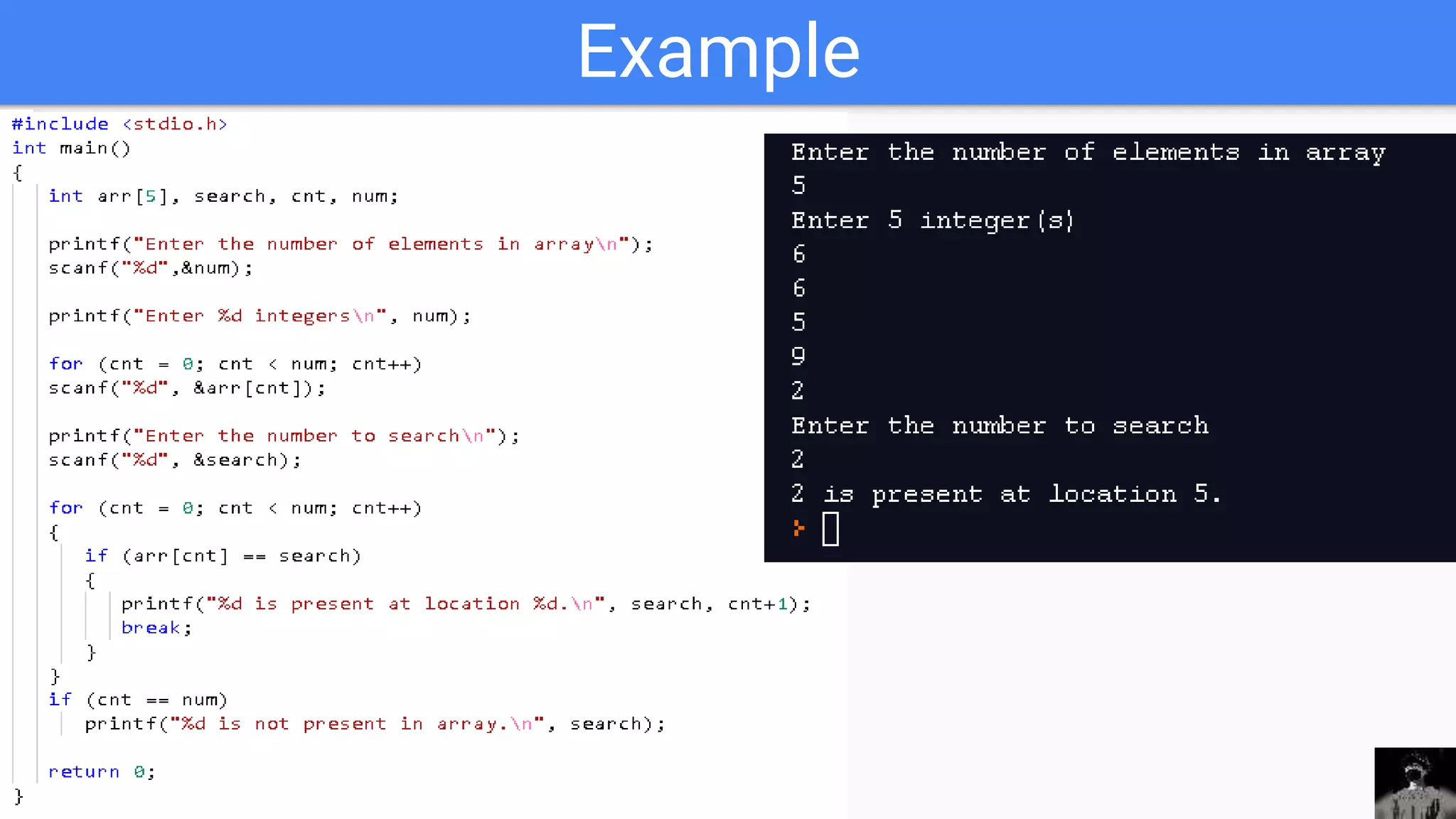

20. Searching
Searching is the process Of finding the location of an element With a given
element in a list.
Here, searching is start from 0 element And continue the process until the Given
specified number Is found or the end of the list is reached.

21. Example

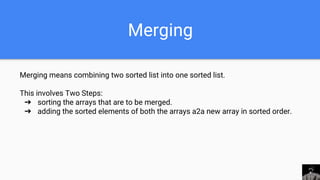

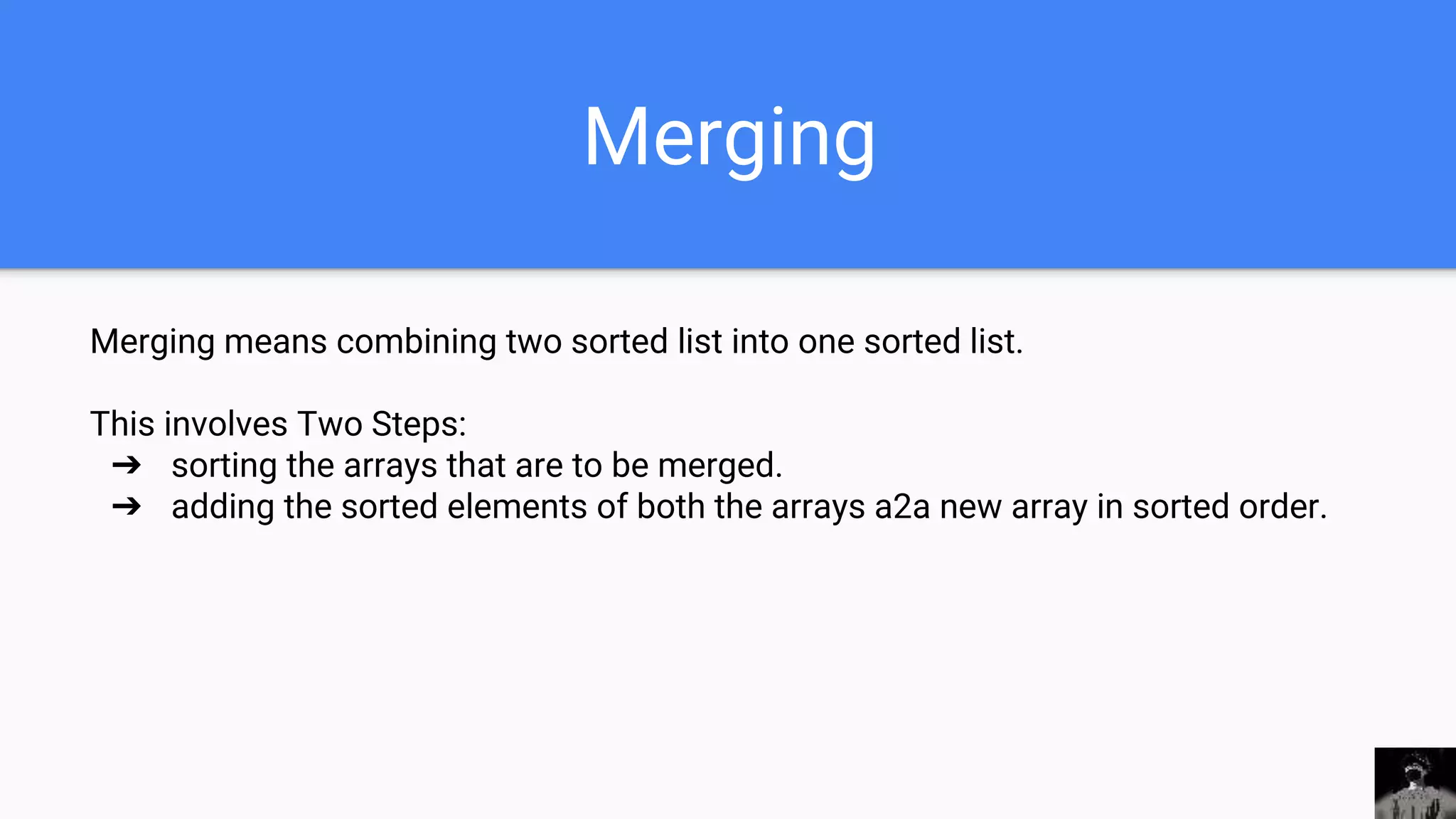

22. Merging
Merging means combining two sorted list into one sorted list.
This involves Two Steps:
➔ sorting the arrays that are to be merged.
➔ adding the sorted elements of both the arrays a2a new array in sorted order.

23. Example

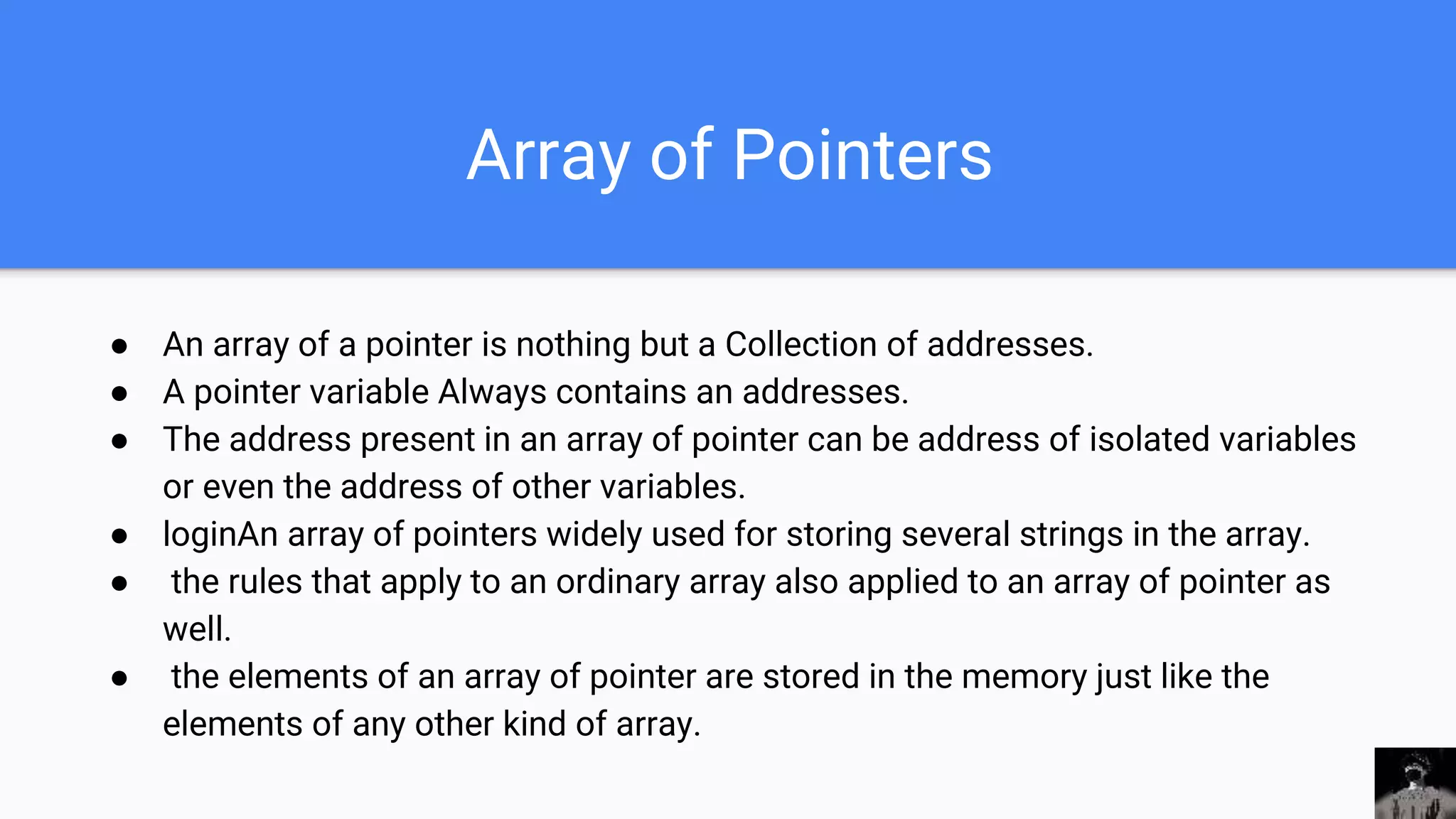

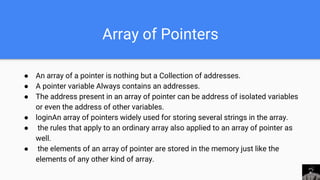

24. Array of Pointers
● An array of a pointer is nothing but a Collection of addresses.
● A pointer variable Always contains an addresses.
● The address present in an array of pointer can be address of isolated variables
or even the address of other variables.
● loginAn array of pointers widely used for storing several strings in the array.
● the rules that apply to an ordinary array also applied to an array of pointer as
well.
● the elements of an array of pointer are stored in the memory just like the
elements of any other kind of array.

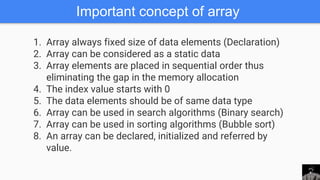

25. Important concept of array
1. Array always fixed size of data elements (Declaration)
2. Array can be considered as a static data
3. Array elements are placed in sequential order thus
eliminating the gap in the memory allocation
4. The index value starts with 0
5. The data elements should be of same data type
6. Array can be used in search algorithms (Binary search)
7. Array can be used in sorting algorithms (Bubble sort)
8. An array can be declared, initialized and referred by
value.

26. Linked list
Linked list is a collection of elements called nodes.
Linked list is a linear Data Structure. Each node contains data part and link
part.
● the data contains elements and
● links contains address of other node.
Node
we can say links as an address

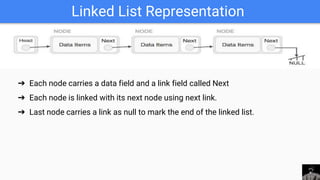

27. Linked List Representation
➔ Each node carries a data field and a link field called Next
➔ Each node is linked with its next node using next link.
➔ Last node carries a link as null to mark the end of the linked list.

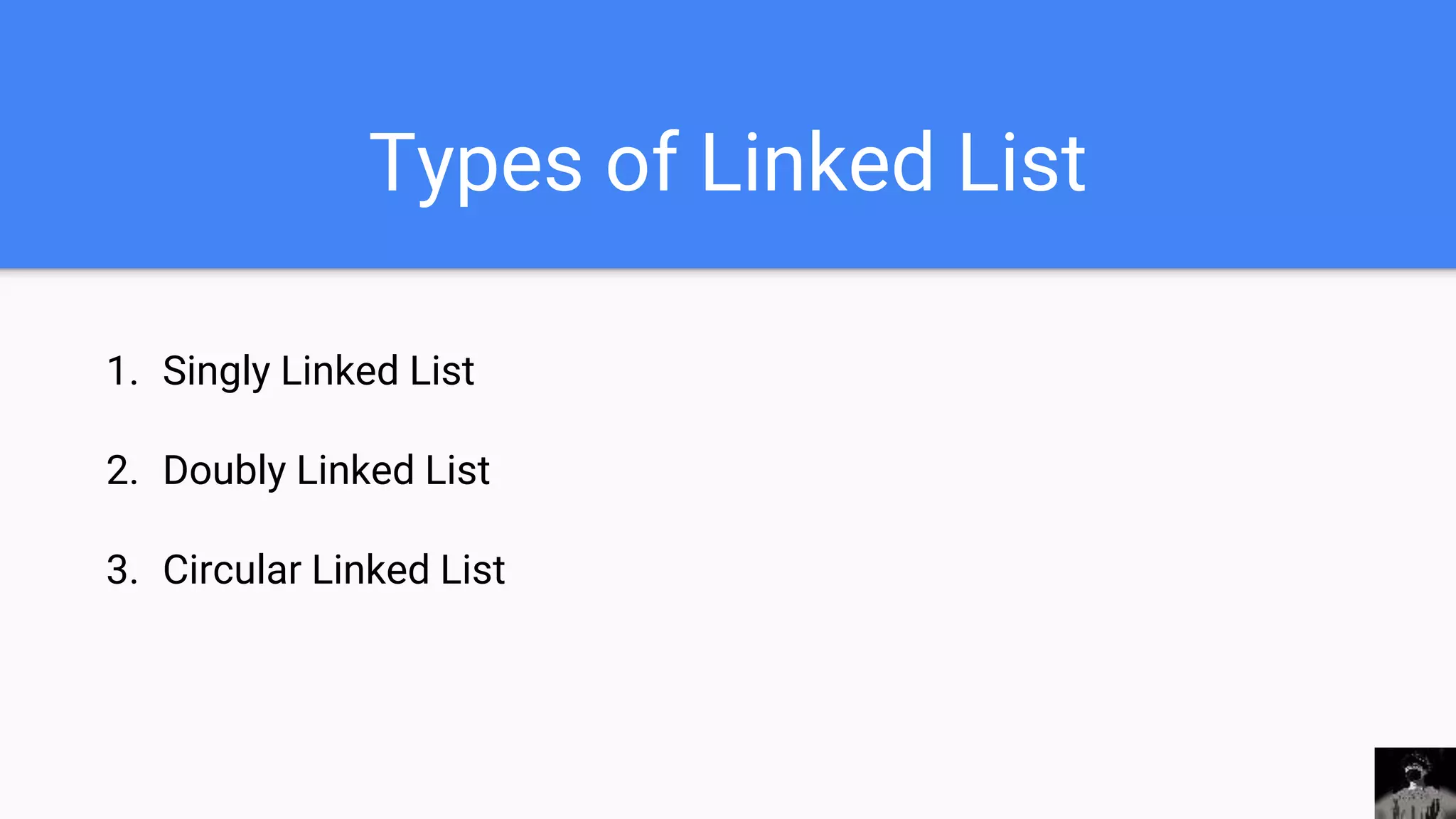

28. Types of Linked List
1. Singly Linked List
2. Doubly Linked List
3. Circular Linked List

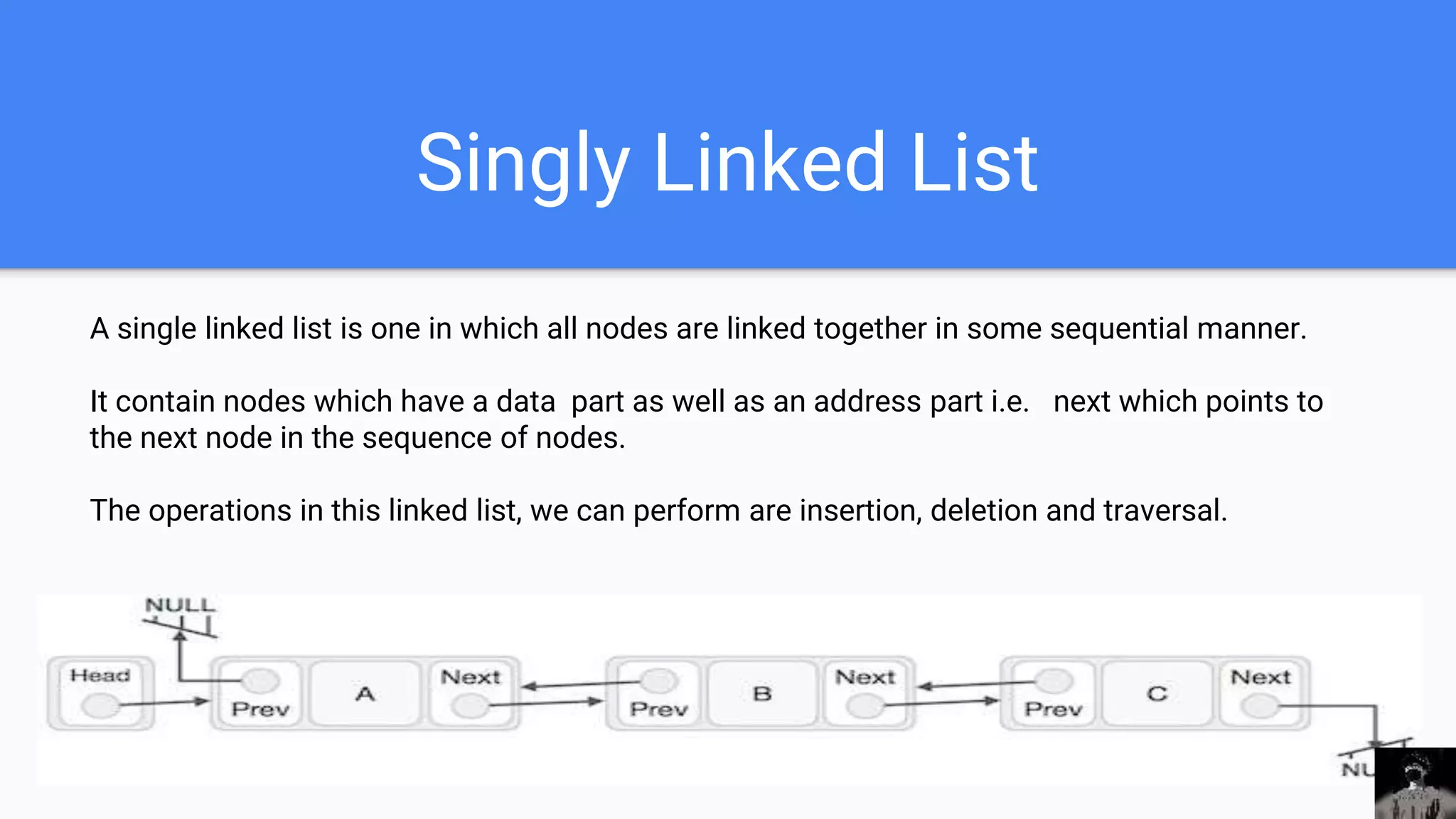

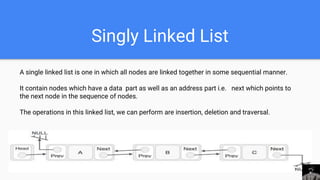

29. Singly Linked List
A single linked list is one in which all nodes are linked together in some sequential manner.
It contain nodes which have a data part as well as an address part i.e. next which points to
the next node in the sequence of nodes.
The operations in this linked list, we can perform are insertion, deletion and traversal.

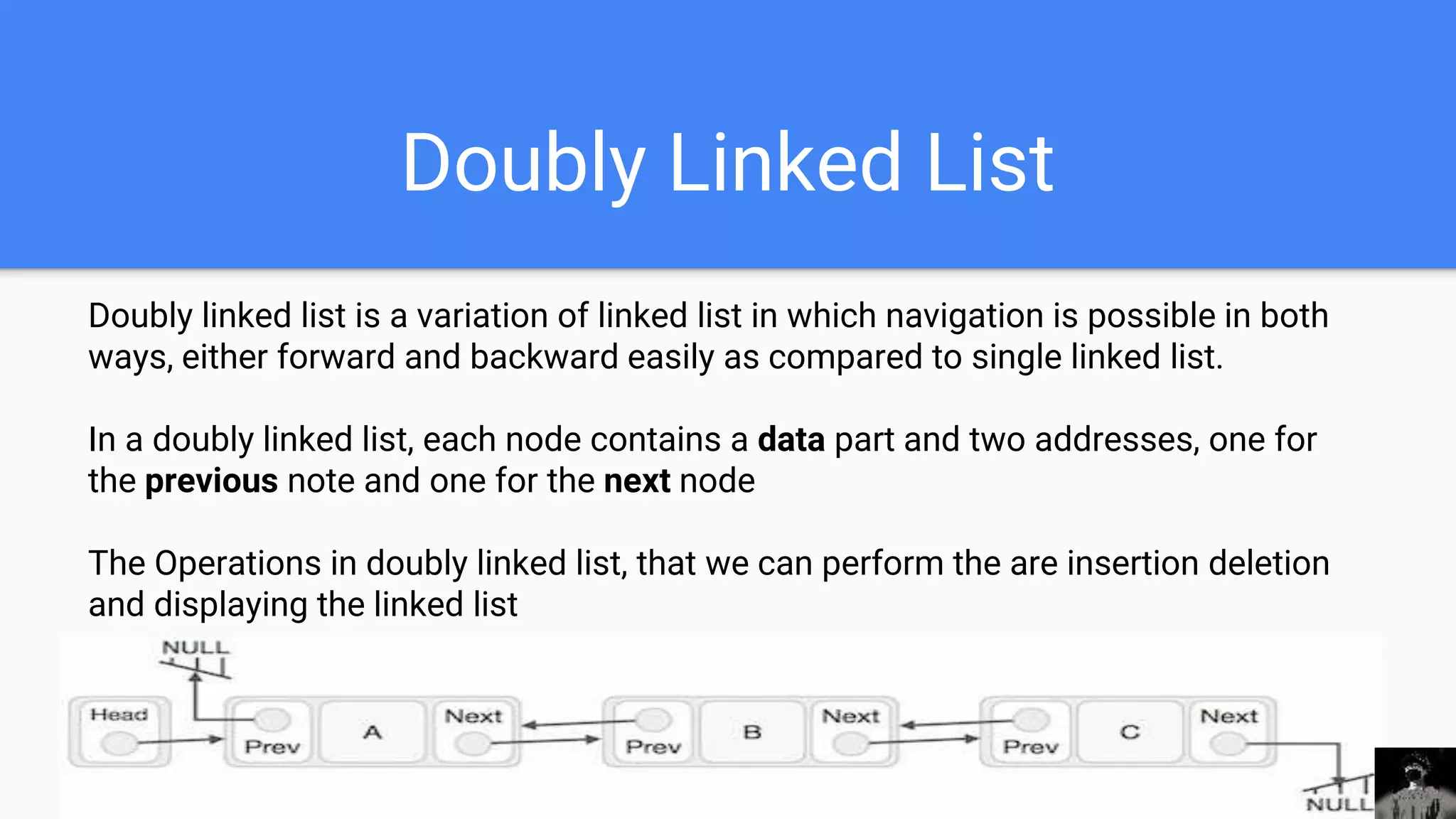

30. Doubly Linked List
Doubly linked list is a variation of linked list in which navigation is possible in both
ways, either forward and backward easily as compared to single linked list.
In a doubly linked list, each node contains a data part and two addresses, one for
the previous note and one for the next node
The Operations in doubly linked list, that we can perform the are insertion deletion
and displaying the linked list

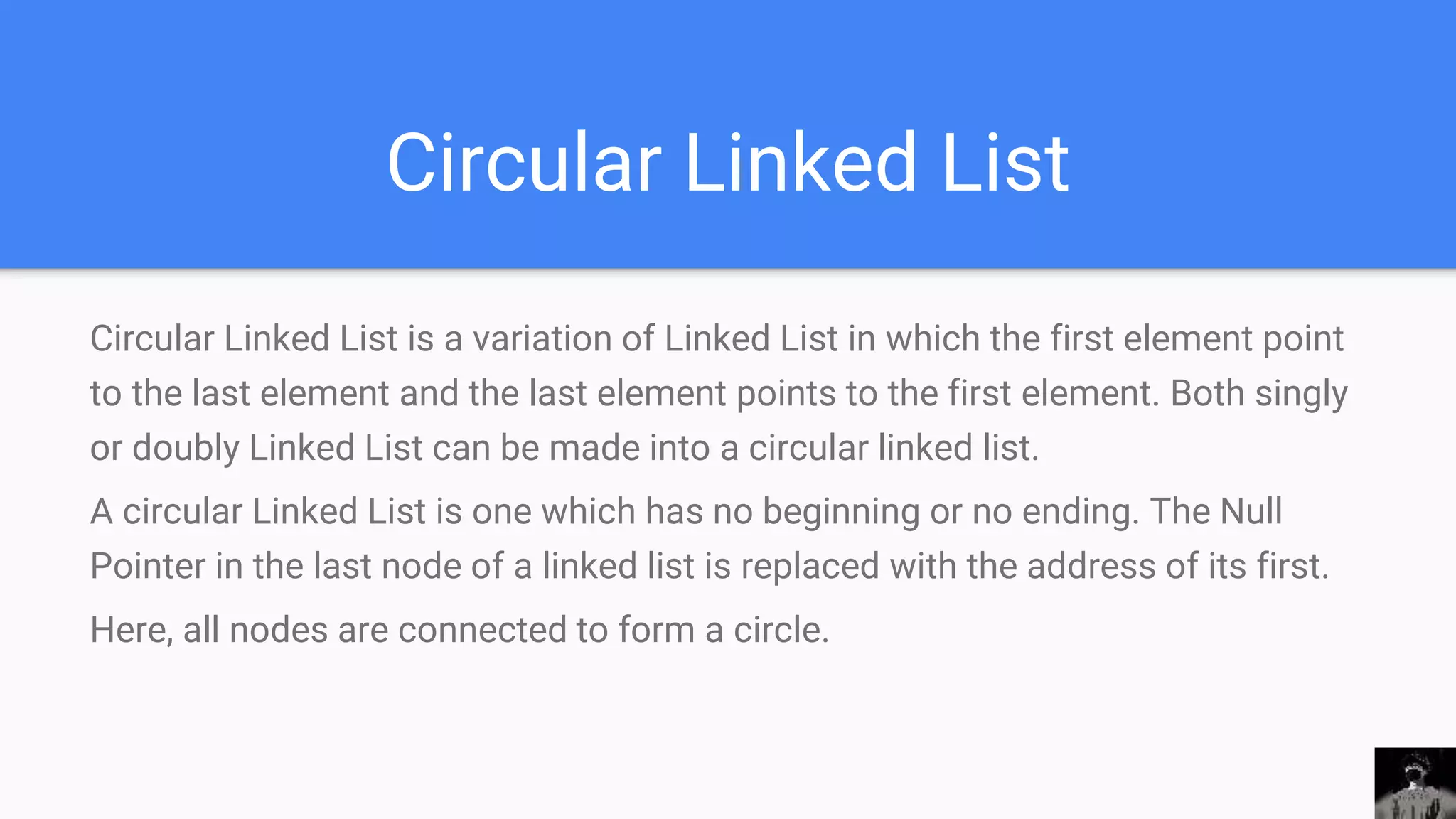

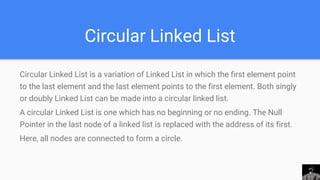

31. Circular Linked List
Circular Linked List is a variation of Linked List in which the first element point
to the last element and the last element points to the first element. Both singly
or doubly Linked List can be made into a circular linked list.
A circular Linked List is one which has no beginning or no ending. The Null
Pointer in the last node of a linked list is replaced with the address of its first.
Here, all nodes are connected to form a circle.

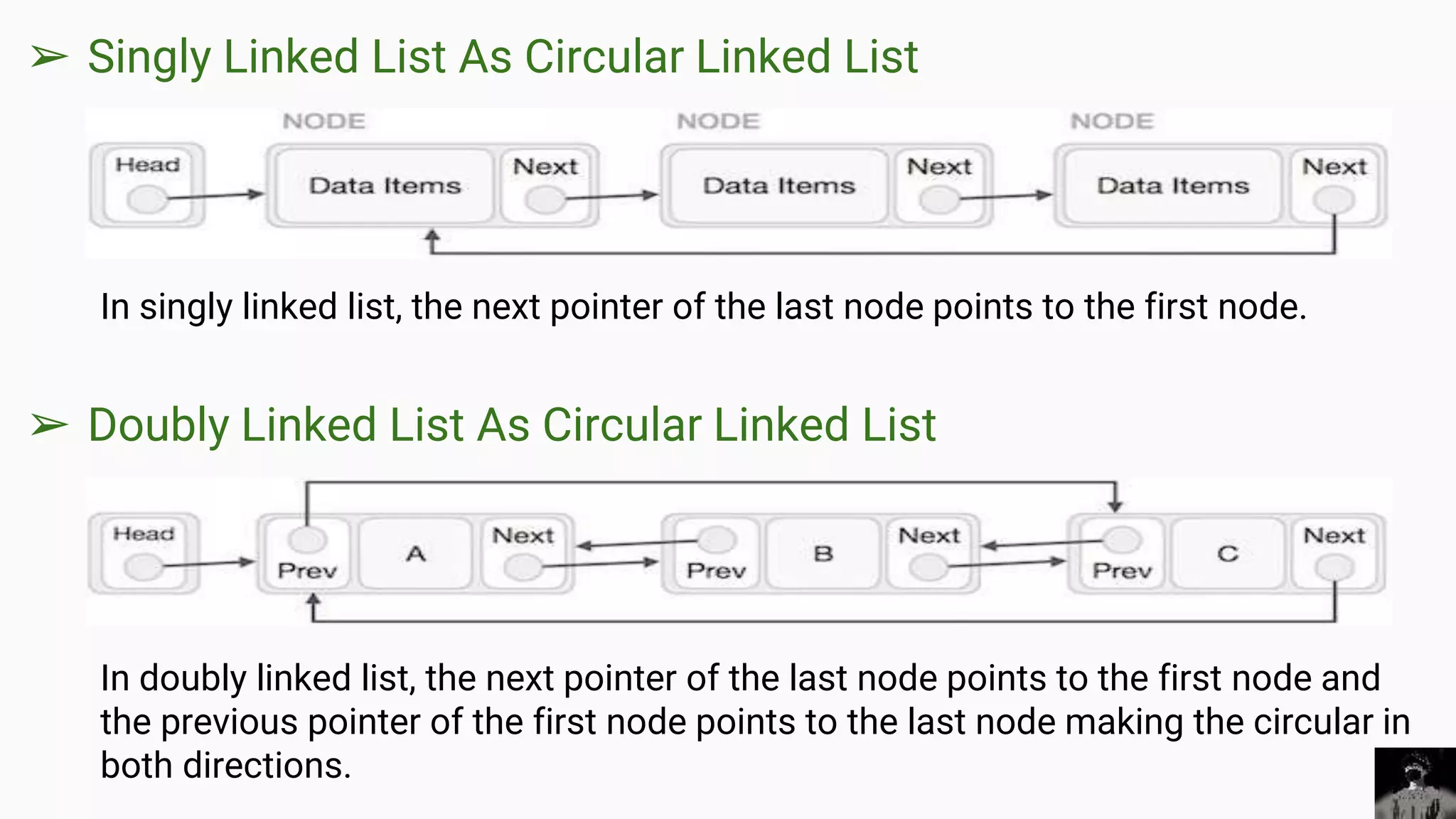

32. ➢ Singly Linked List As Circular Linked List
In singly linked list, the next pointer of the last node points to the first node.
➢ Doubly Linked List As Circular Linked List
In doubly linked list, the next pointer of the last node points to the first node and
the previous pointer of the first node points to the last node making the circular in
both directions.

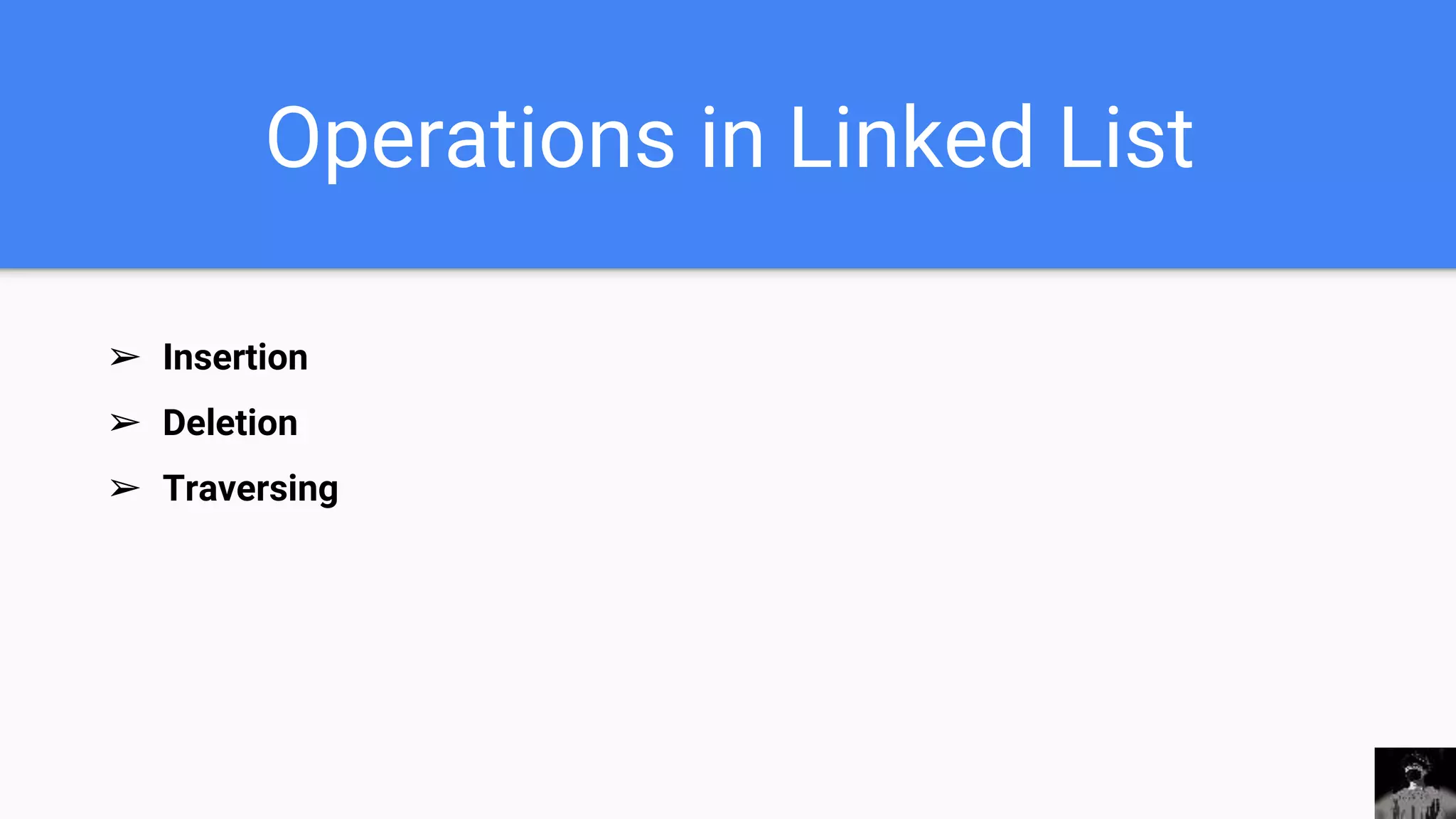

33. Operations in Linked List
➢ Insertion
➢ Deletion
➢ Traversing

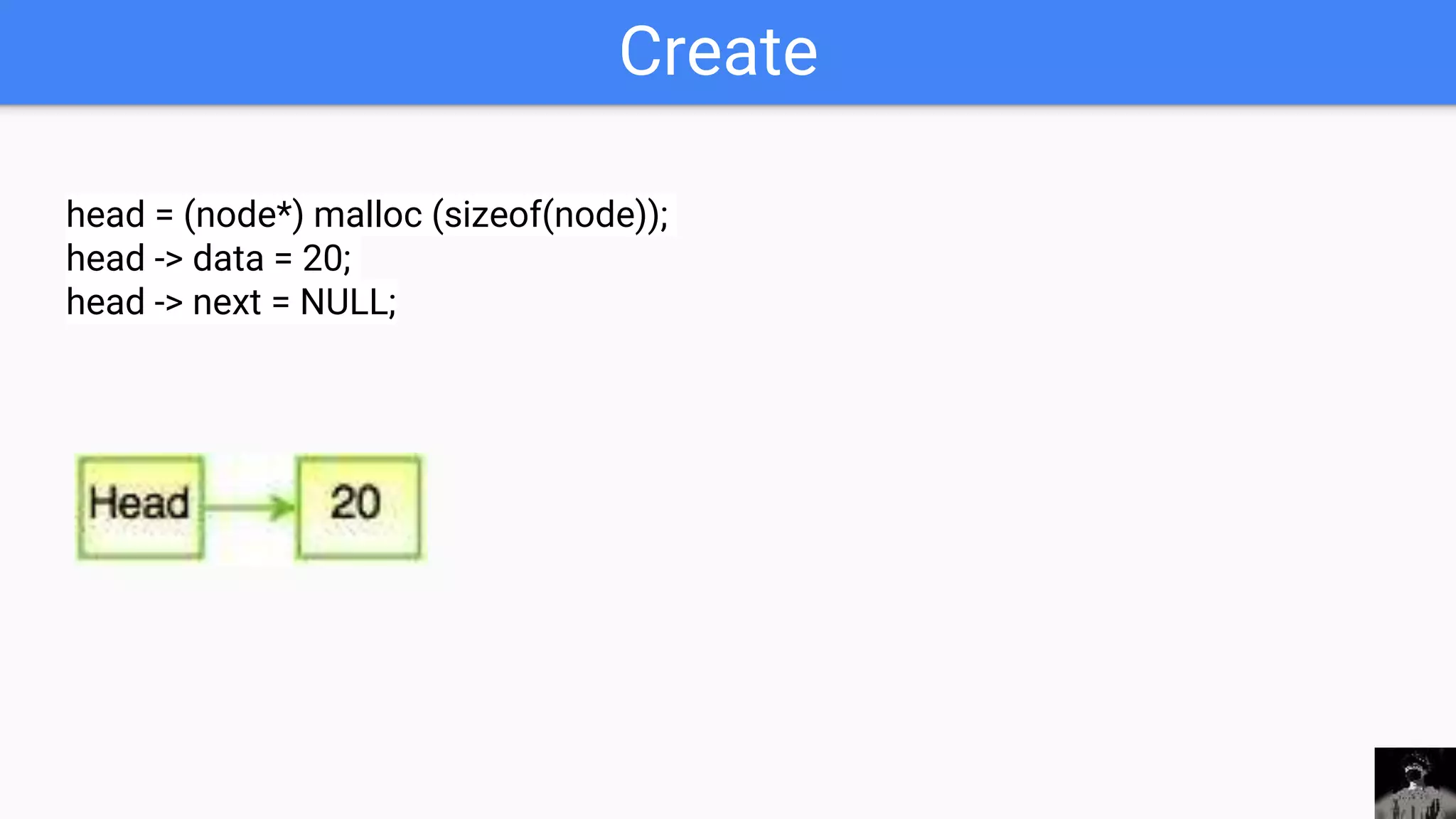

34. Create
head = (node*) malloc (sizeof(node));
head -> data = 20;
head -> next = NULL;

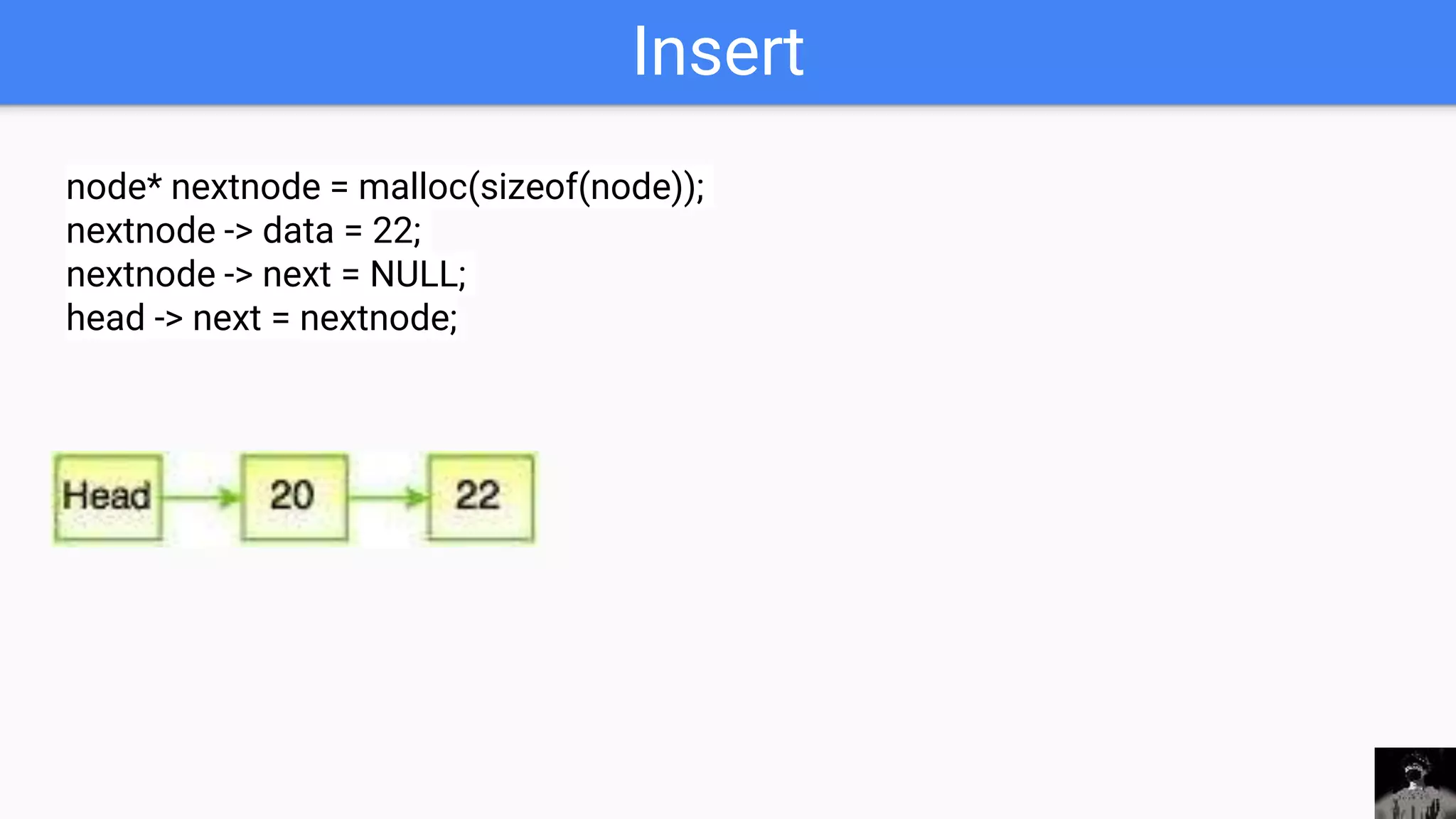

35. Insert
node* nextnode = malloc(sizeof(node));
nextnode -> data = 22;
nextnode -> next = NULL;
head -> next = nextnode;

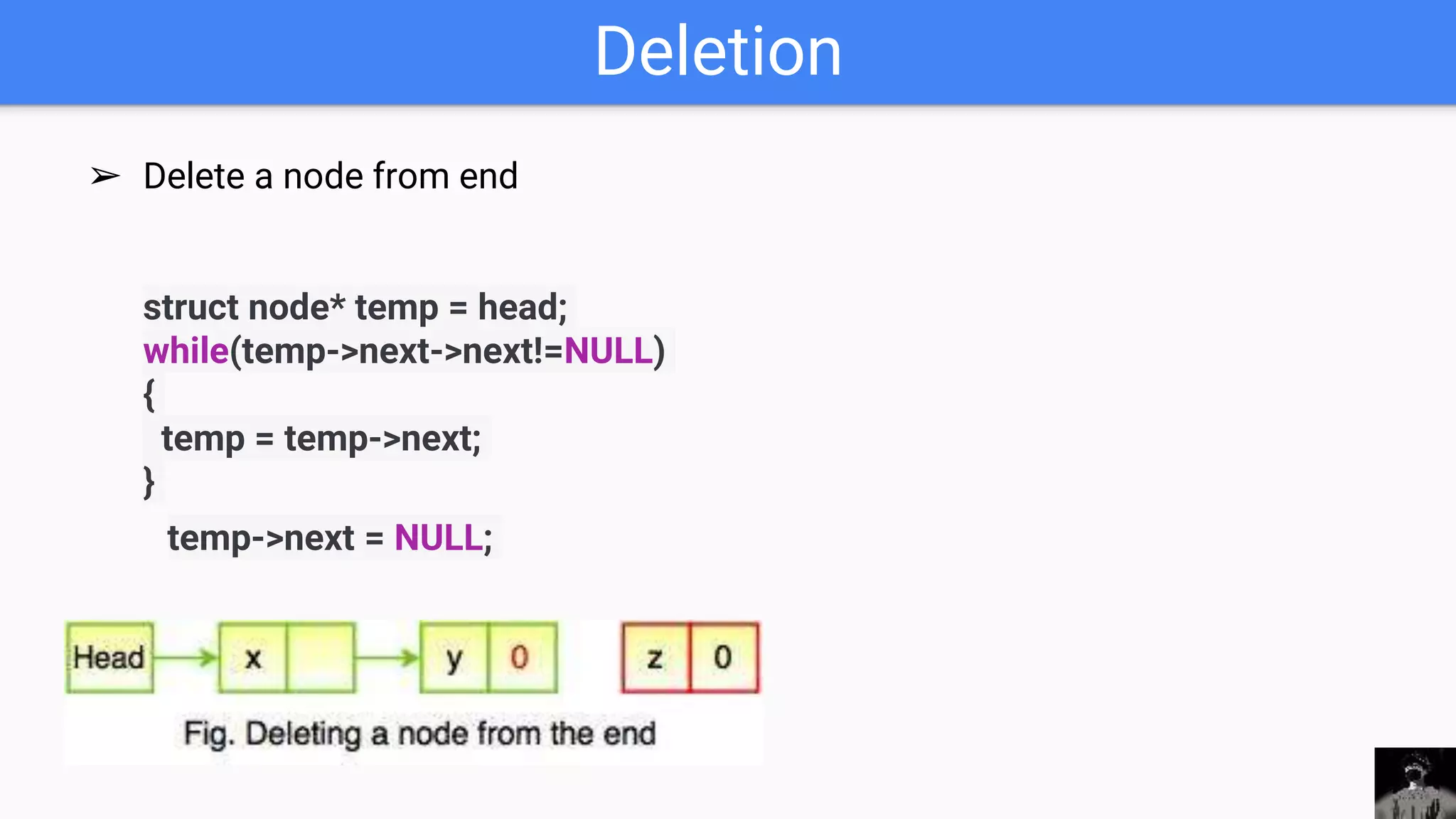

36. Deletion
➢ Delete a node from end
struct node* temp = head;
while(temp->next->next!=NULL)
{
temp = temp->next;
}
temp->next = NULL;

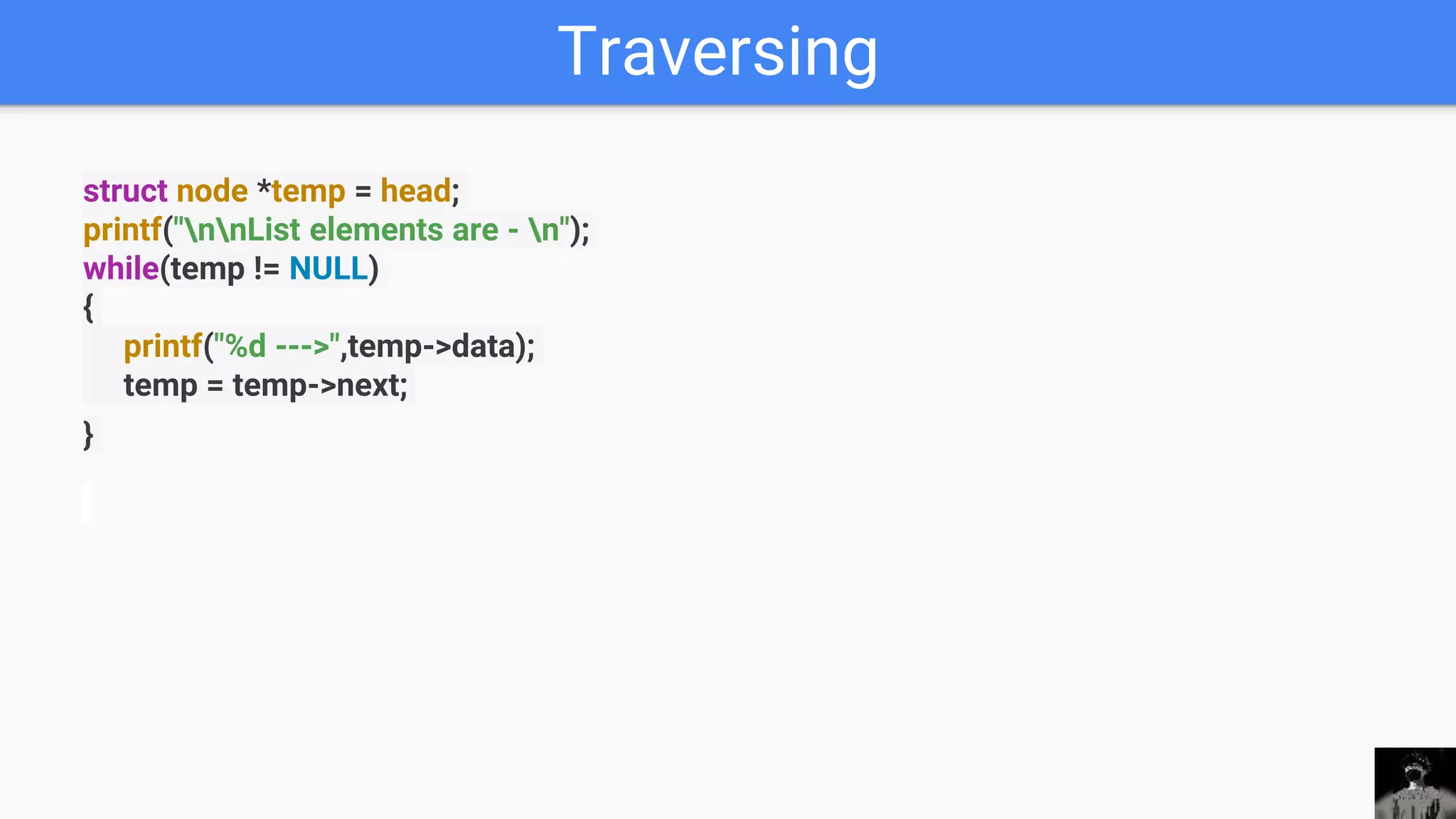

37. Traversing
struct node *temp = head;
printf("nnList elements are - n");
while(temp != NULL)
{
printf("%d --->",temp->data);
temp = temp->next;
}

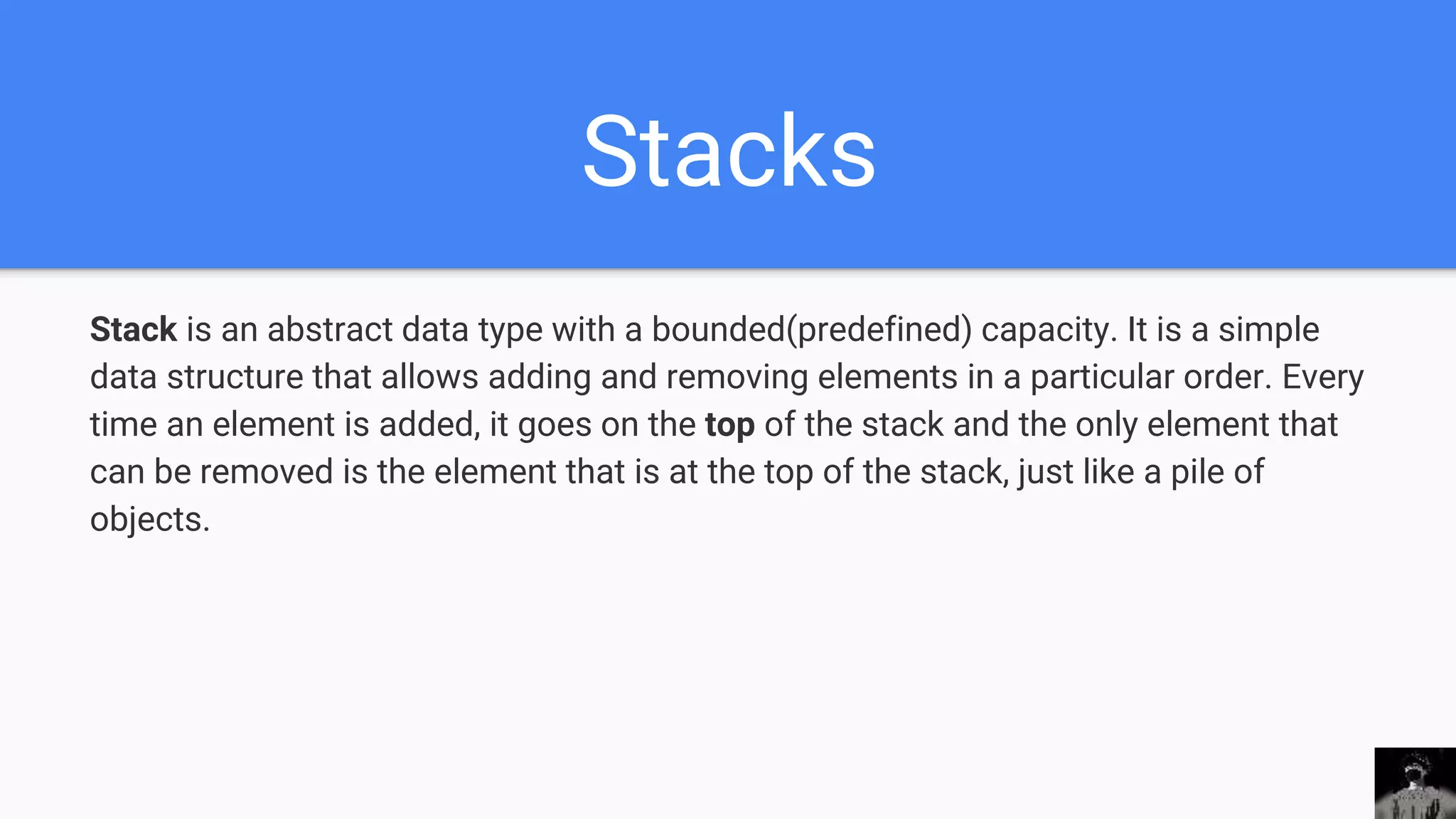

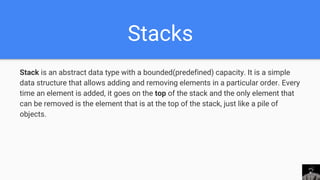

38. Stacks
Stack is an abstract data type with a bounded(predefined) capacity. It is a simple
data structure that allows adding and removing elements in a particular order. Every
time an element is added, it goes on the top of the stack and the only element that
can be removed is the element that is at the top of the stack, just like a pile of
objects.

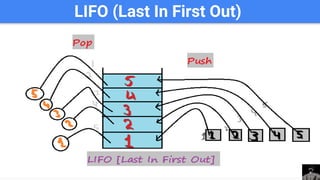

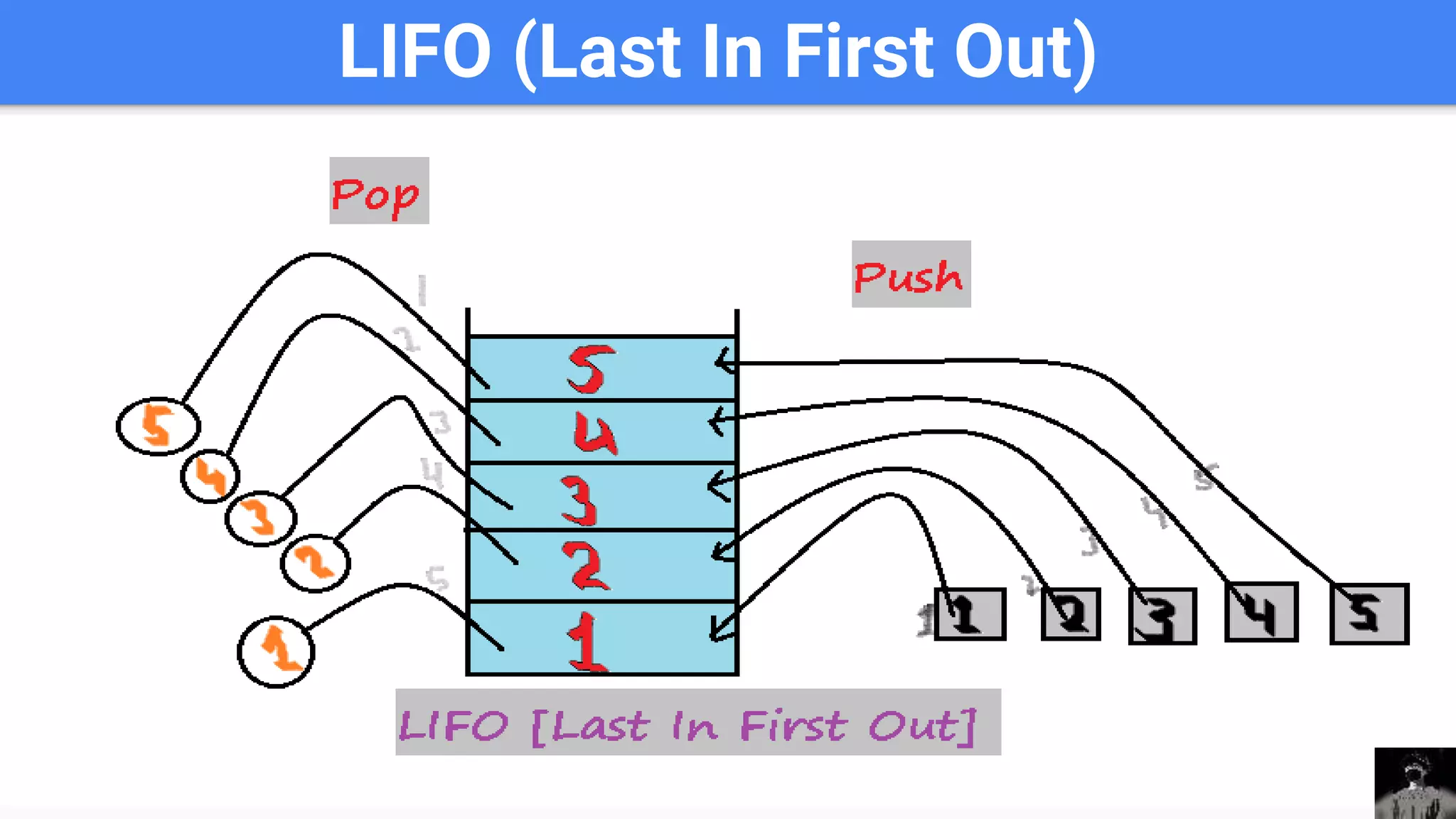

39. LIFO (Last In First Out)

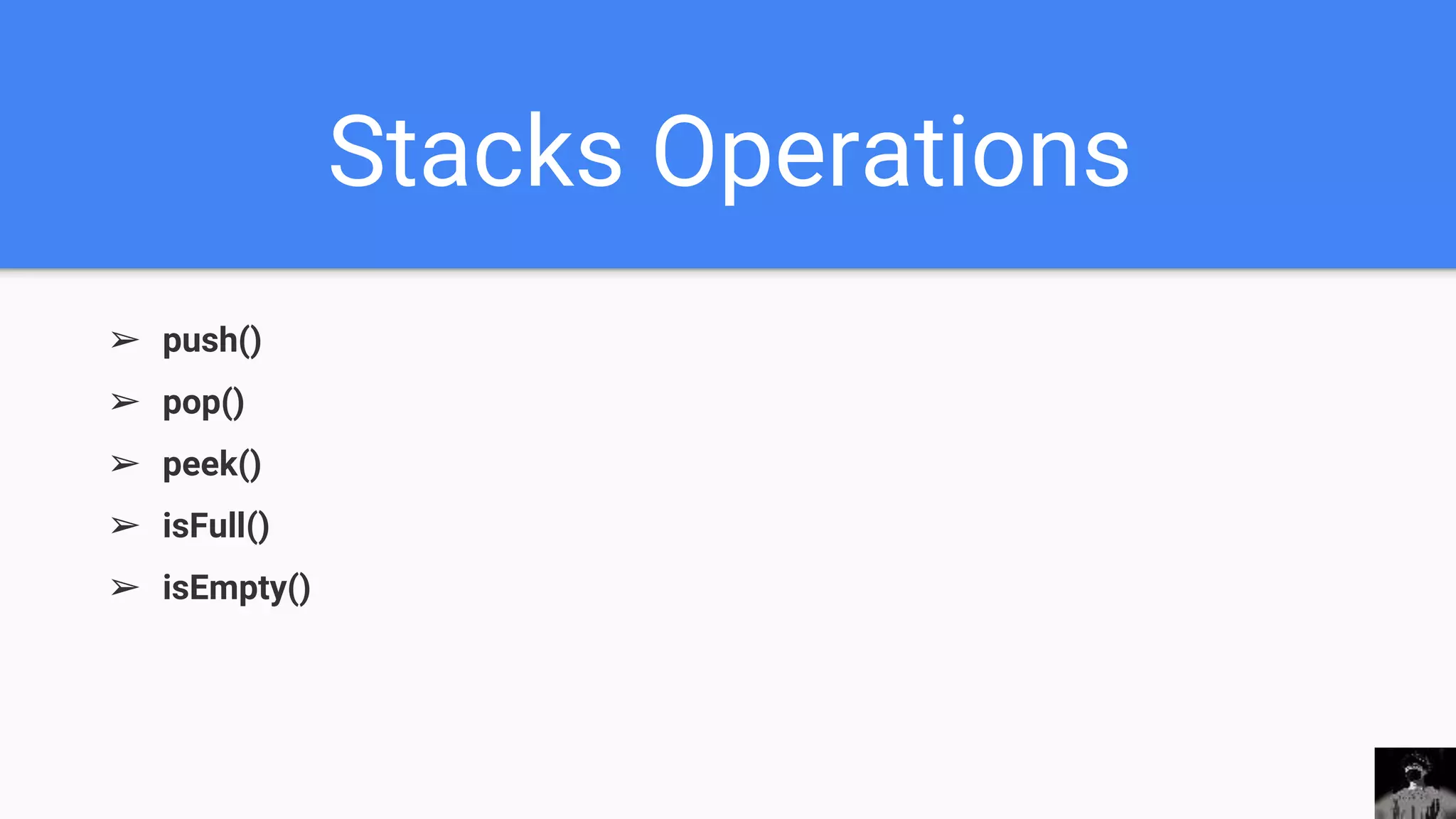

40. Stacks Operations
➢ push()
➢ pop()
➢ peek()
➢ isFull()
➢ isEmpty()

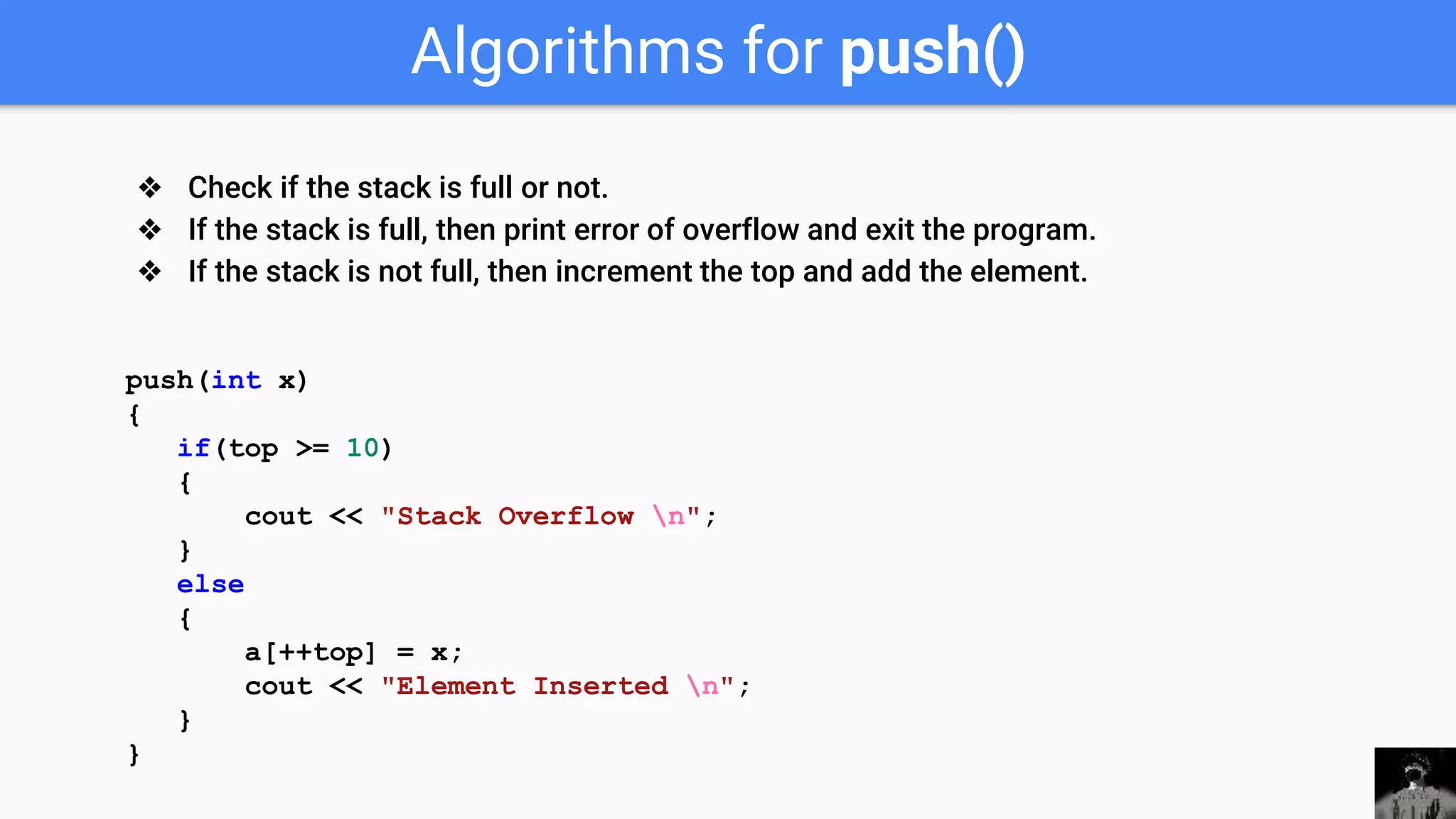

41. Algorithms for push()
push(int x)
{
if(top >= 10)
{
cout << "Stack Overflow n";
}
else
{
a[++top] = x;
cout << "Element Inserted n";
}
}
❖ Check if the stack is full or not.
❖ If the stack is full, then print error of overflow and exit the program.
❖ If the stack is not full, then increment the top and add the element.

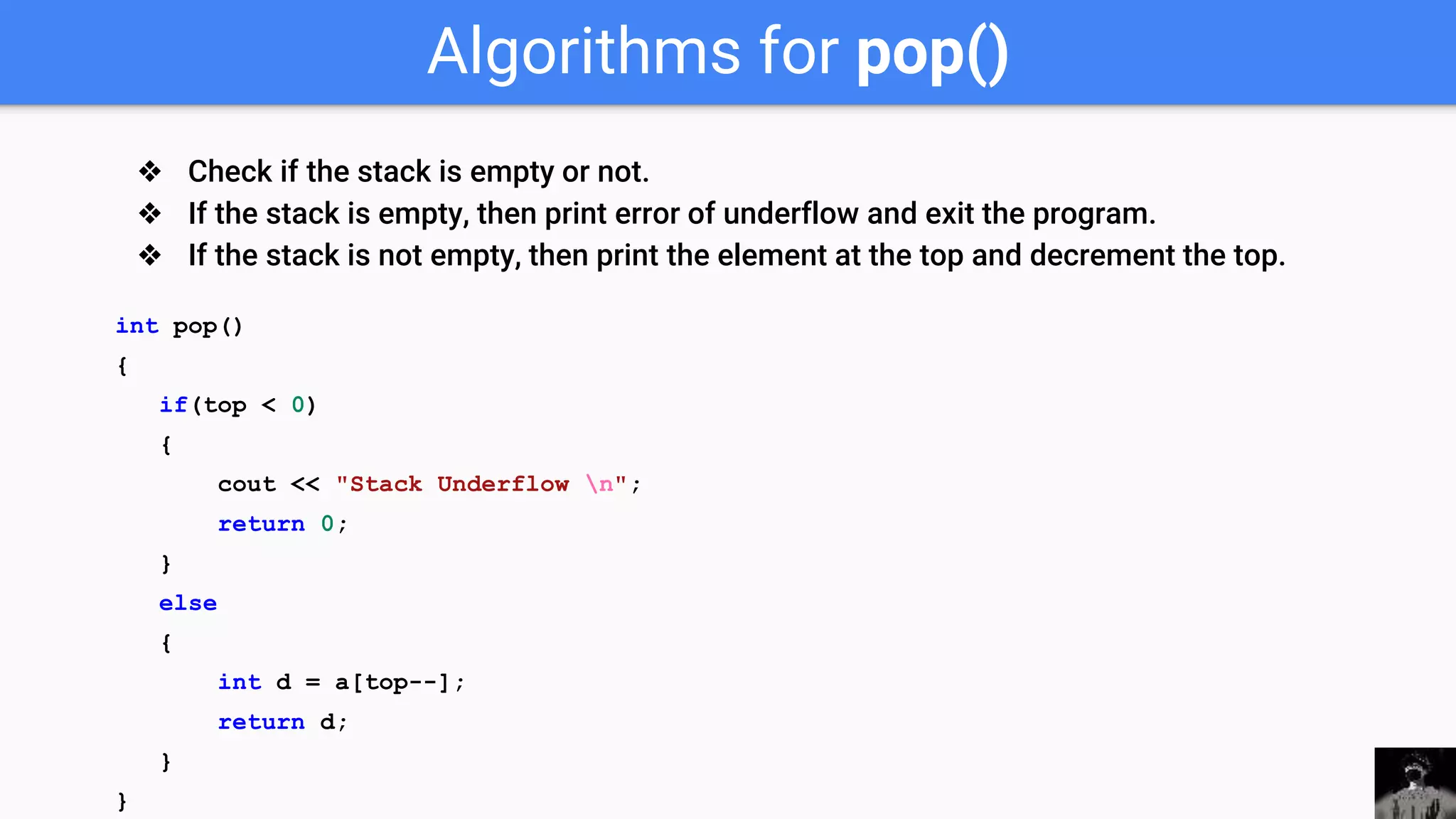

42. Algorithms for pop()
int pop()
{
if(top < 0)
{
cout << "Stack Underflow n";
return 0;
}
else
{
int d = a[top--];
return d;
}
}
❖ Check if the stack is empty or not.
❖ If the stack is empty, then print error of underflow and exit the program.
❖ If the stack is not empty, then print the element at the top and decrement the top.

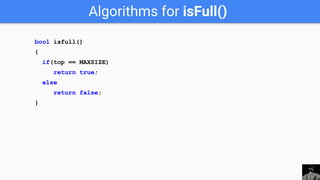

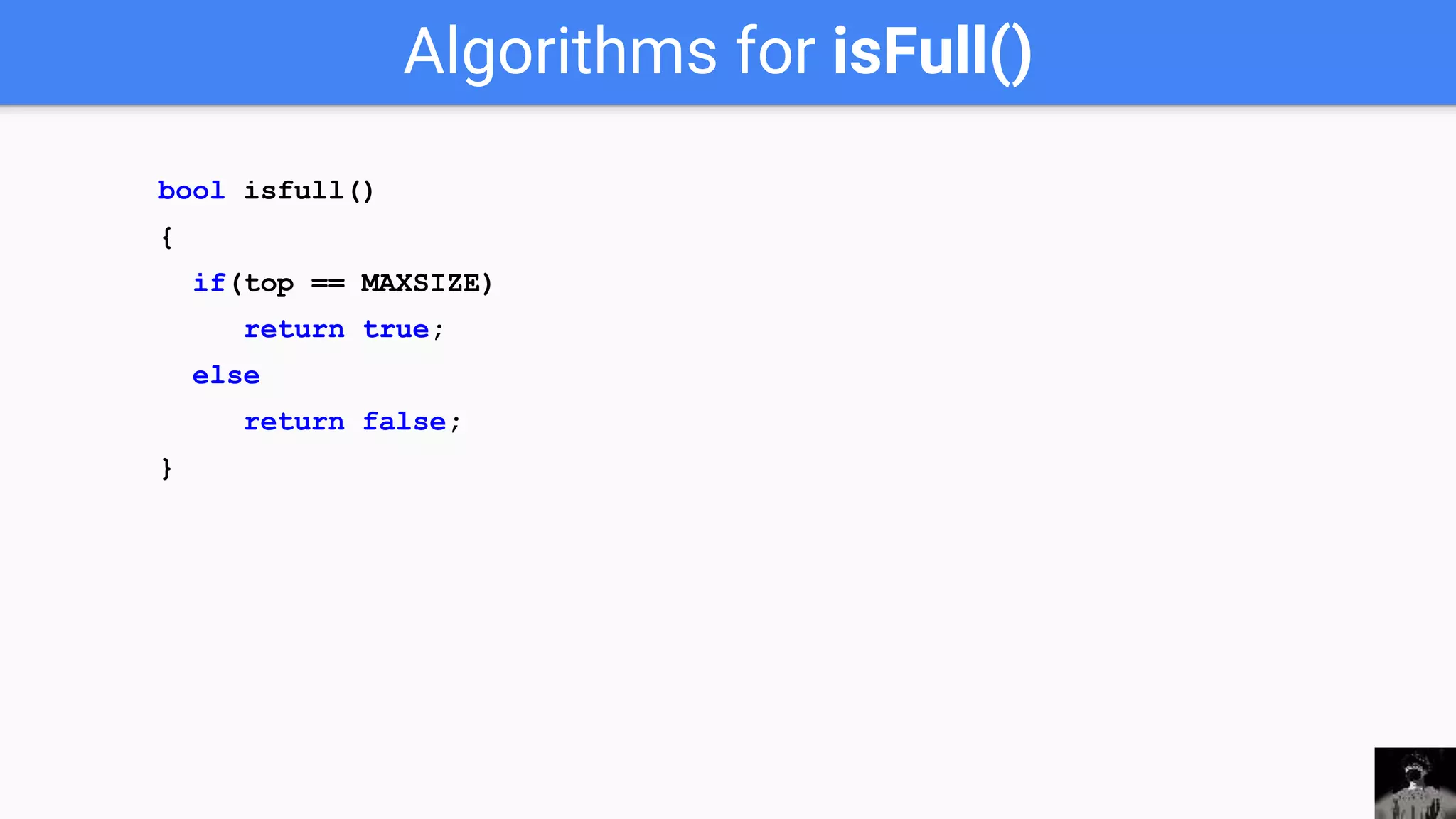

43. Algorithms for isFull()
bool isfull()
{
if(top == MAXSIZE)
return true;
else
return false;
}

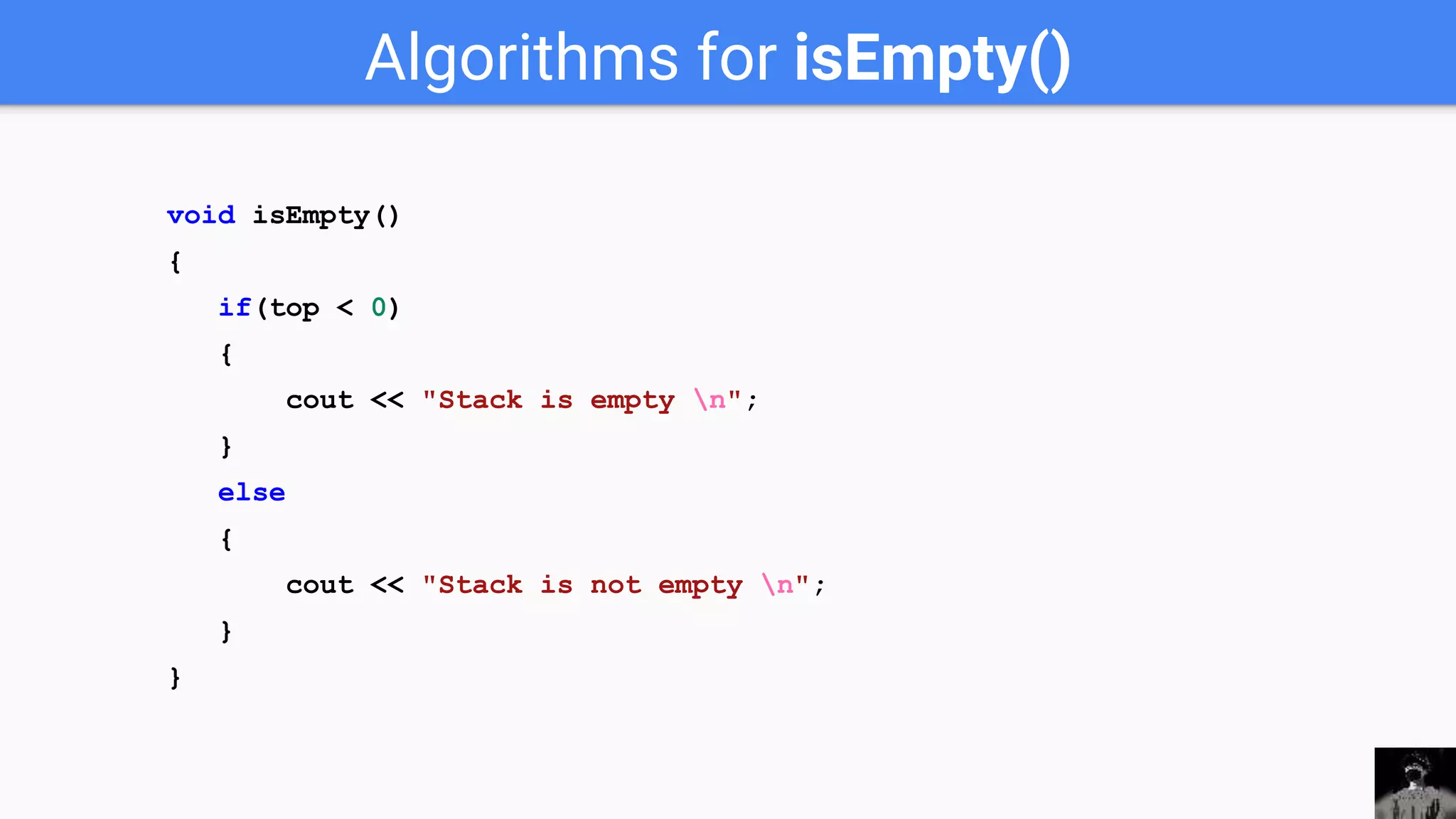

44. Algorithms for isEmpty()
void isEmpty()
{
if(top < 0)
{
cout << "Stack is empty n";
}
else
{
cout << "Stack is not empty n";
}
}

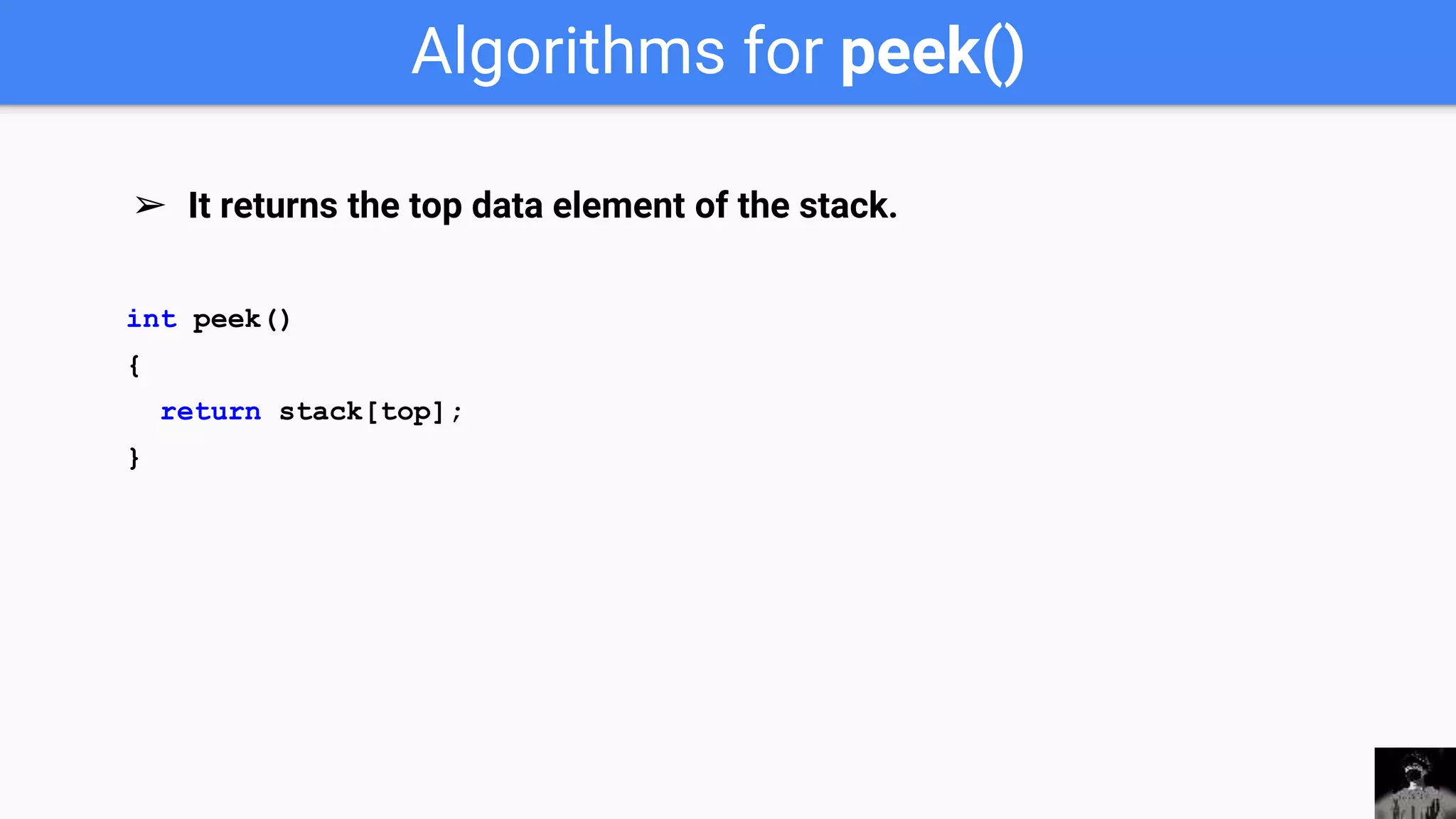

45. Algorithms for peek()
int peek()
{
return stack[top];
}
➢ It returns the top data element of the stack.

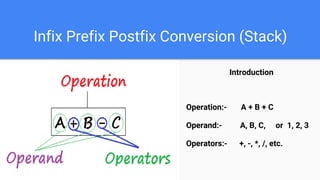

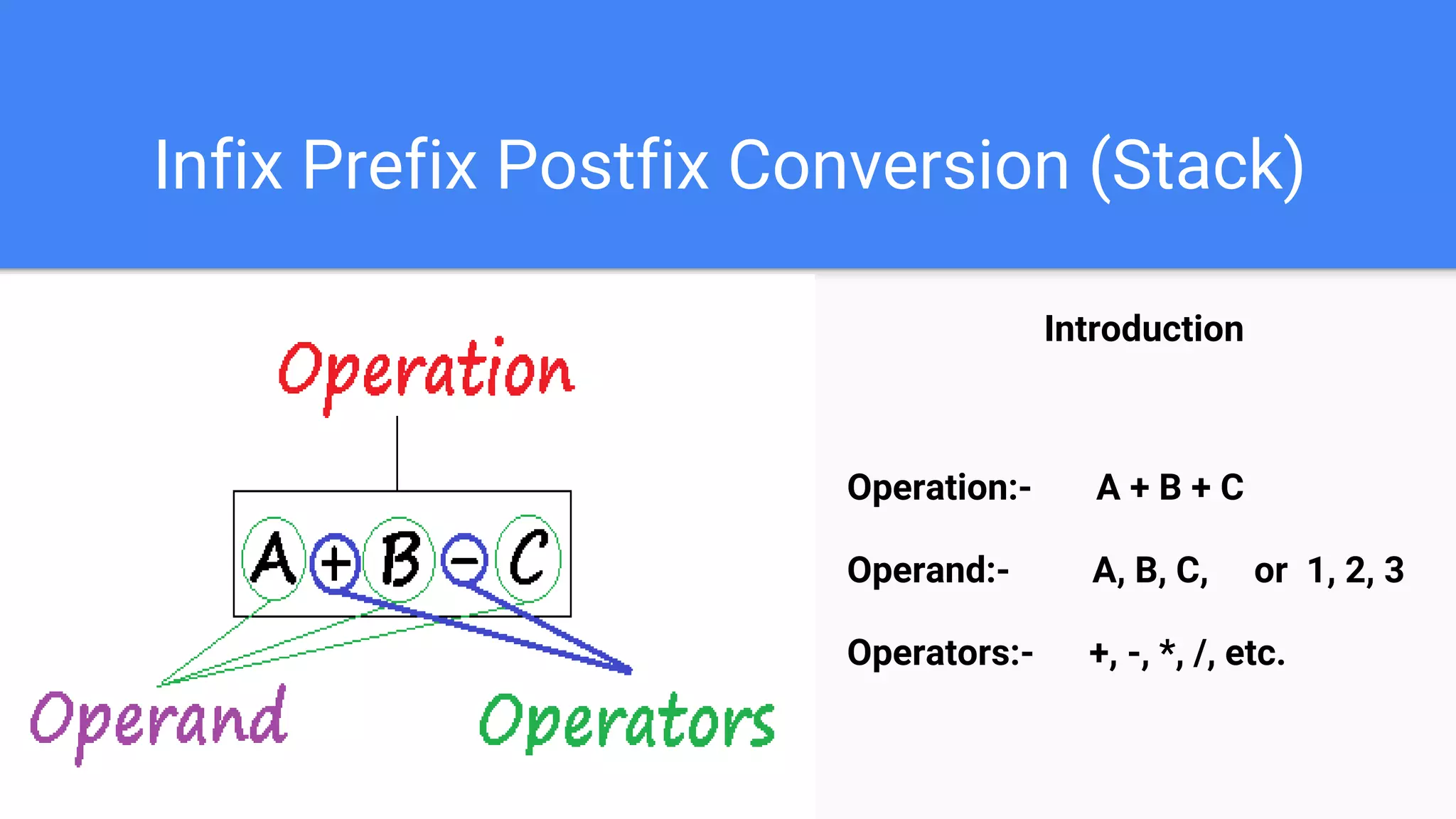

46. Infix Prefix Postfix Conversion (Stack)
Introduction
Operation:- A + B + C
Operand:- A, B, C, or 1, 2, 3
Operators:- +, -, *, /, etc.

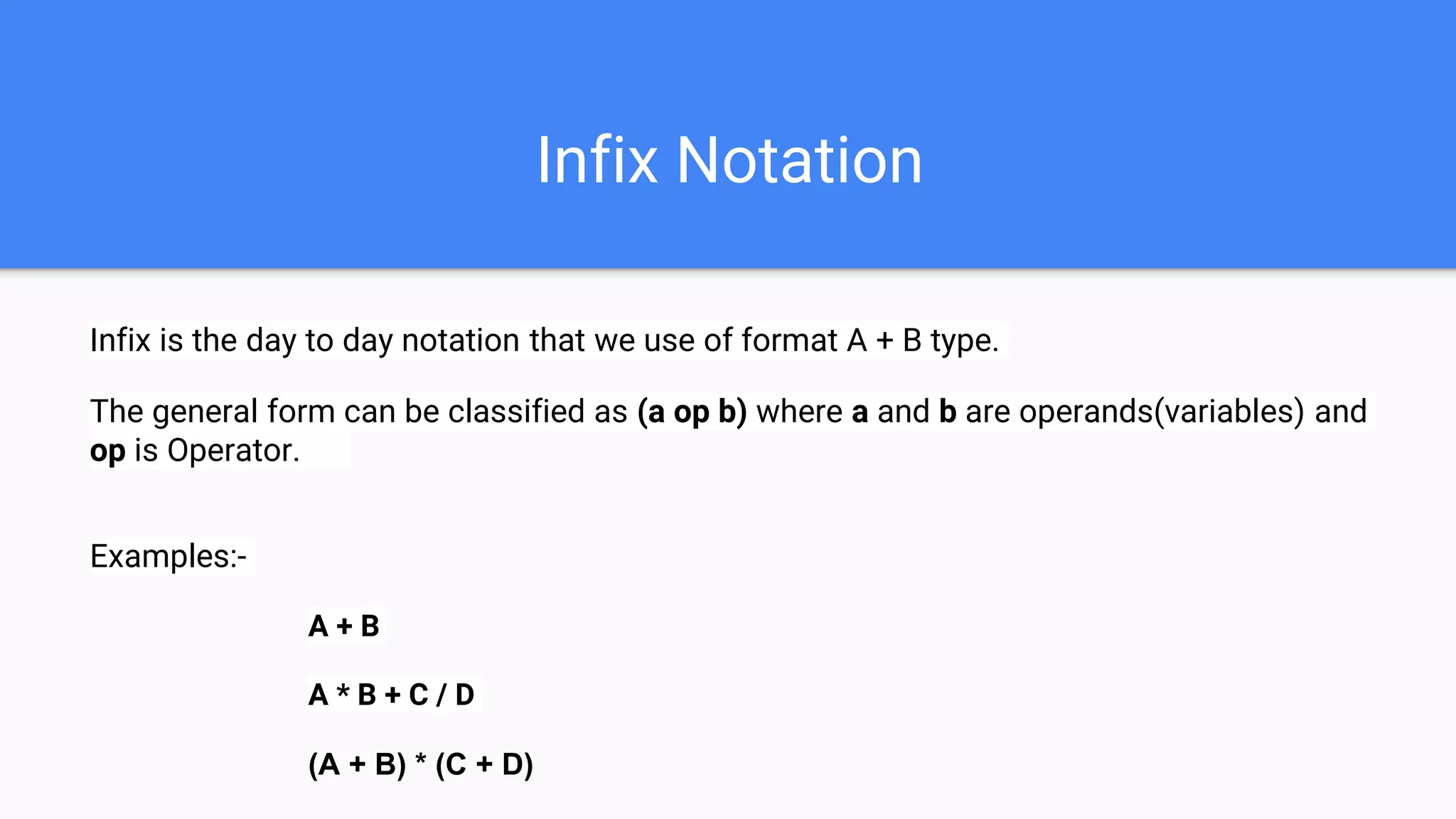

47. Infix Notation
Infix is the day to day notation that we use of format A + B type.
The general form can be classified as (a op b) where a and b are operands(variables) and
op is Operator.
Examples:-
A + B
A * B + C / D
(A + B) * (C + D)

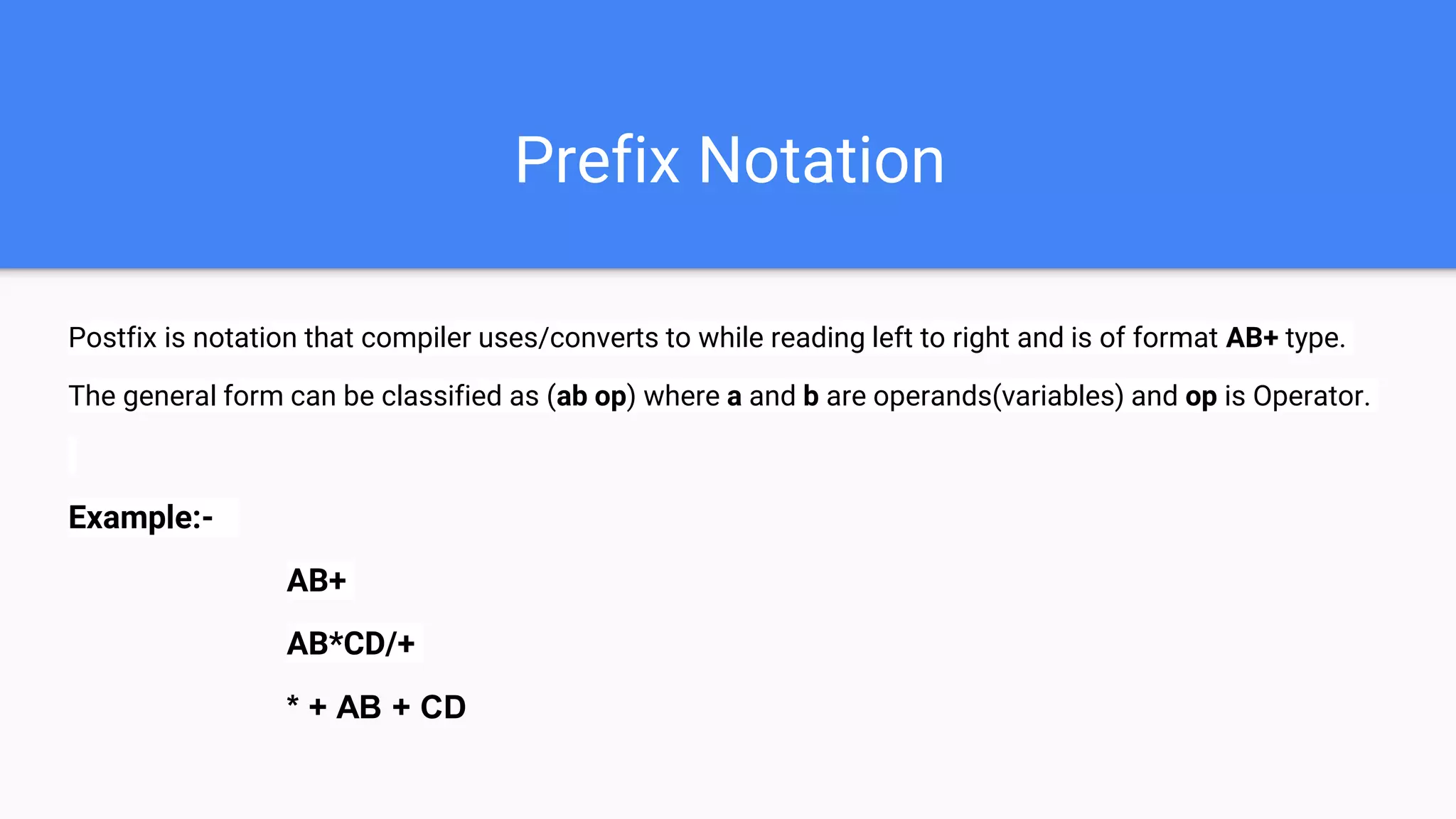

48. Prefix Notation
Postfix is notation that compiler uses/converts to while reading left to right and is of format AB+ type.
The general form can be classified as (ab op) where a and b are operands(variables) and op is Operator.
Example:-
AB+
AB*CD/+
* + AB + CD

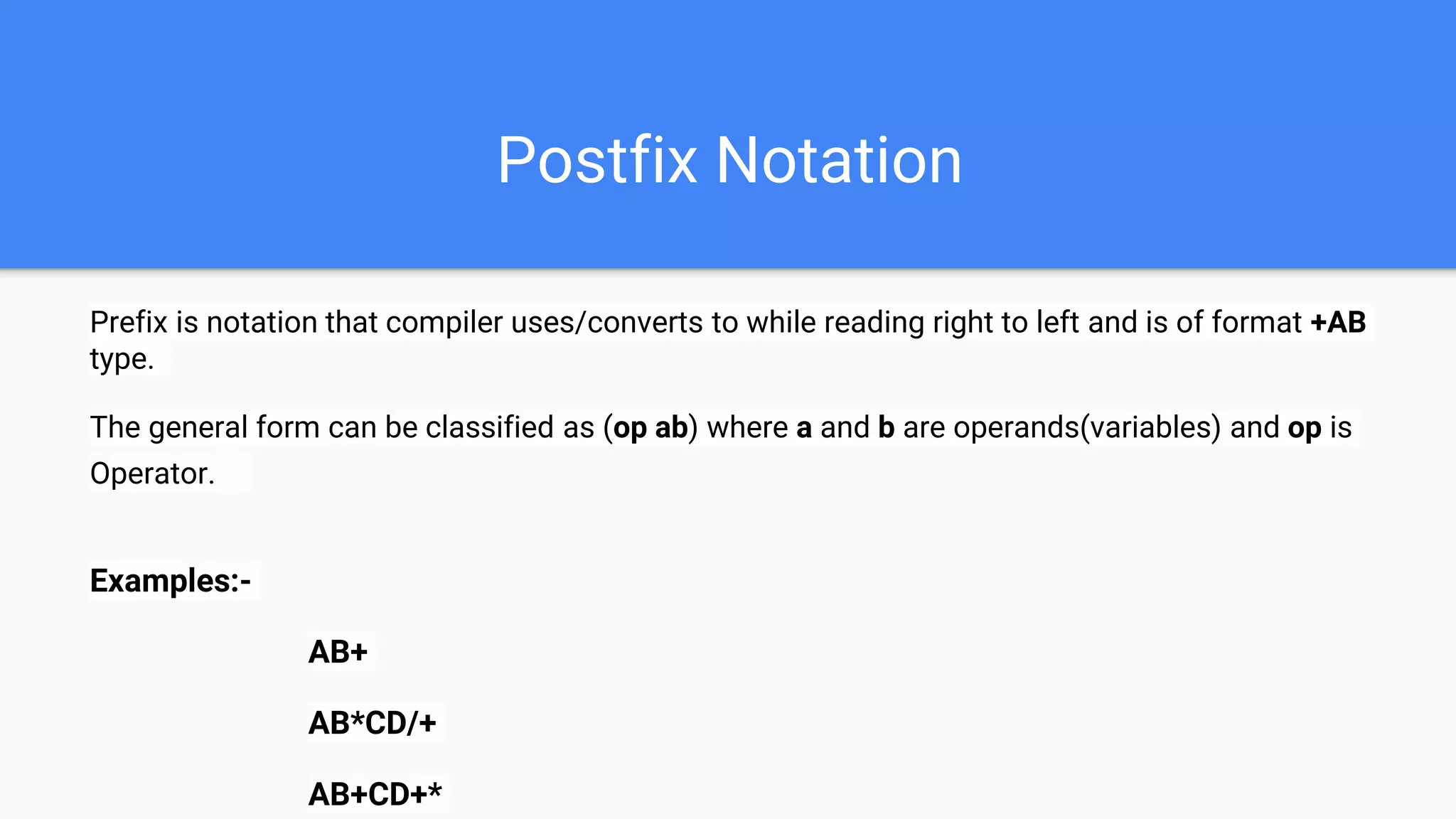

49. Postfix Notation
Prefix is notation that compiler uses/converts to while reading right to left and is of format +AB
type.
The general form can be classified as (op ab) where a and b are operands(variables) and op is
Operator.
Examples:-
AB+
AB*CD/+
AB+CD+*

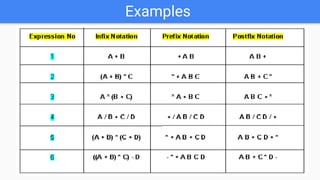

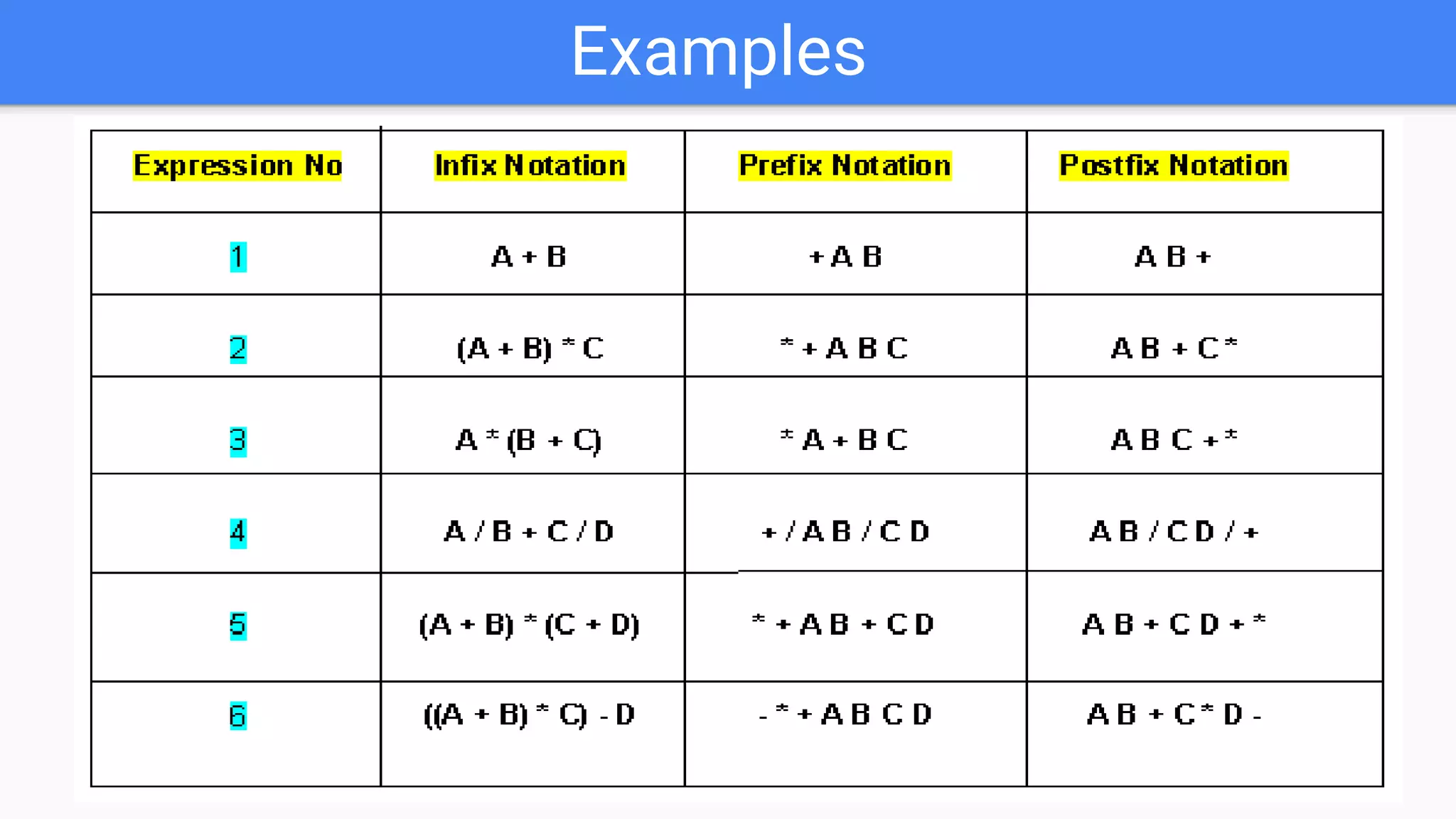

50. Examples

51. Thanks!
