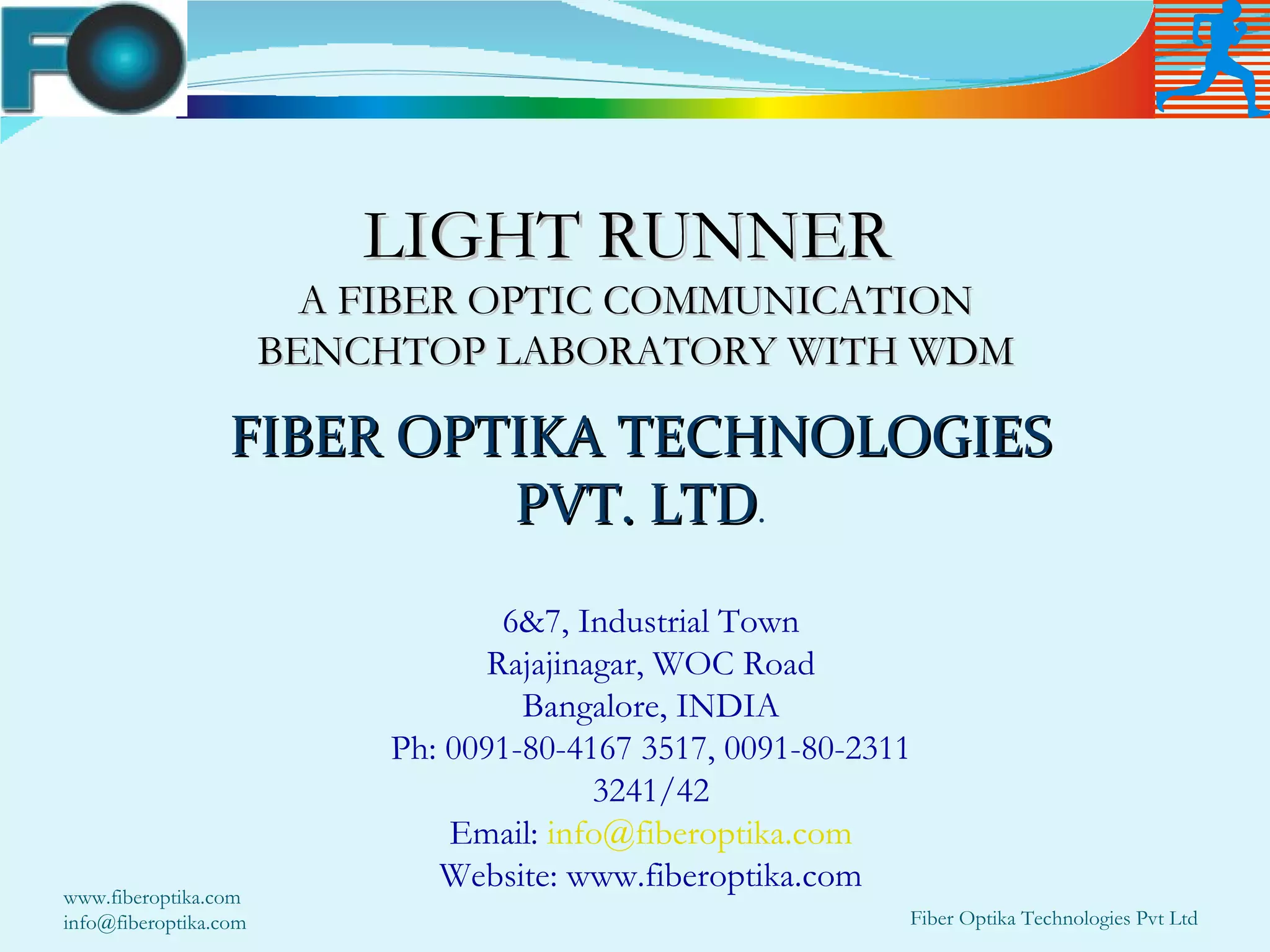

Light Runner

LIGHT RUNNER
A FIBER OPTIC COMMUNICATION
BENCHTOP LABORATORY WITH WDM

FIBER OPTIKA TECHNOLOGIES
PVT. LTD.
6&7, Industrial Town
Rajajinagar, WOC Road
Bangalore, INDIA
Ph: 0091-80-4167 3517, 0091-80-2311
3241/42
Email: info@fiberoptika.com
Website: www.fiberoptika.com
www.fiberoptika.com
info@fiberoptika.com Fiber Optika Technologies Pvt Ltd

LIGHT RUNNER BRIDGE

• Bridges gap between Academia and Industry

www.fiberoptika.com

LIGHT RUNNER BRIDGE

Theoretical Learning alone won’t help to solve real world problems

www.fiberoptika.com

ORIGIN OF LIGHT RUNNER

 Fiber Optic Technologies Pvt Ltd has its roots in Eagle
Photonics – a pioneer company in Fiber Optic education, research,
consultancy & communication link project implementation work
 A need for a modern Fiber Optic Training laboratory in a Mr. Hitesh Mehta
compact form for teaching fiber optics concepts in a user friendly
manner was felt
 Contacts with leading R&D organizations like IIT Delhi led to
the conceptualization of Light Runner
 Development based on the concept was done by the newly
Prof. K. Thyagarajan
formed Fiber Optika having a dedicated team of highly qualified
scientists and engineers
 Prototype was ready within 4 months of conceptualization and
the first product hit the market in 6 months

Prof. M. R. Shenoy
www.fiberoptika.com

VERSIONS OF LIGHT RUNNER

First Version
2007

Third Version
Second Version 2011
www.fiberoptika.com 2009

FIBER OPTIC COMMUNICATION
BENCHTOP LABORATORY WITH WDM

www.fiberoptika.com

HIGHLIGHTS

 World's most extensive Fiber Optic Bench Top Laboratory with
WDM.

 Transcends the university syllabus to leverage student’s knowledge
to up-to-date technology.

 Provides hands-on experience on modern WDM technology and its
various testing concepts.

Compact and portable Fiber Optic Communication Lab.

 Developed in association with IIT – Delhi.

 Available in TWO models – Light Runner Premium and Basic.

www.fiberoptika.com

KEY FEATURES

 16 experiments on state-of-the-art technology with emphasis on

WDM.

 Modular nature of Light Runner widens its application horizon to

innovative experiments and R&D work

 Experiments include cutting edge technologies like EDFA,

OTDR,OADM

 Exposure to concepts of OTDR and Eye Pattern Analysis

www.fiberoptika.com Fiber Optika Technologies Pvt Ltd
info@fiberoptika.com

KEY FEATURES

 Enable user to construct full-fledged EDFA with flexible gain
control from basic components- 980nm pump laser, 980/1550
coupler and Er3+ fiber.
 Interactive Software Control - Provides adequate information
about how–to-do and what-to-expect for each experiment
 Standalone - Does not require any external equipment such as
pulse generator, CRO, power meter, fiber spools etc.
 The Light Runner has a unique feature of Touch Screen.

www.fiberoptika.com

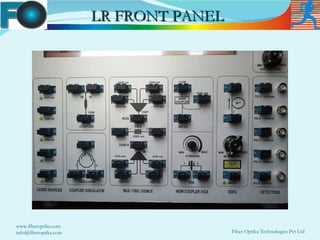

LR FRONT PANEL

www.fiberoptika.com

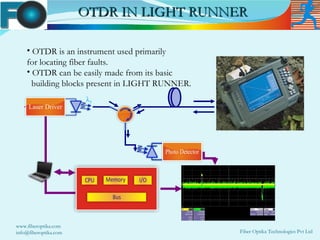

OTDR IN LIGHT RUNNER

• OTDR is an instrument used primarily
for locating fiber faults.
• OTDR can be easily made from its basic
building blocks present in LIGHT RUNNER.
λ3

www.fiberoptika.com

EDFA IN LIGHT RUNNER
EDFA is usually a black box with one input and one output ports

EDFA in Light Runner is given as building blocks

www.fiberoptika.com

EXPERIMENTS

FIBER PARAMETERS OPTICAL COMMUNICATION
SYSTEM
• Dispersion • Analog and Digital Link
• Loss • Time Division Multiplexing
• WDM link
• Optical Amplification
• Optical Add Drop

COMPONENT CHARACTERISTICS TESTING AND ANALYSIS

• Wavelength Division Multiplexer • Optical Time Domain Reflector
• FBG and Optical circulator • BER & Eye Pattern Analysis
• Erbium Doped Fiber Amplifier • Power Budgeting
• Diode Laser • Rise Time Budgeting
• PIN photodiode

www.fiberoptika.com

COMPONENTS & ACCESSORIES

LIGHT RUNNER

PASSIVE
LASERS PHOTODIODES ACCESSORIES
COMPONENTS

1510 nm Laser 4 InGaAs PDs 4 Channel Mux Digital Storage
Oscilloscope
1530nm Laser 2 Silicon PDs 4 Channel Demux
Fiber Spools
1550 nm Laser 3 Port Circulator
Optical Power Meter
1570 nm Laser 3 dB Coupler
Multimeter
980 nm Laser 980/15xx Mux
Personal Computer
850 nm Laser Fiber Bragg Grating
Cleaning Kit
Variable Optical
Attenuator Mic, Headphone,
BNC/USB/RS232/
Erbium Doped Fiber Fiber Cables


SPECS OF LASERS
1510, 1530, 1550 and 1570 nm Lasers
• Pigtailed DFB Laser
• Output Power 1mW
• Spectral width 50 pm

980 nm Laser
• Pigtailed Laser
• Output Power 50 mW
• Gives >20 dB gain for EDFA

850 nm Laser
• Pigtailed VCSE Laser
• Output Power 2 mW

www.fiberoptika.com

SPECS OF DETECTORS & GRATING

InGaAs Photodiodes
• Pigtailed Photodiodes
• High Speed PIN diodes
• Bandwidth >10 MHz

Silicon Photodiode
• Pigtailed
• High Speed PIN diodes
• Bandwidth >1 MHz

Fiber Bragg Grating
• Peak Reflecting Wavelength 1550 ± 0.5 nm
• Spectral width ~ 10nm
• Reflectivity > 90%

www.fiberoptika.com

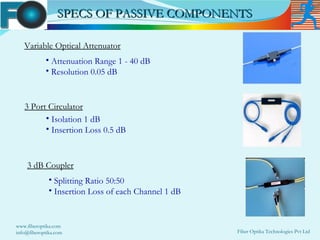

SPECS OF PASSIVE COMPONENTS

Variable Optical Attenuator
• Attenuation Range 1 - 40 dB
• Resolution 0.05 dB

3 Port Circulator
• Isolation 1 dB
• Insertion Loss 0.5 dB

3 dB Coupler
• Splitting Ratio 50:50
• Insertion Loss of each Channel 1 dB

www.fiberoptika.com

SPECS OF PASSIVE COMPONENTS

4 Channel WDM Mux & DMux
• Pass Channels at 1510, 1530, 1550 and 1570 nm
• Channel spacing 20 nm
• Pass band of 13 nm width

980/15xx Mux
• 30 dB isolation @ 1550 nm
• 15 dB isolation @ 980 nm
• Low insertion loss

www.fiberoptika.com

ACCESSORIES

Headphone Fiber Spool Patch Chord

Microphone Multimeter Powermeter

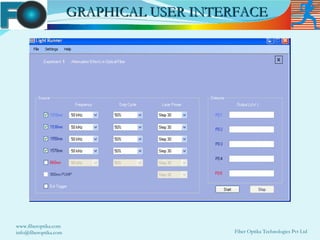

GRAPHICAL USER INTERFACE

www.fiberoptika.com

SALIENT FEATURES
State of the Art

WDM, EDFA, FBG,
OTDR, OADM

16 Key Experiments Major Components
Four C-Band Lasers, 850nm Laser
Loss, Dispersion, WDM, TDM, EDFA,
Fiber Bragg Grating, OADM, OTDR,
Light 980nm Pump Laser
BER, Eye Pattern, Power & Rise time Runner Four Channel Mux and DeMux
budgeting, Analog & Digital Links Four InGaAs PIN Photodiodes

Accessories

Netbook PC, Fiber Spools
Digital Oscilloscope, Power meter
Fixed &Variable Attenuators,
Multimeter

www.fiberoptika.com

BENEFITS OF LIGHT RUNNER
 Almost all of the present day communication technology has Fiber Optic
Networks as its backbone
 Fiber Optics is the technology of today and tomorrow for BW hungry society
 Students and technicians should keep abreast of existing fiber optic technology
 Light Runner is the unique solution to all Engineering, Science colleges and
Universities offering optics courses that warrant a good lab infrastructure
 Ready to be used kit makes setup time practically negligible
 Plug and play nature of Light Runner invokes curiosity and interest in students

www.fiberoptika.com

CUSTOMER SERVICE

 24x7 support available from Fiber Optika’s highly qualified personnel

 Light Runner Panel renders consultancy in designing the syllabus at your
College.
 Training to teachers based on Light Runner at nominal fees at our training
Centre
 Product Warranty of One Year for manufacturing defects
 Annual Maintenance Contract after the warranty period
 Free Software up-gradation for One Year

www.fiberoptika.com

FUTURE DEVELOPMENTS

Advanced version of Light Runner is in pipeline with the following features

Nonlinear Effects in Fibers
 Semiconductor Optical Amplifier
 Photonic Crystal Fiber
 Polarisation Maintaining Fiber
 Fiber Optic Gyroscope
 Fiber Bragg Grating Sensor
 Fiber Laser

www.fiberoptika.com

THANKS

www.fiberoptika.com
