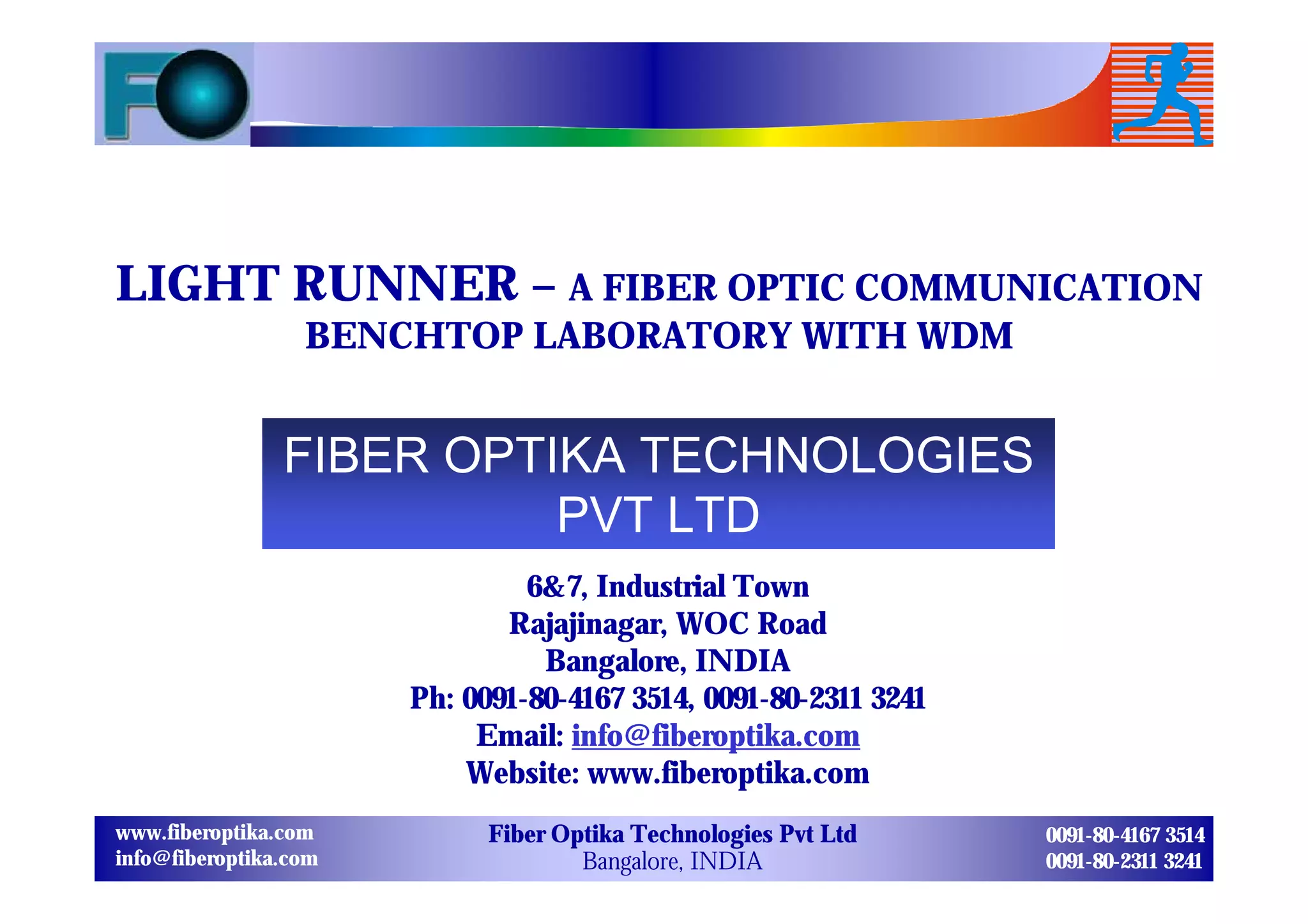

LIGHT RUNNER – A FIBER OPTIC COMMUNICATION
BENCHTOP LABORATORY WITH WDM

FIBER OPTIKA TECHNOLOGIES
PVT LTD
6&7, Industrial Town
Rajajinagar, WOC Road
Bangalore, INDIA
Ph: 0091-80-4167 3514, 0091-80-2311 3241
Email: info@fiberoptika.com
Website: www.fiberoptika.com
www.fiberoptika.com Fiber Optika Technologies Pvt Ltd 0091-80-4167 3514
info@fiberoptika.com Bangalore, INDIA 0091-80-2311 3241

LIGHT RUNNER BRIDGE

Theoretical Learning alone won’t help to solve real world problems


LIGHT RUNNER BRIDGE

• Bridges gap between Academia and Industry


LIGHT RUNNER
FIBER OPTIC COMMUNICATION
BENCHTOP LABORATORY WITH WDM


LR FRONT PANEL


HIGHLIGHTS

World's most extensive Fiber Optic Bench Top Laboratory with WDM

Transcends the university syllabus to leverage student’s knowledge to up-to-date
technology

Provides hands-on experience on modern WDM technology and its various
testing concepts

Compact and portable Fiber Optic Communication Lab

Developed in association with IIT – Delhi

Available in FOUR models – Light Runner Standard and Basic, WDM & EDFA


KEY FEATURES

Atleast 16 experiments on state-of-the-art technology with emphasis on WDM
Modular nature of Light Runner widens its application horizon to innovative
experiments and R&D work
Experiments include cutting edge technologies like EDFA, OTDR, OADM
Exposure to concepts of OTDR and Eye Pattern Analysis
Enable user to construct full-fledged EDFA with flexible gain control from basic
components- 980nm pump laser, 980/1550 coupler and Er3+ fiber
Interactive Software Control - Provides adequate information about how–to-do
and what-to-expect for each experiment
Standalone - Does not require any external equipment such as pulse generator,
CRO, power meter, fiber spools etc.


EXPERIMENTS

FIBER PARAMETERS OPTICAL COMMUNICATION
SYSTEM
Dispersion
Loss Analog and Digital Link
Time Division Multiplexing
WDM link
Optical Amplification
Optical Add Drop
COMPONENT CHARACTERISTICS TESTING AND ANALYSIS
Wavelength Division Multiplexer
FBG and Optical circulator Optical Time Domain Reflector
Erbium Doped Fiber Amplifier BER & Eye Pattern Analysis
Diode Laser Power Budgeting
PIN photodiode Rise Time Budgeting


COMPONENTS & ACCESSORIES

LIGHT RUNNER

PASSIVE
LASERS PHOTODIODES ACCESSORIES
COMPONENTS

1510 nm Laser InGaAs PDs 4 Channel Mux Digital Storage
Oscilloscope
1530nm Laser Silicon PD 4 Channel Demux
Fiber Spools
1550 nm Laser 3 Port Circulator
Optical Power Meter
1570 nm Laser 3 dB Coupler
Multimeter
980 nm Laser 980/15xx Mux
Personal Computer
850 nm Laser Fiber Bragg Grating
Cleaning Kit
Variable Optical
Attenuator Mic, Headphone,
BNC/USB/RS232/
Erbium Doped Fiber Fiber Cables


SPECS OF PASSIVE COMPONENTS

4 Channel WDM Mux & DMux
• Pass Channels at 1510, 1530, 1550 and 1570 nm
• Channel spacing 20 nm
• Pass band of 13 nm width

980/15xx Mux
• 30 dB isolation @ 1550 nm
• 15 dB isolation @ 980 nm
• Low insertion loss


SPECS OF LASERS

1510, 1530, 1550 and 1570 nm Lasers
• Pigtailed DFB Laser
• Output Power 1mW
• Spectral width 50 pm

980 nm Laser
• Pigtailed Laser
• Output Power 50 mW

850 nm Laser
• Pigtailed Laser
• Output Power 2 mW


SPECS OF DETECTORS & GRATING

InGaAs Photodiodes
• Pigtailed Photodiodes
• High Speed PIN diodes
• Bandwidth >10 MHz

Silicon Photodiode
• Pigtailed
• High Speed PIN diodes

Fiber Bragg Grating
• Peak Reflecting Wavelength 1550 ± 0.5 nm
• Spectral width ~ 10nm
• Reflectivity > 90%


SPECS OF PASSIVE COMPONENTS

Variable Optical Attenuator
• Attenuation Range 1 - 30 dB
• Resolution 0.5 dB

3 Port Circulator
• Isolation 1 dB
• Insertion Loss 0.5 dB

3 dB Coupler
• Splitting Ratio 50:50
• Insertion Loss of each Channel 1 dB


ACCESSORIES


GRAPHICAL USER INTERFACE

Typical GUI for WDM Link Experiment
GRAPHICAL INTERFACE


EDFA IN LIGHT RUNNER

EDFA is usually a black box with one input and one output ports

WDM Coupler
EDFA in Light Runner is given as building blocks Erbium Fiber

Pump Laser


OTDR IN LIGHT RUNNER

• OTDR is an instrument used primarily
for locating fiber faults
• OTDR can be easily made from its basic
building blocks present in LIGHT RUNNER
λ3


SALIENT FEATURES

State of the Art

WDM, EDFA, FBG,
OTDR, OADM

16 Key Experiments Major Components
Four C-Band Lasers, 660nm Laser
Loss, Dispersion, WDM, TDM, EDFA,
Fiber Bragg Grating, OADM, OTDR,
Light 980nm Pump Laser
BER, Eye Pattern, Power & Rise time Runner Four Channel Mux and DeMux
budgeting, Analog & Digital Links Four InGaAs PIN Photodiodes

Accessories

Netbook PC, Fiber Spools
Digital Oscilloscope, Power meter
Fixed &Variable Attenuators,
Multimeter


BENEFITS OF LIGHT RUNNER

Almost all of the present day communication technology has Fiber Optic
Networks as its backbone
Fiber Optics is the technology of today and tomorrow for BW hungry society
Students and technicians should keep abreast of existing fiber optic technology
Light Runner is the unique solution to all Engineering, Science colleges and
Universities offering optics courses that warrant a good lab infrastructure
Ready to be used kit makes setup time practically negligible
Plug and play nature of Light Runner invokes curiosity and interest in students
Modern Fiber Optic Communication with WDM technology is not offered in
most of the existing kits


ORIGIN OF LIGHT RUNNER

Fiber Optic Technologies Pvt Ltd has its roots in Eagle
Photonics – a pioneer company in Fiber Optic education, research,
consultancy & communication link project implementation work
A need for a modern Fiber Optic Training laboratory in a Mr. Hitesh Mehta

compact form for teaching fiber optics concepts in a user friendly
manner was felt
Contacts with leading R&D organisations like IIT Delhi led to
the conceptualisation of Light Runner
Prof. K. Thyagarajan
Development based on the concept was done by the newly
formed Fiber Optika having a dedicated team of highly qualified
scientists and engineers
Prototype was ready within 4 months of conceptualisation and
the first product hit the market in 6 months
Prof. M. R. Shenoy


CUSTOMER SERVICE

24x7 support available from Fiber Optika’s highly qualified personnel
Light Runner Panel renders consultancy in designing the syllabus at your college.
Training to teachers based on Light Runner at nominal fees at our training centre
Product Warranty of One Year for manufacturing defects
Annual Maintenance Contract after the warranty period
Free Software up-gradation for One Year


THANKS
