DrayTek Seminar in Greece, Session 1
- 1. 1 Connecting to the Internet Henry Lo Application Engineer Seminar

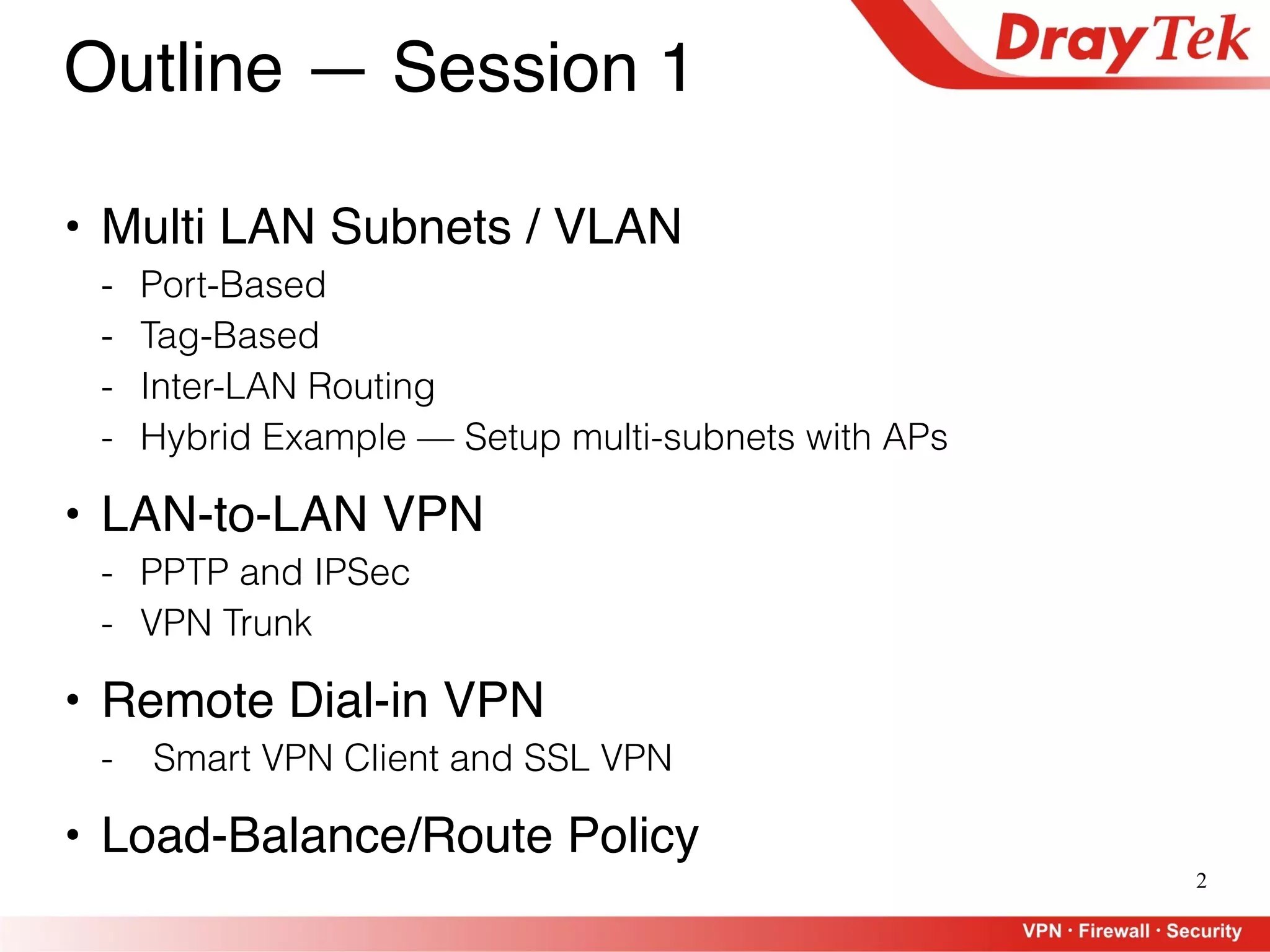

- 2. 2 • Multi LAN Subnets / VLAN - Port-Based - Tag-Based - Inter-LAN Routing - Hybrid Example — Setup multi-subnets with APs • LAN-to-LAN VPN - PPTP and IPSec - VPN Trunk • Remote Dial-in VPN - Smart VPN Client and SSL VPN • Load-Balance/Route Policy Outline — Session 1

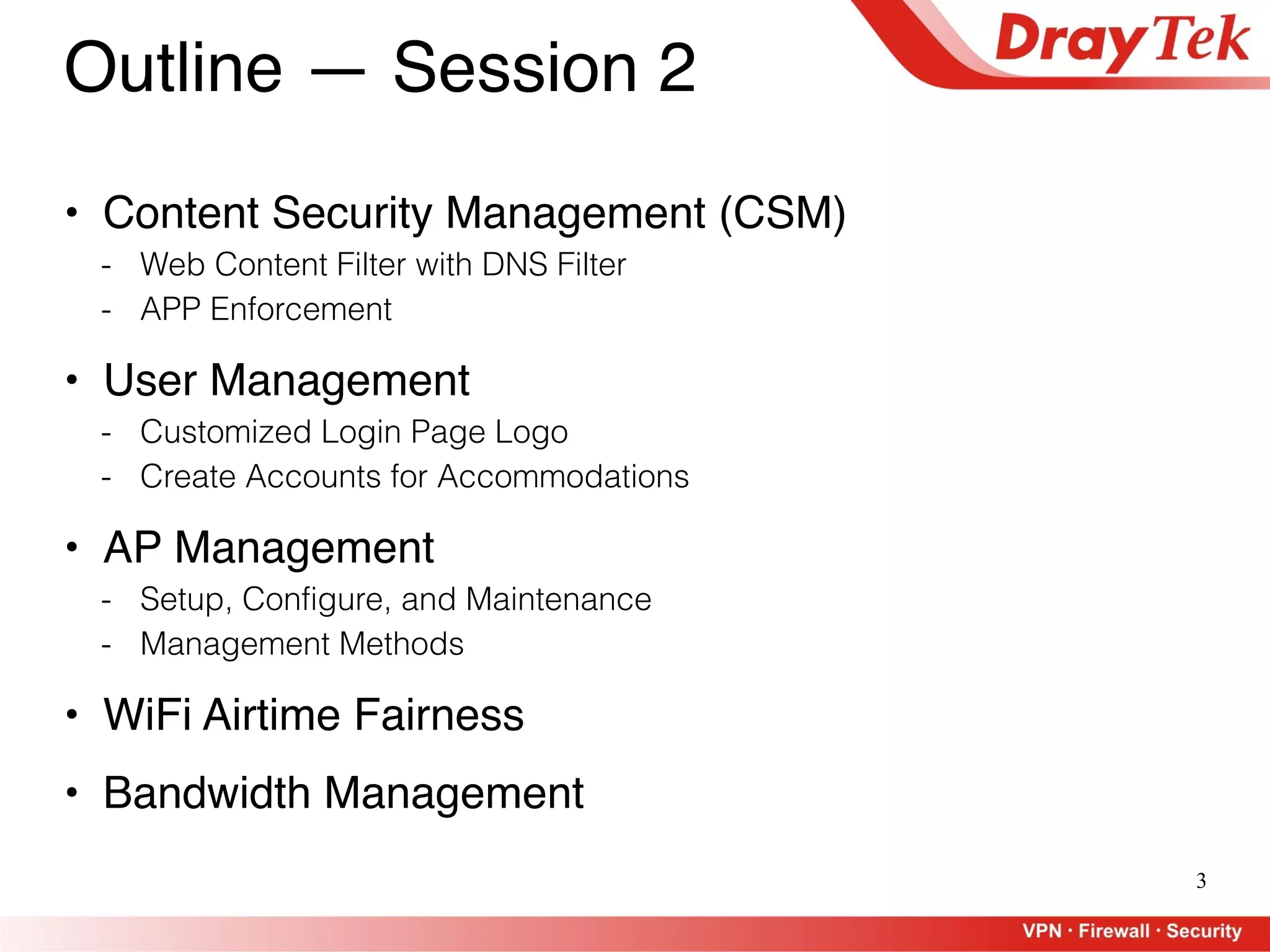

- 3. 3 Outline — Session 2 • Content Security Management (CSM) - Web Content Filter with DNS Filter - APP Enforcement • User Management - Customized Login Page Logo - Create Accounts for Accommodations • AP Management - Setup, Configure, and Maintenance - Management Methods • WiFi Airtime Fairness • Bandwidth Management

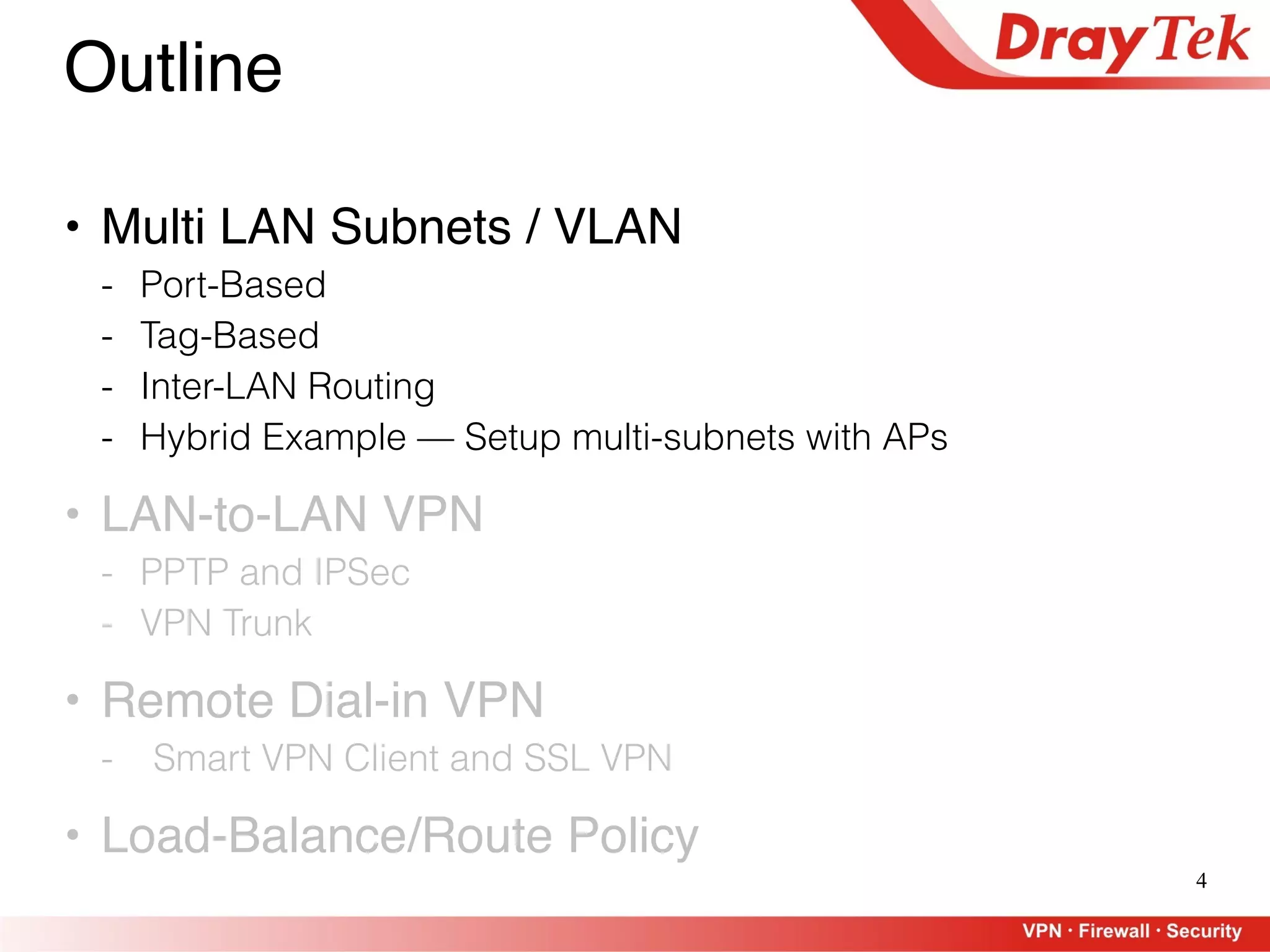

- 4. 4 Outline • Multi LAN Subnets / VLAN - Port-Based - Tag-Based - Inter-LAN Routing - Hybrid Example — Setup multi-subnets with APs • LAN-to-LAN VPN - PPTP and IPSec - VPN Trunk • Remote Dial-in VPN - Smart VPN Client and SSL VPN • Load-Balance/Route Policy

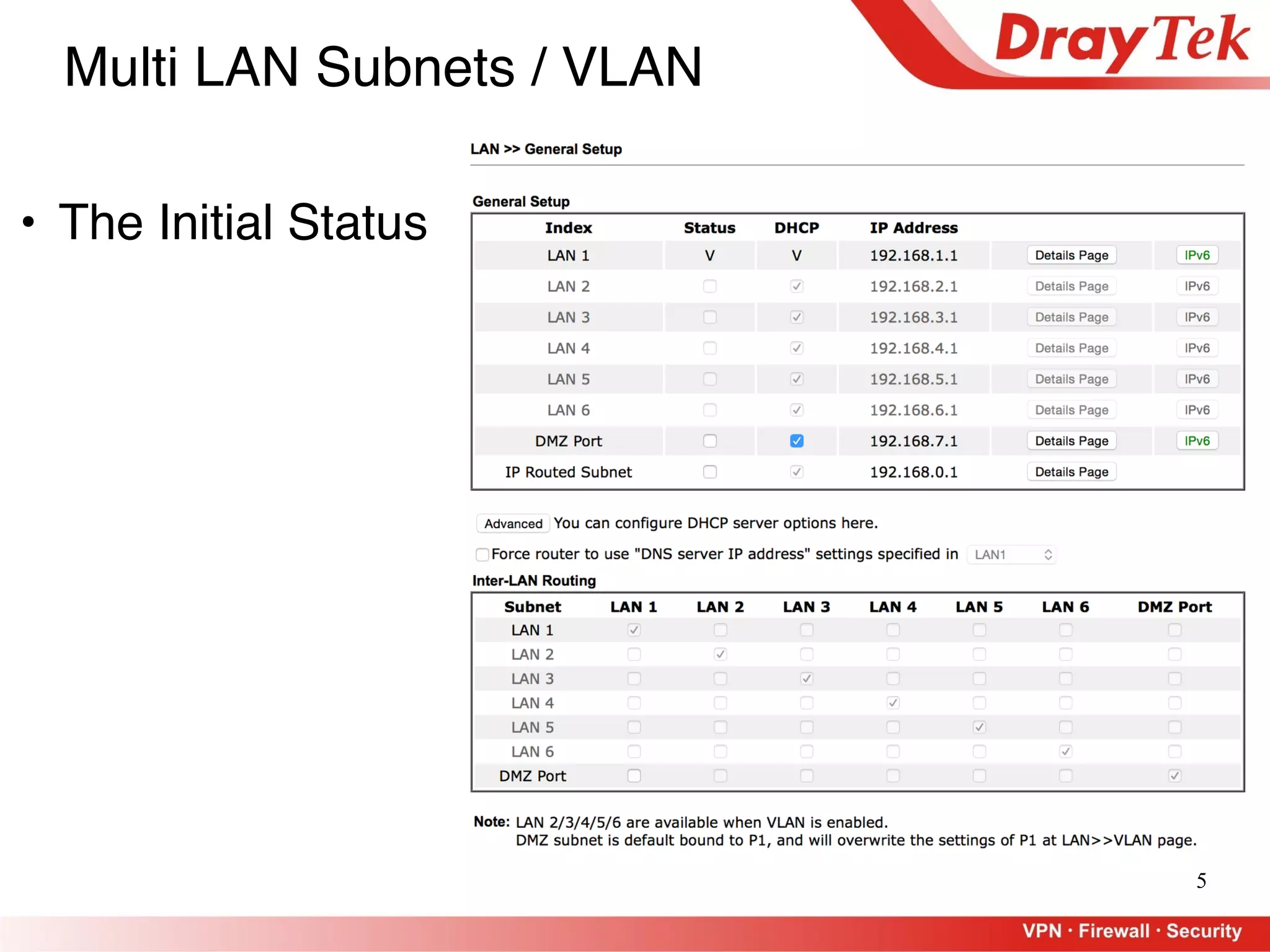

- 5. 5 Multi LAN Subnets / VLAN • The Initial Status

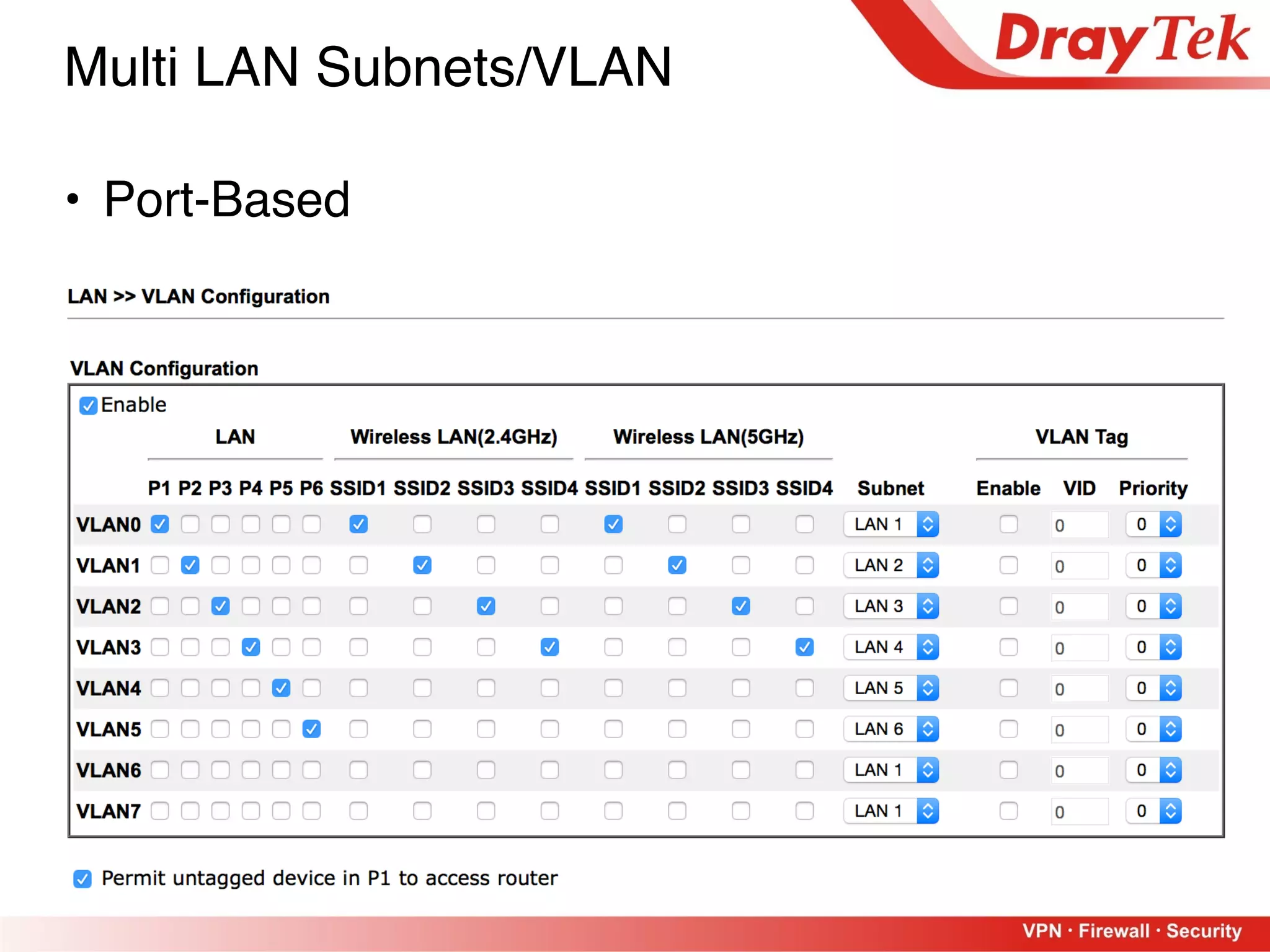

- 6. 6 Multi LAN Subnets/VLAN • Port-Based

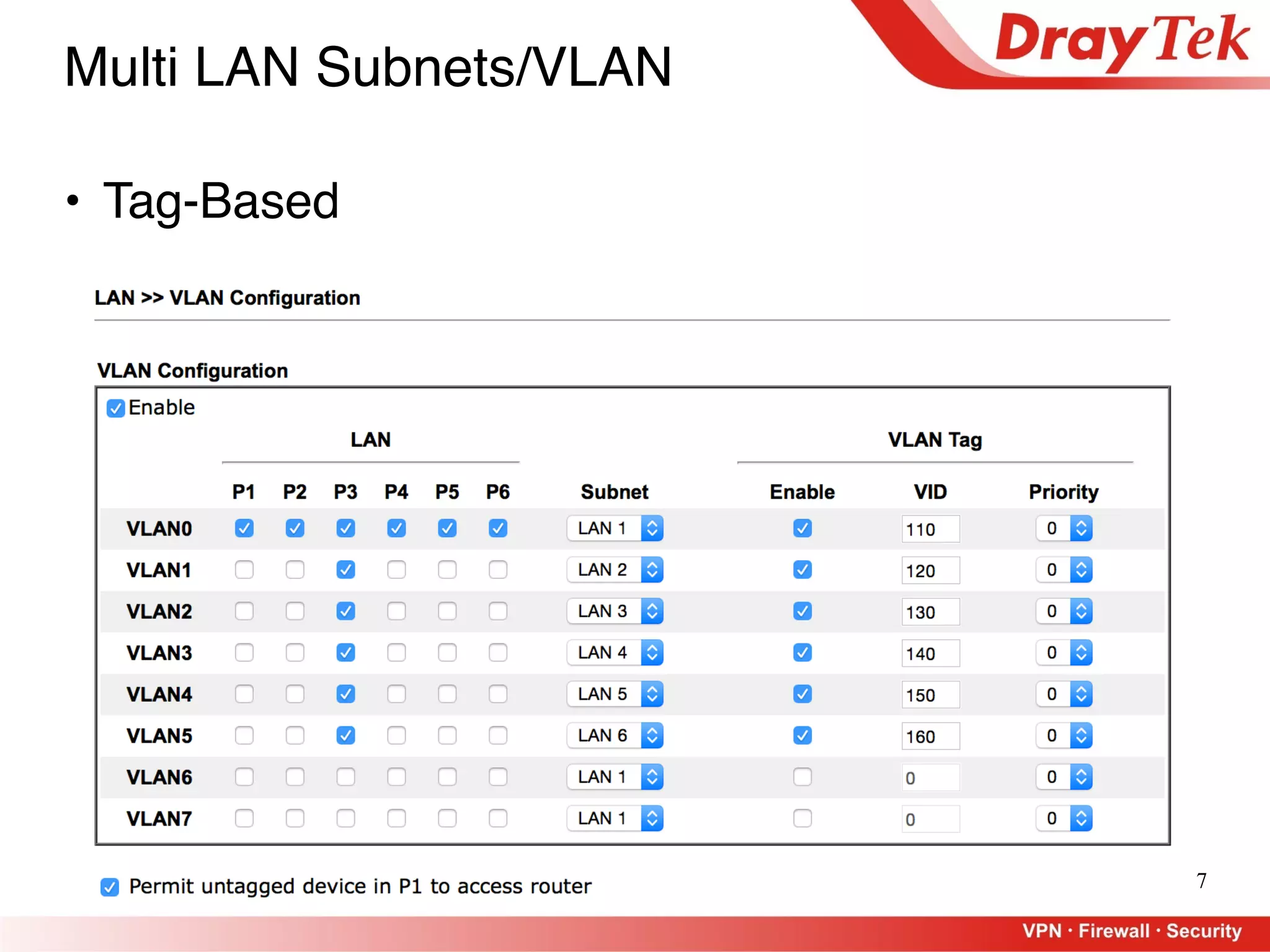

- 7. 7 Multi LAN Subnets/VLAN • Tag-Based

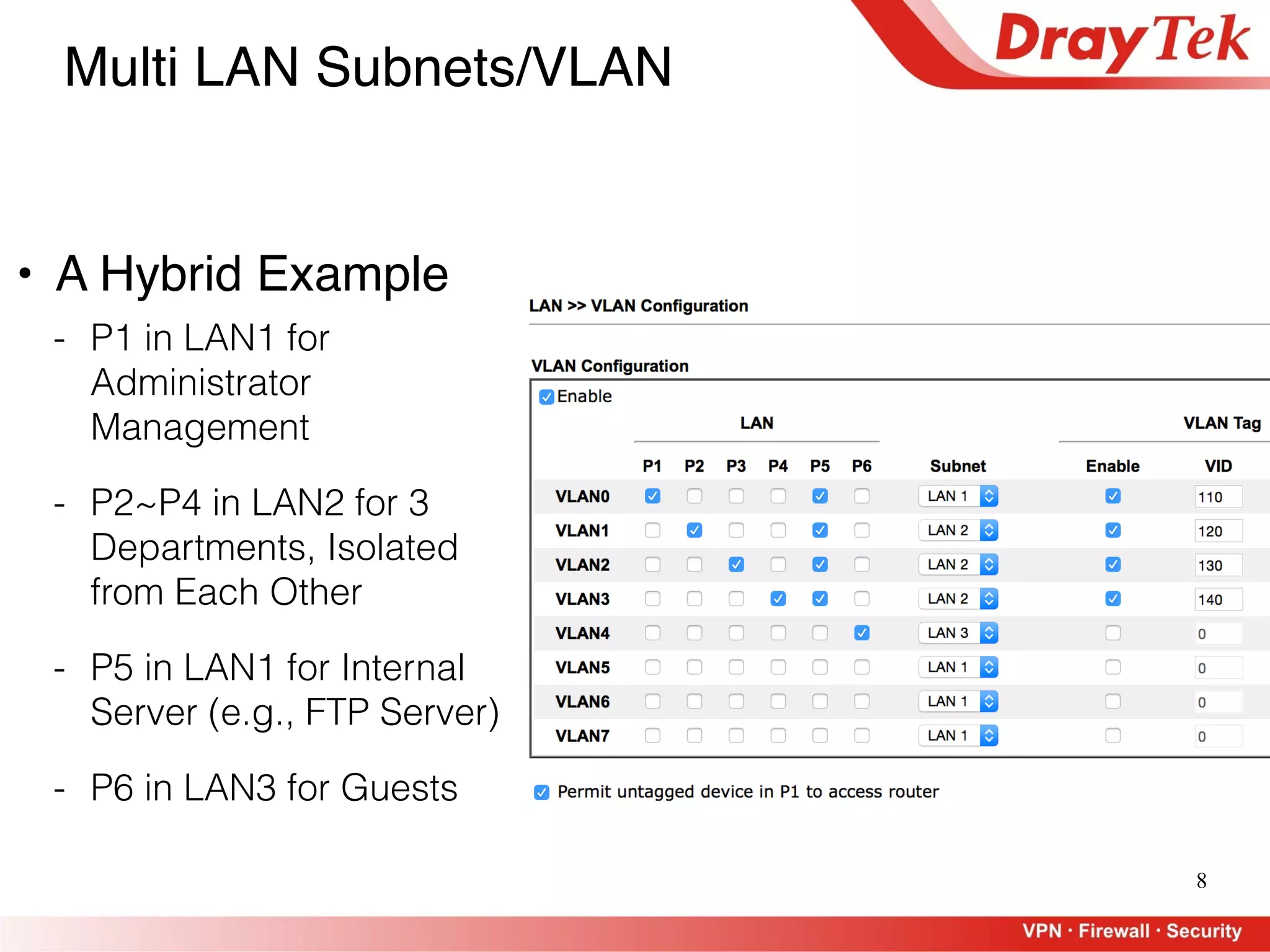

- 8. 8 Multi LAN Subnets/VLAN • A Hybrid Example - P1 in LAN1 for Administrator Management - P2~P4 in LAN2 for 3 Departments, Isolated from Each Other - P5 in LAN1 for Internal Server (e.g., FTP Server) - P6 in LAN3 for Guests

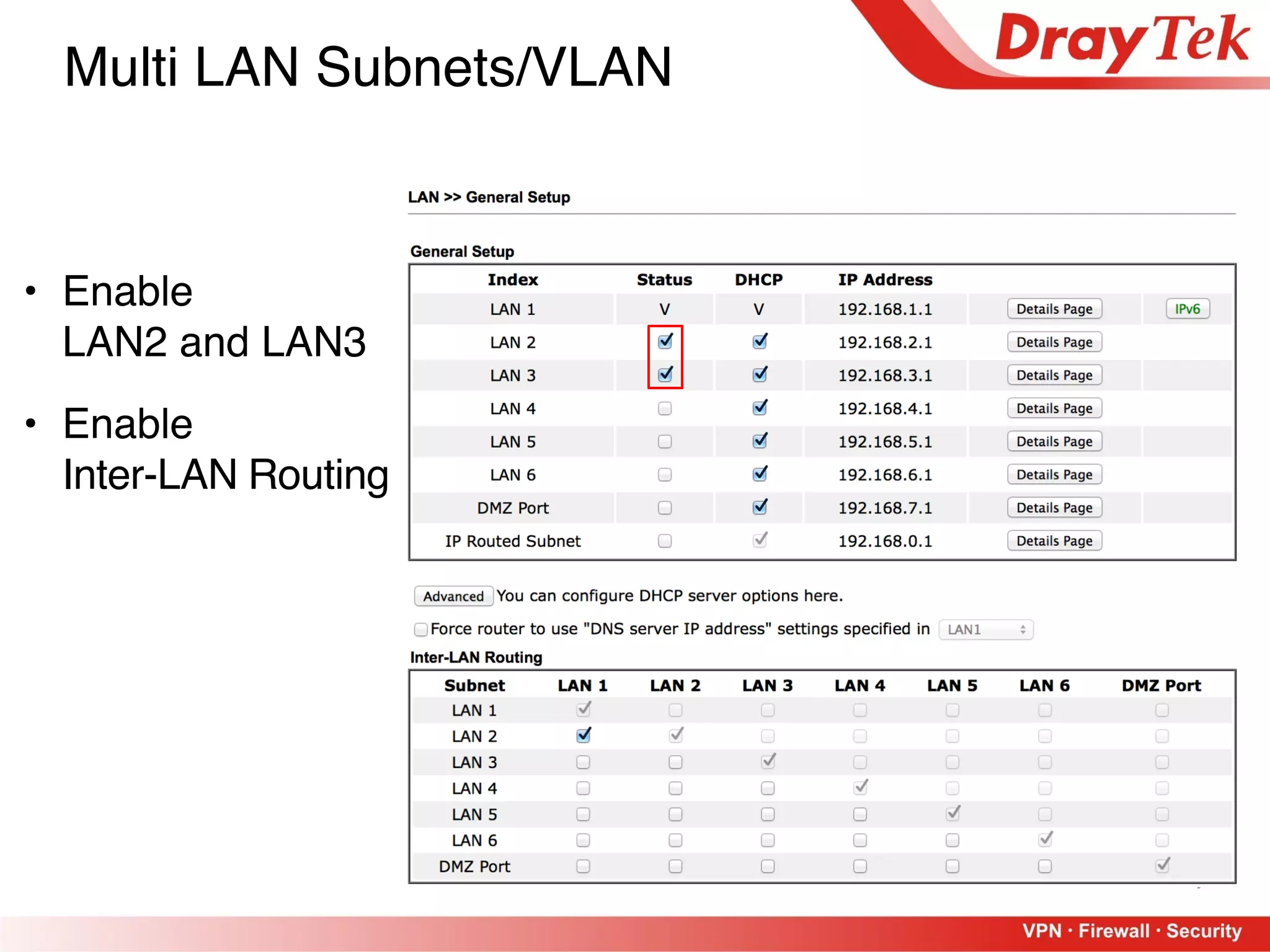

- 9. 9 • Enable LAN2 and LAN3 • Enable Inter-LAN Routing Multi LAN Subnets/VLAN

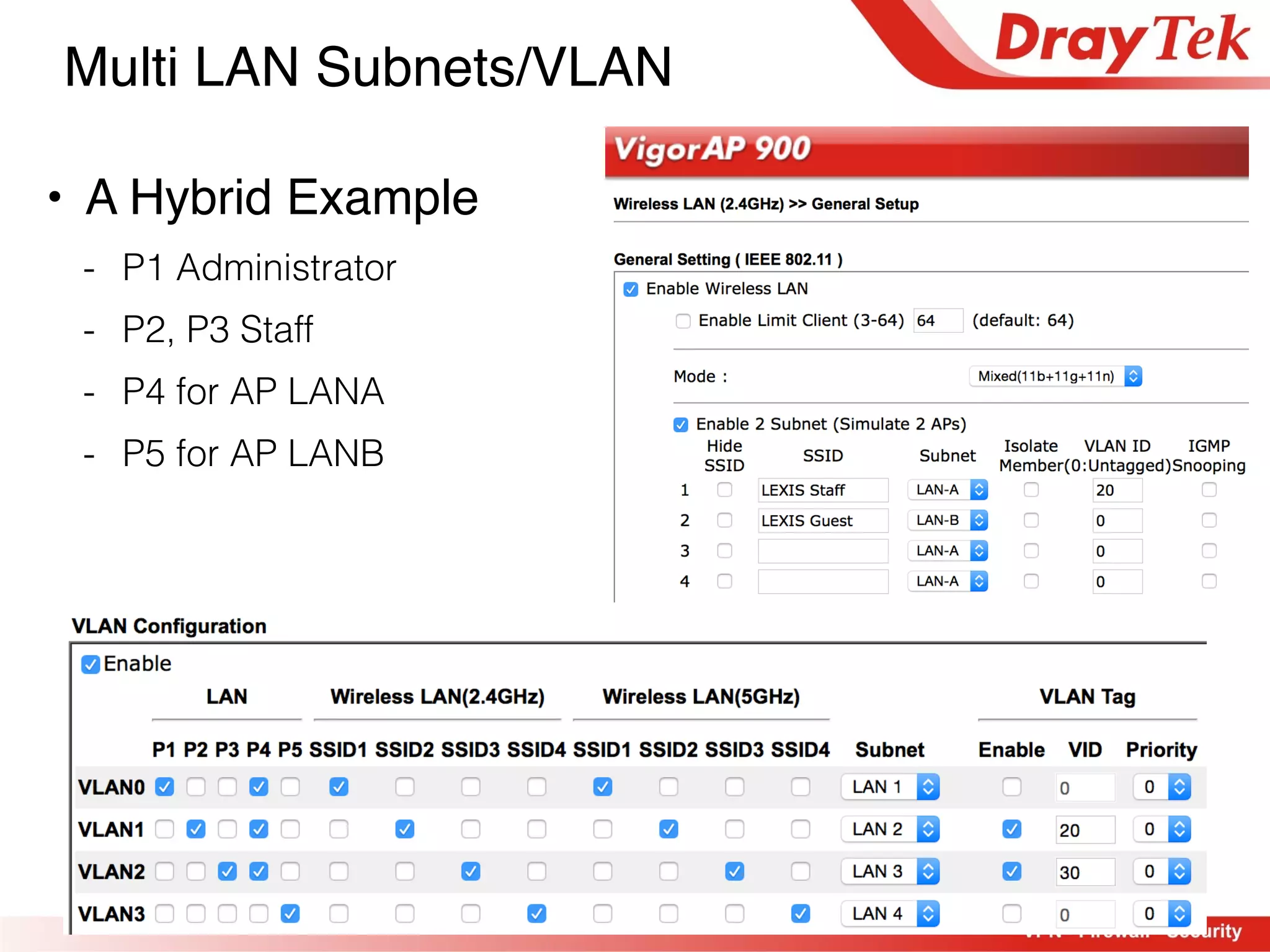

- 10. 10 • A Hybrid Example - P1 Administrator - P2, P3 Staff - P4 for AP LANA - P5 for AP LANB Multi LAN Subnets/VLAN

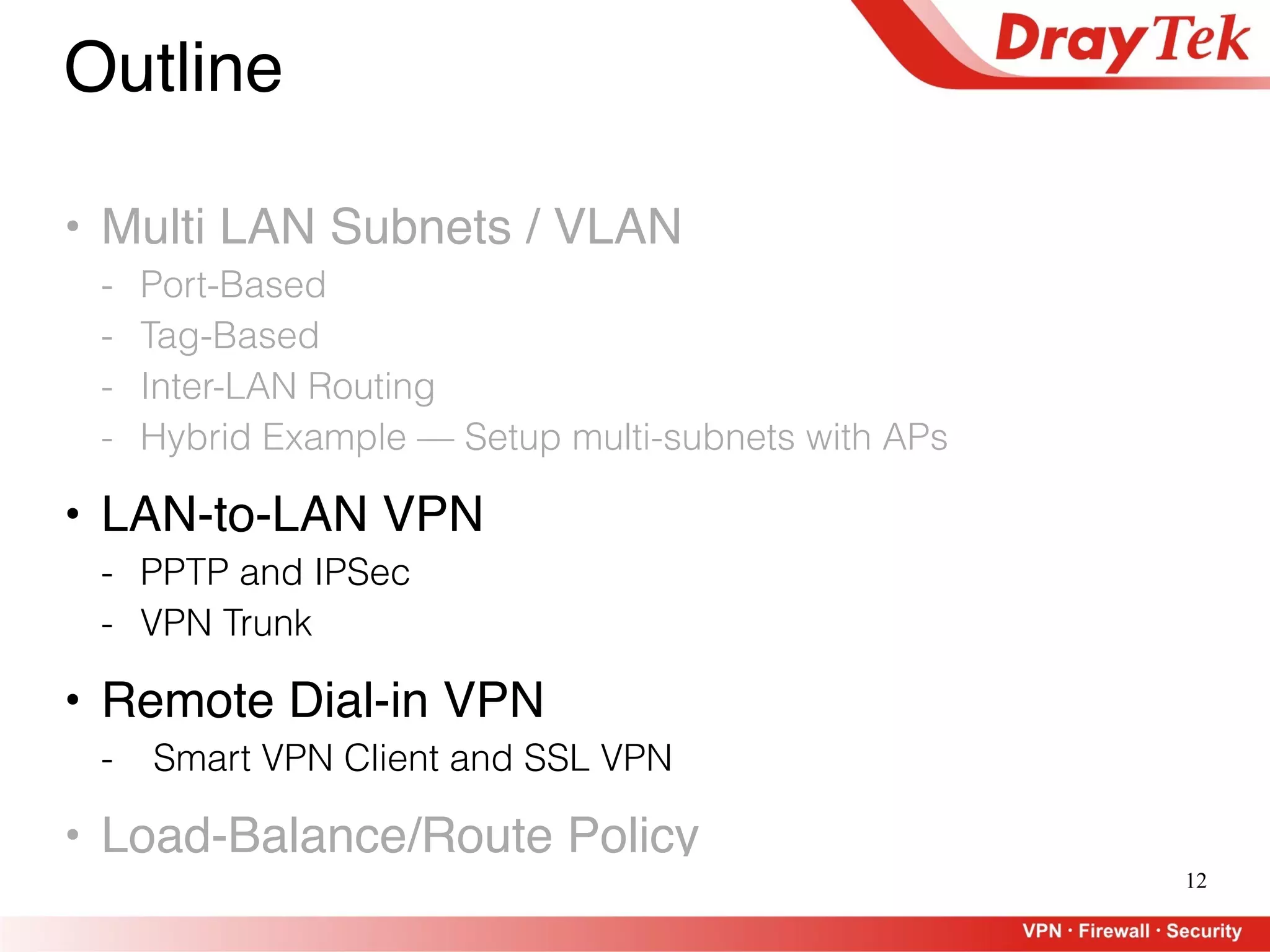

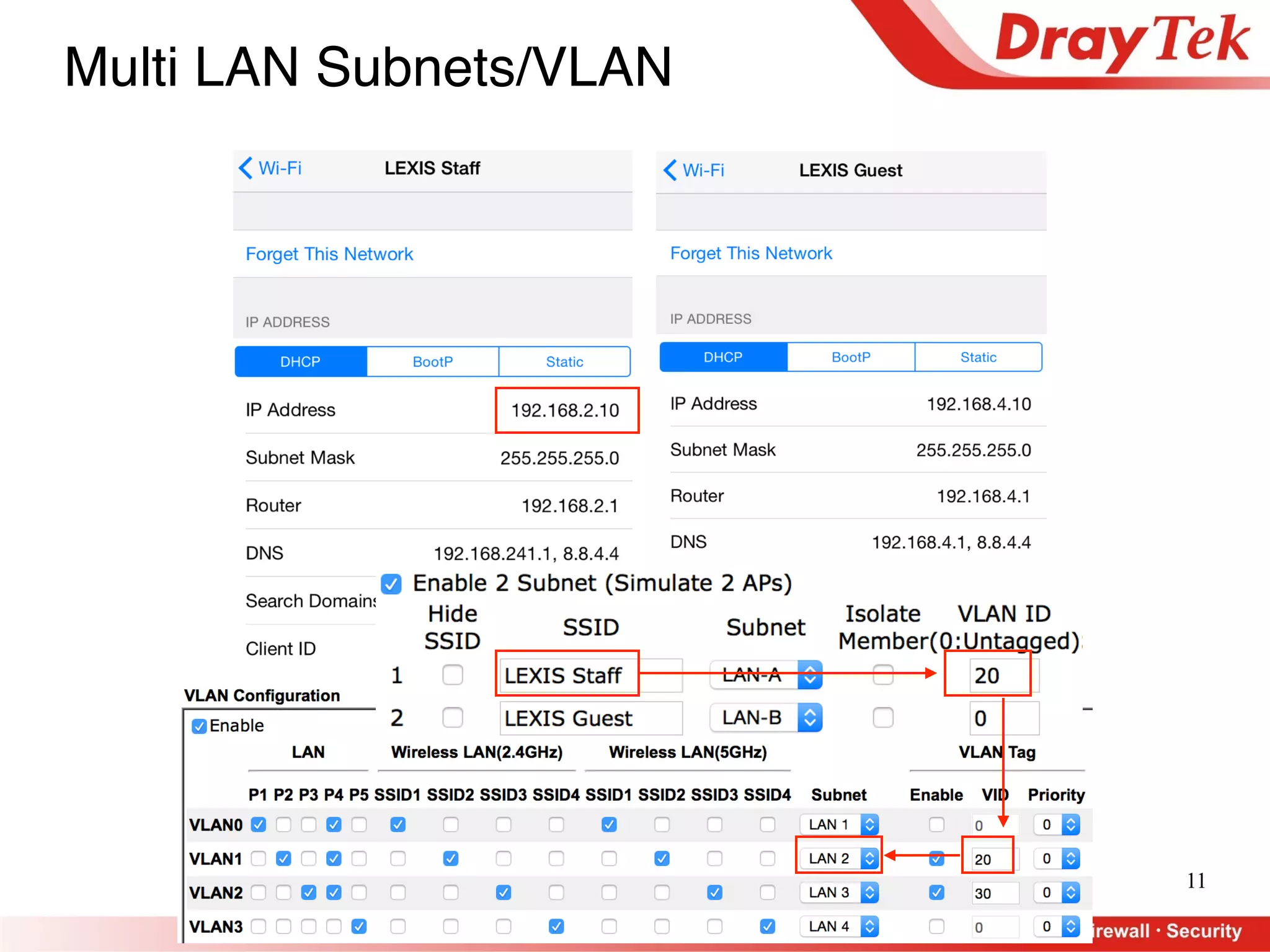

- 12. 12 Outline • Multi LAN Subnets / VLAN - Port-Based - Tag-Based - Inter-LAN Routing - Hybrid Example — Setup multi-subnets with APs • LAN-to-LAN VPN - PPTP and IPSec - VPN Trunk • Remote Dial-in VPN - Smart VPN Client and SSL VPN • Load-Balance/Route Policy
- 13. 13 Supported VPN Protocol • PPTP (TCP 1723) • L2TP (UDP 1701) • IPsec (UDP 500) • L2TP over IPsec • SSL VPN (TCP 443) • mOTP

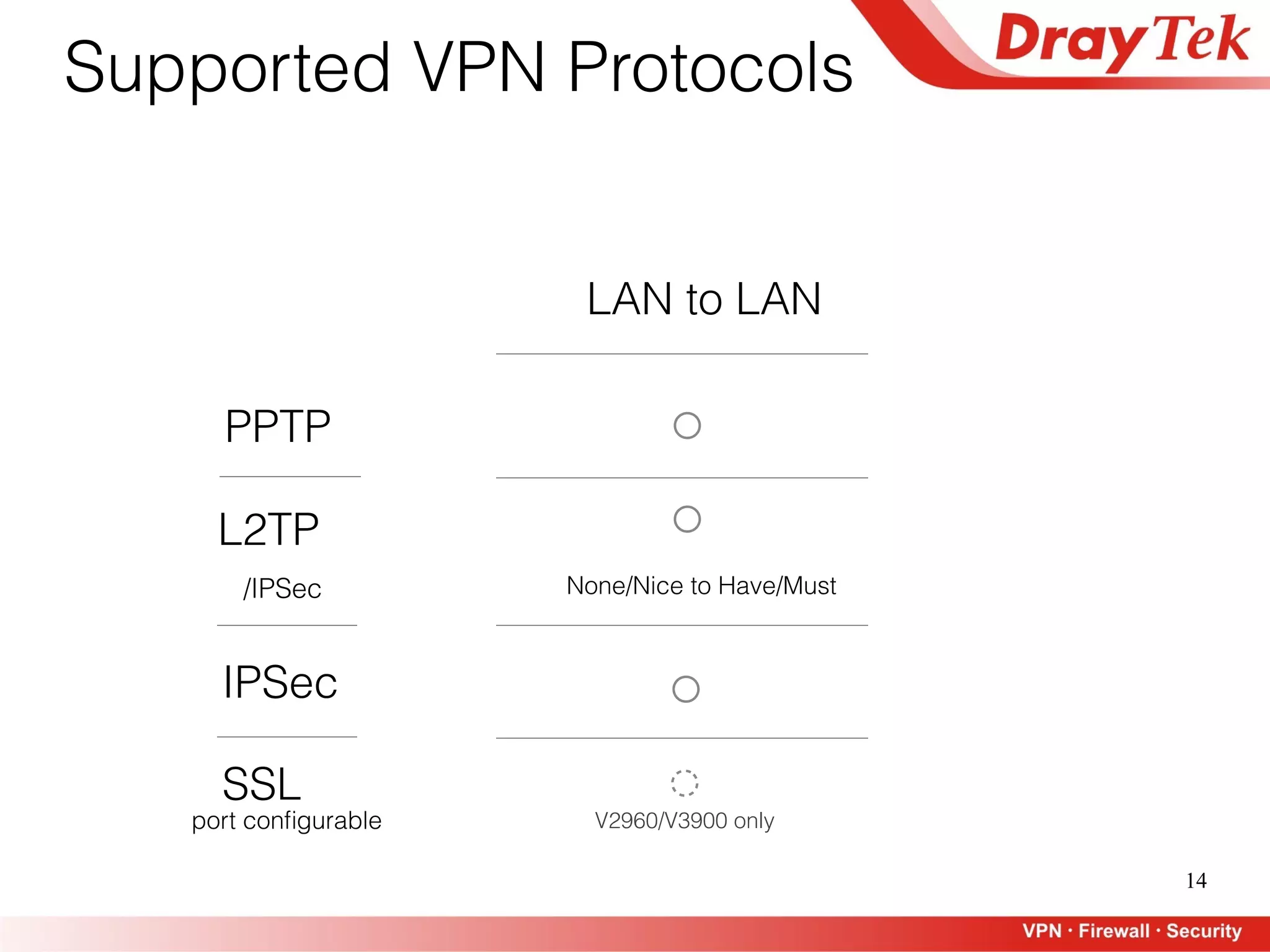

- 14. 14 Supported VPN Protocols None/Nice to Have/Must LAN to LAN PPTP L2TP /IPSec IPSec SSL port configurable V2960/V3900 only

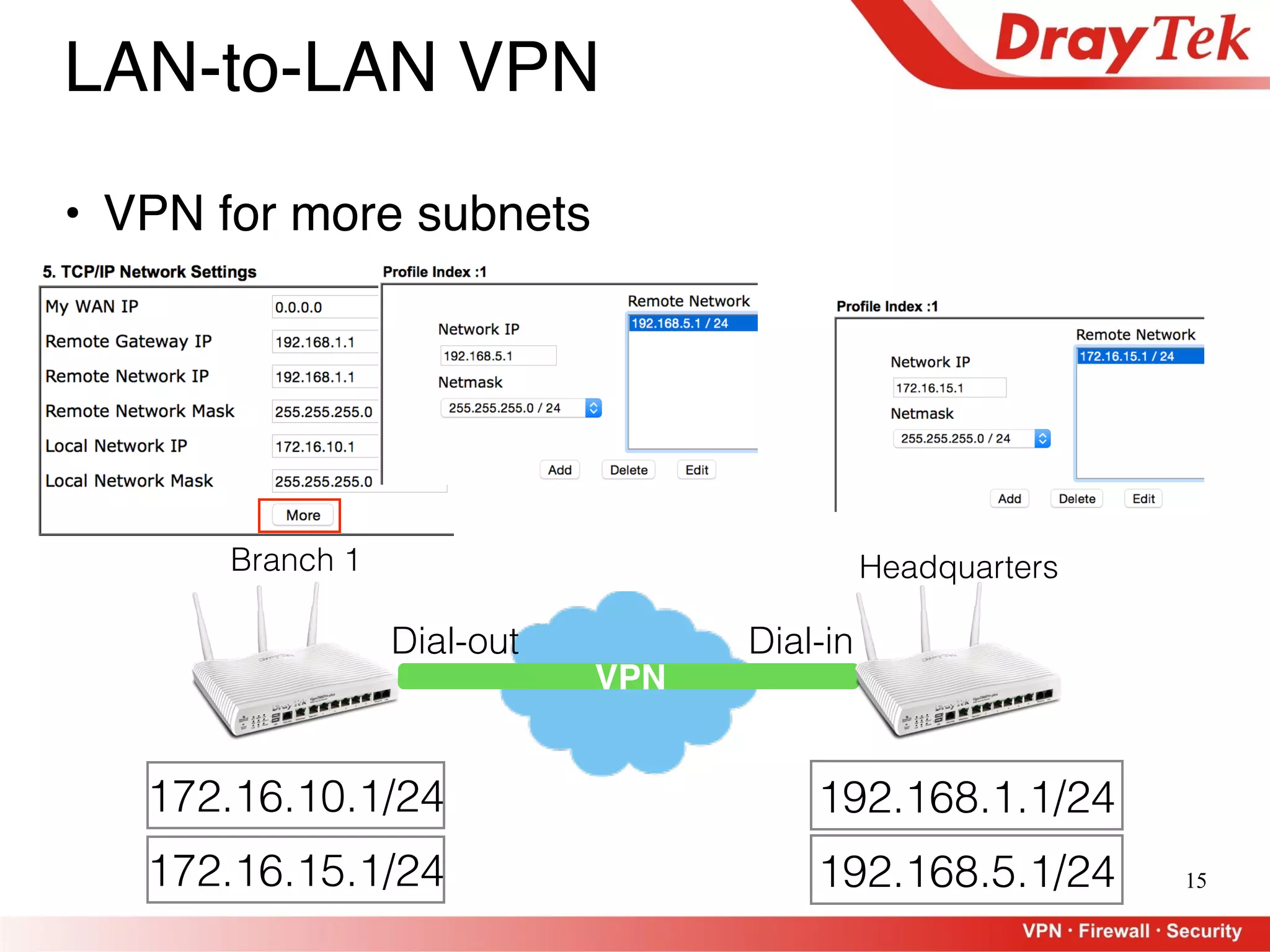

- 15. 15 LAN-to-LAN VPN • VPN for more subnets VPN 172.16.10.1/24 192.168.1.1/24 Headquarters Dial-in Branch 1 Dial-out 172.16.15.1/24 192.168.5.1/24

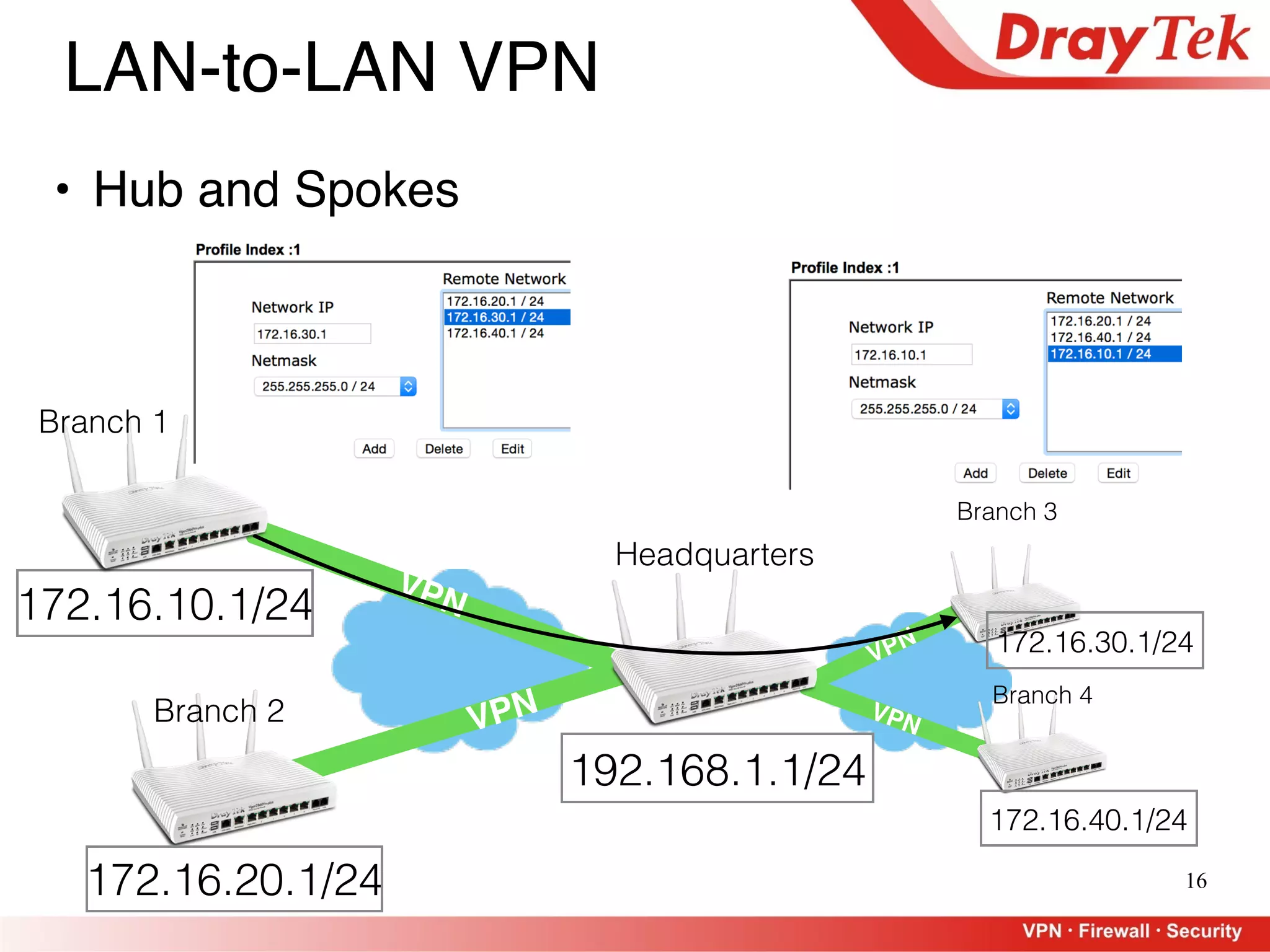

- 16. VPN 16 LAN-to-LAN VPN • Hub and Spokes VPN172.16.10.1/24 192.168.1.1/24 172.16.20.1/24 Branch 2 VPN 172.16.30.1/24 VPN 172.16.40.1/24 Branch 3 Branch 4 Headquarters Branch 1

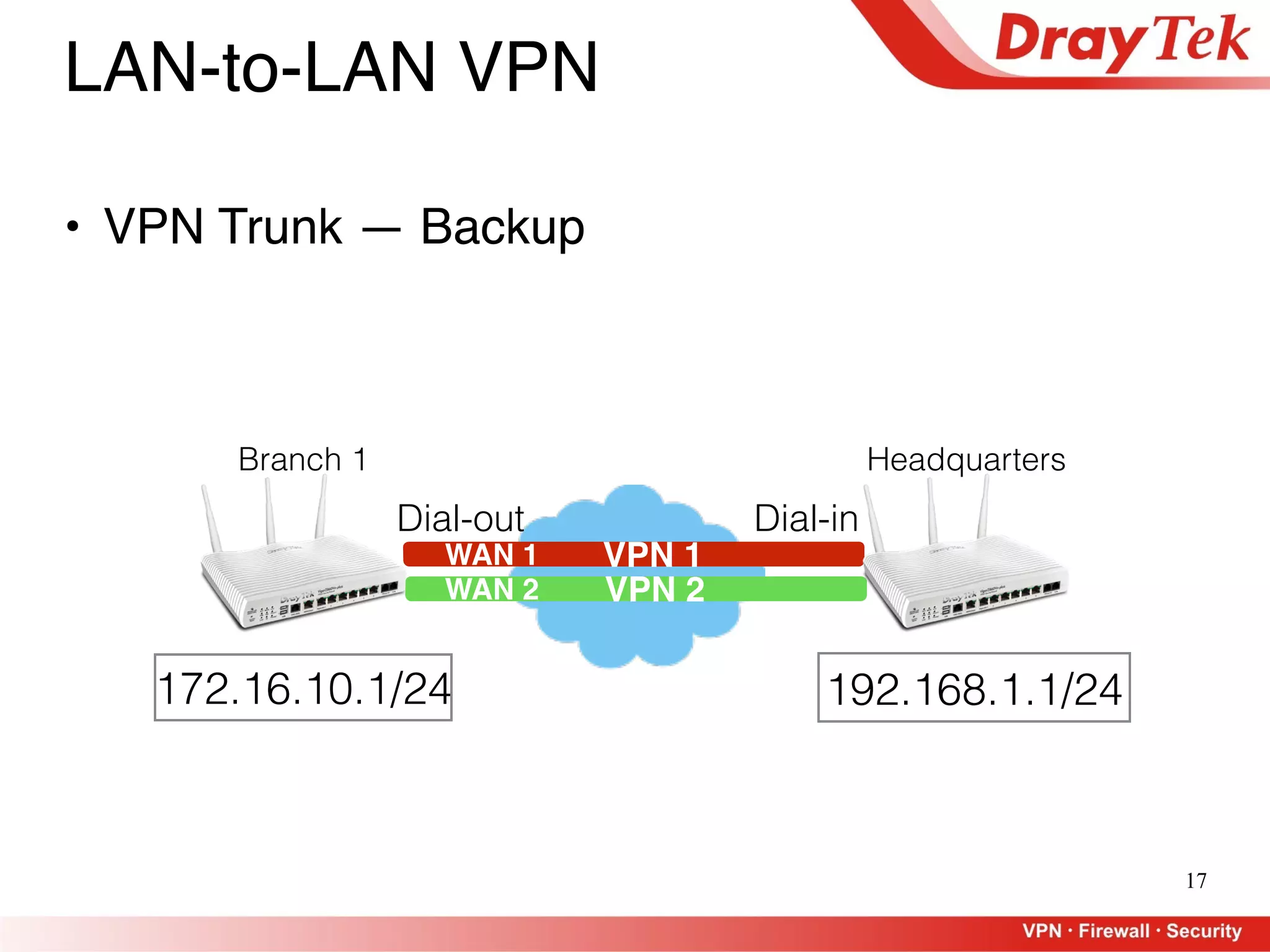

- 17. 17 LAN-to-LAN VPN • VPN Trunk — Backup VPN 1 172.16.10.1/24 192.168.1.1/24 Dial-in Branch 1 Dial-out VPN 2 WAN 1 WAN 2 Headquarters

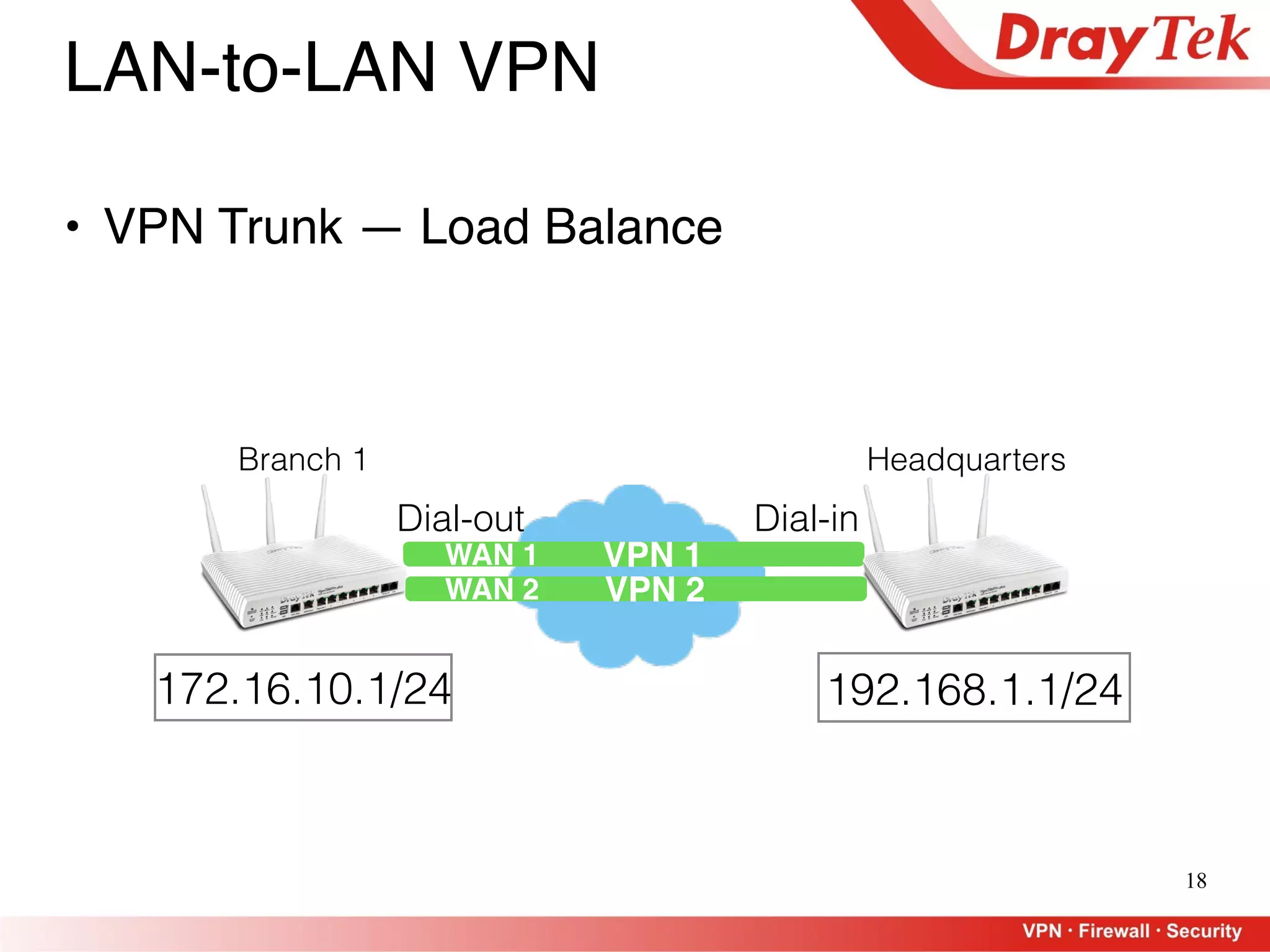

- 18. 18 LAN-to-LAN VPN • VPN Trunk — Load Balance VPN 1 172.16.10.1/24 192.168.1.1/24 Dial-in Branch 1 Dial-out VPN 2 WAN 1 WAN 2 Headquarters

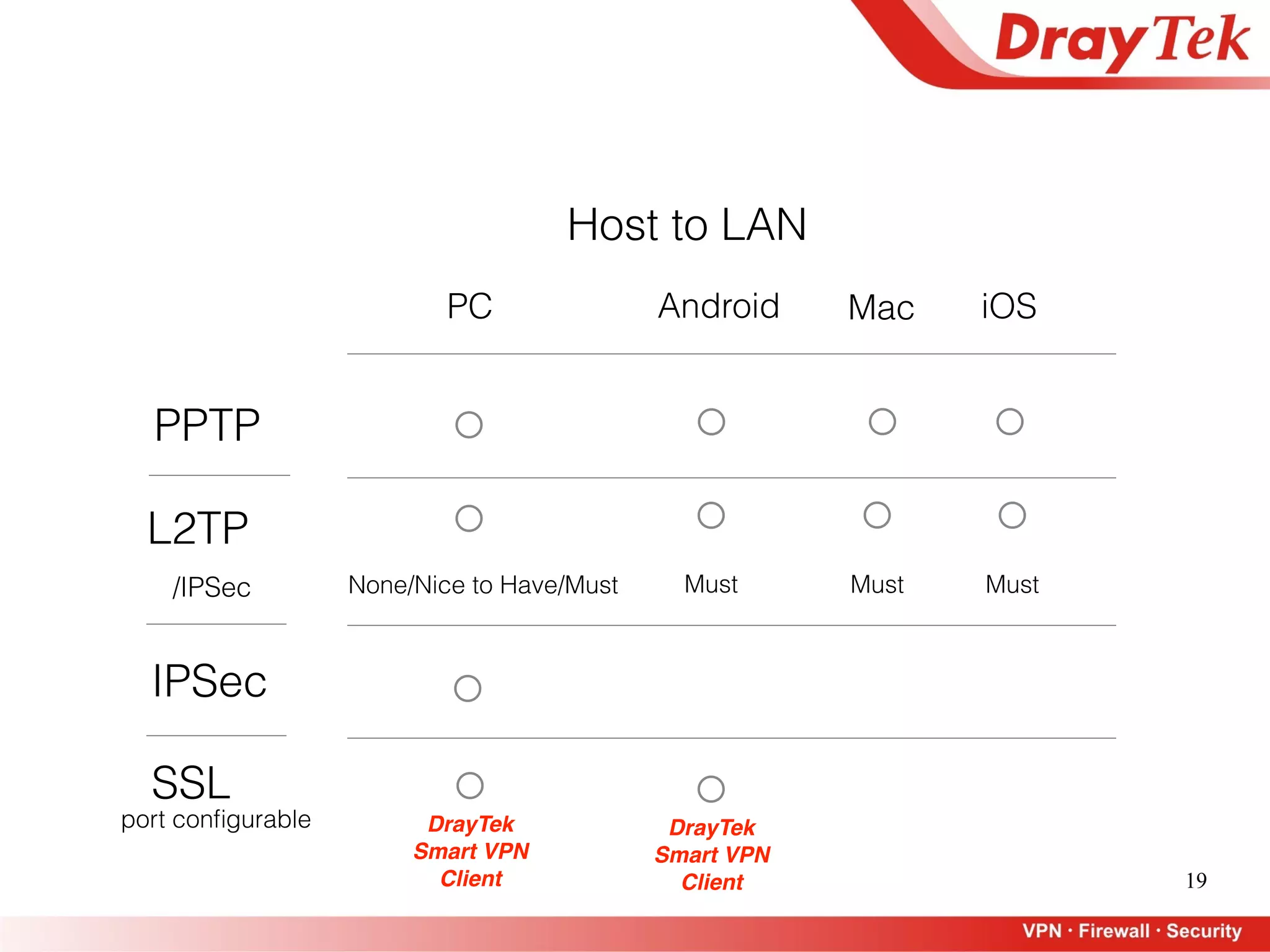

- 19. 19 None/Nice to Have/Must Host to LAN PPTP L2TP /IPSec IPSec SSL port configurable PC Android Mac iOS Must DrayTek Smart VPN Client DrayTek Smart VPN Client Must Must

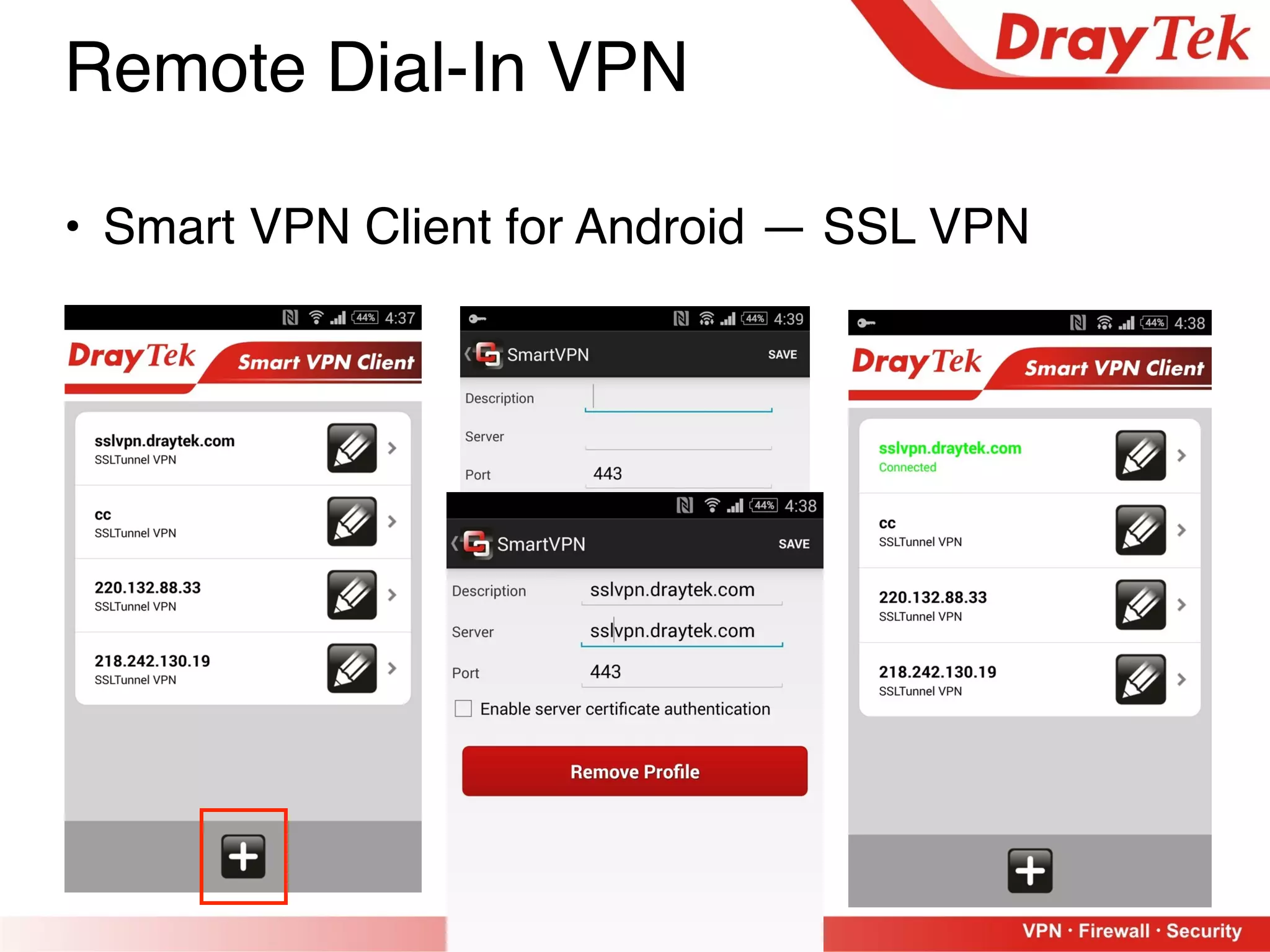

- 20. 20 Remote Dial-In VPN • Smart VPN Client for Android — SSL VPN

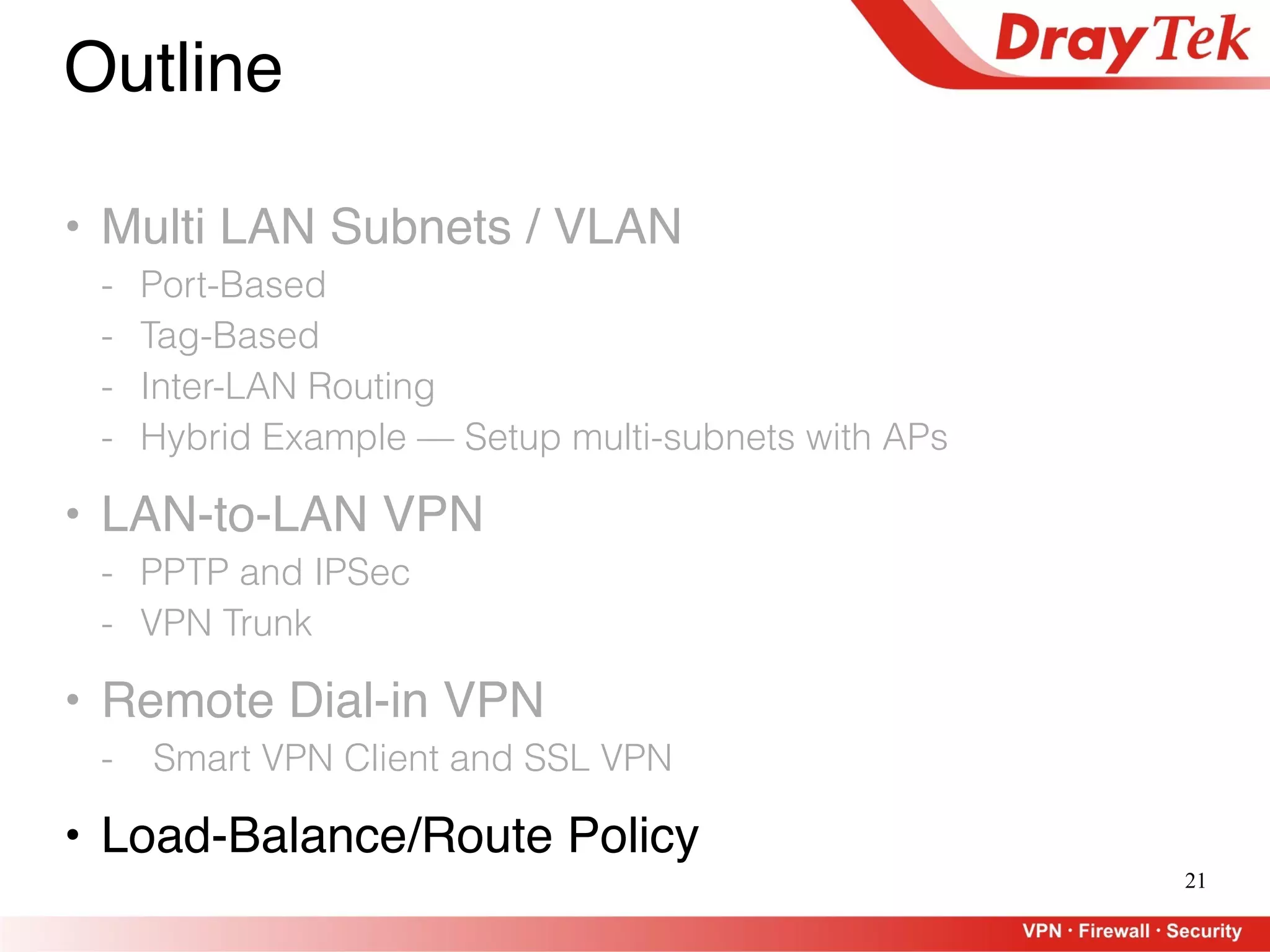

- 21. 21 Outline • Multi LAN Subnets / VLAN - Port-Based - Tag-Based - Inter-LAN Routing - Hybrid Example — Setup multi-subnets with APs • LAN-to-LAN VPN - PPTP and IPSec - VPN Trunk • Remote Dial-in VPN - Smart VPN Client and SSL VPN • Load-Balance/Route Policy

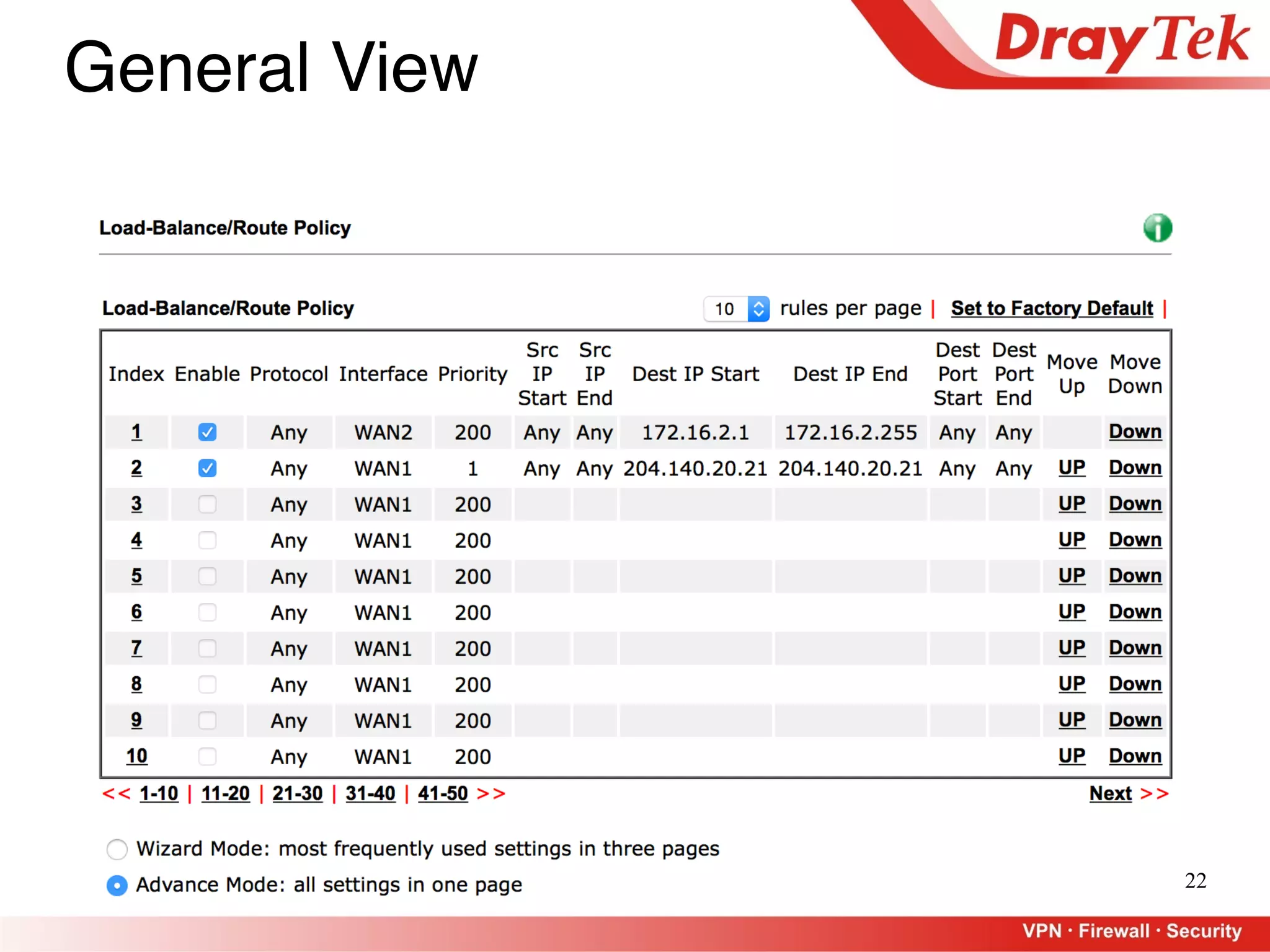

- 22. 22 General View

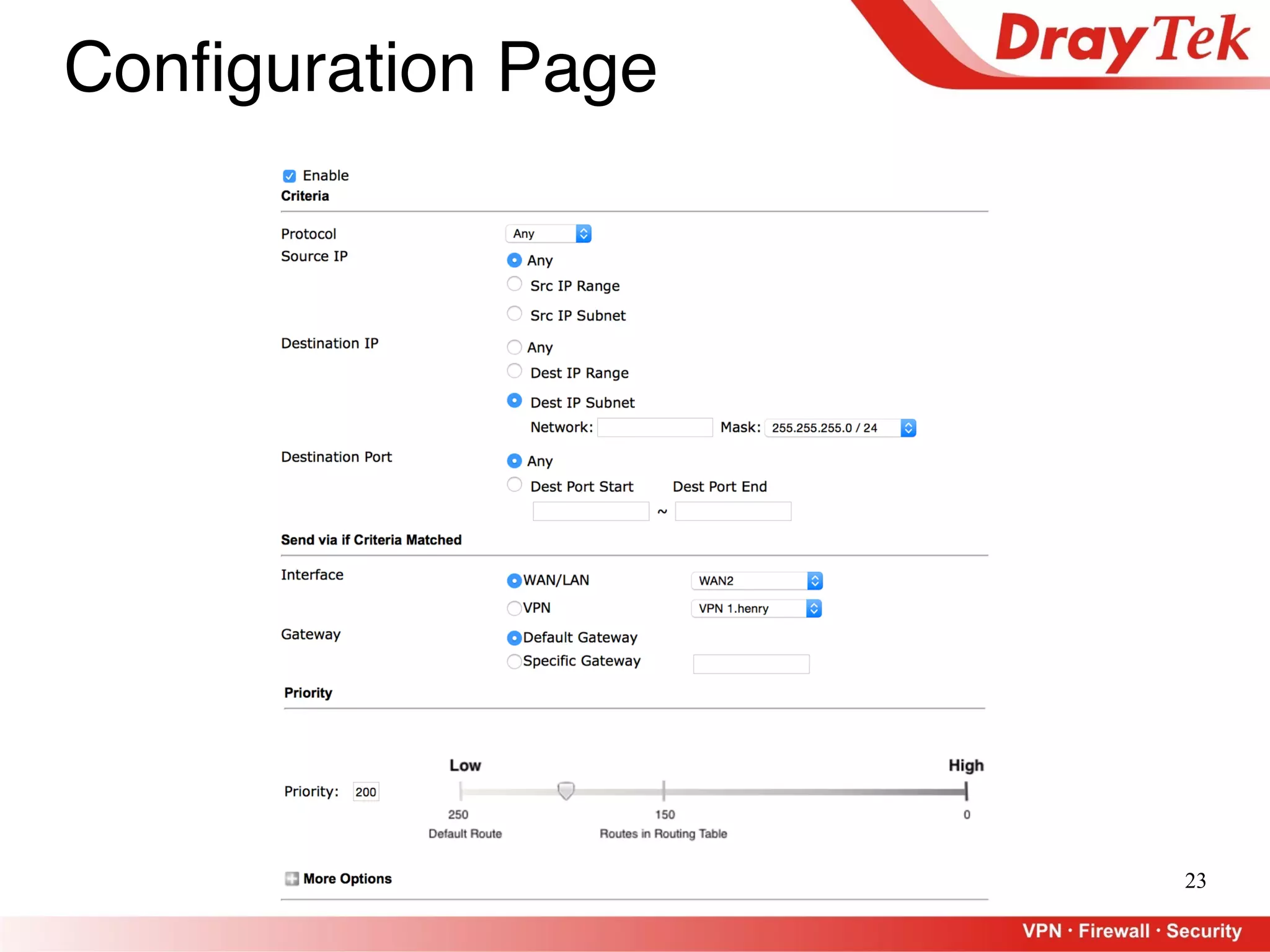

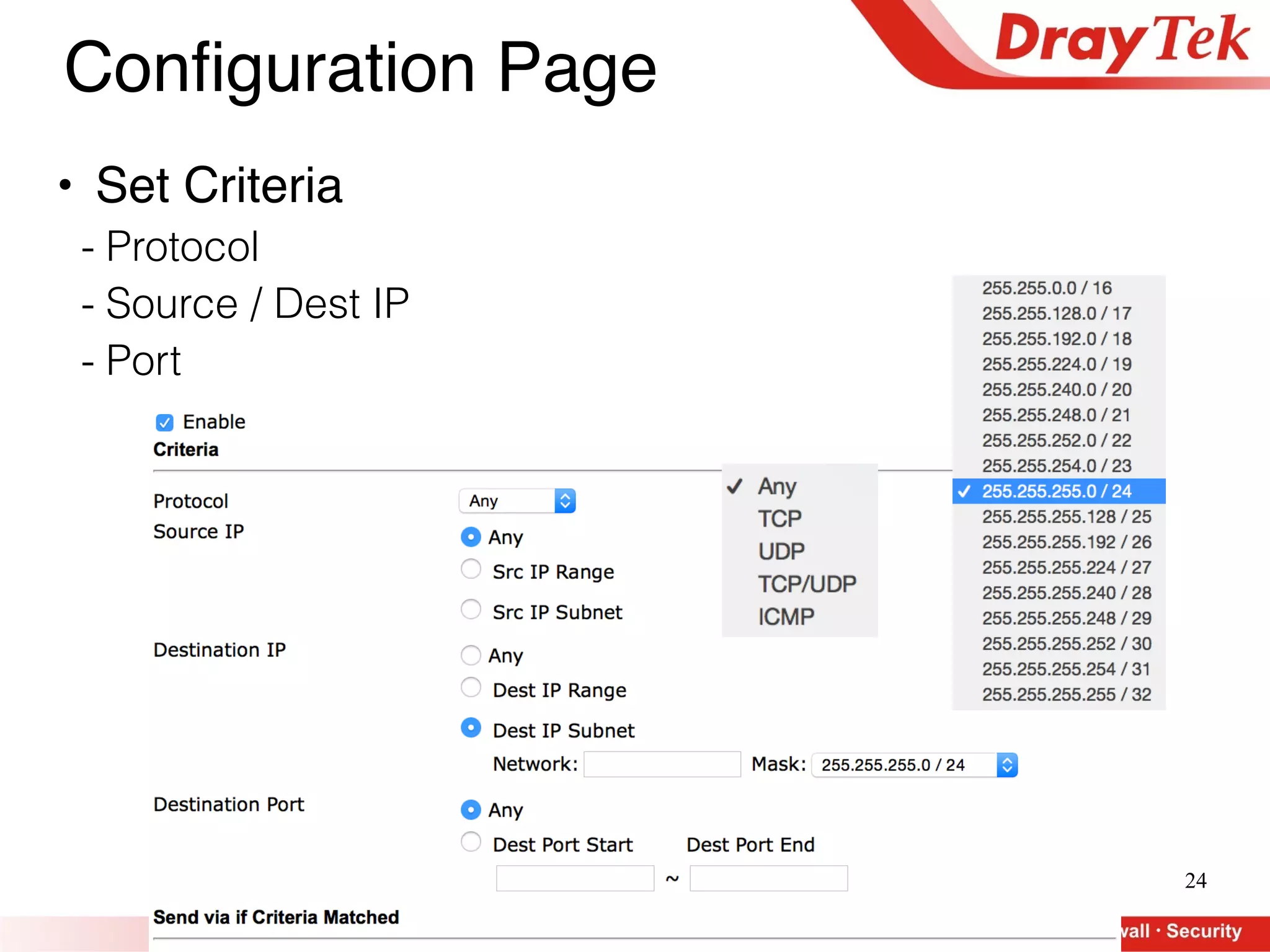

- 24. 24 Configuration Page • Set Criteria - Protocol - Source / Dest IP - Port

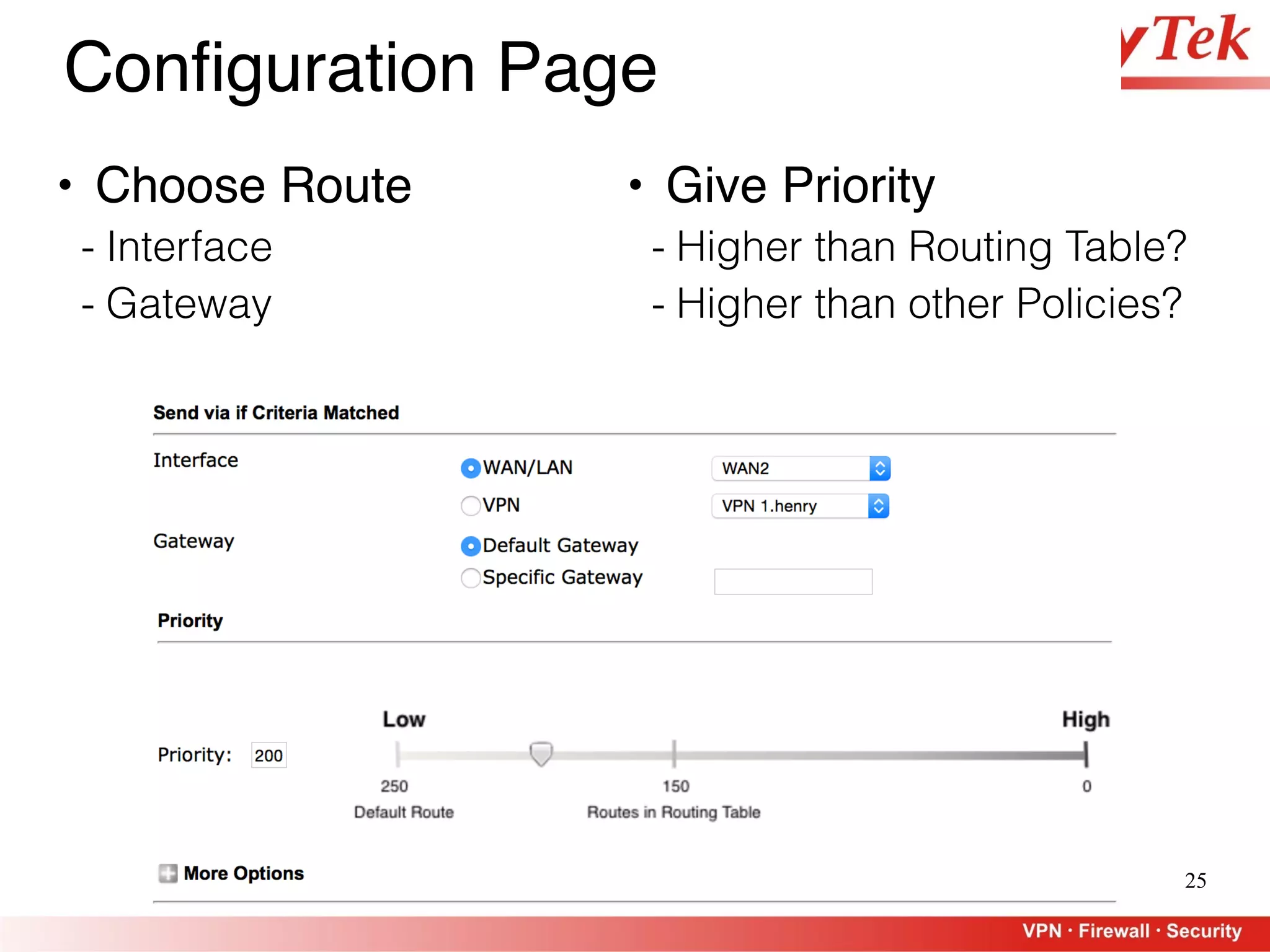

- 25. 25 Configuration Page • Choose Route - Interface - Gateway • Give Priority - Higher than Routing Table? - Higher than other Policies?

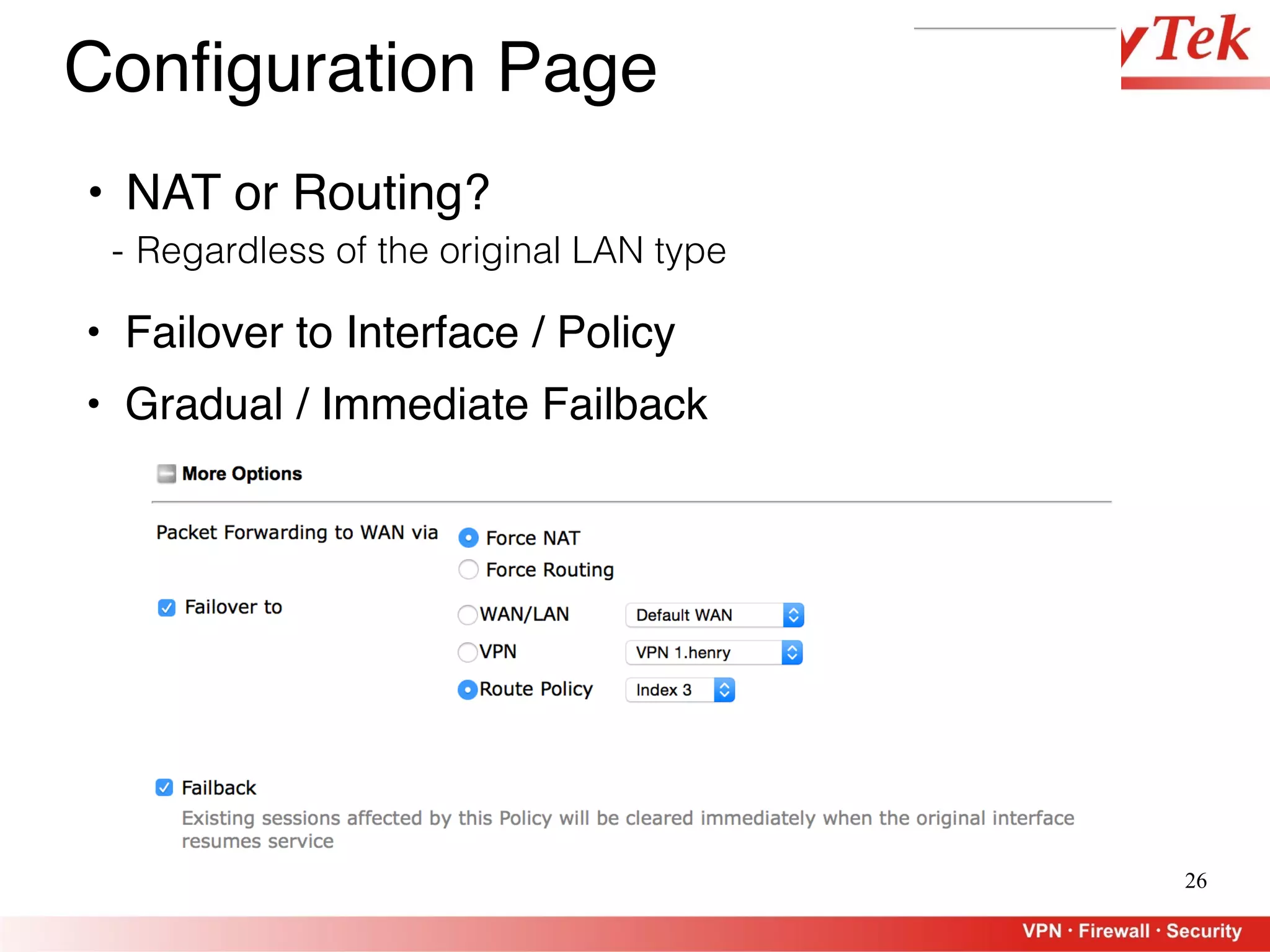

- 26. 26 Configuration Page • NAT or Routing? - Regardless of the original LAN type • Failover to Interface / Policy • Gradual / Immediate Failback

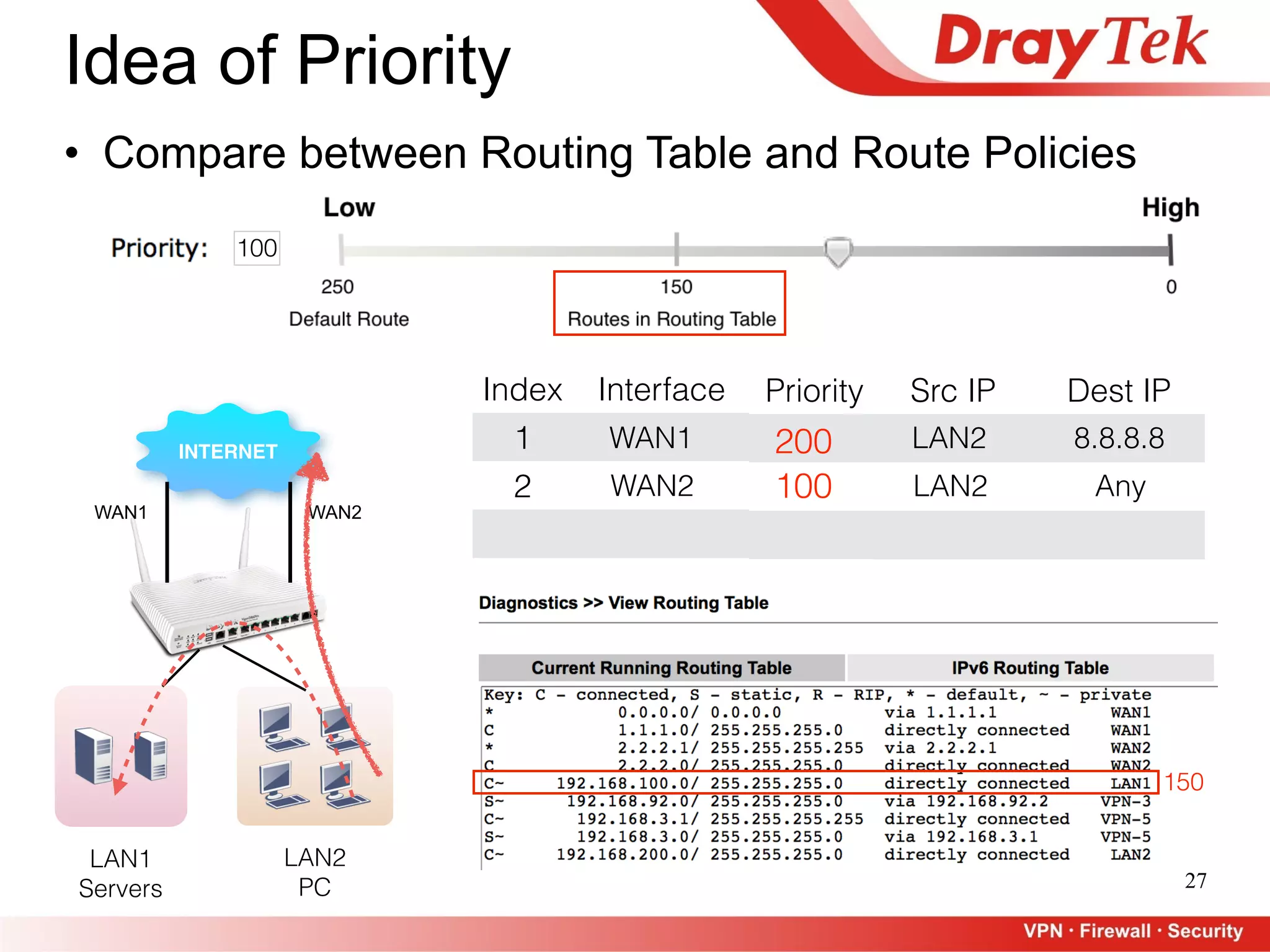

- 27. 27 Idea of Priority • Compare between Routing Table and Route Policies 100 Index Interface 1 2 Src IP Dest IP WAN2 LAN2 Any WAN1 LAN2 8.8.8.8 Priority 100 INTERNET WAN1 WAN2 LAN1 Servers LAN2 PC 150 200

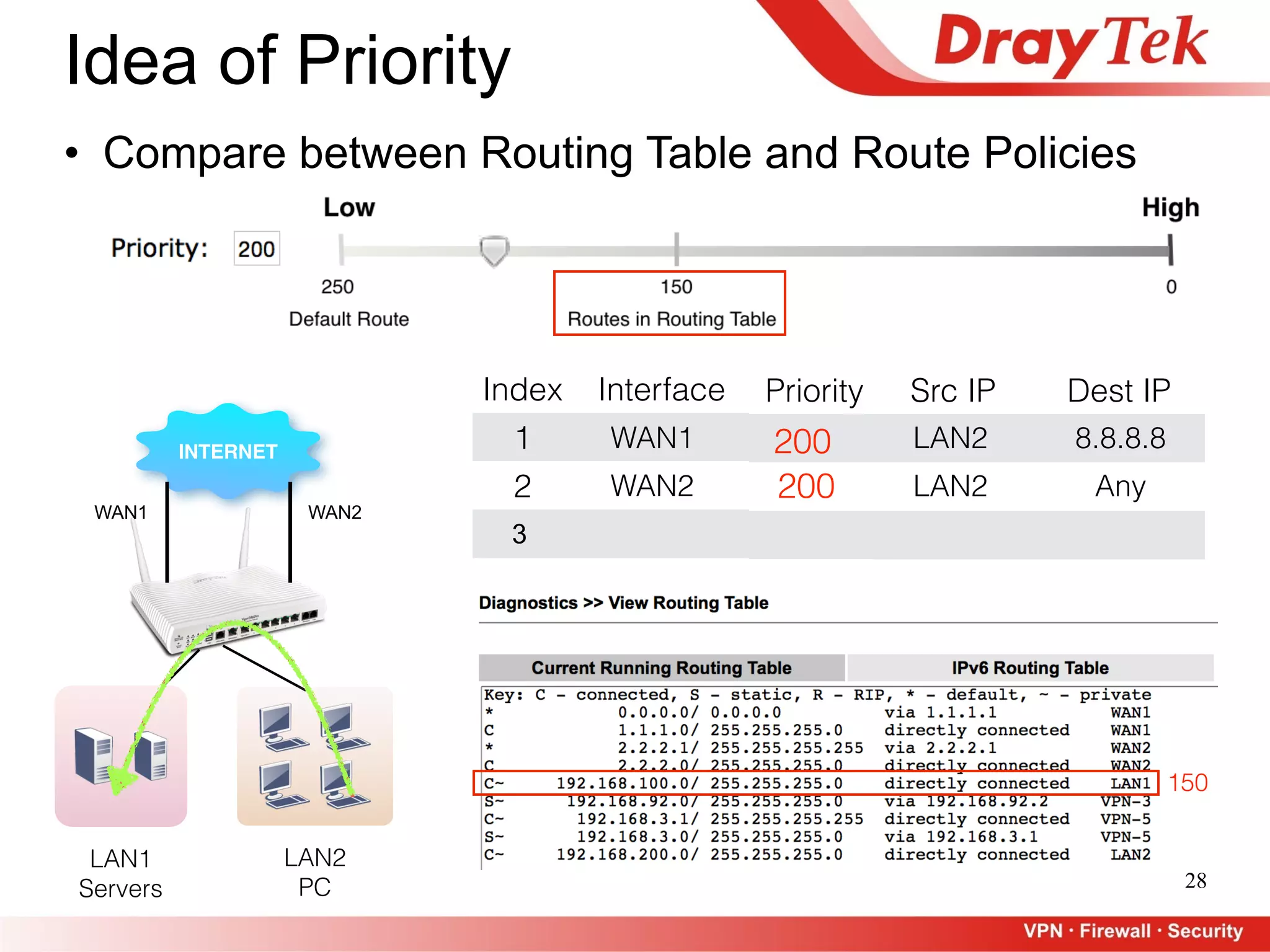

- 28. INTERNET WAN1 WAN2 LAN1 Servers LAN2 PC 28 Idea of Priority • Compare between Routing Table and Route Policies Index Interface 1 2 Src IP Dest IP 3 WAN2 LAN2 Any WAN1 LAN2 8.8.8.8 Priority 200 150 200

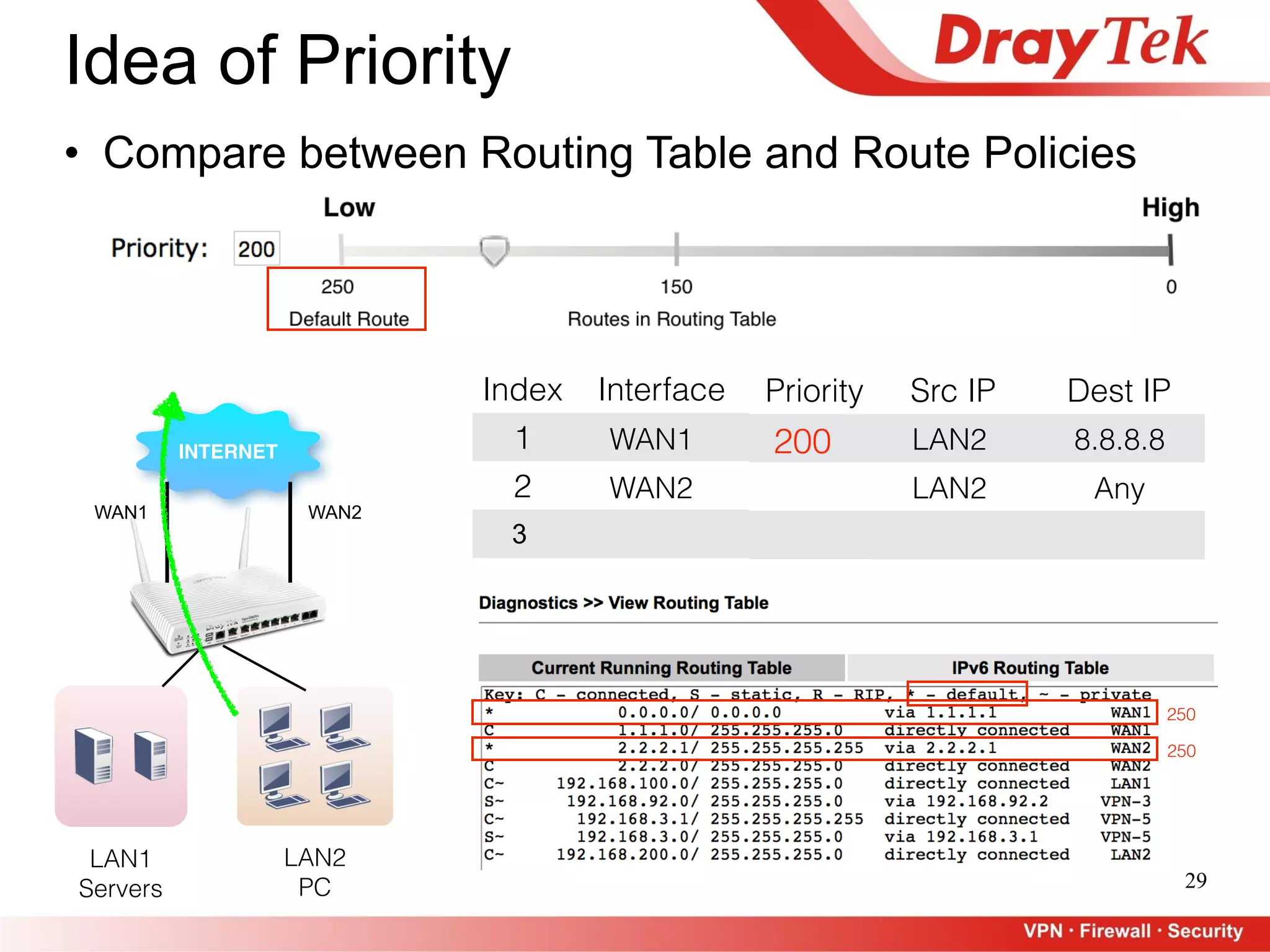

- 29. INTERNET WAN1 WAN2 LAN1 Servers LAN2 PC 29 Idea of Priority • Compare between Routing Table and Route Policies Index Interface 1 2 Src IP Dest IP 3 WAN1 LAN2 8.8.8.8 WAN2 LAN2 Any Priority 200 250 250

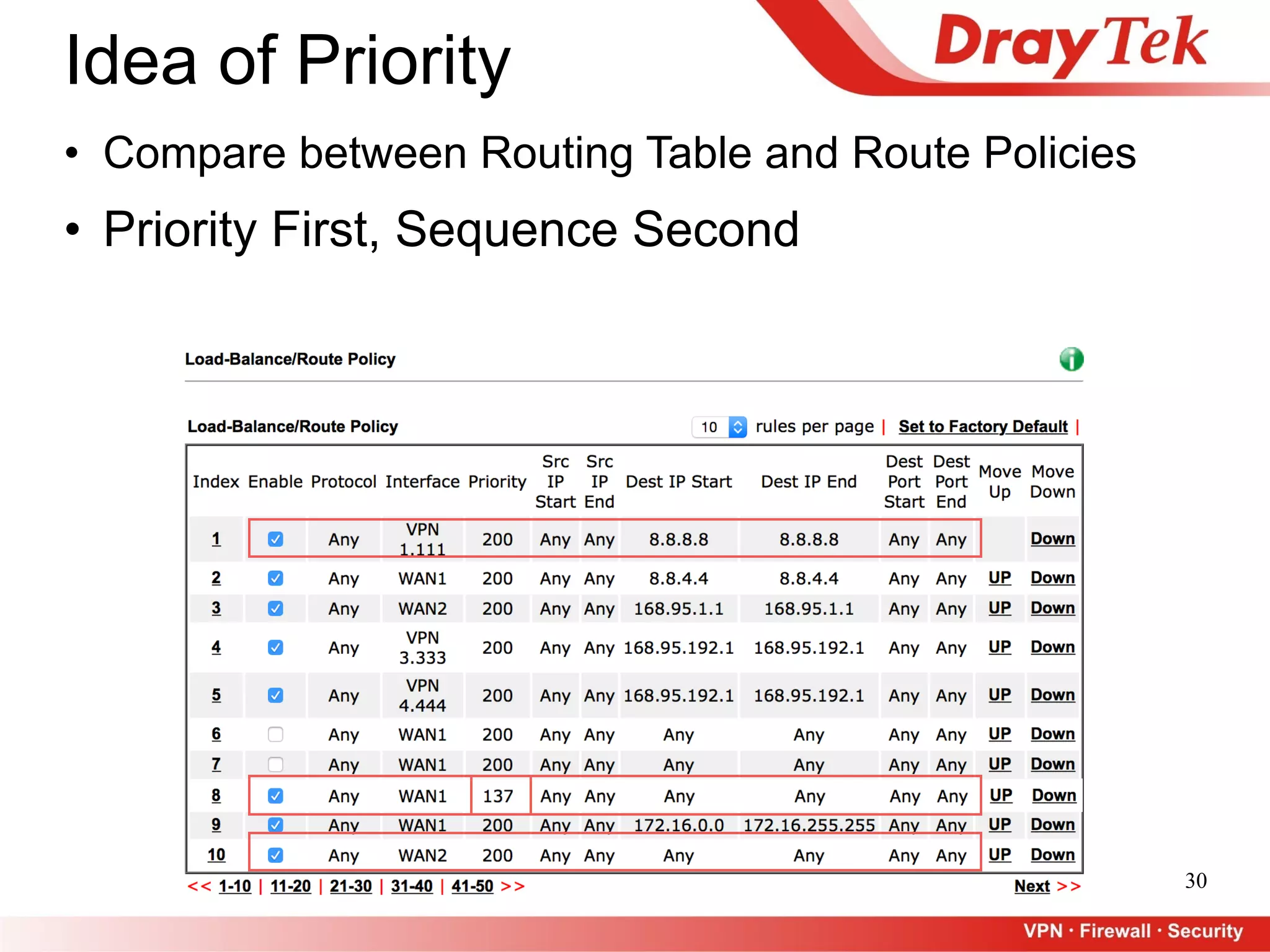

- 30. • Priority First, Sequence Second 30 Idea of Priority • Compare between Routing Table and Route Policies

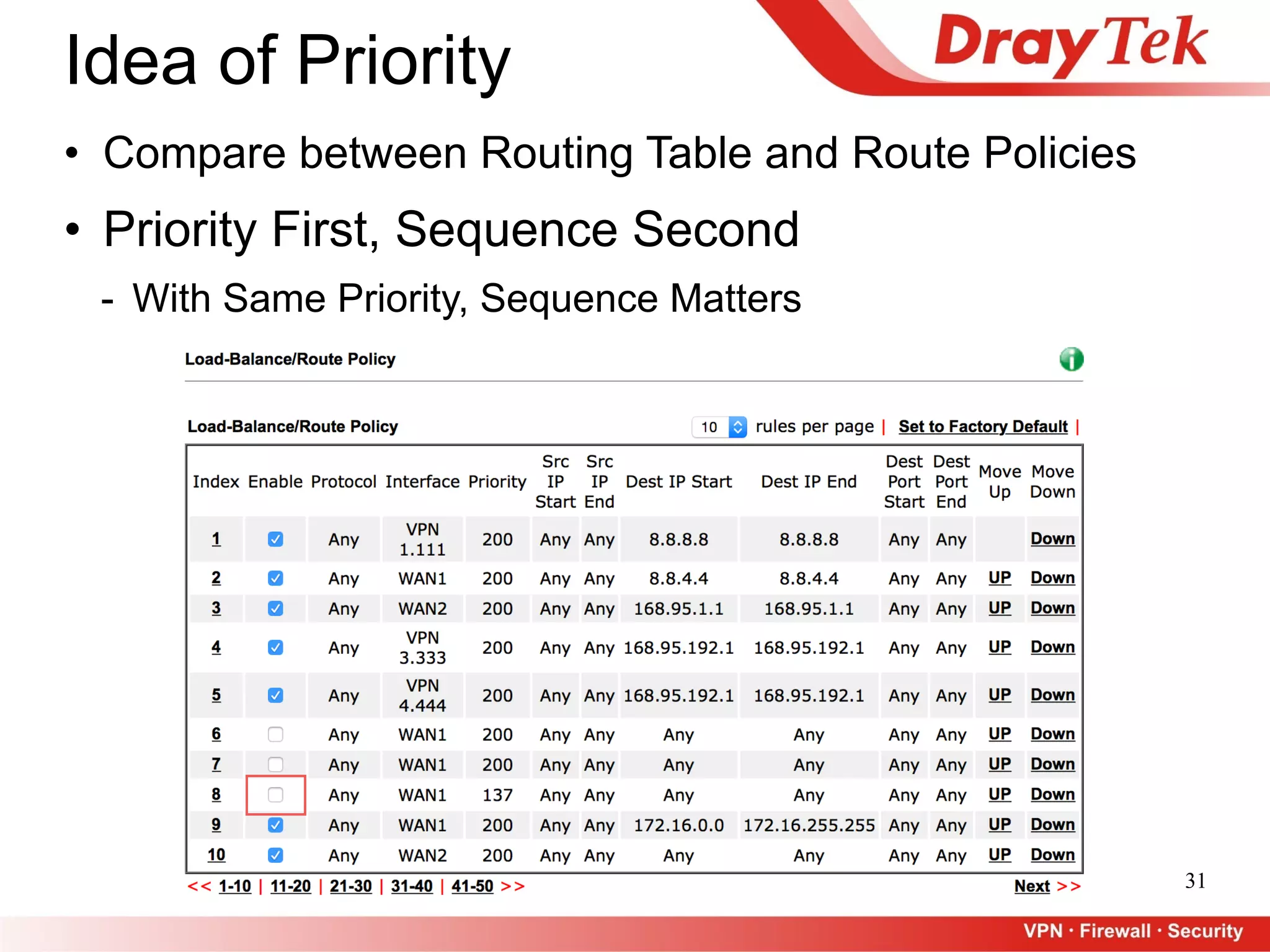

- 31. • Priority First, Sequence Second - With Same Priority, Sequence Matters 31 Idea of Priority • Compare between Routing Table and Route Policies

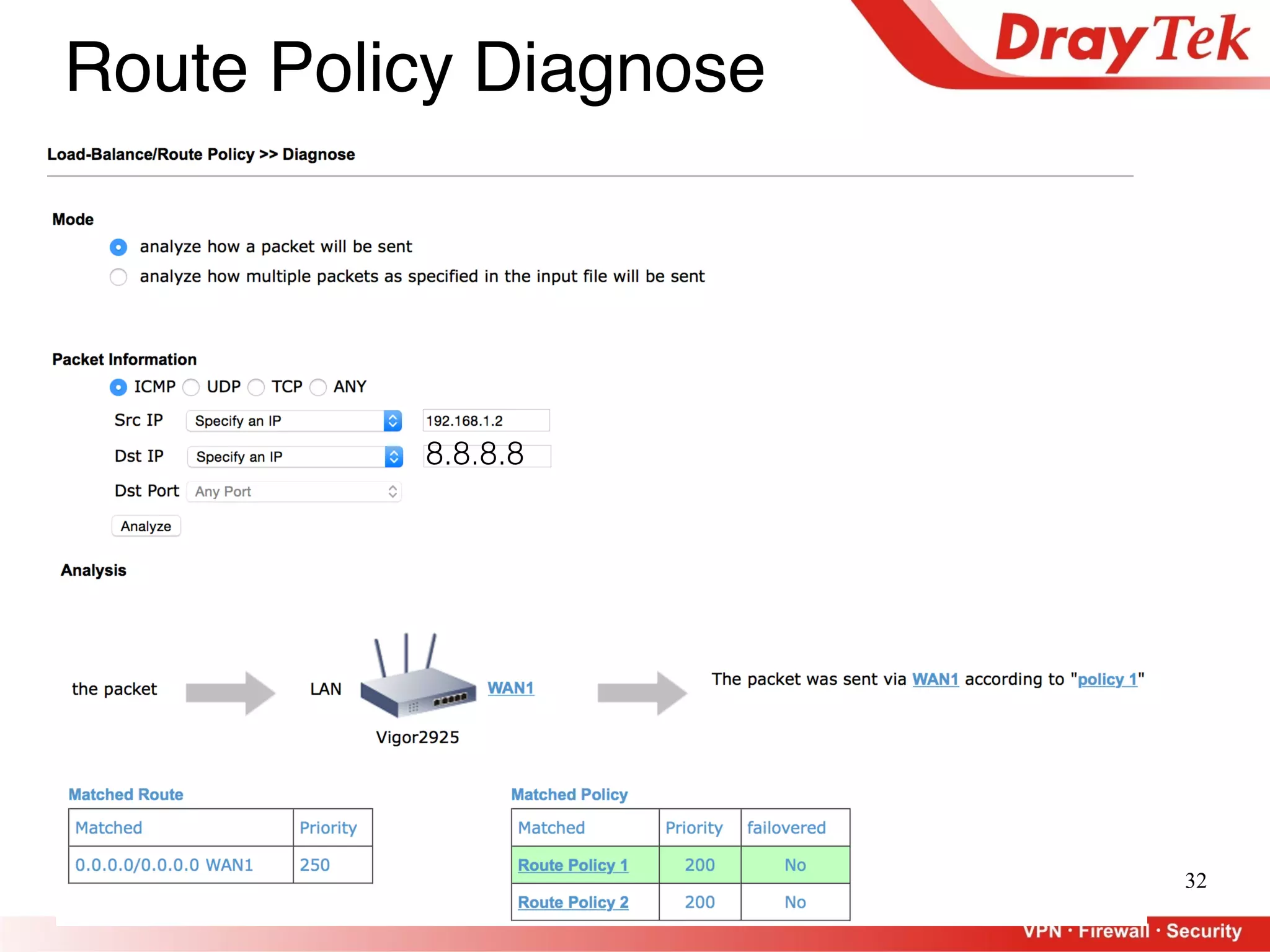

- 33. 33 • Send SIP Traffic to the Less-Jitter WAN Load Balance

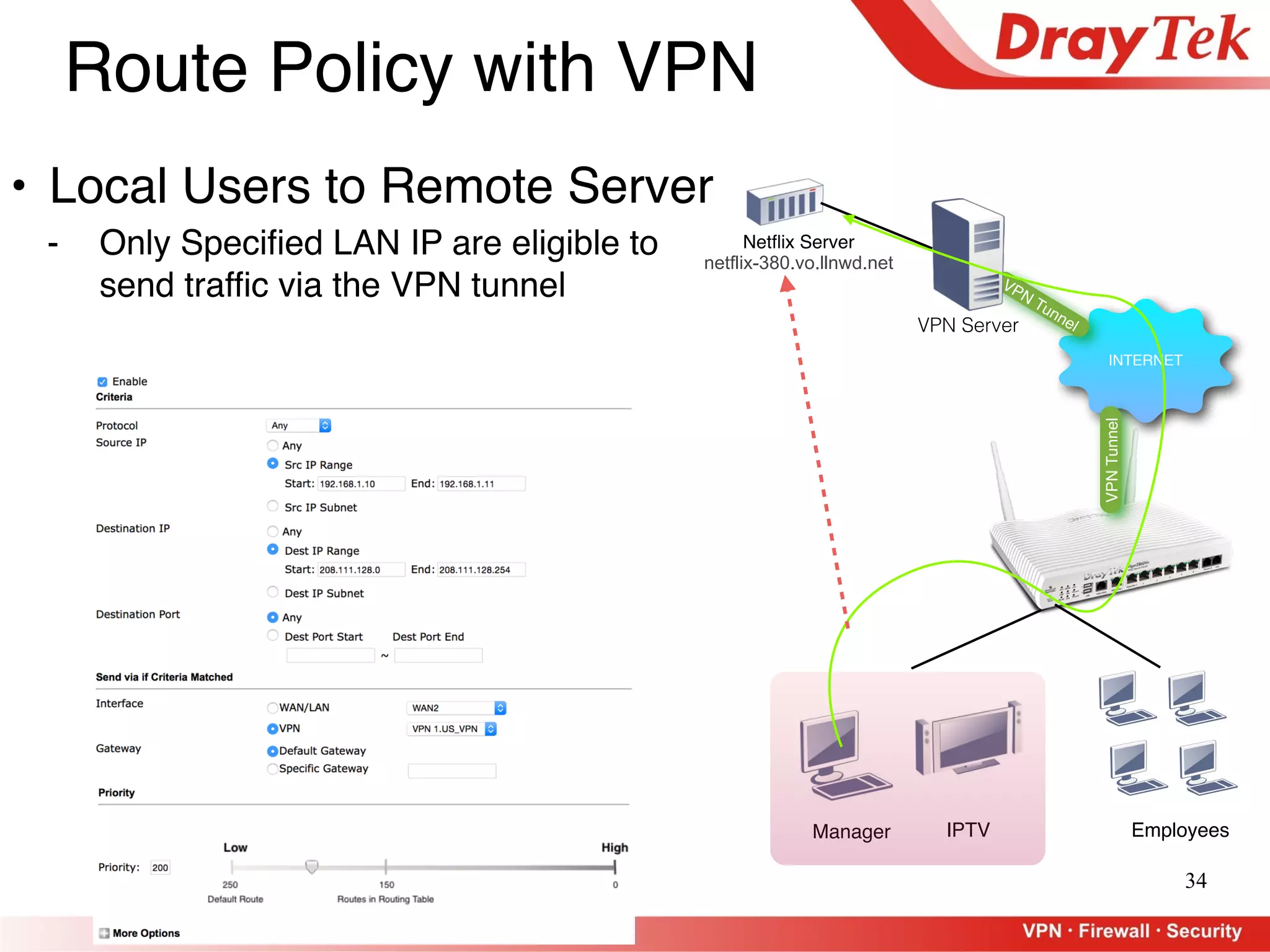

- 34. 34 Route Policy with VPN • Local Users to Remote Server - Only Specified LAN IP are eligible to send traffic via the VPN tunnel Manager IPTV INTERNET VPNTunnel VPN TunnelVPN Server Netflix Server netflix-380.vo.llnwd.net Employees
- 35. 35 Q&A
