Permutation Matrices

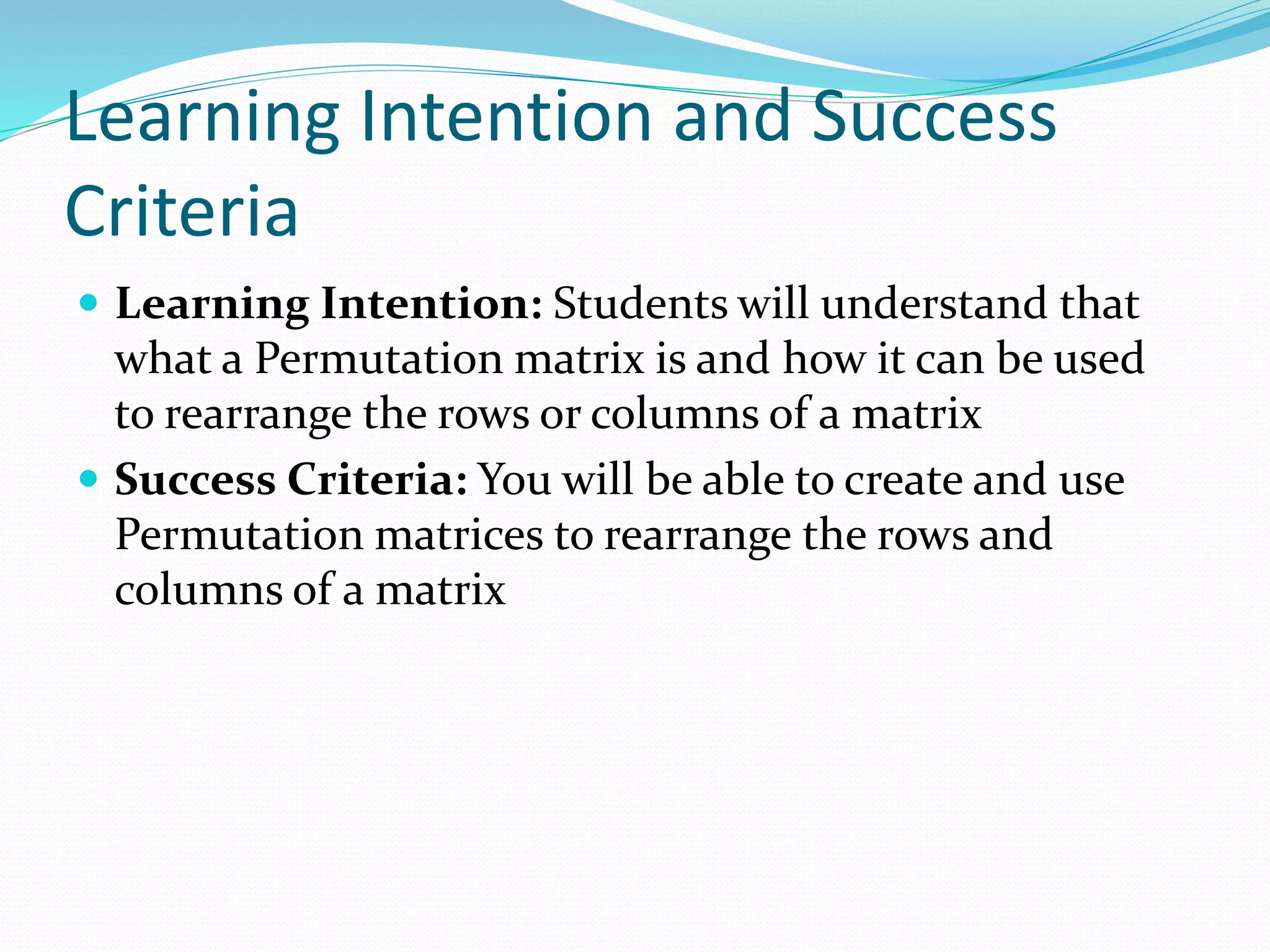

2. Learning Intention and Success
Criteria
 Learning Intention: Students will understand that
what a Permutation matrix is and how it can be used
to rearrange the rows or columns of a matrix
 Success Criteria: You will be able to create and use
Permutation matrices to rearrange the rows and
columns of a matrix

3. Definition of a Permutation Matrix
 Permutation Matrix: A matrix, P, such that P is a
square matrix made up of only ones and zeros and
each row and column have exactly one one.
Ex:
𝑃 =
0 0 1
1 0 0
0 1 0
or 𝑃 =
0 1
1 0

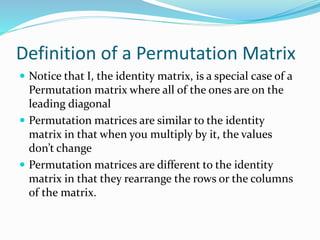

4. Definition of a Permutation Matrix
 Notice that I, the identity matrix, is a special case of a
Permutation matrix where all of the ones are on the
leading diagonal
 Permutation matrices are similar to the identity
matrix in that when you multiply by it, the values
don’t change
 Permutation matrices are different to the identity
matrix in that they rearrange the rows or the columns
of the matrix.

5. How to use Permutation Matrices
For some matrix A and permutation matrix 𝑃,
 𝑃 × 𝐴 is a row permutation
 This will rearrange the rows of A
 Rows always go before columns, so if 𝑃 is before, it's a
row permutation
 𝐴 × 𝑃 is a column permutation
 This will rearrange the columns of A

6. How to use Permutation Matrices
For some matrix A and permutation matrix 𝑃
If 𝑃 is a row permutation matrix,
 Then, if 𝑝𝑖,𝑗 = 1, row 𝑗 is moved to row 𝑖
If 𝑃 is a column permutation matrix,
 Then, if 𝑝𝑖,𝑗 = 1, column 𝑖 is moved to column 𝑗

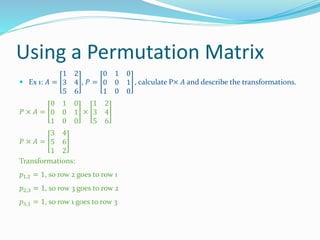

7. Using a Permutation Matrix
 Ex 1: 𝐴 =
1 2
3 4
5 6
, 𝑃 =
0 1 0
0 0 1
1 0 0
, calculate P× 𝐴 and describe the transformations.
𝑃 × 𝐴 =
0 1 0
0 0 1
1 0 0
×
1 2
3 4
5 6
𝑃 × 𝐴 =
3 4
5 6
1 2
Transformations:
𝑝1,2 = 1, so row 2 goes to row 1
𝑝2,3 = 1, so row 3 goes to row 2
𝑝3,1 = 1, so row 1 goes to row 3

8. Using a Permutation Matrix
 Ex 1: 𝐴 =
1 2 3
4 5 6
create a matrix product which results in the matrix
3 1 2
6 4 5
Columns have been rearranged, so we are looking for A × 𝑃
Since A is 2 × 3 , so since P is square P is a (3 × 3)
Column 1 goes to column 2, so 𝑝12 = 1
Column 2 goes to column 3, so 𝑝23 = 1
Column 3 goes to column 1, so 𝑝31 = 1
𝐴 × 𝑃 =
1 2 3
4 5 6
0 1 0
0 0 1
1 0 0
𝐴 × 𝑃 =
3 1 2
6 4 5
So P =
0 1 0
0 0 1
1 0 0
