Optometrist Shashikant Kumar provides information on different types of lenses including single vision, bifocal, progressive, and lenticular lenses. He describes the purpose and characteristics of each lens type. Additionally, he discusses lens materials like glass, plastic, hi-index plastic and coatings that can be applied to lenses. The document provides optometrists and customers with technical details on lens options.

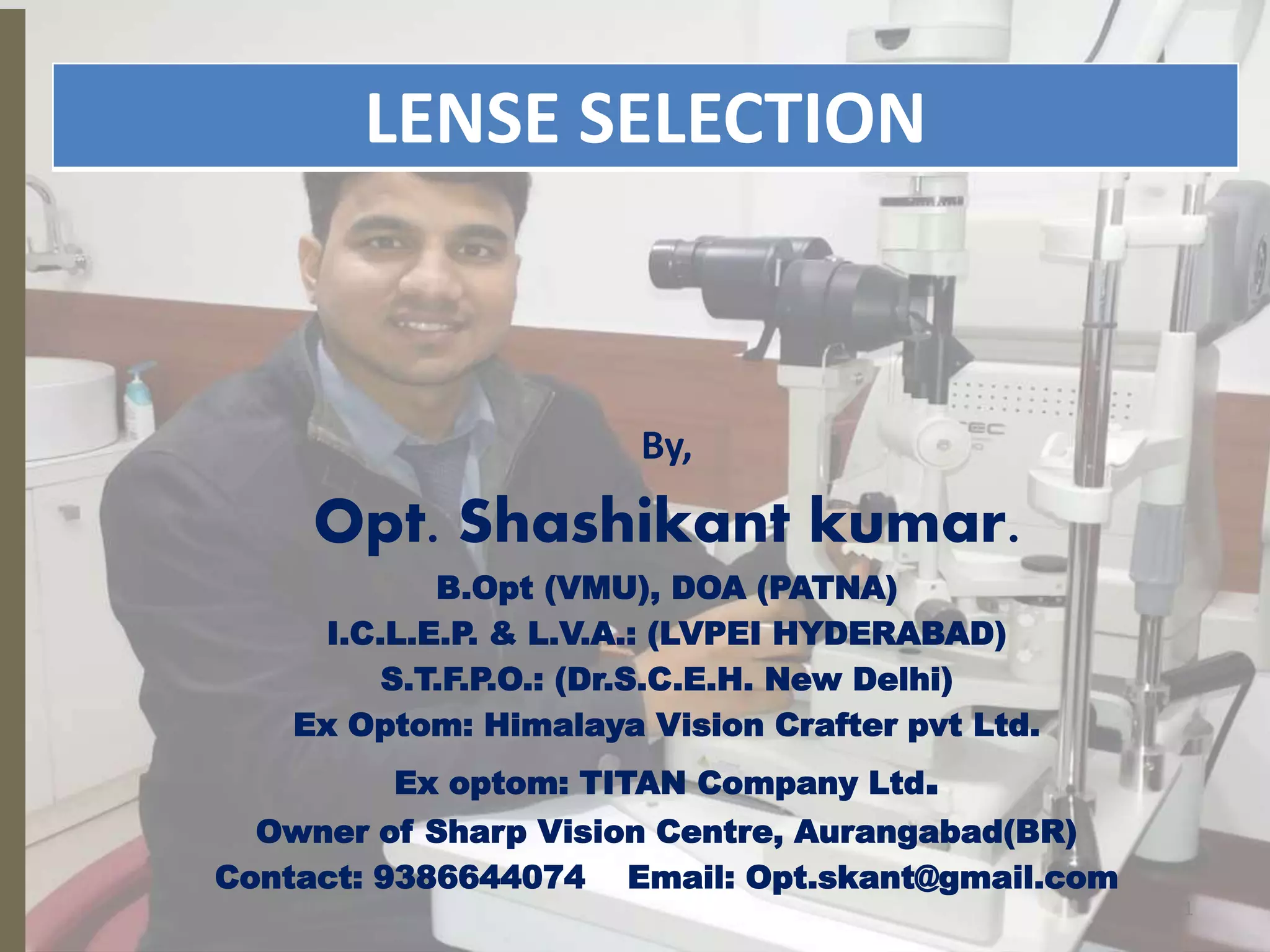

1. By,
Opt. Shashikant kumar.
B.Opt (VMU), DOA (PATNA)
I.C.L.E.P. & L.V.A.: (LVPEI HYDERABAD)
S.T.F.P.O.: (Dr.S.C.E.H. New Delhi)
Ex Optom: Himalaya Vision Crafter pvt Ltd.
Ex optom: TITAN Company Ltd.
Owner of Sharp Vision Centre, Aurangabad(BR)
Contact: 9386644074 Email: Opt.skant@gmail.com
LENSE SELECTION
1

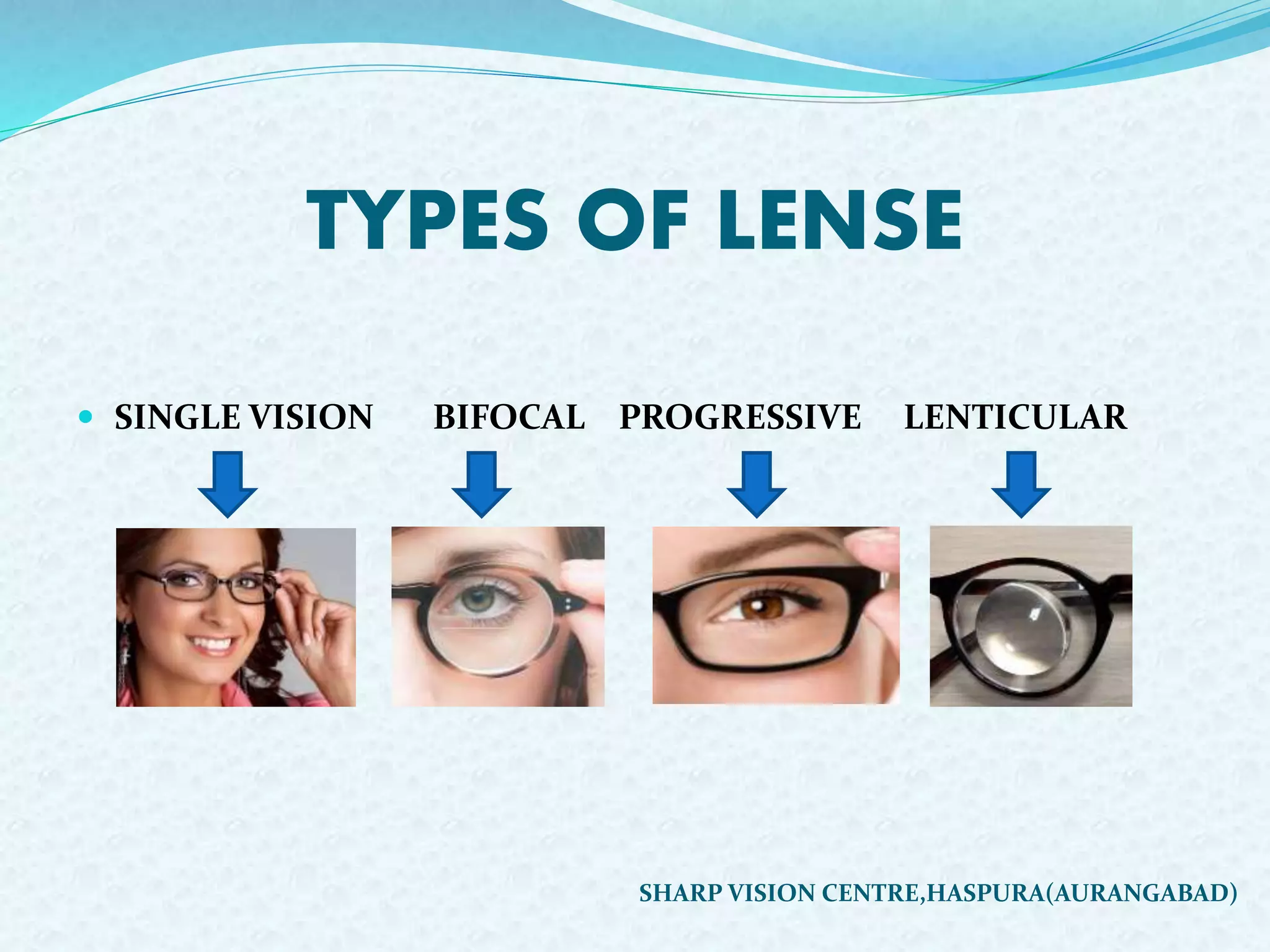

2. TYPES OF LENSE
 SINGLE VISION BIFOCAL PROGRESSIVE LENTICULAR
SHARP VISION CENTRE,HASPURA(AURANGABAD)

3. SINGLE VISION LENSE
 This lens provides correction only for a given distance.
This means that the optical power is the same at every
point on the lens’s surface.
 Prescribed these type of separate glass for Distance ,
Intermediate, Near & Vocational use.
Distance Near Vocational
3SHARP VISION CENTRE,HASPURA(AURANGABAD)

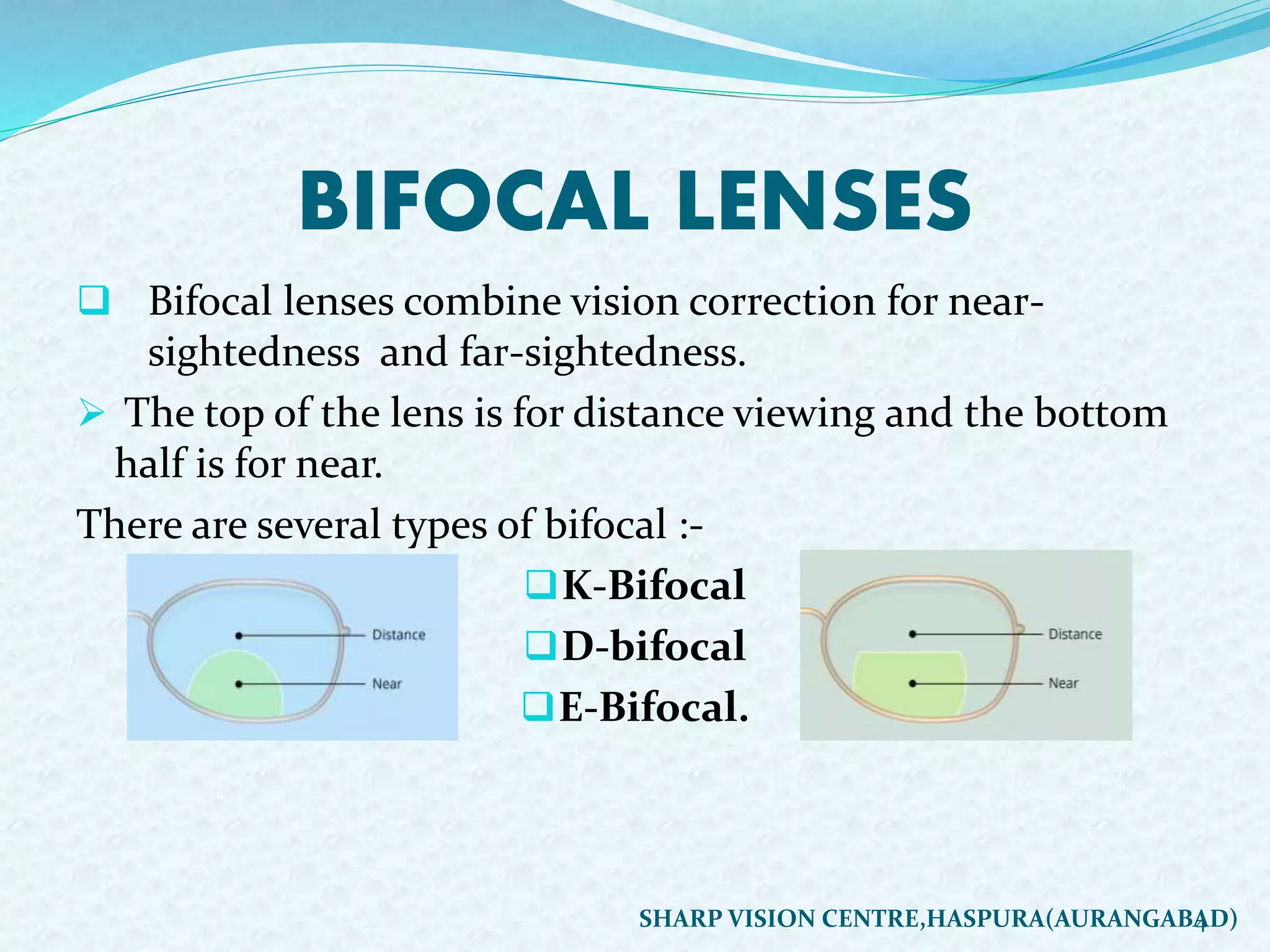

4. BIFOCAL LENSES
 Bifocal lenses combine vision correction for near-
sightedness and far-sightedness.
 The top of the lens is for distance viewing and the bottom
half is for near.
There are several types of bifocal :-
K-Bifocal
D-bifocal
E-Bifocal.
4SHARP VISION CENTRE,HASPURA(AURANGABAD)

5. TYPES OF BIFOCAL LENS
 KRYPTOC-BIFOCAL:-
 suitable for hypermetropic patients.
 Low appearance line then D bifocal.
 More suitable for Female for Cosmetic purpose.
 D-BIFOCAL
 Suitable for Myopic patients.
 Best suitable for office use whose require more near area.
EXECUTIVE BIFOCAL:-
 Best for pseudophakic & paediatric patients
and also for presbyopic patients as well.
5SHARP VISION CENTRE,HASPURA(AURANGABAD)

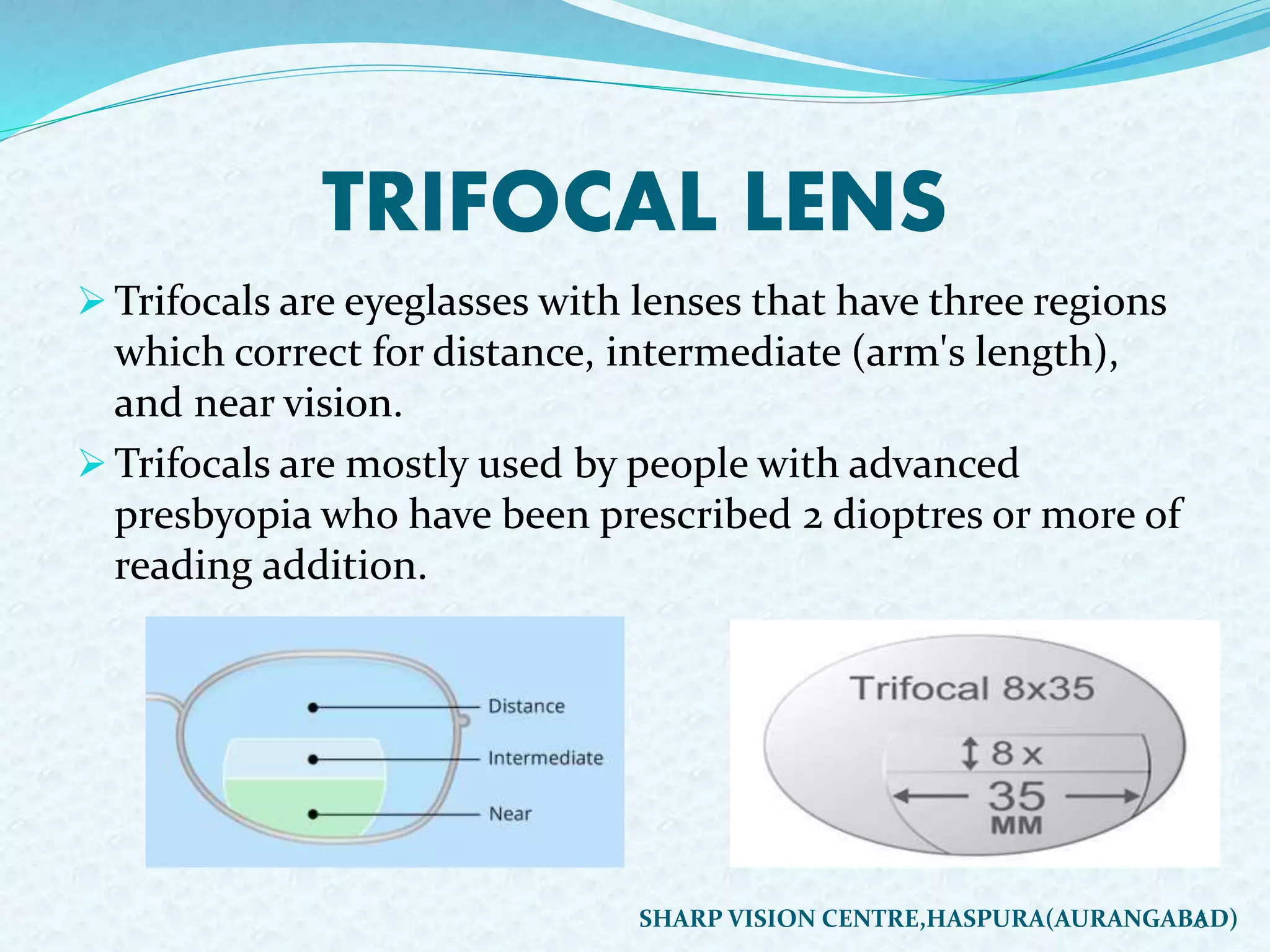

6. TRIFOCAL LENS
 Trifocals are eyeglasses with lenses that have three regions
which correct for distance, intermediate (arm's length),
and near vision.
 Trifocals are mostly used by people with advanced
presbyopia who have been prescribed 2 dioptres or more of
reading addition.
6SHARP VISION CENTRE,HASPURA(AURANGABAD)

7. PROGRESSIVE LENSE
 Progressive lenses are line-free multifocal design for
presbyopes with power gradually increase from distance
zone to near zone with progression. .
7SHARP VISION CENTRE,HASPURA(AURANGABAD)

8. PROGRESSIVE LENS DESIGN
SHARP VISION CENTRE,HASPURA(AURANGABAD) 8

9. PROGRESSIVE LENSE
 BENEFITS:-
 Clear vision at all distance (Distance , Intermediate &
Near).
 Less Image jumping effect because of No visible line as
bifocal lenses.
 Look like a single vision and you look as youth..
 intermediate zone helps for Coputer user, Walking , Up-
down stairs,Reading a Newspaper…ETC.
9SHARP VISION CENTRE,HASPURA(AURANGABAD)

10. LENTICULAR LENSE
 These lenses have been uses for high powers,
 Here a central portion of the lense is grounded to have
power called aperture and peripheral part of the lens act
as a carrier.
 Types of lenticular lenses used:- Solid,
Plano,Cemented,Profile & Fused.
 Aperture
 Carrier
10SHARP VISION CENTRE,HASPURA(AURANGABAD)

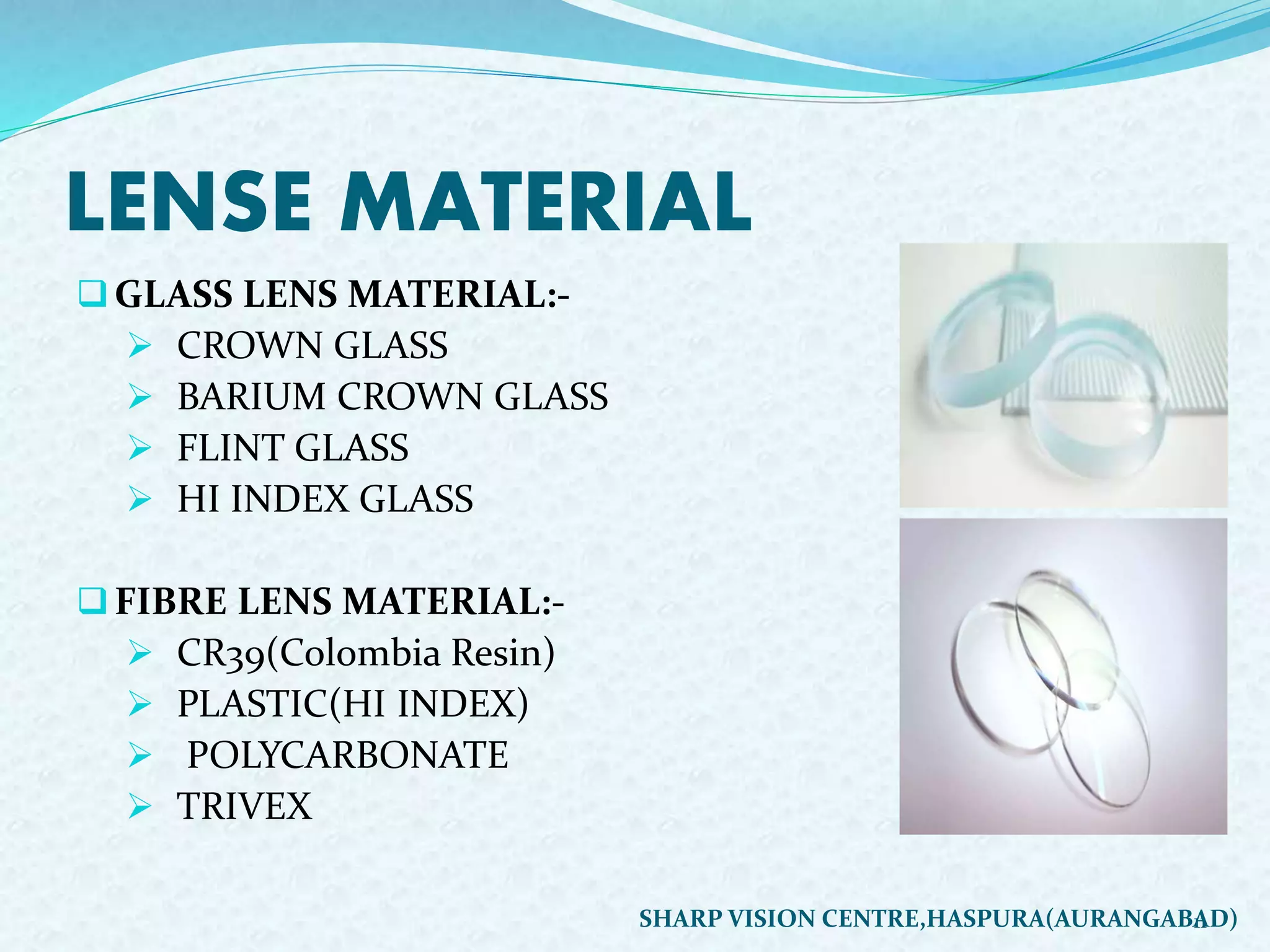

11. LENSE MATERIAL
GLASS LENS MATERIAL:-
 CROWN GLASS
 BARIUM CROWN GLASS
 FLINT GLASS
 HI INDEX GLASS
FIBRE LENS MATERIAL:-
 CR39(Colombia Resin)
 PLASTIC(HI INDEX)
 POLYCARBONATE
 TRIVEX
11SHARP VISION CENTRE,HASPURA(AURANGABAD)

12. GLASS LENSE MATERIAL
 CROWN GLASS:- (Mostly Use)
 Cristal clear made with silica 70%, Calcium oxide12%,
Sodium oxide15%,(Agent - Potassium, Borax & Arsenic).
 Refractive Index :- 1.523 Abbe value:- 59
 Hi Scratch Resistance then Fiber, Affordable Price,
Thinnest lens then fiber.
 Disadv-Heavy wait and easily break then fiber.
 BARIUM CROWN GLASS:-
 Made with Barium Oxide 40%,Silica 30% and Lime/Zinc/
Aluminium/Boron/Zirconium 30%.
 Ref Index :-1.57 A Value 57
12SHARP VISION CENTRE,HASPURA(AURANGABAD)

13. GLASS LENSE MATERIAL
FLINT GLASS:-
 Made with lead oxide 60%, Silica 30% and
Soda and potash. Use for Bifocal segment.
HI INDEX GLASS:-
 Useful for Reducing the thickness for High power lenses.
 Made with Titanium oxide, Barium ,lead oxide and
Lanthenm.
 Available index:- 1.6,1. 7, 1.8 & 1.9 A value :- 36
13SHARP VISION CENTRE,HASPURA(AURANGABAD)

14. PLASTIC LENSE MATERIAL
 CR39(Colombia Resin)
 POLYCARBONATE
HI INDEX PLASTIC
 TRIVEX
14SHARP VISION CENTRE,HASPURA(AURANGABAD)

15. CR39 LENSES
 It is also called Columbia Resin or Allyl Diglycol carbonate.
It is 39th Formula of thermosetting plastic.
 Developed in 1940.
 Refractive index 1.49 Abbe Value 58
 Lightest , Tintability, High impact resistance and Carries
high transparency.
Note- High Abbe value – High Transparency
GLASS-FIBRE-TRIVEX-HI IND PLASTIC-POLY
15SHARP VISION CENTRE,HASPURA(AURANGABAD)

16. POLYCARBONATE
 Good choice for rimless eyeglasses, Children eyewear and
Sports activities. More Light weight, 10 time tougher than
CR and also UV protect from Sunlight to help prevent
macular degeneration and cataracts.
 Refractive Index:- 1.59 Abbe Value :- 30
 It was developed in 1980s.
 Disadvantage:-High chromatic aberration, Poor optical
qualities, transparency is less and expensive then CR.
16SHARP VISION CENTRE,HASPURA(AURANGABAD)

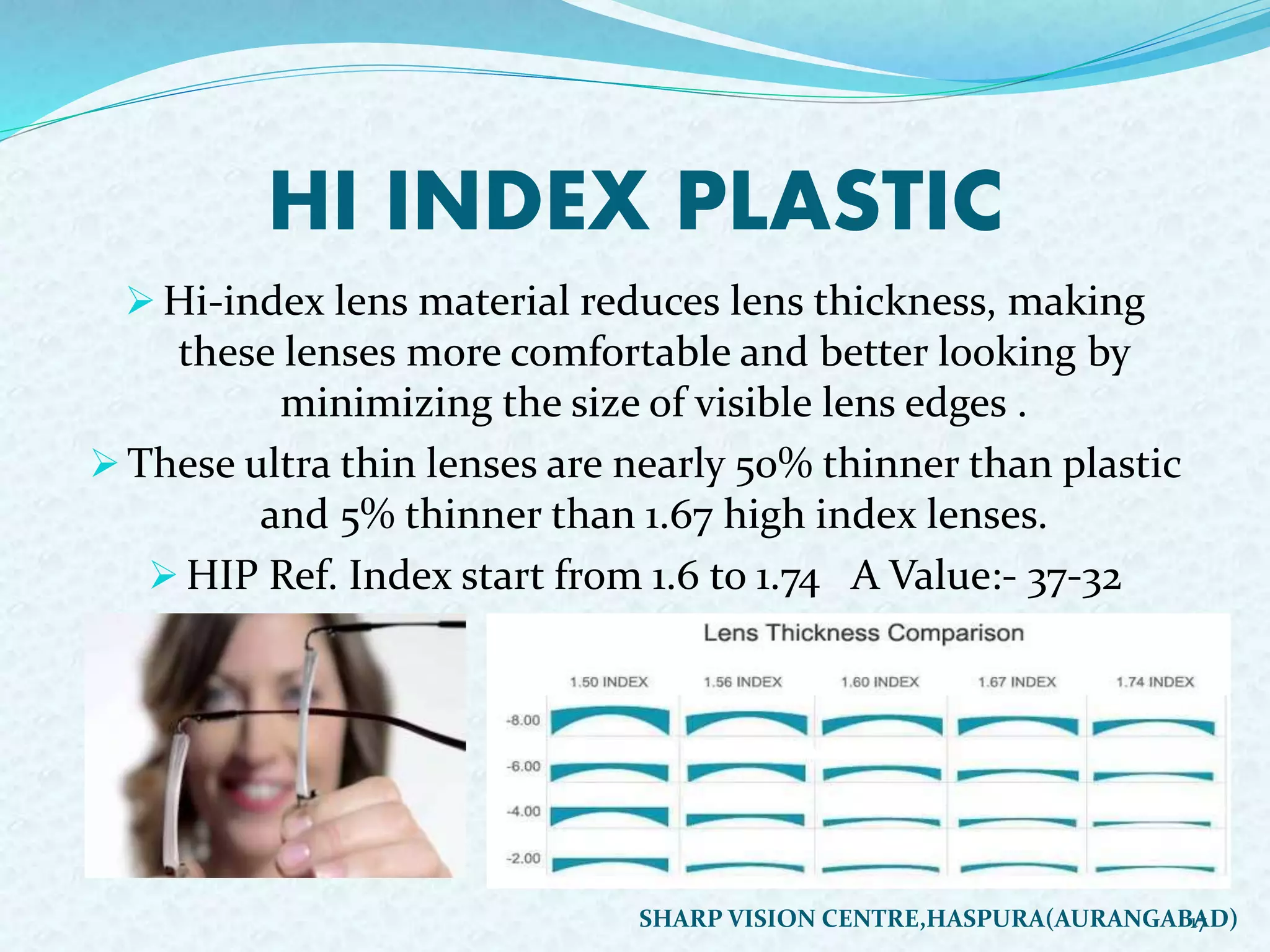

17. HI INDEX PLASTIC
 Hi-index lens material reduces lens thickness, making
these lenses more comfortable and better looking by
minimizing the size of visible lens edges .
 These ultra thin lenses are nearly 50% thinner than plastic
and 5% thinner than 1.67 high index lenses.
 HIP Ref. Index start from 1.6 to 1.74 A Value:- 37-32
17SHARP VISION CENTRE,HASPURA(AURANGABAD)

18. TRIVEX
TRIVEX is a very new lens material similar to PC that
exhibits thee very good lens characteristics.
 Lightest weight, Impact resistance and Excellent abbe
value.
 Refractive index 1.53 A.Value 45
 It protect from UV radiation same as PC.
18SHARP VISION CENTRE,HASPURA(AURANGABAD)

19. PROPERTIES OF LENSES
 PHOTOCHROMATIC
 POLARISED
 TINTING
 COATING OVER LENSES
SHARP VISION CENTRE,HASPURA(AURANGABAD) 19

20. PHOTOCHROMATIC LENSE
 Photochromic lenses are optical lenses that darken on
exposure to specific types of light of sufficient intensity,
most commonly ultraviolet (UV) radiation.
 Photochromic lenses may be made of glass, polycarbonate
or Plastic. (Material SILVER HALIDE)
 They are principally used in eyeglasses that are dark in
bright sunlight, but clear in low ambient light conditions.
20SHARP VISION CENTRE,HASPURA(AURANGABAD)

21. POLARIZED LENSES
 It is made by heating and stretching thin sheet of PVA(Poly
vinyl alcohol)
 Polarized lenses reduce glare, reflected off surfaces,
Enhance contrast, More colour perception, Reduced eye
strain and making images appear sharper and clearer.
 They are available for non-prescription and prescription
sunglasses. Also provide UV protection, which is important
to maintaining healthy eye sight.
21SHARP VISION CENTRE,HASPURA(AURANGABAD)

22. TINTED LENSES
 Colored or tinted sunglasses come in and out of style all
the time. A good tinted lens protects your eyes against UV
radiation. They can also give you a high-contrast vision
experience even in glaring or diffuse light.
 TINT COLOUR:- Grey,
Green,Brown,Amber,Pink,Yellow, Purple & Blue
22SHARP VISION CENTRE,HASPURA(AURANGABAD)

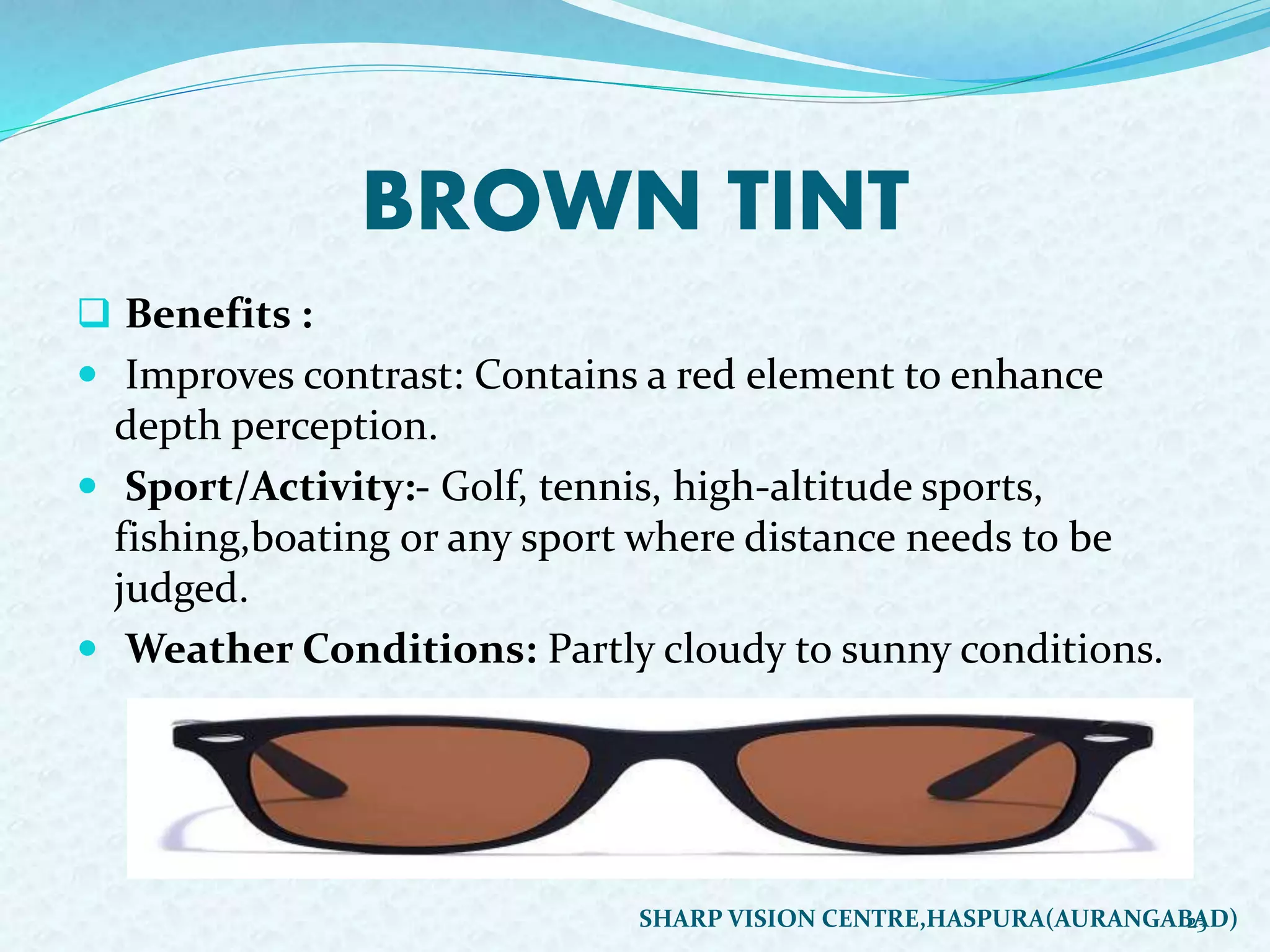

23. BROWN TINT
 Benefits :
 Improves contrast: Contains a red element to enhance
depth perception.
 Sport/Activity:- Golf, tennis, high-altitude sports,
fishing,boating or any sport where distance needs to be
judged.
 Weather Conditions: Partly cloudy to sunny conditions.
23SHARP VISION CENTRE,HASPURA(AURANGABAD)

24. GREY TINT
Benefits:-
 Good for general purpose use. Anti-fatigue, True color
perception.
 Dark enough to provide overall protection, Reduces glare,
especially off water.
 Sports:-Driving, baseball, tennis, football, soccer, water
sports, and all other outdoor activities
 Good variable weather tint-sunny or overcast days.
24SHARP VISION CENTRE,HASPURA(AURANGABAD)

25. GREEN TINT
Benefits :-
 Transmits all colours evenly good for general purpose use.
 Use in Sports and all outdoor activities .
 Also good in rainy or shine weather.
25SHARP VISION CENTRE,HASPURA(AURANGABAD)

26. YELLOW TINT
Benefits :
 Provides greater clarity in fog, haze, and other low-light
conditions.
 Use in Sports:-Skiing, mountain biking, hunting, tennis
and target shooting.
 Good for night driving and also use in foggy or hazy
conditions.
26SHARP VISION CENTRE,HASPURA(AURANGABAD)

27. BLUE/PURPLE TINT
Benefits :
 Fashionable, Cosmetically appealing, Reduces glare.
Improves colour perception.
 Sports:-Spectator and golf.
 Good in misty, foggy and snowy conditions.
27SHARP VISION CENTRE,HASPURA(AURANGABAD)

28. PINK/RED
 Benefits :
 Enhances visual depth, Reduces eye strain, Provides good
road visibility.
 Helps adjust contrast in Sports like:-Cycling, racing.
 Good in most weather conditions, especially in snow.
28SHARP VISION CENTRE,HASPURA(AURANGABAD)

29. COATINGS OVER THE LENSES
HARD COATING
ARC COATING
BLUE COATING
SMUDGE RESISTANT COATING
HYDROPHOBIC COATING
ANTI FOG COATING
29SHARP VISION CENTRE,HASPURA(AURANGABAD)

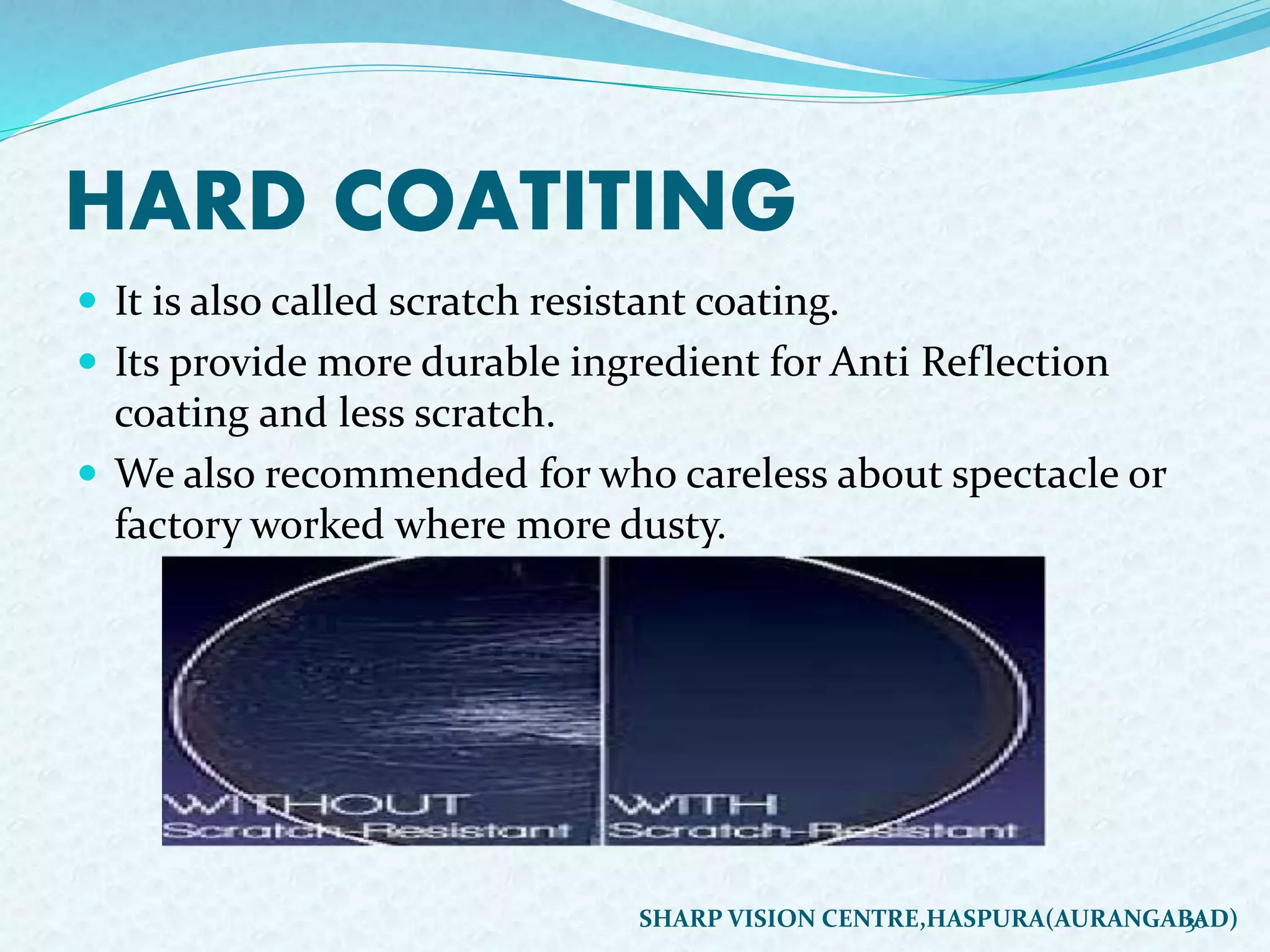

30. HARD COATITING
 It is also called scratch resistant coating.
 Its provide more durable ingredient for Anti Reflection
coating and less scratch.
 We also recommended for who careless about spectacle or
factory worked where more dusty.
30SHARP VISION CENTRE,HASPURA(AURANGABAD)

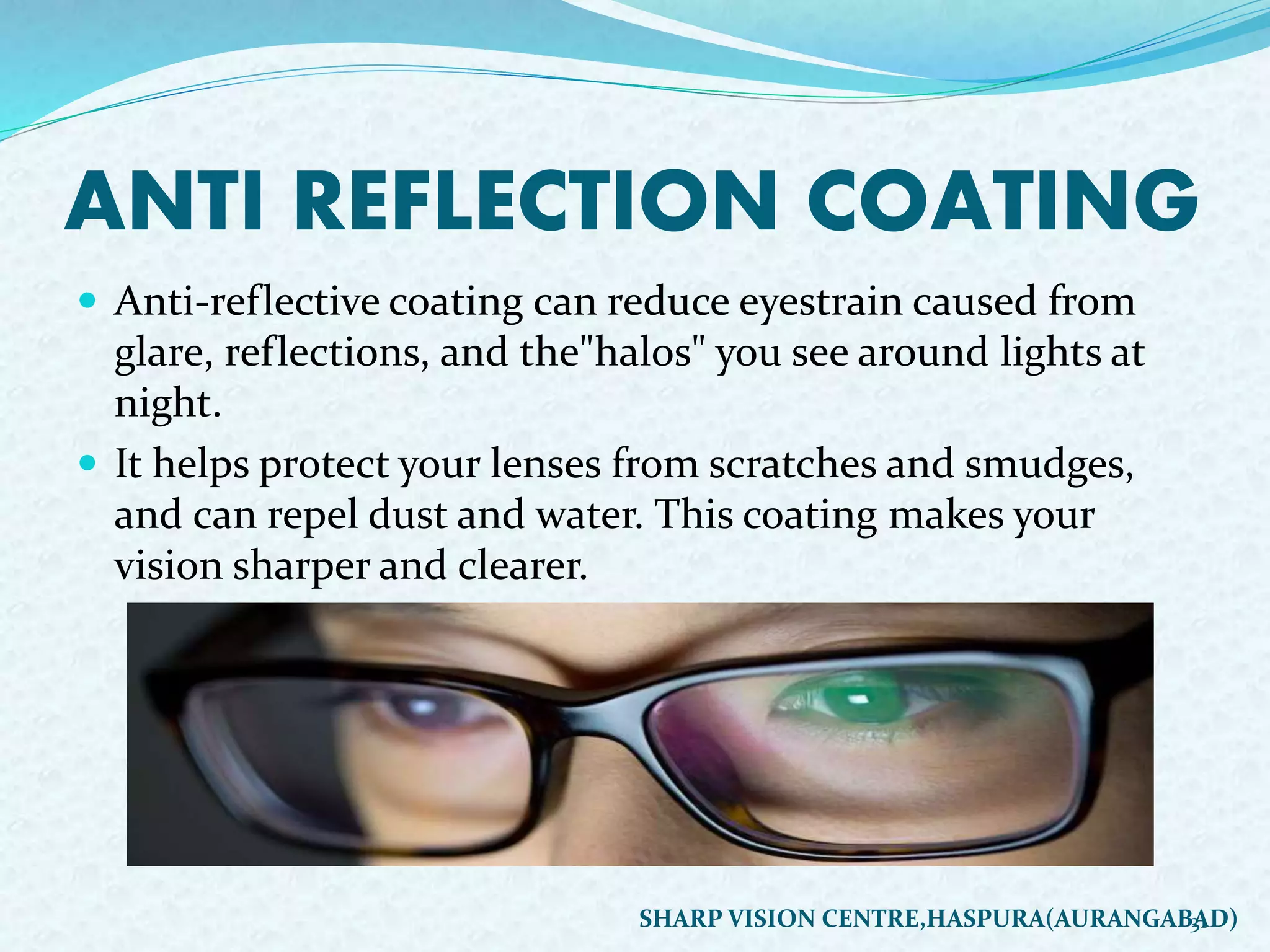

31. ANTI REFLECTION COATING
 Anti-reflective coating can reduce eyestrain caused from
glare, reflections, and the"halos" you see around lights at
night.
 It helps protect your lenses from scratches and smudges,
and can repel dust and water. This coating makes your
vision sharper and clearer.
31SHARP VISION CENTRE,HASPURA(AURANGABAD)

32. SMUDGE RESISTANT COATING
Smudge resistant coating protect the glass from
smudge such as fingerprint, oil, durt etc..
It is also improve the coating durability.
32SHARP VISION CENTRE,HASPURA(AURANGABAD)

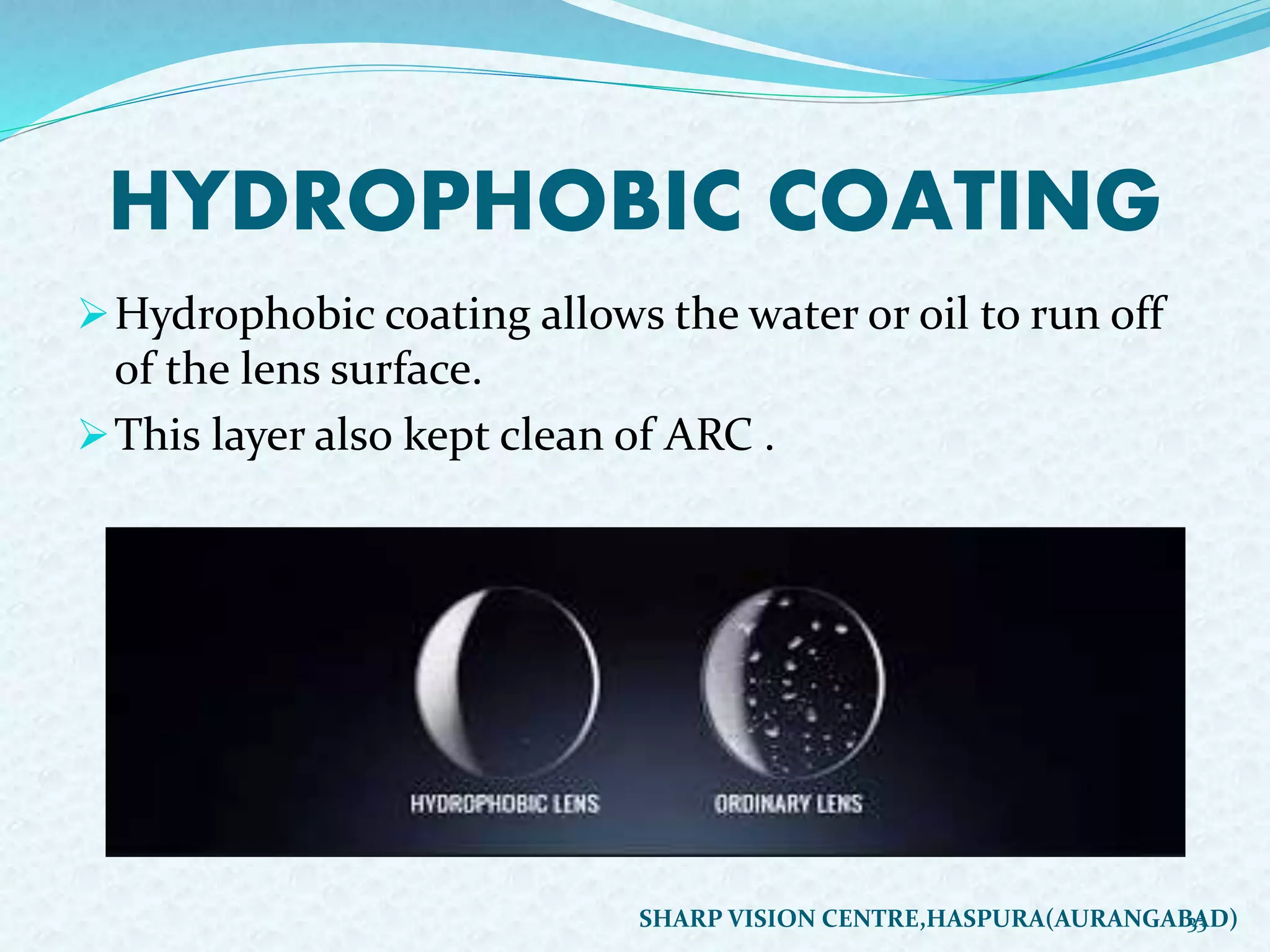

33. HYDROPHOBIC COATING
Hydrophobic coating allows the water or oil to run off
of the lens surface.
This layer also kept clean of ARC .
33SHARP VISION CENTRE,HASPURA(AURANGABAD)

34. ANTI FOG COATING
 Anti fog coating is used for prevent the fogy layer over the
lenses from Coolest environment as compare to room
temperature.
34SHARP VISION CENTRE,HASPURA(AURANGABAD)

35. BLUE COATING
 Blue coating protect my eyes from harmful blue rays which
is coming from gadgets,tubelight.. etc.
 Blue violet rays is harmful for our eyes .Can cause
ARMD(Age Related Macular Degeneration). Good blue
lens is usefull for us . So you can advice to customer to use
Blue filter lens not Blue cut lenses.
35SHARP VISION CENTRE,HASPURA(AURANGABAD)

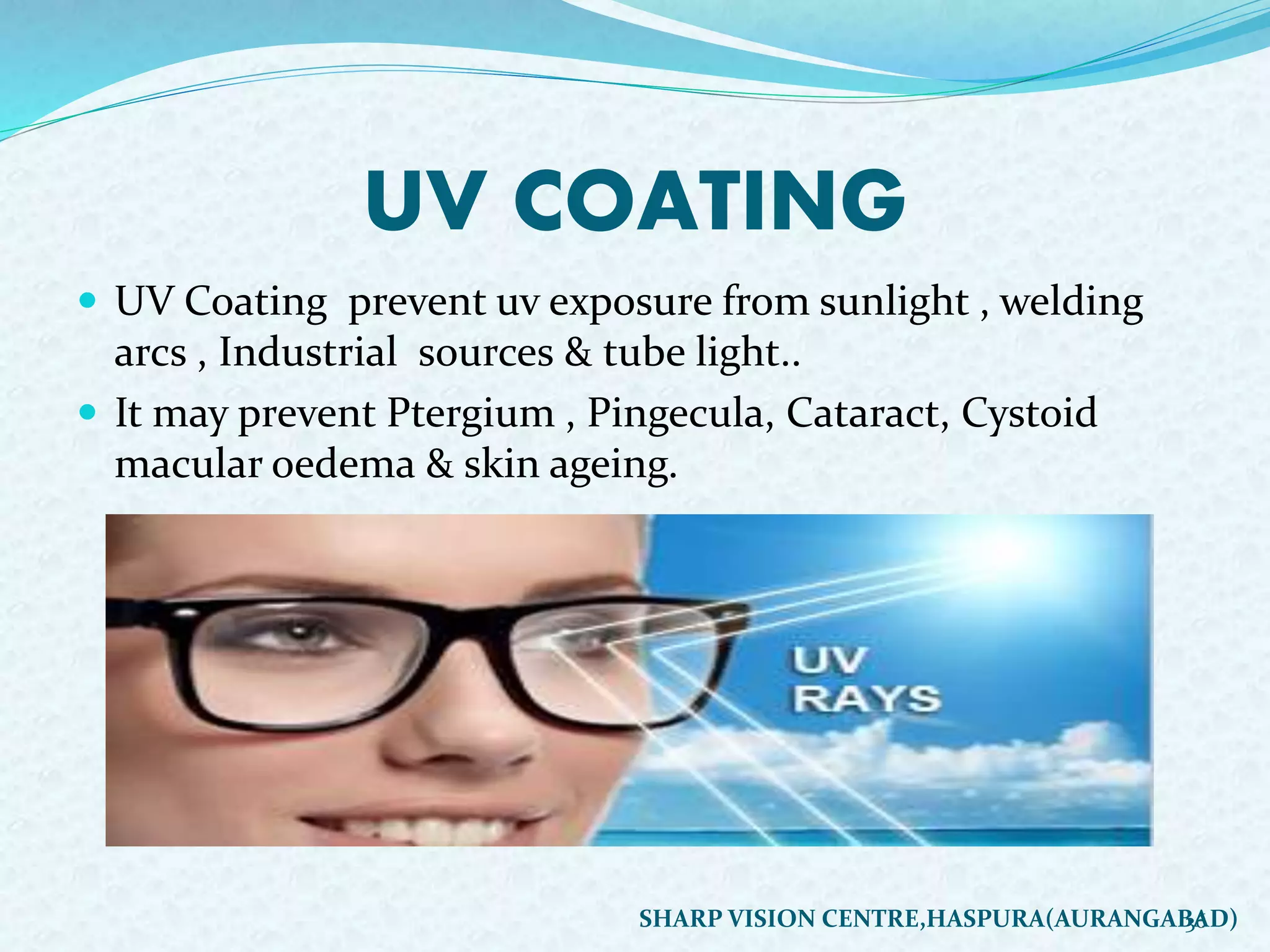

36. UV COATING
 UV Coating prevent uv exposure from sunlight , welding
arcs , Industrial sources & tube light..
 It may prevent Ptergium , Pingecula, Cataract, Cystoid
macular oedema & skin ageing.
36SHARP VISION CENTRE,HASPURA(AURANGABAD)

37. THANK YOU
STAY HOME BE SAFE
