- 2. Vision Rx Lab We’vebeen recalibrated to a high-definition world. We need to read 10-page documents on our smart phones. Our TVs show us every blade of grass and every whisker, and that’s the resolution we expect from our eyes. And whether it’s reading emails, driving on highways or playing a round of golf, we rely on our eyes to give us the clear picture. Having an eyewear that delivers continuous performance is essential to get the most out of life—and it all begins with the lens material recommendation you make ……… Importance of spectacles in today’s world.…..
- 3. Vision Rx Lab Initiallylenses were made only from Glass .. Glass being brittle and dangerous when breaks - was used for vision correction and placed in front of our most precious organ – The Eye! Evolution of lens materials ….. Then plastic lenses were introduced… Starting from CR 39 1.50, to mid index (1.56) and high index plastic lenses like 1.60,1.67 etc.

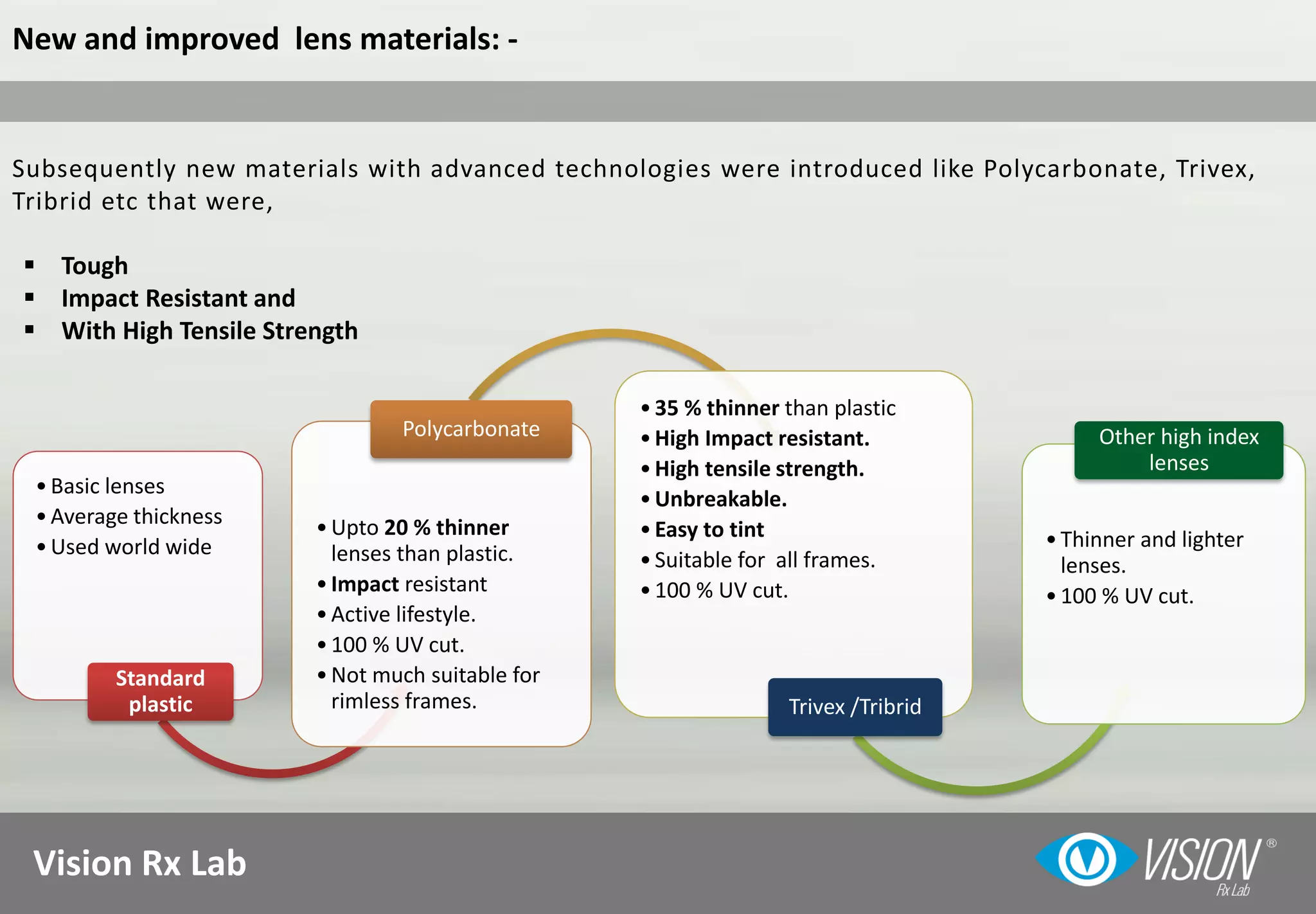

- 4. Vision Rx Lab Newand improved lens materials: - •Basic lenses •Average thickness •Used world wide Standard plastic •Upto 20 % thinner lenses than plastic. •Impact resistant •Active lifestyle. •100 % UV cut. •Not much suitable for rimless frames. Polycarbonate •35 % thinner than plastic •High Impact resistant. •High tensile strength. •Unbreakable. •Easy to tint •Suitable for all frames. •100 % UV cut. Trivex /Tribrid •Thinner and lighter lenses. •100 % UV cut. Other high index lenses Subsequently new materials with advanced technologies were introduced like Polycarbonate, Trivex, Tribrid etc that were, Tough Impact Resistant and With High Tensile Strength
- 5. Vision Rx Lab Alook at the lens materials in detail : - Glass Lenses Originally, all lenses were made of glass, which while it made them very resistant to scratching, also made them very heavy and prone to breakage. • Exceptional scratch resistance (don't need scratch resistant coating). • Excellent optical clarity. • Excellent opticAnti-reflective (AR) coating adheres to glass very well.al clarity. Advantages: • About 25 to 40 percent thicker than polycarbonate and high index plastic lenses • At least twice the weight of plastic or polycarbonate lenses. Can shatter or chip easier than lenses made of other materials. • Require a special coating to provide 100% UV protection. Disadvantages
- 6. Vision Rx Lab PlasticCR 39 Lenses 1.50 and Mid index as 1.56 A look at the lens materials in detail : - • Good optical quality. • Lightweight - About half the weight of glass lenses. • More shatter resistant than glass lenses. • Plastic lenses accept tints easily with uniform grade colours. • Affordable. Advantages: • About 20 to 35 percent thicker than polycarbonate or high index plastic lenses. • Require scratch-resistant coating for added durability. • Require a special coating to provide 100% UV protection Disadvantages it is more lightweight and thinner than glass making it comfortable to wear
- 7. Vision Rx Lab Alook at the lens materials in detail : - High Index Plastic Lenses – 1.60 & 1.67 • Lightweight - Between plastic and polycarbonate lenses in weight. • Thin - About 15 to 30 percent thinner than plastic lenses. • Better peripheral optics than polycarbonate lenses (for prescription sunglasses). • Cosmetically more attractive. • flatter shape of the lens will make things look less distorted towards the edges of your lenses. Advantages: • Requires scratch-resistant coating for durability. • Regular mid high index lenses are less impact resistant than Polycarbonate • More lens reflections than glass or plastic lenses (AR coating recommended). • Expensive Disadvantages Mid and high index lenses are for people with a high prescription. They allow spectacle lenses to be made thinner, lighter and flatter than previously possible.
- 8. Vision Rx Lab Alook at the lens materials in detail : - Polycarbonate Lenses • Excellent impact-resistance - 10 times more impact resistant than other lenses. • Thin - About 20 to 25 percent thinner than plastic or glass lenses. • Lightweight - About 20 percent lighter than plastic lenses. • Blocks 100 percent UV rays without needing a special coating. Advantages: • Requires scratch-resistant coating for durability. • Peripheral vision may be slightly less clear in strong prescription powers. • More lens reflections than glass or plastic lenses (AR coating recommended). • Cracks while edging and mounting. Disadvantages Polycarbonate is one of the strongest and safest materials on the market.
- 9. Vision Rx Lab Alook at the lens materials in detail : - Trivex and Tribrid lenses Trivex material provides the complete package of optical quality, lightweight comfort, strength and protection— the critical performance characteristics called for in everyday living. Disadvantage : Expensive !!!! • High impact resistance than polycarbonate • High tensile strength than polycarbonate • Unbreakable • Easy to tint. • Suitable for edging in rimless frames Advantages:

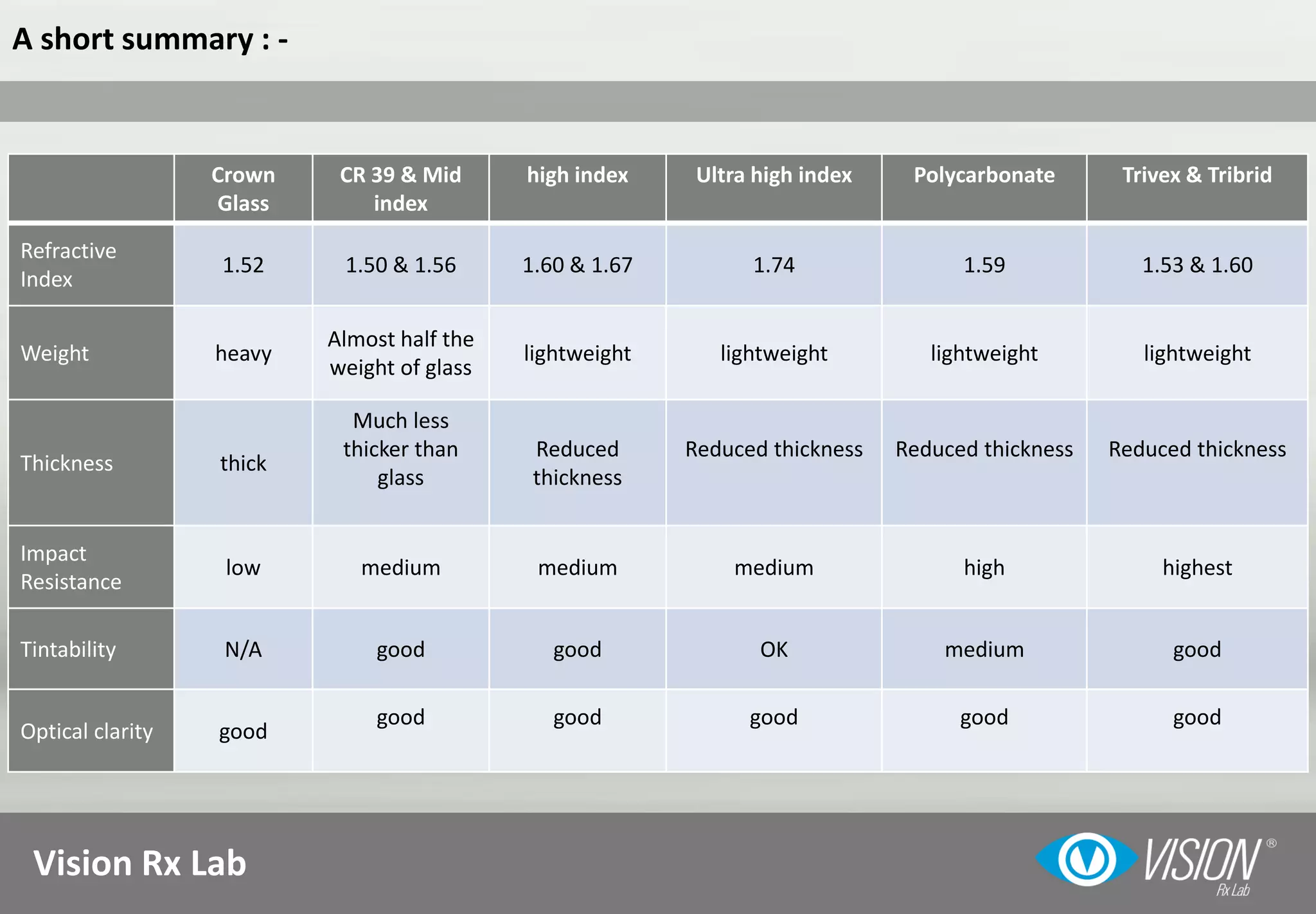

- 10. Vision Rx Lab Ashort summary : - Crown Glass CR 39 & Mid index high index Ultra high index Polycarbonate Trivex & Tribrid Refractive Index 1.52 1.50 & 1.56 1.60 & 1.67 1.74 1.59 1.53 & 1.60 Weight heavy Almost half the weight of glass lightweight lightweight lightweight lightweight Thickness thick Much less thicker than glass Reduced thickness Reduced thickness Reduced thickness Reduced thickness Impact Resistance low medium medium medium high highest Tintability N/A good good OK medium good Optical clarity good good good good good good
- 11. The new materialfrom Vision Rx Lab that is superior to standard plastic and polycarbonate, is ideal for rimless frames and in an affordable price. High Impact resistant High tensile strength Easier to drill & mount Lighter 100 % UV cut Affordable Introducing Vision Rx Lab Index :1.55, Specific Gravity :1.16,Abbe value :44,UV cut :400 nm
- 12. Product Features :- VisionRx Lab Optical Quality – High index and high abbe value leads to increased optical clarity & quality. Thinner and lighter because of it’s high index (1.55). High Abbe number (44) minimises the chromatic aberration ( prismatic effect) and provides comfortable vision. High impact resistance and high tensile strength helps in wearer’s eye safety. Highly recommended and suitable for rimless frames. Easy to process – for modern design lenses. Causes no change in lens colour after years of usage. Good compatibility with coating materials. Lighter as compared to a standard plastic excellent optical clarity Safe X resistant to breakage Standard plastic d Breaks Crack occurred while drilling in polycarbonate No Crack occurred while drilling in Safe X Safe X Lens

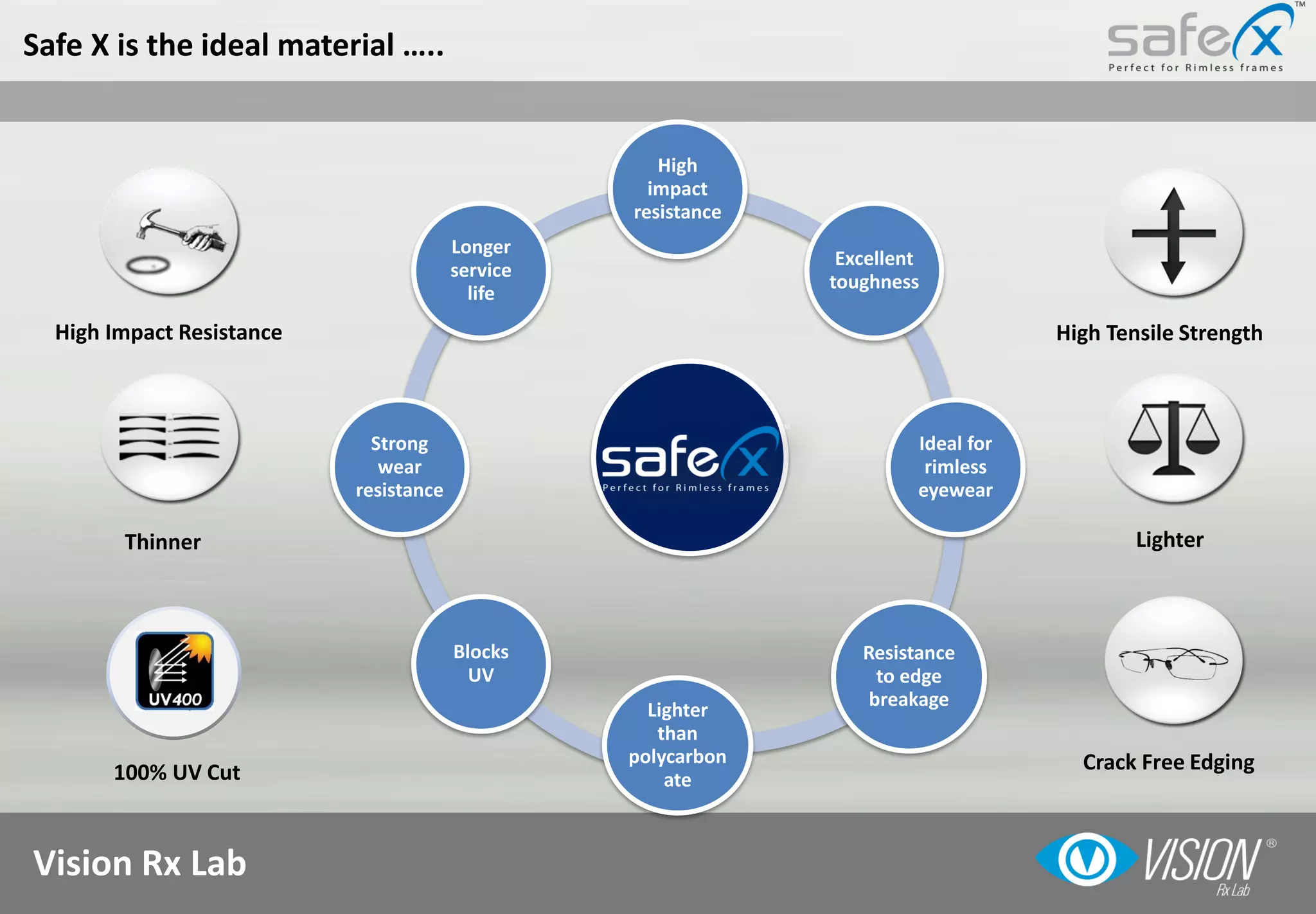

- 13. Vision Rx Lab HighImpact Resistance Thinner Lighter High Tensile Strength 100% UV Cut High impact resistance Excellent toughness Ideal for rimless eyewear Resistance to edge breakage Lighter than polycarbon ate Blocks UV Strong wear resistance Longer service life Crack Free Edging Safe X is the ideal material …..
- 14. Vision Rx Lab AbbeValue : 44 Specific Gravity : 1.16 Refractive Index : 1.55 UV Cut : 400 NM Safe X Abbe Value : 45 Specific Gravity : 1.11 Refractive Index : 1.53 UV Cut : 380 NM Abbe Value : 31 Specific Gravity : 1.28 Refractive Index : 1.598 UV Cut : 400 NM Polycarbonate Trivex 31 44 45 34 36 38 40 42 44 46 Abbe Value Polycarbonate Safe X Trivex 1.28 1.16 1.11 1 1.05 1.1 1.15 1.2 1.25 1.3 Specific Gravity Polycarbonate Safex Trivex Comparison in terms of material specification…..
- 15. Vision Rx Lab Availability FinishedSingle Vision Stock – 1.55 ASP Fino Safe-X UV 400 Satin Relief Power Range - Total power -8 sph with maximum cyl -3, +4 sph /-2 cyl
- 16. Vision Rx Lab SatinRelief - The latest technology in coating
- 17.
- 18. Vision Rx Lab Theworld today – A Digital World -Technology has become an integral part of our lives -We spend long hours on digital devices like laptops, tablets & smart-phones - Resulting in • Eye Strain • Eye Fatigue • Headache This is caused due to Blue Light emitted by most of the digital devices
- 19. What is bluelight? The Visible Electromagnetic spectrum ranges from 380 – 780 nm. Blue Light, falls under 380 – 500 nm and has a high electromagnetic frequency thus possesses similar characteristics as UV rays Vision Rx Lab
- 20. We are graduallyhaving longer and more intense exposure to blue light. The devices that we use regularly emit blue light that cause strain to the eyes and is quite harmful. Indeed we indulge ourselves into all these activities as illustrated and hence need to protect our precious eyes from continuous strain Various ways we are exposed to blue light in our day to day life Tablet Mobile Phones Laptop Vision Rx Lab
- 21. Continuous usage ofdigital devices is harmful due to prolonged exposure of blue light to the eyes Vision Rx Lab
- 22. Adverse effects ofBlue Light Blue light has the shortest wavelength which focuses in front of the retina and this is why the sight may seen blurred 1. B lueLightcausesblurryvisionandeyestrain Vision Rx Lab Vision Rx Lab
- 23. 2. Inflam edeye Due toBlue Light exposure eyes may become red and swollen Adverse effects of Blue Light 4. LowVision Blue Light may lead to low vision if continuously exposed over a long period of time thus leading to difficulty in reading 3. Headache Continuous exposure of Blue Light may lead to headache which is quite disturbing during regular job Vision Rx Lab Vision Rx Lab
- 24. Introducing Protection from harmfulBlue Light Vision Rx Lab
- 25. Why Satin Reliefis needed? Satin Relief lenses have Blue coating which acts as a filter to block the harmful blue light emitted from the digital devices thus giving relief to the eyes even after prolonged usage of the electronic gadgets Satin Relief- solution as Blue Blocker Vision Rx Lab
- 26. Satin Relief– Extremely Importantfor kids Relaxed vision New age of e-learning needs special protection Vision Rx Lab
- 27. Satin Relief- Blocks BlueLight to a great extent • Satin Relief has a blue filter on the front surface • This helps blocking the harmful blue light from reaching the eyes • Thus giving a relaxed vision for a longer period of time Vision Rx Lab
- 28. Satin Relief– Reflects BlueLight Satin Relief is a pioneering technology that cuts off blue light Satin Relief unique anti- reflective coating reflects unwanted Blue Light, allowing • Clearer & sharper vision • Improved visual comfort and performance • Relaxed Vision over long periods of time Vision Rx Lab StandardCoating SatinReliefCoating
- 29. UNHEALTHY EYES Satin Relief- Helpshaving healthy eyes HEALTHY EYES Vision Rx Lab
- 30. Additional Features • UVprotection Oneof the main reasons for visual impairment is the damage caused by the harmful UV rays emitted from the sun. Satin Relief coating comes with UV 400 protection layer which protects the eyes from harmful UV rays Vision Rx Lab
- 31. Additional Features • SatinReliefcom esw ithSuperHydrophobicCoating SatinRelief comes with Superhydrophobic coating which provides a smoother surface that helps in easy cleaning and maintenance. Also this helps to resist scratches and smudges on the lens surface Vision Rx Lab
- 32. Satin Relief – BestSolution for modern lifestyle Vision Rx Lab
- 33. Vision Rx Lab Positioning….. Polycarbonate Tribrid AbbeValue : 41 Trivex Abbe Value : 45 Safe X Abbe Value :44 1.60 Plastic Abbe Value :42 1.59 Polycarbonate Abbe Value :31 1.50 Plastic Abbe Value :58

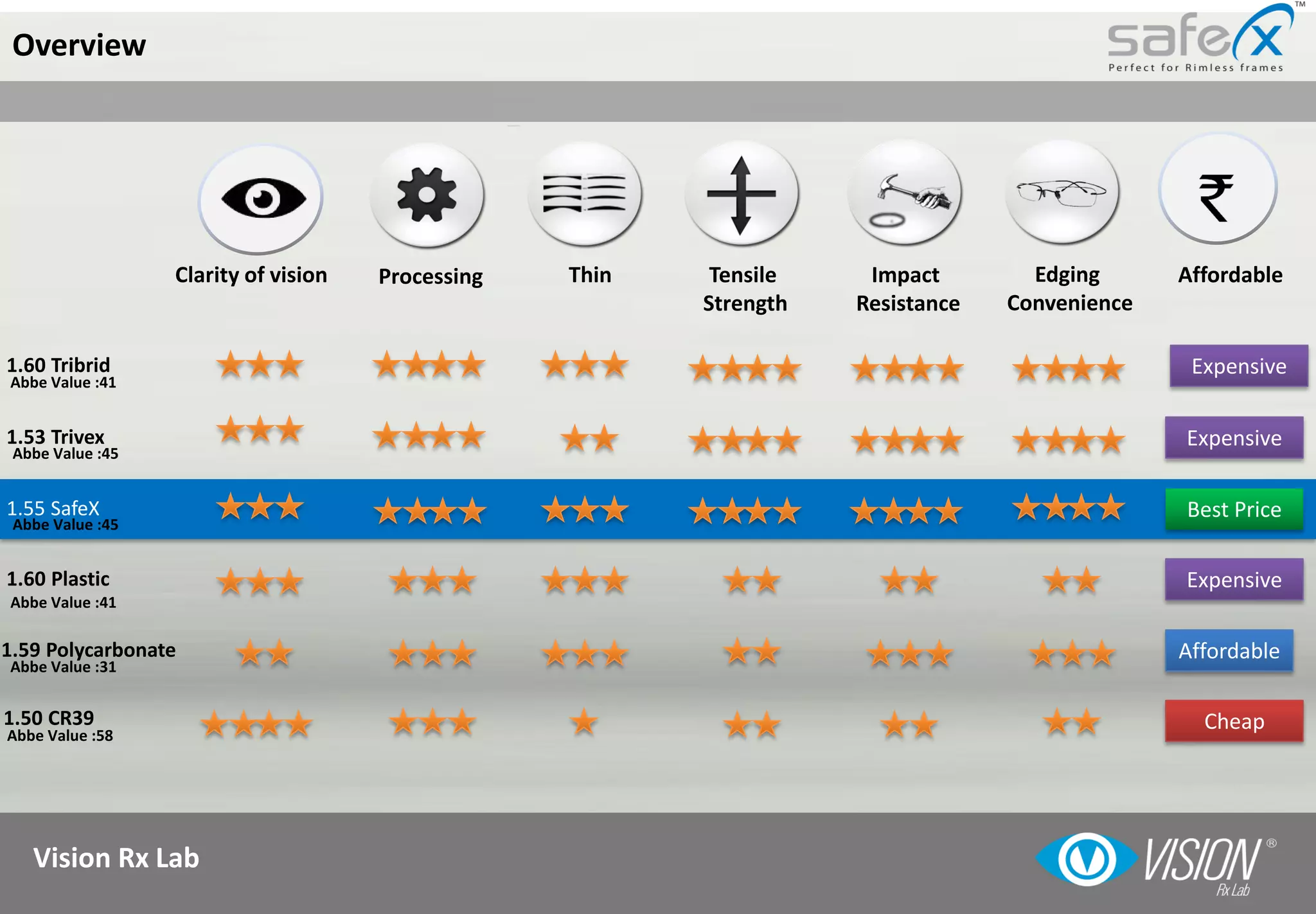

- 34. Vision Rx Lab Overview 1.53Trivex 1.55 SafeX 1.60 Plastic 1.59 Polycarbonate 1.50 CR39 Expensive Expensive Best Price Affordable Cheap Processing Thin Tensile Strength Impact Resistance Edging Convenience Affordable 1.60 Tribrid Expensive Abbe Value :41 Abbe Value :45 Abbe Value :45 Abbe Value :41 Abbe Value :31 Abbe Value :58 Clarity of vision
- 35. Vision Rx Lab Whoshould wear Safe X lenses …. Lenses made with Safe X material are a great choice for people with an active lifestyle, and expects clear vision , comfort and protection from their eyewear. Prescription:- Safe X provides maximum optical performance. One will gain the most from the benefits of Safe X material which provides an attractive and comfortably thin lens, ideal for rimless frames. Compatible with all lifestyles and frame styles... For the fashion-conscious, lenses that provide optical quality, lightweight comfort, strength and protection are always in style! Safe X material is a perfect fit for all frame designs, and specially well-suited for rimless (drill-mount) and semi- rimless (supra) styles.
