1. Lecture 4:
Enhanced E-R Model
ISOM3260, Spring 2014

2. 2

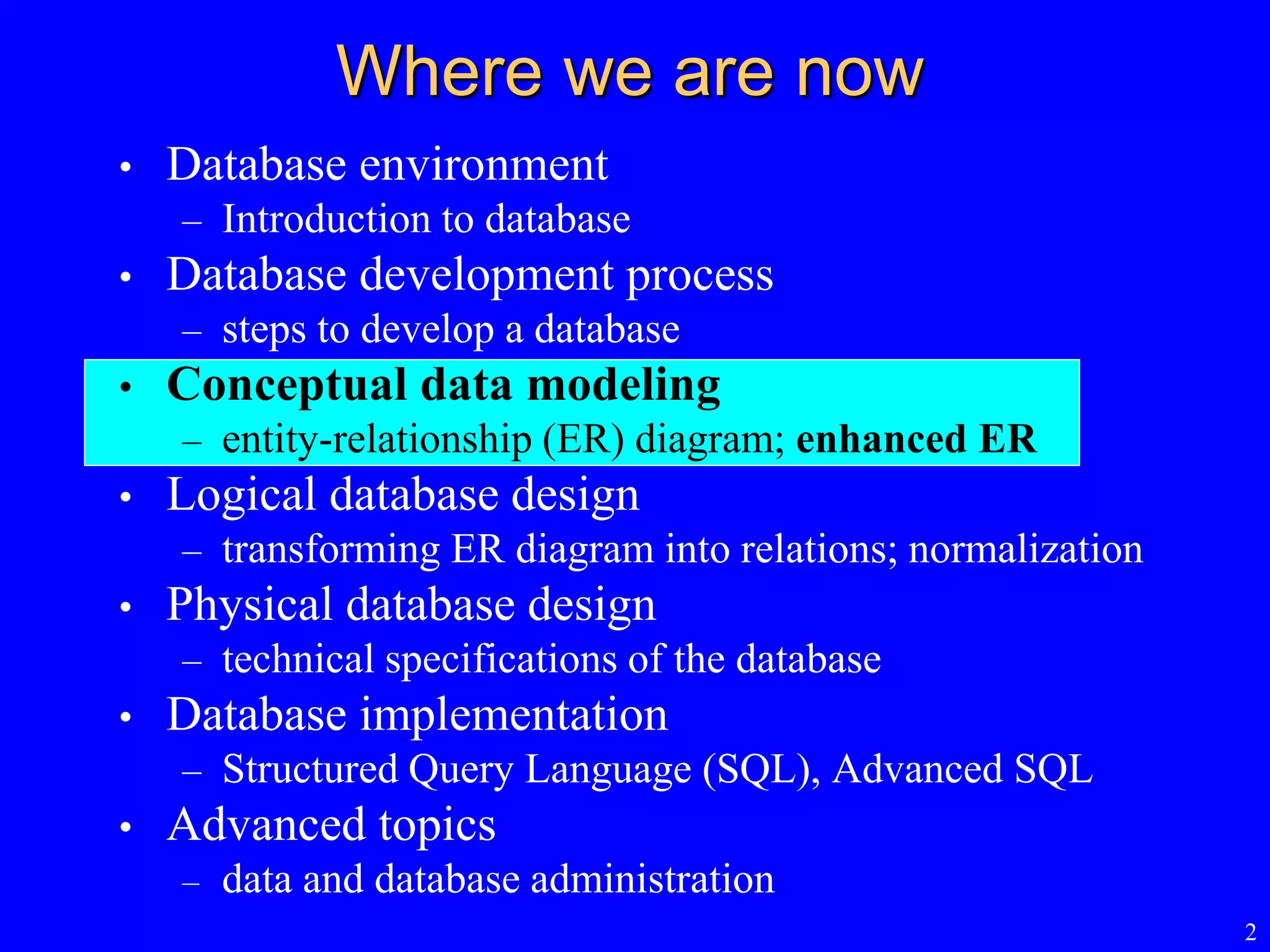

Where we are now
• Database environment
– Introduction to database
• Database development process
– steps to develop a database
• Conceptual data modeling
– entity-relationship (ER) diagram; enhanced ER
• Logical database design
– transforming ER diagram into relations; normalization
• Physical database design
– technical specifications of the database
• Database implementation
– Structured Query Language (SQL), Advanced SQL
• Advanced topics
– data and database administration

3. 3
Database development activities during SDLC
Top-down
analysis

4. 4
Why Enhanced E-R Model?
• Business data are now more complex
• EER improve flexibility of the basic E-R
model to represent business data
• EER is the result of extending the original
E-R model with new modeling constructs

5. 5
Enhanced E-R Model
• Supertype and subtype
• Generalization and specialization
• Specifying constraints in supertype/subtype
relationships
• Supertype/subtype hierarchy
• Entity clustering

6. 6
Supertypes and Subtypes
• Subtype
– a subgrouping of the entities in an entity type, that is
meaningful to the organization, and which has
attributes or relationships that are distinct from those in
other subgroupings
– at the same time, the subgroupings share common
attributes which are associated with the entity type
– e.g. GRADUATE STUDENT and
UNDERGRADUATE STUDENT  subtypes of
STUDENT

7. 7
Supertypes and Subtypes
• Supertype
– a generic entity type that has a relationship with one
or more subtypes
– e.g. STUDENT  supertype of GRADUATE
STUDENT and UNDERGRADUATE STUDENT
• Attribute Inheritance
– subtype entities inherit values of all attributes
of the supertype
– an instance of a subtype is also an instance of
the supertype

8. 8
Figure 3-1: Basic notation for supertype/subtype relationships

9. 9
Figure 3-2: Employee supertype with three subtypes
All subtypes will have
Employee_Number,
Employee_Name, Address,
and Date_Hired
Each subtype will also
have its own attributes

10. 10
Supertype/Subtype Relationships
• Relationships at the supertype level
– indicate that all subtypes will participate in the
relationship
• Relationships at the subtype level
– the instances of a subtype may participate in a
relationship unique to that subtype

11. 11
Figure 3-3: Supertype/subtype relationships in a hospital
Both outpatients and
resident patients are cared
for by a responsible physician
Only resident patients
are assigned to a bed

12. 12
Generalization and Specialization
• Two processes to develop supertype/subtype
relationships
• Generalization
– the process of defining a more general entity type from a
set of more specialized entity types
– bottom-up process
• Specialization
– the process of defining one or more subtypes of the
supertype, and forming supertype/subtype relationships
– top-down process

13. 13
Figure 3-4a: Example of generalization
Three entity types: CAR, TRUCK, and MOTORCYCLE
All these types
of vehicles
have common
attributes

14. 14
Figure 3-4b: Generalization to VEHICLE supertype
So we put
the shared
attributes in
a supertype
No subtype for motorcycle, since it has no unique attributes

15. 15
Figure 3-5a: Example of specialization
Applies only to
manufactured parts
Applies only to
purchased parts
Parts may be manufactured internally and/or purchased from suppliers

16. 16
Figure 3-5b:
Specialization to MANUFACTURED PART and PURCHASED PART
Multivalued attribute “supplier” was replaced by a relationship to another entity
Created 2 subtypes

17. 17
Completeness Constraints in
Supertype/Subtype Relationships
• Completeness Constraint
– whether an instance of a supertype must also
be a member of at least one subtype
• Total Specialization Rule
– Yes (double line)
• Partial Specialization Rule
– No (single line)

18. 18
Figure 3-6: Examples of completeness constraints
(a) Total specialization rule
A patient must be either
an outpatient or a
resident patient

19. 19
Figure 3-6b: Partial specialization rule
A vehicle could be a car,
a truck, or neither

20. 20
Disjointness Constraints in
Supertype/Subtype Relationships
• Disjointness Constraint
– whether an instance of a supertype may simultaneously be a
member of two or more subtypes
• Disjoint Rule
– No (letter ‘d’)
– an instance of the supertype can be only ONE of the subtypes
• Overlap Rule
– Yes (letter ‘o’)
– an instance of the supertype can simultaneously be a member
of two or more subtypes

21. 21
(a) Disjoint rule
Figure 3-7: Examples of disjointness constraints
A patient can either be
outpatient or resident, but
not both, at any given time

22. 22
Figure 3-7b: Overlap rule
A part may be both
purchased and
manufactured

23. 23
Subtype Discriminators
• A mechanism to implement supertype/subtype
relationships
• Subtype Discriminator
– an attribute of the supertype whose values determine the
target subtype(s)
• Disjoint subtype
– a simple attribute with alternative values to indicate the
possible subtypes
• Overlapping subtype
– a composite attribute whose subparts pertain to different
subtypes
– each subpart contains a boolean value (‘Y’ or ‘N’) to indicate
whether or not the instance belongs to the associated subtype

24. 24
Figure 3-8: Introducing a subtype discriminator (disjoint rule)
A simple attribute with
different possible values
indicating the subtype

25. 25
Figure 3-9: Subtype discriminator (overlap rule)
A composite attribute
with sub-attributes
indicating “Y” or “N” to
determine whether it is
of each subtype

26. 26
Supertype/Subtype Hierarchies
• Attributes are assigned at the highest logical level in the
hierarchy
– e.g. SSN applies to all PERSONs
– e.g. Date_Hired applies only to EMPLOYEE
• Subtypes lower in the hierarchy inherit attributes from
their supertypes up to the root (entity type at top of
hierarchy)
– e.g. an instance of FACULTY has the following attributes:
– SSN, Name, Address, Gender, Date_of_Birth (from PERSON)
– Date_Hired, Salary (from EMPLOYEE)
– Rank (from FACULTY)

27. 27
Figure 3-10: Example of supertype/subtype hierarchy

28. 28
Entity Clusters
• EER diagrams are difficult to read when there are
too many entities and relationships
• Different people may be interested in different
types of data
• Solution
– group entities and relationships into entity clusters
• Entity cluster
– a set of one or more entity types and associated
relationships grouped into a single abstract entity type

29. 29
Figure 3-13a: Possible entity clusters for Pine Valley Furniture
Related groups
of entities can
become clusters

30. 30
Figure 3-13b: EER diagram of entity clusters
More readable,
isn’t it?

31. 31
Figure: ER model for class scheduling

32. 32
Review Questions
• What are subtypes and supertypes?
• What are generalization and specialization?
• What are the total and partial specialization rules?
• What are the disjoint and overlap rules?
• What are subtype discriminators?
• What are supertype/subtype hierarchies?
• What are entity clusters?
