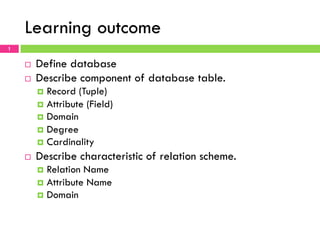

2. Learning outcome
1
¨ Define database
¨ Describe component of database table.

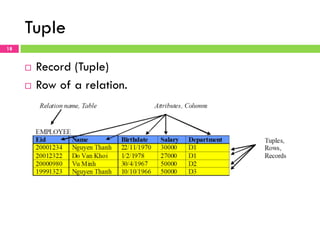

¤ Record (Tuple)
¤ Attribute (Field)
¤ Domain

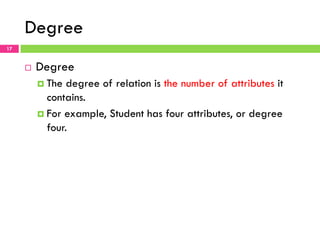

¤ Degree
¤ Cardinality

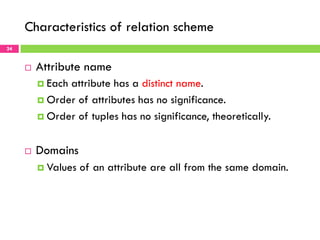

¨ Describe characteristic of relation scheme.
¤ Relation Name
¤ Attribute Name
¤ Domain

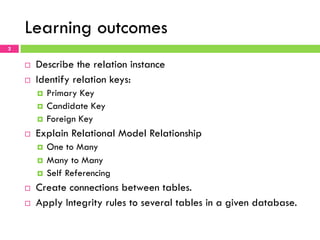

3. Learning outcomes
2
¨ Describe the relation instance
¨ Identify relation keys:
¤ Primary Key
¤ Candidate Key

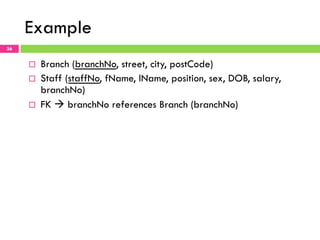

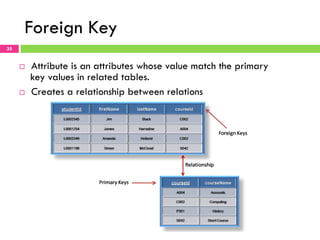

¤ Foreign Key
¨ Explain Relational Model Relationship
¤ One to Many
¤ Many to Many
¤ Self Referencing
¨ Create connections between tables.
¨ Apply Integrity rules to several tables in a given database.

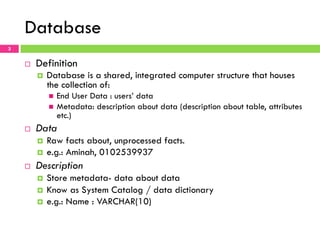

4. Database
3
¨ Definition
¤ Database is a shared, integrated computer structure that houses
the collection of:
n End User Data : users’ data
n Metadata: description about data (description about table, attributes
etc.)
¨ Data
¤ Raw facts about, unprocessed facts.
¤ e.g.: Aminah, 0102539937
¨ Description
¤ Store metadata- data about data
¤ Know as System Catalog / data dictionary
¤ e.g.: Name : VARCHAR(10)
5. Database
4

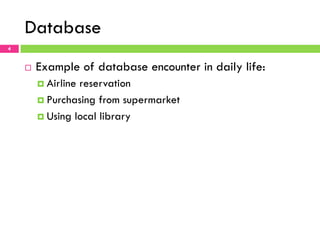

¨ Example of database encounter in daily life:
¤ Airline reservation
¤ Purchasing from supermarket
¤ Using local library

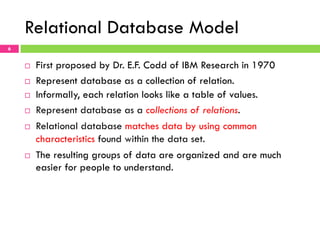

7. Relational Database Model
6
¨ First proposed by Dr. E.F. Codd of IBM Research in 1970
¨ Represent database as a collection of relation.
¨ Informally, each relation looks like a table of values.
¨ Represent database as a collections of relations.
¨ Relational database matches data by using common
characteristics found within the data set.
¨ The resulting groups of data are organized and are much
easier for people to understand.

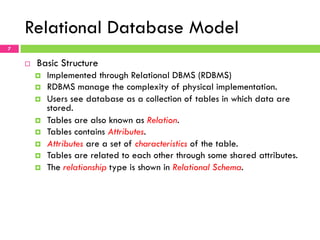

8. Relational Database Model
7
¨ Basic Structure
¤ Implemented through Relational DBMS (RDBMS)
¤ RDBMS manage the complexity of physical implementation.
¤ Users see database as a collection of tables in which data are
stored.
¤ Tables are also known as Relation.
¤ Tables contains Attributes.
¤ Attributes are a set of characteristics of the table.
¤ Tables are related to each other through some shared attributes.
¤ The relationship type is shown in Relational Schema.

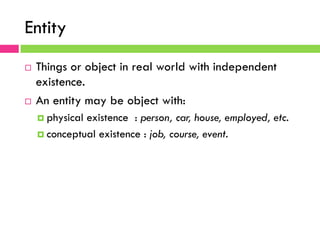

11. Entity
10
¨ Things or object in real world with independent
existence.
¨ An entity may be object with:
¤ physical existence : person, car, house, employed, etc.
¤ conceptual existence : job, course, event.

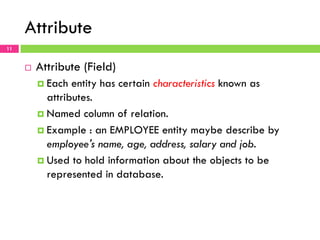

12. Attribute
11
¨ Attribute (Field)
¤ Each entity has certain characteristics known as
attributes.
¤ Named column of relation.
¤ Example : an EMPLOYEE entity maybe describe by
employee's name, age, address, salary and job.
¤ Used to hold information about the objects to be
represented in database.

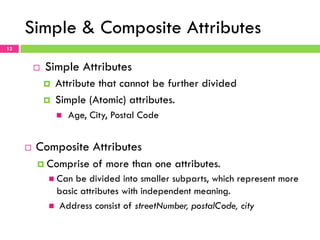

13. Simple & Composite Attributes
12
¨ Simple Attributes
¤ Attribute that cannot be further divided
¤ Simple (Atomic) attributes.
n Age, City, Postal Code
¨ Composite Attributes
¤ Comprise of more than one attributes.
n Can be divided into smaller subparts, which represent more
basic attributes with independent meaning.
n Address consist of streetNumber, postalCode, city
14. Single valued & Multivalued Attributes
13

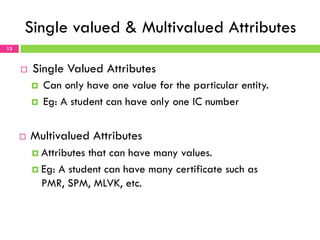

¨ Single Valued Attributes
¤ Can only have one value for the particular entity.
¤ Eg: A student can have only one IC number
¨ Multivalued Attributes
¤ Attributes that can have many values.
¤ Eg: A student can have many certificate such as
PMR, SPM, MLVK, etc.

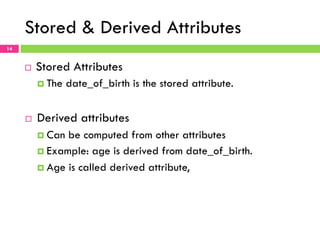

15. Stored & Derived Attributes
14
¨ Stored Attributes
¤ The date_of_birth is the stored attribute.
¨ Derived attributes
¤ Can be computed from other attributes
¤ Example: age is derived from date_of_birth.
¤ Age is called derived attribute,

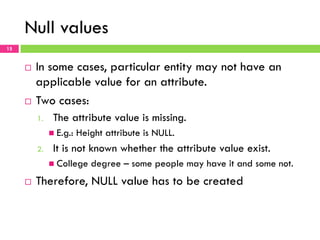

16. Null values
15
¨ In some cases, particular entity may not have an
applicable value for an attribute.
¨ Two cases:
1. The attribute value is missing.
n E.g.: Height attribute is NULL.
2. It is not known whether the attribute value exist.
n College degree – some people may have it and some not.
¨ Therefore, NULL value has to be created

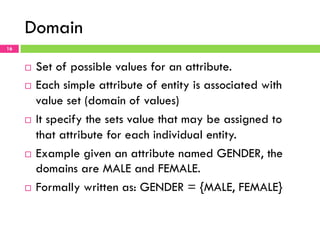

17. Domain
16
¨ Set of possible values for an attribute.
¨ Each simple attribute of entity is associated with
value set (domain of values)
¨ It specify the sets value that may be assigned to
that attribute for each individual entity.
¨ Example given an attribute named GENDER, the
domains are MALE and FEMALE.
¨ Formally written as: GENDER = {MALE, FEMALE}
18. Degree
17
¨ Degree
¤ The degree of relation is the number of attributes it
contains.
¤ For example, Student has four attributes, or degree
four.

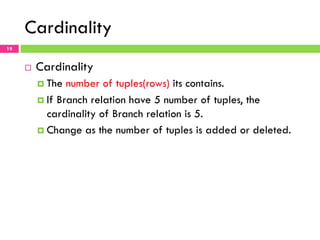

20. Cardinality
19
¨ Cardinality
¤ The number of tuples(rows) its contains.
¤ If Branch relation have 5 number of tuples, the
cardinality of Branch relation is 5.
¤ Change as the number of tuples is added or deleted.

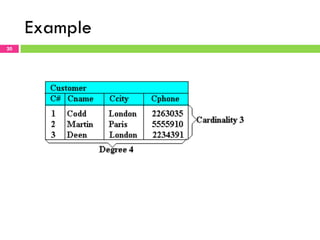

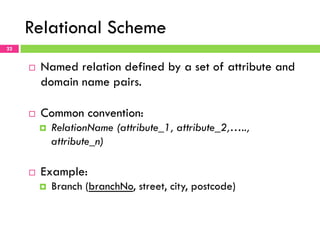

22. Relational Scheme
22
¨ Named relation defined by a set of attribute and
domain name pairs.
¨ Common convention:
¤ RelationName (attribute_1, attribute_2,…..,
attribute_n)
¨ Example:
¤ Branch (branchNo, street, city, postcode)

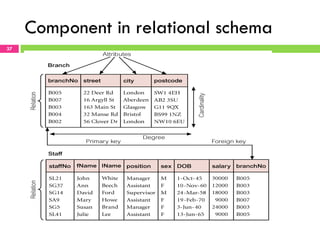

23. Characteristics of Relation Scheme
23
¨ What is Relation Schema?
¤ A named of a relation defined by a set of attributes
and domain name pairs.
¨ Relation name
¤ Relation name is distinct from all other relation names in
relational schema.
¤ Cannot have two Student relation in the database.

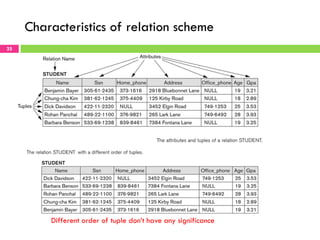

24. Characteristics of relation scheme
24
¨ Attribute name
¤ Each attribute has a distinct name.
¤ Order of attributes has no significance.
¤ Order of tuples has no significance, theoretically.
¨ Domains
¤ Values of an attribute are all from the same domain.

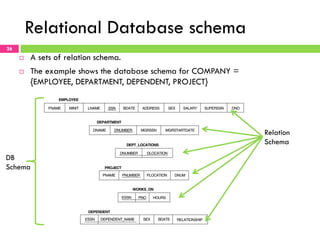

26. Relational Database schema
26
¨ A sets of relation schema.
¨ The example shows the database schema for COMPANY =
{EMPLOYEE, DEPARTMENT, DEPENDENT, PROJECT}
Relation
Schema
DB
Schema

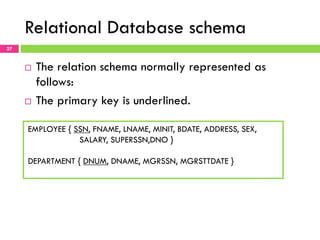

27. Relational Database schema
27
¨ The relation schema normally represented as
follows:
¨ The primary key is underlined.
EMPLOYEE { SSN, FNAME, LNAME, MINIT, BDATE, ADDRESS, SEX,
SALARY, SUPERSSN,DNO }
DEPARTMENT { DNUM, DNAME, MGRSSN, MGRSTTDATE }

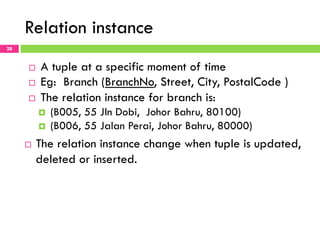

28. Relation instance
28
¨ A tuple at a specific moment of time
¨ Eg: Branch (BranchNo, Street, City, PostalCode )
¨ The relation instance for branch is:
¤ (B005, 55 Jln Dobi, Johor Bahru, 80100)
¤ (B006, 55 Jalan Perai, Johor Bahru, 80000)
¨ The relation instance change when tuple is updated,
deleted or inserted.
30. Relation Keys
30
¨ Refers to the important attribute in an entity.
¨ Determine the uniqueness of an row in given table.
¨ Identifiers for each rows.
¨ An attribute or more than one attributes can be
declared as keys depending on situations.
¨ Types of keys:
¤ Primary Key
¤ Candidate Key
¤ Alternate Key
¤ Foreign key

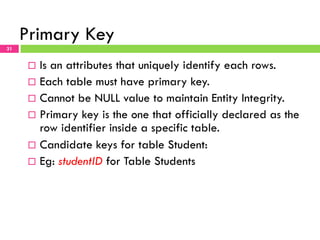

31. Primary Key
31
¨ Is an attributes that uniquely identify each rows.
¨ Each table must have primary key.
¨ Cannot be NULL value to maintain Entity Integrity.
¨ Primary key is the one that officially declared as the
row identifier inside a specific table.
¨ Candidate keys for table Student:
¨ Eg: studentID for Table Students

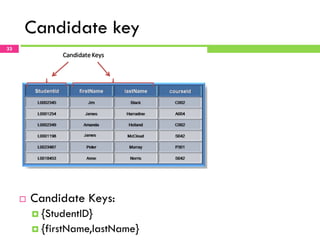

32. Candidate key
32
¨ A candidate key is a single field or the least combination of
fields that uniquely identifies each record in the table.
¨ There can be more than one candidate keys in a relation.
¨ Criteria for the candidate keys:
¤ It must contain unique values
¤ It must not contain null values
¤ It contains the minimum number of fields to ensure uniqueness
¤ It must uniquely identify each record in the table

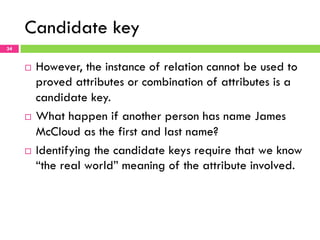

34. Candidate key
34
¨ However, the instance of relation cannot be used to
proved attributes or combination of attributes is a
candidate key.
¨ What happen if another person has name James
McCloud as the first and last name?
¨ Identifying the candidate keys require that we know
“the real world” meaning of the attribute involved.

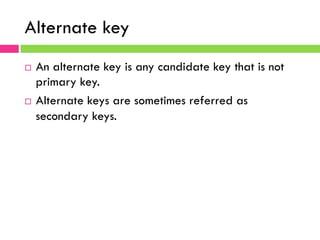

35. Alternate key
¨ An alternate key is any candidate key that is not
primary key.
¨ Alternate keys are sometimes referred as
secondary keys.
36. Foreign Key
35
¨ Attribute is an attributes whose value match the primary
key values in related tables.
¨ Creates a relationship between relations
37. Example
36
¨ Branch (branchNo, street, city, postCode)
¨ Staff (staffNo, fName, lName, position, sex, DOB, salary,
branchNo)
¨ FK à branchNo references Branch (branchNo)
39. Group discussion
38
DriverID dFName dLName
D456 Jane Watt
D666 Karen Black
D957 Steven Smith
D344 Tom Jones
ClientID FName cEmail cAddress
C3034 Anne Way 111 Storie Road
C089 Mark Fields 120 Lady Jane
C019 Anne Brown 13 Renfrew Road
C039 Karen Ways 34 High Street
DriverID ClientID pickupDate
D456 C3034 2/1/10
D456 C089 2/1/10
D666 C3034 2/1/10
D344 C039 2/1/10
For each table, find:
1. Two candidate keys
2. Primary Key
3. Foreign Key

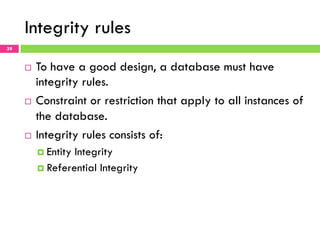

40. Integrity rules
39
¨ To have a good design, a database must have
integrity rules.
¨ Constraint or restriction that apply to all instances of
the database.
¨ Integrity rules consists of:
¤ Entity Integrity
¤ Referential Integrity

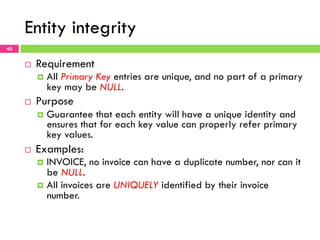

41. Entity integrity
40
¨ Requirement
¤ All Primary Key entries are unique, and no part of a primary
key may be NULL.
¨ Purpose
¤ Guarantee that each entity will have a unique identity and
ensures that for each key value can properly refer primary
key values.
¨ Examples:
¤ INVOICE, no invoice can have a duplicate number, nor can it
be NULL.
¤ All invoices are UNIQUELY identified by their invoice
number.

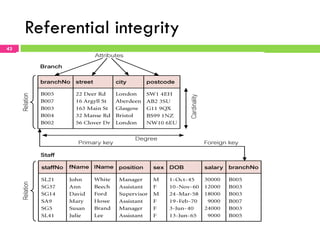

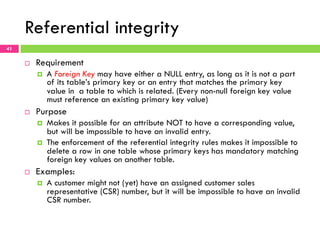

42. Referential integrity
41
¨ Requirement
¤ A Foreign Key may have either a NULL entry, as long as it is not a part
of its table’s primary key or an entry that matches the primary key
value in a table to which is related. (Every non-null foreign key value
must reference an existing primary key value)
¨ Purpose
¤ Makes it possible for an attribute NOT to have a corresponding value,
but will be impossible to have an invalid entry.
¤ The enforcement of the referential integrity rules makes it impossible to
delete a row in one table whose primary keys has mandatory matching
foreign key values on another table.
¨ Examples:
¤ A customer might not (yet) have an assigned customer sales
representative (CSR) number, but it will be impossible to have an invalid
CSR number.
43. Example
42
¤ Branch and Staff Relation.
¤ It is not possible to create staff record with branchNo
B025, unless there is already record for branch B025
in Branch relation.
¤ However, we should be able to create new staff
record with NULL branch number to allow the situation
where a new member staff has joined the company but
has not yet assigned to a particular Branch.

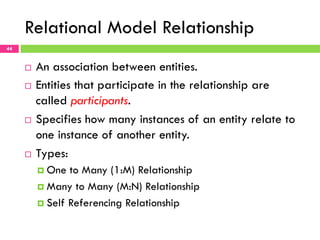

45. Relational Model Relationship
44
¨ An association between entities.
¨ Entities that participate in the relationship are
called participants.
¨ Specifies how many instances of an entity relate to
one instance of another entity.
¨ Types:
¤ One to Many (1:M) Relationship
¤ Many to Many (M:N) Relationship
¤ Self Referencing Relationship
46. One to many (1:M)
45
¨ Table A may have many linked records in Table B
¨ But each record in Table B may have only one
corresponding record in Table A.

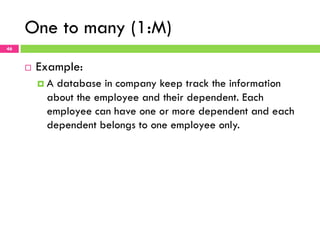

47. One to many (1:M)
46
¨ Example:
¤ A database in company keep track the information
about the employee and their dependent. Each
employee can have one or more dependent and each
dependent belongs to one employee only.

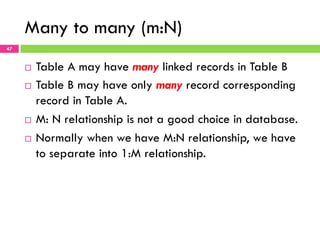

48. Many to many (m:N)
47
¨ Table A may have many linked records in Table B
¨ Table B may have only many record corresponding
record in Table A.
¨ M: N relationship is not a good choice in database.
¨ Normally when we have M:N relationship, we have
to separate into 1:M relationship.

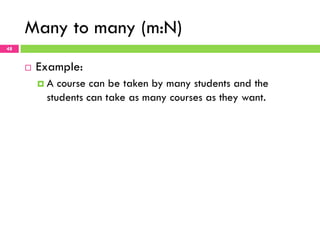

49. Many to many (m:N)
48
¨ Example:
¤ A course can be taken by many students and the
students can take as many courses as they want.

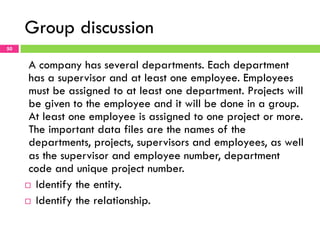

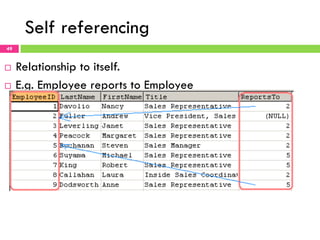

51. Group discussion
50
A company has several departments. Each department
has a supervisor and at least one employee. Employees
must be assigned to at least one department. Projects will
be given to the employee and it will be done in a group.
At least one employee is assigned to one project or more.
The important data files are the names of the
departments, projects, supervisors and employees, as well
as the supervisor and employee number, department
code and unique project number.
¨ Identify the entity.
¨ Identify the relationship.
