2. LAYOUT PLAN :
 The act or an instance of lying out. An arrangement or
plan , especially the schematic arrangement of parts or
areas .The layout of a factory , the layout of a printed
circuit .
 The art or process of arranging printed or graphic matter
on a page

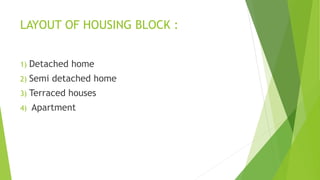

3. LAYOUT OF HOUSING BLOCK :

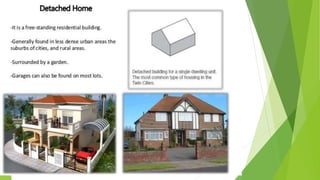

1) Detached home

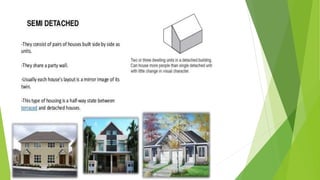

2) Semi detached home
3) Terraced houses
4) Apartment

4. BASIC BUIKDING FORMS ARE :
 BLOCK

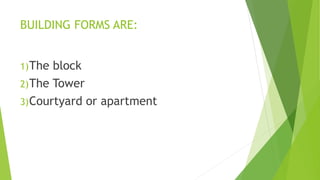

7. BUILDING FORMS ARE:
1)The block
2)The Tower
3)Courtyard or apartment

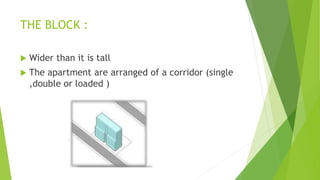

8. THE BLOCK :
 Wider than it is tall
 The apartment are arranged of a corridor (single
,double or loaded )

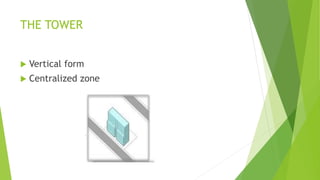

9. THE TOWER
 Vertical form
 Centralized zone

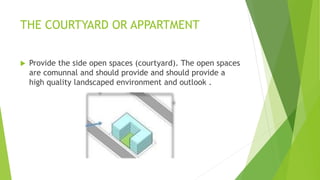

10. THE COURTYARD OR APPARTMENT
 Provide the side open spaces (courtyard). The open spaces
are comunnal and should provide and should provide a
high quality landscaped environment and outlook .

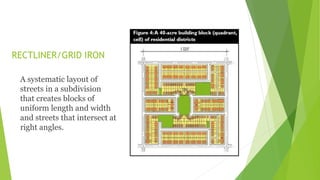

11. RECTLINER/GRID IRON
A systematic layout of
streets in a subdivision
that creates blocks of
uniform length and width
and streets that intersect at
right angles.

12. CUL-DE-SEC
A cul-de-sac, dead end,
closed, no through
road, a close and no
exit is a street with
only one inlet/outlet.
While historically built
for other reasons, one of its
modern users is to calm vehicle
through-traffic in residential areas,

13. PUBLIC FACILITES :
 Public facilities is a service which is provided by
government to people living within its
jurisdiction, either thorough the public sector or
by financing provision of services should be
available to all regardless of income.

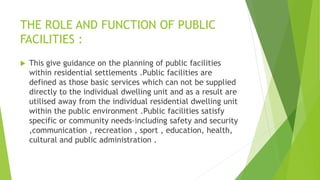

14. THE ROLE AND FUNCTION OF PUBLIC
FACILITIES :
 This give guidance on the planning of public facilities
within residential settlements .Public facilities are
defined as those basic services which can not be supplied
directly to the individual dwelling unit and as a result are
utilised away from the individual residential dwelling unit
within the public environment .Public facilities satisfy
specific or community needs-including safety and security
,communication , recreation , sport , education, health,
cultural and public administration .
