Cassandra is a highly scalable, eventually consistent, distributed, structured columnfamily store with no single points of failure, initially open-sourced by Facebook and now part of the Apache Incubator. These slides are from Jonathan Ellis's OSCON 09 talk: http://en.oreilly.com/oscon2009/public/schedule/detail/7975

1. Cassandra
Jonathan Ellis

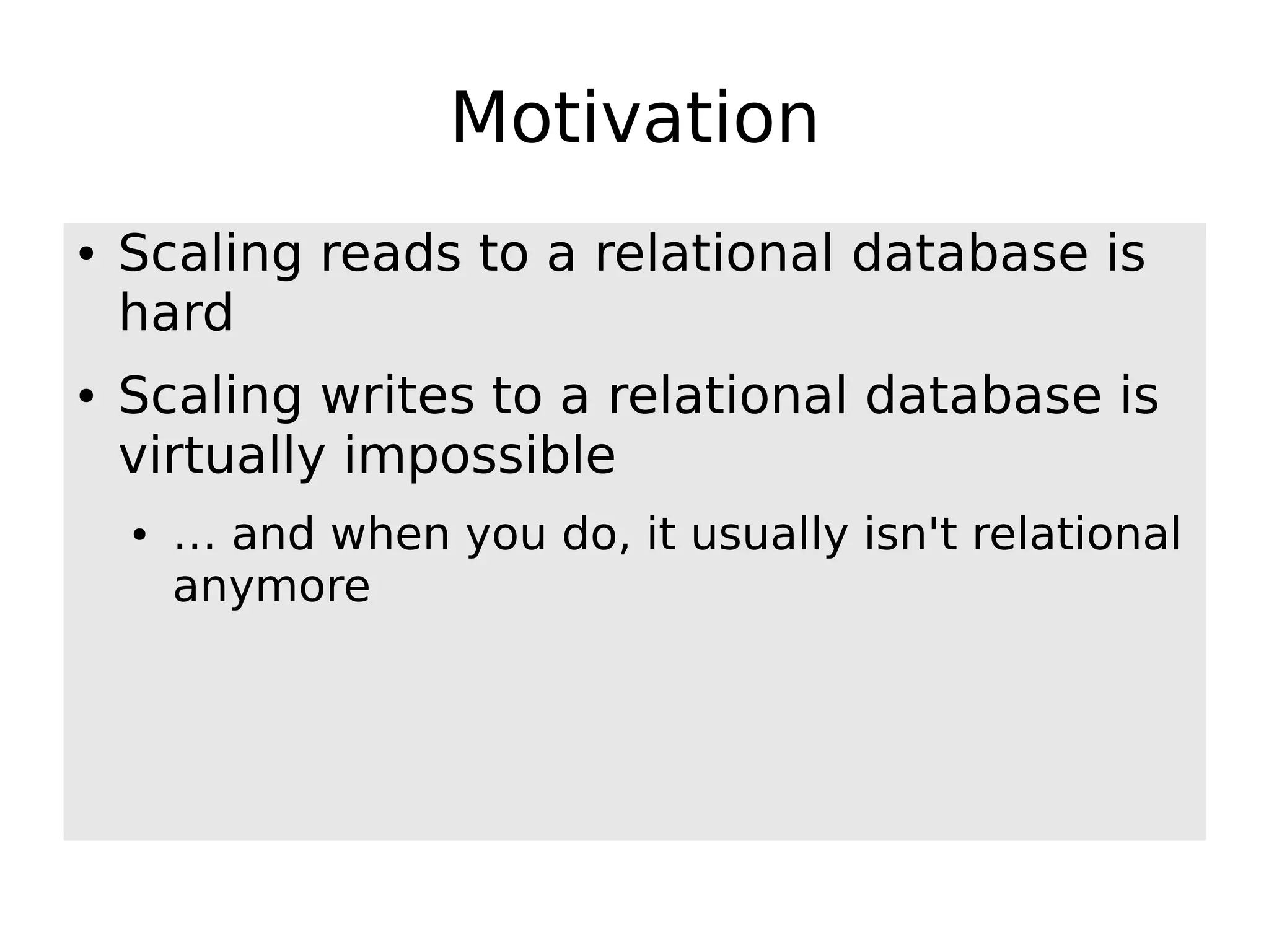

2. Motivation
● Scaling reads to a relational database is
hard
● Scaling writes to a relational database is
virtually impossible
● … and when you do, it usually isn't relational
anymore

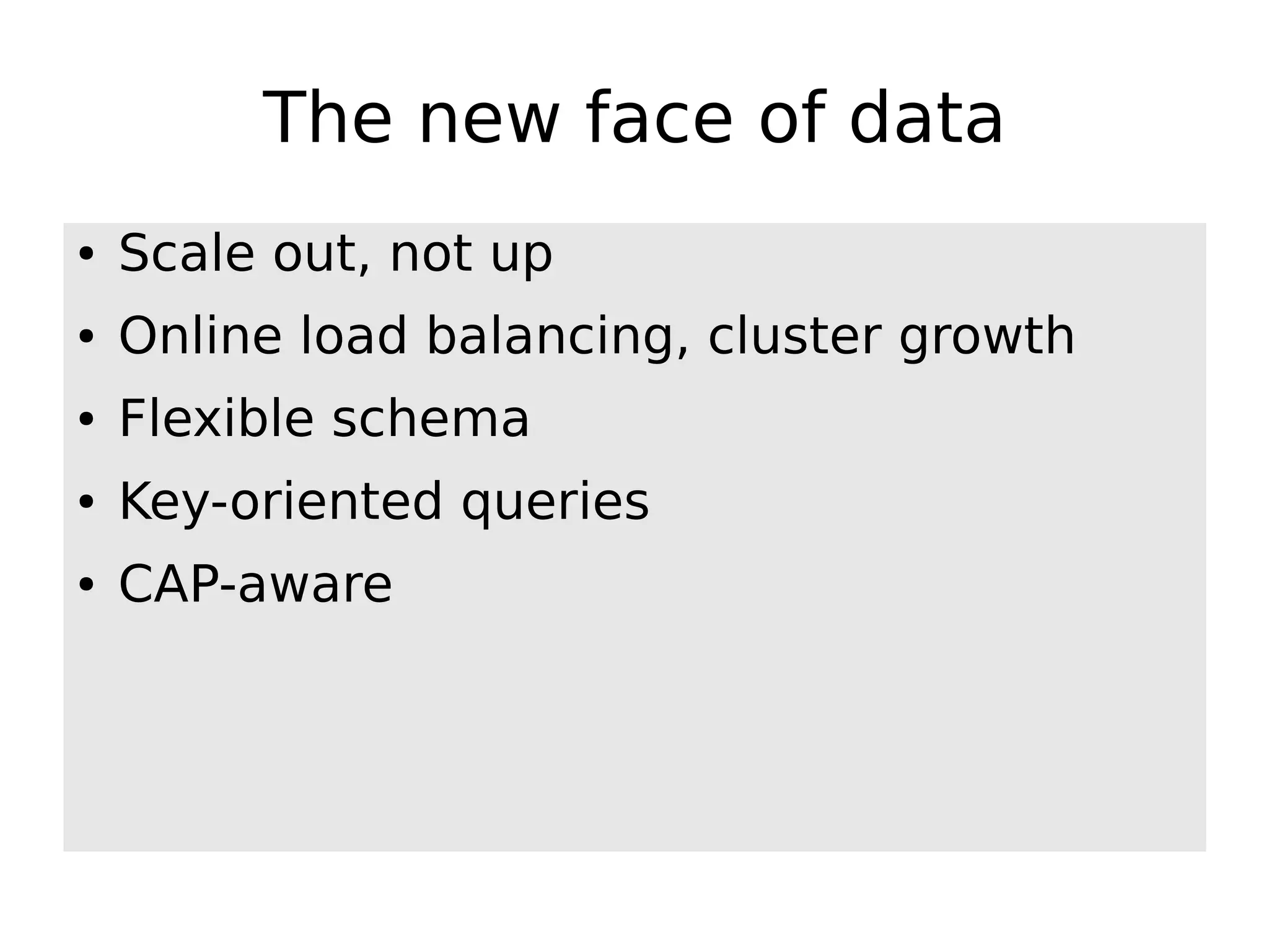

3. The new face of data
● Scale out, not up
● Online load balancing, cluster growth
● Flexible schema
● Key-oriented queries
● CAP-aware

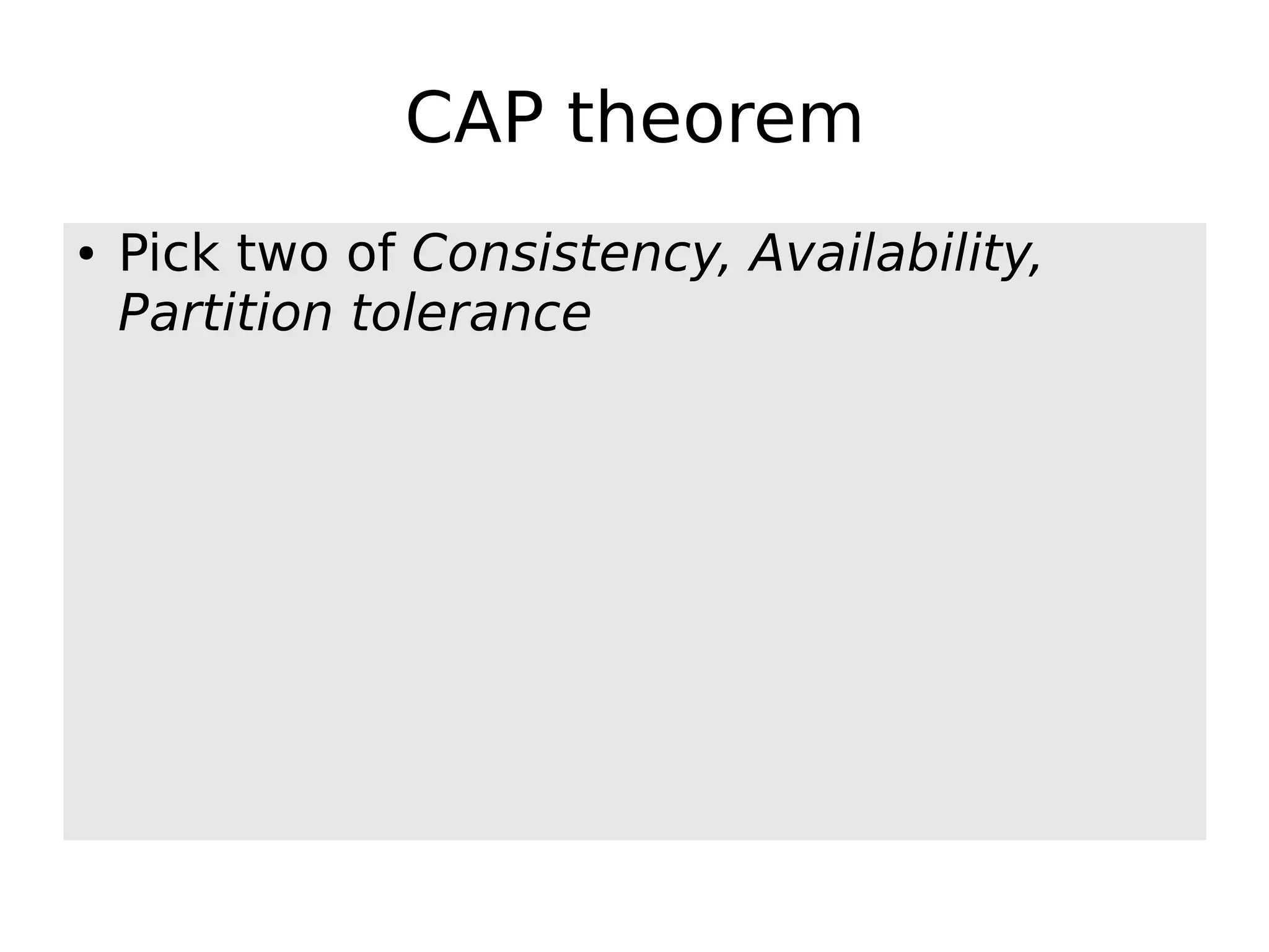

4. CAP theorem
● Pick two of Consistency, Availability,
Partition tolerance

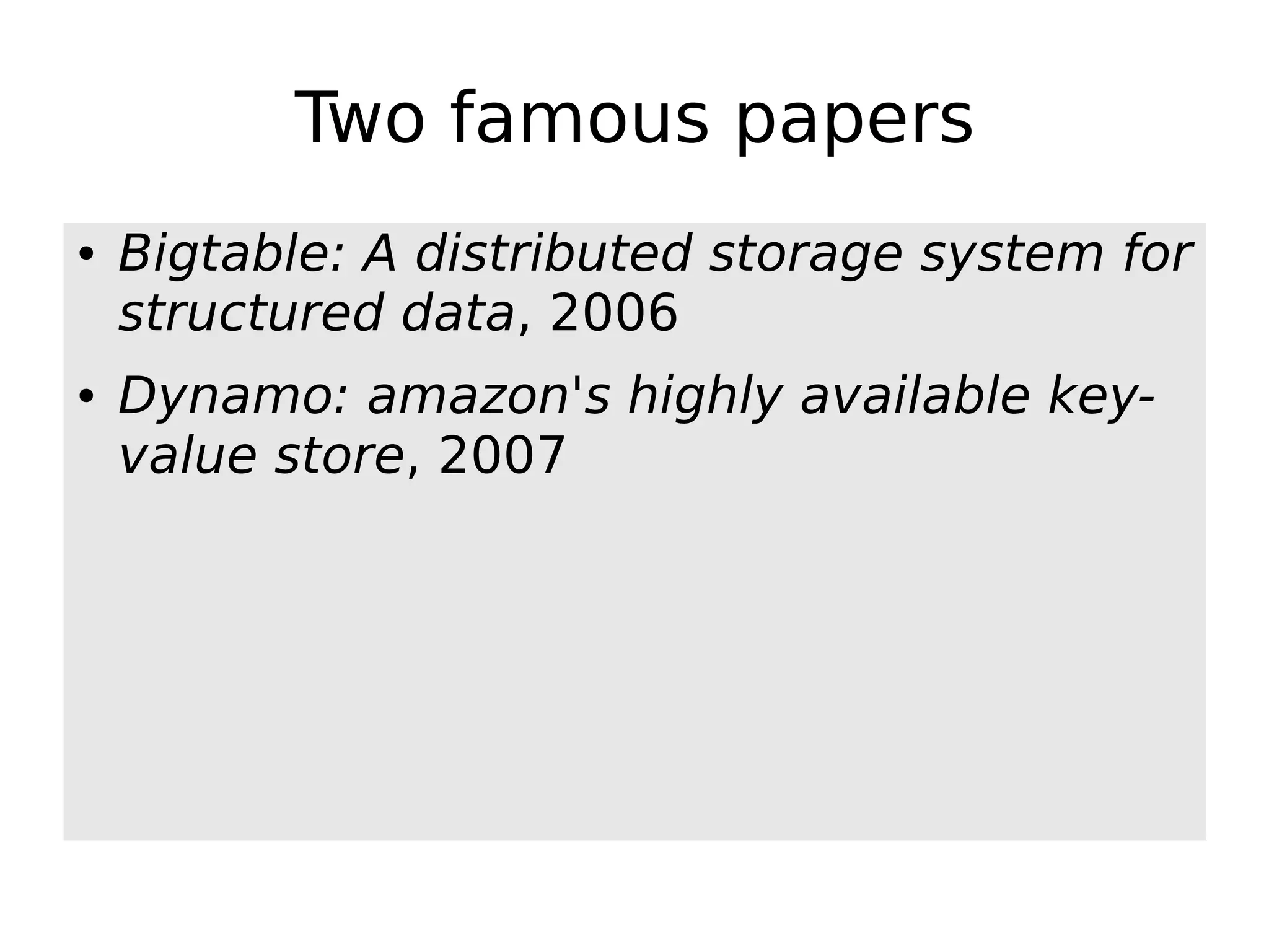

5. Two famous papers
● Bigtable: A distributed storage system for
structured data, 2006
● Dynamo: amazon's highly available key-
value store, 2007

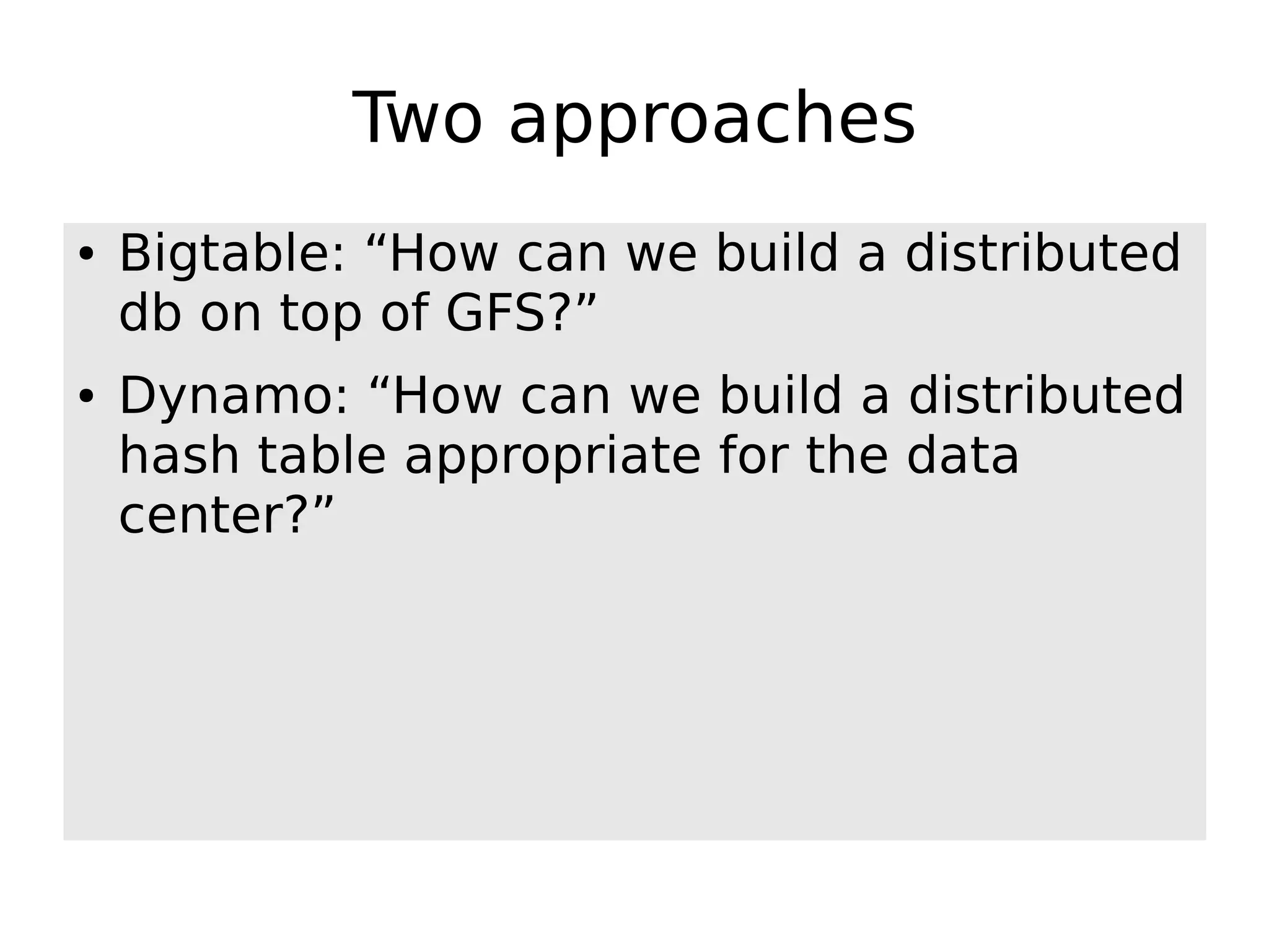

6. Two approaches
● Bigtable: “How can we build a distributed
db on top of GFS?”
● Dynamo: “How can we build a distributed
hash table appropriate for the data
center?”

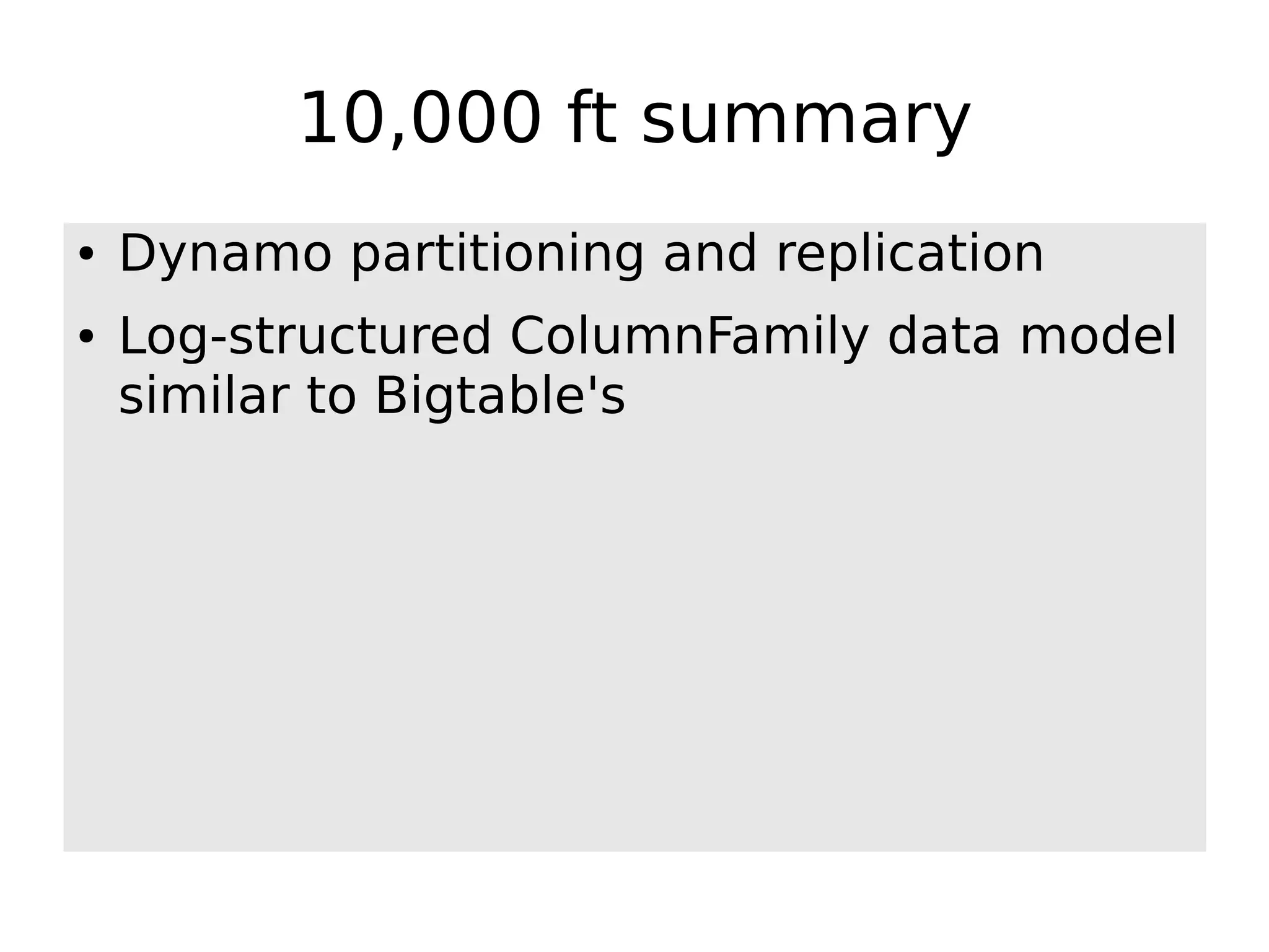

7. 10,000 ft summary
● Dynamo partitioning and replication
● Log-structured ColumnFamily data model
similar to Bigtable's

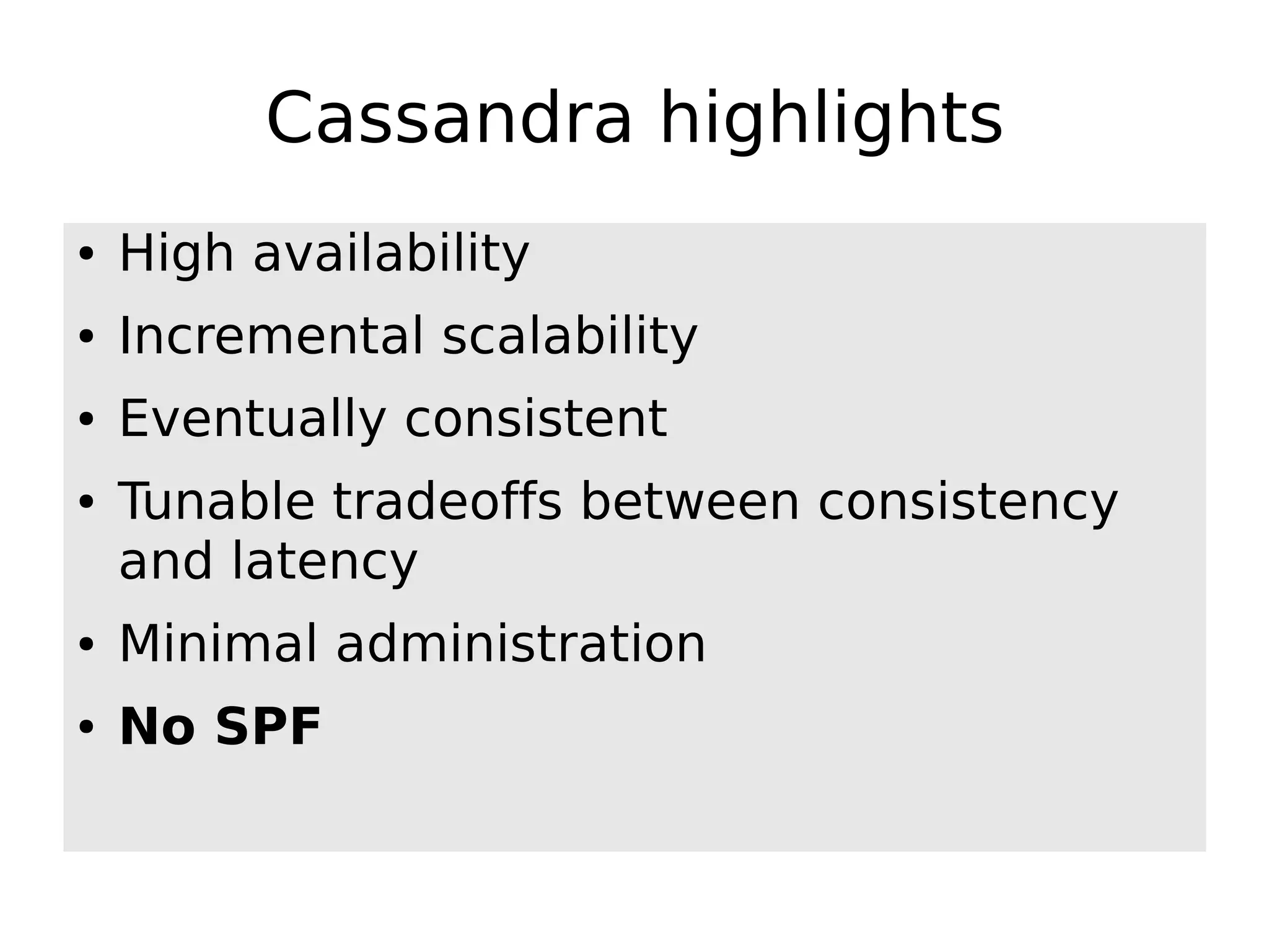

8. Cassandra highlights
● High availability
● Incremental scalability
● Eventually consistent
● Tunable tradeoffs between consistency
and latency
● Minimal administration
● No SPF

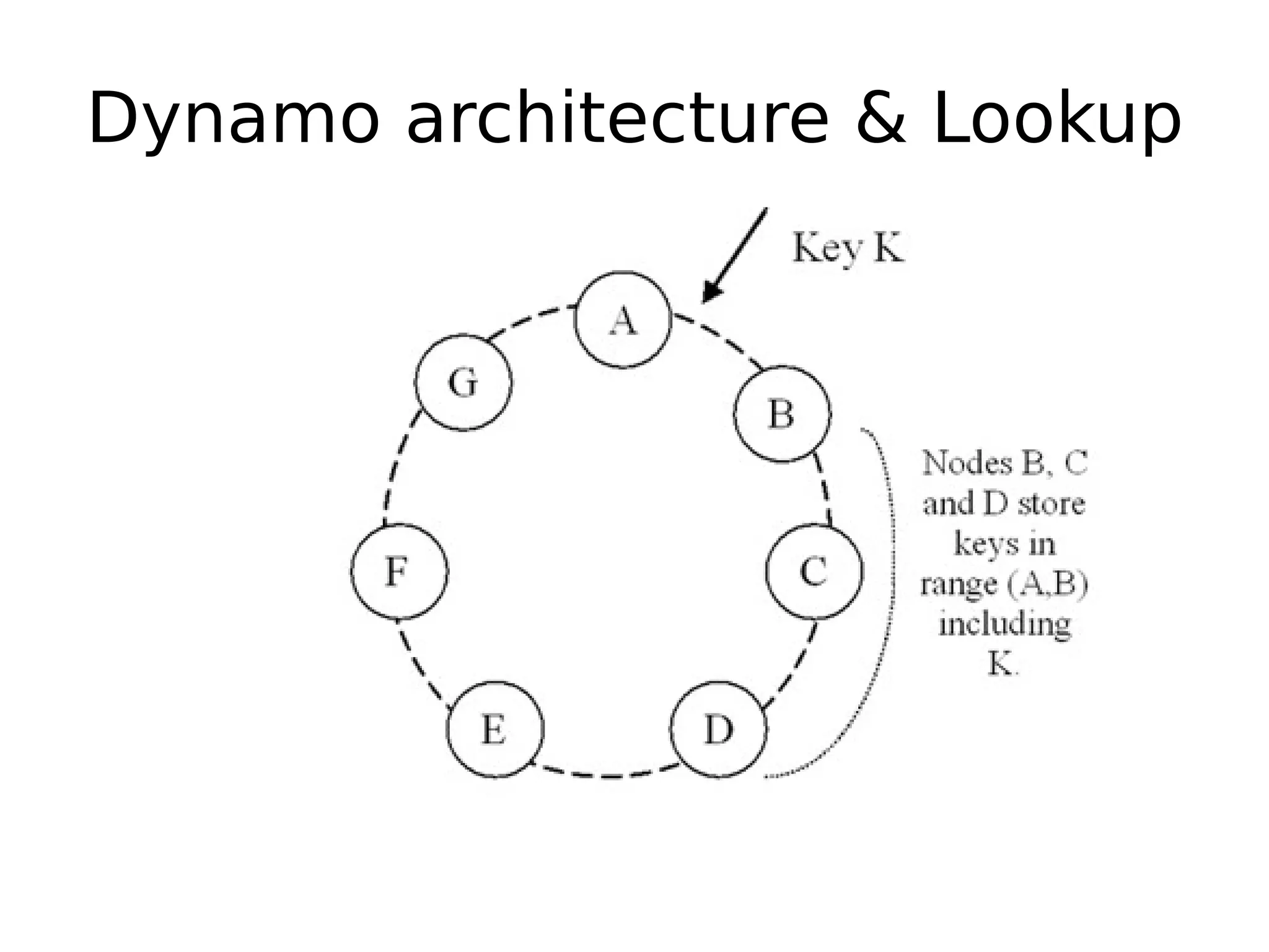

13. Dynamo architecture & Lookup

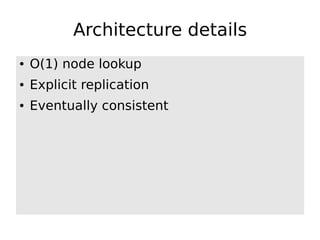

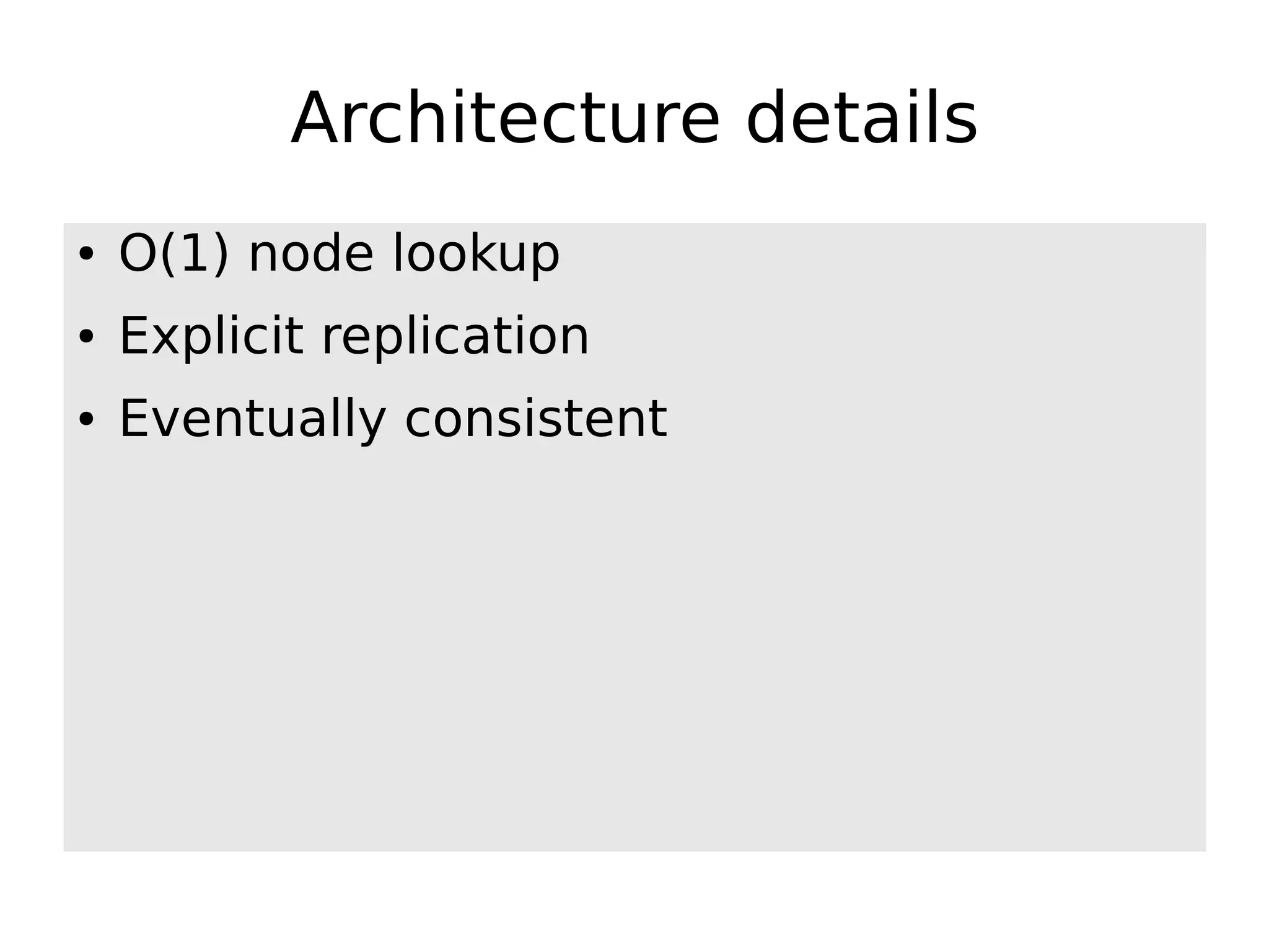

14. Architecture details
● O(1) node lookup
● Explicit replication
● Eventually consistent

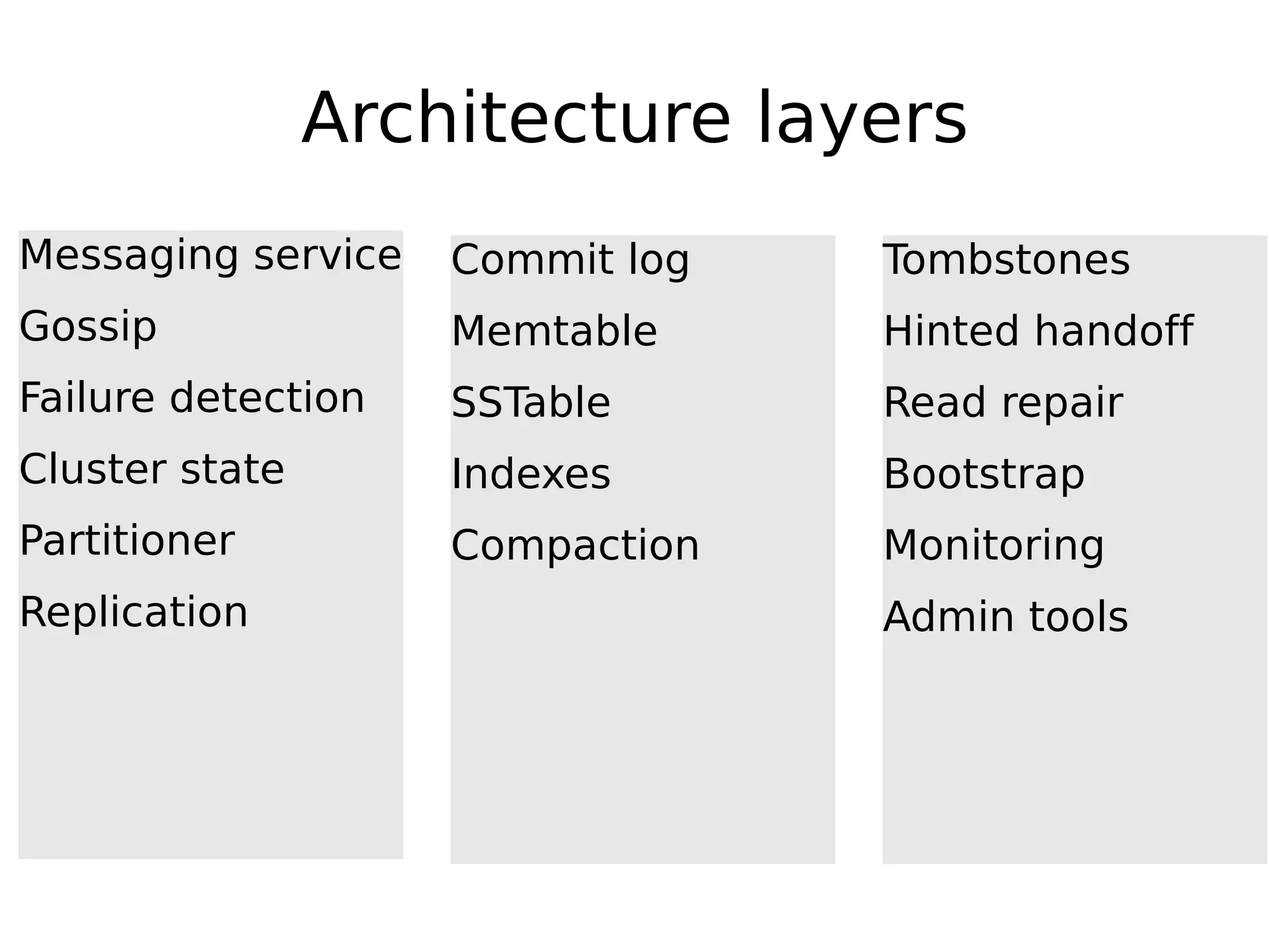

15. Architecture layers
Messaging service Commit log Tombstones
Gossip Memtable Hinted handoff
Failure detection SSTable Read repair
Cluster state Indexes Bootstrap
Partitioner Compaction Monitoring
Replication Admin tools

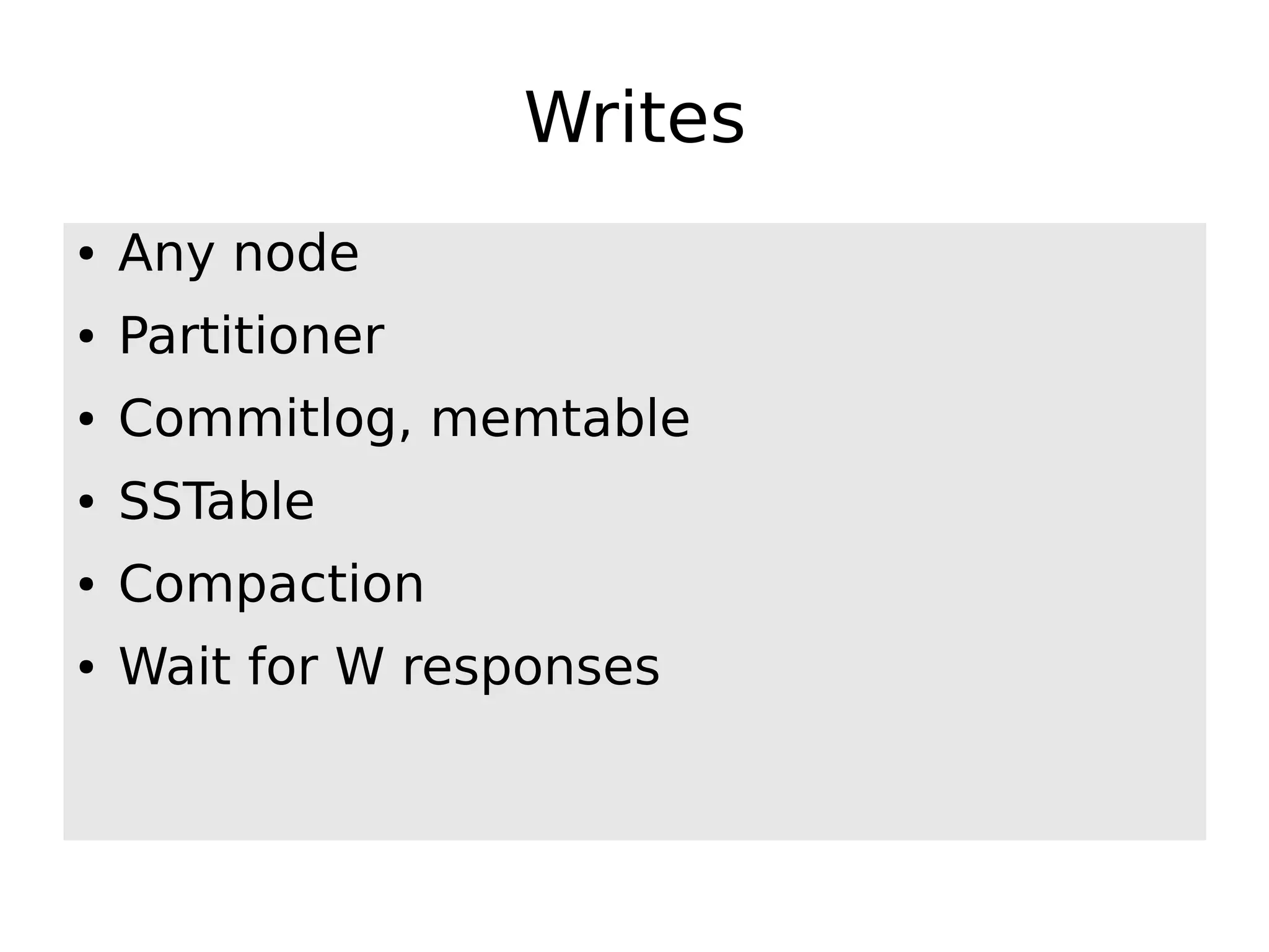

16. Writes
● Any node
● Partitioner
● Commitlog, memtable
● SSTable
● Compaction
● Wait for W responses

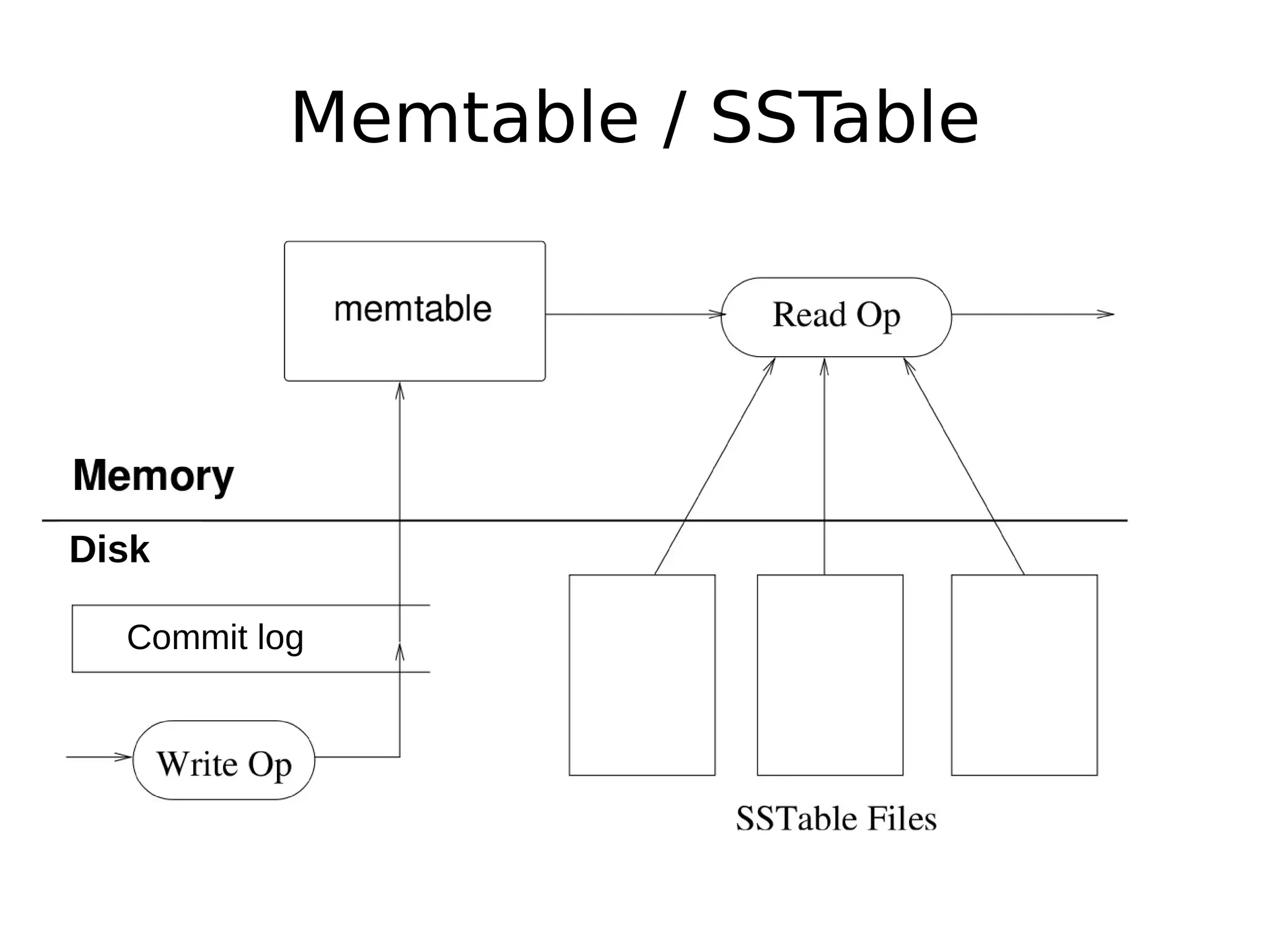

17. Memtable / SSTable
Disk
Commit log

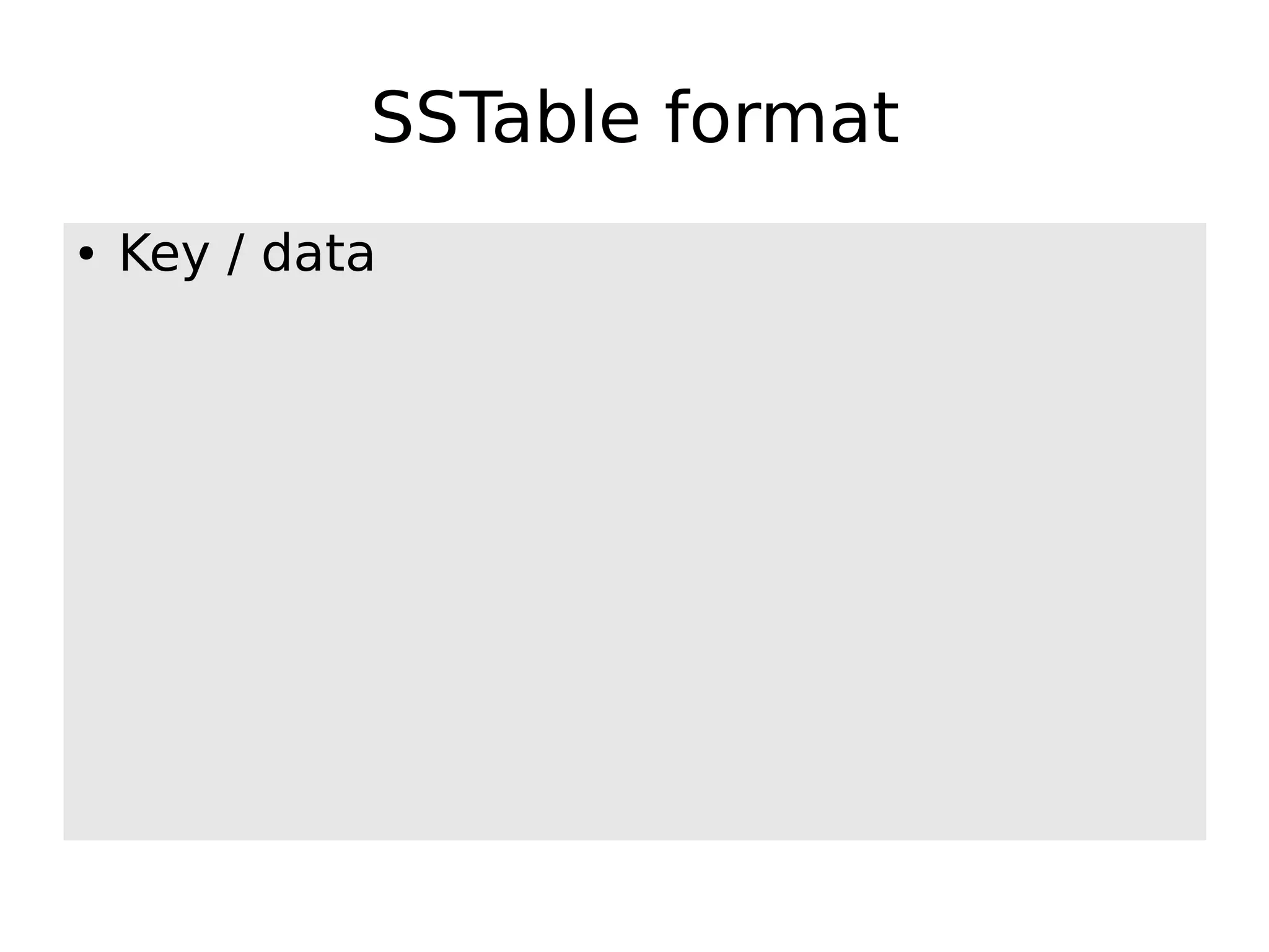

18. SSTable format
● Key / data

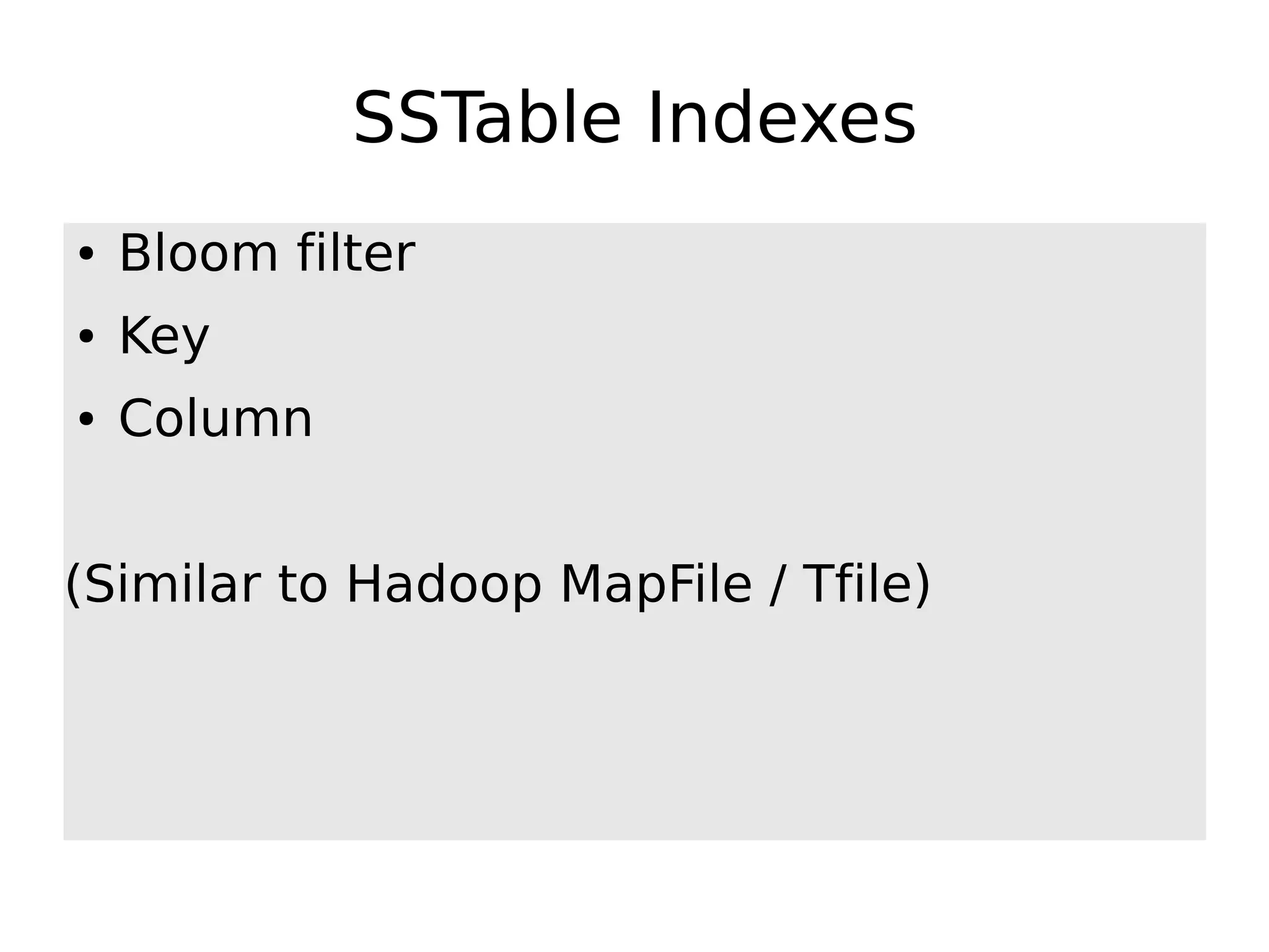

19. SSTable Indexes
● Bloom filter
● Key
● Column
(Similar to Hadoop MapFile / Tfile)

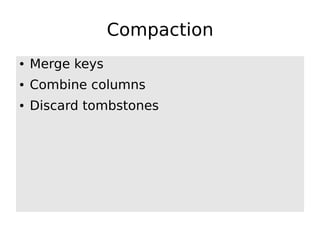

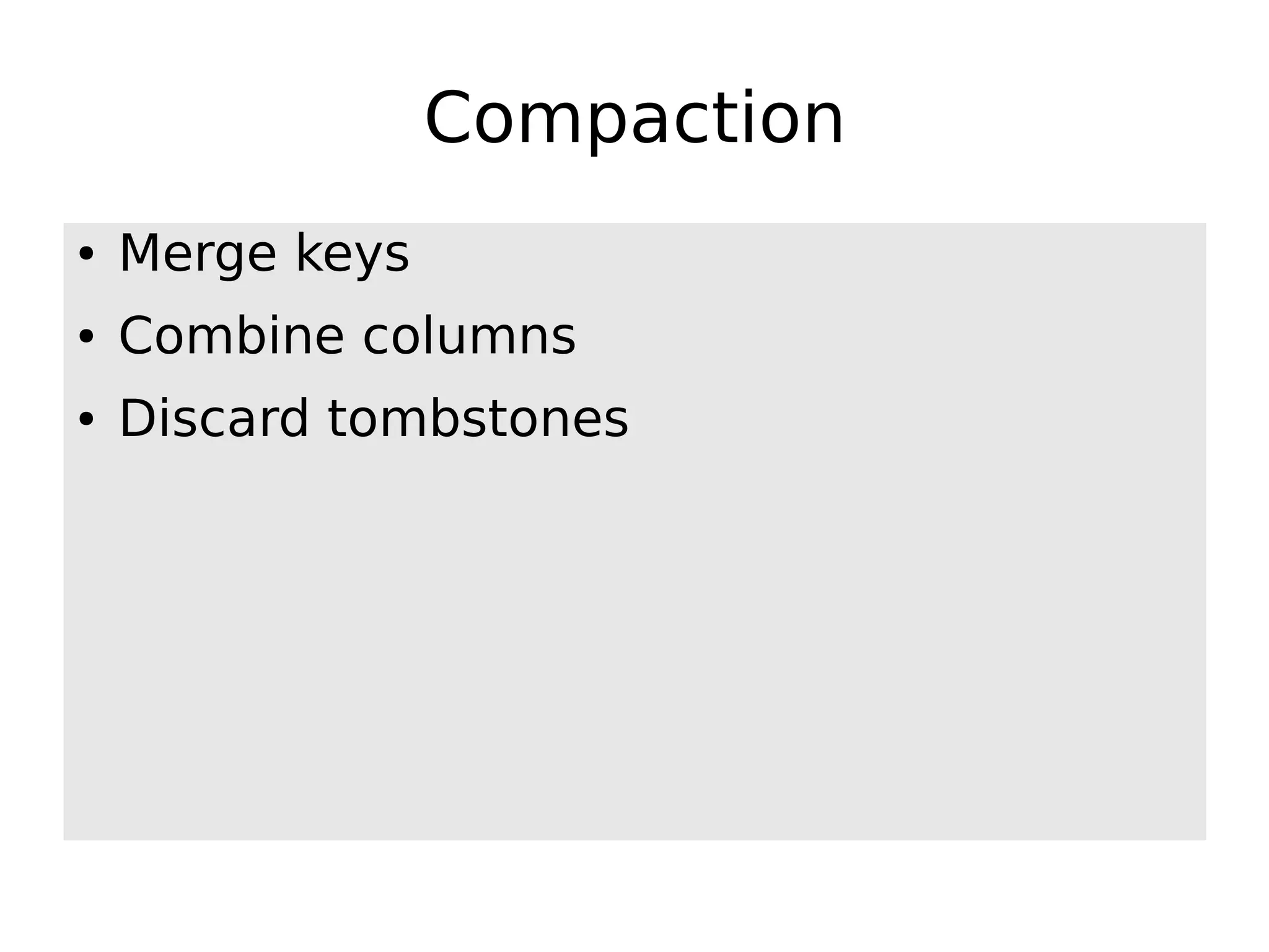

20. Compaction
● Merge keys
● Combine columns
● Discard tombstones

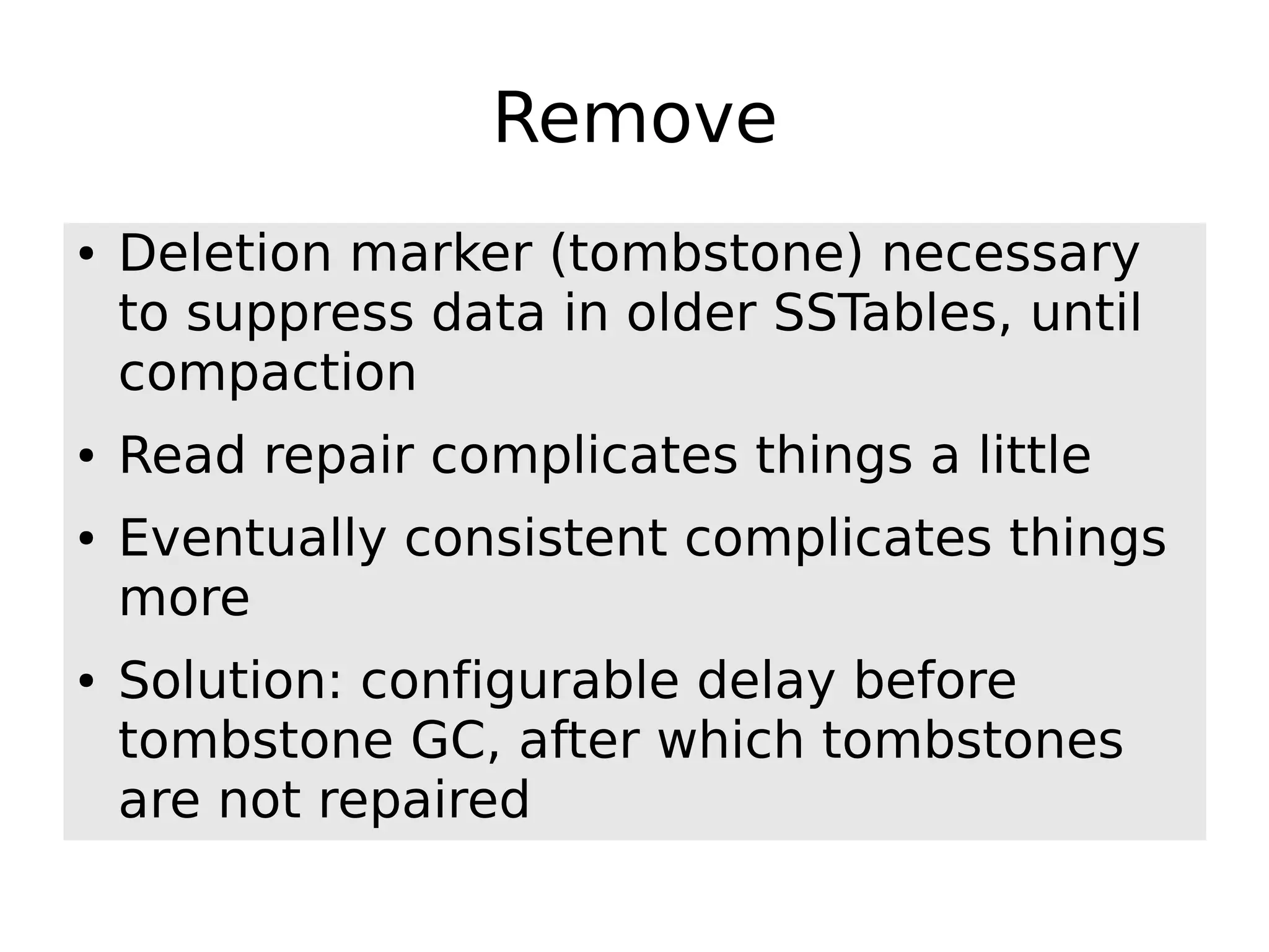

21. Remove
● Deletion marker (tombstone) necessary
to suppress data in older SSTables, until
compaction
● Read repair complicates things a little
● Eventually consistent complicates things
more
● Solution: configurable delay before
tombstone GC, after which tombstones
are not repaired

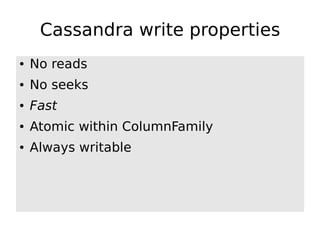

22. Cassandra write properties
● No reads
● No seeks
● Fast
● Atomic within ColumnFamily
● Always writable

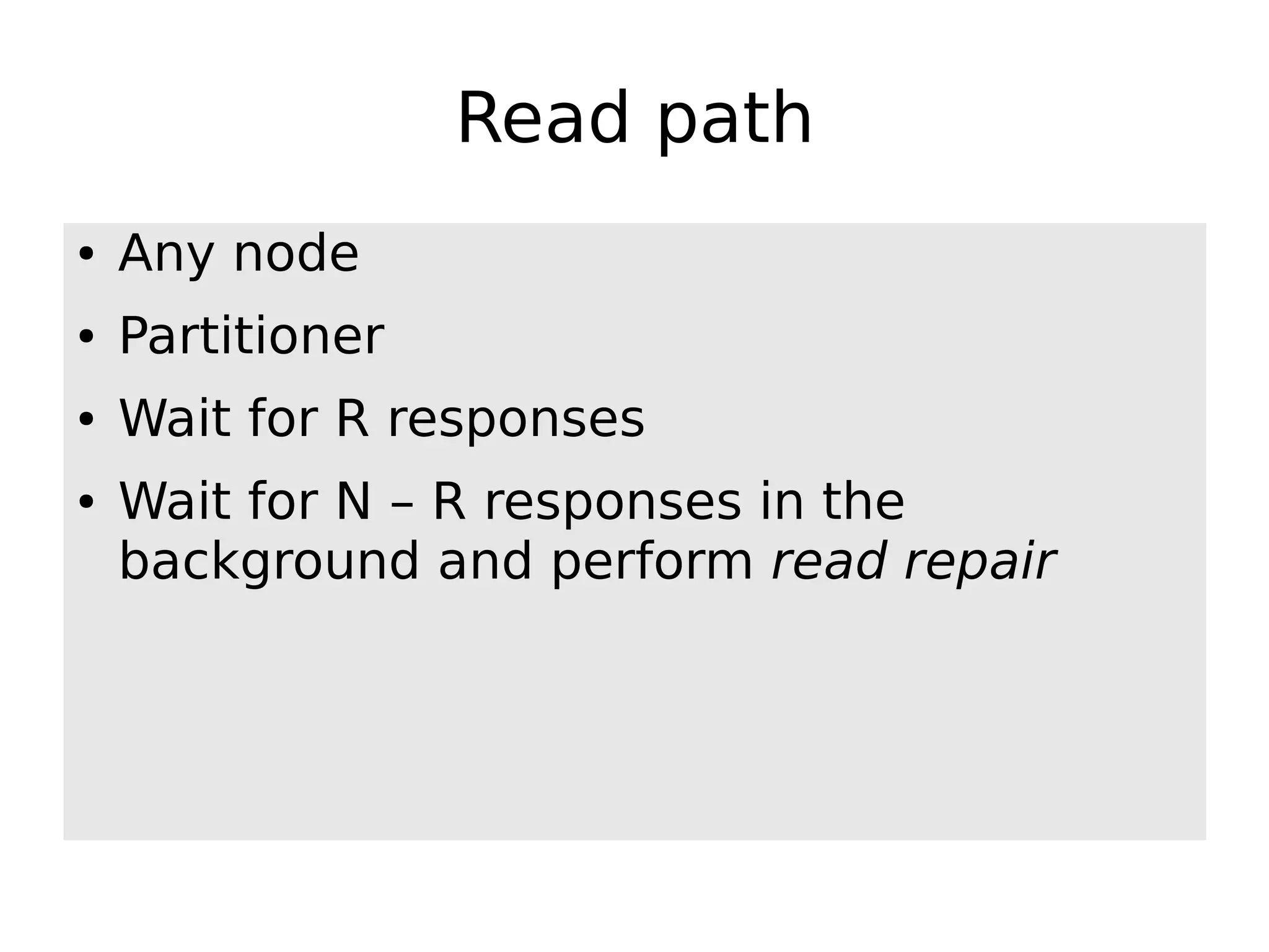

23. Read path
● Any node
● Partitioner
● Wait for R responses
● Wait for N – R responses in the
background and perform read repair

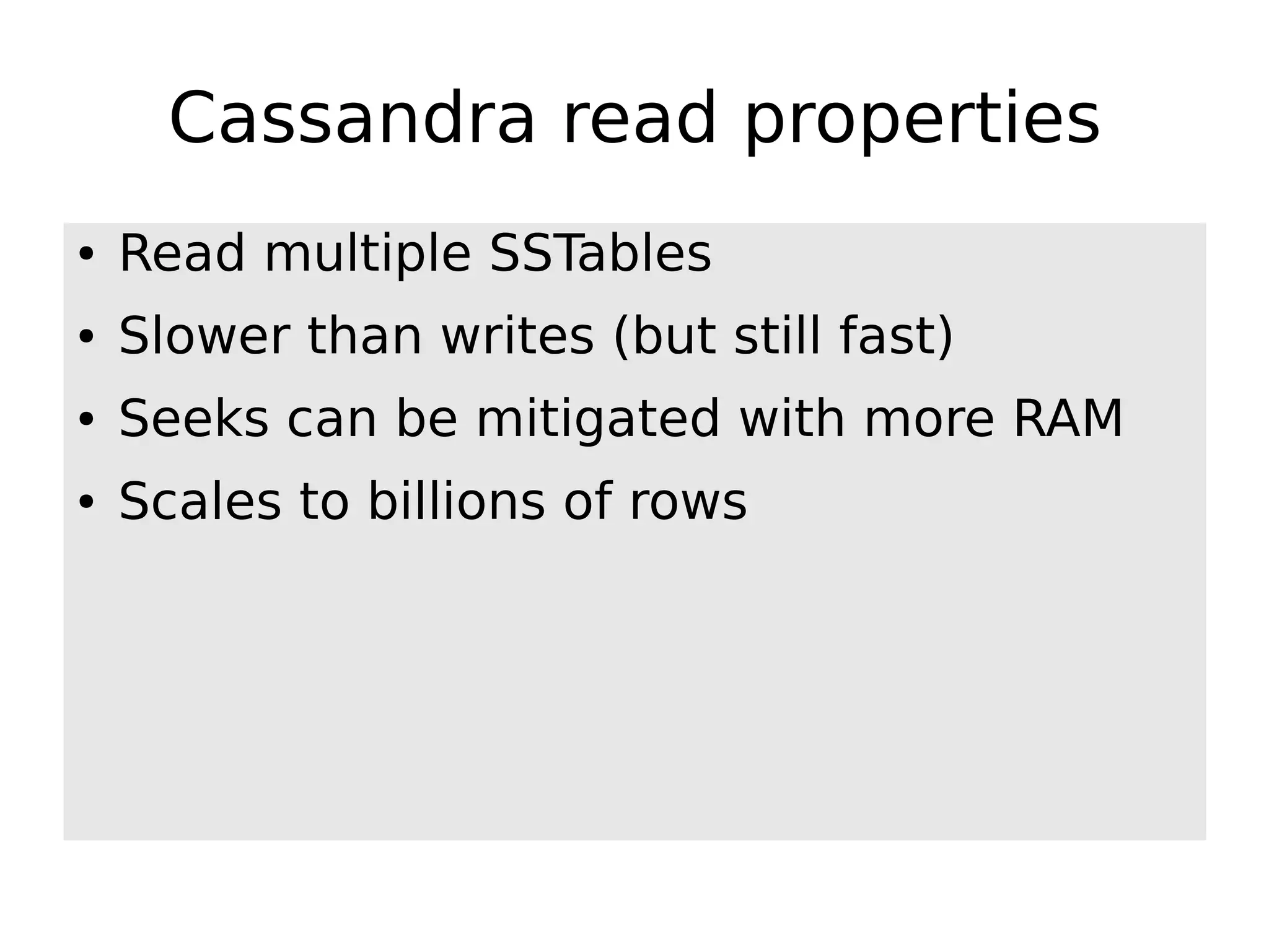

24. Cassandra read properties
● Read multiple SSTables
● Slower than writes (but still fast)
● Seeks can be mitigated with more RAM
● Scales to billions of rows

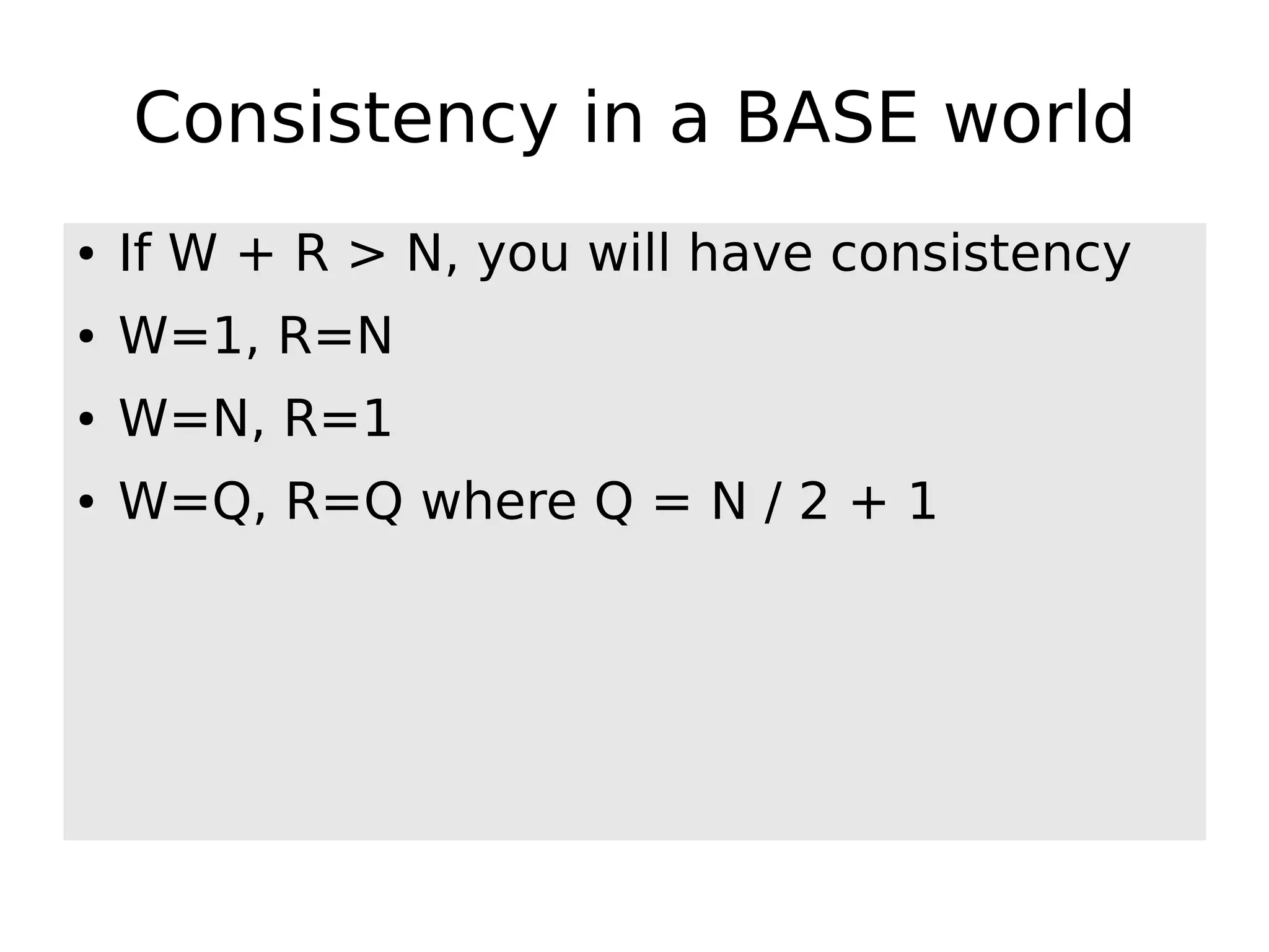

25. Consistency in a BASE world
● If W + R > N, you will have consistency
● W=1, R=N
● W=N, R=1
● W=Q, R=Q where Q = N / 2 + 1

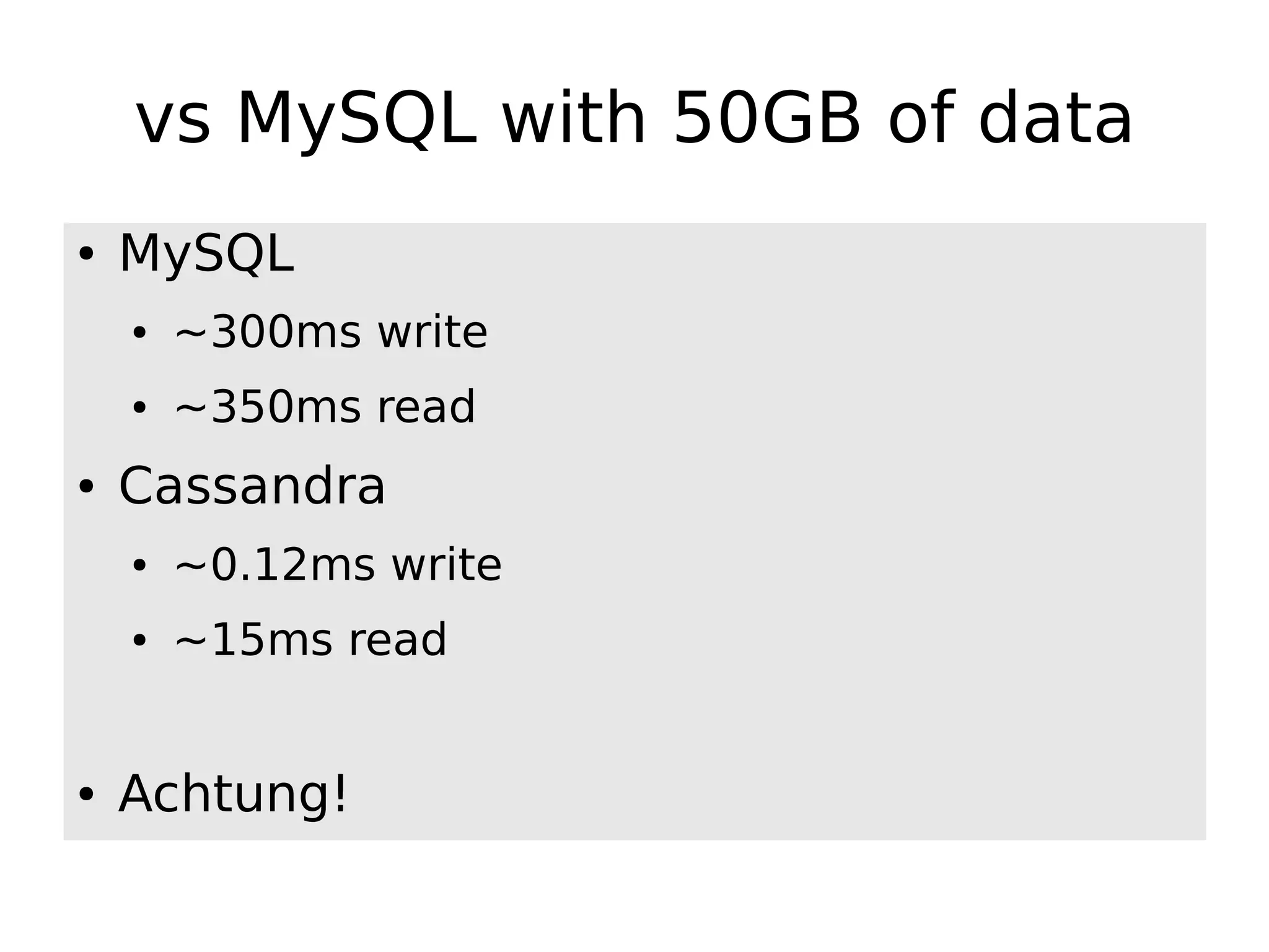

26. vs MySQL with 50GB of data
● MySQL
● ~300ms write
● ~350ms read
● Cassandra
● ~0.12ms write
● ~15ms read
● Achtung!

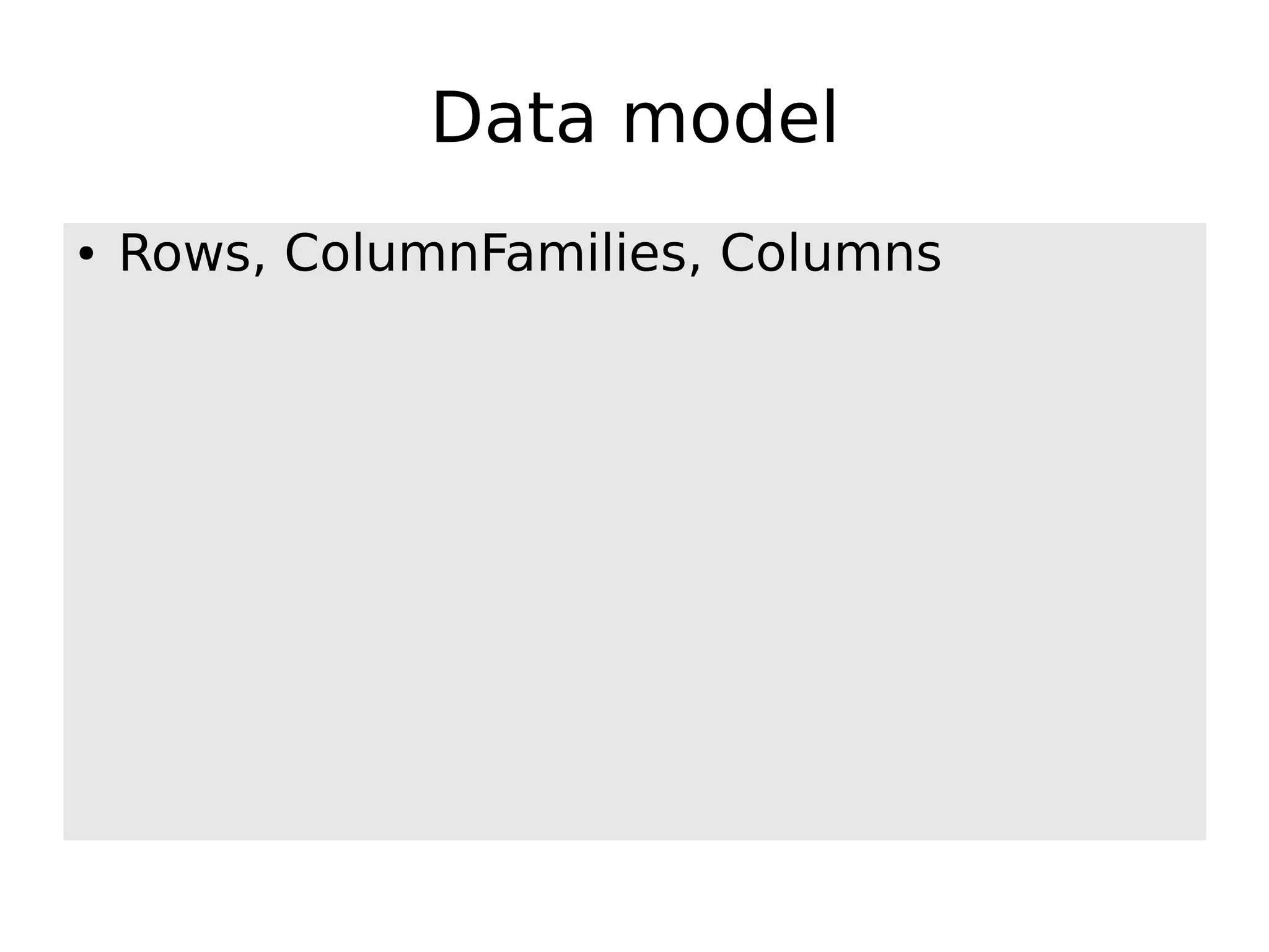

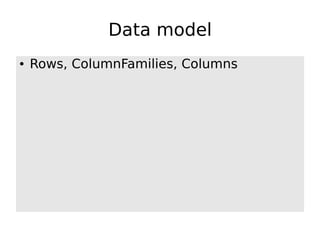

27. Data model
● Rows, ColumnFamilies, Columns

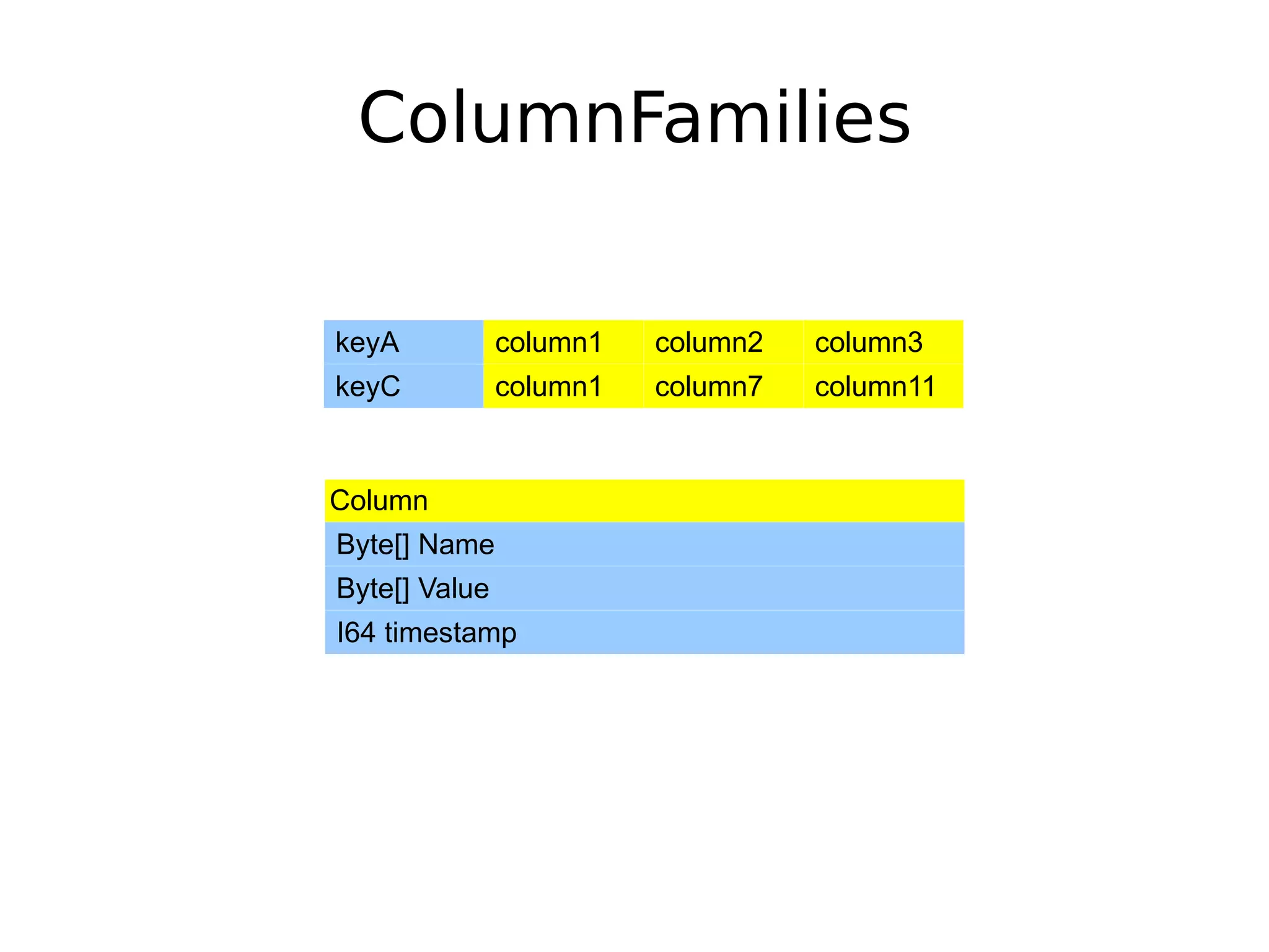

28. ColumnFamilies
keyA column1 column2 column3
keyC column1 column7 column11
Column
Byte[] Name
Byte[] Value
I64 timestamp

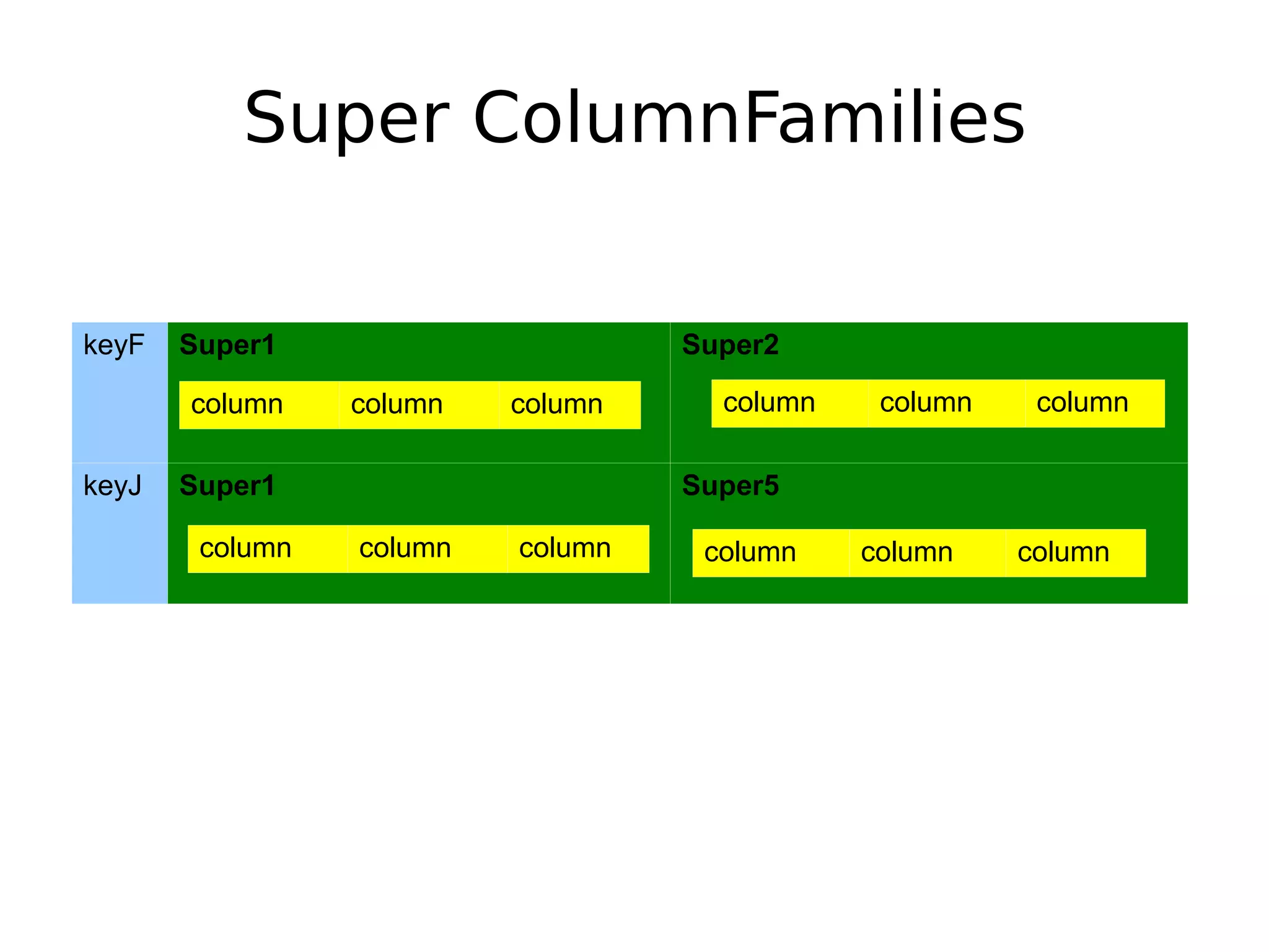

29. Super ColumnFamilies
keyF Super1 Super2
column column column column column column
keyJ Super1 Super5
column column column column column column

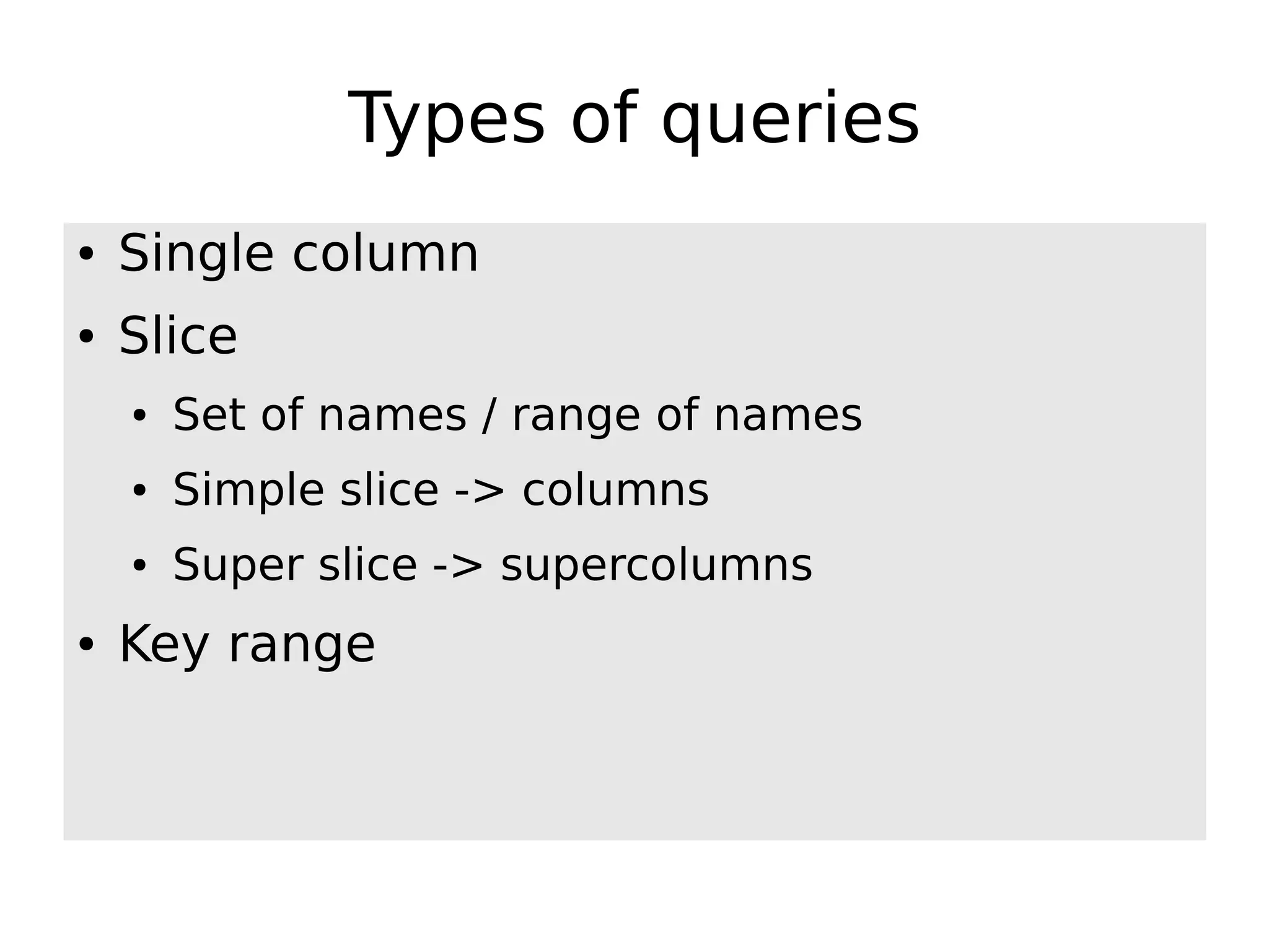

30. Types of queries
● Single column
● Slice
● Set of names / range of names
● Simple slice -> columns
● Super slice -> supercolumns
● Key range

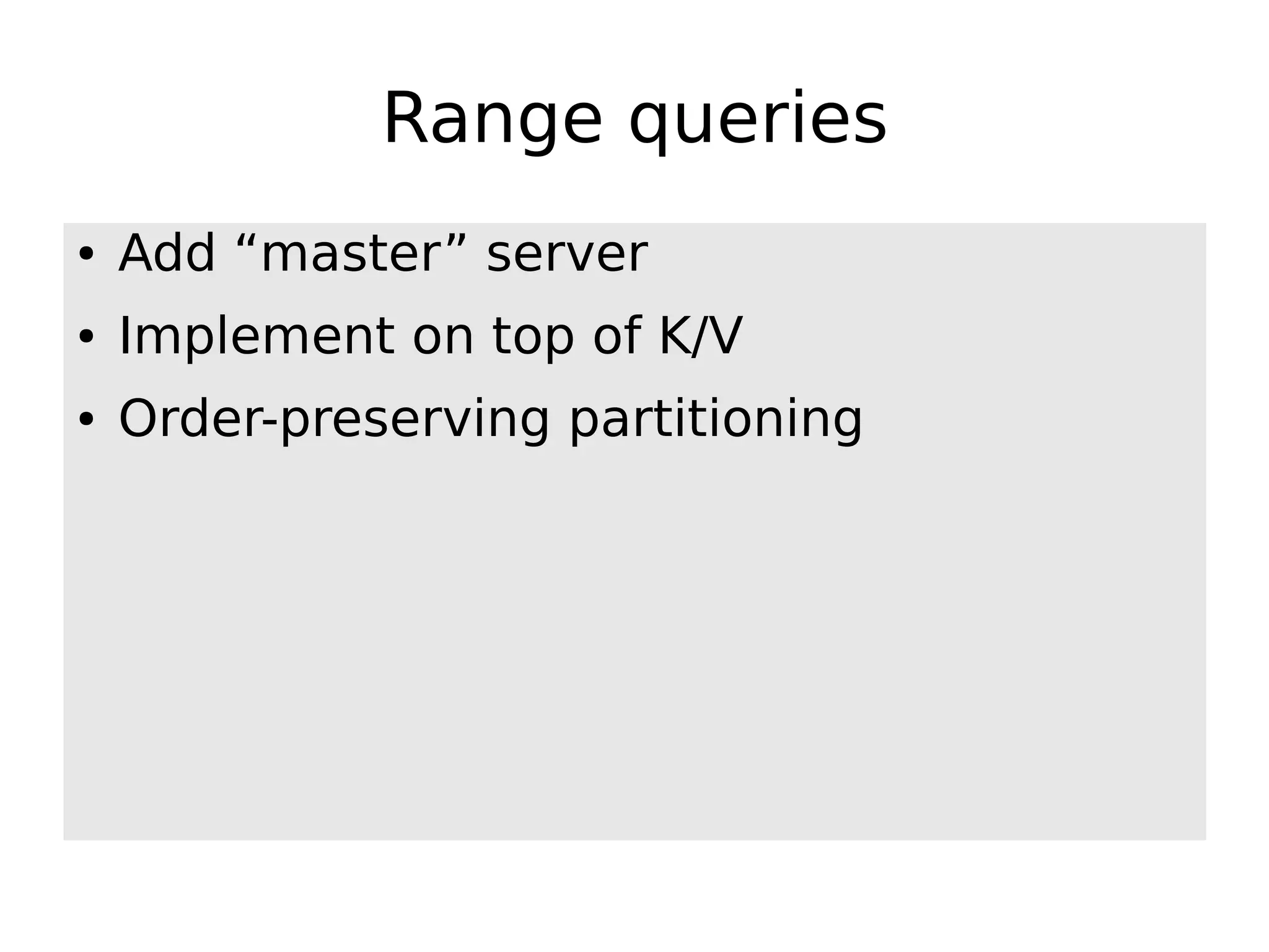

31. Range queries
● Add “master” server
● Implement on top of K/V
● Order-preserving partitioning

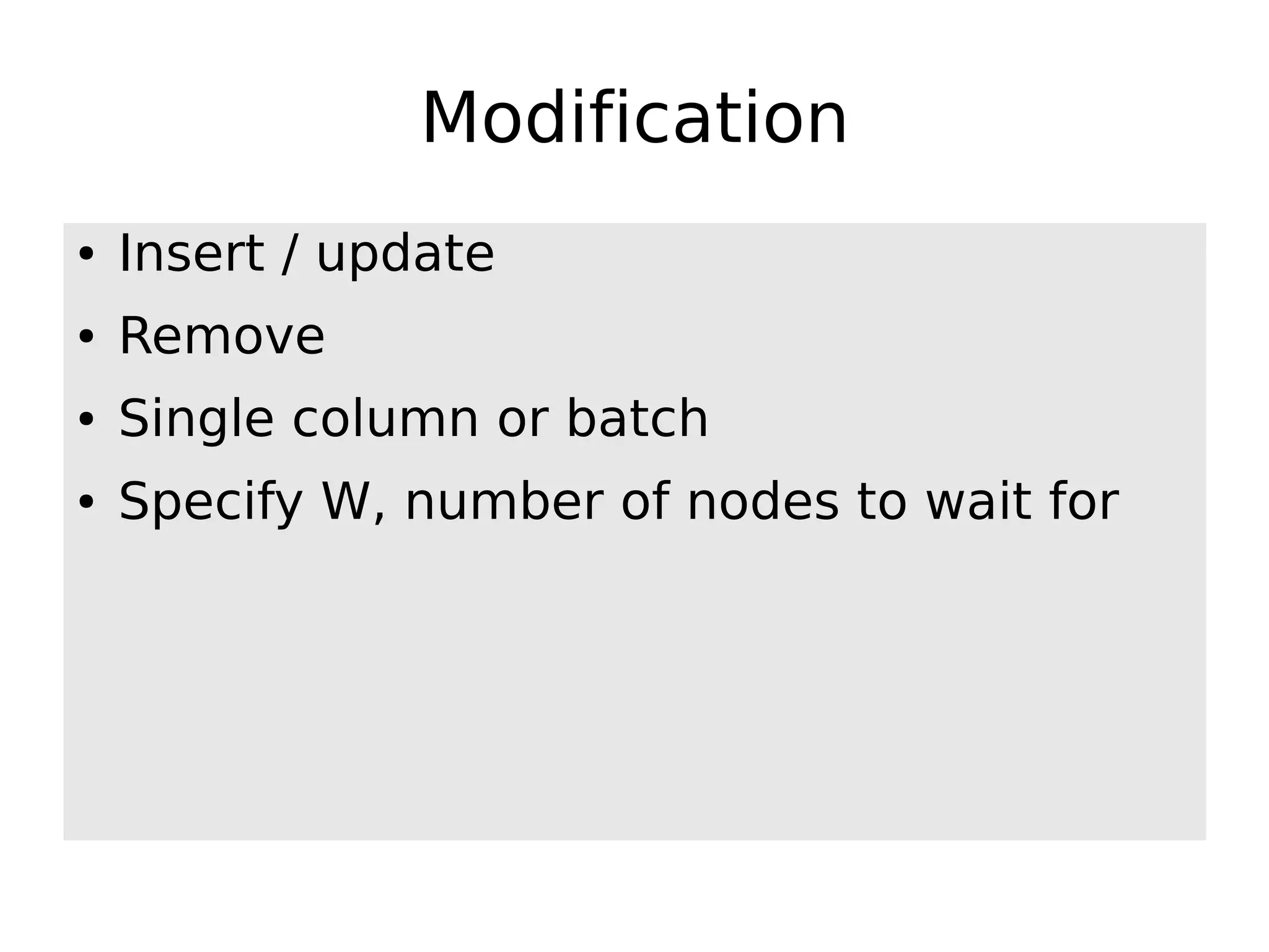

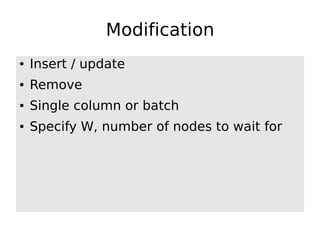

32. Modification
● Insert / update
● Remove
● Single column or batch
● Specify W, number of nodes to wait for

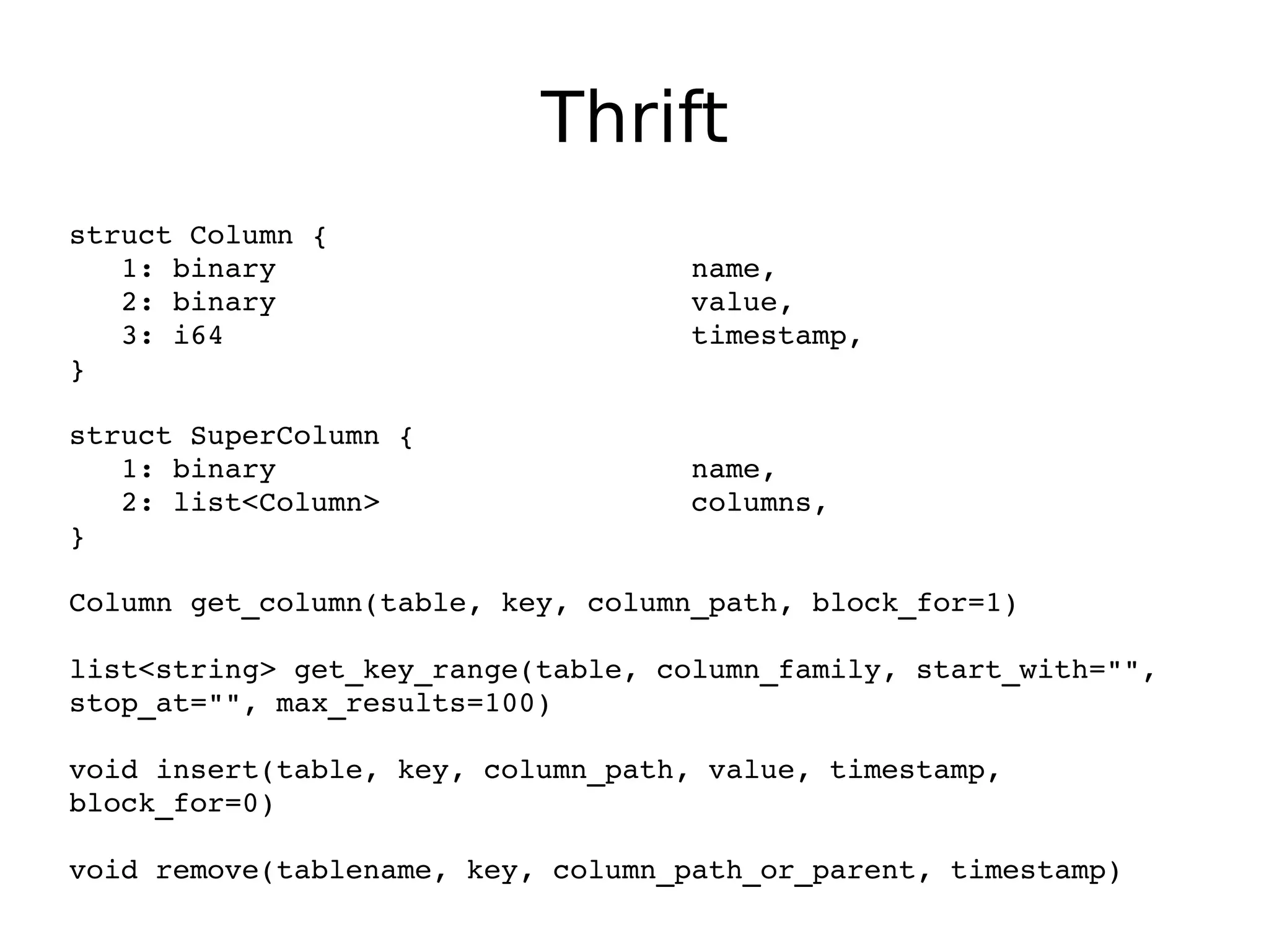

33. Thrift
struct Column {
1: binary name,
2: binary value,
3: i64 timestamp,
}
struct SuperColumn {
1: binary name,
2: list<Column> columns,
}
Column get_column(table, key, column_path, block_for=1)
list<string> get_key_range(table, column_family, start_with="",
stop_at="", max_results=100)
void insert(table, key, column_path, value, timestamp,
block_for=0)
void remove(tablename, key, column_path_or_parent, timestamp)

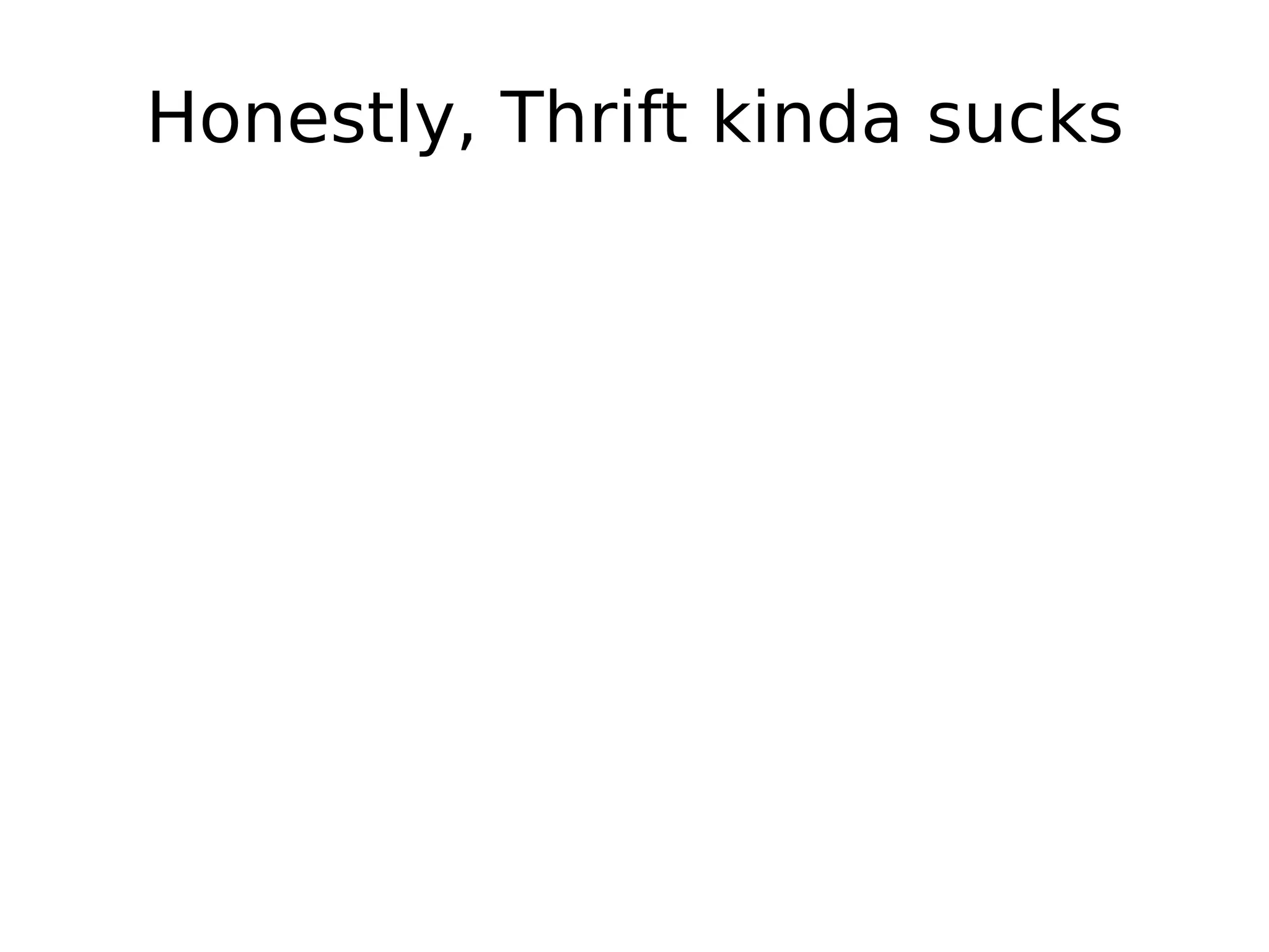

34. Honestly, Thrift kinda sucks

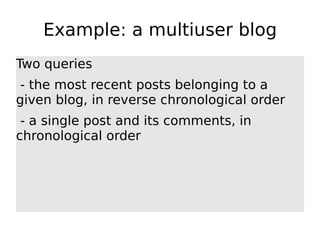

35. Example: a multiuser blog
Two queries
- the most recent posts belonging to a
given blog, in reverse chronological order
- a single post and its comments, in
chronological order

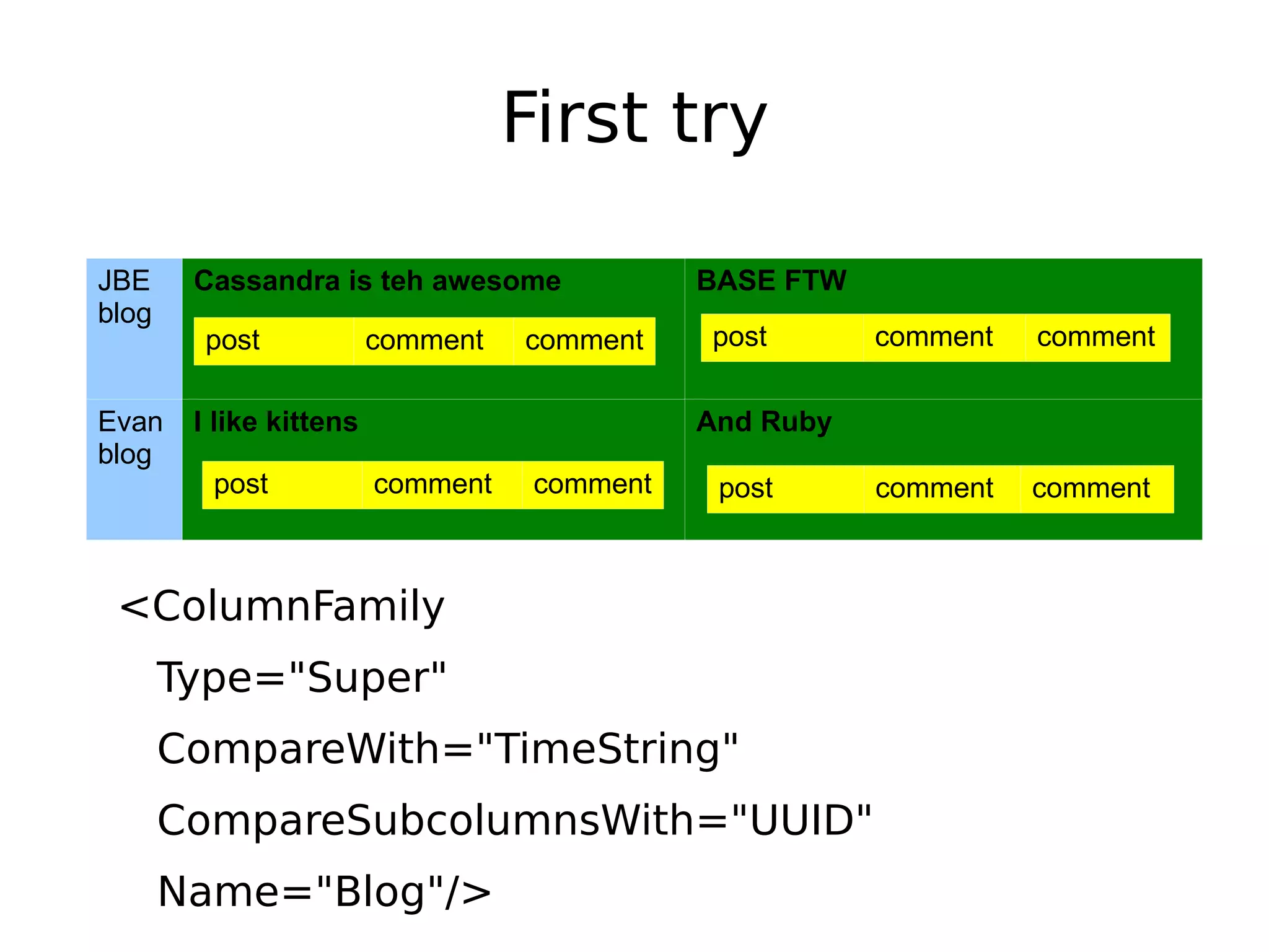

36. First try
JBE Cassandra is teh awesome BASE FTW
blog
post comment comment post comment comment
Evan I like kittens And Ruby
blog
post comment comment post comment comment
<ColumnFamily
Type="Super"
CompareWith="TimeString"
CompareSubcolumnsWith="UUID"
Name="Blog"/>

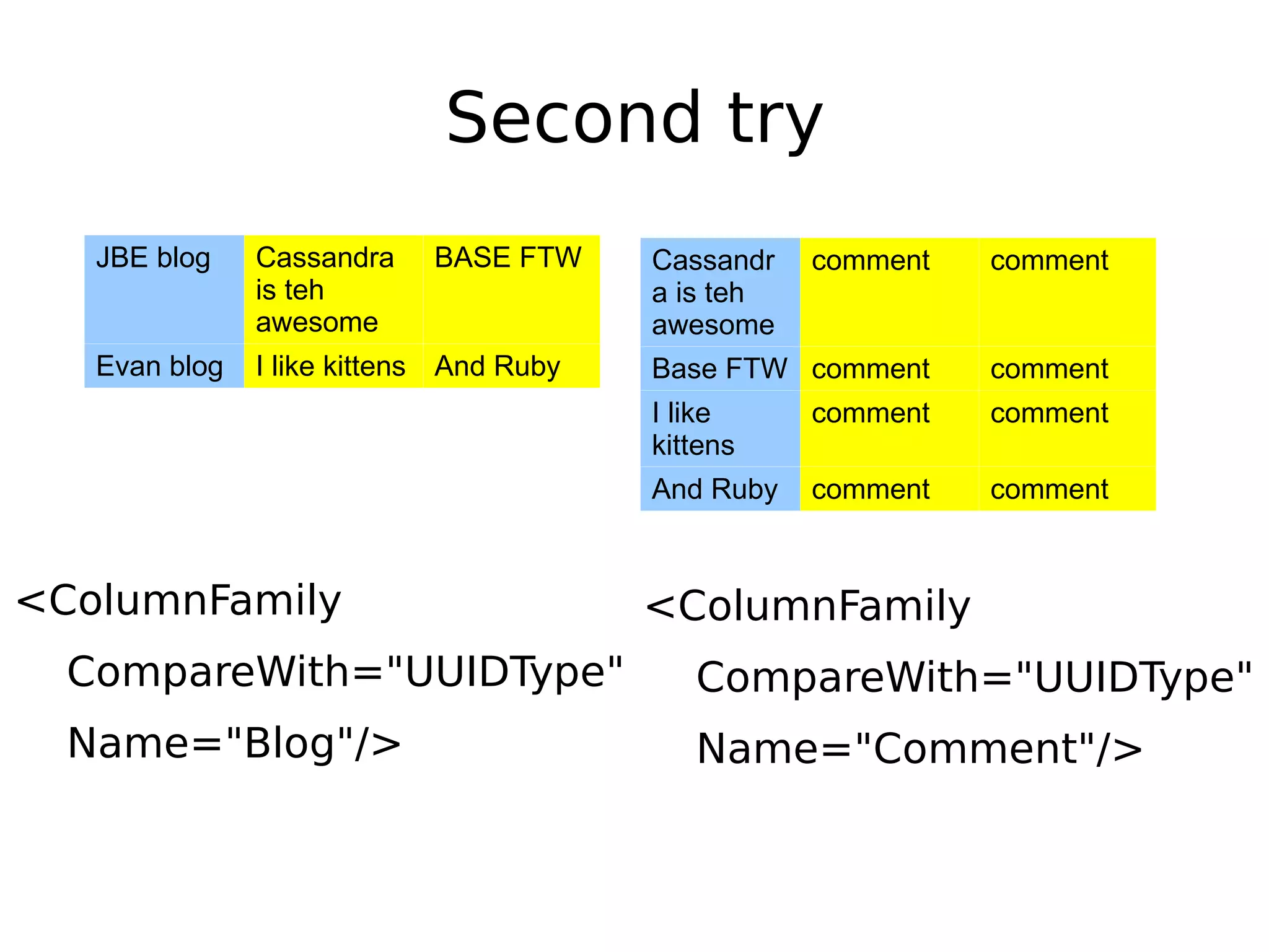

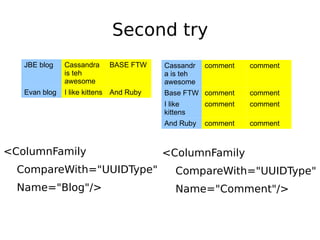

37. Second try
JBE blog Cassandra BASE FTW Cassandr comment comment
is teh a is teh
awesome awesome
Evan blog I like kittens And Ruby Base FTW comment comment
I like comment comment
kittens
And Ruby comment comment
<ColumnFamily <ColumnFamily
CompareWith="UUIDType" CompareWith="UUIDType"
Name="Blog"/> Name="Comment"/>

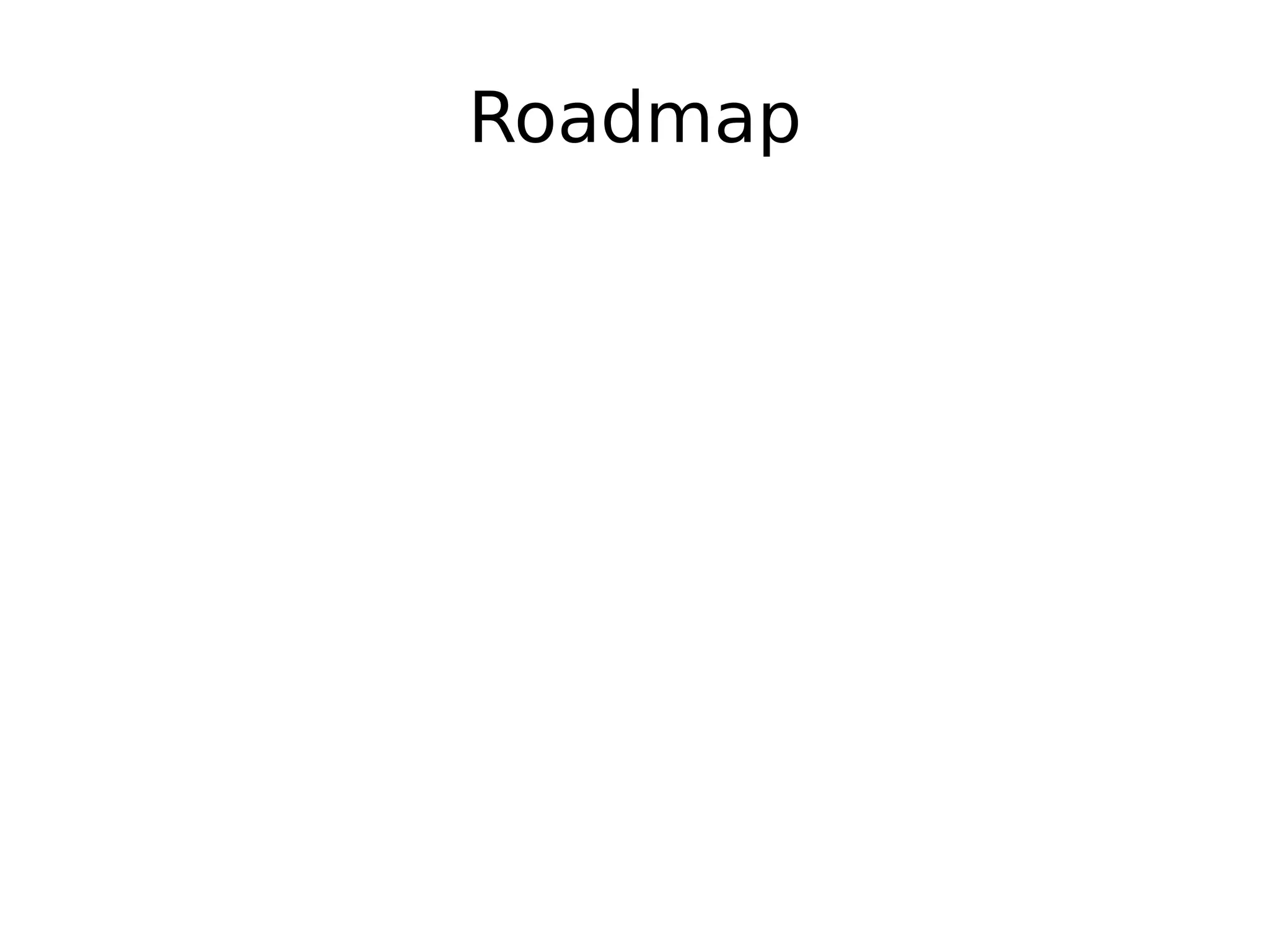

38. Roadmap

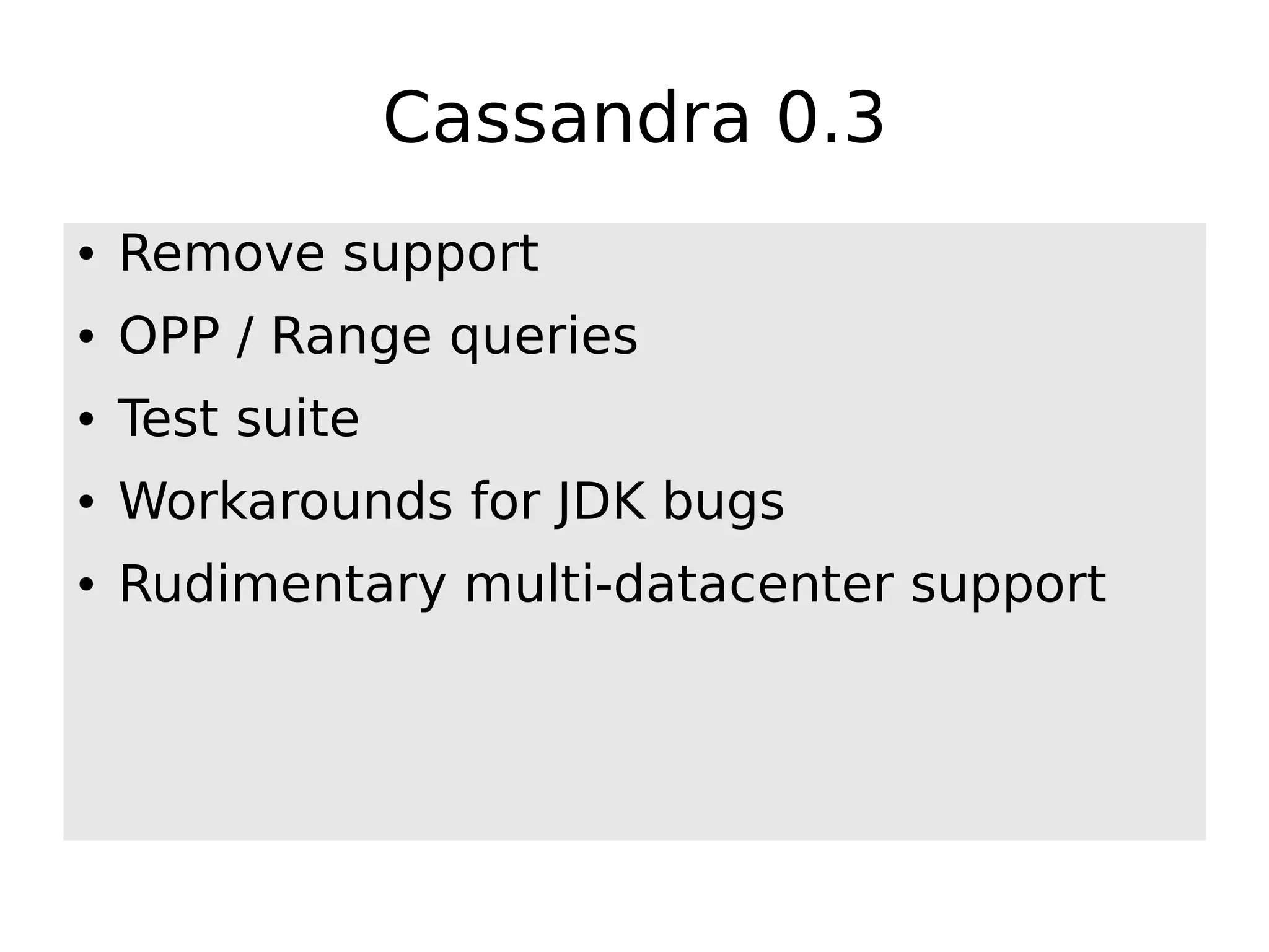

39. Cassandra 0.3
● Remove support
● OPP / Range queries
● Test suite
● Workarounds for JDK bugs
● Rudimentary multi-datacenter support

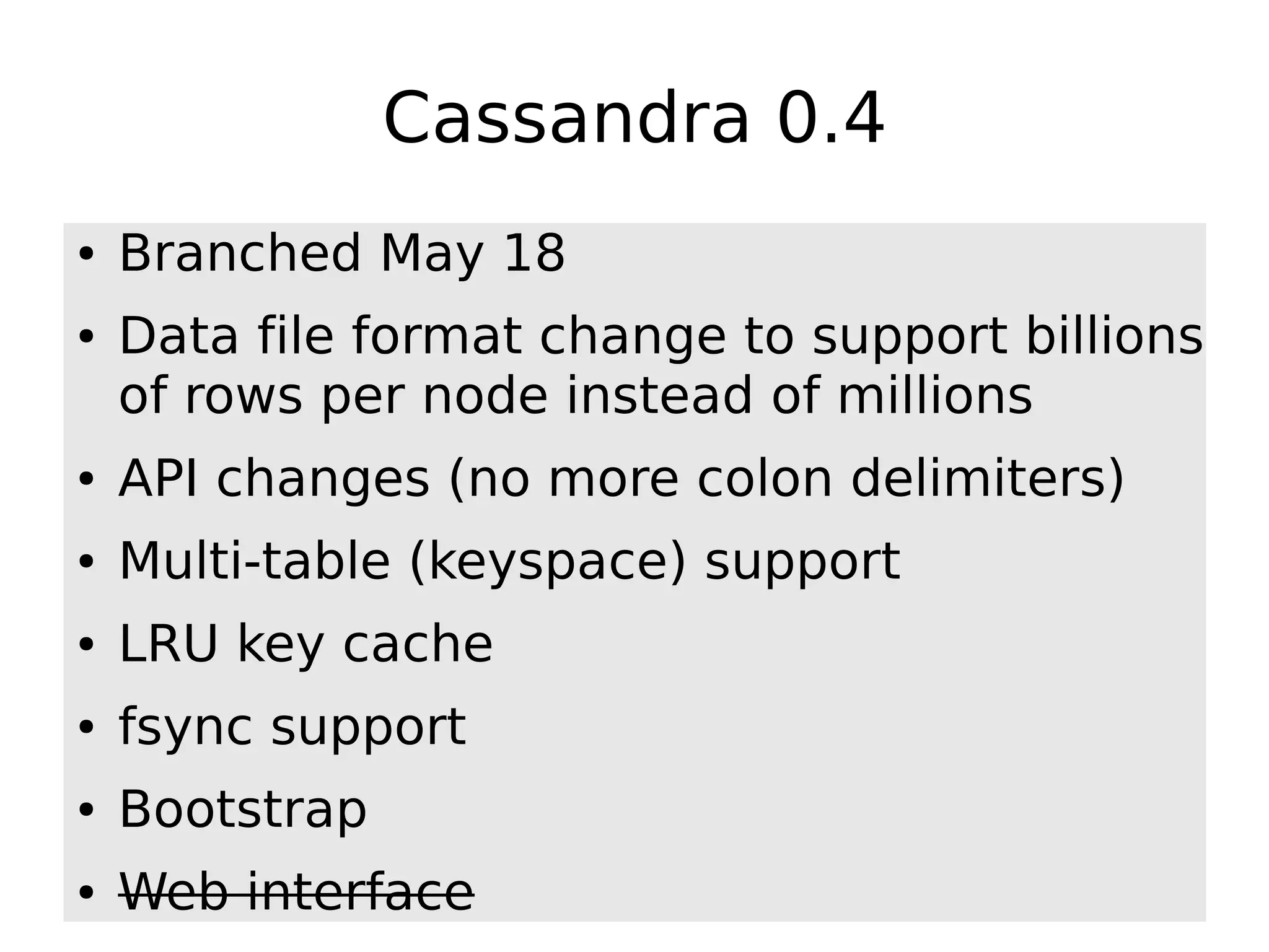

40. Cassandra 0.4
● Branched May 18
● Data file format change to support billions
of rows per node instead of millions
● API changes (no more colon delimiters)
● Multi-table (keyspace) support
● LRU key cache
● fsync support
● Bootstrap
● Web interface

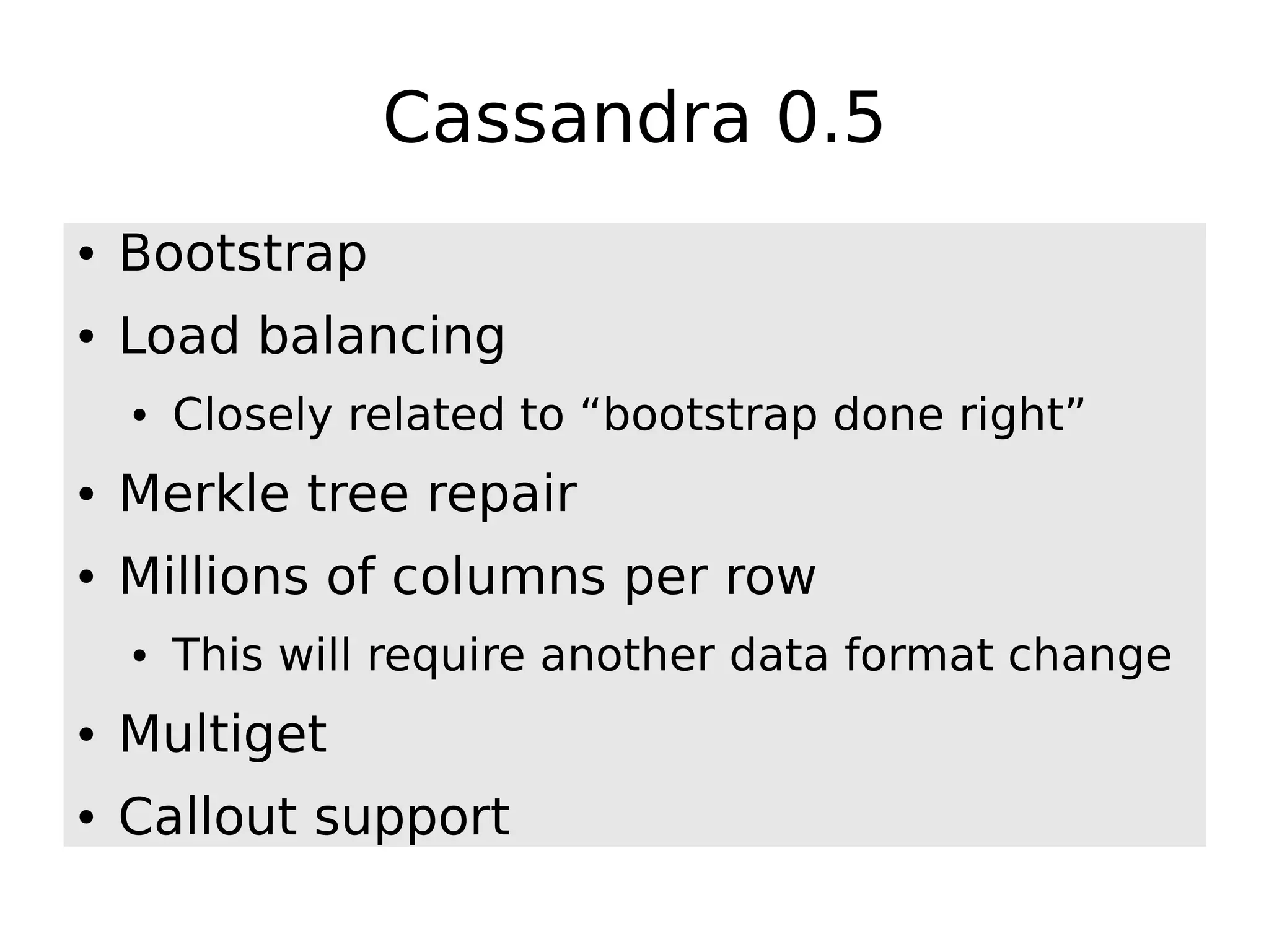

41. Cassandra 0.5
● Bootstrap
● Load balancing
● Closely related to “bootstrap done right”
● Merkle tree repair
● Millions of columns per row
● This will require another data format change
● Multiget
● Callout support

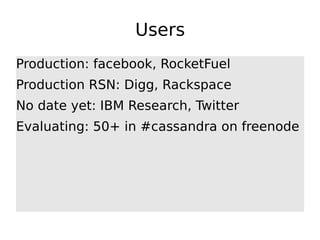

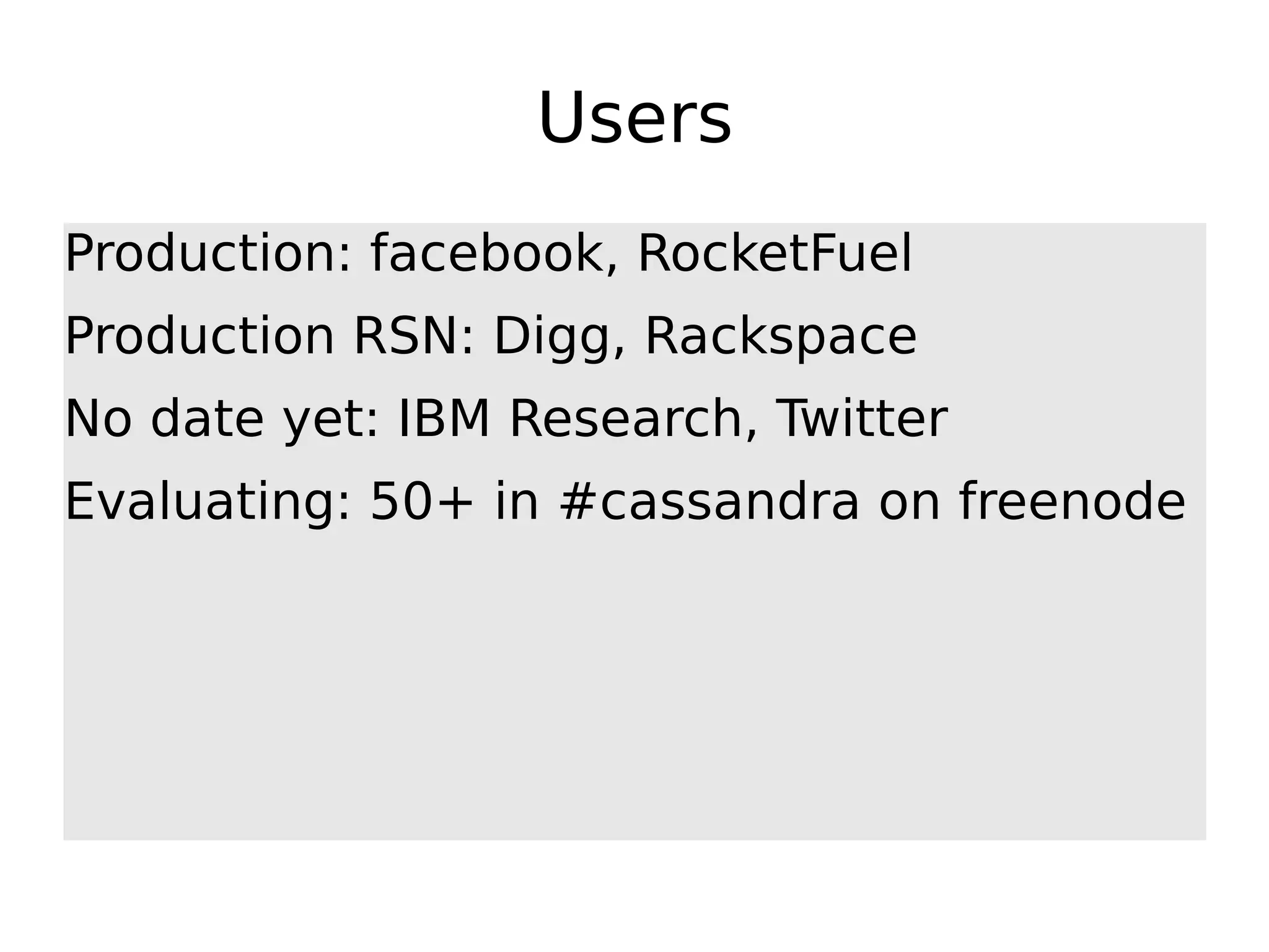

42. Users
Production: facebook, RocketFuel
Production RSN: Digg, Rackspace
No date yet: IBM Research, Twitter
Evaluating: 50+ in #cassandra on freenode

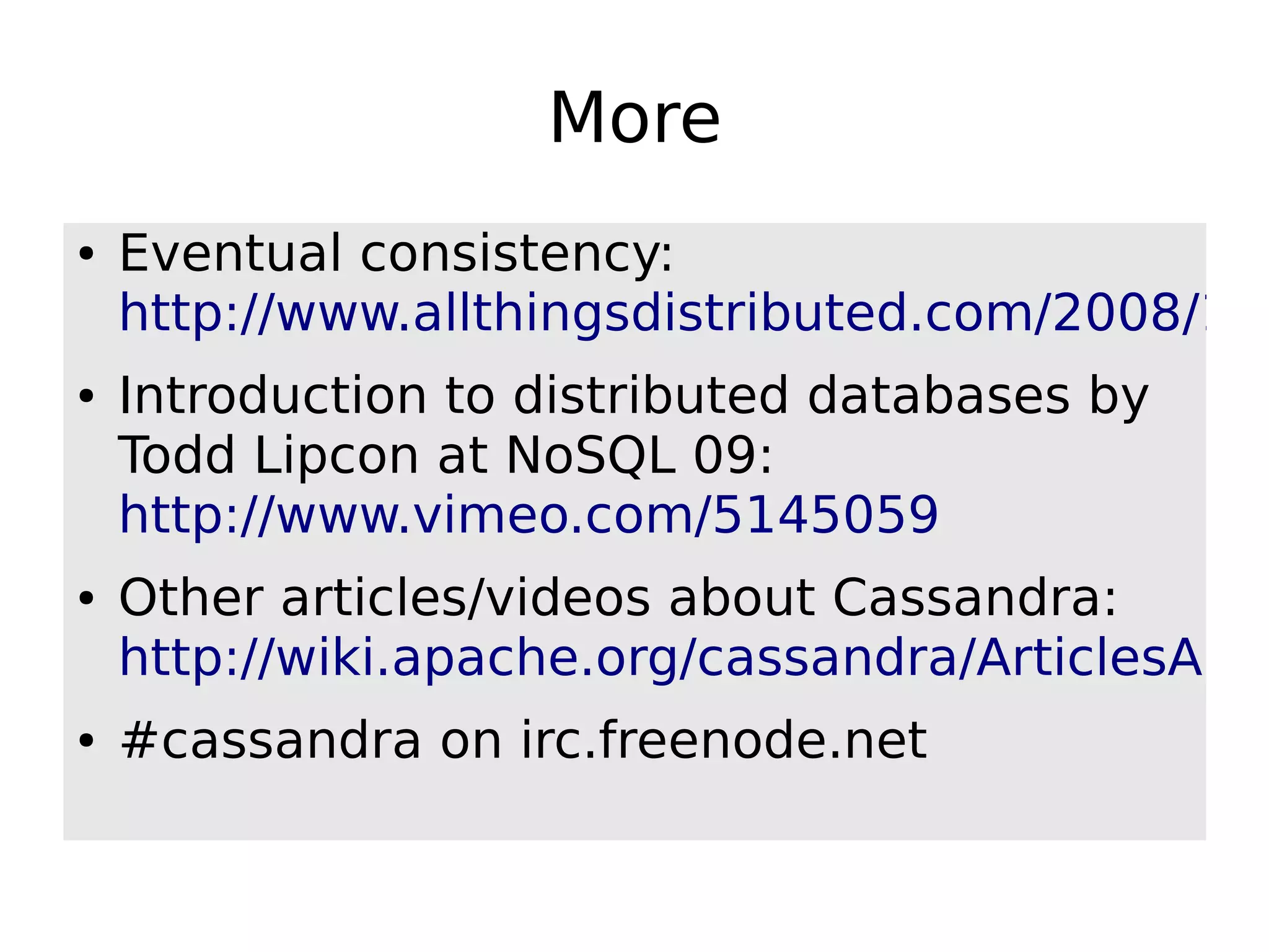

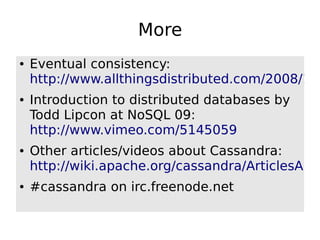

43. More
● Eventual consistency:
http://www.allthingsdistributed.com/2008/12/
● Introduction to distributed databases by
Todd Lipcon at NoSQL 09:
http://www.vimeo.com/5145059
● Other articles/videos about Cassandra:
http://wiki.apache.org/cassandra/ArticlesAndP
● #cassandra on irc.freenode.net

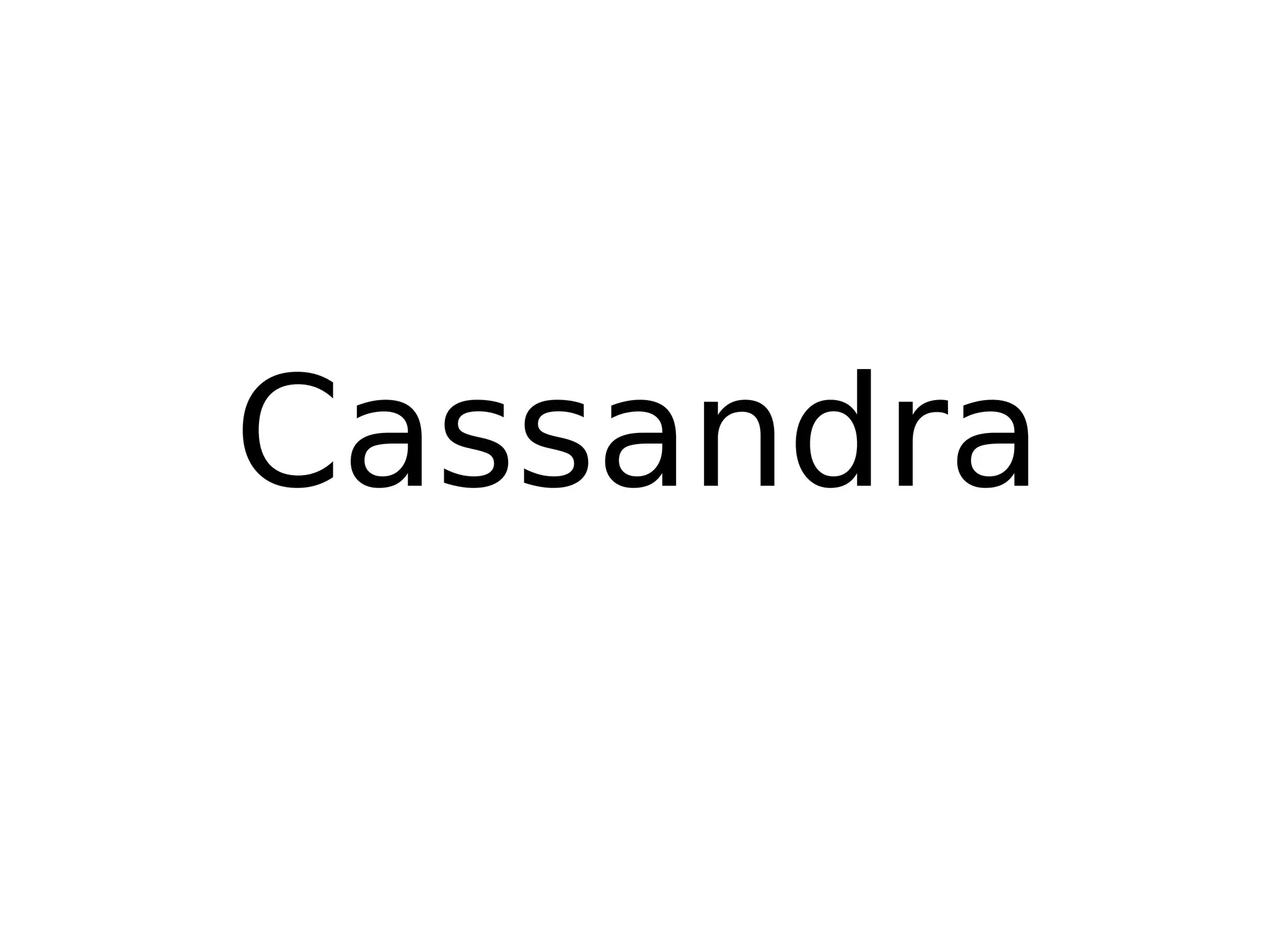

44. Cassandra
