This document provides an overview of networking fundamentals, including network history, devices, topologies, protocols, and different types of networks such as LANs, WANs, MANs, and SANs. It also discusses virtual private networks, bandwidth measurements, the OSI model layers, TCP/IP model, encapsulation, and data communication using layers.

1. 1© 2004, Cisco Systems, Inc. All rights reserved.
Module 2
Networking Fundamentals

2. 222© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

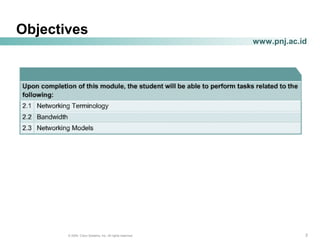

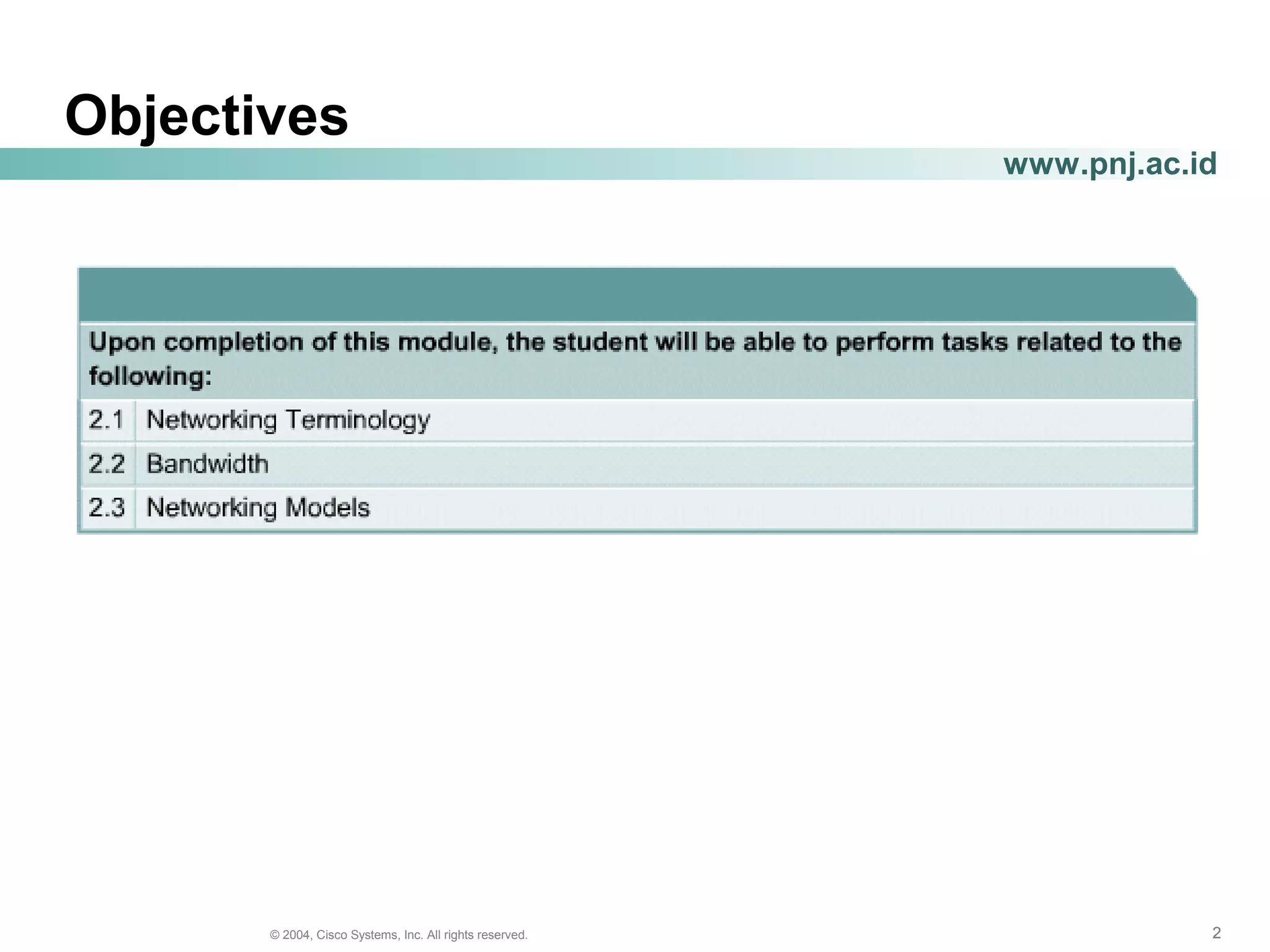

Objectives

3. 333© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

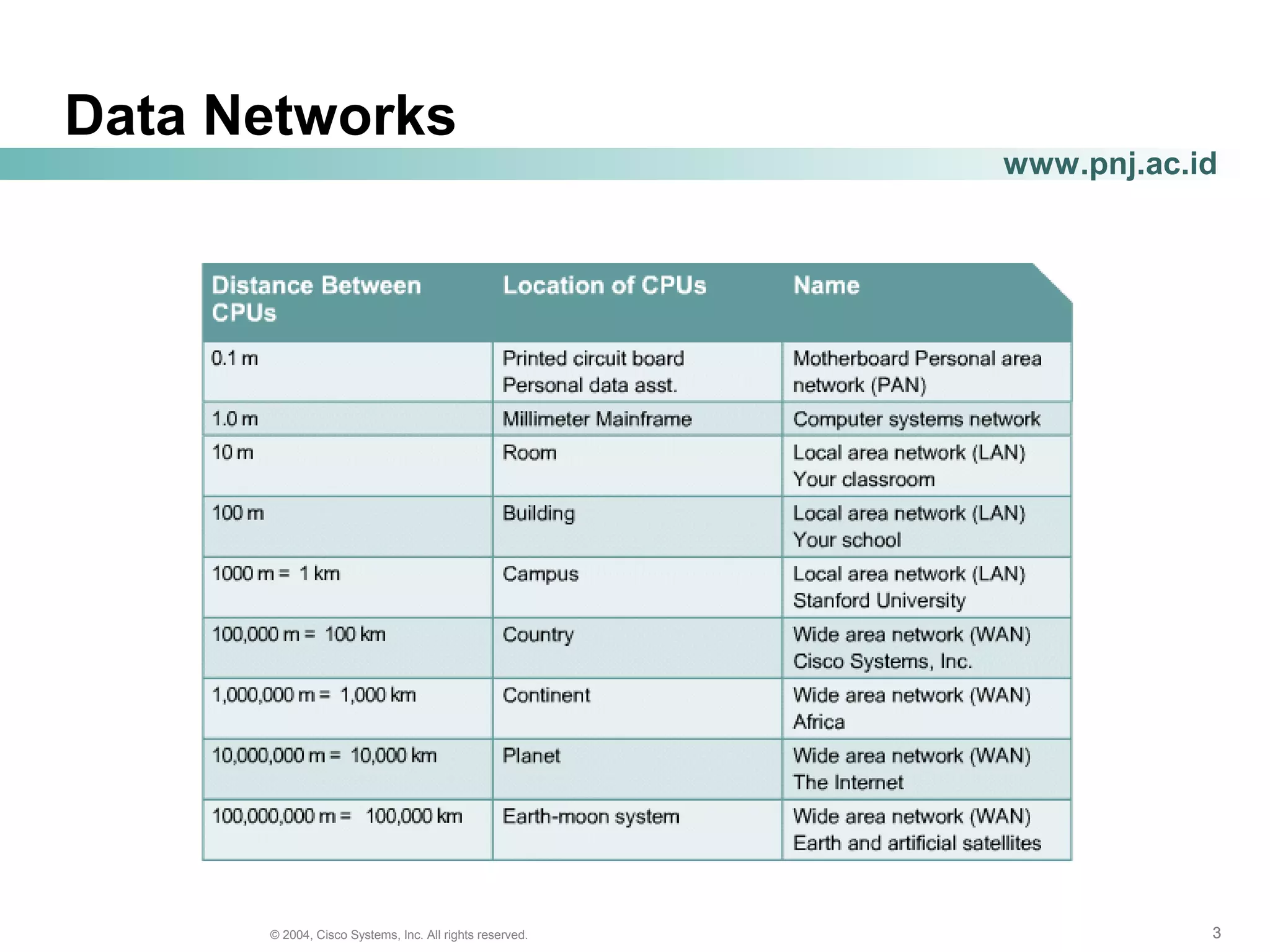

Data Networks

4. 444© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

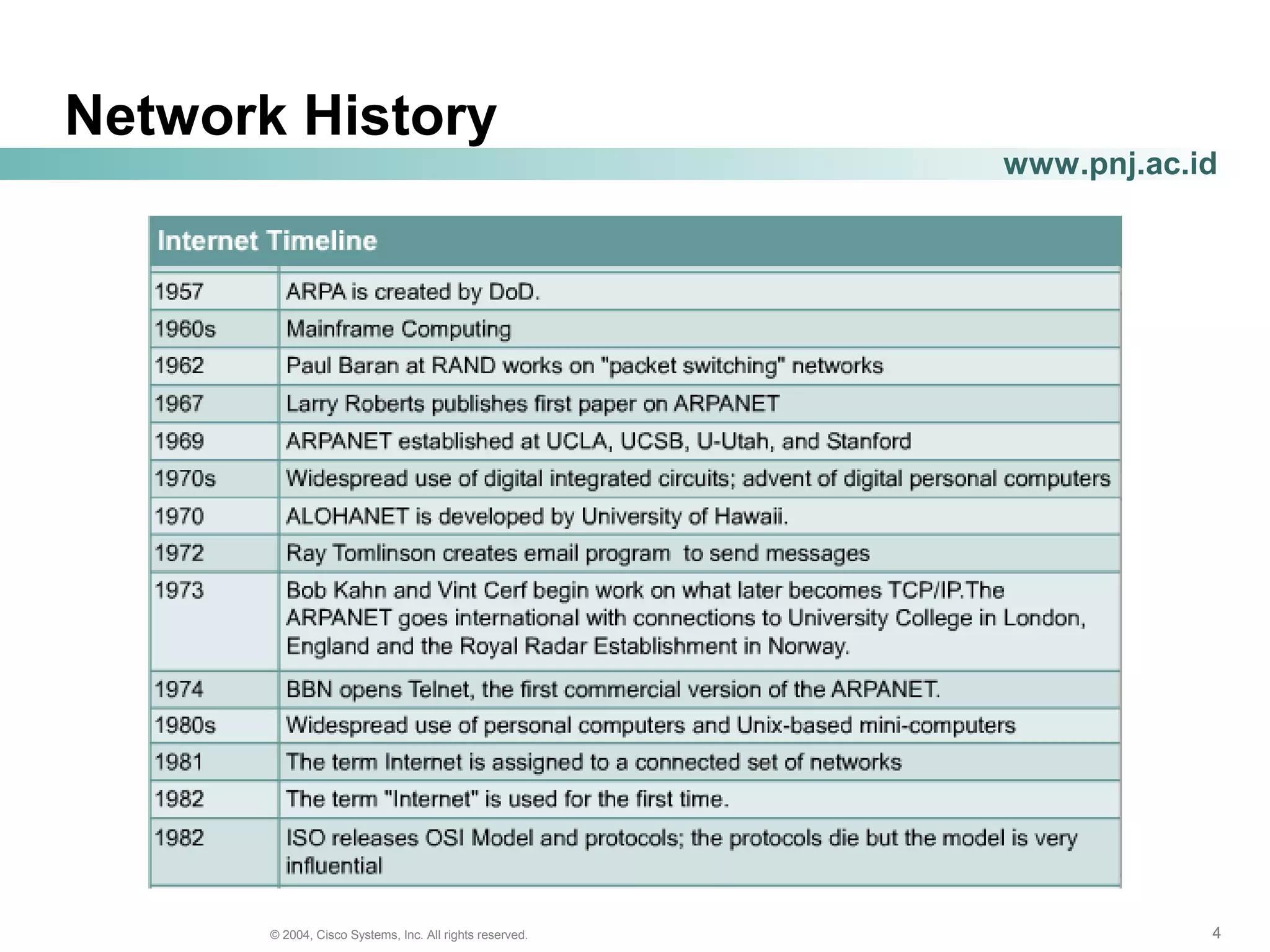

Network History

5. 555© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

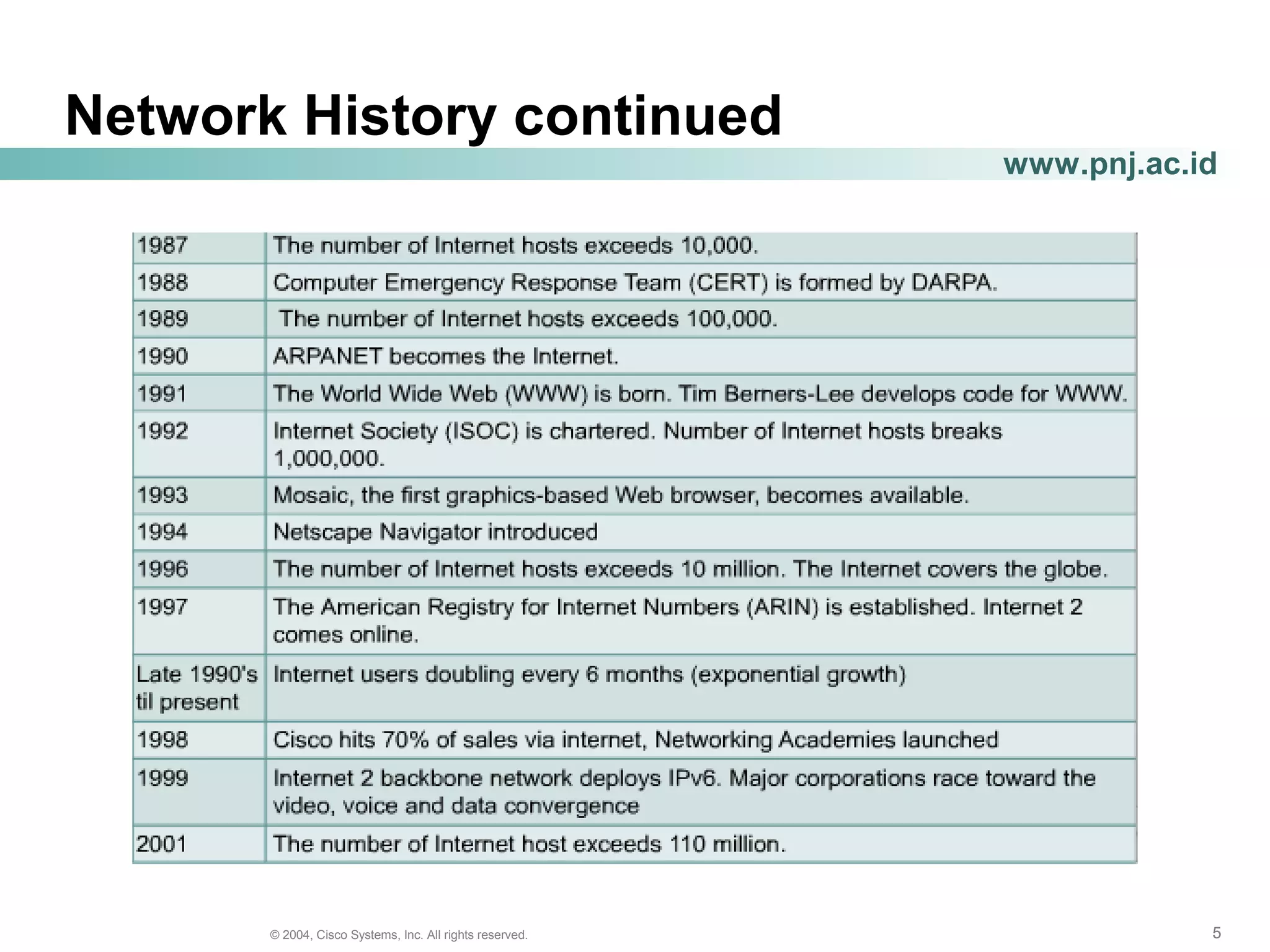

Network History continued

6. 666© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

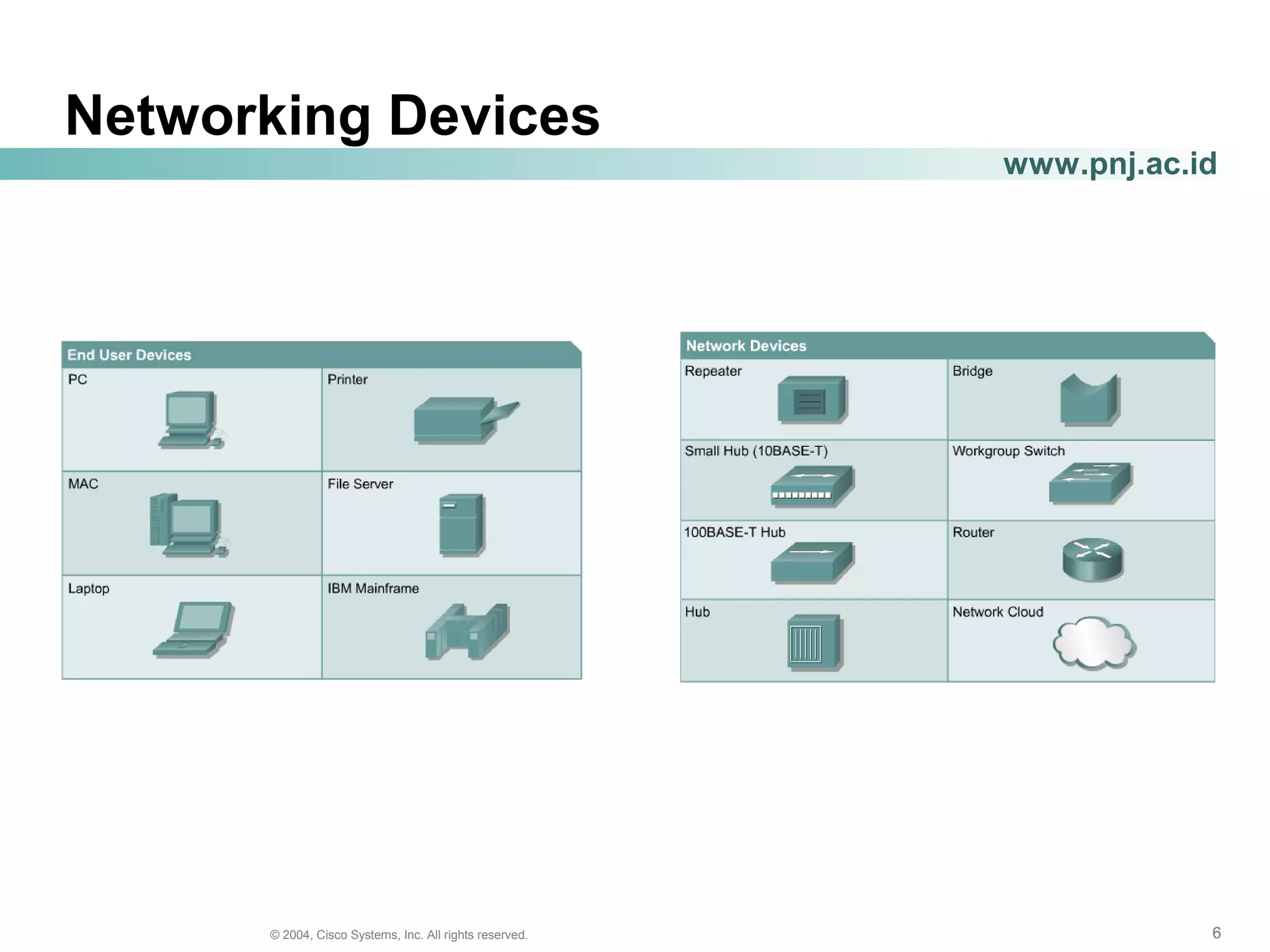

Networking Devices

7. 777© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

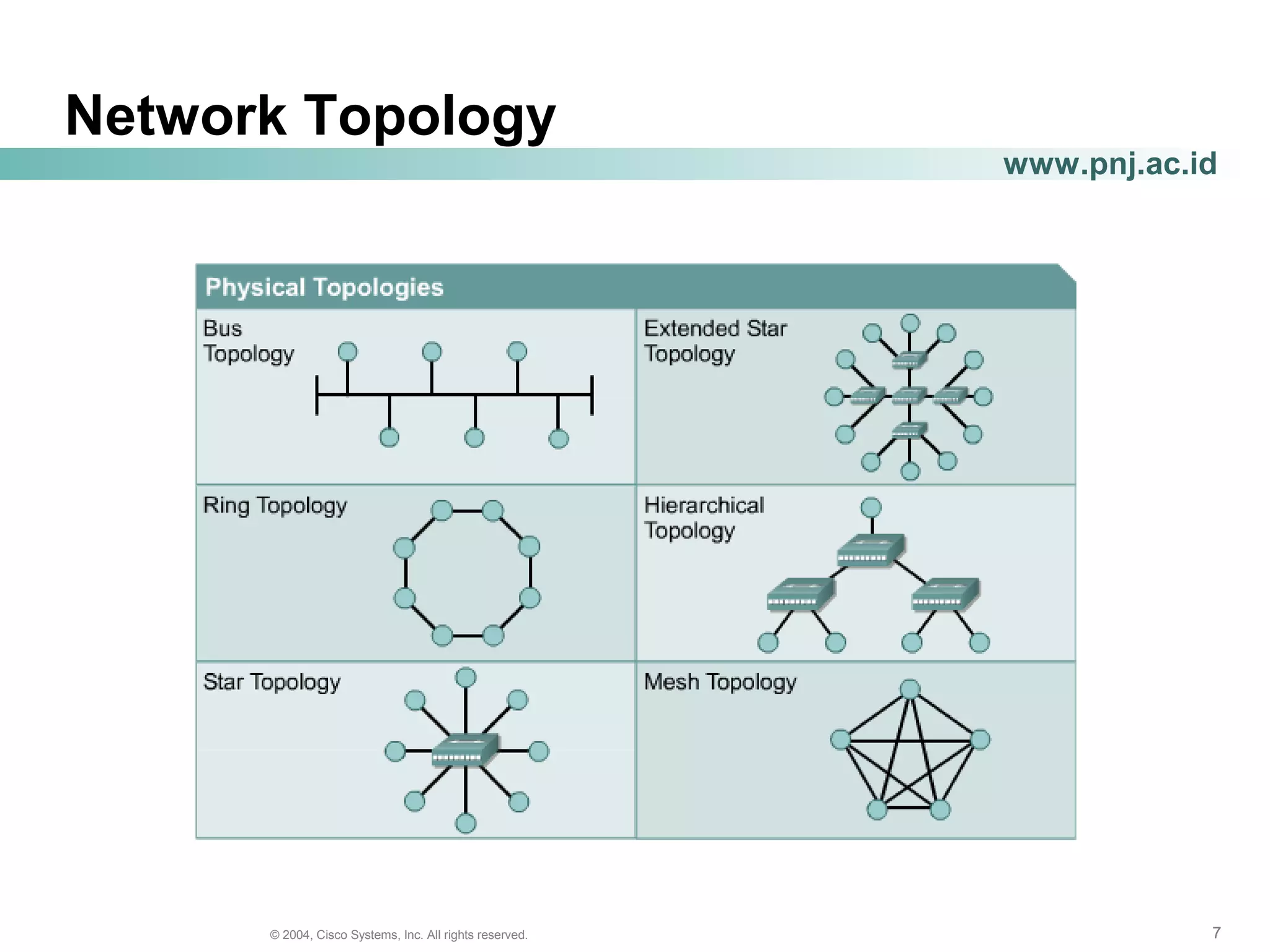

Network Topology

8. 888© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

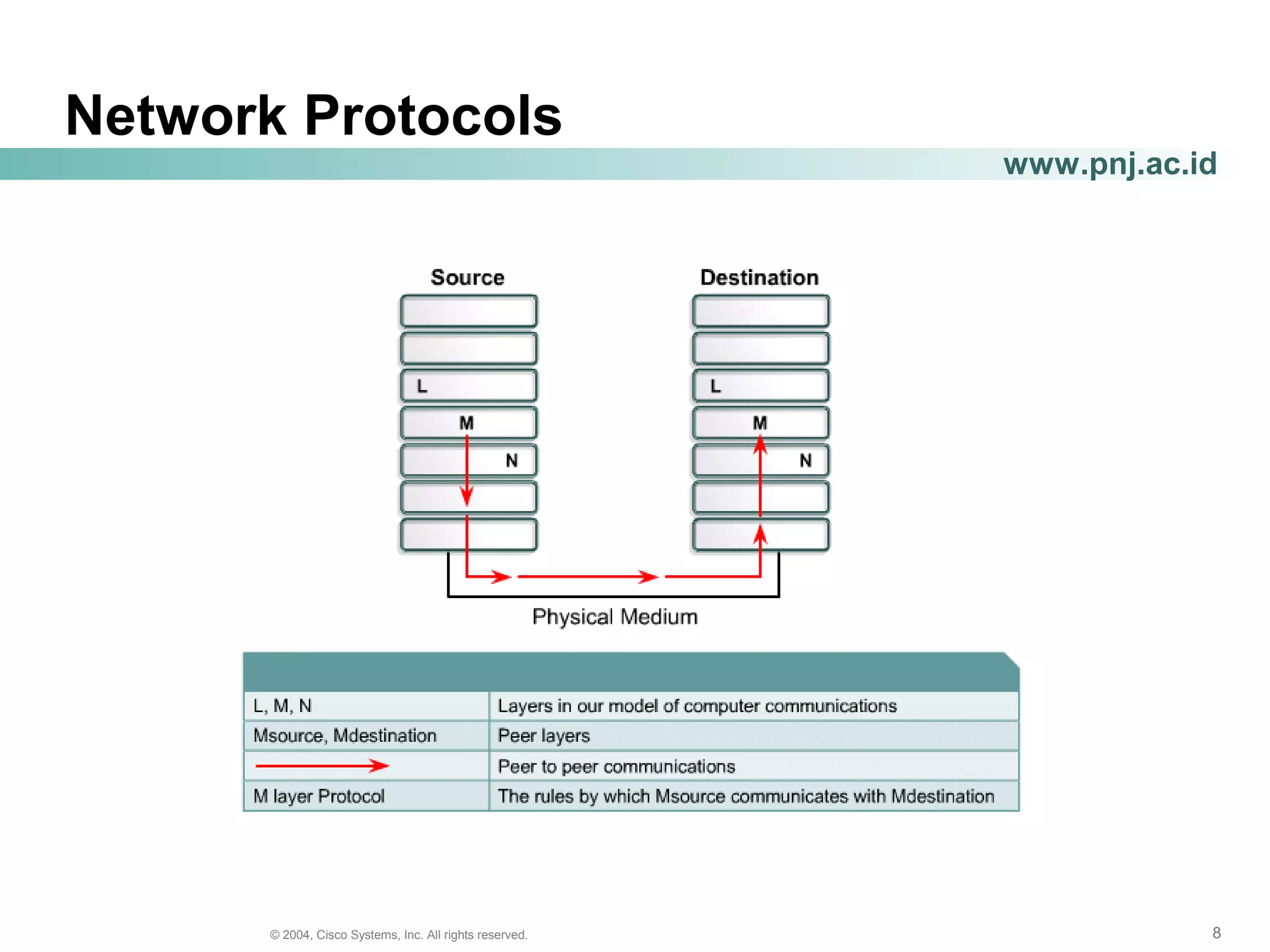

Network Protocols

9. 999© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

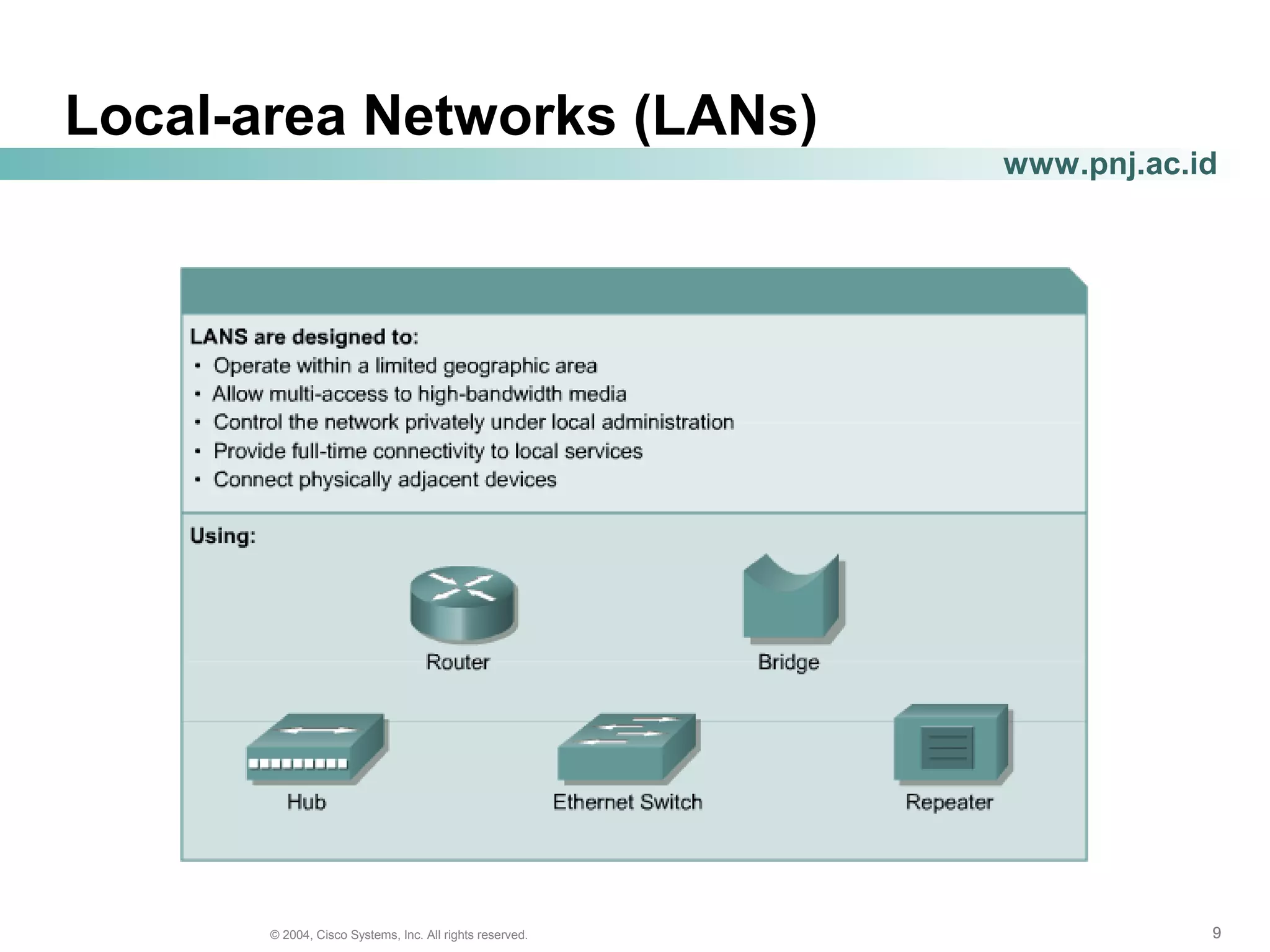

Local-area Networks (LANs)

10. 101010© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

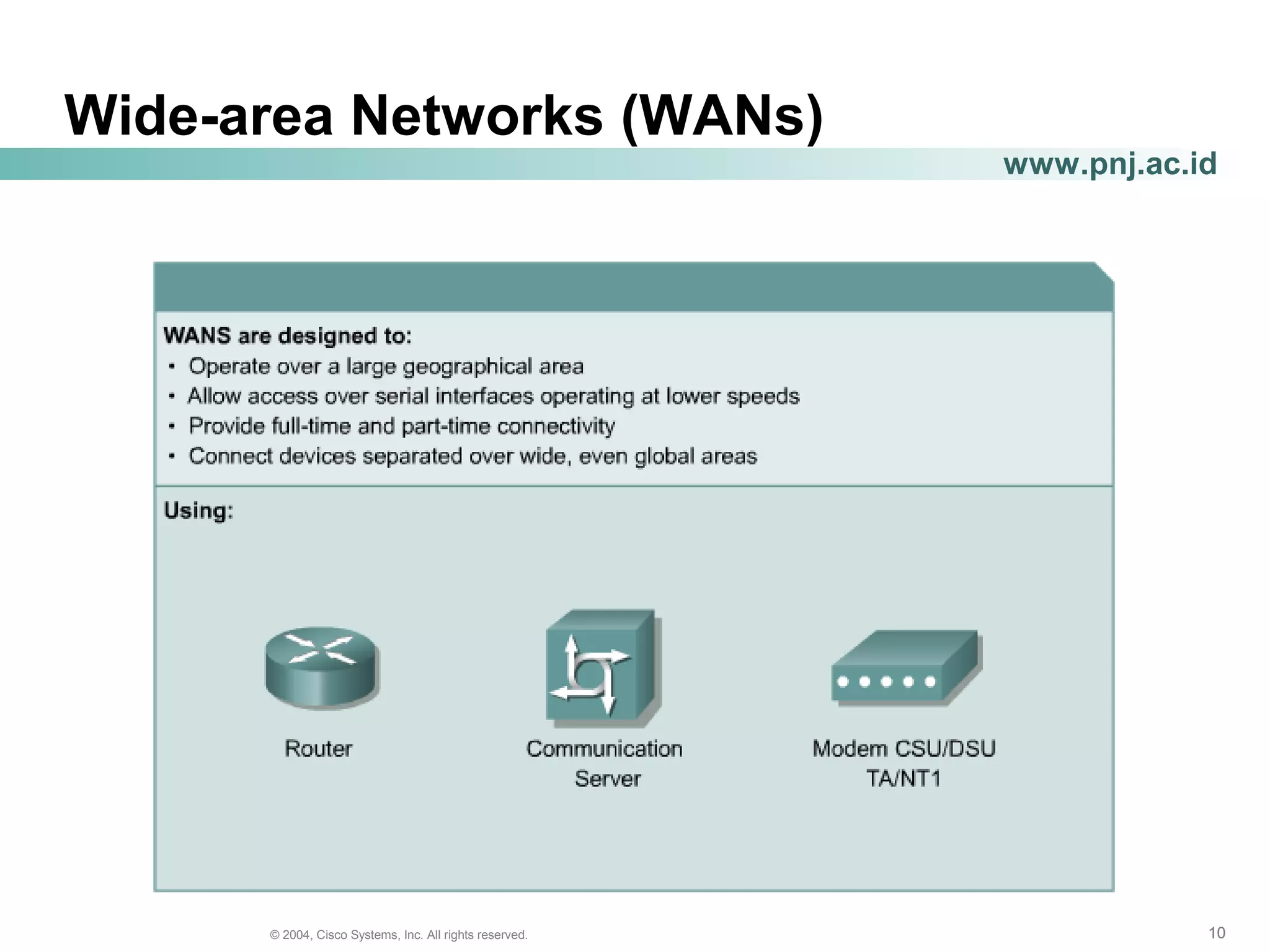

Wide-area Networks (WANs)

11. 111111© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

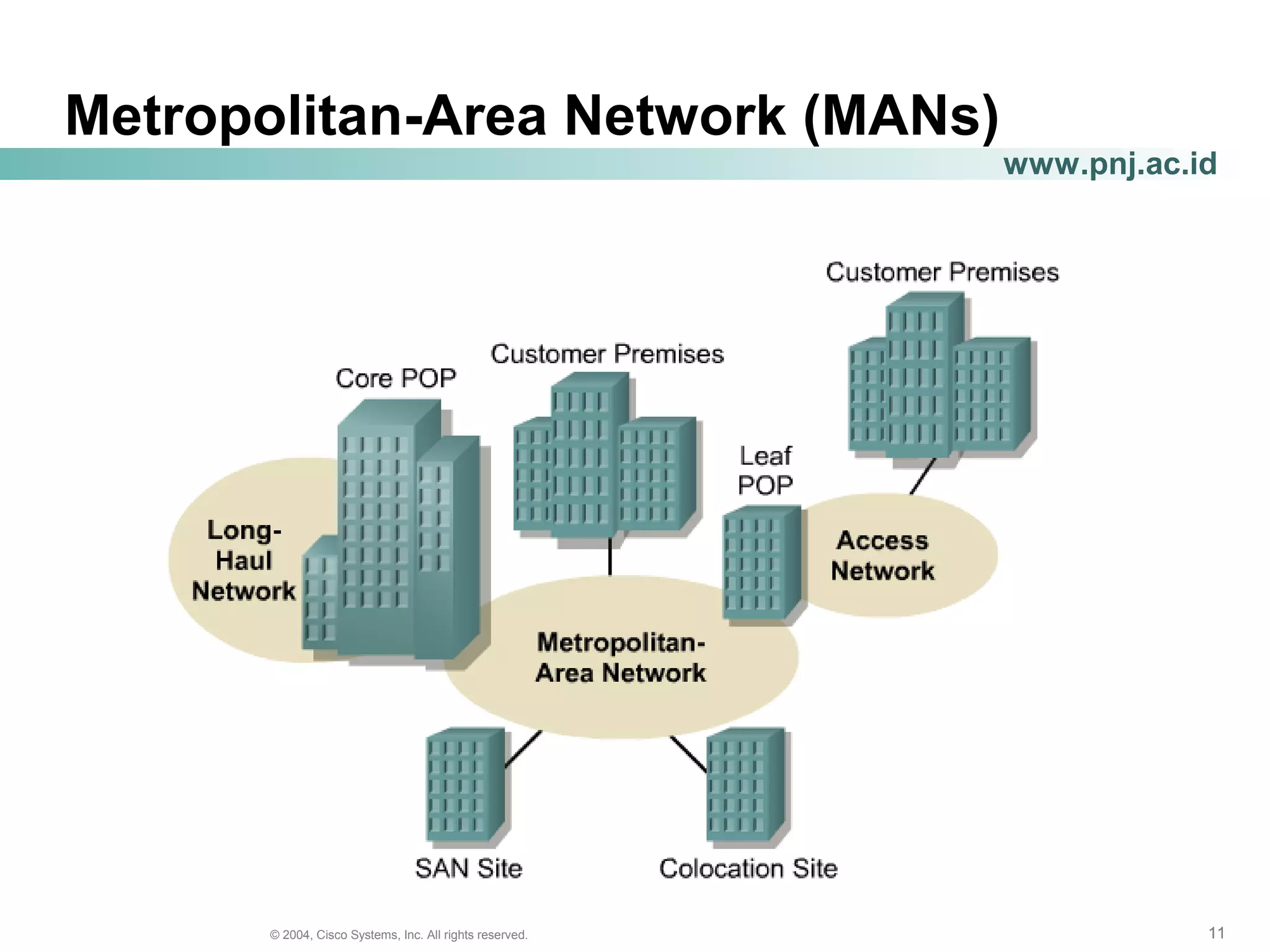

Metropolitan-Area Network (MANs)

12. 121212© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

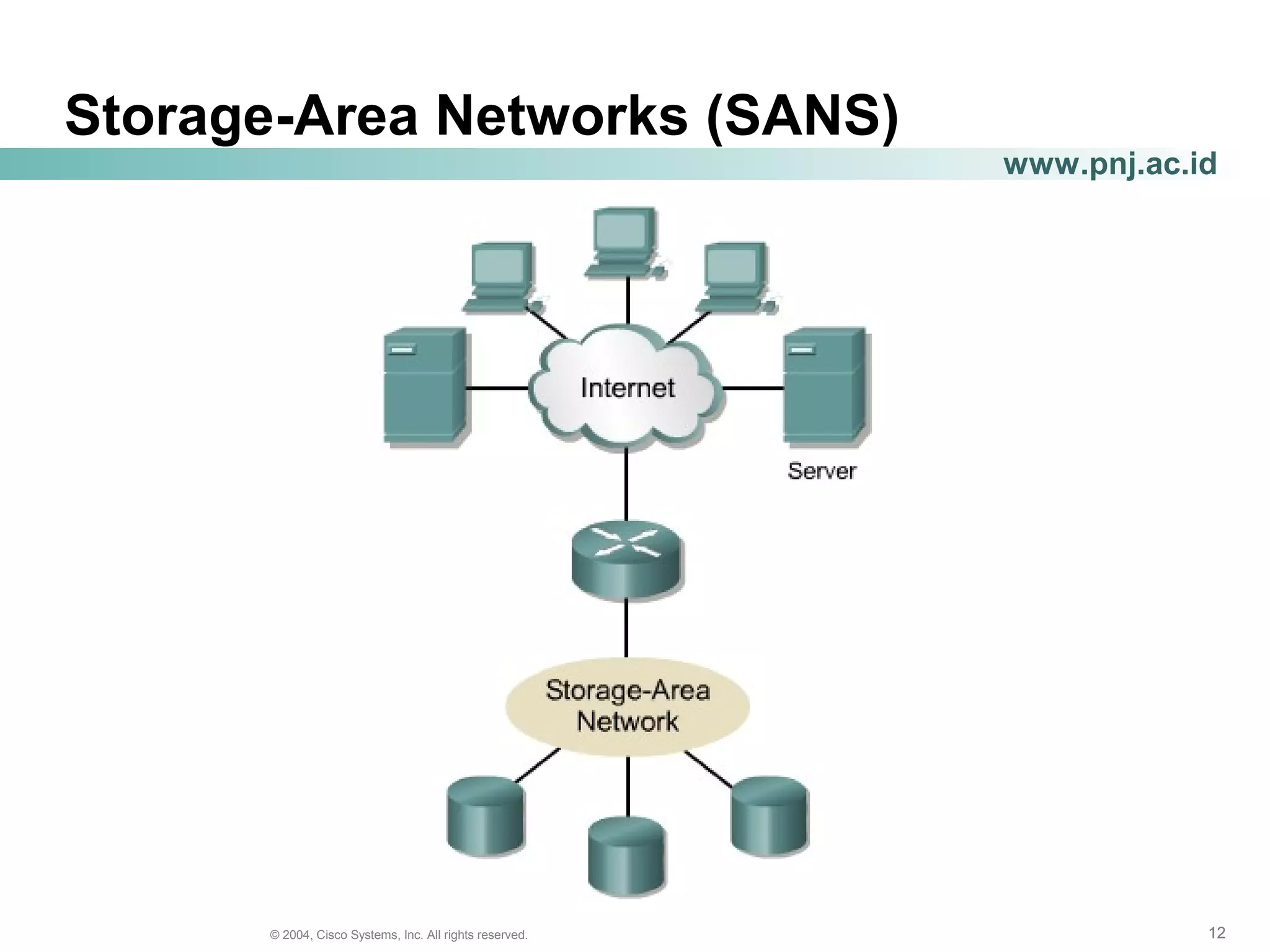

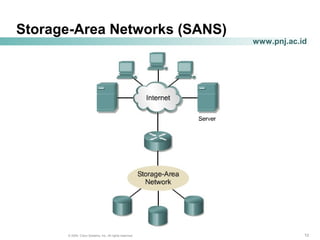

Storage-Area Networks (SANS)

13. 131313© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

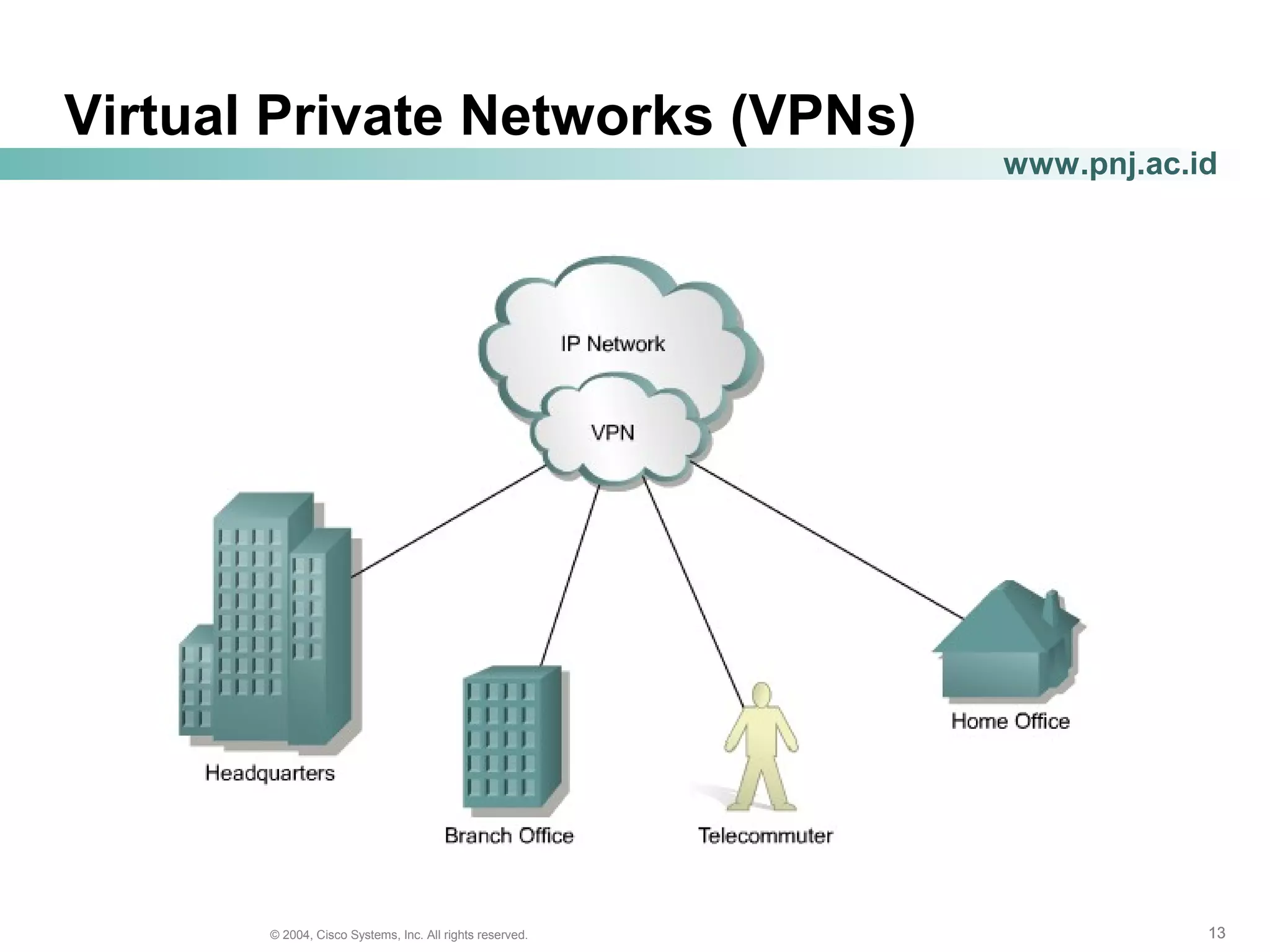

Virtual Private Networks (VPNs)

14. 141414© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

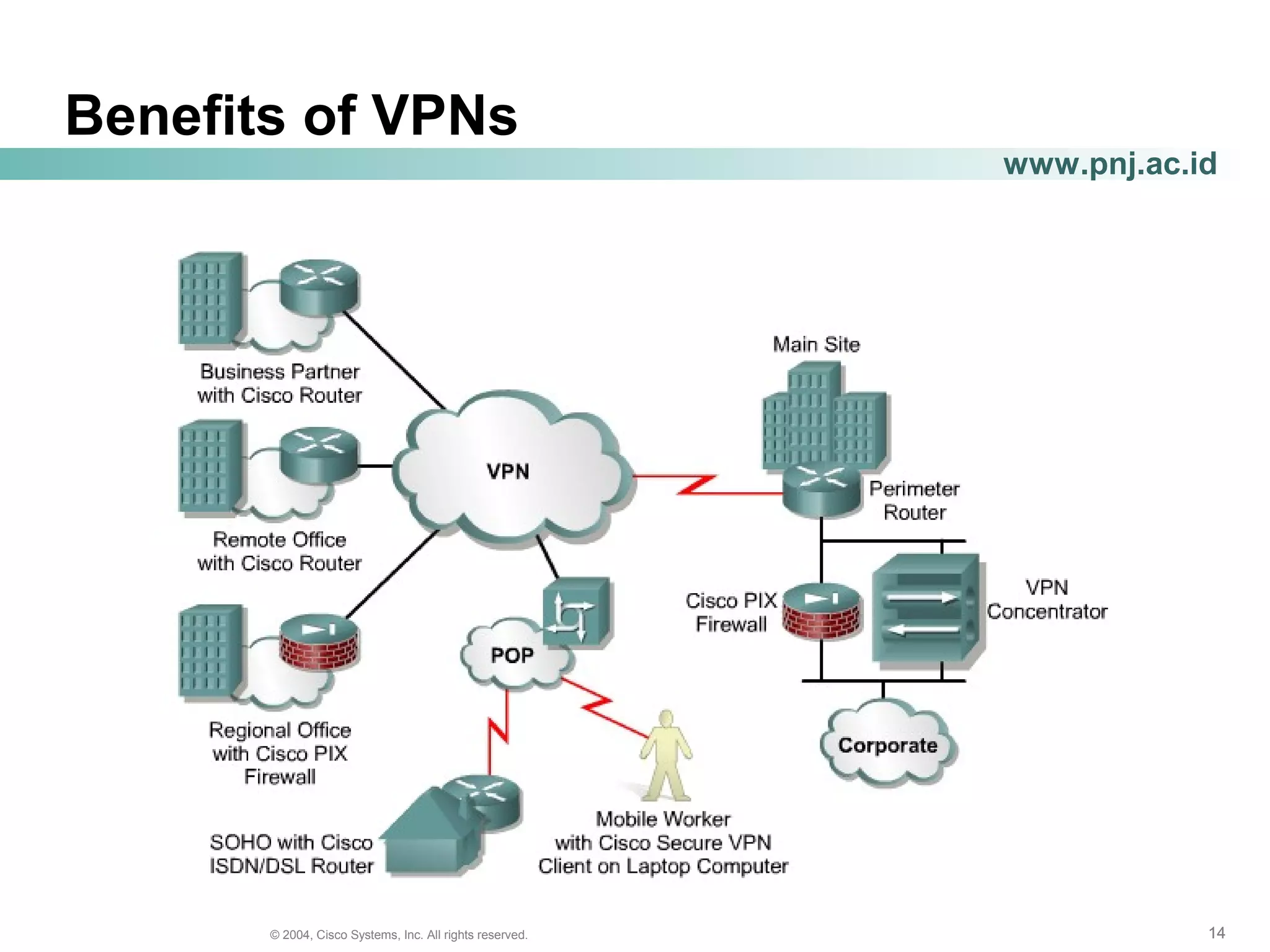

Benefits of VPNs

15. 151515© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

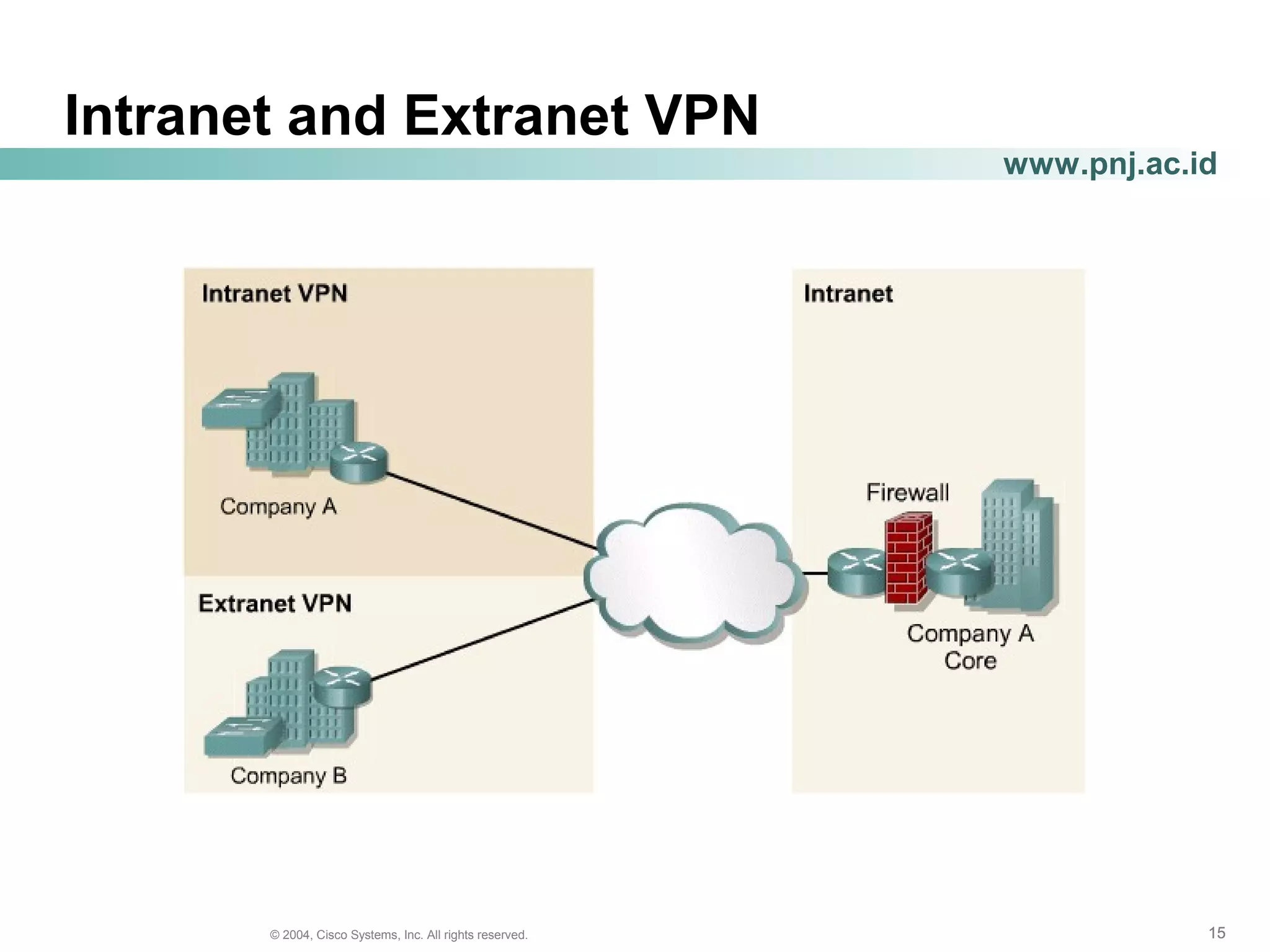

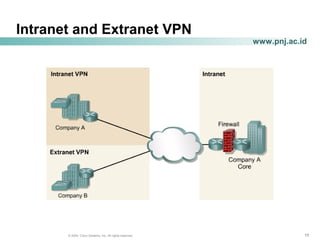

Intranet and Extranet VPN

16. 161616© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

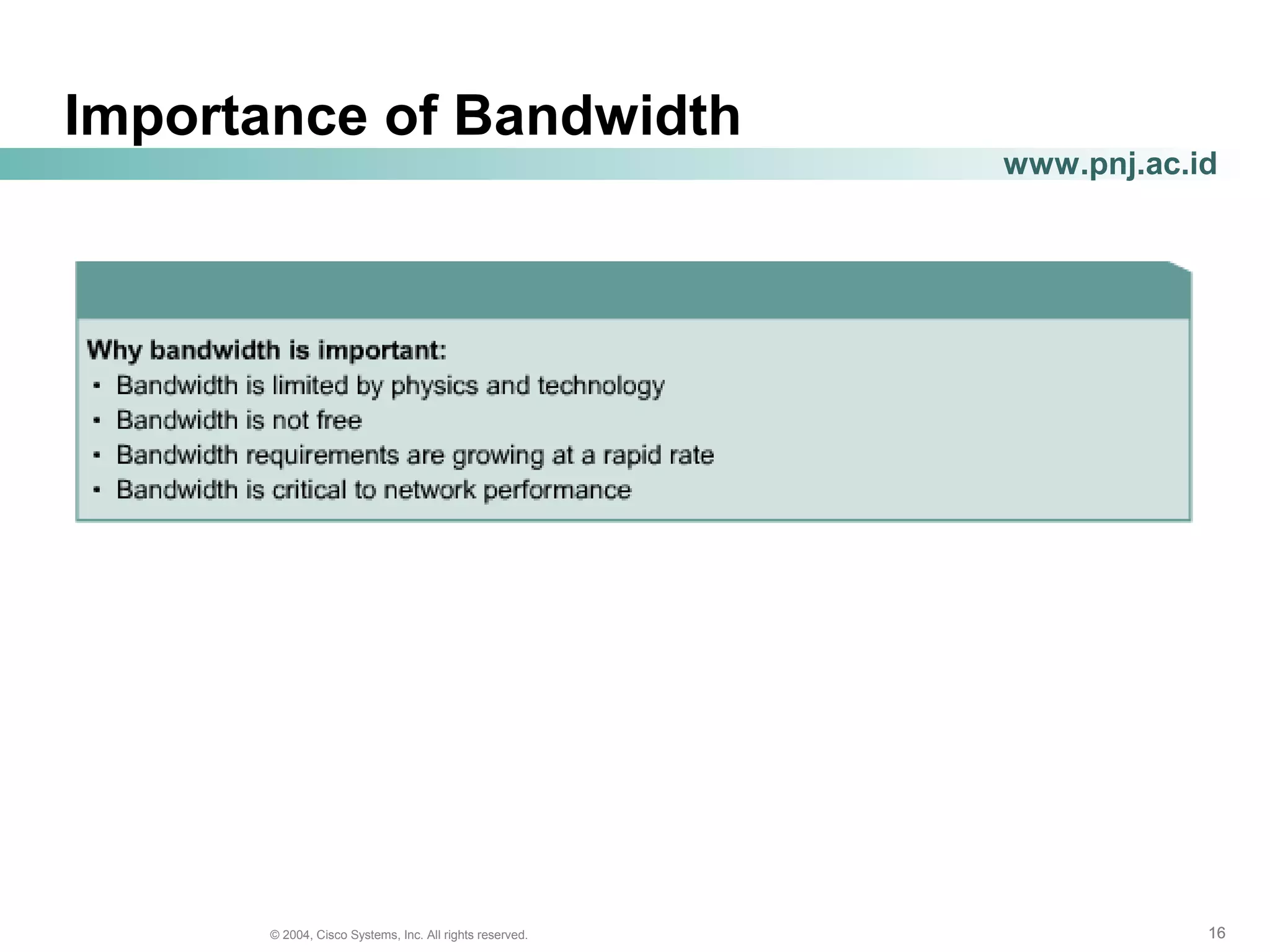

Importance of Bandwidth

17. 171717© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

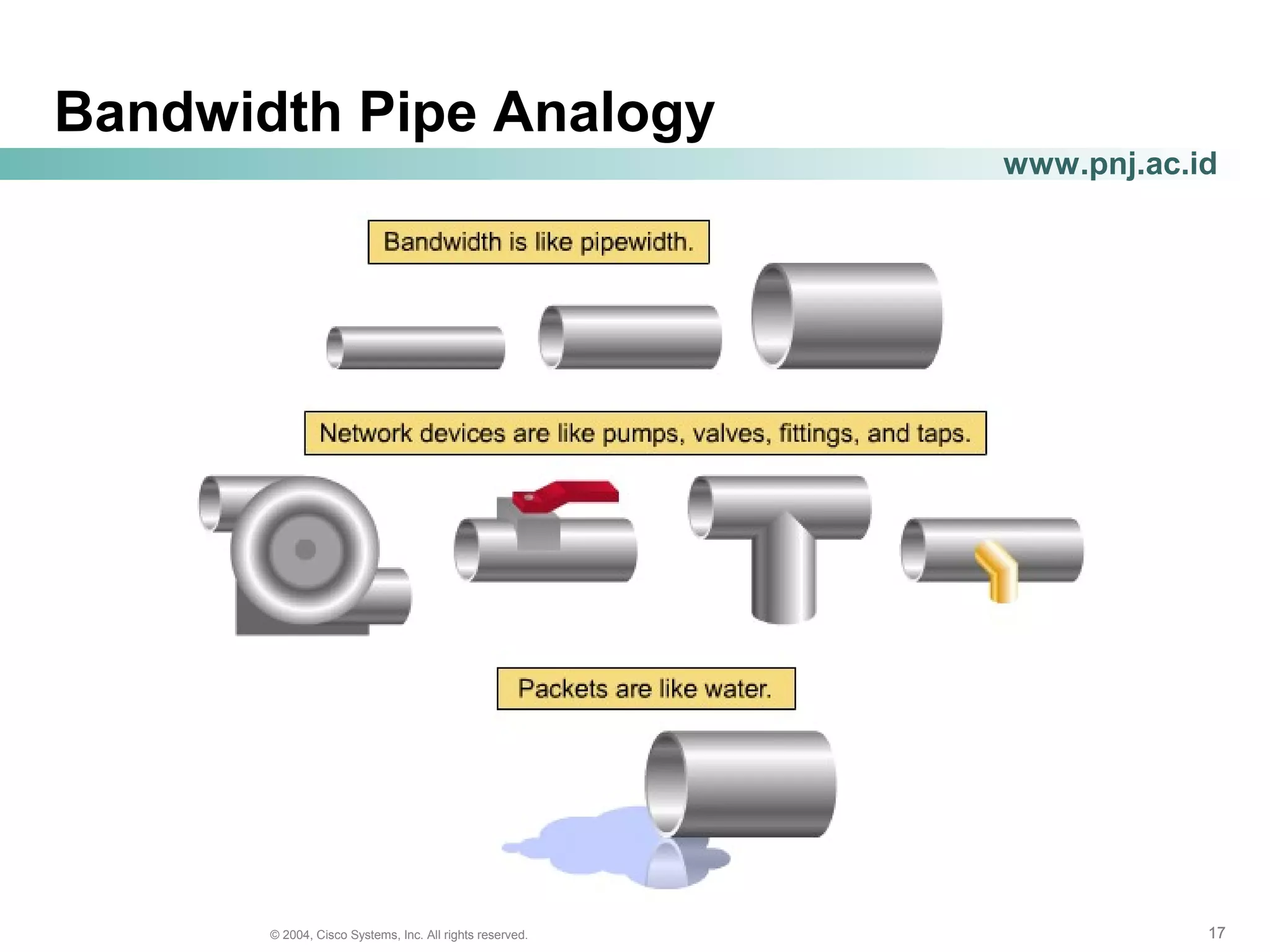

Bandwidth Pipe Analogy

18. 181818© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

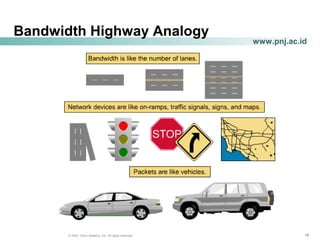

Bandwidth Highway Analogy

19. 191919© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

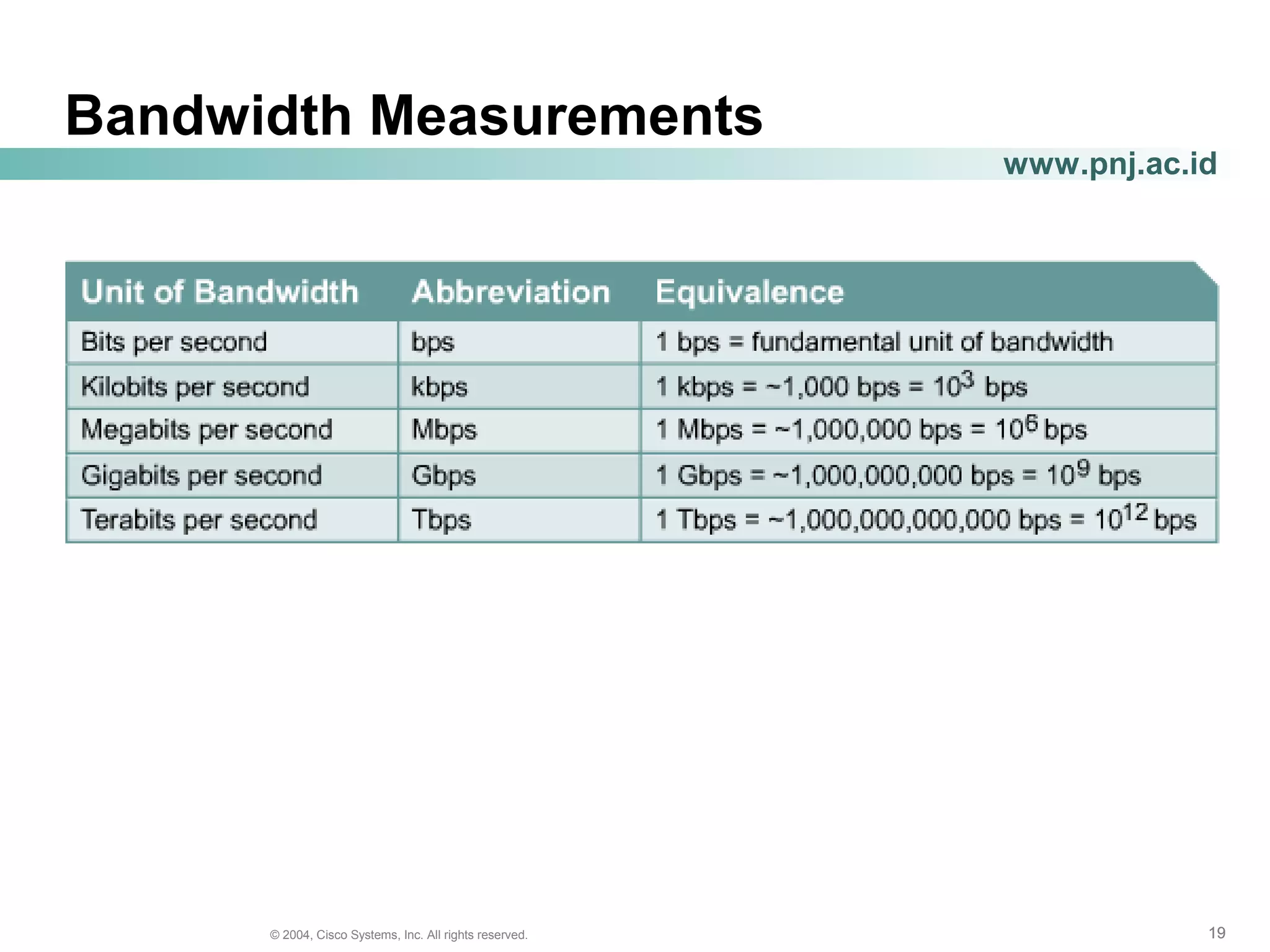

Bandwidth Measurements

20. 202020© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

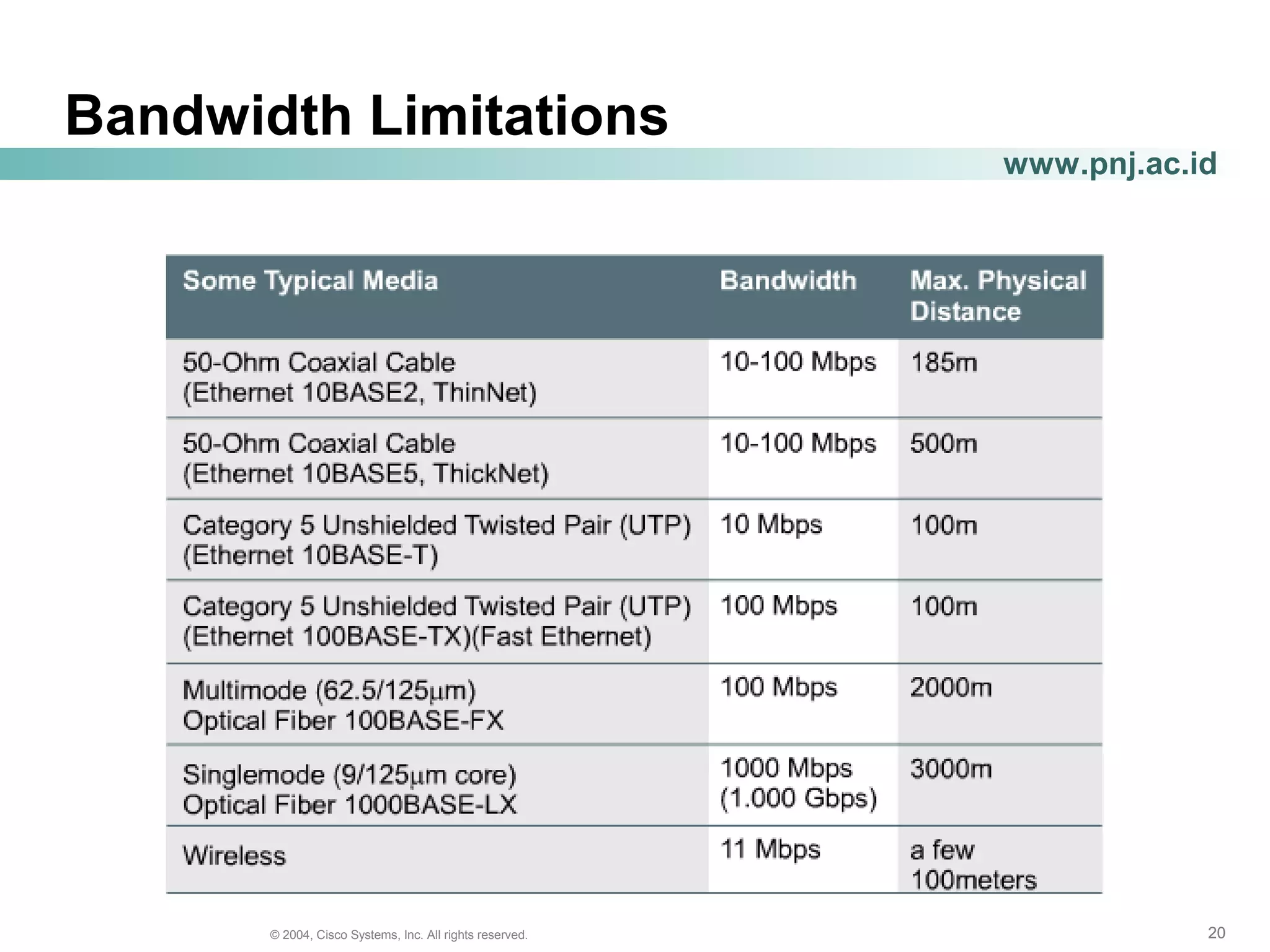

Bandwidth Limitations

21. 212121© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

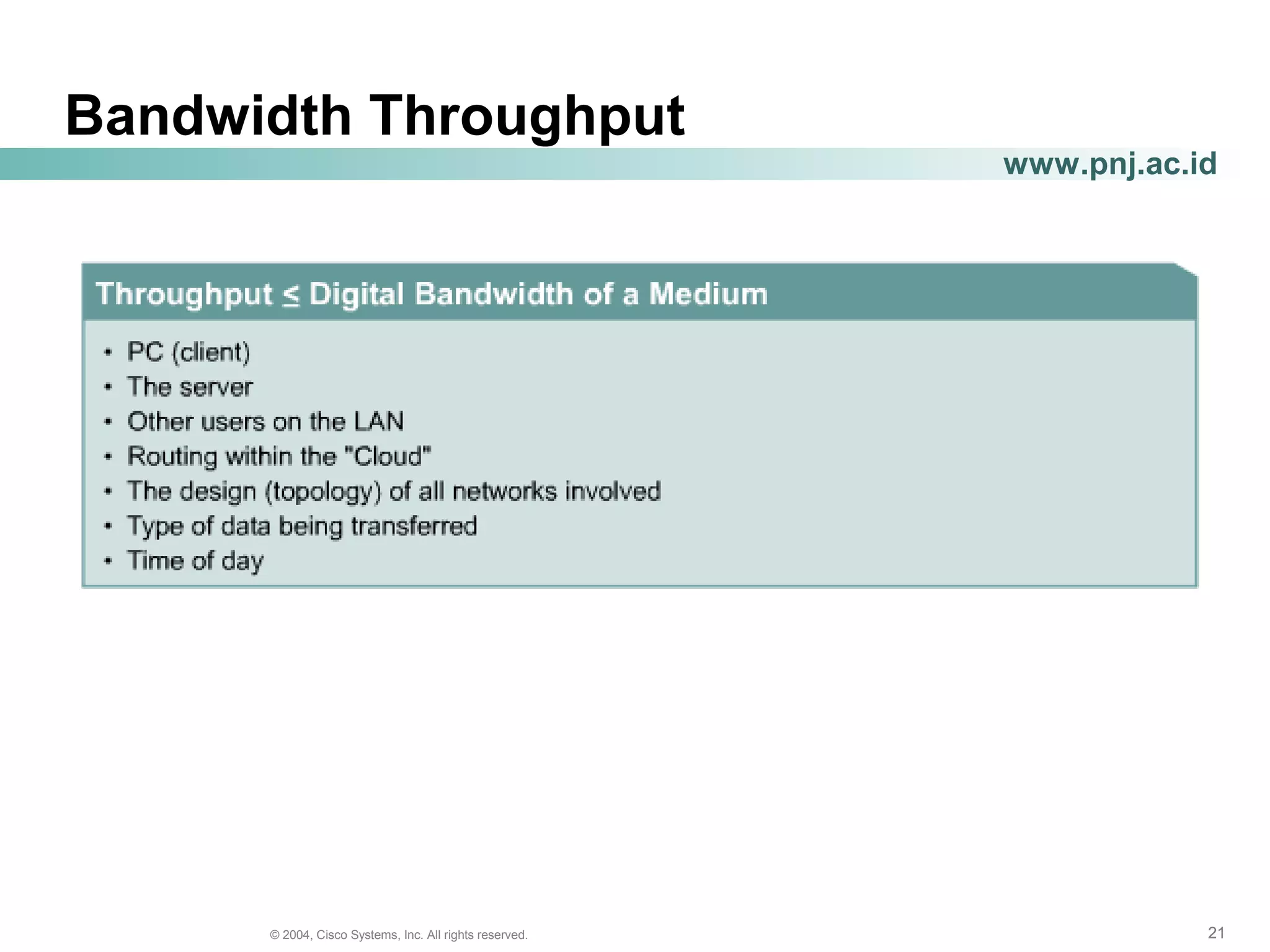

Bandwidth Throughput

22. 222222© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

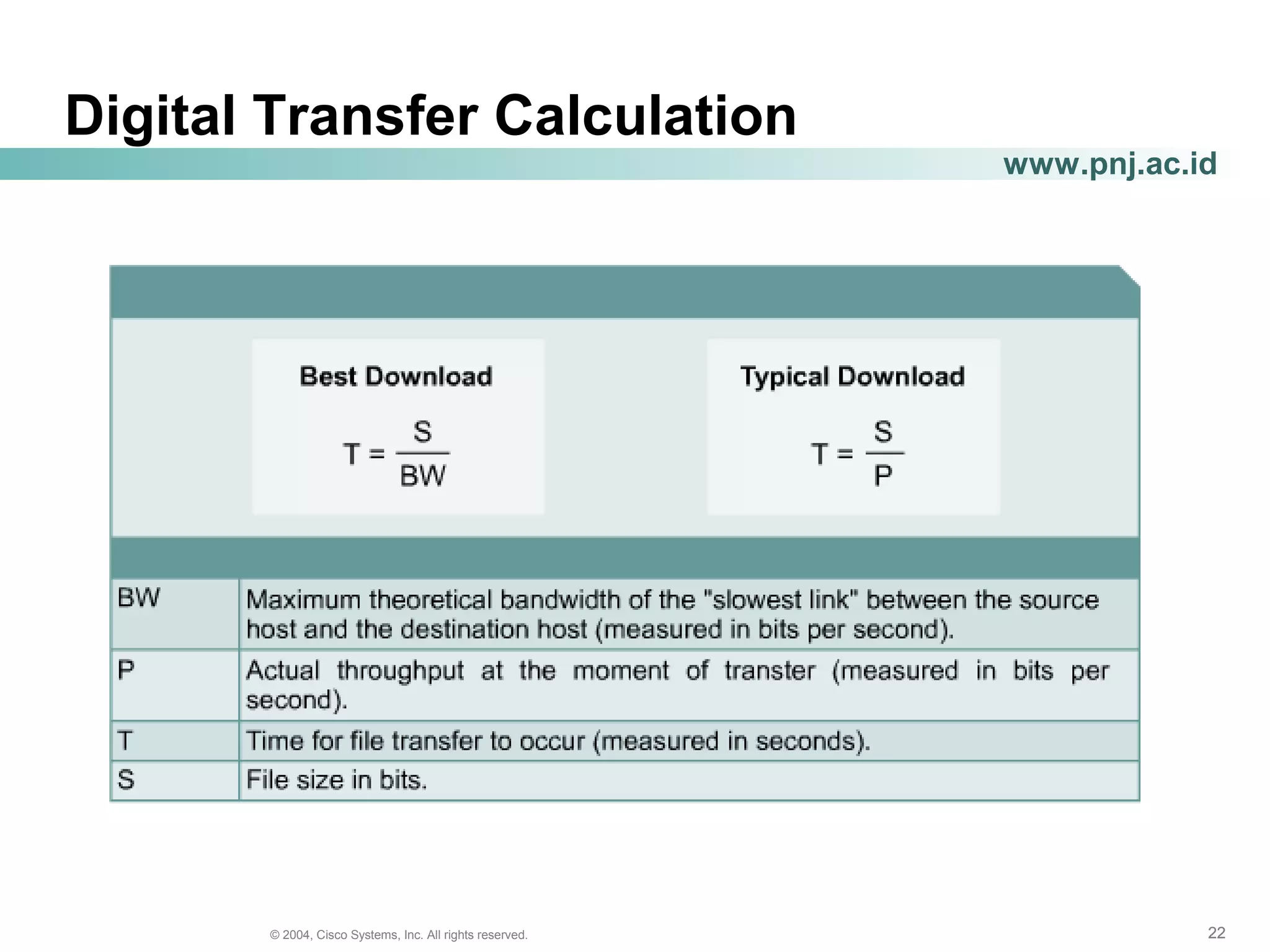

Digital Transfer Calculation

23. 232323© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

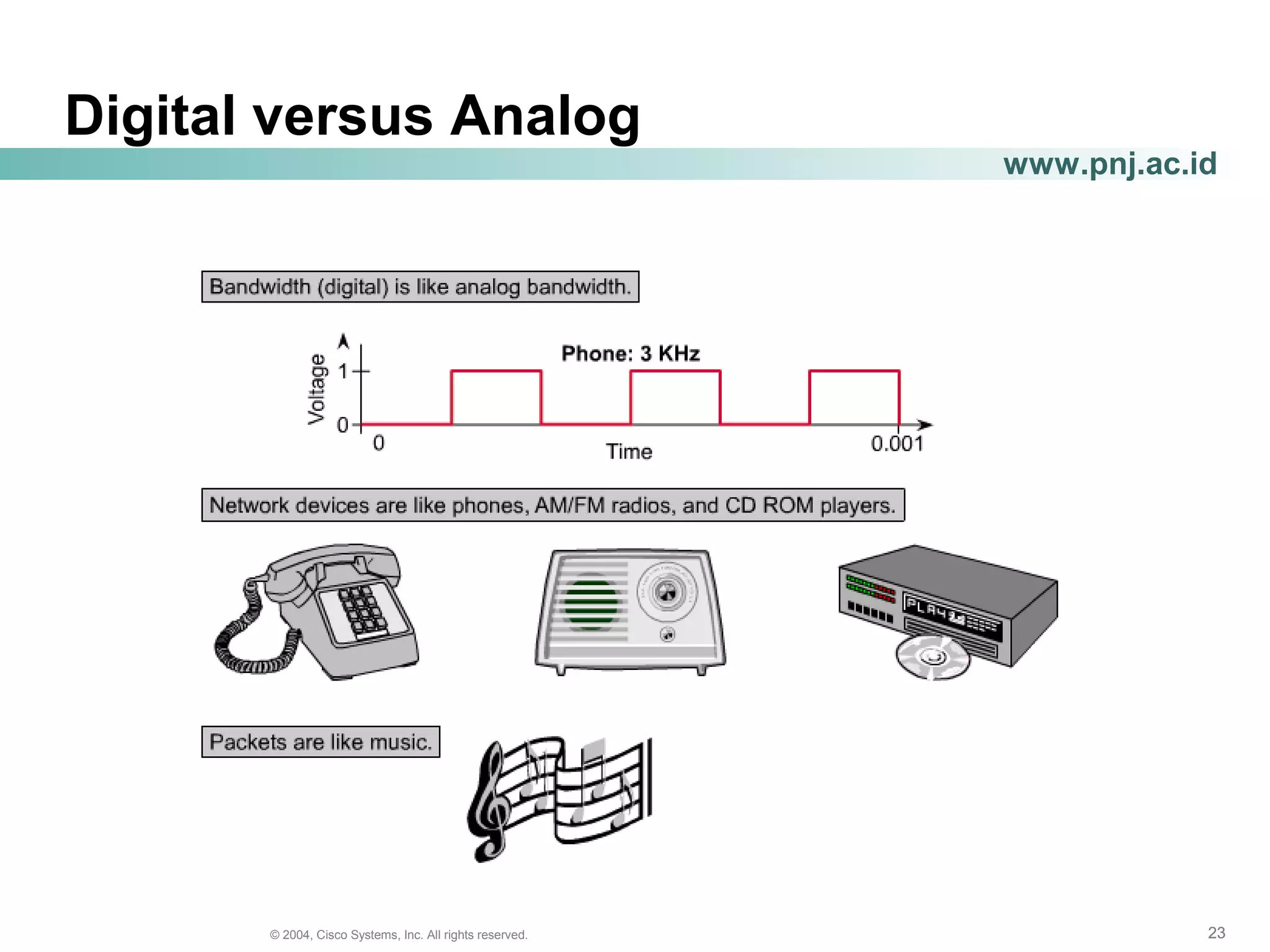

Digital versus Analog

24. 242424© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

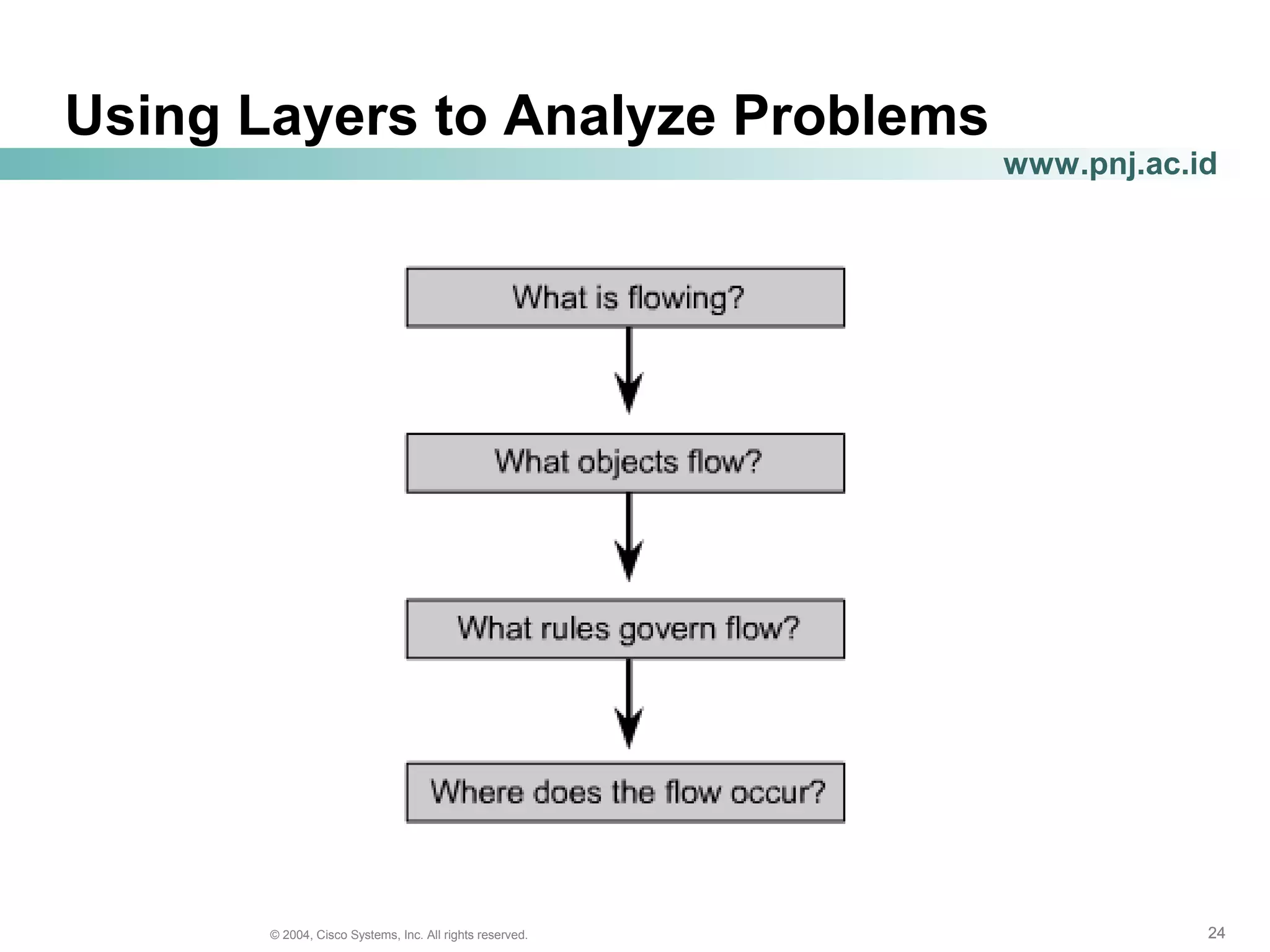

Using Layers to Analyze Problems

25. 252525© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

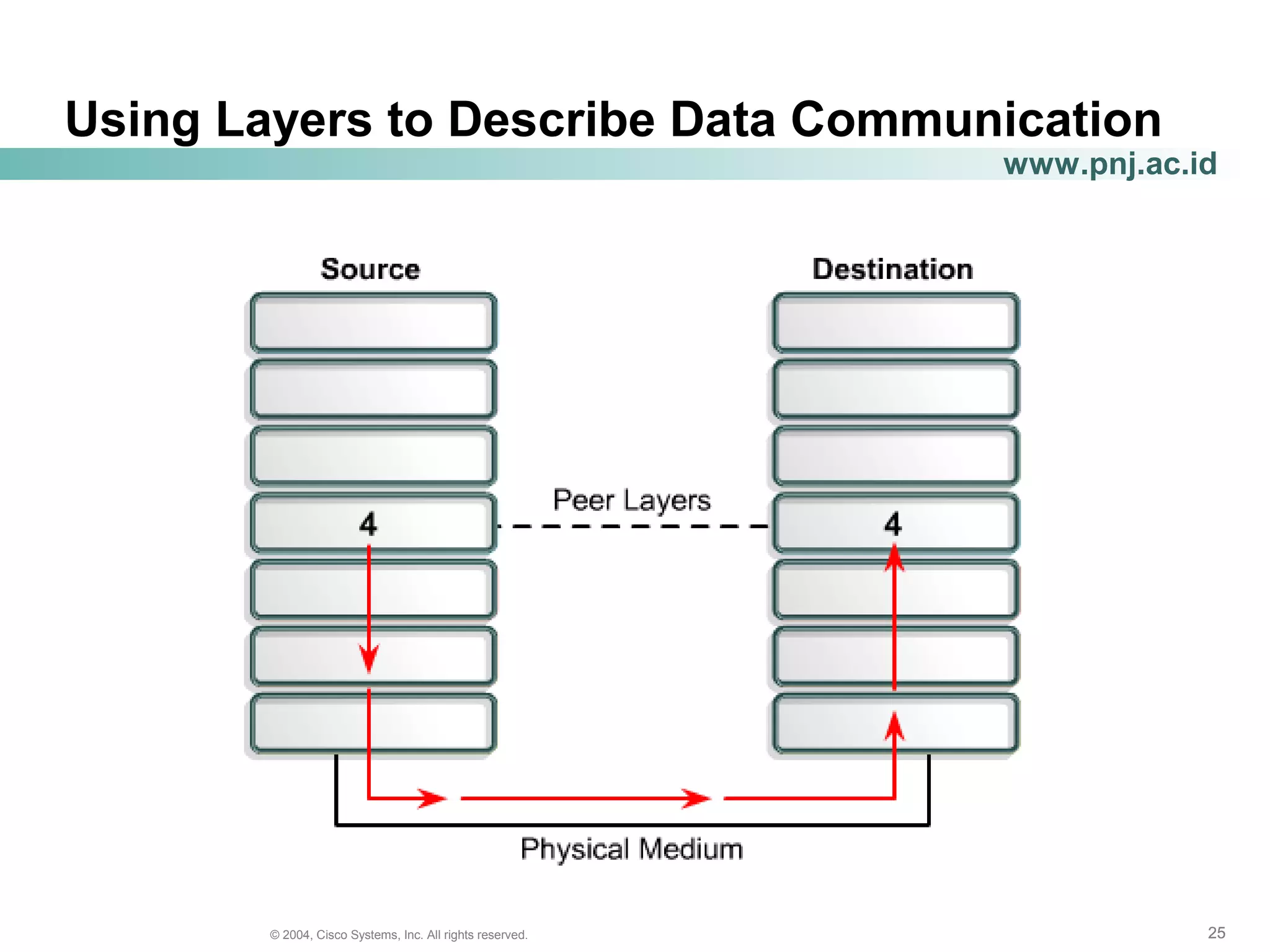

Using Layers to Describe Data Communication

26. 262626© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

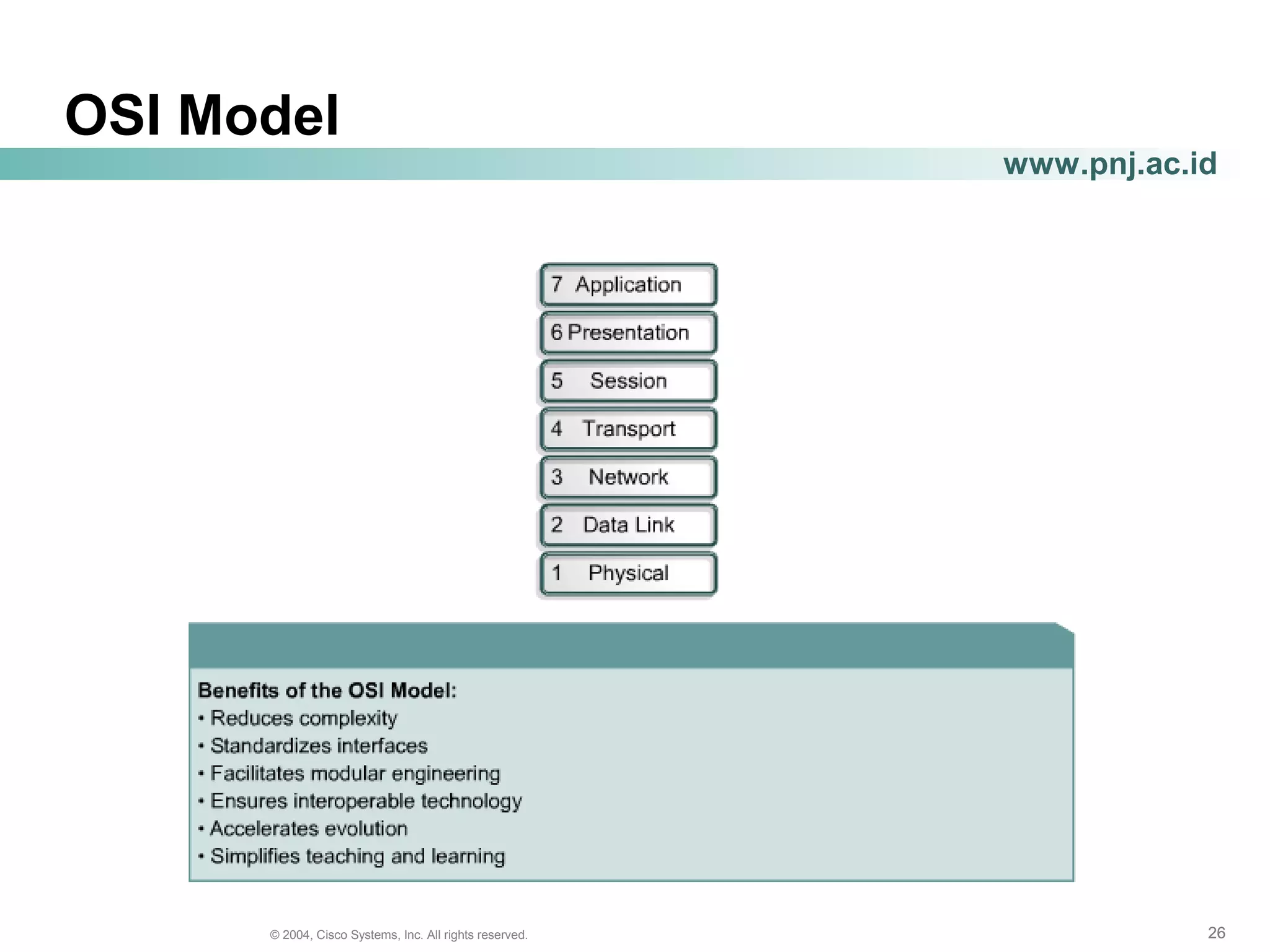

OSI Model

27. 272727© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

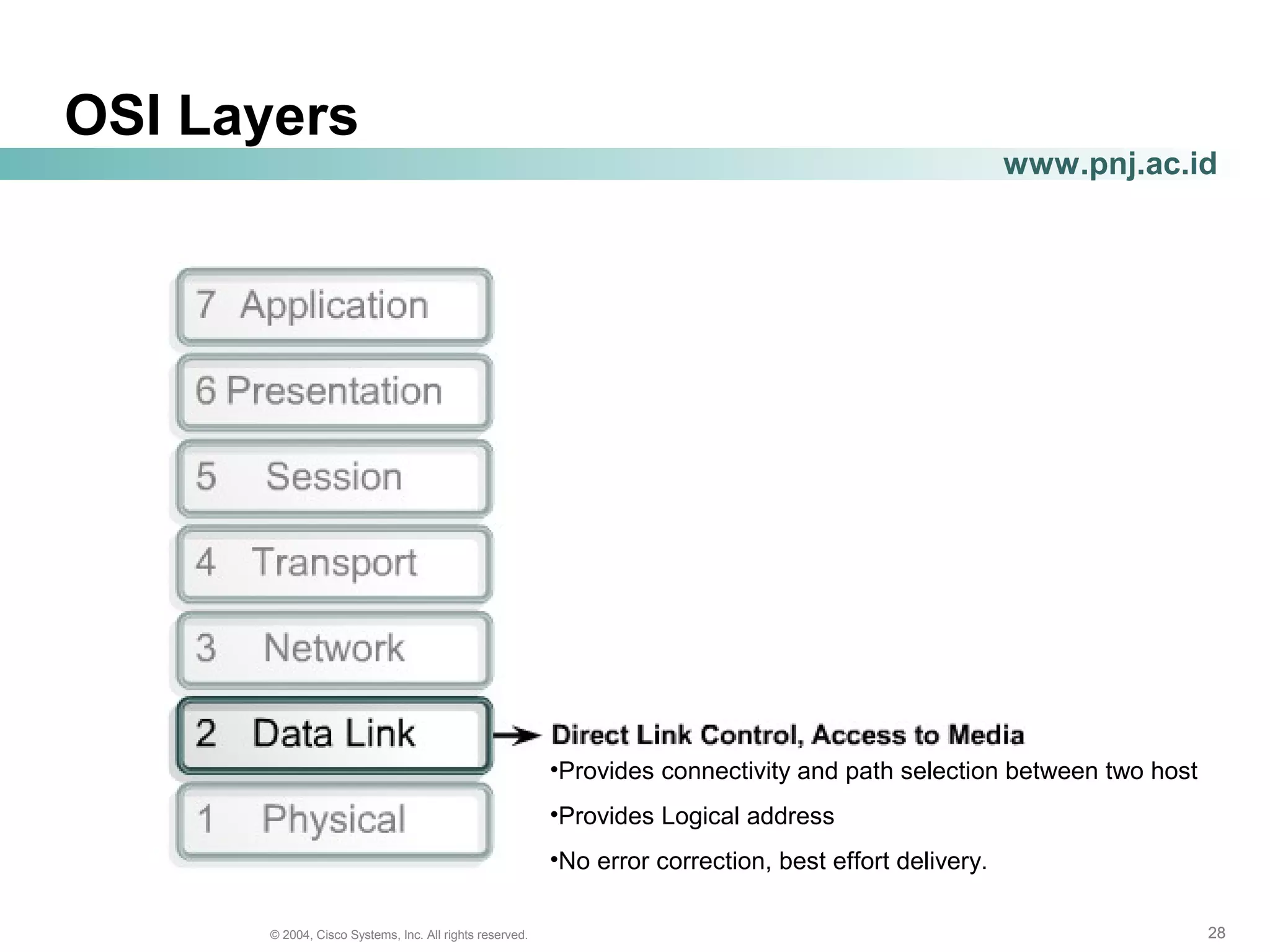

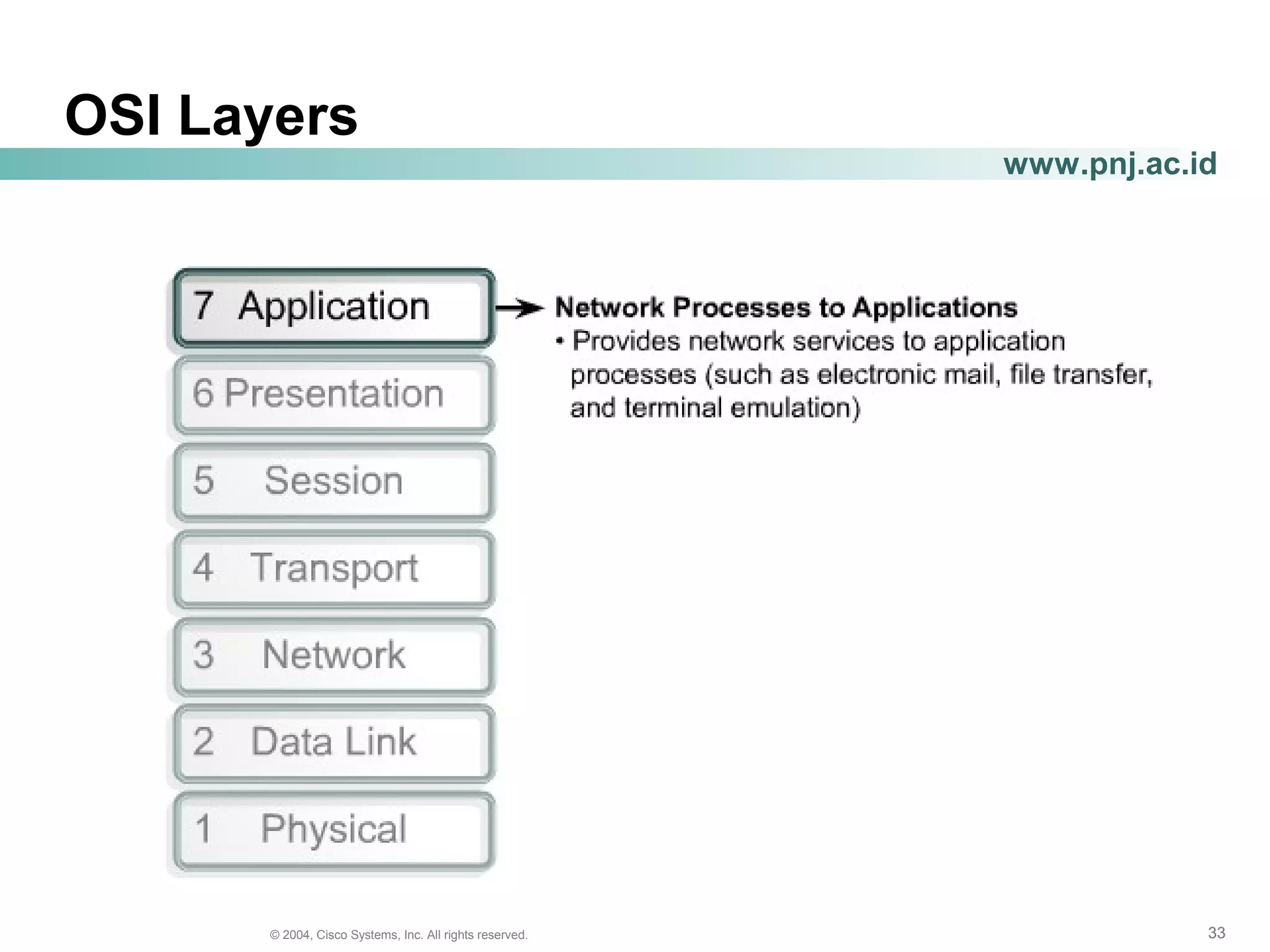

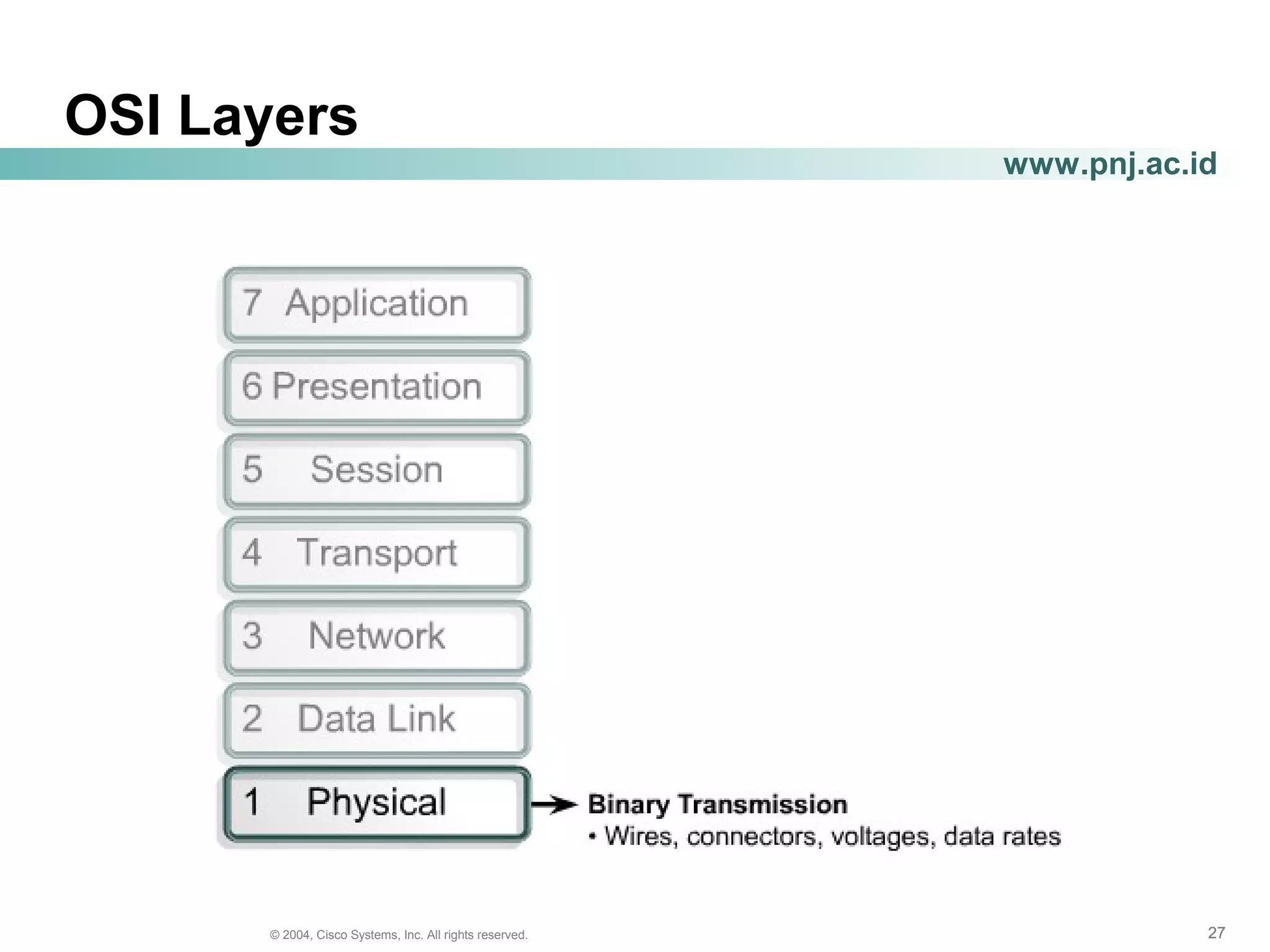

OSI Layers

28. 282828© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

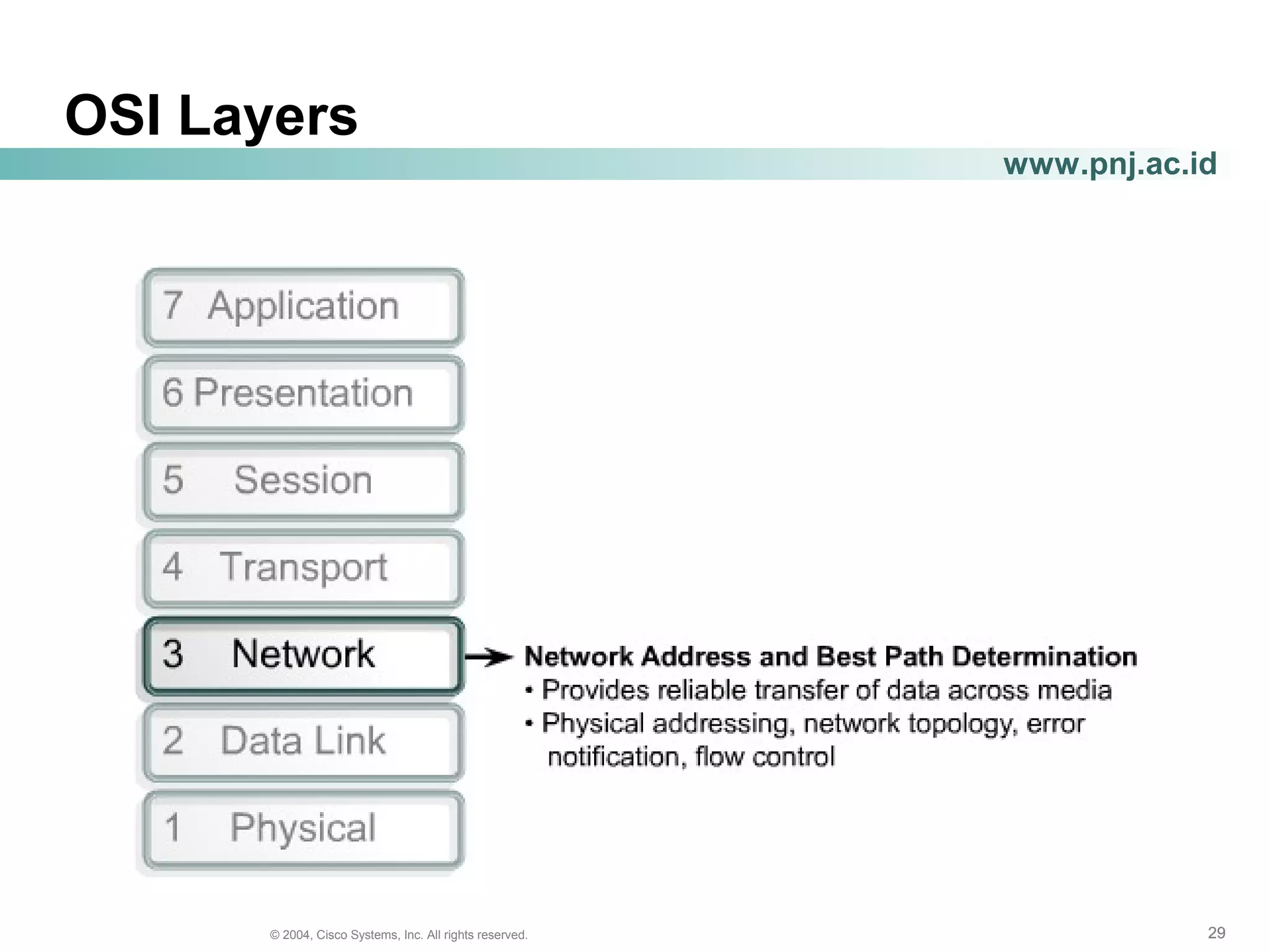

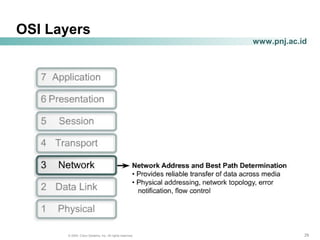

OSI Layers
•Provides connectivity and path selection between two host
•Provides Logical address
•No error correction, best effort delivery.

29. 292929© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id
OSI Layers

30. 303030© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id
OSI Layers

31. 313131© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

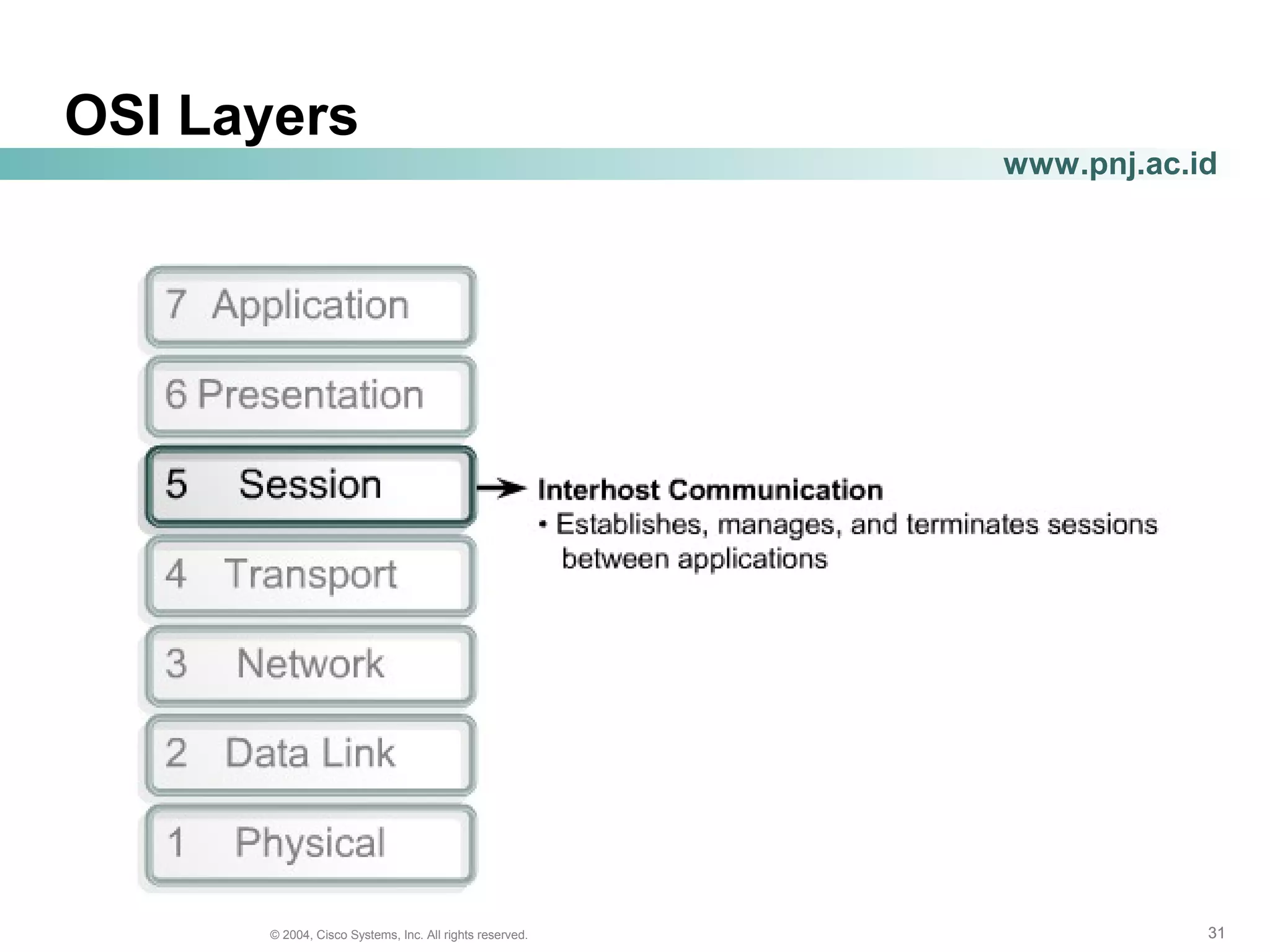

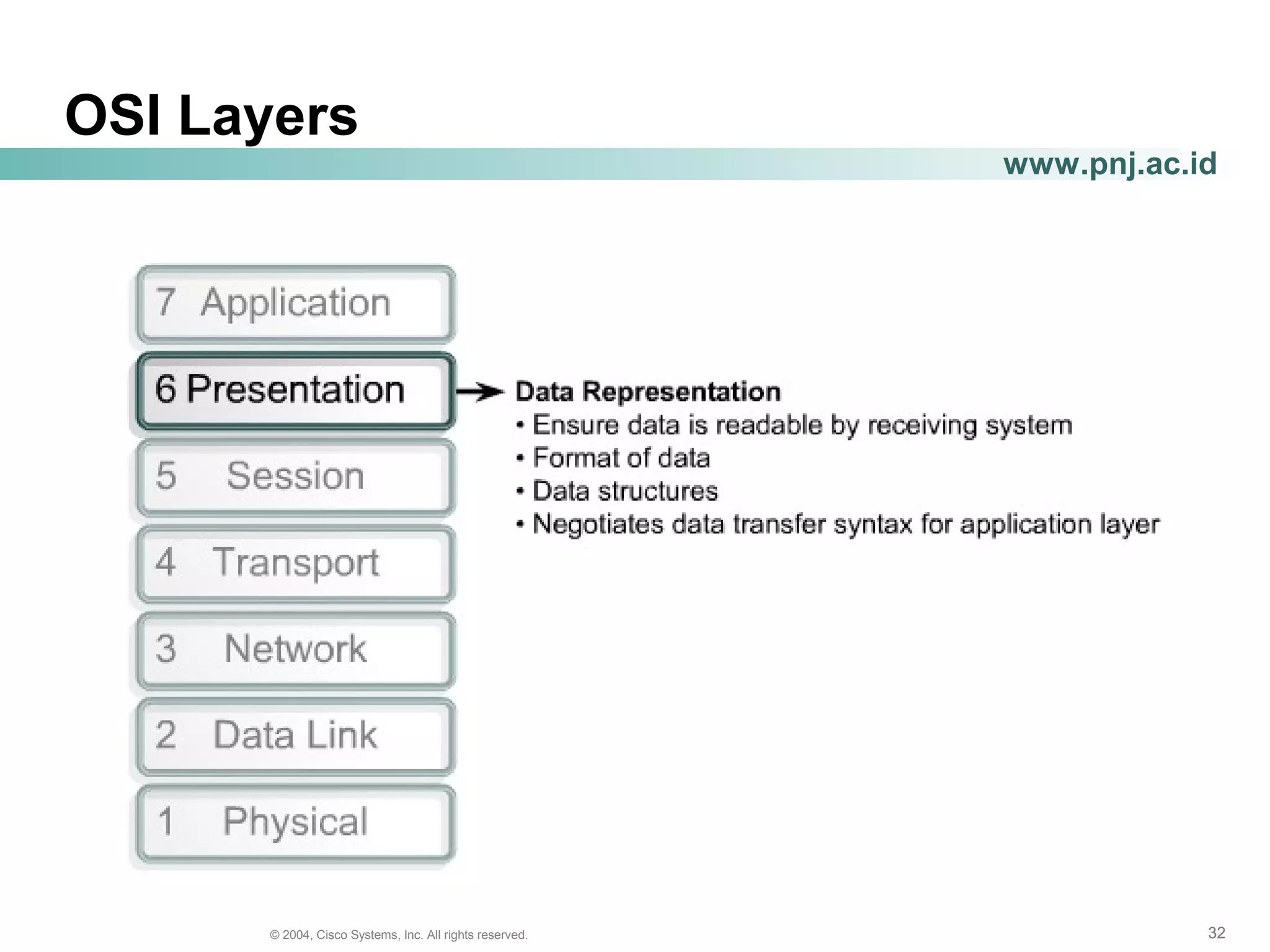

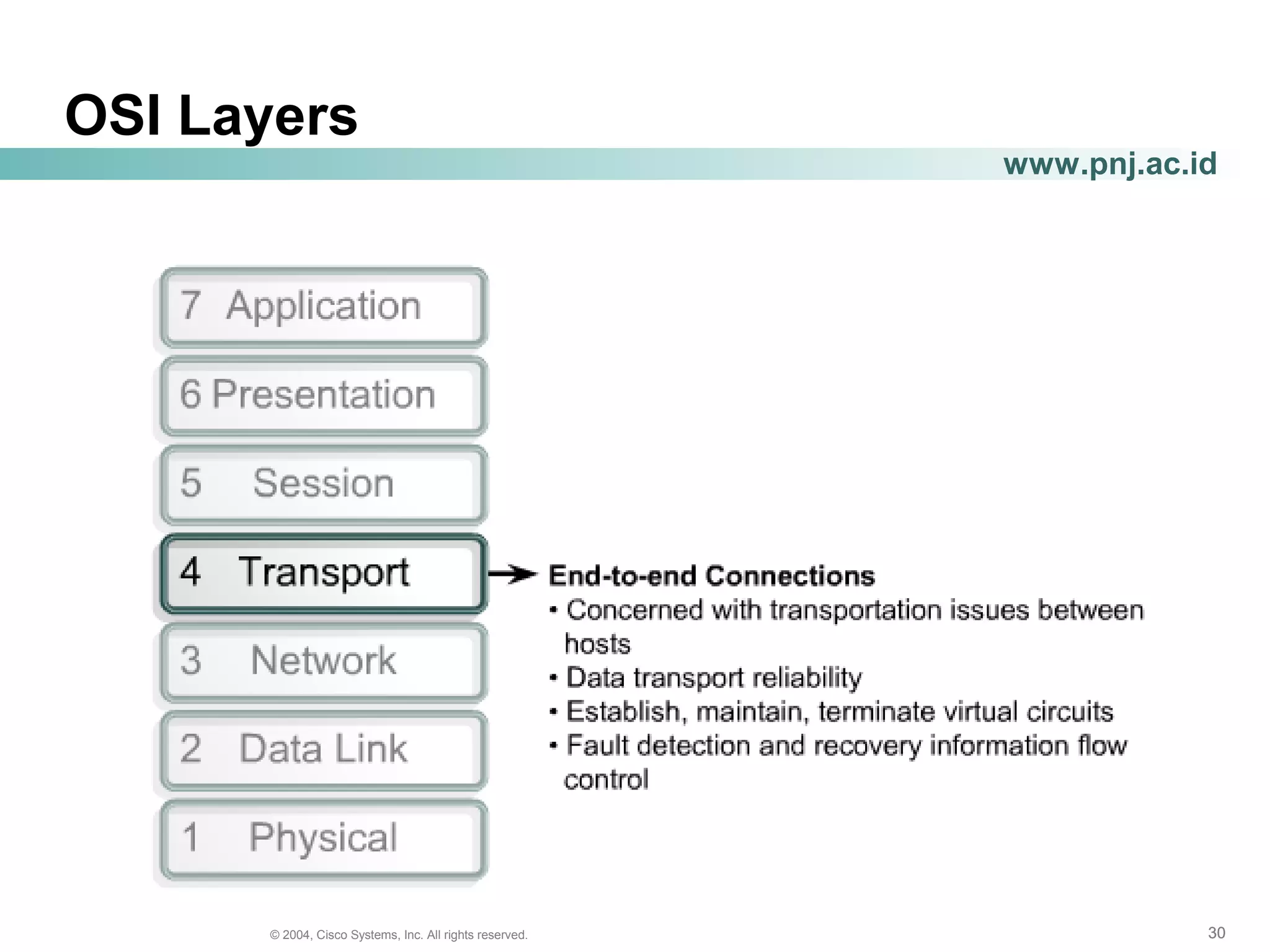

OSI Layers

32. 323232© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id
OSI Layers

33. 333333© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id
OSI Layers

34. 343434© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

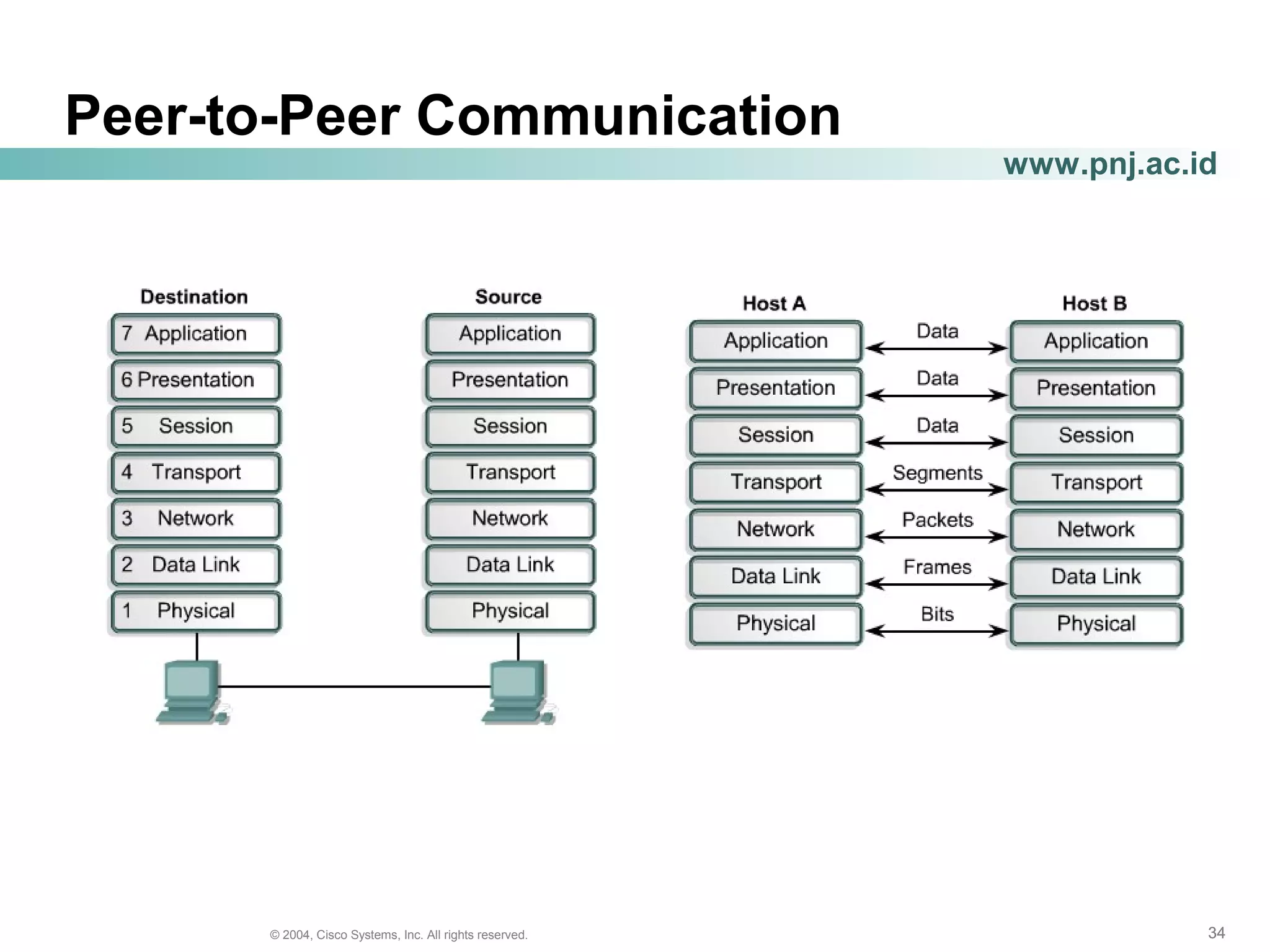

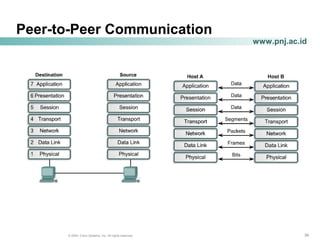

Peer-to-Peer Communication

35. 353535© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

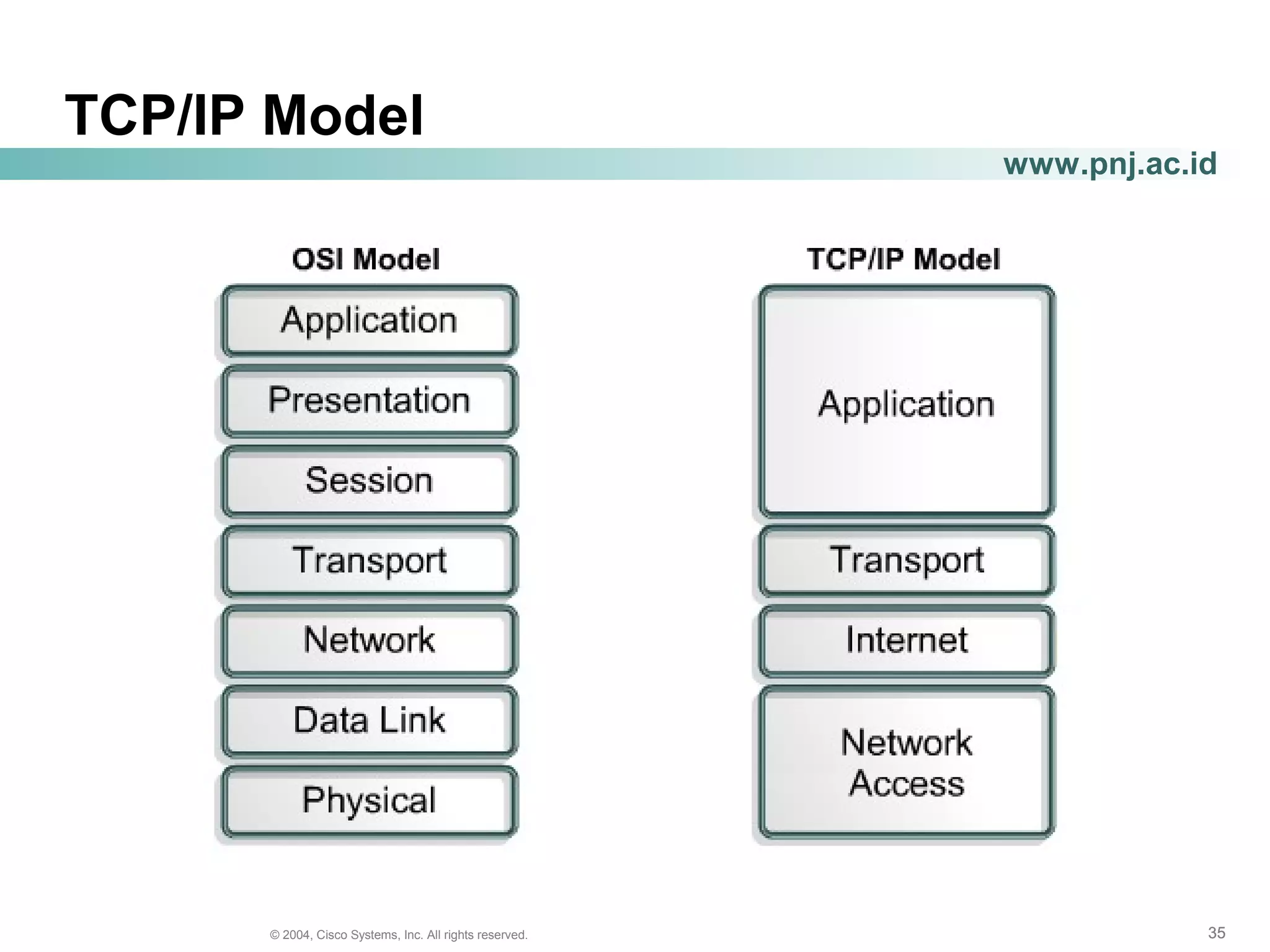

TCP/IP Model

36. 363636© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

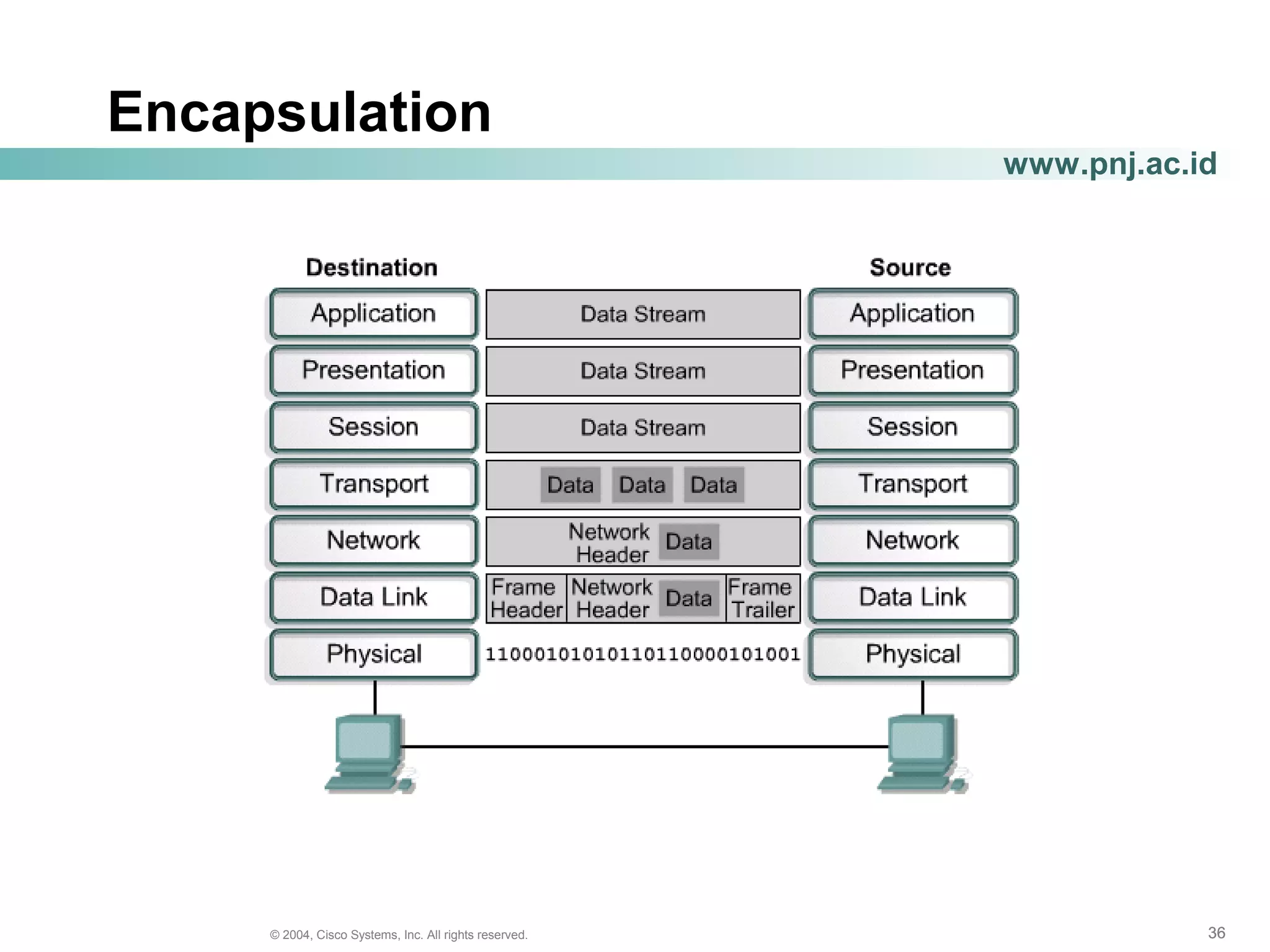

Encapsulation

37. 373737© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

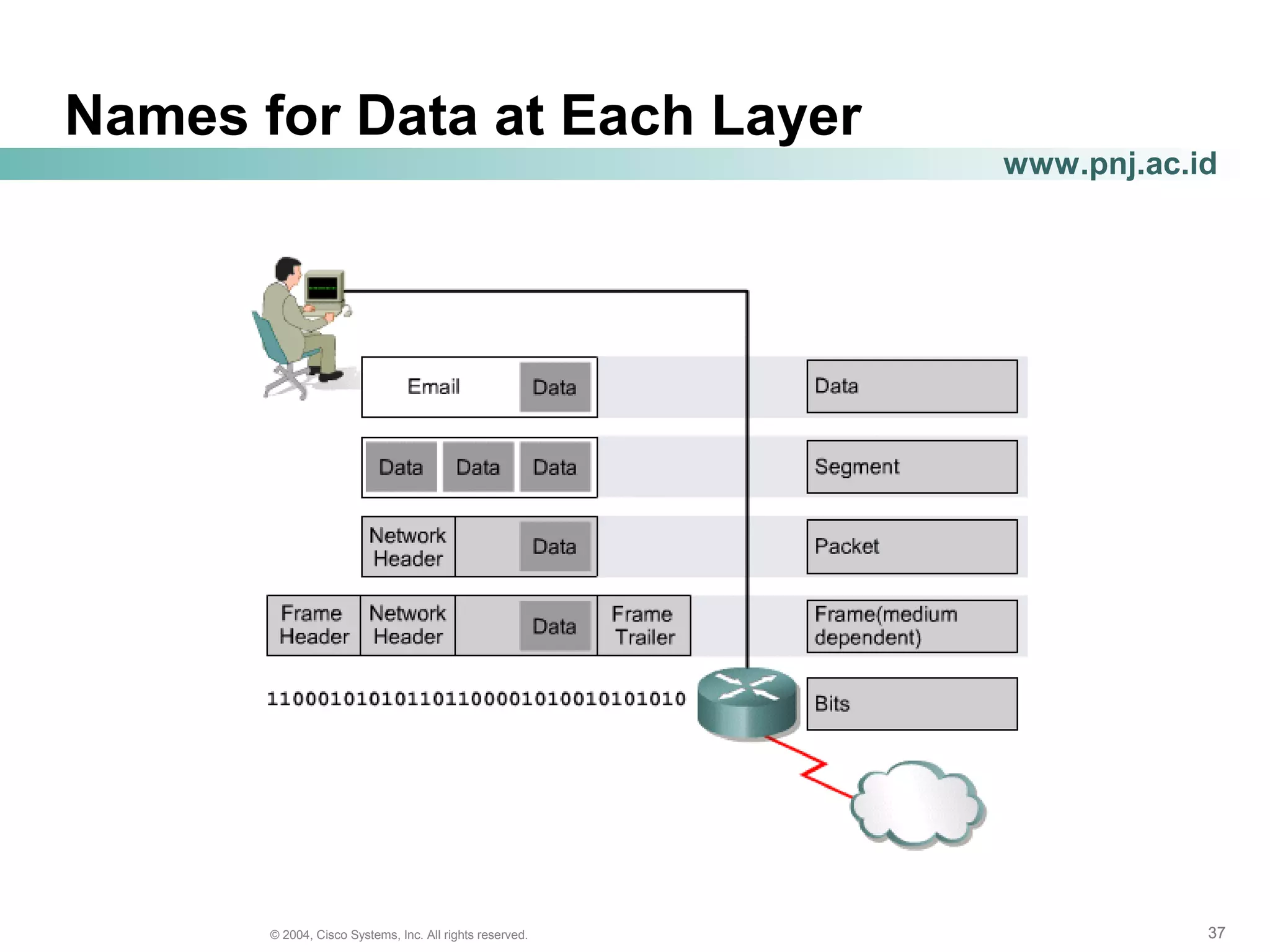

Names for Data at Each Layer

38. 383838© 2004, Cisco Systems, Inc. All rights reserved.
www.pnj.ac.id

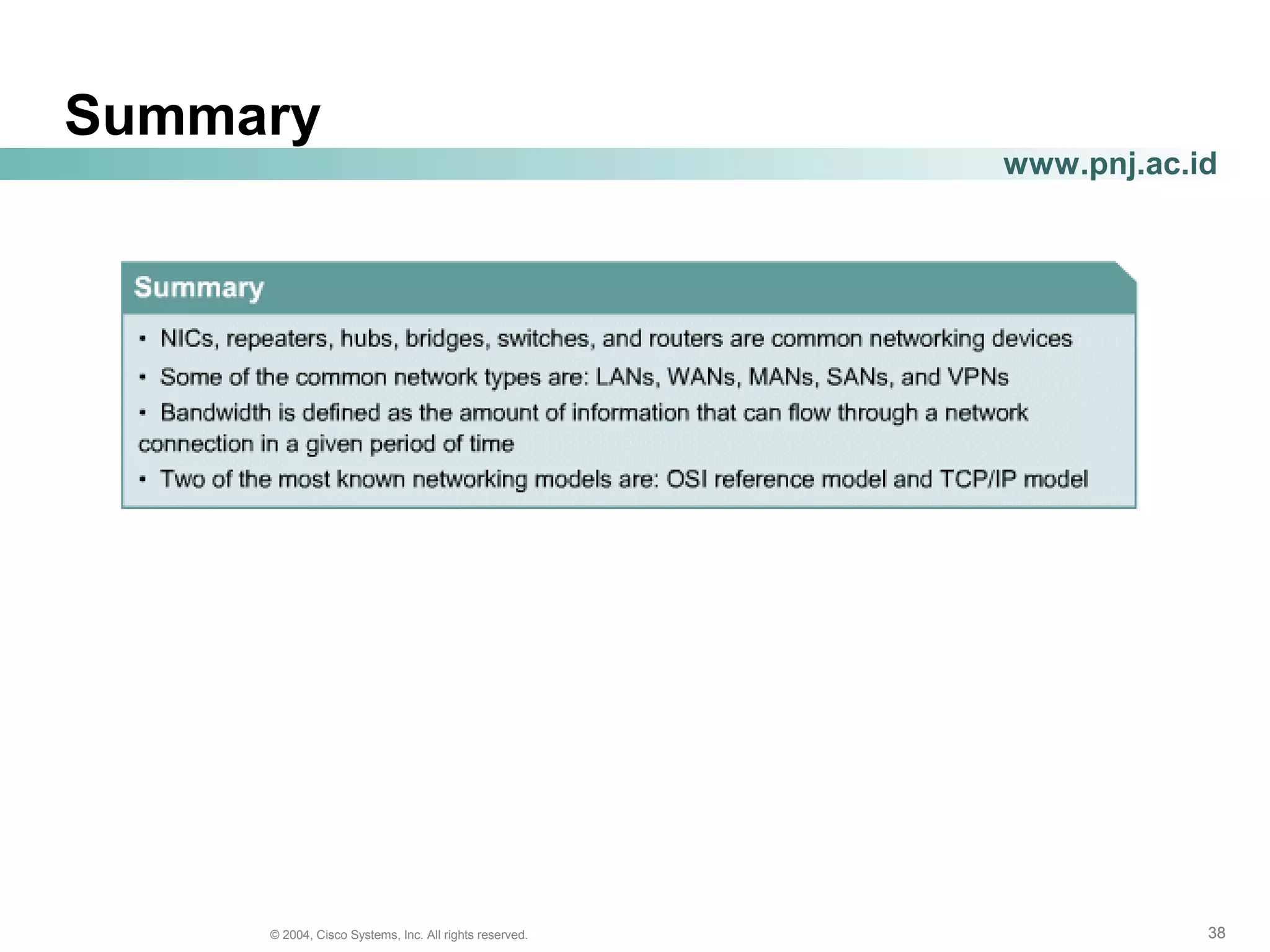

Summary
