Chapter 3:
Network Protocols and
Communications
Introduction to Networks
© 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 1

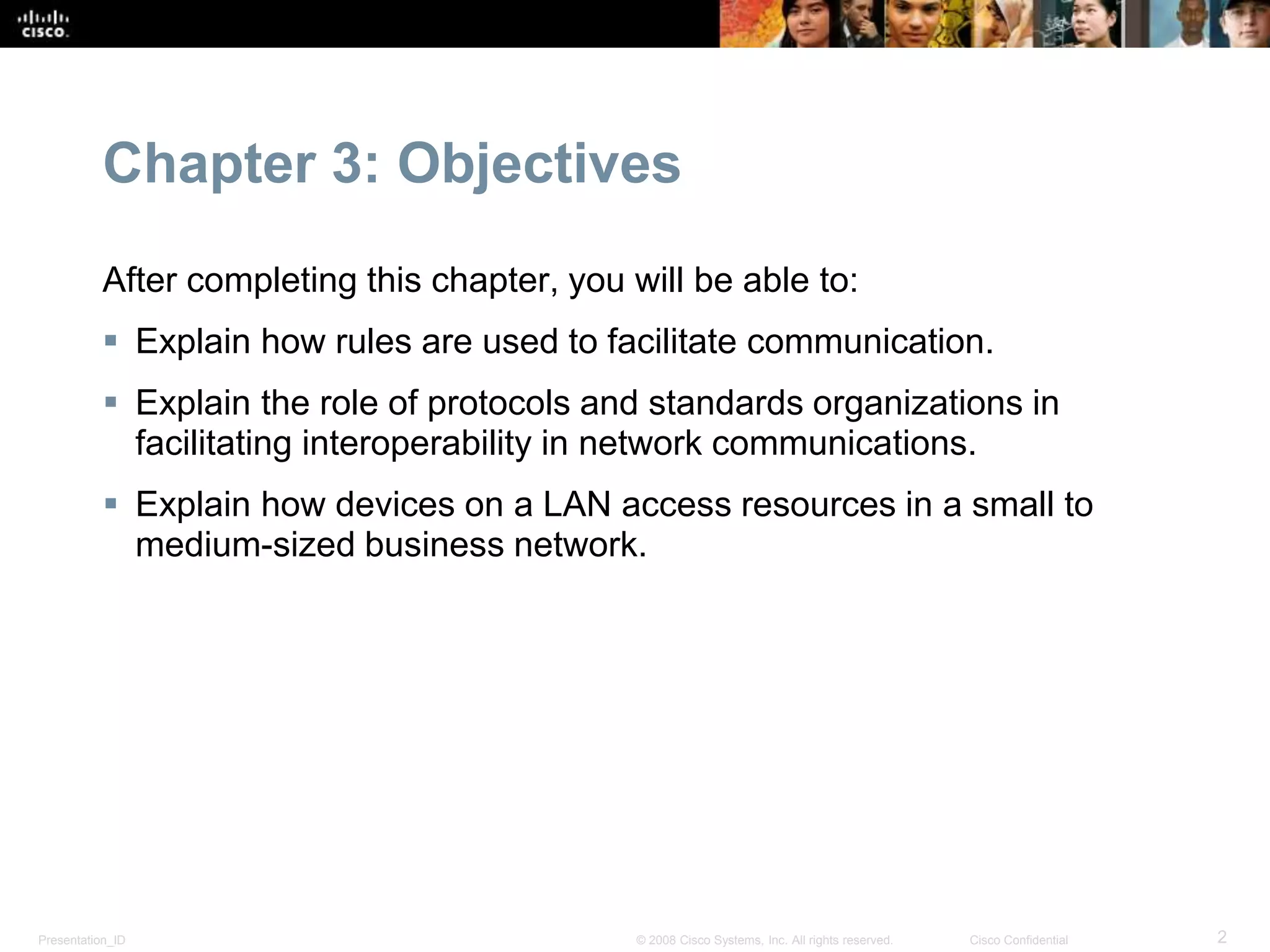

Chapter 3: Objectives
After completing this chapter, you will be able to:
 Explain how rules are used to facilitate communication.
 Explain the role of protocols and standards organizations in
facilitating interoperability in network communications.
 Explain how devices on a LAN access resources in a small to
medium-sized business network.
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 2

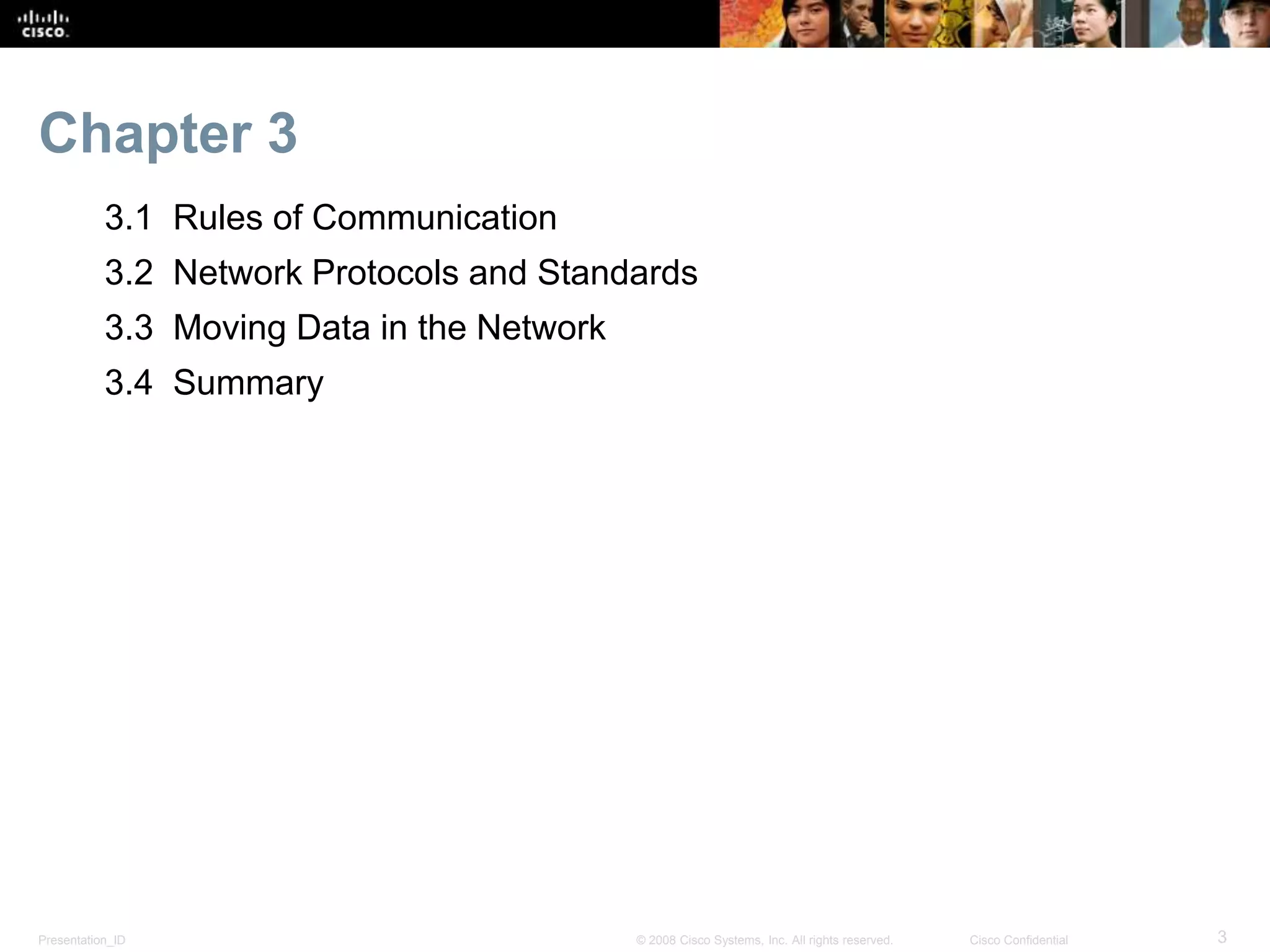

Chapter 3
3.1 Rules of Communication
3.2 Network Protocols and Standards
3.3 Moving Data in the Network
3.4 Summary
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 3
3.1 Rules of
Communication
© 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 4

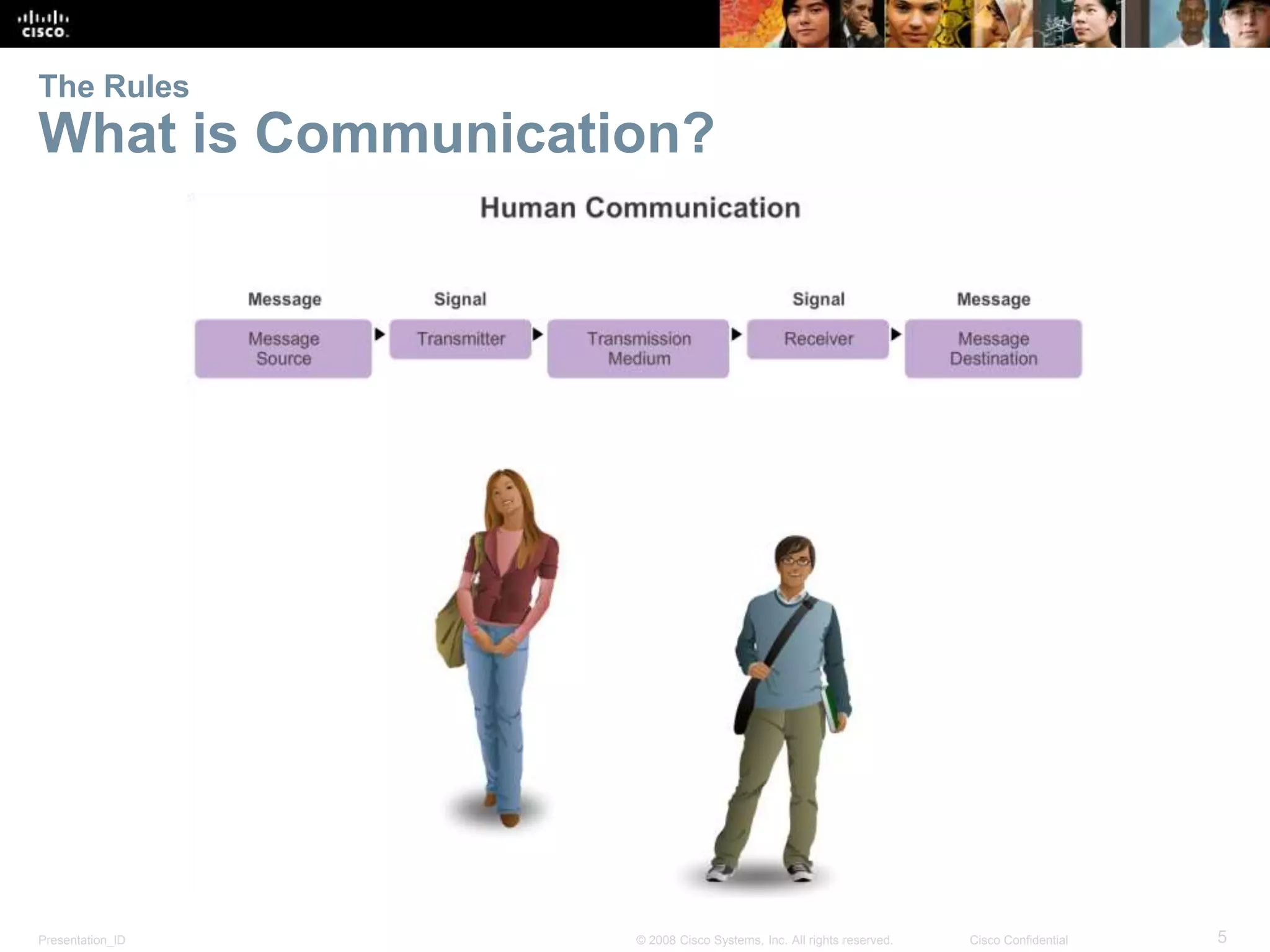

The Rules
What is Communication?
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 5

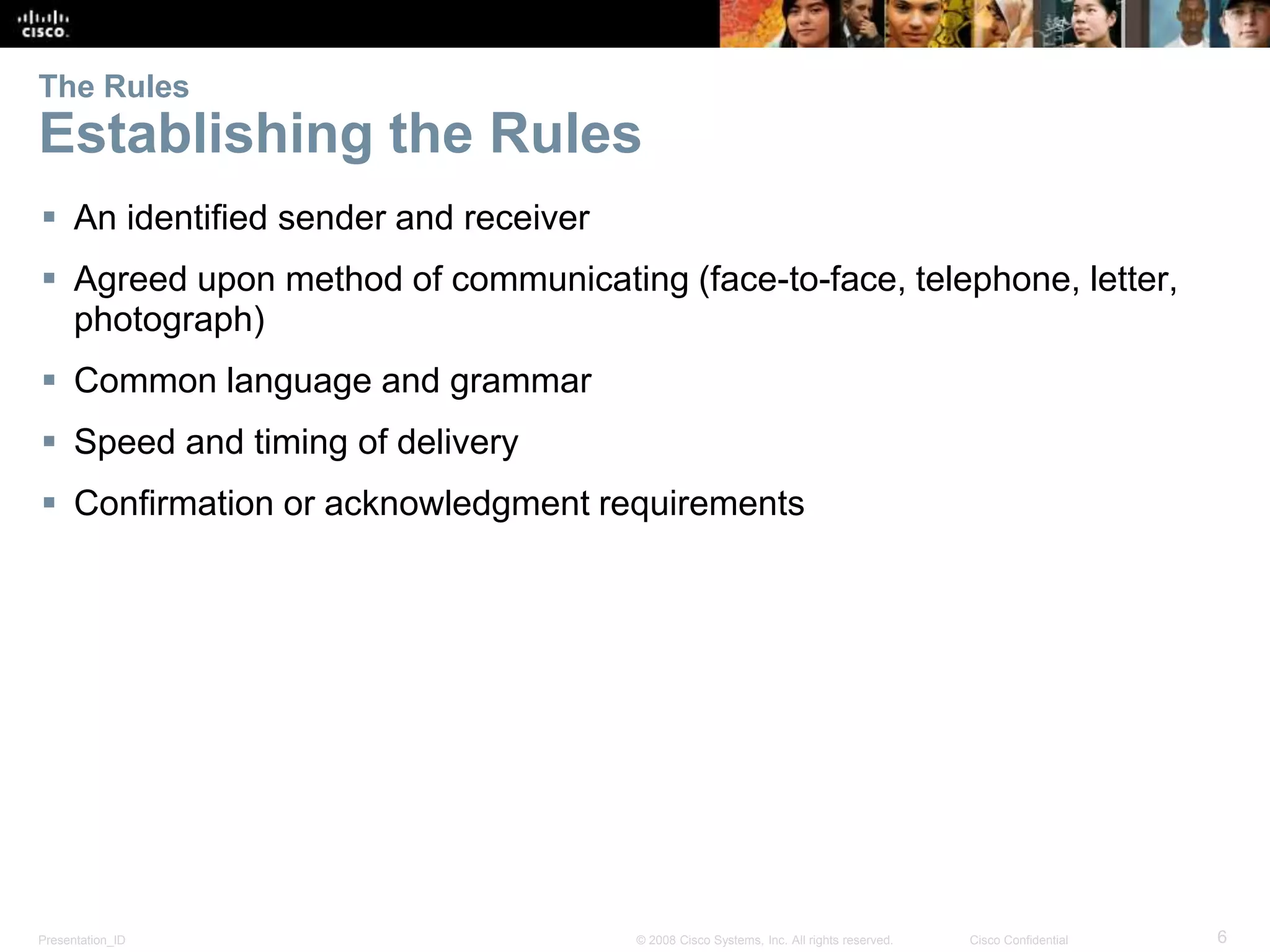

The Rules
Establishing the Rules
 An identified sender and receiver
 Agreed upon method of communicating (face-to-face, telephone, letter,
photograph)
 Common language and grammar
 Speed and timing of delivery
 Confirmation or acknowledgment requirements
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 6

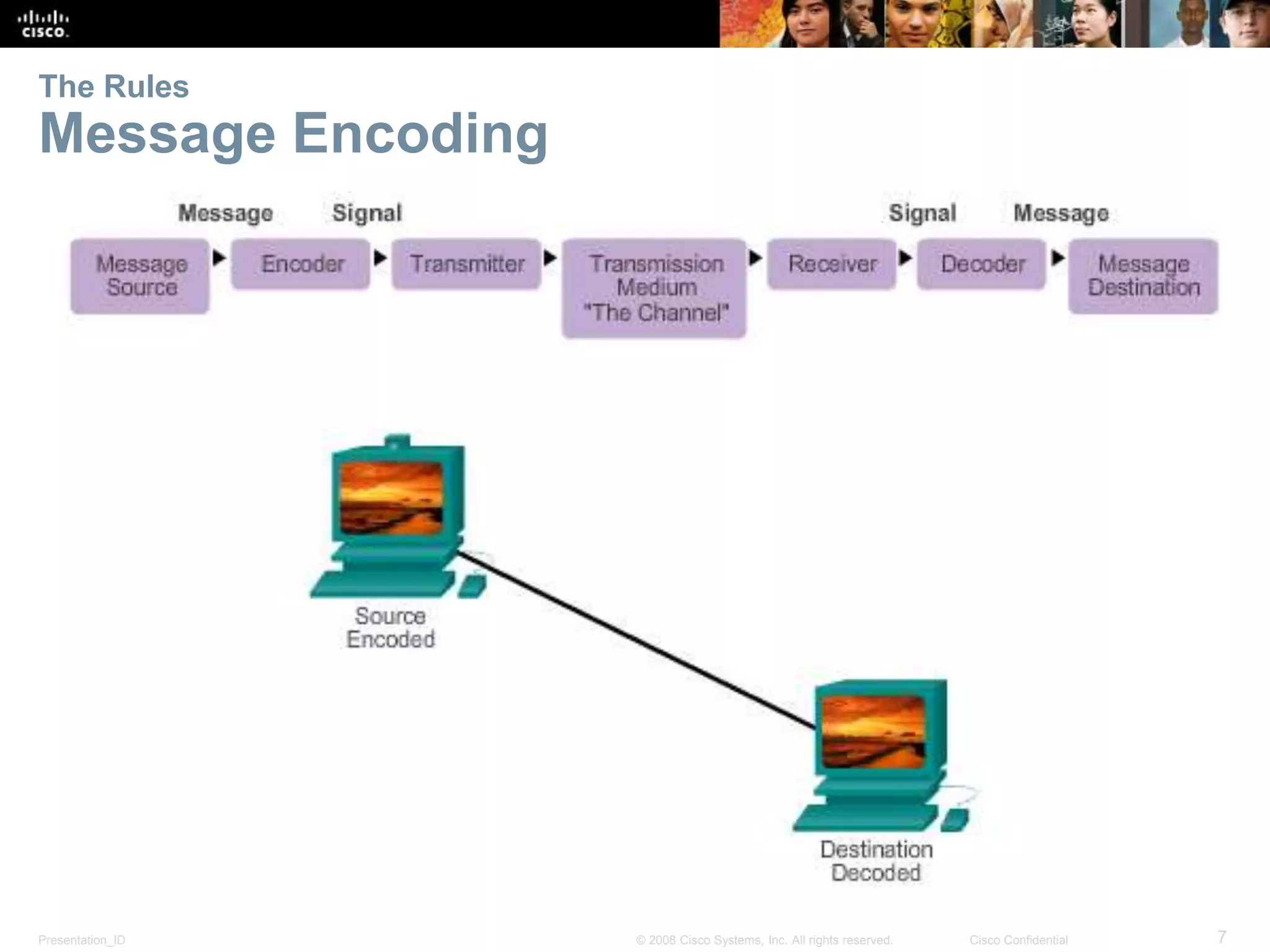

The Rules
Message Encoding
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 7

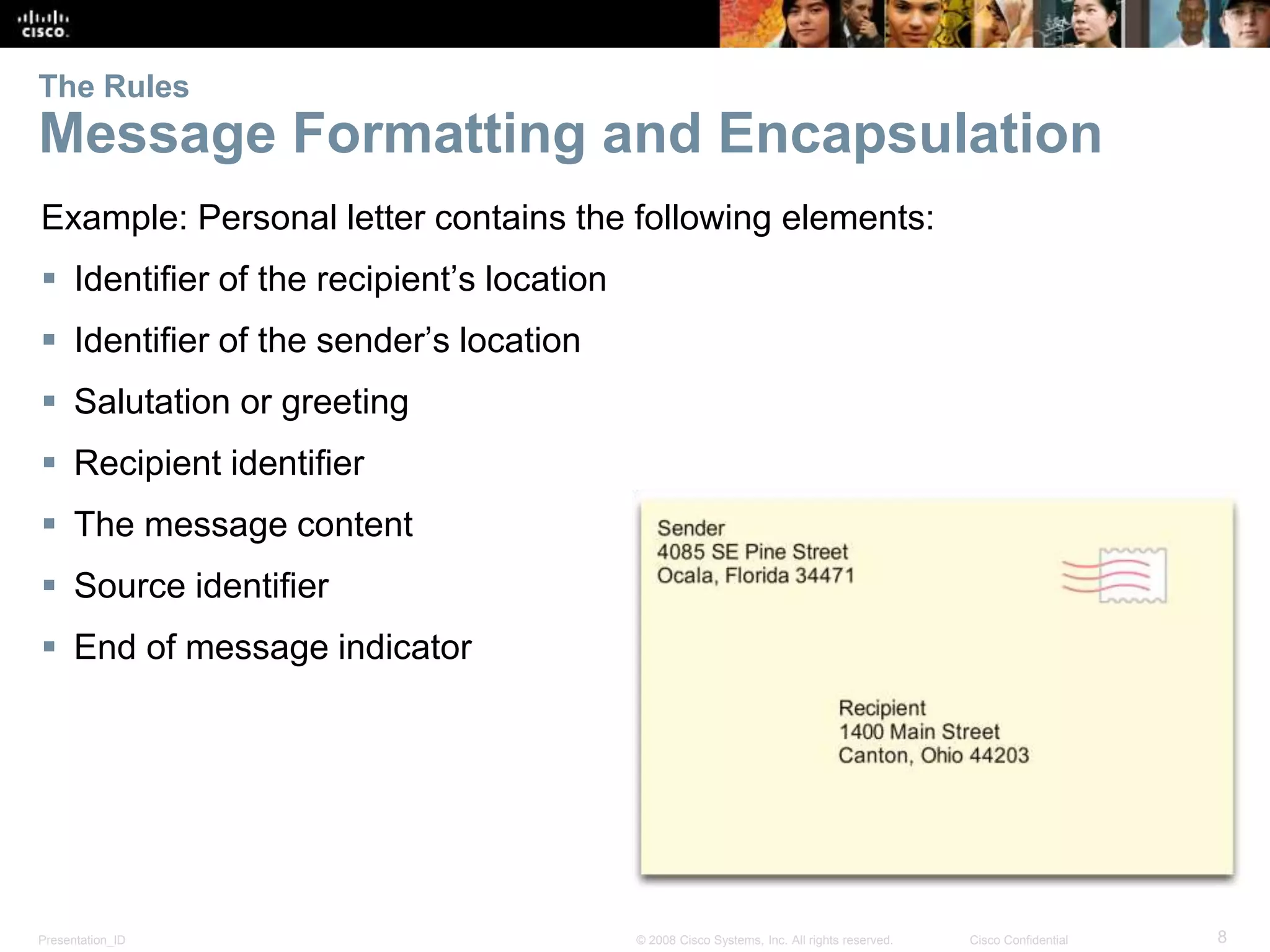

The Rules
Message Formatting and Encapsulation
Example: Personal letter contains the following elements:
 Identifier of the recipient’s location
 Identifier of the sender’s location
 Salutation or greeting
 Recipient identifier
 The message content
 Source identifier
 End of message indicator
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 8

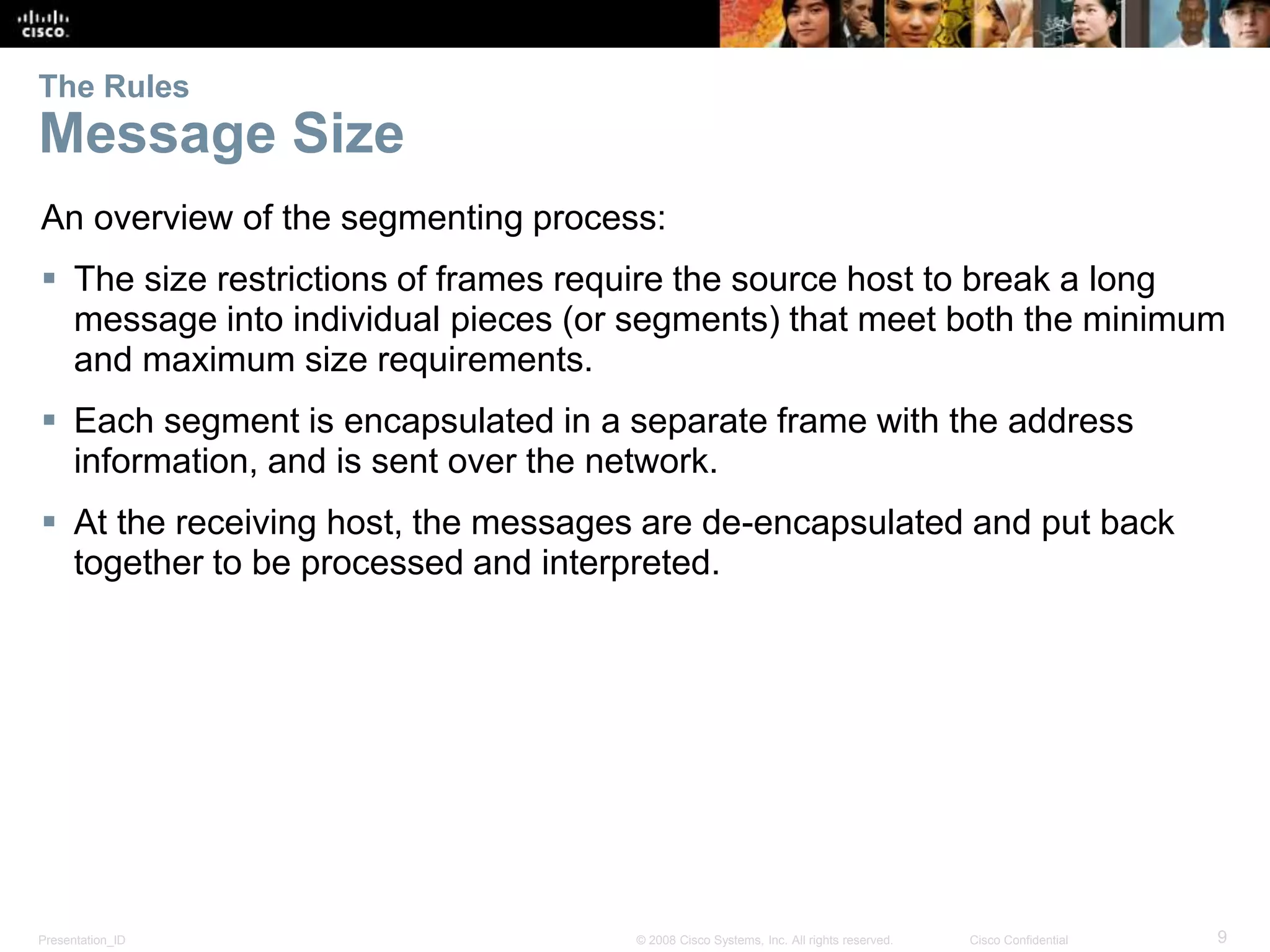

The Rules
Message Size
An overview of the segmenting process:
 The size restrictions of frames require the source host to break a long
message into individual pieces (or segments) that meet both the minimum
and maximum size requirements.
 Each segment is encapsulated in a separate frame with the address
information, and is sent over the network.
 At the receiving host, the messages are de-encapsulated and put back
together to be processed and interpreted.
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 9

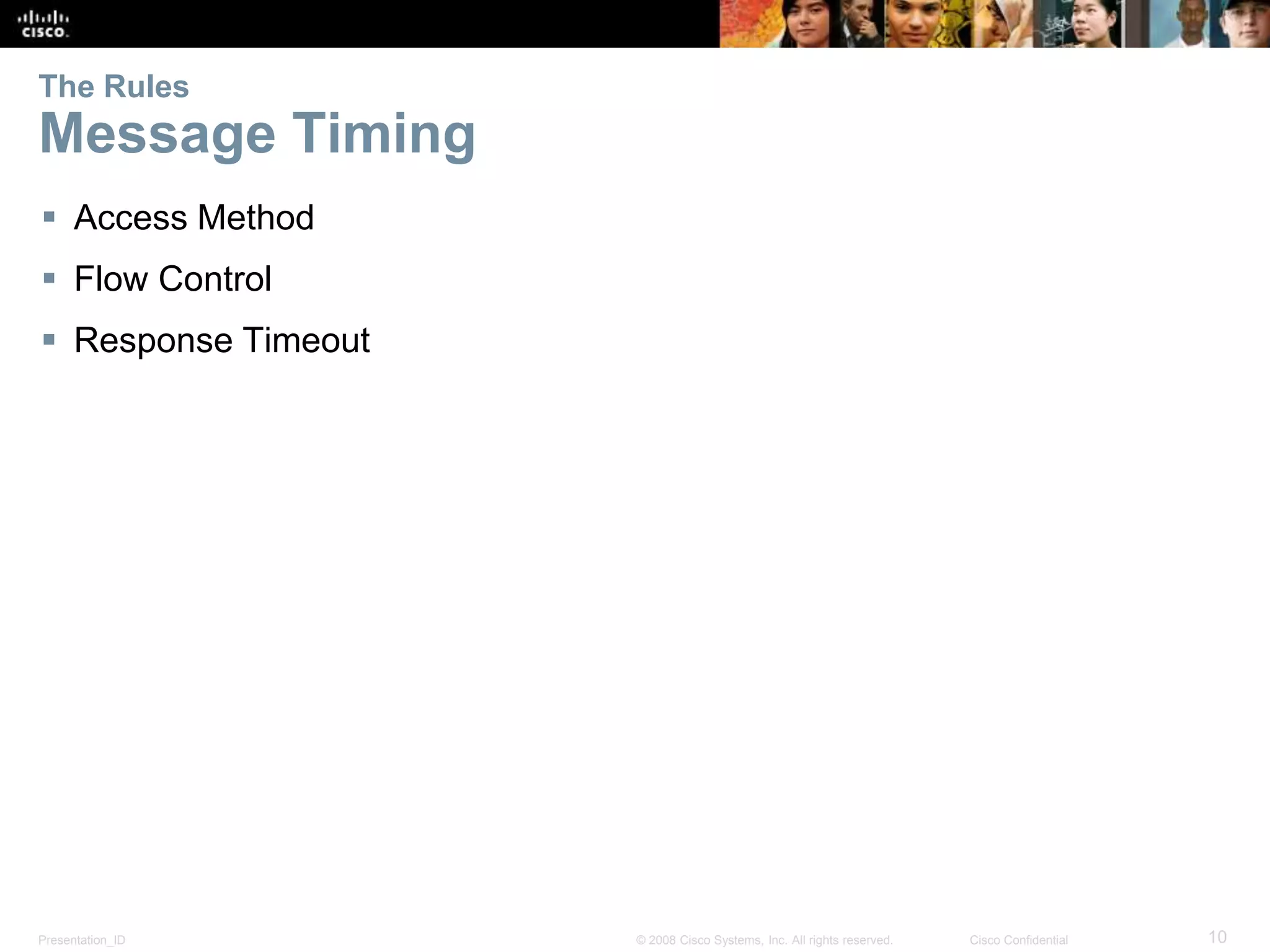

The Rules
Message Timing
 Access Method
 Flow Control
 Response Timeout
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 10

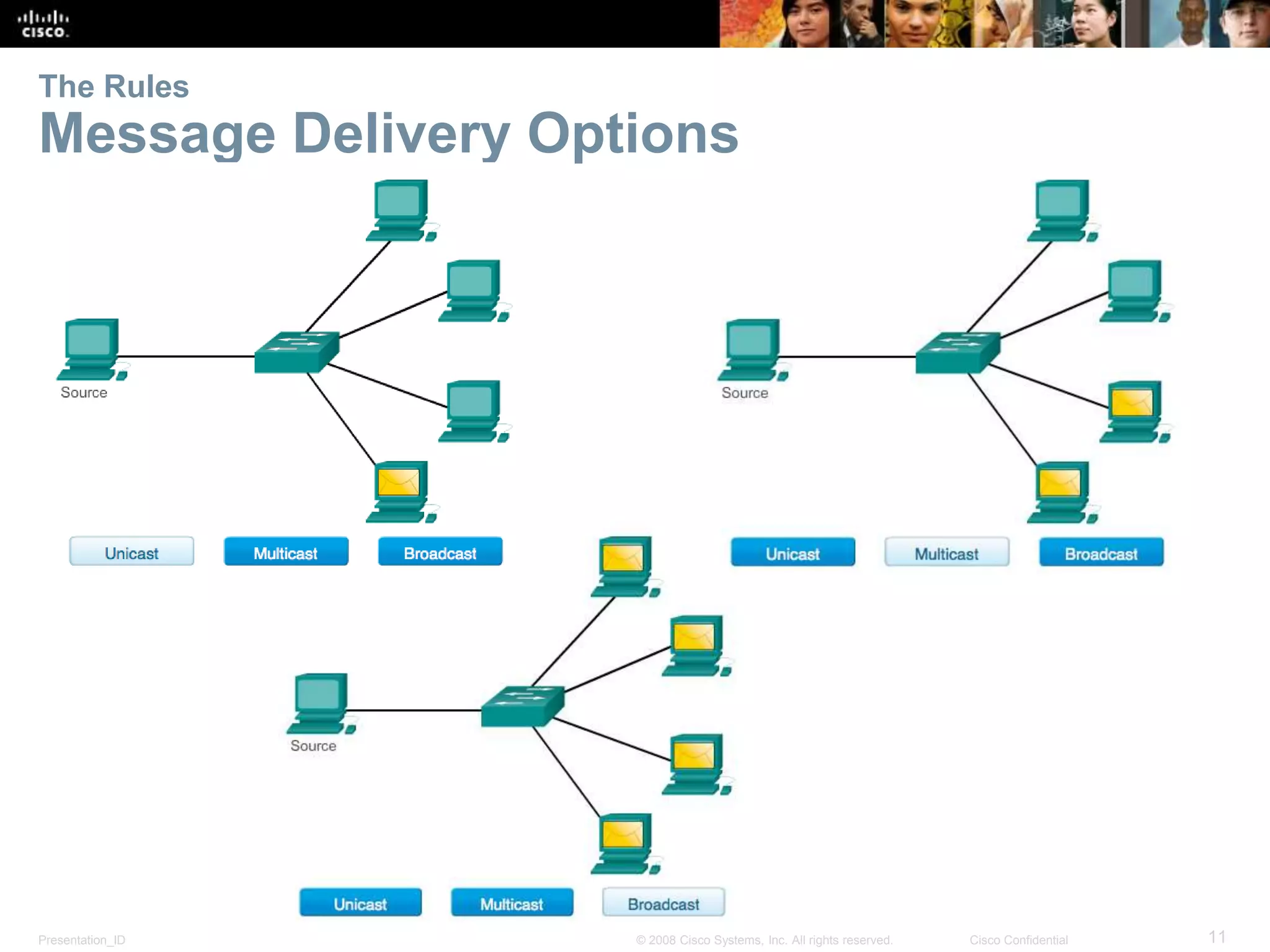

The Rules
Message Delivery Options
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 11
3.2 Network Protocols and Standards
© 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 12

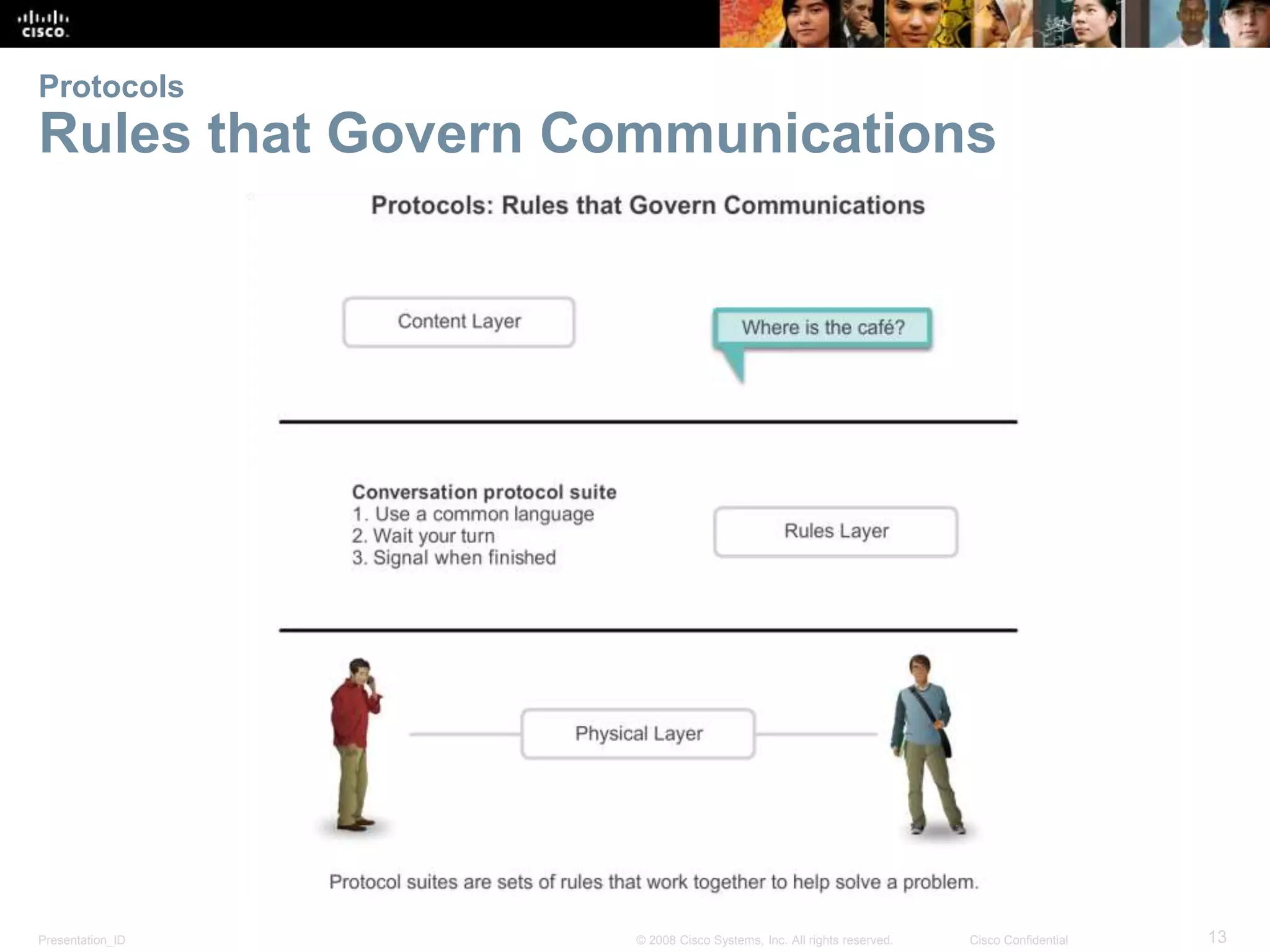

Protocols
Rules that Govern Communications
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 13

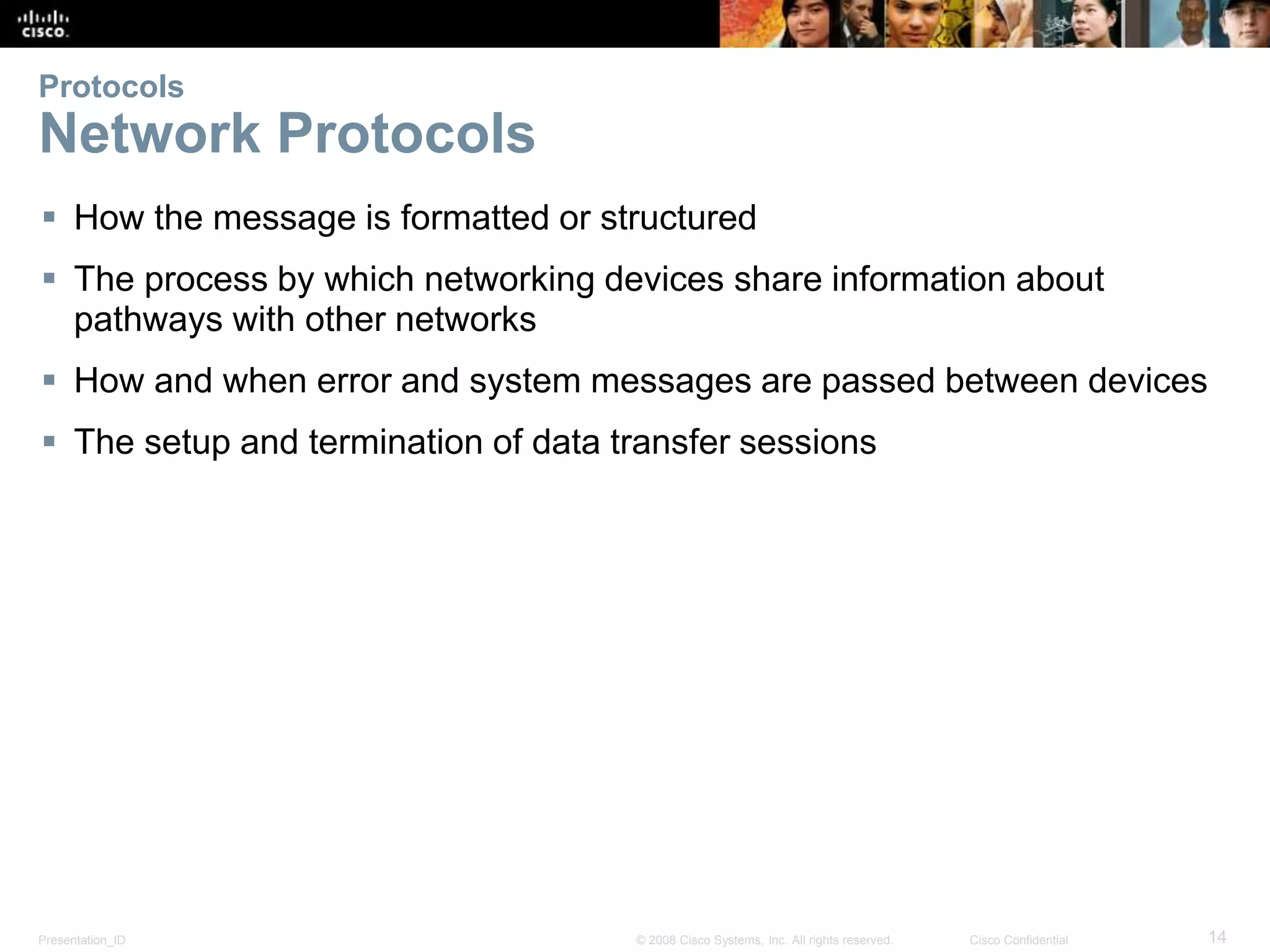

Protocols
Network Protocols
 How the message is formatted or structured
 The process by which networking devices share information about
pathways with other networks
 How and when error and system messages are passed between devices
 The setup and termination of data transfer sessions
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 14

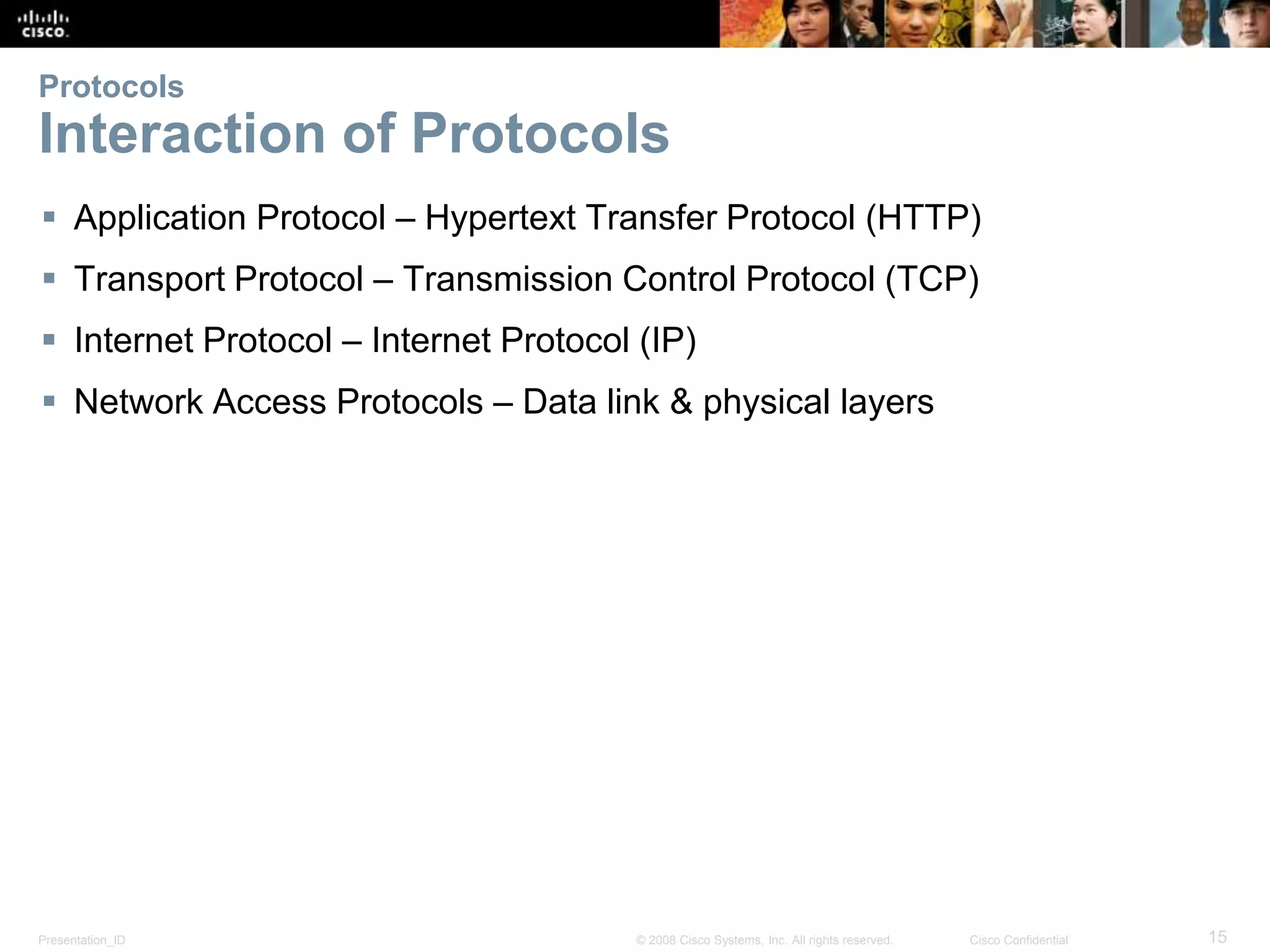

Protocols
Interaction of Protocols
 Application Protocol – Hypertext Transfer Protocol (HTTP)
 Transport Protocol – Transmission Control Protocol (TCP)
 Internet Protocol – Internet Protocol (IP)
 Network Access Protocols – Data link & physical layers
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 15

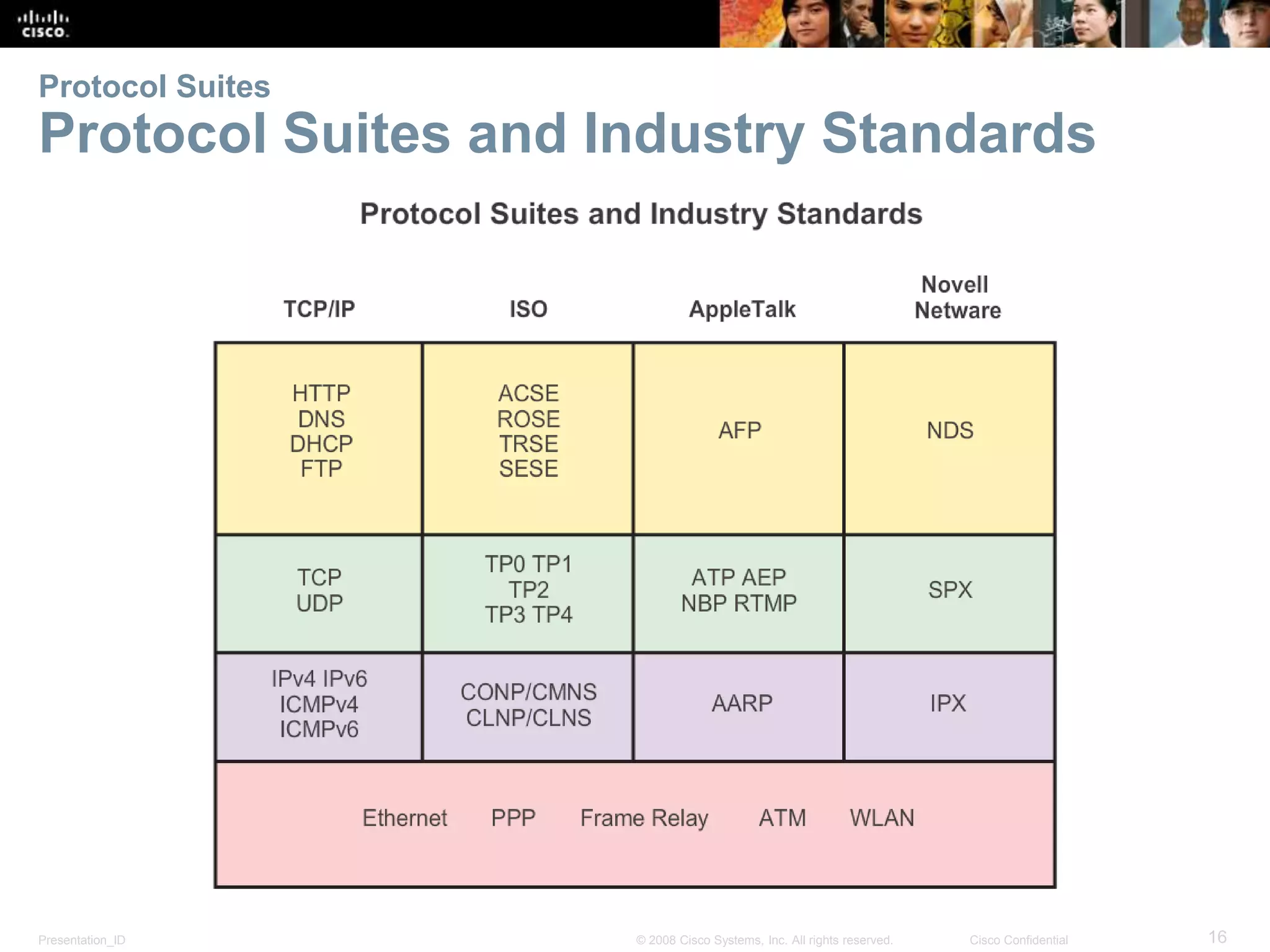

Protocol Suites
Protocol Suites and Industry Standards
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 16

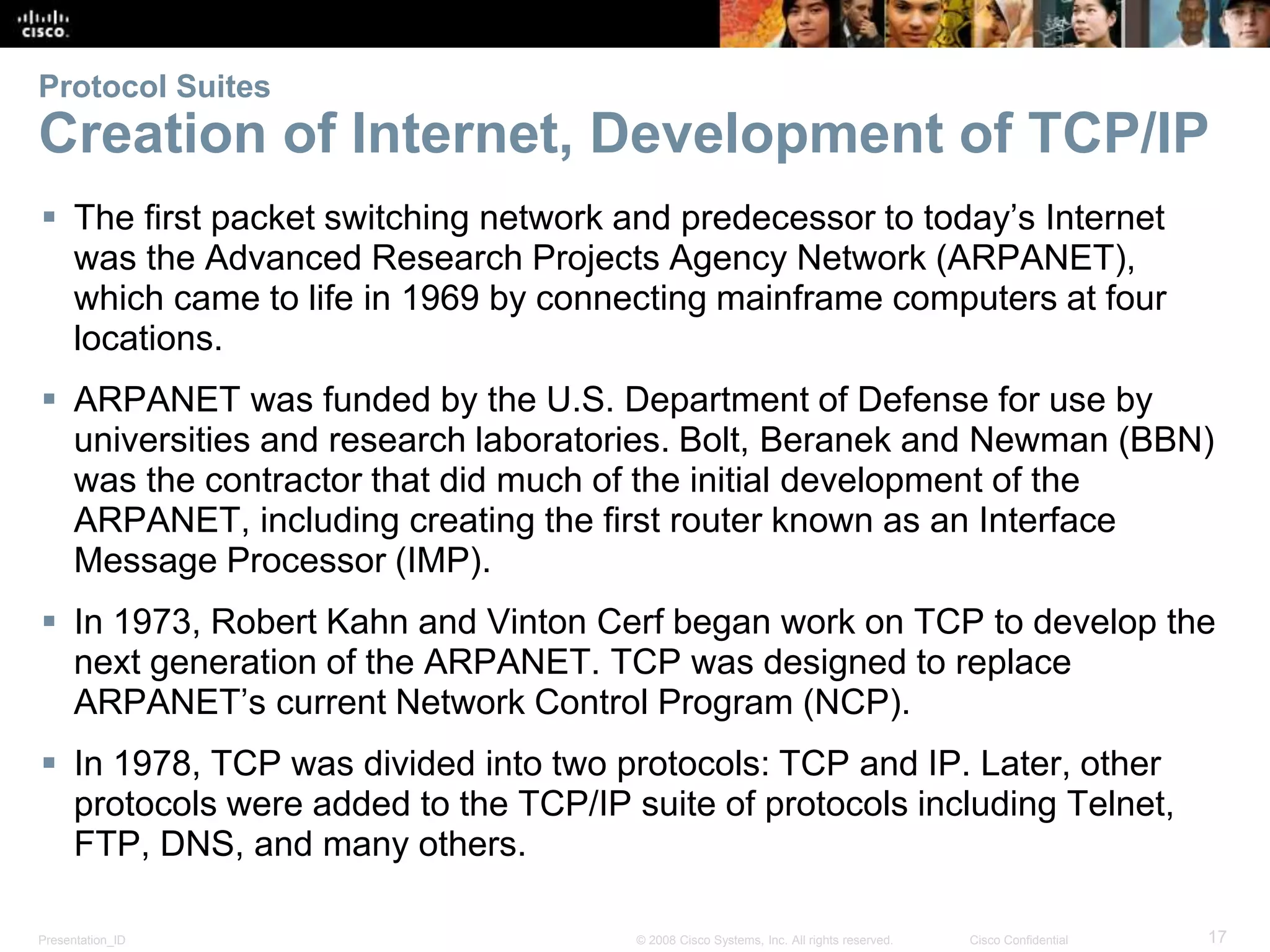

Protocol Suites
Creation of Internet, Development of TCP/IP
 The first packet switching network and predecessor to today’s Internet
was the Advanced Research Projects Agency Network (ARPANET),
which came to life in 1969 by connecting mainframe computers at four
locations.
 ARPANET was funded by the U.S. Department of Defense for use by
universities and research laboratories. Bolt, Beranek and Newman (BBN)
was the contractor that did much of the initial development of the
ARPANET, including creating the first router known as an Interface
Message Processor (IMP).
 In 1973, Robert Kahn and Vinton Cerf began work on TCP to develop the
next generation of the ARPANET. TCP was designed to replace
ARPANET’s current Network Control Program (NCP).
 In 1978, TCP was divided into two protocols: TCP and IP. Later, other
protocols were added to the TCP/IP suite of protocols including Telnet,
FTP, DNS, and many others.
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 17

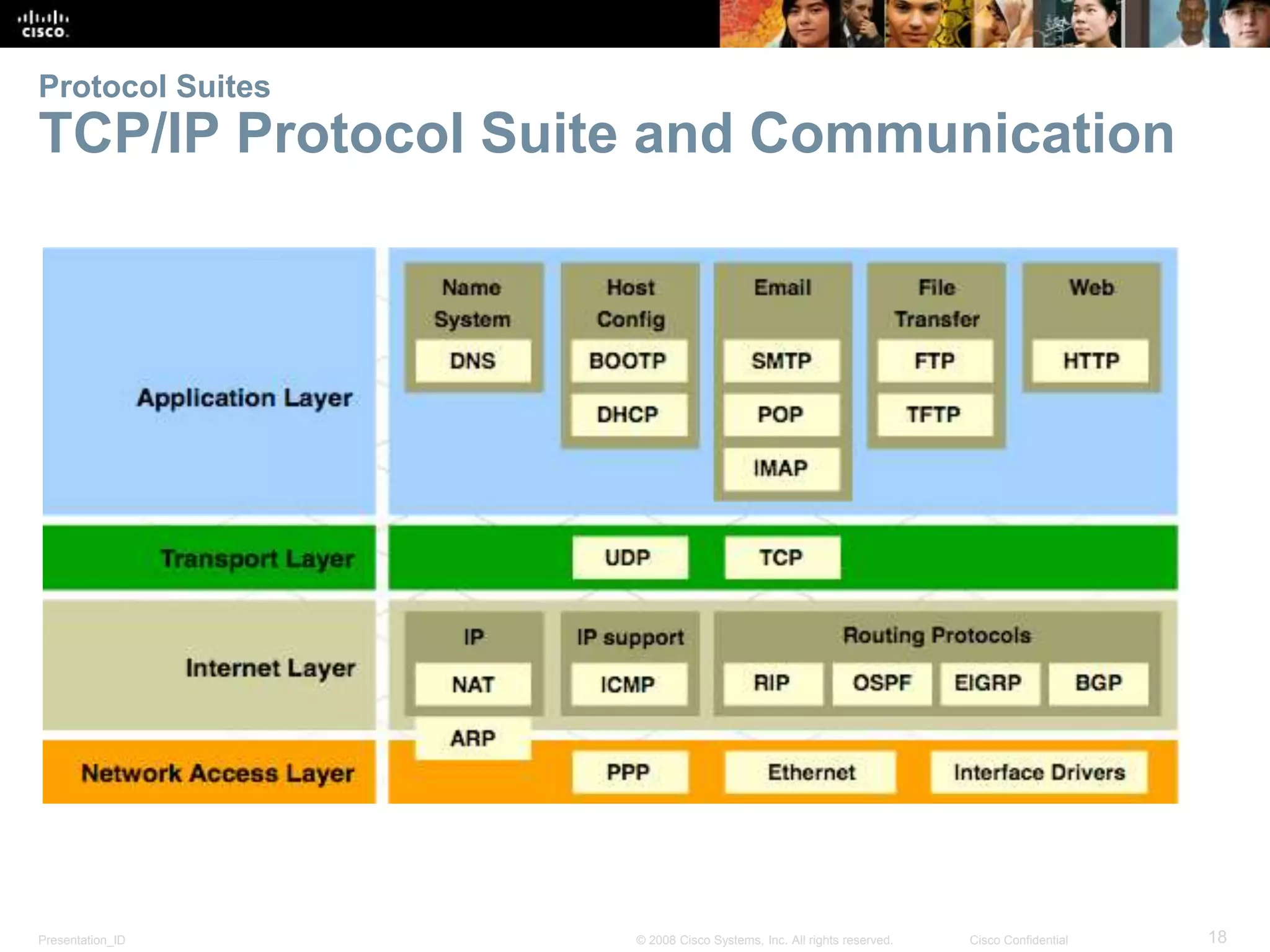

Protocol Suites
TCP/IP Protocol Suite and Communication
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 18

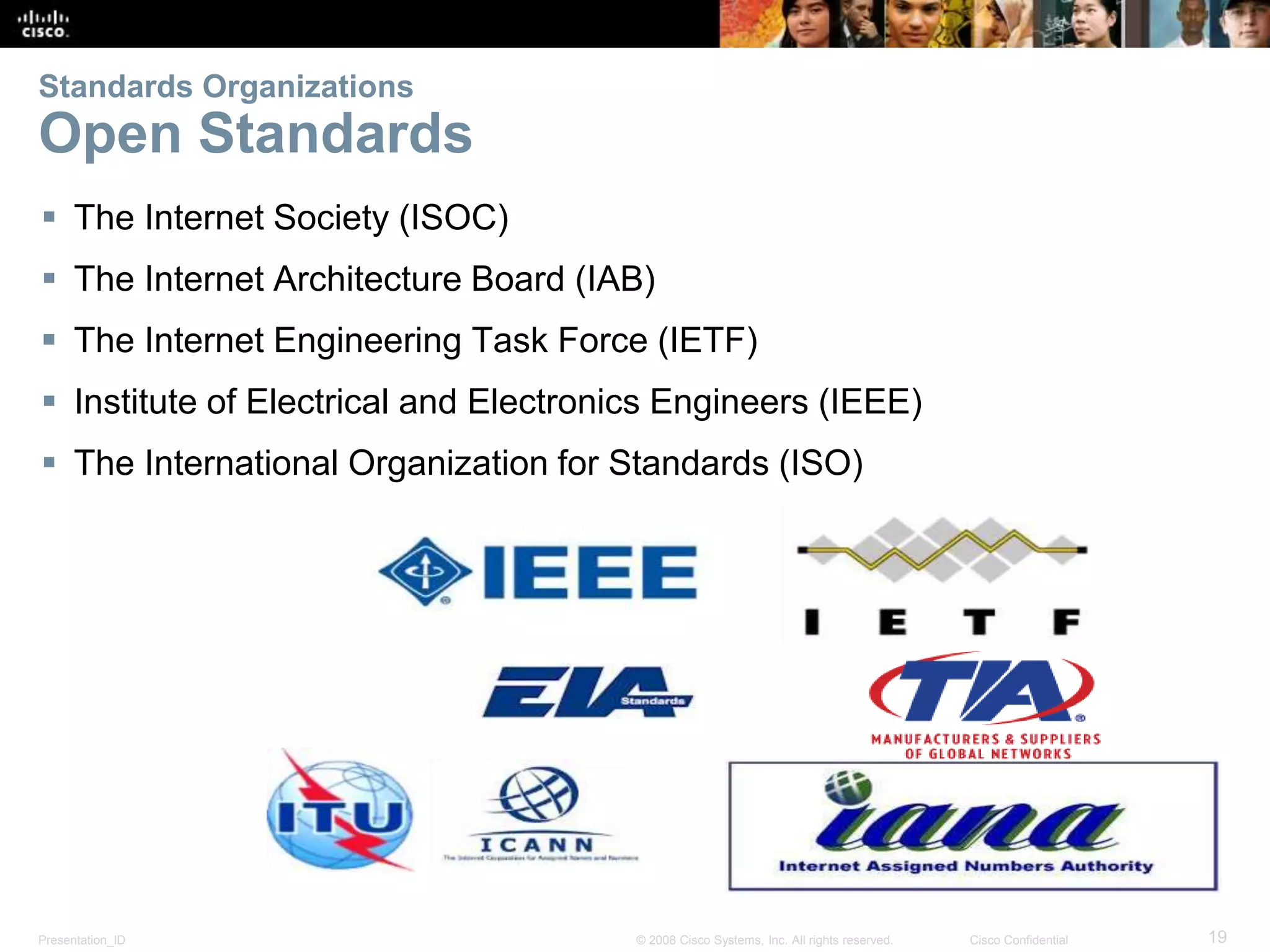

Standards Organizations
Open Standards
 The Internet Society (ISOC)
 The Internet Architecture Board (IAB)
 The Internet Engineering Task Force (IETF)
 Institute of Electrical and Electronics Engineers (IEEE)
 The International Organization for Standards (ISO)
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 19

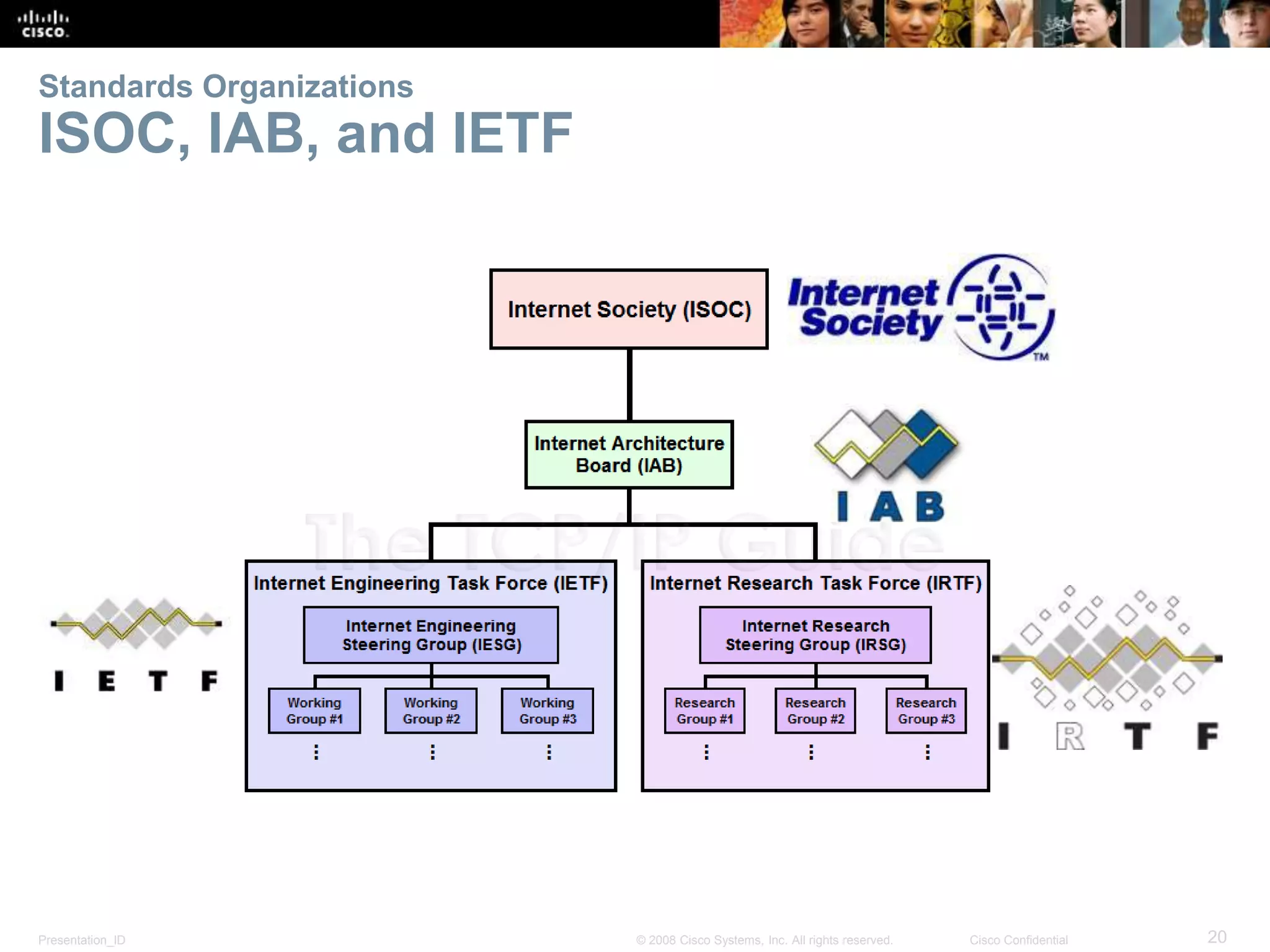

Standards Organizations
ISOC, IAB, and IETF
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 20

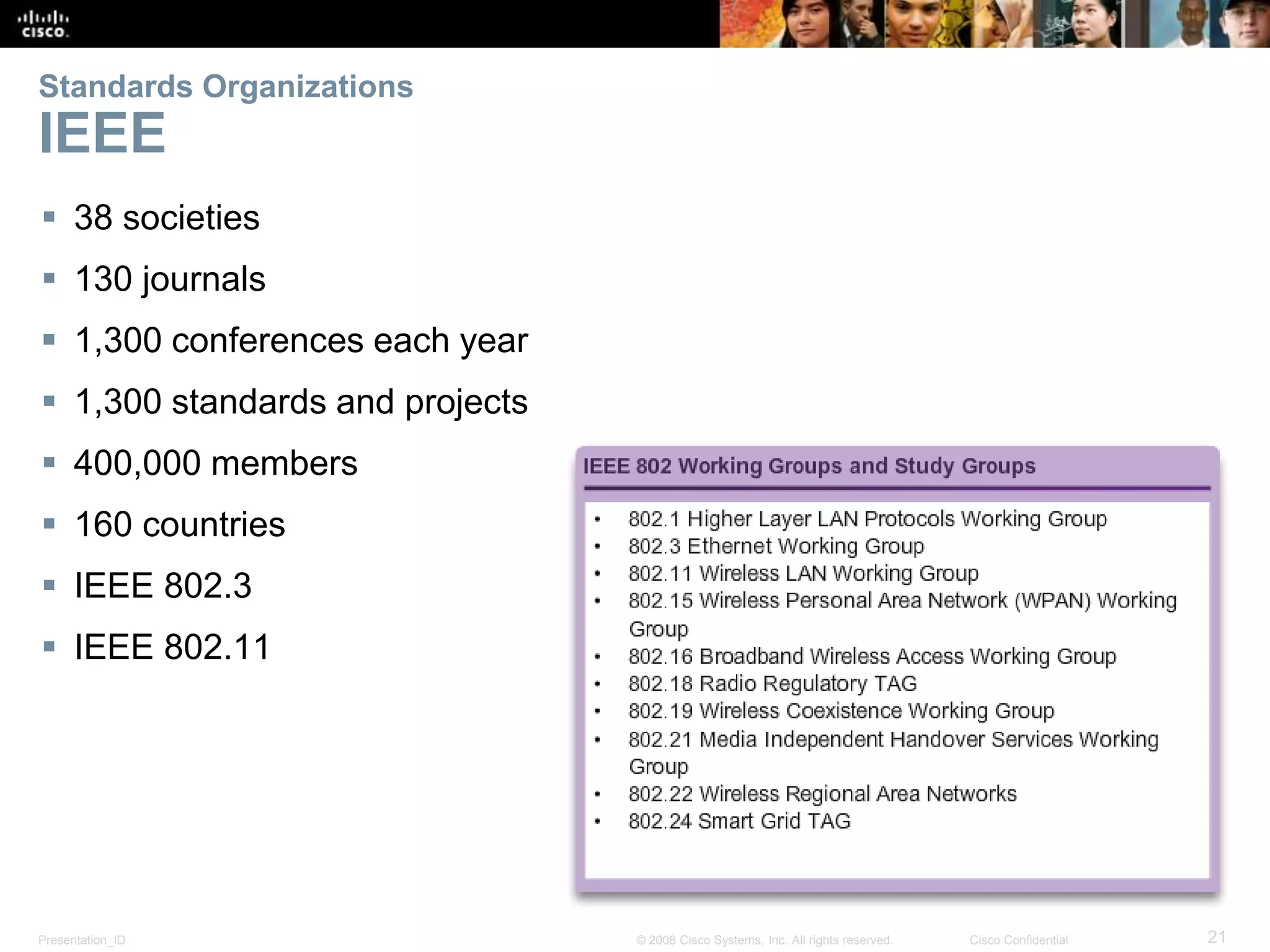

Standards Organizations
IEEE
 38 societies
 130 journals
 1,300 conferences each year
 1,300 standards and projects
 400,000 members
 160 countries
 IEEE 802.3
 IEEE 802.11
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 21

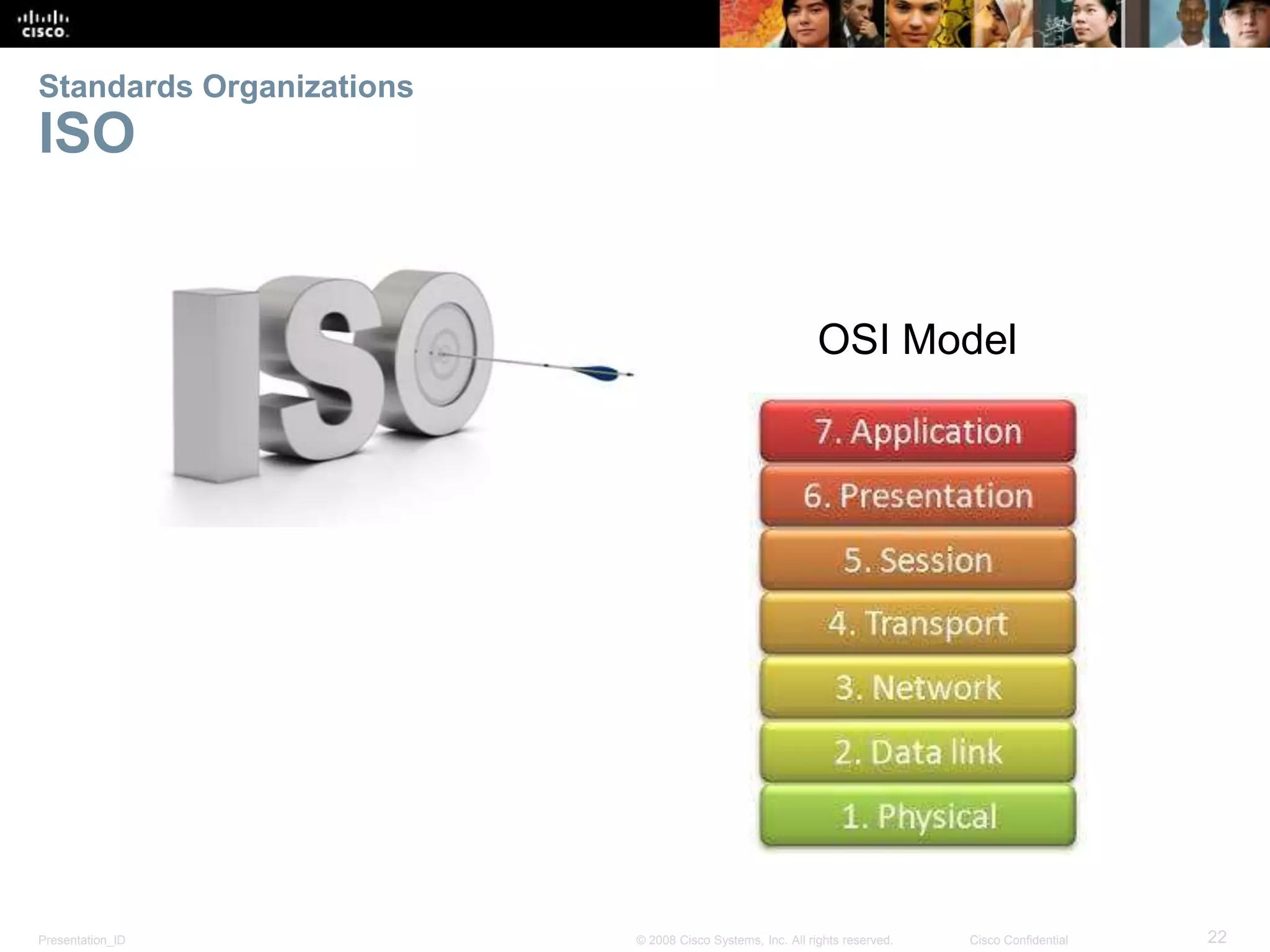

Standards Organizations
ISO
OSI Model
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 22

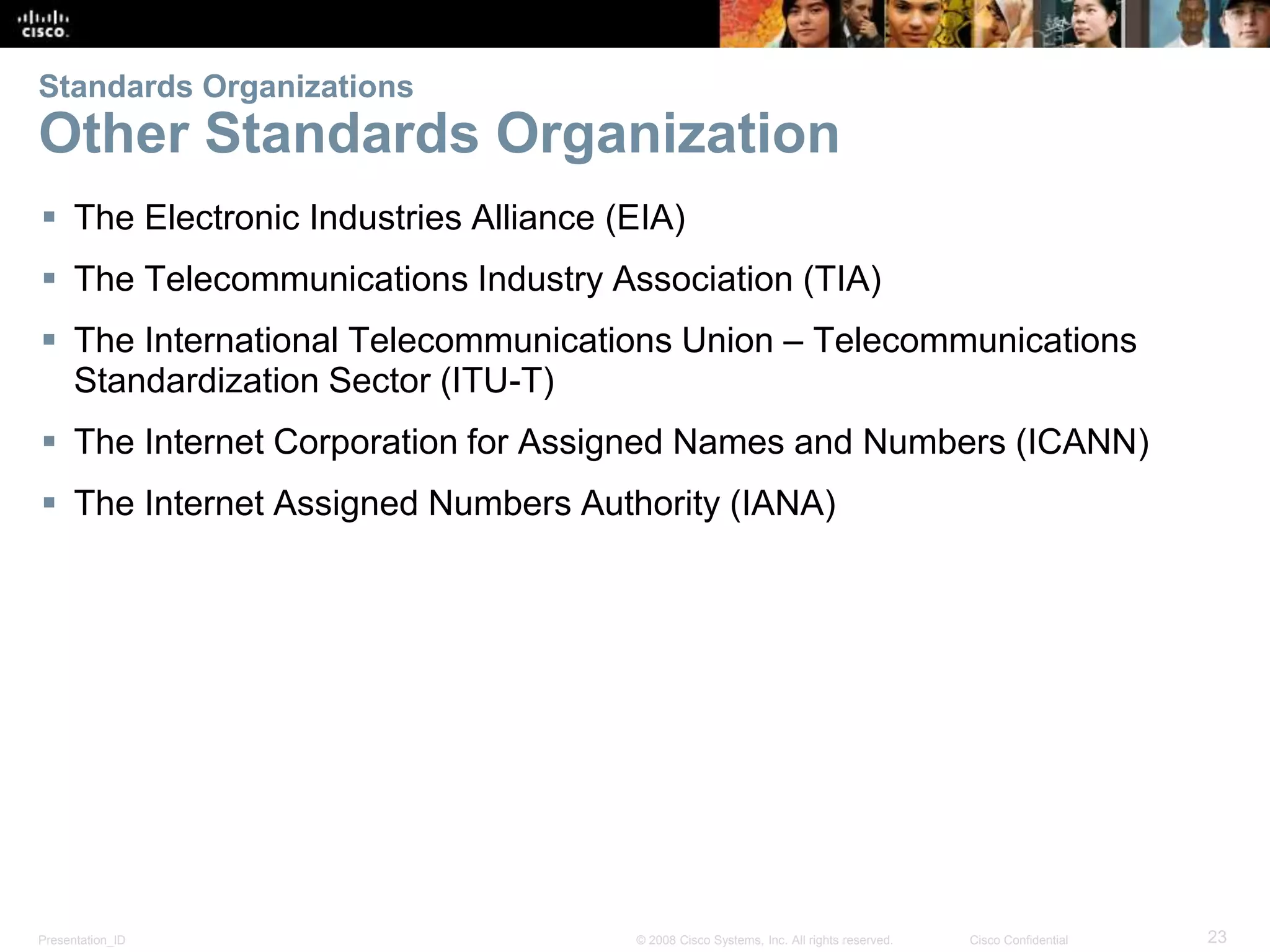

Standards Organizations
Other Standards Organization
 The Electronic Industries Alliance (EIA)
 The Telecommunications Industry Association (TIA)
 The International Telecommunications Union – Telecommunications
Standardization Sector (ITU-T)
 The Internet Corporation for Assigned Names and Numbers (ICANN)
 The Internet Assigned Numbers Authority (IANA)
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 23

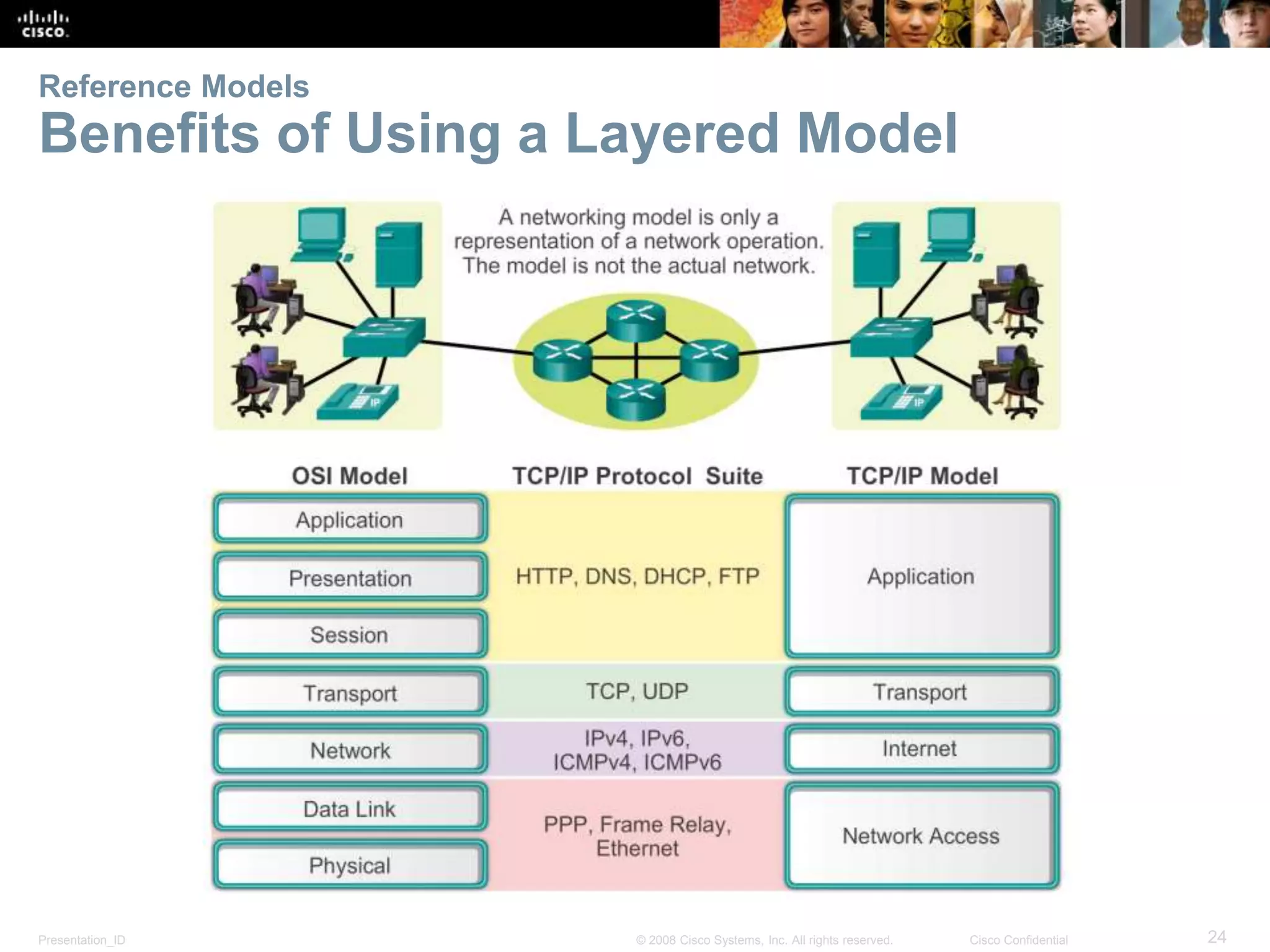

Reference Models
Benefits of Using a Layered Model
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 24

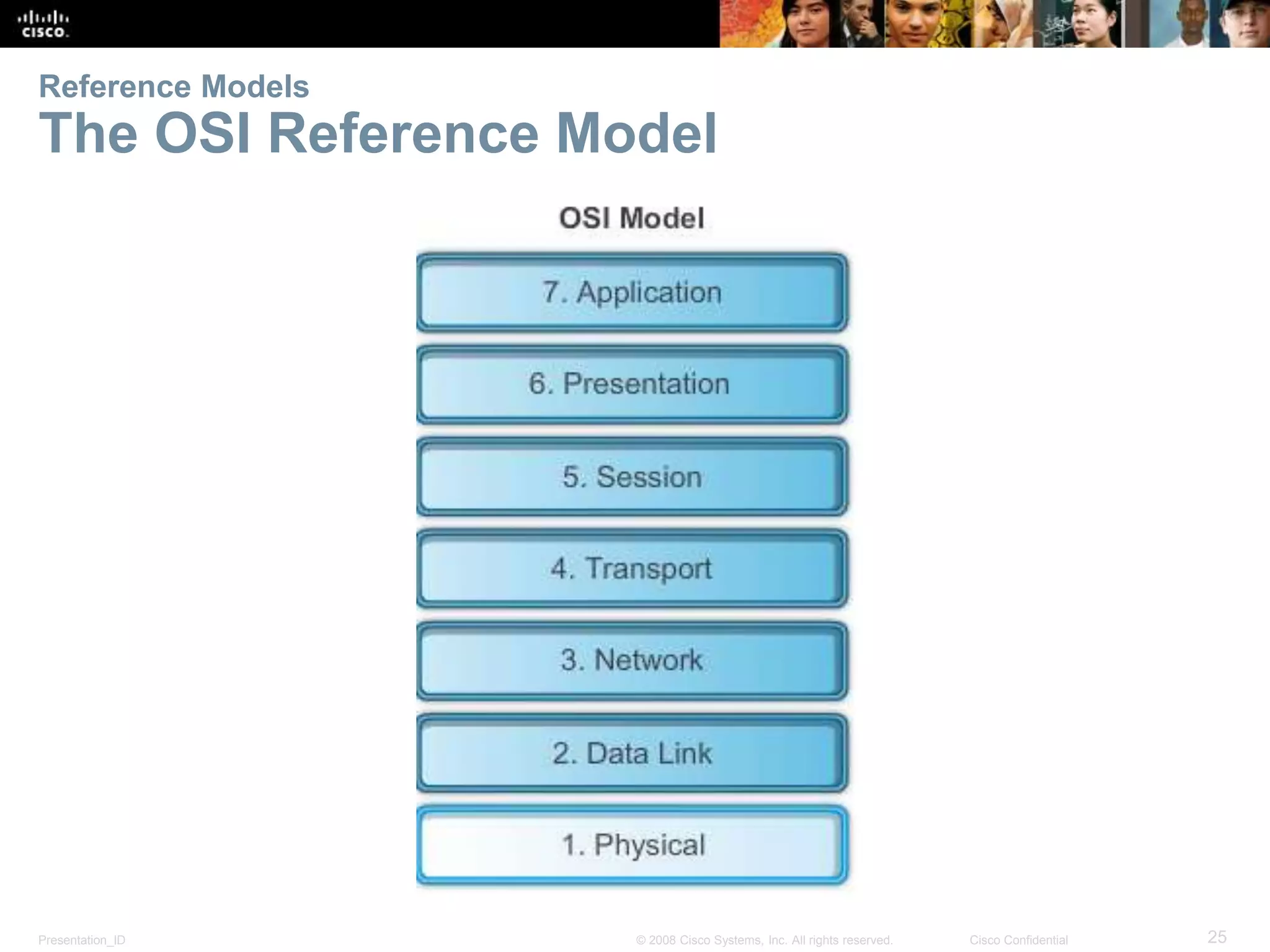

Reference Models
The OSI Reference Model
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 25

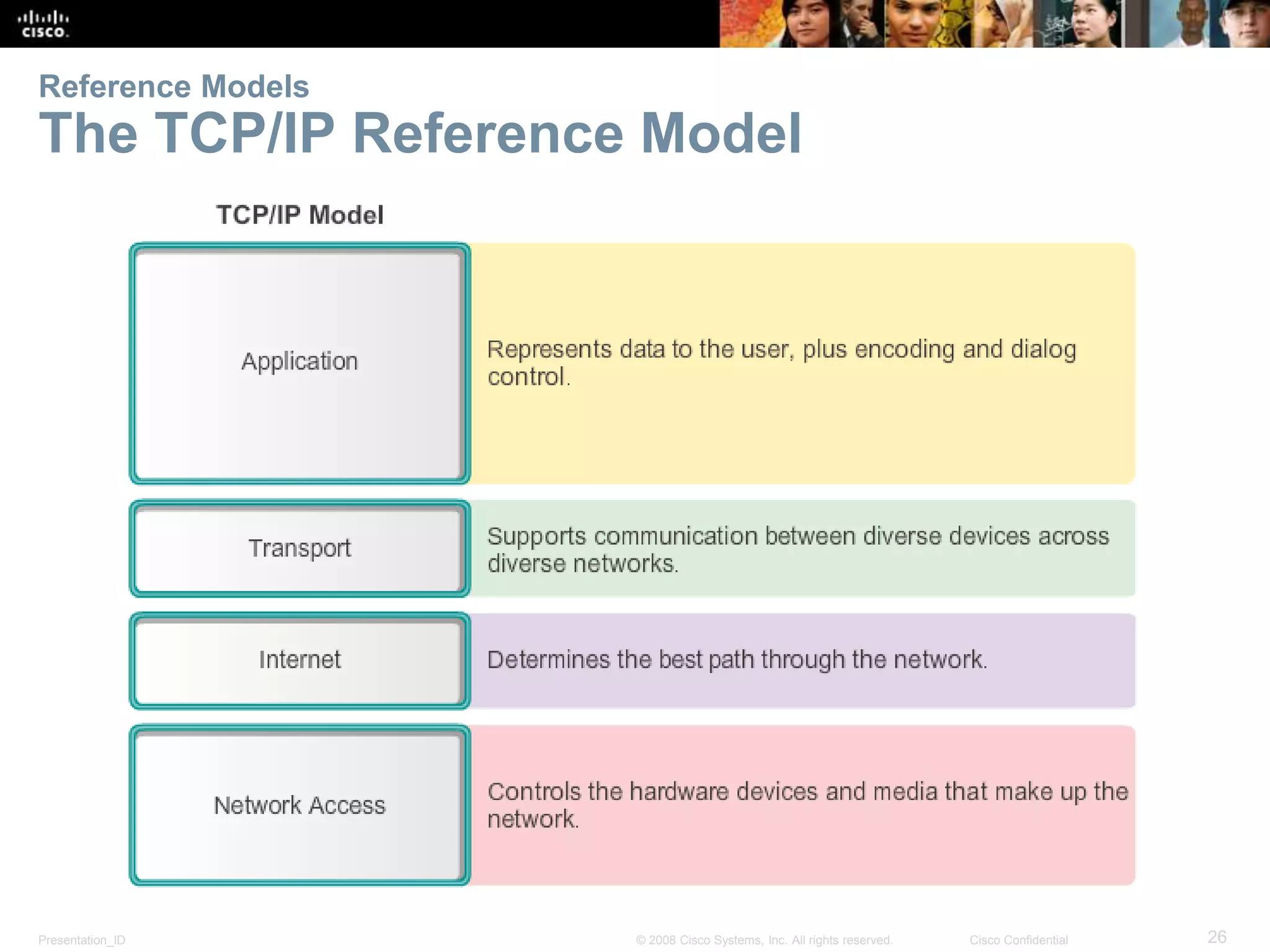

Reference Models
The TCP/IP Reference Model
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 26

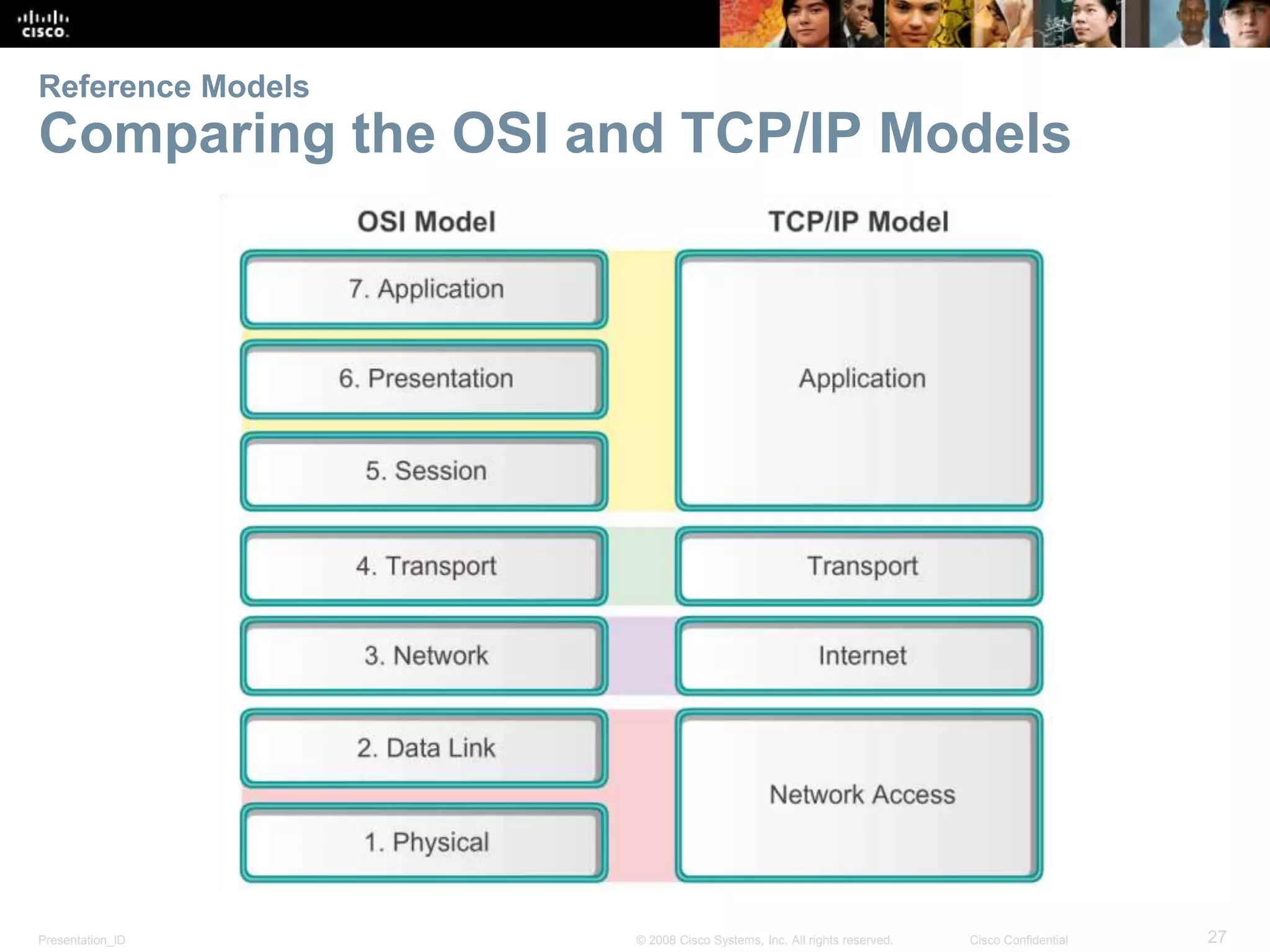

Reference Models
Comparing the OSI and TCP/IP Models
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 27
3.3 Moving Data in the Network
© 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 28

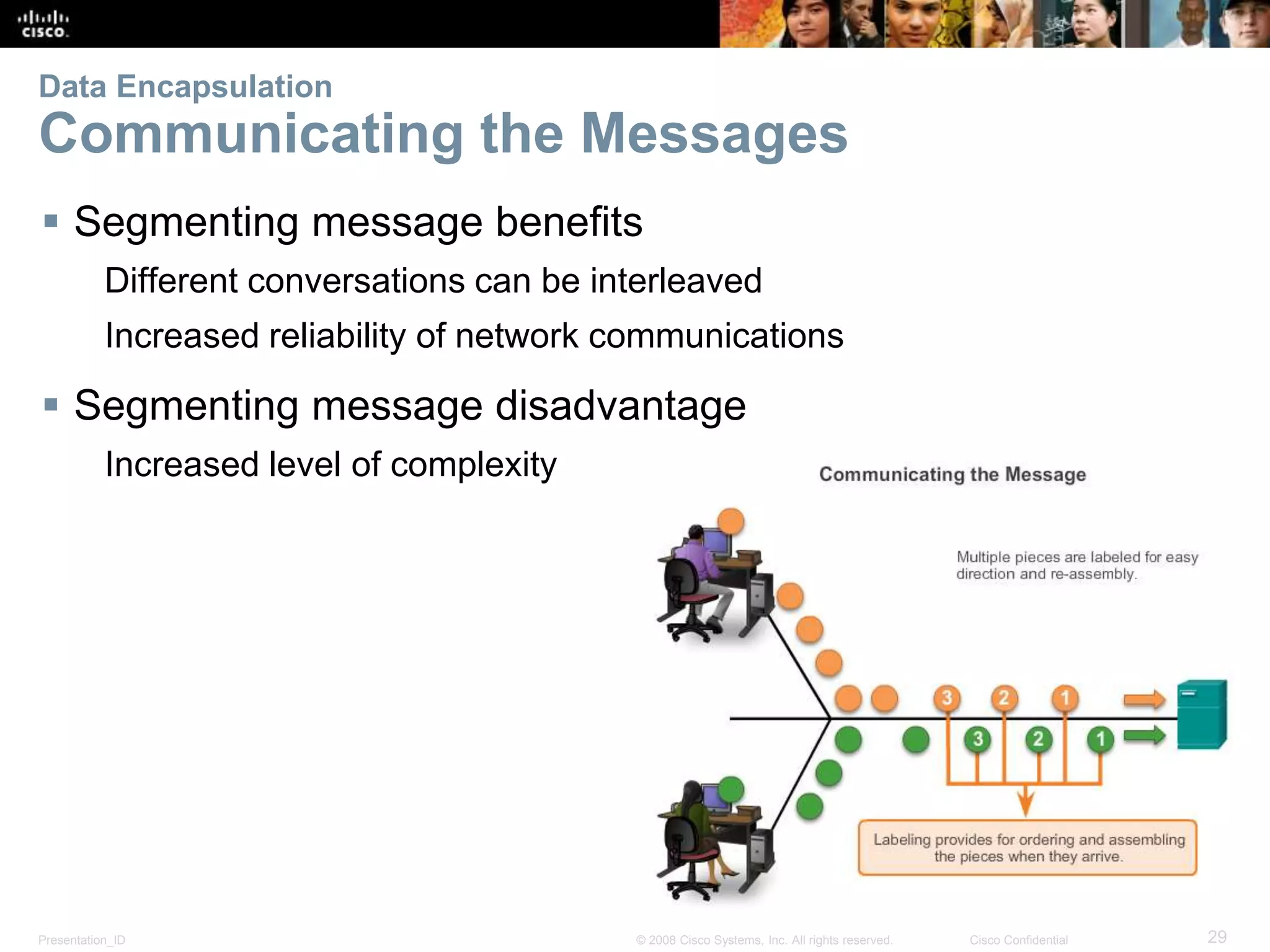

Data Encapsulation
Communicating the Messages
 Segmenting message benefits
Different conversations can be interleaved
Increased reliability of network communications
 Segmenting message disadvantage
Increased level of complexity
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 29

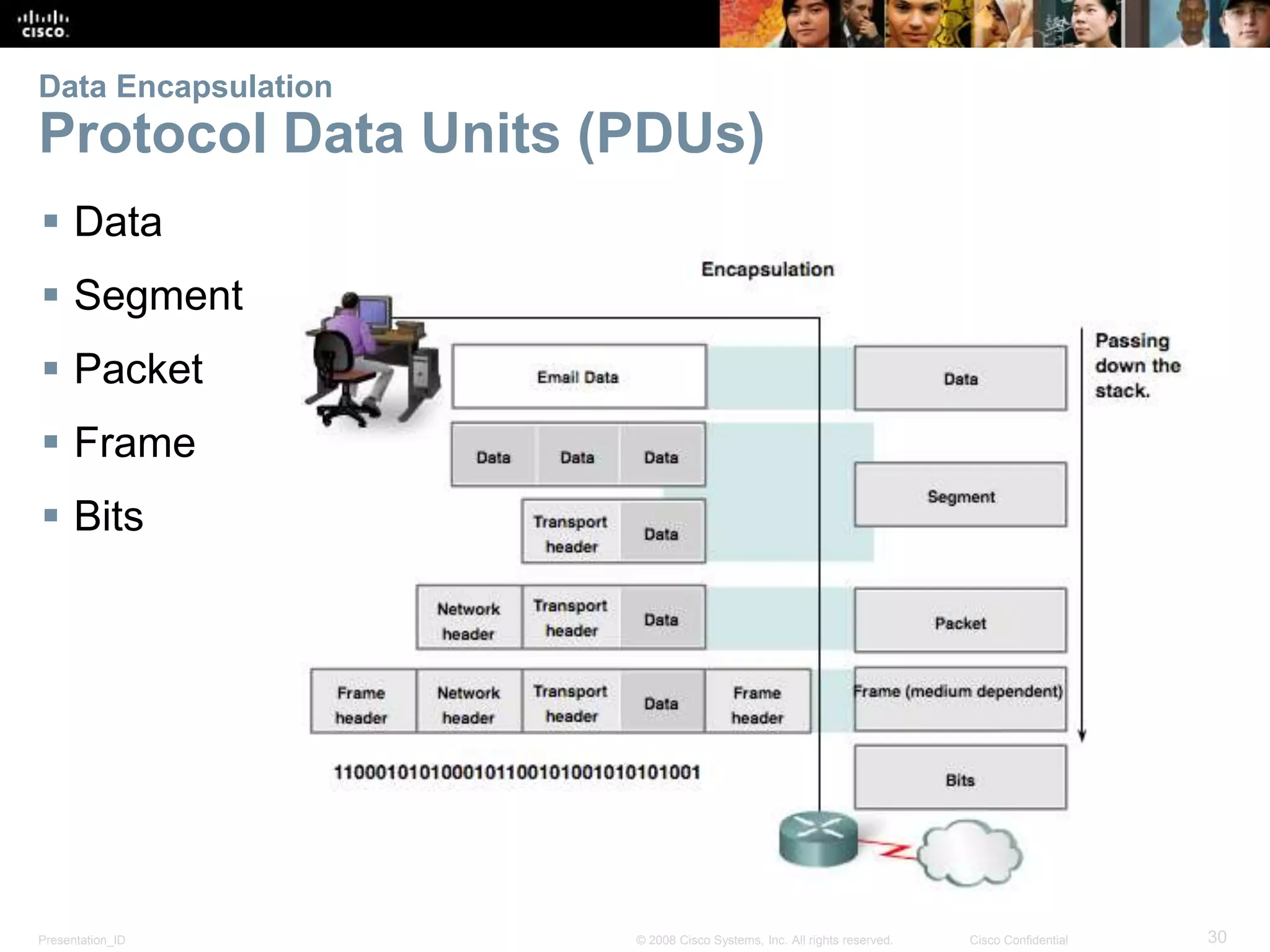

Data Encapsulation
Protocol Data Units (PDUs)
 Data
 Segment
 Packet
 Frame
 Bits
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 30

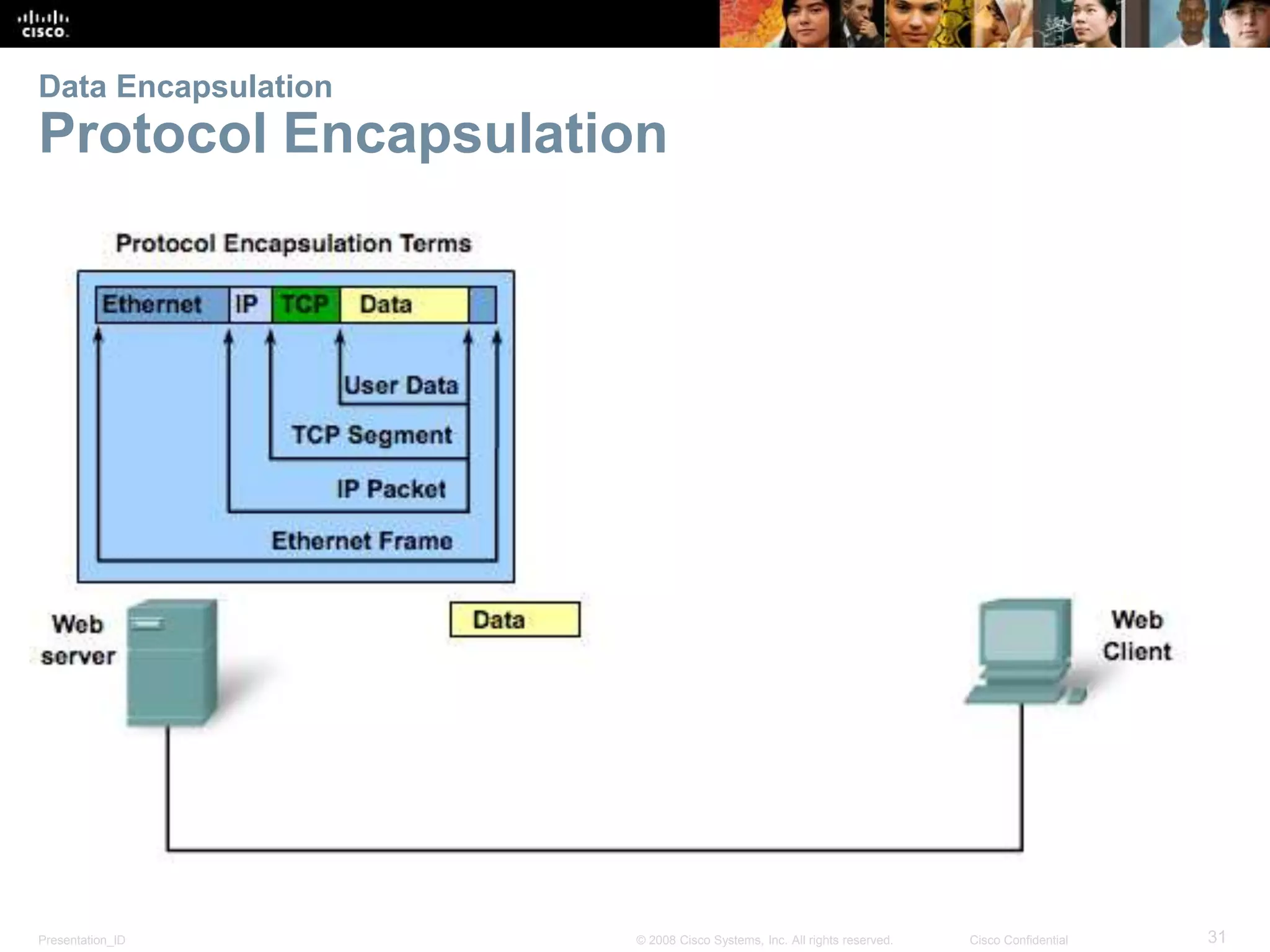

Data Encapsulation
Protocol Encapsulation
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 31

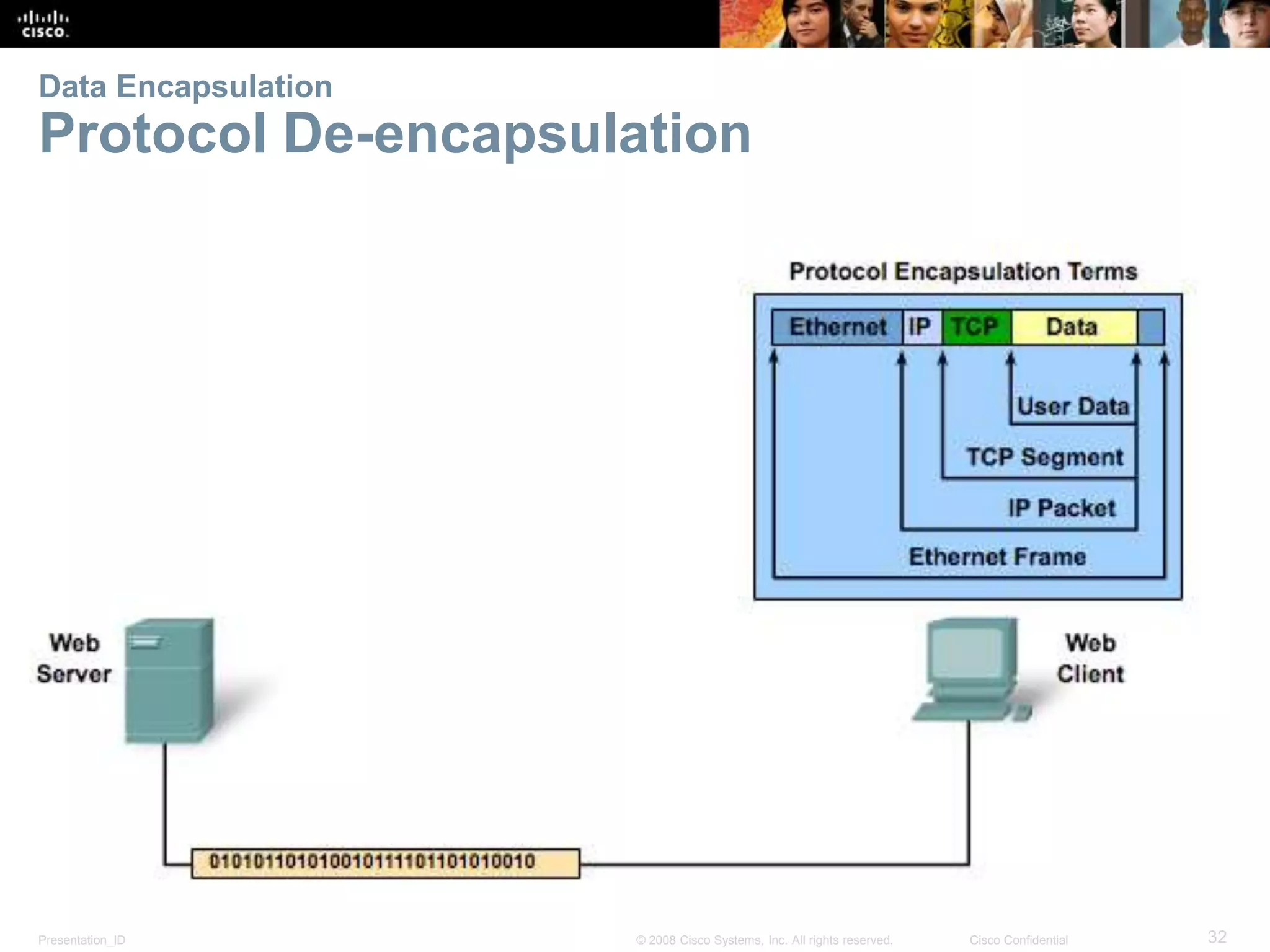

Data Encapsulation
Protocol De-encapsulation
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 32

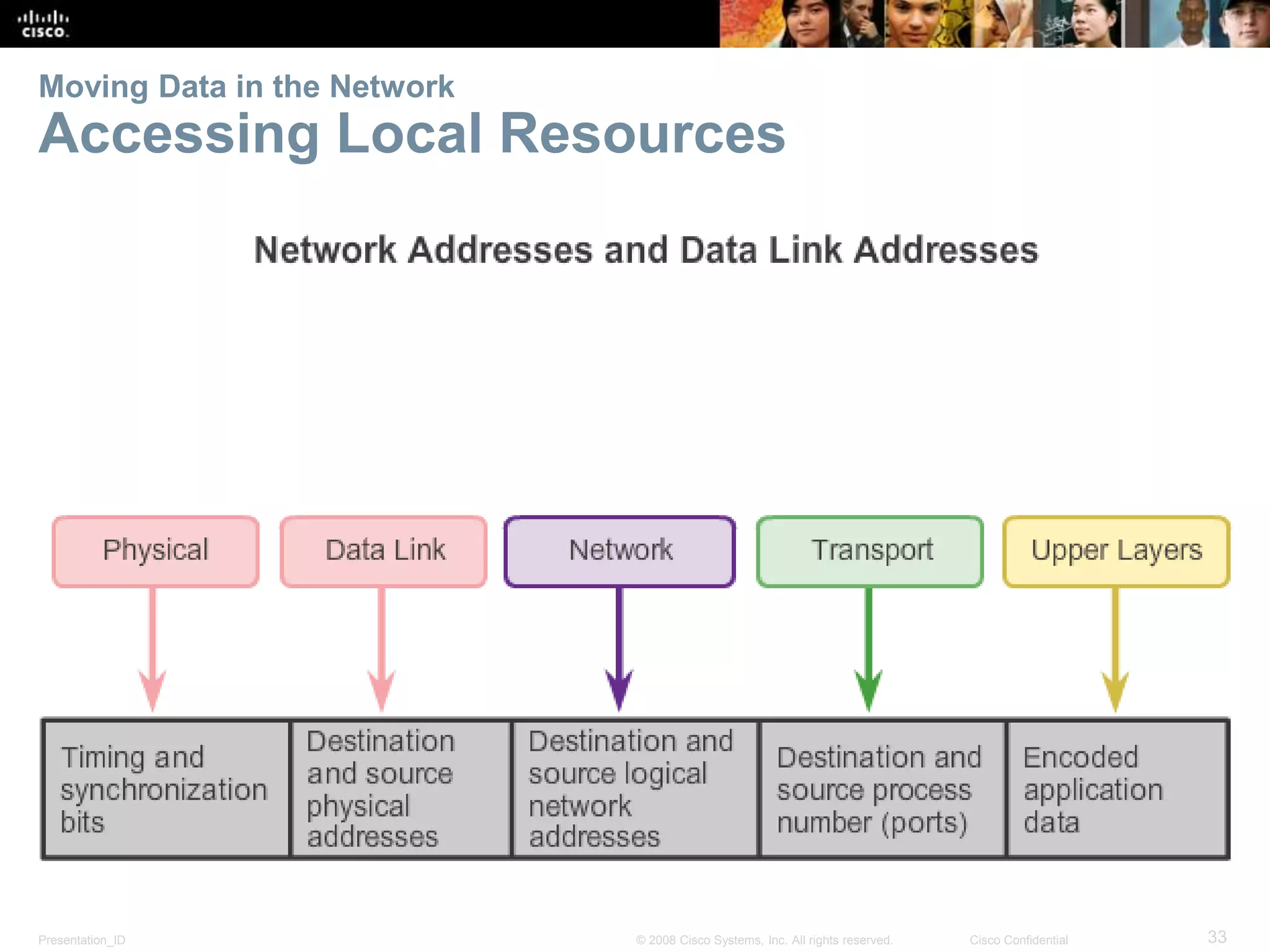

Moving Data in the Network
Accessing Local Resources
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 33

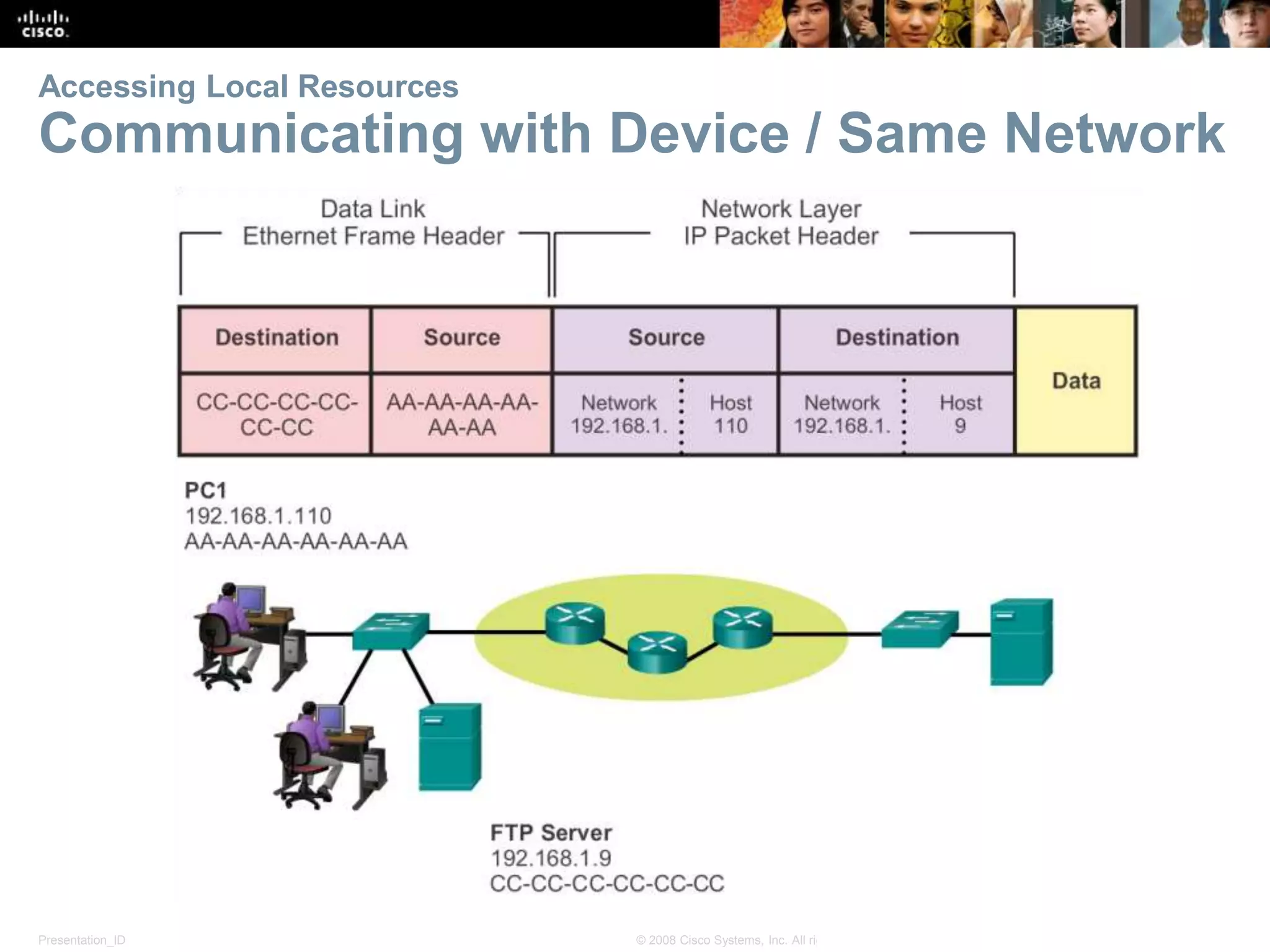

Accessing Local Resources
Communicating with Device / Same Network
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 34

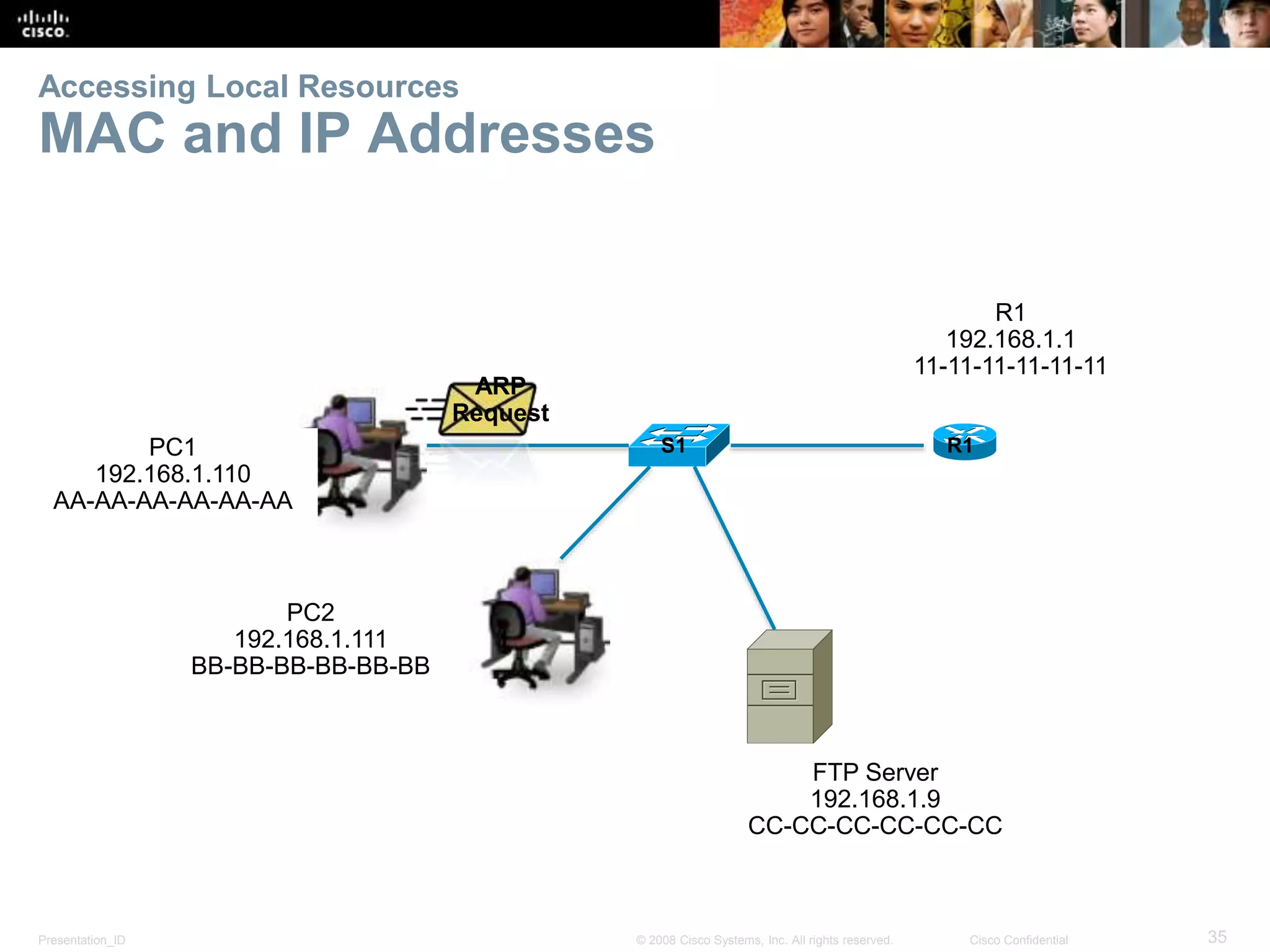

Accessing Local Resources
MAC and IP Addresses
PC1
192.168.1.110
AA-AA-AA-AA-AA-AA
PC2
192.168.1.111
BB-BB-BB-BB-BB-BB
11-11-11-11-11-11
S1 R1
FTP Server
192.168.1.9
R1
192.168.1.1
CC-CC-CC-CC-CC-CC
ARP
Request
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 35

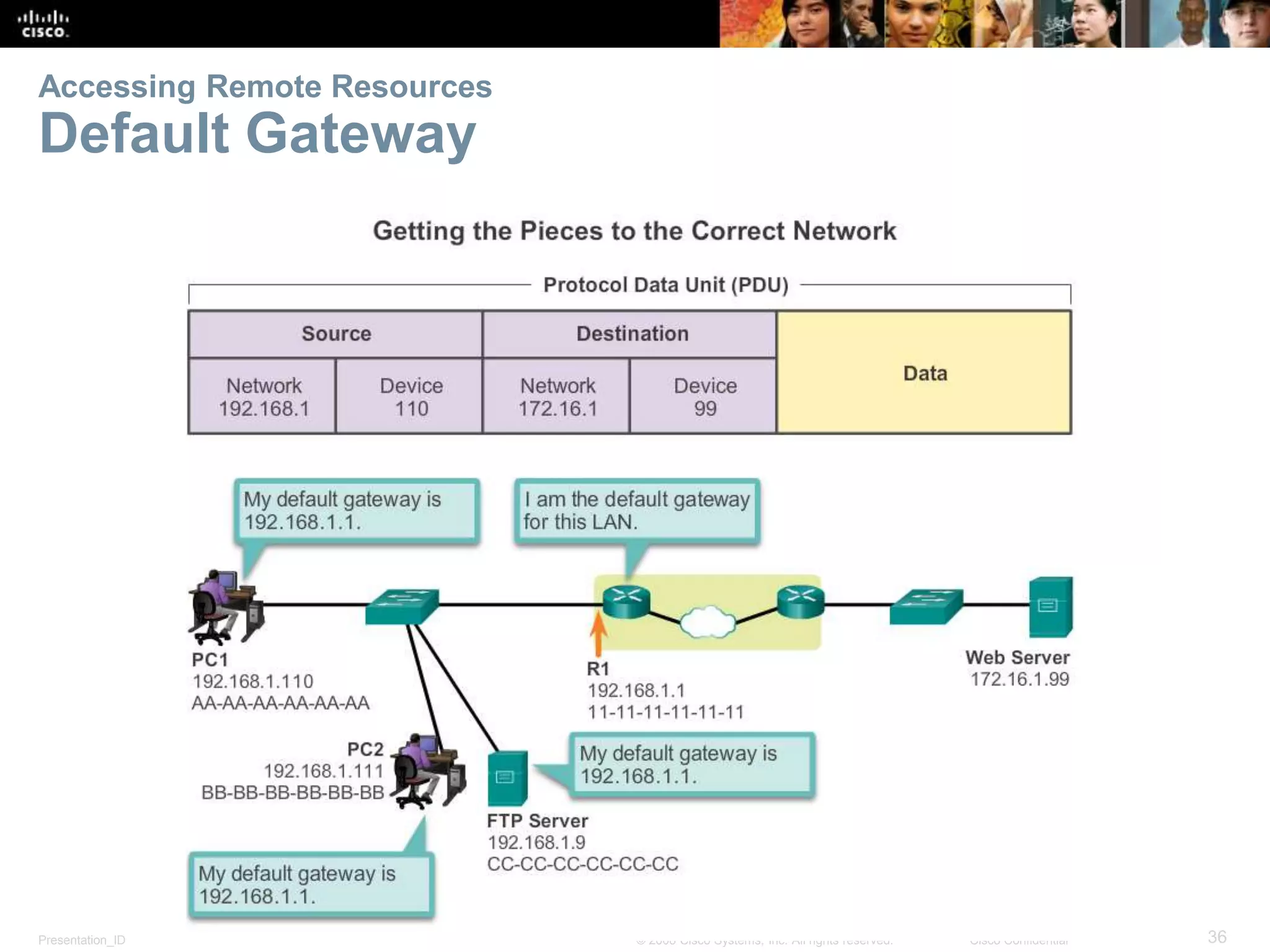

Accessing Remote Resources
Default Gateway
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 36

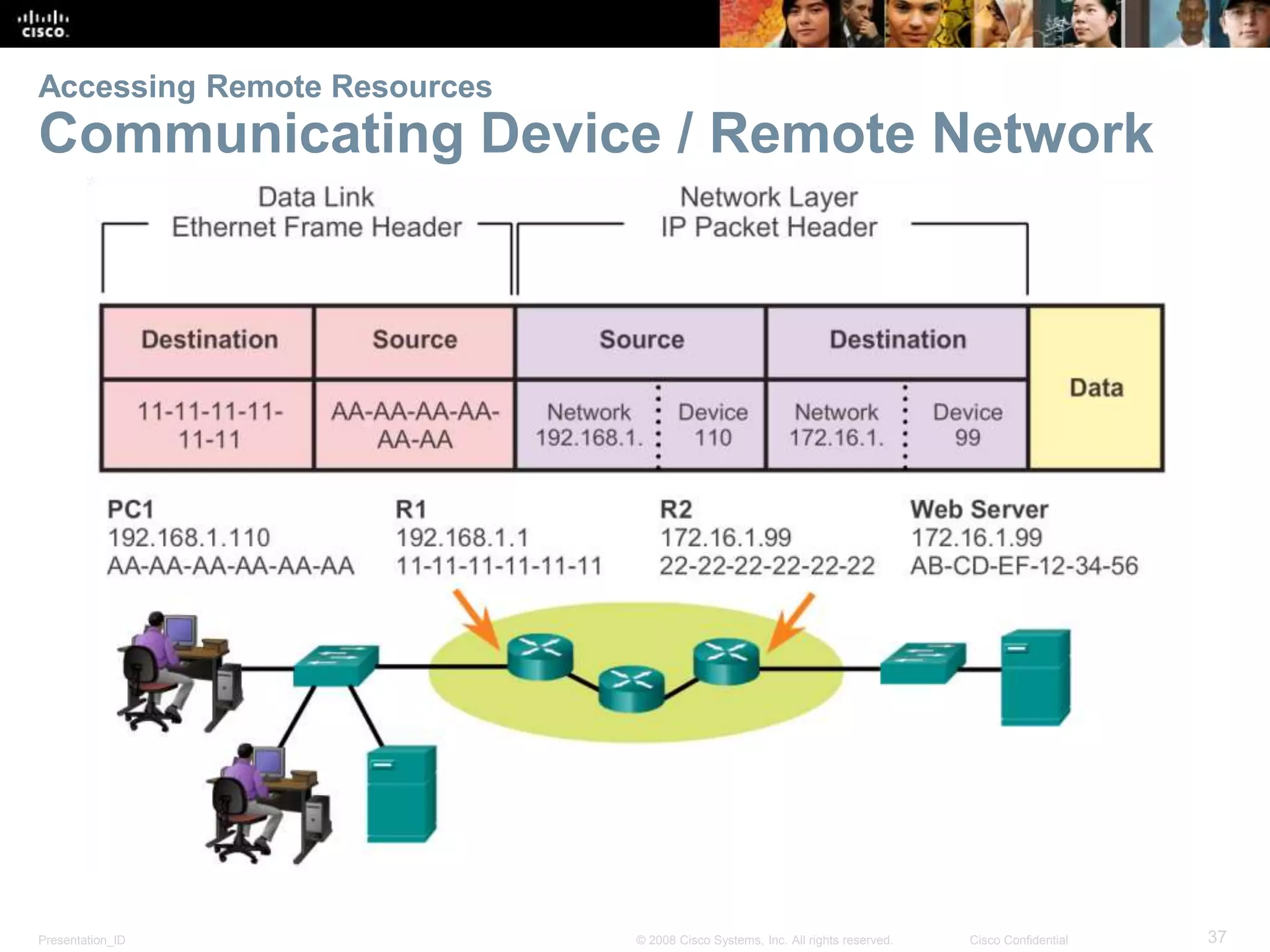

Accessing Remote Resources
Communicating Device / Remote Network
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 37

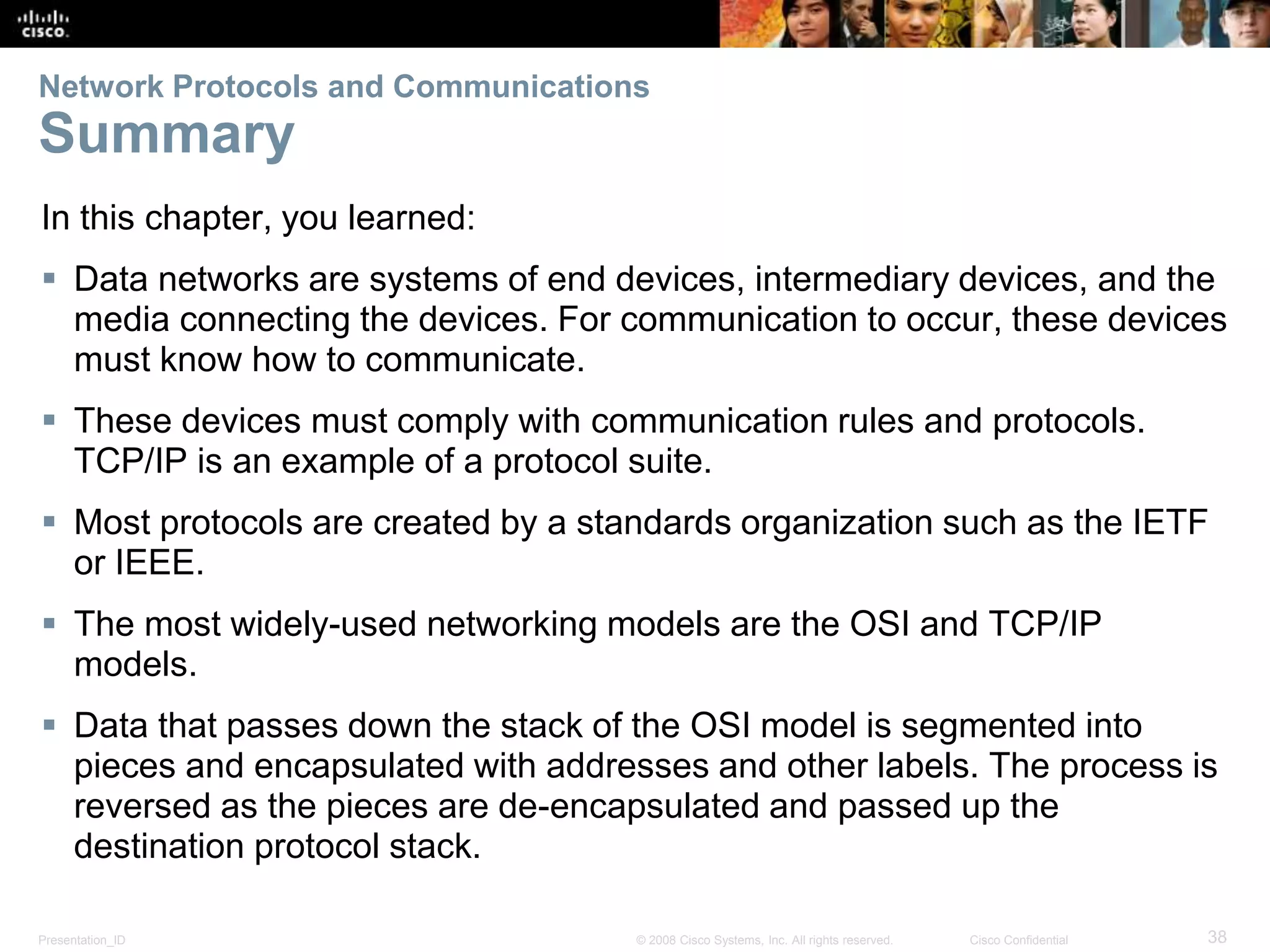

Network Protocols and Communications
Summary
In this chapter, you learned:
 Data networks are systems of end devices, intermediary devices, and the
media connecting the devices. For communication to occur, these devices
must know how to communicate.
 These devices must comply with communication rules and protocols.
TCP/IP is an example of a protocol suite.
 Most protocols are created by a standards organization such as the IETF
or IEEE.
 The most widely-used networking models are the OSI and TCP/IP
models.
 Data that passes down the stack of the OSI model is segmented into
pieces and encapsulated with addresses and other labels. The process is
reversed as the pieces are de-encapsulated and passed up the
destination protocol stack.
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 38

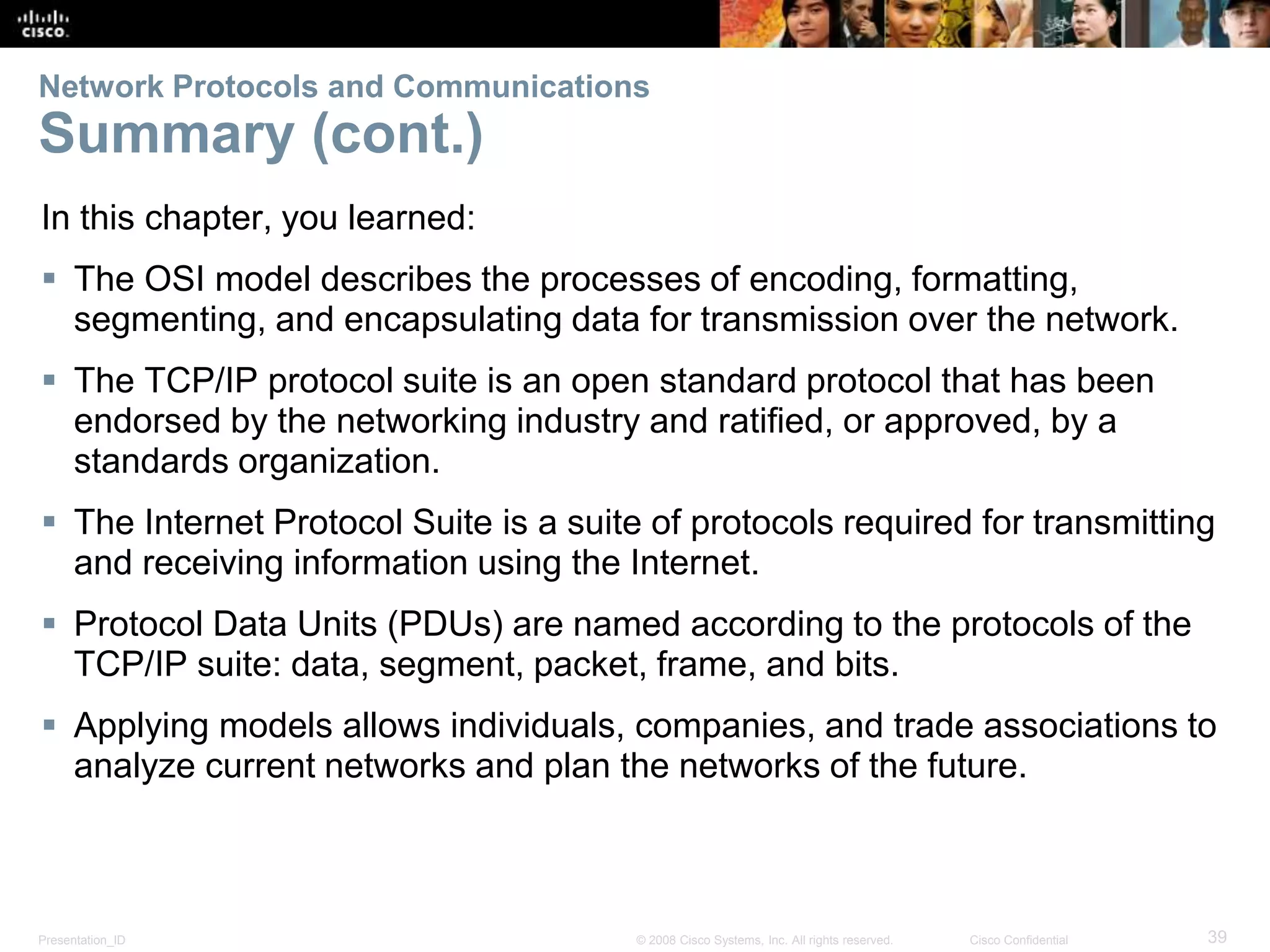

Network Protocols and Communications
Summary (cont.)
In this chapter, you learned:
 The OSI model describes the processes of encoding, formatting,
segmenting, and encapsulating data for transmission over the network.
 The TCP/IP protocol suite is an open standard protocol that has been
endorsed by the networking industry and ratified, or approved, by a
standards organization.
 The Internet Protocol Suite is a suite of protocols required for transmitting
and receiving information using the Internet.
 Protocol Data Units (PDUs) are named according to the protocols of the
TCP/IP suite: data, segment, packet, frame, and bits.
 Applying models allows individuals, companies, and trade associations to
analyze current networks and plan the networks of the future.
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 39
Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 40

More Related Content

What's hot

Chapter 15 : routing concepts
Chapter 15 : routing conceptsChapter 15 : routing concepts
Chapter 15 : routing conceptsteknetir

CCNA 1 Routing and Switching v5.0 Chapter 11
CCNA 1 Routing and Switching v5.0 Chapter 11CCNA 1 Routing and Switching v5.0 Chapter 11
CCNA 1 Routing and Switching v5.0 Chapter 11Nil Menon

CCNA 1 Routing and Switching v5.0 Chapter 10
CCNA 1 Routing and Switching v5.0 Chapter 10CCNA 1 Routing and Switching v5.0 Chapter 10
CCNA 1 Routing and Switching v5.0 Chapter 10Nil Menon

CCNA 2 Routing and Switching v5.0 Chapter 1
CCNA 2 Routing and Switching v5.0 Chapter 1CCNA 2 Routing and Switching v5.0 Chapter 1
CCNA 2 Routing and Switching v5.0 Chapter 1Nil Menon

CCNA 1 Routing and Switching v5.0 Chapter 4
CCNA 1 Routing and Switching v5.0 Chapter 4CCNA 1 Routing and Switching v5.0 Chapter 4
CCNA 1 Routing and Switching v5.0 Chapter 4Nil Menon

Chapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9e
Chapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9eChapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9e
Chapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9eadpeer

CCNA 1 Routing and Switching v5.0 Chapter 1
CCNA 1 Routing and Switching v5.0 Chapter 1CCNA 1 Routing and Switching v5.0 Chapter 1
CCNA 1 Routing and Switching v5.0 Chapter 1Nil Menon

CCNA 2 Routing and Switching v5.0 Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 2CCNA 2 Routing and Switching v5.0 Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 2Nil Menon

Chapter 17 : static routing
Chapter 17 : static routingChapter 17 : static routing
Chapter 17 : static routingteknetir

CCNA 2 Routing and Switching v5.0 Chapter 11
CCNA 2 Routing and Switching v5.0 Chapter 11CCNA 2 Routing and Switching v5.0 Chapter 11
CCNA 2 Routing and Switching v5.0 Chapter 11Nil Menon

CCNAv5 - S2: Chapter1 Introsuction to switched networks
CCNAv5 - S2: Chapter1 Introsuction to switched networksCCNAv5 - S2: Chapter1 Introsuction to switched networks
CCNAv5 - S2: Chapter1 Introsuction to switched networksVuz Dở Hơi

CCNA 2 Routing and Switching v5.0 Chapter 3
CCNA 2 Routing and Switching v5.0 Chapter 3CCNA 2 Routing and Switching v5.0 Chapter 3
CCNA 2 Routing and Switching v5.0 Chapter 3Nil Menon

CCNA Exploration 2 - Chapter 1
CCNA Exploration 2 - Chapter 1CCNA Exploration 2 - Chapter 1
CCNA Exploration 2 - Chapter 1Irsandi Hasan

CCNA2 Verson6 Chapter6
CCNA2 Verson6 Chapter6CCNA2 Verson6 Chapter6
CCNA2 Verson6 Chapter6Chaing Ravuth

CCNA 1 Routing and Switching v5.0 Chapter 8
CCNA 1 Routing and Switching v5.0 Chapter 8CCNA 1 Routing and Switching v5.0 Chapter 8
CCNA 1 Routing and Switching v5.0 Chapter 8Nil Menon

CCNA 1 Routing and Switching v5.0 Chapter 9
CCNA 1 Routing and Switching v5.0 Chapter 9CCNA 1 Routing and Switching v5.0 Chapter 9
CCNA 1 Routing and Switching v5.0 Chapter 9Nil Menon

CCNA v6.0 ITN - Chapter 02
CCNA v6.0 ITN - Chapter 02CCNA v6.0 ITN - Chapter 02
CCNA v6.0 ITN - Chapter 02Irsandi Hasan

CCNA RS_NB - Chapter 7
CCNA RS_NB - Chapter 7CCNA RS_NB - Chapter 7
CCNA RS_NB - Chapter 7Irsandi Hasan

CCNAv5 - S4: Chapter 9 troubleshooting the network
CCNAv5 - S4: Chapter 9 troubleshooting the networkCCNAv5 - S4: Chapter 9 troubleshooting the network
CCNAv5 - S4: Chapter 9 troubleshooting the networkVuz Dở Hơi

CCNA v6.0 ITN - Chapter 10
CCNA v6.0 ITN - Chapter 10CCNA v6.0 ITN - Chapter 10
CCNA v6.0 ITN - Chapter 10Irsandi Hasan


What's hot (20)

Chapter 15 : routing concepts
Chapter 15 : routing conceptsChapter 15 : routing concepts
Chapter 15 : routing concepts

CCNA 1 Routing and Switching v5.0 Chapter 11
CCNA 1 Routing and Switching v5.0 Chapter 11CCNA 1 Routing and Switching v5.0 Chapter 11
CCNA 1 Routing and Switching v5.0 Chapter 11

CCNA 1 Routing and Switching v5.0 Chapter 10
CCNA 1 Routing and Switching v5.0 Chapter 10CCNA 1 Routing and Switching v5.0 Chapter 10
CCNA 1 Routing and Switching v5.0 Chapter 10

CCNA 2 Routing and Switching v5.0 Chapter 1
CCNA 2 Routing and Switching v5.0 Chapter 1CCNA 2 Routing and Switching v5.0 Chapter 1
CCNA 2 Routing and Switching v5.0 Chapter 1

CCNA 1 Routing and Switching v5.0 Chapter 4
CCNA 1 Routing and Switching v5.0 Chapter 4CCNA 1 Routing and Switching v5.0 Chapter 4
CCNA 1 Routing and Switching v5.0 Chapter 4

Chapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9e
Chapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9eChapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9e
Chapter 8 - IP Subnetting, Troubleshooting and Introduction to NAT 9e

CCNA 1 Routing and Switching v5.0 Chapter 1
CCNA 1 Routing and Switching v5.0 Chapter 1CCNA 1 Routing and Switching v5.0 Chapter 1
CCNA 1 Routing and Switching v5.0 Chapter 1

CCNA 2 Routing and Switching v5.0 Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 2CCNA 2 Routing and Switching v5.0 Chapter 2
CCNA 2 Routing and Switching v5.0 Chapter 2

Chapter 17 : static routing
Chapter 17 : static routingChapter 17 : static routing
Chapter 17 : static routing

CCNA 2 Routing and Switching v5.0 Chapter 11
CCNA 2 Routing and Switching v5.0 Chapter 11CCNA 2 Routing and Switching v5.0 Chapter 11
CCNA 2 Routing and Switching v5.0 Chapter 11

CCNAv5 - S2: Chapter1 Introsuction to switched networks
CCNAv5 - S2: Chapter1 Introsuction to switched networksCCNAv5 - S2: Chapter1 Introsuction to switched networks
CCNAv5 - S2: Chapter1 Introsuction to switched networks

CCNA 2 Routing and Switching v5.0 Chapter 3
CCNA 2 Routing and Switching v5.0 Chapter 3CCNA 2 Routing and Switching v5.0 Chapter 3
CCNA 2 Routing and Switching v5.0 Chapter 3

CCNA Exploration 2 - Chapter 1
CCNA Exploration 2 - Chapter 1CCNA Exploration 2 - Chapter 1
CCNA Exploration 2 - Chapter 1

CCNA2 Verson6 Chapter6
CCNA2 Verson6 Chapter6CCNA2 Verson6 Chapter6
CCNA2 Verson6 Chapter6

CCNA 1 Routing and Switching v5.0 Chapter 8
CCNA 1 Routing and Switching v5.0 Chapter 8CCNA 1 Routing and Switching v5.0 Chapter 8
CCNA 1 Routing and Switching v5.0 Chapter 8

CCNA 1 Routing and Switching v5.0 Chapter 9
CCNA 1 Routing and Switching v5.0 Chapter 9CCNA 1 Routing and Switching v5.0 Chapter 9
CCNA 1 Routing and Switching v5.0 Chapter 9

CCNA v6.0 ITN - Chapter 02
CCNA v6.0 ITN - Chapter 02CCNA v6.0 ITN - Chapter 02
CCNA v6.0 ITN - Chapter 02

CCNA RS_NB - Chapter 7
CCNA RS_NB - Chapter 7CCNA RS_NB - Chapter 7
CCNA RS_NB - Chapter 7

CCNAv5 - S4: Chapter 9 troubleshooting the network
CCNAv5 - S4: Chapter 9 troubleshooting the networkCCNAv5 - S4: Chapter 9 troubleshooting the network
CCNAv5 - S4: Chapter 9 troubleshooting the network

CCNA v6.0 ITN - Chapter 10
CCNA v6.0 ITN - Chapter 10CCNA v6.0 ITN - Chapter 10
CCNA v6.0 ITN - Chapter 10


Similar to CCNA 1 Routing and Switching v5.0 Chapter 3

CCNA RS_ITN - Chapter 3
CCNA RS_ITN - Chapter 3CCNA RS_ITN - Chapter 3
CCNA RS_ITN - Chapter 3Irsandi Hasan

Ccna v5-S1-Chapter 3
Ccna v5-S1-Chapter 3Ccna v5-S1-Chapter 3
Ccna v5-S1-Chapter 3Hamza Malik

Chapter 03 - Network Protocols and Communications
Chapter 03 - Network Protocols and CommunicationsChapter 03 - Network Protocols and Communications
Chapter 03 - Network Protocols and CommunicationsYaser Rahmati

CCNAv5 - S1: Chapter 3 - Network protocols and communications
CCNAv5 - S1: Chapter 3 - Network protocols and communicationsCCNAv5 - S1: Chapter 3 - Network protocols and communications
CCNAv5 - S1: Chapter 3 - Network protocols and communicationsVuz Dở Hơi

Chapter 3 : Network protocols and communications
Chapter 3 : Network protocols and communicationsChapter 3 : Network protocols and communications
Chapter 3 : Network protocols and communicationsteknetir

CCNA RS_NB - Chapter 3
CCNA RS_NB - Chapter 3CCNA RS_NB - Chapter 3
CCNA RS_NB - Chapter 3Irsandi Hasan

CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3
CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3
CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3Waqas Ahmed Nawaz

Itn6 instructor materials_chapter3
Itn6 instructor materials_chapter3Itn6 instructor materials_chapter3
Itn6 instructor materials_chapter3limenih muluneh

Itn instructor ppt_chapter1 exploring the network smartskills
Itn instructor ppt_chapter1 exploring the network smartskillsItn instructor ppt_chapter1 exploring the network smartskills
Itn instructor ppt_chapter1 exploring the network smartskillsTiago Monteiro

Itn instructor ppt_chapter4_network_access
Itn instructor ppt_chapter4_network_accessItn instructor ppt_chapter4_network_access
Itn instructor ppt_chapter4_network_accessbebe tampan

Ccna v5-S1-Chapter 4
Ccna v5-S1-Chapter 4Ccna v5-S1-Chapter 4
Ccna v5-S1-Chapter 4Hamza Malik

Network Fundamentals – Chapter 2
Network Fundamentals – Chapter 2Network Fundamentals – Chapter 2
Network Fundamentals – Chapter 2Sachii Dosti

CCNA RS_NB - Chapter 1
CCNA RS_NB - Chapter 1CCNA RS_NB - Chapter 1
CCNA RS_NB - Chapter 1Irsandi Hasan

CCNA RS_NB - Chapter 9
CCNA RS_NB - Chapter 9CCNA RS_NB - Chapter 9
CCNA RS_NB - Chapter 9Irsandi Hasan

Exploration network chapter2
Exploration network chapter2Exploration network chapter2
Exploration network chapter2r82093403

CCNA RS_ITN - Chapter 1
CCNA RS_ITN - Chapter 1CCNA RS_ITN - Chapter 1
CCNA RS_ITN - Chapter 1Irsandi Hasan

Networking Protocols.pdf
Networking Protocols.pdfNetworking Protocols.pdf
Networking Protocols.pdfdp589397


Similar to CCNA 1 Routing and Switching v5.0 Chapter 3 (20)

CCNA RS_ITN - Chapter 3
CCNA RS_ITN - Chapter 3CCNA RS_ITN - Chapter 3
CCNA RS_ITN - Chapter 3

Ccna v5-S1-Chapter 3
Ccna v5-S1-Chapter 3Ccna v5-S1-Chapter 3
Ccna v5-S1-Chapter 3

Chapter 03 - Network Protocols and Communications
Chapter 03 - Network Protocols and CommunicationsChapter 03 - Network Protocols and Communications
Chapter 03 - Network Protocols and Communications

CCNAv5 - S1: Chapter 3 - Network protocols and communications
CCNAv5 - S1: Chapter 3 - Network protocols and communicationsCCNAv5 - S1: Chapter 3 - Network protocols and communications
CCNAv5 - S1: Chapter 3 - Network protocols and communications

Chapter 3 : Network protocols and communications
Chapter 3 : Network protocols and communicationsChapter 3 : Network protocols and communications
Chapter 3 : Network protocols and communications

CCNA RS_NB - Chapter 3
CCNA RS_NB - Chapter 3CCNA RS_NB - Chapter 3
CCNA RS_NB - Chapter 3

Itn instruction ppt_chapter3
Itn instruction ppt_chapter3Itn instruction ppt_chapter3
Itn instruction ppt_chapter3

CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3
CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3
CCNA (R & S) Module 01 - Introduction to Networks - Chapter 3

Itn6 instructor materials_chapter3
Itn6 instructor materials_chapter3Itn6 instructor materials_chapter3
Itn6 instructor materials_chapter3

Itn instructor ppt_chapter1 exploring the network smartskills
Itn instructor ppt_chapter1 exploring the network smartskillsItn instructor ppt_chapter1 exploring the network smartskills
Itn instructor ppt_chapter1 exploring the network smartskills

Itn instructor ppt_chapter4_network_access
Itn instructor ppt_chapter4_network_accessItn instructor ppt_chapter4_network_access
Itn instructor ppt_chapter4_network_access

Itn instructor ppt_chapter4_network_access
Itn instructor ppt_chapter4_network_accessItn instructor ppt_chapter4_network_access
Itn instructor ppt_chapter4_network_access

Ccna v5-S1-Chapter 4
Ccna v5-S1-Chapter 4Ccna v5-S1-Chapter 4
Ccna v5-S1-Chapter 4

Network Fundamentals – Chapter 2
Network Fundamentals – Chapter 2Network Fundamentals – Chapter 2
Network Fundamentals – Chapter 2

Ccna routing and_switching_chapter-4-5
Ccna routing and_switching_chapter-4-5Ccna routing and_switching_chapter-4-5
Ccna routing and_switching_chapter-4-5

CCNA RS_NB - Chapter 1
CCNA RS_NB - Chapter 1CCNA RS_NB - Chapter 1
CCNA RS_NB - Chapter 1

CCNA RS_NB - Chapter 9
CCNA RS_NB - Chapter 9CCNA RS_NB - Chapter 9
CCNA RS_NB - Chapter 9

Exploration network chapter2
Exploration network chapter2Exploration network chapter2
Exploration network chapter2

CCNA RS_ITN - Chapter 1
CCNA RS_ITN - Chapter 1CCNA RS_ITN - Chapter 1
CCNA RS_ITN - Chapter 1

Networking Protocols.pdf
Networking Protocols.pdfNetworking Protocols.pdf
Networking Protocols.pdf


Recently uploaded

week 1 cookery 8 fourth - quarter .pptx
week 1 cookery 8  fourth  -  quarter .pptxweek 1 cookery 8  fourth  -  quarter .pptx
week 1 cookery 8 fourth - quarter .pptxJonalynLegaspi2

Textual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHSTextual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHSMae Pangan

Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)
Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)
Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)lakshayb543

DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptxDIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptxMichelleTuguinay1

Transaction Management in Database Management System
Transaction Management in Database Management SystemTransaction Management in Database Management System
Transaction Management in Database Management SystemChristalin Nelson

Multi Domain Alias In the Odoo 17 ERP Module
Multi Domain Alias In the Odoo 17 ERP ModuleMulti Domain Alias In the Odoo 17 ERP Module
Multi Domain Alias In the Odoo 17 ERP ModuleCeline George

MULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptx
MULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptxMULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptx
MULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptxAnupkumar Sharma

ClimART Action | eTwinning Project
ClimART Action    |    eTwinning ProjectClimART Action    |    eTwinning Project
ClimART Action | eTwinning Projectjordimapav

ROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptxROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptxVanesaIglesias10

ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...
ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...
ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...JojoEDelaCruz

Measures of Position DECILES for ungrouped data
Measures of Position DECILES for ungrouped dataMeasures of Position DECILES for ungrouped data
Measures of Position DECILES for ungrouped dataBabyAnnMotar

Narcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdfNarcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdfPrerana Jadhav

Using Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea DevelopmentUsing Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea Developmentchesterberbo7

How to Manage Engineering to Order in Odoo 17
How to Manage Engineering to Order in Odoo 17How to Manage Engineering to Order in Odoo 17
How to Manage Engineering to Order in Odoo 17Celine George

Student Profile Sample - We help schools to connect the data they have, with ...
Student Profile Sample - We help schools to connect the data they have, with ...Student Profile Sample - We help schools to connect the data they have, with ...
Student Profile Sample - We help schools to connect the data they have, with ...Seán Kennedy

Production of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptxProduction of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptxAnupkumar Sharma

THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATIONTHEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATIONHumphrey A Beña

4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptxmary850239

PRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptx
PRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptxPRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptx
PRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptxAnupkumar Sharma


Recently uploaded (20)

week 1 cookery 8 fourth - quarter .pptx
week 1 cookery 8  fourth  -  quarter .pptxweek 1 cookery 8  fourth  -  quarter .pptx
week 1 cookery 8 fourth - quarter .pptx

Textual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHSTextual Evidence in Reading and Writing of SHS
Textual Evidence in Reading and Writing of SHS

Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)
Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)
Visit to a blind student's school🧑‍🦯🧑‍🦯(community medicine)

DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptxDIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx
DIFFERENT BASKETRY IN THE PHILIPPINES PPT.pptx

Transaction Management in Database Management System
Transaction Management in Database Management SystemTransaction Management in Database Management System
Transaction Management in Database Management System

Multi Domain Alias In the Odoo 17 ERP Module
Multi Domain Alias In the Odoo 17 ERP ModuleMulti Domain Alias In the Odoo 17 ERP Module
Multi Domain Alias In the Odoo 17 ERP Module

MULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptx
MULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptxMULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptx
MULTIDISCIPLINRY NATURE OF THE ENVIRONMENTAL STUDIES.pptx

ClimART Action | eTwinning Project
ClimART Action    |    eTwinning ProjectClimART Action    |    eTwinning Project
ClimART Action | eTwinning Project

ROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptxROLES IN A STAGE PRODUCTION in arts.pptx
ROLES IN A STAGE PRODUCTION in arts.pptx

ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...
ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...
ENG 5 Q4 WEEk 1 DAY 1 Restate sentences heard in one’s own words. Use appropr...

Measures of Position DECILES for ungrouped data
Measures of Position DECILES for ungrouped dataMeasures of Position DECILES for ungrouped data
Measures of Position DECILES for ungrouped data

Narcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdfNarcotic and Non Narcotic Analgesic..pdf
Narcotic and Non Narcotic Analgesic..pdf

LEFT_ON_C'N_ PRELIMS_EL_DORADO_2024.pptx
LEFT_ON_C'N_ PRELIMS_EL_DORADO_2024.pptxLEFT_ON_C'N_ PRELIMS_EL_DORADO_2024.pptx
LEFT_ON_C'N_ PRELIMS_EL_DORADO_2024.pptx

Using Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea DevelopmentUsing Grammatical Signals Suitable to Patterns of Idea Development
Using Grammatical Signals Suitable to Patterns of Idea Development

How to Manage Engineering to Order in Odoo 17
How to Manage Engineering to Order in Odoo 17How to Manage Engineering to Order in Odoo 17
How to Manage Engineering to Order in Odoo 17

Student Profile Sample - We help schools to connect the data they have, with ...
Student Profile Sample - We help schools to connect the data they have, with ...Student Profile Sample - We help schools to connect the data they have, with ...
Student Profile Sample - We help schools to connect the data they have, with ...

Production of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptxProduction of Monoclonal Antibodies by Hybridoma Technology.pptx
Production of Monoclonal Antibodies by Hybridoma Technology.pptx

THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATIONTHEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION
THEORIES OF ORGANIZATION-PUBLIC ADMINISTRATION

4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx4.16.24 21st Century Movements for Black Lives.pptx
4.16.24 21st Century Movements for Black Lives.pptx

PRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptx
PRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptxPRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptx
PRINCIPLE & APPLICATIONS OF IMMUNO BLOTTING TECHNIQUES.pptx


CCNA 1 Routing and Switching v5.0 Chapter 3

  • 1. Chapter 3: Network Protocols and Communications Introduction to Networks © 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 1
  • 2. Chapter 3: Objectives After completing this chapter, you will be able to:  Explain how rules are used to facilitate communication.  Explain the role of protocols and standards organizations in facilitating interoperability in network communications.  Explain how devices on a LAN access resources in a small to medium-sized business network. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 2
  • 3. Chapter 3 3.1 Rules of Communication 3.2 Network Protocols and Standards 3.3 Moving Data in the Network 3.4 Summary Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 3
  • 4. 3.1 Rules of Communication © 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 4
  • 5. The Rules What is Communication? Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 5
  • 6. The Rules Establishing the Rules  An identified sender and receiver  Agreed upon method of communicating (face-to-face, telephone, letter, photograph)  Common language and grammar  Speed and timing of delivery  Confirmation or acknowledgment requirements Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 6
  • 7. The Rules Message Encoding Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 7
  • 8. The Rules Message Formatting and Encapsulation Example: Personal letter contains the following elements:  Identifier of the recipient’s location  Identifier of the sender’s location  Salutation or greeting  Recipient identifier  The message content  Source identifier  End of message indicator Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 8
  • 9. The Rules Message Size An overview of the segmenting process:  The size restrictions of frames require the source host to break a long message into individual pieces (or segments) that meet both the minimum and maximum size requirements.  Each segment is encapsulated in a separate frame with the address information, and is sent over the network.  At the receiving host, the messages are de-encapsulated and put back together to be processed and interpreted. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 9
  • 10. The Rules Message Timing  Access Method  Flow Control  Response Timeout Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 10
  • 11. The Rules Message Delivery Options Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 11
  • 12. 3.2 Network Protocols and Standards © 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 12
  • 13. Protocols Rules that Govern Communications Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 13
  • 14. Protocols Network Protocols  How the message is formatted or structured  The process by which networking devices share information about pathways with other networks  How and when error and system messages are passed between devices  The setup and termination of data transfer sessions Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 14
  • 15. Protocols Interaction of Protocols  Application Protocol – Hypertext Transfer Protocol (HTTP)  Transport Protocol – Transmission Control Protocol (TCP)  Internet Protocol – Internet Protocol (IP)  Network Access Protocols – Data link & physical layers Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 15
  • 16. Protocol Suites Protocol Suites and Industry Standards Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 16
  • 17. Protocol Suites Creation of Internet, Development of TCP/IP  The first packet switching network and predecessor to today’s Internet was the Advanced Research Projects Agency Network (ARPANET), which came to life in 1969 by connecting mainframe computers at four locations.  ARPANET was funded by the U.S. Department of Defense for use by universities and research laboratories. Bolt, Beranek and Newman (BBN) was the contractor that did much of the initial development of the ARPANET, including creating the first router known as an Interface Message Processor (IMP).  In 1973, Robert Kahn and Vinton Cerf began work on TCP to develop the next generation of the ARPANET. TCP was designed to replace ARPANET’s current Network Control Program (NCP).  In 1978, TCP was divided into two protocols: TCP and IP. Later, other protocols were added to the TCP/IP suite of protocols including Telnet, FTP, DNS, and many others. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 17
  • 18. Protocol Suites TCP/IP Protocol Suite and Communication Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 18
  • 19. Standards Organizations Open Standards  The Internet Society (ISOC)  The Internet Architecture Board (IAB)  The Internet Engineering Task Force (IETF)  Institute of Electrical and Electronics Engineers (IEEE)  The International Organization for Standards (ISO) Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 19
  • 20. Standards Organizations ISOC, IAB, and IETF Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 20
  • 21. Standards Organizations IEEE  38 societies  130 journals  1,300 conferences each year  1,300 standards and projects  400,000 members  160 countries  IEEE 802.3  IEEE 802.11 Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 21
  • 22. Standards Organizations ISO OSI Model Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 22
  • 23. Standards Organizations Other Standards Organization  The Electronic Industries Alliance (EIA)  The Telecommunications Industry Association (TIA)  The International Telecommunications Union – Telecommunications Standardization Sector (ITU-T)  The Internet Corporation for Assigned Names and Numbers (ICANN)  The Internet Assigned Numbers Authority (IANA) Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 23
  • 24. Reference Models Benefits of Using a Layered Model Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 24
  • 25. Reference Models The OSI Reference Model Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 25
  • 26. Reference Models The TCP/IP Reference Model Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 26
  • 27. Reference Models Comparing the OSI and TCP/IP Models Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 27
  • 28. 3.3 Moving Data in the Network © 2008 Cisco Systems, Inc. All Presentation_ID rights reserved. Cisco Confidential 28
  • 29. Data Encapsulation Communicating the Messages  Segmenting message benefits Different conversations can be interleaved Increased reliability of network communications  Segmenting message disadvantage Increased level of complexity Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 29
  • 30. Data Encapsulation Protocol Data Units (PDUs)  Data  Segment  Packet  Frame  Bits Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 30
  • 31. Data Encapsulation Protocol Encapsulation Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 31
  • 32. Data Encapsulation Protocol De-encapsulation Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 32
  • 33. Moving Data in the Network Accessing Local Resources Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 33
  • 34. Accessing Local Resources Communicating with Device / Same Network Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 34
  • 35. Accessing Local Resources MAC and IP Addresses PC1 192.168.1.110 AA-AA-AA-AA-AA-AA PC2 192.168.1.111 BB-BB-BB-BB-BB-BB 11-11-11-11-11-11 S1 R1 FTP Server 192.168.1.9 R1 192.168.1.1 CC-CC-CC-CC-CC-CC ARP Request Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 35
  • 36. Accessing Remote Resources Default Gateway Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 36
  • 37. Accessing Remote Resources Communicating Device / Remote Network Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 37
  • 38. Network Protocols and Communications Summary In this chapter, you learned:  Data networks are systems of end devices, intermediary devices, and the media connecting the devices. For communication to occur, these devices must know how to communicate.  These devices must comply with communication rules and protocols. TCP/IP is an example of a protocol suite.  Most protocols are created by a standards organization such as the IETF or IEEE.  The most widely-used networking models are the OSI and TCP/IP models.  Data that passes down the stack of the OSI model is segmented into pieces and encapsulated with addresses and other labels. The process is reversed as the pieces are de-encapsulated and passed up the destination protocol stack. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 38
  • 39. Network Protocols and Communications Summary (cont.) In this chapter, you learned:  The OSI model describes the processes of encoding, formatting, segmenting, and encapsulating data for transmission over the network.  The TCP/IP protocol suite is an open standard protocol that has been endorsed by the networking industry and ratified, or approved, by a standards organization.  The Internet Protocol Suite is a suite of protocols required for transmitting and receiving information using the Internet.  Protocol Data Units (PDUs) are named according to the protocols of the TCP/IP suite: data, segment, packet, frame, and bits.  Applying models allows individuals, companies, and trade associations to analyze current networks and plan the networks of the future. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 39
  • 40. Presentation_ID © 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential 40
