1. BUILDING SERVICES (BLD60903)
PROJECT 2: BUILDING SERVICES DIARY
1. Electrical Supply System
2. Water Supply System
3. Sewerage and Sanitary System
4. Rainwater Drainage System
By: Nik Ahmad Munawwar Nik Din
0325167
Tutor: Azim Sulaiman

2. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
1
TABLE OF CONTENTS
1.0 INTRODUCTION
2.0 INFORMATION AND DATA
2.1 WATER SUPPLY SYSTEM
2.2 ELECTRICAL SUPPLY SYSTEM
2.3 SEWERAGE AND SANITARY SUPPLY SYSTEM
2.4 RAIN WATER MANAGEMENT SYSTEM
3.0 DRAWINGS
3.1 SITE PLAN
3.2 GROUND FLOOR PLAN
3.3 ROOF PLAN
3.4 CEILING PLAN
3.5 SCHEMATIC DIAGRAM
4.0 CONCLUSION
5.0 REFERENCES

3. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
2
1.0 INTRODUCTION
Project 2 is an individual assignment on the application of basic building services to a domestic
sized building. This exercise requires us to demonstrate our understanding on the application
of such systems by producing technical drawings of the necessary services.
The focus of this project revolves around the application of necessary building service systems
to domestic sized buildings. The project calls for the thorough understanding of the planning
process, installation, and application of service systems, including electrical supply, sewerage,
drainage, and water supply systems.
The objective of this project is to enhance the understanding of the applications and challenges
with regards to building services beyond what is taught in lectures. This is achieved by the task
of applying appropriate building systems, with consideration of UBBL guidelines for a given
design.
This report compiles relevant information related to water and electrical supply, liquid waste
disposal, sanitary and rainwater management system and propose the most suitable systems
for a specific type of building.
Students are required to apply building services schematics to their design studio project for
the application of the building services systems. Drawings are to be produced to show the
correct application of the services, including on the site plan, building plans and roof plan. The
drawings must be reproduced into a computer aided drawing with annotations which describe
the planning and installation of all building services required.

4. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
3

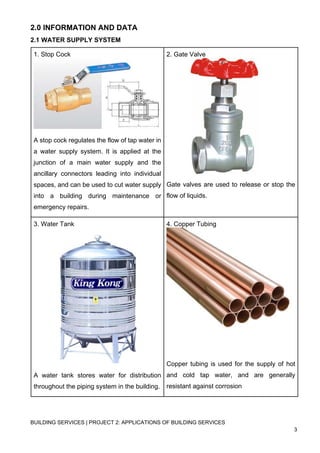

2.0 INFORMATION AND DATA
2.1 WATER SUPPLY SYSTEM
1. Stop Cock
A stop cock regulates the flow of tap water in
a water supply system. It is applied at the
junction of a main water supply and the
ancillary connectors leading into individual
spaces, and can be used to cut water supply
into a building during maintenance or
emergency repairs.
2. Gate Valve
Gate valves are used to release or stop the
flow of liquids.
3. Water Tank
A water tank stores water for distribution
throughout the piping system in the building.
4. Copper Tubing
Copper tubing is used for the supply of hot
and cold tap water, and are generally
resistant against corrosion

5. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
4
UBBL Section 84: Prevention of Dampness.
(1) Suitable measures shall be taken to prevent the penetration of dampness
and moisture into a building.
UBBL Section 123: Pipes and Service ducts.
(1) Where ducts or enclosures are provided in any building to accommodate pipes, cables or
conduits the dimensions of such ducts or enclosures shall be-
(a) adequate for the accommodation of the pipes, cables or conduits and for crossings of
branches and mains together with supports and fixing; and
(b) sufficiently large to permit access to cleaning eyes, stop cocks and other controls there
to enable repairs, extensions and modifications to be made to each or all of the services
accommodated.
(2) The access openings to ducts or enclosures shall be long enough and suitably placed to
enable lengths of pipe to be installed and removed.

6. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
5
2.2 ELECTRICAL SUPPLY SYSTEM
1. Ceiling Fan
A ceiling fan is a form of mechanical
ventilation, that hangs from the ceiling of a
room, that uses hub-mounted rotating fins to
circulate air.
2. Gang Switch
A gang switch may contain 1, 2, or 3 switches
and functions as switch points for fans and
lights.
3. Distribution Box
A distribution board distributes electrical
power supply into internal circuits and also
functions as a fuse or circuit breaker for
individual circuits in case of a power surge.
4. Meter Box
An electricity meter measures the amount of
energy used by a residential or a commercial
building, and is used as the basis for monthly
electricity billing.
5. Standard 2-Gang Outlet
A power point that supplies electricity to
plugged-in electronic devices.
6. Recessed Lights
A recessed light lamp fixture installed into a
hollow opening in a ceiling and directs the
light in a downward direction as a broad
floodlight or narrow spotlight.

7. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
6
MS 1979: 2007
4.2.4 COP 07, Requirement of earthing system
The primary requirement of the earthing system is to ensure effective operation of the circuit
protective device. For effective operation of the circuit protective device, the resistance of the
earthing system shall be as low as possible. In installations where RCDs are used as the circuit
protective device, earthing resistance of less than 10 Ω will generally ensure effective operation
of the RCDs. However earthing resistance of less than 1 Ω is the target.
4.6.9 COP 28, Cables installed behind walls
Where cables are installed buried behind walls, they shall be installed horizontally or vertically
i.e. parallel to the edges of the room. Subject to the dimensions of the columns and beams,
they shall be within 150 mm from the top of the walls and 150 mm from the edge of the wall.
4.6.10 COP 29, Mechanical protection for cables within walls
Cables installed within walls shall be provided with mechanical protection such as a conduit.
Direct installation of cables within walls is not allowed.
4.6.11 COP 30, Cables installed within ceiling space
Where cables are installed behind suspended ceilings or the ceiling space under the roof,
they shall be provided with mechanical protection such as being installed within approved
conduits. In addition they shall be installed either parallel or perpendicular to the edges of the
walls.
4.6.13 COP 32, Air conditioner circuits
A circuit intended to supply an air conditioner shall have a socket outlet (an unswitched type
is acceptable) in the vicinity of the air conditioner to facilitate the connection of the circuit to
the apparatus and to facilitate disconnection during maintenance.

8. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
7
2.3 SEWERAGE AND SANITARY SYSTEM
1. Floor Trap
A floor trap is a drainage fixture on the floor
of a room, commonly in bathrooms to
channel out standing water near it to avoid
flooding. The floor around the drain needs to
be slightly sloped to allow water to flow to the
drain by gravity.
2. Manhole
A manhole is the top opening to an
underground utility vault used to house an
access point for making connections,
inspection, valve adjustments or performing
maintenance on underground and buried
public utility.
3. Vent Cowl
A cowl is a usually hood-shaped covering
connected to the sanitary services in a
building, to exhaust odors coming from the
system and prevent backflow.
4. Gully Trap
A gully trap is a basin in the ground which
receives piped wastewater before it is
emptied into the sewer. The basin has a
water seal to prevent foul odors from the
sewer to reach the surface.
5. P-Trap
Similar to a gully trap, a P-trap is installed
under sinks in bathrooms and kitchens stops
sewer gases from passing into the home.

9. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
8
STREET, DRAINAGE AND BUILDING ACT 1974, PART III
55. Penalty for making unauthorised drains into public canal or stream.
(1) Any person who without the prior written permission of the local authority -
(a) makes or causes to be made any drain into any of the drains or into any canal or stream
under the control of the local authority;
(b) closes up stops or deviates any drains,
shall be liable on conviction to a fine not exceeding one thousand ringgit, and a Magistrate's
Court on the application of the local authority, shall make a mandatory order requiring the
owner to demolish, alter, re-make or otherwise deal with such drain as the Court thinks fit.
57. Water pipes, etc., not to be used as ventilating shafts.
(1) No water-pipe, stack-pipe or down spout used for conveying surface water from any
premises shall be used or be permitted to serve or to act as a ventilating shaft to any drain or
sewer.
(2) Any person who contravenes subsection (1) shall be liable on conviction to a fine not
exceeding five hundred Ringgit and shall also be liable to a further fine not exceeding one
hundred ringgit for every day during which the offence is continued after conviction.
61. Ventilating pipes to sewers.
(1) The local authority may erect or fix to any building such pipes as are necessary for the
proper ventilation of the drains and sewers belonging to it.
(2) Such pipes shall be erected so as not to occasion any nuisance or inconvenience to such
building or any building in the neighbourhood.

10. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
9
2.4 RAINWATER AND SURFACE WATER SYSTEM
1. Rainwater Downpipe
A rainwater downpipe is a vertical pipe that
carries rainwater from the gutter down to
ground level. The water is piped to a sewer,
or let into the ground.
2. Gutter
A rain gutter stops rain from falling directly to
the ground from the roof and discharges rain
water to the monsoon drain.
3. Sump
A sump is an underground space that collects
water or chemicals. A sump can also be an
infiltration basin used to manage surface
runoff water and recharge underground
aquifers.

11. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
10
STREET, DRAINAGE AND BUILDING ACT 1974, PART III
56. Rain-water pipes not to be used as soil-pipes.
(1) No pipe used for the carrying off of rain water from any roof shall be used for the purpose
of carrying off the soil or drainage from any privy or water-closet or any sullage water.
(2) Any person who contravenes subsection (1) shall be liable on conviction to a fine not
exceeding five hundred ringgit and shall also be liable to a further fine not exceeding one
hundred ringgit for every day during which the offence is continued after conviction.

12. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
11
3.0 DRAWINGS (As attached)
3.1 Site Plan
3.2 Ceiling Plan - Electrical Supply System
3.3 Ground Floor Plan - Sewerage and Sanitary Systems
3.4 Roof Plan - Rainwater Drainage System
3.5 Schematic Diagram - Water Supply System and Drainage Layout

13. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
12
4.0 CONCLUSION
The project has allowed the student to observe and appreciate small details in the
implementation of building services, something usually taken for granted. Students are sure to
gain immense knowledge on the mechanism of each category of service while at the same
time gaining a newfound appreciation towards the importance of building services in our daily
lives. This project has also given a first hand look at the applications of the theories we learned
in the classroom.
6 detailed drawings (including diagrams) have been produced in completing the project. The
diagram produced increases the appreciation of these systems that are often taken for granted.
I would like to thank both Ar. Sateerah and Mr. Azim for carefully designing this module and
projects, as well as passionately guiding the students along the way towards the completion of
the module.

14. BUILDING SERVICES | PROJECT 2: APPLICATIONS OF BUILDING SERVICES
13
5.0 REFERENCES
● UBBL 1989.
● Chudley, Roy. 1988. Building Finishes, Fittings and Domestic Services. 2nd Edition.
Longman.
● Jackson, A., Day, D., Jackson, A. and Jackson, A. (2006). Popular mechanics. New
York: Hearst Books.
● Monroe, R. (2012). What are electrical circuits?. New York, N.Y.: Crabtree Publishing
Co.

15. R
R
R
O
O
LEGEND
2-gang light switch
1-gang light switch
100mm X 100mm LED downlight
Decorative pendant light
Wall mounted light
Ceiling fan
Telephone point
13A 1-gang socket
1.0 HP Single split air conditioner
A/C Outdoor Unit
Wall mounted weather proof LED light
Security Alarm
Distribution board
Electric meter
CCTV
SA
LED vanity light
90mm X 90mm LED downlight
M
2.0 HP Single split air conditioner
Outdoor pendant light
13A single weather proof outdoor socket
90mm X 90mm weather proof LED downlight
Exhaust fan
Emergency light
3-gang light switch
4-gang light switch
13A 2-gang socket
13A 3-gang socket
Air conditioner switch
Water heater switch
FFL From floor level
REFLECTED CEILING PLAN - ELECTRICAL SUPPLY SYSTEM
DB
DB
M
300mm FFL300mm FFL
300mm FFL
300mm FFL
300mm FFL
300mm FFL
300mm FFL
300mm FFL
300mm FFL
300mm FFL
ASS LEVEL
GROUND FLOOR LEVEL
FIRST FLOOR LEVEL
HIGH ROOF LEVEL
DIAGRAMMATIC WATER SUPPLY SYSTEM
SCALE 1:100

16. DS
MD
Monsoon Drain
Drain Sump
LEGEND
DS
MD
150 mm half round uPVC gutter
100 mm uPVC downpipe
100 mm uPVC drain pipe
100 mm uPVC downpipe
100 mm uPVC downpipe
100 mm uPVC downpipe
100 mm uPVC downpipe
100 mm uPVC downpipe
100 mm uPVC downpipe
150 mm half round uPVC gutter
150 mm half round uPVC gutter
150 mm half round uPVC gutter
150 mm half round uPVC gutter
150 mm half round uPVC gutter
100 mm uPVC drain pipe
100 mm uPVC drain pipe
100 mm uPVC drain pipe
100 mm uPVC drain pipe
100 mm uPVC drain pipe
GROUND FLOOR LEVEL
FIRST FLOOR LEVEL
DIAGRAMMATIC DRAINAGE LAYOUT
R
R
R
O
O
DS
MD
MH 1
MH 2
MH 3
GT
MH 4
To PPB
SEWERAGE AND SANITARY SYSTEMS RAINWATER / SURFACE DRAINAGE SYSTEM
SCALE 1:100 SCALE 1:100
