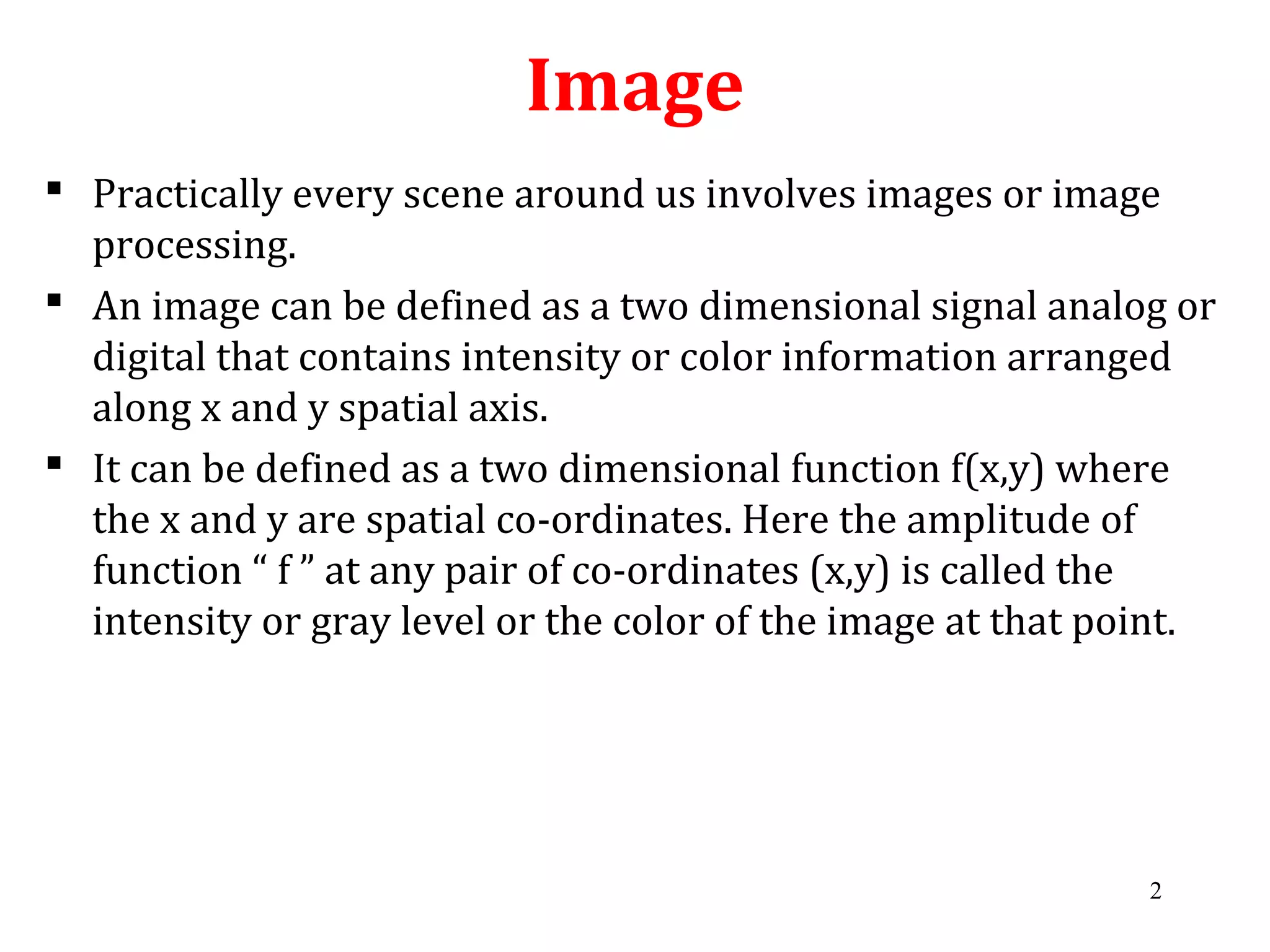

Digital Image Processing
 Practically every scene around us involves images or image
processing.
 An image can be defined as a two dimensional signal analog or
digital that contains intensity or color information arranged
along x and y spatial axis.
 It can be defined as a two dimensional function f(x,y) where
the x and y are spatial co-ordinates. Here the amplitude of
function “ f ” at any pair of co-ordinates (x,y) is called the
intensity or gray level or the color of the image at that point.
2

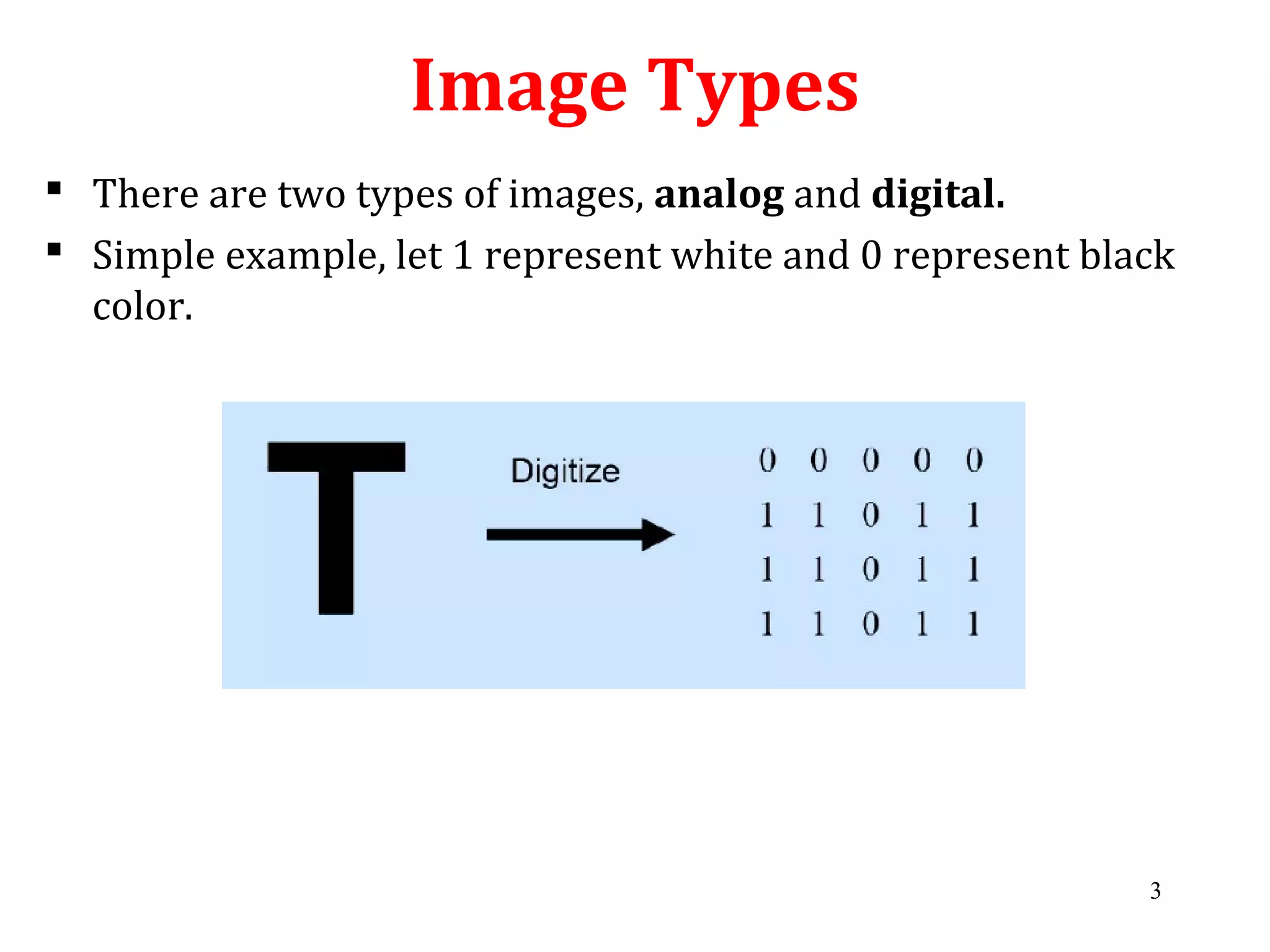

Image Types
 There are two types of images, analog and digital.
 Simple example, let 1 represent white and 0 represent black
color.
3

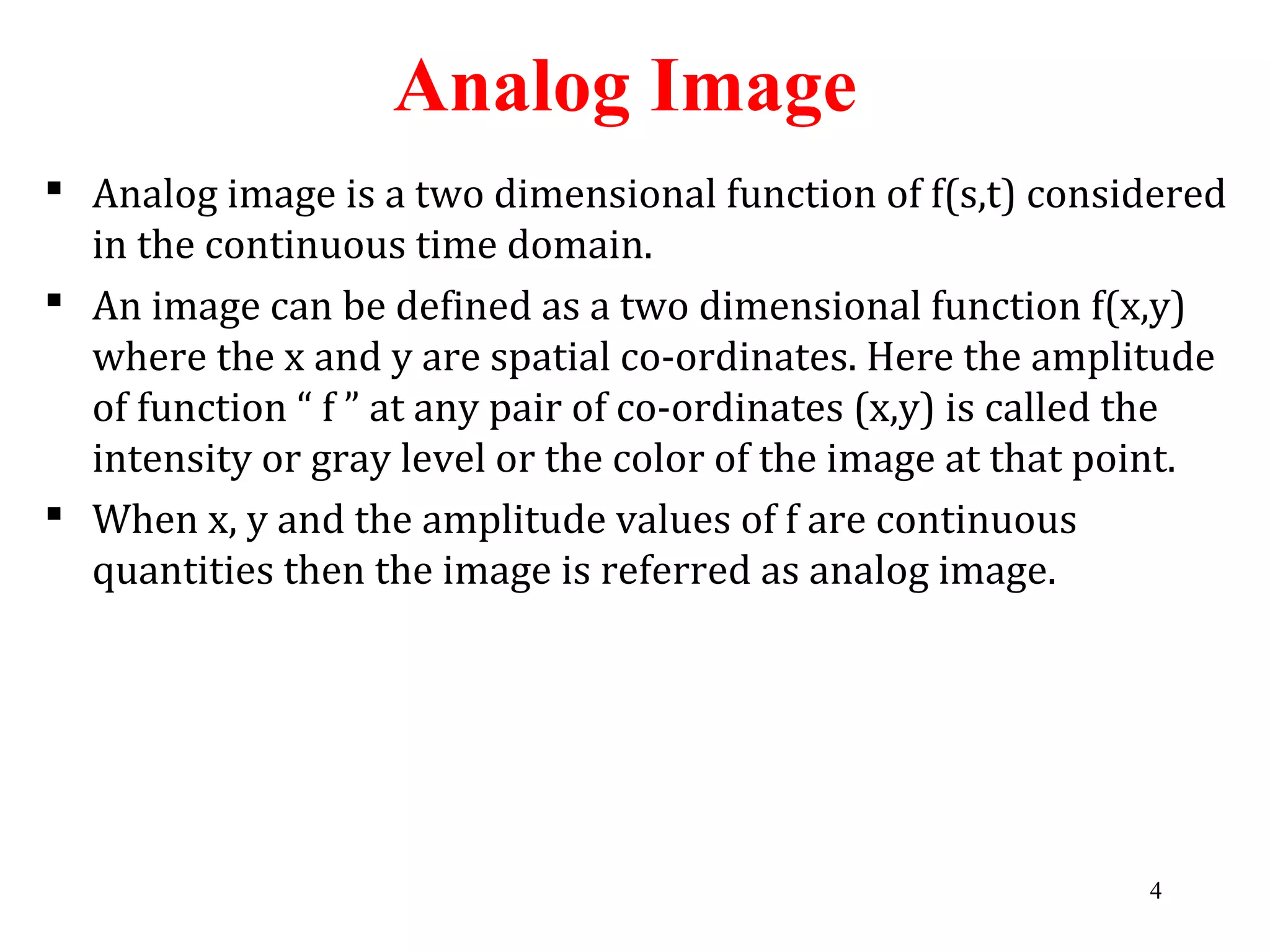

Analog Image
 Analog image is a two dimensional function of f(s,t) considered
in the continuous time domain.
 An image can be defined as a two dimensional function f(x,y)
where the x and y are spatial co-ordinates. Here the amplitude
of function “ f ” at any pair of co-ordinates (x,y) is called the
intensity or gray level or the color of the image at that point.
 When x, y and the amplitude values of f are continuous
quantities then the image is referred as analog image.
4

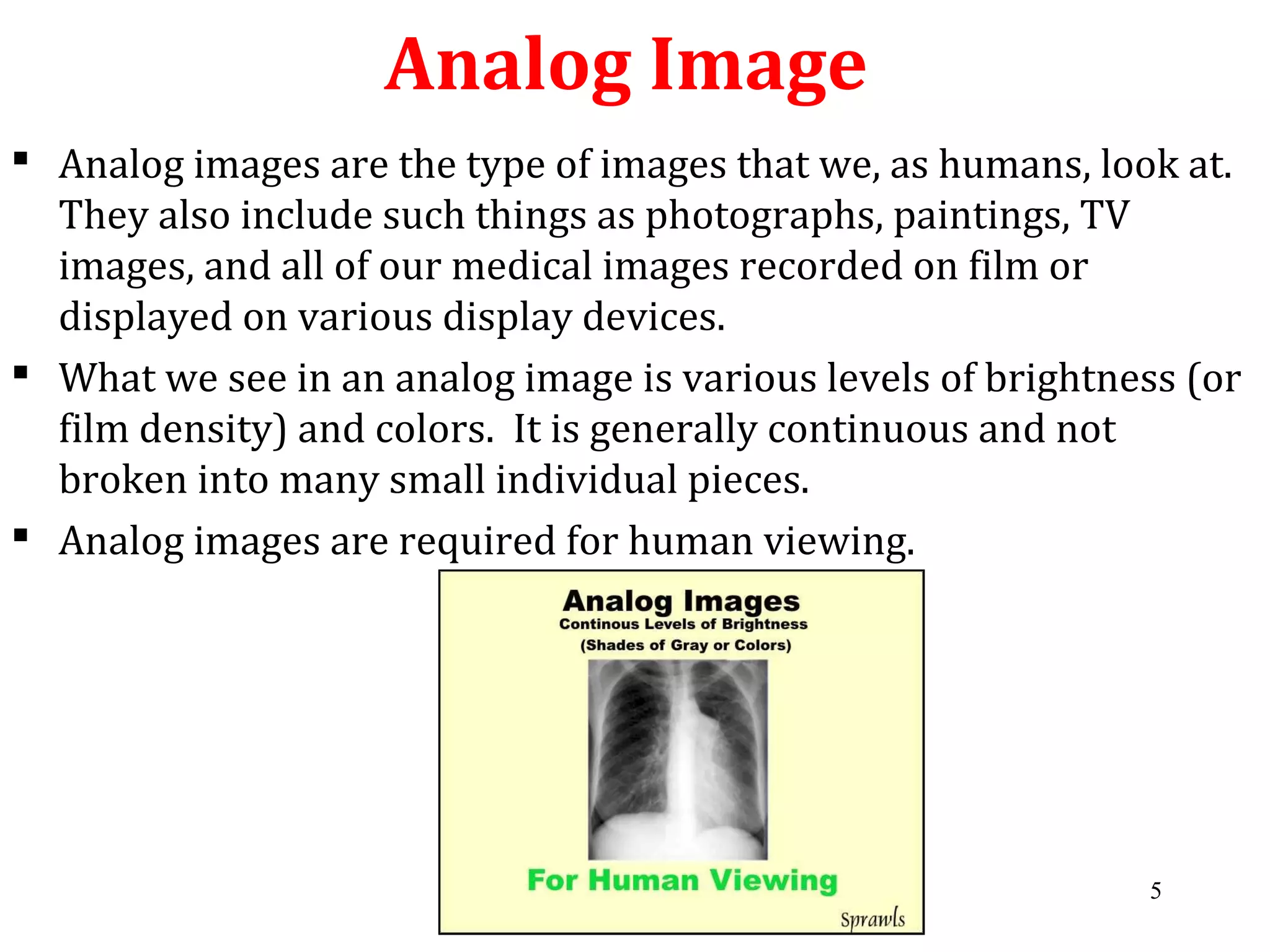

Analog Image
 Analog images are the type of images that we, as humans, look at.
They also include such things as photographs, paintings, TV
images, and all of our medical images recorded on film or
displayed on various display devices.
 What we see in an analog image is various levels of brightness (or
film density) and colors. It is generally continuous and not
broken into many small individual pieces.
 Analog images are required for human viewing.
5

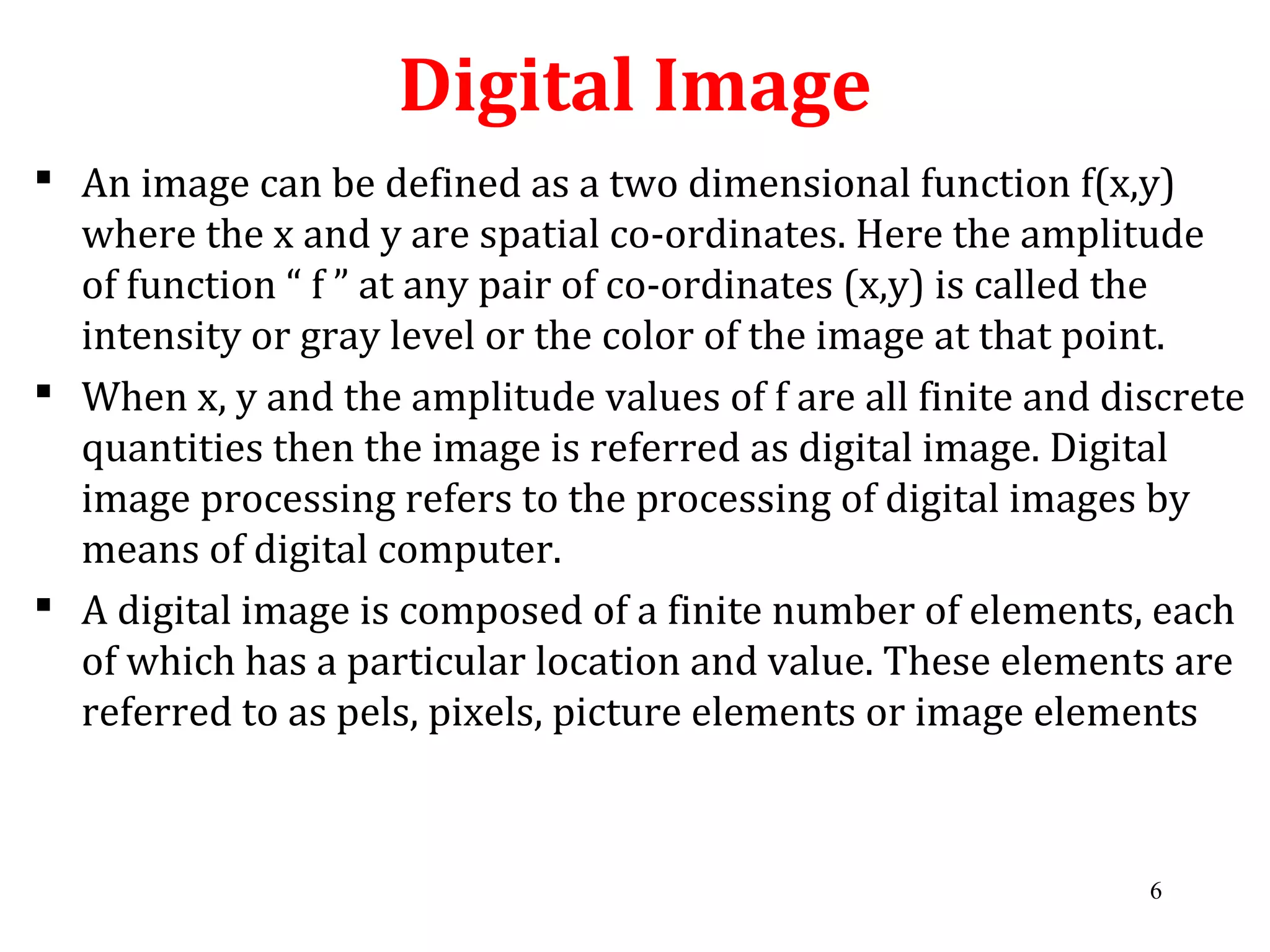

Digital Image
 An image can be defined as a two dimensional function f(x,y)
where the x and y are spatial co-ordinates. Here the amplitude
of function “ f ” at any pair of co-ordinates (x,y) is called the
intensity or gray level or the color of the image at that point.
 When x, y and the amplitude values of f are all finite and discrete
quantities then the image is referred as digital image. Digital
image processing refers to the processing of digital images by
means of digital computer.
 A digital image is composed of a finite number of elements, each
of which has a particular location and value. These elements are
referred to as pels, pixels, picture elements or image elements
6

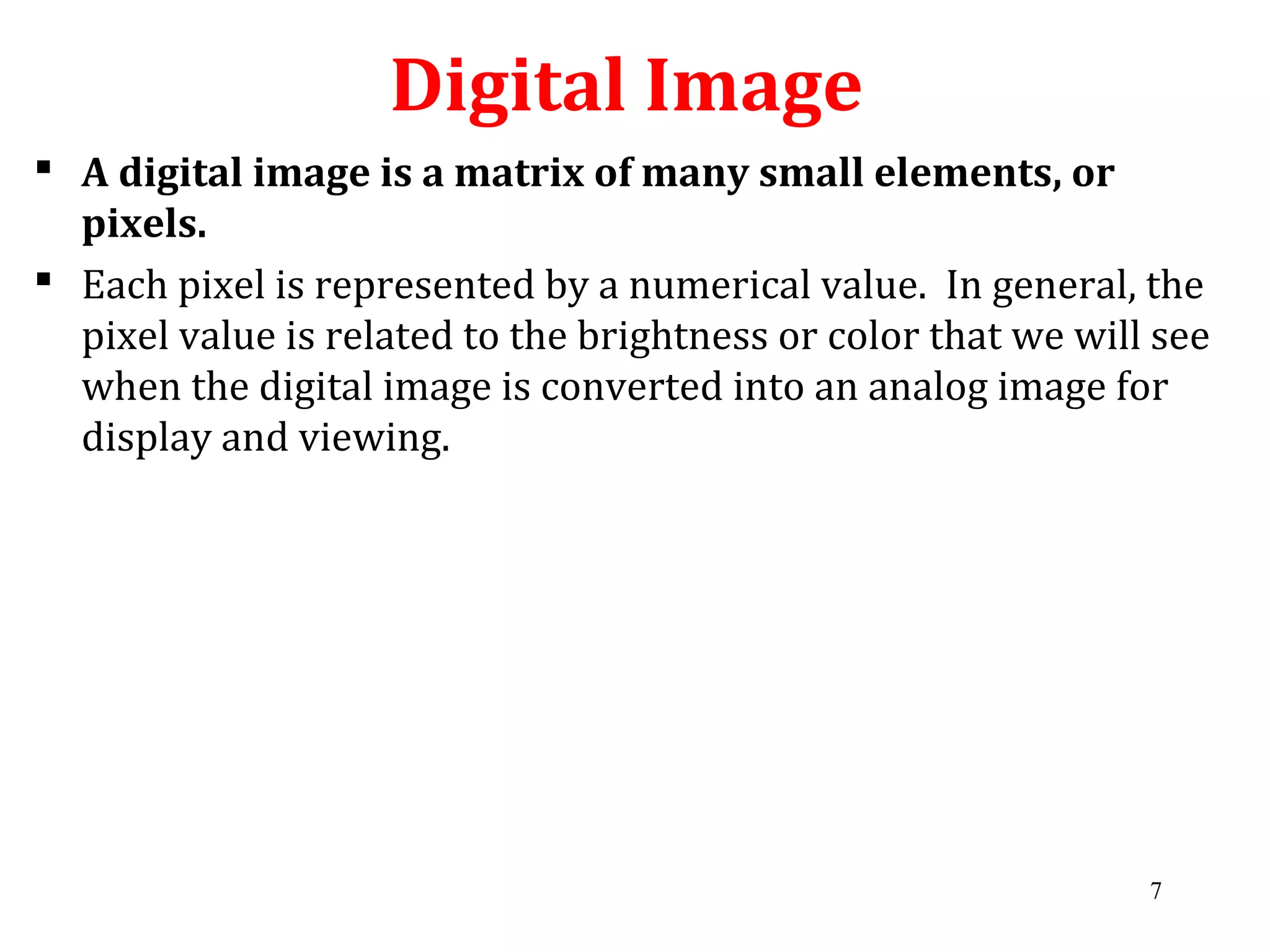

Digital Image
 A digital image is a matrix of many small elements, or
pixels.
 Each pixel is represented by a numerical value. In general, the
pixel value is related to the brightness or color that we will see
when the digital image is converted into an analog image for
display and viewing.
7

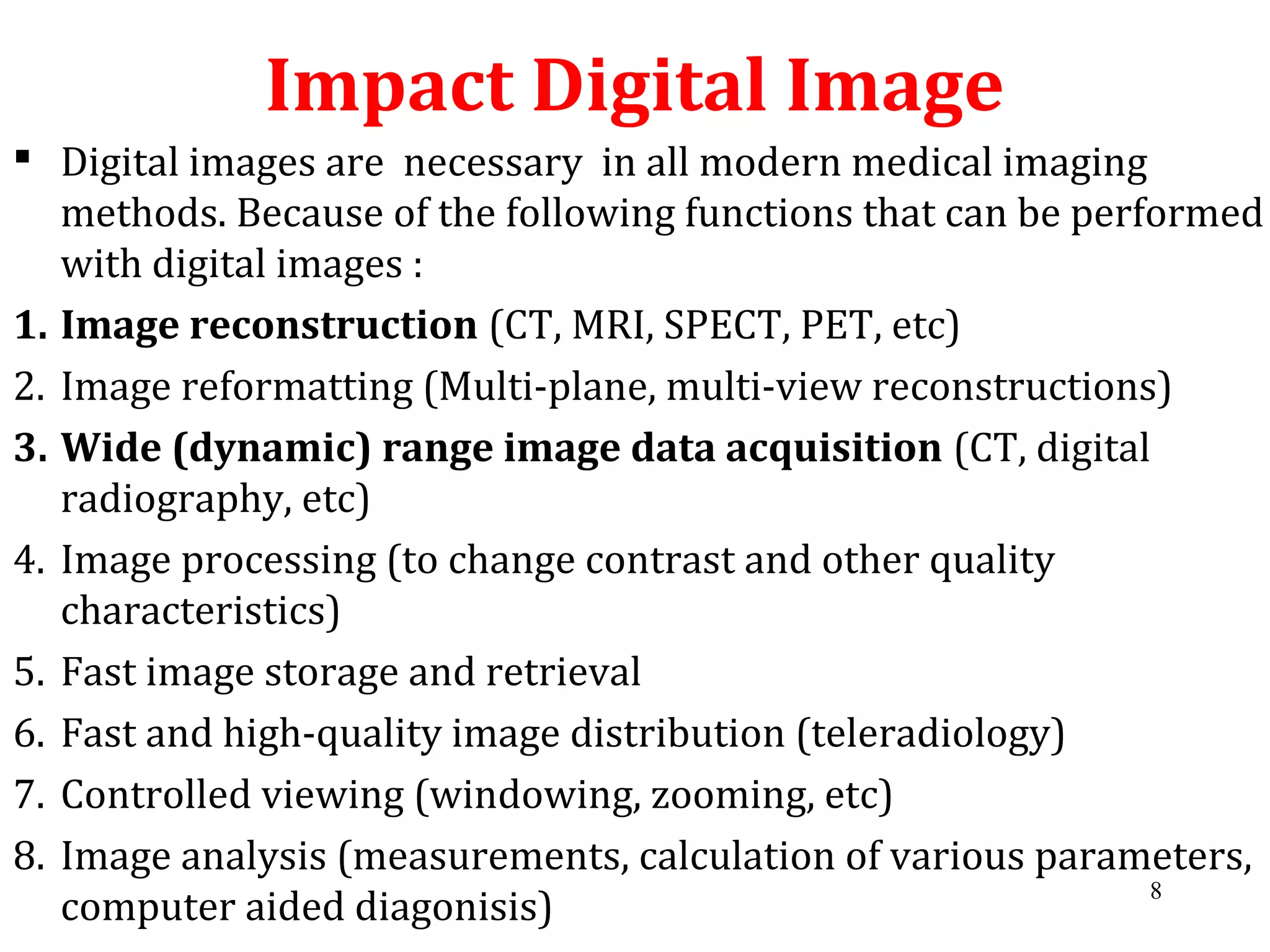

Impact Digital Image
 Digital images are necessary in all modern medical imaging
methods. Because of the following functions that can be performed
with digital images :
1. Image reconstruction (CT, MRI, SPECT, PET, etc)
2. Image reformatting (Multi-plane, multi-view reconstructions)
3. Wide (dynamic) range image data acquisition (CT, digital
radiography, etc)
4. Image processing (to change contrast and other quality
characteristics)
5. Fast image storage and retrieval
6. Fast and high-quality image distribution (teleradiology)
7. Controlled viewing (windowing, zooming, etc)
8. Image analysis (measurements, calculation of various parameters,
computer aided diagonisis)
8

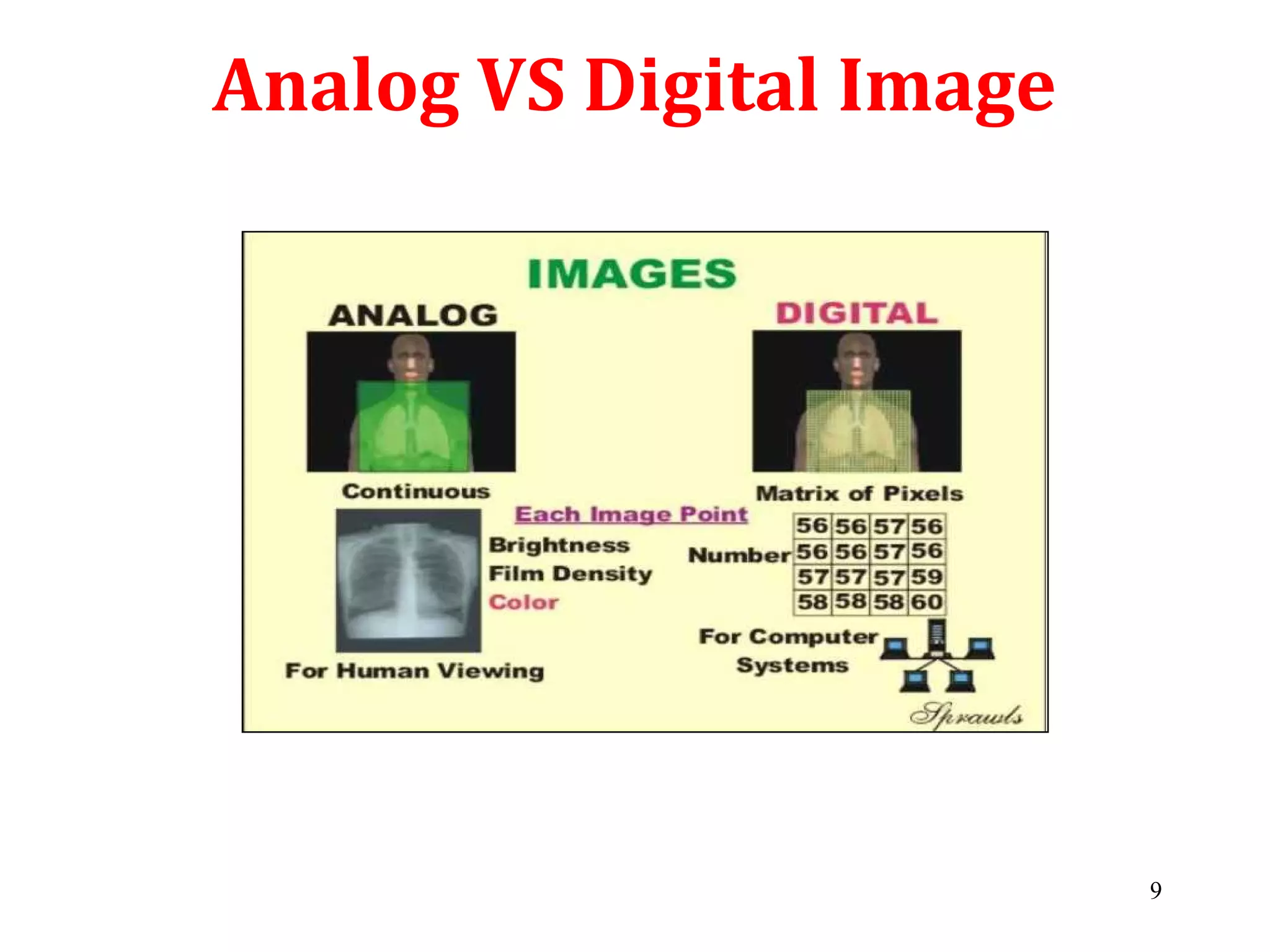

Analog VS Digital Image
9

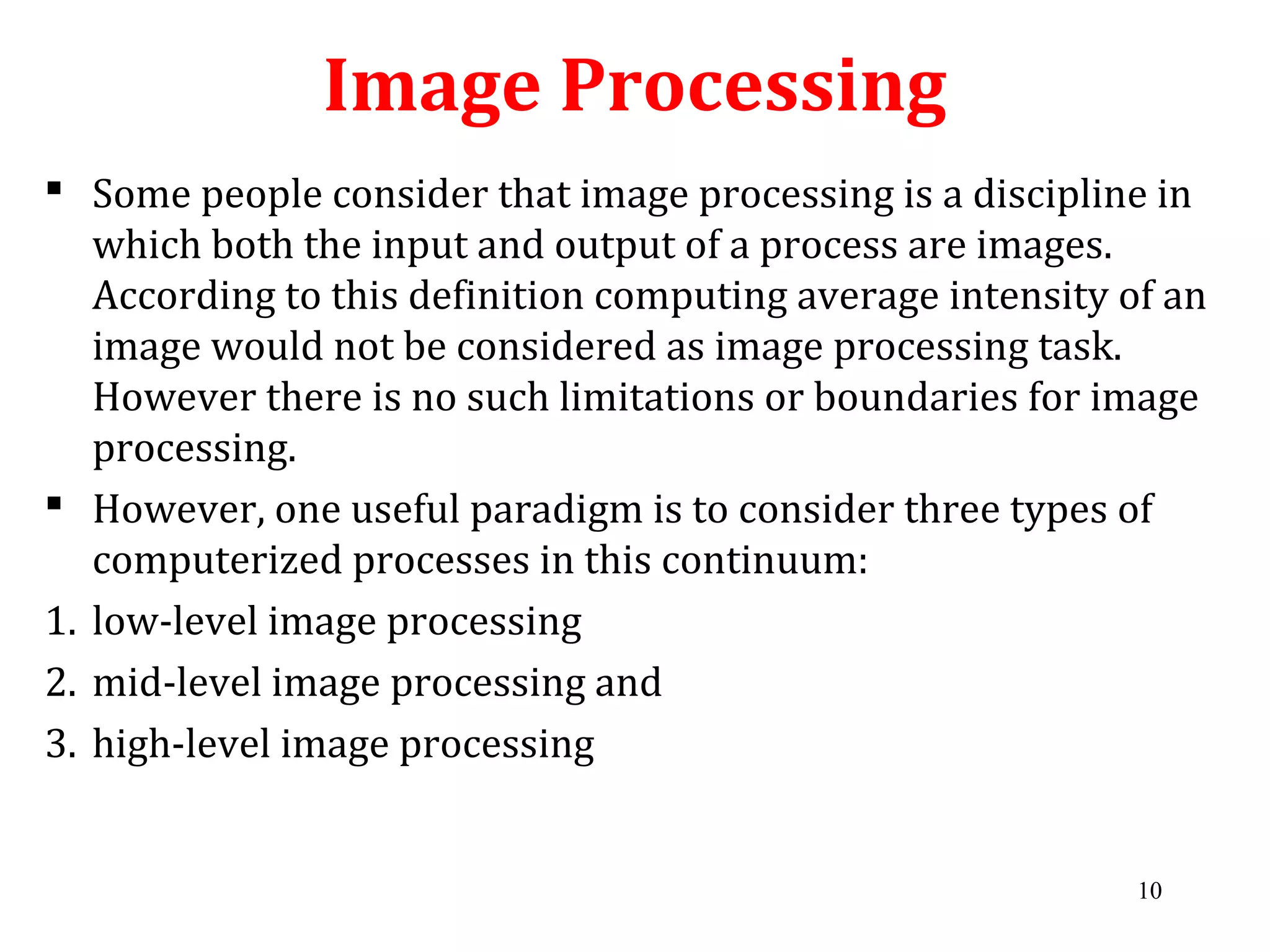

Image Processing
 Some people consider that image processing is a discipline in
which both the input and output of a process are images.
According to this definition computing average intensity of an
image would not be considered as image processing task.
However there is no such limitations or boundaries for image
processing.
 However, one useful paradigm is to consider three types of
computerized processes in this continuum:
1. low-level image processing
2. mid-level image processing and
3. high-level image processing
10

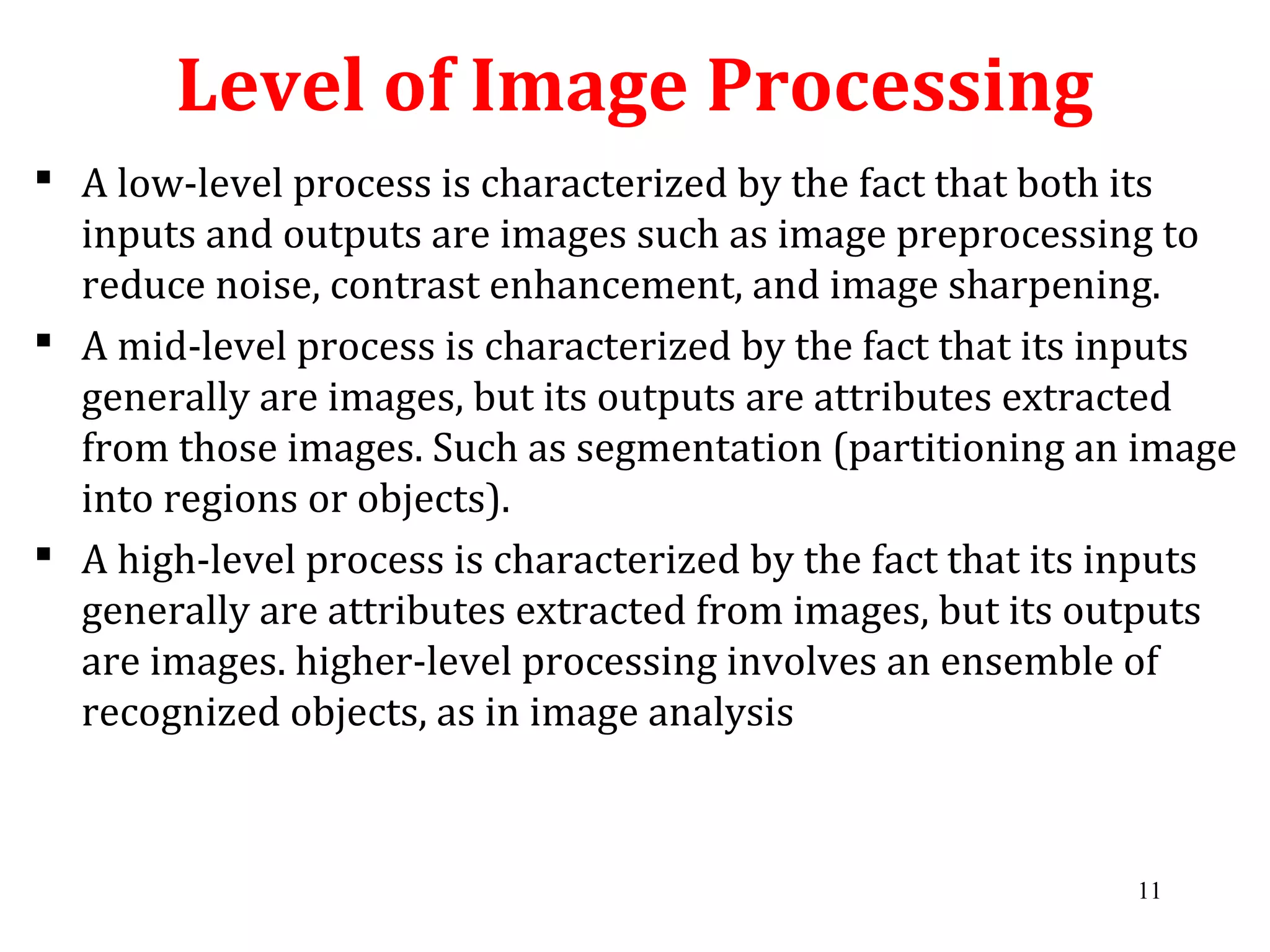

Level of Image Processing
 A low-level process is characterized by the fact that both its
inputs and outputs are images such as image preprocessing to
reduce noise, contrast enhancement, and image sharpening.
 A mid-level process is characterized by the fact that its inputs
generally are images, but its outputs are attributes extracted
from those images. Such as segmentation (partitioning an image
into regions or objects).
 A high-level process is characterized by the fact that its inputs
generally are attributes extracted from images, but its outputs
are images. higher-level processing involves an ensemble of
recognized objects, as in image analysis
11

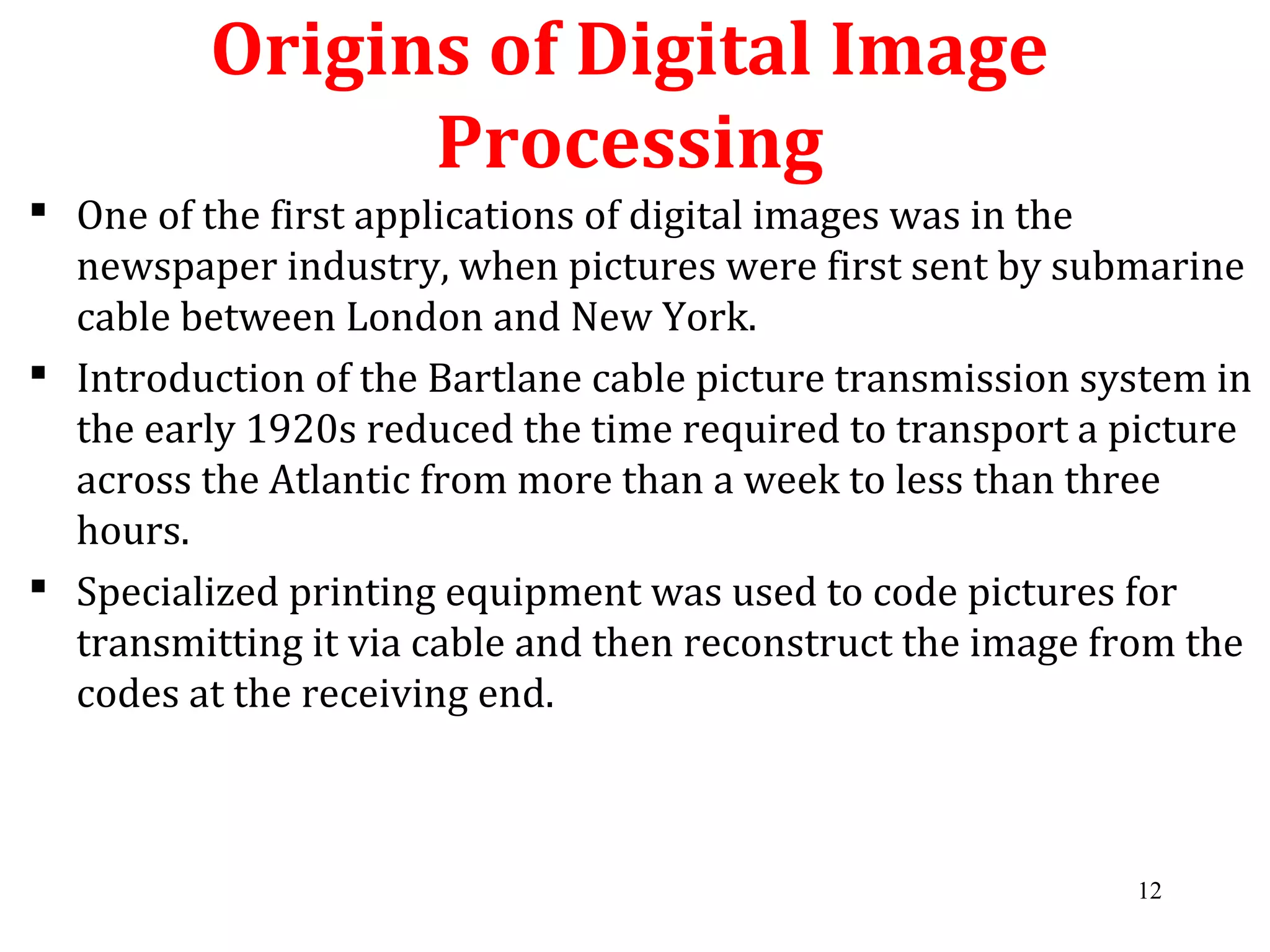

Origins of Digital Image
Processing
 One of the first applications of digital images was in the
newspaper industry, when pictures were first sent by submarine
cable between London and New York.
 Introduction of the Bartlane cable picture transmission system in
the early 1920s reduced the time required to transport a picture
across the Atlantic from more than a week to less than three
hours.
 Specialized printing equipment was used to code pictures for
transmitting it via cable and then reconstruct the image from the
codes at the receiving end.
12

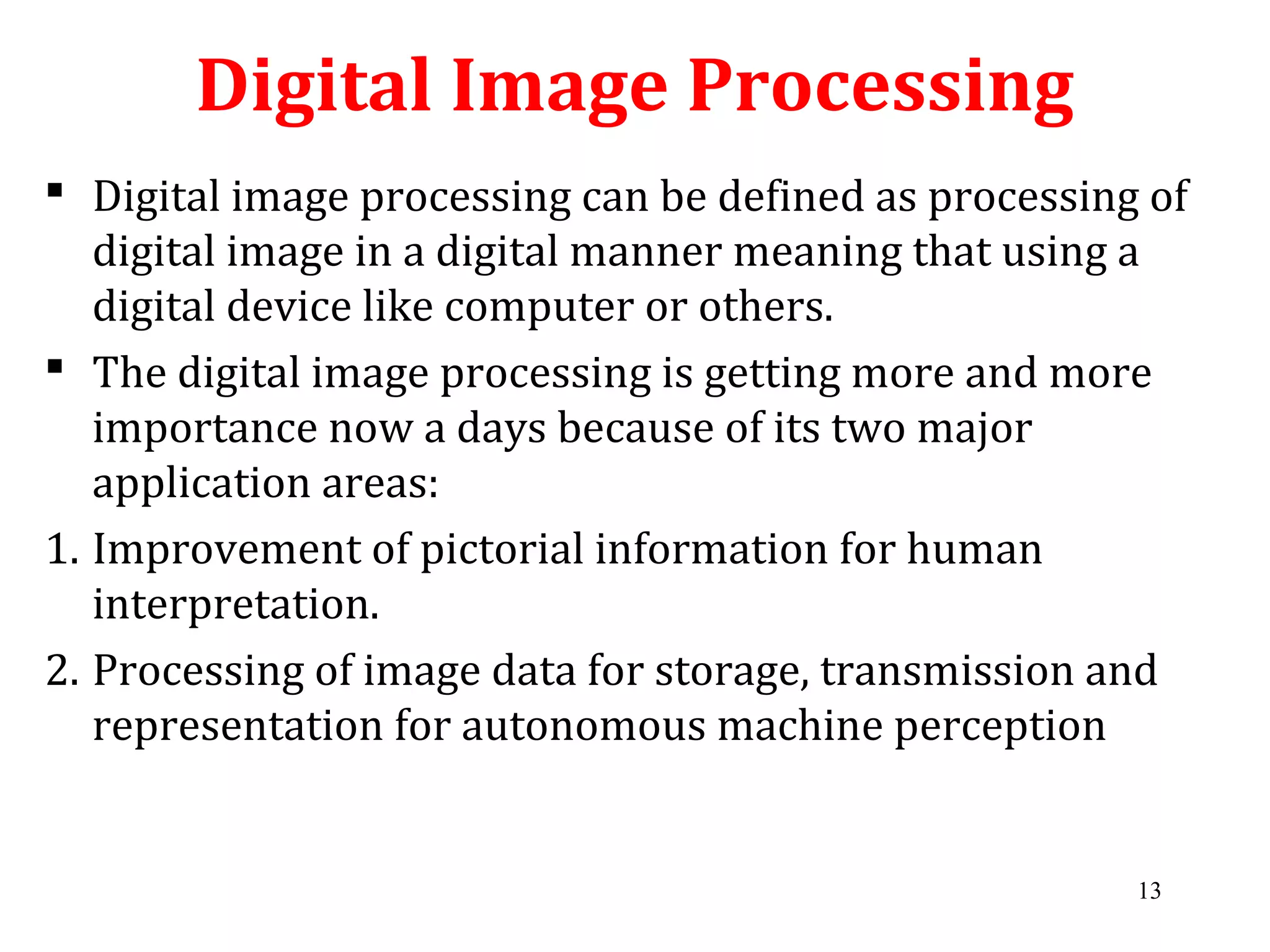

Digital Image Processing
 Digital image processing can be defined as processing of
digital image in a digital manner meaning that using a
digital device like computer or others.
 The digital image processing is getting more and more
importance now a days because of its two major
application areas:
1. Improvement of pictorial information for human
interpretation.
2. Processing of image data for storage, transmission and
representation for autonomous machine perception
13
14

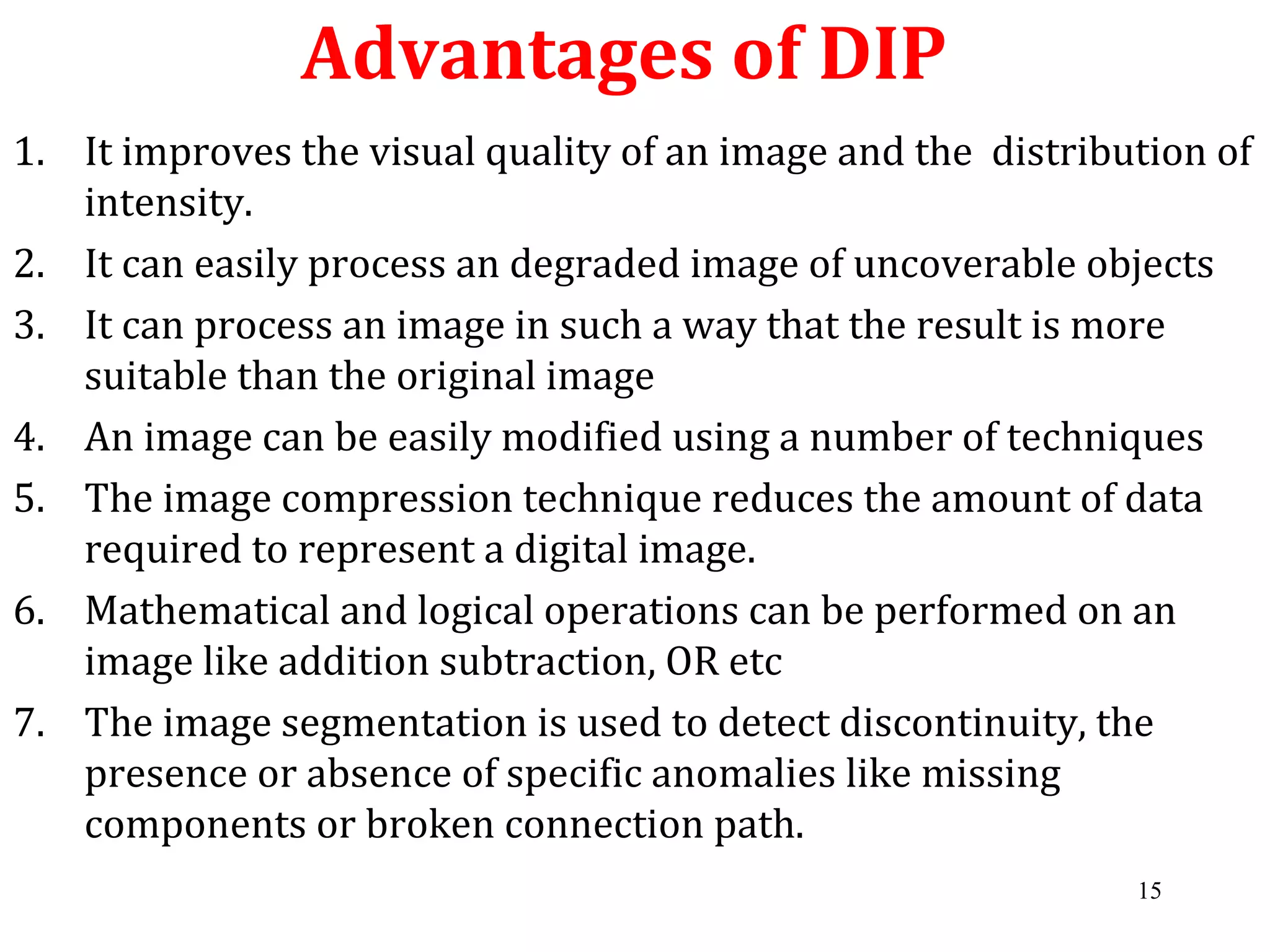

Advantages of DIP
1. It improves the visual quality of an image and the distribution of
intensity.
2. It can easily process an degraded image of uncoverable objects
3. It can process an image in such a way that the result is more
suitable than the original image
4. An image can be easily modified using a number of techniques
5. The image compression technique reduces the amount of data
required to represent a digital image.
6. Mathematical and logical operations can be performed on an
image like addition subtraction, OR etc
7. The image segmentation is used to detect discontinuity, the
presence or absence of specific anomalies like missing
components or broken connection path.
15

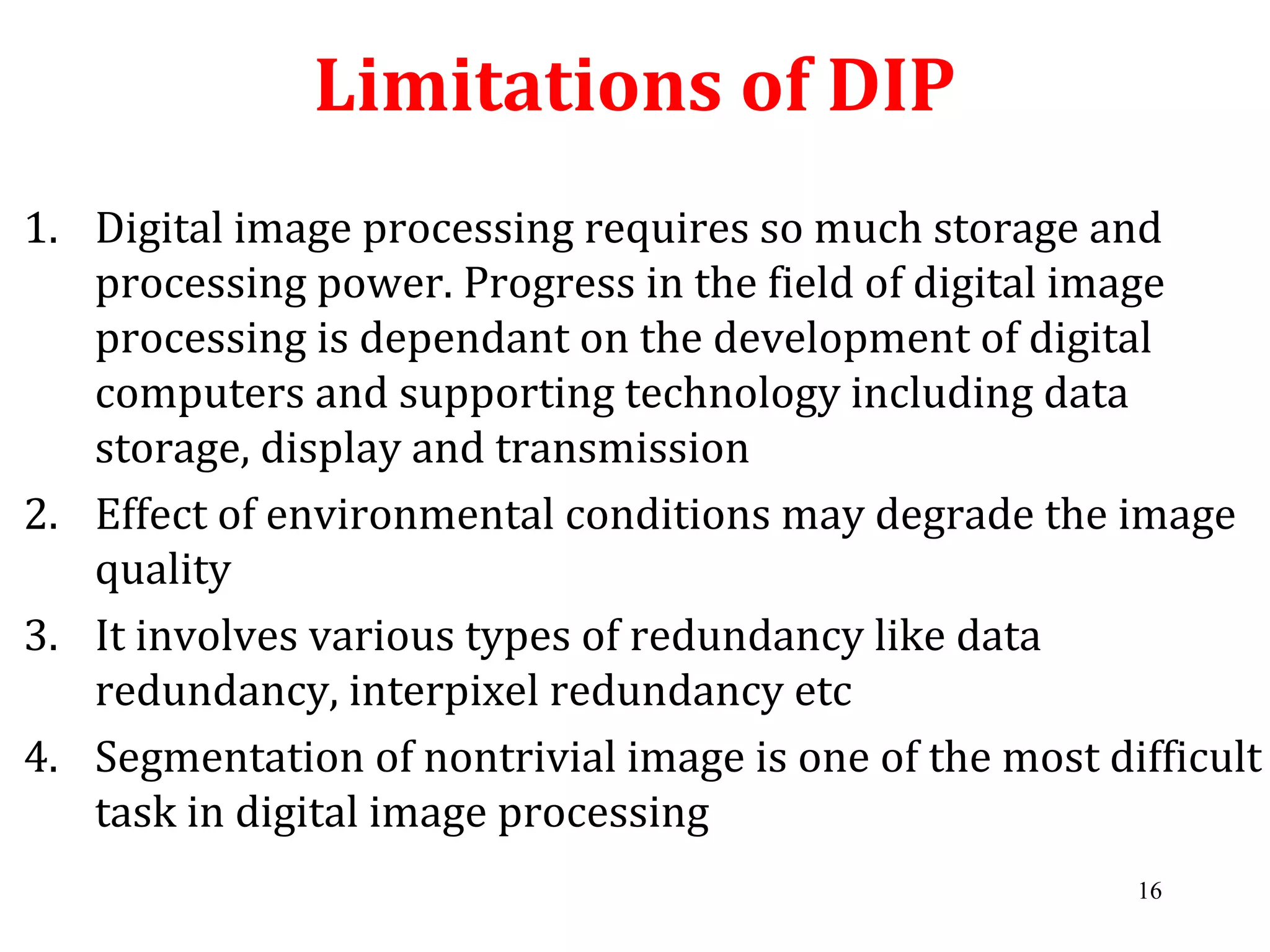

Limitations of DIP
1. Digital image processing requires so much storage and
processing power. Progress in the field of digital image
processing is dependant on the development of digital
computers and supporting technology including data
storage, display and transmission
2. Effect of environmental conditions may degrade the image
quality
3. It involves various types of redundancy like data
redundancy, interpixel redundancy etc
4. Segmentation of nontrivial image is one of the most difficult
task in digital image processing
16

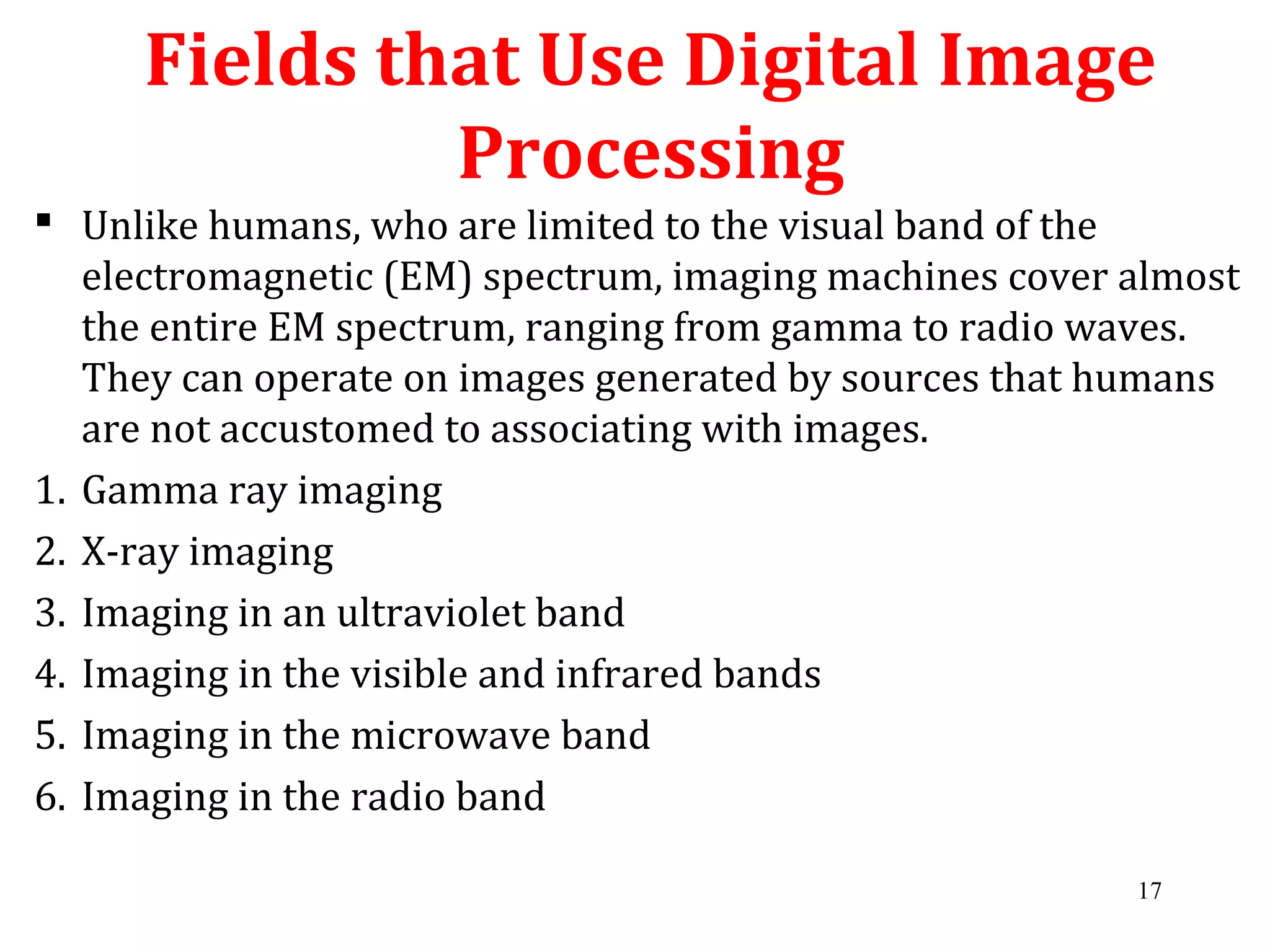

Fields that Use Digital Image
Processing
 Unlike humans, who are limited to the visual band of the
electromagnetic (EM) spectrum, imaging machines cover almost
the entire EM spectrum, ranging from gamma to radio waves.
They can operate on images generated by sources that humans
are not accustomed to associating with images.
1. Gamma ray imaging
2. X-ray imaging
3. Imaging in an ultraviolet band
4. Imaging in the visible and infrared bands
5. Imaging in the microwave band
6. Imaging in the radio band
17

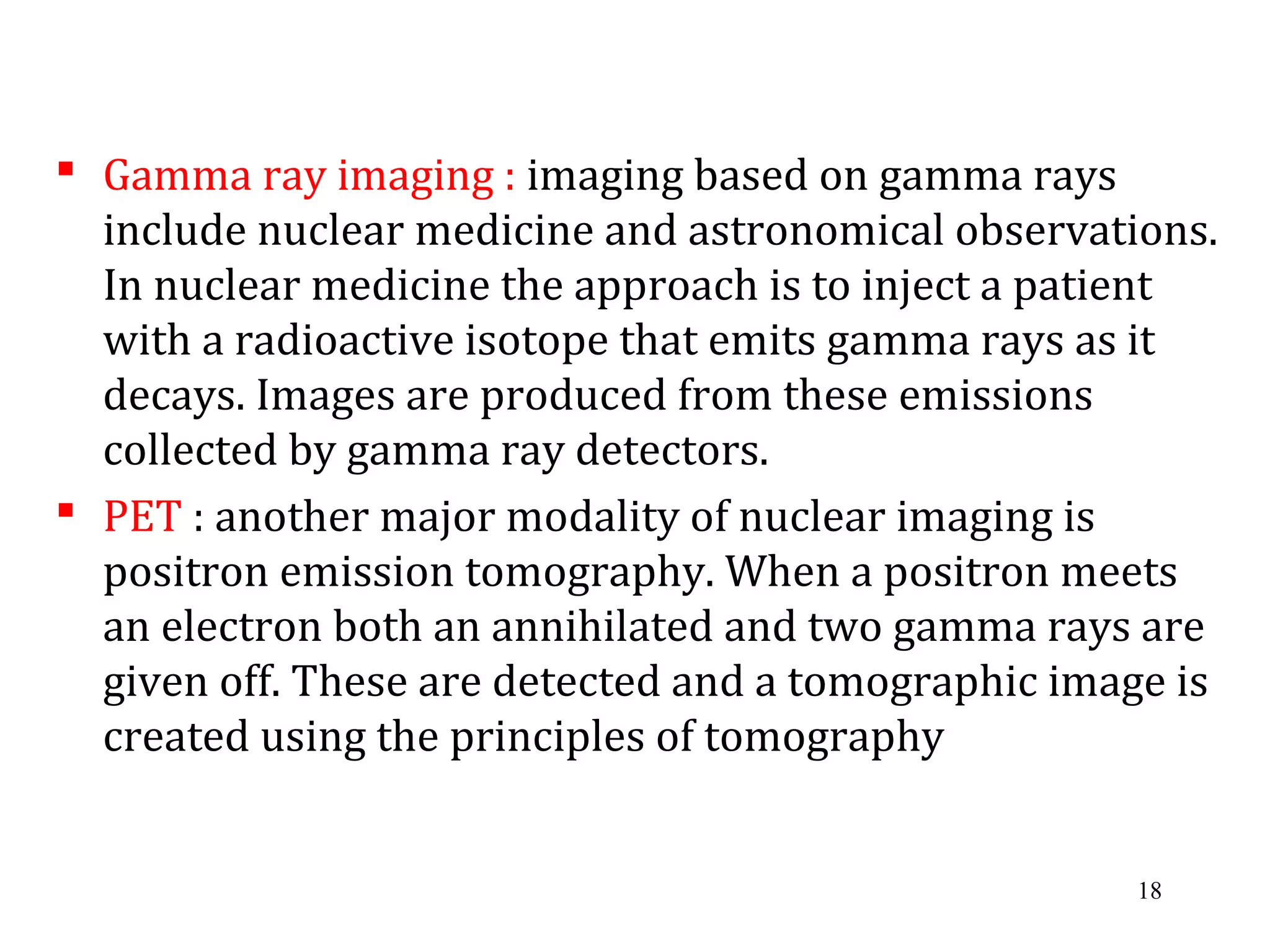

 Gamma ray imaging : imaging based on gamma rays
include nuclear medicine and astronomical observations.
In nuclear medicine the approach is to inject a patient
with a radioactive isotope that emits gamma rays as it
decays. Images are produced from these emissions
collected by gamma ray detectors.
 PET : another major modality of nuclear imaging is
positron emission tomography. When a positron meets
an electron both an annihilated and two gamma rays are
given off. These are detected and a tomographic image is
created using the principles of tomography
18

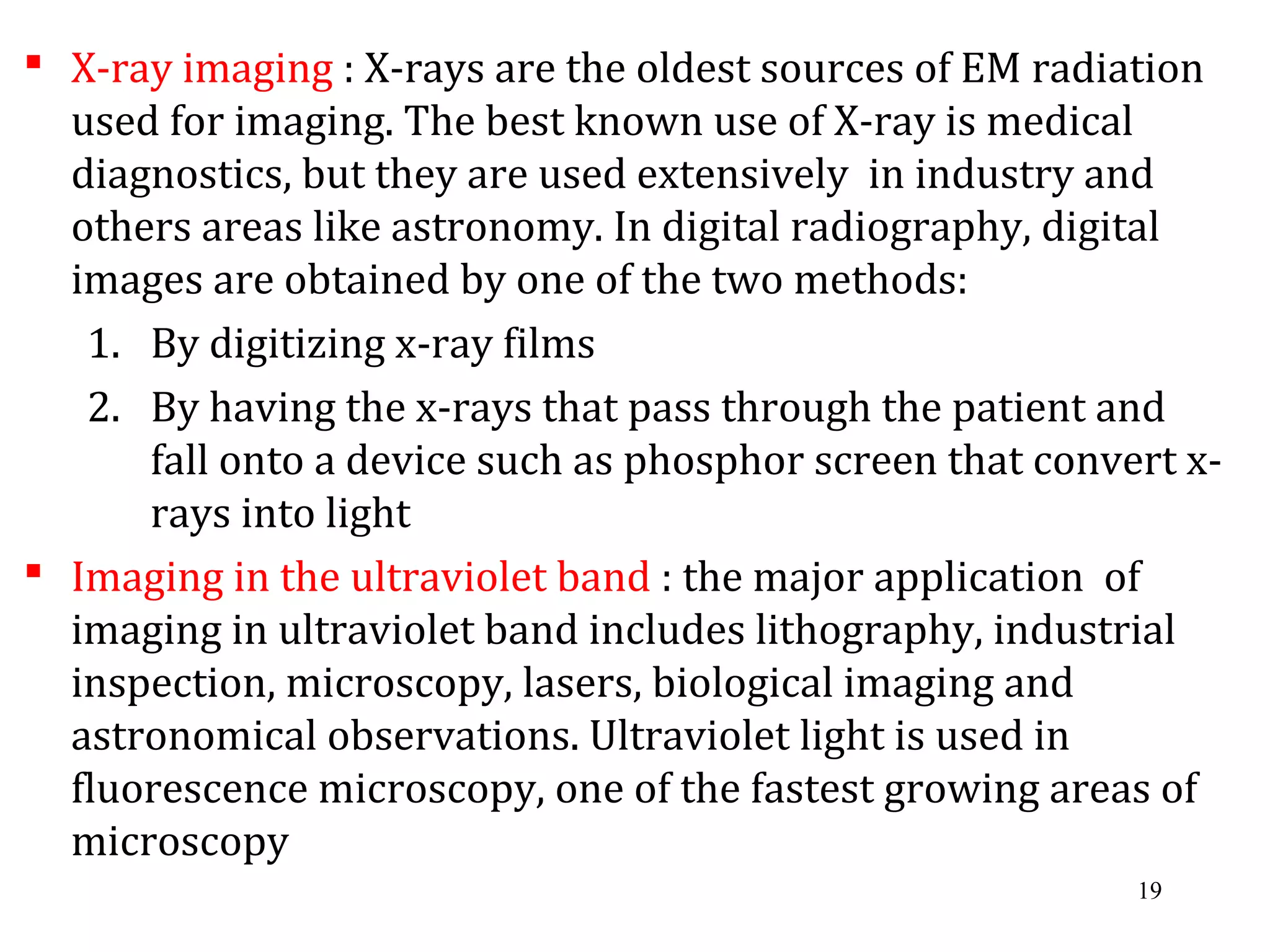

 X-ray imaging : X-rays are the oldest sources of EM radiation
used for imaging. The best known use of X-ray is medical
diagnostics, but they are used extensively in industry and
others areas like astronomy. In digital radiography, digital
images are obtained by one of the two methods:
1. By digitizing x-ray films
2. By having the x-rays that pass through the patient and
fall onto a device such as phosphor screen that convert x-
rays into light
 Imaging in the ultraviolet band : the major application of
imaging in ultraviolet band includes lithography, industrial
inspection, microscopy, lasers, biological imaging and
astronomical observations. Ultraviolet light is used in
fluorescence microscopy, one of the fastest growing areas of
microscopy
19

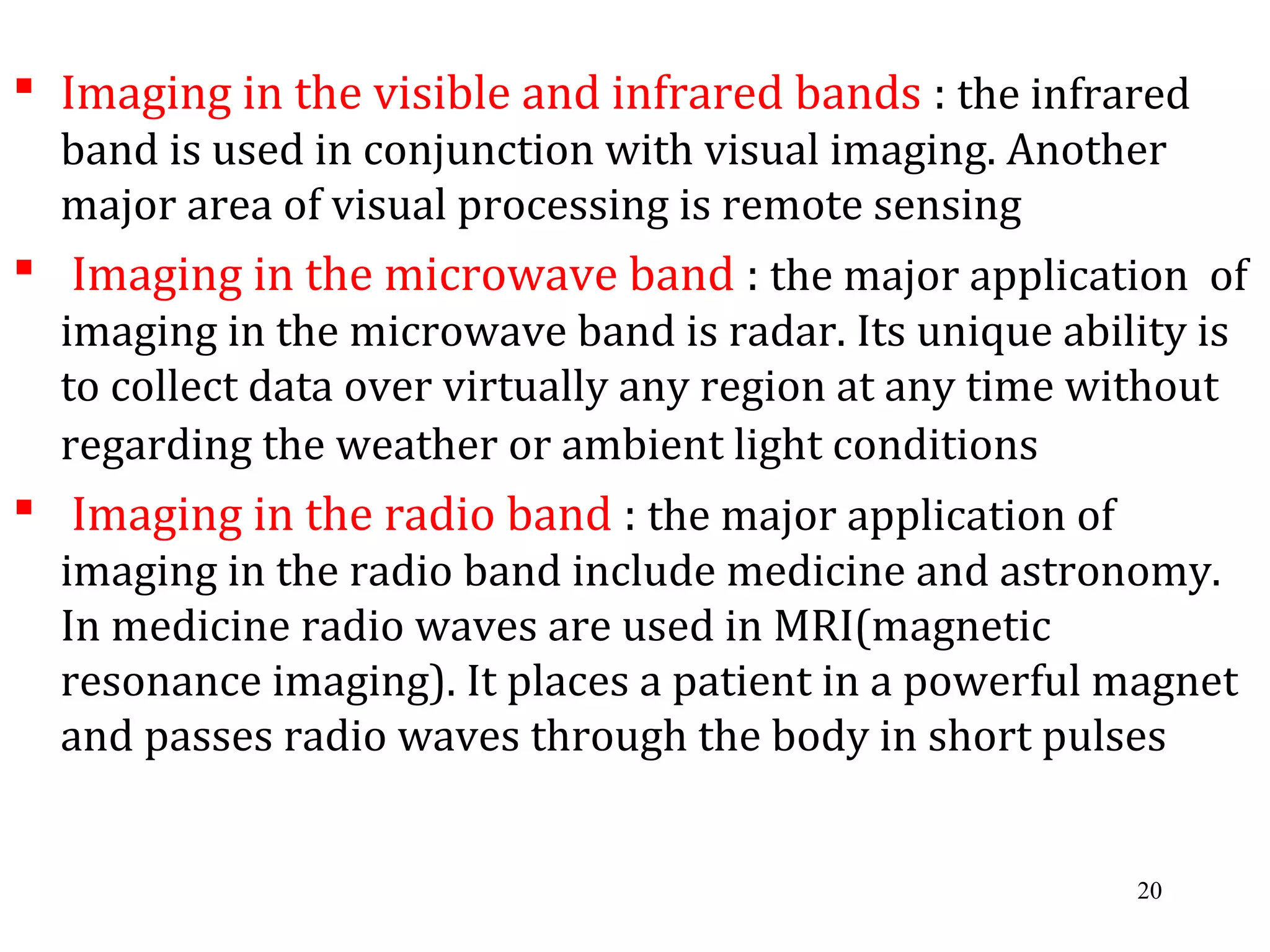

 Imaging in the visible and infrared bands : the infrared
band is used in conjunction with visual imaging. Another
major area of visual processing is remote sensing
 Imaging in the microwave band : the major application of
imaging in the microwave band is radar. Its unique ability is
to collect data over virtually any region at any time without
regarding the weather or ambient light conditions
 Imaging in the radio band : the major application of
imaging in the radio band include medicine and astronomy.
In medicine radio waves are used in MRI(magnetic
resonance imaging). It places a patient in a powerful magnet
and passes radio waves through the body in short pulses
20

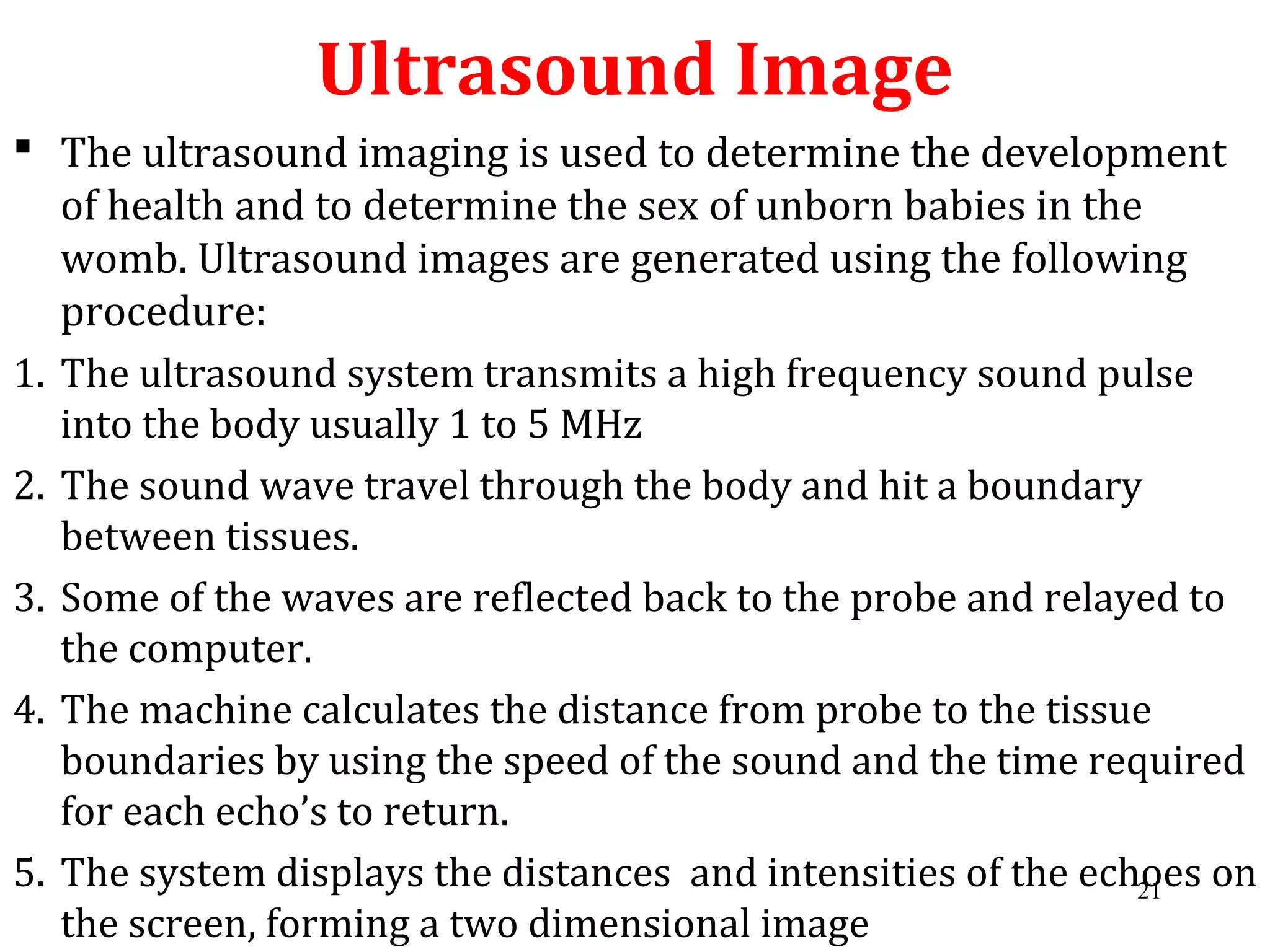

Ultrasound Image
 The ultrasound imaging is used to determine the development
of health and to determine the sex of unborn babies in the
womb. Ultrasound images are generated using the following
procedure:
1. The ultrasound system transmits a high frequency sound pulse
into the body usually 1 to 5 MHz
2. The sound wave travel through the body and hit a boundary
between tissues.
3. Some of the waves are reflected back to the probe and relayed to
the computer.
4. The machine calculates the distance from probe to the tissue
boundaries by using the speed of the sound and the time required
for each echo’s to return.
5. The system displays the distances and intensities of the echoes on
the screen, forming a two dimensional image
21

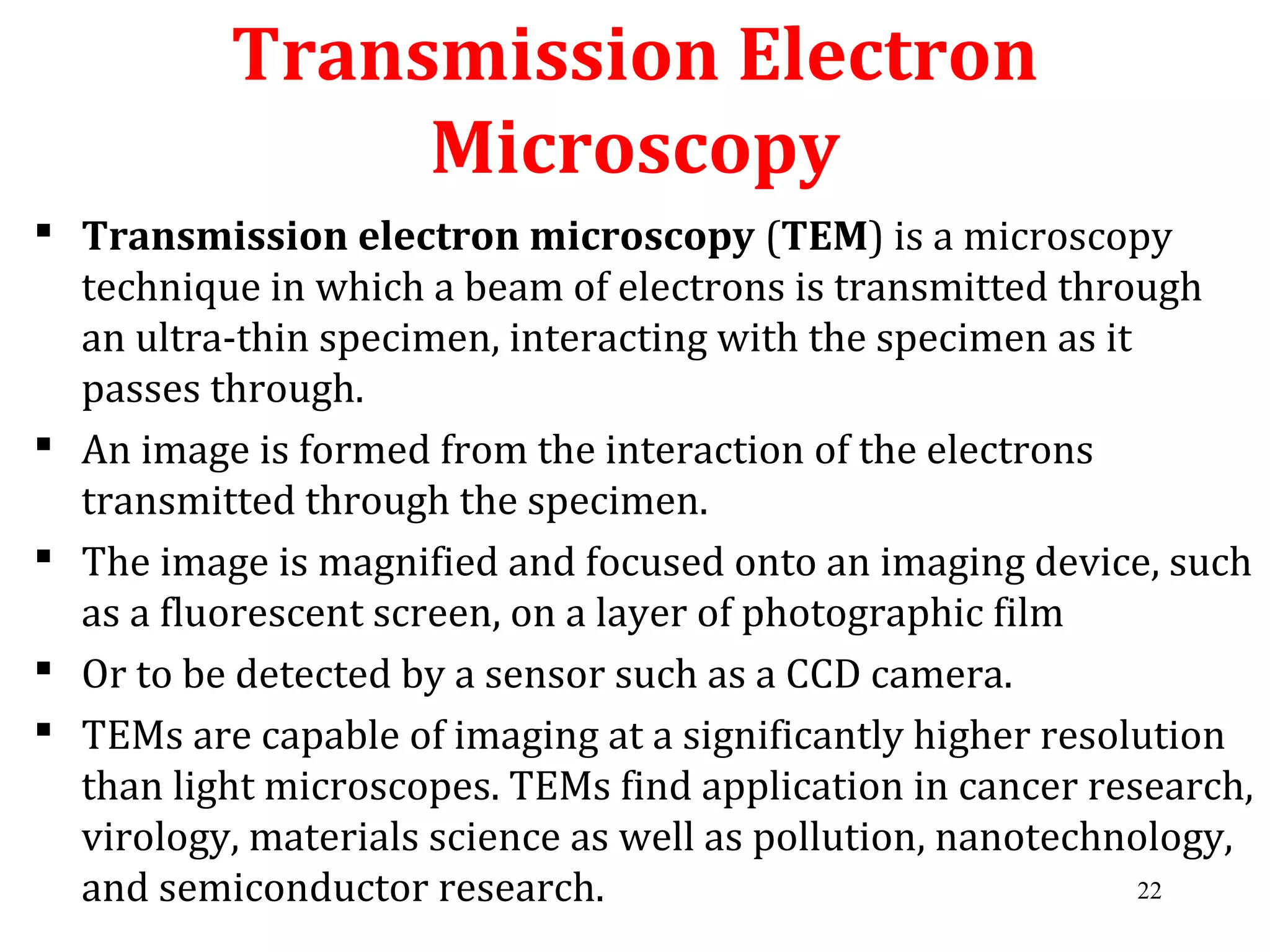

 Transmission electron microscopy (TEM) is a microscopy
technique in which a beam of electrons is transmitted through
an ultra-thin specimen, interacting with the specimen as it
passes through.
 An image is formed from the interaction of the electrons
transmitted through the specimen.
 The image is magnified and focused onto an imaging device, such
as a fluorescent screen, on a layer of photographic film
 Or to be detected by a sensor such as a CCD camera.
 TEMs are capable of imaging at a significantly higher resolution
than light microscopes. TEMs find application in cancer research,
virology, materials science as well as pollution, nanotechnology,
and semiconductor research.
Transmission Electron
Microscopy
22
Transmission Electron
Microscopy
A TEM image of the polio virus.
The polio virus is 30 nm in size
23

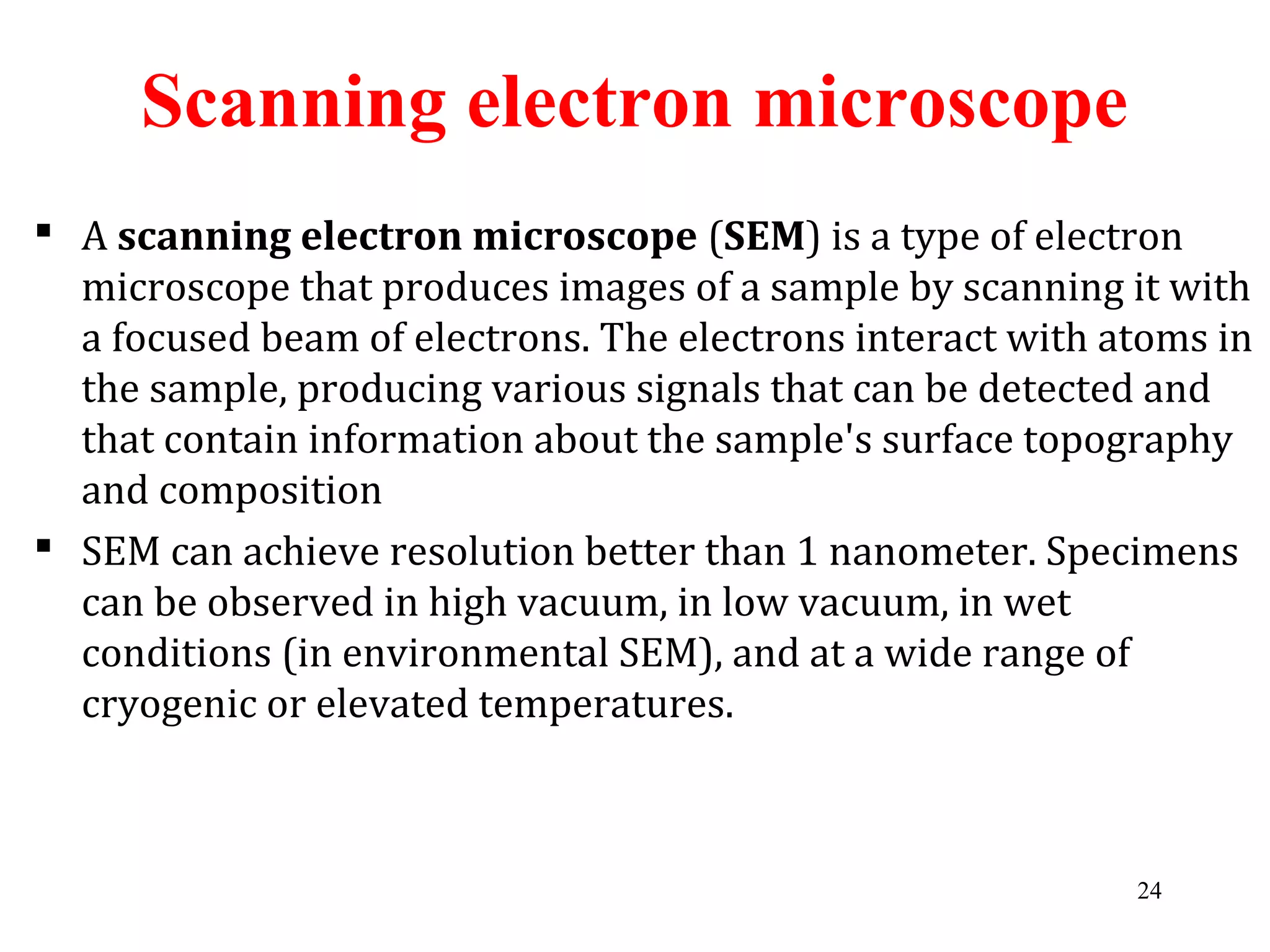

 A scanning electron microscope (SEM) is a type of electron
microscope that produces images of a sample by scanning it with
a focused beam of electrons. The electrons interact with atoms in
the sample, producing various signals that can be detected and
that contain information about the sample's surface topography
and composition
 SEM can achieve resolution better than 1 nanometer. Specimens
can be observed in high vacuum, in low vacuum, in wet
conditions (in environmental SEM), and at a wide range of
cryogenic or elevated temperatures.
Scanning electron microscope
24

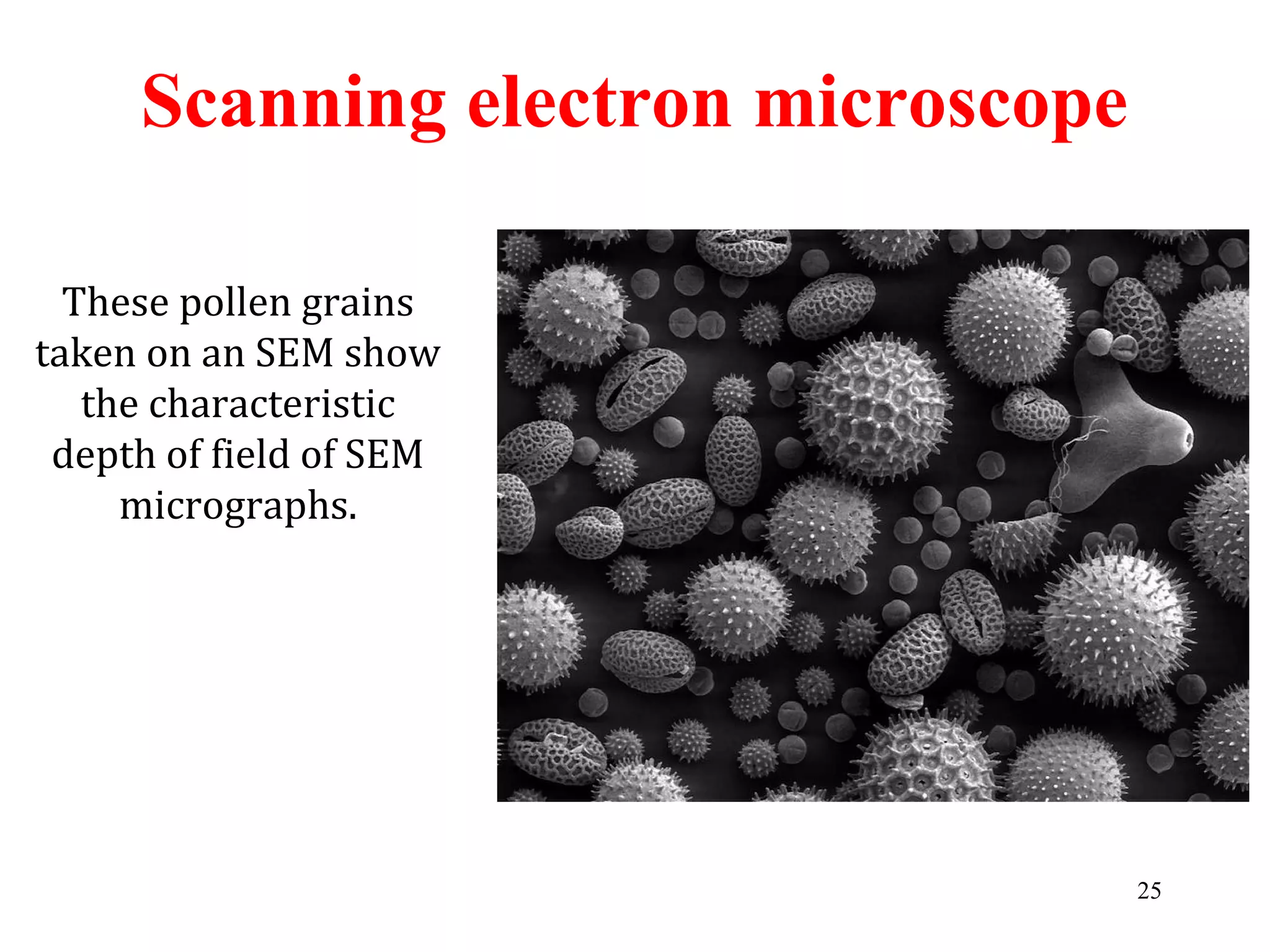

Scanning electron microscope
These pollen grains
taken on an SEM show
the characteristic
depth of field of SEM
micrographs.
25

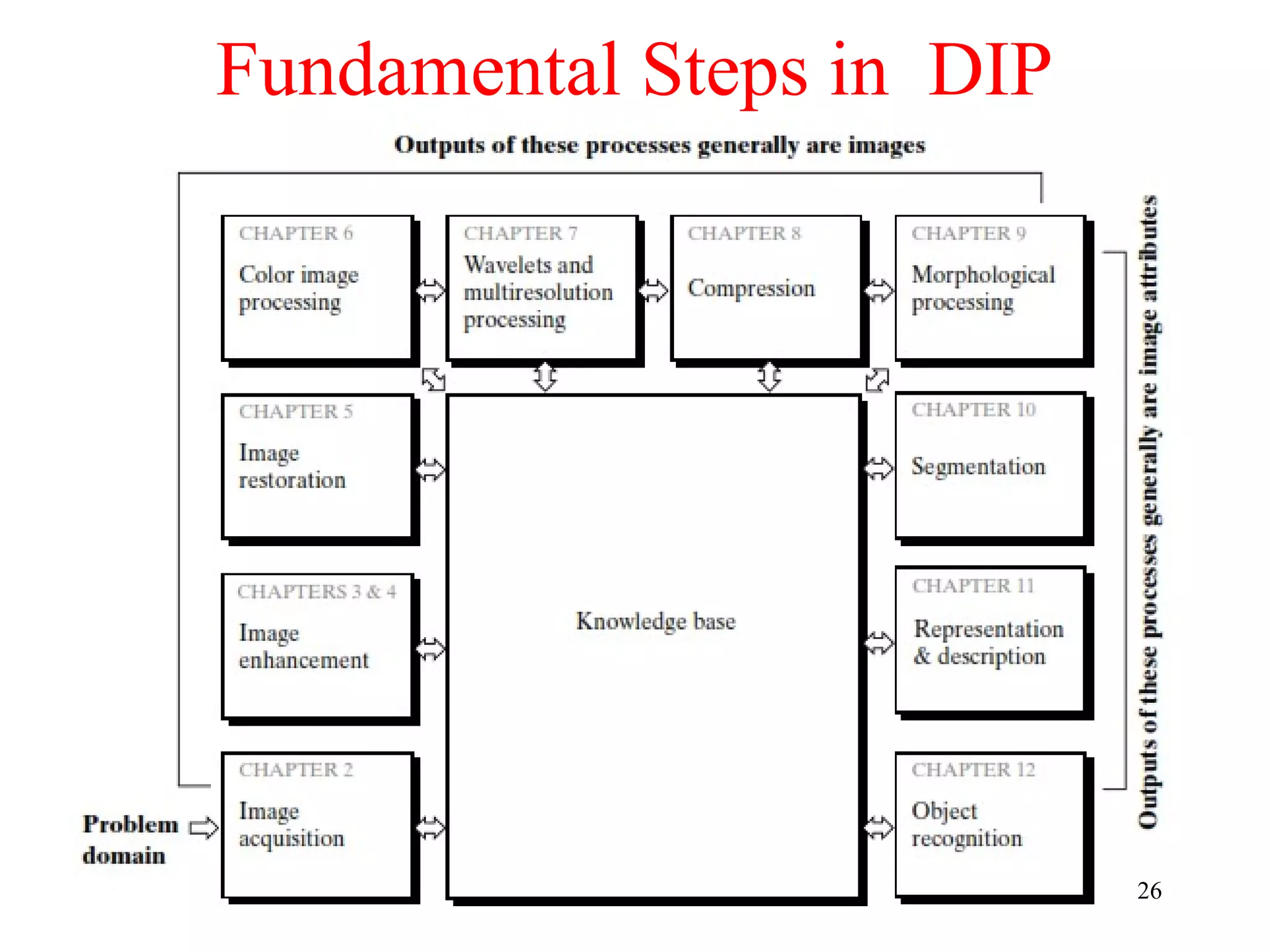

Fundamental Steps in DIP
26

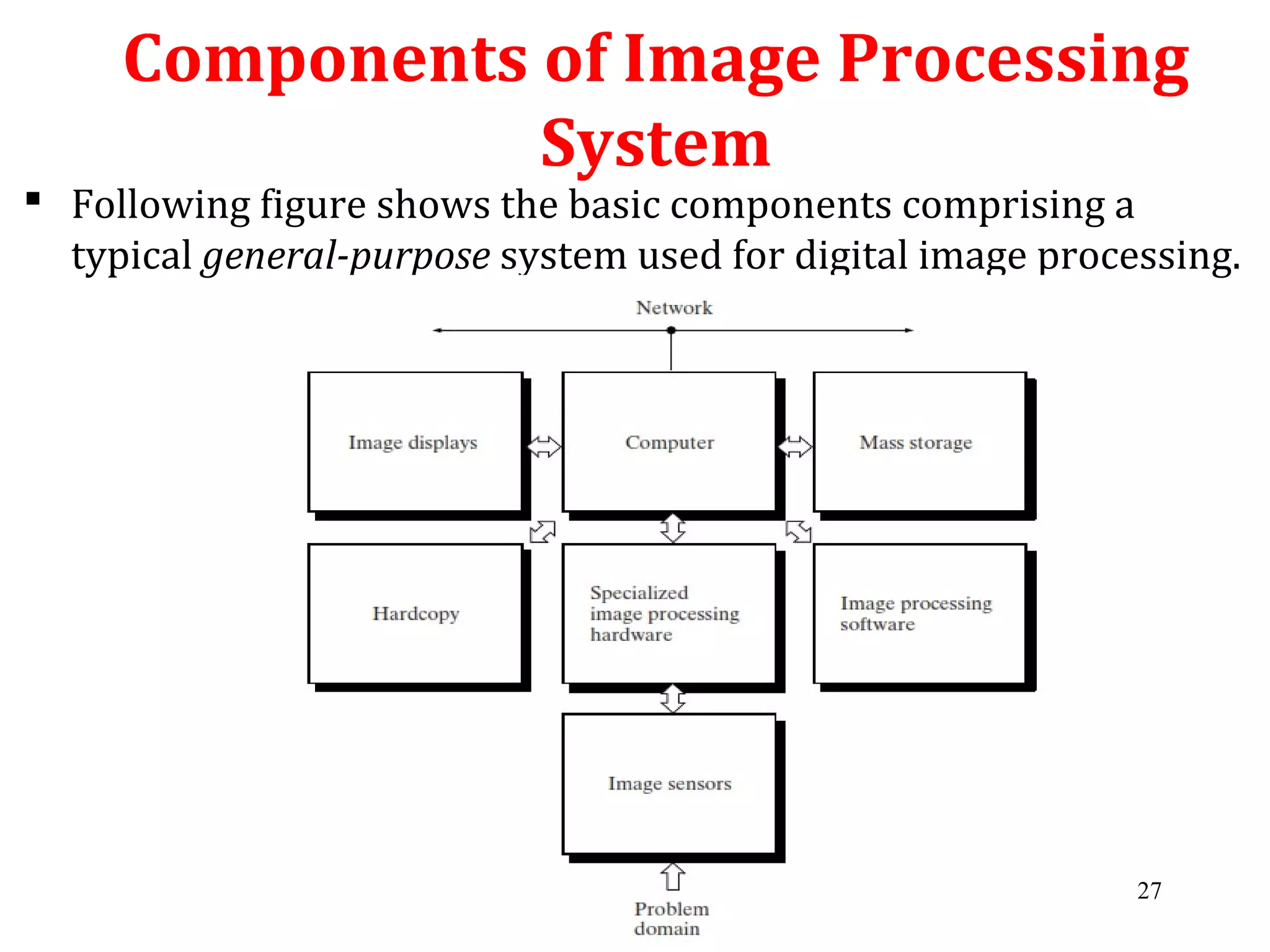

Components of Image Processing
System
 Following figure shows the basic components comprising a
typical general-purpose system used for digital image processing.
27

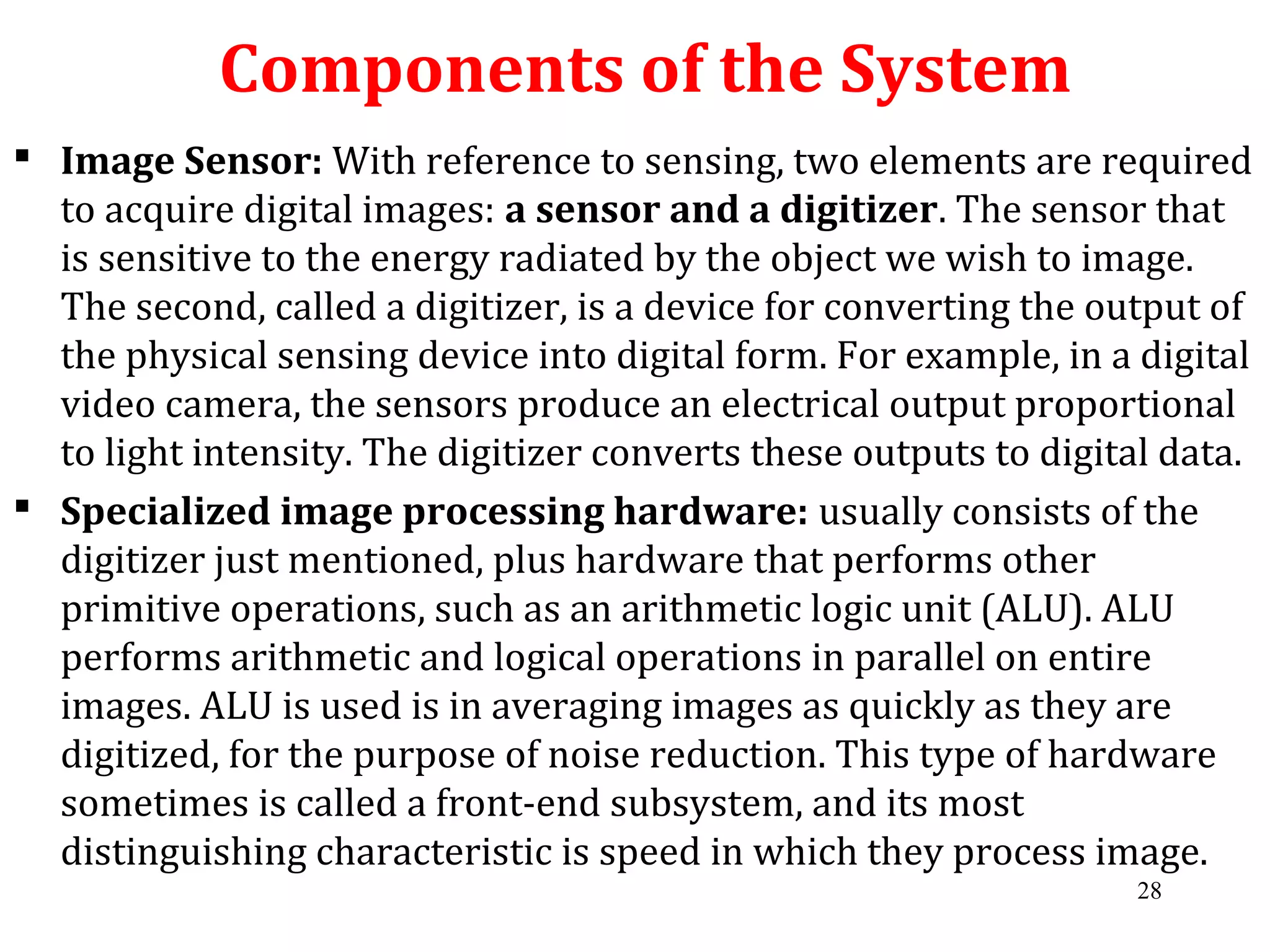

Components of the System
 Image Sensor: With reference to sensing, two elements are required
to acquire digital images: a sensor and a digitizer. The sensor that
is sensitive to the energy radiated by the object we wish to image.
The second, called a digitizer, is a device for converting the output of
the physical sensing device into digital form. For example, in a digital
video camera, the sensors produce an electrical output proportional
to light intensity. The digitizer converts these outputs to digital data.
 Specialized image processing hardware: usually consists of the
digitizer just mentioned, plus hardware that performs other
primitive operations, such as an arithmetic logic unit (ALU). ALU
performs arithmetic and logical operations in parallel on entire
images. ALU is used is in averaging images as quickly as they are
digitized, for the purpose of noise reduction. This type of hardware
sometimes is called a front-end subsystem, and its most
distinguishing characteristic is speed in which they process image.
28

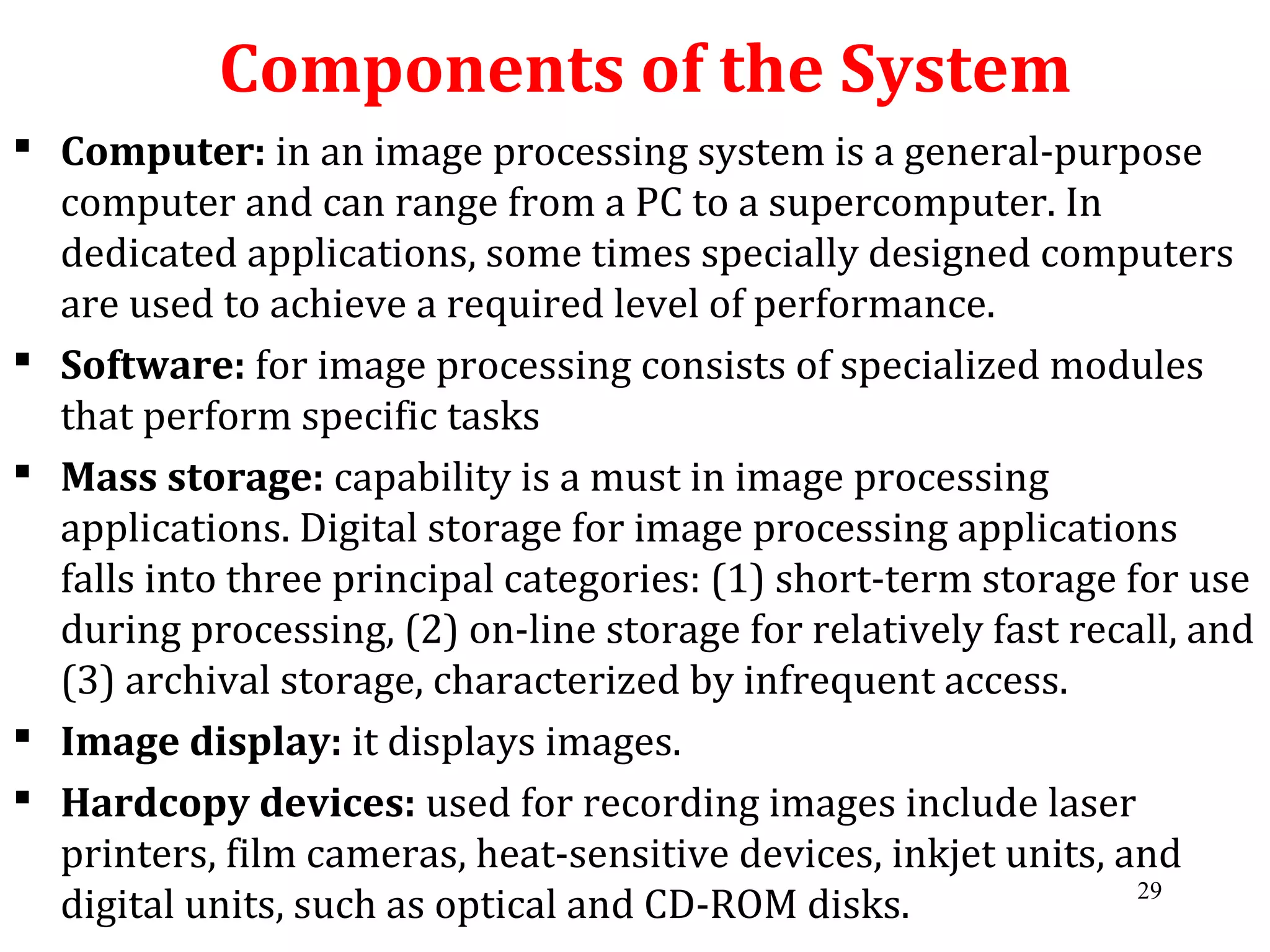

Components of the System
 Computer: in an image processing system is a general-purpose
computer and can range from a PC to a supercomputer. In
dedicated applications, some times specially designed computers
are used to achieve a required level of performance.
 Software: for image processing consists of specialized modules
that perform specific tasks
 Mass storage: capability is a must in image processing
applications. Digital storage for image processing applications
falls into three principal categories: (1) short-term storage for use
during processing, (2) on-line storage for relatively fast recall, and
(3) archival storage, characterized by infrequent access.
 Image display: it displays images.
 Hardcopy devices: used for recording images include laser
printers, film cameras, heat-sensitive devices, inkjet units, and
digital units, such as optical and CD-ROM disks. 29

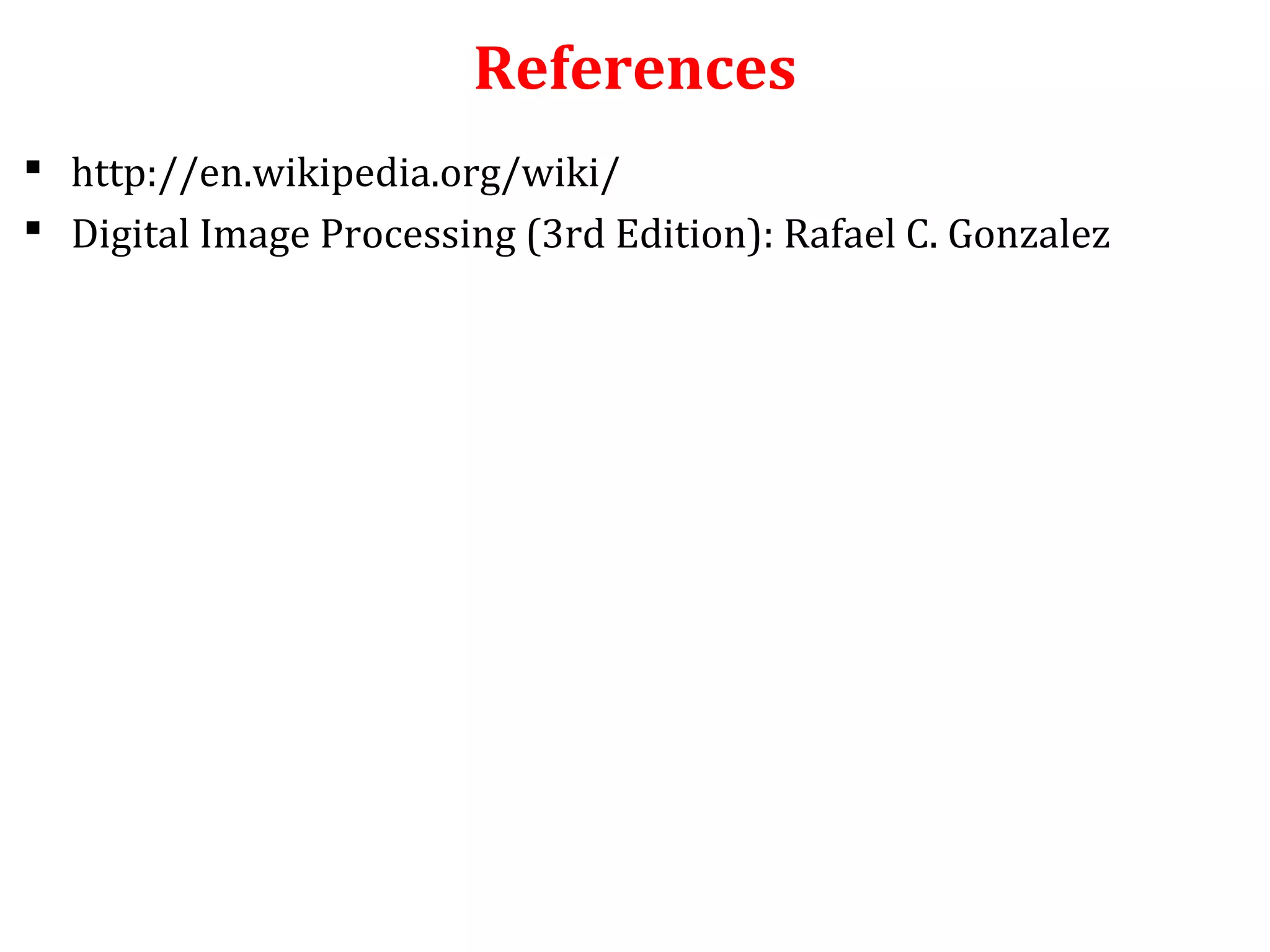

References
 http://en.wikipedia.org/wiki/
 Digital Image Processing (3rd Edition): Rafael C. Gonzalez
31
Md. Shakhawat Hossain
Student of Department of Computer Science &
Engineering
University of Rajshahi
E-mail: mshimul86@gmail.com

More Related Content

What's hot

Fundamental Steps of Digital Image Processing & Image Components
Fundamental Steps of Digital Image Processing & Image ComponentsFundamental Steps of Digital Image Processing & Image Components
Fundamental Steps of Digital Image Processing & Image ComponentsKalyan Acharjya

Chapter 1 and 2 gonzalez and woods
Chapter 1 and 2 gonzalez and woodsChapter 1 and 2 gonzalez and woods
Chapter 1 and 2 gonzalez and woodsasodariyabhavesh

Image processing second unit Notes
Image processing second unit NotesImage processing second unit Notes
Image processing second unit NotesAAKANKSHA JAIN

Image Registration (Digital Image Processing)
Image Registration (Digital Image Processing)Image Registration (Digital Image Processing)
Image Registration (Digital Image Processing)VARUN KUMAR

Histogram Processing
Histogram ProcessingHistogram Processing
Histogram ProcessingAmnaakhaan

Image Restoration
Image RestorationImage Restoration
Image RestorationPoonam Seth

Region based segmentation
Region based segmentationRegion based segmentation
Region based segmentationramya marichamy

Smoothing Filters in Spatial Domain
Smoothing Filters in Spatial DomainSmoothing Filters in Spatial Domain
Smoothing Filters in Spatial DomainMadhu Bala

Digital Image Processing: Digital Image Fundamentals
Digital Image Processing: Digital Image FundamentalsDigital Image Processing: Digital Image Fundamentals
Digital Image Processing: Digital Image FundamentalsMostafa G. M. Mostafa

Fundamentals steps in Digital Image processing
Fundamentals steps in Digital Image processingFundamentals steps in Digital Image processing
Fundamentals steps in Digital Image processingKarthicaMarasamy

Digital image processing
Digital image processingDigital image processing
Digital image processingChetan Hulsure

Point processing
Point processingPoint processing
Point processingpanupriyaa7

Image Processing Basics
Image Processing BasicsImage Processing Basics
Image Processing BasicsA B Shinde

introduction to Digital Image Processing
introduction to Digital Image Processingintroduction to Digital Image Processing
introduction to Digital Image Processingnikesh gadare


What's hot (20)

Image processing ppt
Image processing pptImage processing ppt
Image processing ppt

Fundamental Steps of Digital Image Processing & Image Components
Fundamental Steps of Digital Image Processing & Image ComponentsFundamental Steps of Digital Image Processing & Image Components
Fundamental Steps of Digital Image Processing & Image Components

image enhancement
 image enhancement image enhancement
image enhancement

IMAGE SEGMENTATION.
IMAGE SEGMENTATION.IMAGE SEGMENTATION.
IMAGE SEGMENTATION.

Chapter 1 and 2 gonzalez and woods
Chapter 1 and 2 gonzalez and woodsChapter 1 and 2 gonzalez and woods
Chapter 1 and 2 gonzalez and woods

Unit3 dip
Unit3 dipUnit3 dip
Unit3 dip

Image processing second unit Notes
Image processing second unit NotesImage processing second unit Notes
Image processing second unit Notes

Image Registration (Digital Image Processing)
Image Registration (Digital Image Processing)Image Registration (Digital Image Processing)
Image Registration (Digital Image Processing)

Histogram Processing
Histogram ProcessingHistogram Processing
Histogram Processing

Image Restoration
Image RestorationImage Restoration
Image Restoration

Region based segmentation
Region based segmentationRegion based segmentation
Region based segmentation

Smoothing Filters in Spatial Domain
Smoothing Filters in Spatial DomainSmoothing Filters in Spatial Domain
Smoothing Filters in Spatial Domain

Digital Image Processing: Digital Image Fundamentals
Digital Image Processing: Digital Image FundamentalsDigital Image Processing: Digital Image Fundamentals
Digital Image Processing: Digital Image Fundamentals

Edge detection
Edge detectionEdge detection
Edge detection

EDGE DETECTION
EDGE DETECTIONEDGE DETECTION
EDGE DETECTION

Fundamentals steps in Digital Image processing
Fundamentals steps in Digital Image processingFundamentals steps in Digital Image processing
Fundamentals steps in Digital Image processing

Digital image processing
Digital image processingDigital image processing
Digital image processing

Point processing
Point processingPoint processing
Point processing

Image Processing Basics
Image Processing BasicsImage Processing Basics
Image Processing Basics

introduction to Digital Image Processing
introduction to Digital Image Processingintroduction to Digital Image Processing
introduction to Digital Image Processing


Similar to Introduction to digital image processing

Biomedical image processing ppt
Biomedical image processing pptBiomedical image processing ppt
Biomedical image processing pptPriyanka Goswami

Advance image processing
Advance image processingAdvance image processing
Advance image processingAAKANKSHA JAIN

Chap_1_Digital_Image_Fundamentals_DD (2).pdf
Chap_1_Digital_Image_Fundamentals_DD (2).pdfChap_1_Digital_Image_Fundamentals_DD (2).pdf
Chap_1_Digital_Image_Fundamentals_DD (2).pdfMrNeon5

image Processing Fundamental Is .ppt
image Processing Fundamental Is     .pptimage Processing Fundamental Is     .ppt
image Processing Fundamental Is .pptDesalechali1

Image Processing Fundamentals .ppt
Image Processing Fundamentals        .pptImage Processing Fundamentals        .ppt
Image Processing Fundamentals .pptDesalechali1

A supervised lung nodule classification method using patch based context anal...
A supervised lung nodule classification method using patch based context anal...A supervised lung nodule classification method using patch based context anal...
A supervised lung nodule classification method using patch based context anal...ASWATHY VG

Introduction to image processing-Class Notes
Introduction to image processing-Class NotesIntroduction to image processing-Class Notes
Introduction to image processing-Class NotesDr.YNM

clinical needs, medical devices, medical
clinical needs, medical devices, medicalclinical needs, medical devices, medical
clinical needs, medical devices, medicalAbdulWahab672

1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptx
1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptx1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptx
1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptxJayabharathiMuraliku

Digital imaging in dentistry / orthodontics courses
Digital imaging in dentistry / orthodontics courses Digital imaging in dentistry / orthodontics courses
Digital imaging in dentistry / orthodontics courses Indian dental academy

General Review Of Algorithms Presented For Image Segmentation
General Review Of Algorithms Presented For Image SegmentationGeneral Review Of Algorithms Presented For Image Segmentation
General Review Of Algorithms Presented For Image SegmentationMelissa Moore

computervision1.pdf it is about computer vision
computervision1.pdf it is about computer visioncomputervision1.pdf it is about computer vision
computervision1.pdf it is about computer visionshesnasuneer

An Introduction to Digital Image Analysis.pdf
An Introduction to Digital Image Analysis.pdfAn Introduction to Digital Image Analysis.pdf
An Introduction to Digital Image Analysis.pdfThe Lifesciences Magazine

Report medical image processing image slice interpolation and noise removal i...
Report medical image processing image slice interpolation and noise removal i...Report medical image processing image slice interpolation and noise removal i...
Report medical image processing image slice interpolation and noise removal i...Shashank


Similar to Introduction to digital image processing (20)

Biomedical image processing ppt
Biomedical image processing pptBiomedical image processing ppt
Biomedical image processing ppt

Advance image processing
Advance image processingAdvance image processing
Advance image processing

Chap_1_Digital_Image_Fundamentals_DD (2).pdf
Chap_1_Digital_Image_Fundamentals_DD (2).pdfChap_1_Digital_Image_Fundamentals_DD (2).pdf
Chap_1_Digital_Image_Fundamentals_DD (2).pdf

Digital imaging
Digital imagingDigital imaging
Digital imaging

image Processing Fundamental Is .ppt
image Processing Fundamental Is     .pptimage Processing Fundamental Is     .ppt
image Processing Fundamental Is .ppt

Image Processing Fundamentals .ppt
Image Processing Fundamentals        .pptImage Processing Fundamentals        .ppt
Image Processing Fundamentals .ppt

A supervised lung nodule classification method using patch based context anal...
A supervised lung nodule classification method using patch based context anal...A supervised lung nodule classification method using patch based context anal...
A supervised lung nodule classification method using patch based context anal...

Introduction to image processing-Class Notes
Introduction to image processing-Class NotesIntroduction to image processing-Class Notes
Introduction to image processing-Class Notes

clinical needs, medical devices, medical
clinical needs, medical devices, medicalclinical needs, medical devices, medical
clinical needs, medical devices, medical

mini prjt
mini prjtmini prjt
mini prjt

1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptx
1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptx1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptx
1-introduction-image-processing_Chapter1-Digital_Image_Processing.pptx

Recent advances digital imaging
Recent advances digital imaging Recent advances digital imaging
Recent advances digital imaging

Digital imaging
Digital imagingDigital imaging
Digital imaging

Digital imaging (2)
Digital imaging (2)Digital imaging (2)
Digital imaging (2)

Digital imaging in dentistry / orthodontics courses
Digital imaging in dentistry / orthodontics courses Digital imaging in dentistry / orthodontics courses
Digital imaging in dentistry / orthodontics courses

General Review Of Algorithms Presented For Image Segmentation
General Review Of Algorithms Presented For Image SegmentationGeneral Review Of Algorithms Presented For Image Segmentation
General Review Of Algorithms Presented For Image Segmentation

computervision1.pdf it is about computer vision
computervision1.pdf it is about computer visioncomputervision1.pdf it is about computer vision
computervision1.pdf it is about computer vision

An Introduction to Digital Image Analysis.pdf
An Introduction to Digital Image Analysis.pdfAn Introduction to Digital Image Analysis.pdf
An Introduction to Digital Image Analysis.pdf

Report medical image processing image slice interpolation and noise removal i...
Report medical image processing image slice interpolation and noise removal i...Report medical image processing image slice interpolation and noise removal i...
Report medical image processing image slice interpolation and noise removal i...

Ch1.pptx
Ch1.pptxCh1.pptx
Ch1.pptx


More from Hossain Md Shakhawat (20)

Recipe for the effective presentaion
Recipe for the effective presentaionRecipe for the effective presentaion
Recipe for the effective presentaion

The Road to Higher study in Japan
The Road to Higher study in JapanThe Road to Higher study in Japan
The Road to Higher study in Japan

Application of dfs
Application of dfsApplication of dfs
Application of dfs

Breadth first search and depth first search
Breadth first search and  depth first searchBreadth first search and  depth first search
Breadth first search and depth first search

Islamic jurisprudence
Islamic jurisprudenceIslamic jurisprudence
Islamic jurisprudence

Introduction to Medical Imaging
Introduction to Medical ImagingIntroduction to Medical Imaging
Introduction to Medical Imaging

Jpeg compression
Jpeg compressionJpeg compression
Jpeg compression

Surah Fatiha
Surah FatihaSurah Fatiha
Surah Fatiha

Hashing
HashingHashing
Hashing

Decision making and looping
Decision making and loopingDecision making and looping
Decision making and looping

Decision making and branching
Decision making and branchingDecision making and branching
Decision making and branching

Digital signature
Digital signatureDigital signature
Digital signature

Caesar cipher
Caesar cipherCaesar cipher
Caesar cipher

Rsa rivest shamir adleman
Rsa rivest shamir adlemanRsa rivest shamir adleman
Rsa rivest shamir adleman

Fundamentals of cryptography
Fundamentals of cryptographyFundamentals of cryptography
Fundamentals of cryptography

Introduction to programming with c,
Introduction to programming with c,Introduction to programming with c,
Introduction to programming with c,

History of computing
History of computingHistory of computing
History of computing

Introduction to Printers
Introduction to PrintersIntroduction to Printers
Introduction to Printers

Input devices_(Mouse and Keyboard)
Input devices_(Mouse and Keyboard)Input devices_(Mouse and Keyboard)
Input devices_(Mouse and Keyboard)

Binary search tree(bst)
Binary search tree(bst)Binary search tree(bst)
Binary search tree(bst)


Recently uploaded

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...EduSkills OECD

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...Nguyen Thanh Tu Collection

ANTI PARKISON DRUGS.pptx
ANTI         PARKISON          DRUGS.pptxANTI         PARKISON          DRUGS.pptx
ANTI PARKISON DRUGS.pptxPoojaSen20

DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUMDEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUMELOISARIVERA8

24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...Nguyen Thanh Tu Collection

Stl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjjStl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjjMohammed Sikander

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....Ritu480198

Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...
Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...
Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...Denish Jangid

The Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDFThe Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDFVivekanand Anglo Vedic Academy

Improved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio AppImproved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio AppCeline George

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽中 央社

Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45MysoreMuleSoftMeetup

How to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 InventoryHow to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 InventoryCeline George

The Liver & Gallbladder (Anatomy & Physiology).pptx
The Liver &  Gallbladder (Anatomy & Physiology).pptxThe Liver &  Gallbladder (Anatomy & Physiology).pptx
The Liver & Gallbladder (Anatomy & Physiology).pptxVishal Singh

demyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxdemyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxMohamed Rizk Khodair

MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...Krashi Coaching

Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptx
Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptxAnalyzing and resolving a communication crisis in Dhaka textiles LTD.pptx
Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptxLimon Prince

Major project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesMajor project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesAmanpreetKaur157993


Recently uploaded (20)

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...

Including Mental Health Support in Project Delivery, 14 May.pdf
Including Mental Health Support in Project Delivery, 14 May.pdfIncluding Mental Health Support in Project Delivery, 14 May.pdf
Including Mental Health Support in Project Delivery, 14 May.pdf

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...

ANTI PARKISON DRUGS.pptx
ANTI         PARKISON          DRUGS.pptxANTI         PARKISON          DRUGS.pptx
ANTI PARKISON DRUGS.pptx

DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUMDEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM

24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...

Stl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjjStl Algorithms in C++ jjjjjjjjjjjjjjjjjj
Stl Algorithms in C++ jjjjjjjjjjjjjjjjjj

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....

Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...
Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...
Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...

The Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDFThe Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDF

Improved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio AppImproved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio App

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽

IPL Online Quiz by Pragya; Question Set.
IPL Online Quiz by Pragya; Question Set.IPL Online Quiz by Pragya; Question Set.
IPL Online Quiz by Pragya; Question Set.

Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45

How to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 InventoryHow to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 Inventory

The Liver & Gallbladder (Anatomy & Physiology).pptx
The Liver &  Gallbladder (Anatomy & Physiology).pptxThe Liver &  Gallbladder (Anatomy & Physiology).pptx
The Liver & Gallbladder (Anatomy & Physiology).pptx

demyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxdemyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptx

MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...
MSc Ag Genetics & Plant Breeding: Insights from Previous Year JNKVV Entrance ...

Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptx
Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptxAnalyzing and resolving a communication crisis in Dhaka textiles LTD.pptx
Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptx

Major project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesMajor project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategies


Introduction to digital image processing

  • 2. Image  Practically every scene around us involves images or image processing.  An image can be defined as a two dimensional signal analog or digital that contains intensity or color information arranged along x and y spatial axis.  It can be defined as a two dimensional function f(x,y) where the x and y are spatial co-ordinates. Here the amplitude of function “ f ” at any pair of co-ordinates (x,y) is called the intensity or gray level or the color of the image at that point. 2
  • 3. Image Types  There are two types of images, analog and digital.  Simple example, let 1 represent white and 0 represent black color. 3
  • 4. Analog Image  Analog image is a two dimensional function of f(s,t) considered in the continuous time domain.  An image can be defined as a two dimensional function f(x,y) where the x and y are spatial co-ordinates. Here the amplitude of function “ f ” at any pair of co-ordinates (x,y) is called the intensity or gray level or the color of the image at that point.  When x, y and the amplitude values of f are continuous quantities then the image is referred as analog image. 4
  • 5. Analog Image  Analog images are the type of images that we, as humans, look at. They also include such things as photographs, paintings, TV images, and all of our medical images recorded on film or displayed on various display devices.  What we see in an analog image is various levels of brightness (or film density) and colors. It is generally continuous and not broken into many small individual pieces.  Analog images are required for human viewing. 5
  • 6. Digital Image  An image can be defined as a two dimensional function f(x,y) where the x and y are spatial co-ordinates. Here the amplitude of function “ f ” at any pair of co-ordinates (x,y) is called the intensity or gray level or the color of the image at that point.  When x, y and the amplitude values of f are all finite and discrete quantities then the image is referred as digital image. Digital image processing refers to the processing of digital images by means of digital computer.  A digital image is composed of a finite number of elements, each of which has a particular location and value. These elements are referred to as pels, pixels, picture elements or image elements 6
  • 7. Digital Image  A digital image is a matrix of many small elements, or pixels.  Each pixel is represented by a numerical value. In general, the pixel value is related to the brightness or color that we will see when the digital image is converted into an analog image for display and viewing. 7
  • 8. Impact Digital Image  Digital images are necessary in all modern medical imaging methods. Because of the following functions that can be performed with digital images : 1. Image reconstruction (CT, MRI, SPECT, PET, etc) 2. Image reformatting (Multi-plane, multi-view reconstructions) 3. Wide (dynamic) range image data acquisition (CT, digital radiography, etc) 4. Image processing (to change contrast and other quality characteristics) 5. Fast image storage and retrieval 6. Fast and high-quality image distribution (teleradiology) 7. Controlled viewing (windowing, zooming, etc) 8. Image analysis (measurements, calculation of various parameters, computer aided diagonisis) 8
  • 10. Image Processing  Some people consider that image processing is a discipline in which both the input and output of a process are images. According to this definition computing average intensity of an image would not be considered as image processing task. However there is no such limitations or boundaries for image processing.  However, one useful paradigm is to consider three types of computerized processes in this continuum: 1. low-level image processing 2. mid-level image processing and 3. high-level image processing 10
  • 11. Level of Image Processing  A low-level process is characterized by the fact that both its inputs and outputs are images such as image preprocessing to reduce noise, contrast enhancement, and image sharpening.  A mid-level process is characterized by the fact that its inputs generally are images, but its outputs are attributes extracted from those images. Such as segmentation (partitioning an image into regions or objects).  A high-level process is characterized by the fact that its inputs generally are attributes extracted from images, but its outputs are images. higher-level processing involves an ensemble of recognized objects, as in image analysis 11
  • 12. Origins of Digital Image Processing  One of the first applications of digital images was in the newspaper industry, when pictures were first sent by submarine cable between London and New York.  Introduction of the Bartlane cable picture transmission system in the early 1920s reduced the time required to transport a picture across the Atlantic from more than a week to less than three hours.  Specialized printing equipment was used to code pictures for transmitting it via cable and then reconstruct the image from the codes at the receiving end. 12
  • 13. Digital Image Processing  Digital image processing can be defined as processing of digital image in a digital manner meaning that using a digital device like computer or others.  The digital image processing is getting more and more importance now a days because of its two major application areas: 1. Improvement of pictorial information for human interpretation. 2. Processing of image data for storage, transmission and representation for autonomous machine perception 13
  • 14. 14
  • 15. Advantages of DIP 1. It improves the visual quality of an image and the distribution of intensity. 2. It can easily process an degraded image of uncoverable objects 3. It can process an image in such a way that the result is more suitable than the original image 4. An image can be easily modified using a number of techniques 5. The image compression technique reduces the amount of data required to represent a digital image. 6. Mathematical and logical operations can be performed on an image like addition subtraction, OR etc 7. The image segmentation is used to detect discontinuity, the presence or absence of specific anomalies like missing components or broken connection path. 15
  • 16. Limitations of DIP 1. Digital image processing requires so much storage and processing power. Progress in the field of digital image processing is dependant on the development of digital computers and supporting technology including data storage, display and transmission 2. Effect of environmental conditions may degrade the image quality 3. It involves various types of redundancy like data redundancy, interpixel redundancy etc 4. Segmentation of nontrivial image is one of the most difficult task in digital image processing 16
  • 17. Fields that Use Digital Image Processing  Unlike humans, who are limited to the visual band of the electromagnetic (EM) spectrum, imaging machines cover almost the entire EM spectrum, ranging from gamma to radio waves. They can operate on images generated by sources that humans are not accustomed to associating with images. 1. Gamma ray imaging 2. X-ray imaging 3. Imaging in an ultraviolet band 4. Imaging in the visible and infrared bands 5. Imaging in the microwave band 6. Imaging in the radio band 17
  • 18.  Gamma ray imaging : imaging based on gamma rays include nuclear medicine and astronomical observations. In nuclear medicine the approach is to inject a patient with a radioactive isotope that emits gamma rays as it decays. Images are produced from these emissions collected by gamma ray detectors.  PET : another major modality of nuclear imaging is positron emission tomography. When a positron meets an electron both an annihilated and two gamma rays are given off. These are detected and a tomographic image is created using the principles of tomography 18
  • 19.  X-ray imaging : X-rays are the oldest sources of EM radiation used for imaging. The best known use of X-ray is medical diagnostics, but they are used extensively in industry and others areas like astronomy. In digital radiography, digital images are obtained by one of the two methods: 1. By digitizing x-ray films 2. By having the x-rays that pass through the patient and fall onto a device such as phosphor screen that convert x- rays into light  Imaging in the ultraviolet band : the major application of imaging in ultraviolet band includes lithography, industrial inspection, microscopy, lasers, biological imaging and astronomical observations. Ultraviolet light is used in fluorescence microscopy, one of the fastest growing areas of microscopy 19
  • 20.  Imaging in the visible and infrared bands : the infrared band is used in conjunction with visual imaging. Another major area of visual processing is remote sensing  Imaging in the microwave band : the major application of imaging in the microwave band is radar. Its unique ability is to collect data over virtually any region at any time without regarding the weather or ambient light conditions  Imaging in the radio band : the major application of imaging in the radio band include medicine and astronomy. In medicine radio waves are used in MRI(magnetic resonance imaging). It places a patient in a powerful magnet and passes radio waves through the body in short pulses 20
  • 21. Ultrasound Image  The ultrasound imaging is used to determine the development of health and to determine the sex of unborn babies in the womb. Ultrasound images are generated using the following procedure: 1. The ultrasound system transmits a high frequency sound pulse into the body usually 1 to 5 MHz 2. The sound wave travel through the body and hit a boundary between tissues. 3. Some of the waves are reflected back to the probe and relayed to the computer. 4. The machine calculates the distance from probe to the tissue boundaries by using the speed of the sound and the time required for each echo’s to return. 5. The system displays the distances and intensities of the echoes on the screen, forming a two dimensional image 21
  • 22.  Transmission electron microscopy (TEM) is a microscopy technique in which a beam of electrons is transmitted through an ultra-thin specimen, interacting with the specimen as it passes through.  An image is formed from the interaction of the electrons transmitted through the specimen.  The image is magnified and focused onto an imaging device, such as a fluorescent screen, on a layer of photographic film  Or to be detected by a sensor such as a CCD camera.  TEMs are capable of imaging at a significantly higher resolution than light microscopes. TEMs find application in cancer research, virology, materials science as well as pollution, nanotechnology, and semiconductor research. Transmission Electron Microscopy 22
  • 23. Transmission Electron Microscopy A TEM image of the polio virus. The polio virus is 30 nm in size 23
  • 24.  A scanning electron microscope (SEM) is a type of electron microscope that produces images of a sample by scanning it with a focused beam of electrons. The electrons interact with atoms in the sample, producing various signals that can be detected and that contain information about the sample's surface topography and composition  SEM can achieve resolution better than 1 nanometer. Specimens can be observed in high vacuum, in low vacuum, in wet conditions (in environmental SEM), and at a wide range of cryogenic or elevated temperatures. Scanning electron microscope 24
  • 25. Scanning electron microscope These pollen grains taken on an SEM show the characteristic depth of field of SEM micrographs. 25
  • 27. Components of Image Processing System  Following figure shows the basic components comprising a typical general-purpose system used for digital image processing. 27
  • 28. Components of the System  Image Sensor: With reference to sensing, two elements are required to acquire digital images: a sensor and a digitizer. The sensor that is sensitive to the energy radiated by the object we wish to image. The second, called a digitizer, is a device for converting the output of the physical sensing device into digital form. For example, in a digital video camera, the sensors produce an electrical output proportional to light intensity. The digitizer converts these outputs to digital data.  Specialized image processing hardware: usually consists of the digitizer just mentioned, plus hardware that performs other primitive operations, such as an arithmetic logic unit (ALU). ALU performs arithmetic and logical operations in parallel on entire images. ALU is used is in averaging images as quickly as they are digitized, for the purpose of noise reduction. This type of hardware sometimes is called a front-end subsystem, and its most distinguishing characteristic is speed in which they process image. 28
  • 29. Components of the System  Computer: in an image processing system is a general-purpose computer and can range from a PC to a supercomputer. In dedicated applications, some times specially designed computers are used to achieve a required level of performance.  Software: for image processing consists of specialized modules that perform specific tasks  Mass storage: capability is a must in image processing applications. Digital storage for image processing applications falls into three principal categories: (1) short-term storage for use during processing, (2) on-line storage for relatively fast recall, and (3) archival storage, characterized by infrequent access.  Image display: it displays images.  Hardcopy devices: used for recording images include laser printers, film cameras, heat-sensitive devices, inkjet units, and digital units, such as optical and CD-ROM disks. 29
  • 30. References  http://en.wikipedia.org/wiki/  Digital Image Processing (3rd Edition): Rafael C. Gonzalez
  • 31. 31 Md. Shakhawat Hossain Student of Department of Computer Science & Engineering University of Rajshahi E-mail: mshimul86@gmail.com
